Cassandra basic

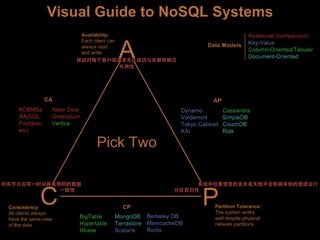

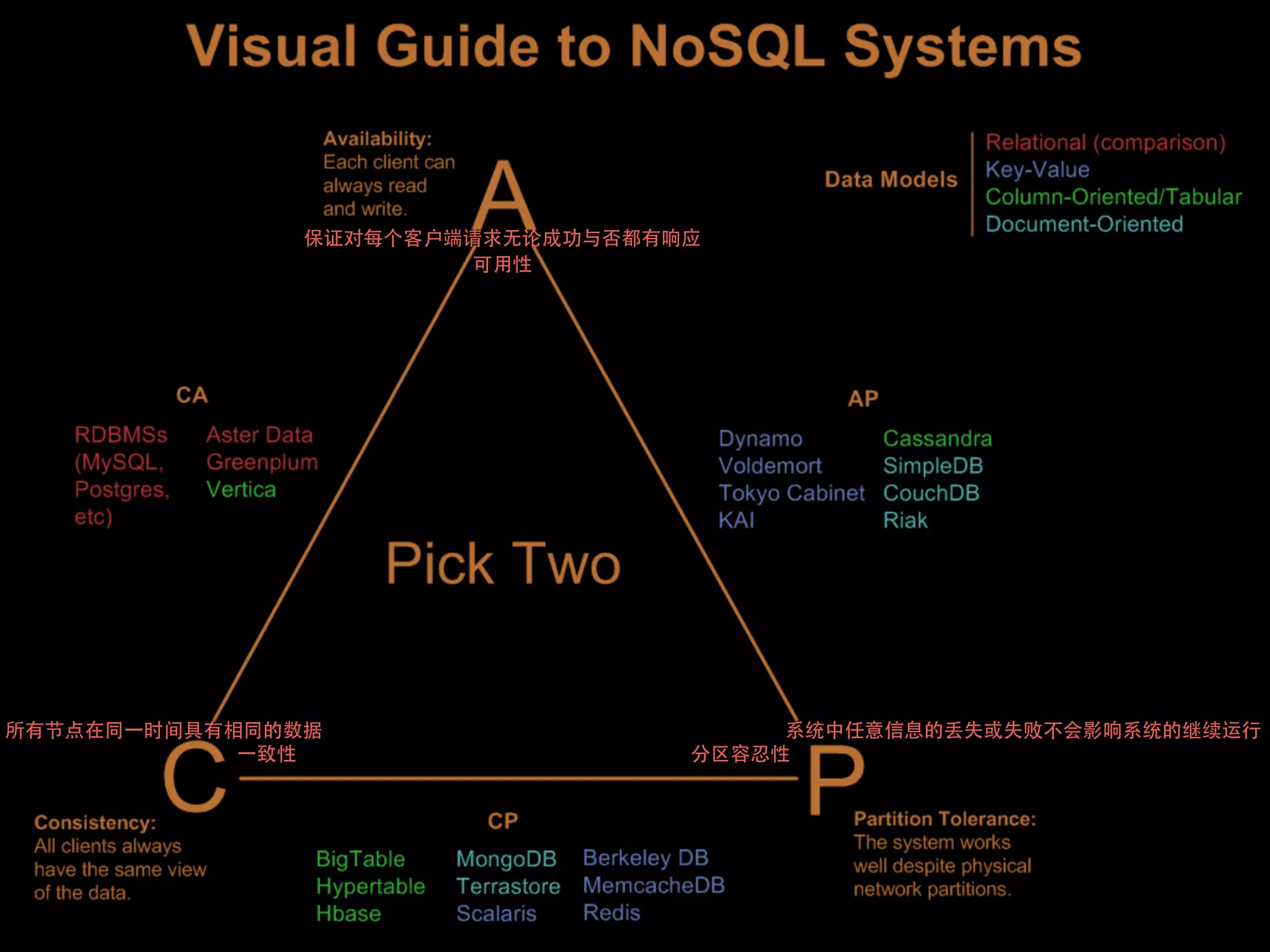

- 3. C：⼀一致性(Consistency) (所有节点在同⼀一时间具有相同的数据) A：可⽤用性(Availability) (保证每个请求不管成功或者失败都有响应) P：分隔容忍(Partition tolerance) (系统中任意信息的丢失或失败不影响系统的继续运作) CA - 满⾜足⼀一致性，可⽤用性的系统，通常在可扩展性上不太强⼤大，⽐比如单点集群。 CP - 满⾜足⼀一致性，分区容忍性的系统，通常性能不是特别⾼高。 AP - 满⾜足可⽤用性，分区容忍性的系统，通常对⼀一致性要求低⼀一些。
- 9. PartitionKey
- 12. key经过hash会定位到hash环上的⼀一个位置, 找到下⼀一个vnode为数据的第⼀一份存储节点. 接下来的两个vnode为另外两个副本. vnodes & replicas 副本1 副本2 副本3
- 16. http://www.datastax.com/dev/blog/virtual-nodes-in-cassandra-1-2 ⼀一个节点⼀一个Token Range …=> VNodes：⼀一个节点多个不连续的⼩小的Token Range 每份数据有三个副本 Node1 16个Partition 3个Replicas 6个节点 每节点=16*3/6=8 Single Token & Virtual Tokens Token Range
- 17. greater number of smaller ranges faster than single token per node to rebuild the replacement node 重新相同数据量，多⽽而⼩小的速度要⽐比⼩小⽽而⼤大的来的快（从三个节点拷⻉贝⽐比从五个节点拷⻉贝要来的慢）
- 20. un-event data distribution event data distribution http://docs.datastax.com/en/archived/cassandra/1.1/docs/cluster_architecture/partitioning.html# Ring：集群所有节点组成的Data Range Token：每个节点都会在Ring上分配⼀一个或多个Token Token Range：(上⼀一个Token,到当前Token]的值范围 Walk Clockwise：顺时针⽅方向⾛走到对应的第⼀一个节点 ✅ 🙅 分别对每个数据中⼼心都做均匀的分配，但是注意不能重叠分配Token
- 21. http://engineeringblog.yelp.com/2016/06/monitoring-cassandra-at-scale.html 数据被映射到带有虚拟节点的Ring圆环，四个节点，每个节点有3个虚拟节点，数据的副本数=3. 假设Ring环⼀一共有12个Token Ranges，并且三个副本以顺指针⽅方向的时钟⽅方式依次顺序地分布 ⽐比如key落在Token Range9，即8-9之间，这条key会被存储在Token=[9,10,11]的[A,B,C]三个节点 正常的健康状态下，每个Token Range都有三个副本。当有节点当掉，某些Token Range副本减少 Token & Replicas Available
- 22. 假设节点A当掉，属于A节点的所有Token Range都会受到影响，⼀一共有9个Token Range丢失 考虑VNodes和副本，每个节点有三个虚拟节点，每条数据有三个副本，所以⼀一共有3*3=9个Token 举例映射到Token=8的key分布的Token=[8,9,10]=[D,A,B]，A当掉后，key can’t replicated to A 同样原先映射到7,8,9,11,12,1,3,4,5（内层可⽤用副本数=2的Token）的key都⽆无法复制/存储到节点A 如果⼀一致性级别=QUORUM，对于所有TokenRanges，仍有2/3的副本可⽤用，操作仍可以正常进⾏行 从当前节点(包括)开始的三个节点， 可⽤用的节点数就表⽰示可⽤用的副本数 8->[8,9,10] -> 可⽤用:[8,10]=2 9->[9,10,11] -> 可⽤用:[8,10]=2 10->[10,11,12]-> 可⽤用:[10,11,12]=3
- 23. 假设节点C⼜又当掉了，会再丢失掉6个Token Ranges。如果⼀一致性级别=QUORUM， 则任何落在这6个Token Ranges的key是不可⽤用的，因为只有1/3，不满⾜足2/3的半数 从当前节点(包括)开始的三个节点， 可⽤用的节点数就表⽰示可⽤用的副本数 8->[8,9,10] -> 可⽤用:[8,10]=2 9->[9,10,11] -> 可⽤用:[10]=1 10->[10,11,12]-> 可⽤用:[10,12]=2
- 24. Replication Strategy & Replication Factor http://distributeddatastore.blogspot.com/2015/08/cassandra-replication.html walking ring clockwise Replication Strategy：如何选择副本（同⼀一个数据中⼼心以及不同数据中⼼心） Replication Factor：副本的数量（不同数据中⼼心可以有不同的副本数量） SimpleStrategy：只适⽤用于⼀一个数据中⼼心，⼀一个机架的场景，rack unaware NetworkTopologyStrategy：多个数据中⼼心，both dc aware and rack aware Data Partitioner：row key的计算⽅方式（Random，Murmur3，ByteOrdered） 决定了数据在集群的节点中如何分布（包括副本） Replication Strategy是副本放置/选择的策略（如何选择副本所在的节点） Partitioner决定了数据在集群中会不会被均匀地分布，主要是⼀一种⽣生成Token的哈希算法 Dynamic Snitch: 监控读延迟，如果遇到性能差的节点，不会把请求路由给它，所有Snitch都默认开启
- 33. If no token is specified for the new node, Cassandra automatically splits the token range of the busiest node in the cluster. The “busy” node streams half of its data to the new node in the cluster. When the node finishes bootstrapping, it is available for client requests. Vnodes simplify many tasks in Cassandra: • You no longer have to calculate and assign tokens to each node. • Rebalancing a cluster is no longer necessary when adding or removing nodes. When a node joins the cluster, it assumes(承担) responsibility for an even(平等) portion of data from the other nodes in the cluster. If a node fails, the load is spread evenly across other nodes in the cluster. • Rebuilding(重建,不是删除) a dead node is faster because it involves(包含,牵涉) every other node(其他所有节点) in the cluster and because data is sent to the replacement node(替代的节点) incrementally(增量发送) instead of waiting until the end of the validation phase. • Improves the use of heterogeneous machines in a cluster. You can assign a proportional number of vnodes to smaller and larger machines When joining the cluster, a new node receives data from all other nodes. The cluster is automatically balanced after the new node finishes bootstrapping. Adding Capacity with VNodes or w/t VNodes
- 34. cluster = Cluster.builder() .addContactPoints("192.168.50.100", "192.168.50.101") .withLoadBalancingPolicy(new DCAwareRoundRobinPolicy("DC1")) .withRetryPolicy(DowngradingConsistencyRetryPolicy.INSTANCE) .build(); session = cluster.connect(keyspace); • Each node handles client requests, but the balancing policy is configurable • Round Robin – evenly distributes queries across all nodes in the cluster, regardless of datacenter • DC-Aware Round Robin – prefers hosts in the local datacenter and only uses nodes in remote datacenters when local hosts cannot be reached • Token-Aware – queries are first sent to local replicas Load Balancing - Driver Retry Policy - Client Driver A policy that defines a default behavior to adopt when a request returns an exception. Such policy allows to centralize the handling of query retries, allowing to minimize the need for exception catching/handling in business code. DowngradingConsistencyRetryPolicy - A retry policy that retries a query with a lower consistency level than the one initially requested.
- 39. CLIENT local Remote DC Aware Round Robin
- 40. CLIENT local Remote DC Aware Round Robin The client attempts to contact nodes in the local datacenter.
- 41. CLIENT local Remote Remote nodes are used when local nodes cannot be reached. DC Aware Round Robin
- 42. The client sends a mutation (insert/update/delete) to a node in the cluster. That node serves as the coordinator for this transaction Writing Data RF=3
- 43. Writing Data The coordinator forwards the update to all replicas. RF=3
- 44. Writing Data The replicas acknowledge that data was written. RF=3
- 45. Writing Data And the coordinator sends a successful response to the client. RF=3
- 46. What if a node is down? Only two nodes respond. The client gets to choose if the write was successful. Write Consistency Level = 2/Quorum RF=3 • ONE Returns data from the nearest replica. • QUORUM Returns the most recent data from the majority of replicas. • ALL Returns the most recent data from all replicas.
- 47. CL = QUORUM Will this write succeed?YES!! A majority of replicas received the mutation. RF=3 What if a node is down?
- 48. CL = QUORUM Will this write succeed?NO. Failed to write a majority of replicas. RF=3 What if a node is down?
- 49. The client can still decide how to proceed CL = QUORUM DataStax Driver = DowngradingConsistencyRetryPolicy Will this write succeed?YES! With consistency downgraded to ONE, the write will succeed. RF=3
- 50. Multi DC Writes The coordinator forwards the mutation to local replicas and a remote coordinator. DC1 RF=3 DC2 RF=3
- 51. The remote coordinator forwards the mutation to replicas in the remote DC Multi DC Writes DC1 RF=3 DC2 RF=3
- 52. All replicas acknowledge the write. Multi DC Writes DC1 RF=3 DC2 RF=3
- 53. Reading Data The client sends a query to a node in the cluster. That node serves as the coordinator. RF=3
- 54. Reading Data The coordinator forwards the query to all replicas. RF=3
- 55. Reading Data The replicas respond with data. RF=3
- 56. Reading Data And the coordinator returns the data to the client. RF=3
- 57. What if the nodes disagree? Data was written with QUORUM when one node was down. The write was successful, but that node missed the update. RF=3 WRITE
- 58. Now the node is back online, and it responds to a read request. It has older data than the other replicas. RF=3 What if the nodes disagree? READ
- 59. The coordinator resolves the discrepancy and sends the newest data to the client. READ REPAIR The coordinator also notifies the “out of date” node that it has old data. The “out of date” node receives updated data from another replica. RF=3 What if the nodes disagree? NEWEST
- 60. What if I’m only reading from a single node? How will Cassandra know that a node has stale data? C* will occasionally request a hash from other nodes to compare. RF=3 Read Repair Chance HASH
- 61. Hints provide a recovery mechanism for writes targeting offline nodes • Coordinator can store a hint if target node for a write is down or fails to acknowledge Hinted Handoff HINT
- 62. The write is replayed when the target node comes online Hinted Handoff HINT
- 63. If all replica nodes are down, the write can still succeed once a hint has been written. Note that if all replica nodes are down at write time, than ANY write will not be readable until the replica nodes have recovered. What if the hint is enough? HINT CL=ANY
- 64. During a read, does the coordinator really forward the query to all replicas? That seems unnecessary! Rapid Read Protection RF=3
- 65. NO Cassandra performs only as many requests as necessary to meet the requested Consistency Level. Cassandra routes requests to the most-responsive replicas. Rapid Read Protection RF=3
- 66. If a replica doesn’t respond quickly, Cassandra will try another node. This is known as an “eager retry” Rapid Read Protection RF=3
