CAMS General Assembly EUMETSAT

C. Retscher, R. Munro, R. Lang, M. Grzegorski,
A. Holdak, A. Kokhanovsky, G. Poli, R. Lindstrot,
R. Huckle, A. Cacciari, T. Marbach, A. Lacan, M. Dobber,
R. Stuhlmann, P. Schluessel, S. Elliott and D. Provost
EUMETSAT's role in
Copernicus and
contribution to CAMS

CAMS General Assembly, Athens 14 June 2016 2

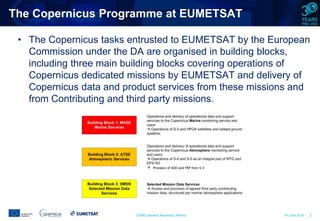

The Copernicus Programme at EUMETSAT
• The Copernicus tasks entrusted to EUMETSAT by the European
Commission under the DA are organised in building blocks,
including three main building blocks covering operations of
Copernicus dedicated missions by EUMETSAT and delivery of
Copernicus data and product services from these missions and
from Contributing and third party missions.
Provision of AOD and FRP from S-3

Status of Copernicus activities at EUMETSAT
• Activities implemented as per 2015 Work Programme, with some
activities postponed to 2016 as a result of J-3 & S-3A launch delays.
The 2017 work plan has been released to EC and under EC approval
process;
• Successful Jason-3 and Sentinel-3 launches. With Jason-3 OGDR
data dissemination to trial users started;
• Approval given by the EC to the Sentinel-3 AOD and FRP products,
with expected operational start of service in 2017;
• Regular Bilateral Commission-EUMETSAT management meetings
are proving effective along with regular attendance at Programme
Committee and User Forum meetings;
• EC has signed data access agreements with the US and Australia,
with other countries under discussion. EUMETSAT is finalising
Technical Operating Agreements (TOA) with NOAA and CSIRO to
cover the technical arrangements for dissemination of Sentinel-3 data

EUMETSAT Missions
Providing Aerosol, Trace-Gases and Cloud Products
Metop Multi-mission product (PMAp)
Metop GOME-2 (Metop-A/B/C 2007-2025)
MSG (Seviri 1997-2025)
Sentinel-3 OLCI, SLSTR (S3 launched 16 Feb 2016)
MTG UVN (Sentinel-4)
MTG FCI & IRS (MTG launch in 2020)
EPS-SG 3MI
EPS-SG UVNS (Sentinel-5)
EPS-SG VII
EPS-SG IAS (EPS-SG launch in 2022)
GOME-2
Global Ozone Monitoring
Experiment
GRAS
GPS Receiver for Atmospheric Sounding
AVHRR
Advanced Very High Resolution
Radiometer
HIRS/4
High-resolution InfraredRadiation Sounder
IASI
InfraredAtmospheric Sounding
Interferometer
AMSU-A1
Advanced Microwave Sounding Unit-A1
MHS
Microwave Humidity Sounder
ASCAT
Advanced SCATterometer
AMSU-A2
Advanced Microwave Sounding Unit-A2

PMAp sensors - EUMETSAT Polar System (EPS)
GOME-2
Global Ozone
Monitoring Experiment
GRAS
GPS Receiver for Atmospheric SoundingAVHRR
Advanced Very High
Resolution Radiometer
HIRS/4
High-resolution Infrared
Radiation Sounder
IASI
Infrared Atmospheric
Sounding Interferometer
AMSU-A1
Advanced Microwave
Sounding Unit-A1
MHS
Microwave Humidity Sounder
ASCAT
Advanced
SCATterometer
AMSU-A2
Advanced Microwave
Sounding Unit-A2

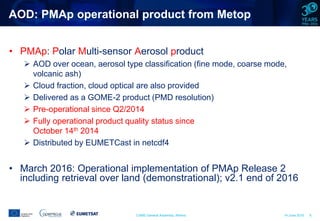

AOD: PMAp operational product from Metop
• PMAp: Polar Multi-sensor Aerosol product
 AOD over ocean, aerosol type classification (fine mode, coarse mode,
volcanic ash)
 Cloud fraction, cloud optical are also provided
 Delivered as a GOME-2 product (PMD resolution)
 Pre-operational since Q2/2014
 Fully operational product quality status since
October 14th 2014
 Distributed by EUMETCast in netcdf4
• March 2016: Operational implementation of PMAp Release 2
including retrieval over land (demonstrational); v2.1 end of 2016

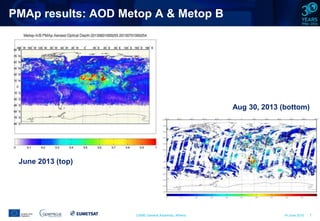

PMAp results: AOD Metop A & Metop B
June 2013 (top)
Aug 30, 2013 (bottom)

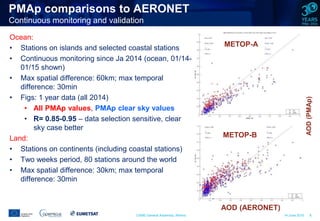

Ocean:
• Stations on islands and selected coastal stations
• Continuous monitoring since Ja 2014 (ocean, 01/14-
01/15 shown)
• Max spatial difference: 60km; max temporal
difference: 30min
• Figs: 1 year data (all 2014)
• All PMAp values, PMAp clear sky values
• R= 0.85-0.95 – data selection sensitive, clear
sky case better
Land:
• Stations on continents (including coastal stations)
• Two weeks period, 80 stations around the world
• Max spatial difference: 30km; max temporal
difference: 30min
PMAp comparisons to AERONET
Continuous monitoring and validation
METOP-A
METOP-B
AOD(PMAp)
AOD (AERONET)

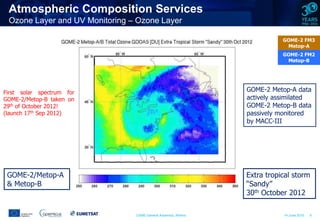

GOME-2 FM3
Metop-A
GOME-2 FM2
Metop-B
GOME-2/Metop-A
& Metop-B
First solar spectrum for
GOME-2/Metop-B taken on
29th of October 2012!
(launch 17th Sep 2012)
Extra tropical storm
“Sandy”
30th October 2012
GOME-2 Metop-A data
actively assimilated
GOME-2 Metop-B data
passively monitored
by MACC-III
Atmospheric Composition Services
Ozone Layer and UV Monitoring – Ozone Layer

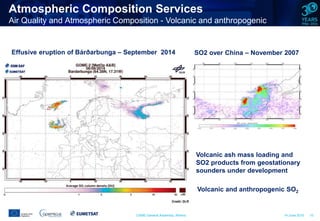

Volcanic ash mass loading and
SO2 products from geostationary
sounders under development
SO2 over China – November 2007Effusive eruption of Bárðarbunga – September 2014
Volcanic and anthropogenic SO2
Atmospheric Composition Services
Air Quality and Atmospheric Composition - Volcanic and anthropogenic
SO2

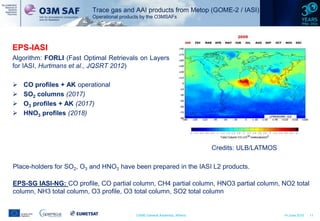

EPS-IASI
Algorithm: FORLI (Fast Optimal Retrievals on Layers
for IASI, Hurtmans et al., JQSRT 2012)
 CO profiles + AK operational
 SO2 columns (2017)
 O3 profiles + AK (2017)
 HNO3 profiles (2018)
Credits: ULB/LATMOS
Place-holders for SO2, O3 and HNO3 have been prepared in the IASI L2 products.
EPS-SG IASI-NG: CO profile, CO partial column, CH4 partial column, HNO3 partial column, NO2 total
column, NH3 total column, O3 profile, O3 total column, SO2 total column
Trace gas and AAI products from Metop (GOME-2 / IASI)
Operational products by the O3MSAFs

Aerosol Products from EPS-SG
EPS-SG 3MI
• Dedicated to aerosol characterisation for:
• Climate monitoring
• Air quality monitoring and forecasting
• Numerical Weather Prediction
• 2D Push-broom radiometer (2200 km swath, 4 km pixel at nadir)
• Provide images of the Earth TOA outgoing radiance using:
• Multi-view (10 to 14 views; angular sampling in the order of 10°)
• Multi-channel (12 channels from 410 to 2130 nm)
• Multi-polarisation (9 channels with -60°, 0°, +60° polarisers)
• POLDER heritage
• A synergetic aerosol product using (VII) METimage, UVN (Sentinel-5) and IAS (IASI-NG)
is also planned

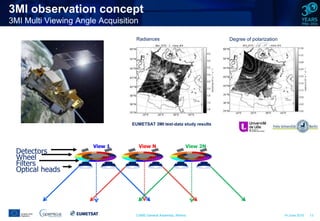

3MI observation concept
3MI Multi Viewing Angle Acquisition
View 1 View N View 2N
Detectors
Wheel
Optical heads
Filters
Radiances Degree of polarization
EUMETSAT 3MI test-data study results

Towards an EPS-SG hyper-instrument
3MI/S5/IASI-NG/VII - MAP
Combining co-locations of VII/Sentinel5/IASI-NG observations with co-registered multi-
viewing observations (3MI) on 3MI multi-viewing fixed grid.
EPS-SG Platform
Sentinel-5
UV-Vis-SWIR hyper spectral sounder
IASI-NG
IR hyper spectral sounder
VII
Very high spatial resolution,
multi channel imager
3MI
Multi-viewing,
Multi-polarisation,
Multi-channel imager
Co-location
and co-
registration 0.29 – 15mm
0.5 – 7 km2
~ 19000 channels
EPS-SG
hyper-instrument
Initial product: Multi-sensor Aerosol product (MAP)

EUMETSAT 3MI/Multi-Sensor products
Product chain
PGS*
3MI Level-1B
EPS-SG Multi-viewing, Multi-spectral, co-registration and co-location
Multi-Sensor
S5/VII/
IRS/3MI
3MI L2
Aerosol/Cloud
3MI L1C
EPS-SG Multi-
Sensor Aerosol
VII-cloud
PGS*
3MI-L2 PGF EPS-SG L2 PGF
from ATBD-aerosol/cloud
3MI-L1C PGF
PGS*
3MI- L2 PGF
3MI- L1C PGF
MAP L2 PGF

PGS*
EPS-SG Multi-viewing,
Multi-spectral, co-
registration and co-location
Multi-Sensor
S5/VII/
IRS/3MI
EPS-SG Multi-
Sensor Aerosol
EPS-SG L2 PGF
EPS-SG L2 Day-1 aerosol products (LUT based
approach) from 3MI and multi-sensor retrievals
AC-team 3MI/Multi-Sensor EPS-SG
Data products
efammmm
0 iknm 
Aerosol products Units or
flags
References Comments
1.1 Aerosol height km Buriez et al.
(1997);
Ferlay et al.
(2010);
Kokhanovsky and
Rozanov(2010);
van Didienhoven
et al. (2013)
From q at the
wavelengths
410nm/865nm and
from the ratio of
reflectances at the
wavelengths 763,
765nm
1.2 Aerosol type 1-marine
2-continental
3- polluted
4-smoke
5-dust
6-volcanic
ash
7-uncertain
Dubovik et al.
(2002)
Levy (2009)
The mixed aerosol
type can be a mixture
of any types of
aerosols
1.3 Effective radius of particles mm Dubovik et al.
(2002)
Kokhanovsky and
de Leeuw (2009)
Most probable value:
0.1-4
2.1 Aerosol optical thickness - Kokhanovsky and
de Leeuw (2009)
0.05 - 1.0
2.2 Single scattering albedo - Dubovik et al.
(2002)
0.8 - 1.0
2.3 Refractive index - Dubovik et al.
(2002)
1) n=1.34-1.64; 2)k=0-
0.03

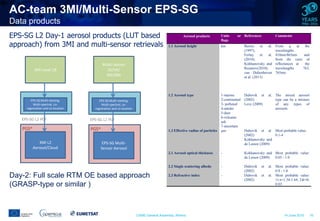

efammmm
0
PGS*
EPS-SG Multi-viewing,
Multi-spectral, co-
registration and co-location
3MI Level 1B
3MI L2
Aerosol/Cloud
EPS-SG L2 PGF
Day-2: Full scale RTM OE based approach
(GRASP-type or similar )

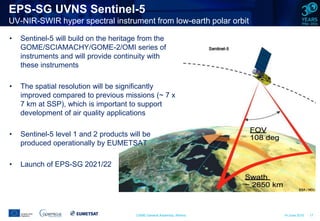

EPS-SG UVNS Sentinel-5
UV-NIR-SWIR hyper spectral instrument from low-earth polar orbit
• Sentinel-5 will build on the heritage from the
GOME/SCIAMACHY/GOME-2/OMI series of
instruments and will provide continuity with
these instruments
• The spatial resolution will be significantly
improved compared to previous missions (~ 7 x
7 km at SSP), which is important to support
development of air quality applications
• Sentinel-5 level 1 and 2 products will be
produced operationally by EUMETSAT
• Launch of EPS-SG 2021/22

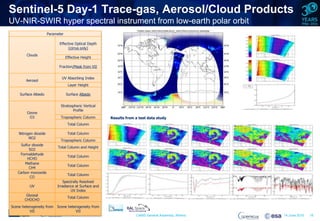

Sentinel-5 Day-1 Trace-gas, Aerosol/Cloud Products
UV-NIR-SWIR hyper spectral instrument from low-earth polar orbit
Results from a test data study
Parameter
Clouds
Effective Optical Depth
(cirrus only)
Effective Height
Fraction/Mask from VII
Aerosol
UV Absorbing Index
Layer Height
Surface Albedo Surface Albedo
Ozone
O3
Stratospheric Vertical
Profile
Tropospheric Column
Total Column
Nitrogen dioxide
NO2
Total Column
Tropospheric Column
Sulfur dioxide
SO2
Total Column and Height
Formaldehyde
HCHO
Total Column
Methane
CH4
Total Column
Carbon monoxide
CO
Total Column
UV
Spectrally Resolved
Irradiance at Surface and
UV Index
Glyoxal
CHOCHO
Total Column
Scene heterogeneity from
VII
Scene heterogeneity from
VII

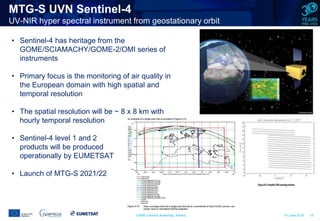

• Sentinel-4 has heritage from the
GOME/SCIAMACHY/GOME-2/OMI series of
instruments
• Primary focus is the monitoring of air quality in
the European domain with high spatial and
temporal resolution
• The spatial resolution will be ~ 8 x 8 km with
hourly temporal resolution
• Sentinel-4 level 1 and 2
products will be produced
operationally by EUMETSAT
• Launch of MTG-S 2021/22
MTG-S UVN Sentinel-4
UV-NIR hyper spectral instrument from geostationary orbit

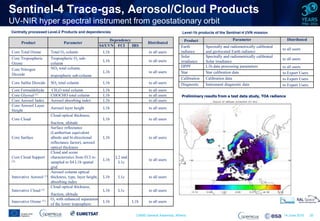

Sentinel-4 Trace-gas, Aerosol/Cloud Products
UV-NIR hyper spectral instrument from geostationary orbit
Preliminary results from a test data study, TOA radiance
Product Parameter Distributed
Earth
radiance
Spectrally and radiometrically calibrated
and geolocated Earth radiance
to all users
Solar
irradiance
Spectrally and radiometrically calibrated
Solar irradiance
to all users
DPPF L1b data processing parameters to all users
Star Star calibration data to Expert Users
Calibration Calibration data to Expert Users
Diagnostic Instrument diagnostic data to Expert Users
Level-1b products of the Sentinel-4 UVN mission
Product Parameter
Dependency
Distributed
S4/UVN FCI IRS
Core Total Ozone Total O3 column L1b to all users
Core Tropospheric
Ozone
Tropospheric O3 sub-
column
L1b to all users
Core Nitrogen
Dioxide
NO2 total column,
tropospheric sub-column
L1b to all users
Core Sulfur Dioxide SO2 total column L1b to all users
Core Formaldehyde CH2O total column L1b to all users
Core Glyoxal (1) CHOCHO total column L1b to all users
Core Aerosol Index Aerosol absorbing index L1b to all users
Core Aerosol Layer
Height
Aerosol layer height L1b to all users
Core Cloud
Cloud optical thickness,
fraction, altitude
L1b to all users
Core Surface
Surface reflectance
(Lambertian equivalent
albedo and bi-directional
reflectance factor), aerosol
optical thickness
L1b to all users
Core Cloud Support
(2)
Cloud and scene
characteristics from FCI re-
sampled to S4 L1b spatial
grid
L1b
L2 and
L1c
to all users
Innovative Aerosol (1)
Aerosol column optical
thickness, type, layer height,
absorbing index
L1b L1c to all users
Innovative Cloud (1)
Cloud optical thickness,
fraction, altitude
L1b L1c to all users
Innovative Ozone (1) O3 with enhanced separation
of the lower troposphere
L1b L1b to all users
Centrally processed Level-2 Products and dependencies

Atmosphere Data Services
Sentinel-3, SNPP
Atmosphere Data Service Satellite Instrument
Timeliness
NRT STC NTC
Aerosol Optical Depth
Sentinel-3 SLSTR X
S-NPP VIIRS X
Fire Radiative Power Sentinel-3 SLSTR X
Ozone Nadir Profile S-NPP OMPS X
Ozone Total Column S-NPP OMPS X
• Geophysical parameters/type mapping of products delivered by the
EUMETSAT Copernicus Atmosphere Data Service to the
satellites/missions, instruments or set of instruments, and
timeliness of the corresponding products

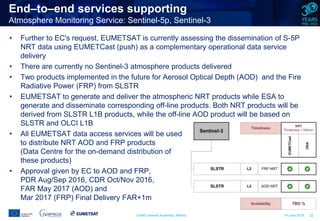

End–to–end services supporting
Atmosphere Monitoring Service: Sentinel-5p, Sentinel-3
• Further to EC's request, EUMETSAT is currently assessing the dissemination of S-5P
NRT data using EUMETCast (push) as a complementary operational data service
delivery
• There are currently no Sentinel-3 atmosphere products delivered
• Two products implemented in the future for Aerosol Optical Depth (AOD) and the Fire
Radiative Power (FRP) from SLSTR
• EUMETSAT to generate and deliver the atmospheric NRT products while ESA to
generate and disseminate corresponding off-line products. Both NRT products will be
derived from SLSTR L1B products, while the off-line AOD product will be based on
SLSTR and OLCI L1B
• All EUMETSAT data access services will be used
to distribute NRT AOD and FRP products
(Data Centre for the on-demand distribution of
these products)
• Approval given by EC to AOD and FRP,
PDR Aug/Sep 2016, CDR Oct/Nov 2016,
FAR May 2017 (AOD) and
Mar 2017 (FRP) Final Delivery FAR+1m

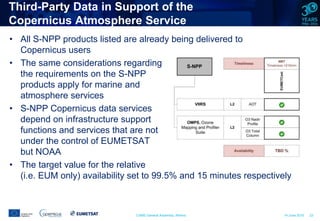

Third-Party Data in Support of the
Copernicus Atmosphere Service
• All S-NPP products listed are already being delivered to
Copernicus users
• The same considerations regarding
the requirements on the S-NPP
products apply for marine and
atmosphere services
• S-NPP Copernicus data services
depend on infrastructure support
functions and services that are not
under the control of EUMETSAT
but NOAA
• The target value for the relative
(i.e. EUM only) availability set to 99.5% and 15 minutes respectively

NOAA OMPS/VIIRS
Data Request and Status
• Receiving OMPS Nadir Profiles in BUFR
• Receiving OMPS Total Column EDRs (in BUFR)
• Ongoing discussion on a dedicated "volcanic ash" product from OMPS
• Recommended use of OMPS INCTO products for now; source for BUFR Total Column
Ozone Map products
• Current operational OMPS products are still from the Multiple Triplet algorithm. They
include an Absorbing Aerosol Index and an SO2 Index. SO2 Index channels are weak
and the results are sensitive to instrument noise/systematic bias
• NOAA/NASA are moving forward with an implementation of the V8 Total Ozone
Retrieval Algorithm to be followed by the implementation of Kai Yang's Linear Fit SO2
algorithm developed for OMI
• Both algorithms running at STAR and an evaluation of the products is requested. A test
day's processing can be supplied in NetCDF files (see Figs. next page)
• Plan to create the full month of January 2016 as part of our Algorithm Readiness Review
and are working with the NDE BUFR team to switch the total ozone to this new product
and add the SO2 estimates as well
• NOAA developing a volcanic ash product from VIIRS that will become operational in
April-July time frame.

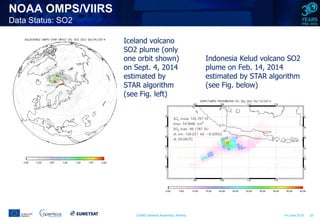

NOAA OMPS/VIIRS
Data Status: SO2
Indonesia Kelud volcano SO2
plume on Feb. 14, 2014
estimated by STAR algorithm
(see Fig. below)
Iceland volcano
SO2 plume (only
one orbit shown)
on Sept. 4, 2014
estimated by
STAR algorithm
(see Fig. left)

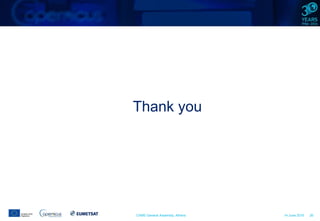

Thank you

CAMS General Assembly EUMETSAT

More Related Content

What's hot

Viewers also liked

Similar to CAMS General Assembly EUMETSAT

More from Copernicus ECMWF

Recently uploaded

CAMS General Assembly EUMETSAT
