1. Caching and tuning fun
for high scalability
Wim Godden
Cu.be Solutions

2. Who am I ?
Wim Godden (@wimgtr)
Founder of Cu.be Solutions (http://cu.be)
Open Source developer since 1997
Developer of OpenX, PHPCompatibility, ...
Speaker at PHP and Open Source conferences

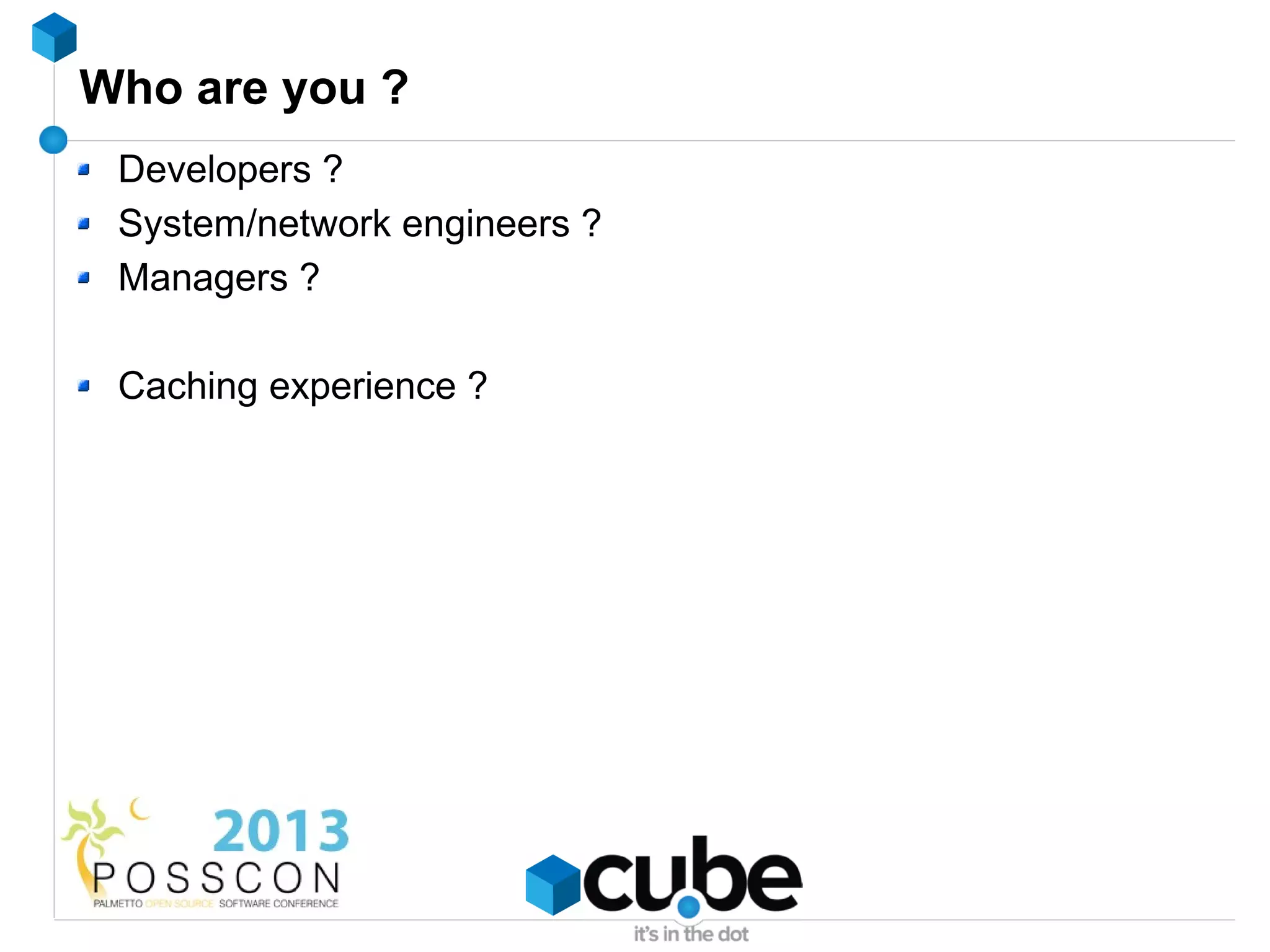

3. Who are you ?
Developers ?
System/network engineers ?
Managers ?
Caching experience ?

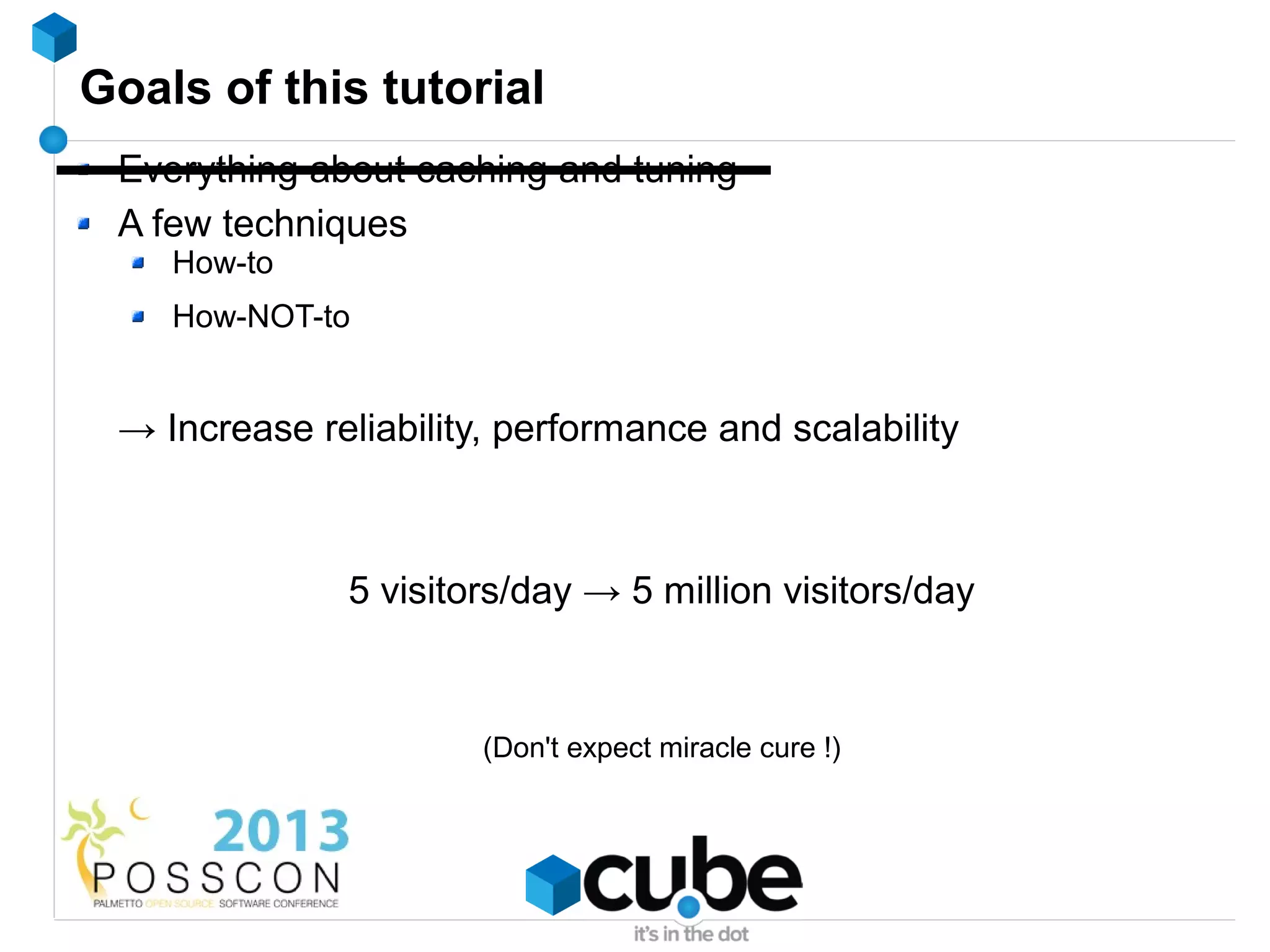

4. Goals of this tutorial
Everything about caching and tuning
A few techniques
How-to
How-NOT-to
→ Increase reliability, performance and scalability
5 visitors/day → 5 million visitors/day
(Don't expect miracle cure !)

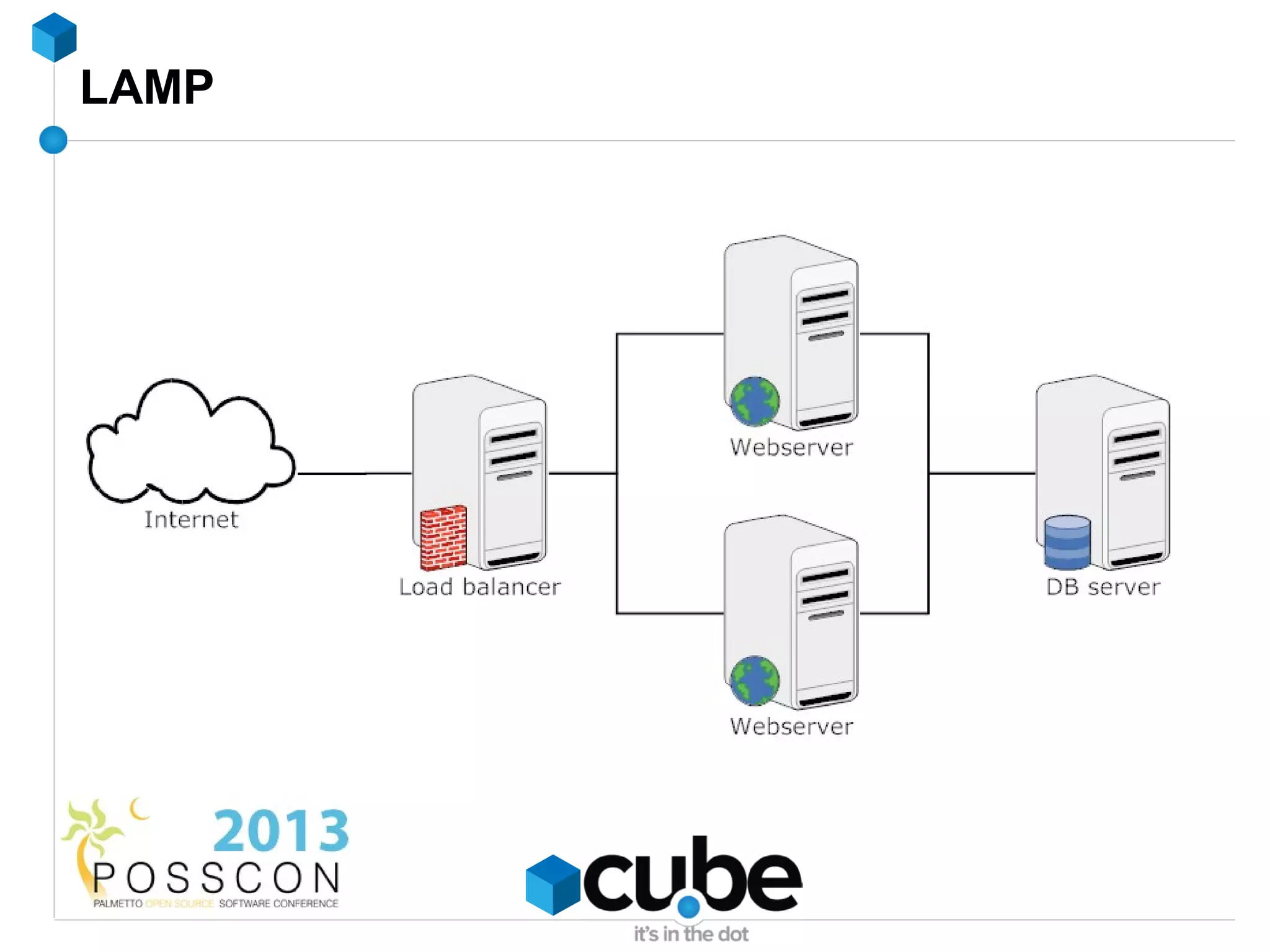

5. LAMP

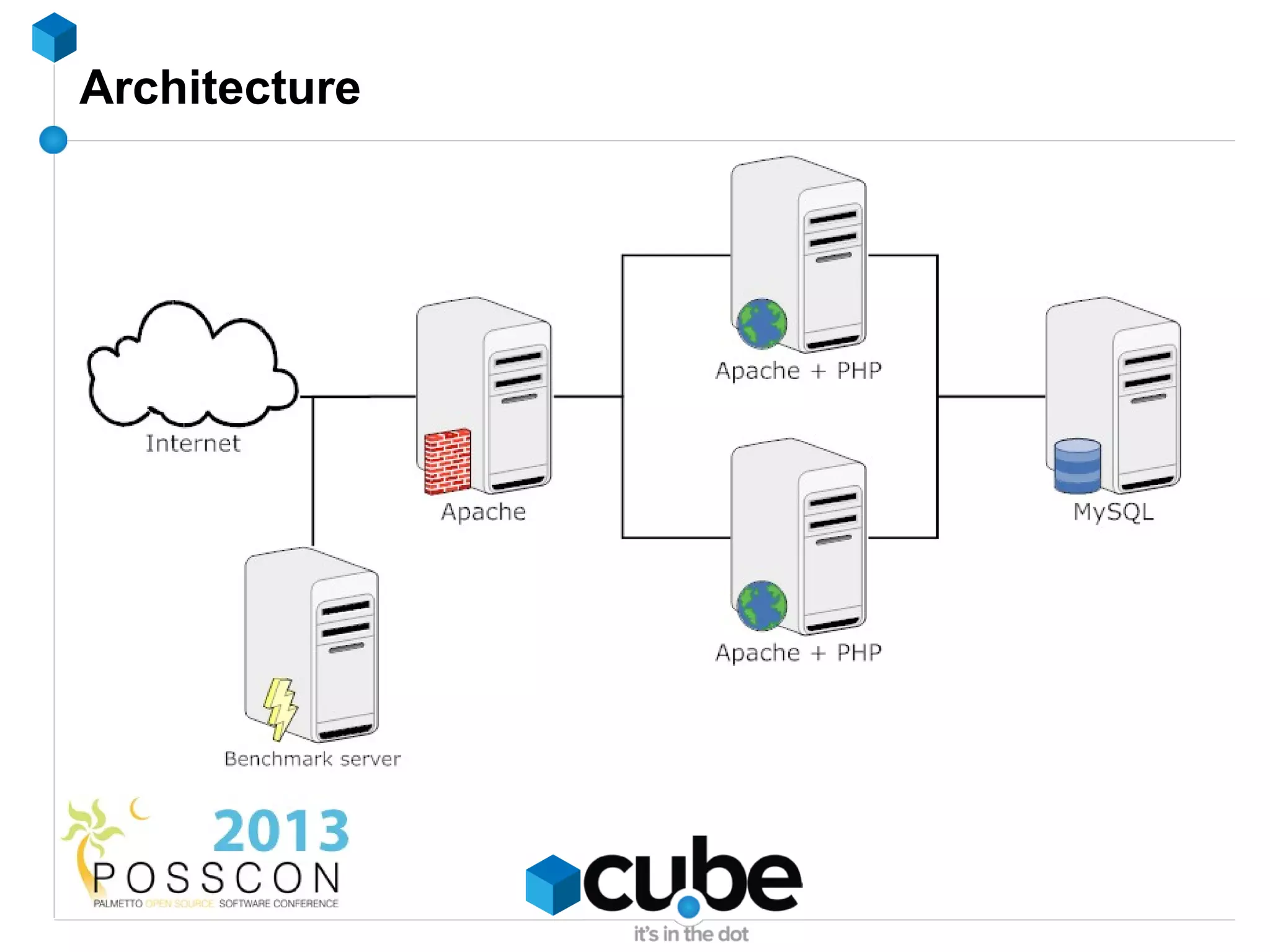

6. Architecture

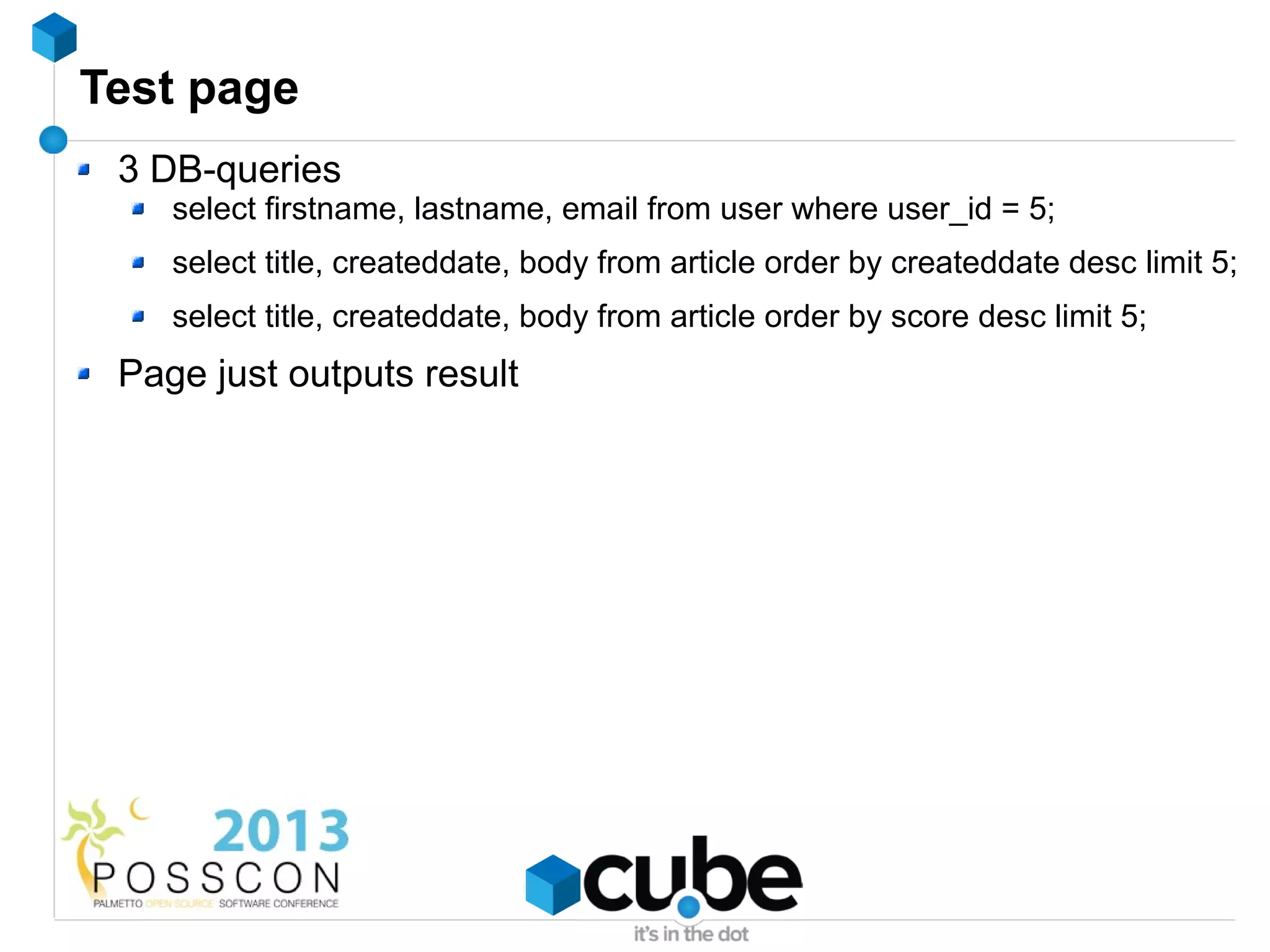

7. Test page
3 DB-queries
select firstname, lastname, email from user where user_id = 5;
select title, createddate, body from article order by createddate desc limit 5;
select title, createddate, body from article order by score desc limit 5;
Page just outputs result

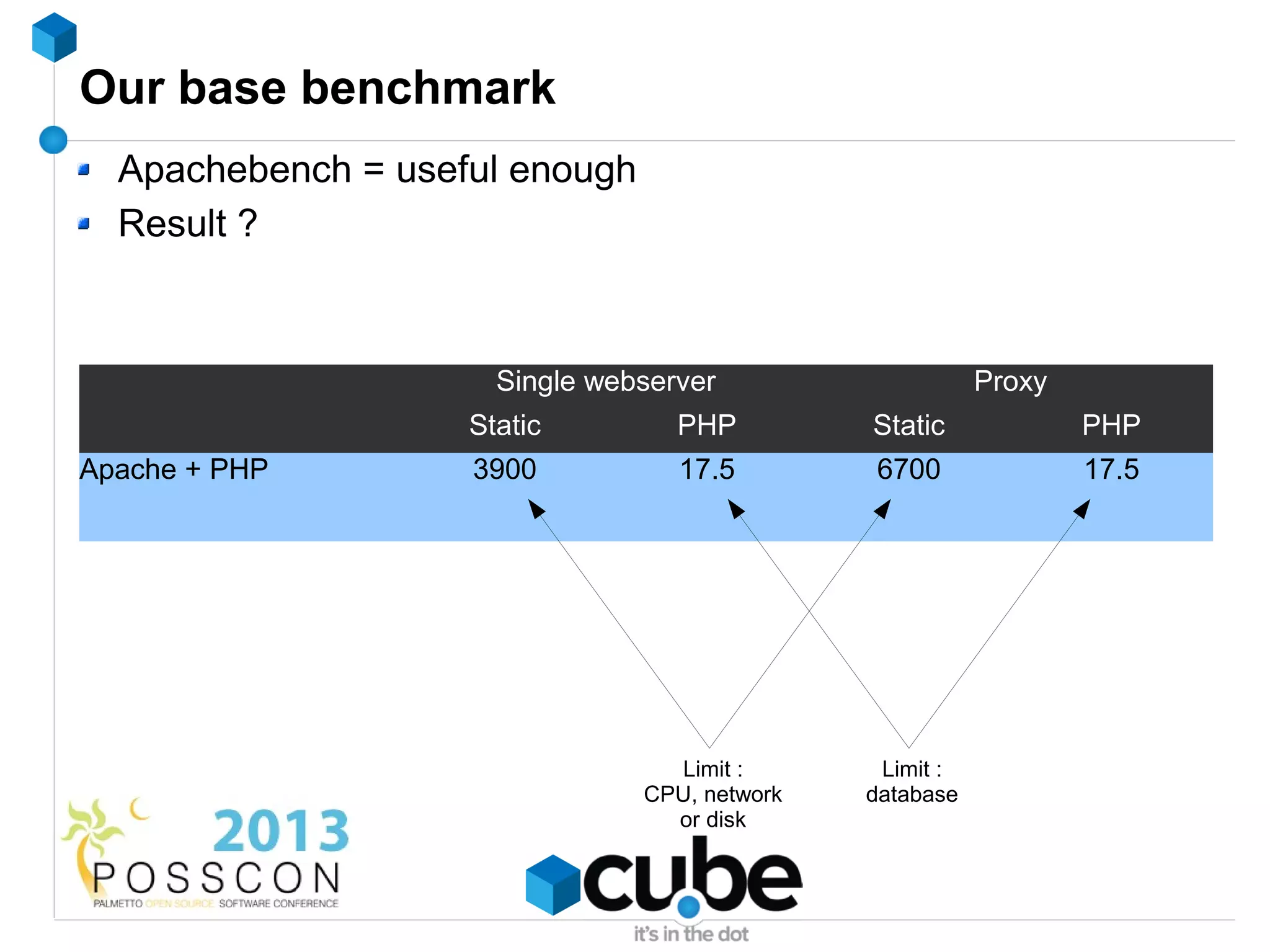

8. Our base benchmark
Apachebench = useful enough
Result ?
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Limit : Limit :
CPU, network database
or disk

9. Caching

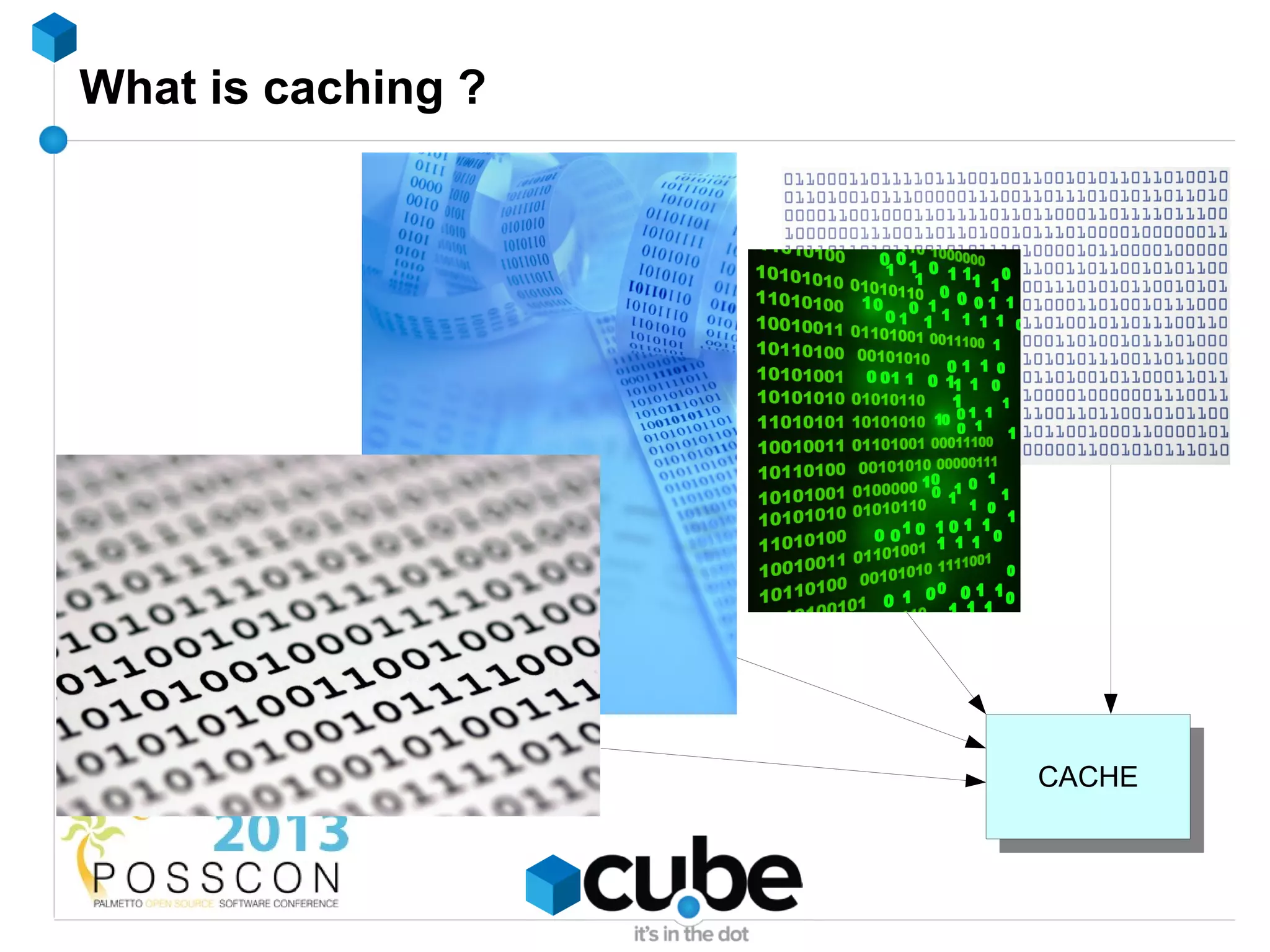

10. What is caching ?
CACHE
CACHE

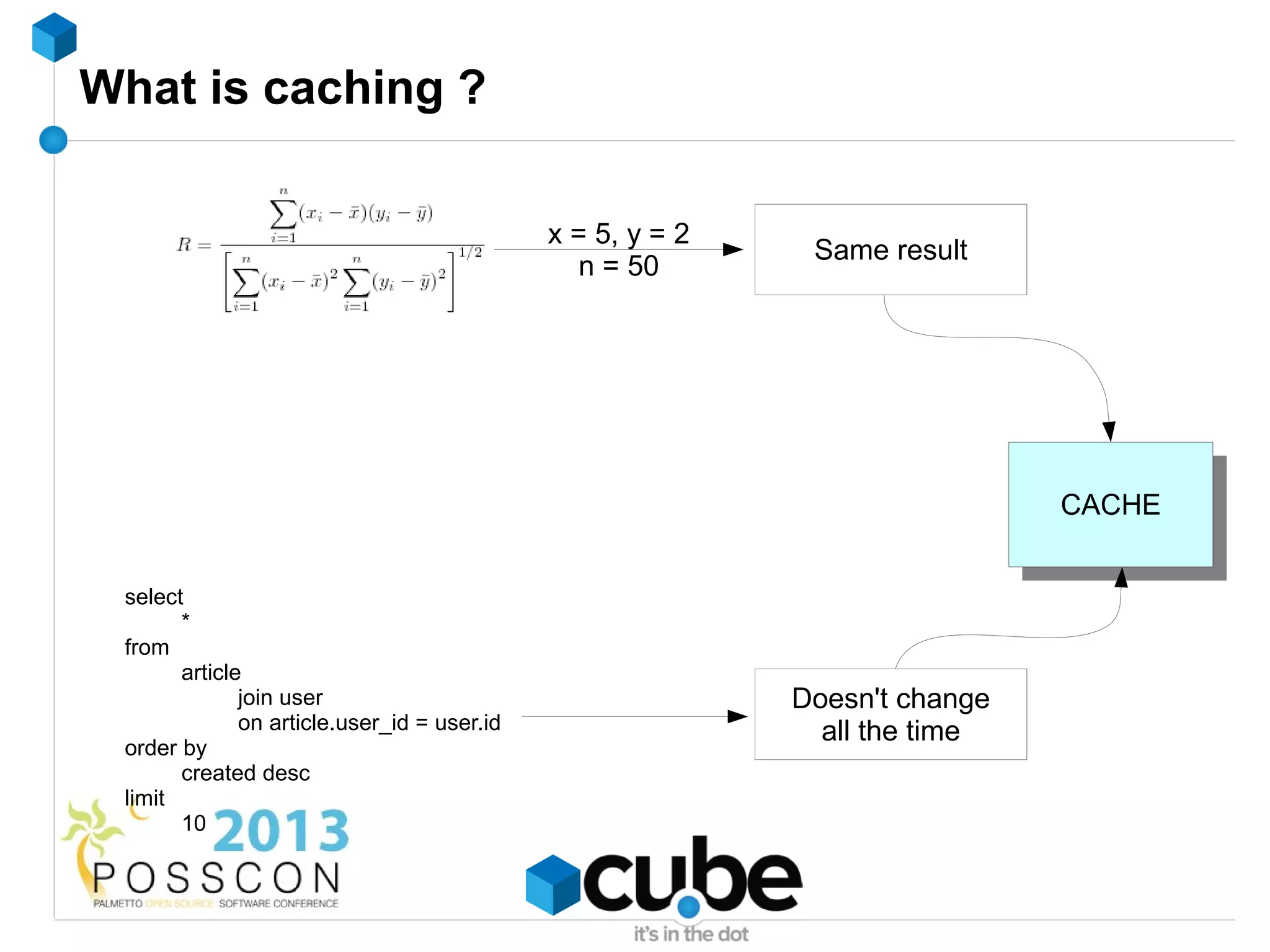

11. What is caching ?
x = 5, y = 2
Same result
n = 50
CACHE
CACHE
select
*
from
article
join user Doesn't change
on article.user_id = user.id all the time
order by
created desc
limit
10

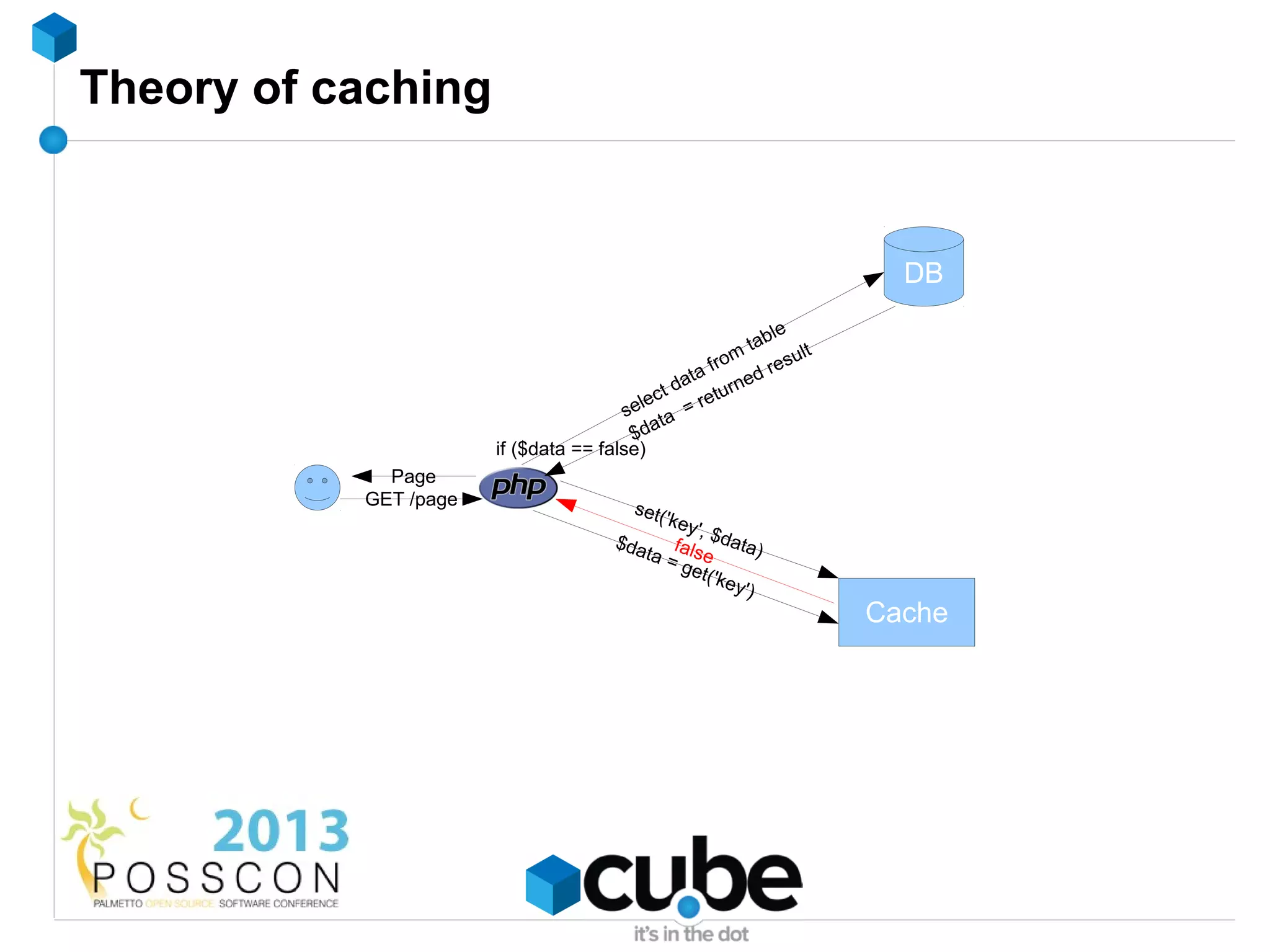

12. Theory of caching
DB
le
tab
fro
m ult
ta d re s
da turne
e ct re
sel ta =
$da
if ($data == false)
Page
GET /page set(
'key
',
$da fal $data)
ta = se
get(
'key
')
Cache

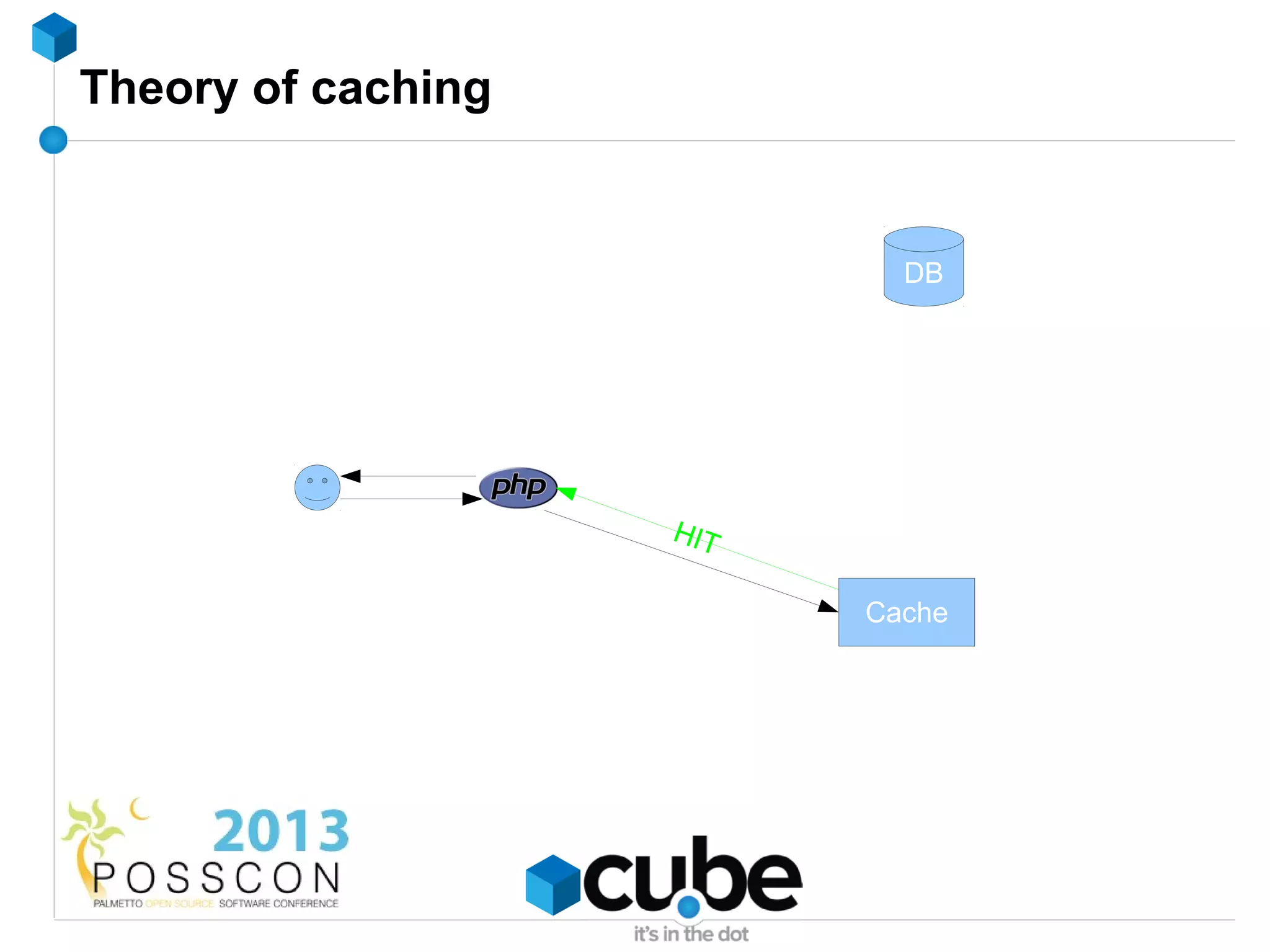

13. Theory of caching
DB
HIT
Cache

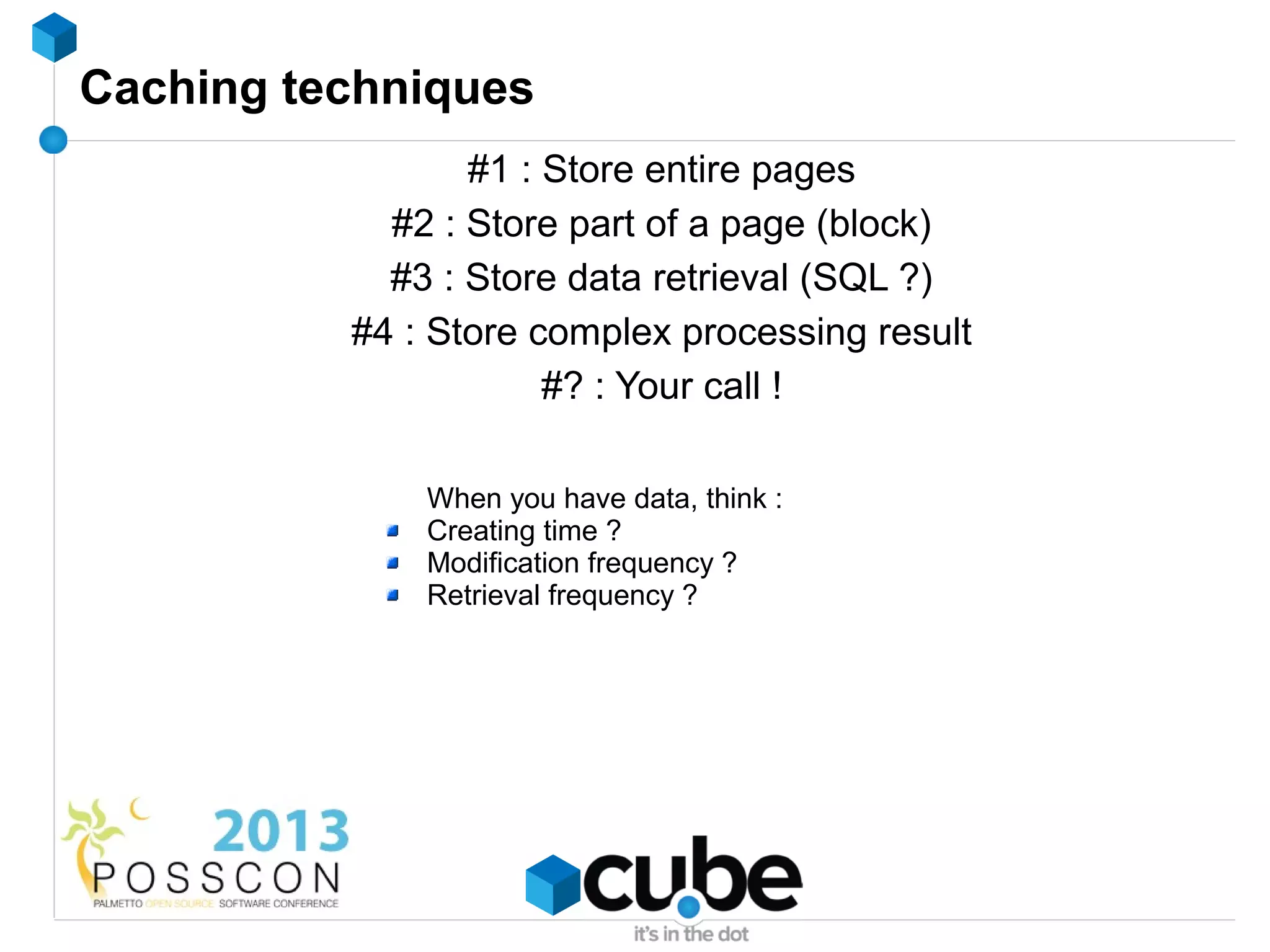

14. Caching techniques
#1 : Store entire pages
#2 : Store part of a page (block)
#3 : Store data retrieval (SQL ?)
#4 : Store complex processing result
#? : Your call !
When you have data, think :
Creating time ?
Modification frequency ?
Retrieval frequency ?

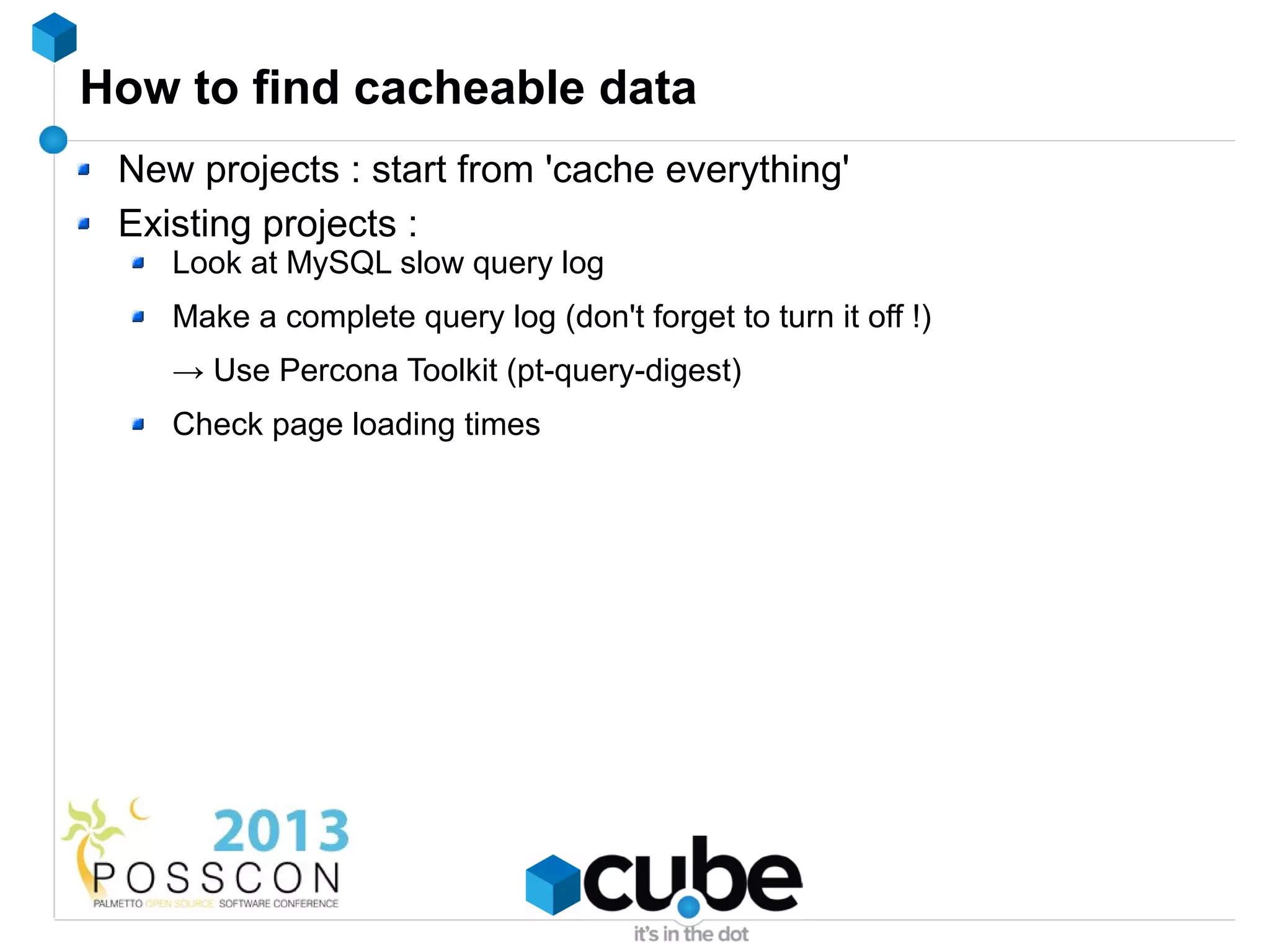

15. How to find cacheable data
New projects : start from 'cache everything'
Existing projects :
Look at MySQL slow query log
Make a complete query log (don't forget to turn it off !)
→ Use Percona Toolkit (pt-query-digest)
Check page loading times

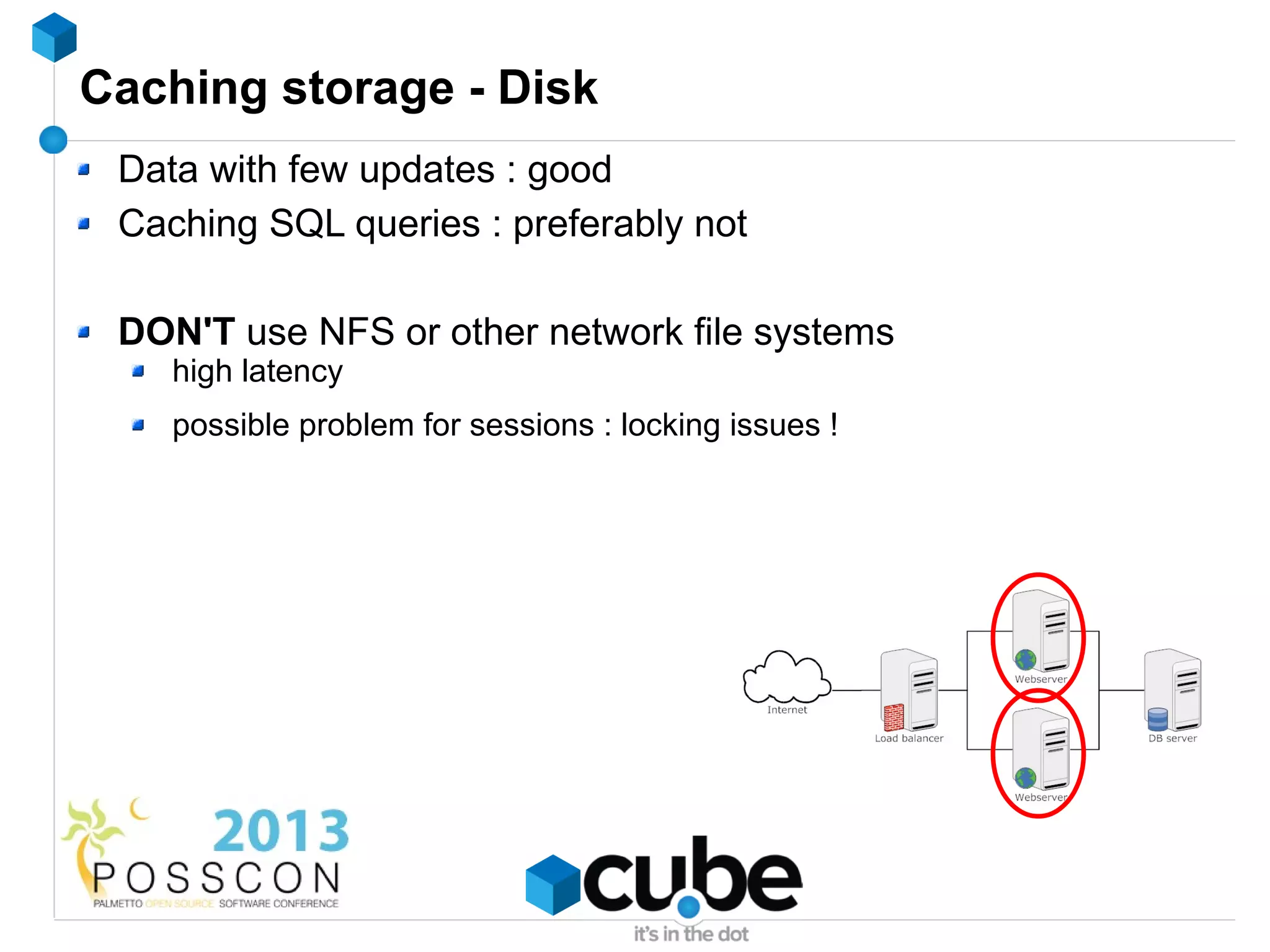

16. Caching storage - Disk
Data with few updates : good
Caching SQL queries : preferably not
DON'T use NFS or other network file systems
high latency
possible problem for sessions : locking issues !

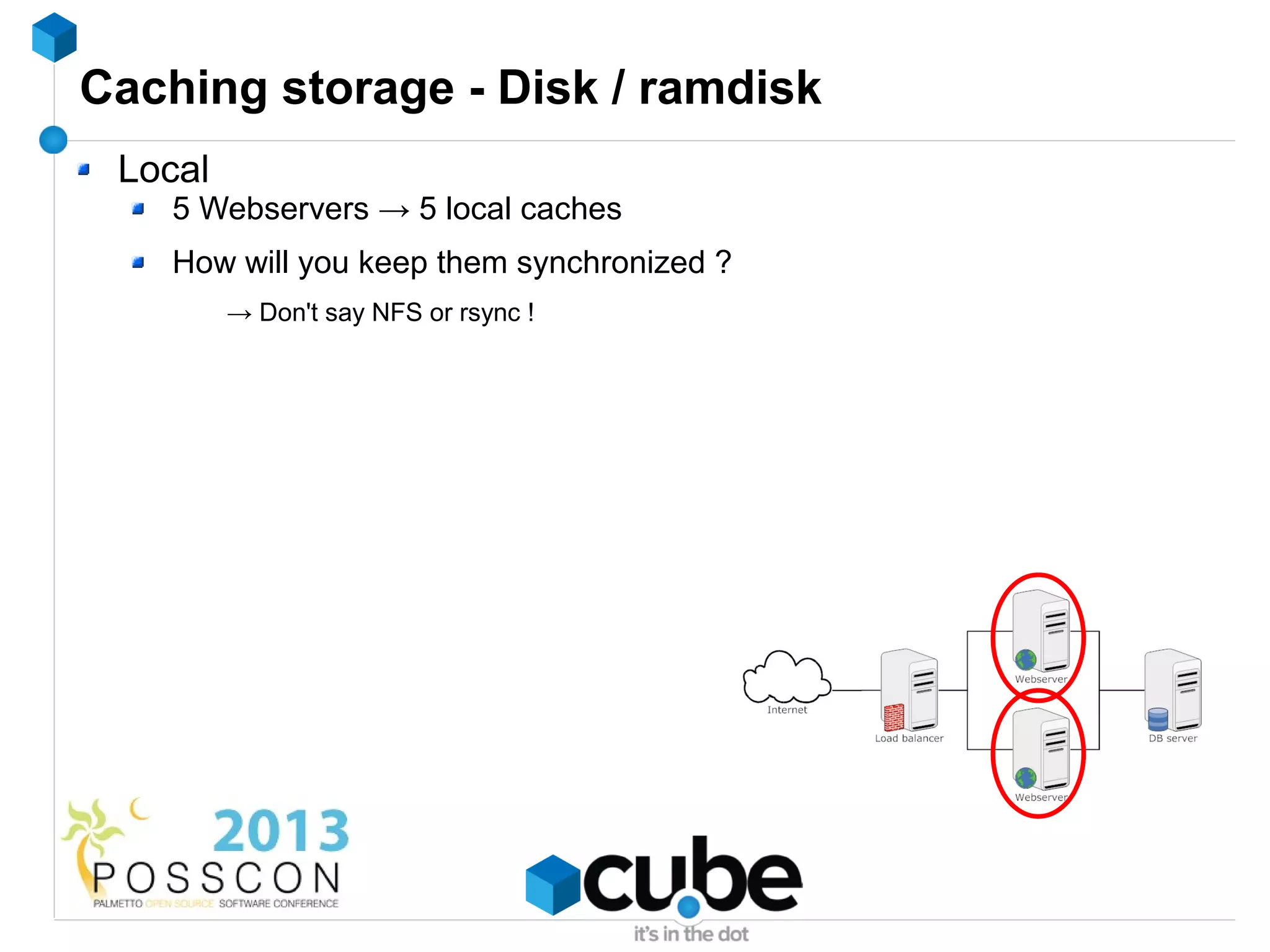

17. Caching storage - Disk / ramdisk
Local
5 Webservers → 5 local caches
How will you keep them synchronized ?
→ Don't say NFS or rsync !

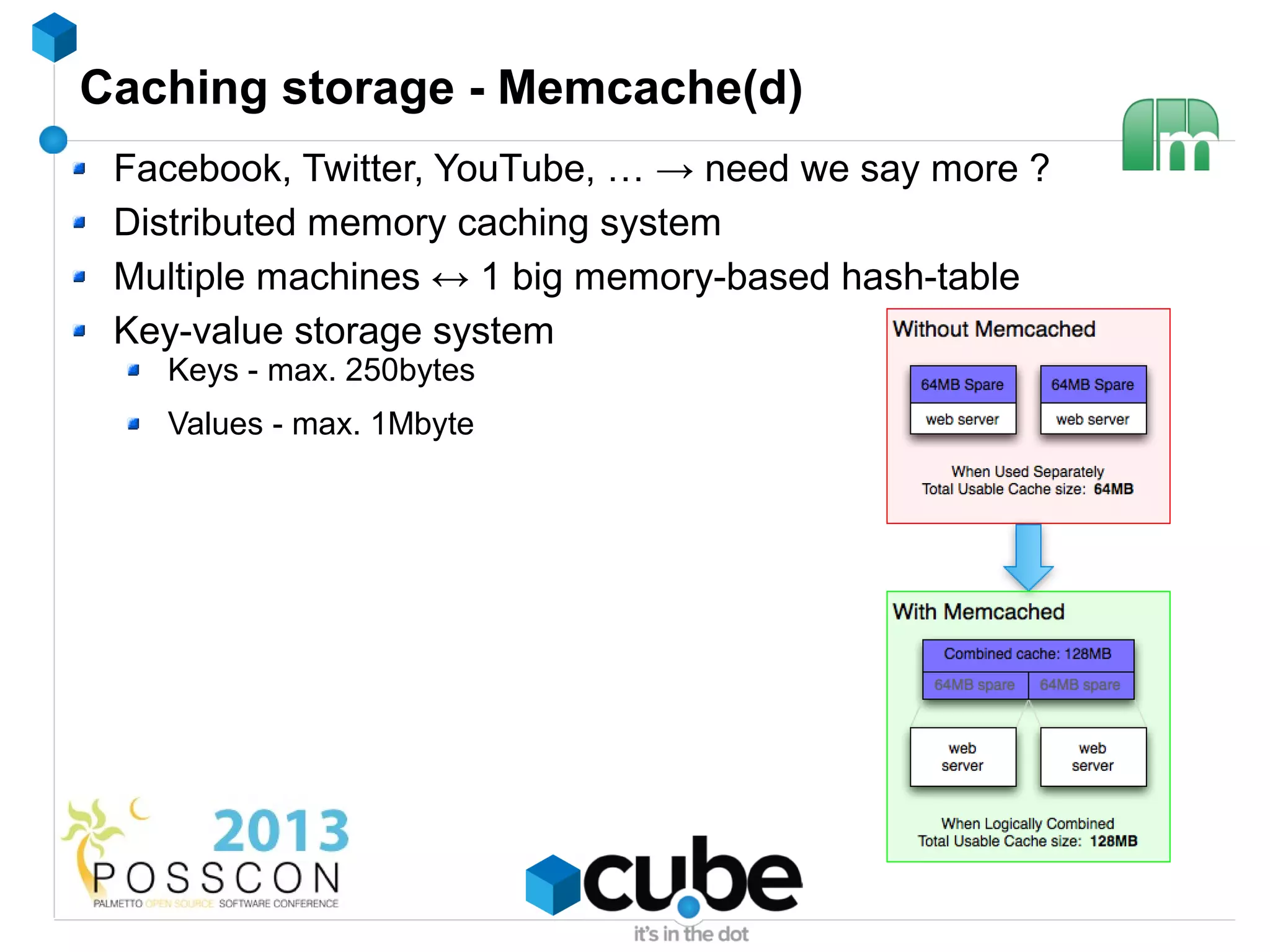

18. Caching storage - Memcache(d)
Facebook, Twitter, YouTube, … → need we say more ?
Distributed memory caching system
Multiple machines ↔ 1 big memory-based hash-table
Key-value storage system
Keys - max. 250bytes
Values - max. 1Mbyte

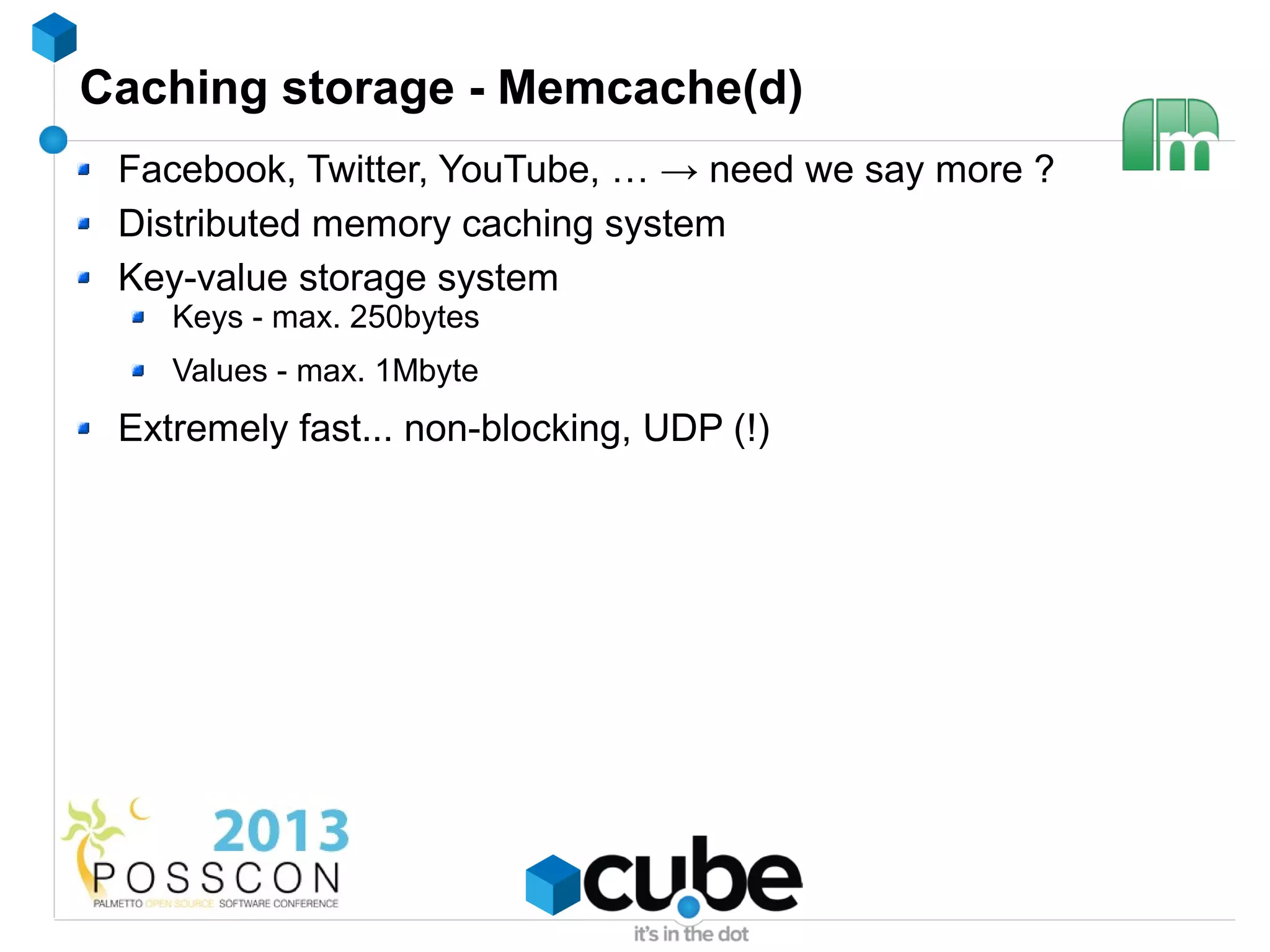

19. Caching storage - Memcache(d)
Facebook, Twitter, YouTube, … → need we say more ?
Distributed memory caching system
Key-value storage system
Keys - max. 250bytes
Values - max. 1Mbyte
Extremely fast... non-blocking, UDP (!)

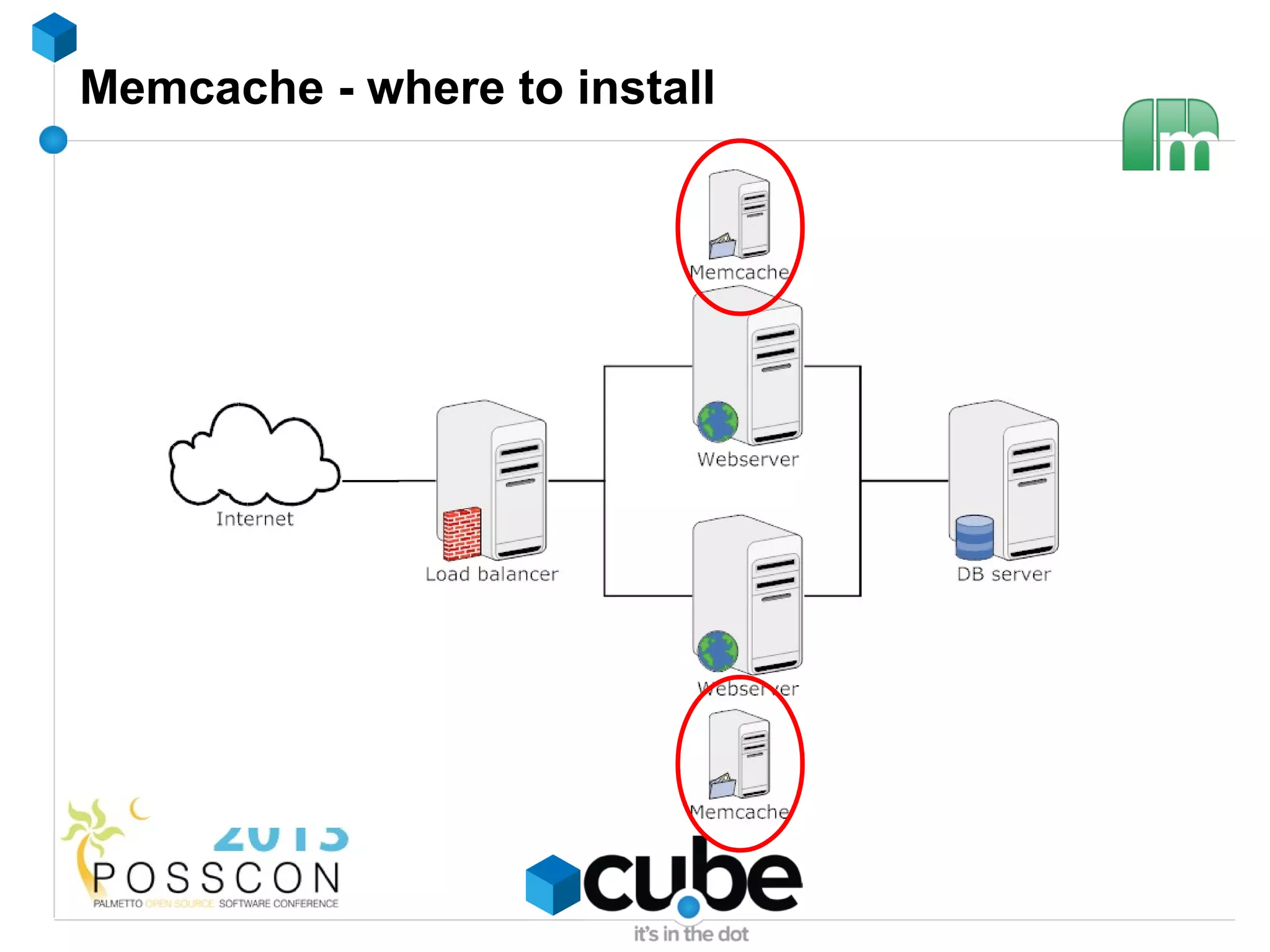

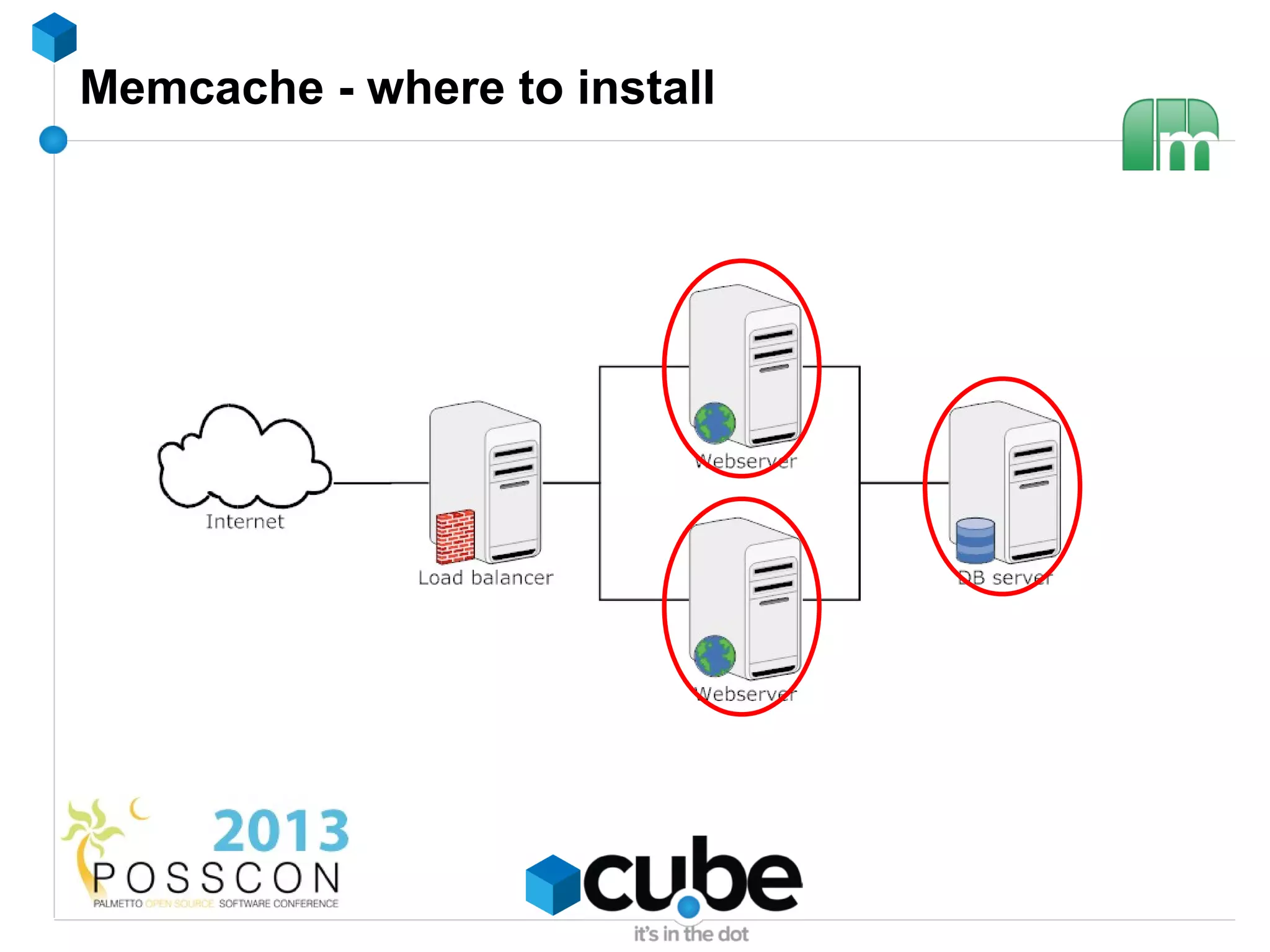

20. Memcache - where to install

21. Memcache - where to install

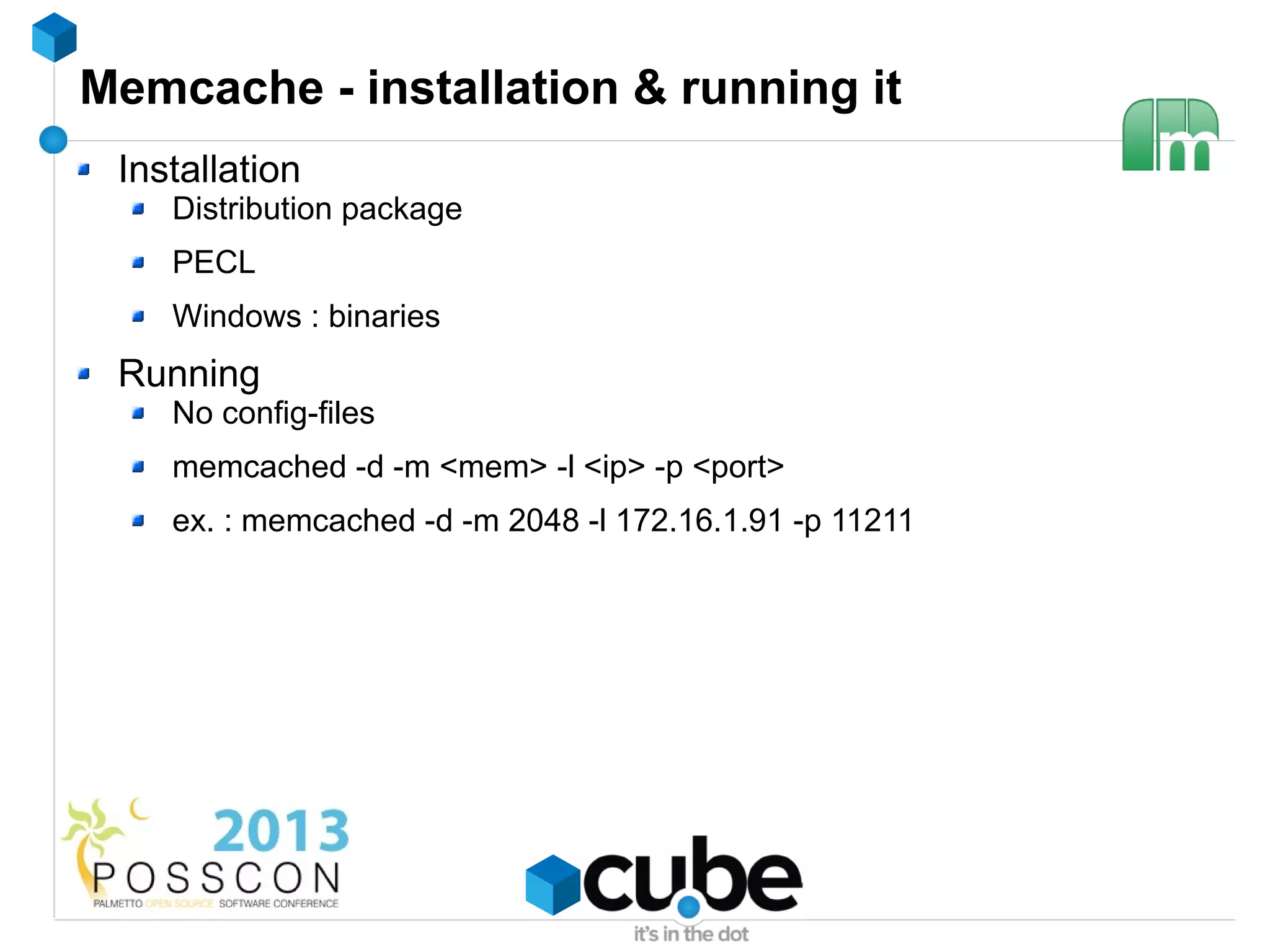

22. Memcache - installation & running it
Installation
Distribution package
PECL
Windows : binaries
Running
No config-files
memcached -d -m <mem> -l <ip> -p <port>
ex. : memcached -d -m 2048 -l 172.16.1.91 -p 11211

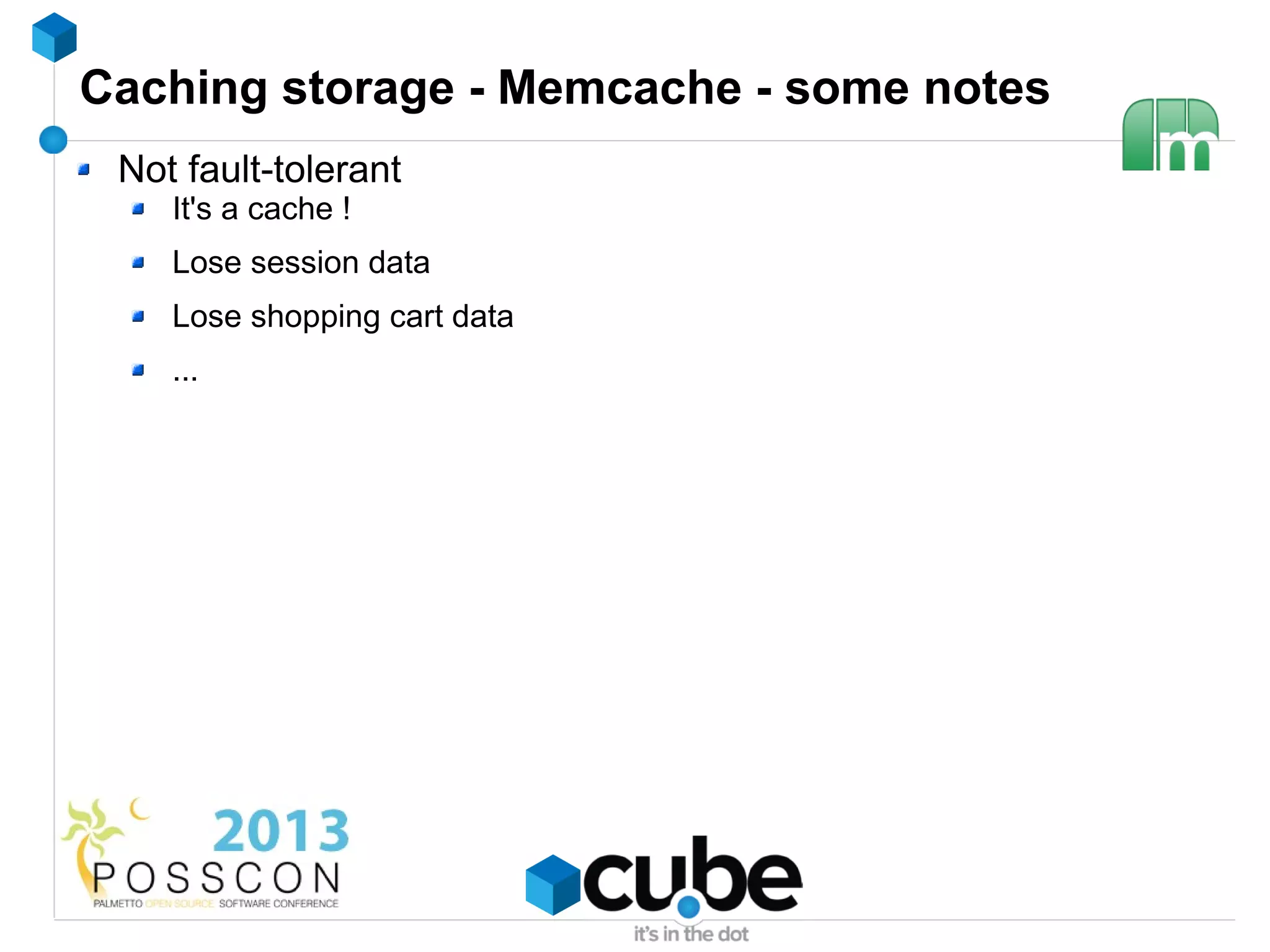

23. Caching storage - Memcache - some notes
Not fault-tolerant
It's a cache !
Lose session data
Lose shopping cart data
...

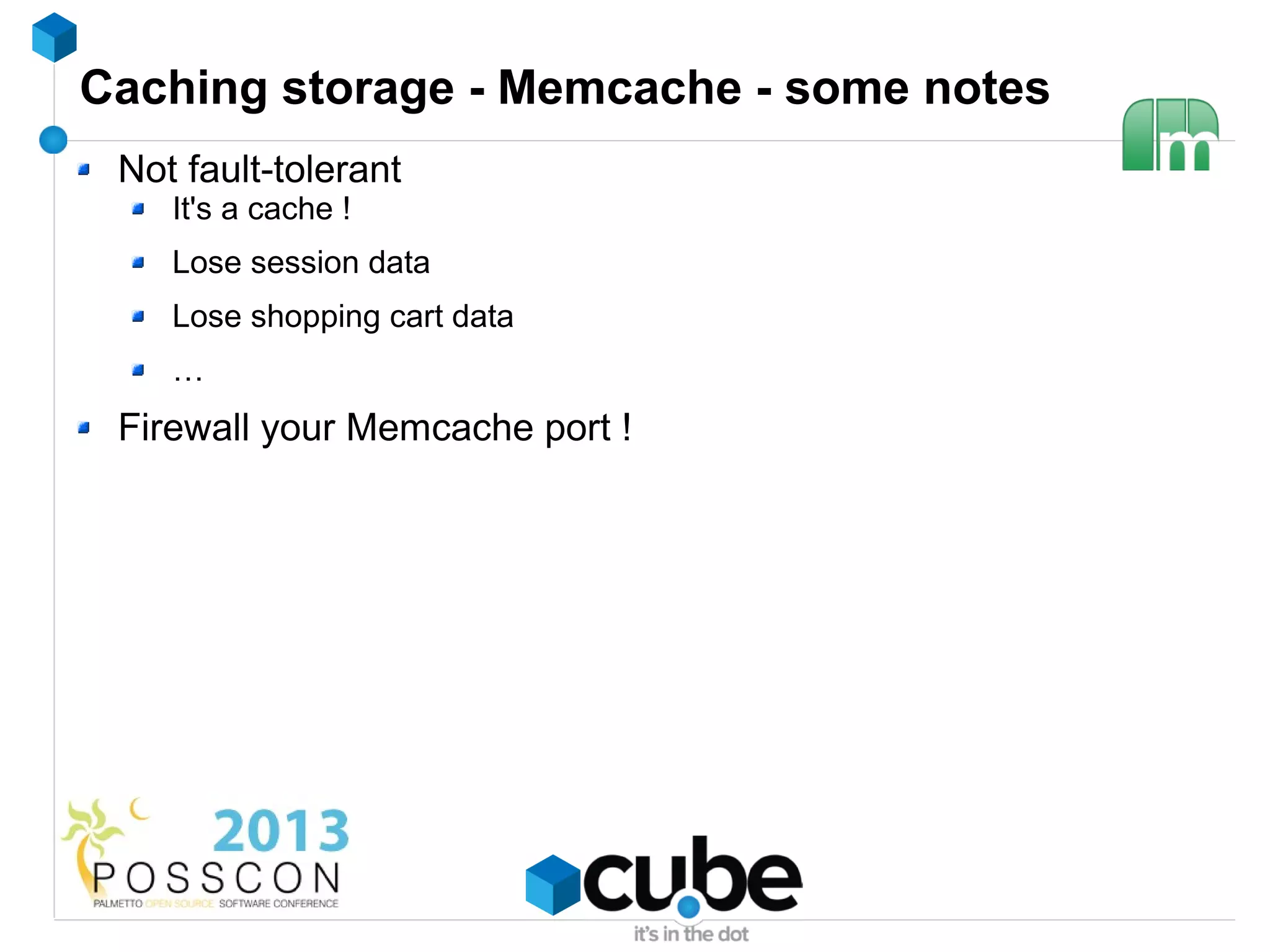

24. Caching storage - Memcache - some notes
Not fault-tolerant
It's a cache !
Lose session data
Lose shopping cart data
…
Firewall your Memcache port !

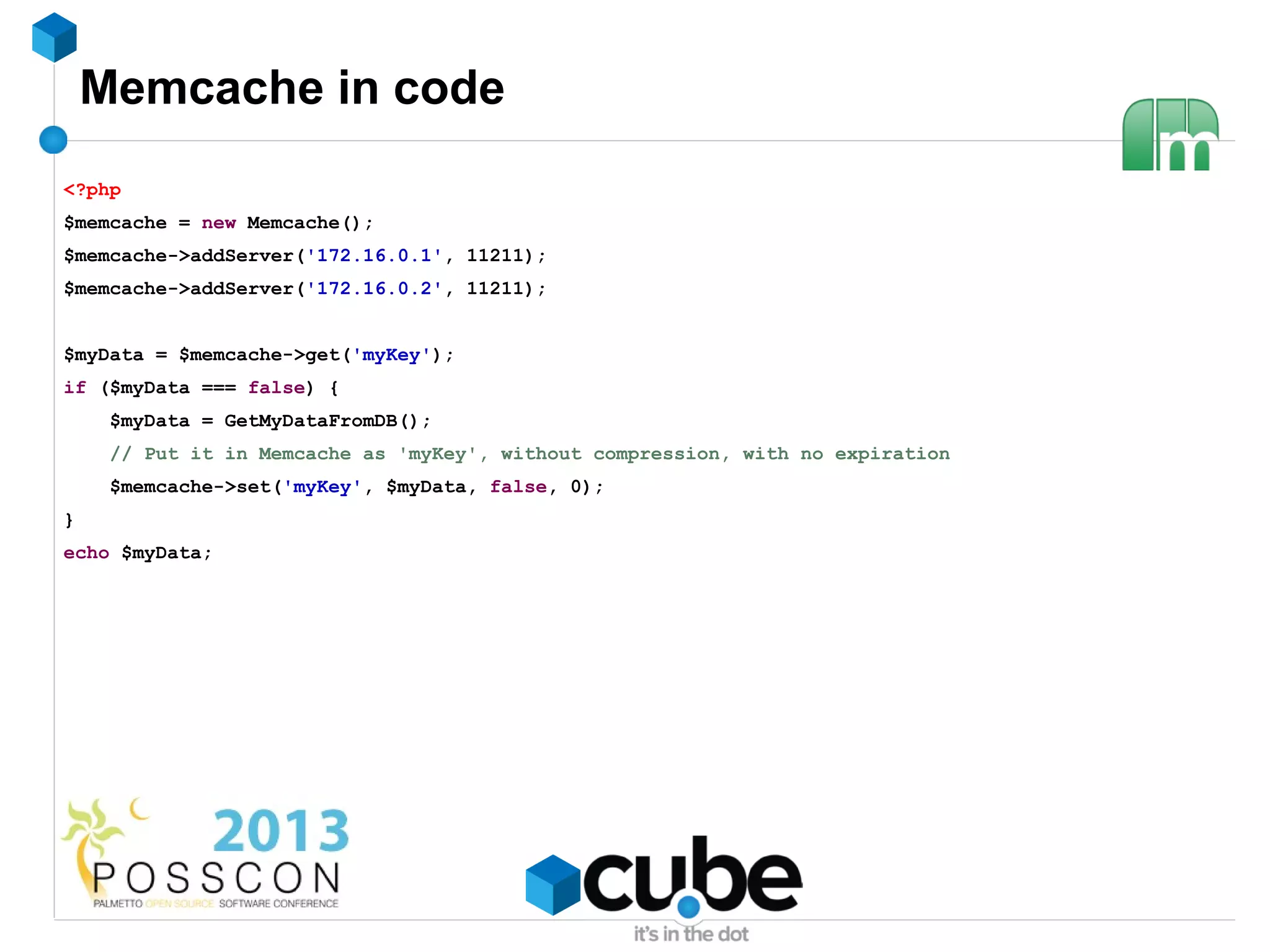

25. Memcache in code
<?php
$memcache = new Memcache();
$memcache->addServer('172.16.0.1', 11211);
$memcache->addServer('172.16.0.2', 11211);
$myData = $memcache->get('myKey');
if ($myData === false) {
$myData = GetMyDataFromDB();
// Put it in Memcache as 'myKey', without compression, with no expiration
$memcache->set('myKey', $myData, false, 0);
}
echo $myData;

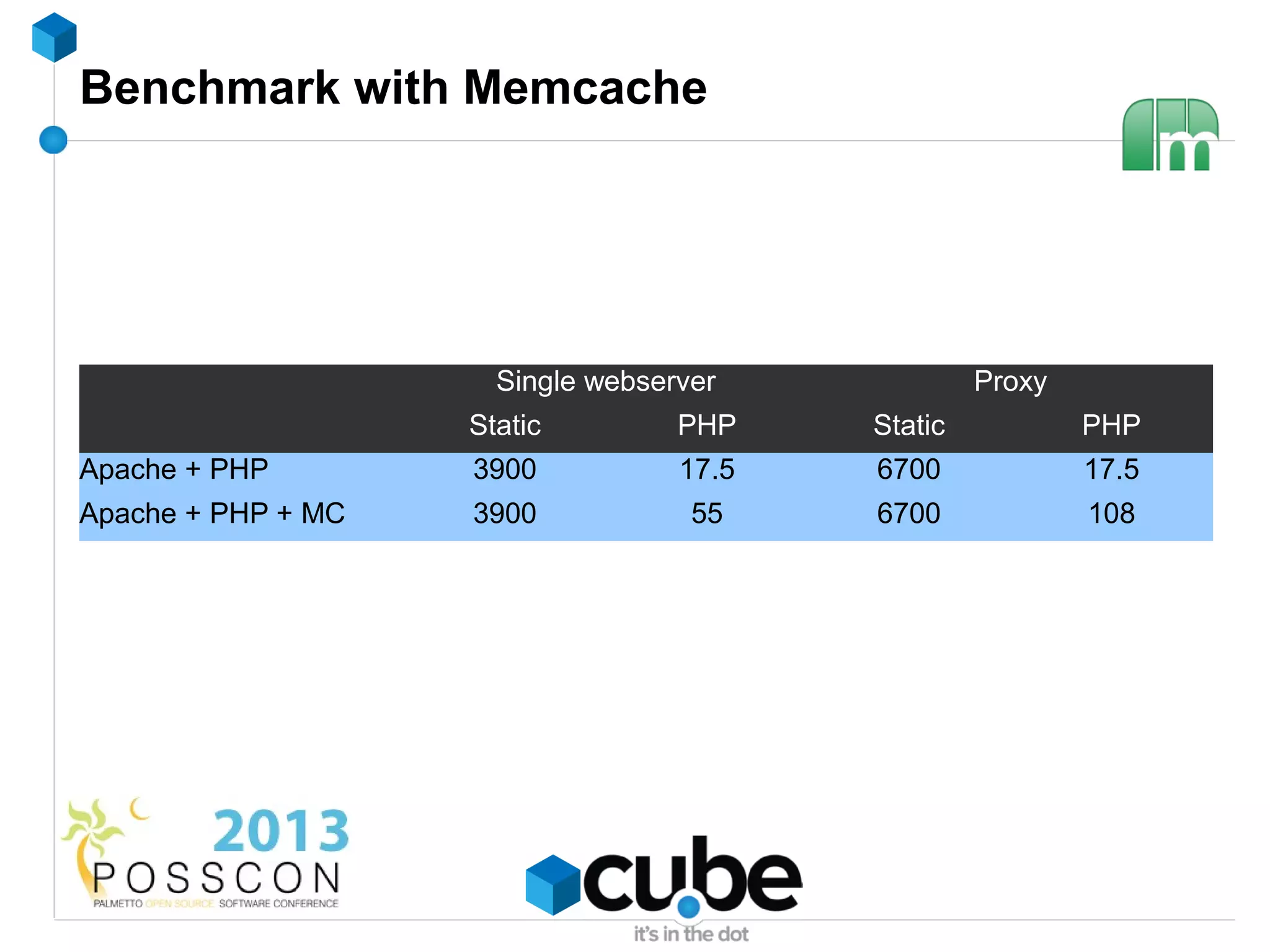

26. Benchmark with Memcache
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Apache + PHP + MC 3900 55 6700 108

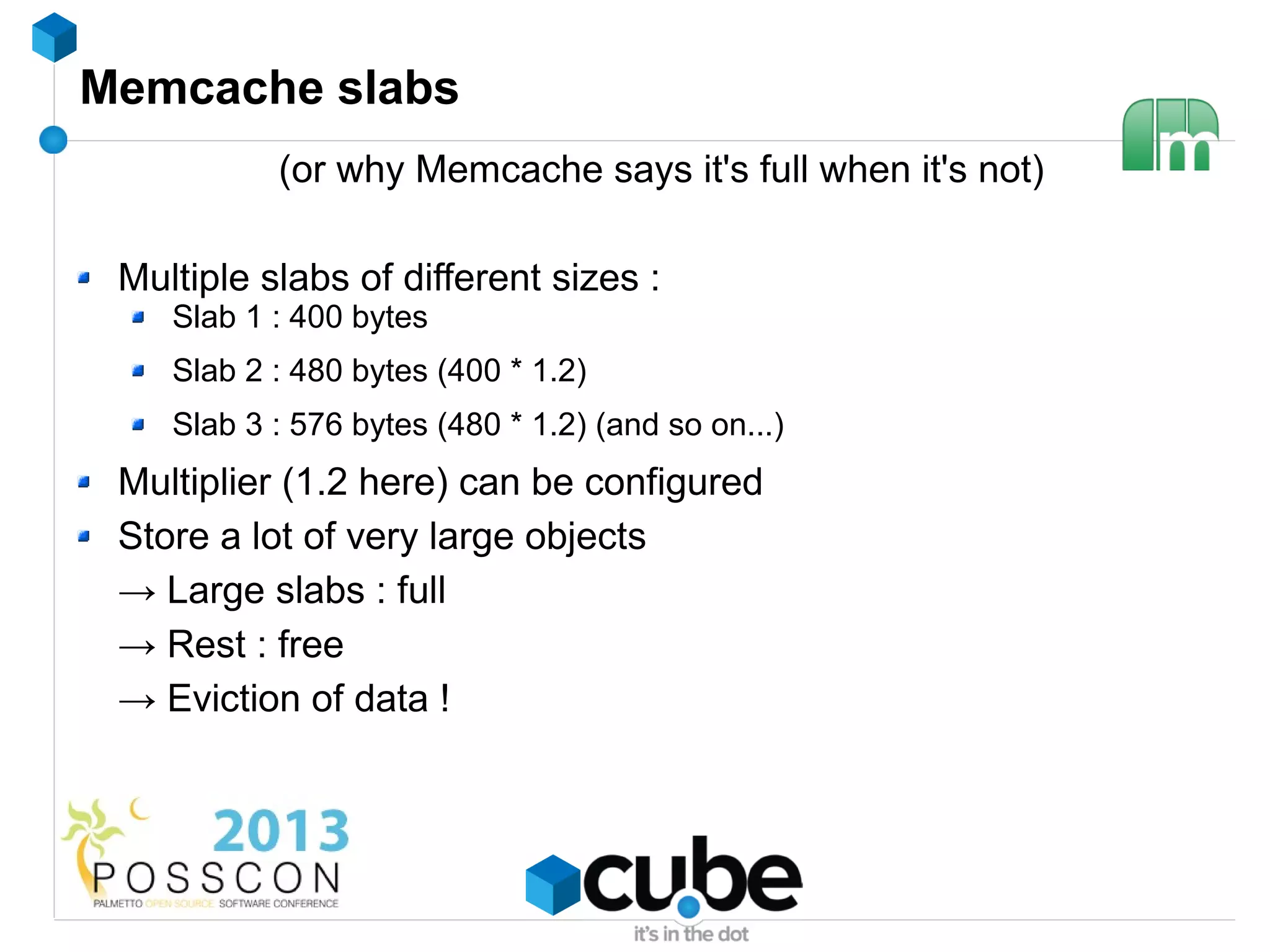

27. Memcache slabs
(or why Memcache says it's full when it's not)
Multiple slabs of different sizes :
Slab 1 : 400 bytes
Slab 2 : 480 bytes (400 * 1.2)
Slab 3 : 576 bytes (480 * 1.2) (and so on...)
Multiplier (1.2 here) can be configured
Store a lot of very large objects
→ Large slabs : full
→ Rest : free
→ Eviction of data !

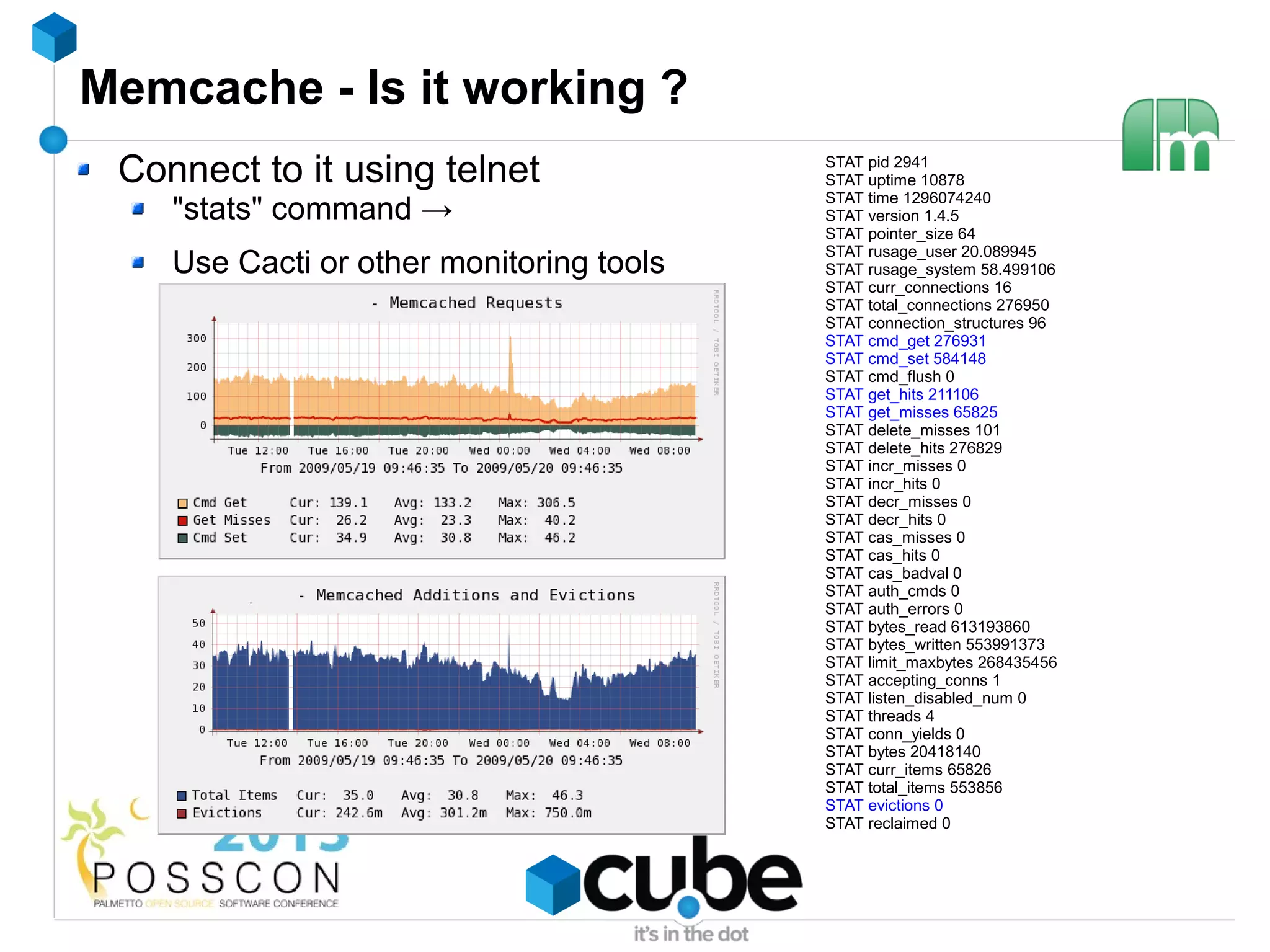

28. Memcache - Is it working ?
Connect to it using telnet STAT pid 2941
STAT uptime 10878
STAT time 1296074240
"stats" command → STAT version 1.4.5
STAT pointer_size 64
STAT rusage_user 20.089945
Use Cacti or other monitoring tools STAT rusage_system 58.499106
STAT curr_connections 16
STAT total_connections 276950
STAT connection_structures 96
STAT cmd_get 276931
STAT cmd_set 584148
STAT cmd_flush 0
STAT get_hits 211106
STAT get_misses 65825
STAT delete_misses 101
STAT delete_hits 276829
STAT incr_misses 0
STAT incr_hits 0
STAT decr_misses 0
STAT decr_hits 0
STAT cas_misses 0
STAT cas_hits 0
STAT cas_badval 0
STAT auth_cmds 0
STAT auth_errors 0
STAT bytes_read 613193860
STAT bytes_written 553991373
STAT limit_maxbytes 268435456
STAT accepting_conns 1
STAT listen_disabled_num 0
STAT threads 4
STAT conn_yields 0
STAT bytes 20418140
STAT curr_items 65826
STAT total_items 553856
STAT evictions 0
STAT reclaimed 0

29. Memcache - backing up

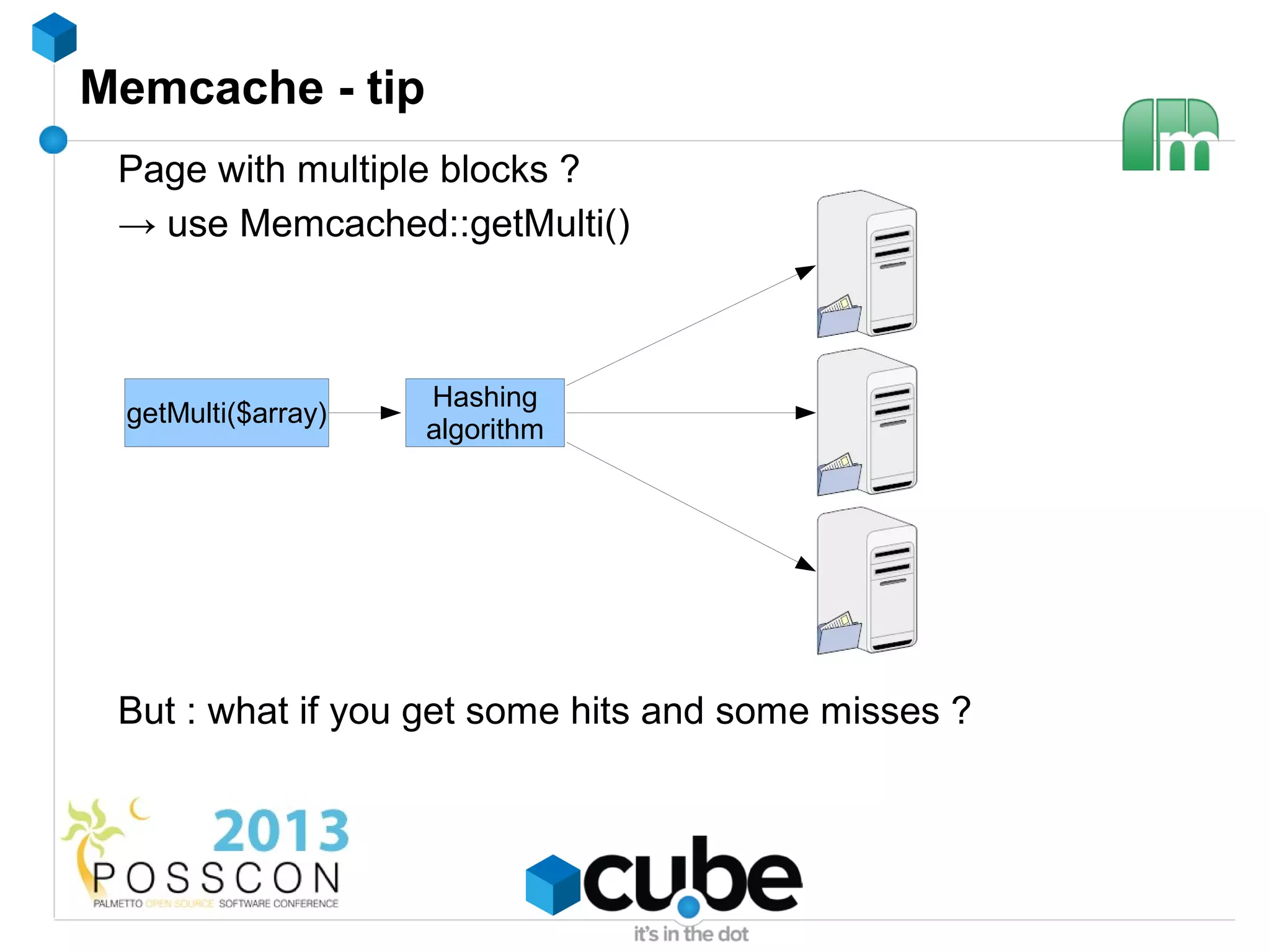

30. Memcache - tip
Page with multiple blocks ?
→ use Memcached::getMulti()
Hashing
getMulti($array)
algorithm
But : what if you get some hits and some misses ?

31. Updating data

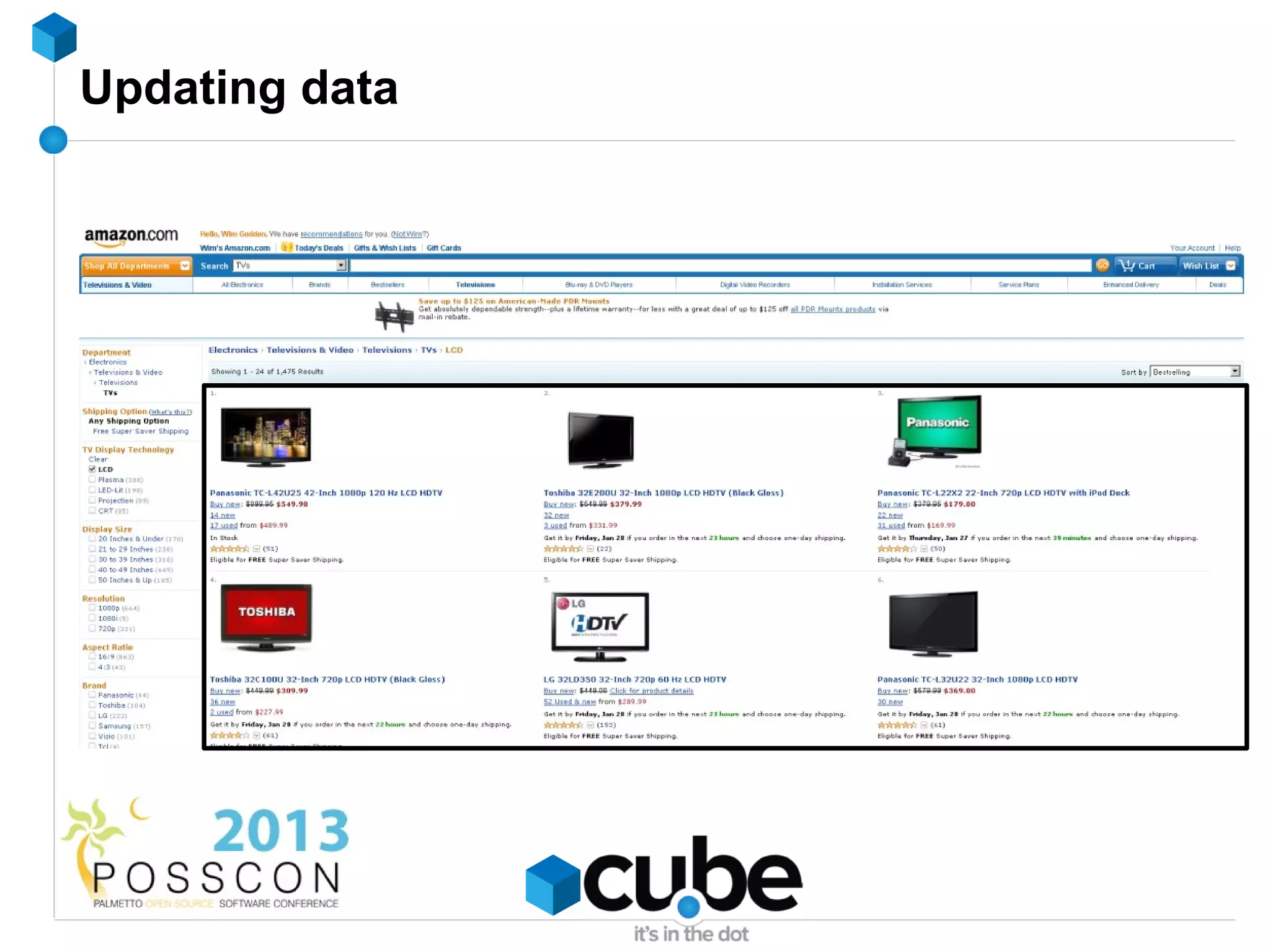

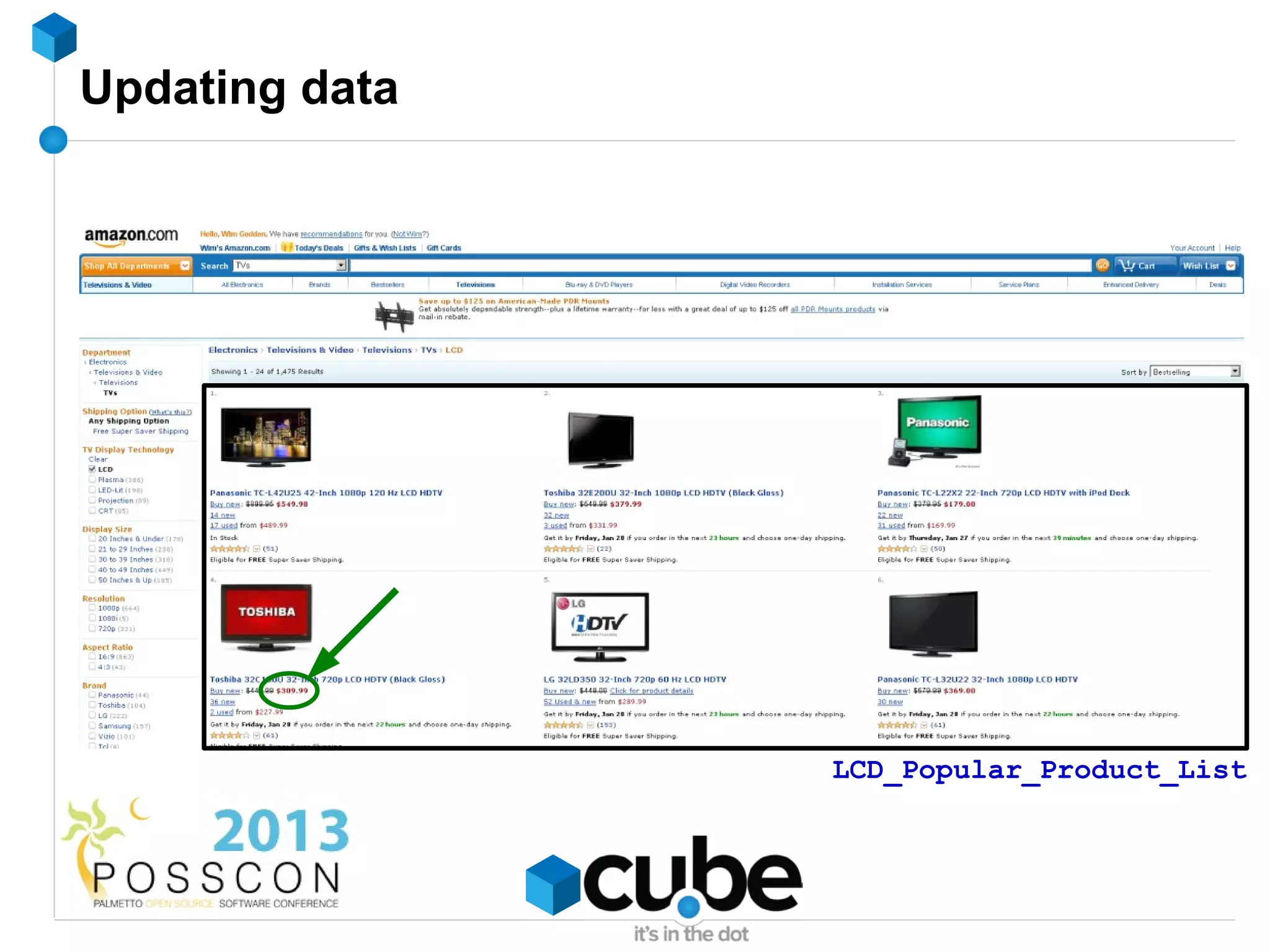

32. Updating data
LCD_Popular_Product_List

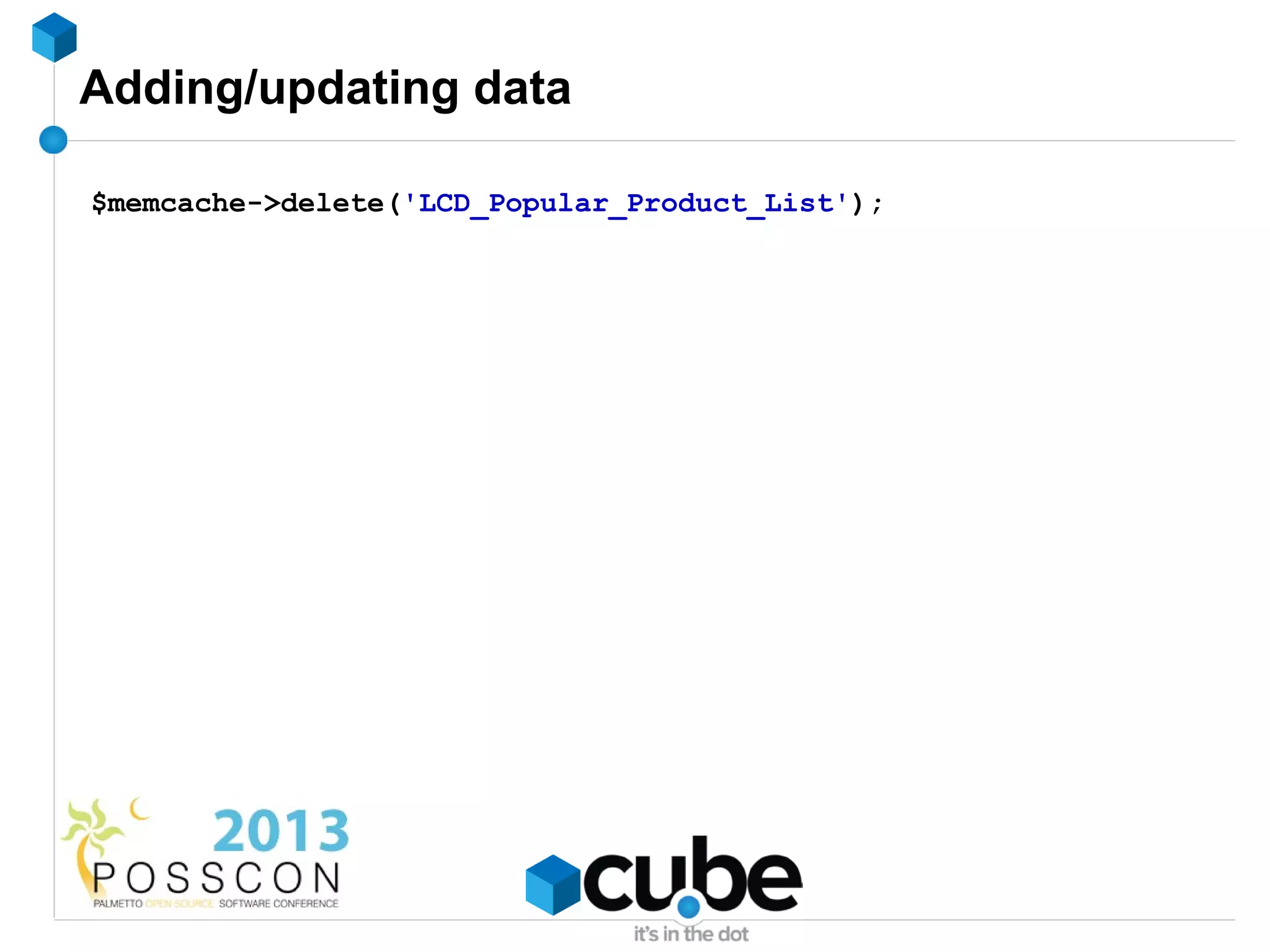

33. Adding/updating data
$memcache->delete('LCD_Popular_Product_List');

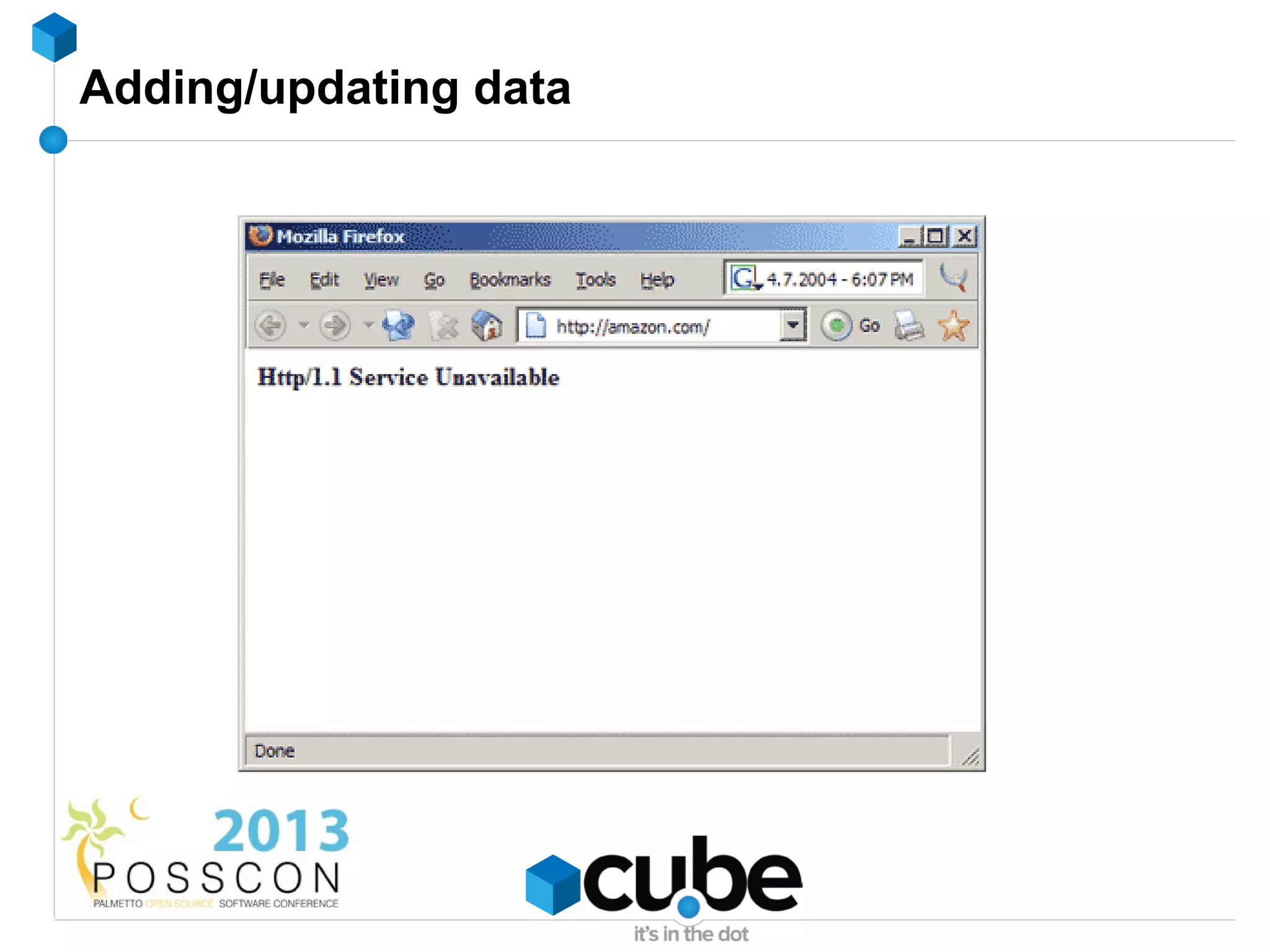

34. Adding/updating data

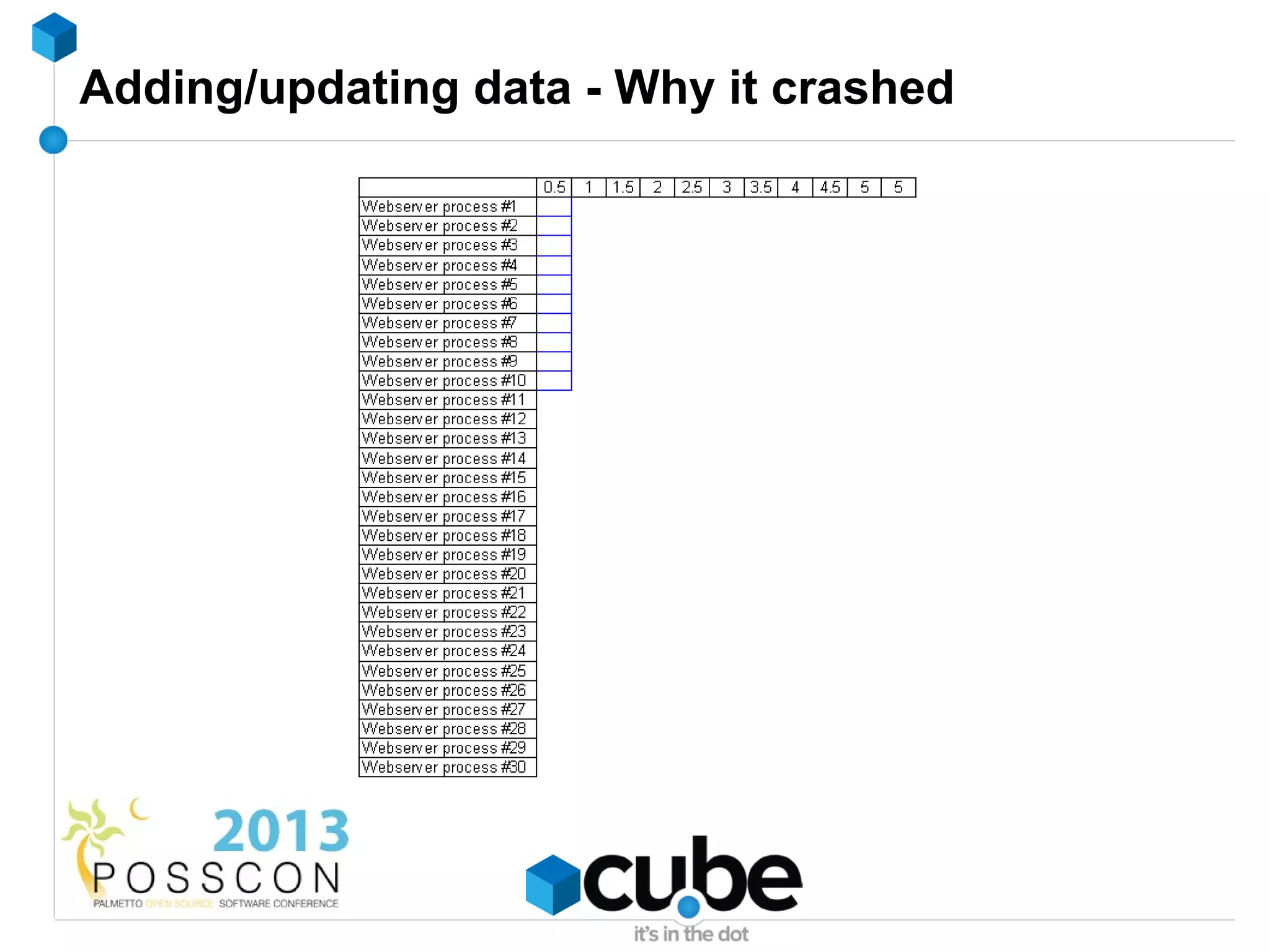

35. Adding/updating data - Why it crashed

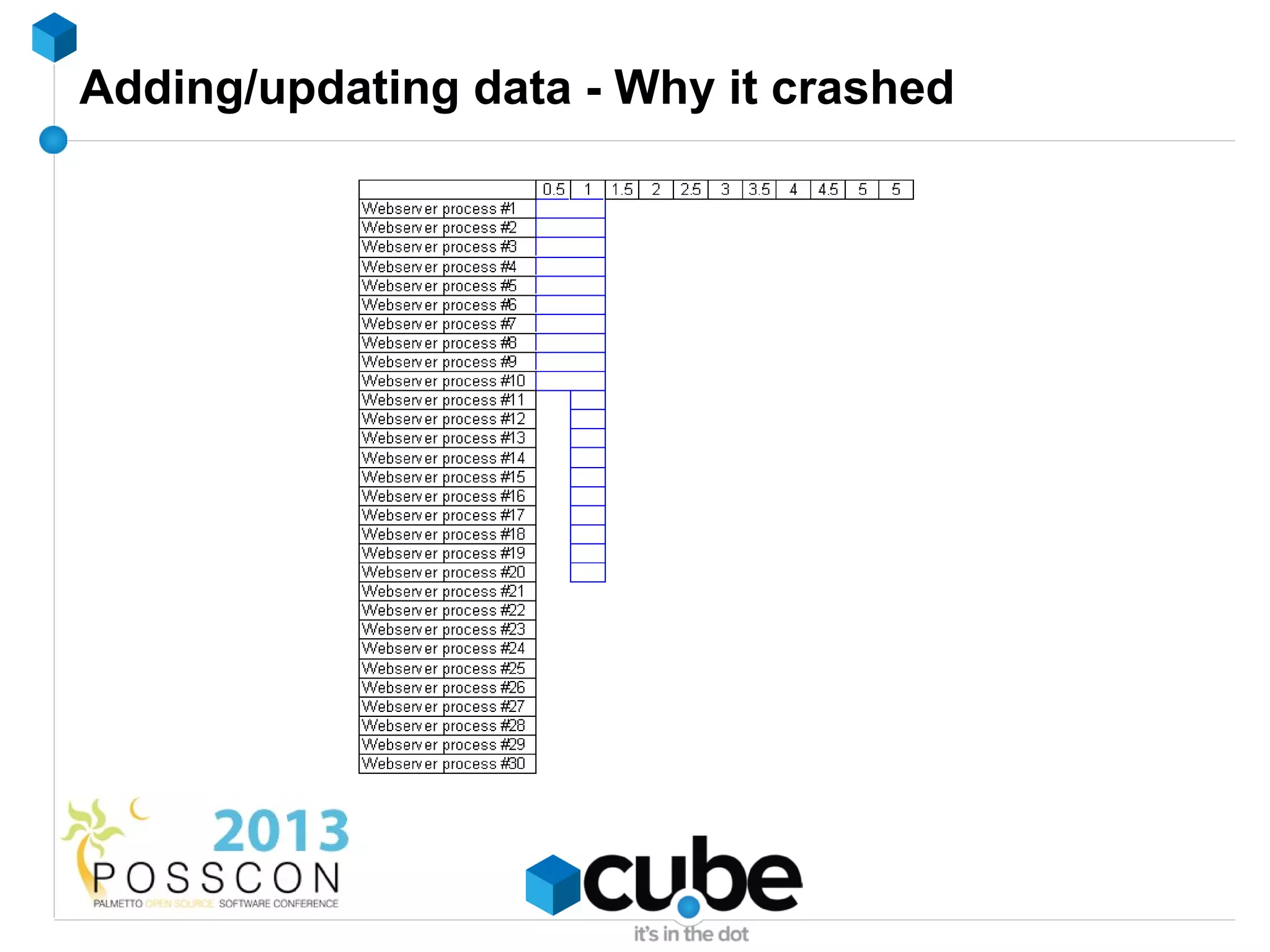

36. Adding/updating data - Why it crashed

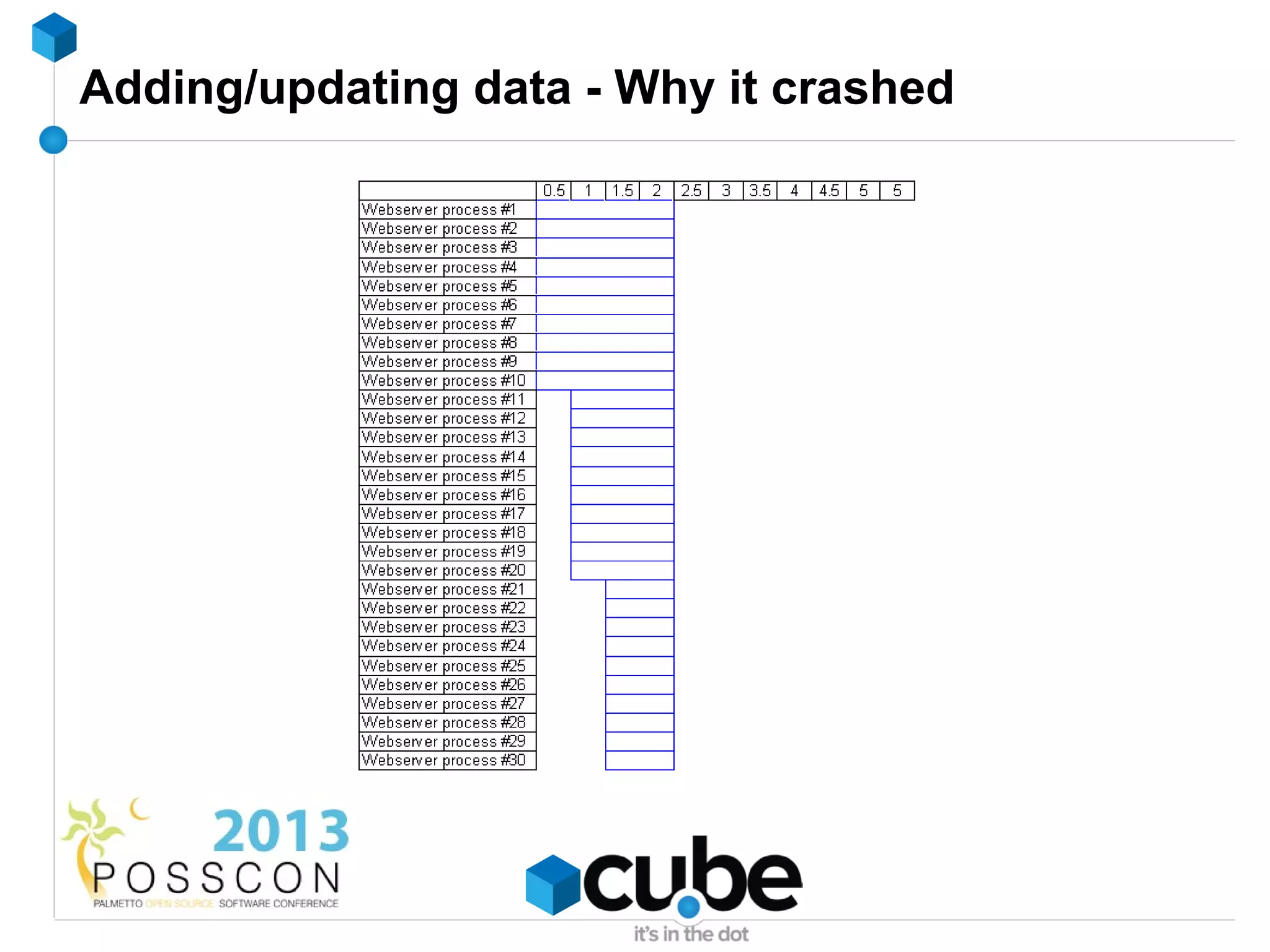

37. Adding/updating data - Why it crashed

38. Cache stampeding

39. Cache stampeding

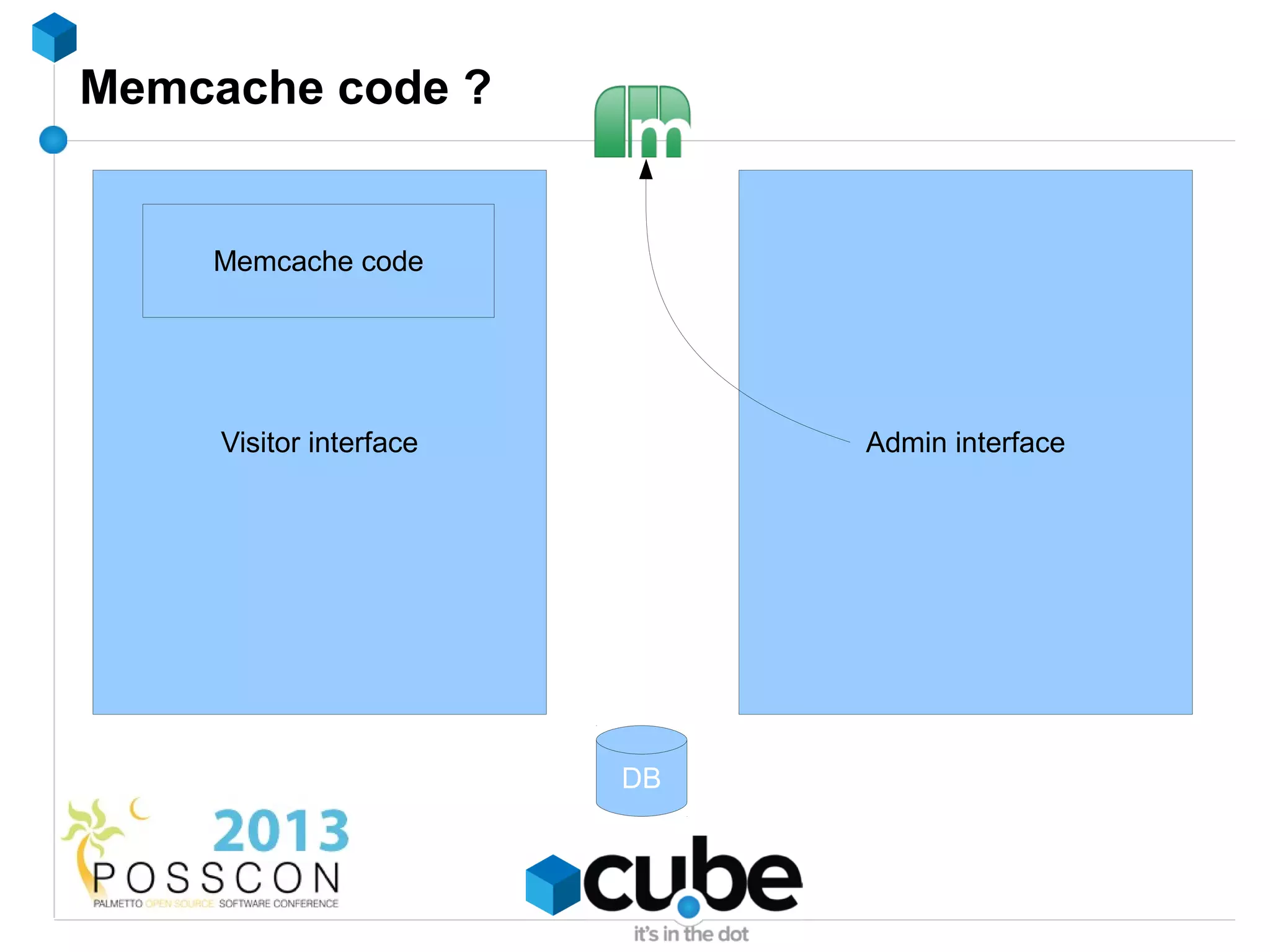

40. Memcache code ?
Memcache code
Visitor interface Admin interface
DB

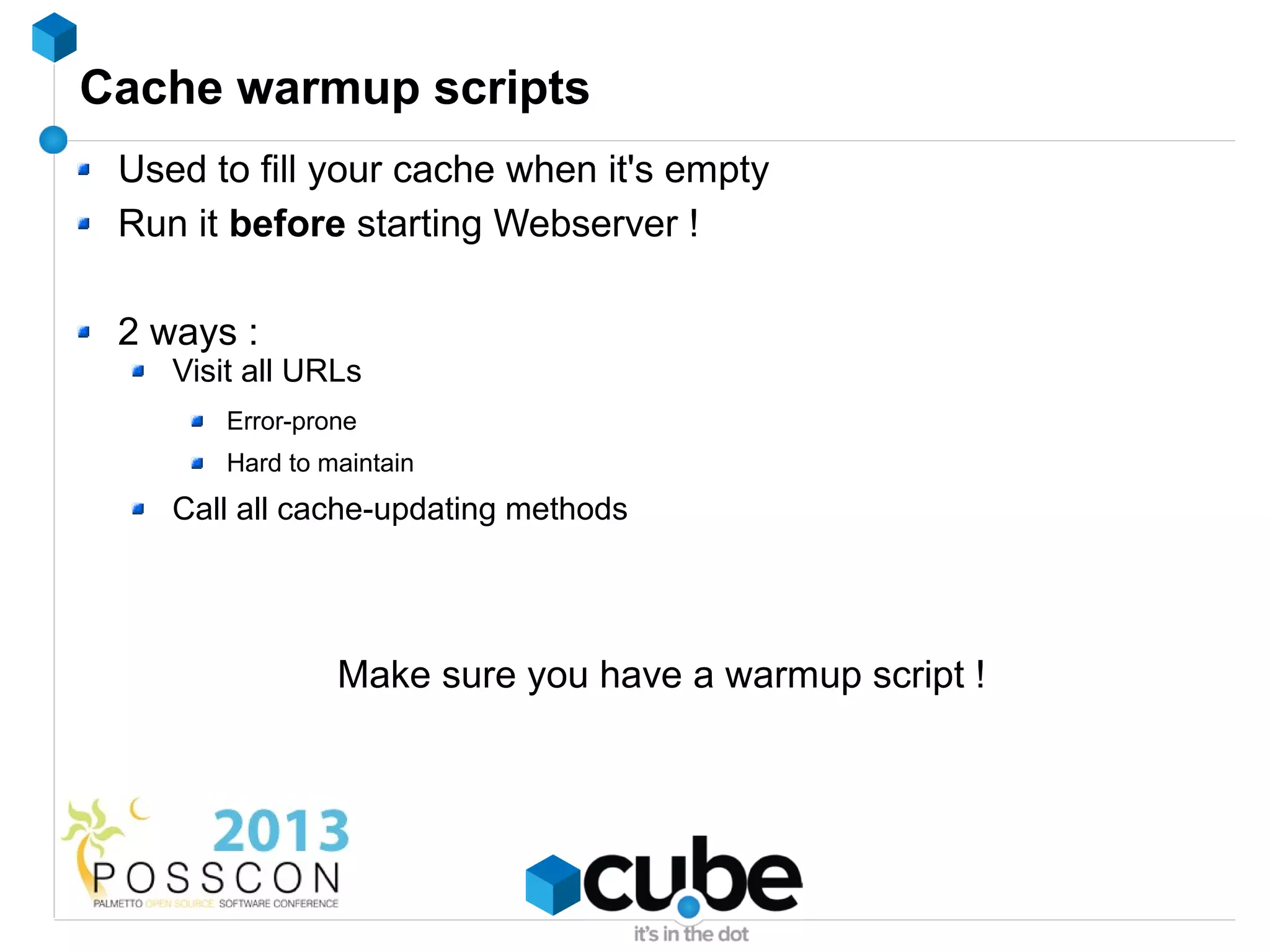

41. Cache warmup scripts
Used to fill your cache when it's empty
Run it before starting Webserver !
2 ways :
Visit all URLs
Error-prone
Hard to maintain
Call all cache-updating methods
Make sure you have a warmup script !

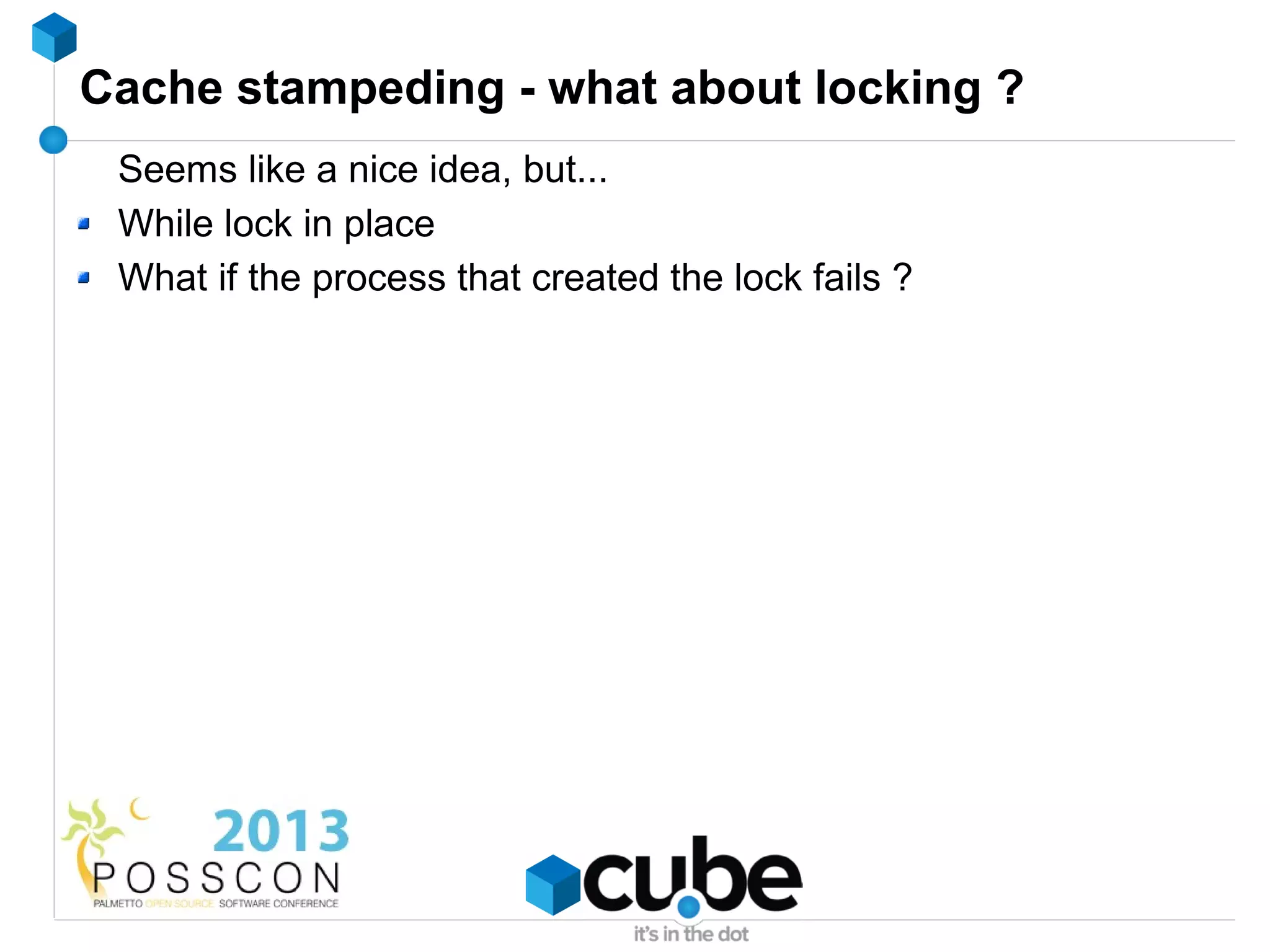

42. Cache stampeding - what about locking ?
Seems like a nice idea, but...
While lock in place
What if the process that created the lock fails ?

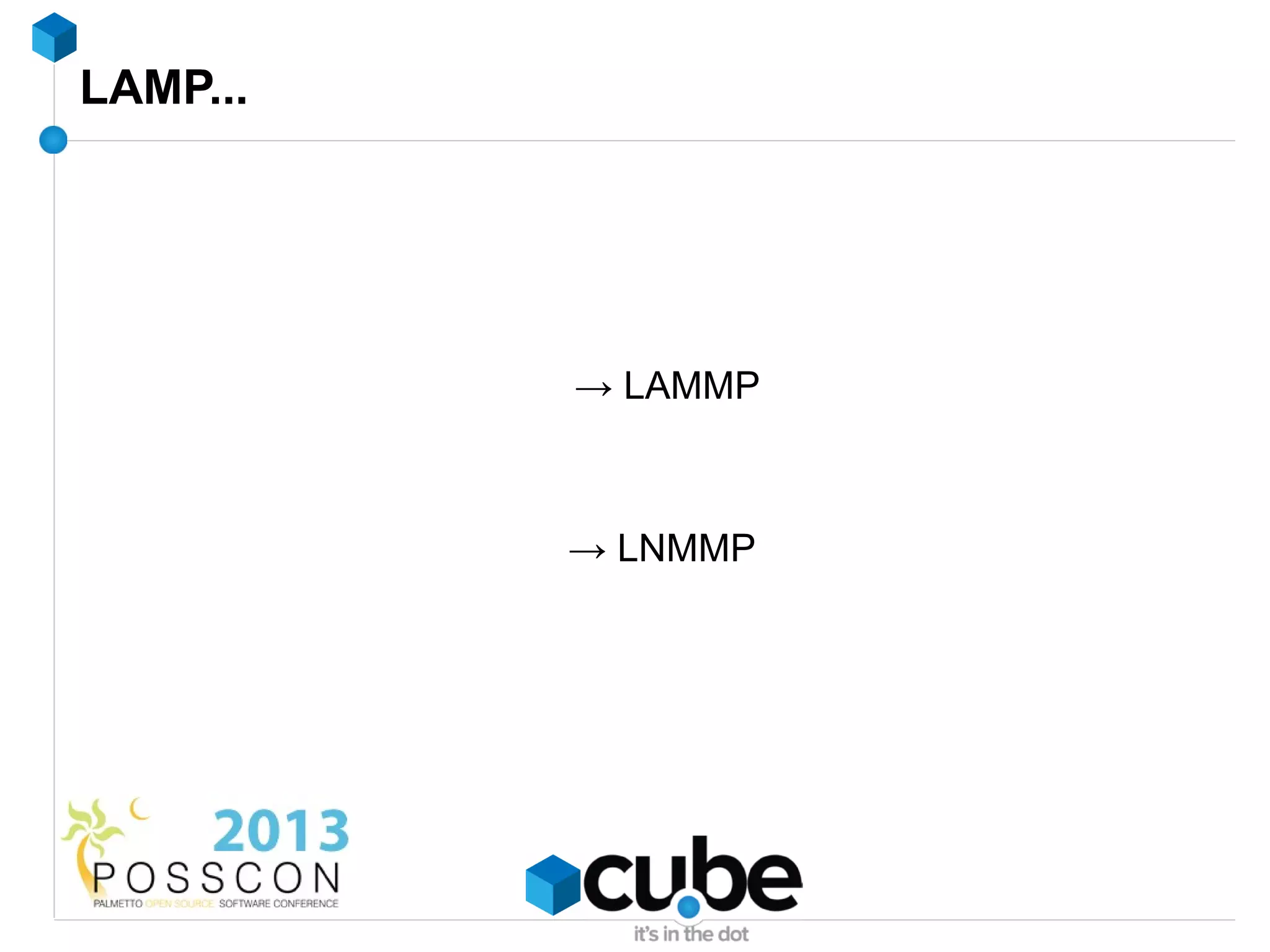

43. LAMP...
→ LAMMP
→ LNMMP

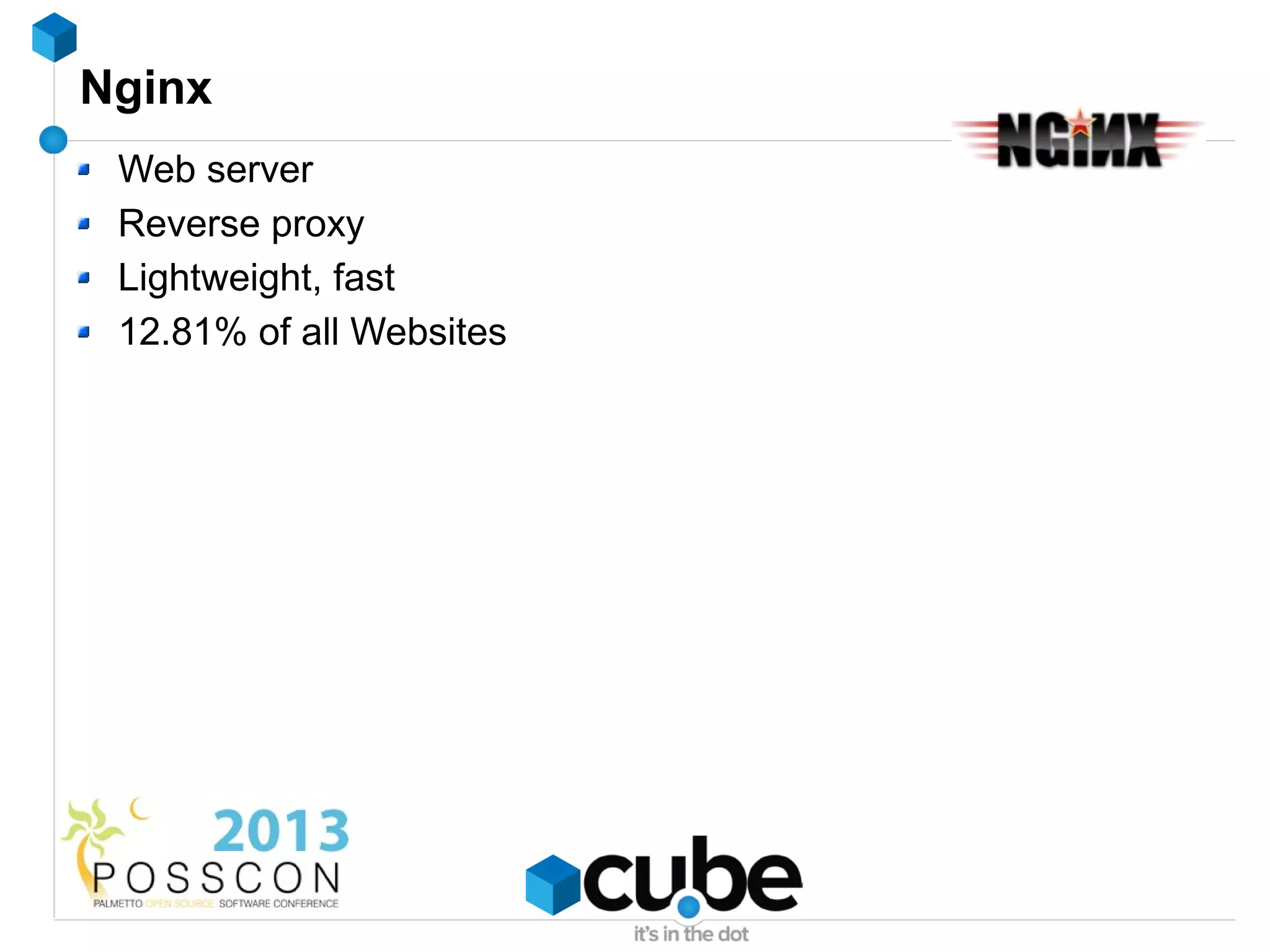

44. Nginx
Web server
Reverse proxy
Lightweight, fast
12.81% of all Websites

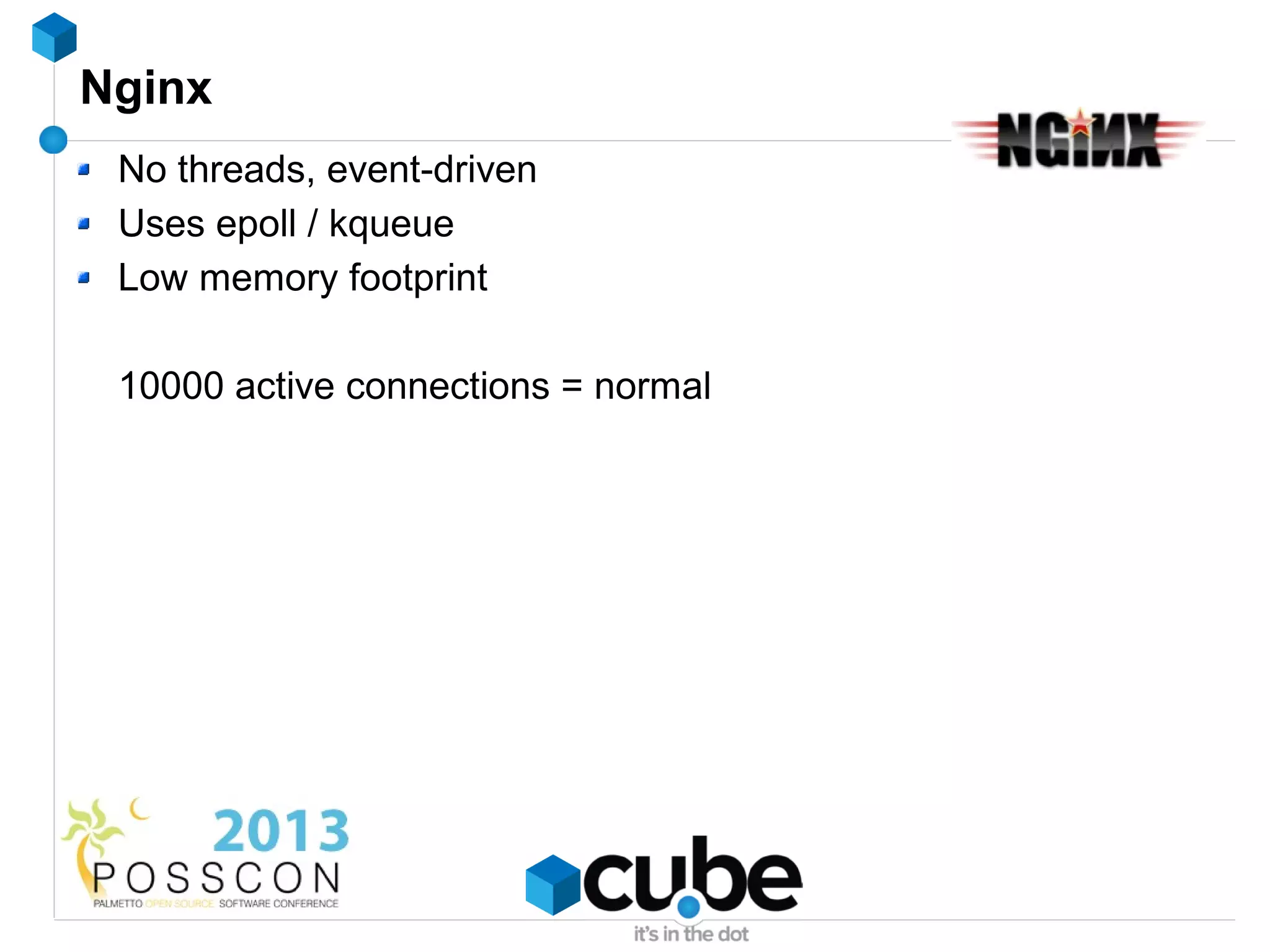

45. Nginx
No threads, event-driven
Uses epoll / kqueue
Low memory footprint
10000 active connections = normal

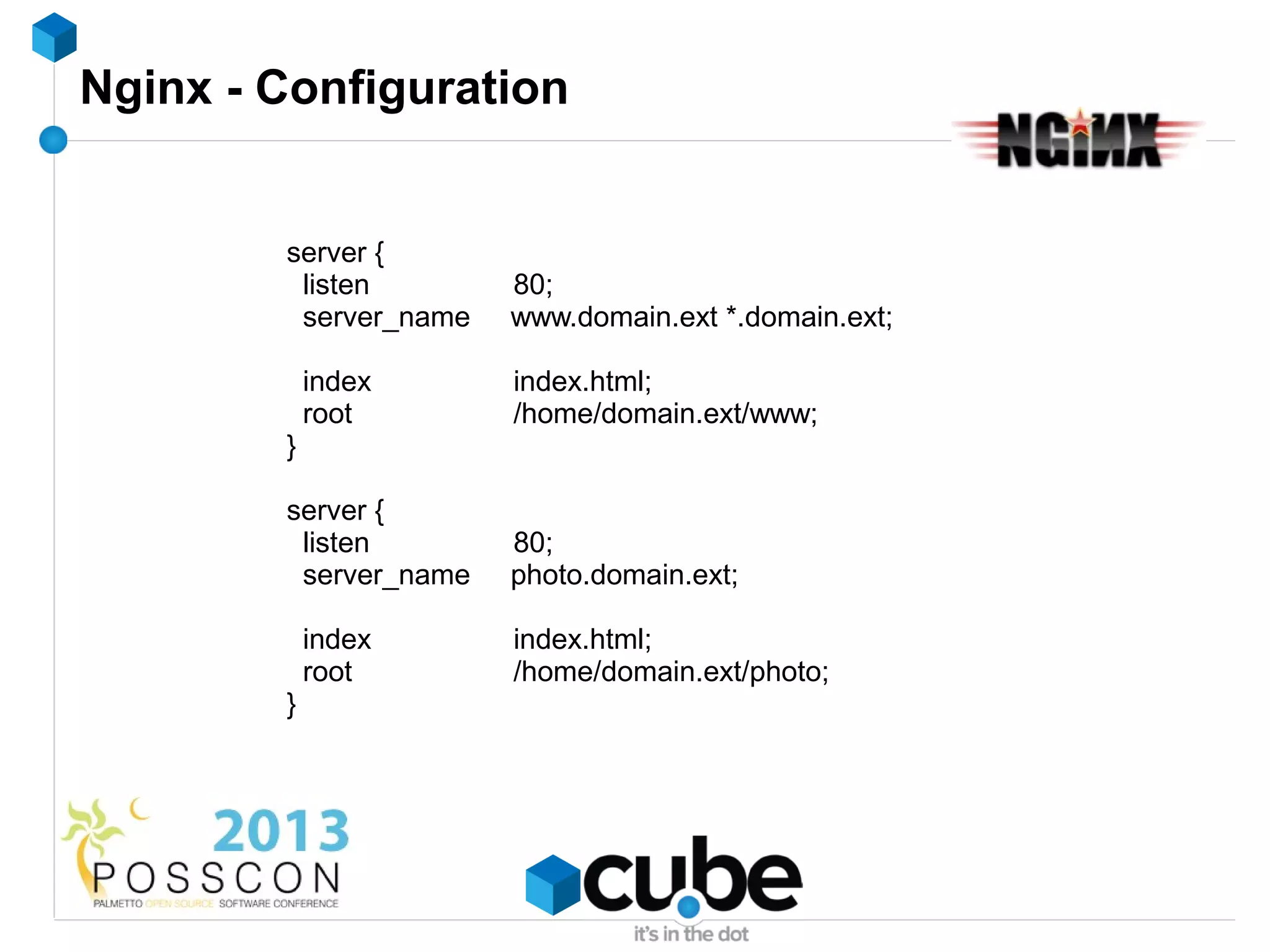

46. Nginx - Configuration
server {
listen 80;
server_name www.domain.ext *.domain.ext;
index index.html;
root /home/domain.ext/www;
}
server {
listen 80;
server_name photo.domain.ext;
index index.html;
root /home/domain.ext/photo;
}

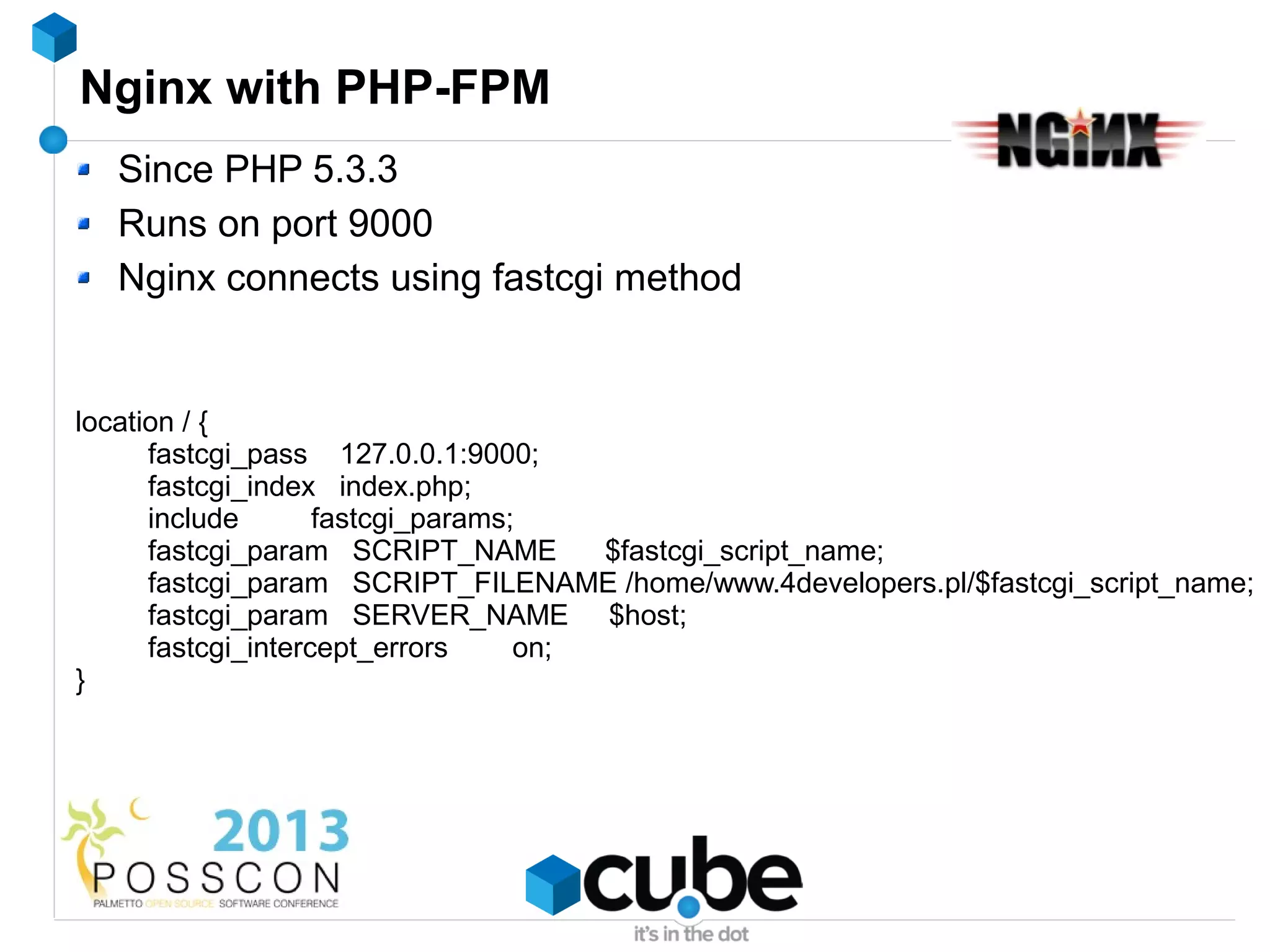

47. Nginx with PHP-FPM
Since PHP 5.3.3
Runs on port 9000
Nginx connects using fastcgi method
location / {
fastcgi_pass 127.0.0.1:9000;
fastcgi_index index.php;
include fastcgi_params;
fastcgi_param SCRIPT_NAME $fastcgi_script_name;
fastcgi_param SCRIPT_FILENAME /home/www.4developers.pl/$fastcgi_script_name;
fastcgi_param SERVER_NAME $host;
fastcgi_intercept_errors on;
}

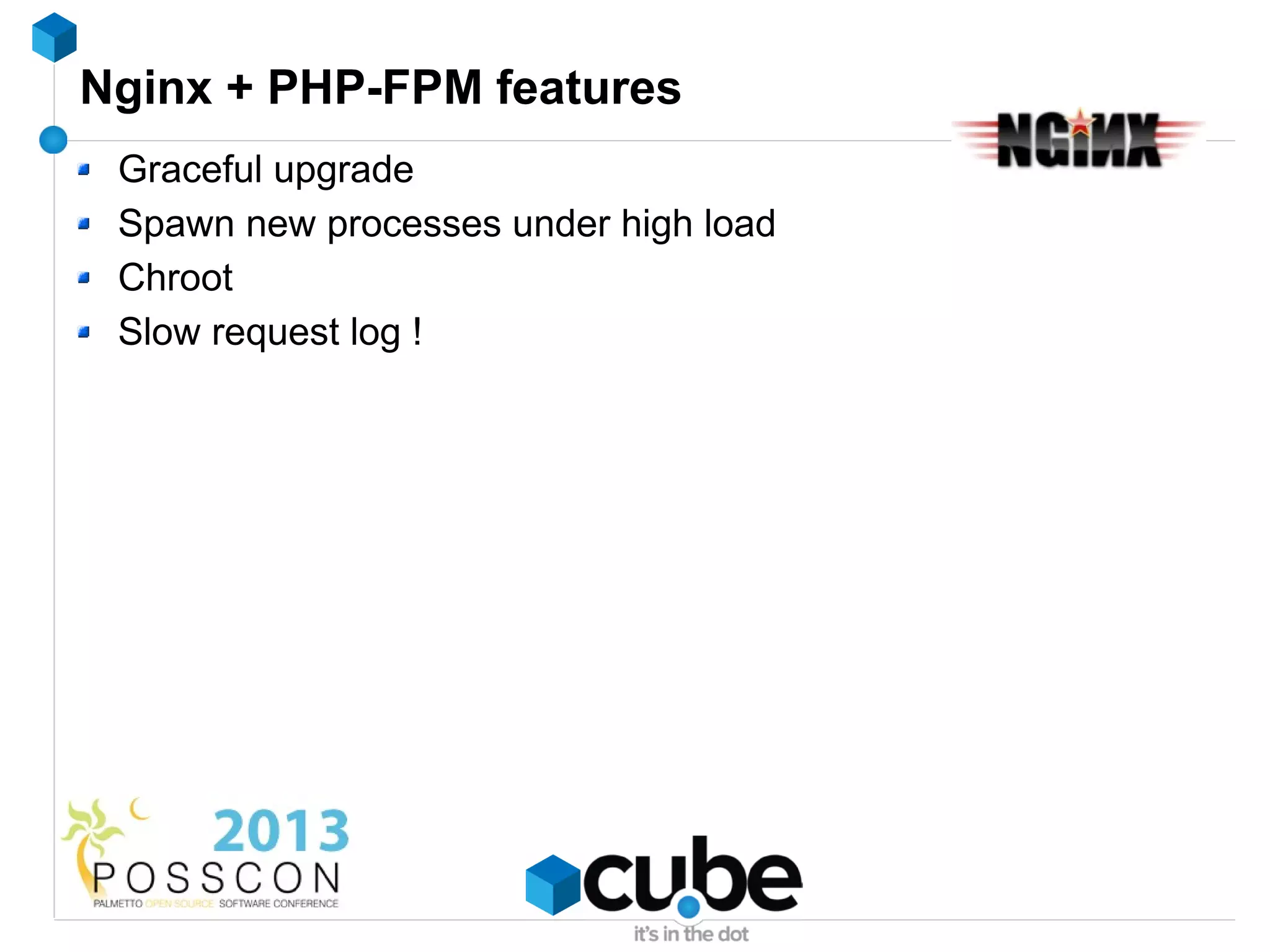

48. Nginx + PHP-FPM features
Graceful upgrade
Spawn new processes under high load
Chroot
Slow request log !

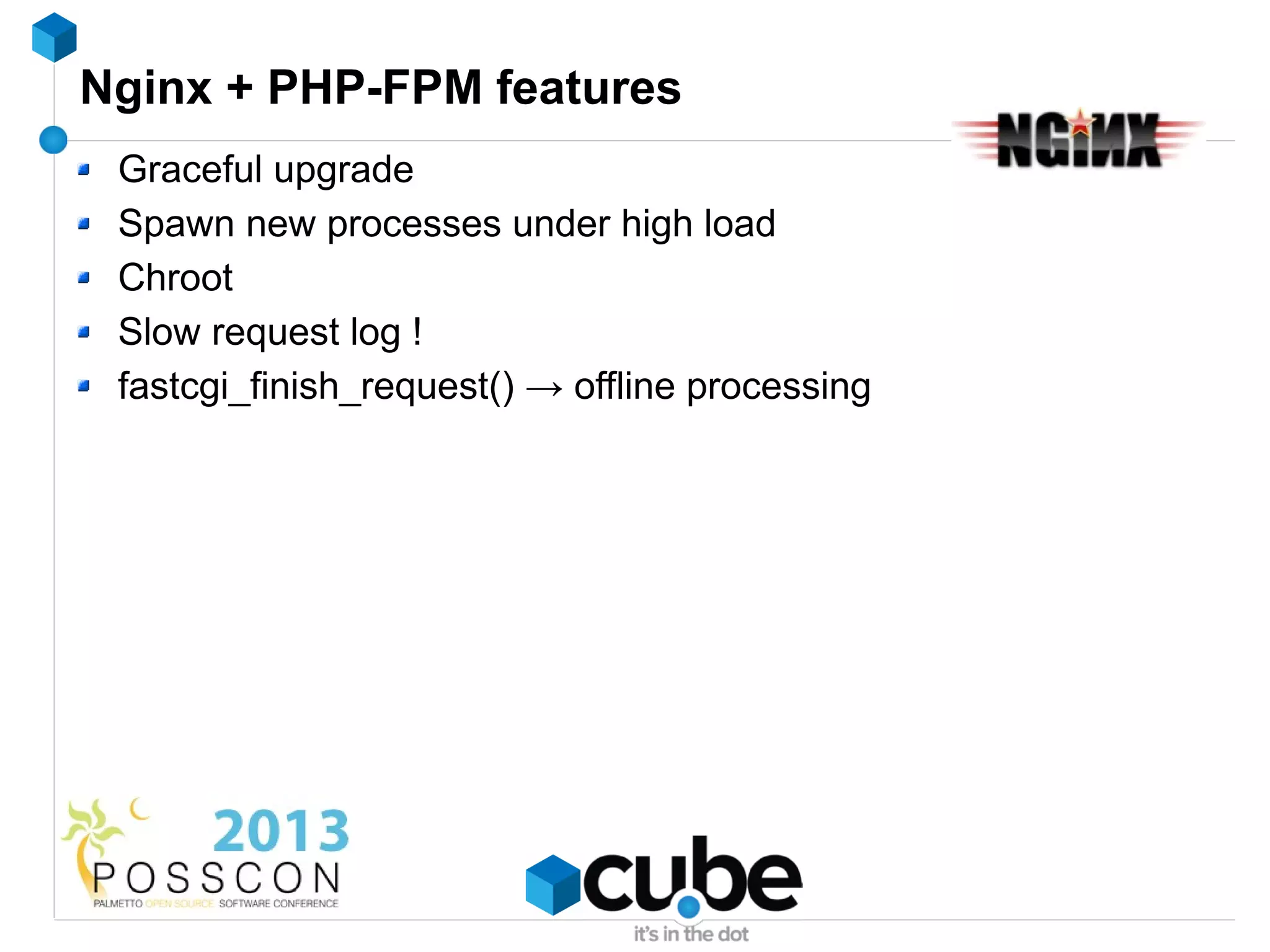

49. Nginx + PHP-FPM features
Graceful upgrade
Spawn new processes under high load
Chroot
Slow request log !
fastcgi_finish_request() → offline processing

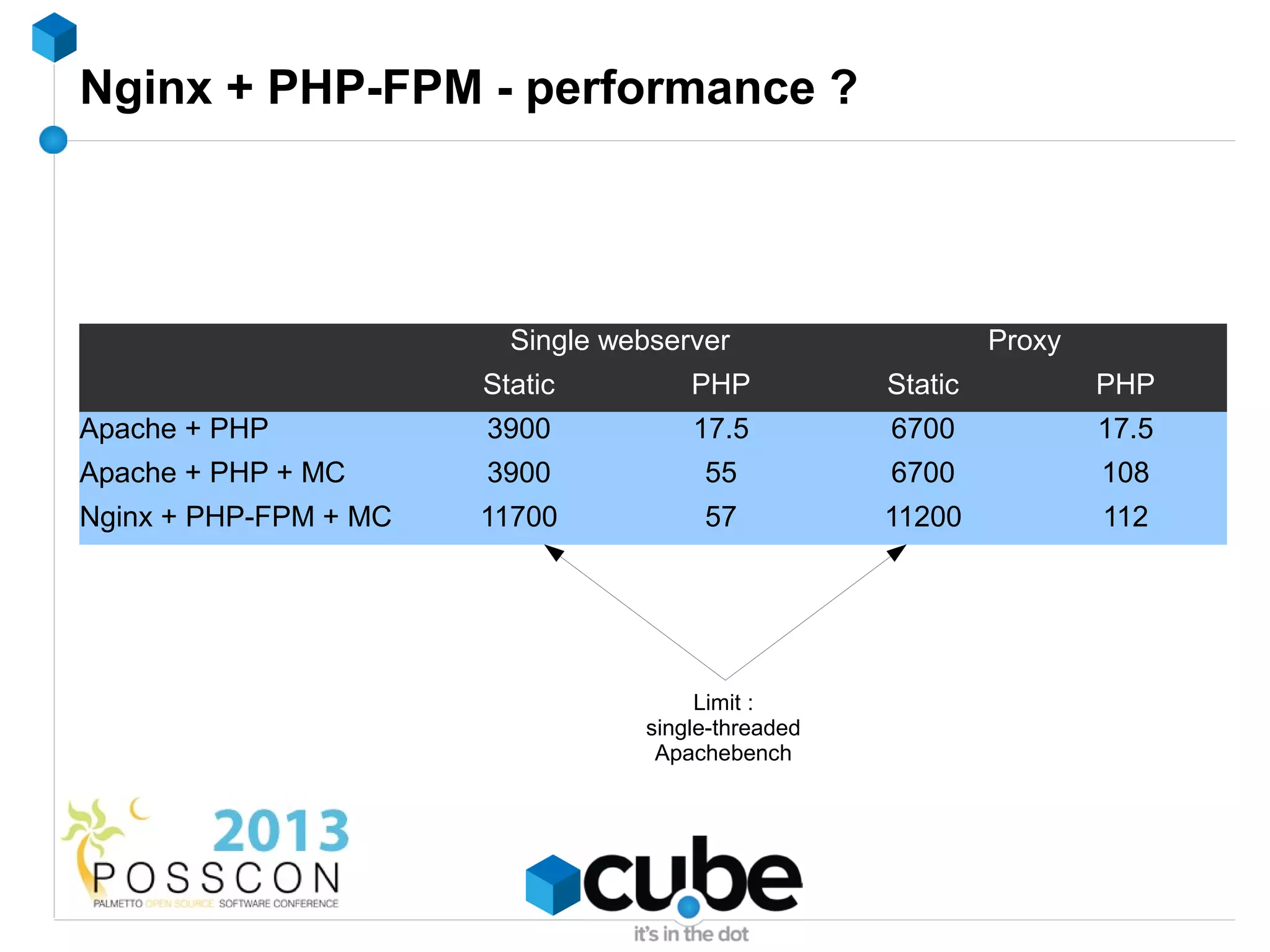

50. Nginx + PHP-FPM - performance ?
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Apache + PHP + MC 3900 55 6700 108
Nginx + PHP-FPM + MC 11700 57 11200 112
Limit :
single-threaded
Apachebench

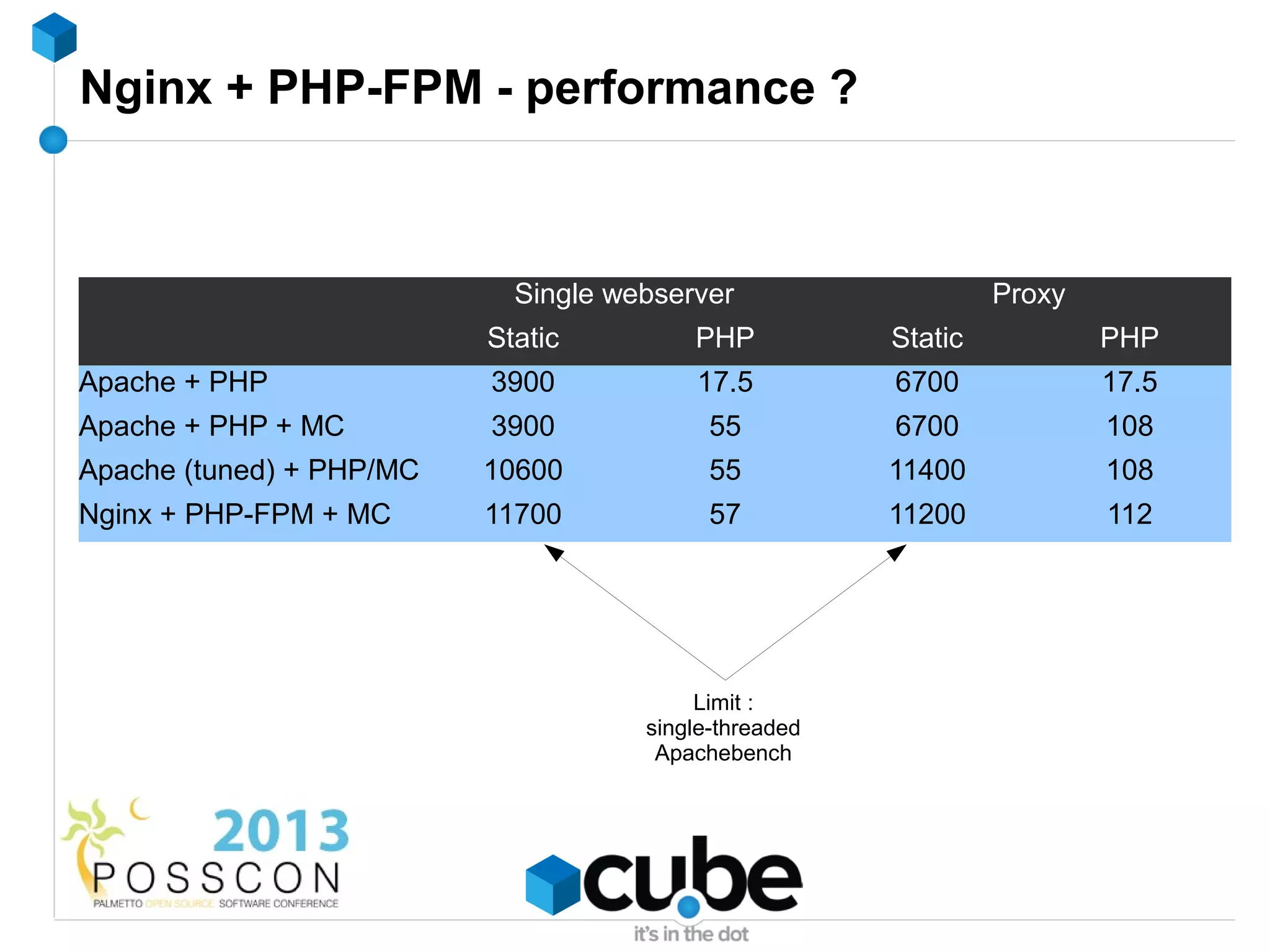

51. Nginx + PHP-FPM - performance ?
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Apache + PHP + MC 3900 55 6700 108
Apache (tuned) + PHP/MC 10600 55 11400 108
Nginx + PHP-FPM + MC 11700 57 11200 112
Limit :
single-threaded
Apachebench

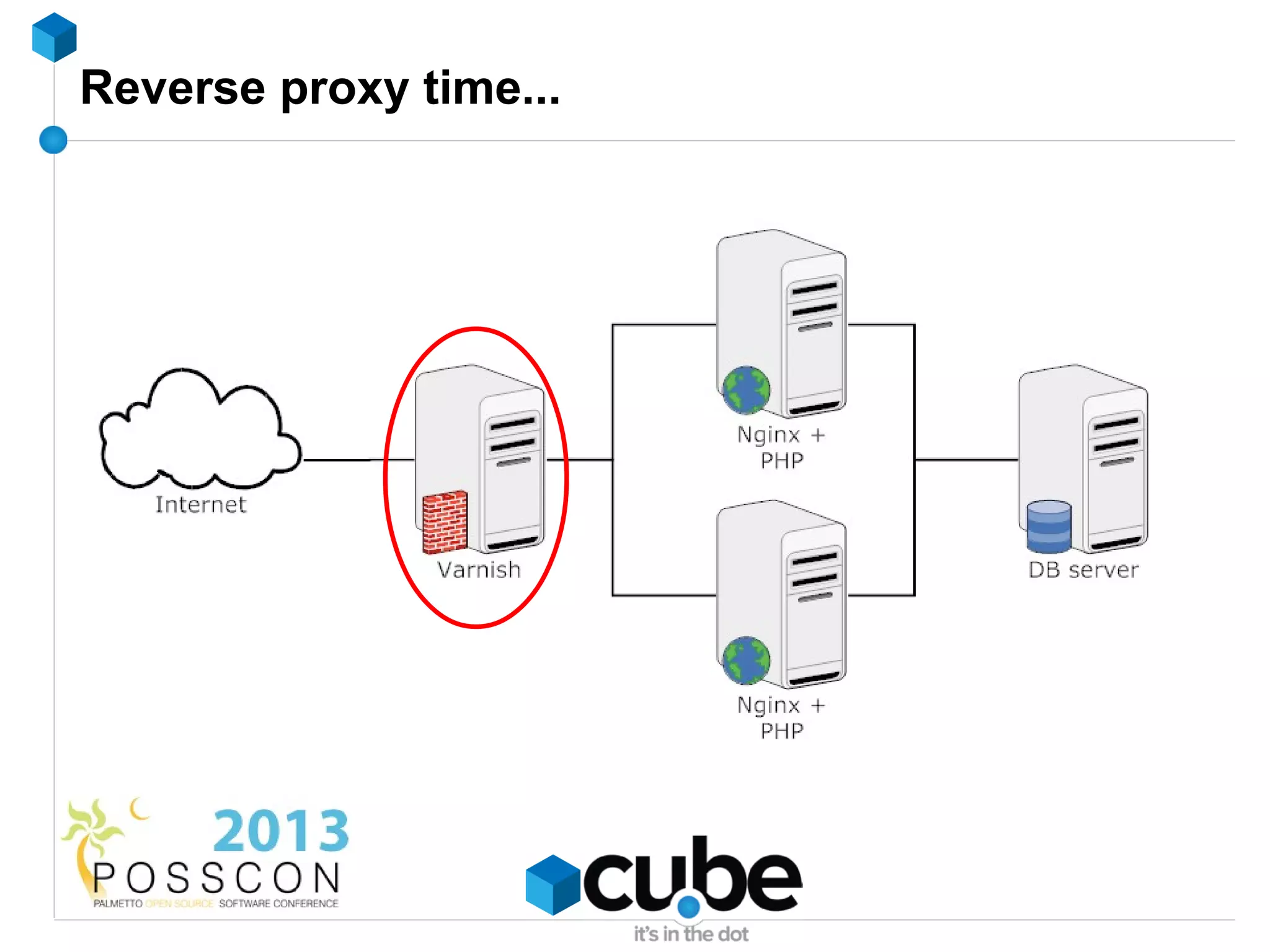

52. Reverse proxy time...

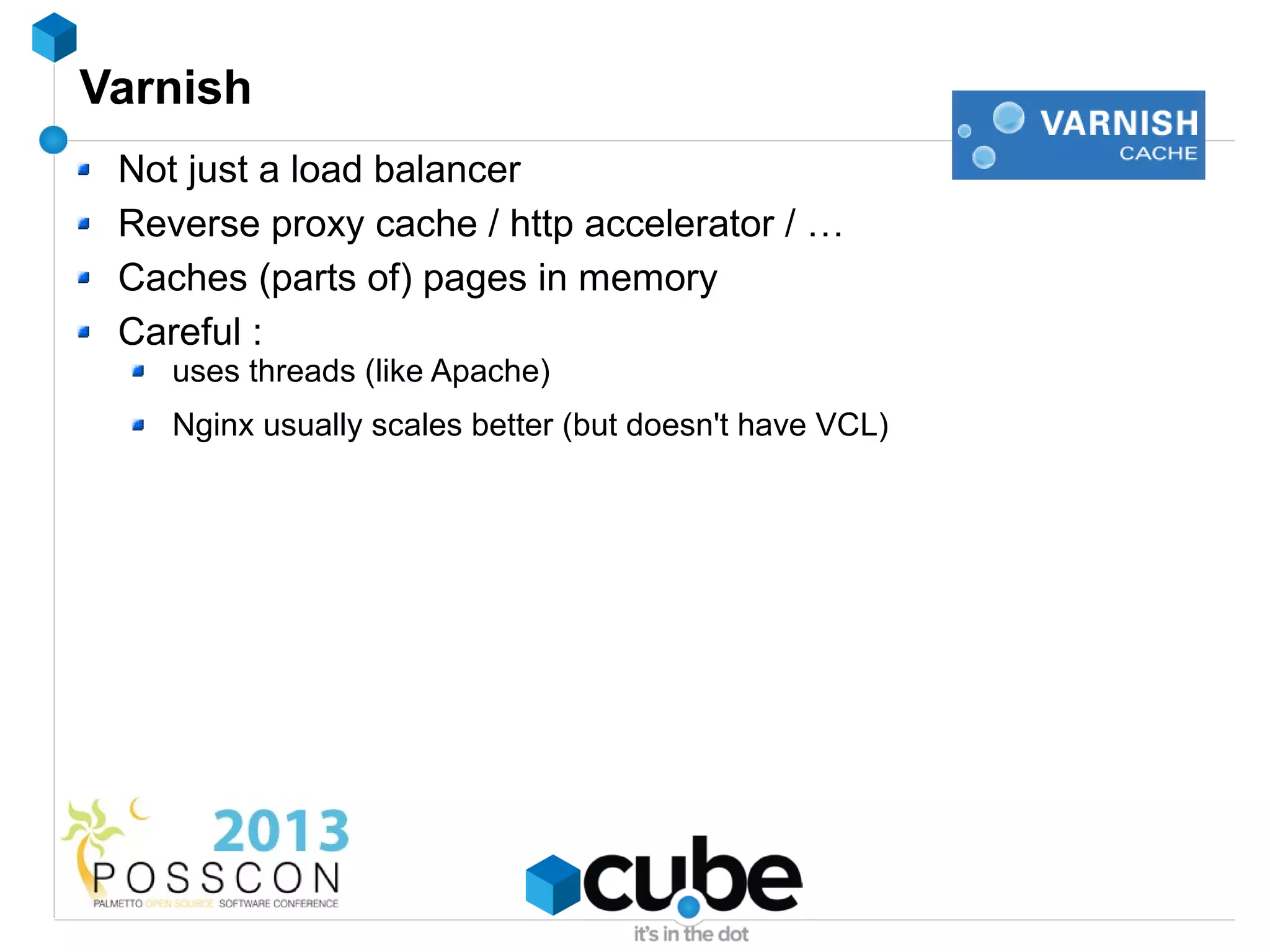

53. Varnish
Not just a load balancer
Reverse proxy cache / http accelerator / …
Caches (parts of) pages in memory
Careful :
uses threads (like Apache)
Nginx usually scales better (but doesn't have VCL)

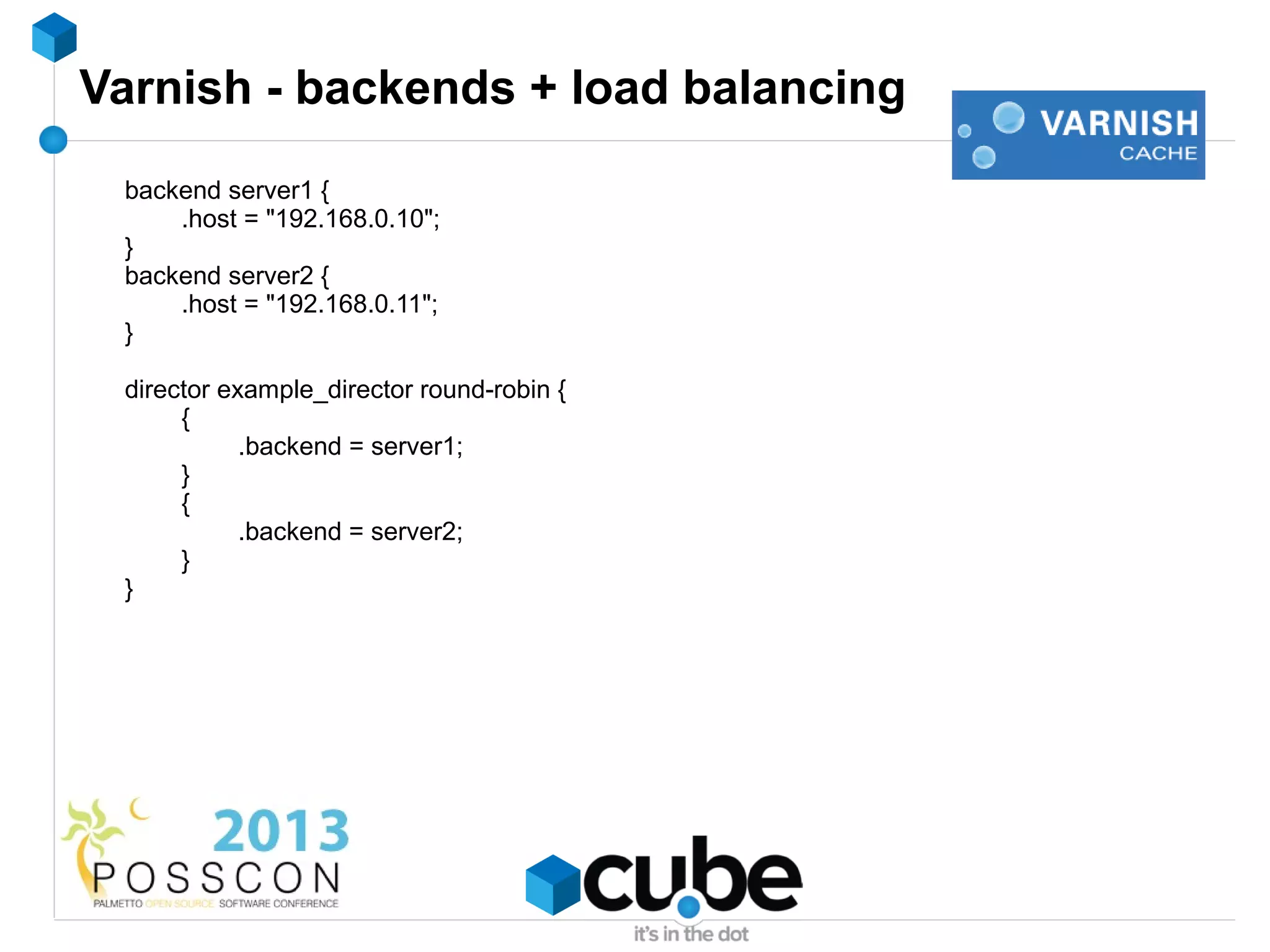

54. Varnish - backends + load balancing
backend server1 {
.host = "192.168.0.10";
}
backend server2 {
.host = "192.168.0.11";
}
director example_director round-robin {
{
.backend = server1;
}
{
.backend = server2;
}
}

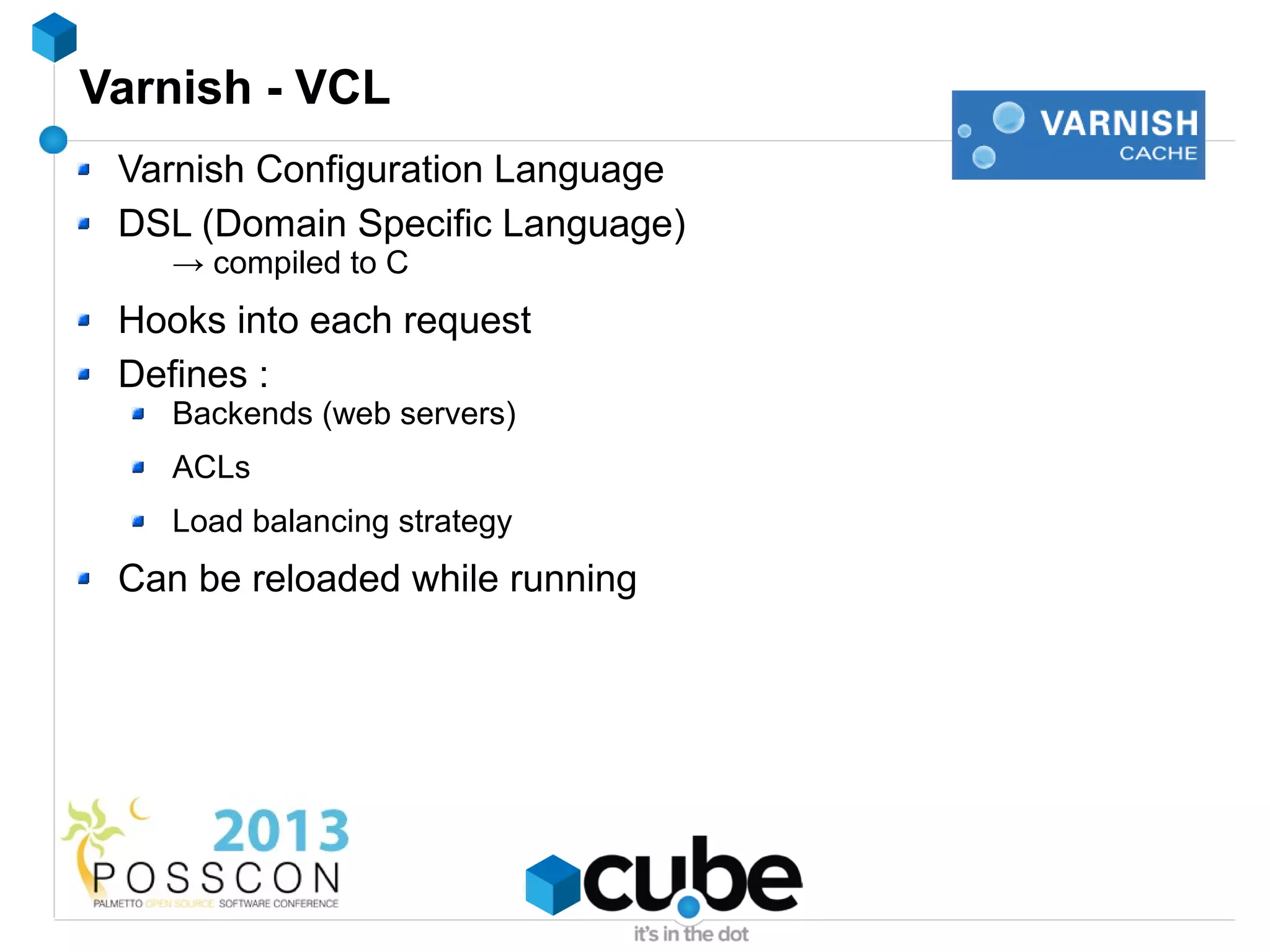

55. Varnish - VCL
Varnish Configuration Language
DSL (Domain Specific Language)
→ compiled to C
Hooks into each request
Defines :
Backends (web servers)
ACLs
Load balancing strategy
Can be reloaded while running

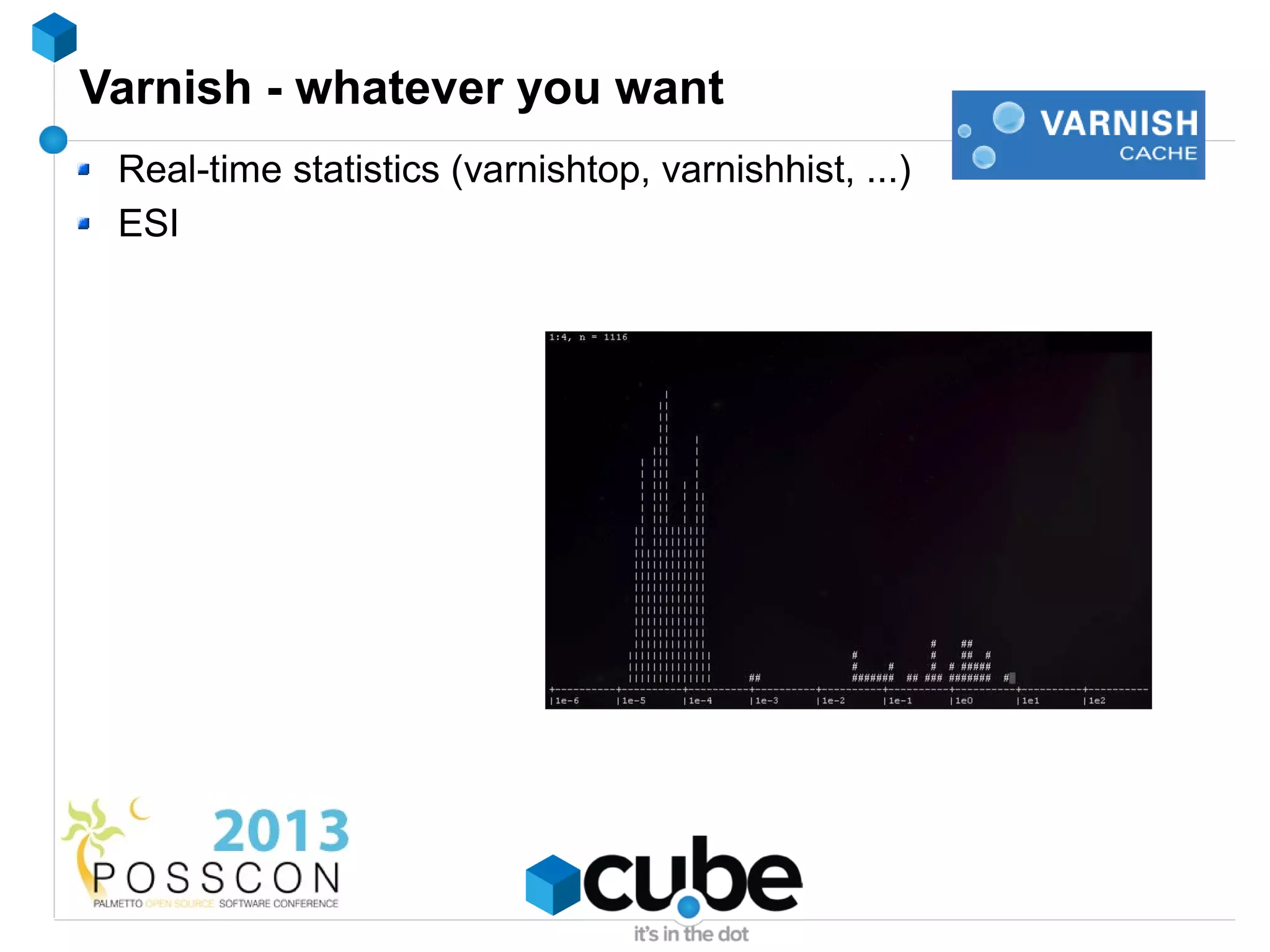

56. Varnish - whatever you want
Real-time statistics (varnishtop, varnishhist, ...)
ESI

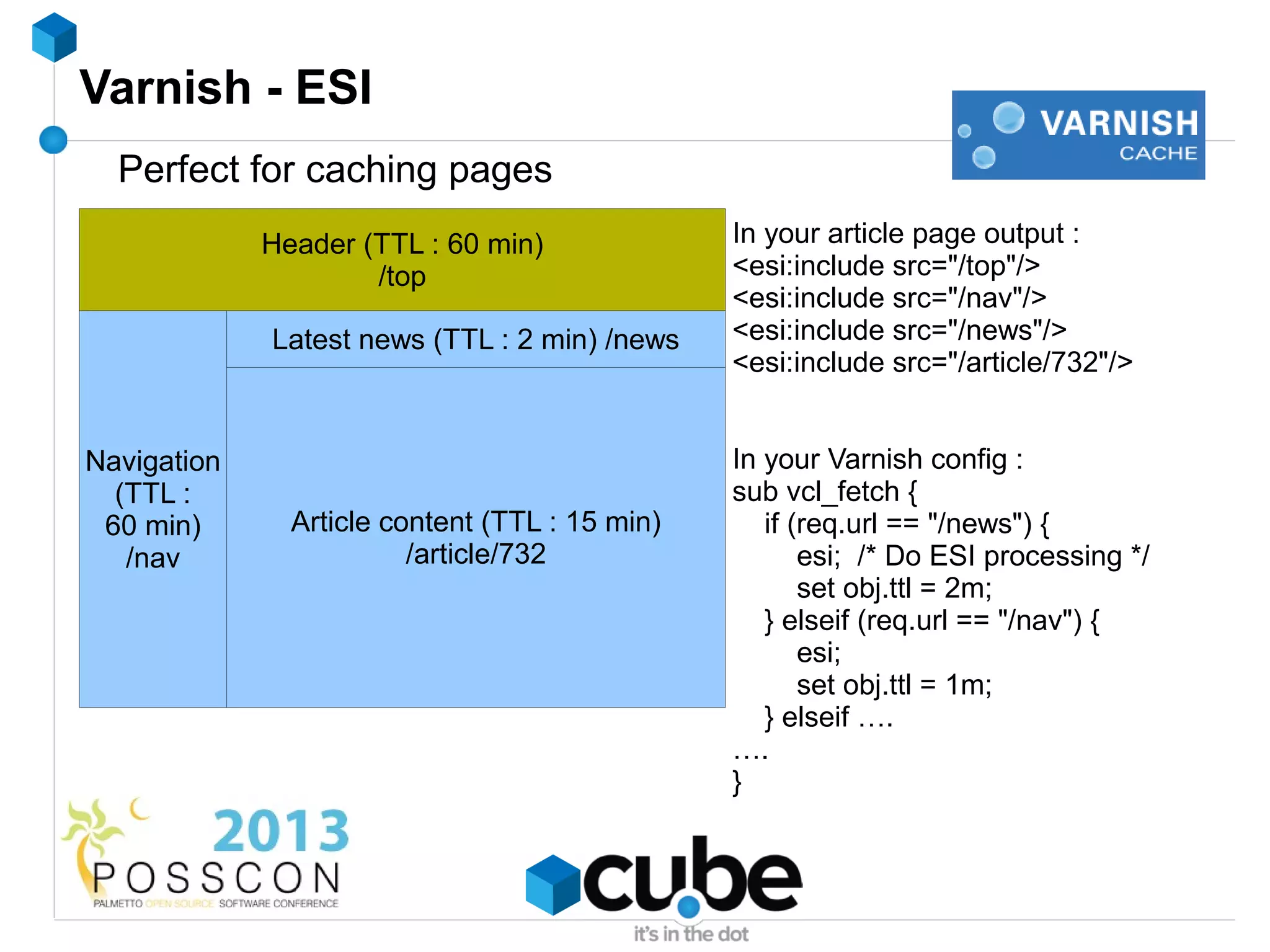

57. Varnish - ESI
Perfect for caching pages
Header (TTL : 60 min) In your article page output :
/top <esi:include src="/top"/>
<esi:include src="/nav"/>
Latest news (TTL : 2 min) /news <esi:include src="/news"/>
<esi:include src="/article/732"/>
Navigation Article content page In your Varnish config :
(TTL : sub vcl_fetch {
60 min) Article content (TTL : 15 min) if (req.url == "/news") {
/nav /article/732 esi; /* Do ESI processing */
set obj.ttl = 2m;
} elseif (req.url == "/nav") {
esi;
set obj.ttl = 1m;
} elseif ….
….
}

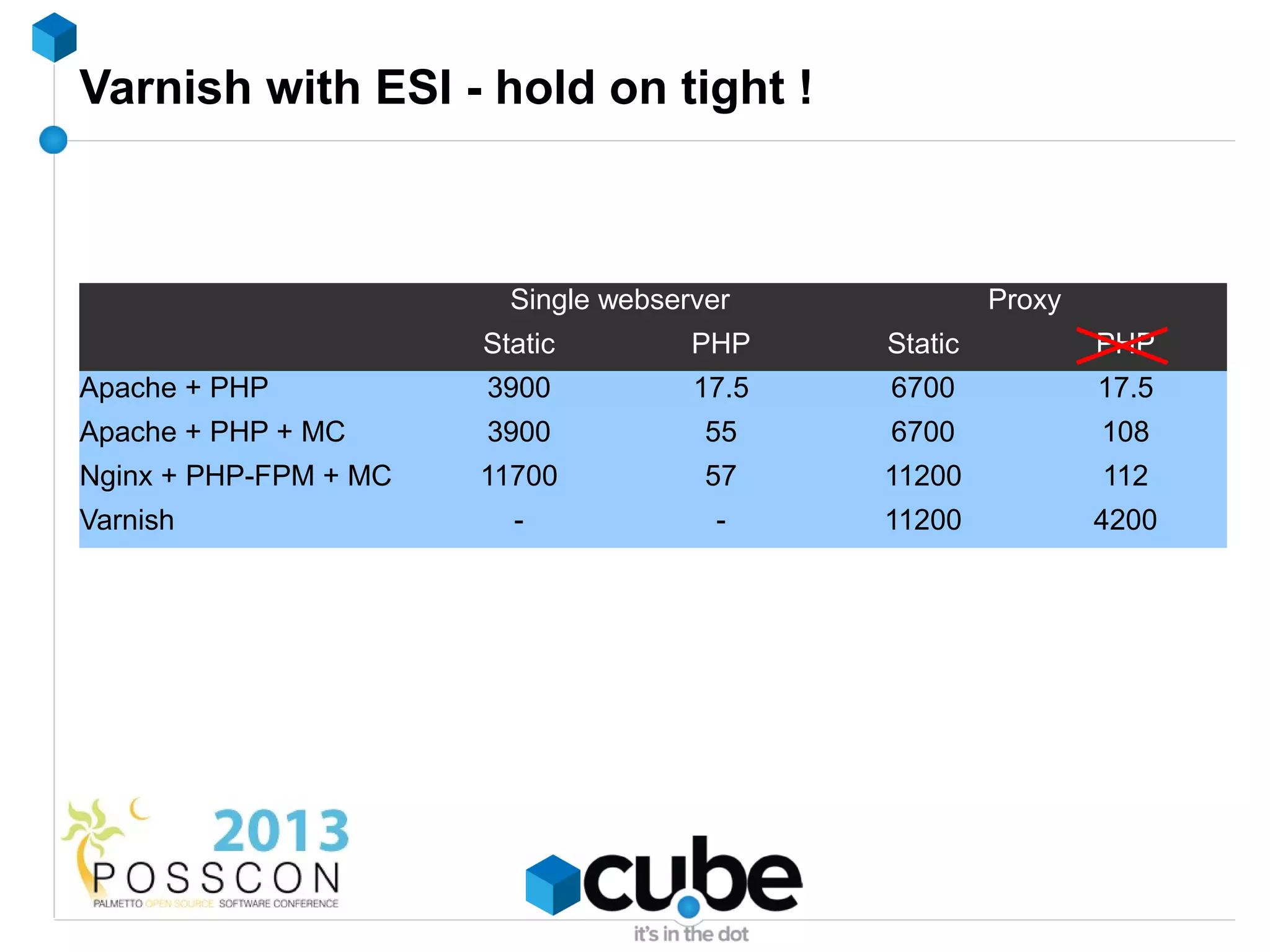

58. Varnish with ESI - hold on tight !
Single webserver Proxy
Static PHP Static PHP
Apache + PHP 3900 17.5 6700 17.5
Apache + PHP + MC 3900 55 6700 108
Nginx + PHP-FPM + MC 11700 57 11200 112
Varnish - - 11200 4200

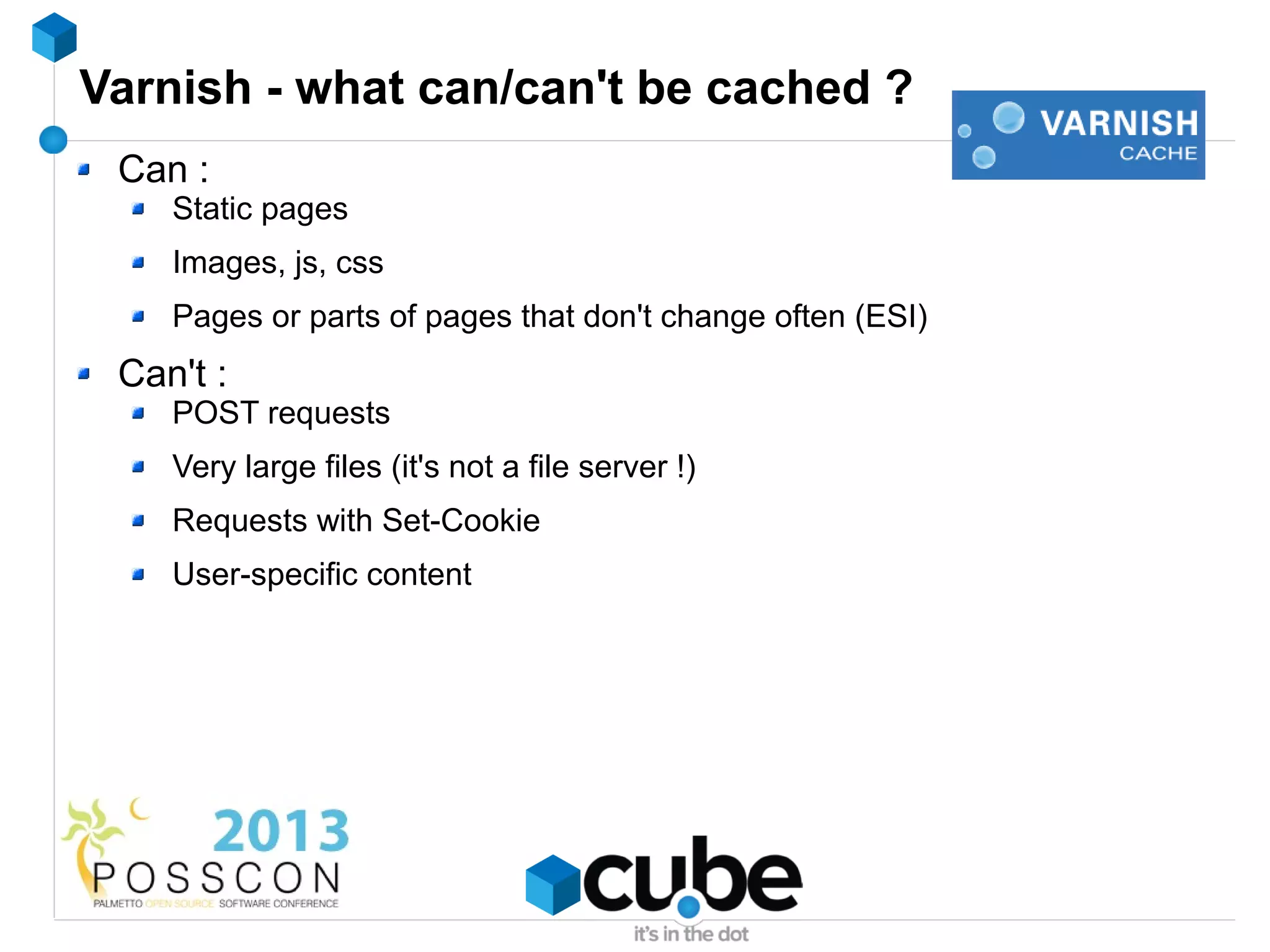

59. Varnish - what can/can't be cached ?
Can :
Static pages
Images, js, css
Pages or parts of pages that don't change often (ESI)
Can't :
POST requests
Very large files (it's not a file server !)
Requests with Set-Cookie
User-specific content

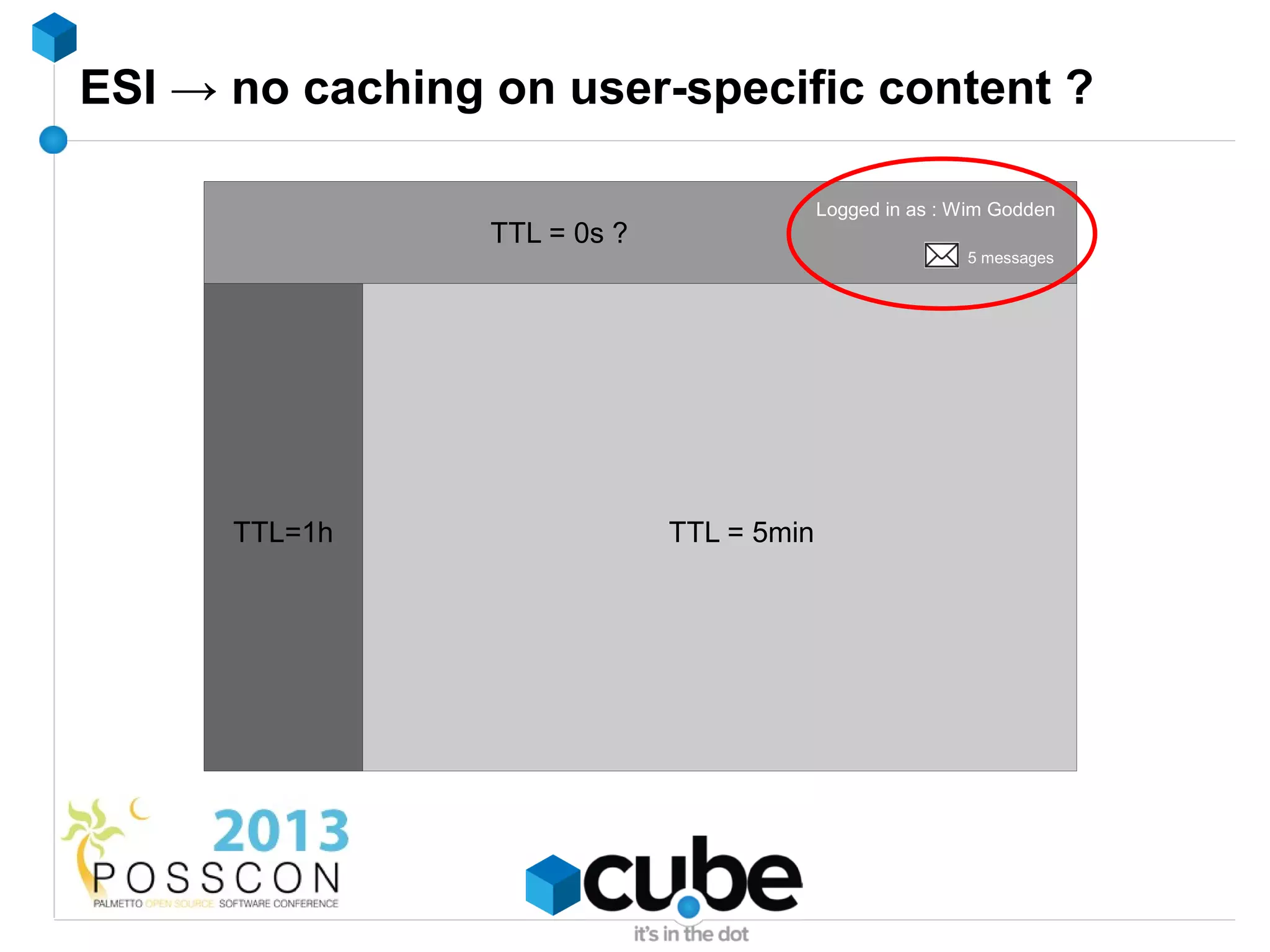

60. ESI → no caching on user-specific content ?
Logged in as : Wim Godden
TTL = 0s ?
5 messages
TTL=1h TTL = 5min

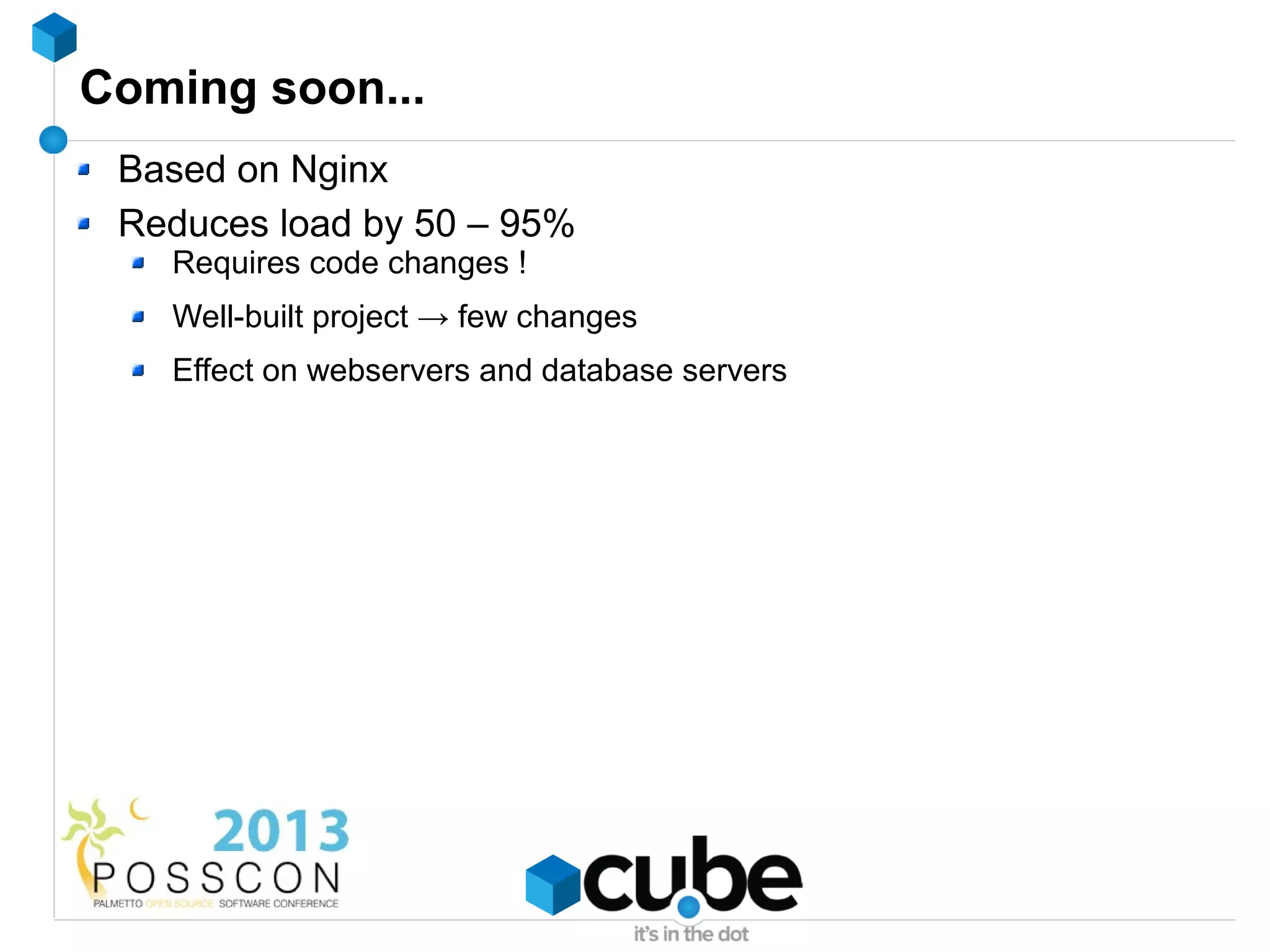

61. Coming soon...
Based on Nginx
Reduces load by 50 – 95%
Requires code changes !
Well-built project → few changes
Effect on webservers and database servers

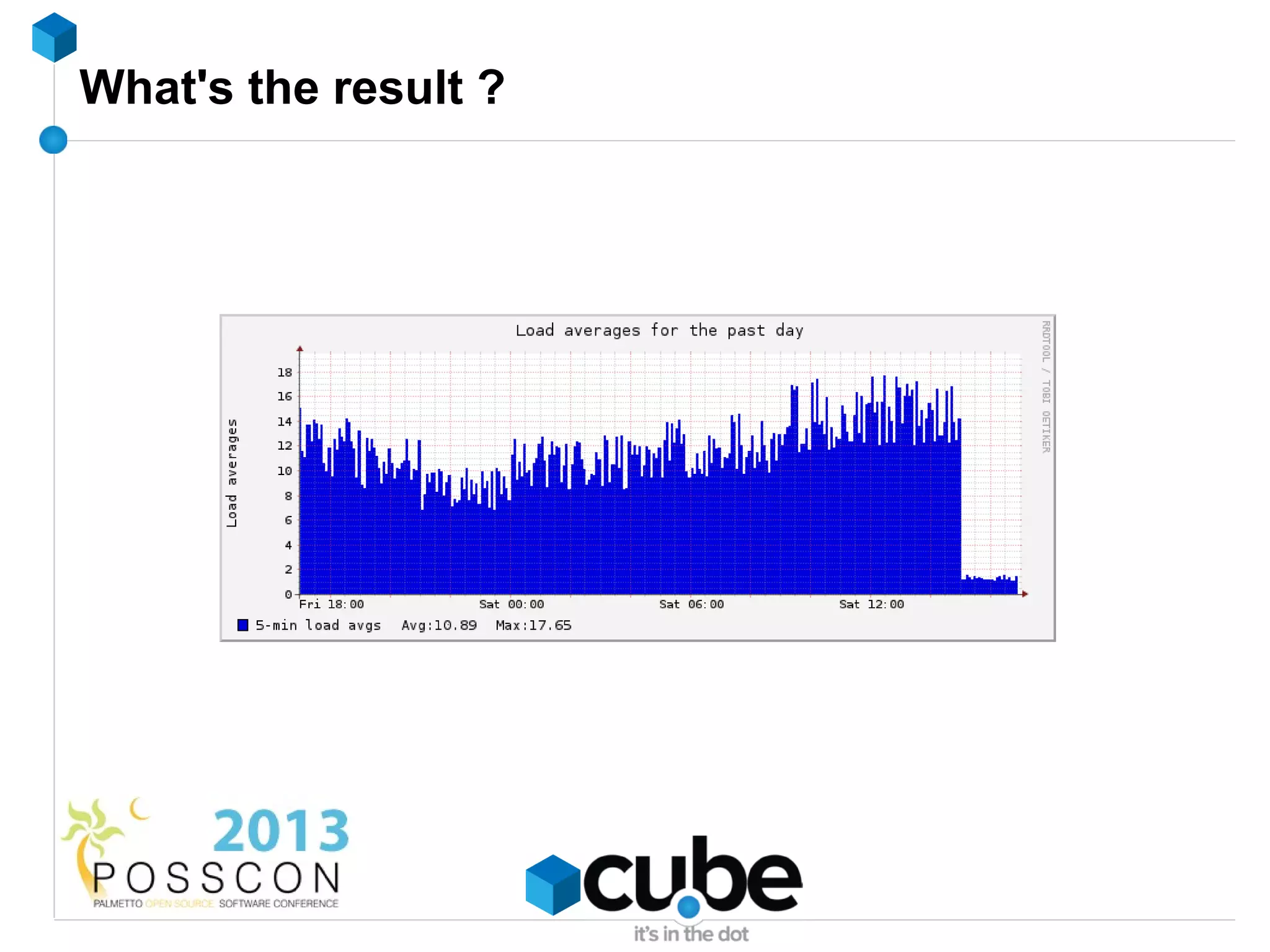

62. What's the result ?

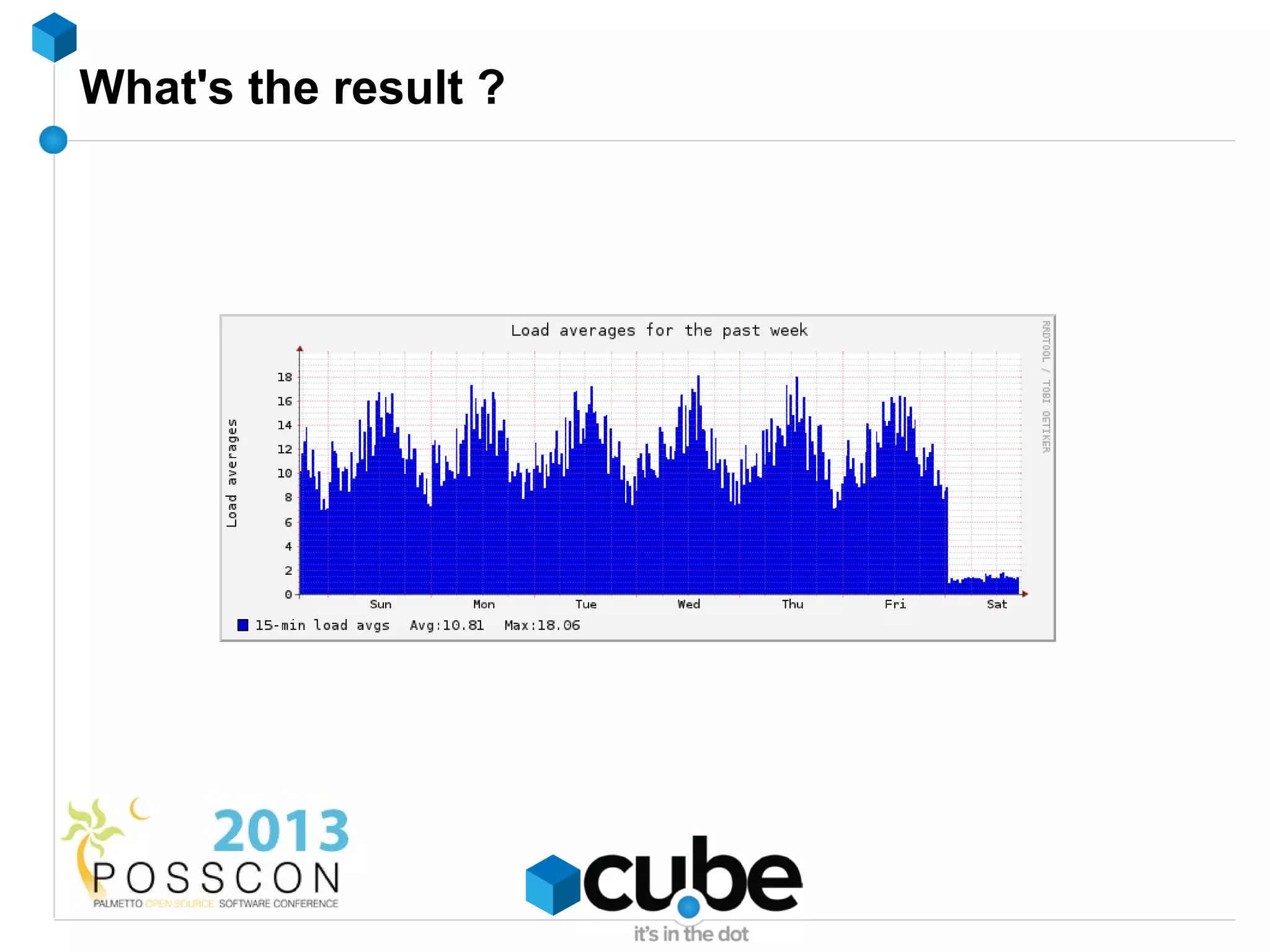

63. What's the result ?

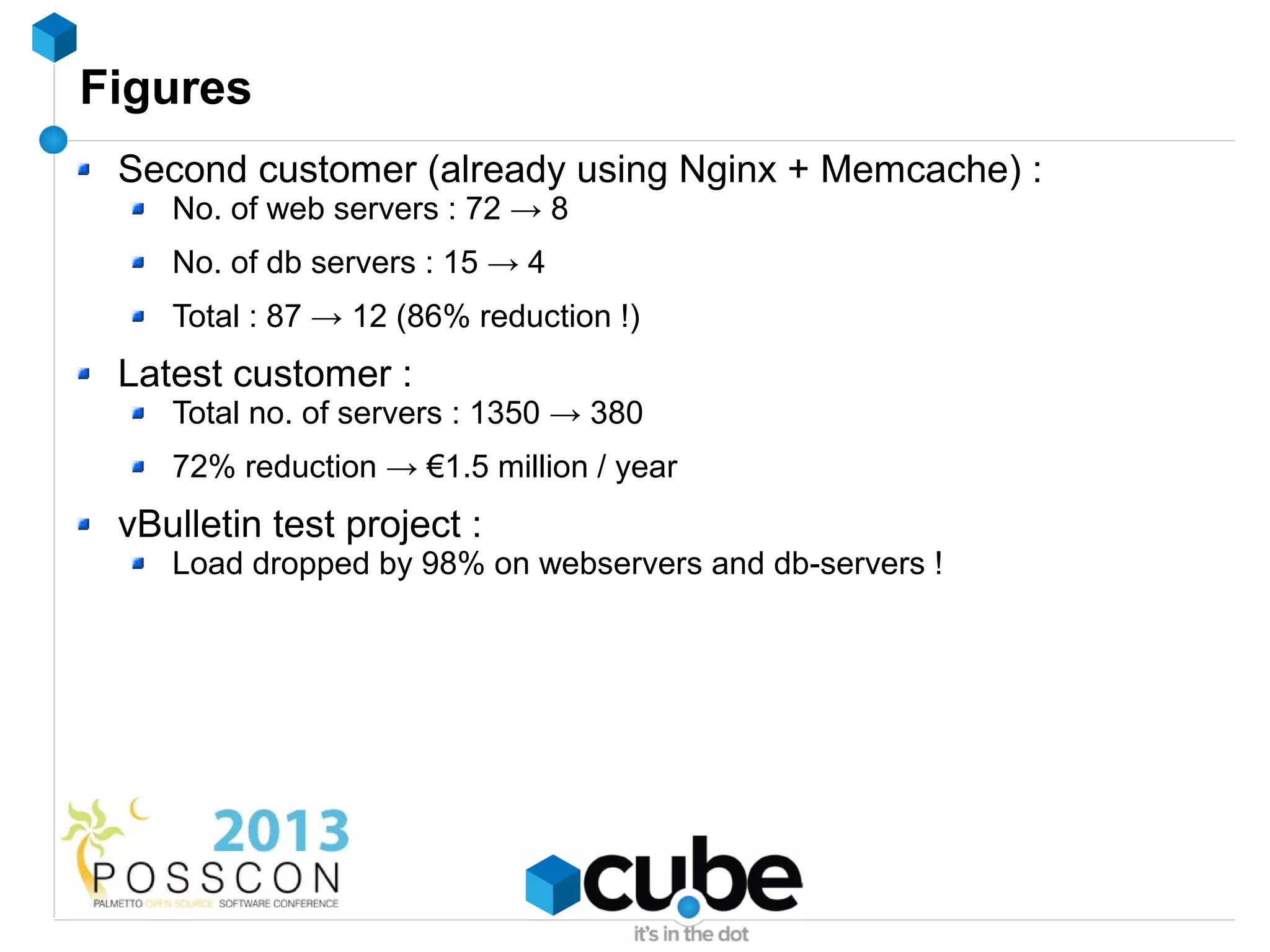

64. Figures
Second customer (already using Nginx + Memcache) :
No. of web servers : 72 → 8
No. of db servers : 15 → 4
Total : 87 → 12 (86% reduction !)
Latest customer :
Total no. of servers : 1350 → 380
72% reduction → €1.5 million / year
vBulletin test project :
Load dropped by 98% on webservers and db-servers !

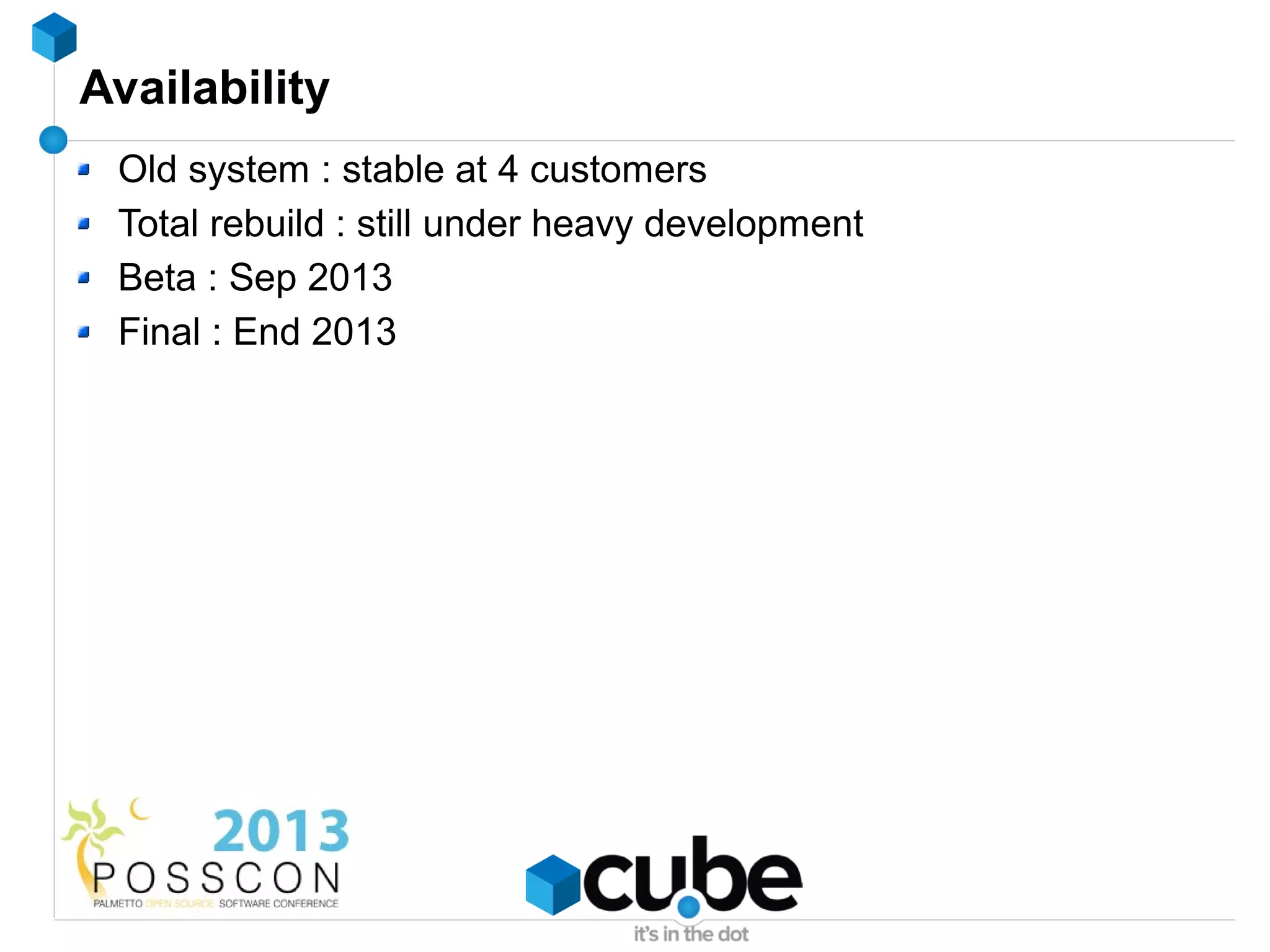

65. Availability
Old system : stable at 4 customers
Total rebuild : still under heavy development
Beta : Sep 2013
Final : End 2013

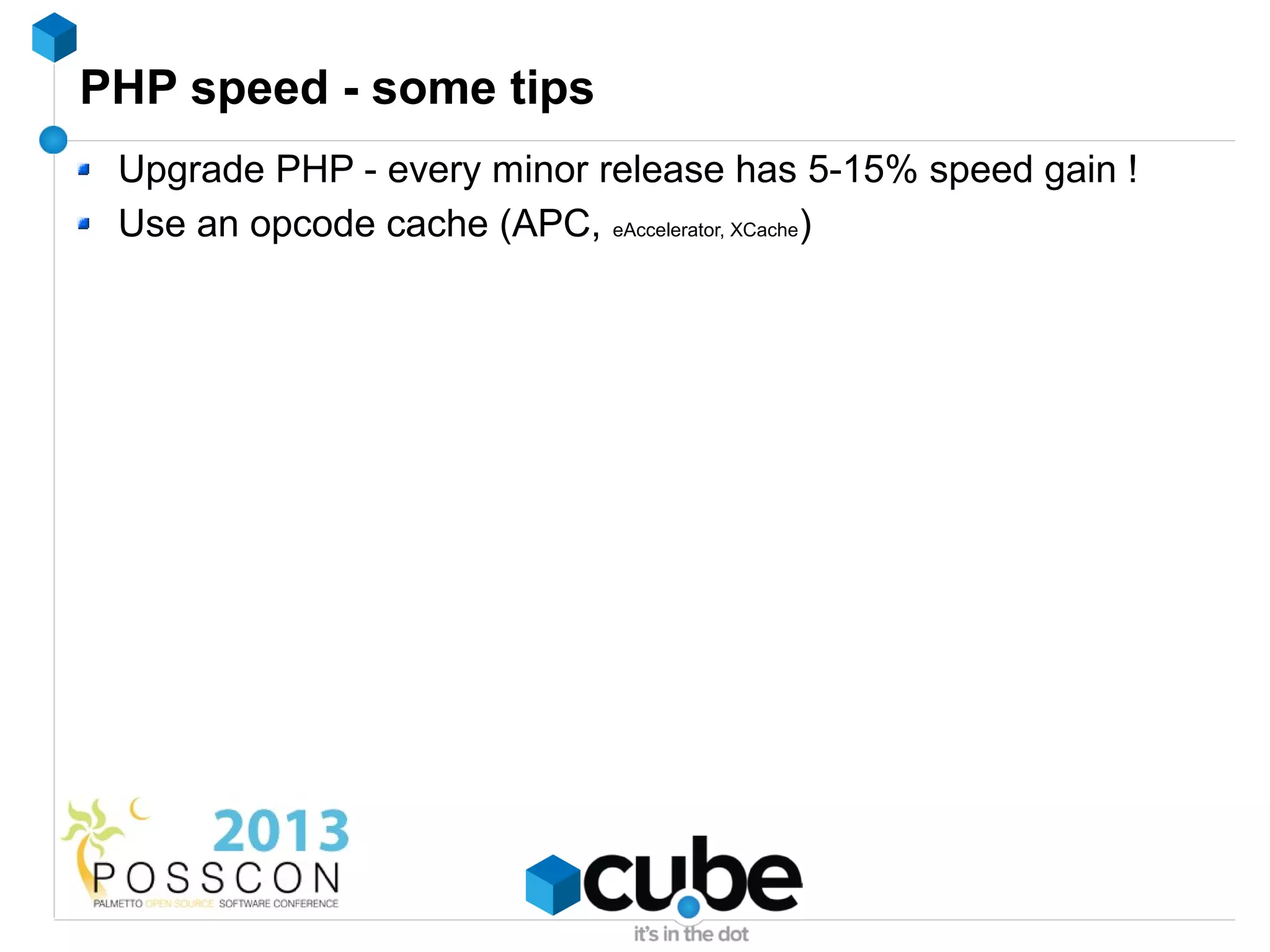

66. PHP speed - some tips
Upgrade PHP - every minor release has 5-15% speed gain !
Use an opcode cache (APC, eAccelerator, XCache)

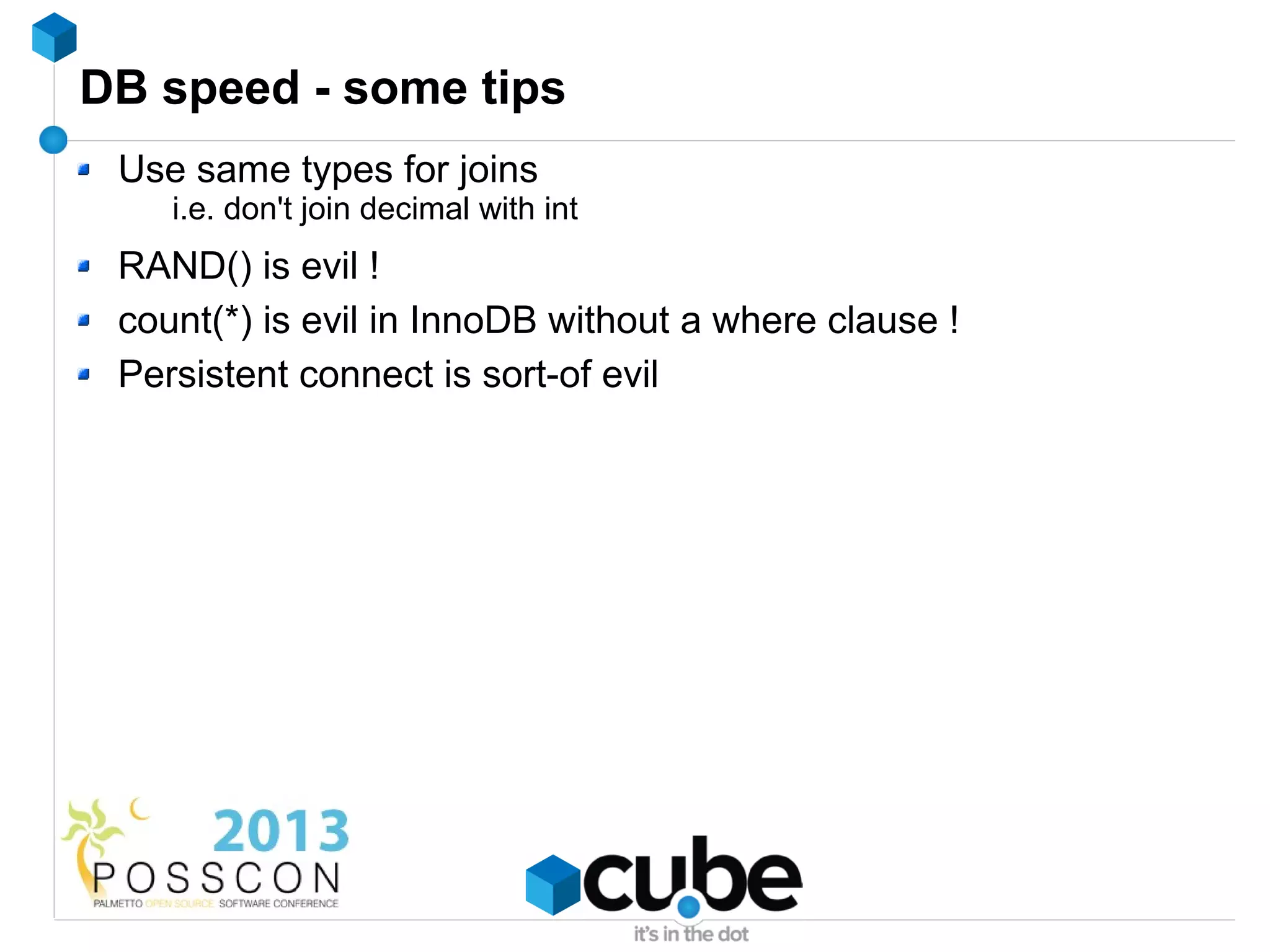

67. DB speed - some tips
Use same types for joins
i.e. don't join decimal with int
RAND() is evil !
count(*) is evil in InnoDB without a where clause !
Persistent connect is sort-of evil

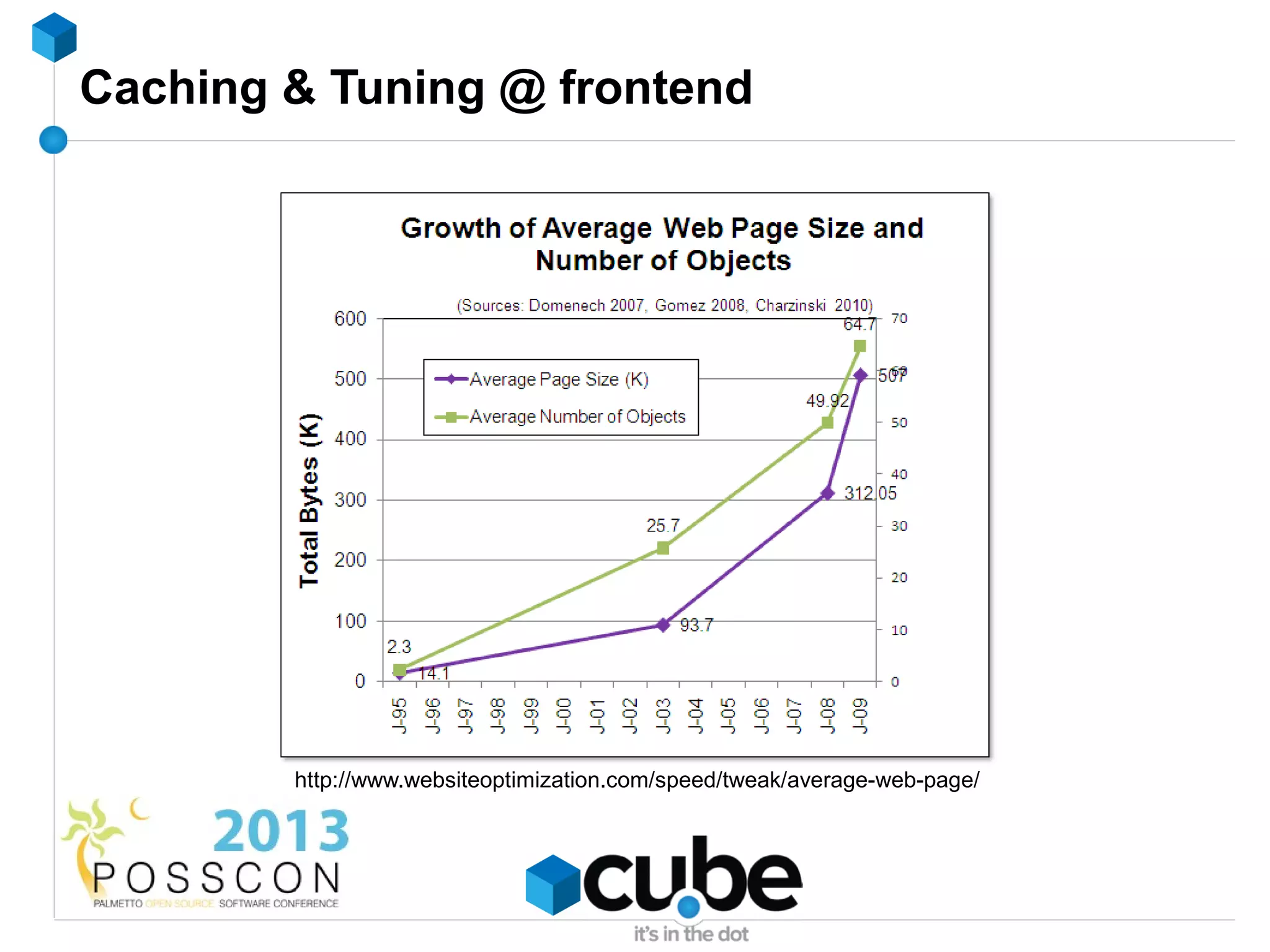

68. Caching & Tuning @ frontend
http://www.websiteoptimization.com/speed/tweak/average-web-page/

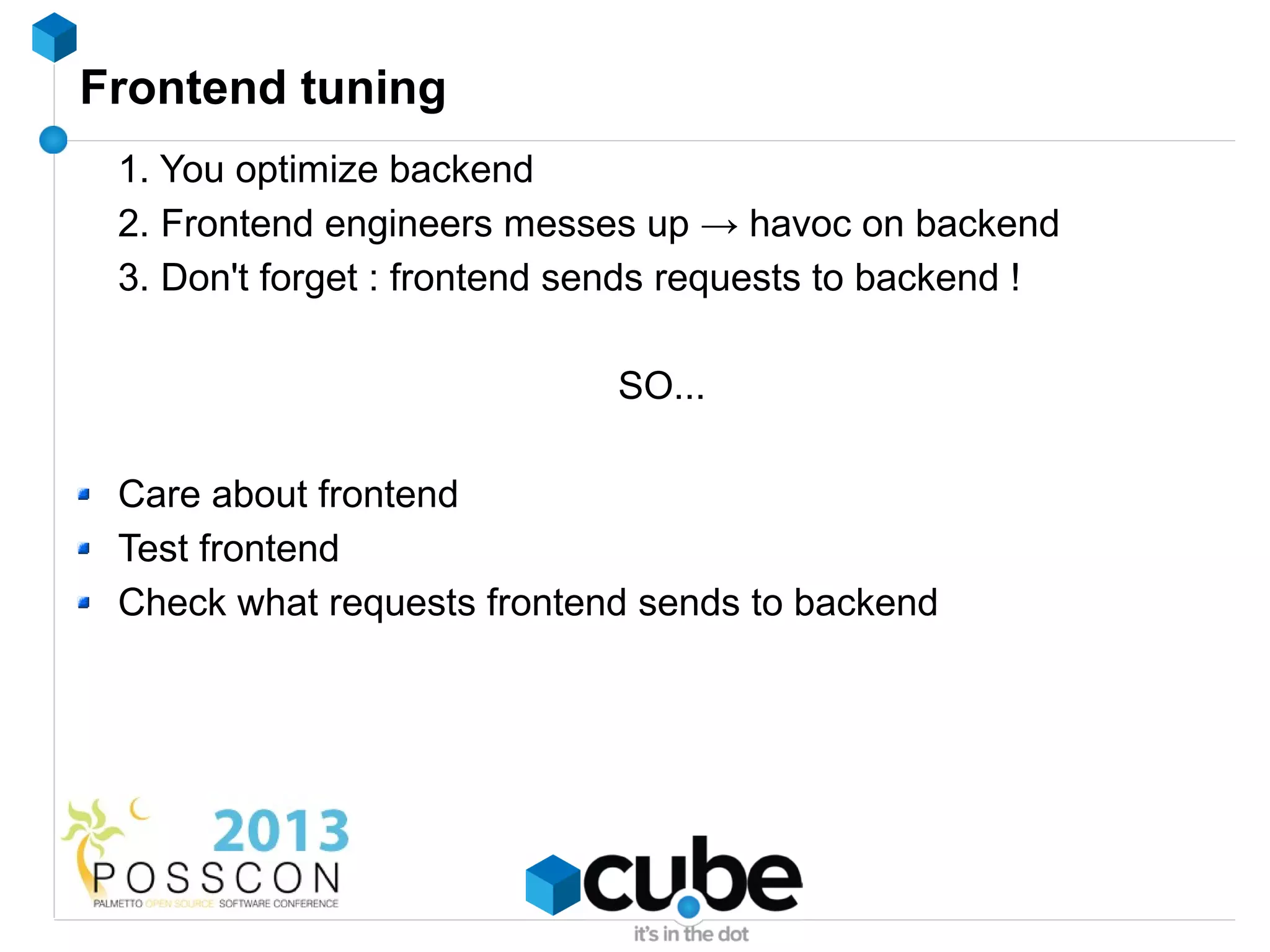

69. Frontend tuning
1. You optimize backend
2. Frontend engineers messes up → havoc on backend
3. Don't forget : frontend sends requests to backend !
SO...
Care about frontend
Test frontend
Check what requests frontend sends to backend

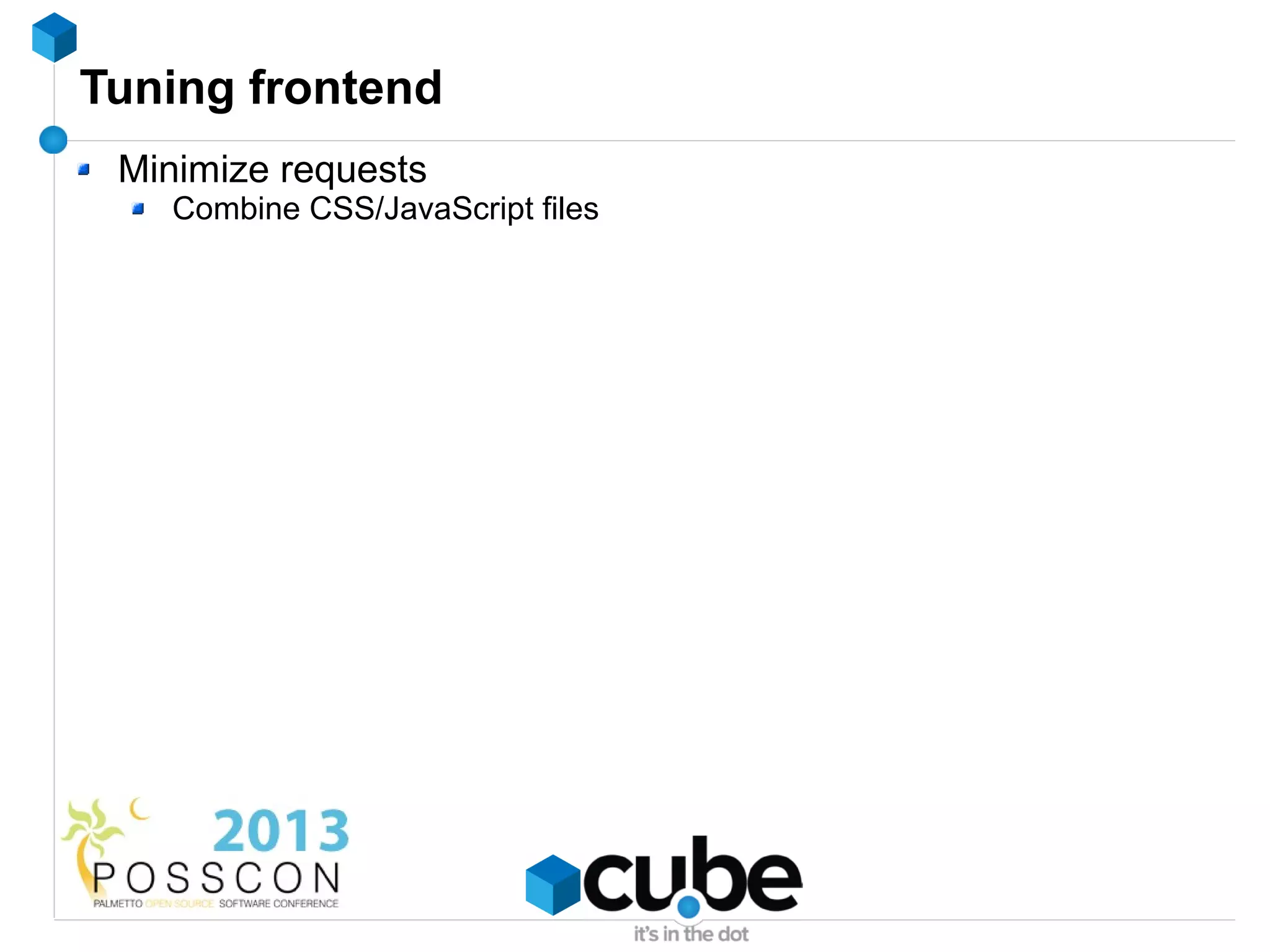

70. Tuning frontend
Minimize requests
Combine CSS/JavaScript files

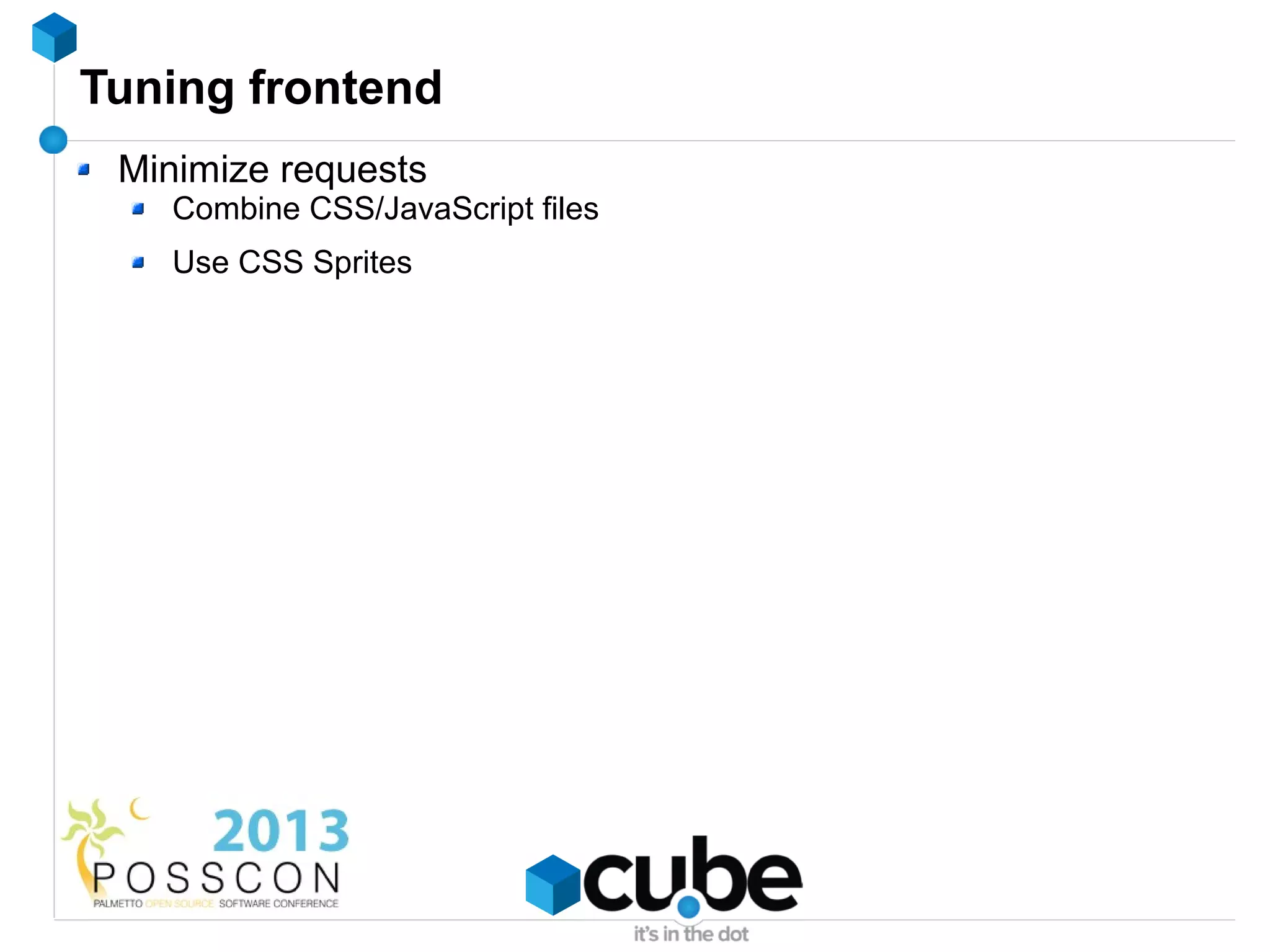

71. Tuning frontend
Minimize requests
Combine CSS/JavaScript files
Use CSS Sprites

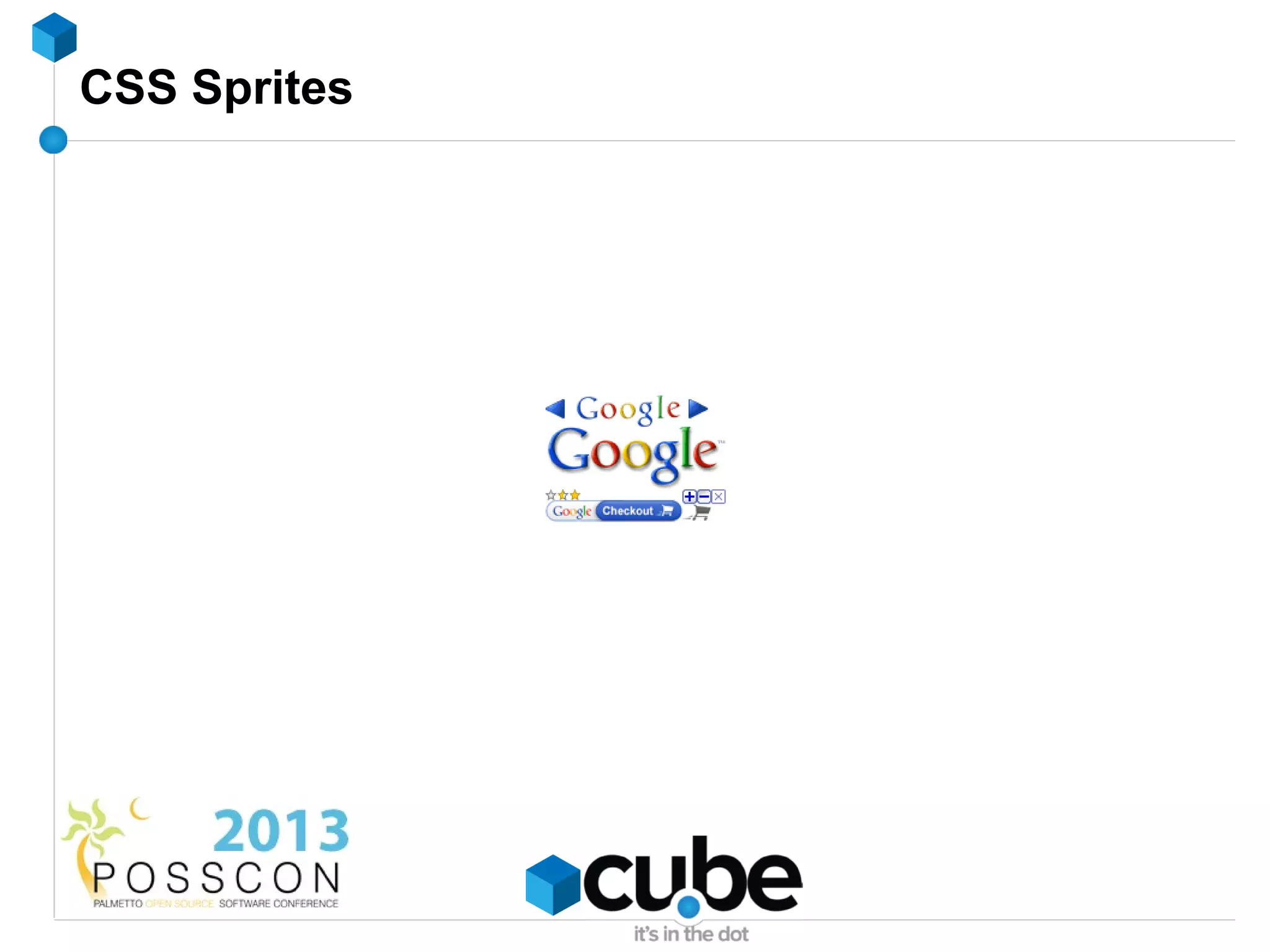

72. CSS Sprites

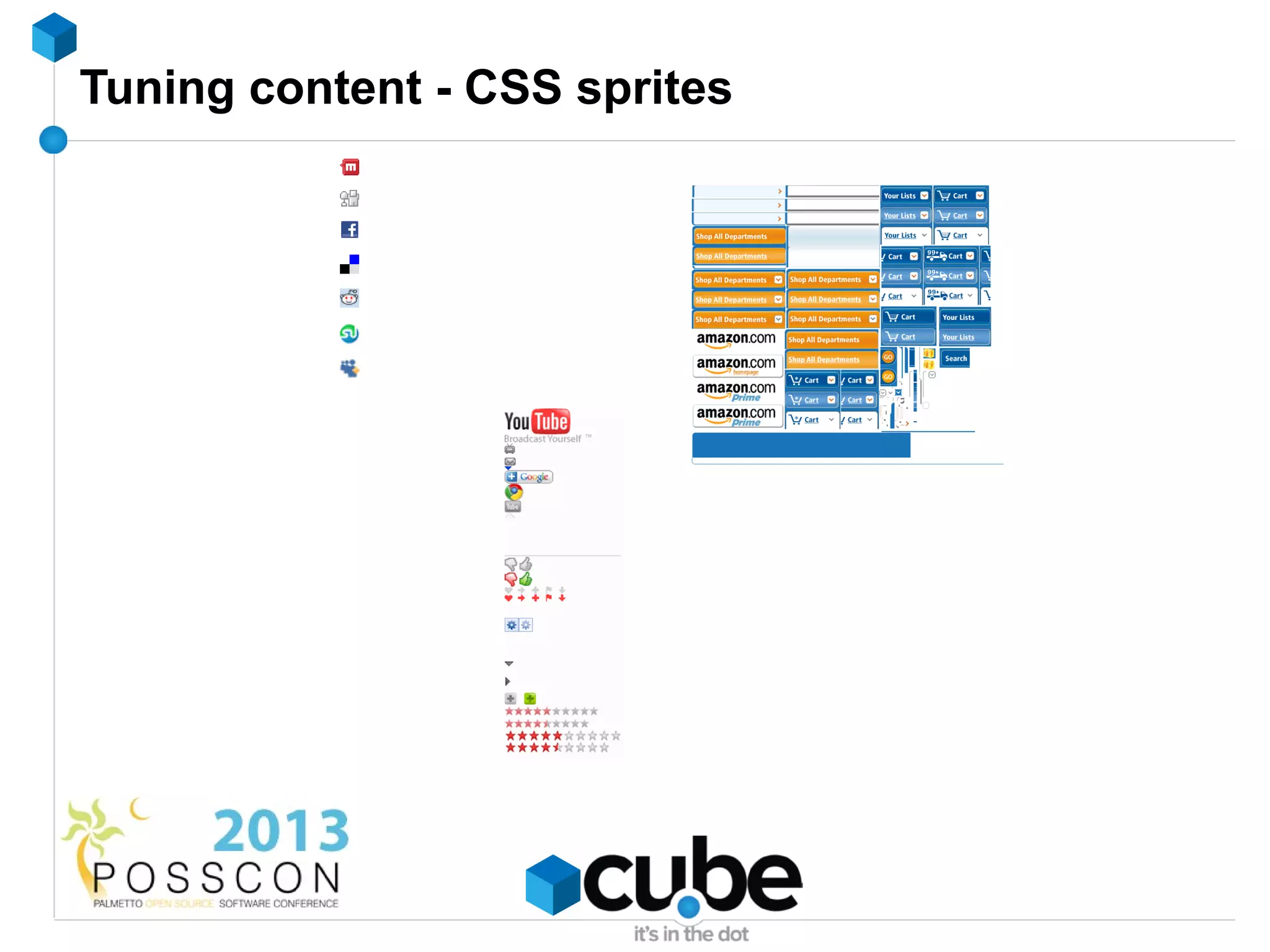

73. Tuning content - CSS sprites

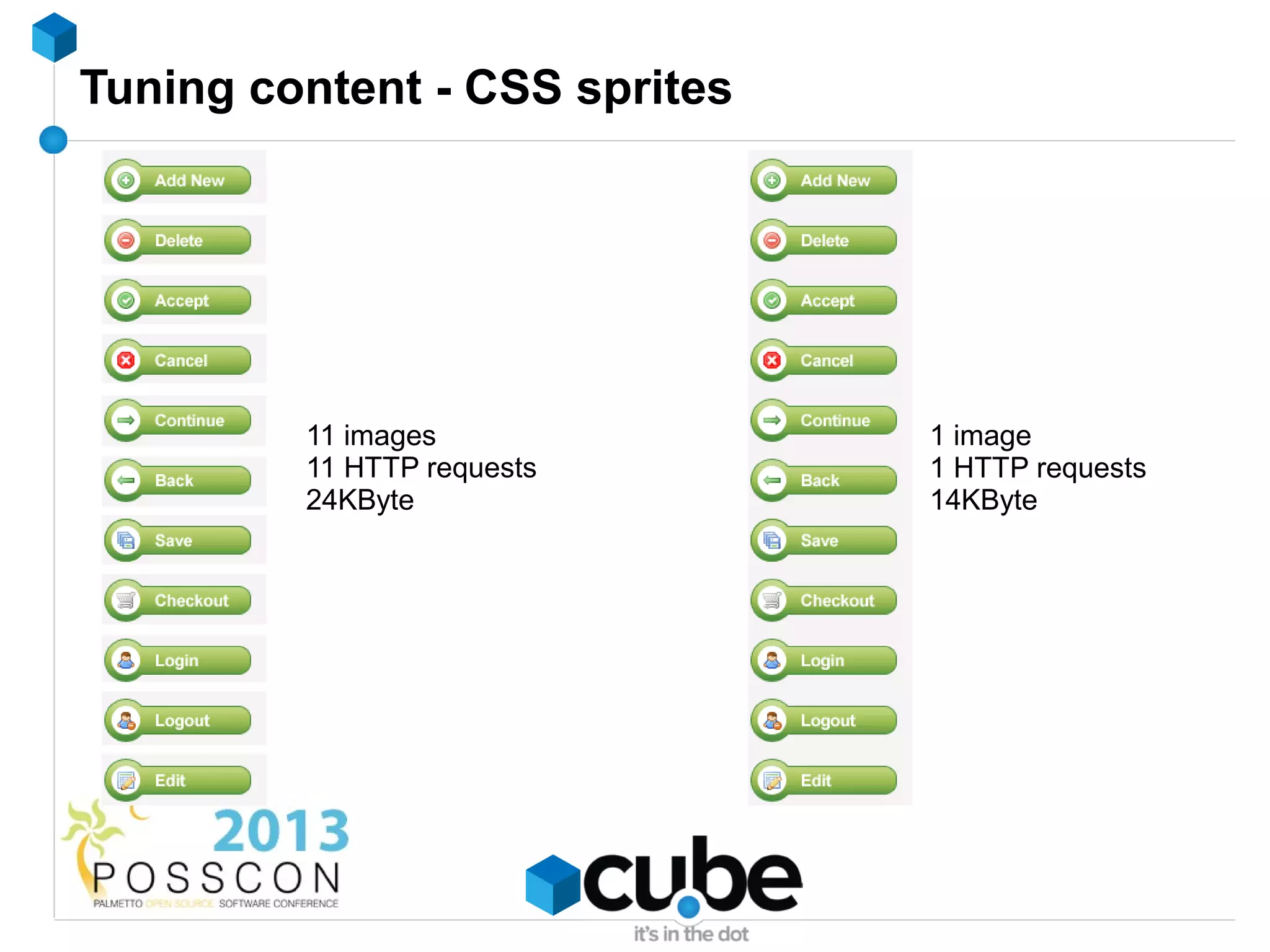

74. Tuning content - CSS sprites
11 images 1 image
11 HTTP requests 1 HTTP requests
24KByte 14KByte

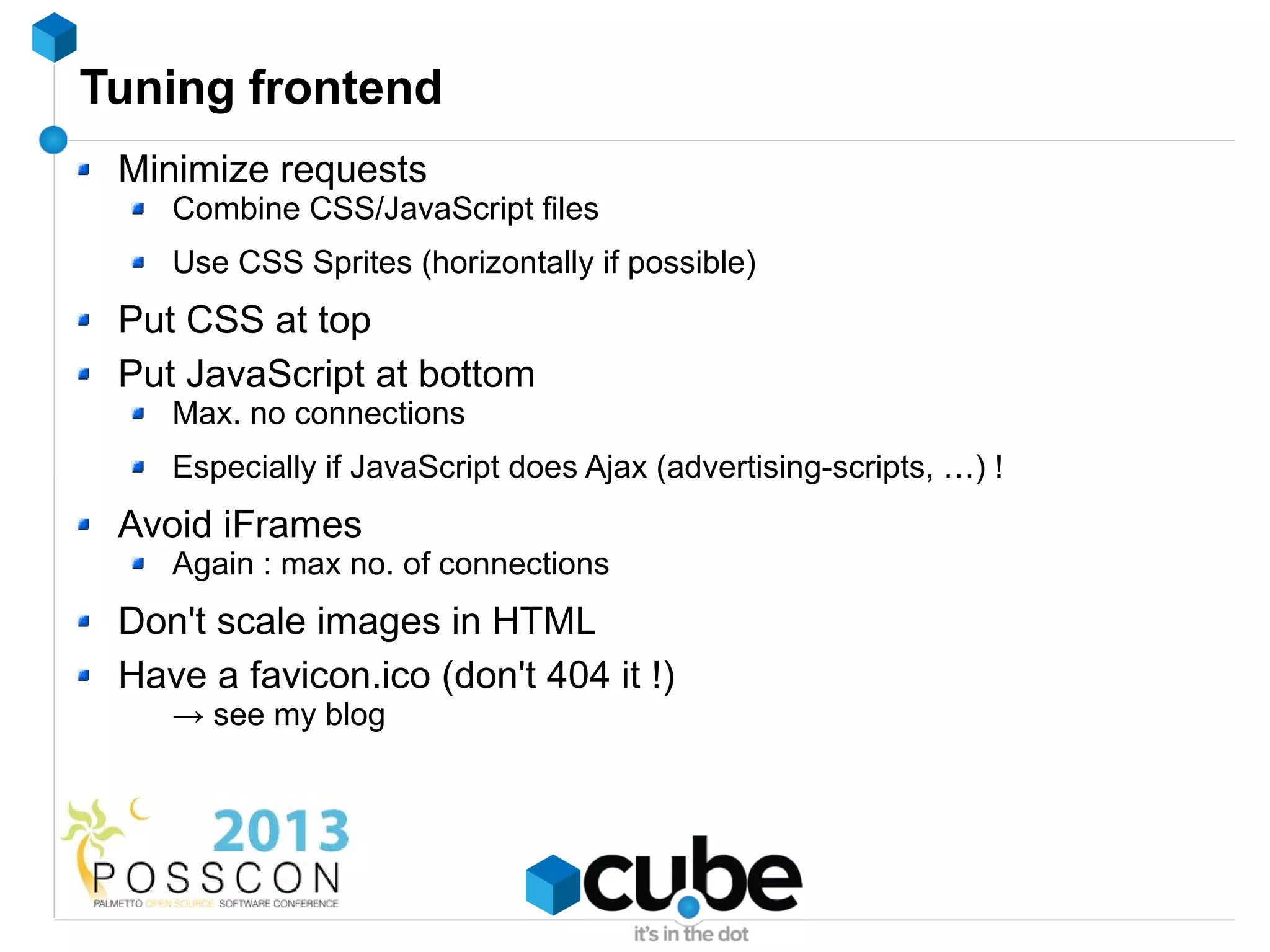

75. Tuning frontend
Minimize requests
Combine CSS/JavaScript files
Use CSS Sprites (horizontally if possible)
Put CSS at top
Put JavaScript at bottom
Max. no connections
Especially if JavaScript does Ajax (advertising-scripts, …) !
Avoid iFrames
Again : max no. of connections
Don't scale images in HTML
Have a favicon.ico (don't 404 it !)
→ see my blog

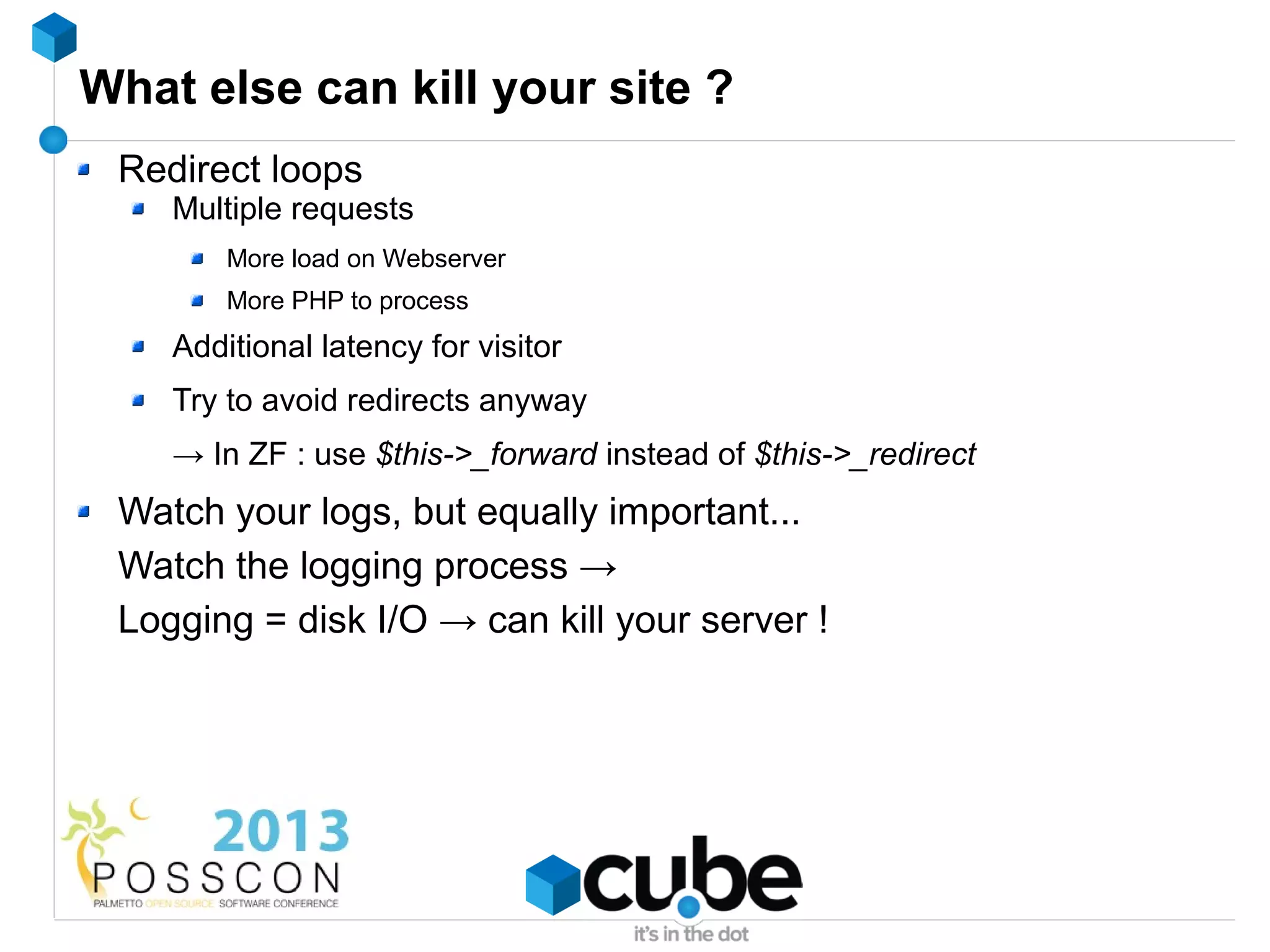

76. What else can kill your site ?
Redirect loops
Multiple requests
More load on Webserver
More PHP to process
Additional latency for visitor
Try to avoid redirects anyway
→ In ZF : use $this->_forward instead of $this->_redirect
Watch your logs, but equally important...
Watch the logging process →
Logging = disk I/O → can kill your server !

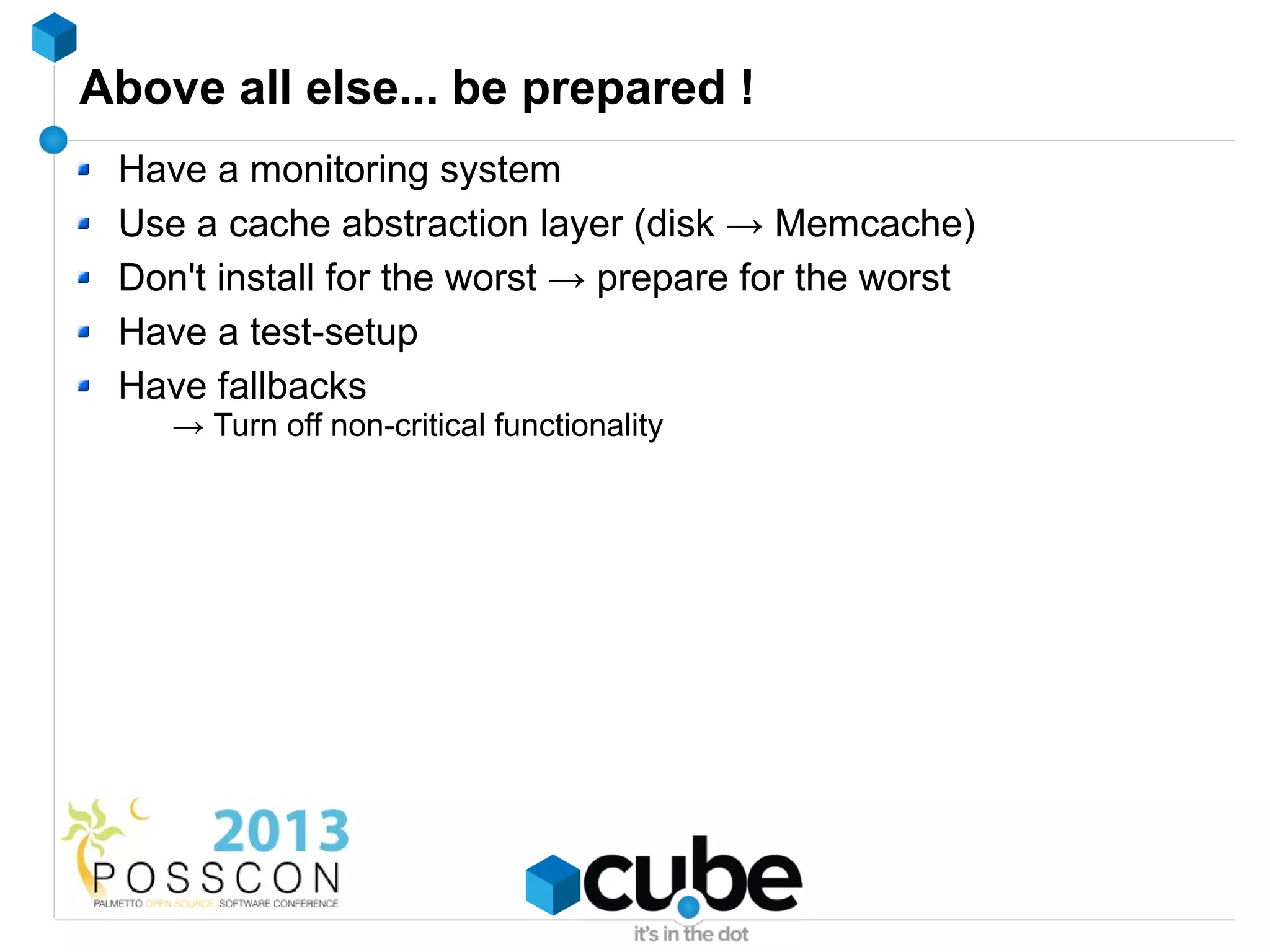

77. Above all else... be prepared !
Have a monitoring system
Use a cache abstraction layer (disk → Memcache)
Don't install for the worst → prepare for the worst
Have a test-setup
Have fallbacks
→ Turn off non-critical functionality

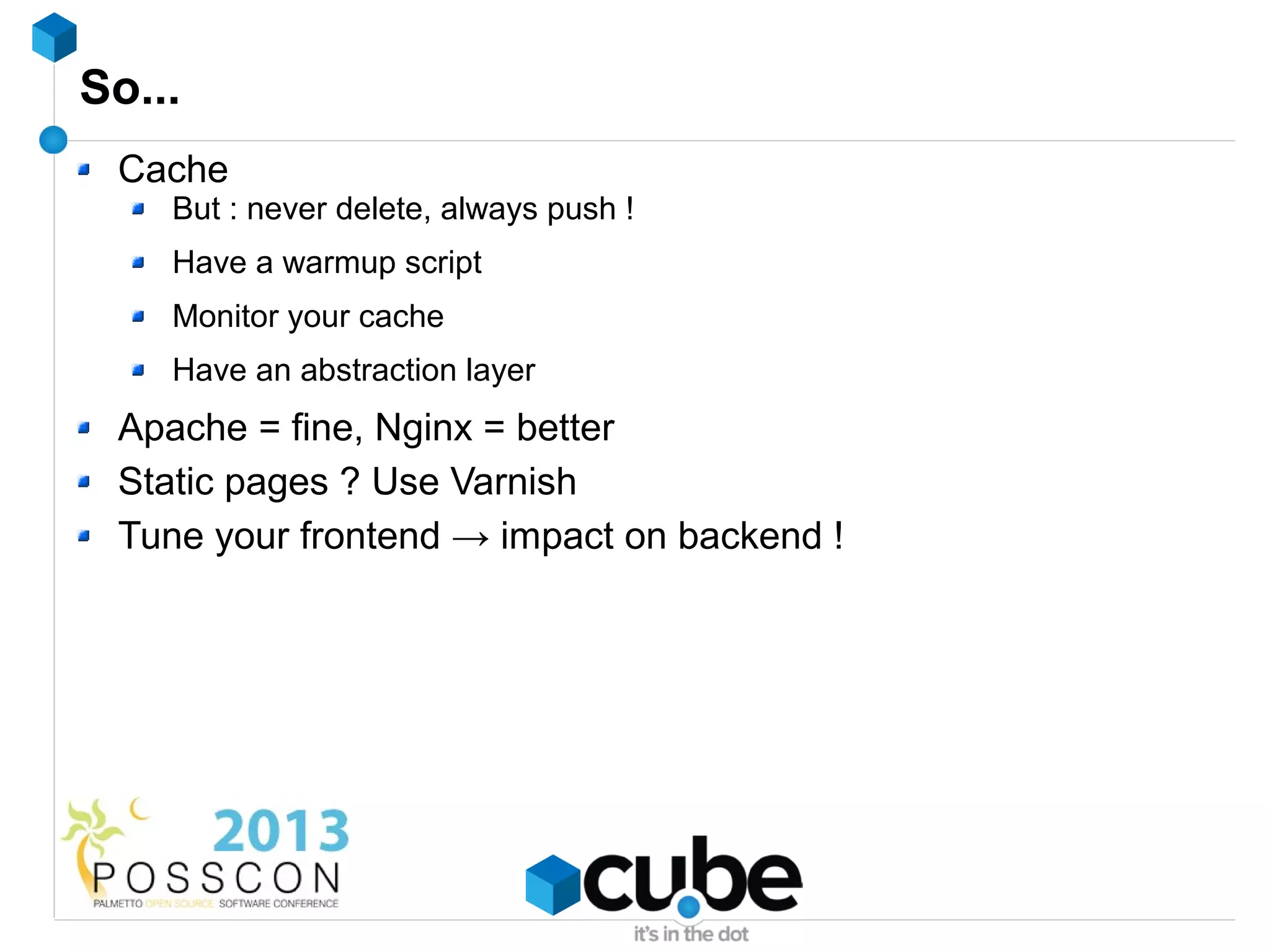

78. So...
Cache
But : never delete, always push !
Have a warmup script
Monitor your cache
Have an abstraction layer
Apache = fine, Nginx = better
Static pages ? Use Varnish
Tune your frontend → impact on backend !

79. Questions ?

80. Questions ?

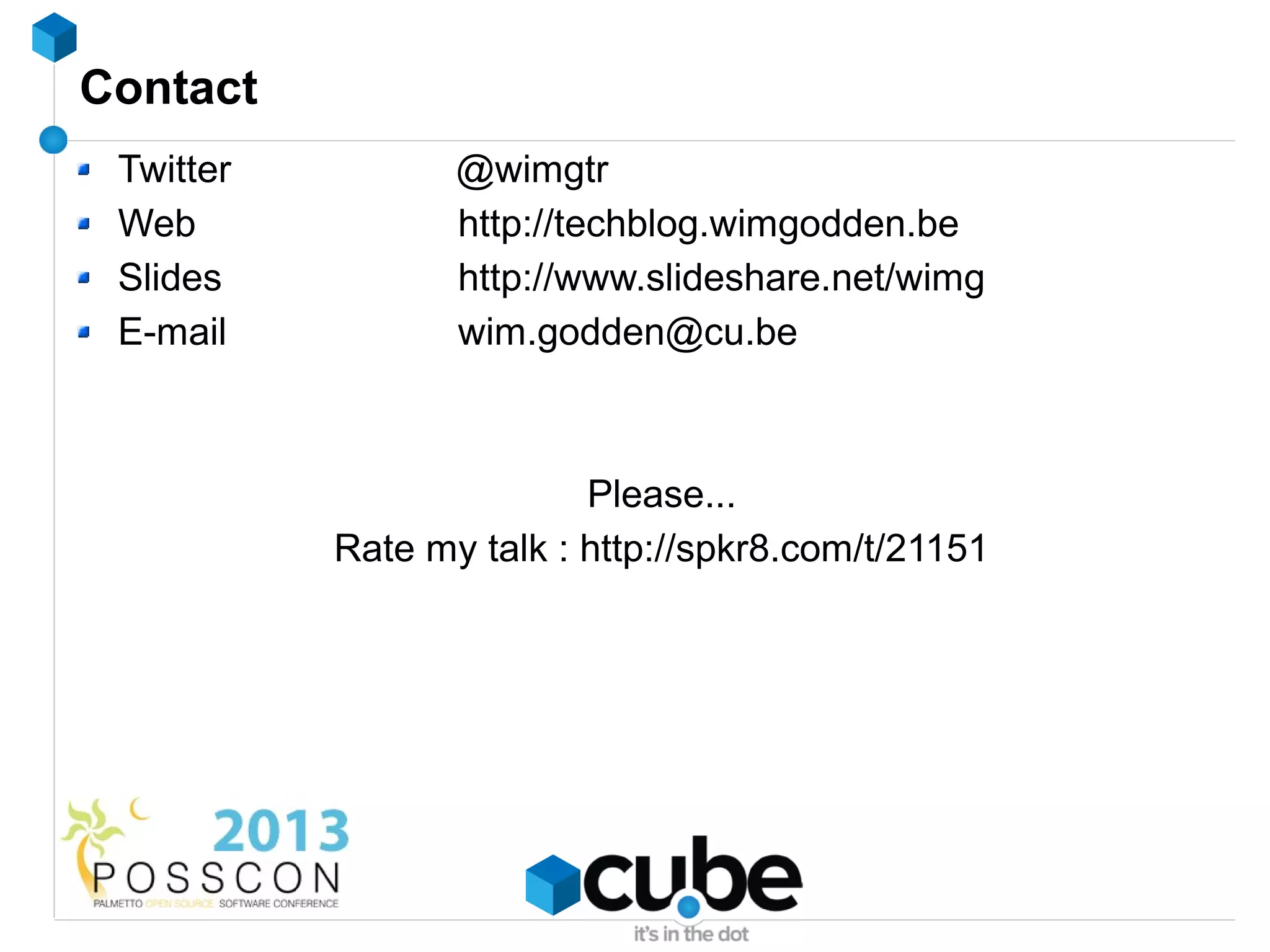

81. Contact
Twitter @wimgtr
Web http://techblog.wimgodden.be
Slides http://www.slideshare.net/wimg
E-mail wim.godden@cu.be
Please...
Rate my talk : http://spkr8.com/t/21151

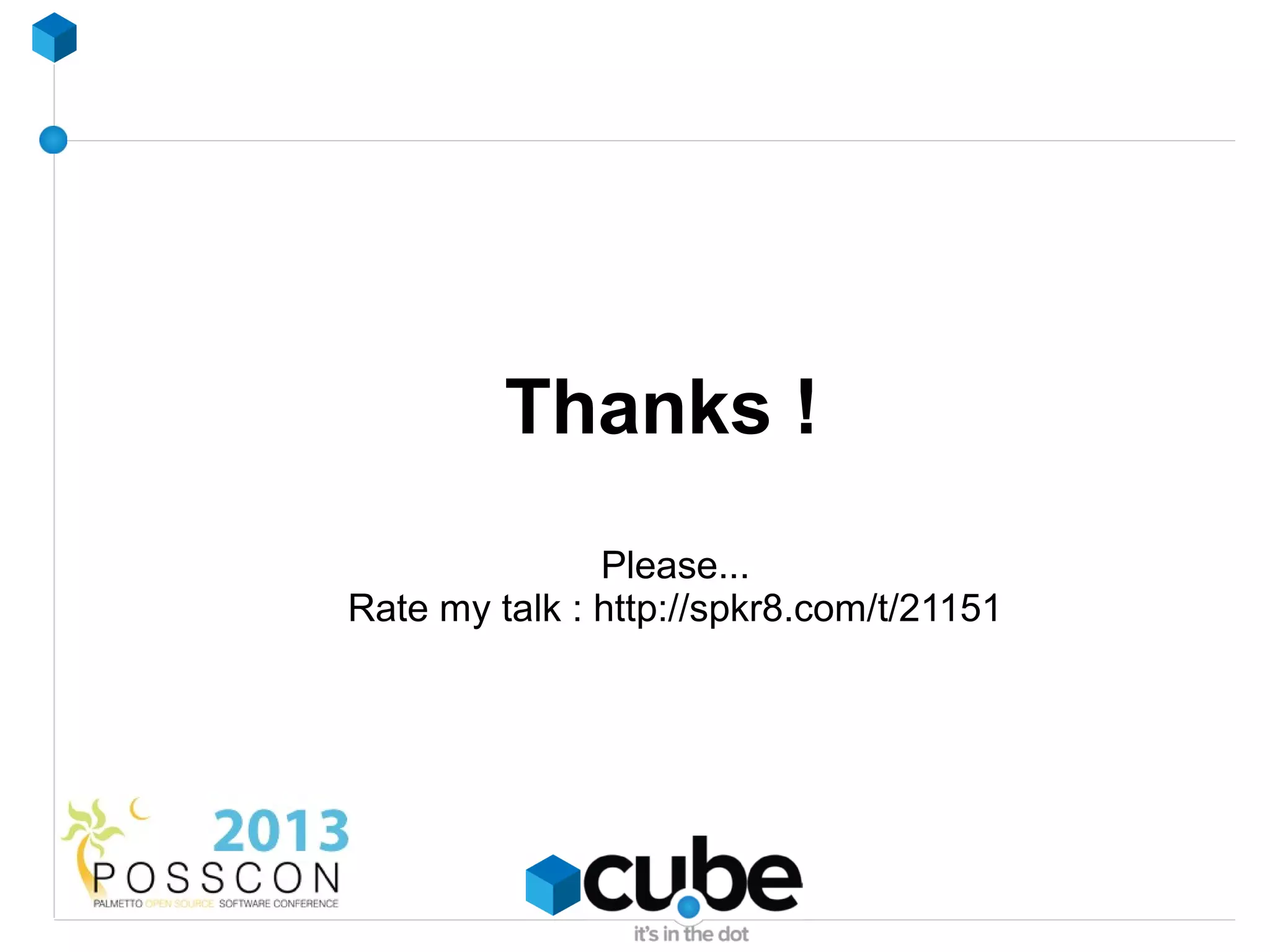

82. Thanks !
Please...
Rate my talk : http://spkr8.com/t/21151
