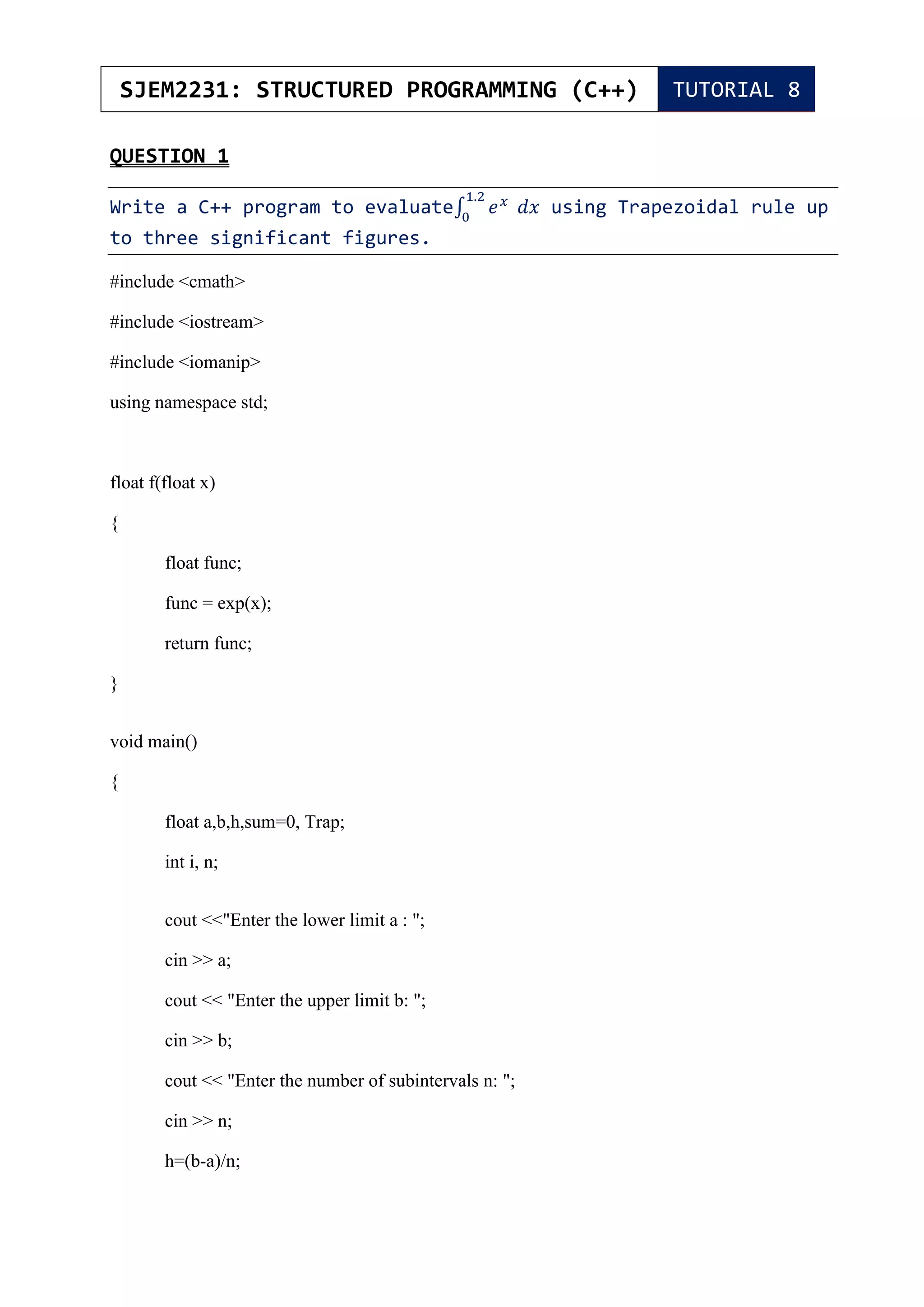

1. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
QUESTION 1
Write a C++ program to evaluate∫
using Trapezoidal rule up
to three significant figures.
#include <cmath>
#include <iostream>
#include <iomanip>
using namespace std;
float f(float x)
{
float func;
func = exp(x);
return func;
}
void main()
{
float a,b,h,sum=0, Trap;
int i, n;
cout <<"Enter the lower limit a : ";
cin >> a;
cout << "Enter the upper limit b: ";
cin >> b;
cout << "Enter the number of subintervals n: ";
cin >> n;
h=(b-a)/n;

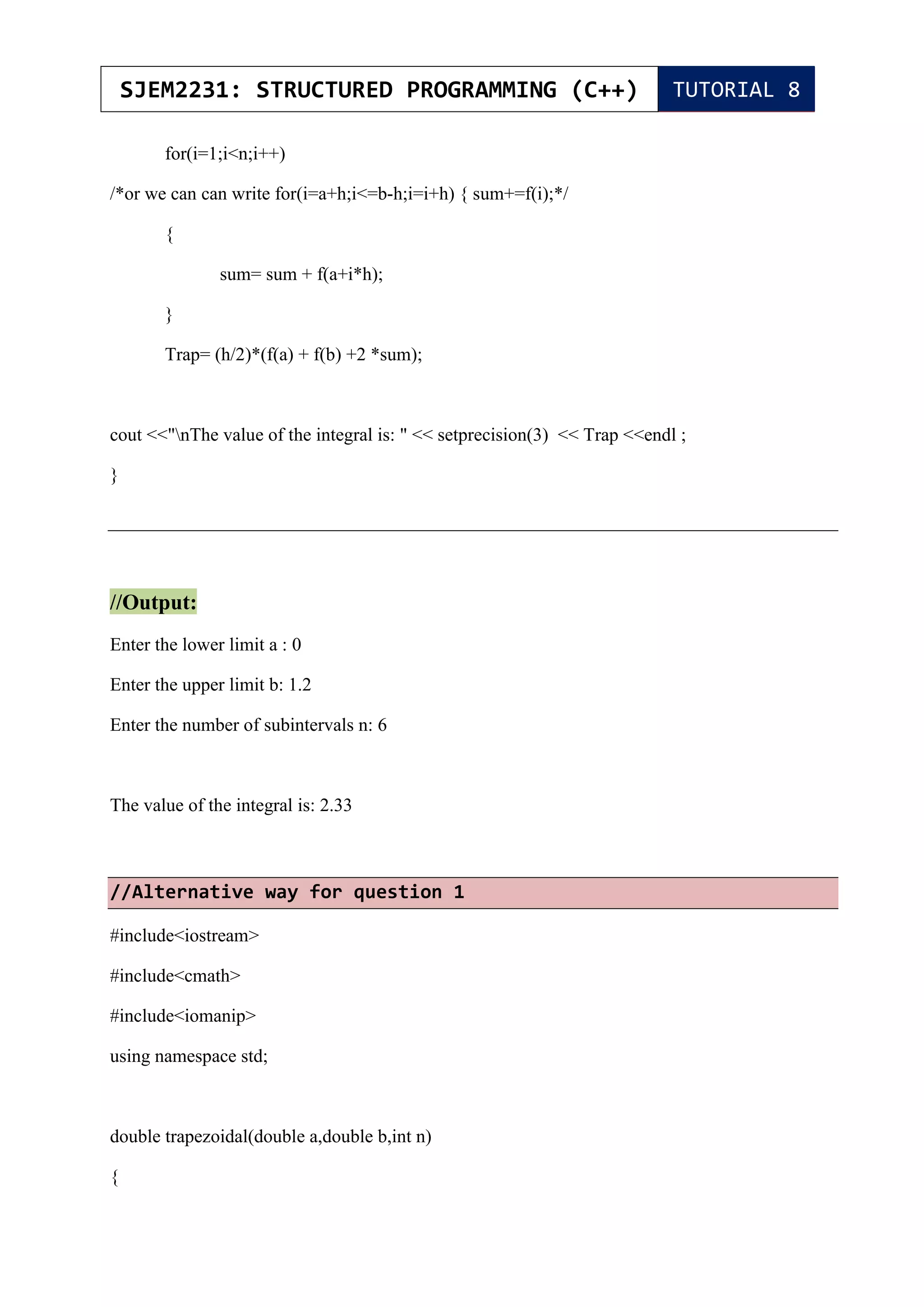

2. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
for(i=1;i<n;i++)
/*or we can can write for(i=a+h;i<=b-h;i=i+h) { sum+=f(i);*/
{
sum= sum + f(a+i*h);
}
Trap= (h/2)*(f(a) + f(b) +2 *sum);
cout <<"nThe value of the integral is: " << setprecision(3) << Trap <<endl ;
}
//Output:
Enter the lower limit a : 0
Enter the upper limit b: 1.2
Enter the number of subintervals n: 8
The value of the integral is: 2.32
//Alternative way for question 1
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
double trapezoidal(double a,double b,int n)
{
3. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
double h= (b-a)/n;
double z[9],I;
double x[9]= {0.0, 0.15, 0.3,0.45,0.6,0.75,0.9,1.05,1.2 };
for (int i=0; i<9 ; i++)
z[i]= exp(x[i]); //the function is exp(x)
I=h/2*( z[0]+z[8] + 2*(z[1]+z[2]+z[3]+z[4]+z[5]+z[6]+z[7]) );
return (I);
}
int main()
{
double J;
J=trapezoidal(0,1.2,8);
cout<< "The integral value is " << setprecision(3) << J << "nn";
return 0;
}
//Output:
The integral value is 2.32
QUESTION 2
Write a C++ function sub-program to evaluate ∫
using
Trapezoidal rule correct to four decimal places. Compare the
result with the exact solution 1.48766
4. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
#include <cmath>
#include <iostream>
#include <iomanip>
using namespace std;
float f(float x)
{
float func;
func = 1/(1+(x*x));
return func;
}
void main()
{
double a,b,h,sum=0, Trap, exact=1.48766;
// we can find the exact value by using the formula exact= atan(b) - atan(a);
int i, n;
cout <<"Enter the lower limit a : ";
cin >> a;
cout << "Enter the upper limit b: ";
cin >> b;
cout << "Enter the number of subintervals n: ";
cin >> n;
h=(b-a)/n;
for(i=1;i<n;i++)
5. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
/*or we can can write for(i=a+h;i<=b-h;i=i+h) { sum+=f(i);*/
{
sum= sum + f(a+i*h);
}
Trap= (h/2)*(f(a) + f(b) +2 *sum);
cout <<"nThe value of the integral is: " << setprecision(4) <<fixed << Trap <<endl ;
cout<<"The difference in Trapezoidal method = "<<setprecision(4) << fixed <<fabs(exact-
Trap)<<endl;
}
//Output:
Output 1:
Enter the lower limit a : 0
Enter the upper limit b: 12
Enter the number of subintervals n: 8
The value of the integral is: 1.5358
The difference in Trapezoidal method = 0.0482
Output 2:
Enter the lower limit a : 0
Enter the upper limit b: 12
Enter the number of subintervals n: 1000
The value of the integral is: 1.4877
The difference in Trapezoidal method = 0.0000
6. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
QUESTION 3
Write a C++ program to evaluate ∫ √
using Simpson’s
1/3 rule.
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
double f(double x)
{
double function;
function= pow(sin(x)+cos(x), 0.5);
return function;
}
void main()
{
double a,b, h,sum_even=0,sum_odd=0,Simpson_13;
int i,n;
cout << "Enter the lower limit a: ";
cin >> a;
cout << "Enter the upper limit b: ";
cin >> b;
cout << "Enter the number of subintervals: ";
cin >> n;
h=(b-a)/n;
for(i=1;i<n;i=i++)
{
if(i%2==0)
7. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
sum_even= sum_even+ f(a+i*h);
if(i%2!=0)
sum_odd= sum_odd+ f(a+i*h);
}
Simpson_13=(h/3)*(f(a)+f(b)+ 4*sum_odd +2*sum_even);
cout <<"The value of the integral is " << setprecision(4) <<fixed << Simpson_13 <<
"nn";
}
//Output:
Enter the lower limit a: 0
Enter the upper limit b: 1
Enter the number of subintervals: 8
The value of the integral is 1.1394
//Alternative way for question 3
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
double simpson13(double a,double b,int n)
{
double z[9],Simp,h=(b-a)/n;
double x[9]={0,0.125,0.25,0.375,0.5,0.625,0.75,0.875,1.0};
for (int i=0; i<9 ; i++)
z[i]= pow(sin(x[i])+cos(x[i]),0.5);
8. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
Simp=(h/3)*((z[0]+z[8]) + 2*(z[2]+z[4]+z[6]) + 4*(z[1]+z[3]+z[5]+z[7]) );
return Simp;
}
int main()
{
double J;
J=simpson13(0,1,8);
cout<< "The integral value is: "<< setprecision(4) <<fixed << J<<endl;
return 0;
}
//Output:
The integral value is: 1.1394
QUESTION 4
Write a C++ function sub-program to evaluate∫
using
Simpson’s 1/3 correct to four decimal places.
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
double f(double x)
{
float function;
function= 1/(1+pow(x,2));
return function;
}
9. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
void main()
{
double a,b, h,sum_even=0,sum_odd=0,Simpson_13;
int i,n;
cout << "Enter the lower limit a: ";
cin >> a;
cout << "Enter the upper limit b: ";
cin >> b;
cout << "Enter the number of subintervals: ";
cin >> n;
h=(b-a)/n;
for(i=1;i<n;i=i++)
{
if(i%2==0)
sum_even= sum_even+ f(a+i*h);
if(i%2!=0)
sum_odd= sum_odd+ f(a+i*h);
}
Simpson_13=(h/3)*(f(a)+f(b)+ 4*sum_odd +2*sum_even);
cout <<"The value of the integral is " << setprecision(4) <<fixed << Simpson_13 << "nn";
}
//Output:
Enter the lower limit a: 0
Enter the upper limit b: 12
Enter the number of subintervals: 6
The value of the integral is 1.4020
10. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
//Alternative way for question 4
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
double simpson13(double a,double b,int n)
{
double z[7],Simp,h=(b-a)/n;
double x[7]={0,2,4,6,8,10,12};
for (int i=0; i<7 ; i++)
z[i]= 1/(1+pow(x[i],2));
Simp=(h/3)*((z[0]+z[6]) + 2*(z[2]+z[4]) + 4*(z[1]+z[3]+z[5]) );
return Simp;
}
int main()
{
double J;
J=simpson13(0,12,6);
cout<< "The integral value is: "<< setprecision(4) <<fixed << J<<endl;
return 0;
}
//Output
The integral value is: 1.4020
11. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
QUESTION 5
Write a C++ program to evaluate∫
using Simpson’s 3/8
rule.
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
double f(double x)
{
double function;
function=exp(sin(x));
return function;
}
void main()
{
double a,b, h,sum_miss=0,sum_triple=0,Simpson_38;
int i,n;
cout << "Enter the lower limit a: ";
cin >> a;
cout << "Enter the upper limit b: ";
cin >> b;
cout << "Enter the number of subintervals: ";
//should be taken as multiples of 3
cin >> n;
h=(b-a)/n;
12. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
for (i=1;i<n;i++)
{
if ( i%3 != 0 )
sum_miss = sum_miss + f(a+i*h);
if(i%3==0)
sum_triple =sum_triple+ f(a+i*h);
}
Simpson_38= (3*h/8)*((f(a)+f(b))+ 3*sum_miss +2*sum_triple);
cout <<"The value of the integral is " << setprecision(4) <<fixed << Simpson_38 << "nn";
}
//Output:
Enter the lower limit a: 0
Enter the upper limit b: 1.570796
Enter the number of subintervals: 8
The value of the integral is 3.0381
QUESTION 6
Write a C++ program to evaluate∫
using Simpson’s 3/8
rule.
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
13. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
double f(double x)
{
double function;
function=log10(x);
return function;
}
void main()
{
double a,b, h,sum_miss=0,sum_triple=0,Simpson_38;
int i,n;
cout << "Enter the lower limit a: ";
cin >> a;
cout << "Enter the upper limit b: ";
cin >> b;
cout << "Enter the number of subintervals: ";
//should be taken as multiples of 3
cin >> n;
h=(b-a)/n;
for (i=1;i<n;i++)
{
if ( i%3 != 0 )
sum_miss = sum_miss + f(a+i*h);
if(i%3==0)
sum_triple =sum_triple+ f(a+i*h);
}
Simpson_38= (3*h/8)*((f(a)+f(b))+ 3*sum_miss +2*sum_triple);
14. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
cout <<"The value of the integral is " << setprecision(4) <<fixed << Simpson_38 << "nn";
}
//Output:
Enter the lower limit a: 2
Enter the upper limit b: 6
Enter the number of subintervals: 8
The value of the integral is 2.2833
QUESTION 7
Write a C++ function program to evaluate∫
using
Trapezoidal, Simpson’s 1/3 and Simpson’s 3/8 rules. Compare the
results with the exact solution 2.32012
#include <iostream>
#include <iomanip>
#include <cmath>
using namespace std;
double f(double x)
{
return exp(x) ;
}
double simpson_38(double a,double b,double n)
{
double h=(b-a)/n, sum_miss=0,sum_triple=0,Simp38;
for (int i=1;i<n;i++)
{
if ( i%3 != 0 )
sum_miss = sum_miss + f(a+i*h);
if(i%3==0)
sum_triple =sum_triple+ f(a+i*h);
}
16. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
switch(ans)
{
case 1 : cout << "Please input a,b and n : ";
cin >> a >> b >> n;
cout<<"The Exact value = "<< setprecision(6) <<exact<<endl;
cout<<"The result for Trapezoidal method = "
<<setprecision(6)<<trapezoidal(a,b,n)<<endl;
cout<<"The difference in Trapezoidal method = "<<setprecision(6)<<
fabs(exact - trapezoidal(a,b,n))<<endl;
break;
case 2 : cout << "Please input a,b and n : ";
cin >> a >> b >> n;
cout<<"The Exact value = "<<setprecision(6)<<exact<<endl;
cout<<"The result for Simpson's 1/3 method = "<<setprecision(6)<<
simpson_13(a,b,n)<<endl;
cout<<"The difference in Simpson's 1/3
method="<<setprecision(6)<<fabs(exact- simpson_13(a,b,n))<<endl;
break;
case 3 : cout << "Please input a,b and n : ";
cin >> a >> b >> n;
cout<<"The Exact value = "<<setprecision(6)<<exact<<endl;
cout<<"The result for Simpson's 3/8 method = "<< setprecision(6)<<
simpson_38(a,b,n)<<endl;
cout<<"The difference in Simpson's 3/8 method
="<<setprecision(6)<<fabs(exact- simpson_38(a,b,n))<<endl;
break;
default: cout << "Invalid number. Try again : ";
cin >> ans;
goto Pilihan;
break;
}
if(fabs(exact-simpson_38(a,b,n)) <fabs(exact-simpson_13(a,b,n)) &&
fabs(exact-simpson_38(a,b,n))<fabs(exact-trapezoidal(a,b,n)))
17. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
cout<<"Simpson's 3/8 is better"<<endl;
else if(fabs(exact-simpson_13(a,b,n))<fabs(exact-simpson_38(a,b,n)) &&
fabs(exact-simpson_13(a,b,n))<fabs(exact-trapezoidal(a,b,n)))
cout<<"Simpson's 1/3 is better"<<endl;
else
cout<<"Trapezoidal rule is better"<<endl;
check:
cout << "Do u want to try again (Y/N): ";
cin >> choice;
if ( choice == 'N' || choice == 'n')
cout << "Thank You." << endl;
else if ( choice == 'Y' || choice == 'y')
{
goto Pilihan;
}
else goto check;
return 0;
}
//Output:
1. Trapezoidal
2. Simpson's 1/3 rule
3. Simpson's 3/8 rule
Which number you wanna choose : 1
Please input a,b and n : 0 1.2 8
The Exact value = 2.32012
The result for Trapezoidal method = 2.32447
The difference in Trapezoidal method = 0.00434551
Simpson's 1/3 is better
Do u want to try again (Y/N): y
1. Trapezoidal
2. Simpson's 1/3 rule
3. Simpson's 3/8 rule
Which number you wanna choose : 2
Please input a,b and n : 0 1.2 8
18. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
The Exact value = 2.32012
The result for Simpson's 1/3 method = 2.32012
The difference in Simpson's 1/3 method=3.43063e-006
Simpson's 1/3 is better
Do u want to try again (Y/N): y
1. Trapezoidal
2. Simpson's 1/3 rule
3. Simpson's 3/8 rule
Which number you wanna choose : 3
Please input a,b and n : 0 1.2 8
The Exact value = 2.32012
The result for Simpson's 3/8 method = 2.26695
The difference in Simpson's 3/8 method =0.0531698
Simpson's 1/3 is better
Do u want to try again (Y/N): n
Thank You.
//Alternative for question 7
#include<iostream>
#include<cmath>
#include<iomanip>
using namespace std;
#define f(x) exp(x)
double trap(double a,double b,double h,double n)
{
int i;
double x1,sumA=0,resultA;
x1=a;
for(i=1;i<n;i++)
{
x1=x1+h;
sumA=sumA+f(x1);
}
resultA=(h/2)*(f(a)+2*sumA+f(b));
return resultA;
}
double simp13(double a,double b,double h,double n)
{
int j;
double x2,sumB1=0,sumB2=0,resultB;
x2=a;
for(j=1;j<n;j++)
19. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
{
x2=x2+h;
if(j%2==0)
sumB1=sumB1+2*f(x2);
else
sumB2=sumB2+4*f(x2);
}
resultB=(h/3)*(f(a)+sumB1+sumB2+f(b));
return resultB;
}
double simp38(double a,double b,double h,double n)
{
double sum_miss=0,sum_triple=0,Simp38;
for (int i=1;i<n;i++)
{
if ( i%3 != 0 )
sum_miss = sum_miss + f(a+i*h);
if(i%3==0)
sum_triple =sum_triple+ f(a+i*h);
}
Simp38= (3*h/8)*(f(a)+f(b)+ 3*sum_miss +2*sum_triple);
return Simp38;
}
int main()
{
int n;
double a=0,b=1.2,h,exact= 2.32012;
cout<<"Enter the value of n: ";
cin>>n;
h=(b-a)/n;
cout<<"The Exact value = "<<setprecision(6)<<exact<<endl;
cout<<"The result for Trapezoidal method = "<<setprecision(6)<<trap(a,b,h,n)<<endl;
cout<<"The result for Simpson 1/3 method = "<<setprecision(6)<<simp13(a,b,h,n)<<endl;
cout<<"The result for Simpson 3/8 method = "<<setprecision(6)<<simp38(a,b,h,n)<<endl;
cout<<"The difference in Trapezoidal method = "<<setprecision(6) <<fabs(exact-trap(
a,b,h,n))<<endl;
cout<<"The difference in Simpson 1/3 method = "<<setprecision(6)<<fabs(exact-simp13(
a,b,h,n))<<endl;
20. SJEM2231: STRUCTURED PROGRAMMING (C++) TUTORIAL 8
cout<<"The difference in Simpson 3/8 method = "<<setprecision(6)<<fabs(exact-simp38(
a,b,h,n))<<endl;
if(fabs(exact-simp38(a,b,h,n)) <fabs(exact-simp13(a,b,h,n)) &&
fabs(exact-simp38(a,b,h,n))<fabs(exact-trap(a,b,h,n)))
cout<<"Simpson's 3/8 is better"<<endl;
else if(fabs(exact-simp13(a,b,h,n))<fabs(exact-simp38(a,b,h,n)) &&
fabs(exact-simp13(a,b,h,n))<fabs(exact-trap(a,b,h,n)))
cout<<"Simpson's 1/3 is better"<<endl;
else
cout<<"Trapezoidal rule is better"<<endl;
return 0;
}
//Output:
Enter the value of n: 8
The Exact value = 2.32012
The result for Trapezoidal method = 2.32447
The result for Simpson 1/3 method = 2.32012
The result for Simpson 3/8 method = 2.26695
The difference in Trapezoidal method = 0.00434551
The difference in Simpson 1/3 method = 3.43063e-006
The difference in Simpson 3/8 method = 0.0531698
Simpson's 1/3 is better
//Alternative for question 7
#include<iostream>
#include<cmath>
using namespace std;
double f(double a)
{
return (double) exp(a);
}
int main()
