Building scalable applications using serverless on the cloud
- 1. Callon Campbell Solutions Architect | Developer | Microsoft MVP Cloud Mavericks Inc. Building Scalable Applications Using Serverless on the Cloud
- 2. Microsoft Azure Callon Campbell Solution Architect | Developer Microsoft MVP in Azure He/him/his Speaker introduction • 20 years enterprise development with Microsoft technologies – .NET (C#), Azure, Web (ASP.NET, Angular, JavaScript), Desktop, SQL, and Mobile • Passionate about serverless and cloud-native application development • Blogging at https://TheFlyingMaverick.com • Speaker at community events and meetups • Co-creator of ReflectInsight, a live .NET log viewer • Organizer of “Canada’s Technology Triangle .NET User Group” in Kitchener, Ontario
- 3. Microsoft Azure Agenda •Goals of serverless •Adopting serverless and cloud native for your application architecture •Building for scale, high availability and resiliency •Real world example – code and demos •Q&A 4
- 4. Microsoft Azure In today’s talk… • Serverless using Microsoft Azure technologies Create your Azure free account today: https://azure.microsoft.com/en-us/free/ • .NET Core (C#) in my demos Cross-platform development However, the core serverless principals apply to other cloud providers 5
- 5. Microsoft Azure The “evolution” of hosting platforms 6
- 6. Microsoft Azure The goals of “serverless”
- 7. Microsoft Azure Serverless Full abstraction of servers Instant scale Pay-per-use
- 8. Microsoft Azure Adopting serverless and cloud native
- 9. Microsoft Azure Azure serverless ecosystem Event driven serverless offerings…
- 10. Microsoft Azure Azure serverless ecosystem

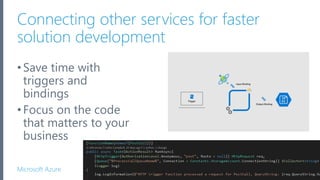

- 12. Microsoft Azure Connecting other services for faster solution development •Save time with triggers and bindings •Focus on the code that matters to your business 13
- 13. Microsoft Azure PlatformApplicationdeliveryOperatingsystem ●●● ●●● ●●● + https://github.com/azure/azure-functions-host (+other repos) Azure Functions host runtime Azure Functions Core Tools Azure Functions base Docker image Azure Functions .NET Docker image Azure Functions Node Docker image ●●● Functions everywhere
- 14. Microsoft Azure Use your favorite language 16
- 16. Microsoft Azure Scale and latency
- 17. Microsoft Azure Cold-starts • When choosing the ‘Consumption’ plan, you will have elastic scale but at the cost of cold starts. • A cold-start is a small amount of time needed to warm up the resources and execute your functions. Consumption plan runs on a shared environment and resources need to be allocated. • Cold-start could take 1-3 seconds. 19
- 18. Microsoft Azure Premium Functions • More powerful hardware (increased CPU and memory options) • Elastic scale with control (burst scaling) • Avoid cold-start with perpetually warm instances • Consistent performance • Network isolation, VNET connectivity • Long running execution (60min guaranteed) • Better predictable pricing 20
- 19. Microsoft Azure Running healthy apps in the cloud
- 20. Microsoft Azure Running healthy apps in the cloud •Use production hardware •Use multiple instances •Deploy to multiple regions •Leverage deployment slots •Geo-replication for your data •Use redundant storage •Monitoring and profiling 22
- 21. Microsoft Azure Use production hardware • Use recommended “production” pricing tiers and select the appropriate plan • Allocate minimum instances and set number of pre- warmed instances • Don’t run non-production code with your production app 23
- 22. Microsoft Azure Use multiple instances • Azure Functions provides the means to automatically scale when needed • Allocate minimum instances in the Scale out (App Service Plan) blade • Set number of pre-warmed instances to avoid cold-starts 24
- 23. Microsoft Azure Deploy to multiple regions • Leverage Azure Front Door or Traffic Manager to intercept traffic before it hits your site • Helps with routing and distribution between your instances and regions • Route incoming requests based on the customer’s geography 25
- 24. Microsoft Azure Leverage deployment slots 26 Why use slots? • Different environments for different purposes – test your changes • Prewarming • Easy fallbacks • Reduce costs How are functions affected by swapping slots? • Traffic redirection is seamless; no requests are dropped because of a swap. • If a function is running during a swap, execution continues, and the next triggers are routed to the swapped app instance. https://docs.microsoft.com/en-us/azure/azure-functions/functions-deployment-slots

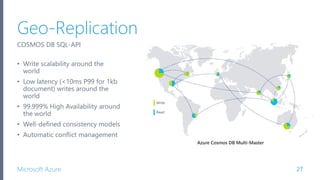

- 25. Microsoft Azure Geo-Replication 27 COSMOS DB SQL-API • Write scalability around the world • Low latency (<10ms P99 for 1kb document) writes around the world • 99.999% High Availability around the world • Well-defined consistency models • Automatic conflict management
- 26. Microsoft Azure Cosmos DB: Optimize for preferred region 28
- 27. Microsoft Azure Redundant storage (RS-GRS) 29 READ-ACCESS GEO-REDUNDANT STORAGE Redundancy in the primary region • Locally redundant storage (LRS) copies your data synchronously three times within a single physical location in the primary region. • Zone-redundant storage (ZRS) copies your data synchronously across three Azure availability zones in the primary region. Redundancy in a secondary region • Geo-redundant storage (with GRS or GZRS) replicates your data to another physical location in the secondary region to protect against regional outages. • Design your applications for read access to the secondary region.
- 28. Microsoft Azure Leverage geo redundant URL 30
- 29. Microsoft Azure Monitoring and profiling 31 Enable Application Insights • Application map • Live metrics stream • Search • Failures • Performance profiling • Track dependencies
- 30. Microsoft Azure Demo scenario – Twilio Call Integration Application

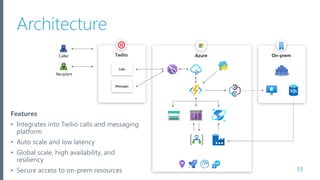

- 31. Microsoft Azure Azure On-prem Architecture 33 Twilio Calls Messages Caller Recipient Features • Integrates into Twilio calls and messaging platform • Auto scale and low latency • Global scale, high availability, and resiliency • Secure access to on-prem resources
- 32. Microsoft Azure On-prem 34 AzureTwilio Calls Messages Caller Recipient Hybrid Connection Manager SQL Server Traffic Manager Data Factory (ETL pipeline) Cosmos DB SQL API Logic App App Configuration MediaFile StartCall PostCall Blob Storage Queue Storage Hybrid Connection ProcessCall PostCall Orchestrator API Management Call Details • Traffic Manager for DNS-based load balancing across multiple regions • Azure Function App - Premium plan • Cosmos DB with geo-replication and multi-master writes • Queue Storage • Blob Storage with Read-access geo- redundant storage (RA-GRS) • Hybrid Connections for integration with on-premises endpoints • Azure Data Factory for running ETL tasks for synchronizing data from on- premises into Cosmos DB • Application Insights • Azure Pipelines for CI/CD
- 33. Microsoft Azure Multiple regions with Traffic Manager Azure - West US 2 Azure - Global Managed Service Azure - East US 2 http://tm-enterpriseserverless-01.trafficmanager.net/api/startcall 35 DNS-BASED LOAD BALANCING • Flexible routing options • Priority, performance, geographic, weighted round-robin, subnet, and multi-value • Reduce application downtime • Improve app performance and content delivery • Distribute user traffic over multiple locations • Use with your on-premises datacenter • Geographic fencing of your application users
- 35. Microsoft Azure Demo notes • Twilio test call and SMS • Premium Function • Warmed instances • Deployment slots • Cosmos DB geo replication + multi-master + Autoscale • Storage (RS-GRS) • Configure for secondary URL • Traffic Manager • App Configuration 37
- 37. Microsoft Azure Tooling Develop and test locally and disconnected from Azure using: • Visual Studio and/or Visual Studio Code • Cosmos DB Emulator • Microsoft Azure Storage Emulator • Microsoft Azure Storage Explorer • .NET Core 3.1, Function runtime v3, Cosmos DB SQL API • CI/CD – Azure Pipelines or GitHub Actions 39
- 38. Microsoft Azure Inner and outer loop development Inner Loop Source Control Build and Test (CI) Deploy (CD) Run (Prod) Monitoring & Diagnostics Code, Run, Debug Outer Loop
- 39. Microsoft Azure Getting code to the cloud Direct publish App Service SCM (Kudu) CI/CD tools “right click publish” CD CD CI Check-in Check-in
- 40. Microsoft Azure Wrapping it up
- 41. Microsoft Azure Your applications could benefit from serverless today.
- 42. Microsoft Azure Wrap-up • Serverless is the next big thing for enterprise. Pick what works for you • Serverless is more than just compute, functions, and app development • Serverless brings a lot of benefits, but you still need to design for global scale, availability and resiliency
- 43. Microsoft Azure Resources Session Materials on GitHub Session Resources https://github.com/calloncampbell/Enterprise-Serverless-Demo/ All in one resource: https://github.com/calloncampbell/Enterprise-Serverless-Demo/blob/master/RESOURCES.md Presentation: https://www.slideshare.net/CallonCampbell/ Get Certified
