Building reliable systems with Apache BookKeeper
- 1. Building reliable systems with Apache BookKeeper Matthieu Morel Ivan Kelly
- 2. Challenges in distributed systems
- 3. Ryan Lintleman cc-by-nc 2.0 https://flic.kr/p/5XNGow Expect failures

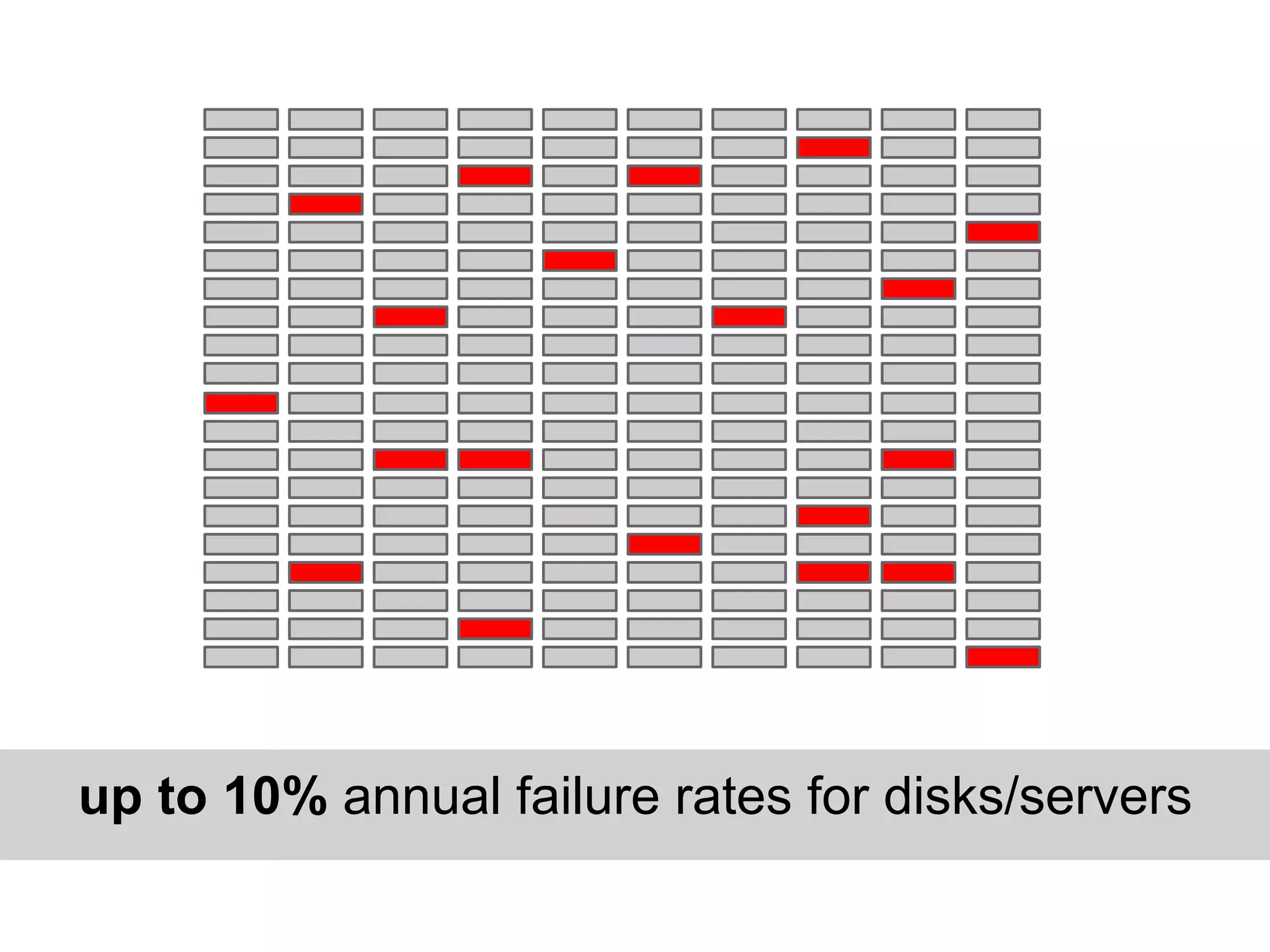

- 4. up to 10% annual failure rates for disks/servers
- 5. The network is reliable NOT Jonathan Briggs - cc by 2.0 https://flic.kr/p/bnAxuz
- 6. Symptoms Alex Proimos cc-by-2.0 https://flic.kr/p/bt29wL

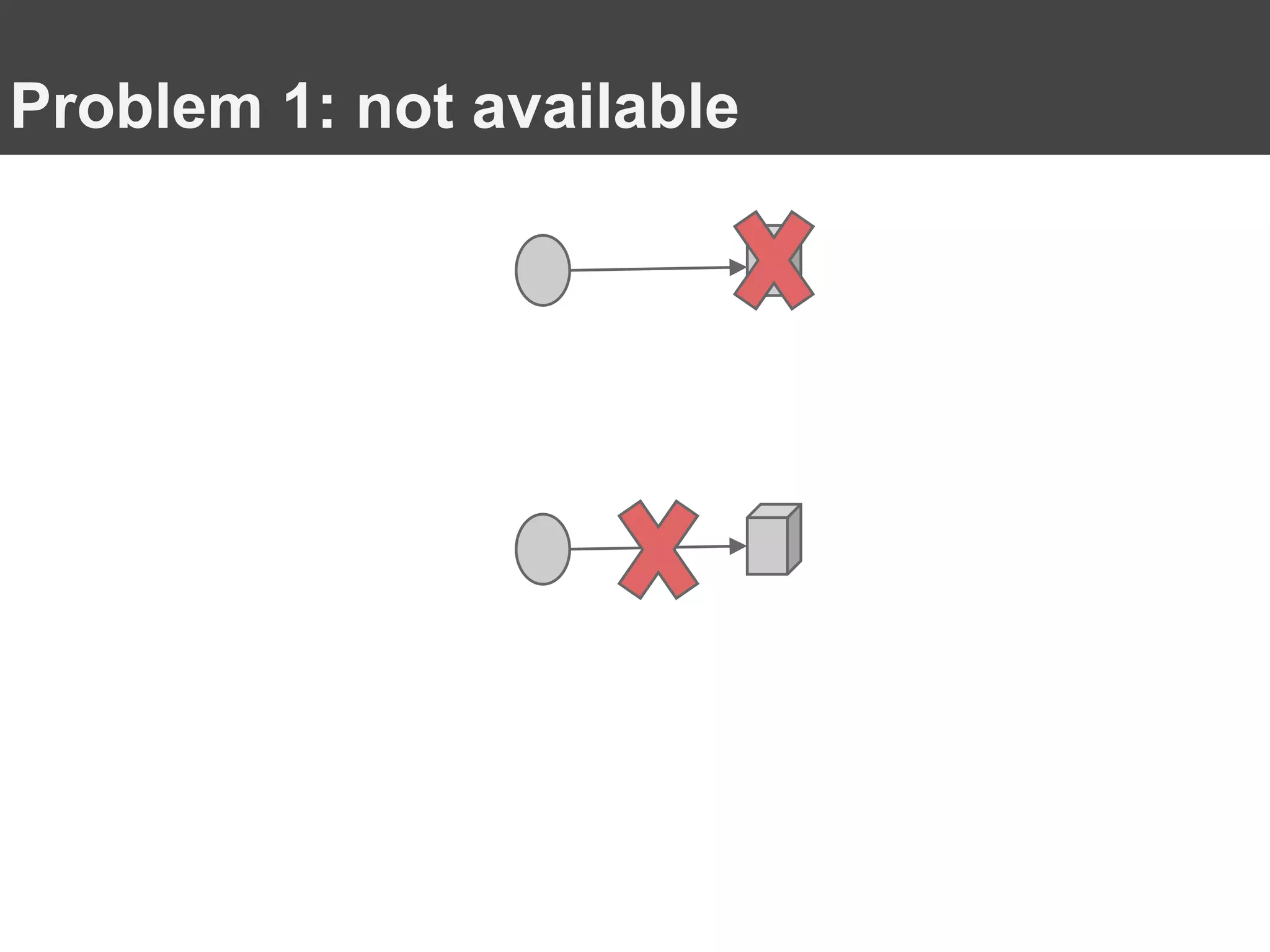

- 7. Problem 1: not available
- 8. Problem 1: not available
- 10. CAP consistency partition toleranceavailability zookeeper / bookkeeper cassandra

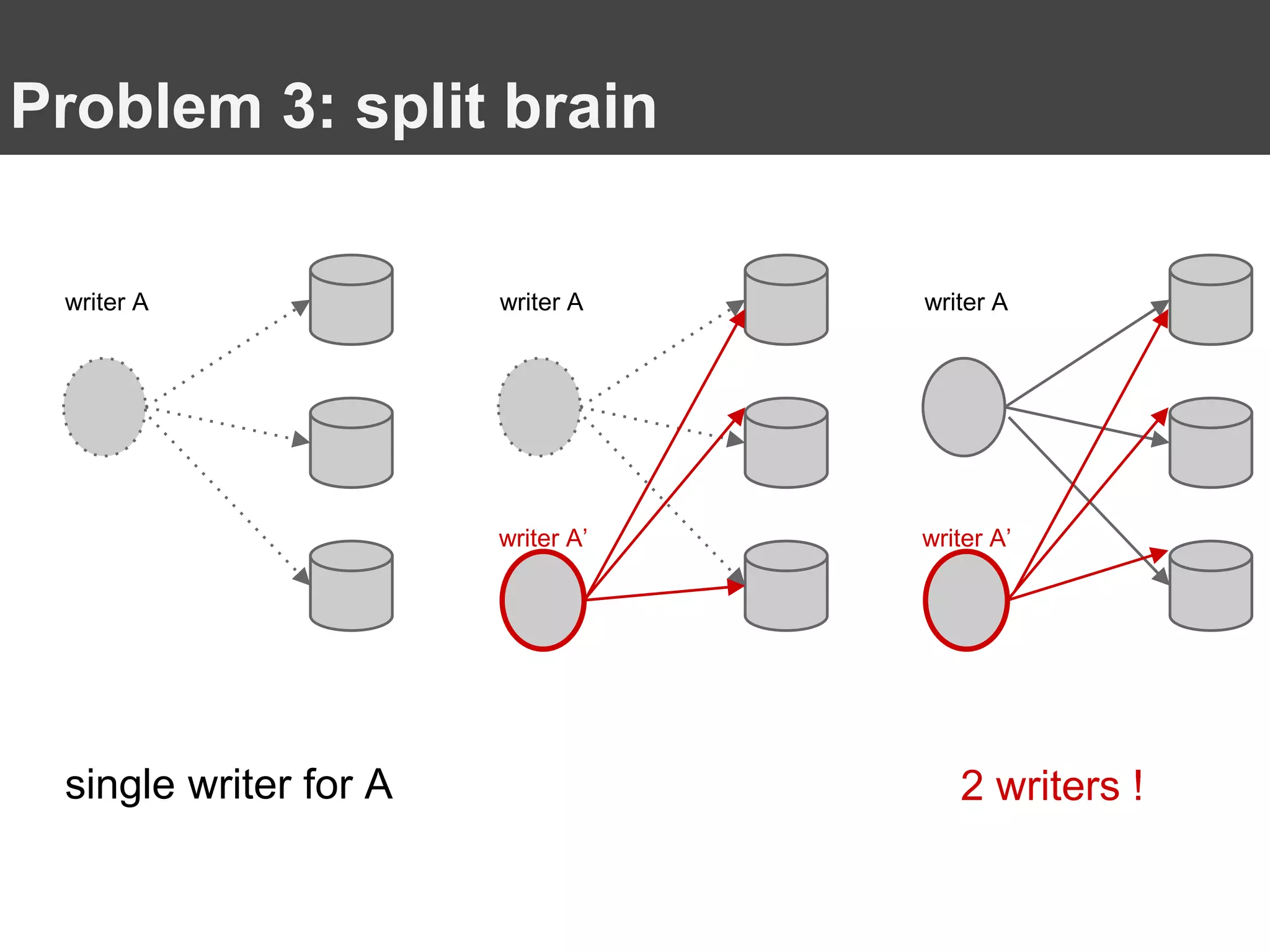

- 12. Problem 3: split brain writer A writer A writer A writer A’ 2 writers ! writer A’ single writer for A

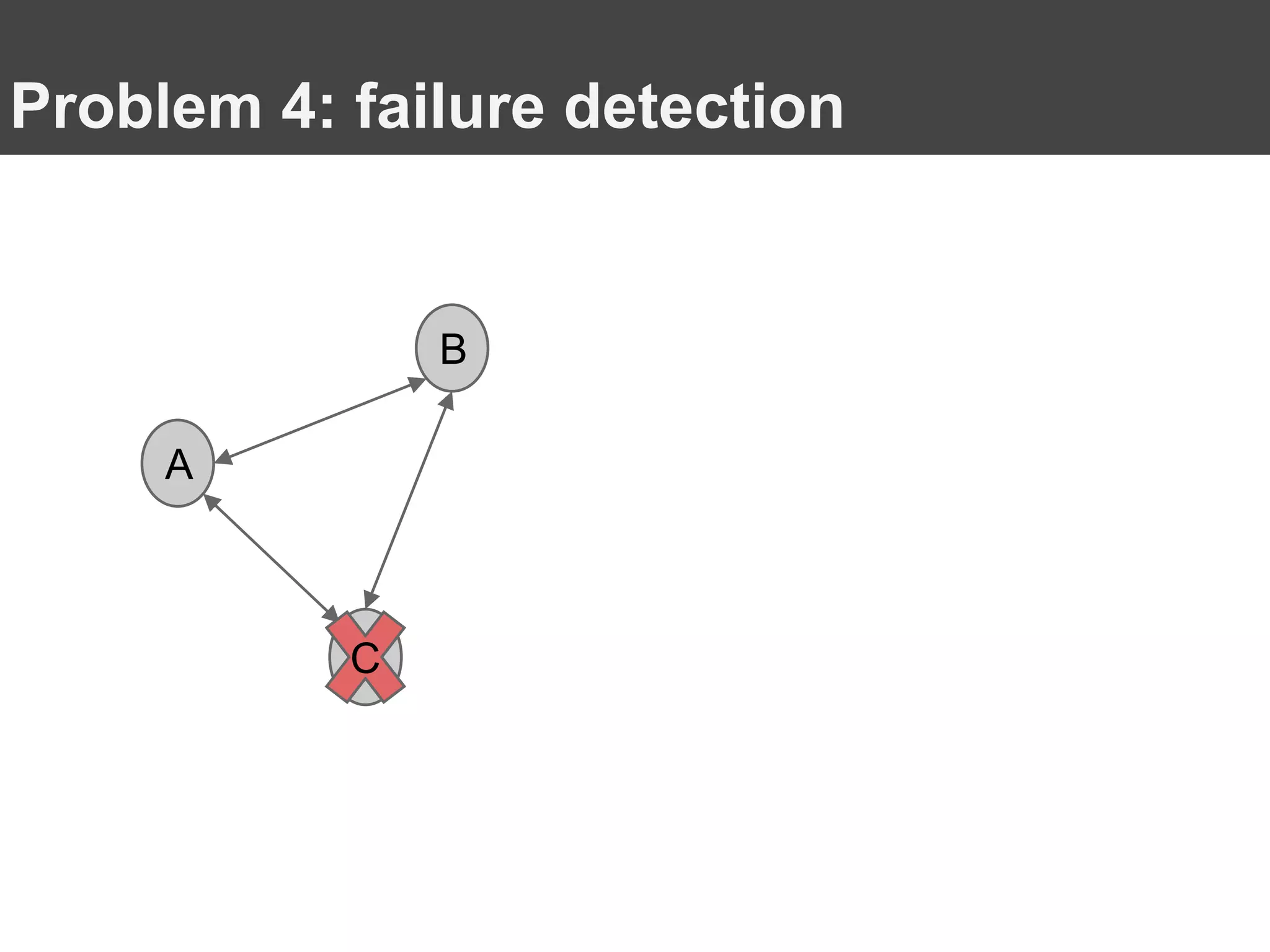

- 13. Problem 4: failure detection A B C

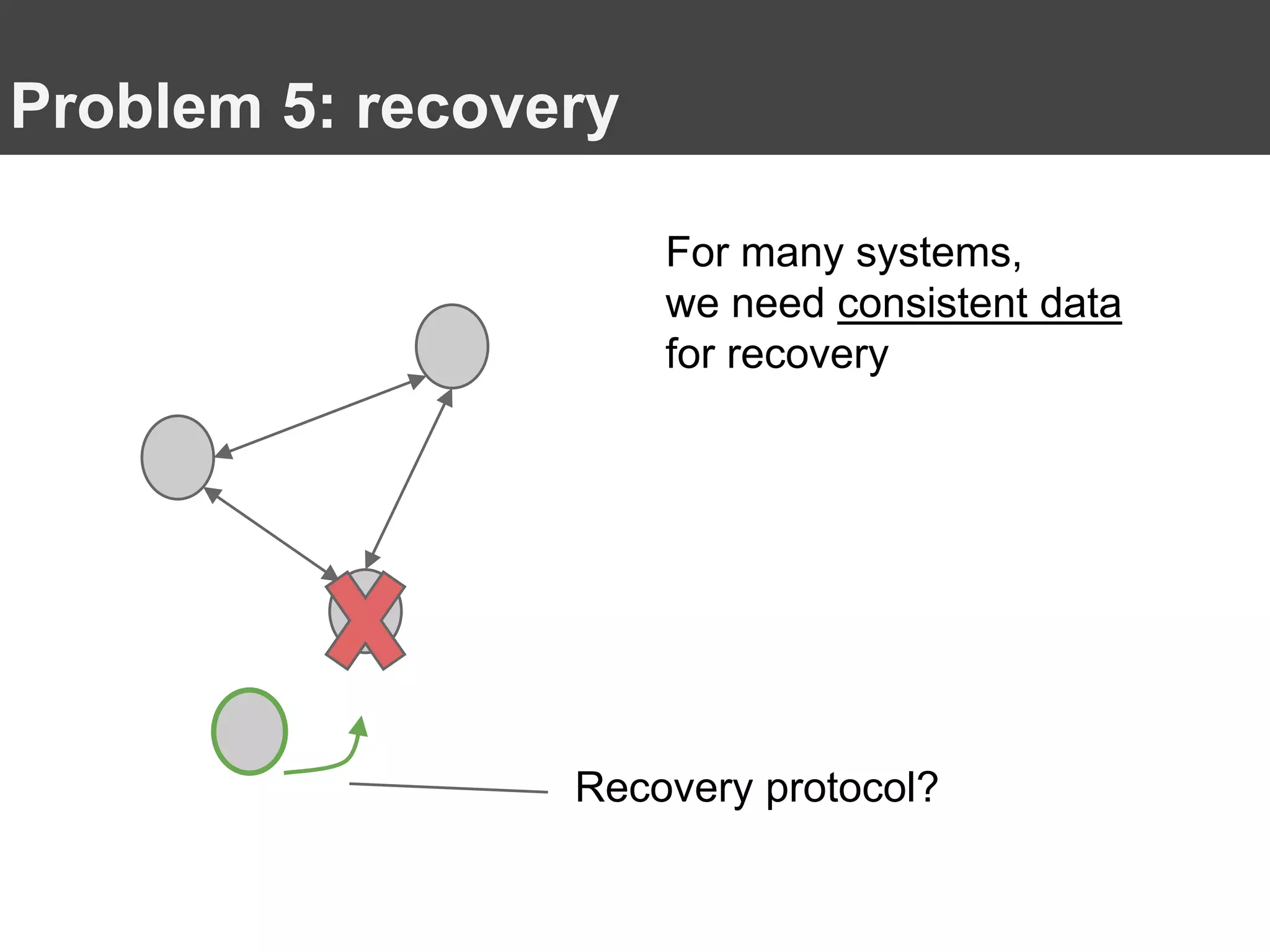

- 14. Problem 5: recovery Recovery protocol? For many systems, we need consistent data for recovery
- 15. Solutions ! Steven Depolo cc-by-2.0 https://flic.kr/p/9APgFF

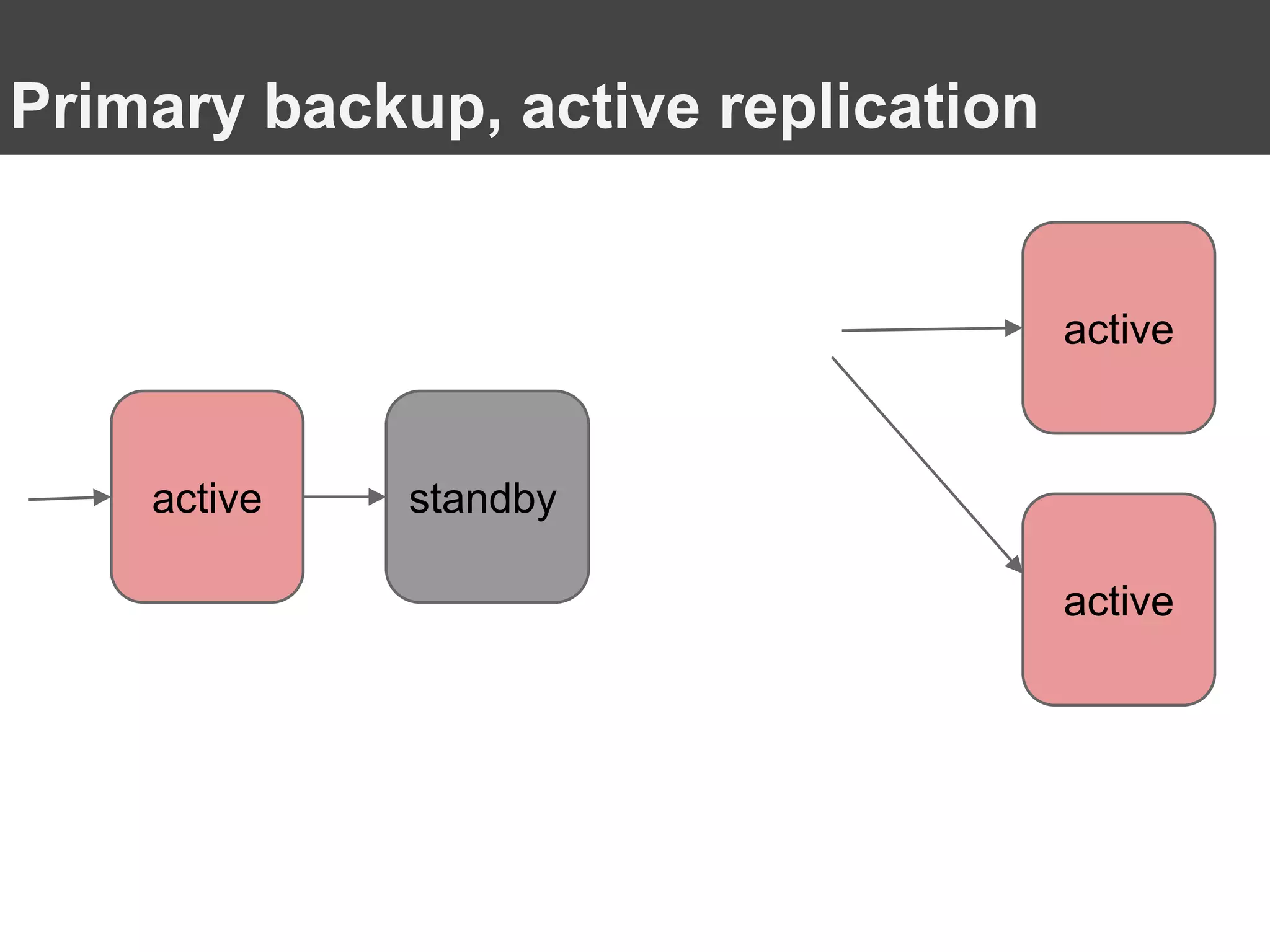

- 17. Primary backup, active replication active standby active active

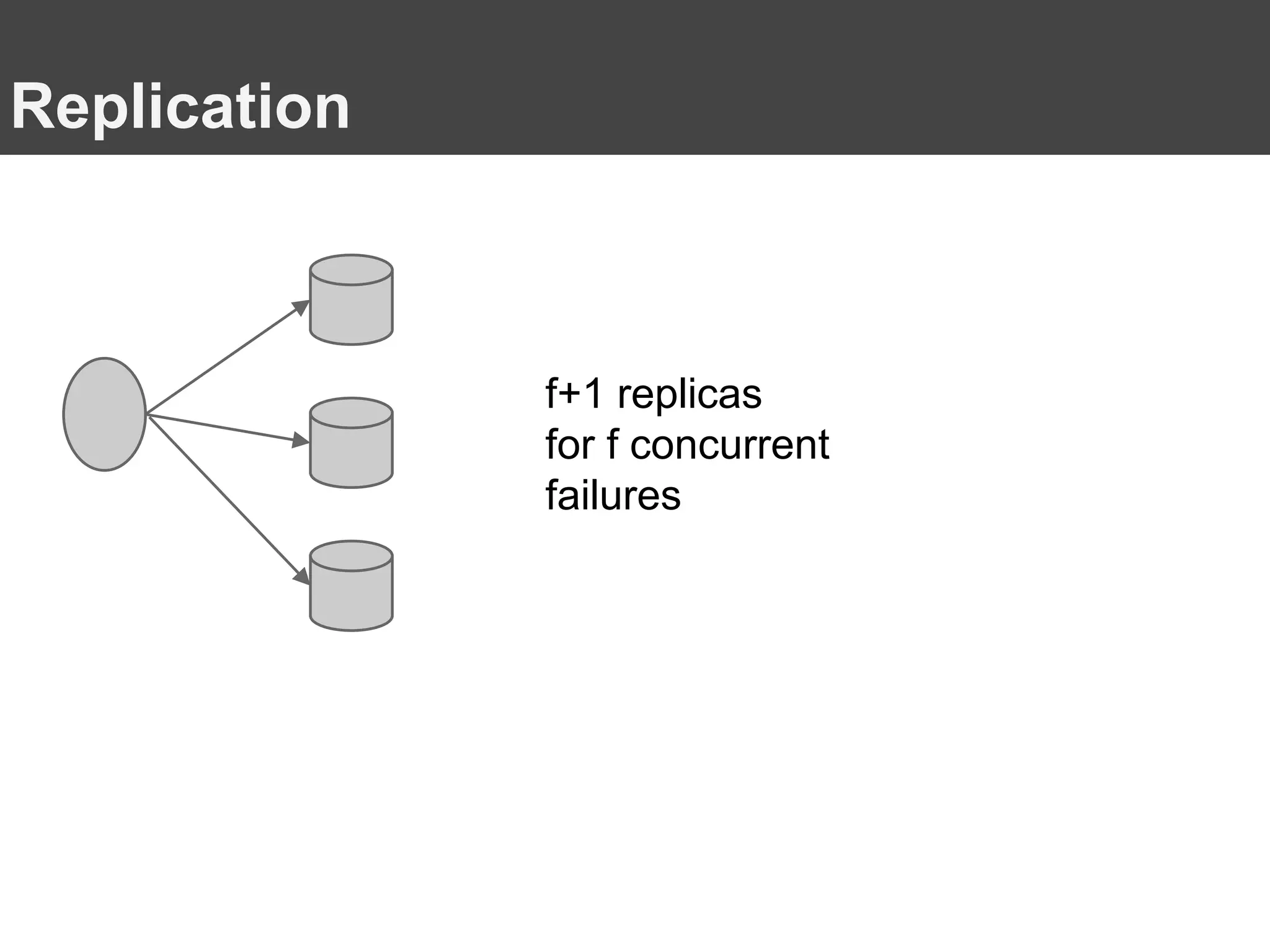

- 18. Replication f+1 replicas for f concurrent failures

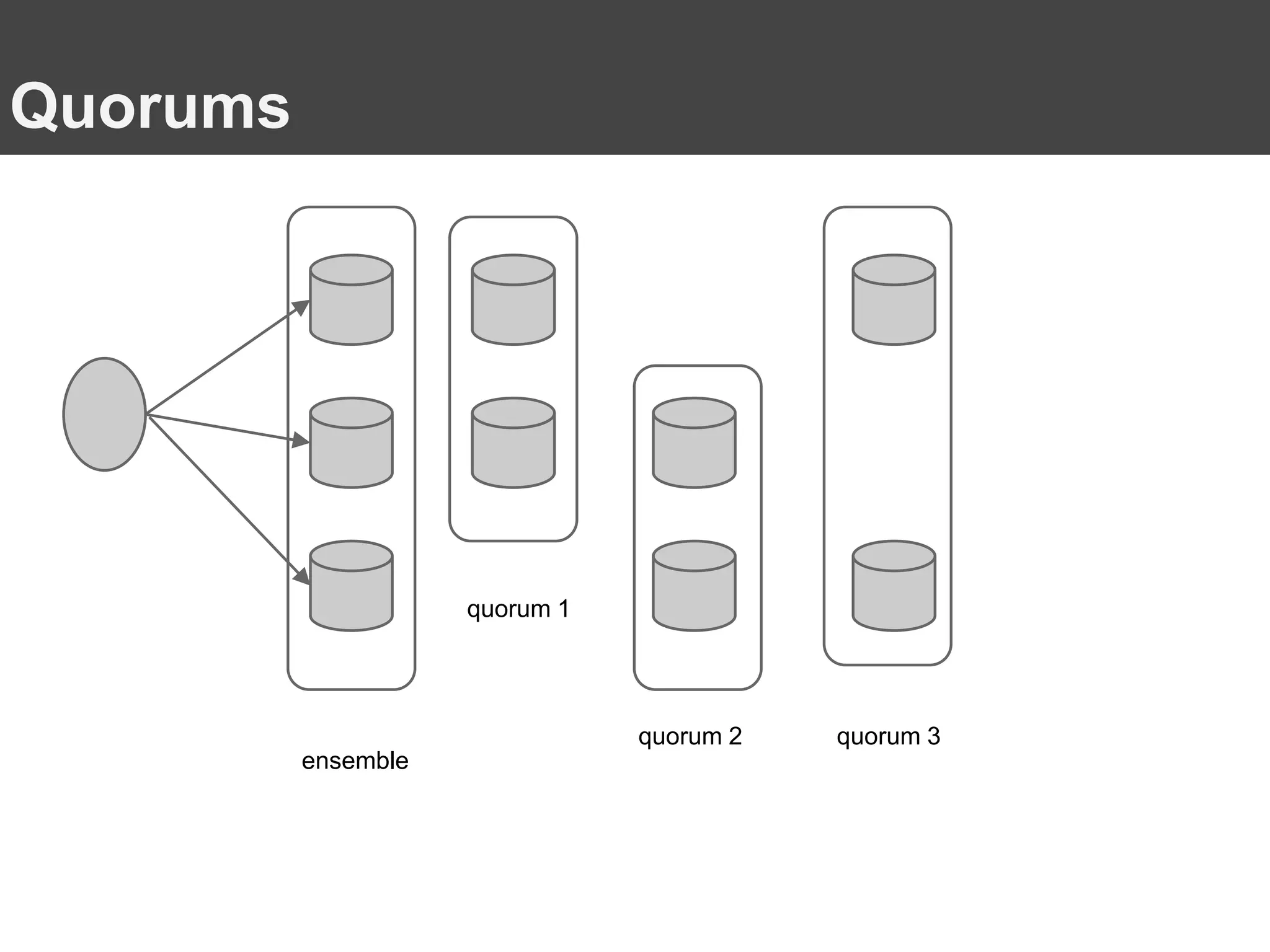

- 19. Quorums ensemble quorum 1 quorum 2 quorum 3

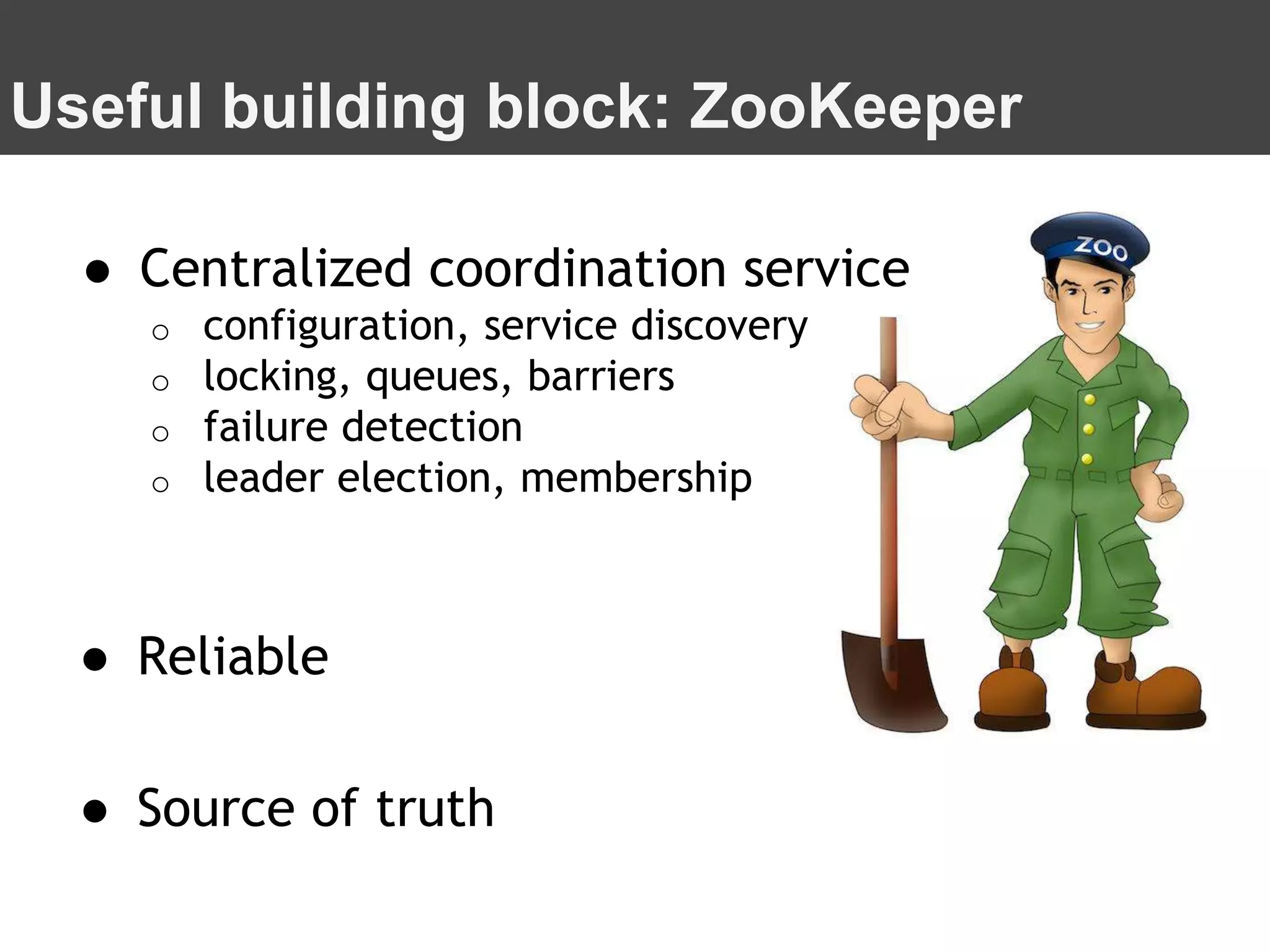

- 20. Useful building block: ZooKeeper ● Centralized coordination service o configuration, service discovery o locking, queues, barriers o failure detection o leader election, membership ● Reliable ● Source of truth

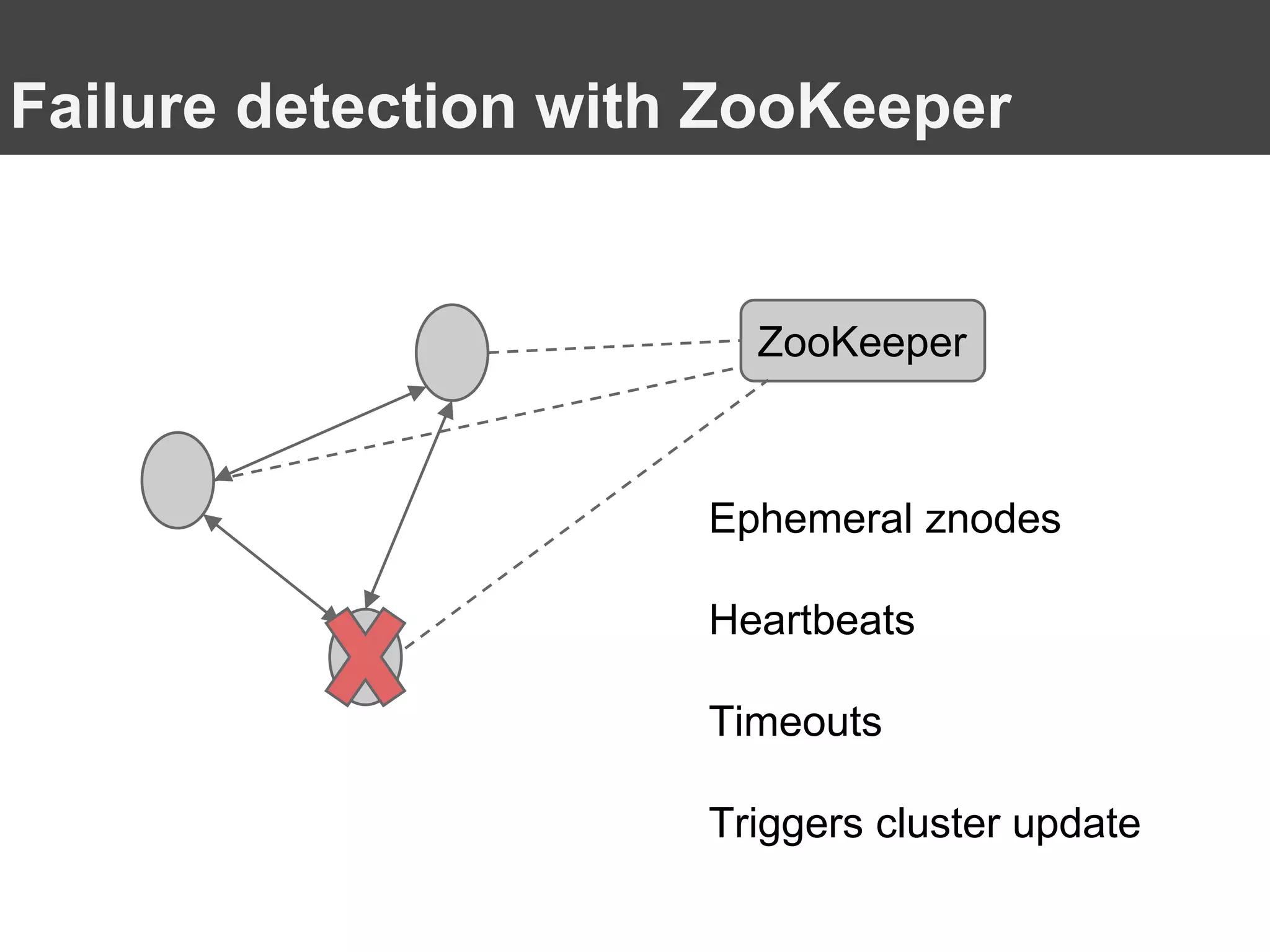

- 21. Failure detection with ZooKeeper ZooKeeper Ephemeral znodes Heartbeats Timeouts Triggers cluster update

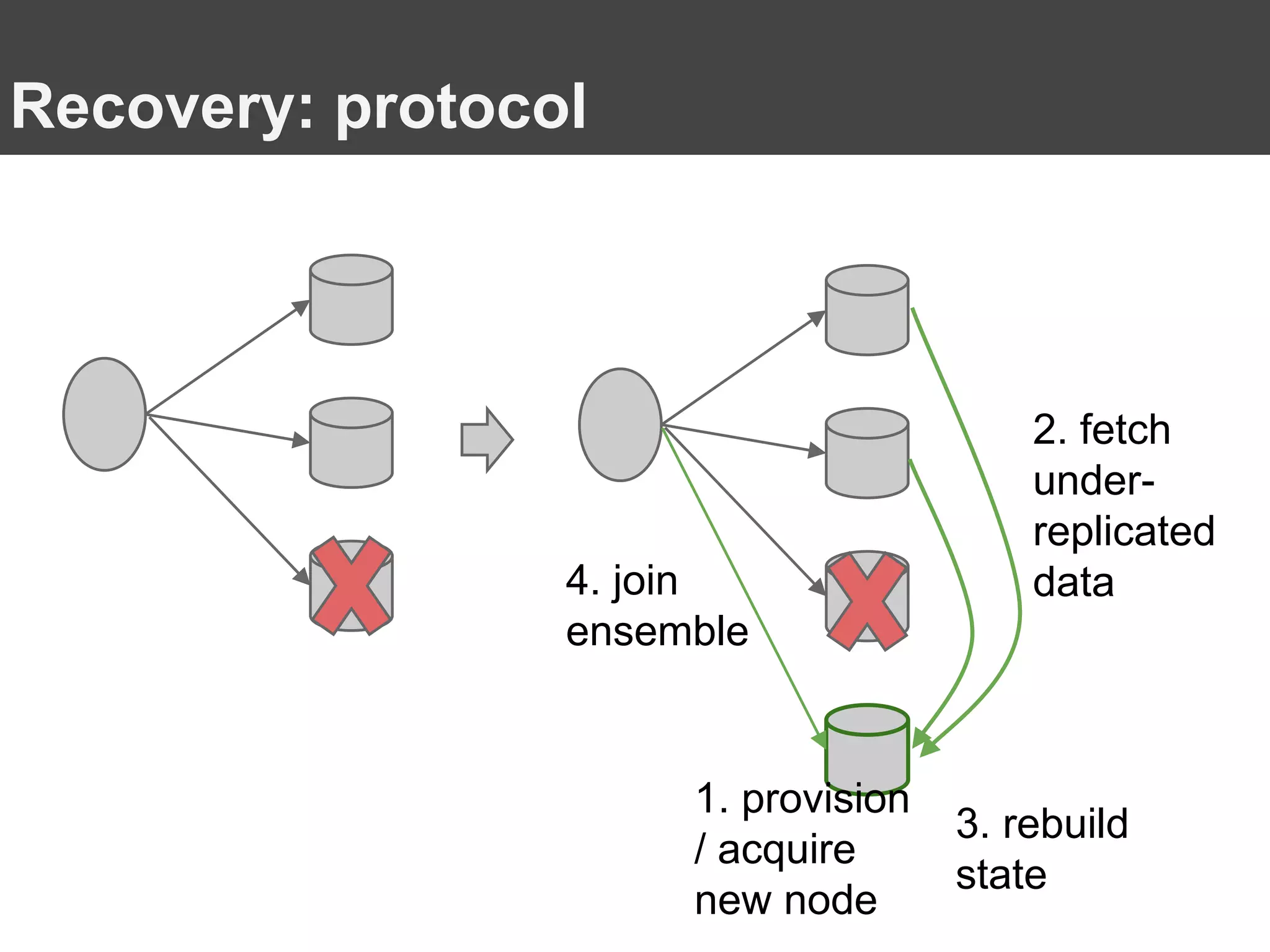

- 22. Recovery: protocol 1. provision / acquire new node 2. fetch under- replicated data 3. rebuild state 4. join ensemble

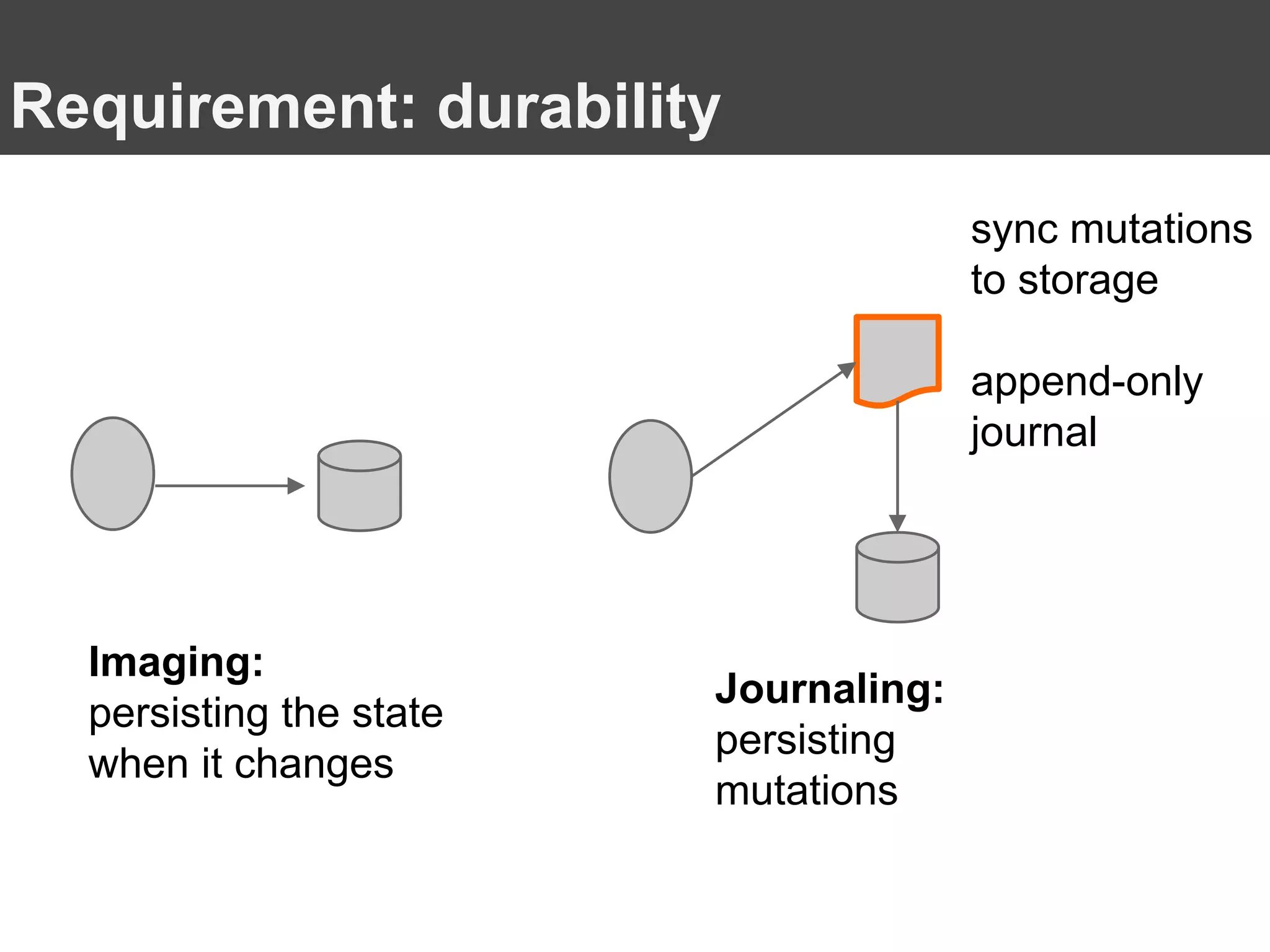

- 23. Requirement: durability sync mutations to storage append-only journal Journaling: persisting mutations Imaging: persisting the state when it changes

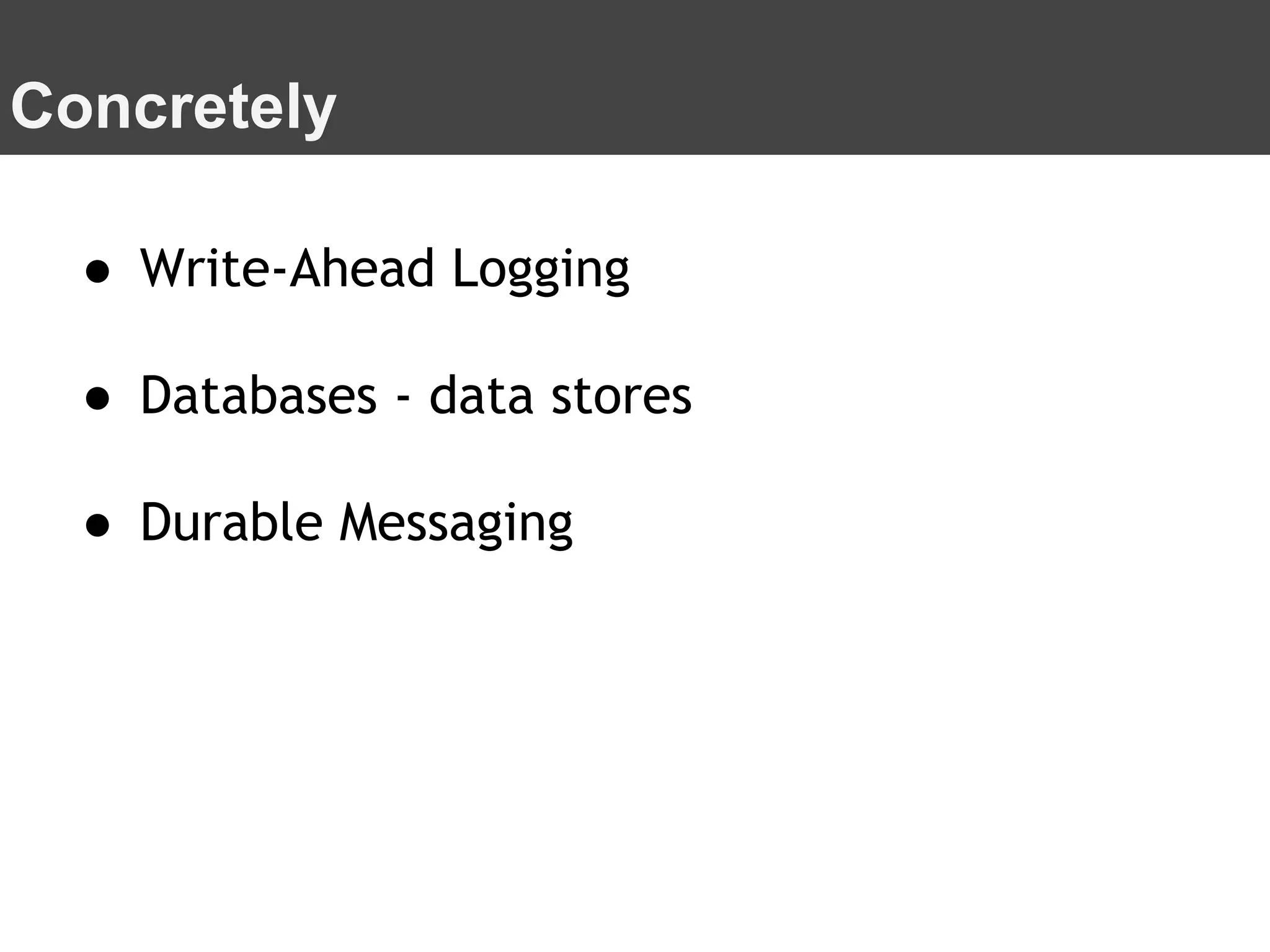

- 24. Concretely ● Write-Ahead Logging ● Databases - data stores ● Durable Messaging
- 25. Enter Apache BookKeeper Reliable distributed logging CC-BY-2.0 https://flic.kr/p/dSHr87

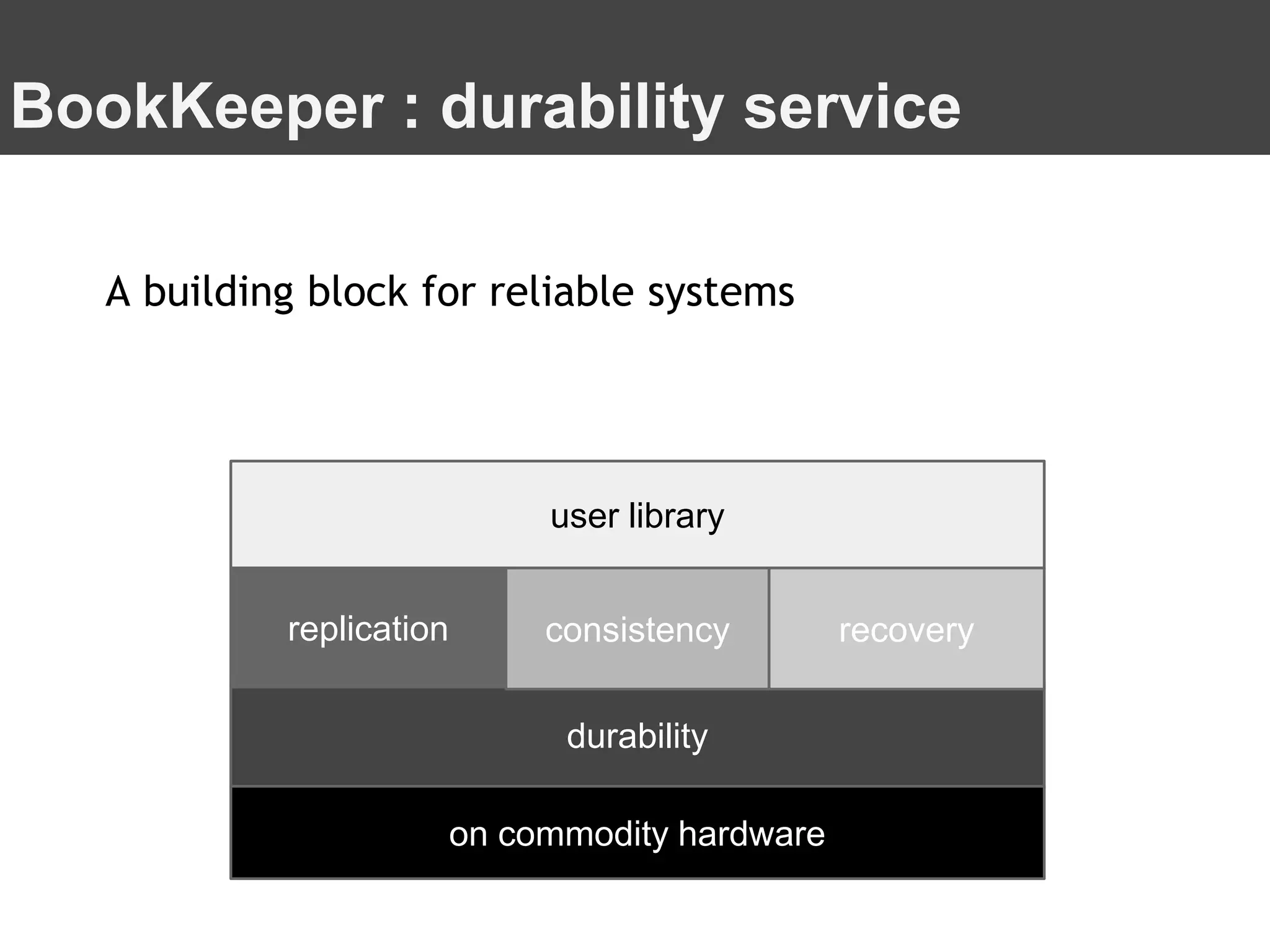

- 26. BookKeeper : durability service durability replication consistency on commodity hardware recovery user library A building block for reliable systems

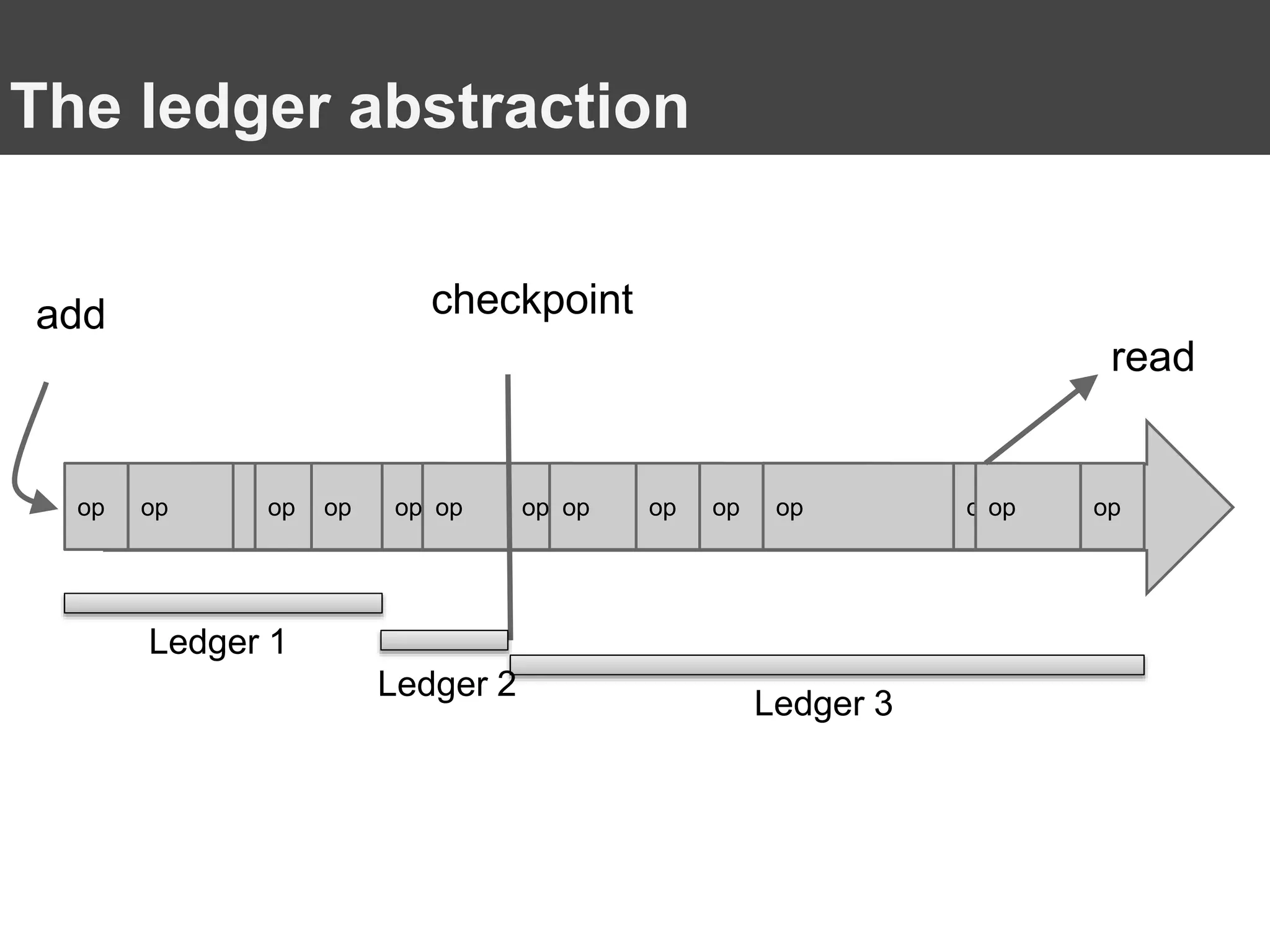

- 27. The ledger abstraction op op op op op op op op op op opop opop opop op add read checkpoint Ledger 1 Ledger 2 Ledger 3

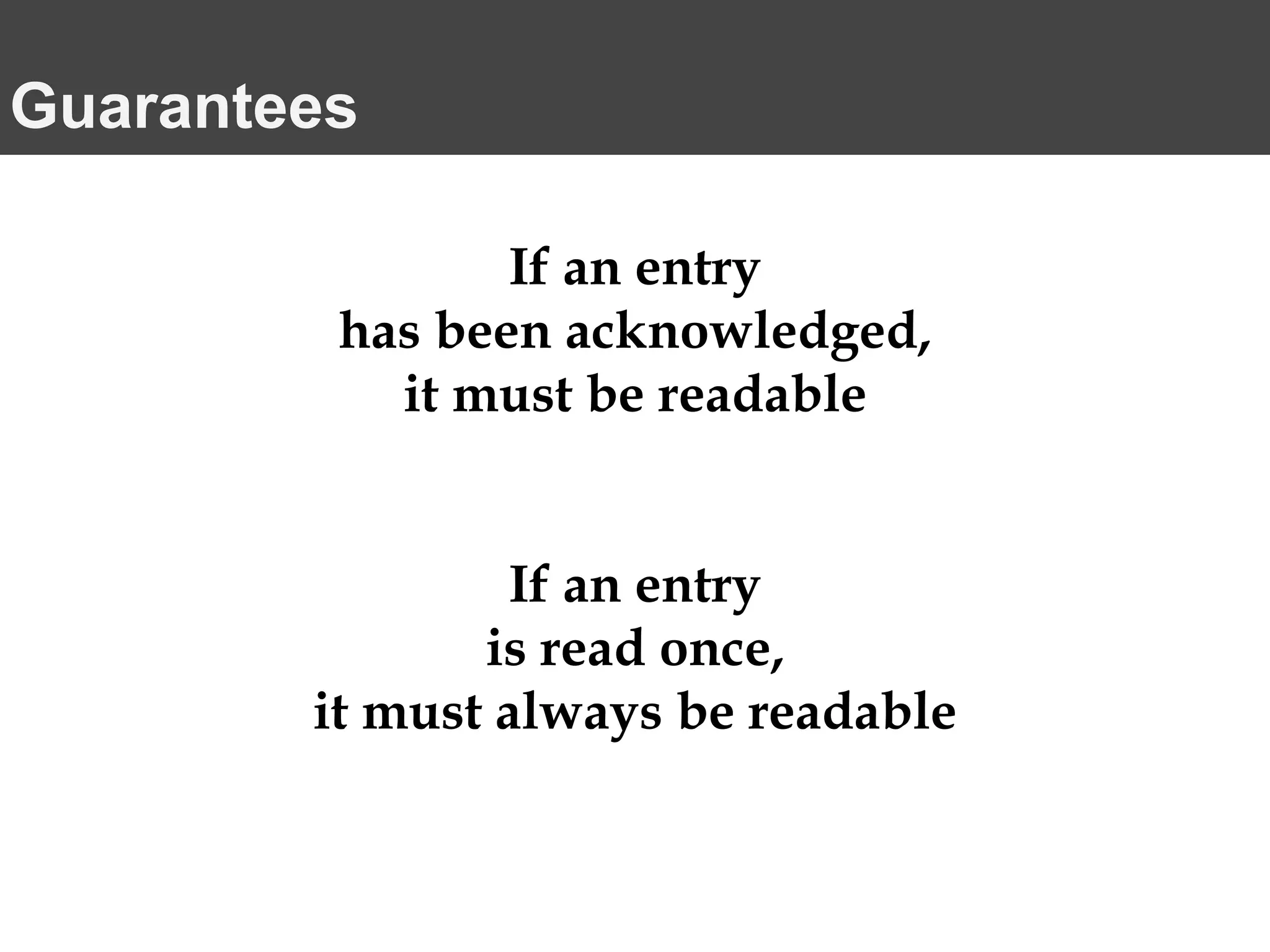

- 28. Guarantees If an entry has been acknowledged, it must be readable If an entry is read once, it must always be readable

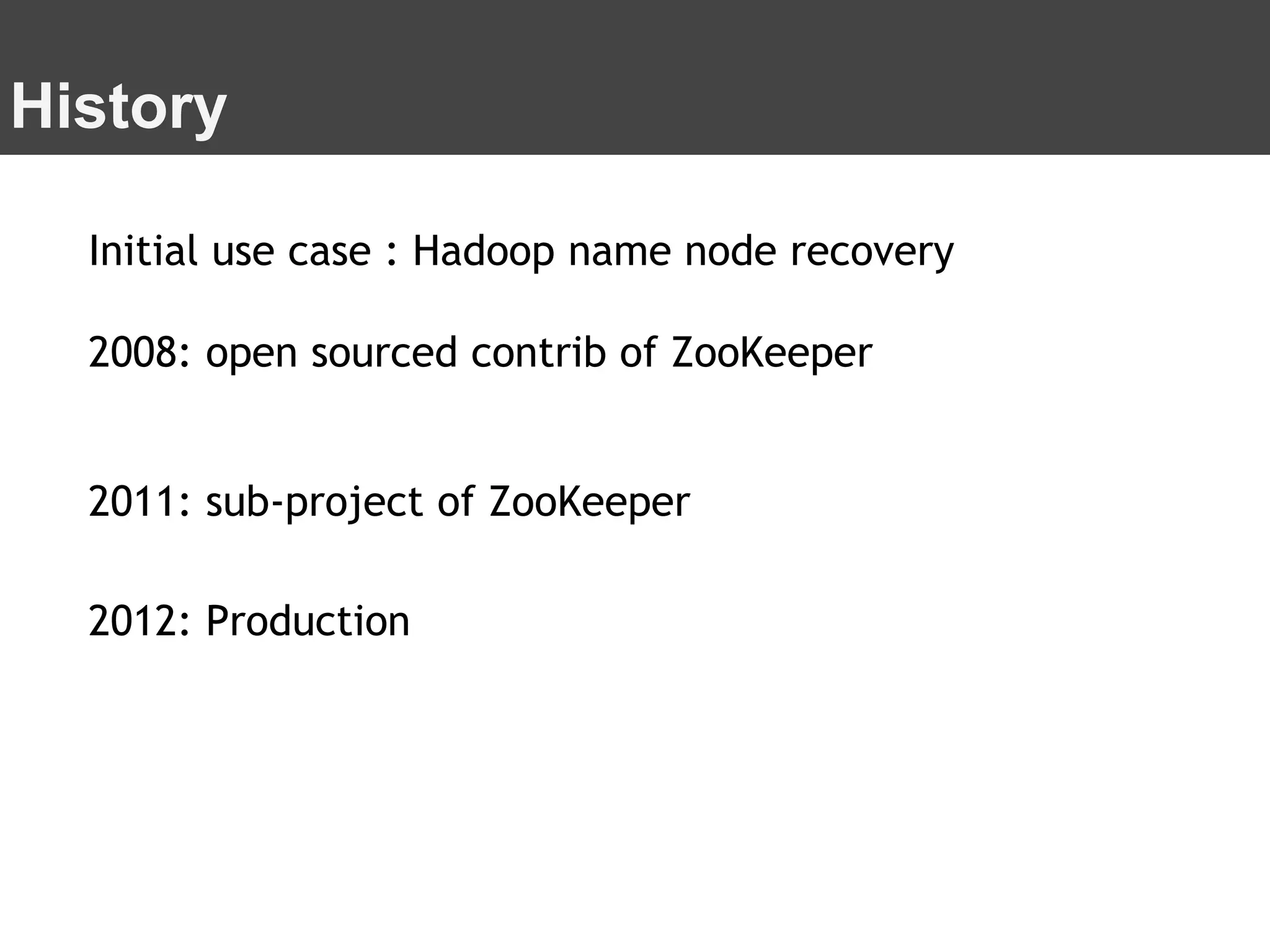

- 29. History Initial use case : Hadoop name node recovery 2008: open sourced contrib of ZooKeeper 2011: sub-project of ZooKeeper 2012: Production

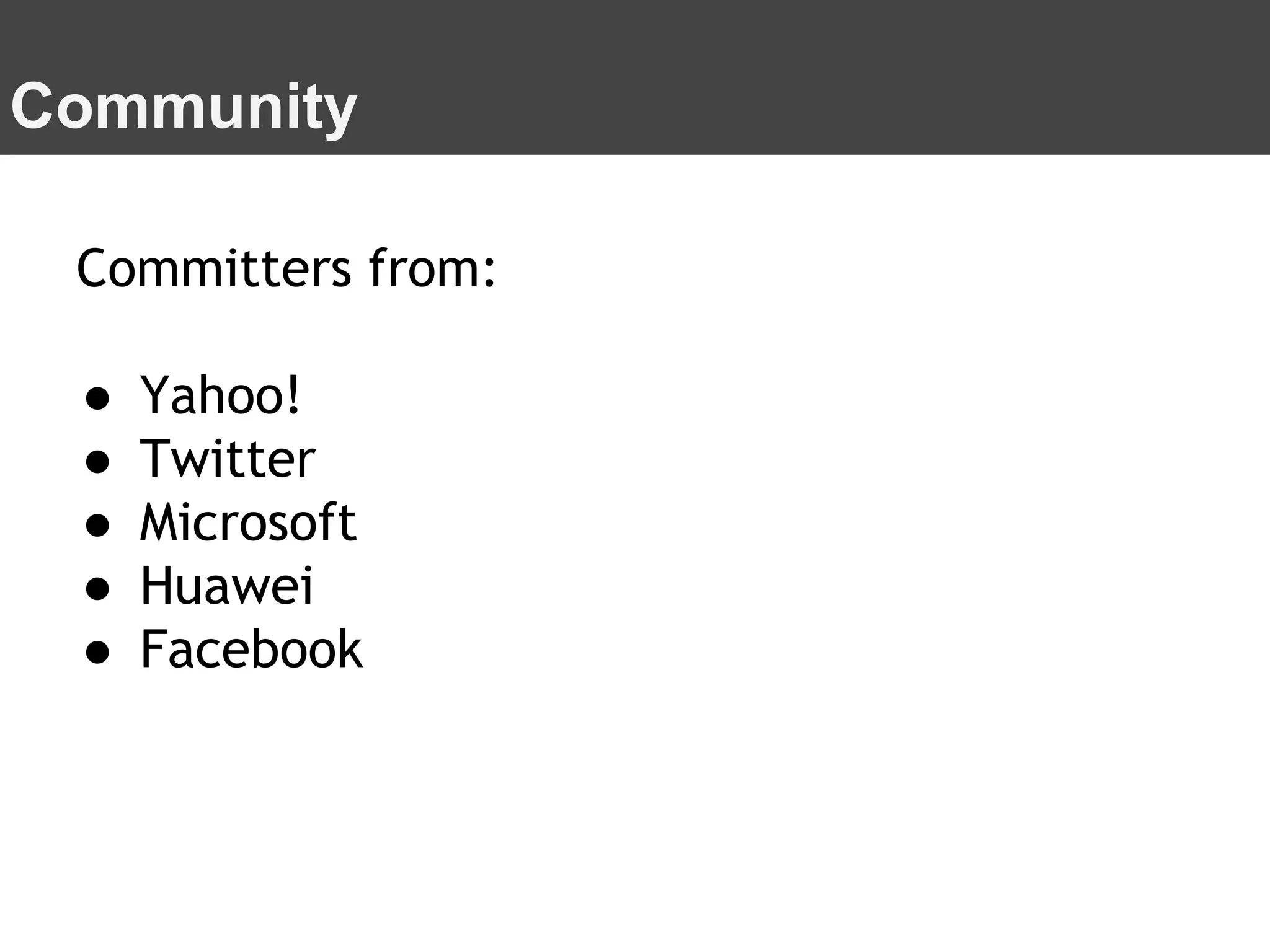

- 30. Community Committers from: ● Yahoo! ● Twitter ● Microsoft ● Huawei ● Facebook
- 31. Inside of Apache BookKeeper CC-BY-2.0 https://flic.kr/p/agpLTR

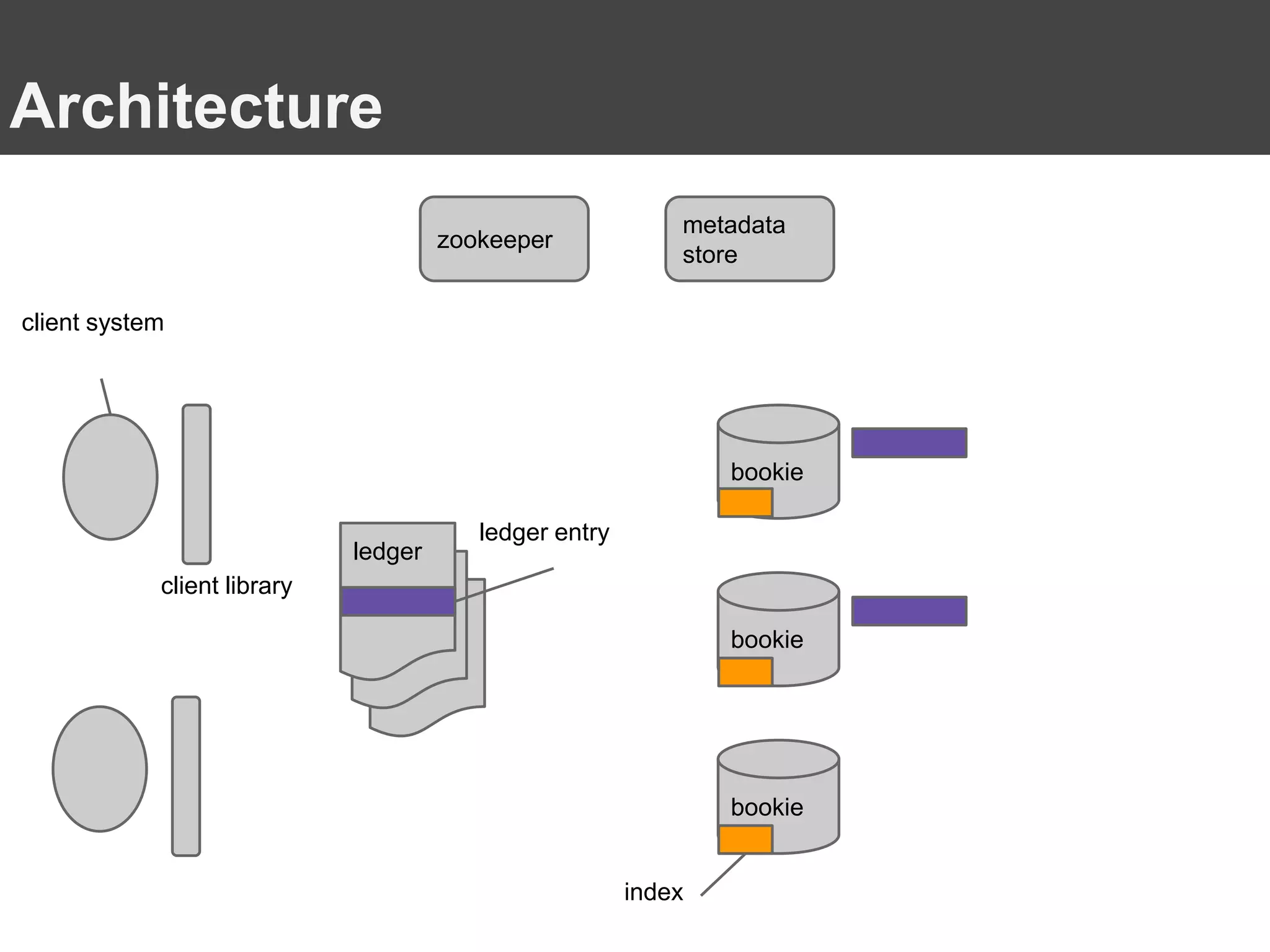

- 32. ledgerçl edger Architecture bookie zookeeper bookie bookie client library client system ledger ledger entry index metadata store

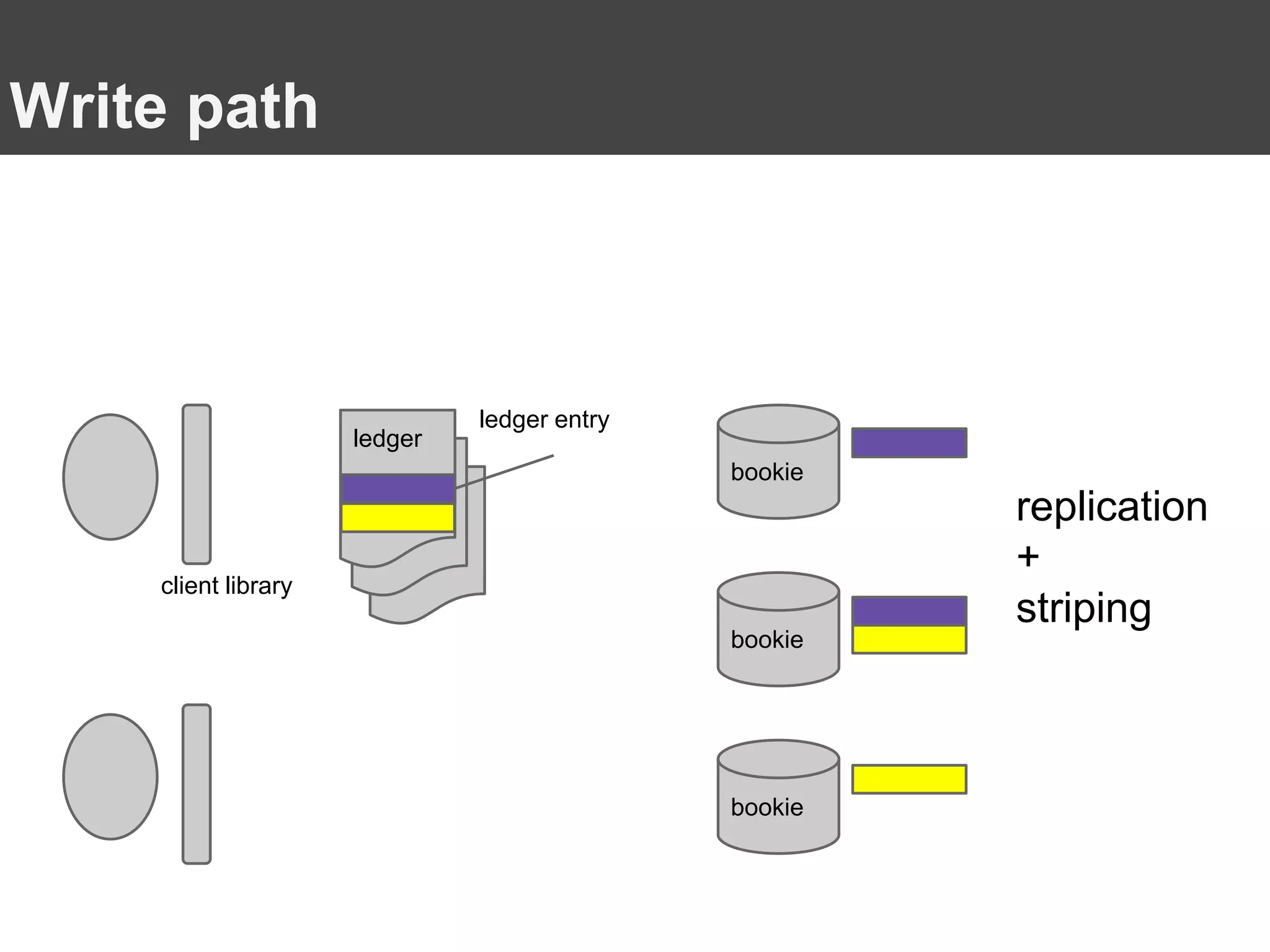

- 33. Write path ledgerçl edger bookie bookie bookie client library ledger ledger entry replication + striping

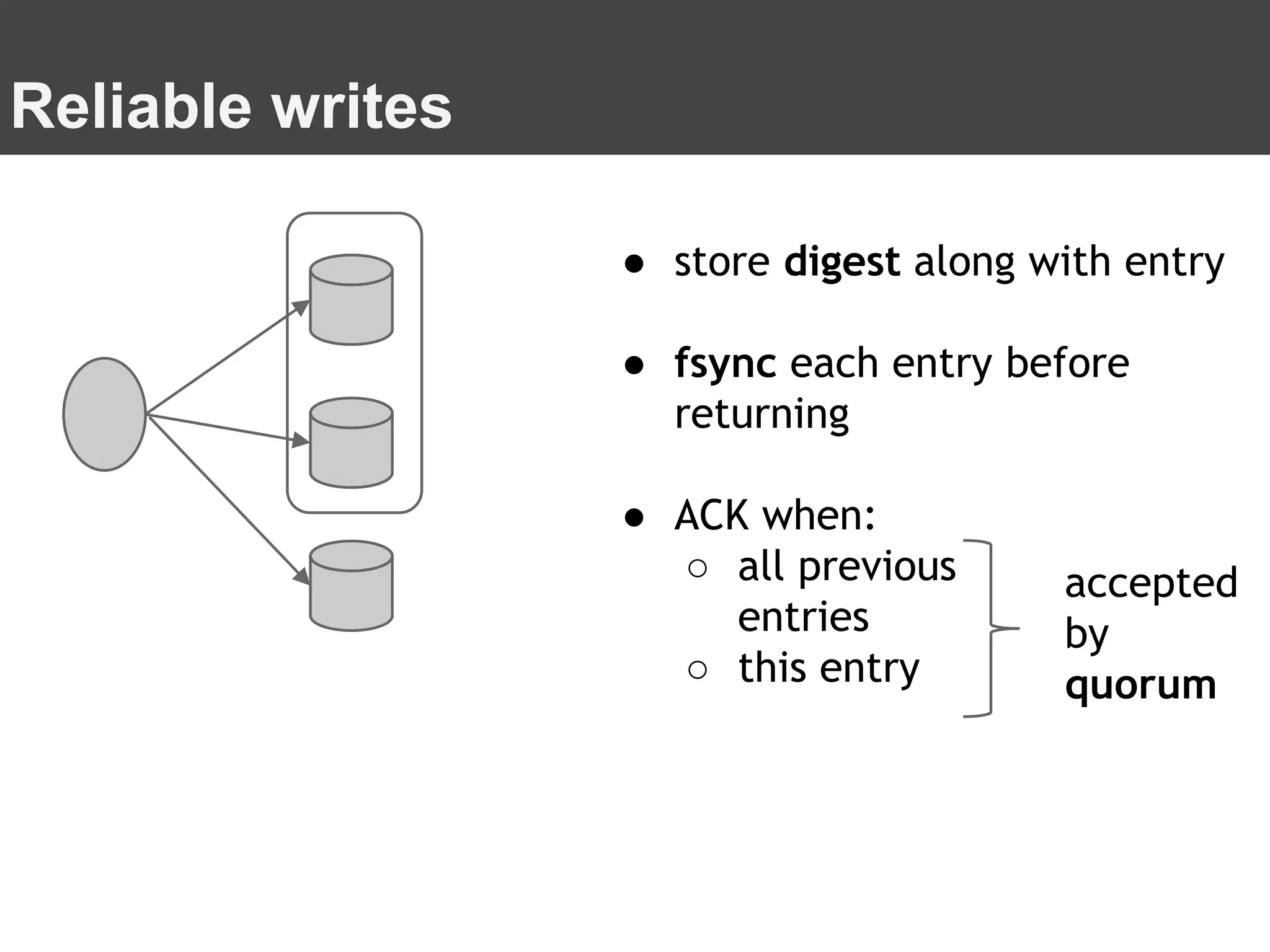

- 34. Reliable writes ● store digest along with entry ● fsync each entry before returning ● ACK when: ○ all previous entries ○ this entry accepted by quorum

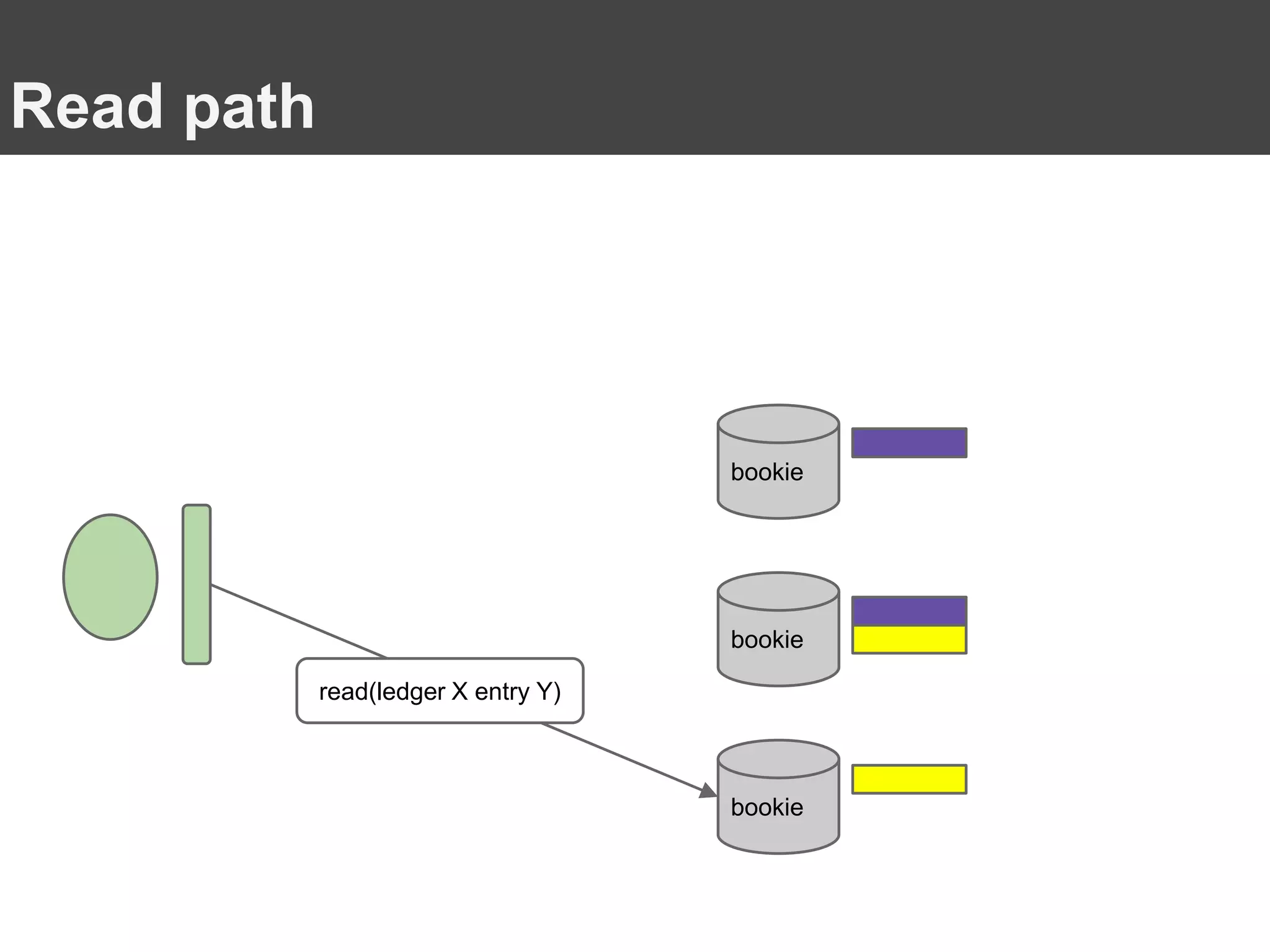

- 35. Read path bookie bookie bookie read(ledger X entry Y)

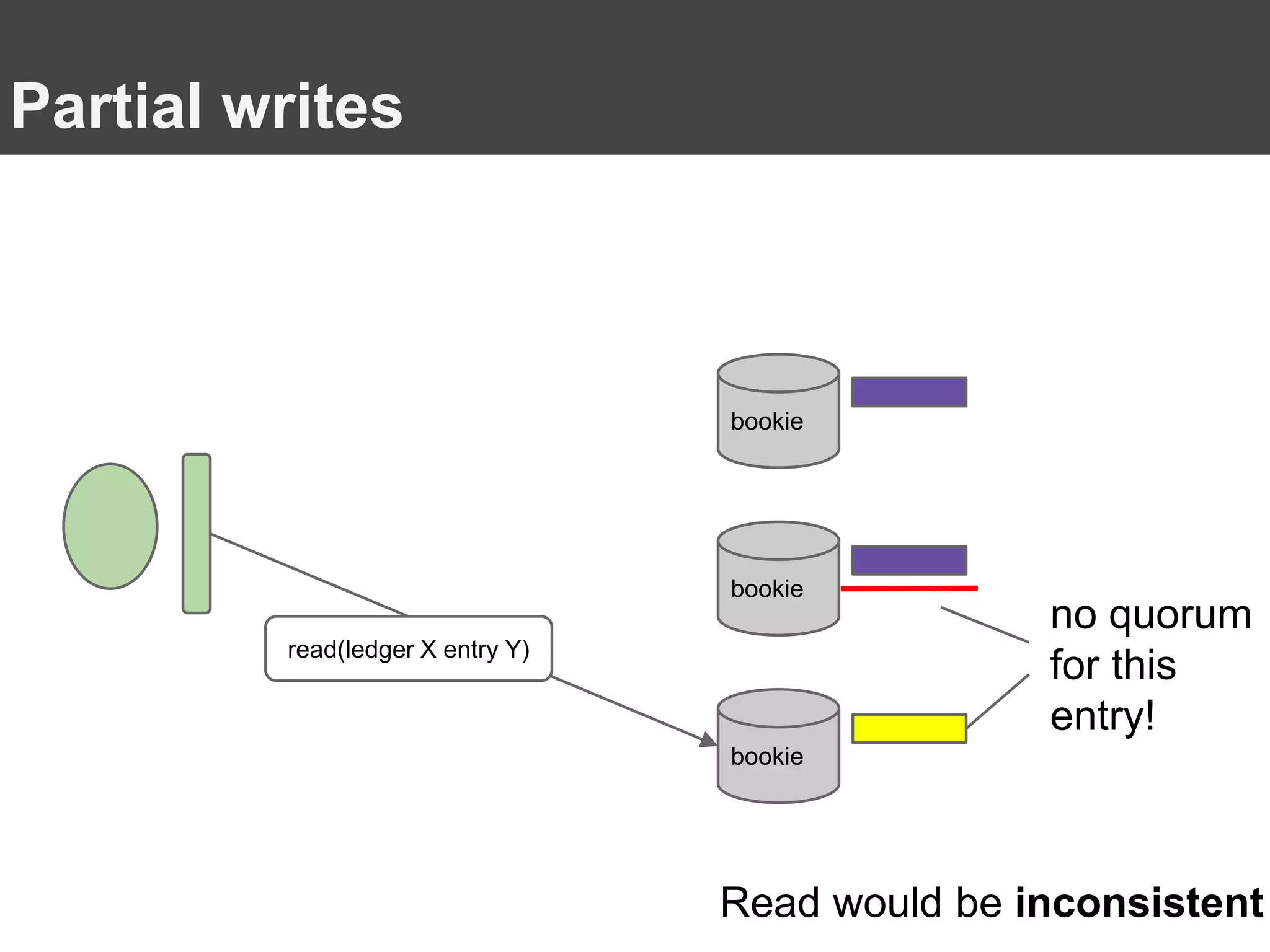

- 36. Partial writes bookie bookie bookie read(ledger X entry Y) no quorum for this entry! Read would be inconsistent

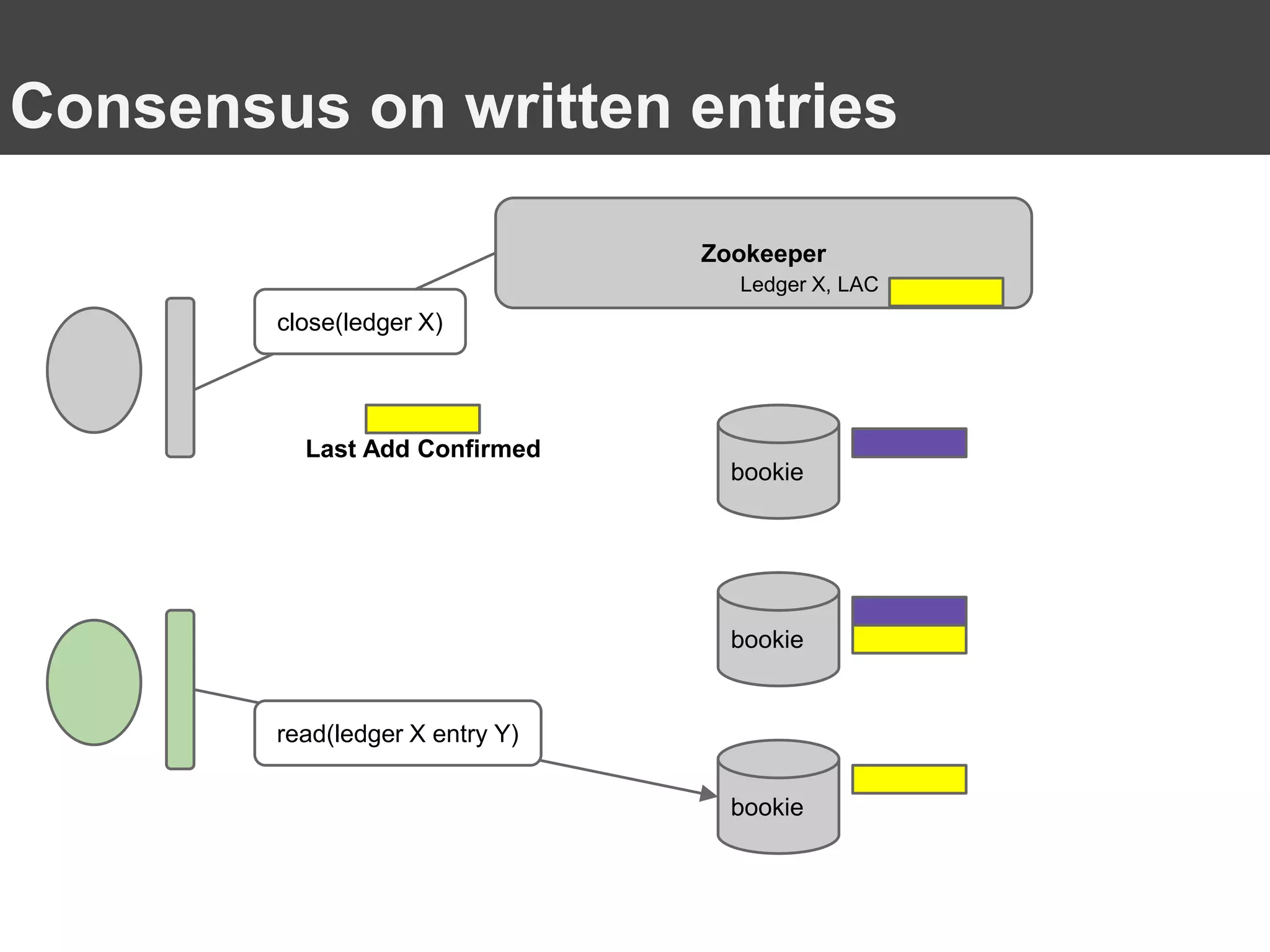

- 37. Last Add Confirmed Consensus on written entries bookie bookie bookie read(ledger X entry Y) Zookeeper close(ledger X) Ledger X, LAC

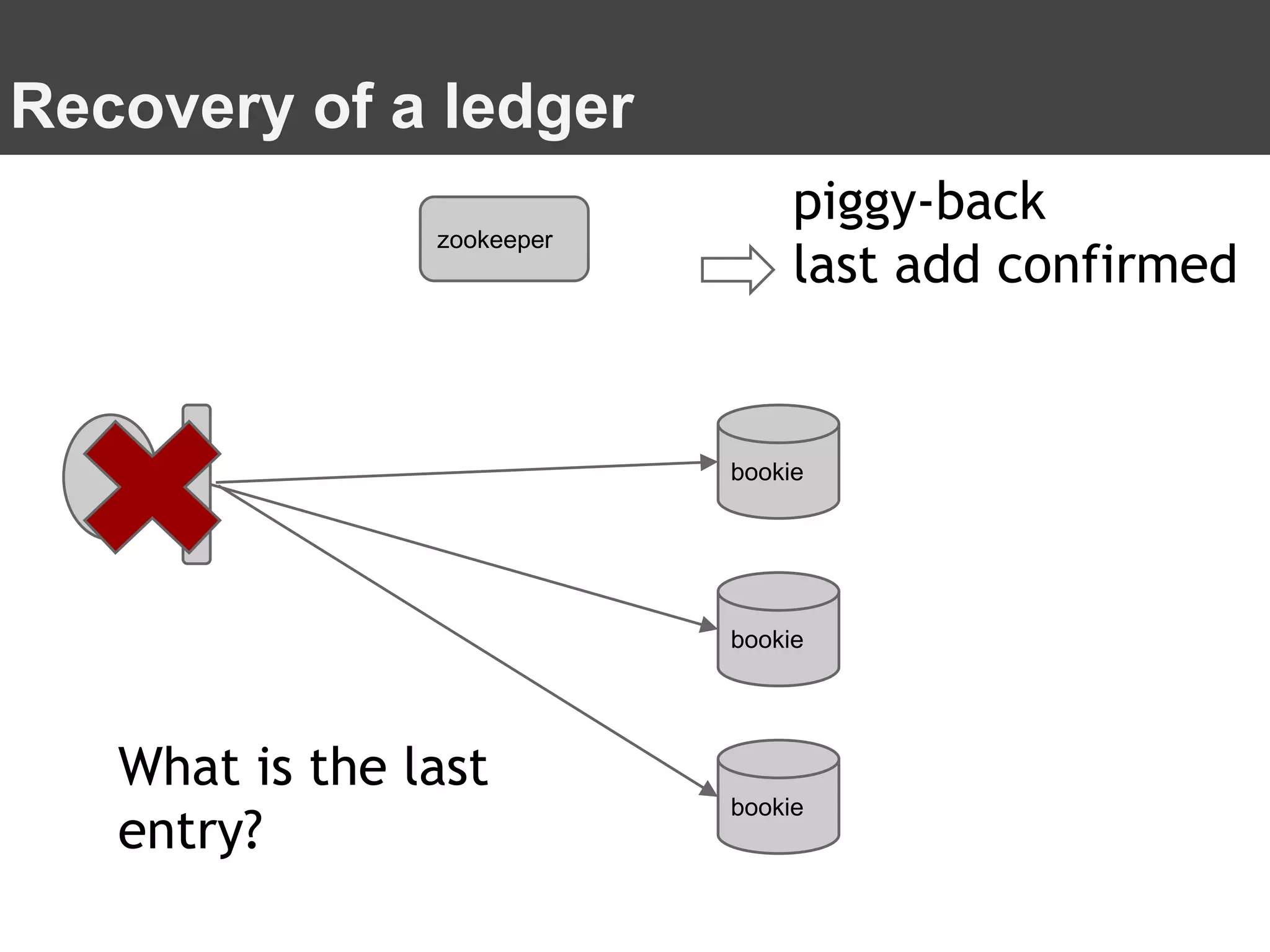

- 38. Recovery of a ledger bookie bookie bookie zookeeper What is the last entry? piggy-back last add confirmed

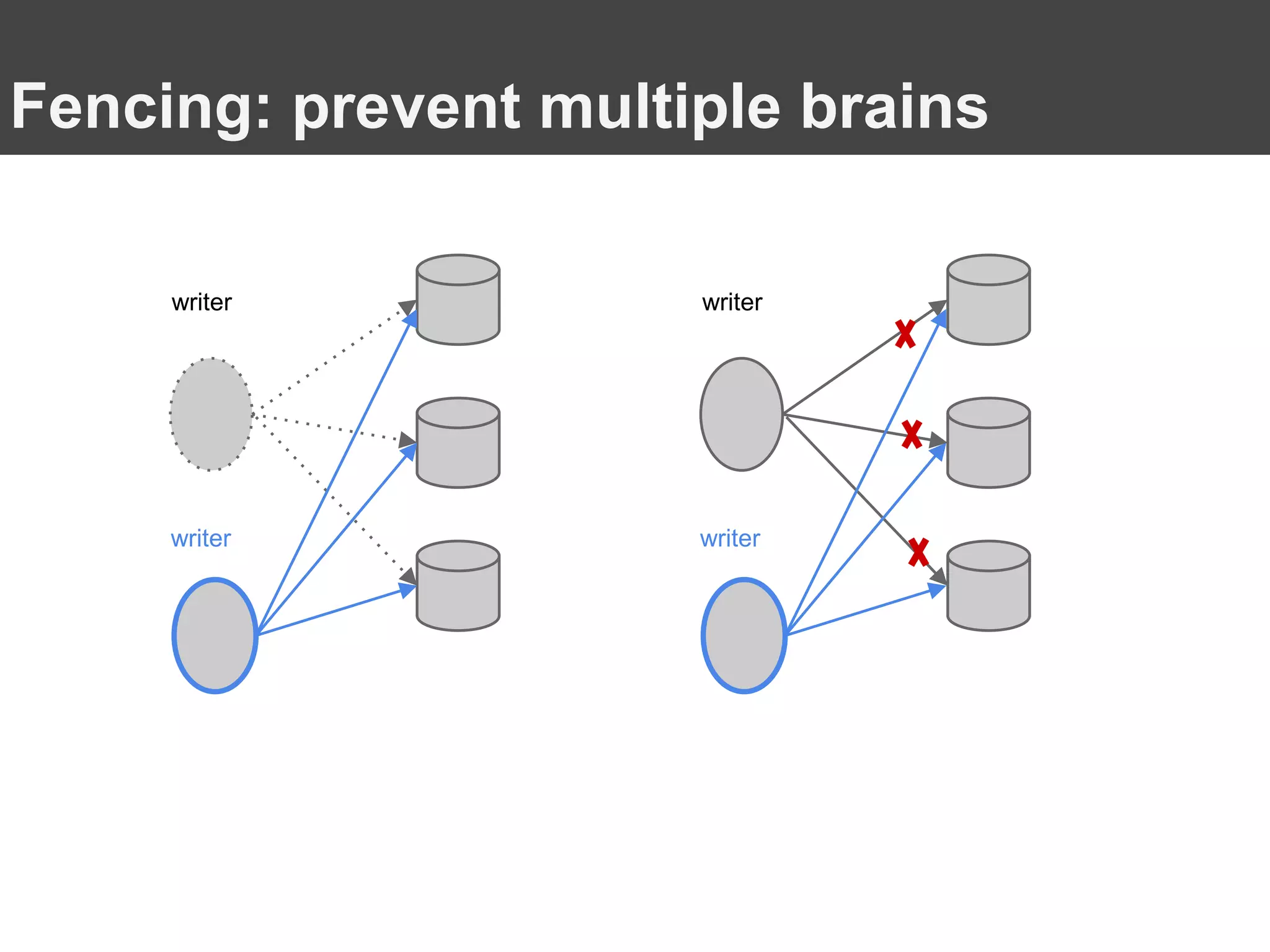

- 39. Fencing: prevent multiple brains writer writer writer writer

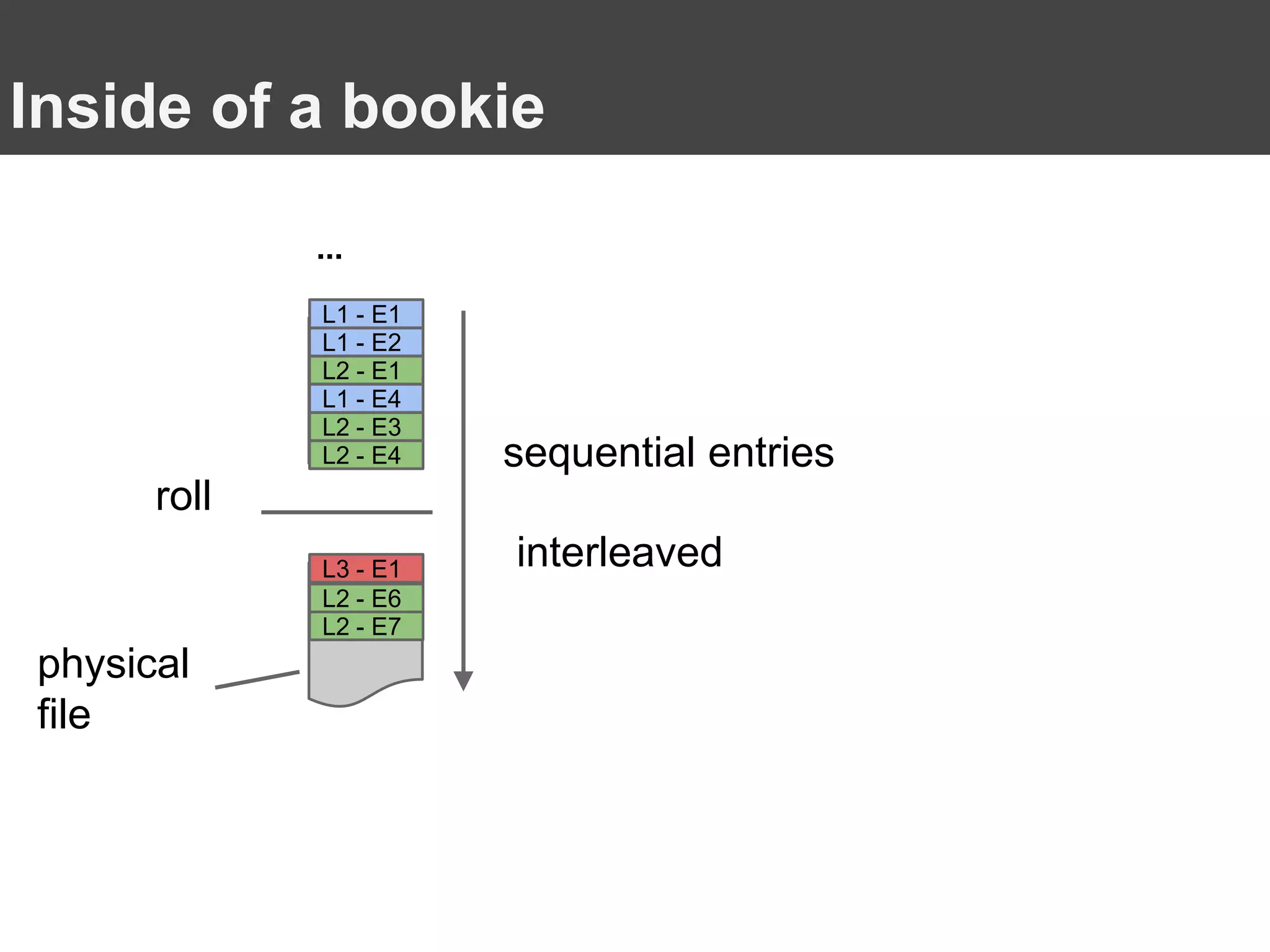

- 40. roll Inside of a bookie L2 - E7 L2 - E6 L2 - E3 L2 - E4 L1 - E4 L1 - E2 L2 - E1 L1 - E1 L3 - E1 ... sequential entries interleaved physical file

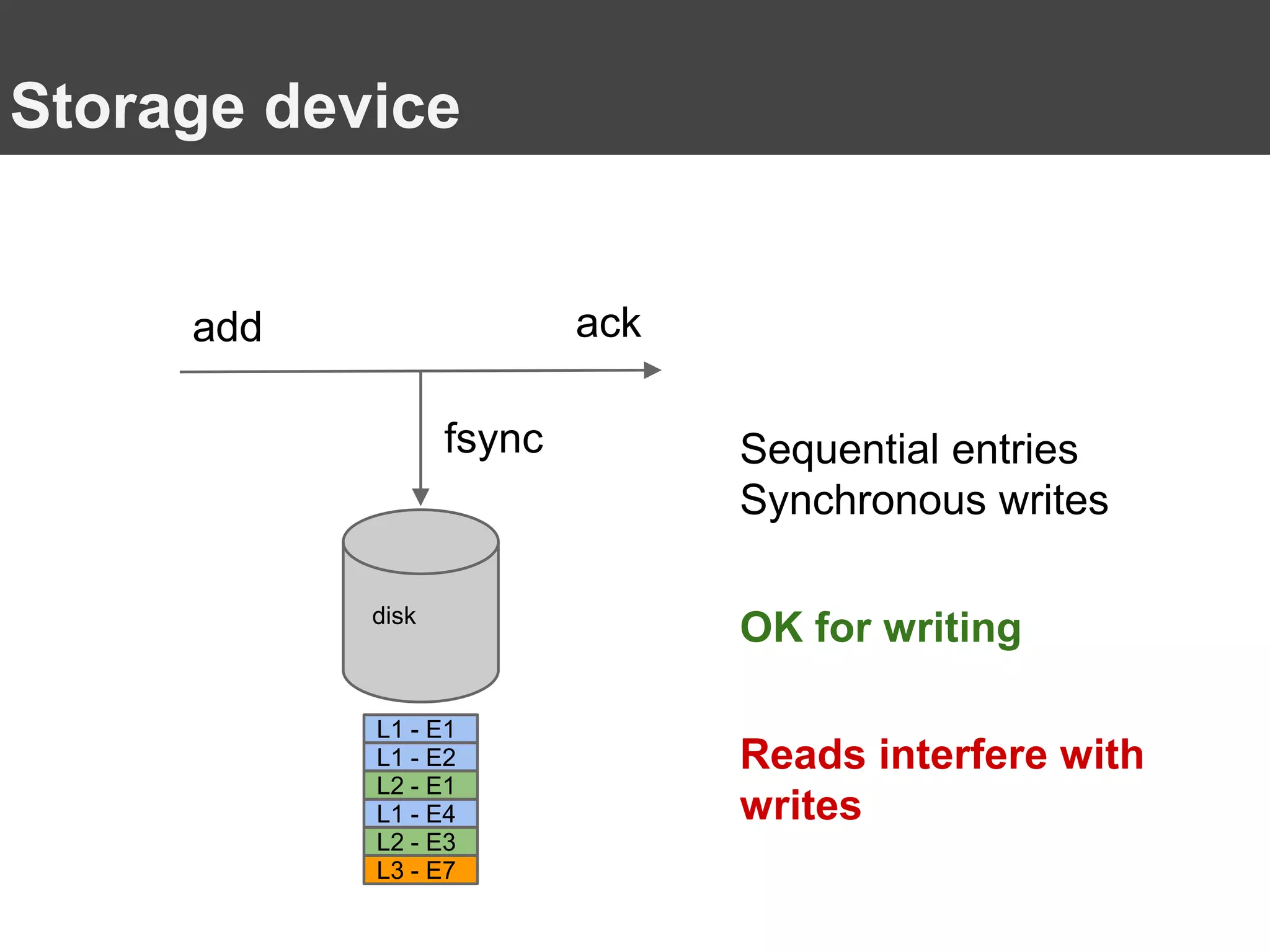

- 41. Storage device disk fsync Sequential entries Synchronous writes OK for writing Reads interfere with writes add ack L2 - E3 L3 - E7 L1 - E4 L1 - E2 L2 - E1 L1 - E1

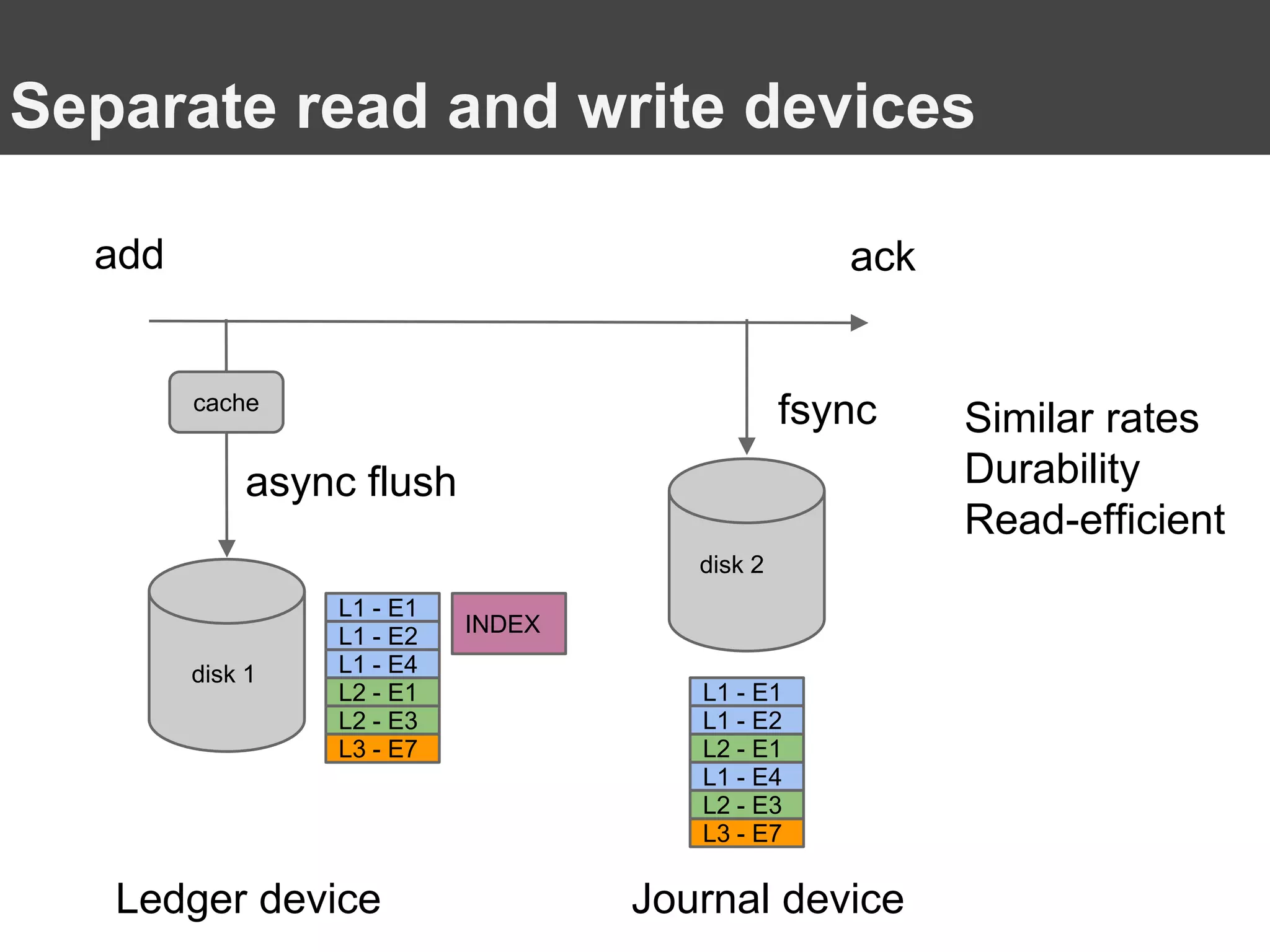

- 42. Separate read and write devices disk 2 fsync ackadd L2 - E3 L3 - E7 L1 - E4 L1 - E2 L2 - E1 L1 - E1 disk 1 L2 - E3 L3 - E7 L1 - E4 L1 - E2 L2 - E1 L1 - E1 async flush cache Similar rates Durability Read-efficient INDEX Ledger device Journal device

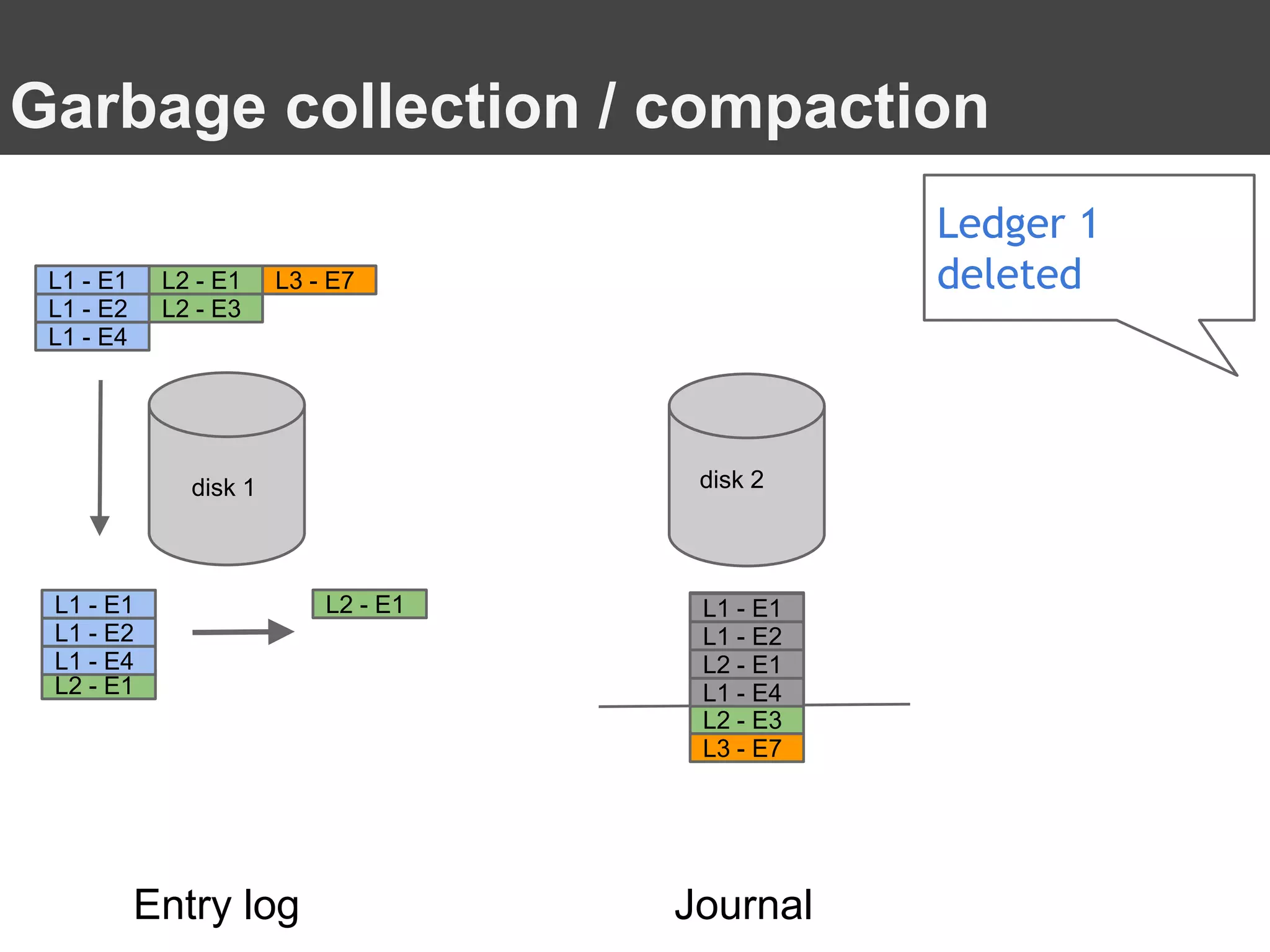

- 44. Garbage collection / compaction disk 2 L2 - E3 L3 - E7 L1 - E4 L1 - E2 L2 - E1 L1 - E1 disk 1 L2 - E3 L3 - E7 L2 - E1 L1 - E4 L1 - E2 L1 - E1 L1 - E4 L1 - E2 L2 - E1L1 - E1 L1 - E4 L1 - E2 L2 - E1 L1 - E1 Ledger 1 deleted L2 - E1 Entry log Journal
- 46. Using Apache BookKeeper as a building block Raul Hernandez - CC-BY-2.0 https://flic.kr/p/aSwTKT
- 47. Guarantees If an entry has been acknowledged, it must be readable If an entry is read once, it must always be readable

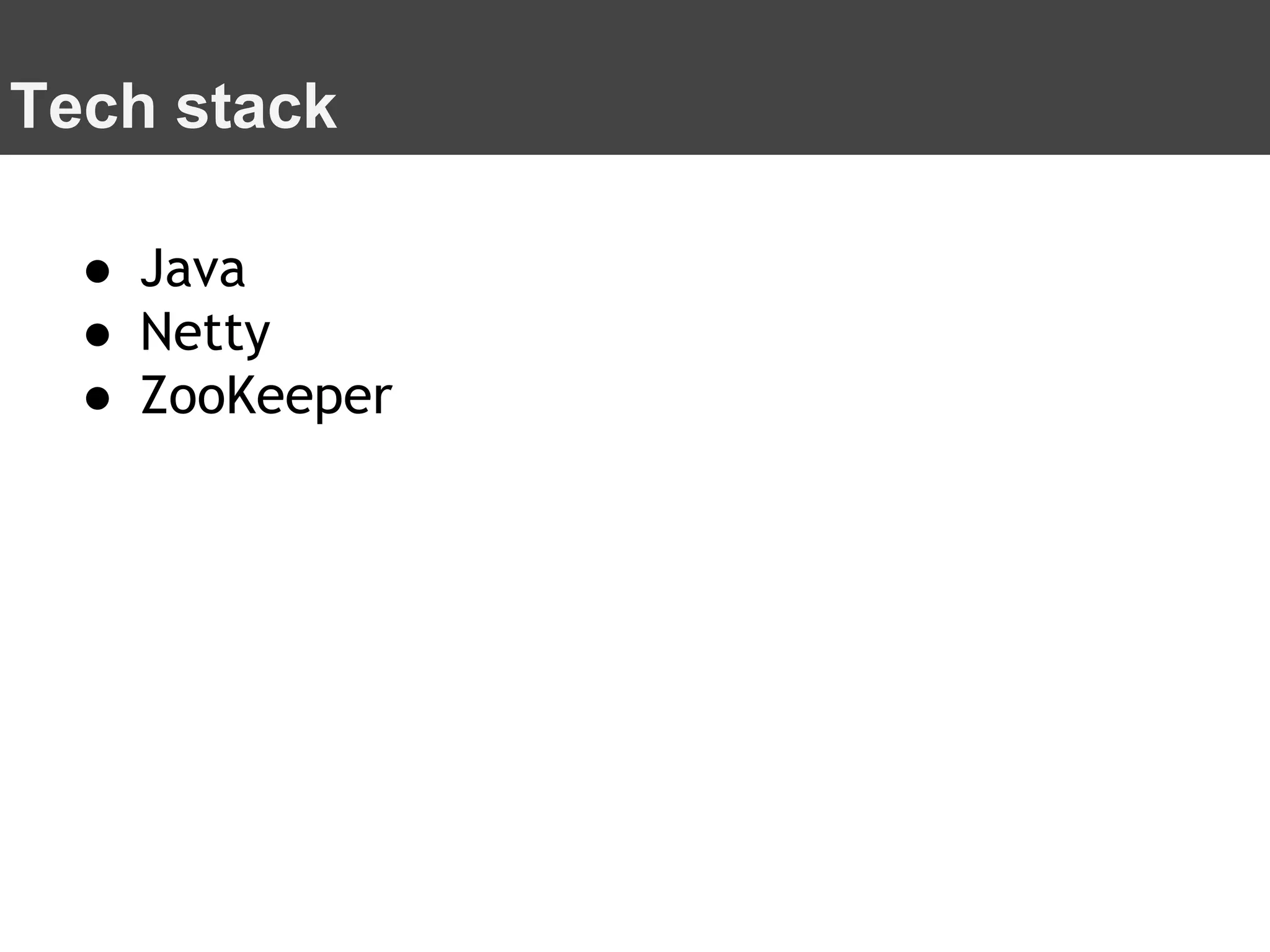

- 49. Tech stack ● Java ● Netty ● ZooKeeper

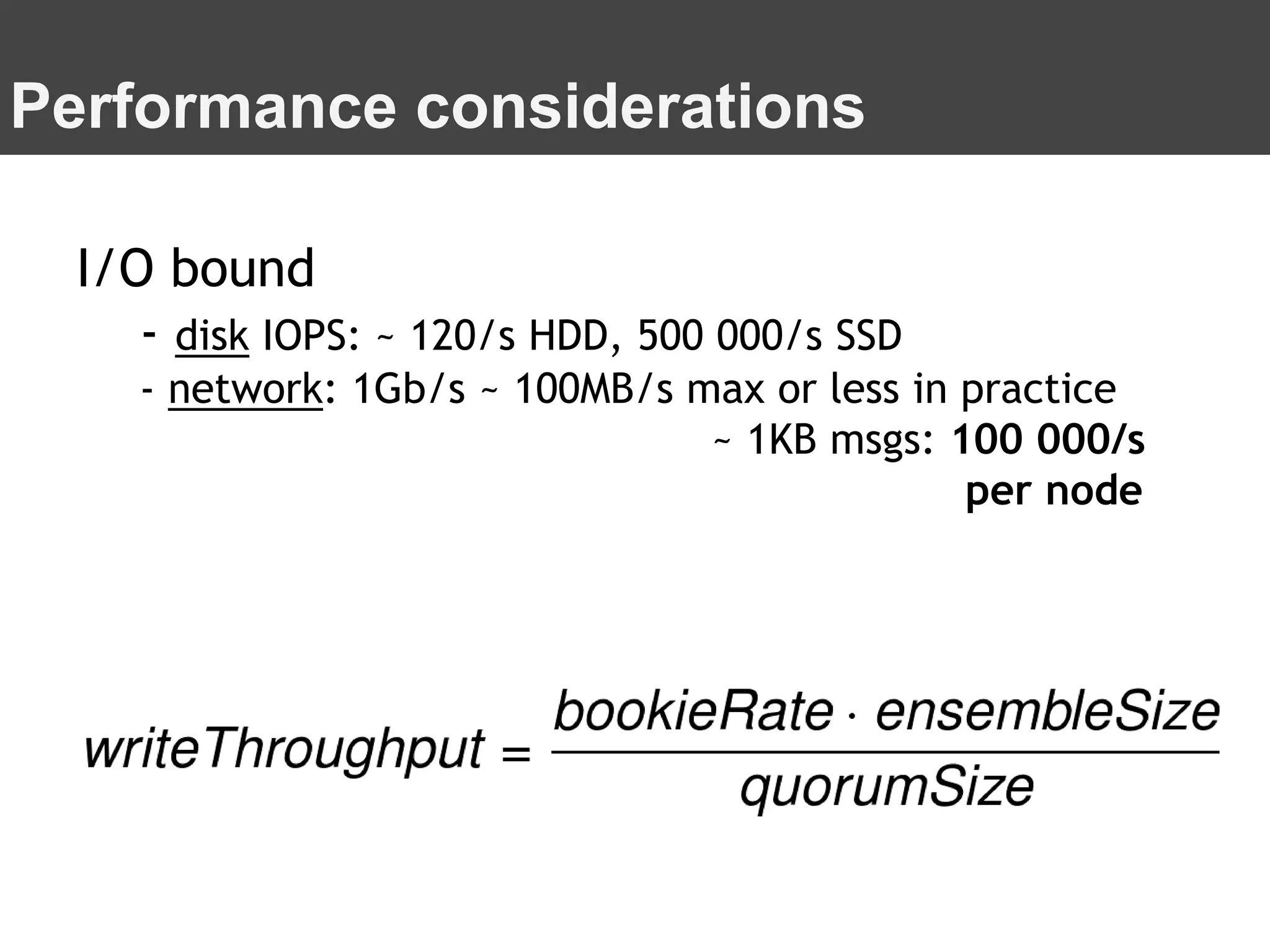

- 50. Performance considerations I/O bound - disk IOPS: ~ 120/s HDD, 500 000/s SSD - network: 1Gb/s ~ 100MB/s max or less in practice ~ 1KB msgs: 100 000/s per node

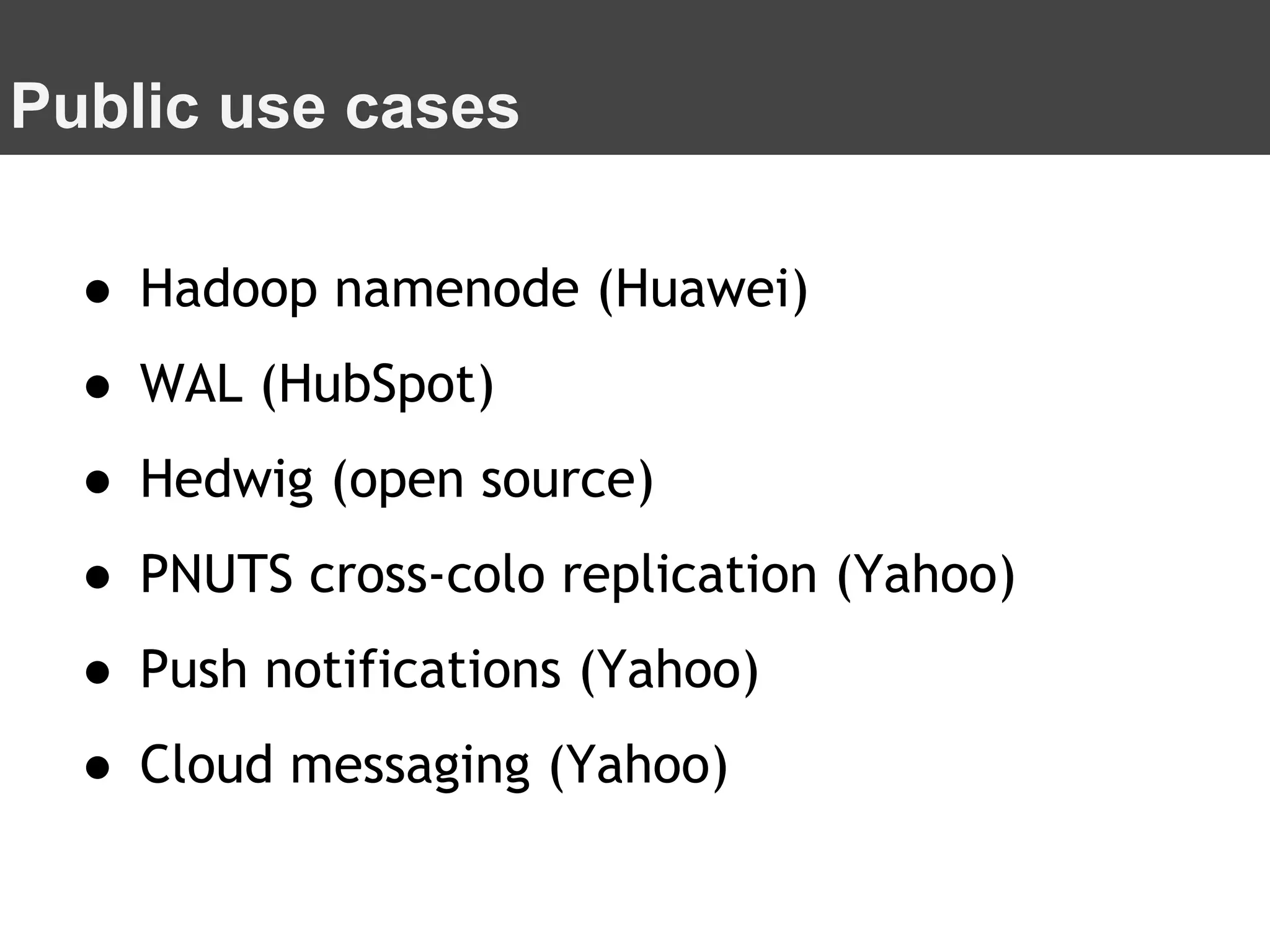

- 51. Public use cases ● Hadoop namenode (Huawei) ● WAL (HubSpot) ● Hedwig (open source) ● PNUTS cross-colo replication (Yahoo) ● Push notifications (Yahoo) ● Cloud messaging (Yahoo)

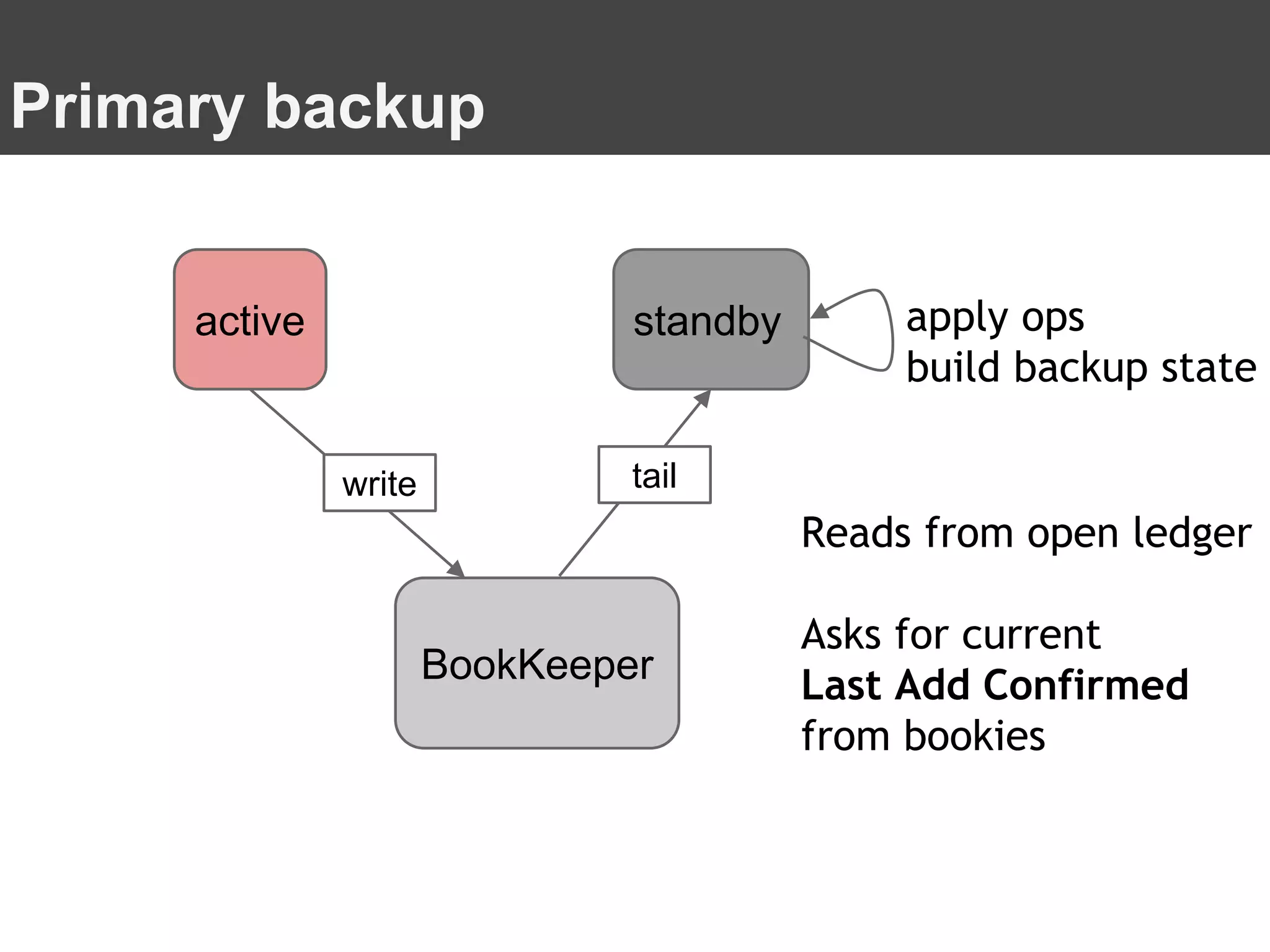

- 52. Primary backup BookKeeper active standby write tail apply ops build backup state Reads from open ledger Asks for current Last Add Confirmed from bookies

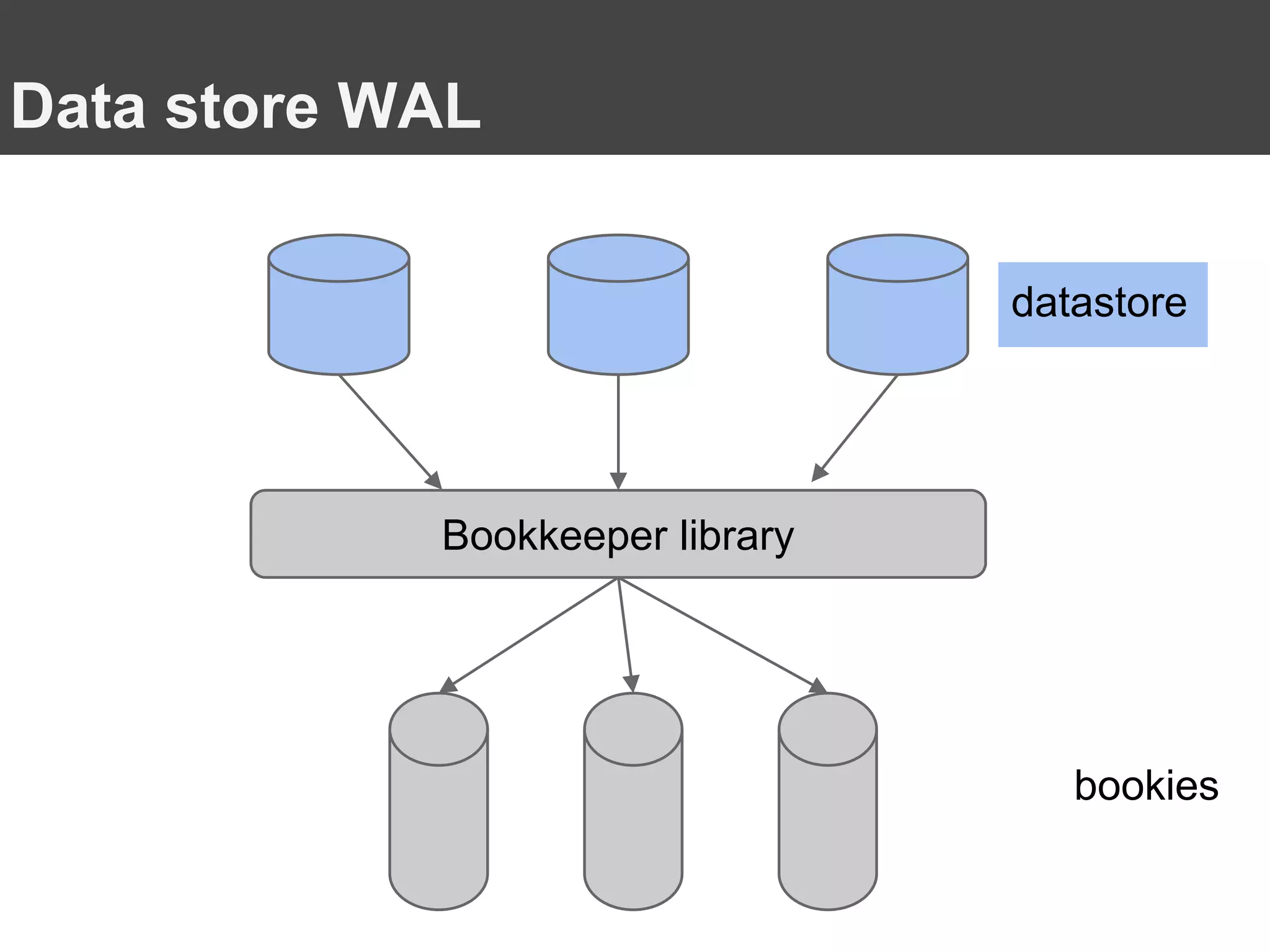

- 53. Data store WAL Bookkeeper library bookies datastore

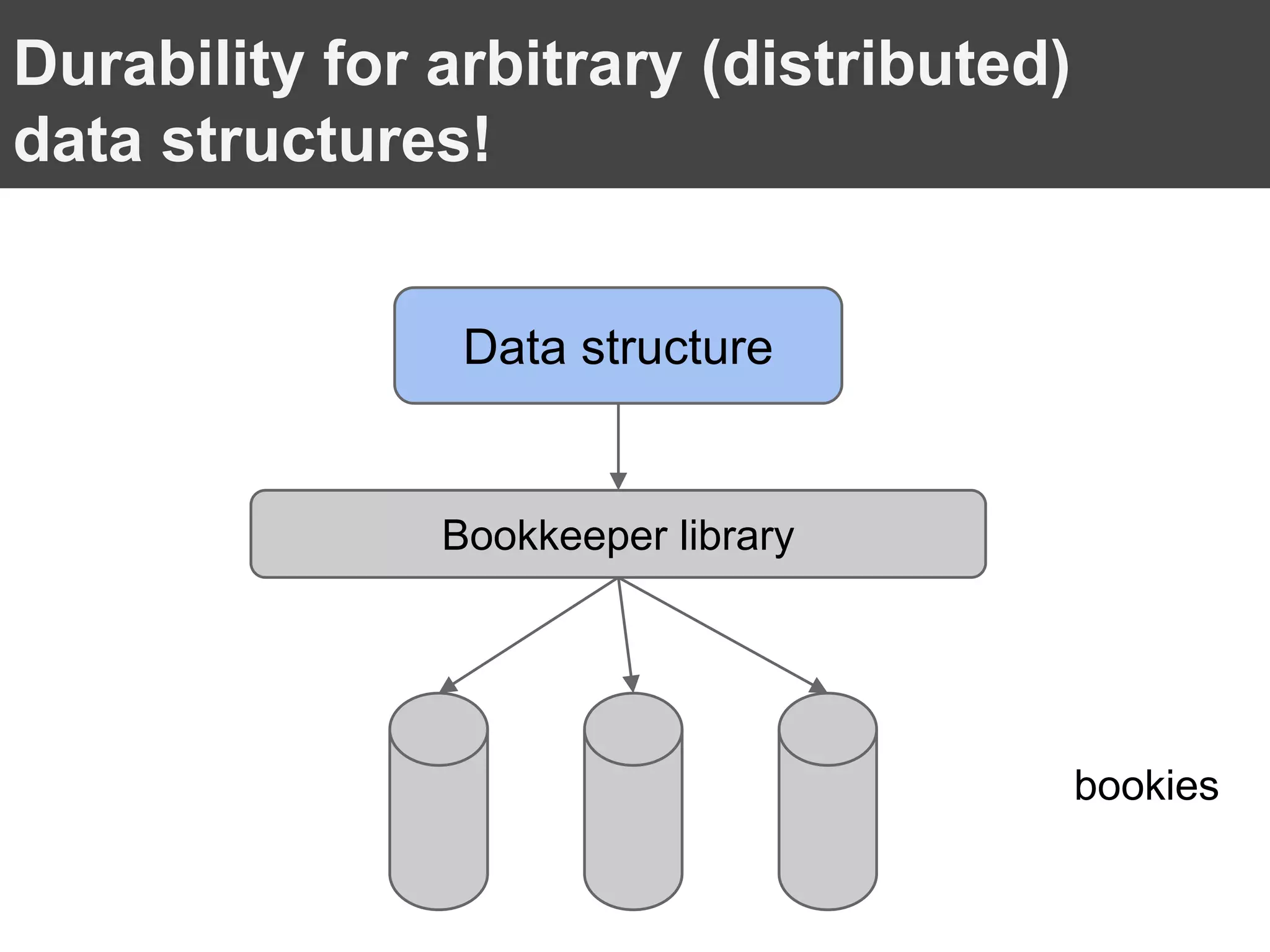

- 54. Bookkeeper library bookies Data structure Durability for arbitrary (distributed) data structures!

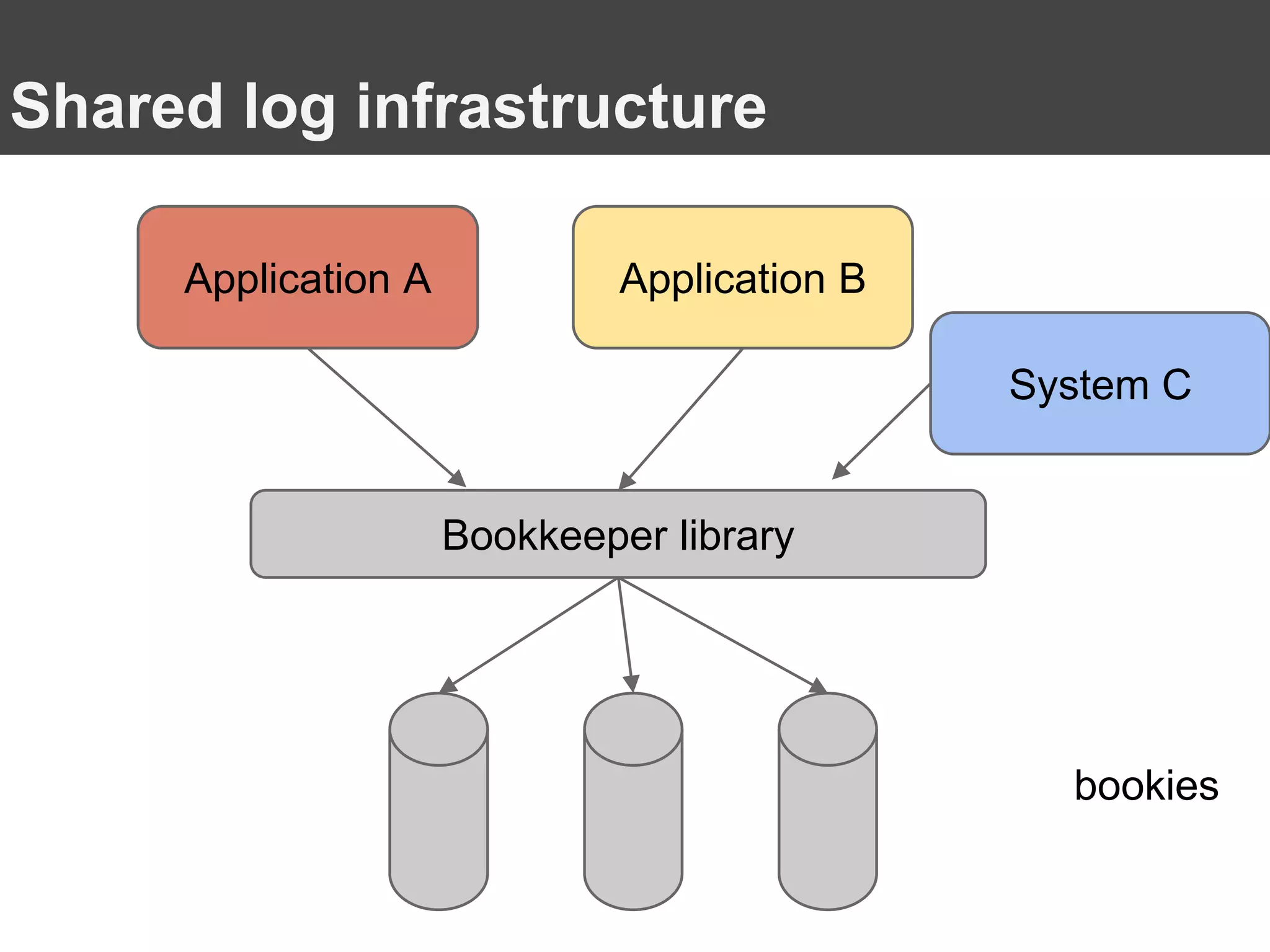

- 57. Shared log infrastructure Bookkeeper library bookies Application A Application B System C
- 58. http://zookeeper.apache.org/bookkeeper/ https://github.com/apache/bookkeeper Matthieu Morel: mmorel Ivan Kelly: ivank @apache.org
