Building mobile back ends with windows azure mobile services
This document outlines how to build mobile backends using Windows Azure Mobile Services, including an overview of key features like storage, push notifications, authentication, and scheduling. It discusses how Mobile Services can significantly reduce development time by handling common backend tasks. A demo is provided showing how to create a Mobile Services app and use features like storage, push notifications, and server-side logic.
More Related Content
![What’s new in aNdroid [Google I/O Extended Bangkok 2016]](https://cdn.slidesharecdn.com/ss_thumbnails/whatsnewinandroid-160626055038-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Building mobile back ends with windows azure mobile services
Building mobile back ends with windows azure mobile services
- 1. Building mobile backends with windows azure mobile services Windows Azure Sydney User Group June 2013
- 2. Aidan Casey @AIDANJCASEY |acaseyblog.wordpress.com Solutions architect @MYOB Australia

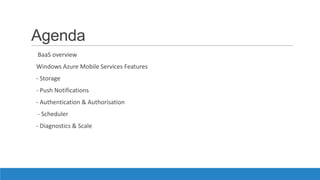

- 3. Agenda BaaS overview Windows AzureMobile Services Features - Storage - Push Notifications - Authentication & Authorisation - Scheduler - Diagnostics & Scale
- 4. How long doesit take to build a mobile app?
- 5.

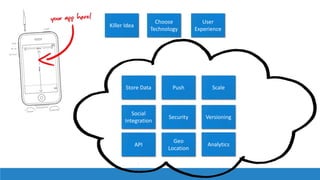

- 6.
- 7.
- 8.

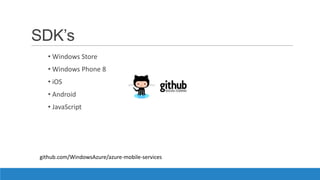

- 11. SDK’s • Windows Store •Windows Phone 8 • iOS • Android • JavaScript github.com/WindowsAzure/azure-mobile-services

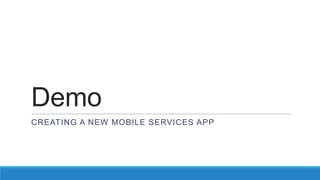

- 12. Demo CREATING A NEWMOBILE SERVICES APP
- 13.

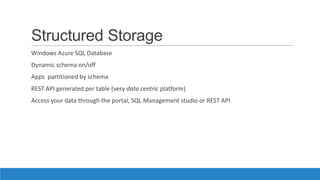

- 14. Structured Storage Windows AzureSQL Database Dynamic schema on/off Apps partitioned by schema REST API generated per table (very data centric platform) Access your data through the portal, SQL Management studio or REST API

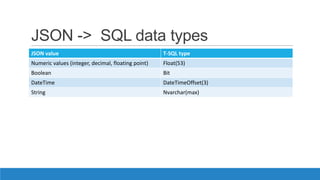

- 15. JSON -> SQLdata types JSON value T-SQL type Numeric values (integer, decimal, floating point) Float(53) Boolean Bit DateTime DateTimeOffset(3) String Nvarchar(max)
- 16.
- 17.

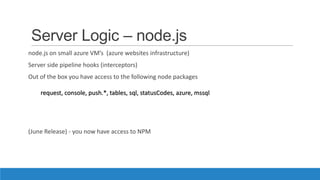

- 18. Server Logic –node.js node.js on small azure VM’s (azure websites infrastructure) Server side pipeline hooks (interceptors) Out of the box you have access to the following node packages (June Release) - you now have access to NPM request, console, push.*, tables, sql, statusCodes, azure, mssql

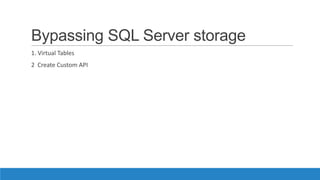

- 19. Bypassing SQL Serverstorage 1. Virtual Tables 2 Create Custom API
- 20.

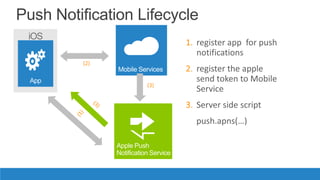

- 21. Push Notifications The globalpush object is used to send push notifications. Success & Error Callbacks are provided Method push. apns Apple Push Notification Service iOS apps push. gcm Google Cloud Messaging Android apps push. mpns Microsoft Push Notification Service Windows Phone 8 apps push. wns Windows Notification Services Windows Store apps
- 22.
- 23. Demo PUSH NOTIFICATIONS TOA WINDOWS STORE APP
- 24.

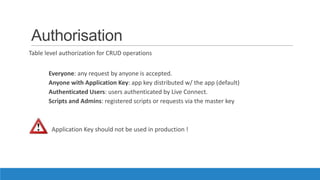

- 26. Authorisation Table level authorizationfor CRUD operations Everyone: any request by anyone is accepted. Anyone with Application Key: app key distributed w/ the app (default) Authenticated Users: users authenticated by Live Connect. Scripts and Admins: registered scripts or requests via the master key Application Key should not be used in production !
- 27.
- 28.
- 29. Cool Party Add-Insfrom Azure Store

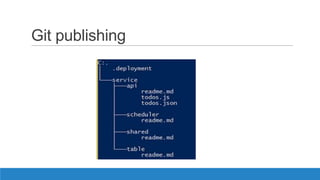

- 30.

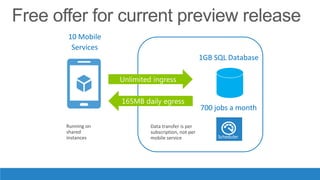

- 31. 10 Mobile Services 1GB SQLDatabase 700 jobs a month

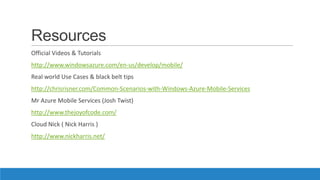

- 32. Resources Official Videos &Tutorials http://www.windowsazure.com/en-us/develop/mobile/ Real world Use Cases & black belt tips http://chrisrisner.com/Common-Scenarios-with-Windows-Azure-Mobile-Services Mr Azure Mobile Services (Josh Twist) http://www.thejoyofcode.com/ Cloud Nick ( Nick Harris ) http://www.nickharris.net/
Editor's Notes

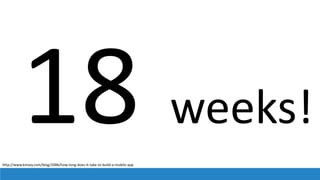

- #6 Research by AYTM on behalf of Kinvey“we surveyed 100 mobile designers to discover how long they expected it would take to build core front- and backend components of an Android or iOS app”

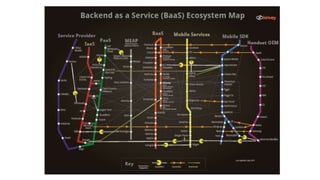

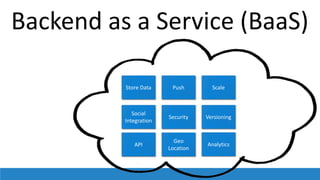

- #9 BaaS is a relatively recent development in cloud computing,with most BaaS startupsdating from 2011 or later.BaaS is distinct from these other services in that it specifically addresses the cloud-computing needs of web and mobile app developers by providing a unified means of connecting their apps to cloud services.The global BaaS market had an estimated value of $216.5 million in 2012.[5]

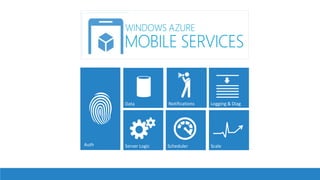

- #11 It’s a back end for you mobile apps Giving you storage, authentication oAuth with various social networksServer side business logic with node.js interceptorsPush notifications to different mobile devicesSchedulerOther players include Parse, Kinvey, Buddy, AppceleratorRelatively recent development in cloud computing started circa 2011
- #12 All SDKs are open sourced on GitHubREST API for any other device….
- #14 Both structured & unstructured storage availableWindows Azure SQL database with a dynamic schema or whatever you fancy!
- #17 Cross-origin resource sharing (CORS) is a mechanism that allows a web page to make XMLHttpRequests to another domain.Such "cross-domain" requests would otherwise be forbidden by web browsers, per the same origin security policy. CORS defines a way in which the browser and the server can interact to determine whether or not to allow the cross-origin request.
