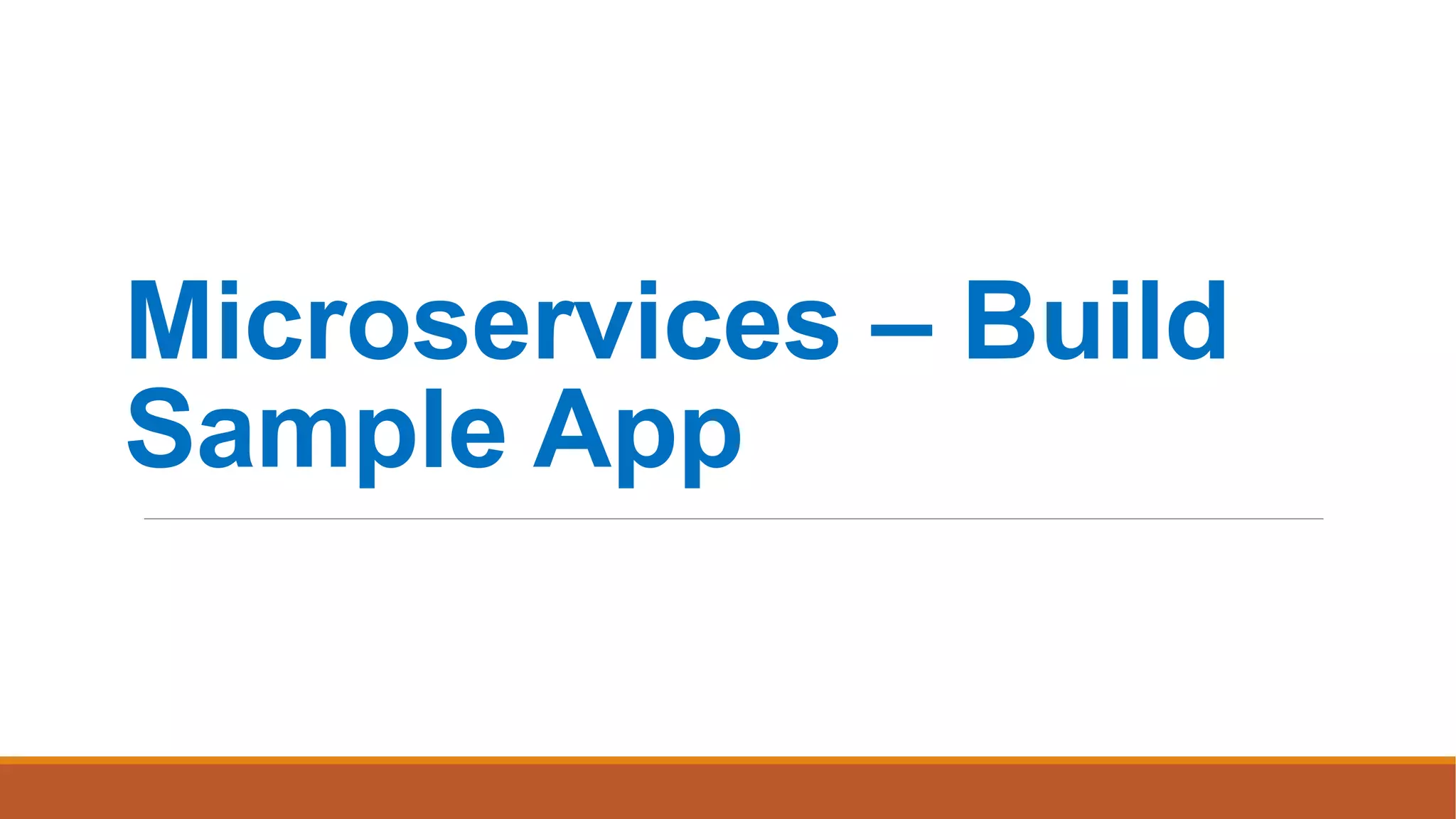

1. Microservices – Build
Sample App

2. Application Template Architecture

3. Overview

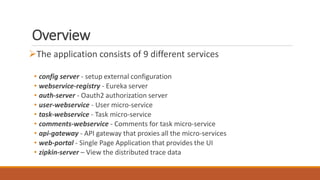

The application consists of 9 different services
• config server - setup external configuration
• webservice-registry - Eureka server
• auth-server - Oauth2 authorization server
• user-webservice - User micro-service
• task-webservice - Task micro-service
• comments-webservice - Comments for task micro-service

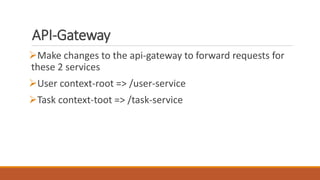

• api-gateway - API gateway that proxies all the micro-services
• web-portal - Single Page Application that provides the UI
• zipkin-server – View the distributed trace data

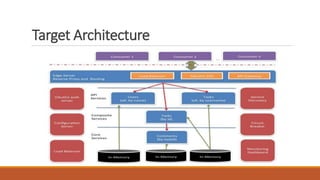

4. Target Architecture

5. Application Components

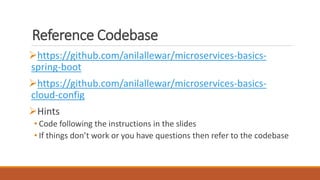

6. Reference Codebase
https://github.com/anilallewar/microservices-basics-
spring-boot
https://github.com/anilallewar/microservices-basics-
cloud-config
Hints

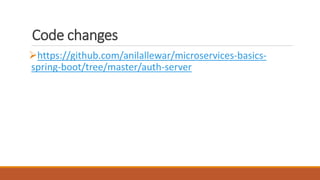

• Code following the instructions in the slides
• If things don’t work or you have questions then refer to the codebase

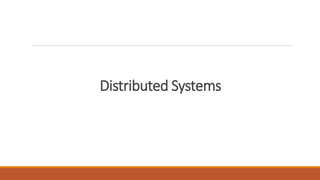

7. Distributed Systems

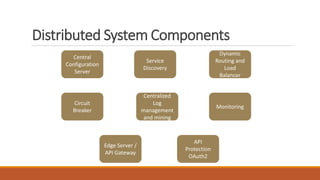

8. Distributed System Components
Central
Configuration
Server
Circuit
Breaker
Service
Discovery
Dynamic
Routing and
Load
Balancer
Centralized
Log
management
and mining
Monitoring

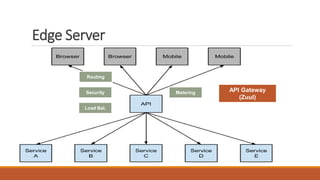

Edge Server /
API Gateway
API
Protection
OAuth2

9. Spring Boot
Opinionated framework
• Build on Spring
• Convention over configuration
Create Spring initializer project from http://start.spring.io/
Choose gradle project with dependencies as required

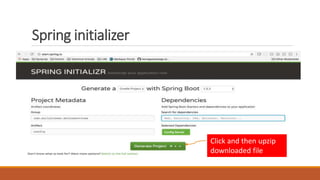

10. Spring initializer
Click and then upzip
downloaded file

11. Unzipped Application
Rename to
“application.yml”
Add new file
“bootstrap.yml”
Delete “test” for now

12. Run Gradle
Use “idea” plugin instead of “eclipse” plugin if using IntelliJ
IDE.
Add the contents in “red” from the build.gradle file
contents on the next slide
Once done run the following command on the project root
folder
• gradle clean eclipse (or idea)
Import project into your IDE and then refresh project

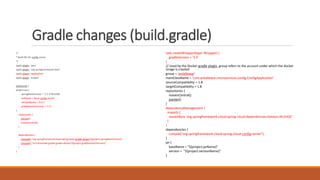

13. Gradle changes (build.gradle)
/*
* Build file for config server
*/
apply plugin: 'java'
apply plugin: 'org.springframework.boot'
apply plugin: 'application'
apply plugin: 'eclipse'
buildscript {
project.ext {
springBootVersion = '1.5.3.RELEASE'
jarName = 'basic-config-server'
versionName = '0.0.1'
gradleDockerVersion = '1.2'
}
repositories {
jcenter()
mavenCentral()
}
dependencies {
classpath "org.springframework.boot:spring-boot-gradle-plugin:${project.springBootVersion}"
classpath "se.transmode.gradle:gradle-docker:${project.gradleDockerVersion}"
}
}
task createWrapper(type: Wrapper) {
gradleVersion = '3.5'
}
// Used by the Docker gradle plugin, group refers to the account under which the docker
image is created
group = 'anilallewar'
mainClassName = 'com.anilallewar.microservices.config.ConfigApplication'
sourceCompatibility = 1.8
targetCompatibility = 1.8
repositories {
mavenCentral()
jcenter()
}
dependencyManagement {
imports {
mavenBom 'org.springframework.cloud:spring-cloud-dependencies:Dalston.RELEASE'
}
}
dependencies {
compile("org.springframework.cloud:spring-cloud-config-server")
}
jar {
baseName = "${project.jarName}"
version = "${project.versionName}"
}

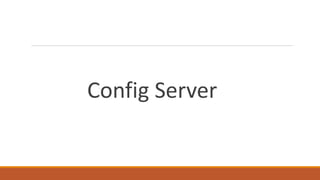

14. Config Server

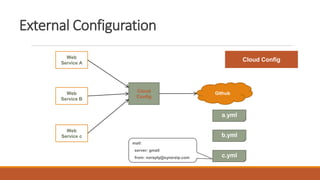

15. Cloud ConfigWeb
Service A
Web
Service B
Cloud
Config
Web
Service c
Github
a.yml
b.yml
c.yml
mail:
server: gmail
from: noreply@synerzip.com
External Configuration

16. Setup Config Server
@SpringBootApplication
@EnableConfigServer
public class ConfigApplication {
public static void main(String[] args) {
SpringApplication.run(ConfigApplication.class, args);
}
}

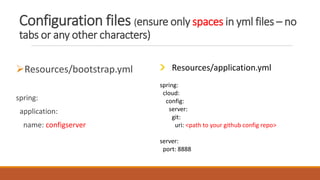

17. Configuration files (ensure only spaces in yml files – no
tabs or any other characters)
Resources/bootstrap.yml
spring:
application:
name: configserver
Resources/application.yml
spring:
cloud:
config:
server:
git:
uri: <path to your github config repo>
server:
port: 8888

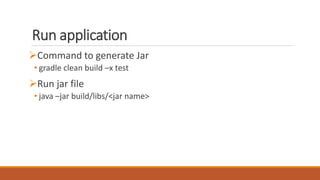

18. Run application
Command to generate Jar
• gradle clean build –x test
Run jar file
• java –jar build/libs/<jar name>

19. Client
We’ll use our current project as the baseline
Make a copy of current project into another folder – say
“discovery”
Remove the dependencies from build.gradle and replace
with following
compile('org.springframework.cloud:spring-cloud-starter-config')
compile('org.springframework.boot:spring-boot-starter-actuator')
compile("org.springframework.boot:spring-boot-starter-web")

20. Client

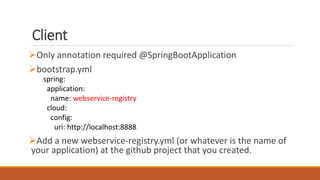

Only annotation required @SpringBootApplication
bootstrap.yml
Add a new webservice-registry.yml (or whatever is the name of
your application) at the github project that you created.
spring:
application:
name: webservice-registry
cloud:
config:
uri: http://localhost:8888

21. Client
Github repo/webservice-registry.yml
Commit the changes to Github
Start the config server
Then start the client
• Should start on port 8761 instead of default 8080
server:
port: 8761

22. Discovery Server

23. Service
Registry/Discovery
(Eureka)
Registry/Di
scovery
(Eureka)
Web
Service A
Ribbon
Web
Service B
Ribbon
Web
Service C
Ribbon
Web
Service D
Ribbon
Web
Service E
Ribbon
A
D
B
E
C

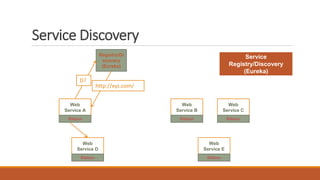

Service Discovery

24. Service
Registry/Discovery
(Eureka)
Registry/Di
scovery
(Eureka)
Web
Service A
Ribbon
Web
Service B
Ribbon
Web
Service C
Ribbon
Web
Service D
Ribbon
Web
Service E
Ribbon
D?
http://xyz.com/
Service Discovery

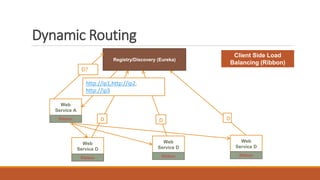

25. Client Side Load
Balancing (Ribbon)
Web
Service A
Ribbon
Web
Service D
Ribbon
Web
Service D
Ribbon
Web
Service D
Ribbon
Registry/Discovery (Eureka)
D D D
D?
http://ip1,http://ip2,
http://ip3
Dynamic Routing

26. Discovery Server

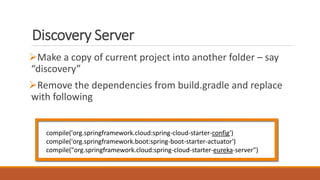

Make a copy of current project into another folder – say
“discovery”
Remove the dependencies from build.gradle and replace
with following
compile('org.springframework.cloud:spring-cloud-starter-config')
compile('org.springframework.boot:spring-boot-starter-actuator')
compile("org.springframework.cloud:spring-cloud-starter-eureka-server")

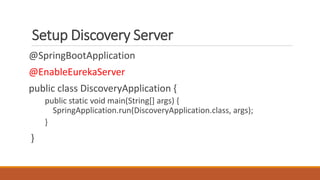

27. Setup Discovery Server
@SpringBootApplication
@EnableEurekaServer
public class DiscoveryApplication {
public static void main(String[] args) {
SpringApplication.run(DiscoveryApplication.class, args);
}
}

28. Configuration files
Resources/bootstrap.yml
spring:
application:
name: webservice-registry
cloud:
config:
uri: http://localhost:8888

29. Run application
Command to generate Jar
• gradle clean build –x test
Run jar file
• java –jar build/libs/<jar name>

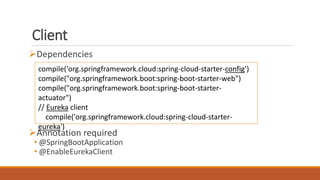

30. Client
Dependencies
Annotation required
• @SpringBootApplication
• @EnableEurekaClient
compile('org.springframework.cloud:spring-cloud-starter-config')
compile("org.springframework.boot:spring-boot-starter-web")
compile("org.springframework.boot:spring-boot-starter-
actuator")
// Eureka client
compile('org.springframework.cloud:spring-cloud-starter-
eureka')

31. Client

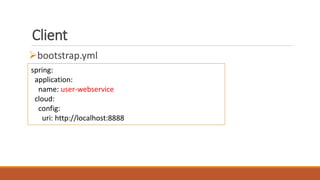

bootstrap.yml
spring:
application:
name: user-webservice
cloud:
config:
uri: http://localhost:8888

32. Client
Github repo/user-webservice.yml
server:
port: 8081
contextPath: /user-service
eureka:
client:
serviceUrl:
defaultZone: http://localhost:8761/eureka/

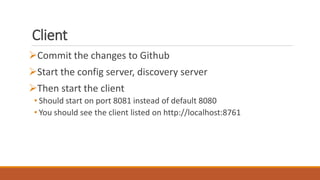

33. Client
Commit the changes to Github
Start the config server, discovery server
Then start the client
• Should start on port 8081 instead of default 8080
• You should see the client listed on http://localhost:8761

34. Authorization Server

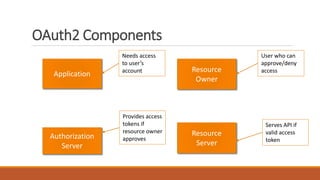

35. OAuth2 Components
Application
Resource
Owner
Authorization
Server
Resource
Server
Needs access
to user’s
account
User who can
approve/deny
access
Provides access
tokens if
resource owner
approves
Serves API if
valid access
token

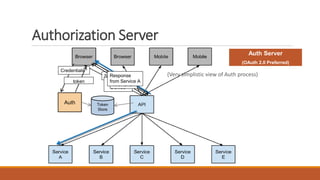

36. Auth Token
Store
Auth Server
(OAuth 2.0 Preferred)
Service A
Access
Denied
Credentials
token
Service A
With token
Response
from Service A
(Very simplistic view of Auth process)
Authorization Server

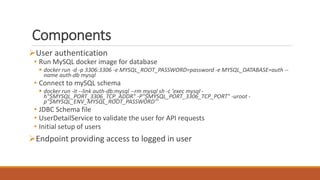

37. Components
User authentication
• Run MySQL docker image for database
 docker run -d -p 3306:3306 -e MYSQL_ROOT_PASSWORD=password -e MYSQL_DATABASE=auth --
name auth-db mysql
• Connect to mySQL schema
 docker run -it --link auth-db:mysql --rm mysql sh -c 'exec mysql -
h"$MYSQL_PORT_3306_TCP_ADDR" -P"$MYSQL_PORT_3306_TCP_PORT" -uroot -
p"$MYSQL_ENV_MYSQL_ROOT_PASSWORD"'
• JDBC Schema file
• UserDetailService to validate the user for API requests
• Initial setup of users
Endpoint providing access to logged in user

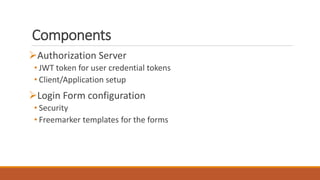

38. Components
Authorization Server
• JWT token for user credential tokens
• Client/Application setup
Login Form configuration
• Security
• Freemarker templates for the forms

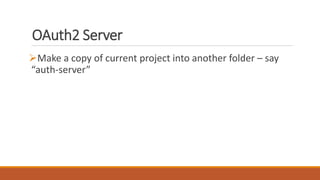

39. OAuth2 Server
Make a copy of current project into another folder – say
“auth-server”

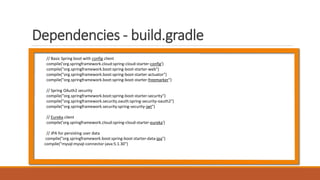

40. Dependencies - build.gradle
// Basic Spring boot with config client
compile('org.springframework.cloud:spring-cloud-starter-config')
compile("org.springframework.boot:spring-boot-starter-web")
compile("org.springframework.boot:spring-boot-starter-actuator")
compile("org.springframework.boot:spring-boot-starter-freemarker")
// Spring OAuth2 security
compile("org.springframework.boot:spring-boot-starter-security")
compile("org.springframework.security.oauth:spring-security-oauth2")
compile("org.springframework.security:spring-security-jwt")
// Eureka client
compile('org.springframework.cloud:spring-cloud-starter-eureka')
// JPA for persisting user data
compile("org.springframework.boot:spring-boot-starter-data-jpa")
compile("mysql:mysql-connector-java:5.1.30")

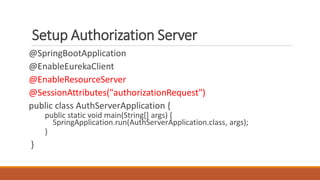

41. Setup Authorization Server
@SpringBootApplication
@EnableEurekaClient
@EnableResourceServer
@SessionAttributes("authorizationRequest")
public class AuthServerApplication {
public static void main(String[] args) {
SpringApplication.run(AuthServerApplication.class, args);
}
}

42. Configuration files
Resources/bootstrap.yml
spring:
application:
name: auth-server
cloud:
config:
uri: http://localhost:8888
 Resources/schema.sql
DROP TABLE IF EXISTS `users`;
CREATE TABLE `users` ( `username` varchar(50) NOT NULL, `password` varchar(50) NOT
NULL, `enabled` tinyint(1) NOT NULL, PRIMARY KEY (`username`)) ENGINE=InnoDB
DEFAULT CHARSET=latin1;
DROP TABLE IF EXISTS `authorities`;
CREATE TABLE `authorities` ( `username` varchar(50) NOT NULL, `authority` varchar(50)
NOT NULL, UNIQUE KEY `ix_auth_username` (`username`,`authority`)) ENGINE=InnoDB
DEFAULT CHARSET=latin1;
DROP TABLE IF EXISTS `oauth_client_details`;
CREATE TABLE `oauth_client_details` ( `client_id` varchar(256) NOT NULL, `resource_ids`
varchar(256) DEFAULT NULL, `client_secret` varchar(256) DEFAULT NULL, `scope`
varchar(256) DEFAULT NULL, `authorized_grant_types` varchar(256) DEFAULT NULL,
`web_server_redirect_uri` varchar(256) DEFAULT NULL, `authorities` varchar(256)
DEFAULT NULL, `access_token_validity` int(11) DEFAULT NULL, `refresh_token_validity`
int(11) DEFAULT NULL, `additional_information` varchar(4096) DEFAULT NULL,
`autoapprove` varchar(256) DEFAULT NULL, PRIMARY KEY (`client_id`)) ENGINE=InnoDB
DEFAULT CHARSET=latin1;

43. Code changes
https://github.com/anilallewar/microservices-basics-
spring-boot/tree/master/auth-server

44. Run application
Command to generate Jar
• gradle clean build –x test
Run jar file
• java –jar build/libs/<jar name>

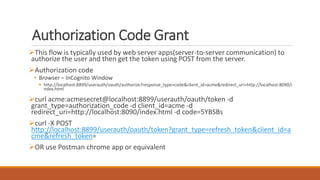

45. Authorization Code Grant
This flow is typically used by web server apps(server-to-server communication) to
authorize the user and then get the token using POST from the server.
Authorization code
• Browser – InCognito Window
 http://localhost:8899/userauth/oauth/authorize?response_type=code&client_id=acme&redirect_uri=http://localhost:8090/i
ndex.html
curl acme:acmesecret@localhost:8899/userauth/oauth/token -d
grant_type=authorization_code -d client_id=acme -d
redirect_uri=http://localhost:8090/index.html -d code=5YBSBs
curl -X POST
http://localhost:8899/userauth/oauth/token?grant_type=refresh_token&client_id=a
cme&refresh_token=
OR use Postman chrome app or equivalent

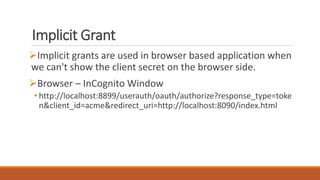

46. Implicit Grant
Implicit grants are used in browser based application when
we can't show the client secret on the browser side.
Browser – InCognito Window
• http://localhost:8899/userauth/oauth/authorize?response_type=toke
n&client_id=acme&redirect_uri=http://localhost:8090/index.html

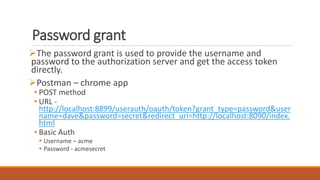

47. Password grant
The password grant is used to provide the username and
password to the authorization server and get the access token
directly.
Postman – chrome app
• POST method
• URL -
http://localhost:8899/userauth/oauth/token?grant_type=password&user
name=dave&password=secret&redirect_uri=http://localhost:8090/index.
html
• Basic Auth
 Username – acme
 Password - acmesecret

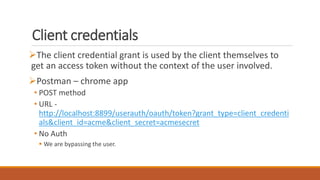

48. Client credentials
The client credential grant is used by the client themselves to
get an access token without the context of the user involved.
Postman – chrome app
• POST method
• URL -
http://localhost:8899/userauth/oauth/token?grant_type=client_credenti
als&client_id=acme&client_secret=acmesecret
• No Auth
 We are bypassing the user.

49. UI Server

50. SPA Design Patterns

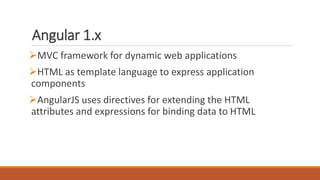

51. Angular 1.x
MVC framework for dynamic web applications
HTML as template language to express application
components
AngularJS uses directives for extending the HTML
attributes and expressions for binding data to HTML

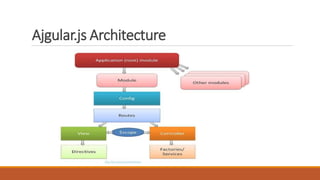

52. Ajgular.js Architecture

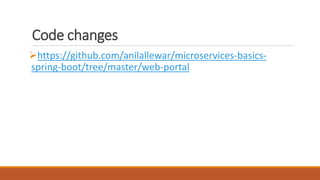

53. Code changes
https://github.com/anilallewar/microservices-basics-
spring-boot/tree/master/web-portal

54. API Gateway

55. API Gateway
(Zuul)
Routing
MeteringSecurity
Load Bal.
Edge Server

56. Dependencies
Web, cloud config, zuul (routing)
Spring boot security, security oauth2, spring cloud starter
oauth, spring security jwt
Eureka client

57. Annotations
@SpringBootApplication
@EnableEurekaClient
@EnableZuulProxy => for routing
@EnableOAuth2Sso => relaying OAuth2 tokens

58. Security
Same as UI server
Additionally need to add CSRF (cross site request forgery)
protection
Angular already offers inbuilt CSRF protection – we need to
add support for it on the server

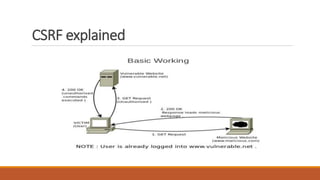

59. CSRF explained

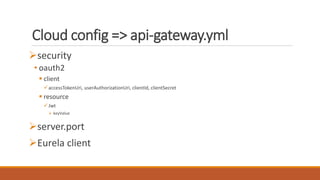

60. Cloud config => api-gateway.yml
security
• oauth2
 client
accessTokenUri, userAuthorizationUri, clientId, clientSecret
 resource
Jwt
 keyValue
server.port
Eurela client

61. Cloud config => api-gateway.yml
Routing
• zuul
 ignoredServices
 routes
<name>
 path
 stripPrefix
 url / serviceId
spring.aop.proxy-target-class: true

62. User Service

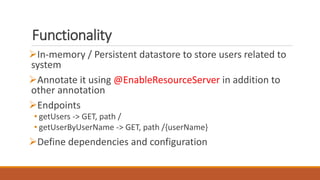

63. Functionality
In-memory / Persistent datastore to store users related to
system
Annotate it using @EnableResourceServer in addition to
other annotation
Endpoints
• getUsers -> GET, path /
• getUserByUserName -> GET, path /{userName}
Define dependencies and configuration

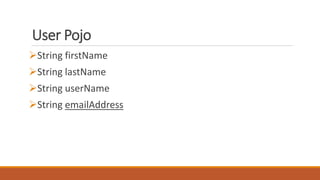

64. User Pojo
String firstName
String lastName
String userName
String emailAddress

65. Task Service

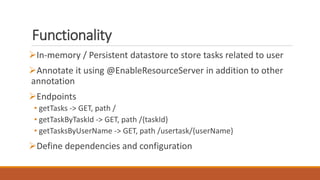

66. Functionality
In-memory / Persistent datastore to store tasks related to user
Annotate it using @EnableResourceServer in addition to other
annotation
Endpoints
• getTasks -> GET, path /
• getTaskByTaskId -> GET, path /{taskId}
• getTasksByUserName -> GET, path /usertask/{userName}
Define dependencies and configuration

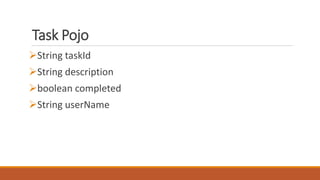

67. Task Pojo
String taskId
String description
boolean completed
String userName

68. API-Gateway
Make changes to the api-gateway to forward requests for
these 2 services
User context-root => /user-service
Task context-toot => /task-service

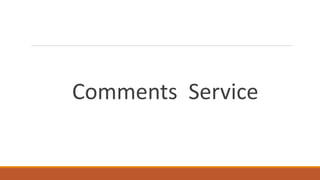

69. Comments Service

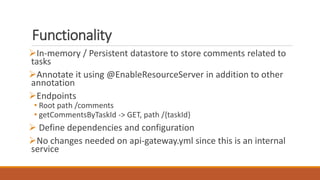

70. Functionality
In-memory / Persistent datastore to store comments related to
tasks
Annotate it using @EnableResourceServer in addition to other
annotation
Endpoints
• Root path /comments
• getCommentsByTaskId -> GET, path /{taskId}
 Define dependencies and configuration
No changes needed on api-gateway.yml since this is an internal
service

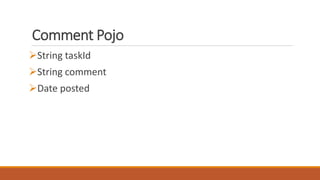

71. Comment Pojo
String taskId
String comment
Date posted

72. Task Service – Calling
Comments Service

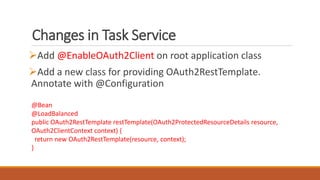

73. Changes in Task Service
Add @EnableOAuth2Client on root application class
Add a new class for providing OAuth2RestTemplate.
Annotate with @Configuration
@Bean
@LoadBalanced
public OAuth2RestTemplate restTemplate(OAuth2ProtectedResourceDetails resource,
OAuth2ClientContext context) {
return new OAuth2RestTemplate(resource, context);
}

74. Changes in Task Service
Add method in @Service class getCommentsForTask
We pass the token from the task service to the called
comments service through tokenRelayHandlerInterceptor
Use RestTemplate to access the comments resource using
the discovered name - http://comments-
webservice/comments/{task-id}

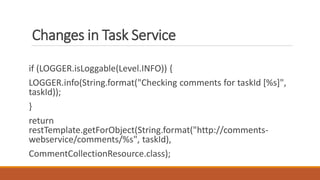

75. Changes in Task Service
if (LOGGER.isLoggable(Level.INFO)) {
LOGGER.info(String.format("Checking comments for taskId [%s]",
taskId));
}
return
restTemplate.getForObject(String.format("http://comments-
webservice/comments/%s", taskId),
CommentCollectionResource.class);

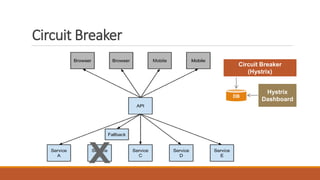

76. Circuit Breaker

77. DB
Hystrix
Dashboard
Circuit Breaker
(Hystrix)
Circuit Breaker

78. Explained
By default the circuit is closed and the original method is
executed.
The original method throws an exception, the fallback
is executed.
Error rate hits the threshold, the circuit opens.
Until the circuit is open the original method is not executed
anymore, only the fallback.
After a predefined amount of time the circuit is closed, and the
flow starts from the beginning.

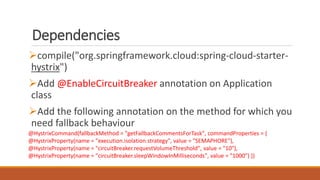

79. Dependencies
compile("org.springframework.cloud:spring-cloud-starter-
hystrix")
Add @EnableCircuitBreaker annotation on Application
class
Add the following annotation on the method for which you
need fallback behaviour
@HystrixCommand(fallbackMethod = "getFallbackCommentsForTask", commandProperties = {
@HystrixProperty(name = "execution.isolation.strategy", value = "SEMAPHORE"),
@HystrixProperty(name = "circuitBreaker.requestVolumeThreshold", value = "10"),
@HystrixProperty(name = "circuitBreaker.sleepWindowInMilliseconds", value = "1000") })

80. Containers &
Orchestration

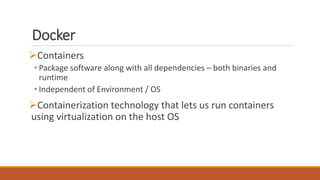

81. Docker
Containers
• Package software along with all dependencies – both binaries and
runtime
• Independent of Environment / OS
Containerization technology that lets us run containers
using virtualization on the host OS

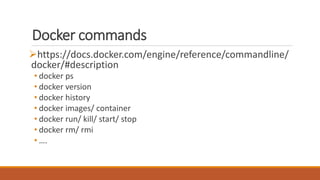

82. Docker commands
https://docs.docker.com/engine/reference/commandline/
docker/#description
• docker ps
• docker version
• docker history
• docker images/ container
• docker run/ kill/ start/ stop
• docker rm/ rmi
• ….

83. Docker Compose
Define and run multi-container applications
Specify images and configuration in a simple YAML file:
• docker-compose.yml
One command to get it all running:
• $ docker-compose up

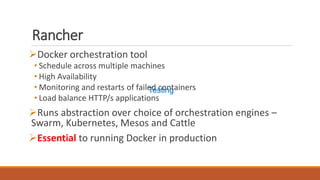

84. Rancher
Docker orchestration tool
• Schedule across multiple machines
• High Availability
• Monitoring and restarts of failed containers
• Load balance HTTP/s applications
Runs abstraction over choice of orchestration engines –
Swarm, Kubernetes, Mesos and Cattle
Essential to running Docker in production
Testing

85. Contact Me
anilallewar@yahoo.co.in
https://www.linkedin.com/in/anilallewar
https://github.com/anilallewar
http://www.slideshare.net/anilallewar
@anilallewar
