1. Building HTML Forms
T.L.E. – ICT 10

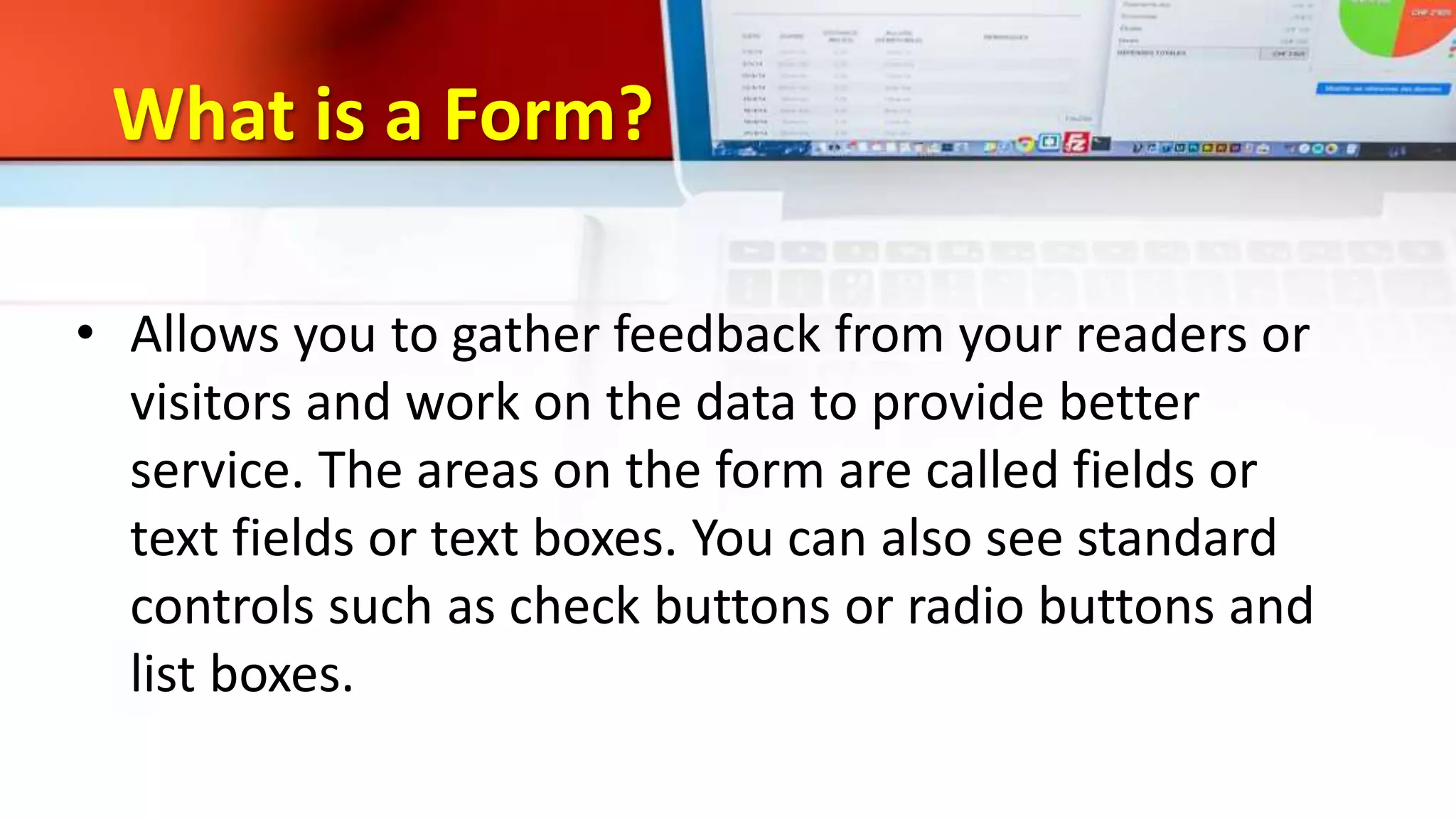

2. What is a Form?
• Allows you to gather feedback from your readers or
visitors and work on the data to provide better
service. The areas on the form are called fields or
text fields or text boxes. You can also see standard
controls such as check buttons or radio buttons and
list boxes.

3. Forms present a variety of means for users to
key in the said information:
• Textboxes
• Password boxes
• Radio Buttons
• Check Boxes
• Dropdown Menus
• Text Areas
• Submit Buttons
• Reset or Clear Buttons

4. Two Attributes:
Action Attribute – is responsible for indicating where the
information will be passed whether it is another Web
page or to script.
Method Attribute – is responsible for indicating the way
for sending the information.
 Get Method – sending information appends the data into
the URL. Basically, for retrieving Data.
 Post Method – update or store data.

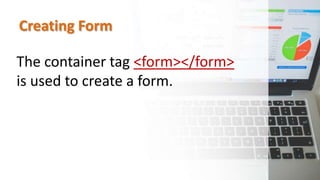

5. Creating Form
The container tag <form></form>
is used to create a form.

6. Attribute Table for <form></form>
Attribute Name Definition Values
Action Indicates where the information will be
submitted.
Ex:
<form action=“process.html”></form>
Filename (path
could be included),
URL
Method Indicates the method of submitting the
information.
Ex:
<form action=“process.html”
Method=“post”></form>
Post, get

7. Text Box
Radio
Button
Check Box
Drop-
down List
Text Area
Submit &
Clear

8. Text Box
Radio
Button
Check Box
Drop-
down List
Text Area
Submit & Clear

9. Input Element
<input>
- is used for making textboxes, password
boxes, check boxes, radio buttons, submit
buttons and reset buttons depending on
the value of the type attribute which can
be text, password, checkbox, radio,
submit and reset respectively.

10. Attribute table for
<input>
Attribute Name Definition Values
Name Assigns a name to the input field. The name can be used for various
purposes and is required in most circumstances.
Ex: <input name=“textArea1”>
Any text (without spaces)
Type Indicates the type of input field.
Ex: <input name=“textArea1” type=“text”>
Text, password,checkbox,
radio, submit, reset
Size Indicates the size of the input field.
Ex: <input name=“textArea1” type=“text” size=“30”>
Any number
Value Indicates the initial value of the input field. Indicates the label for the
submit and reset buttons.
Ex: <input name=“textArea1” type=“text” value=“Input” text here”>
Any text
Checked Indicates, if by default, the input field (radio button or check box) is none

11. Creating a Textbox
• Textboxes are single line text input boxes.
Usually, textboxes are used for username input
and other single line texts such as names,
email addresses, etc. and can be made by
keying in text as the value of the type attribute
of <input>.
• Example: <input type=“text”>
Value Attribute- to set an initial text input.
Size Attribute- indicates the length of the
textbox

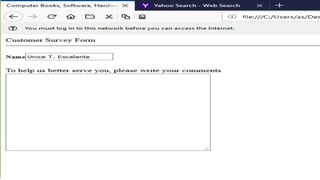

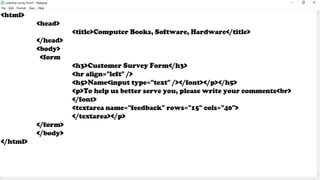

12. Creating a Large Text Area
• You can create an input field that can span
several rows and columns to allow the reader
to enter their feedback, requests,
instructions, opinions or any communication.
• Text area are made via container tag
<textarea></textarea>.
Ex: <textarea name=“textarea1”>This is a text
area.</textarea>

15. Match the following items. Write only
the letter of the correct answer.
___1. Value for the attribute of <input> that defines a password.
___2.Used when there are many choices and one, many or none
can be selected.
___3.Value for the attribute of <input> that defines a reset button.
___4.Value for the attribute of <input> that defines a check box.
___5. Usually used when there are many choices and only one is to
be selected.
___6.Value for the attribute of <input> that defines a radio button.
___7. Value for the attribute of <input> that defines a submit button.
___8. The attributes that indicates the way of submission of information.
___9.A single line text input.
___10. Usually used when there are only a few choices and only one is to
be selected.
A. RESET
B. CLEAR
C. CHECKBOXES
D. DROPDOWN
MENUS
E. PASSWORD
F. METHOD
G. RADIO
BUTTONS
H. CHECKBOX
I. SUBMIT
J. TEXTBOX
K. RADIO

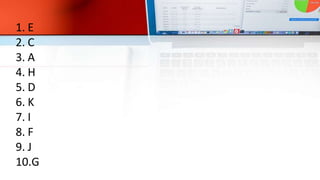

16. 1. E
2. C
3. A
4. H
5. D
6. K
7. I
8. F
9. J
10.G

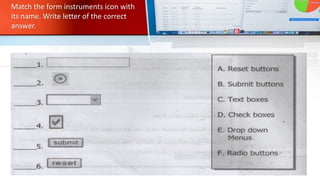

17. Match the form instruments icon with
its name. Write letter of the correct
answer.

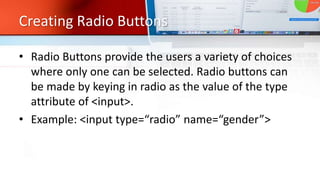

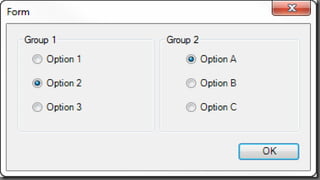

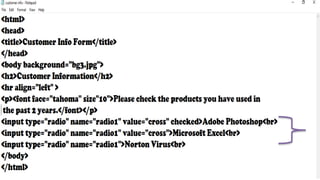

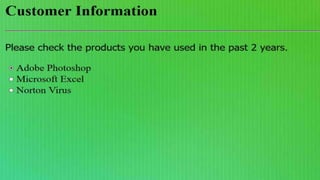

18. Creating Radio Buttons
• Radio Buttons provide the users a variety of choices
where only one can be selected. Radio buttons can
be made by keying in radio as the value of the type
attribute of <input>.
• Example: <input type=“radio” name=“gender”>

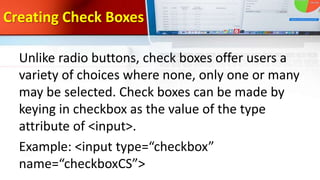

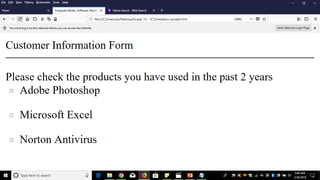

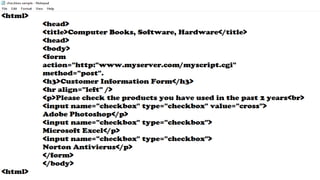

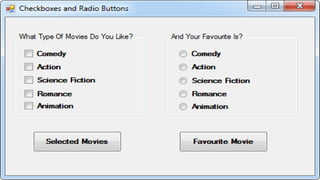

21. Creating Check Boxes
Unlike radio buttons, check boxes offer users a
variety of choices where none, only one or many
may be selected. Check boxes can be made by
keying in checkbox as the value of the type
attribute of <input>.
Example: <input type=“checkbox”
name=“checkboxCS”>

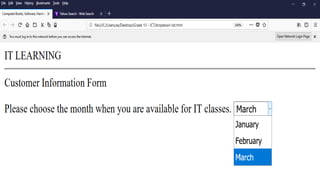

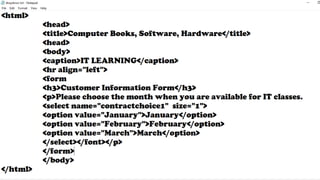

24. Creating Drop-down
Menus
Drop-down lists or drop-down
menus, like radio buttons offer
users a variety of choices where
only one can be selected.

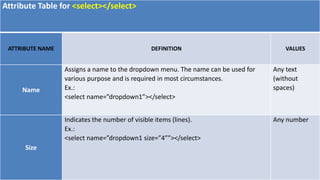

27. Attribute Table for <select></select>
ATTRIBUTE NAME DEFINITION VALUES
Name
Assigns a name to the dropdown menu. The name can be used for
various purpose and is required in most circumstances.
Ex.:
<select name=”dropdown1”></select>
Any text
(without
spaces)
Size
Indicates the number of visible items (lines).
Ex.:
<select name=”dropdown1 size=”4””></select>
Any number

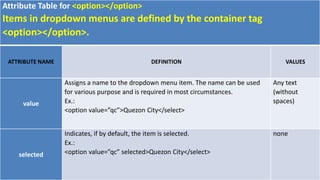

28. Attribute Table for <option></option>
Items in dropdown menus are defined by the container tag
<option></option>.
ATTRIBUTE NAME DEFINITION VALUES
value
Assigns a name to the dropdown menu item. The name can be used
for various purpose and is required in most circumstances.
Ex.:
<option value=”qc”>Quezon City</select>
Any text
(without
spaces)
selected
Indicates, if by default, the item is selected.
Ex.:
<option value=”qc” selected>Quezon City</select>
none

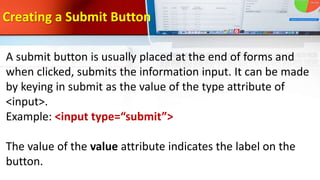

29. Creating a Submit Button
A submit button is usually placed at the end of forms and
when clicked, submits the information input. It can be made
by keying in submit as the value of the type attribute of
<input>.
Example: <input type=“submit”>
The value of the value attribute indicates the label on the
button.

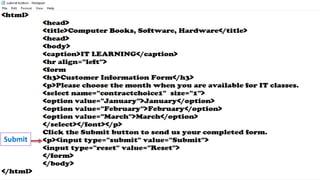

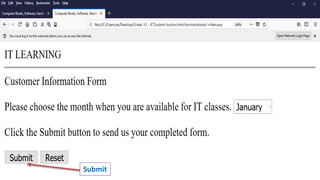

30. Submit

31. Submit

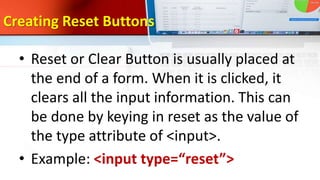

32. Creating Reset Buttons
• Reset or Clear Button is usually placed at
the end of a form. When it is clicked, it
clears all the input information. This can
be done by keying in reset as the value of
the type attribute of <input>.
• Example: <input type=“reset”>

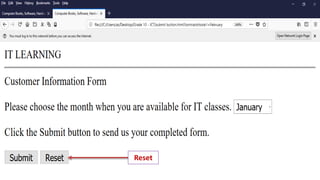

33. Reset

34. Reset

35. • Create the codes for the
following forms.
• 1 whole sheet of paper.

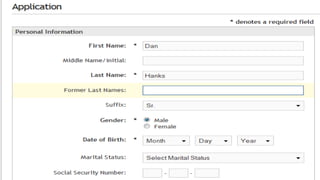

36. APPLICATION FORM
Barangay

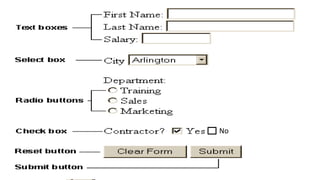

39. No

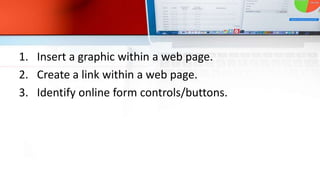

41. 1. Insert a graphic within a web page.
2. Create a link within a web page.
3. Identify online form controls/buttons.
