Building a production ready meteor app
This document outlines the key components of building a production-ready Meteor application, including app structure, packages, and server architecture. It recommends organizing code into folders for client, shared lib, packages, assets, tests, and server-side. Important packages discussed are for routing, user accounts, testing, logging, and optimizations. The server architecture section covers deployment, scaling to multiple web servers with load balancing, and using a scalable database like MongoDB with oplog or smart collections.
More Related Content
![[1D1]신개념 N스크린 웹 앱 프레임워크 PARS](https://cdn.slidesharecdn.com/ss_thumbnails/1d1n-screenpars-140928071352-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Building a production ready meteor app
![The End of Dinosaurs happened because of [a] Meteor](https://cdn.slidesharecdn.com/ss_thumbnails/meteor-131122103211-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Building a production ready meteor app
- 1. Building a Production-Ready Meteor App byRitik Malhotra Streem (https://www.streem.com)

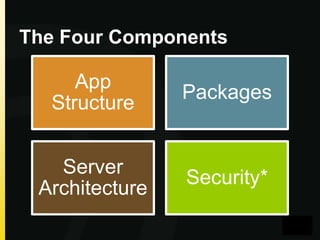

- 2.
- 3. General Philosophy • KeepMeteor intact, build around what exists • Monkey patch only if necessary • Remove autopublish and insecure

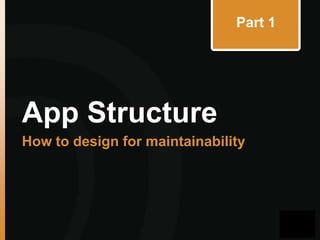

- 4. Part 1 App Structure Howto design for maintainability
- 5. App Structure /client /lib /packages /private /public /server /tests © yourcompany name. All rights reserved. Title of your presentation

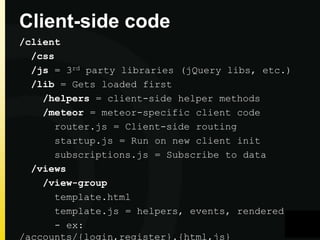

- 6. Client-side code /client /css /js =3rd party libraries (jQuery libs, etc.) /lib = Gets loaded first /helpers = client-side helper methods /meteor = meteor-specific client code router.js = Client-side routing startup.js = Run on new client init subscriptions.js = Subscribe to data /views /view-group template.html template.js = helpers, events, rendered - ex: /accounts/{login,register}.{html,js}

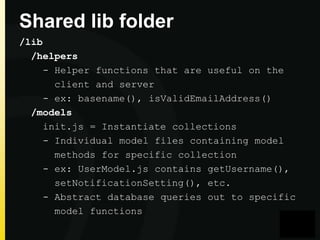

- 7. Shared lib folder /lib /helpers -Helper functions that are useful on the client and server - ex: basename(), isValidEmailAddress() /models init.js = Instantiate collections - Individual model files containing model methods for specific collection - ex: UserModel.js contains getUsername(), setNotificationSetting(), etc. - Abstract database queries out to specific model functions

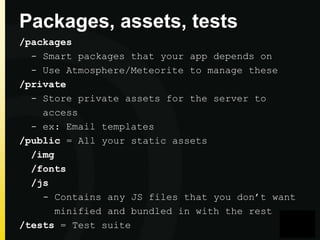

- 8. Packages, assets, tests /packages -Smart packages that your app depends on - Use Atmosphere/Meteorite to manage these /private - Store private assets for the server to access - ex: Email templates /public = All your static assets /img /fonts /js - Contains any JS files that you don’t want minified and bundled in with the rest /tests = Test suite
- 9. Server-side code /api - RESTAPI (optional) /config accounts.js = Accounts.config(), etc. users.js = Accounts.onCreateUser(), etc. /helpers = Server-side helper functions /lib = What should get loaded first *settings.js = Load into Meteor.settings packages.js = Instantiate your NPM modules startup.js = Run on server startup /models = Server-only Meteor.methods /publish - Individual files for the type of data - ex: user.js to publish UserModel data

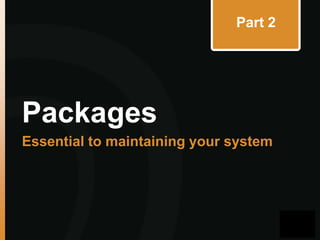

- 10. Part 2 Packages Essential tomaintaining your system

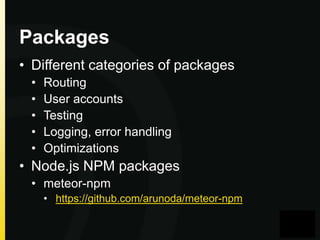

- 11. Packages • Different categoriesof packages • • • • • Routing User accounts Testing Logging, error handling Optimizations • Node.js NPM packages • meteor-npm • https://github.com/arunoda/meteor-npm
- 12. Routing • Client-side routing •iron-router • https://github.com/EventedMind/iron-router • Server-side routing • Useful for a REST API • meteor-router • https://github.com/tmeasday/meteor-router • reststop2 • https://github.com/BeDifferential/reststop2
- 13. User Accounts • Meteorhas an accounts system • http://docs.meteor.com/#accounts_api • accounts-password, accounts-facebook, etc… • accounts-ui for a simple UI • Configurable • Accounts.config, Accounts.ui.config • Accounts.onCreateUser, Accounts.validateNe wUser
- 14. Testing • Optimized forMeteor • laika (http://arunoda.github.io/laika/) • Based off of mocha • Can write tests that interact with server and client • RTD (http://xolvio.github.io/rtd/) • Unit + acceptance testing • Other options • tinytest
- 15. Logging & ErrorHandling • Logging • winston (https://github.com/flatiron/winston) • Compatible with Papertrail, Airbrake, etc. • Observatory (http://observatoryjs.com/) • Logs HTTP/DDP requests, subscriptions, etc. • Profiles your app, displays load, monitoring • Error handling • Raven/sentry • https://github.com/deepwell/meteor-raven

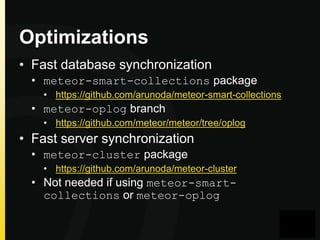

- 16. Optimizations • Fast databasesynchronization • meteor-smart-collections package • https://github.com/arunoda/meteor-smart-collections • meteor-oplog branch • https://github.com/meteor/meteor/tree/oplog • Fast server synchronization • meteor-cluster package • https://github.com/arunoda/meteor-cluster • Not needed if using meteor-smartcollections or meteor-oplog
- 17. Part 3 Server Architecture Howto design for easy scalability
- 18. Server Architecture • Multiplecomponents • Deployment • Multiple web servers • Problem: slow data synchronization (10 seconds) • Load balancing • Problem: sticky sessions required • Scalable database (MongoDB) • Problem: inefficient to handle reactivity

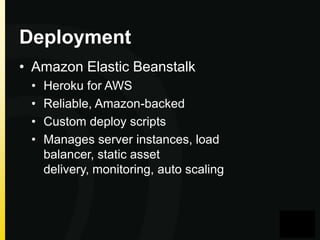

- 19. Deployment • Amazon ElasticBeanstalk • • • • Heroku for AWS Reliable, Amazon-backed Custom deploy scripts Manages server instances, load balancer, static asset delivery, monitoring, auto scaling

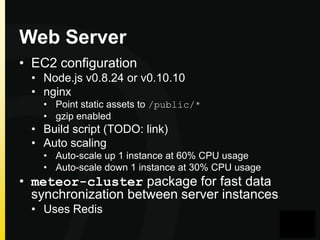

- 20. Web Server • EC2configuration • Node.js v0.8.24 or v0.10.10 • nginx • Point static assets to /public/* • gzip enabled • Build script (TODO: link) • Auto scaling • Auto-scale up 1 instance at 60% CPU usage • Auto-scale down 1 instance at 30% CPU usage • meteor-cluster package for fast data synchronization between server instances • Uses Redis
- 21. Load Balancing • ElasticLoad Balancer configuration • Cookie-based sticky sessions enabled • 0 second cookie expiration period • HTTP on port 80 • HTTPS on port 443 w/ SSL certificate • Health checks • Can’t use WebSockets • DISABLE_WEBSOCKETS = true • SockJS gracefully falls back
- 22. Database • Easiest touse a hosted MongoDB solution • Best option • Oplog-enabled replica-set cluster • MongoLab SSD Cluster (or host your own) • meteor-smart-collections package or meteor-oplog branch • Alternative • MongoHQ/MongoLab regular DB instance

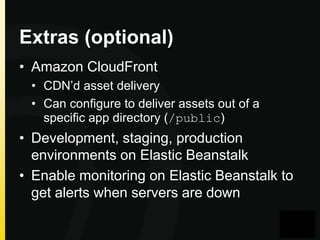

- 23. Extras (optional) • AmazonCloudFront • CDN’d asset delivery • Can configure to deliver assets out of a specific app directory (/public) • Development, staging, production environments on Elastic Beanstalk • Enable monitoring on Elastic Beanstalk to get alerts when servers are down

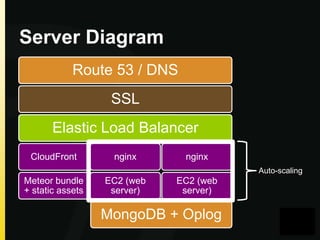

- 24. Server Diagram Route 53/ DNS SSL Elastic Load Balancer CloudFront nginx nginx Auto-scaling Meteor bundle + static assets EC2 (web server) EC2 (web server) MongoDB + Oplog
- 25. What’s Next? • Appscaffolding • Automatically generate your app structure • Packages to automate good practices • Meteor guides and tutorials • In-depth instructions on setting up your server, deploying your app, packages, etc. • Meteor Cookbook • Tips and tricks, FAQ • URL coming soon

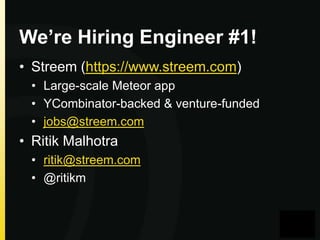

- 26. We’re Hiring Engineer#1! • Streem (https://www.streem.com) • Large-scale Meteor app • YCombinator-backed & venture-funded • jobs@streem.com • Ritik Malhotra • ritik@streem.com • @ritikm
