- 1. Bridging the gapbetween infrastructure and applications: Why Choose CommScope February 2013
- 2. 2PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Intro and Agenda: next 30 minutes • Mark Niehus, RCDD- Territory Sales Manager- manufacturer rep for CommScope for 12 years • Assumption that you are planning new corporate campus- need to build right infrastructure • Brief overview of CommScope • Discussion of basic characteristics of copper, fiber, wireless media- and how they are tied to your applications • Review of PWC 2013 Top 10 Technology Trends for Business- and how CommScope can enable
- 3. 3PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Bandwidth Evolution terabytes weekly YouTube new storage 24 exabytes internet traffic per month percent bandwidth demand growth billion mobile broadband subscribers billion sensors attached to the internet 2009 2012 2013 2014 2020 44 500 2.5 50 B A N D W I D T H Source: Industry reports
- 4. 4PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc New Apps Are Changing the Way We… LIVE WORK PLAY LEARN

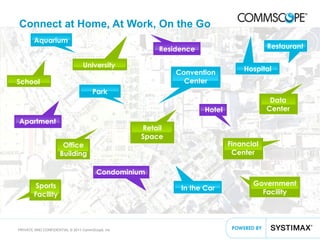

- 5. 5PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Connect at Home, At Work, On the Go Aquarium University Residence Park School Apartment Convention Center Hospital Restaurant Retail Space Office Building Sports Facility Condominium In the Car Hotel Data Center Financial Center Government Facility
- 6. $3 billion sales 13,000+employees 3,250 patents Infrastructure provider worldwide#1 #1 Radio frequency solutions for wireless networks #1 Coaxial and fiber cables for HFC networks #1 Structured cabling/connectivity and in-building wireless for enterprise networks
- 7. 7PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 1984 1996 2000 2004 Proven Technology Leadership-Systimax First there was… SYSTIMAX® PDS (1985) High-5TM (1993) PowerSUM (1996) GigaSPEED® (1997) High Res DMD (1998) LazrSPEED® 300 (1998) GigaSPEED XL (2002) GigaSPEED X10D (2004) InstaPATCH® 360 (2005) TeraSPEED® (2003) LazrSPEED® 550 (2001) Then came… Category 3 (1991) Category 5 (1995) Category 5e (1999) Category 6 (2002) DMD Standard (2001) LOMM/OM3 (2002) Best in class….. Category 6A (2008) TIA Method B (2006) OS2 (2006) OM4 (~2009)
- 8. 8PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 8 Supporting 75% of the top 100 global companies as ranked by Fortune Magazine /
- 9. 9PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc USA & Canada • 2 Countries • 2 Languages • 798 BusinessPartners Caribbean & Latin America • 32 Countries • 3 Languages • 235 BusinessPartners Europe, Middle East & Africa • 85 Countries • 27 Languages • 470 BusinessPartners Asia Pacific • 19 Countries • 24 languages • 402 BusinessPartners Systimax Global Focus & Coverage Manufacturing, Distribution Centers, Customer Service, Sales, Technical Support & Global Account Management in every Region $130m+ Inventory in the field 52 Languages 138 Countries 2000+ Business Partners Executive Briefing Centers 8
- 10. 10PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 10
- 11. Accidental Architecture …stands inthe way of achieving IT objectives Complex / Inefficient Provisioning Complex / Inefficient Provisioning Compliance, Audits, Reporting…? Compliance, Audits, Reporting…? No Real-Time Asset Location Tracking No Real-Time Asset Location Tracking Cable Management Nightmares Cable Management Nightmares Physical SecurityPhysical Security Physical Infrastructure
- 12. 12PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc WHY IS THERE A DISCONNECT? Suppliers do not speak in a language that IT professionals understand… Confusion may lead to “..well it’s all just cable..it should work, right?...”
- 13. 13PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Systimax understands your operational challenges “IT runs the business – downtime is not an option” “I want to see more business value out of IT” “Our applications are the ‘face’ of our business” “It’s all about keeping the application available” “As long as my servers are up I’m OK” “We have too many underutilized servers” “Our information is our business. We need to protect our data everywhere – in transit and at rest” “I can’t keep up with the amount of storage that needs to be backed up, replicated and archived ” CxO Apps Server SecOps Storage Network “I need to provide lots of bandwidth between data centers, and make sure users can get to the apps” 13
- 14. 14PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc There is a difference- infrastructure does matter The Right Infrastructure, planned and executed well, can: • Lower lifecycle costs • Increase speed to market • Mitigate risk • Streamline operations • Reduce operational costs • ENABLE AND EMPOWER IT TO ENGAGE IN EMERGING AND DISRUPTIVE TECHNOLOGIES • Because, in the end- “it just works”
- 15. 15PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Basic infrastructure 101 Translating media (cable and wireless) systems performance into network performance
- 16. 16PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc What can slow down/ impact a network? • Active Elements – Too Many Collisions (Hub Environment) – Not Enough Memory – Software Bugs – Hard Drive Speed – Equipment Speed (CPU, switch, RAM) • Passive Elements – Cabling Infrastructure – Wireless transmission media

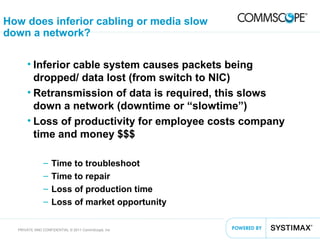

- 17. 17PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc How does inferior cabling or media slow down a network? • Inferior cable system causes packets being dropped/ data lost (from switch to NIC) • Retransmission of data is required, this slows down a network (downtime or “slowtime”) • Loss of productivity for employee costs company time and money $$$ – Time to troubleshoot – Time to repair – Loss of production time – Loss of market opportunity
- 18. 18PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Structured cable-Foundation of Your Network 1-51-5 YearsYears 2-52-5 YearsYears 10+10+ YearsYears LifespanLifespan Cost

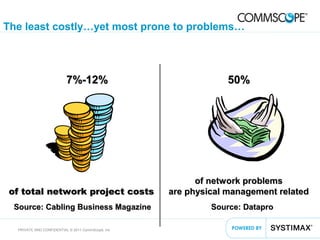

- 19. 19PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc The least costly…yet most prone to problems… of total network project costsof total network project costs of network problemsof network problems are physical management relatedare physical management related Source: Cabling Business MagazineSource: Cabling Business Magazine Source: DataproSource: Datapro 7%-12%7%-12% 50%50%
- 20. 20PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Let’s discuss some basic properties of UTP, fiber optic, and wireless transmission…
- 21. 21PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Decibel or dB Represents 10-Fold Increase for Every 10 dB -60 dB = 1/1,000,000x-60 dB = 1/1,000,000x -50 dB = 1/100,000x-50 dB = 1/100,000x -40 dB = 1/10,000x-40 dB = 1/10,000x -30 dB = 1/1000x-30 dB = 1/1000x -20 dB = 1/100x-20 dB = 1/100x -10 dB = 1/10x-10 dB = 1/10x -3 dB = 1/2x-3 dB = 1/2x

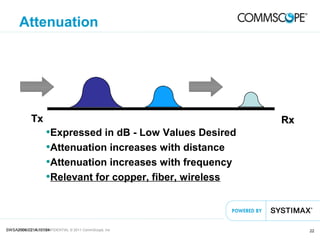

- 22. 22PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Attenuation •Expressed in dB - Low Values Desired •Attenuation increases with distance •Attenuation increases with frequency •Relevant for copper, fiber, wireless TxTx RxRx SWSA2006.021A.10184
- 23. 23PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Crosstalk • Indicator of signal coupling • Crosstalk affected by cable construction and installation quality (present with UTP only) • Alien Crosstalk- applicable to Cat-6A only ConnectorConnector SWSA2006.022A.10184 TxTx RxRx
- 24. 24PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Attenuation - Crosstalk Margin FrequencyFrequency 100 MHZ100 MHZ 00 -80-80 dBdB 00 MCLA3900.027A.08014 AttenuationAttenuation CROSSTALK

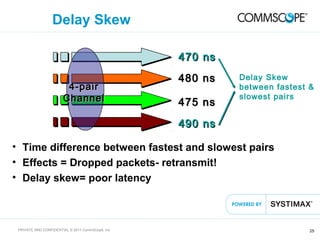

- 25. 25PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Delay Skew Delay Skew between fastest & slowest pairs 470 ns470 ns 480 ns480 ns 475 ns475 ns 490 ns490 ns 4-pair4-pair ChannelChannel • Time difference between fastest and slowest pairs • Effects = Dropped packets- retransmit! • Delay skew= poor latency
- 26. 26PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Fiber Optic Attenuation • Absorption- the conversion of optical power into another energy form – Properties/imperfections of the core material • Scattering - interaction of light with density fluctuations within a fiber core – Manufacturing process/material properties
- 27. 27PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc PIM- passive intermodulation • PIM is the result of 2+ wireless signals causing interference or degraded transmission • Only 1 dB drop in uplink sensitivity because of PIM reduces coverage by 11 percent!
- 28. 28PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc To summarize: When considering media (UTP, fiber, wireless) systems, the best ELECTRICAL or OPTICAL performance (MHz) generally indicates the best NETWORK performance (Megabits)…
- 29. 29PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc PWC 2013 Top 10 Technology Trends for Business • Pervasive computing • Cyber security • Public Cloud Infrastructure • Data visualization • Gamifcation • Private Cloud • Big data mining and analysis • Digital delivery of products and services • Enterprise social networking • Simulation and scenario modeling

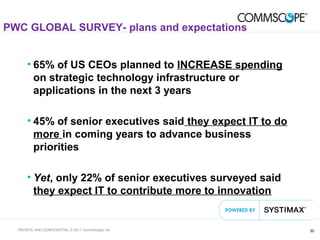

- 30. 30PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc PWC GLOBAL SURVEY- plans and expectations • 65% of US CEOs planned to INCREASE spending on strategic technology infrastructure or applications in the next 3 years • 45% of senior executives said they expect IT to do more in coming years to advance business priorities • Yet, only 22% of senior executives surveyed said they expect IT to contribute more to innovation

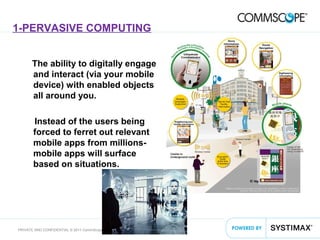

- 31. 31PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 1-PERVASIVE COMPUTING The ability to digitally engage and interact (via your mobile device) with enabled objects all around you. Instead of the users being forced to ferret out relevant mobile apps from millions- mobile apps will surface based on situations.

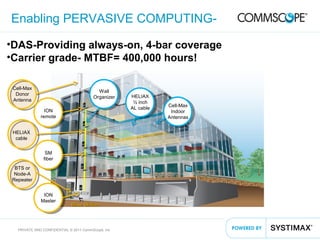

- 32. 32PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Cell-Max Indoor Antennas HELIAX ½ inch AL cable Wall Organizer Cell-Max Donor Antenna HELIAX cable BTS or Node-A Repeater ION Master SM fiber ION remote Base StationBase Station Enabling PERVASIVE COMPUTING- •DAS-Providing always-on, 4-bar coverage •Carrier grade- MTBF= 400,000 hours!
- 33. 33PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Leading PIM program for customers 1. Awareness 2. Prevention 3. Identification 4. Resolution 5. Support -50 -40 -30 -20 -10 0 1850 1875 1900 1925 1950 1975 2000 Limit:-18.0 M1 DRUMSSWEEPSNEWLINES 048-X1-LOAD Model:S251C Serial#:00203073 Date:05/17/2002 Time:14:29:29 BiasTee:OFF OutputPower:6.00dBm Resolution: 259 CAL:ON(COAX) CW:OFF dB Frequency(1840.0-2000.0MHz) M1:-25.85dB@1991.32MHz What do you need to be aware of with DAS?: Passive intermodulation!
- 34. 34PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 2- CYBER SECURITY Expect continued wide scale attacks companies, nations, groups, and continued debate about defense methods and tactics “We get every single day a whole series of levels of types of attacks, everything from criminals trying to get into your bank account or stealing your identity to nation states like China investing billions hiring thousands”- Rep Mike Rogers, Chair of House Intelligence Committee- Feb 24, 2013
- 35. 35PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 35 Defending against CYBER THREATS- IM VISION Work Orders planned & issued from application Work Orders planned & issued from application Instructions are sent to patching location Instructions are sent to patching location
- 36. 36PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 36 Incident Detection-IMVISION Technician disconnects channel in error Technician disconnects channel in error Disconnect detected by Rack Manager Disconnect detected by Rack Manager Local visual or audible alarm, update to RTIM Server Local visual or audible alarm, update to RTIM Server Database logs event, updates connectivity Database logs event, updates connectivity Alarm options inc. e-mail, SMS, SNMP, SysLog Alarm options inc. e-mail, SMS, SNMP, SysLog

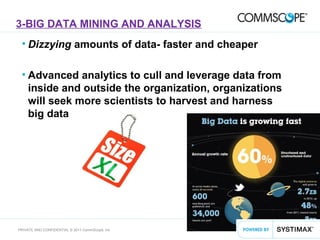

- 37. 37PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 3-BIG DATA MINING AND ANALYSIS • Dizzying amounts of data- faster and cheaper • Advanced analytics to cull and leverage data from inside and outside the organization, organizations will seek more scientists to harvest and harness big data

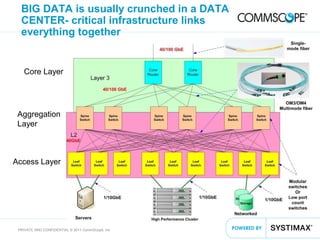

- 38. 38PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc BIG DATA is usually crunched in a DATA CENTER- critical infrastructure links everything together Access Layer Aggregation Layer Core Layer
- 39. 39PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Enabling BIG DATA- SYSTIMAX TeraSPEED Solution O LE S C 1300 1350 1400 1450 1500 1550 1600 Wavelength (nm) 0 0.3 0.6 0.9 1.2 1250 Los s (dB/km) Conventional Fiber Loss* TeraSPEED Loss* SONET, Ethernet, 1300 nm VCSELs CWDM Business Access DWDM 2.5 Gb/s SONET, IP CATV *In loose tube cable. • Zero Water Peak (ZWP) Eliminates high loss • Opens E-band channel capacity with 5 more CWDM channels Applications
- 40. 40PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Channel length distributions from IEEE 802.3ba flatman_01_0108 85% OM3 94% InstaPATCH 360 with LazrSPEED 550 Addresses 94% of links at 140m Enabling BIG DATA- CommScope Differentiation – 40G / 100G fiber • LazrSPEED 550 & InstaPATCH 360 – Guaranteed 170m Support! – Standards are 100m – 140M supports 94% of Distribution- Core channels (with 6 MPOs) • Recent 40G/100G Industry Interoperability Testing – Mix of LS300 & LS550 • 100G: 270m with BER = 0 • 40G: 500m with BER = 0 Addresses 85% of links at 100m InstaPATCH 360 with LazrSPEED 300 Percentages indicate (6) MPO connection 40/100GbE channels

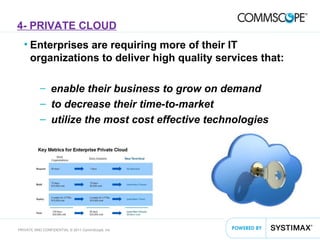

- 41. 41PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 4- PRIVATE CLOUD • Enterprises are requiring more of their IT organizations to deliver high quality services that: – enable their business to grow on demand – to decrease their time-to-market – utilize the most cost effective technologies

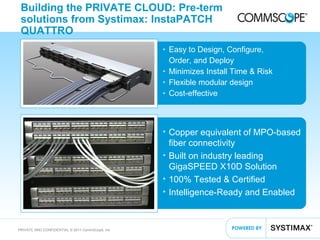

- 42. 42PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Building the PRIVATE CLOUD: Pre-term solutions from Systimax: InstaPATCH QUATTRO • Easy to Design, Configure, Order, and Deploy • Minimizes Install Time & Risk • Flexible modular design • Cost-effective • Copper equivalent of MPO-based fiber connectivity • Built on industry leading GigaSPEED X10D Solution • 100% Tested & Certified • Intelligence-Ready and Enabled

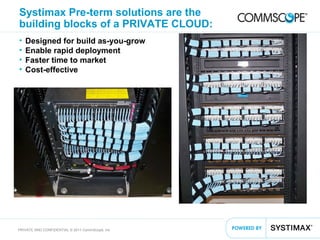

- 43. 43PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Systimax Pre-term solutions are the building blocks of a PRIVATE CLOUD: • Designed for build as-you-grow • Enable rapid deployment • Faster time to market • Cost-effective
- 44. 44PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 5- DIGITAL DELIVERY OF PRODUCTS AND SERVICES • Customers are driving companies of all shapes and sizes to develop new, technology-based ways of delivering value • This model can open tremendous pathways for growth, but organizations must shift underlying business operations to support this new business model….24 x7…365 days a year….

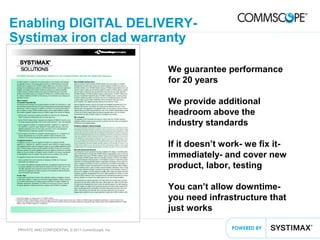

- 45. 45PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Enabling DIGITAL DELIVERY- Systimax iron clad warranty We guarantee performance for 20 years We provide additional headroom above the industry standards If it doesn’t work- we fix it- immediately- and cover new product, labor, testing You can’t allow downtime- you need infrastructure that just works
- 46. 46PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 6- PUBLIC CLOUD INFRASTRUCTURE • Desire for reduction in the management complexity of hybrid cloud architecture will lead to demand for service intelligence capabilities in the short term… • In addition some highly visible public cloud lapses in 2012 will likely lead to beefing up of risk mitigation processes and selecting vendors with more: – enterprise-grade security, – service levels, – and indemnification clauses…
- 47. 47PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Service intelligent capabilities: ImVision provisioning for the PUBLIC CLOUD Cabinet Selection Cabinet Selection Weight Power RU space Weight Power RU space Weight Power RU space Cabinet AA1 Cabinet AA3Cabinet AA2 Define Network interfaces Define Network interfaces Define power size & weight requirements Define power size & weight requirements Define Required Services Define Required Services Auto-define cable routing based on required services Auto-define cable routing based on required services Generate e-service ticket Generate e-service ticket Monitor completion of e-service ticket Monitor completion of e-service ticket

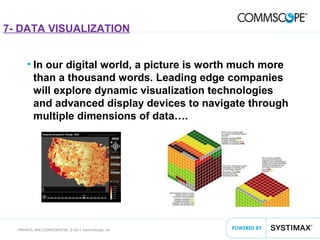

- 48. 48PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc 7- DATA VISUALIZATION • In our digital world, a picture is worth much more than a thousand words. Leading edge companies will explore dynamic visualization technologies and advanced display devices to navigate through multiple dimensions of data….
- 49. 49PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc DATA VISUALIZATION computed in data centers- driving the need for 10G • Typical usage rate of stand-alone servers is only around 20% • Virtualization allows multiple applications to run on the same server PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2950 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 ® PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 ® PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 ® PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2950 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 ® PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 ® PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 95 0 ® PowerEdge 2 95 0 PowerEdge 2 95 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2950 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 ® PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 ® PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 ® PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2950 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 ® PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 ® PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 ® PowerEdge 2 9 5 0 PowerEdge 2 9 5 0 • VMotion allows migration of Virtual Machines across different servers • High speed, low latency links required • Uplink must be able to handle increased traffic load => 10G cabling required!
- 50. 50PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc • 91B Cable- 6A UTP – 7.24mm (0.285”) O.D. – Lightweight and Flexible – First 10G UTP in a Box – First to mitigate A-NEXT – First to market- and 50% market share in data centers GigaSPEED X10D UTP- the backbone of HIGH SPEED, LOW LATENCY links The anti-snag feature with LEVERAGE: Protection and Ease FLEXIBLE cordage
- 51. 51PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Bringing it all together- SYSTIMAX LABS •Connector field modeling •Cable twist accuracy technology •Modal decomposition modeling
- 52. 52PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc There is a difference- infrastructure does matter The Right Infrastructure, planned and executed well, can: • Lower lifecycle costs • Increase speed to market • Mitigate risk • Streamline operations • Reduce operational costs
- 53. 53PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc CommScope SYSTIMAX is a technology and market leader whose solutions and programs ENABLE and EMPOWER our customers to engage in emerging and disruptive technologies, for the betterment of their business Because, in the end, with SYSTIMAX: “It just works”
- 54. When you’re readyto deploy… Choose… Innovation Performance Assurance
- 55. 55PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Questions?
- 56. 56PRIVATE AND CONFIDENTIAL© 2011 CommScope, Inc Thank You
