The document discusses account, VPC and subnet design for AWS infrastructure. It recommends starting with 1 AWS account, 1 VPC, and between 9-16 subnets, with 1 subnet per availability zone and 1 subnet group per connectivity requirement. This simple design focuses on security, flexibility and ease of administration while allowing for complexity to be added later if needed.

1. Accounts, VPCs and Subnets!
with Colin Johnson,
AWS Consultant at BlueChipTek
Twitter: @bluechiptek

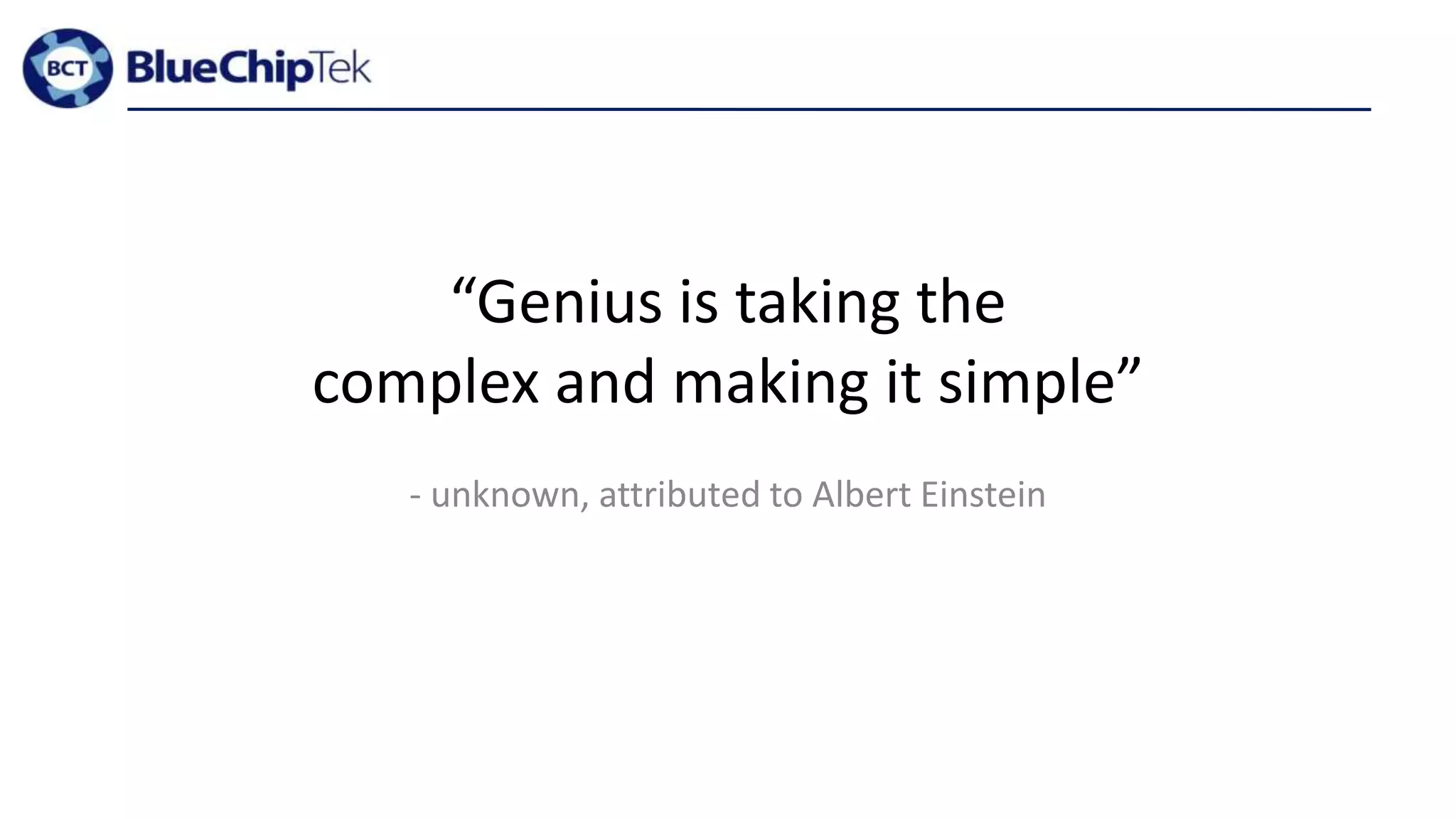

2. “Genius is taking the
complex and making it simple”
- unknown, attributed to Albert Einstein

3. Who am I?
• Colin Johnson, DevOps Engineer and occasional Developer
• Professional:
• worked with various Bay Area companies: inPowered, Netshelter, Lyft
• contributed VPC support and automated testing to Salt’s boto_* modules
• maintainer and lead author of AWS Missing Tools
• AWS Certified Solutions Architect - Associate Level (2014, number 2564)
• AWS Certified SysOps Administrator - Associate Level (2014, number 224)
• Personal:
• lives in San Francisco
• likes Linux, Amazon Web Services and Large, Distributed Infrastructure
• likes travel

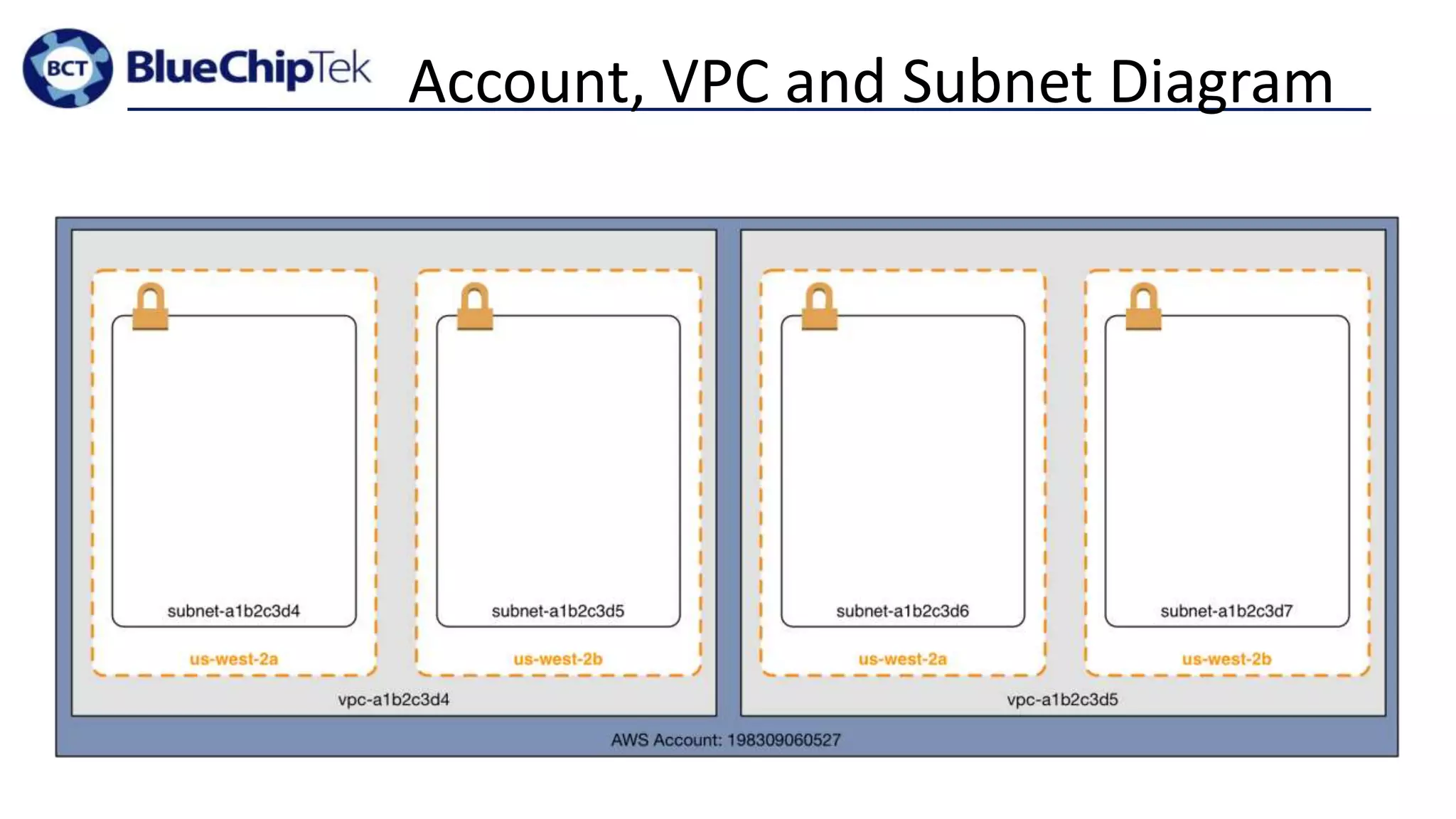

5. Account, VPC and Subnet Diagram

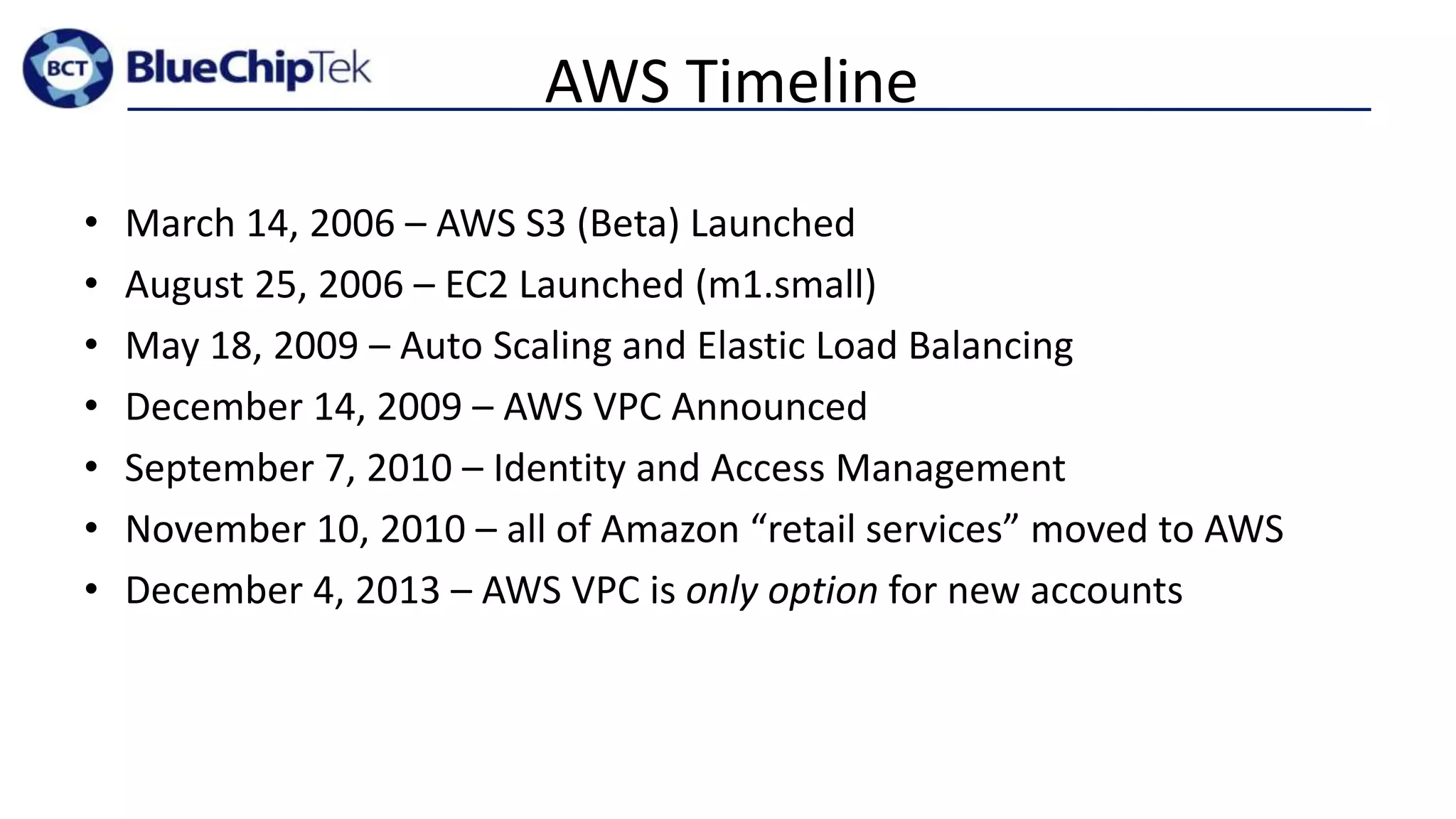

6. AWS Timeline
• March 14, 2006 – AWS S3 (Beta) Launched
• August 25, 2006 – EC2 Launched (m1.small)
• May 18, 2009 – Auto Scaling and Elastic Load Balancing
• December 14, 2009 – AWS VPC Announced
• September 7, 2010 – Identity and Access Management
• November 10, 2010 – all of Amazon “retail services” moved to AWS
• December 4, 2013 – AWS VPC is only option for new accounts

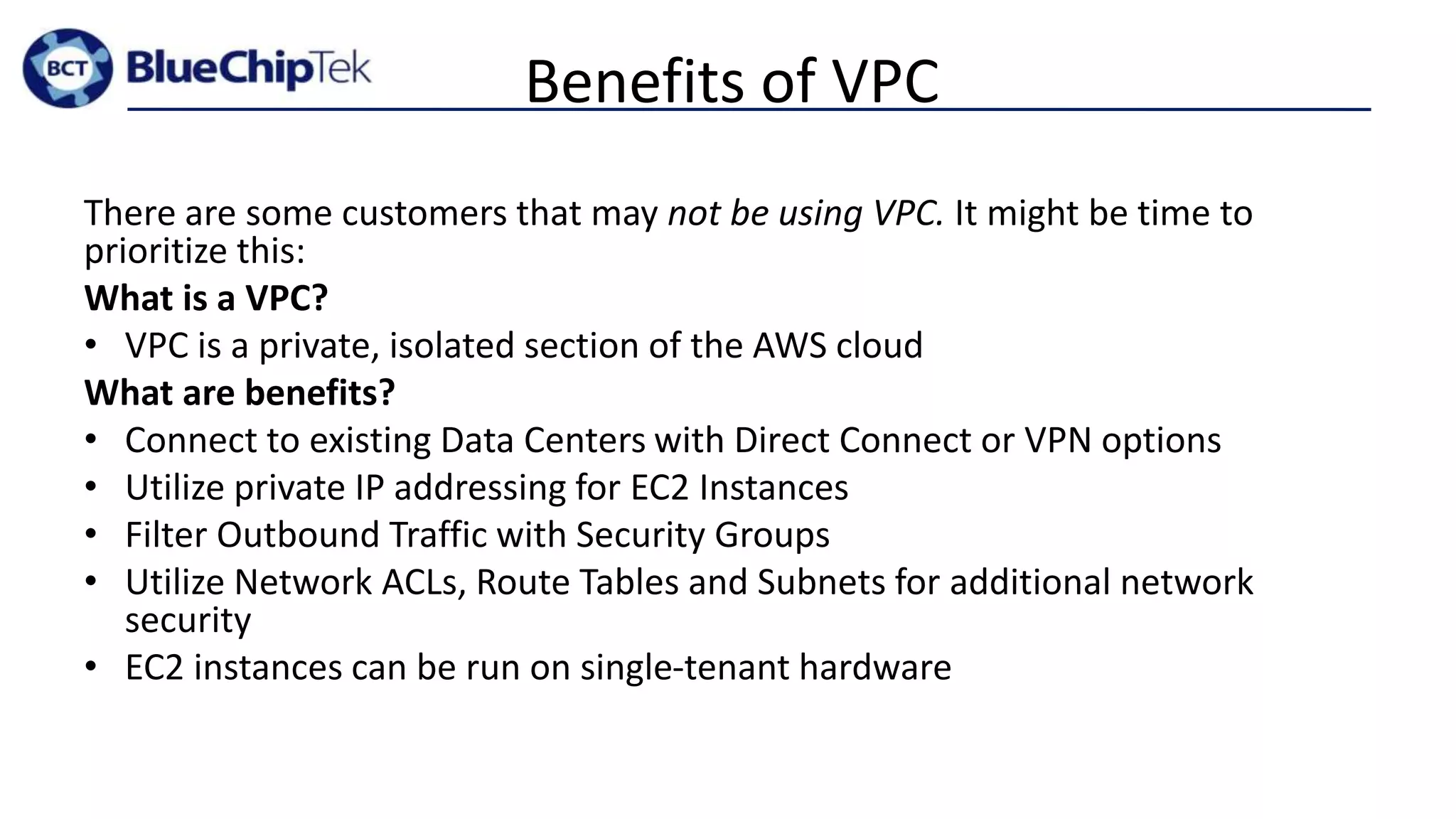

7. Benefits of VPC
There are some customers that may not be using VPC. It might be time to
prioritize this:
What is a VPC?
• VPC is a private, isolated section of the AWS cloud
What are benefits?
• Connect to existing Data Centers with Direct Connect or VPN options
• Utilize private IP addressing for EC2 Instances
• Filter Outbound Traffic with Security Groups
• Utilize Network ACLs, Route Tables and Subnets for additional network
security
• EC2 instances can be run on single-tenant hardware

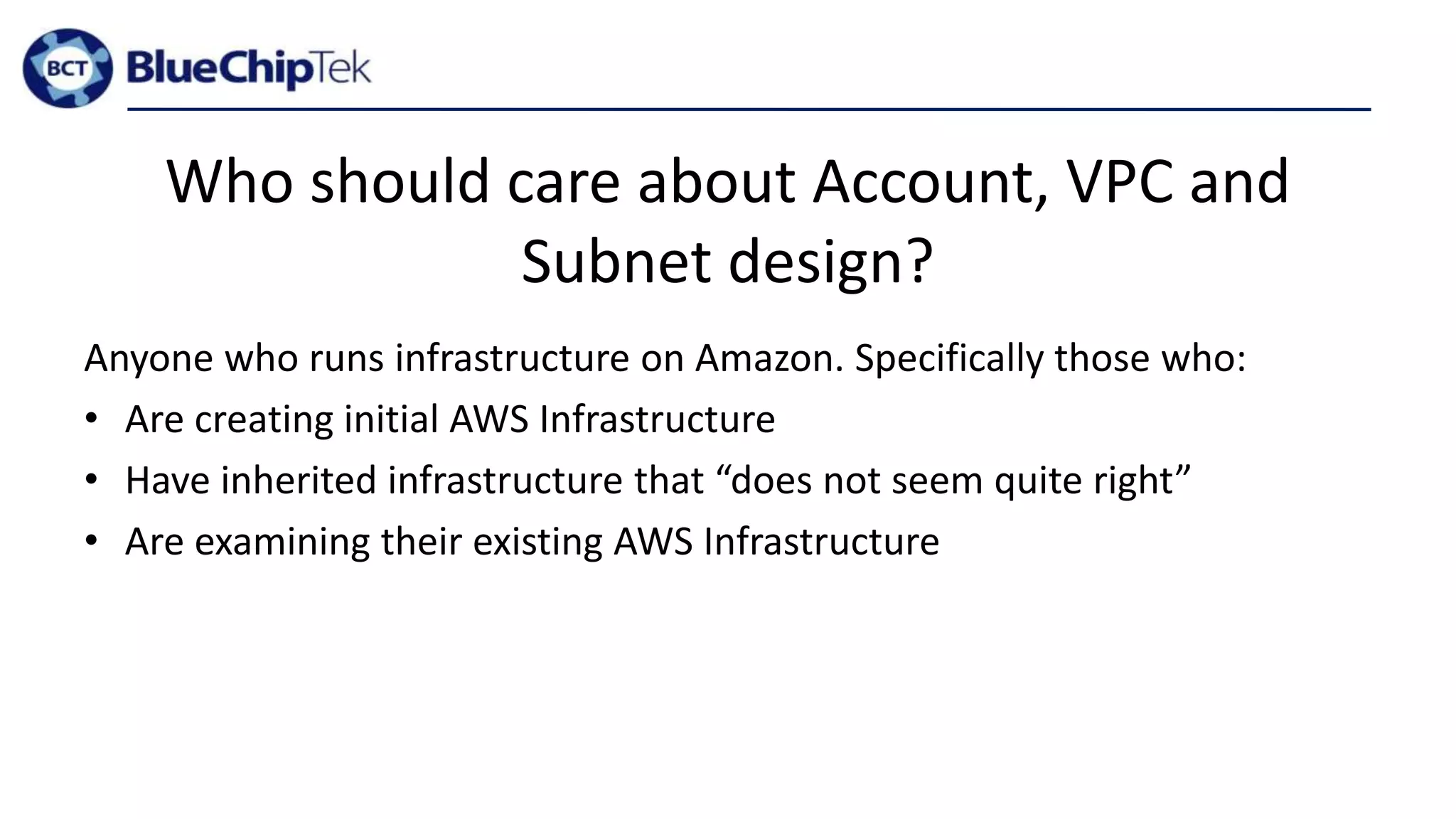

8. Who should care about Account, VPC and
Subnet design?
Anyone who runs infrastructure on Amazon. Specifically those who:
• Are creating initial AWS Infrastructure
• Have inherited infrastructure that “does not seem quite right”
• Are examining their existing AWS Infrastructure

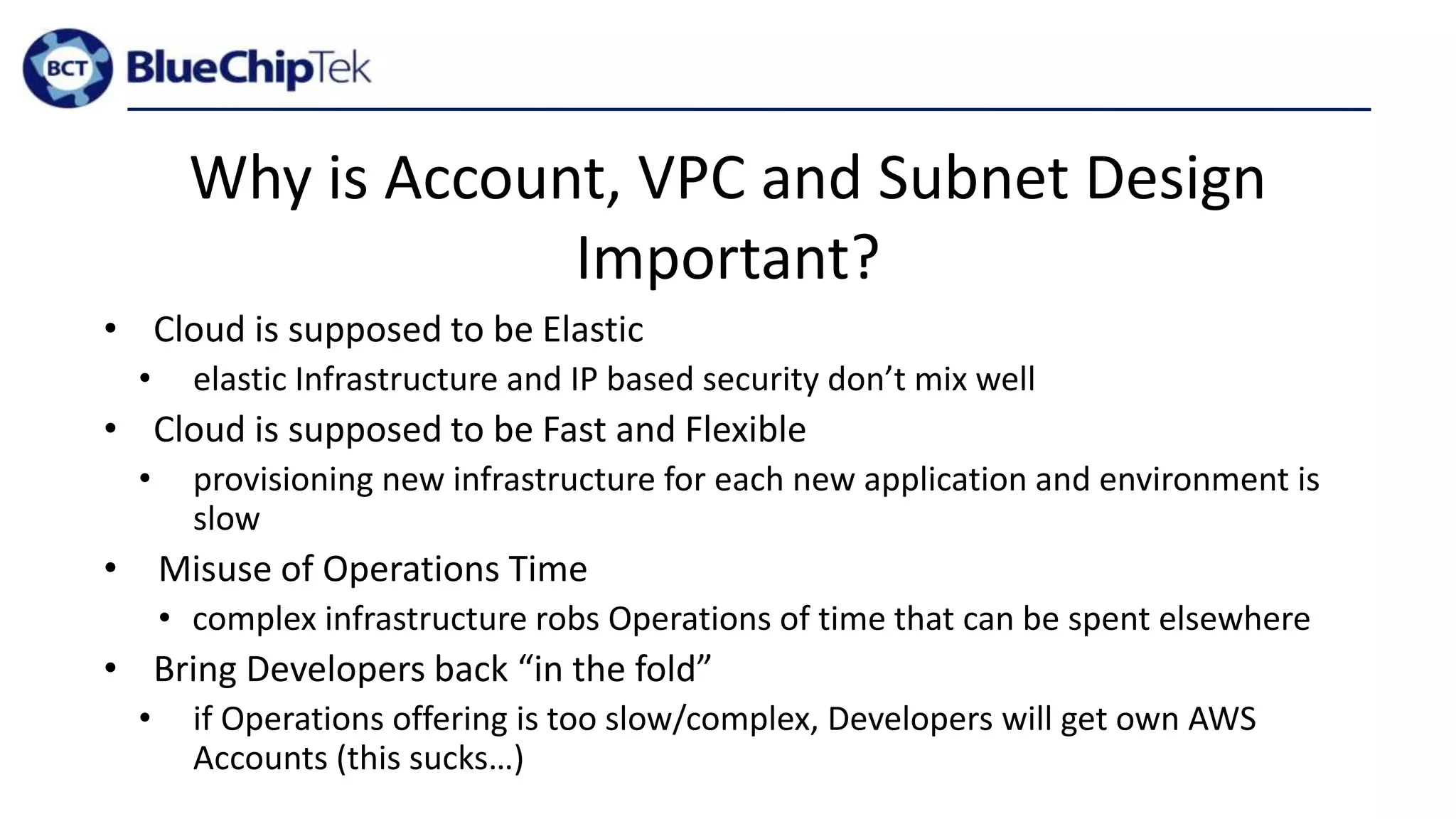

9. Why is Account, VPC and Subnet Design
Important?
• Cloud is supposed to be Elastic
• elastic Infrastructure and IP based security don’t mix well
• Cloud is supposed to be Fast and Flexible
• provisioning new infrastructure for each new application and environment is
slow
• Misuse of Operations Time
• complex infrastructure robs Operations of time that can be spent elsewhere
• Bring Developers back “in the fold”
• if Operations offering is too slow/complex, Developers will get own AWS
Accounts (this sucks…)

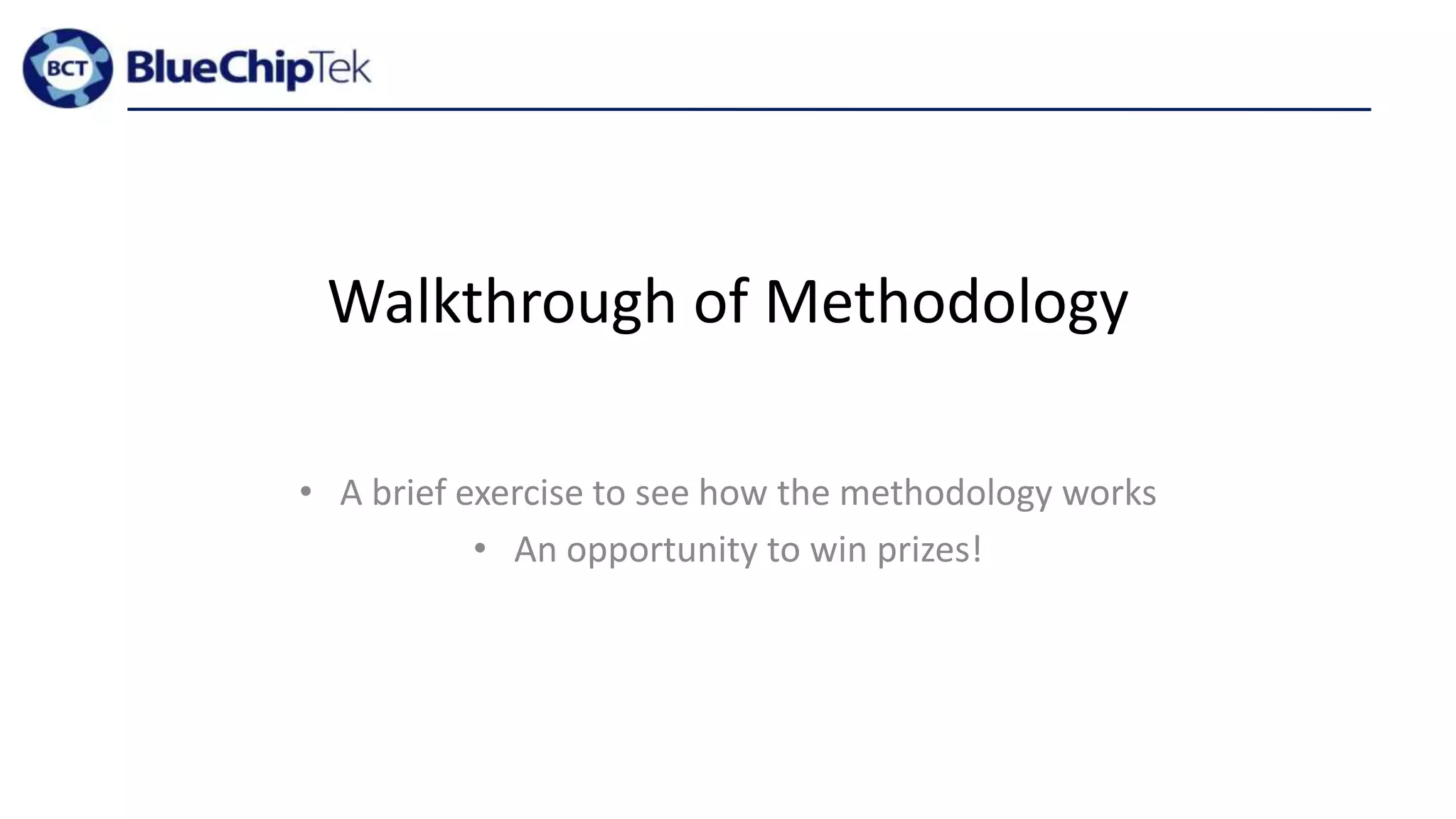

10. Walkthrough of Methodology
• A brief exercise to see how the methodology works
• An opportunity to win prizes!

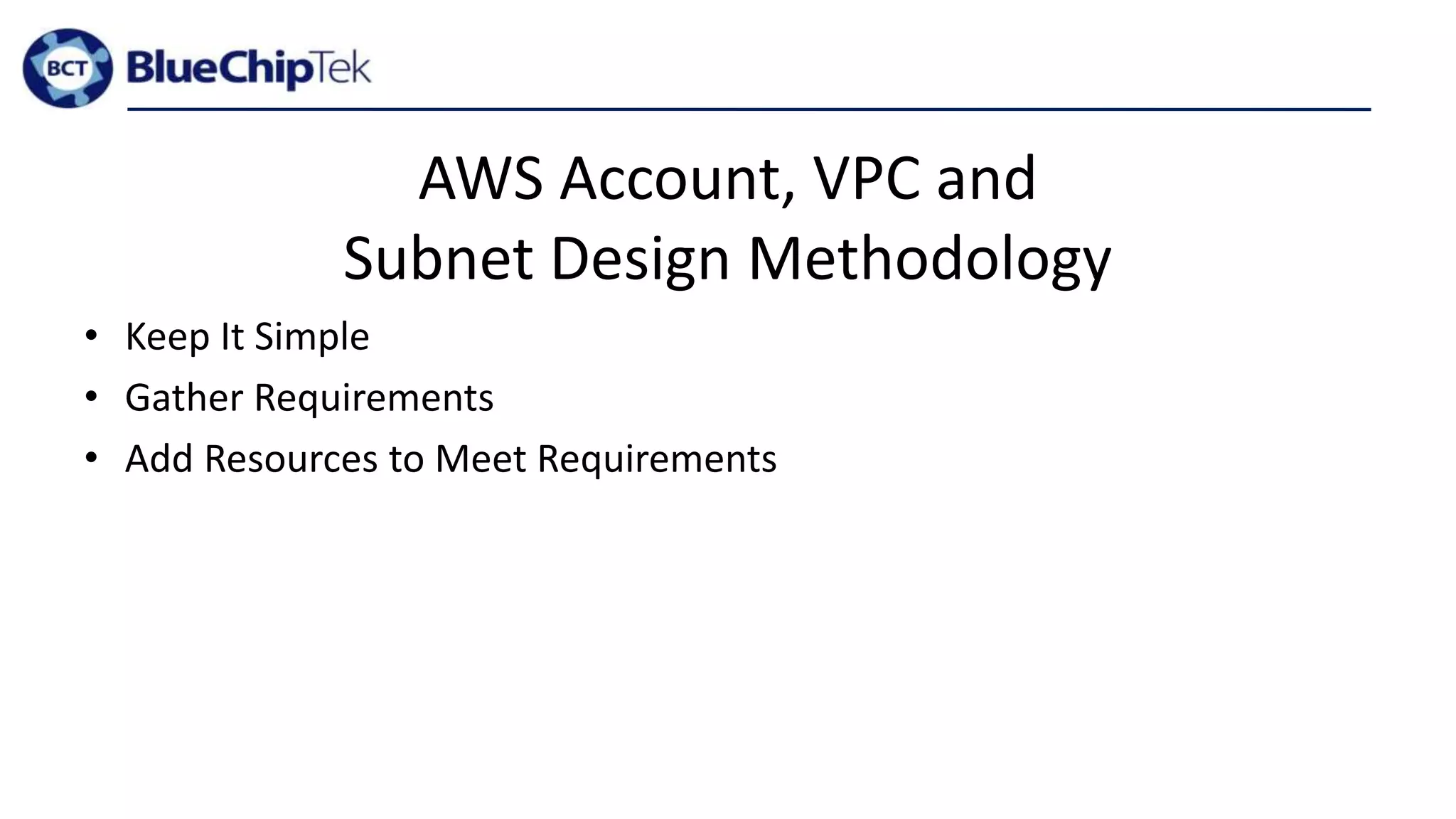

11. AWS Account, VPC and
Subnet Design Methodology
• Keep It Simple
• Gather Requirements
• Add Resources to Meet Requirements

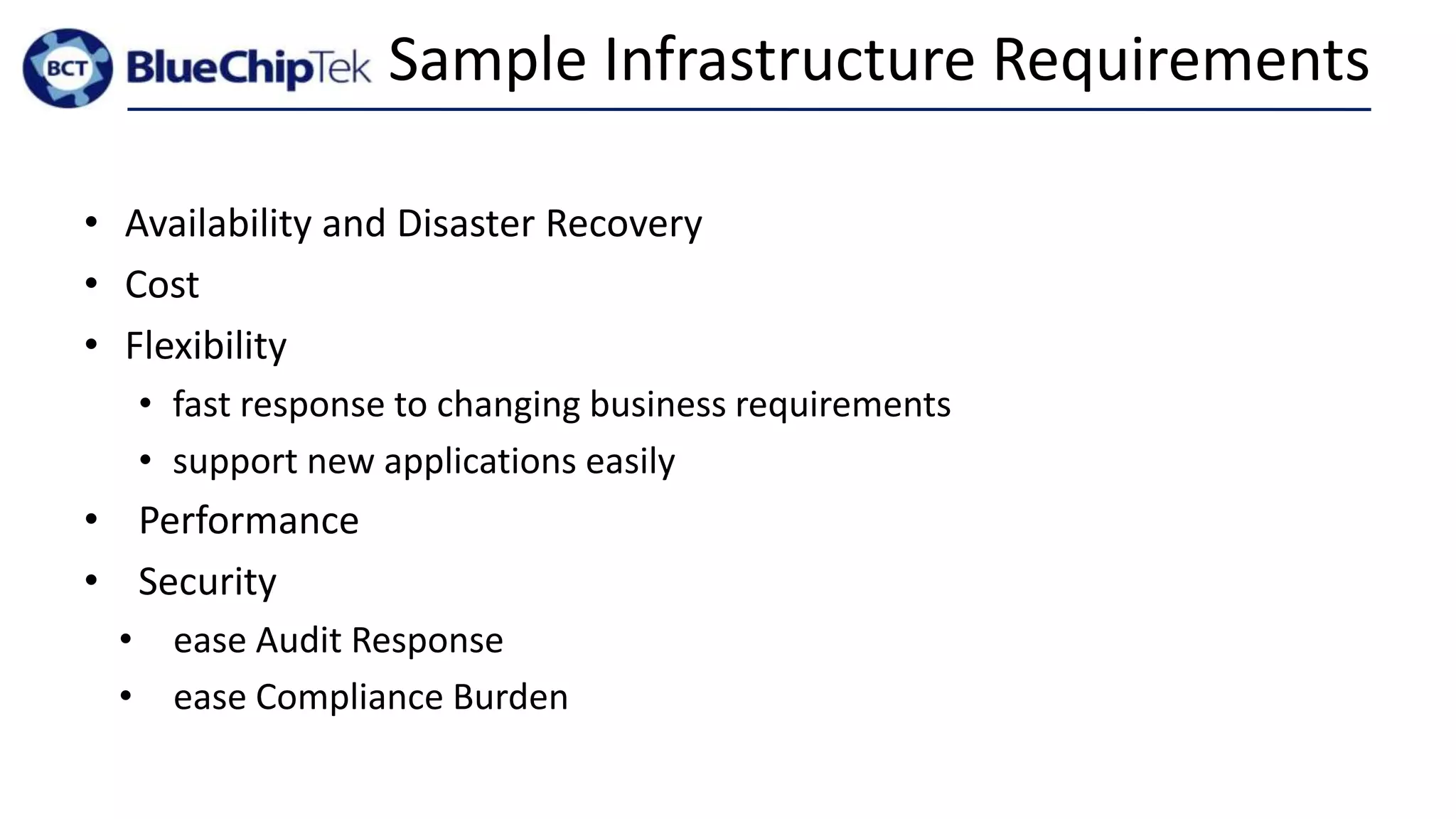

12. Sample Infrastructure Requirements
• Availability and Disaster Recovery
• Cost
• Flexibility
• fast response to changing business requirements
• support new applications easily
• Performance
• Security
• ease Audit Response
• ease Compliance Burden

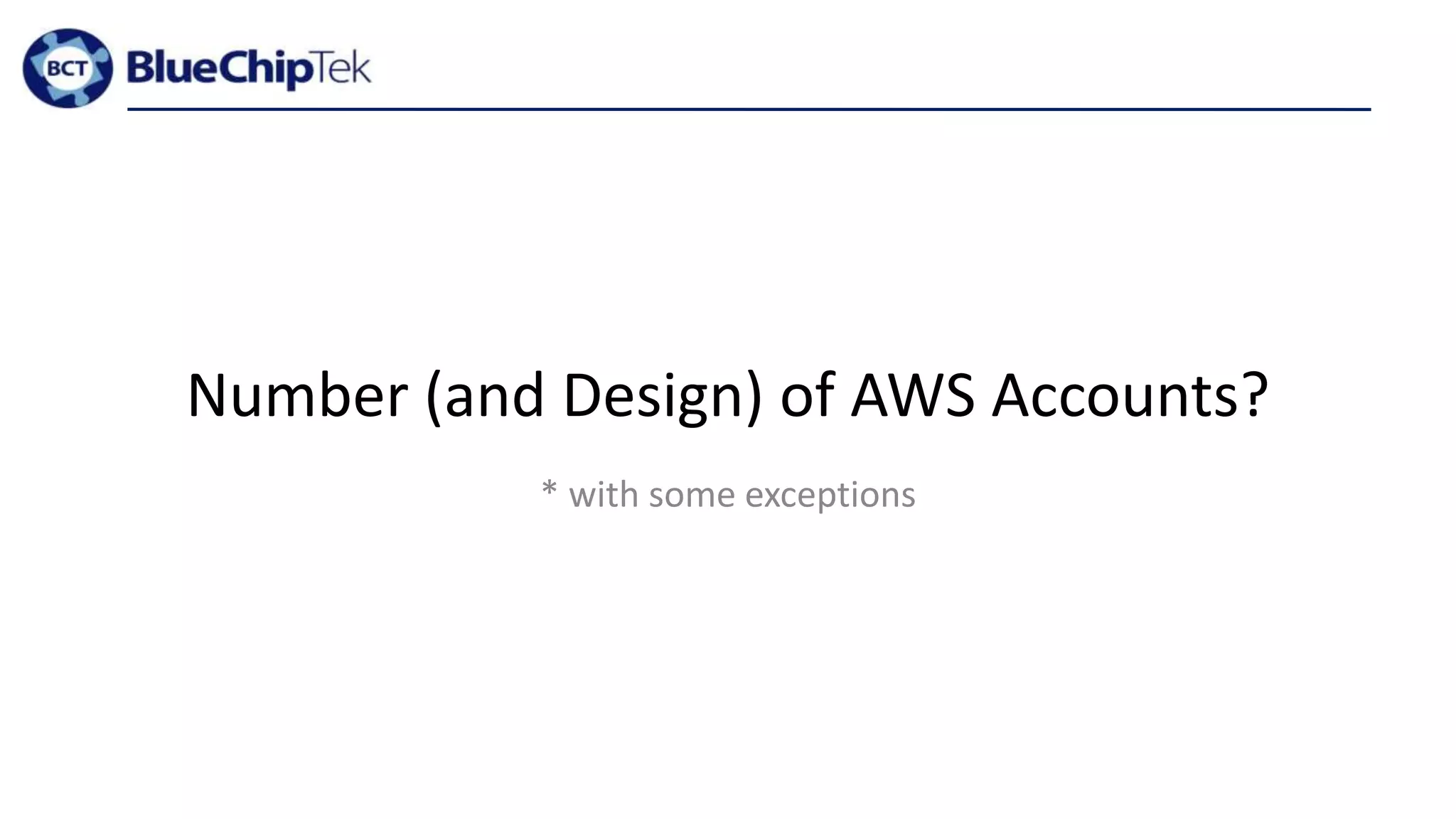

13. Number (and Design) of AWS Accounts?
* with some exceptions

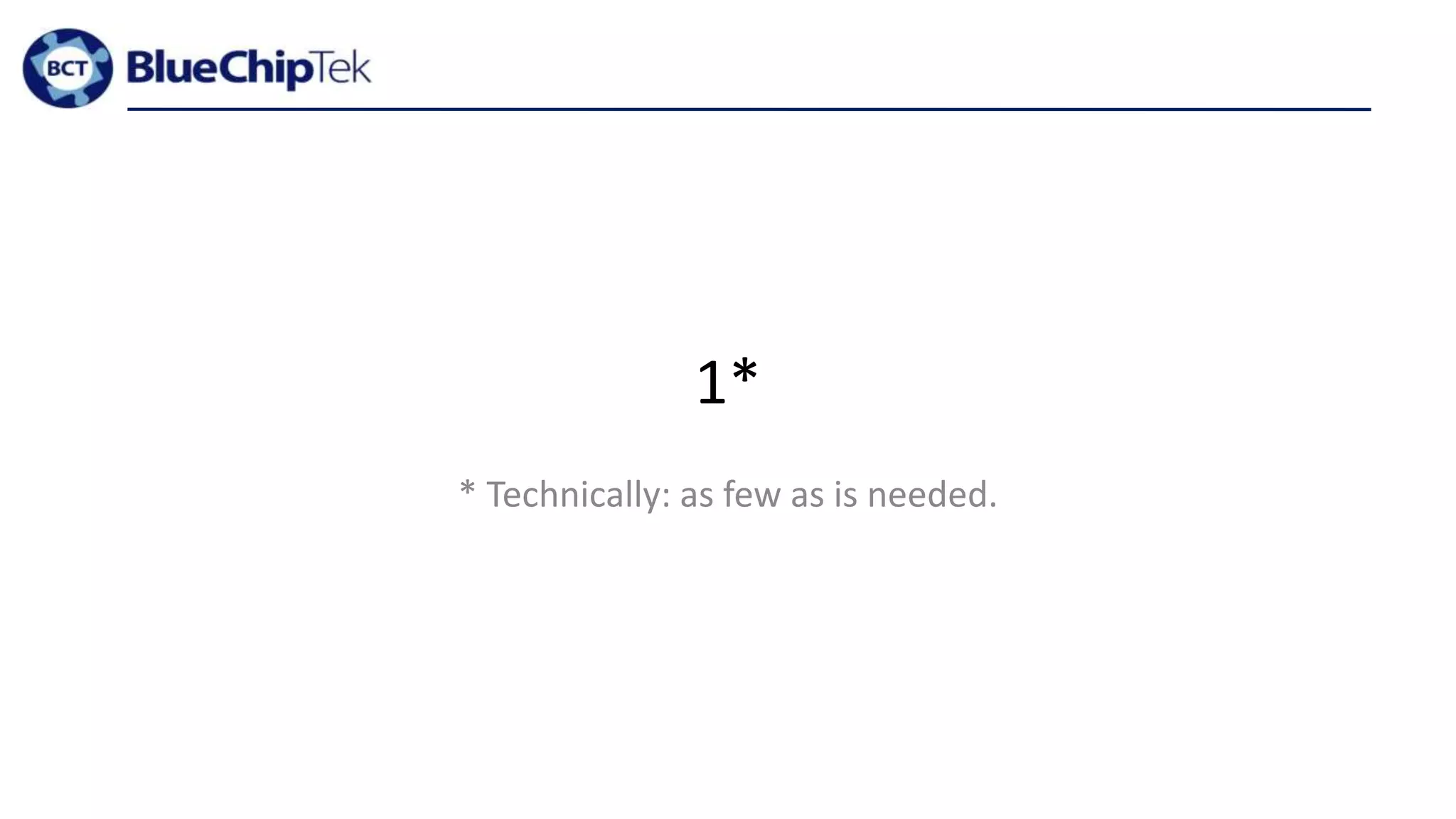

14. 1*
* Technically: as few as is needed.

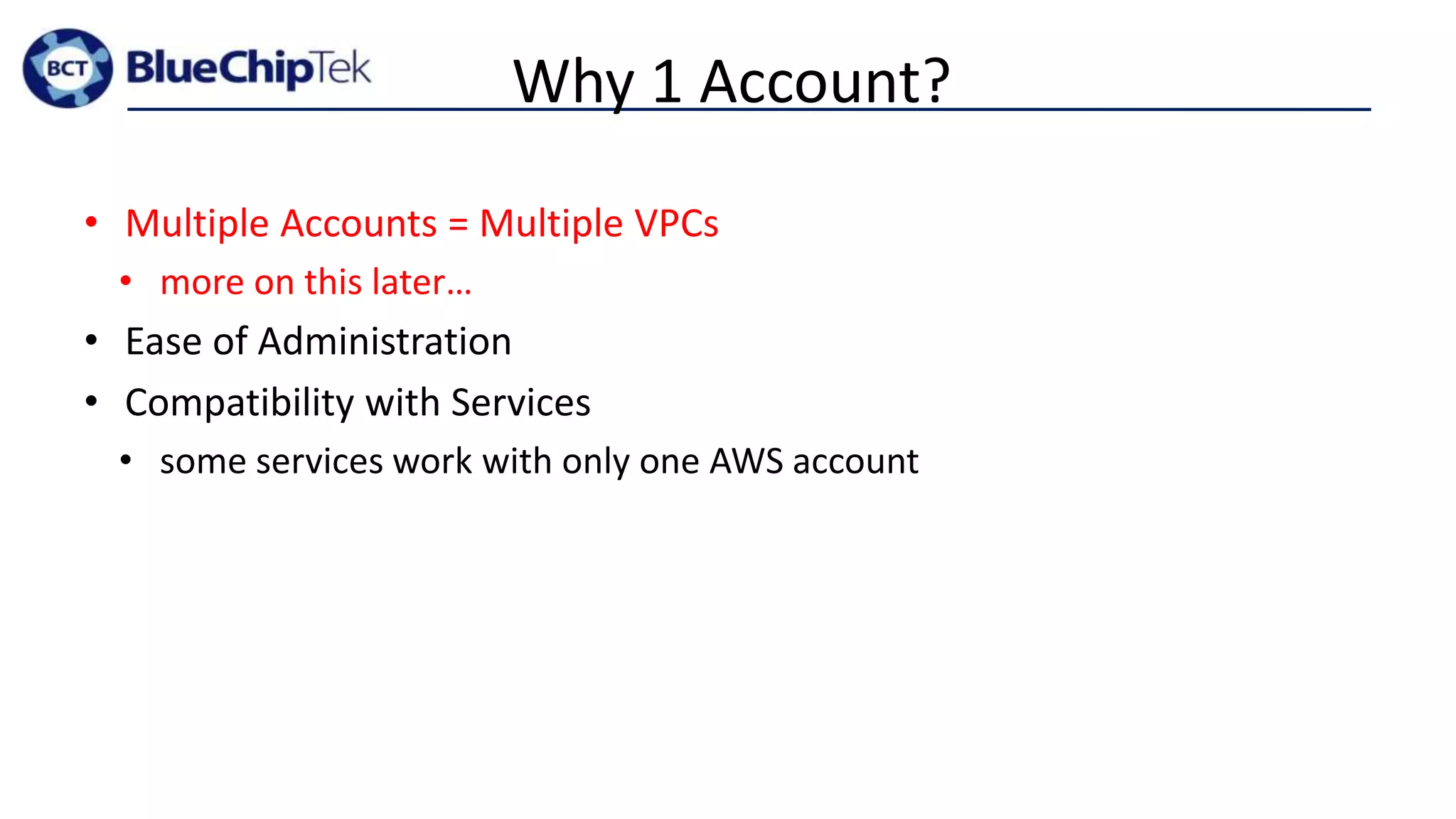

15. Why 1 Account?
• Multiple Accounts = Multiple VPCs
• more on this later…
• Ease of Administration
• Compatibility with Services
• some services work with only one AWS account

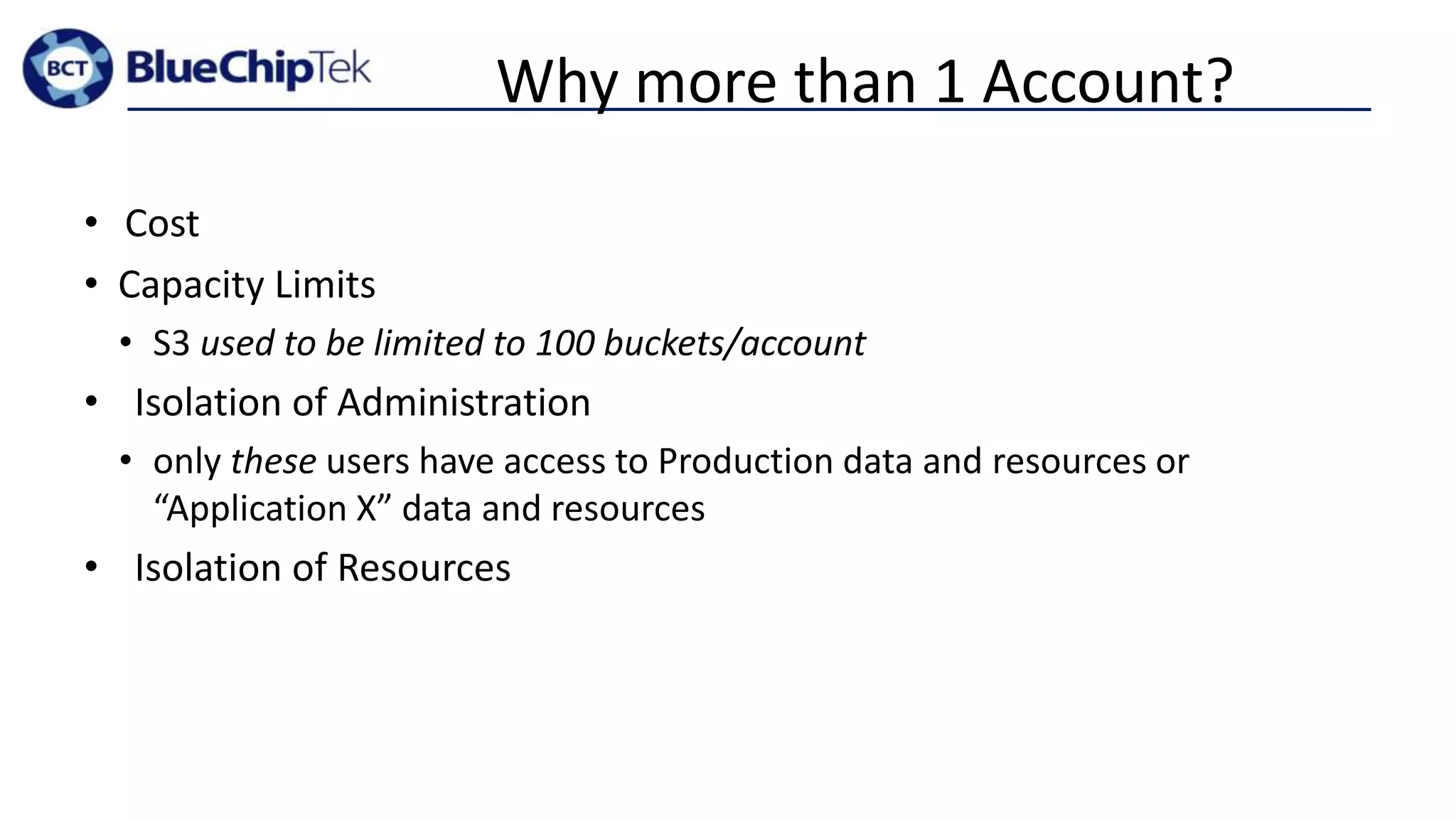

16. Why more than 1 Account?
• Cost
• Capacity Limits
• S3 used to be limited to 100 buckets/account
• Isolation of Administration
• only these users have access to Production data and resources or
“Application X” data and resources
• Isolation of Resources

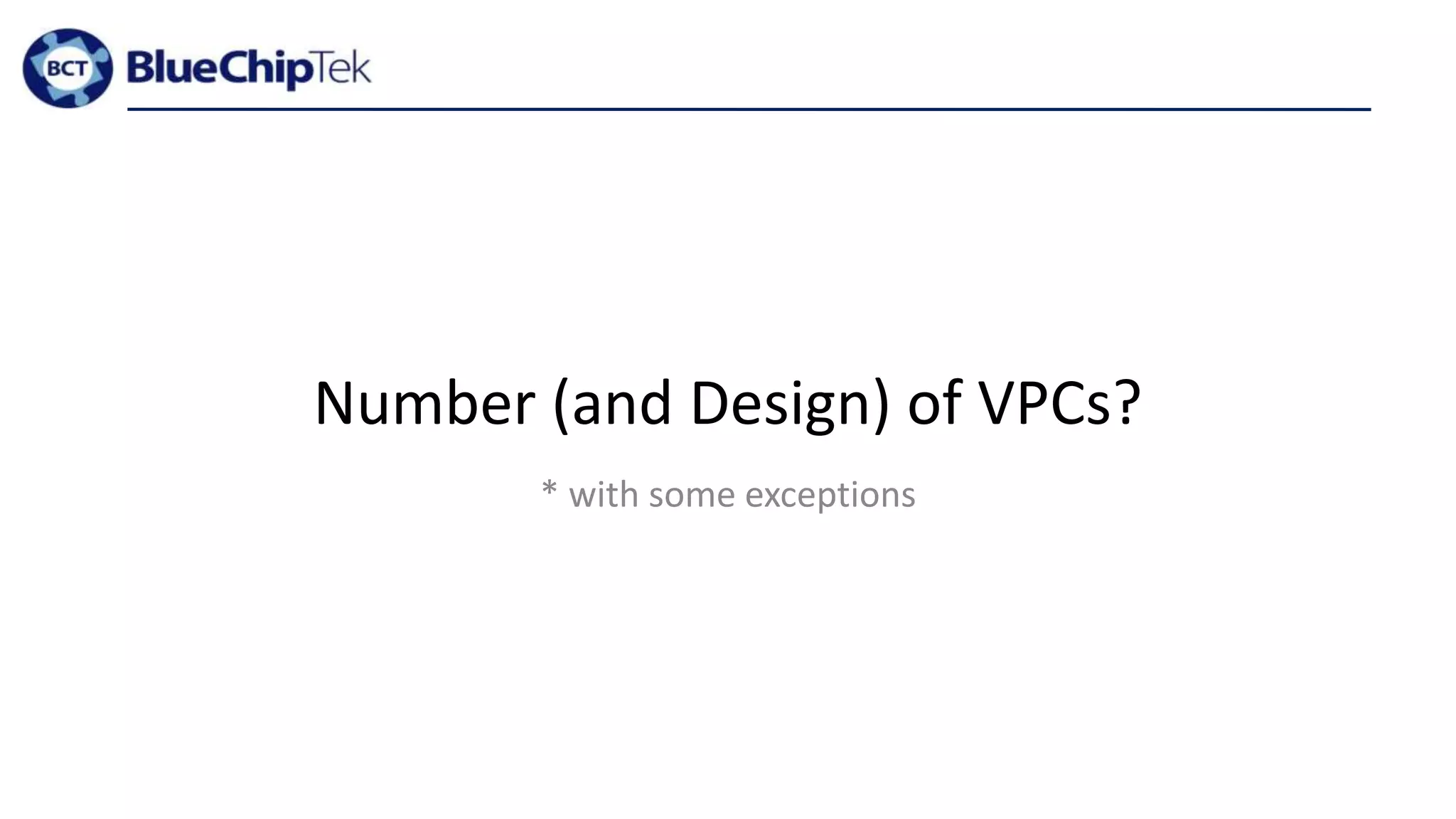

17. Number (and Design) of VPCs?
* with some exceptions

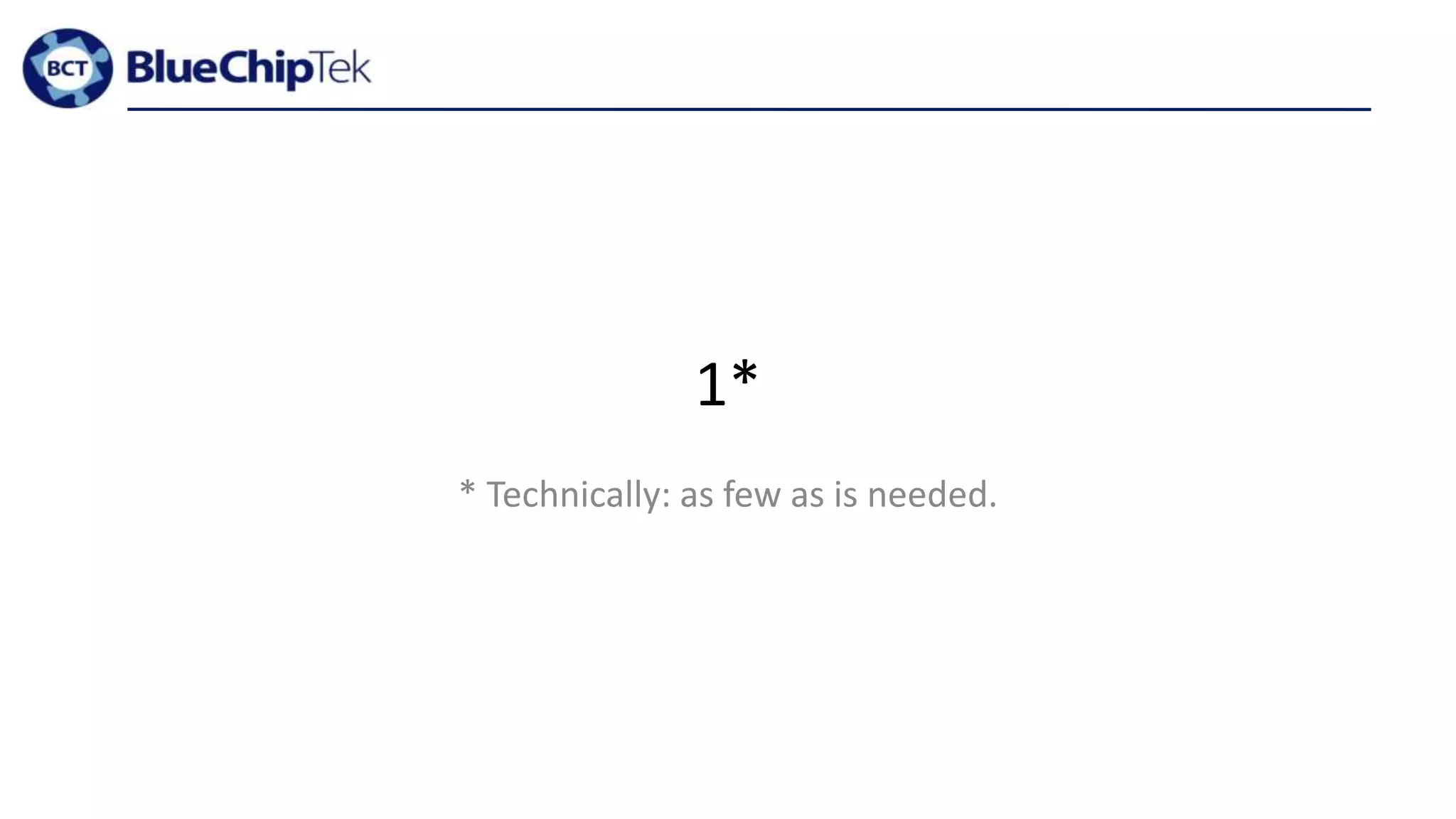

18. 1*
* Technically: as few as is needed.

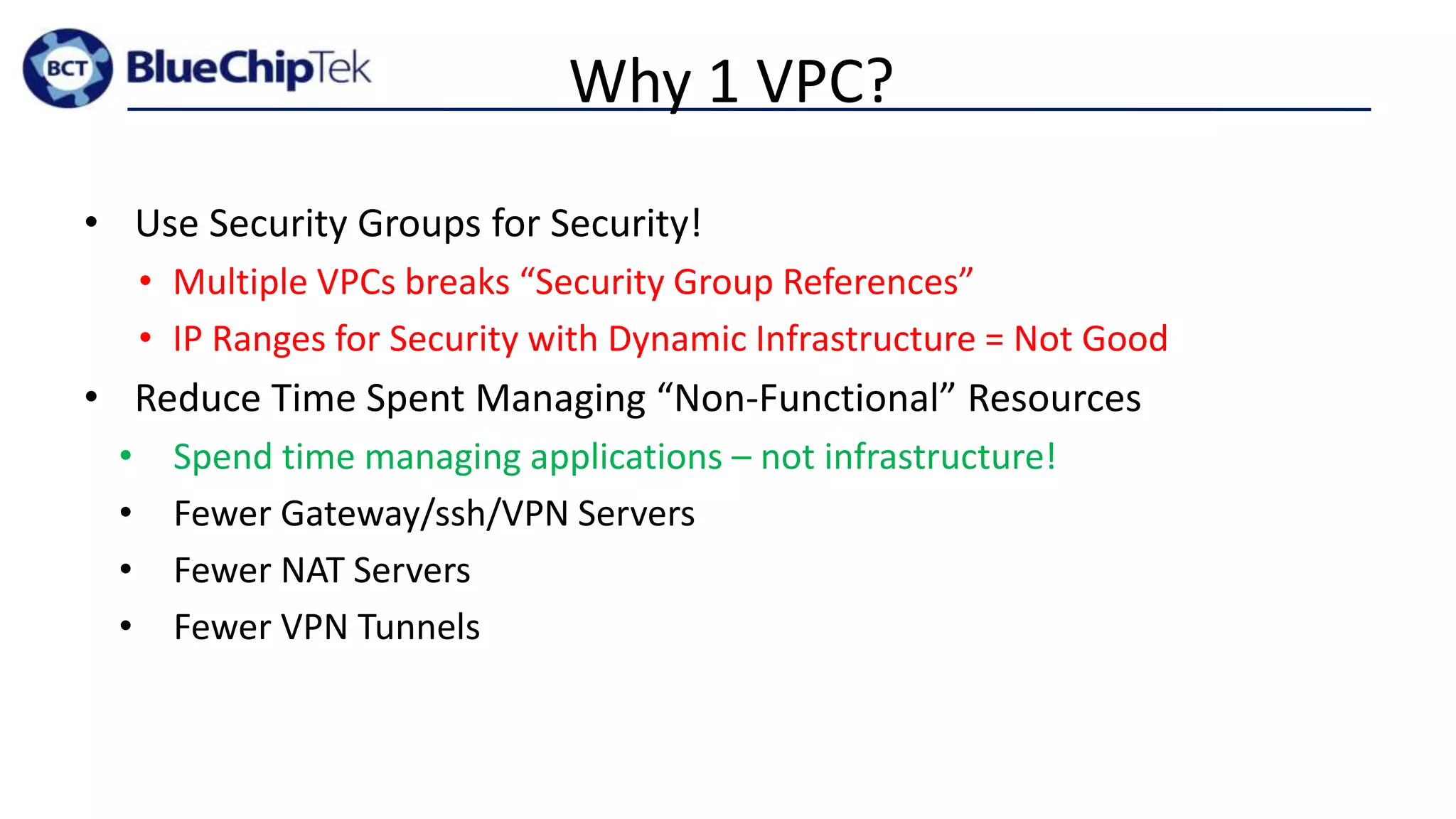

19. Why 1 VPC?
• Use Security Groups for Security!
• Multiple VPCs breaks “Security Group References”
• IP Ranges for Security with Dynamic Infrastructure = Not Good
• Reduce Time Spent Managing “Non-Functional” Resources
• Spend time managing applications – not infrastructure!
• Fewer Gateway/ssh/VPN Servers
• Fewer NAT Servers
• Fewer VPN Tunnels

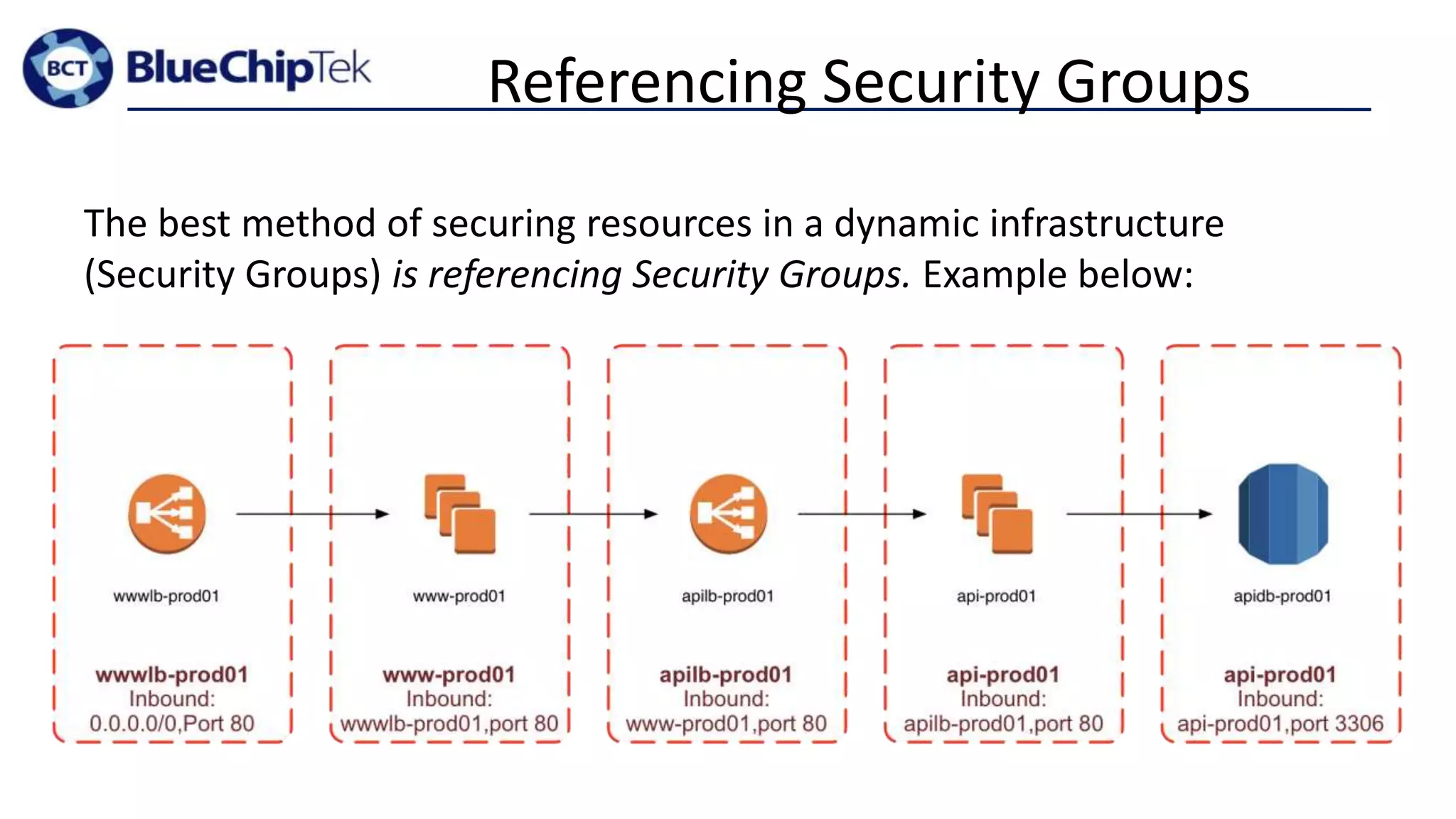

20. Referencing Security Groups
The best method of securing resources in a dynamic infrastructure
(Security Groups) is referencing Security Groups. Example below:

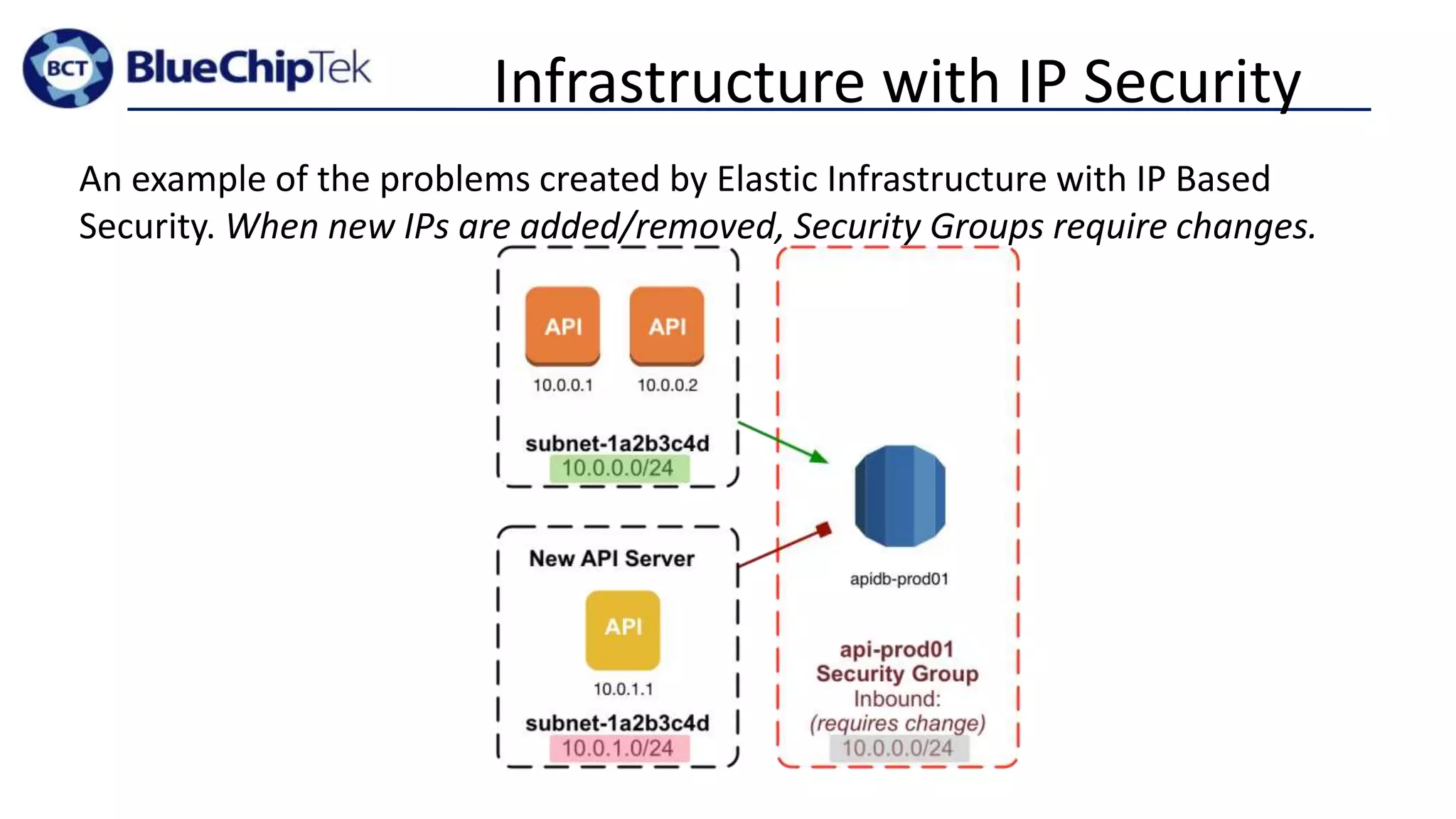

21. Infrastructure with IP Security
An example of the problems created by Elastic Infrastructure with IP Based
Security. When new IPs are added/removed, Security Groups require changes.

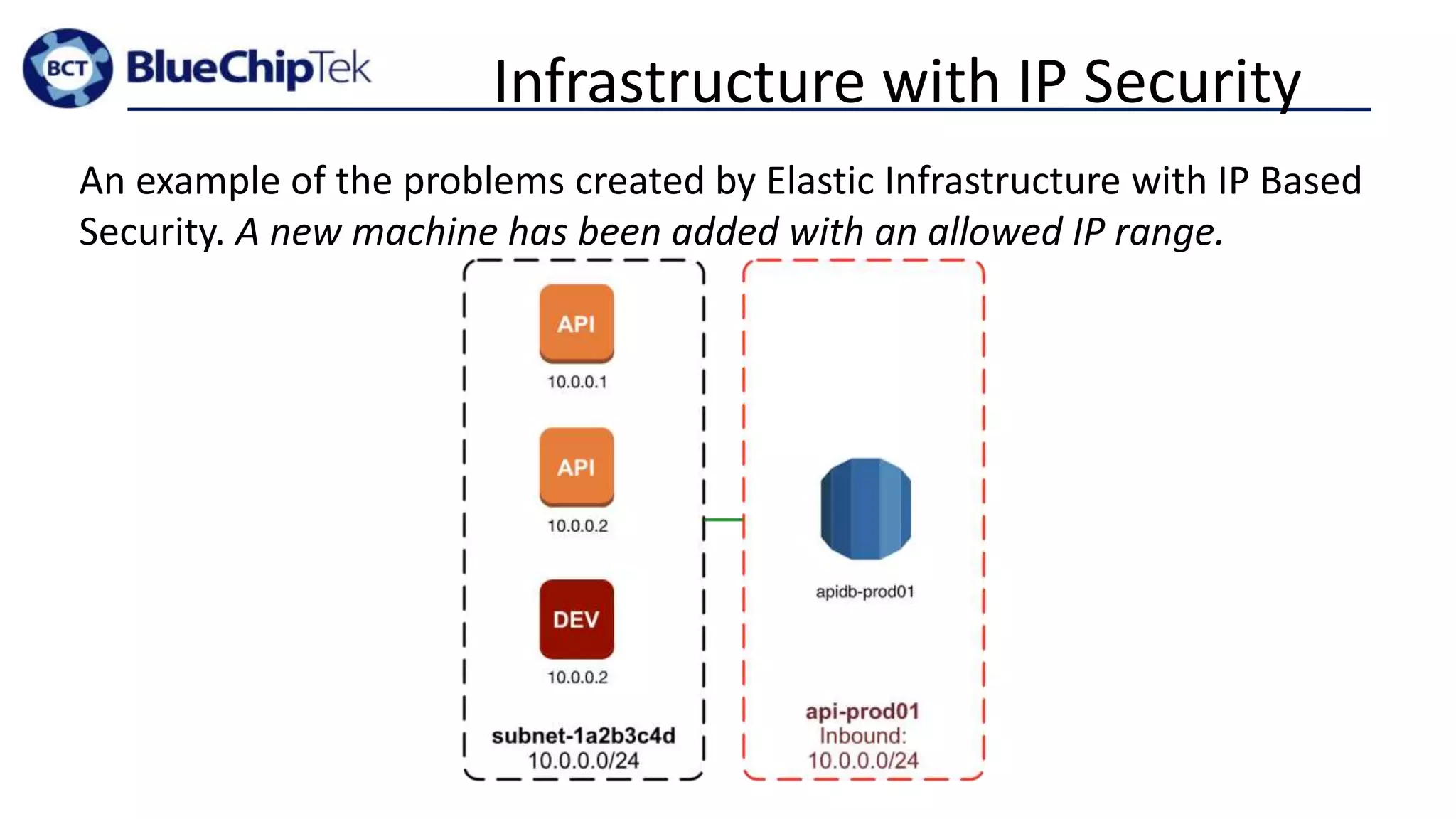

22. Infrastructure with IP Security
An example of the problems created by Elastic Infrastructure with IP Based
Security. A new machine has been added with an allowed IP range.

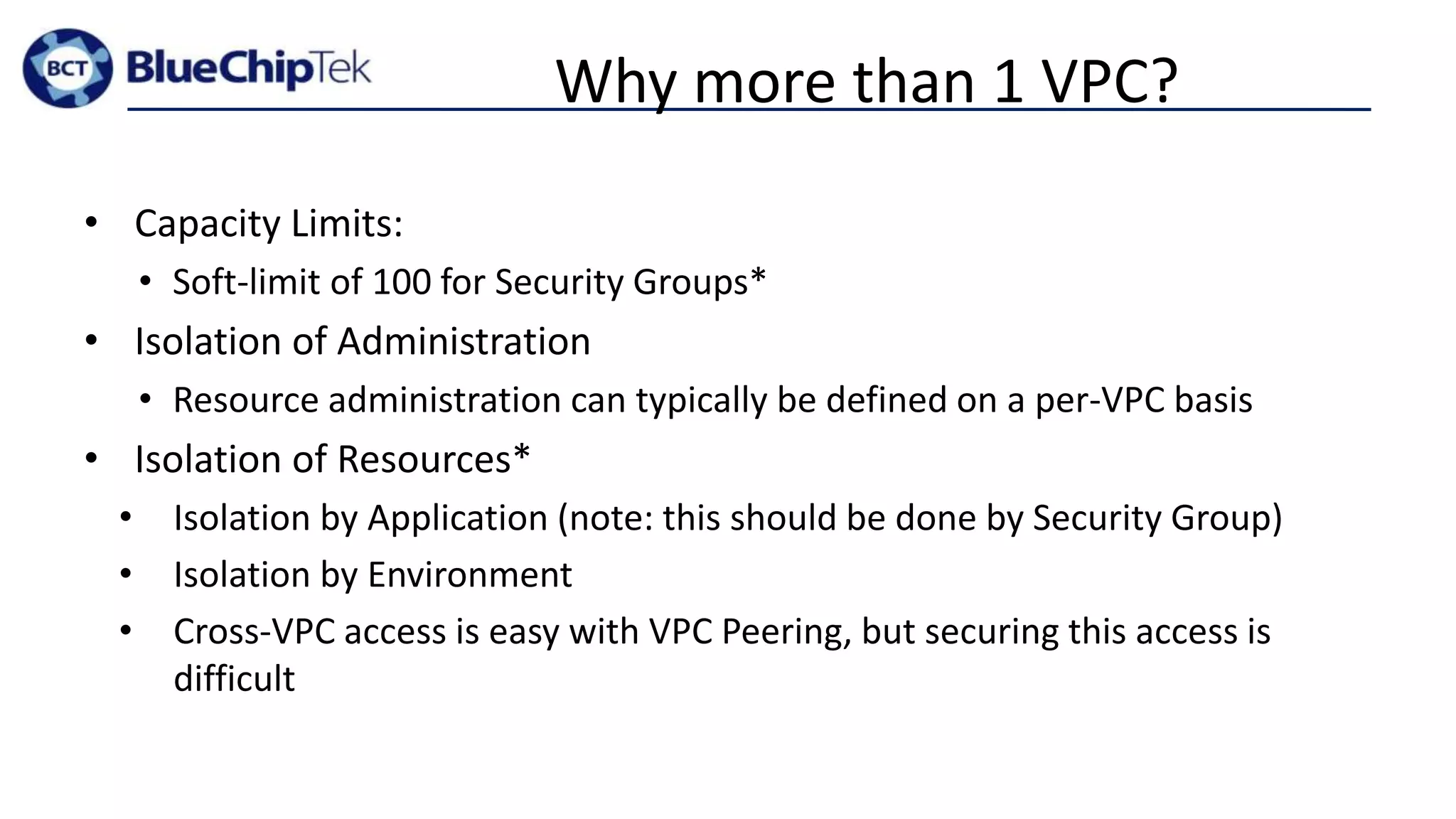

23. Why more than 1 VPC?
• Capacity Limits:
• Soft-limit of 100 for Security Groups*
• Isolation of Administration
• Resource administration can typically be defined on a per-VPC basis
• Isolation of Resources*
• Isolation by Application (note: this should be done by Security Group)
• Isolation by Environment
• Cross-VPC access is easy with VPC Peering, but securing this access is
difficult

24. Number (and Design) of Subnets?

25. = Between 9 and 16*
1 Subnet per Connectivity Grouptypically 3 to 4 types of connectivity requirements
x
1 Subnet per Availability Zonetypically 3 to 4 AZs are available

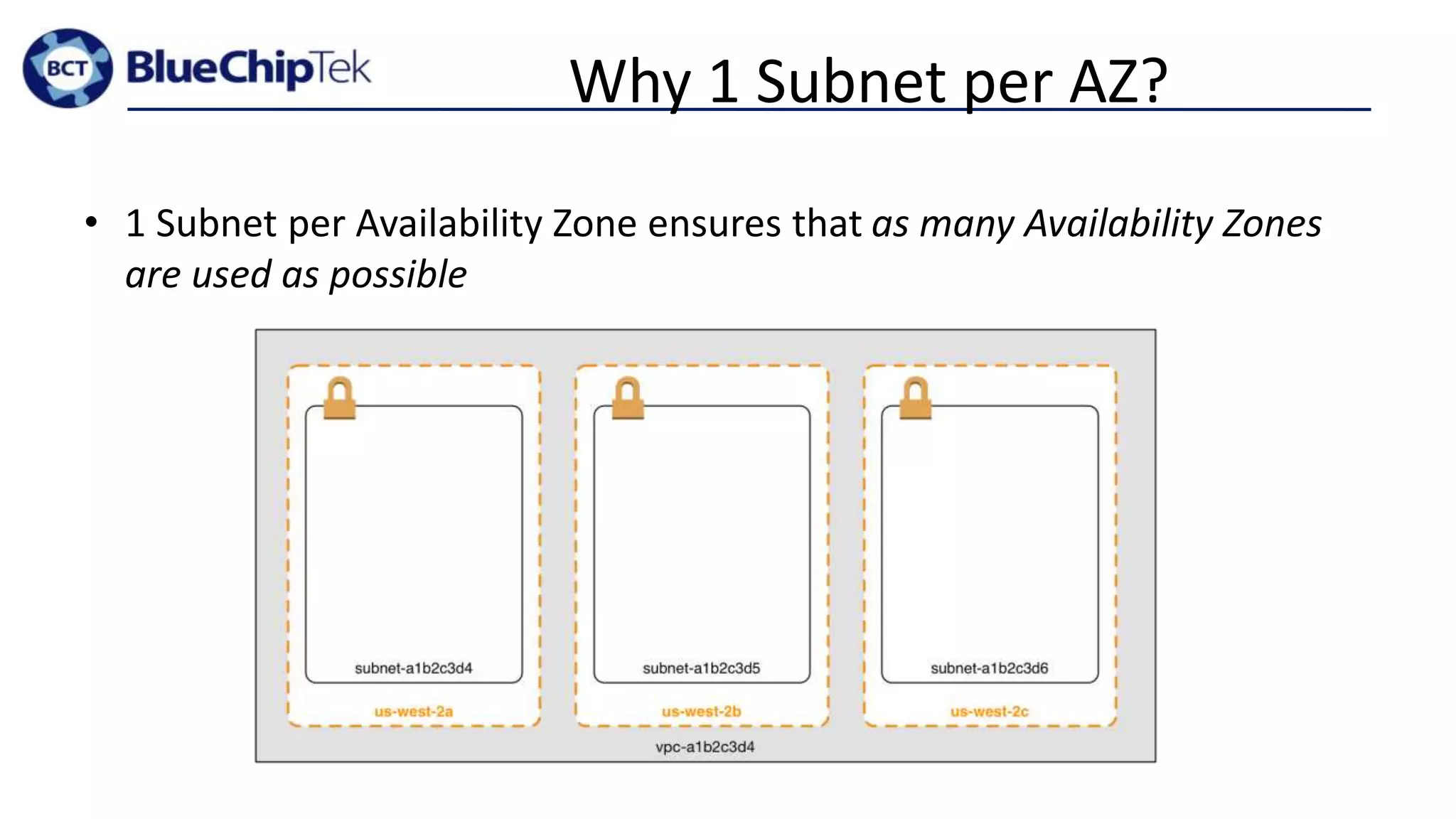

26. Why 1 Subnet per AZ?
• 1 Subnet per Availability Zone ensures that as many Availability Zones
are used as possible

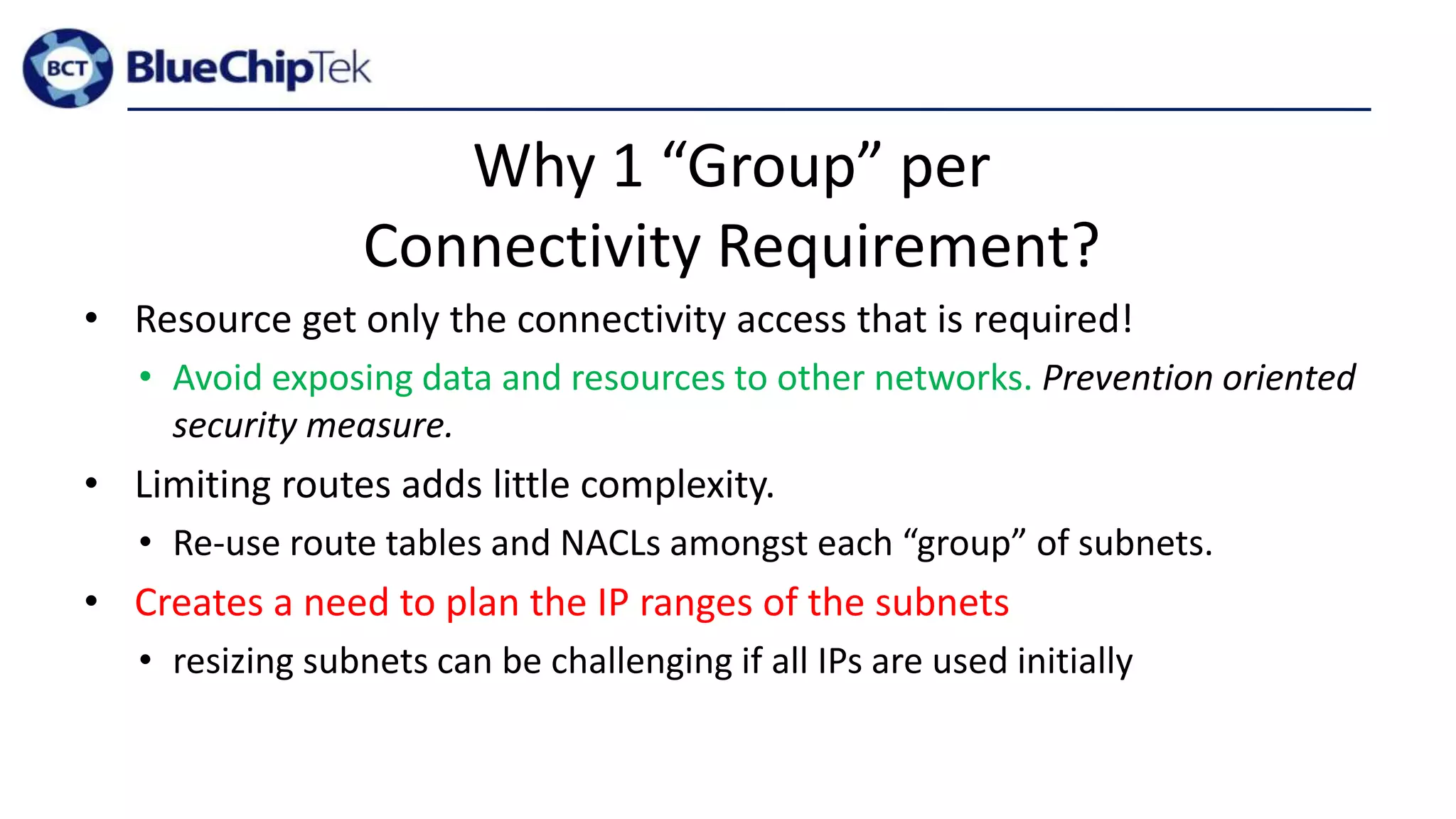

27. Why 1 “Group” per
Connectivity Requirement?
• Resource get only the connectivity access that is required!
• Avoid exposing data and resources to other networks. Prevention oriented
security measure.
• Limiting routes adds little complexity.
• Re-use route tables and NACLs amongst each “group” of subnets.
• Creates a need to plan the IP ranges of the subnets
• resizing subnets can be challenging if all IPs are used initially

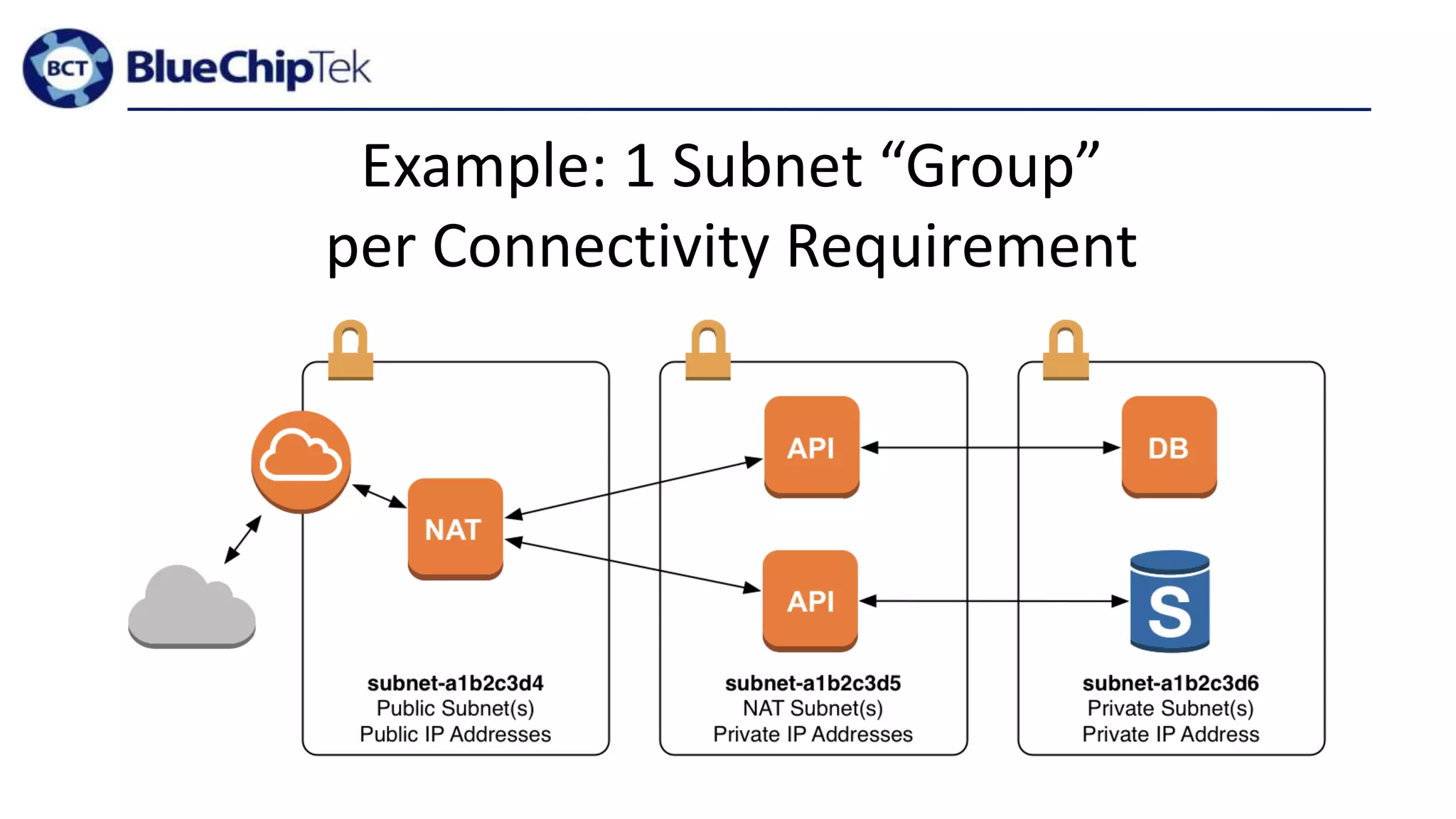

28. Example: 1 Subnet “Group”
per Connectivity Requirement

29. In Summary:
• Keep It Simple. Start with:
• 1 Account
• 1 VPC
• 1 Subnet per AZ and 1 Subnet Group per Connectivity Requirement
• Gather Requirements
• “non-functional requirements”
• Add Complexity When Needed
