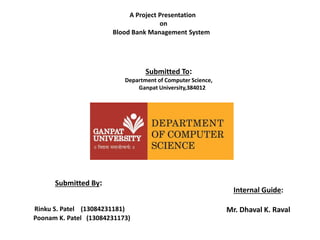

1. Blood Bank Management System
A Project Presentation
on
Submitted By:
Rinku S. Patel (13084231181)
Poonam K. Patel (13084231173)
Internal Guide:
Mr. Dhaval K. Raval
Submitted To:
Department of Computer Science,
Ganpat University,384012

2. PROJECT PROFILE
Project Name Blood Bank Managemant System
Objective The system provide online information of blood bank and administrators can also all information about
blood bank,donor,patient request and blood requriments.
Platform Web application
Front End Asp . NET 4.0 with c#
Back End Microsoft Sql Server 2008
Other Tools MS Office 2007 ,Visual studio
Project Duration 50 days
Internal Guide Mr. Dhaval K.Raval
Submitted To Department of computer science,Ganpat University
Develop By Rinku S.Patel
Poonam K.patel

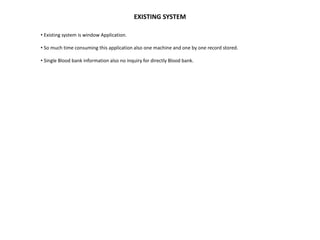

3. EXISTING SYSTEM
• Existing system is window Application.
• So much time consuming this application also one machine and one by one record stored.
• Single Blood bank information also no inquiry for directly Blood bank.

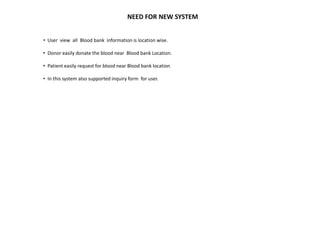

4. NEED FOR NEW SYSTEM
• User view all Blood bank information is location wise.
• Donor easily donate the blood near Blood bank Location.
• Patient easily request for blood near Blood bank location
• In this system also supported inquiry form for user.

5. FUNCTION SPECIFICATION
ADMIN:-
• Manage Registration for user
• Manage Blood bank information like (update, delete)
• Manage Donor Request for Donor
• Manage patient Request for needy people
• Manage Inquiry form for Appropriate Reply
• Manage feedback for Appropriate Reply
• Blood bank information view/update
• View Donor information
• Manage Patient Blood Request.
BLOOD BANK:-
1.Admin
2.Blood bank
3.Donor
4.Patient
DONOR:-
• Manage Donor information(profile)
• Add new Donation for Blood
PATIENT:-
• Manage patient information(profile)
• Give the Request for patient for blood

6. HARDWARE & SOFTWARE SPECIFICATION
 Hardware Specification :
 Server Side:
 Client Side:
Processor 3.6 GHz
RAM 2 GB
Hard Disk 80 GB
Processor 2.40 GHz
RAM 1 GB
Hard Disk 20 GB

7.  Software Specification :
• Server Side
• Client Side
Operating System Window Server 2008
Runtime Environment .Net Framework 4.0
Web Server IIS 7.0
Front End Microsoft Asp.Net 2010 with c#
Back End SQL server 2008
Operating System Windows XP or any compatible OS
Web Browser Internet Explorer 6.0 or any compatible web browser.

8. System Flow Chart

9. Start
Is
Registered
user
Is
Valid
User
Login
Admin
Registration
No
No
Yes
Manage bloodbank
Manage donor
Manage request
patient
Manage
city/location
View feedback
Manage inquiry
Blood bank
View request
Add new blood
bank
Manage donor
Donor
View profile
Make new Blood
Donation
View profile
Patient Request
for blood
A B C D
No No No
Yes Yes Yes
Yes
Manage patient
blood request
Manage inventory

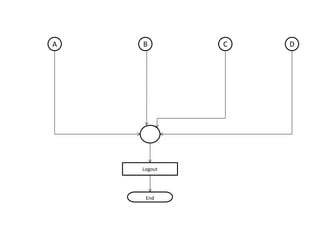

10. A B C D
Logout
End

11. TIMELINE CHART
Development
Phase
50 Days
Duration
(Day)
0 to 05
Day
06 to 10
Day
11 to 20
Day
21 to 30
Day
31 to 40
Day
41 to 50
Day
Requirement
Gathering and
Analysis
10
Design 10
Coding 20
Testing 5
Implementation
&
Documentation
5
Total Time (Day) 50

12. E-R Diagram

13. Admin
manage
patient
Blood Bank
has
Donor
1
User
id
User
password
Patient
id
Patient
name
BB_Id
BB_
name
D_
name
D_id
M
M
has
manage
1
1
M
M
1
M
1

14. UML Diagram

15. Registration
Login
Manage Blood bank
Manage Donor
Manage Patient request
View Feedback
Manage City/Location
Blood Bank Management System
Use case Diagram
Admin:
Manage inquiry

16. Registration
Login
View request
Add new blood bank
Blood Bank Management System
Blood bank:
Manage donor
Manage patient blood request
Manage stock

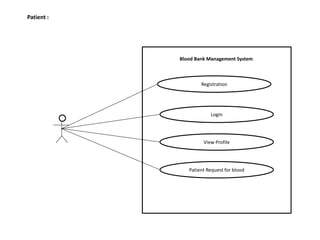

17. Registration
Login
View Profile
Make new Blood Donation
Blood Bank Management System
Donor:

18. Registration
Login
View Profile
Patient Request for blood
Blood Bank Management System
Patient :

19. login
Registration
Manage blood
bank
Start
No
Valid?
No Reg ?
logout
End
Yes
Yes
Activity Diagram for Admin:
Activity Diagram
Manage donor
Manage
patient req.
Manage
city/location
View feedback
Manage
inquiry

20. login
Registration
Start
No
Valid?
Reg ?
logout
End
Yes
Yes
Activity Diagram for blood bank:
View request
Add new blood
bank
Manage donor
No
Manage patient
blood request
Manage stock

21. login
Registration
Start
No
Valid?
No Reg ?
logout
End
Yes
Yes

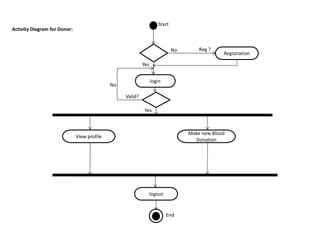

Activity Diagram for Donor:
View profile
Make new Blood
Donation

22. login
Registration
Start
No
Valid?
No Reg ?
logout
End
Yes
Yes

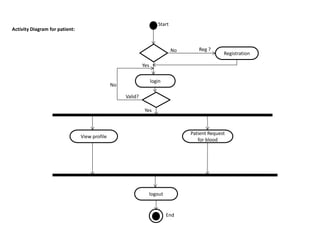

Activity Diagram for patient:
View profile
Patient Request
for blood

23. Class diagram
1 * 1 <<Use> > *
1 <<Use>>
1
*
*
ma
1 * *
ADMIN
-ID : STRING
-Bloodbank_management()
+Donor_management()
+Patient_Request()
+User_management()
+Login()
USER
-ID: INT
NAME
BIRTH_DATE
CONTACT_NO
EMAIL_ID
+Register()
+Login()
+Make_request()
+View_services()
+Feedback()
Blood bank
-B_ID : INT
Name: STRING
S_ID : ID
+Login()
+Sign_up()
+Request_management()
+Donor_management()
view_profile()
New Donor Request
-DD :INT
B ID :INT
D NAME :STRING
L_ID : INT
+Check Donore ()
+Request new Donor ()
Patient Request Location
-ID :INT
B ID :INT
-L_ID : INT
S NAME: STRING
V_ID : INT
+Check service ()
+Request service ()
STATE
-S ID : INT
STATE:STRING
+ Provide State()
CITY
-C ID : INT
SID : INT
SNAME : STRING
+Provide state wise city()
LOCATION
-LOC ID : INT
CID : INT
L NAME: STRING
+Provide City wise location
()

24. Sequence Diagram

25. S:System D:Database
Admin
Send Request
Get interface
Successfully registerated
Login(user name,passward) Send request
Get interface
Successfully login
Manage blood bank Store blood bank details
Acknowledgement
Manage successfully
Manage donor Store donor details
Manage successfully
Acknowledgement
Manage request patient Store request patient details
Acknowledgement
Manage successfully
Manage city/location Store city/location details
Manage successfully Acknowledgement
view feedback
Manage inquiry Store inquiry details
Manage successfully
logout
logout successfully
Admin:
X
Get reply Fetch feedback details
Store feedback details
Acknowledgement
Registration
X
X

26. S:System D:Database
Blood bank
Blood bank :
X X X
Successfully registerated
Send Request
Get interface
Login(user name,passward)
Send request
Get interface
Successfully login
Store request
View request
Fetch request
Add new blood bank Store add new blood bank details
Acknowledgement
Successfully add new blood bank
Manage donor
Manage donor successfully
Store donor details
Acknowledgement
Get reply
Manage patient blood request
Manage patient blood request successfully
Manage stock Store stock details
Acknowledgement
Manage stock successfully
logout
logout successfully
Store patient blood request
Acknowledgement
Registration

27. S:System D:Database
donor
Donor :
X X X
Send Request
Successfully registerated Get interface
Login(user name,passward)
Get interface
Send request
Successfully login
View profile
Store profile details
Fetch profile details
Get reply
Store new blood details
Acknowledgement
Successfully new blood donation
logout successfully
logout
Make new Blood Donation
Registration

28. S:System D:Database
patient
Patient :
X X X
Successfully registerated
Send Request
Get interface
Login(user name,passward)
Successfully login
Send request
Get interface
View profile
Get reply
Store profile details
Fetch profile details
Search patient request for blood
Fetch patient request for blood
Give request for blood
logout
logout successfully
Patient Request for blood
Registration

29. Collaboration Diagram
Blood Bank
Management
Admin
Data Base
1.3 successfully reg.
2.3 successfully login
3.3 manage successfully
4.3 manage successfully
5.3 manage successfully
6.3 manage successfully
7.3 get reply
8.3 manage successfully
9.1 successfully logout
1.0
2.0 login user/password
3.0 manage blood bank
4.0 manage donor
5.0 manage req.patient
6.0 manage city/location
7.0 view feedback
8.0 manage inquiry
9.0 logout
1.1 check user details
2.1 check user/password
3.1 store blood bank details
4.1 store donor details
5.1 store req.patient details
6.1 store city/location details
7.1 store feedback details
8.1 store inquiry details
1.2 fetch user details
2.2 fetch user/password
3.2 fetch blood bank details
4.2fetch donor details
5.2 fetch req.patient details
6.2 fetch city/location details
7.2 fetch feedback details
8.2 fetch inquiry details
Admin:
Registration

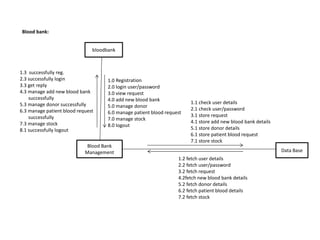

30. Blood Bank
Management
bloodbank
Data Base
1.3 successfully reg.
2.3 successfully login
3.3 get reply
4.3 manage add new blood bank
successfully
5.3 manage donor successfully
6.3 manage patient blood request
successfully
7.3 manage stock
8.1 successfully logout
1.0
2.0 login user/password
3.0 view request
4.0 add new blood bank
5.0 manage donor
6.0 manage patient blood request
7.0 manage stock
8.0 logout
1.1 check user details
2.1 check user/password
3.1 store request
4.1 store add new blood bank details
5.1 store donor details
6.1 store patient blood request
7.1 store stock
1.2 fetch user details
2.2 fetch user/password
3.2 fetch request
4.2fetch new blood bank details
5.2 fetch donor details
6.2 fetch patient blood details
7.2 fetch stock
Blood bank:
Registration

31. Blood Bank
Management
Donor
Data Base
1.3 successfully reg.
2.3 successfully login
3.3 get reply
4.3 successfully new blood donation
5.1 successfully logout
1.0
2.0 login user/password
3.0 view profile
4.0 make new Blood Donation
5.0 logout
1.1 check user details
2.1 check user/password
3.1 store profile details
4.1 store new blood details
1.2 fetch user details
2.2 fetch user/password
3.2 fetch profile details
4.2fetch new blood details
Donor :
Registration

32. Blood Bank
Management
patient
Data Base
1.3 successfully reg.
2.3 successfully login
3.3 get reply
4.3 give patient request for blood
5.1 successfully logout
1.0 Registration
2.0 login user/password
3.0 view profile
4.0 patient Request for blood
5.0 logout
1.1 check user details
2.1 check user/password
3.1 store profile details
4.1 Search patient request for blood
1.2 fetch user details
2.2 fetch user/password
3.2 fetch profile details
4.2fetch patient request for blood details
Patient :

33. Table Name: Usertype_mst
Field Name Data Type Size Constraints Description
U_id bigint 4 Primary key To store the user id
U_type nvarchar 50 NOT NULL To store the user type
Data Dictionary
Primary key:-u_id
Description:- This Table is store the user information

34. Field Name Data Type Size Constraints Description
State_id bigint 4 Primary key To store the state id
State name nvarchar 50 NOT NULL To store the state name
Table Name: State_mst
Primary key:-state id
Description:- This Table is store the states information

35. Field Name Data Type Size Constraints Description
city_id bigint 4 Primary key To store the city_id
state_id bigint 4 Foreign key References of the state
id from state_mst
city _name nvarchar 15 NOT NULL Reference of the city
name form city_mst
Table Name: City_mst
Primary key:-city id
Foreign key:-state_id
Description:- This Table is store cities information with states wise

36. Field Name Data Type Size Constraints Description
location_id bigint 4 Primary key To store the location id
City_id bigint 4 Foreign key Reference fo the city id
from city_mst
location _name nvarchar 50 NOT NULL To store the location
name
Table Name: Location_mst
Primary key:-location id
Foreign key:-city_id
Description:- This Table is store location information cities wise

37. Field Name Data Type Size Constraint Description
Reg_id Numeric 4 Primary key To store the reg_id
U_id Numeric 10 Foreign key References of the User_id from
usertype_mst
Name Nvarchar 50 NOT NULL To store the name
Cont_no nvarchar 10 NOT NULL To store the cont no
Address nvarchar 50 NOT NULL To store the address
State nvarchar 15 NOT NULL To store the state
City nvarchar 15 NOT NULL To store the city
Location nvarchar 15 NOT NULL To store the location
Pin-code nvarchar 10 NOT NULL To store the pin code
Email nvarchar 30 NOT NULL To store the email
Table Name: Registration
Primary key:-R_ id
Foreign key:-u_id
Description:- This Table is store user registration information
Co t…..

38. Birth date datetime NOT NULL To store the birthdate
Gender nvarchar 6 NOT NULL To store the gender
User_name nvarchar 20 Unique key To store the user name
Password nvarchar 20 NOT NULL To store the password
Security_que nvarchar 30 NOT NULL To store the security que
Answer nvarchar 15 NOT NULL To store the answer
Flag Bit 1 NOT NULL To store the flag
Co t…..

39. Field Name Data Type Size Constraint Description
b_id bigint 4 Primary Key To store the blood bank _id
reg_id bigint 4 Foreign key References of the
regstration_id from regstration
Bb_name nvarchar 10 NOT NULL To store the blood bank name
Loc_id bigint 4 Foreign key References the location id from
location_mst
City id bigint 4 Foreign key References of the city id from
city_mst
Contact no Numeric 12 NOT NULL To store the contact no
Status bit 1 NOT NULL To store the status
ddate datetime NOT NULL To store the donated date
Table Name: Bloodbank_mst
Primary key:-b_id
Foreign key:-Reg_id,loc_id,city_id
Description:- This Table is store blood bank information location and cities wise

40. Field Name Data Type Size Constraint Description
D_id bigint 4 Primary Key To store the donation id
Reg_id bigint 4 Foreign key References of the registration id
from registration
Name nvarchar 10 NOT NULL To store the name
b_id bigint 4 Foreign key References of the blood bank id
from bloodbank_mst
bgroup nvarchar 10 NOT NULL To store the blood group
Qty nvarchar 20 NOT NULL To store the qty
ddate datetime NOT NULL To store donated date
Table Name: Donation_mst
Primary key:-d_id
Foreign key:-Reg_id,bb_id
Description:- This Table is store donor information for blood bank wise

41. Field Name Data Type Size Constraint Description
br_id bigint 4 Primary Key To store the blood bank _id
Reg_id Bigint 4 Foreign Key To store regtraction id for
Patient
B_id Bigint 4 Foreign key To fetch blood bank id
Loc_id bigint 4 Foreign key References the location id from
location_mst
City id bigint 4 Foreign key References of the city id from
city_mst
Contact no Numeric 12 NOT NULL To store the contact no
bgroup nvarchar 10 NOT NULL To store the blood group
qty nvarchar 10 NOT NULL To store the qty
Status bit 1 NOT NULL To store the blood request
status for patient
D_date datetime NOT NULL To store the donate date
Table Name: Blood Request
Primary key:-br_id
Foreign key:-user_id,loc_id,city_id,b_id
Description:- This Table is use to store blood request information

42. Field Name Data Type Size Constraint Description
Inq_Id bigint 4 Primary key To store the id
Name nvarchar 20 NOT NULL To store the name
Inquiry nvarchar Max NOT NULL To store the inquiry
Address nvarchar 50 NOT NULL To store the address
Phone no nvarchar 20 NOT NULL To store the phone no
Email nvarchar 30 NOT NULL To store the email
Date Datetime NOT NULL To store the date
Flage bit 1 NOT NULL To store the flage
Table Name: inquiry _Form
Primary key:- inq_id
Description:- This Table to store inquiry information submitted for user and visitor

43. Field Name Data Type Size Constraints Description
fid bigint 4 Primary key To store the id
Name nvarchar 50 NOT NULL To store the name
Email nvarchar 50 NOT NULL To store the email
Feed back nvarchar max NOT NULL To store the feed back
Table Name: Feedback
Primary key:- fid
Description:- This Table to store feedback information

44. INPUT DESIGN

45. Home Page:
Description: This page for show home page information

46. About Us Page:
Description: This page for show about us information page

47. Registration Page:
Description: This page for user registration page

48. Registration validation page:
Description: This page for registration validation

49. Description: This page for fill the registration form

50. Inquiry Page:
Description: This page for store inquiry information

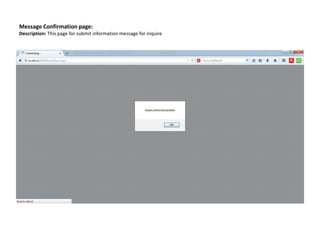

51. Message Confirmation page:
Description: This page for submit information message for inquire

52. Feedback Page:
Description: This page for feedback page show validation

53. Description: This page submit feedback information

54. Validation Page:
Description: Validation for feedback form

55. Admin Side Page:
Description: This page for admin login

56. Description: This page use for admin home

57. Description: This page show user type wise information

58. Description: This page show Donor user type wise information

59. Description: This page show patient user type wise information

60. Description: This page show blood bank user type wise information

61. Description: This page show message delete confirmation page for patient

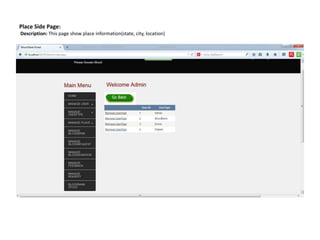

62. Place Side Page:
Description: This page show place information(state, city, location)

63. Description:This page show place information(state)

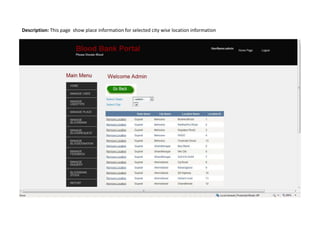

64. Description: This page show place information for selected state wise city information

65. Description: This page show place information for selected city wise location information

66. Description: This page submit information for selected city wise location information

67. Description: This page show place information(select state & city)

68. Description: This page use for manage for blood bank information

69. Description: This page show blood bank information delete confirmation message

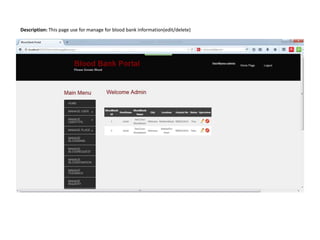

70. Description: This page show for manage for blood bank information(update)

71. Description: This page use for manage for blood bank information(edit/delete)

72. Description: This page use for manage for patient blood request(edit/delete)

73. Manage Blood Request:
Description: This page show blood request for patient confirmation page(patient request delete)

74. Description: This page use for blood request for patient confirmation page

75. Description: This page for blood request for patient confirmation page(update successfully)

76. Description: This page for Donor information

77. Description: This page show feedback information

78. Description: This page show inquiry information

79. Description: This page for Blood bank information in blood stock

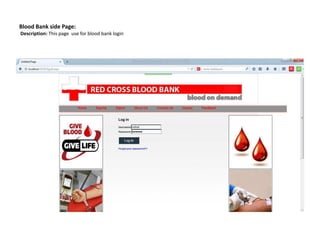

80. Blood Bank side Page:
Description: This page use for blood bank login

81. Description: This page show blood bank home information

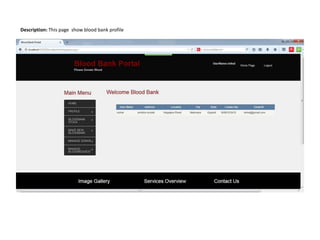

82. Description: This page show blood bank profile

83. Description: This page for show blood bank stock

84. Description: This page for add the new blood bank

85. Description: This page use for add the new blood bank

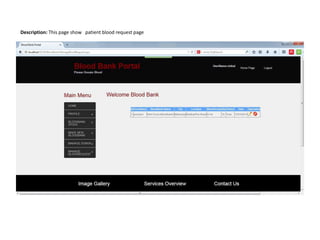

86. Description: This page show patient blood request page

87. Donor side page:
Description: This page for donor login

88. Description: This page show donor home

89. Description: This page show donor profile

90. Description: This page use for donor information page

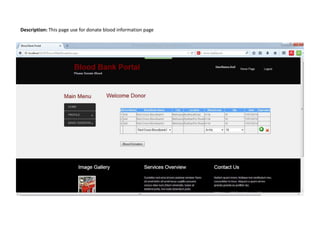

91. Description: This page use for donate blood information page

92. Patient Login Page:
Description: This page for patient login

93. Description: This page show the for patient home

94. Description: This page show for patient profile

95. Description: This page show new patient blood request

96. Description: This page use for show new patient blood request

97. Description: This page use for check blood availability

98. Output Design

99. Blood bank list:
Description: This page for blood bank list

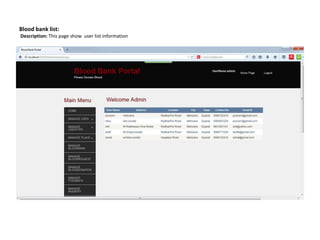

100. Blood bank list:
Description: This page show user list information

101. Donor list:
Description: This page show donor list information

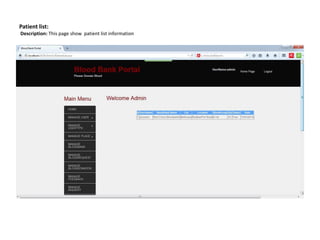

102. Patient list:
Description: This page show patient list information

103. Testing
No Test condition Expected Result Actual output Status
(pass, fail)
Test 1 Click on submit
button without user
name and password.
System does not allow
user to login.
System displays
message and resume
to the same page.
pass
Test 2 Click on submit
button with invalid
user name and or
password.
Message "please fill
up the username or
password
As expected. pass
Test 3 Click on submit
button with correct
user name add
password.
System allow user to
login.
System allow user to
access application
based on rights given
to him.
pass
Name :- User login module

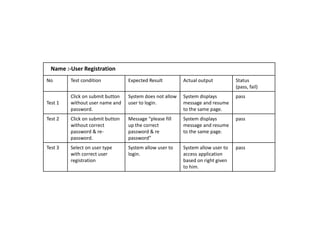

104. No Test condition Expected Result Actual output Status
(pass, fail)
Test 1
Click on submit button
without user name and
password.
System does not allow
user to login.
System displays
message and resume
to the same page.
pass
Test 2 Click on submit button
without correct
password & re-
password.
Message please fill
up the correct
password & re
password
System displays
message and resume
to the same page.
pass
Test 3 Select on user type
with correct user
registration
System allow user to
login.
System allow user to
access application
based on right given
to him.
pass
Name :-User Registration

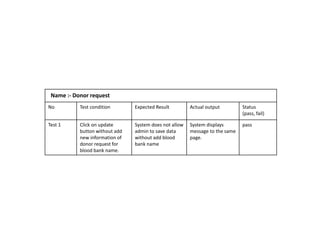

105. No Test condition Expected Result Actual output Status
(pass, fail)
Test 1 Click on update
button without add
new information of
blood bank name.
System does not allow
admin to save data
without add blood
bank information.
System displays
message to the same
page.
pass
Test 2 Click on edit button all
blood bank location
information.
Message update
successfully .
System allow admin
to add new category
information into the
system.
pass

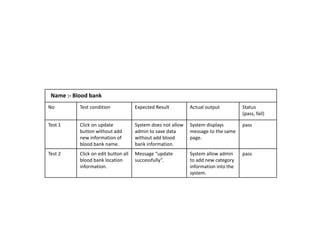

Name :- Blood bank

106. No Test condition Expected Result Actual output Status
(pass, fail)
Test 1 Click on update
button without add
new information of
request for blood
bank name
System does not allow
admin to save data
without add blood
bank name
System displays
message to the same
page.
pass
Name :- Blood request

107. No Test condition Expected Result Actual output Status
(pass, fail)
Test 1 Click on update
button without add
new information of
donor request for
blood bank name.
System does not allow
admin to save data
without add blood
bank name
System displays
message to the same
page.
pass
Name :- Donor request

108. No Test condition Expected Result Actual output Status
(pass, fail)
Test 1 Click on submit
button without name.
System does not allow
user name
System displays
message and resume
to the same page.
pass
Test 2 Click on submit
button with invalid
email id
Message "please fill
up their e ail id
As expected. pass
Test 3 Click on submit
button with require
Feedback message
System allow user to
feedback.
System allow user to
access application
based on rights given
to him.
pass

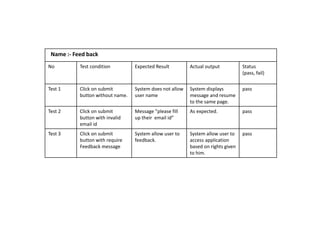

Name :- Feed back

109. No Test condition Expected Result Actual output Status
(pass, fail)
Test 1 Click on submit
button without name.
System does not allow
user to login.
System displays
message and resume
to the same page.
pass
Test 2 Click on submit
button with invalid
email id
Message "please fill
up the username or
password
As expected. pass
Test 3 Click on submit
button with correct
contact no
System allow user to
login.
System allow user to
access application
based on rights given
to him.
pass

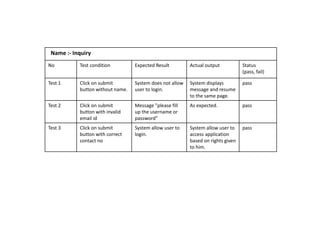

Name :- Inquiry

110. Post Implementation Review
• The important point that to keep during post implementation review is determining whether the
application has met its objective that is, analysts want to know if the performance level of users has
improved.
• It contain all information about the blood bank and also show the user can search by their blood
requirement.
• Reviews are taken until Application fulfills users requirement. After implementation it is easy to manage
the application and is easy to solve the difficulties. In this requirement are fulfill.
• And also it display blood bank list and all information.

111. FEATURE ENHANCEMENTS
• Through online directory user can search any blood bank data by location.
• User can also message module.
• User can see this website and search blood bank.
• This website can manage and create their own information.

112. BIBLIOGRAPHY
Reference Books and journal
• Asp.net4.0
• Asp.net 3.5 complete reference
Referring online manual from website
•www.codeproject.com
•www.tutorialpoints.com
•www.w3school.com
