- 1. Senior/Graduate HMA Course Asphalt Binders Background Historyof Specifications Asphalt Binders History and Background 1
- 2. Background First US HotMix Asphalt (HMA) constructed in 1870’s – Pennsylvania Ave. – Used naturally occurring asphalt binders from surface of lake on Island of Trinidad Two sources – Island of Trinadad – Bermudez, Venezuela

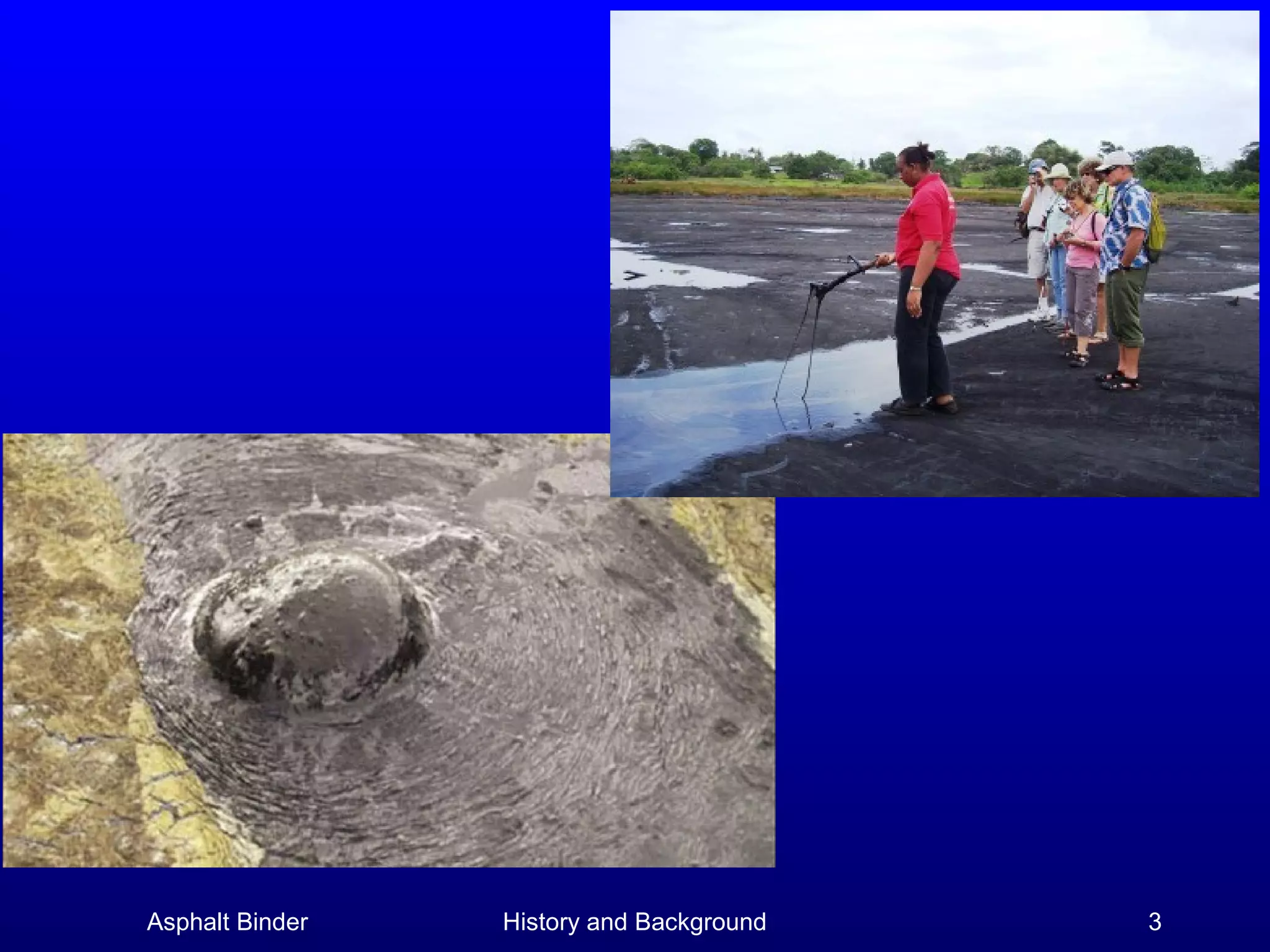

- 3. Asphalt Binder History andBackground 3

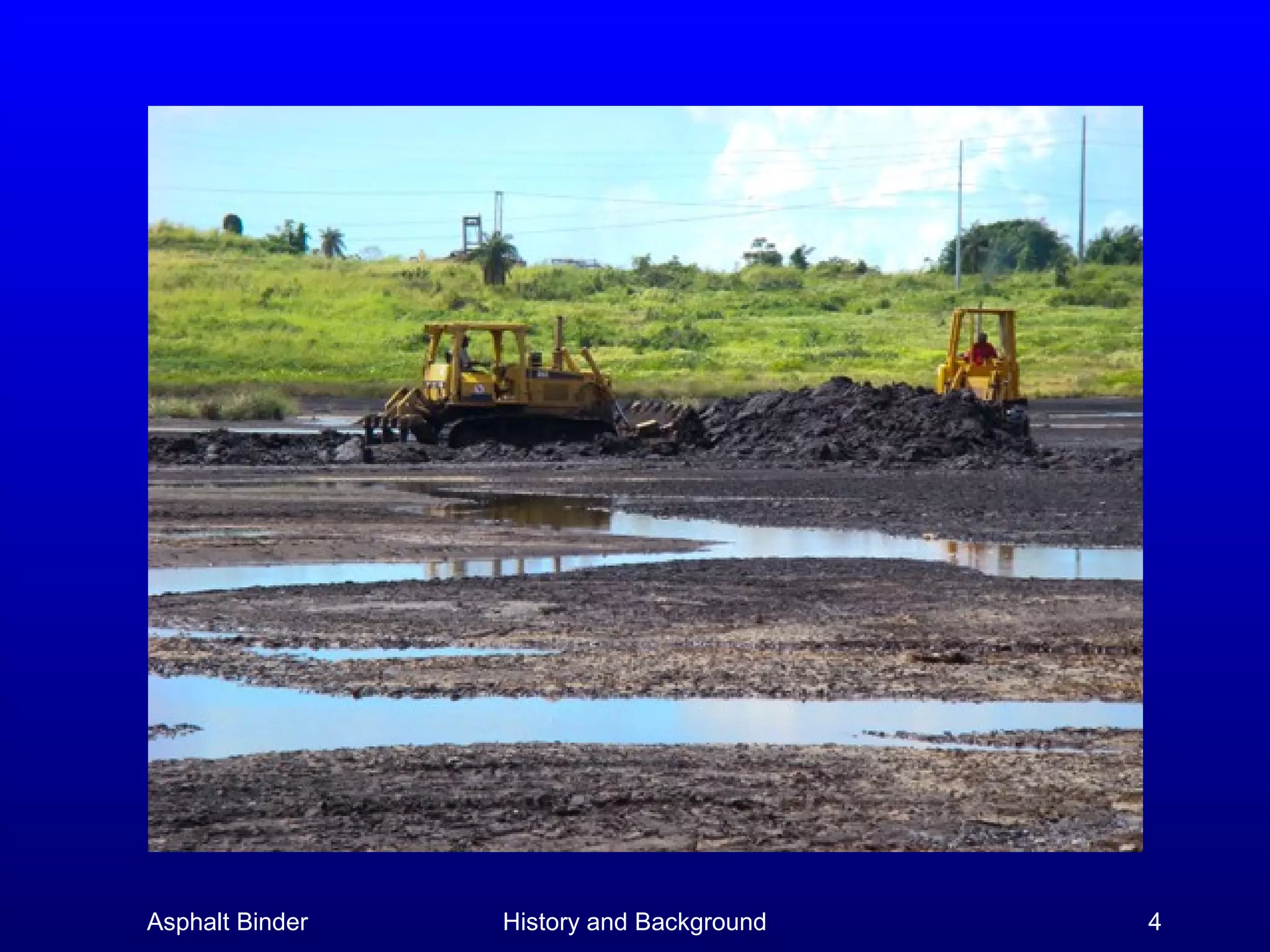

- 4. Asphalt Binder History andBackground 4

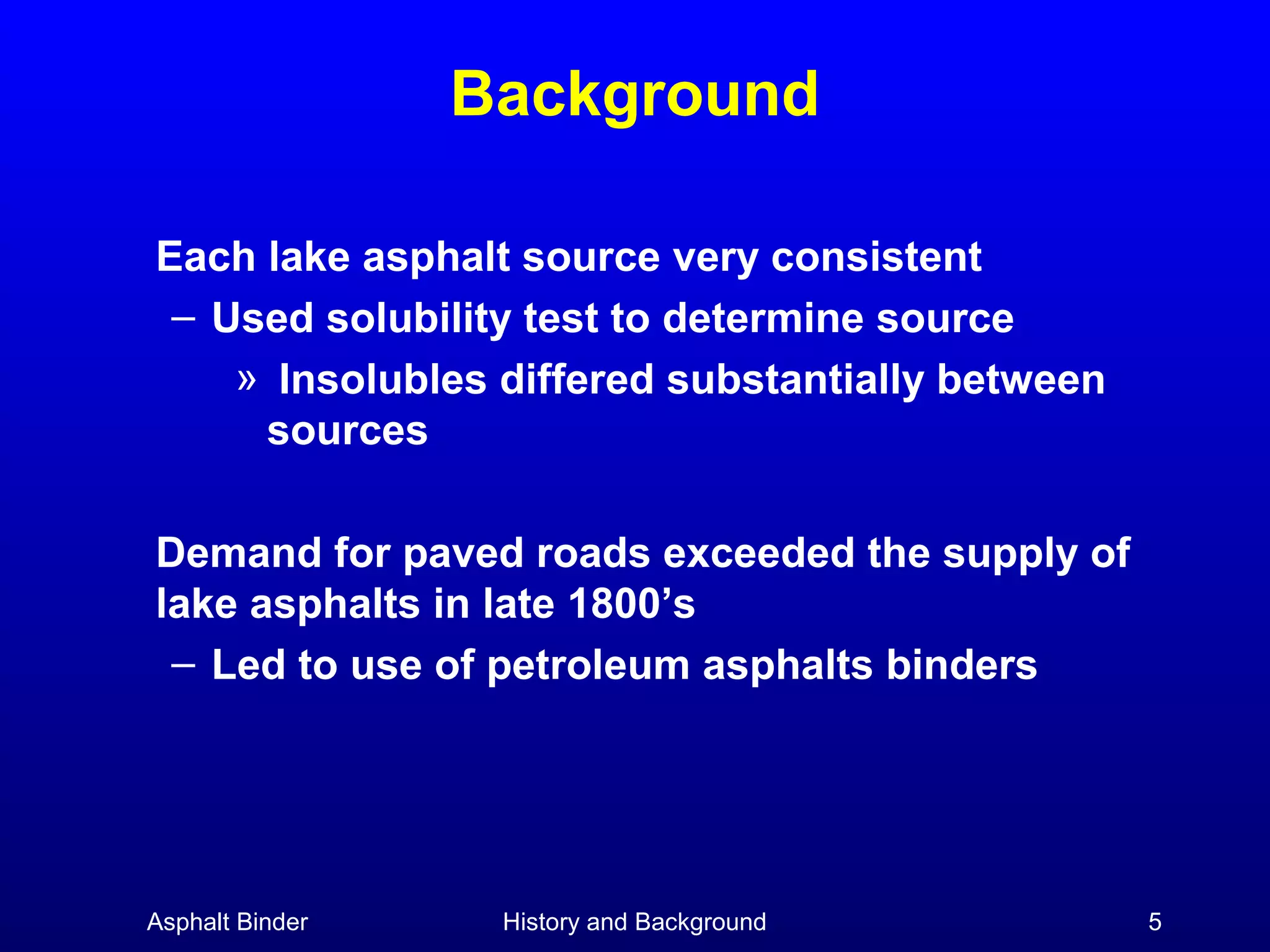

- 5. Background Each lake asphaltsource very consistent – Used solubility test to determine source » Insolubles differed substantially between sources Demand for paved roads exceeded the supply of lake asphalts in late 1800’s – Led to use of petroleum asphalts binders Asphalt Binder History and Background 5
- 6. Asphalt Binder History andBackground 6

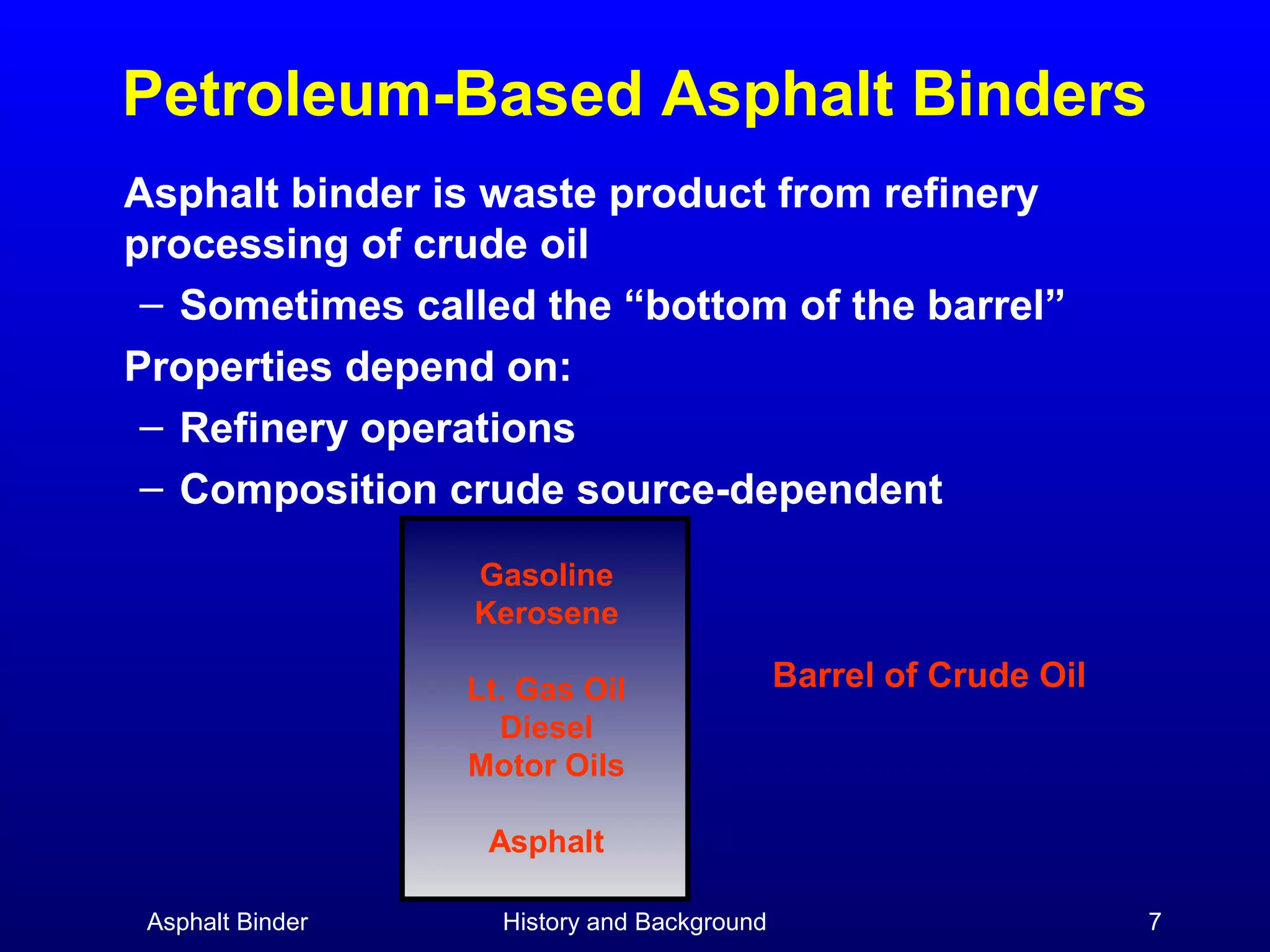

- 7. Petroleum-Based Asphalt Binders Asphaltbinder is waste product from refinery processing of crude oil – Sometimes called the “bottom of the barrel” Properties depend on: – Refinery operations – Composition crude source-dependent Gasoline Kerosene Lt. Gas Oil Diesel Motor Oils Barrel of Crude Oil Asphalt Asphalt Binder History and Background 7

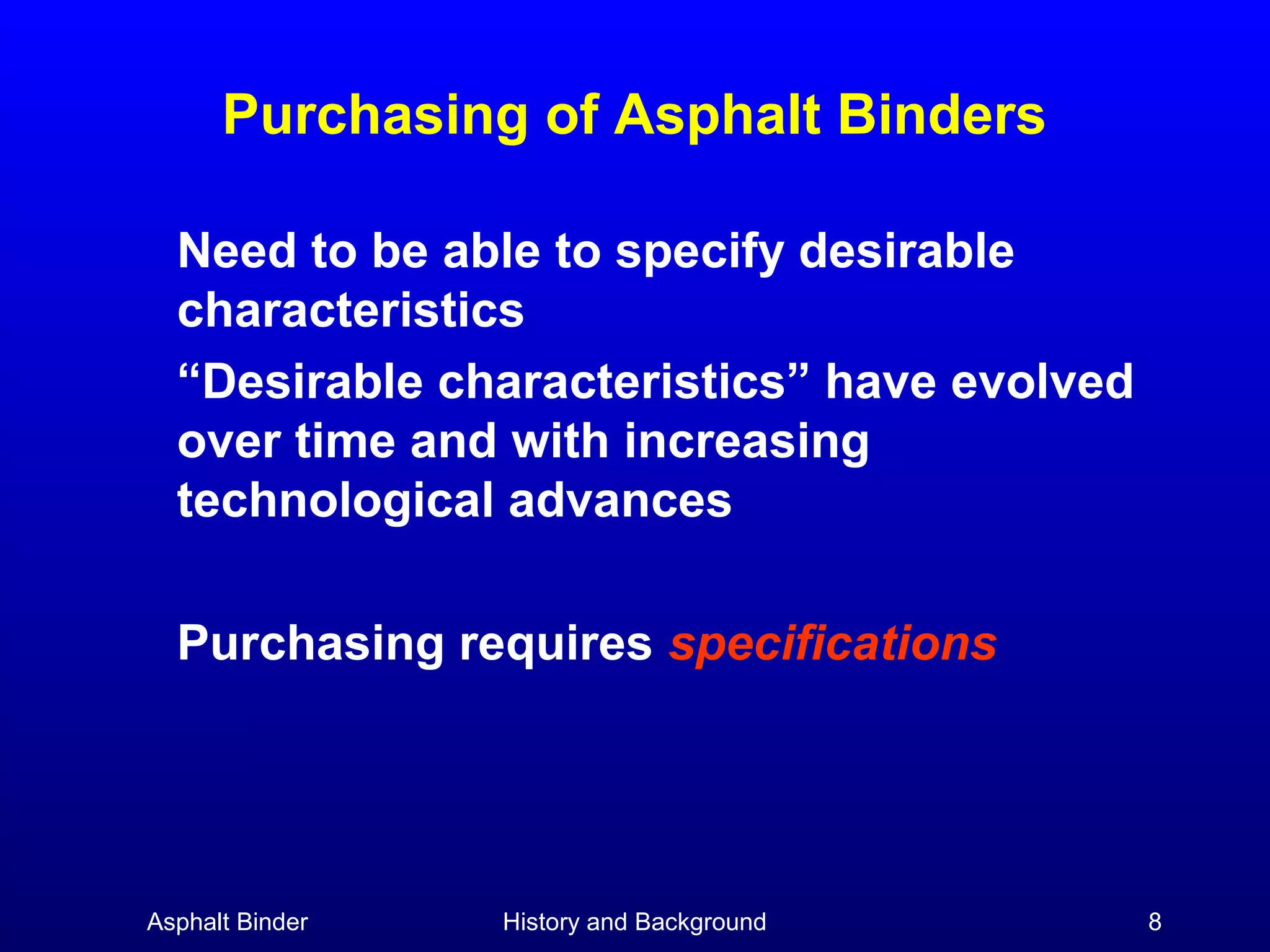

- 8. Purchasing of AsphaltBinders Need to be able to specify desirable characteristics “Desirable characteristics” have evolved over time and with increasing technological advances Purchasing requires specifications Asphalt Binder History and Background 8

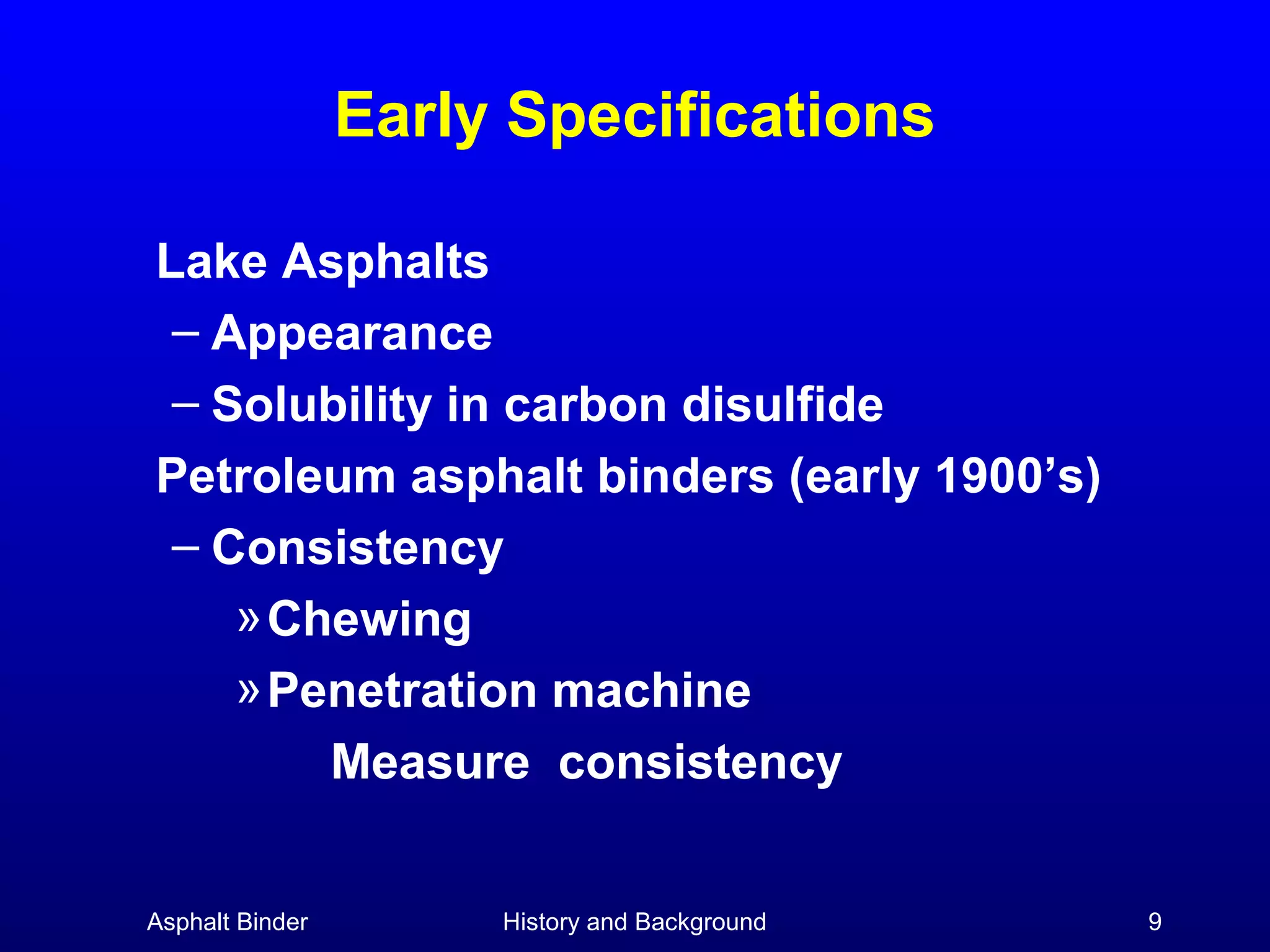

- 9. Early Specifications Lake Asphalts –Appearance – Solubility in carbon disulfide Petroleum asphalt binders (early 1900’s) – Consistency » Chewing » Penetration machine Measure consistency Asphalt Binder History and Background 9
- 10. Penetration Testing Sewing machineneedle Specified load, time, temperature 100 g Initial Penetration in 0.1 mm After 5 seconds

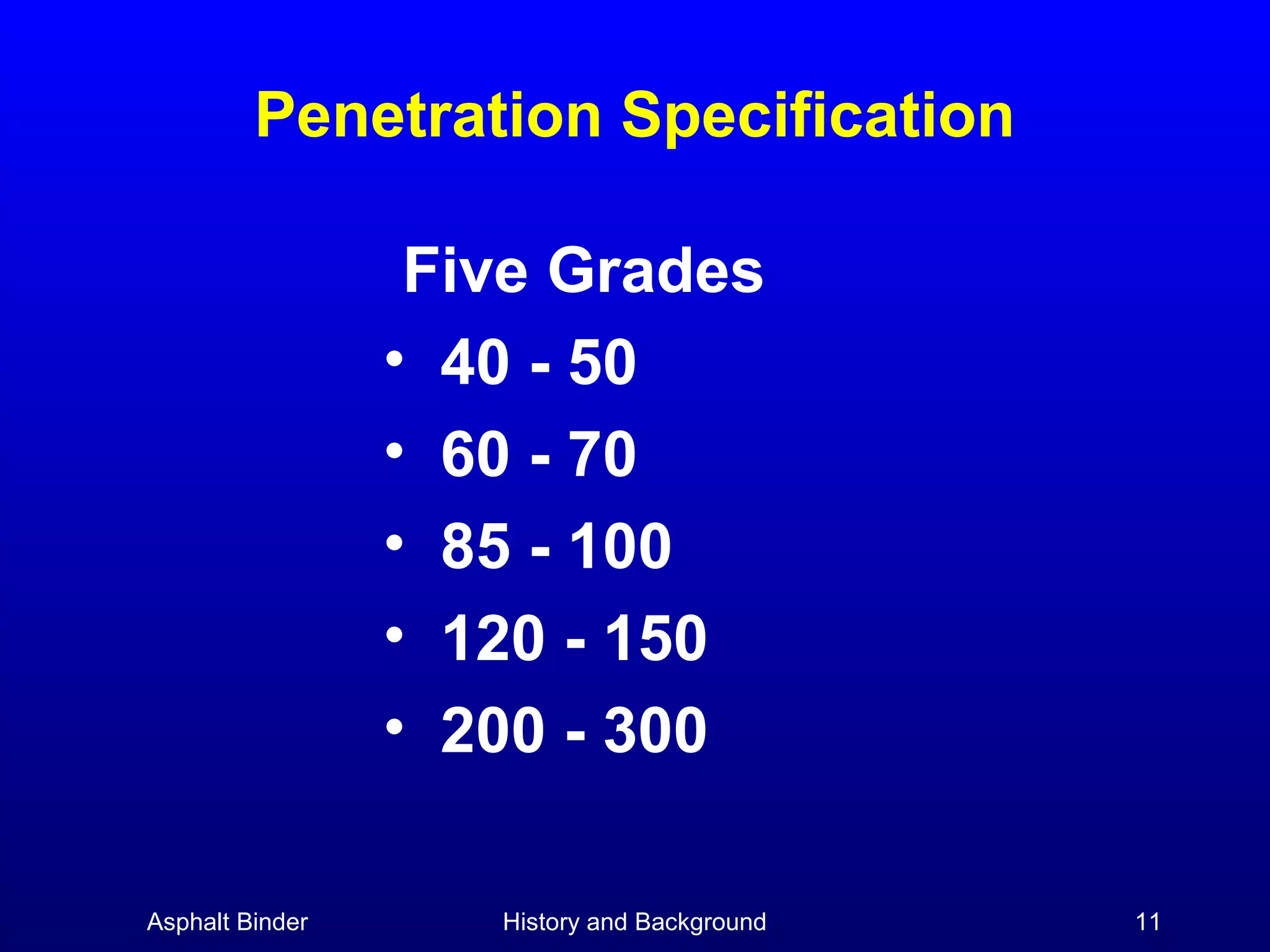

- 11. Penetration Specification Five Grades •40 - 50 • 60 - 70 • 85 - 100 • 120 - 150 • 200 - 300 Asphalt Binder History and Background 11

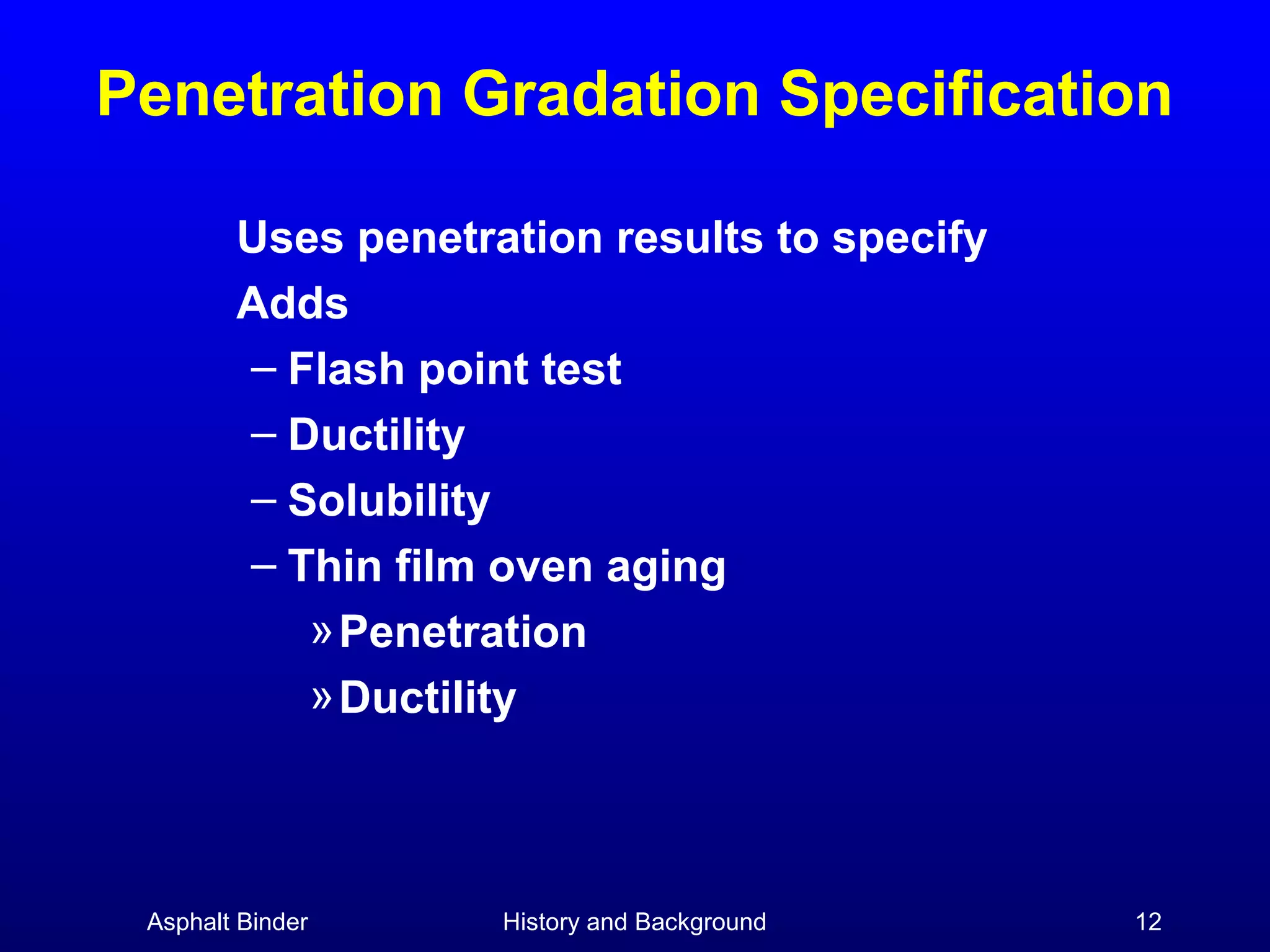

- 12. Penetration Gradation Specification Usespenetration results to specify Adds – Flash point test – Ductility – Solubility – Thin film oven aging » Penetration » Ductility Asphalt Binder History and Background 12

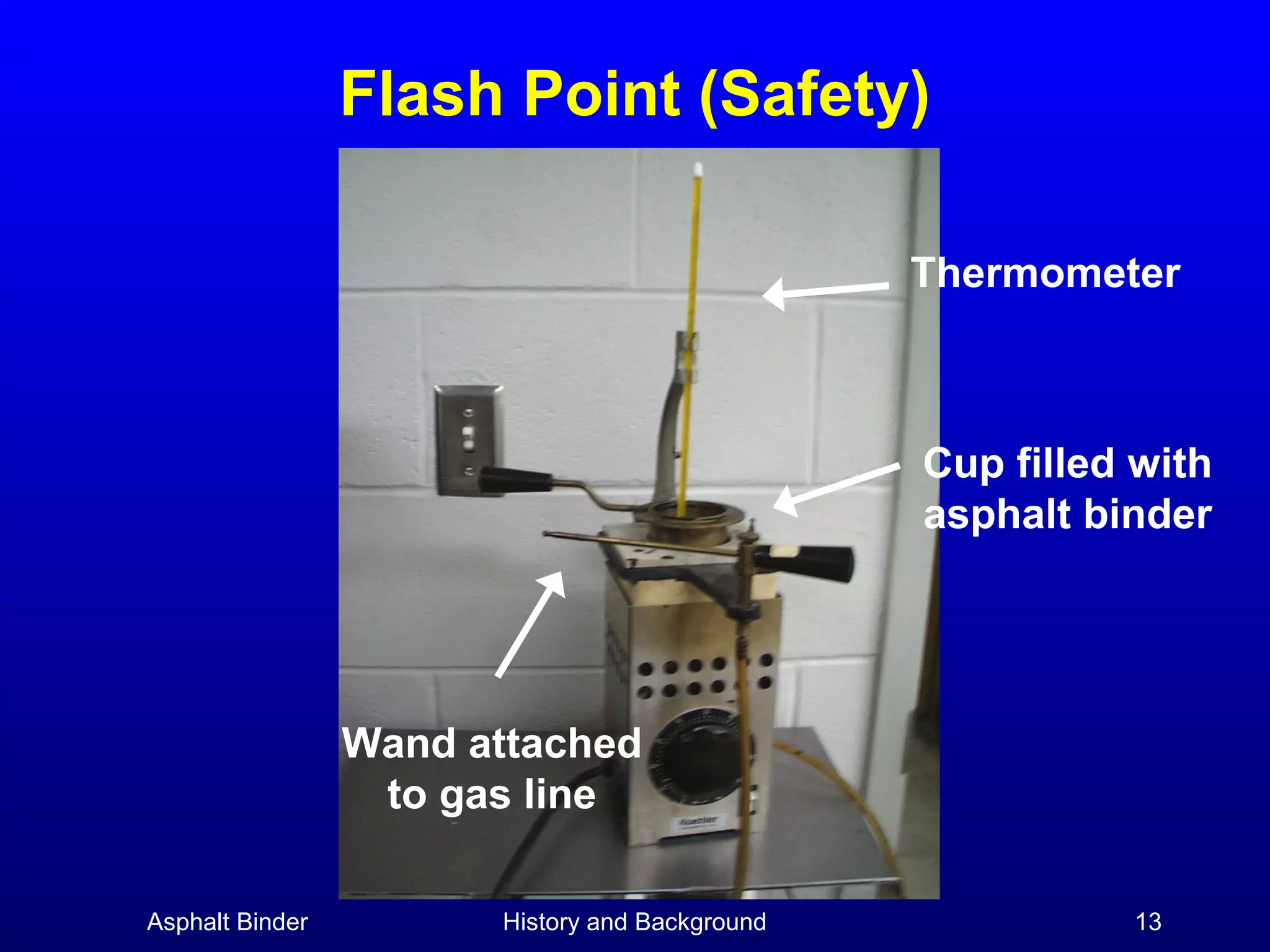

- 13. Flash Point (Safety) Thermometer Cupfilled with asphalt binder Wand attached to gas line Asphalt Binder History and Background 13

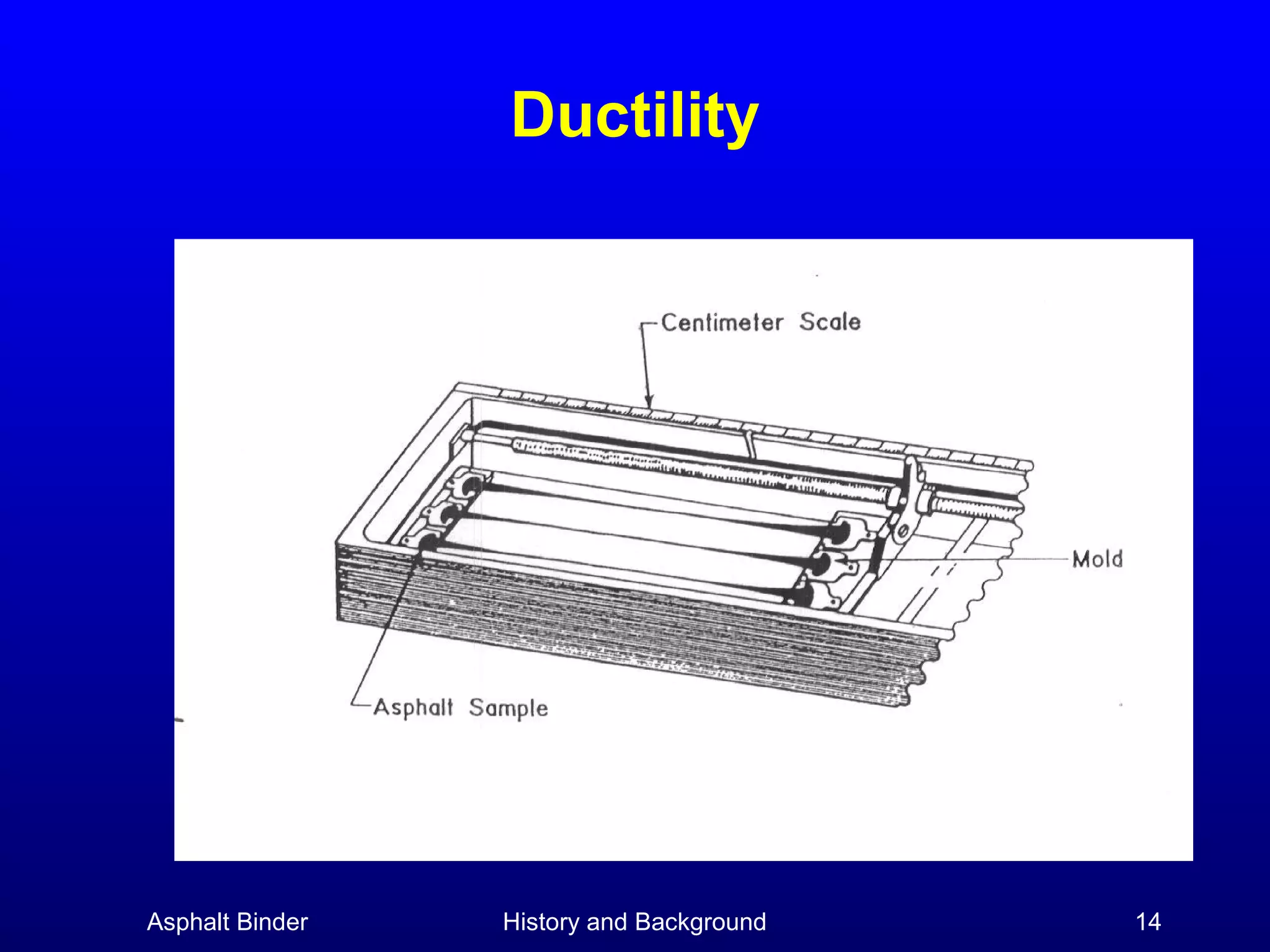

- 14. Ductility Asphalt Binder History andBackground 14

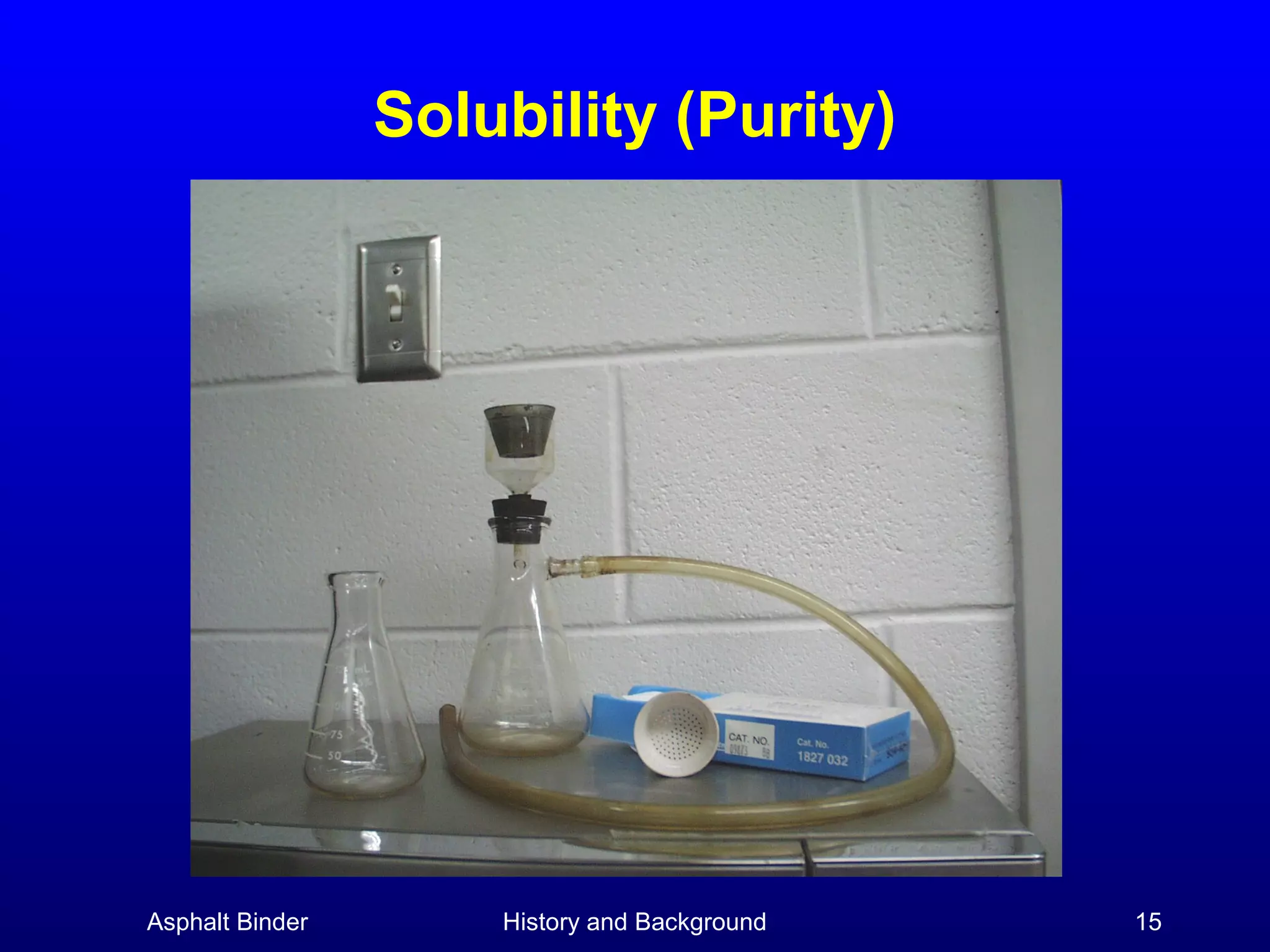

- 15. Solubility (Purity) Asphalt Binder Historyand Background 15

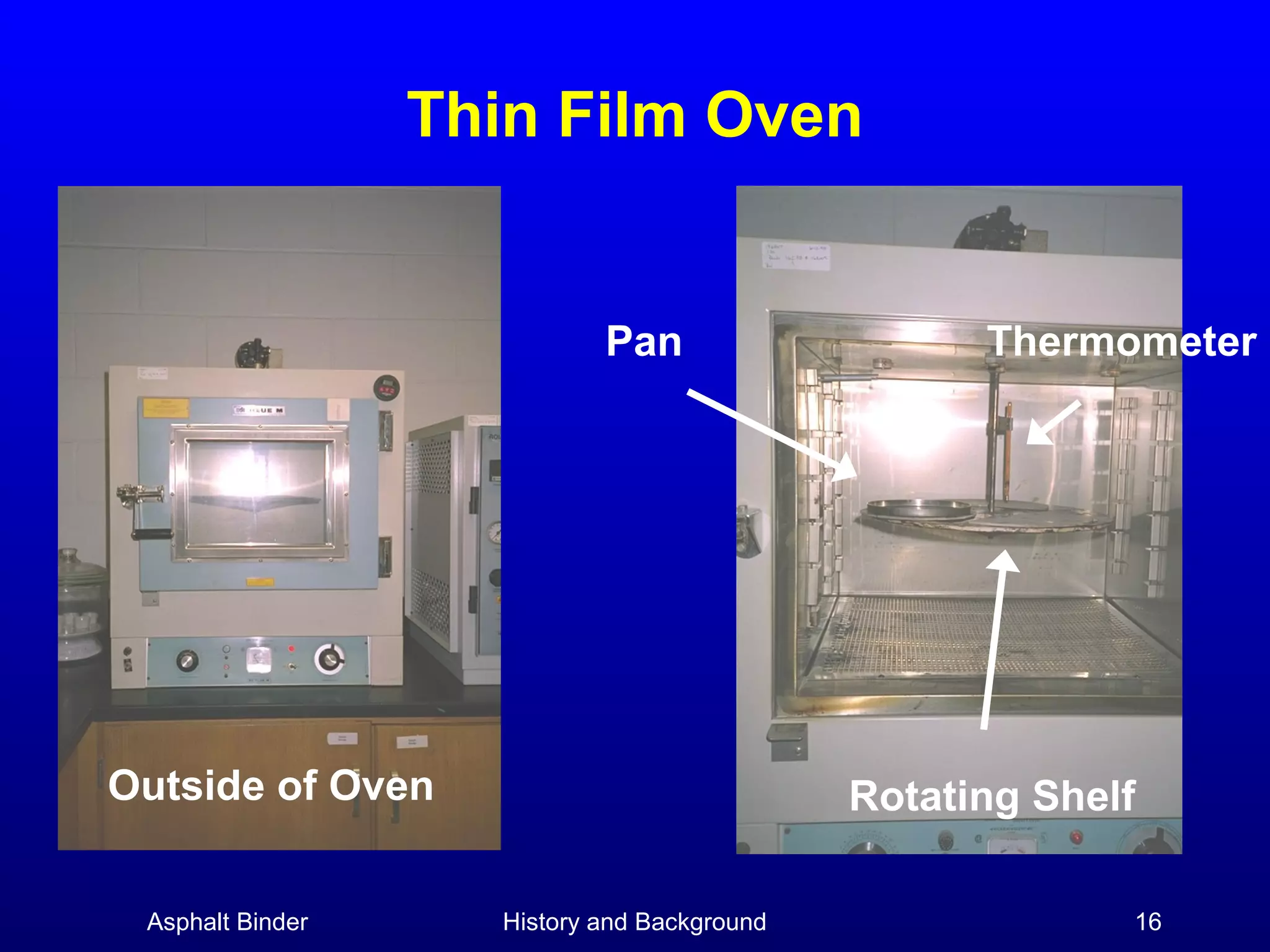

- 16. Thin Film Oven Pan Outsideof Oven Asphalt Binder Thermometer Rotating Shelf History and Background 16

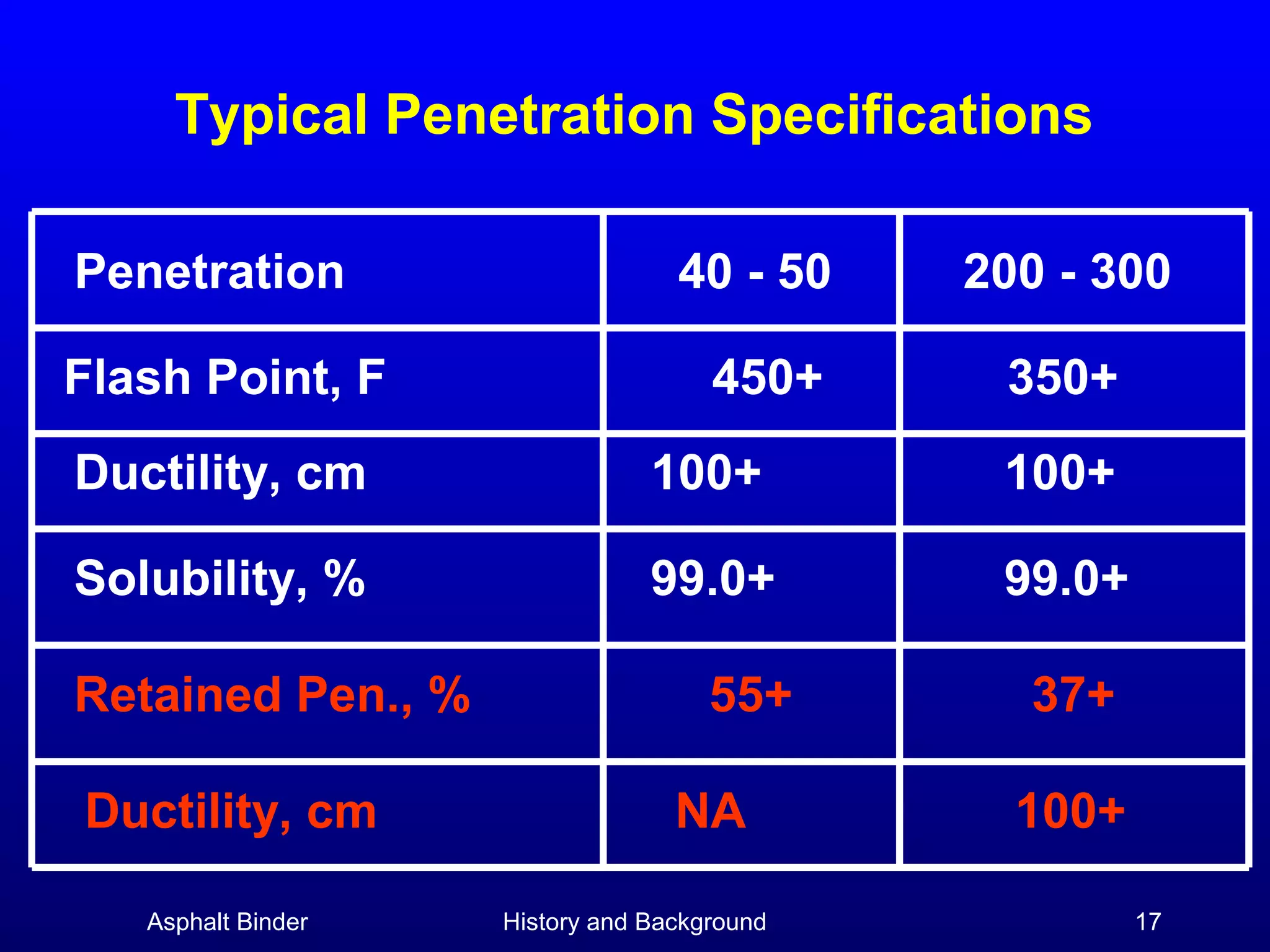

- 17. Typical Penetration Specifications Penetration FlashPoint, F 40 - 50 200 - 300 450+ 350+ Ductility, cm 100+ 100+ Solubility, % 99.0+ 99.0+ Retained Pen., % Ductility, cm Asphalt Binder 55+ NA History and Background 37+ 100+ 17

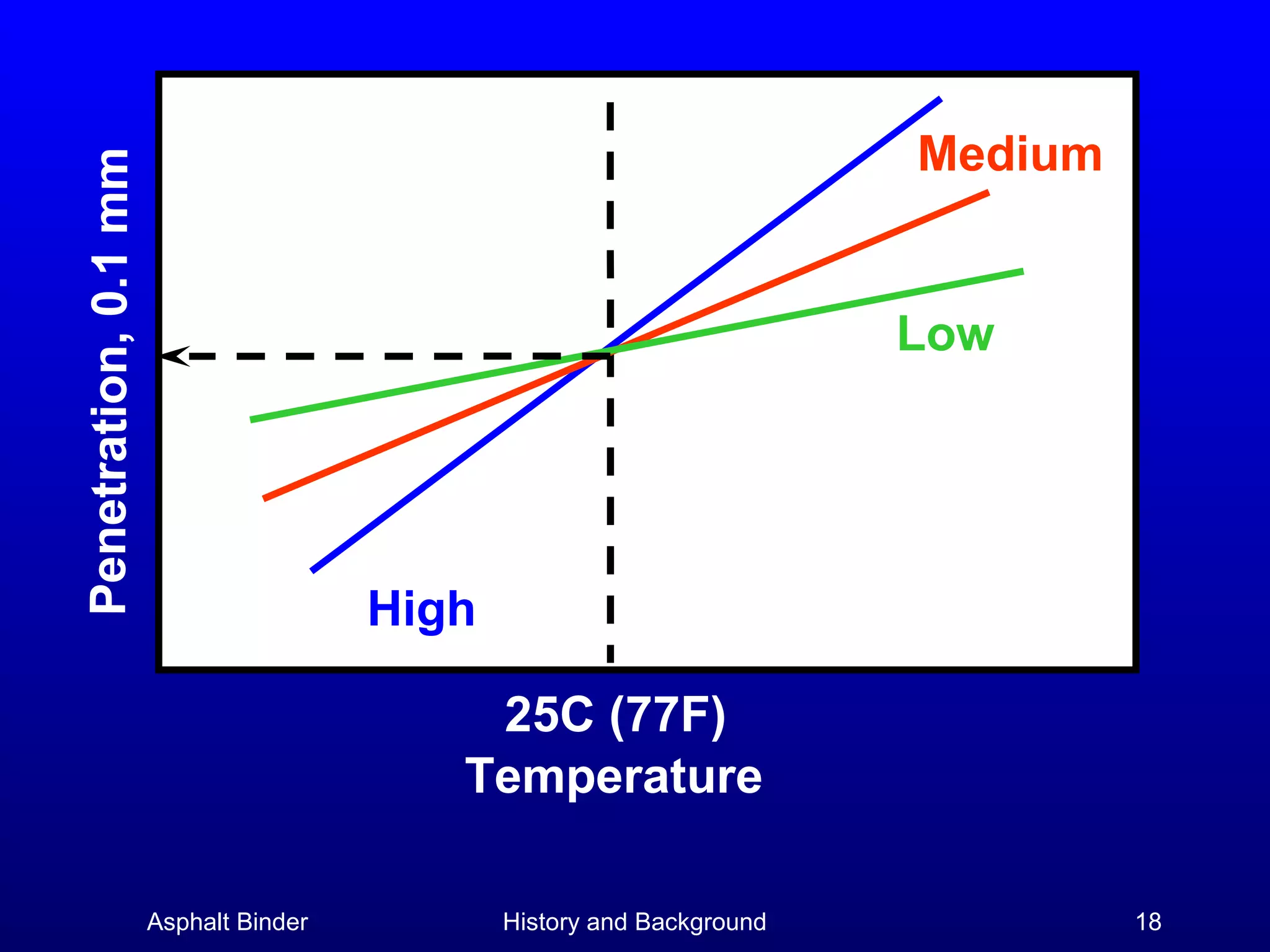

- 18. Penetration, 0.1 mm Medium Low High 25C(77F) Temperature Asphalt Binder History and Background 18

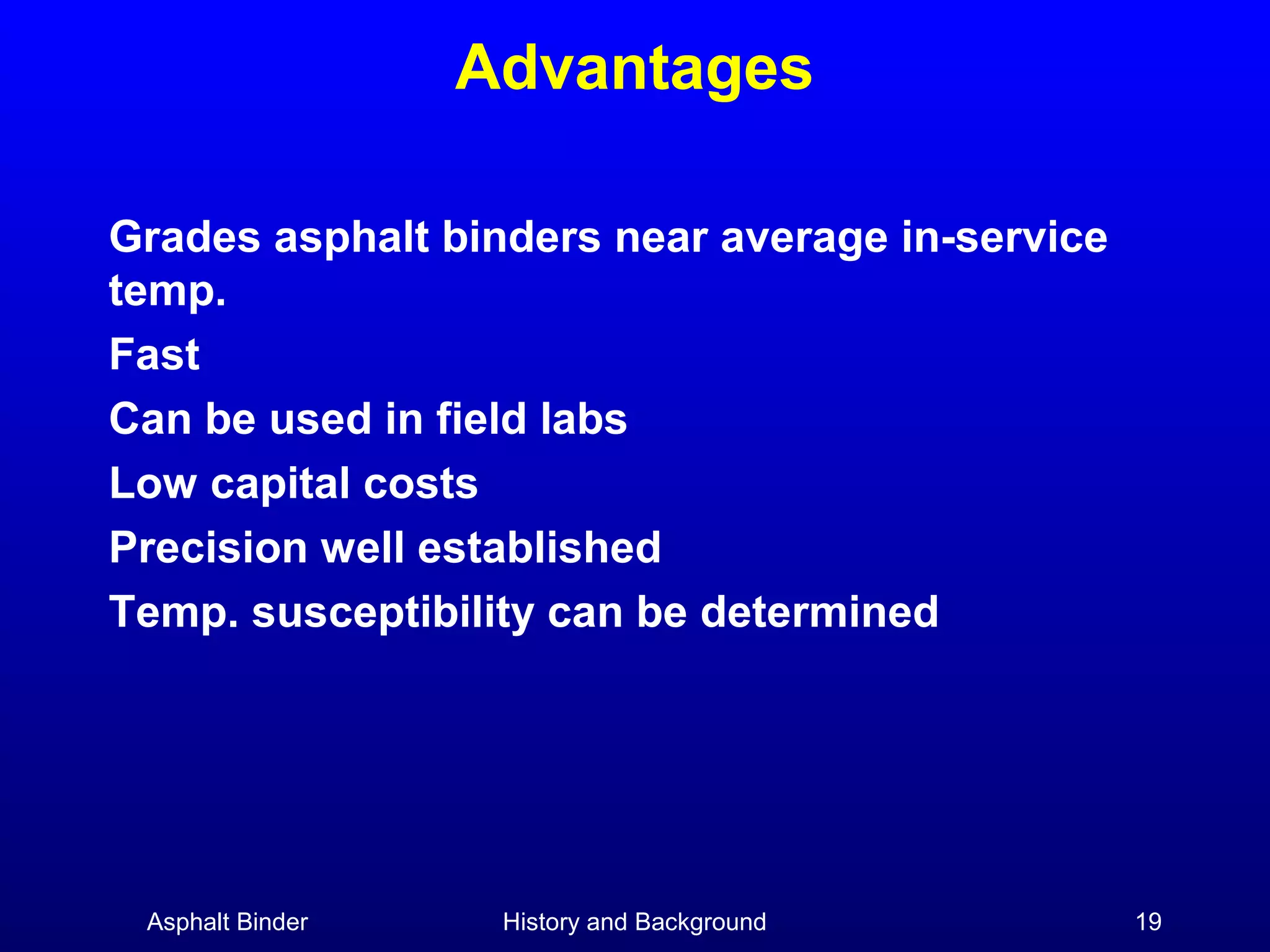

- 19. Advantages Grades asphalt bindersnear average in-service temp. Fast Can be used in field labs Low capital costs Precision well established Temp. susceptibility can be determined Asphalt Binder History and Background 19

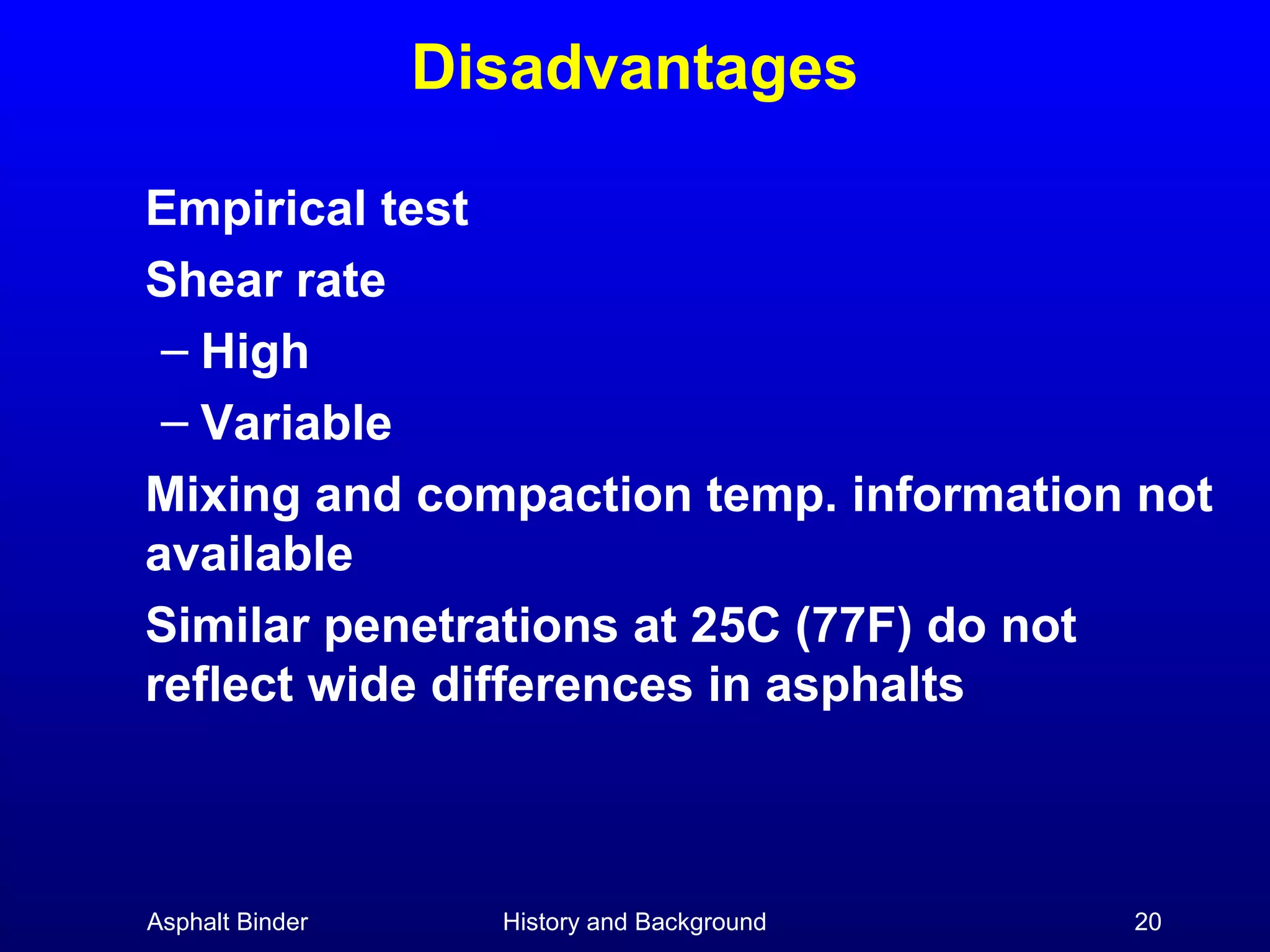

- 20. Disadvantages Empirical test Shear rate –High – Variable Mixing and compaction temp. information not available Similar penetrations at 25C (77F) do not reflect wide differences in asphalts Asphalt Binder History and Background 20
- 21. Viscosity Graded Specifications AsphaltBinder History and Background 21

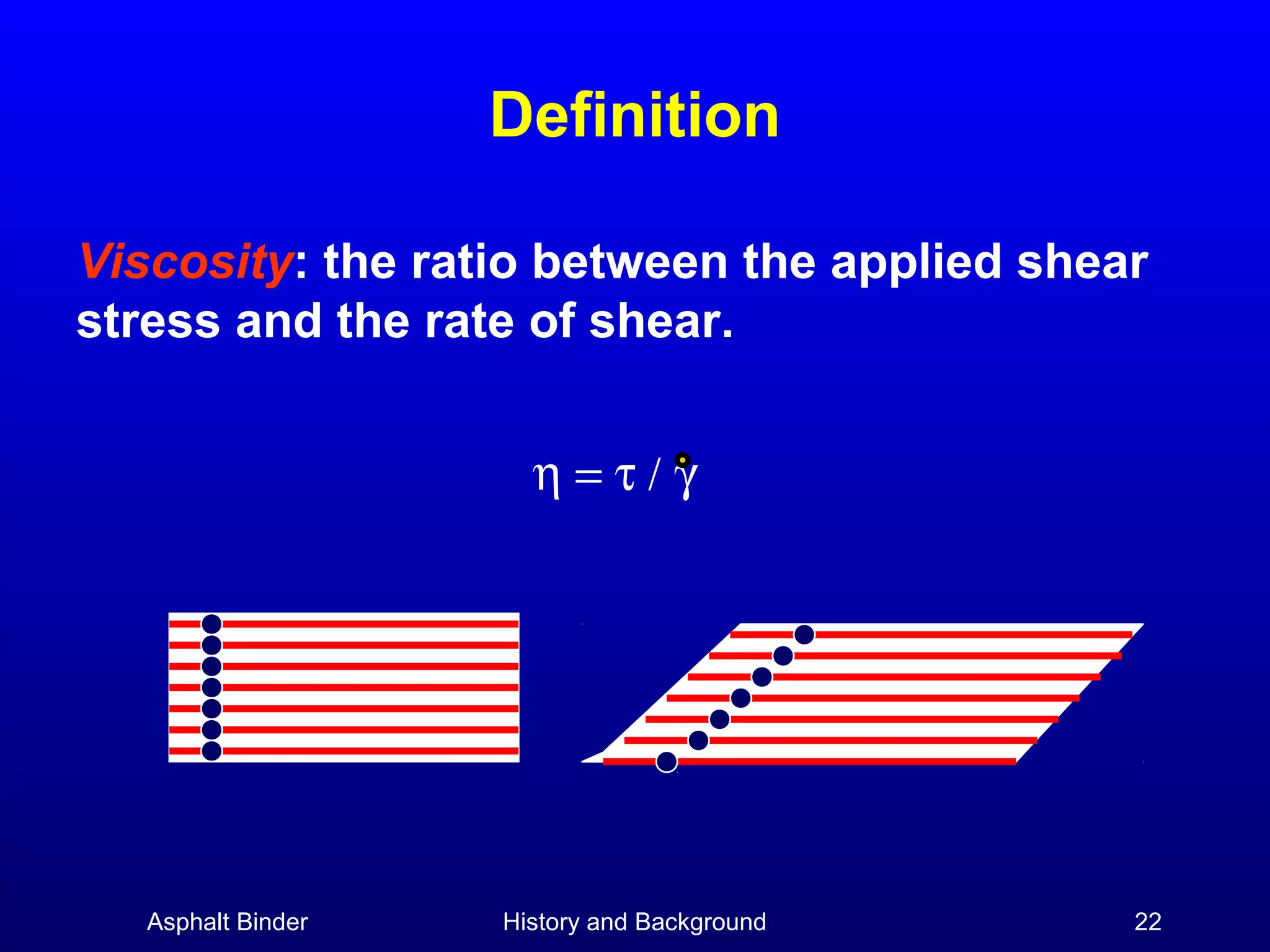

- 22. Definition Viscosity: the ratiobetween the applied shear stress and the rate of shear. η=τ/γ Asphalt Binder History and Background 22

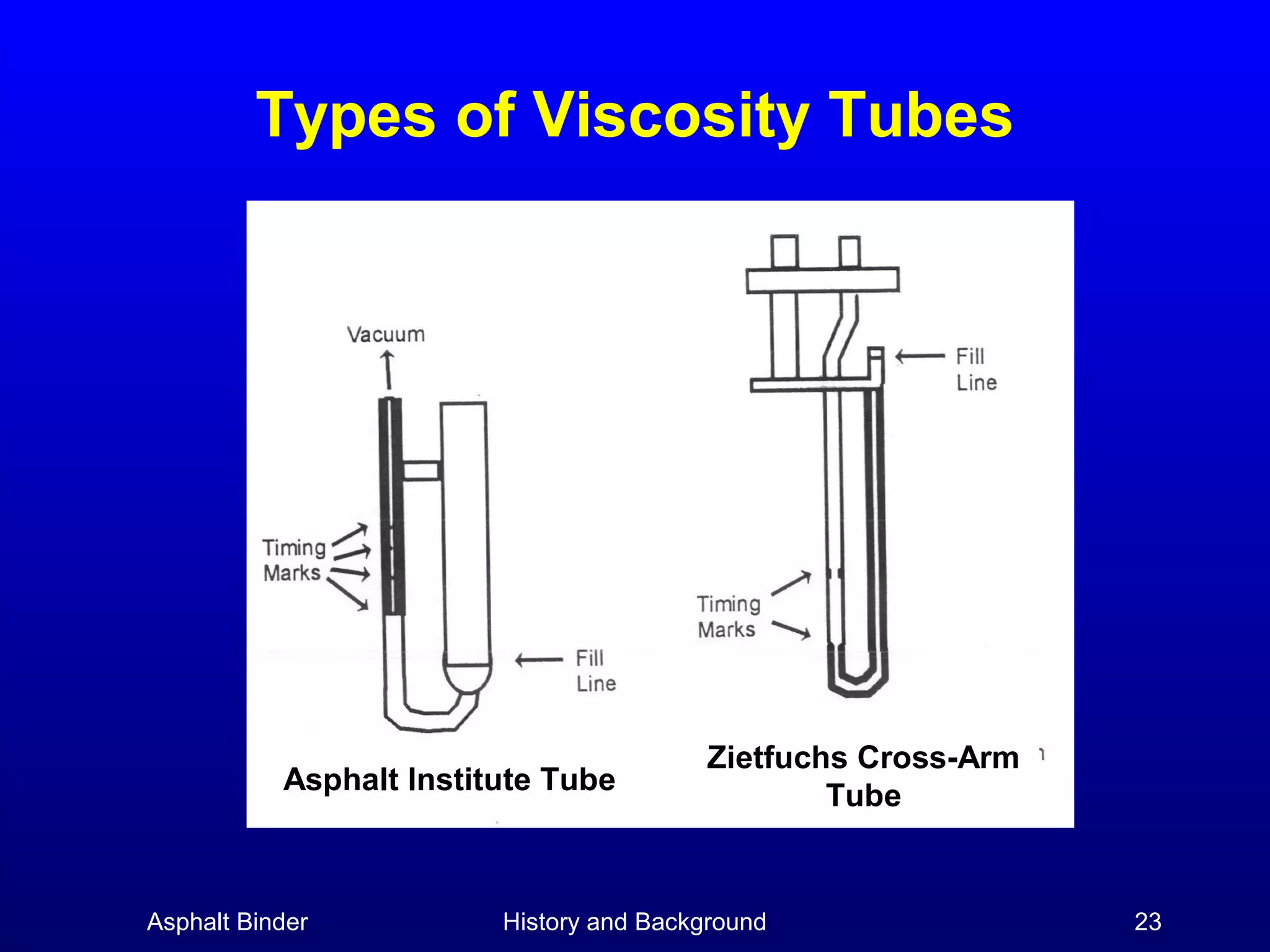

- 23. Types of ViscosityTubes Asphalt Institute Tube Asphalt Binder Zietfuchs Cross-Arm Tube History and Background 23

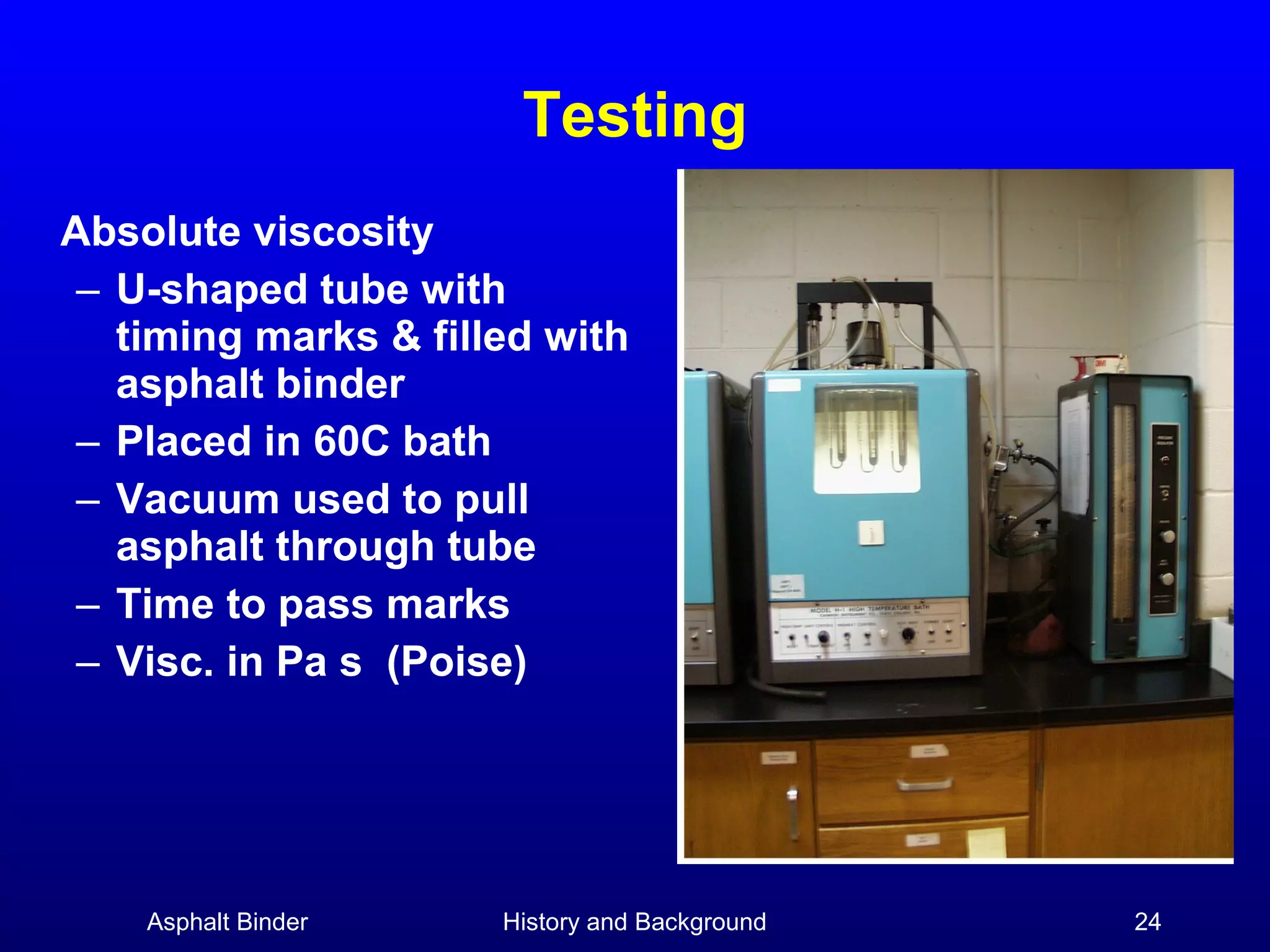

- 24. Testing Absolute viscosity – U-shapedtube with timing marks & filled with asphalt binder – Placed in 60C bath – Vacuum used to pull asphalt through tube – Time to pass marks – Visc. in Pa s (Poise) Asphalt Binder History and Background 24

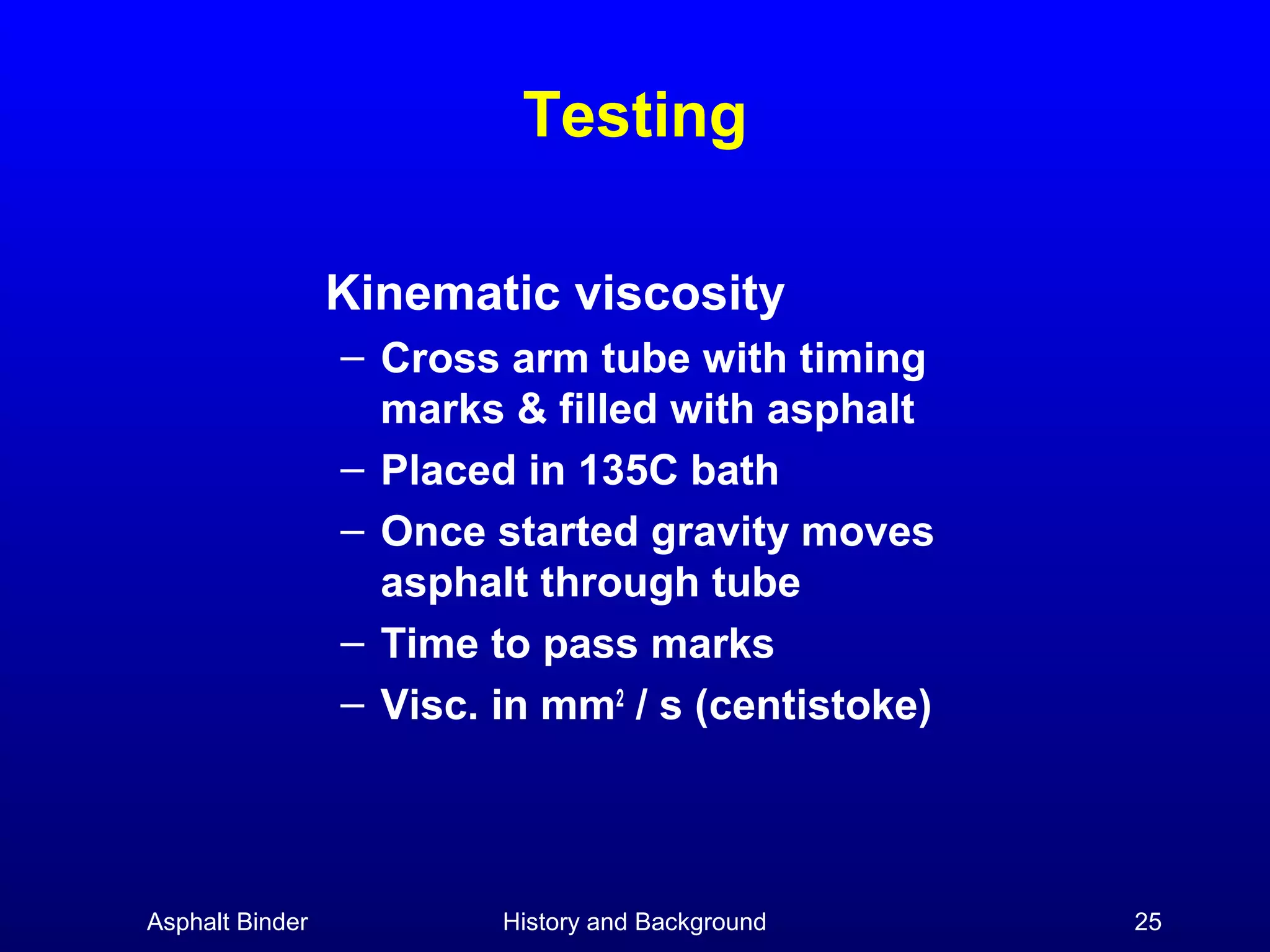

- 25. Testing Kinematic viscosity – Crossarm tube with timing marks & filled with asphalt – Placed in 135C bath – Once started gravity moves asphalt through tube – Time to pass marks – Visc. in mm2 / s (centistoke) Asphalt Binder History and Background 25

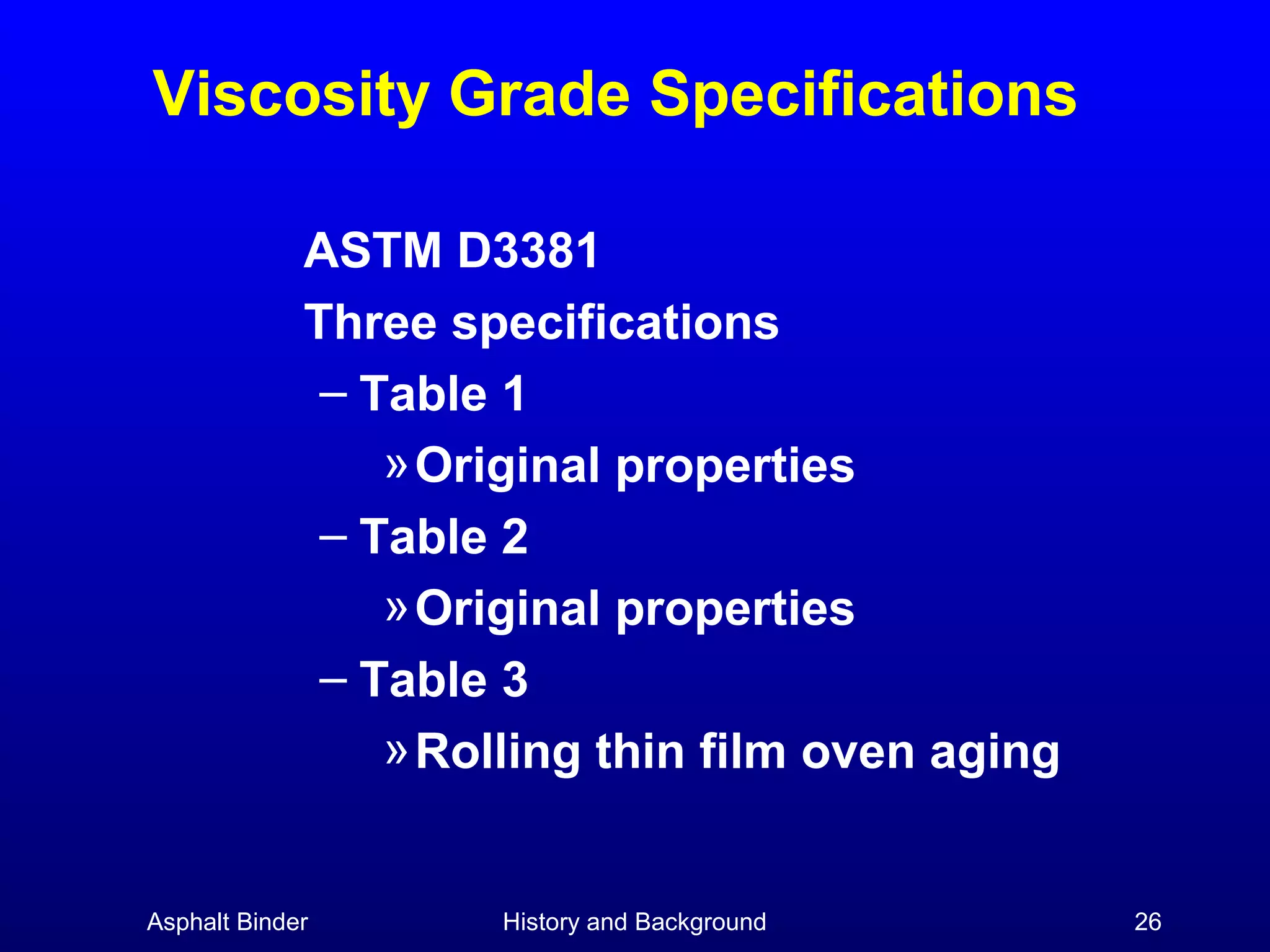

- 26. Viscosity Grade Specifications ASTMD3381 Three specifications – Table 1 » Original properties – Table 2 » Original properties – Table 3 » Rolling thin film oven aging Asphalt Binder History and Background 26

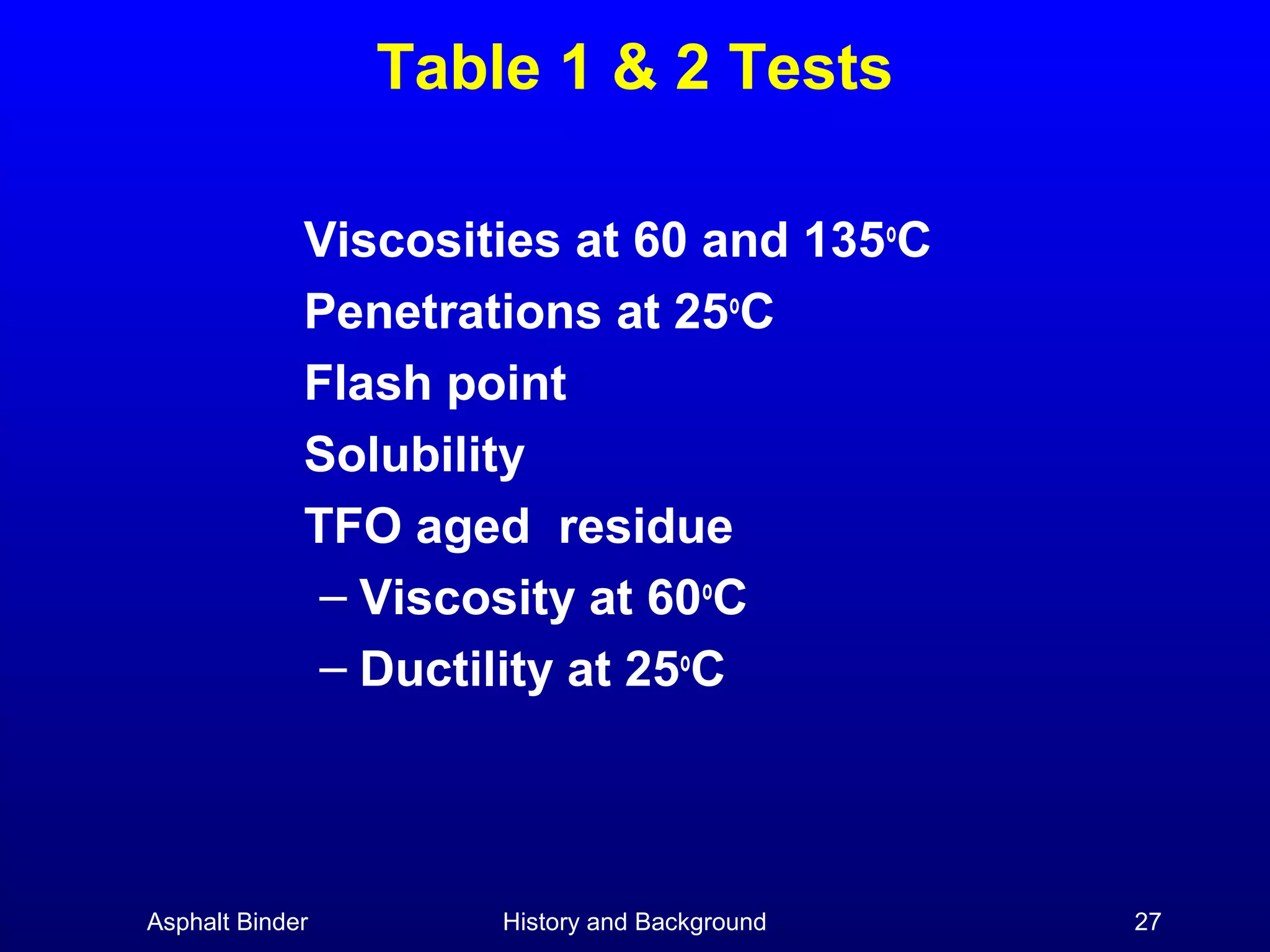

- 27. Table 1 &2 Tests Viscosities at 60 and 135oC Penetrations at 25oC Flash point Solubility TFO aged residue – Viscosity at 60oC – Ductility at 25oC Asphalt Binder History and Background 27

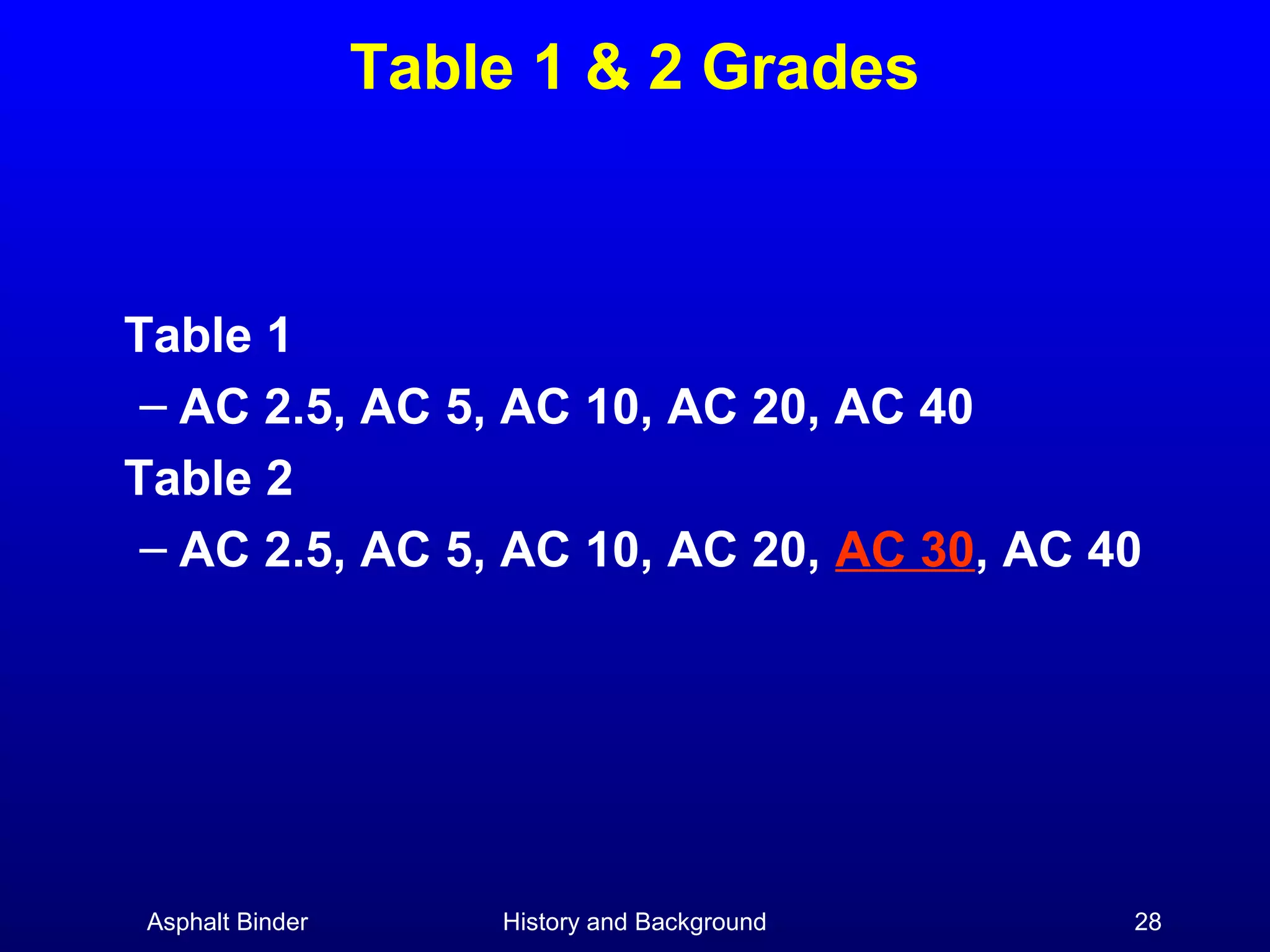

- 28. Table 1 &2 Grades Table 1 – AC 2.5, AC 5, AC 10, AC 20, AC 40 Table 2 – AC 2.5, AC 5, AC 10, AC 20, AC 30, AC 40 Asphalt Binder History and Background 28
- 29. Table 1 Example AC2.5 Visc, 60C 250 + 50 Visc, 135C 80+ Penetration 200+ Visc, 60C <1,250 Ductility 100+ Asphalt Binder History and Background AC 40 4,000 + 800 300+ 20+ <20,000 10+ 29

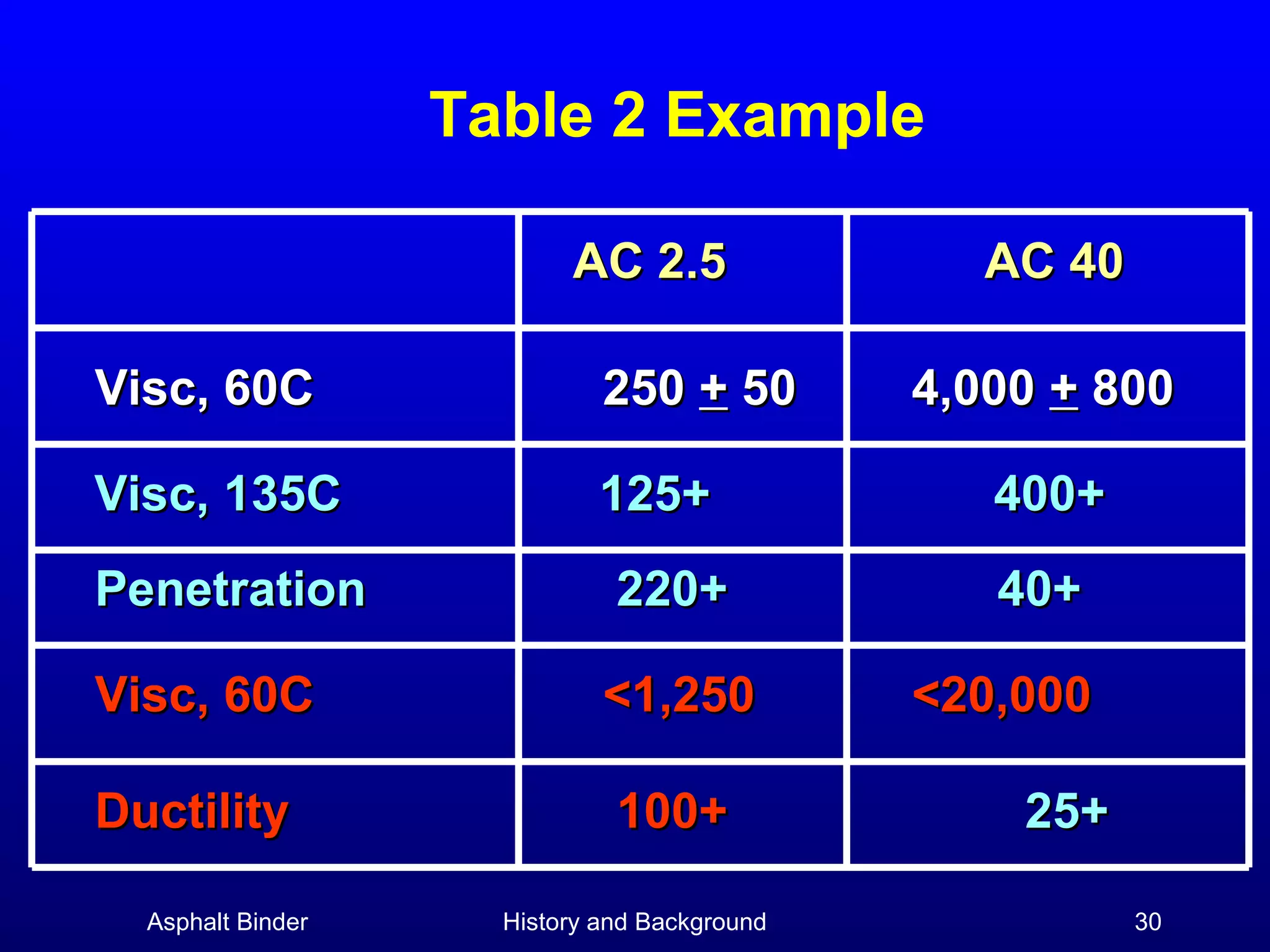

- 30. Table 2 Example AC2.5 Visc, 60C 250 + 50 Visc, 135C 125+ Penetration 220+ Visc, 60C <1,250 Ductility 100+ Asphalt Binder History and Background AC 40 4,000 + 800 400+ 40+ <20,000 25+ 30

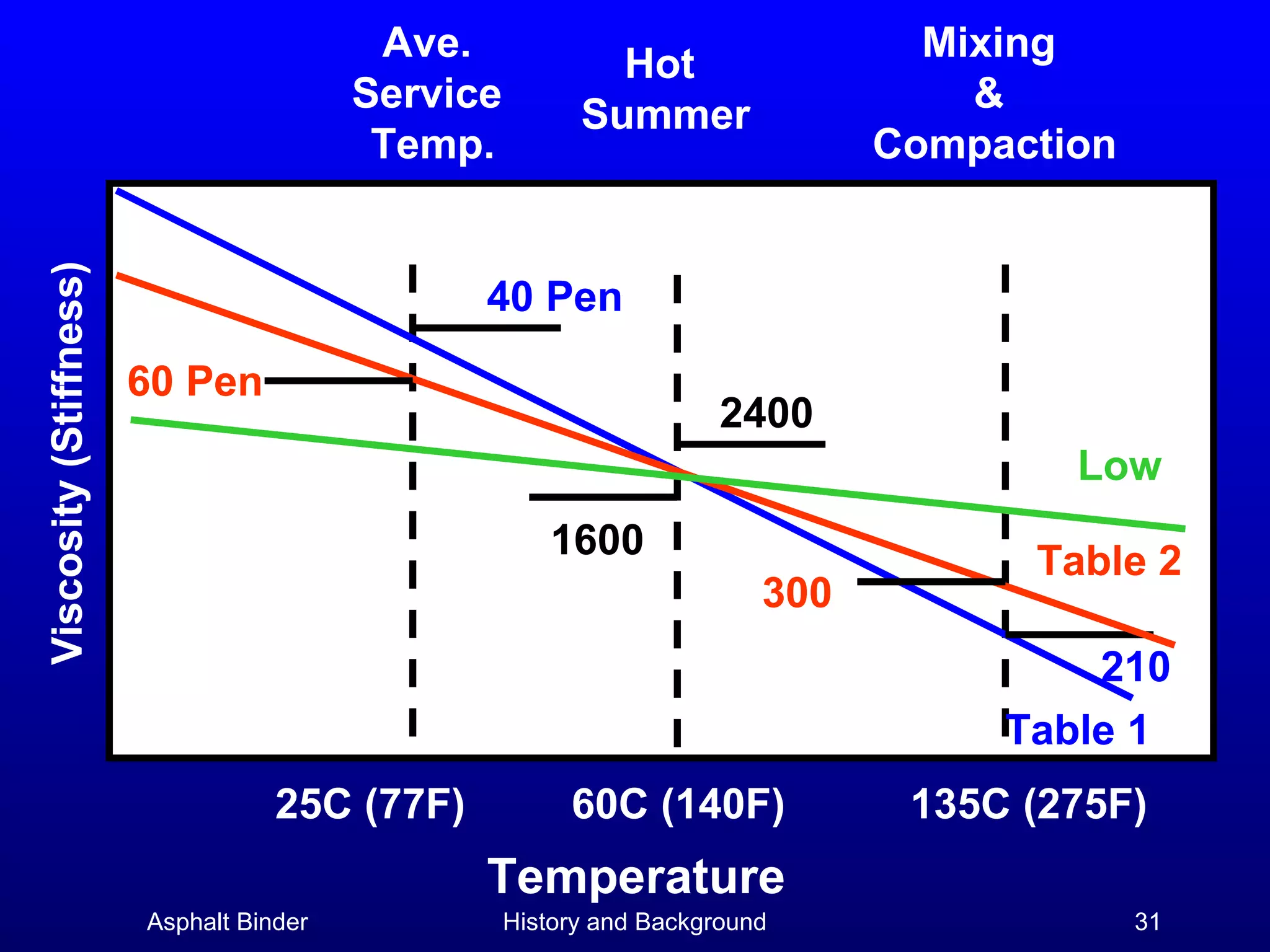

- 31. Viscosity (Stiffness) Ave. Service Temp. Mixing & Compaction Hot Summer 40 Pen 60Pen 2400 Low 1600 300 Table 2 210 Table 1 25C (77F) 60C (140F) 135C (275F) Temperature Asphalt Binder History and Background 31

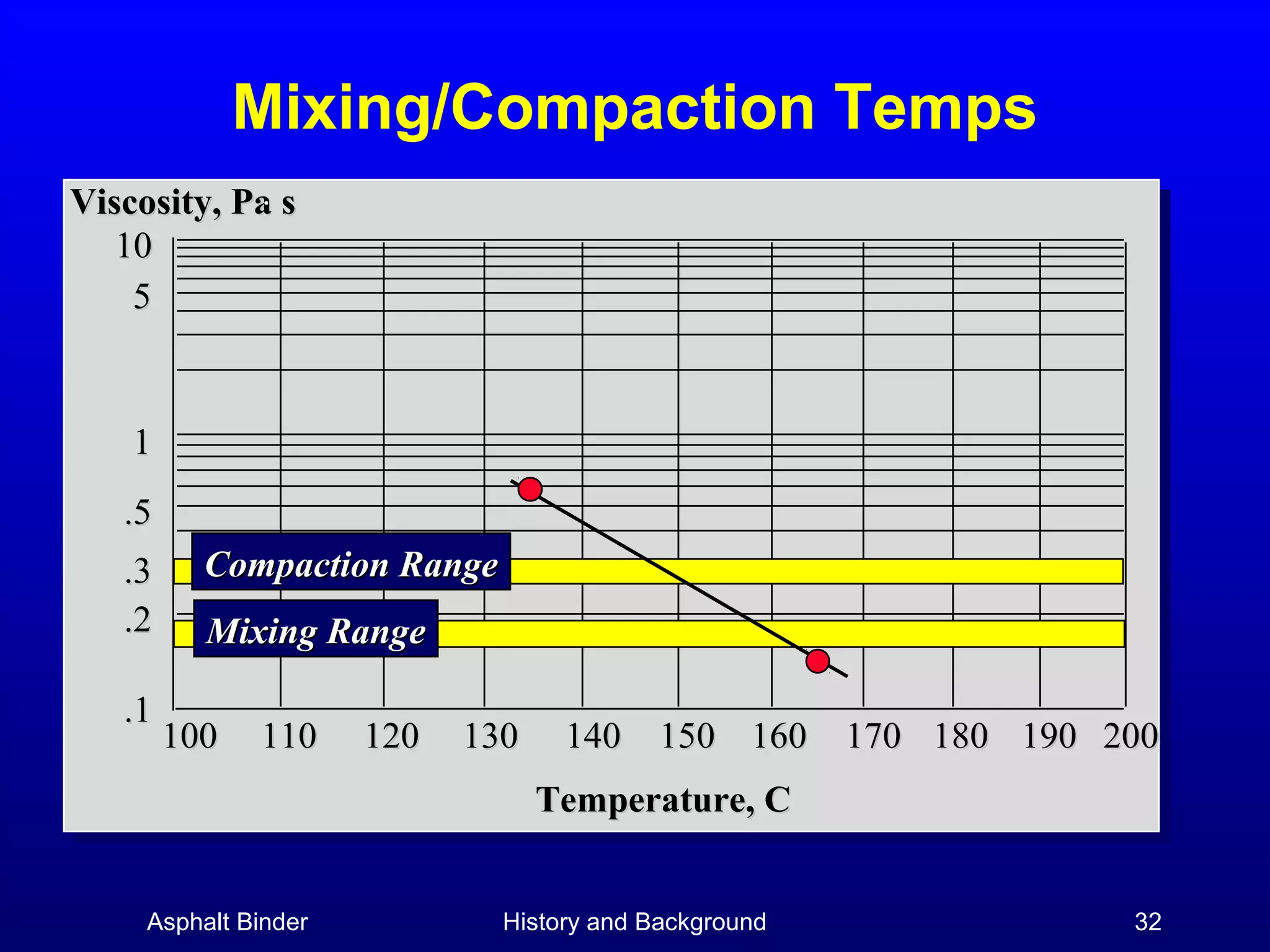

- 32. Mixing/Compaction Temps Viscosity, Pas 10 5 1 .5 .3 .2 .1 Compaction Range Mixing Range 100 110 120 130 140 150 160 170 180 190 200 Temperature, C Asphalt Binder History and Background 32

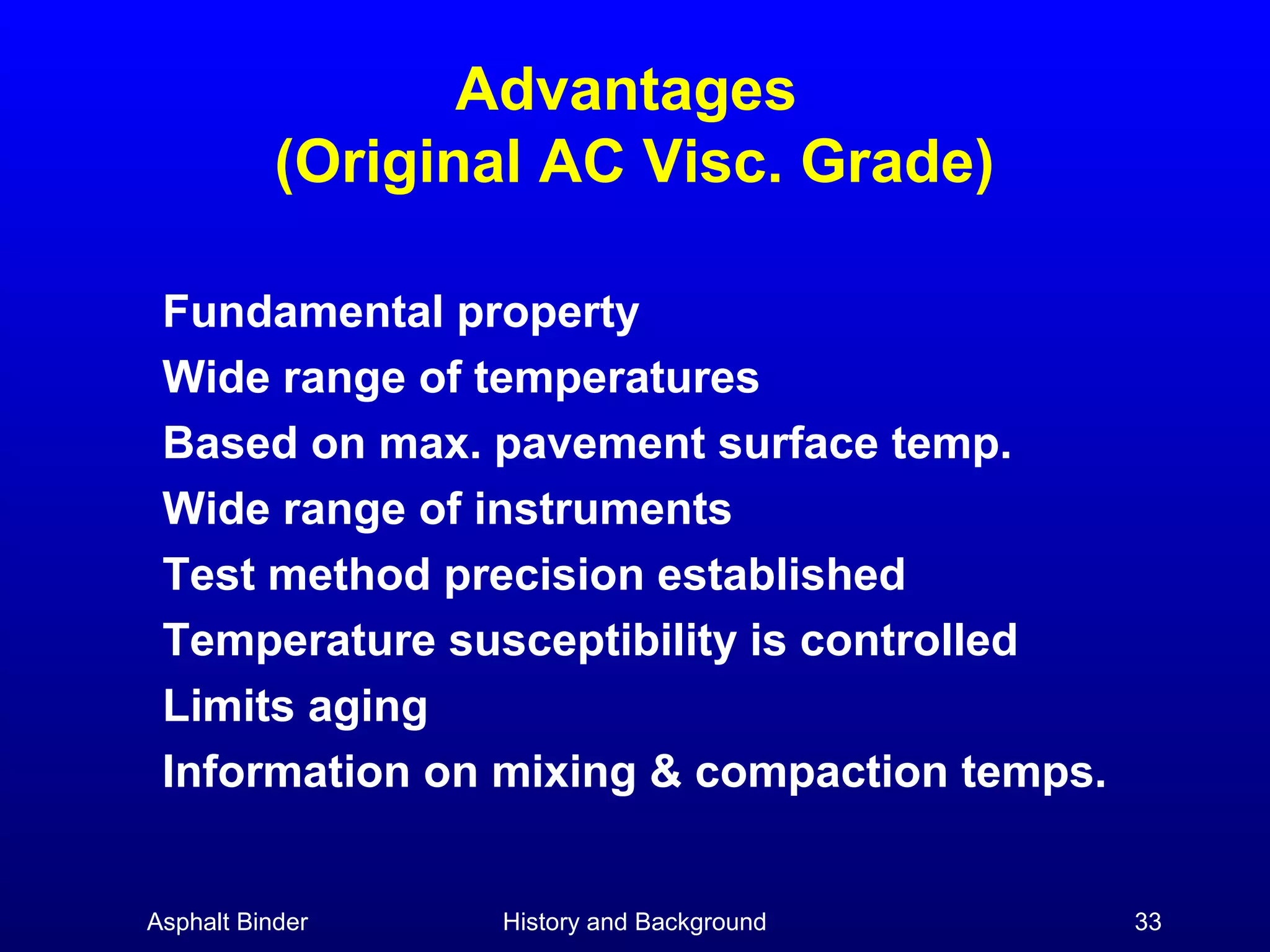

- 33. Advantages (Original AC Visc.Grade) Fundamental property Wide range of temperatures Based on max. pavement surface temp. Wide range of instruments Test method precision established Temperature susceptibility is controlled Limits aging Information on mixing & compaction temps. Asphalt Binder History and Background 33
- 34. Disadvantages (Original AC Visc.Grade) More expensive Longer testing time More technician skill needed Not applicable for Non-Newtonian materials Wide range of properties for same grade Asphalt Binder History and Background 34

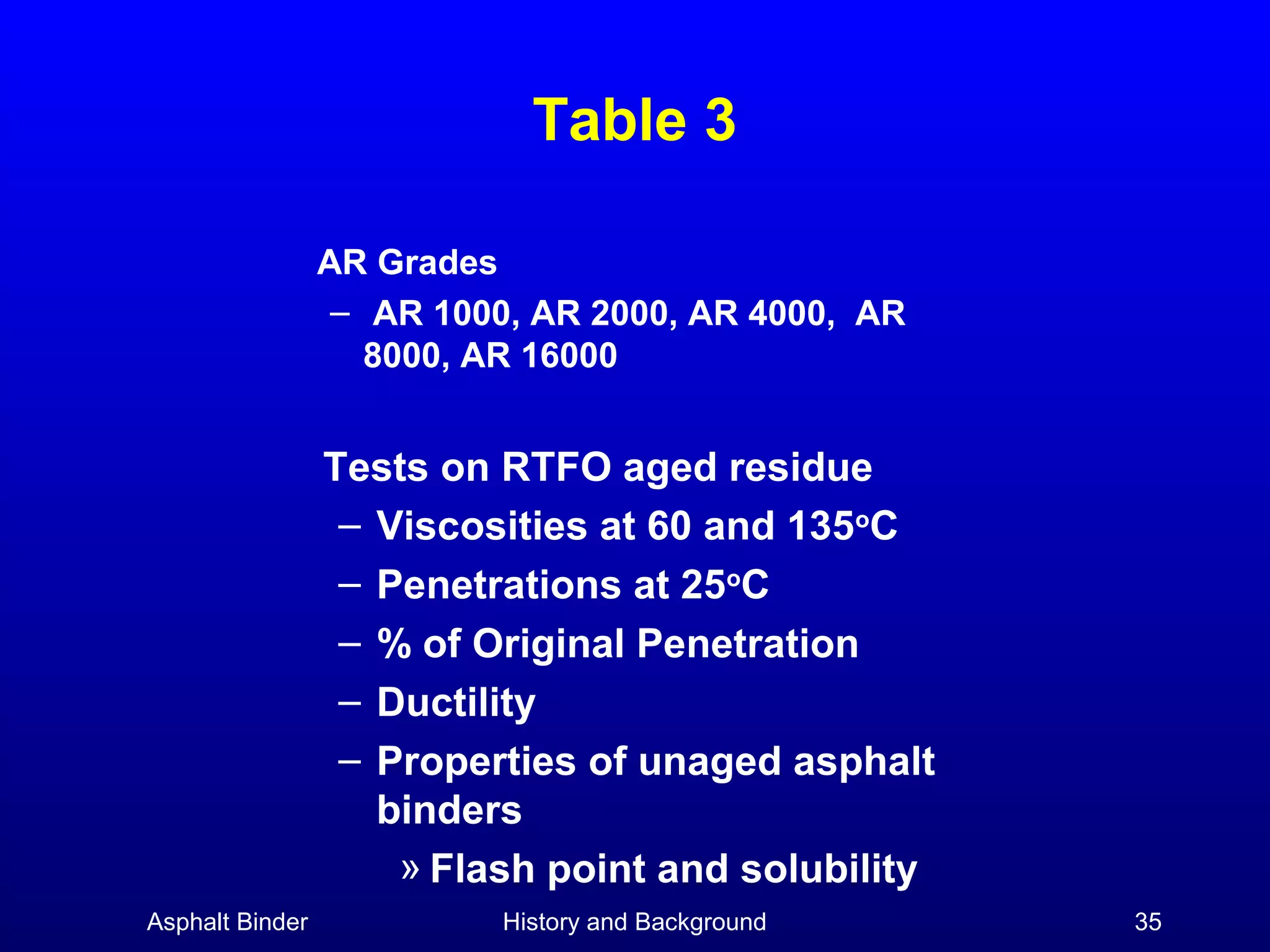

- 35. Table 3 AR Grades –AR 1000, AR 2000, AR 4000, AR 8000, AR 16000 Tests on RTFO aged residue – Viscosities at 60 and 135oC – Penetrations at 25oC – % of Original Penetration – Ductility – Properties of unaged asphalt binders » Flash point and solubility Asphalt Binder History and Background 35

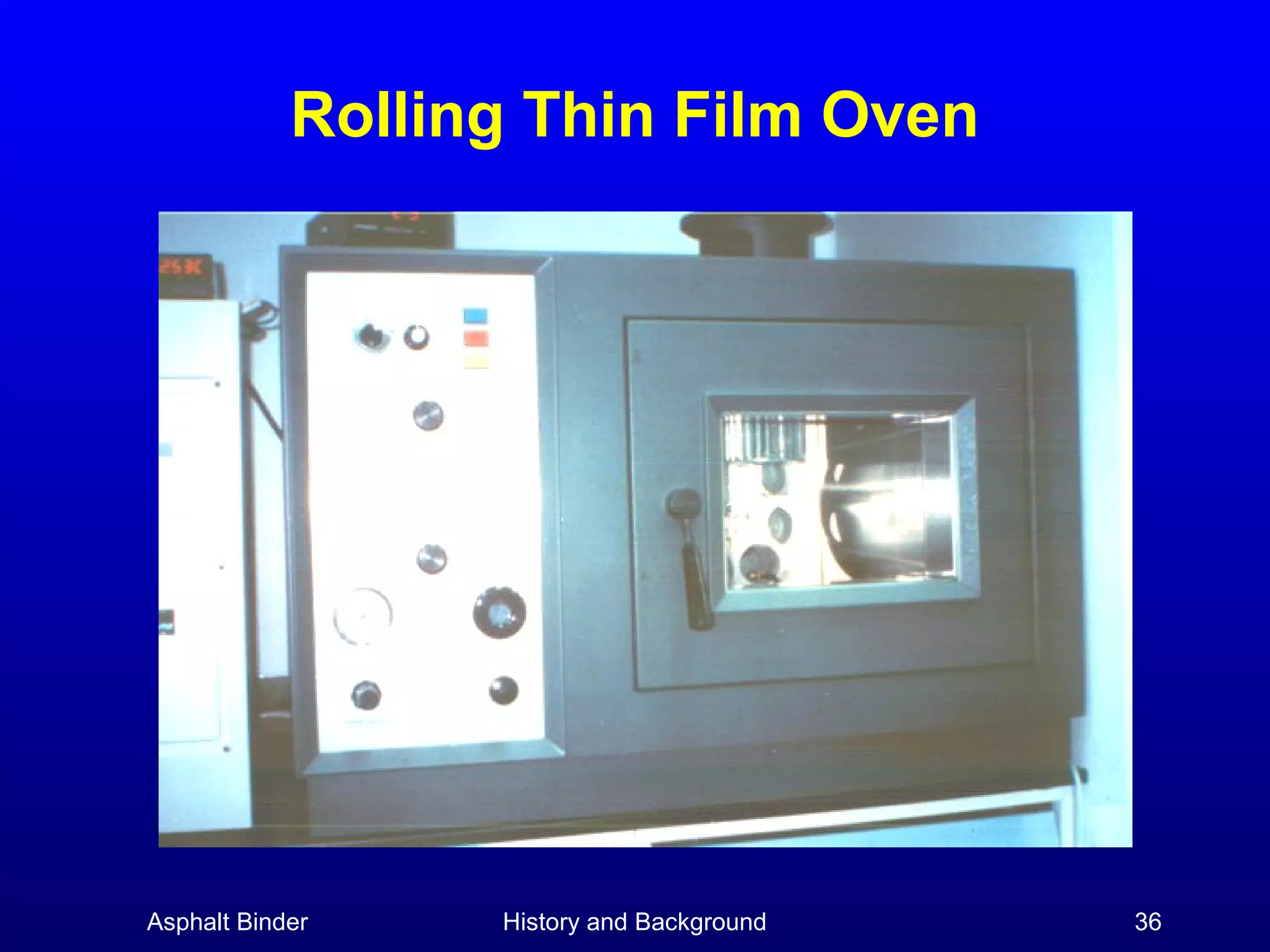

- 36. Rolling Thin FilmOven Asphalt Binder History and Background 36

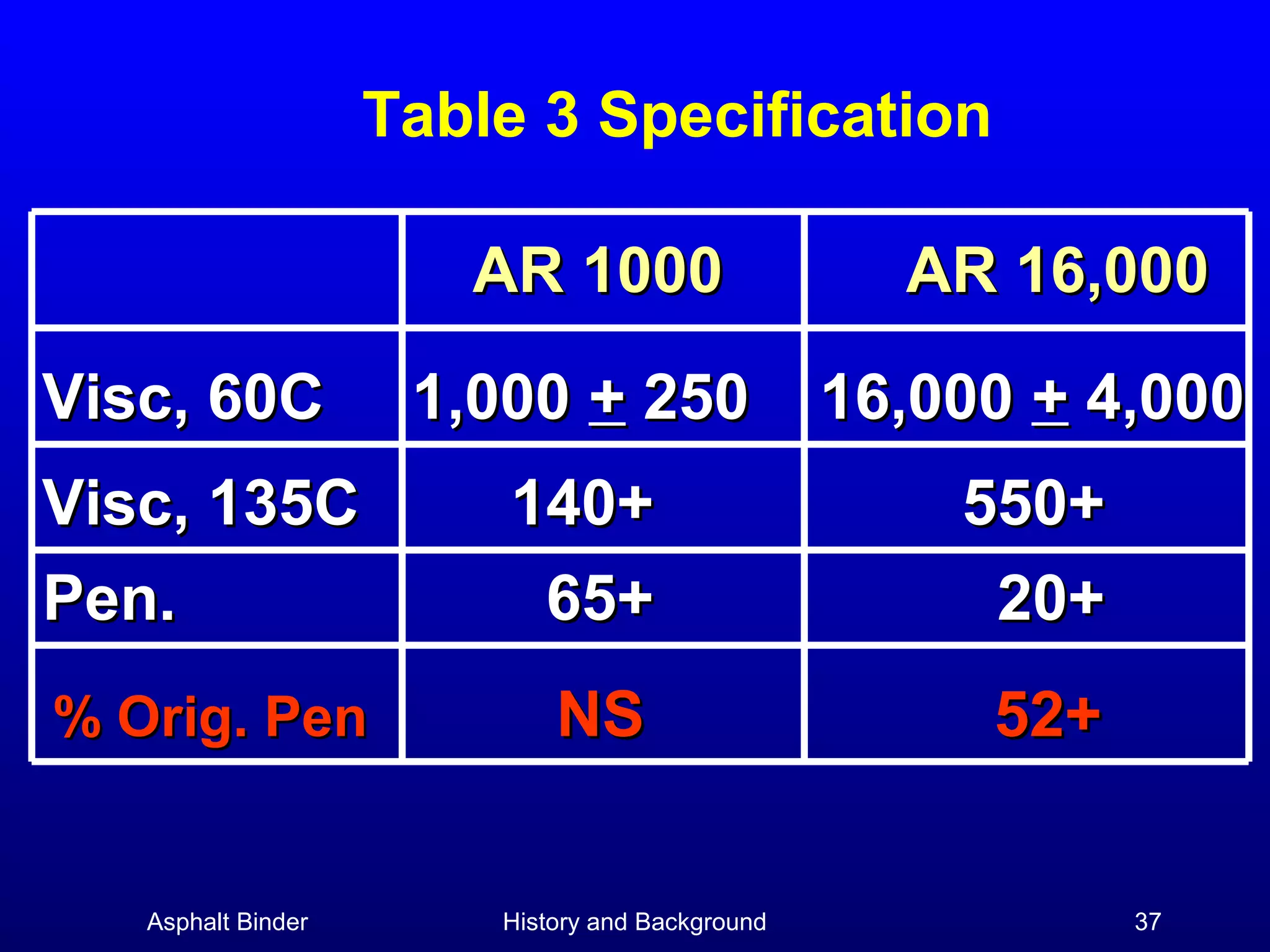

- 37. Table 3 Specification AR1000 AR 16,000 Visc, 60C 1,000 + 250 16,000 + 4,000 Visc, 135C Pen. 140+ 65+ 550+ 20+ % Orig. Pen NS 52+ Asphalt Binder History and Background 37

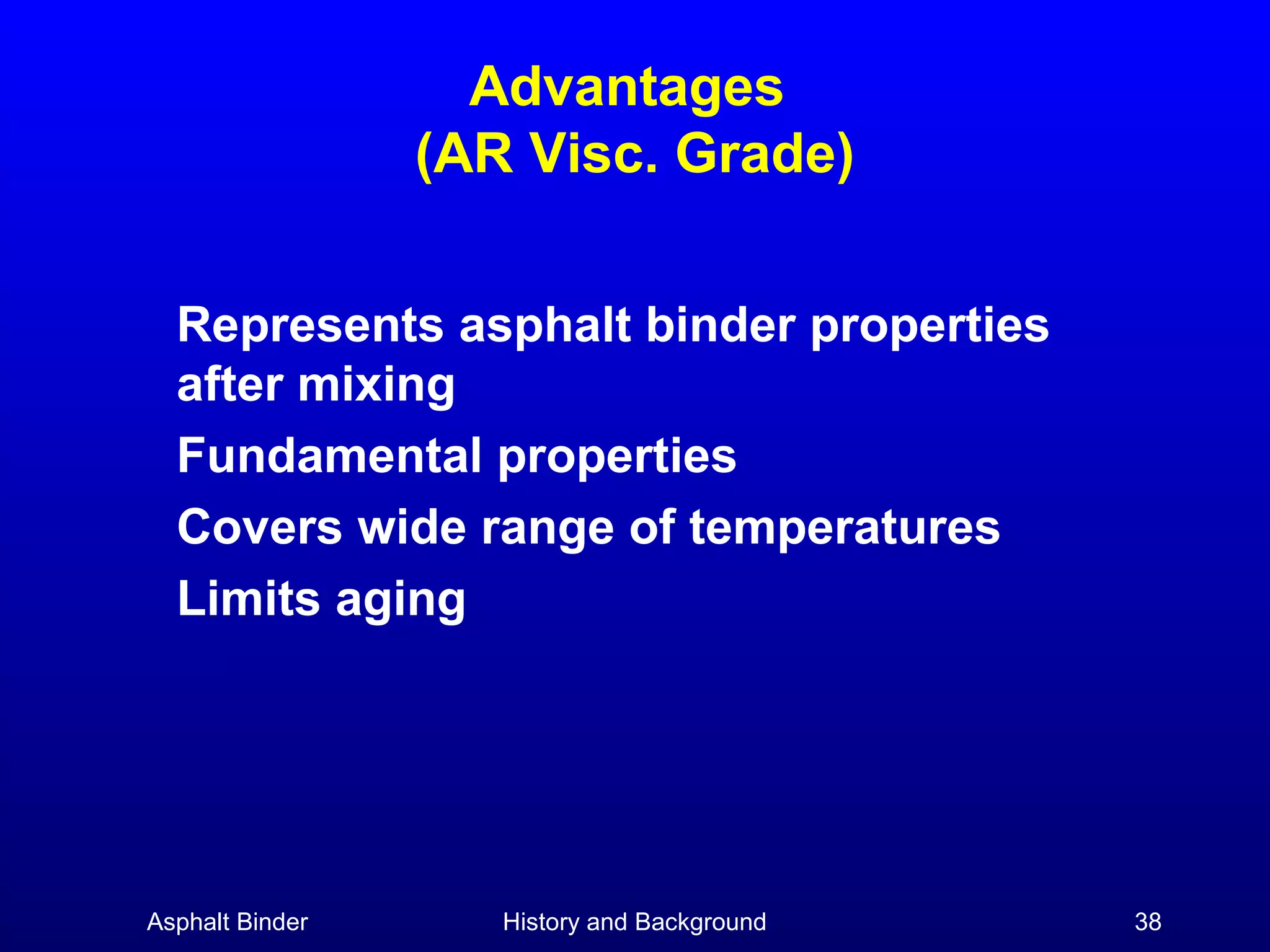

- 38. Advantages (AR Visc. Grade) Representsasphalt binder properties after mixing Fundamental properties Covers wide range of temperatures Limits aging Asphalt Binder History and Background 38

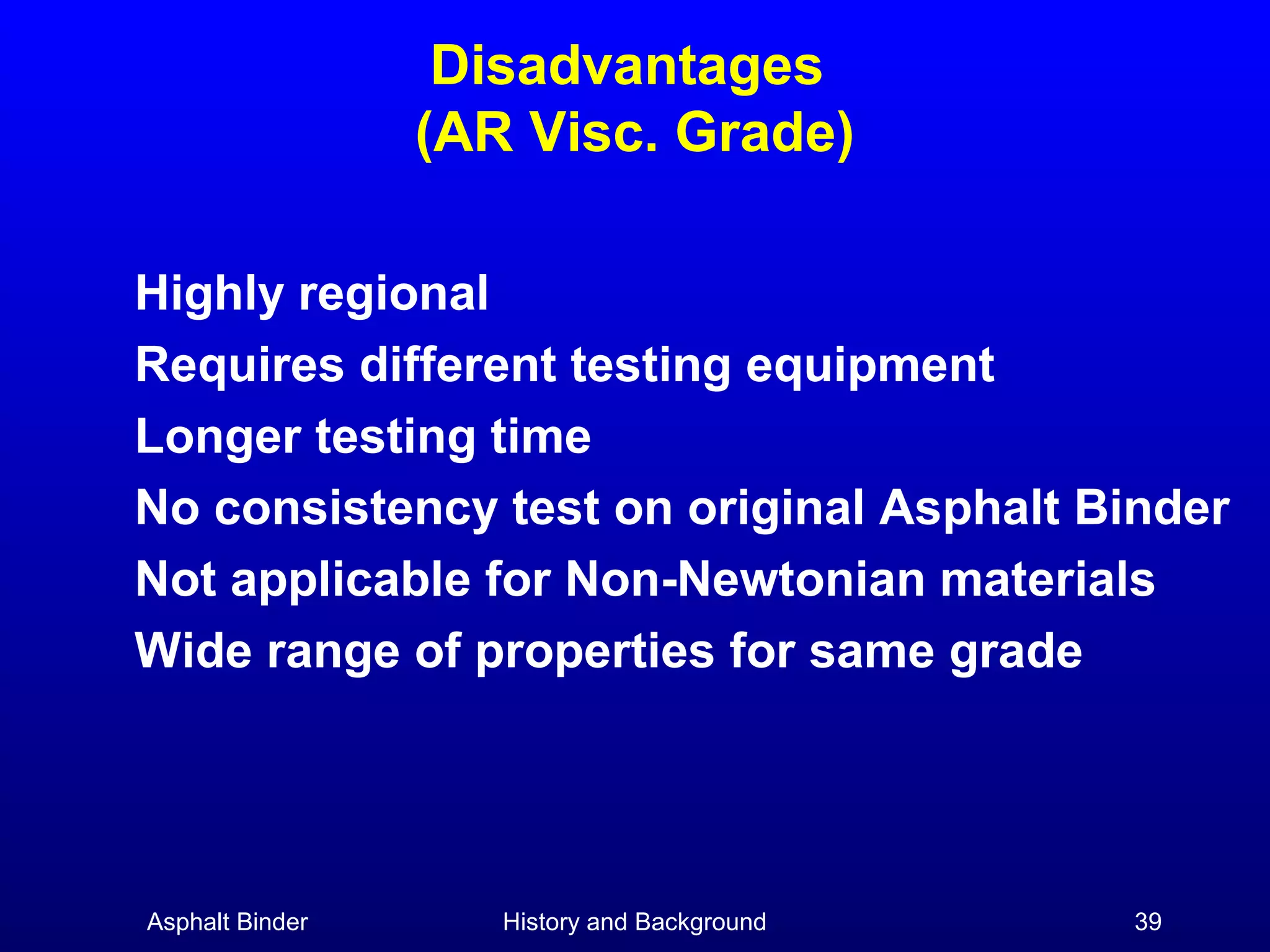

- 39. Disadvantages (AR Visc. Grade) Highlyregional Requires different testing equipment Longer testing time No consistency test on original Asphalt Binder Not applicable for Non-Newtonian materials Wide range of properties for same grade Asphalt Binder History and Background 39

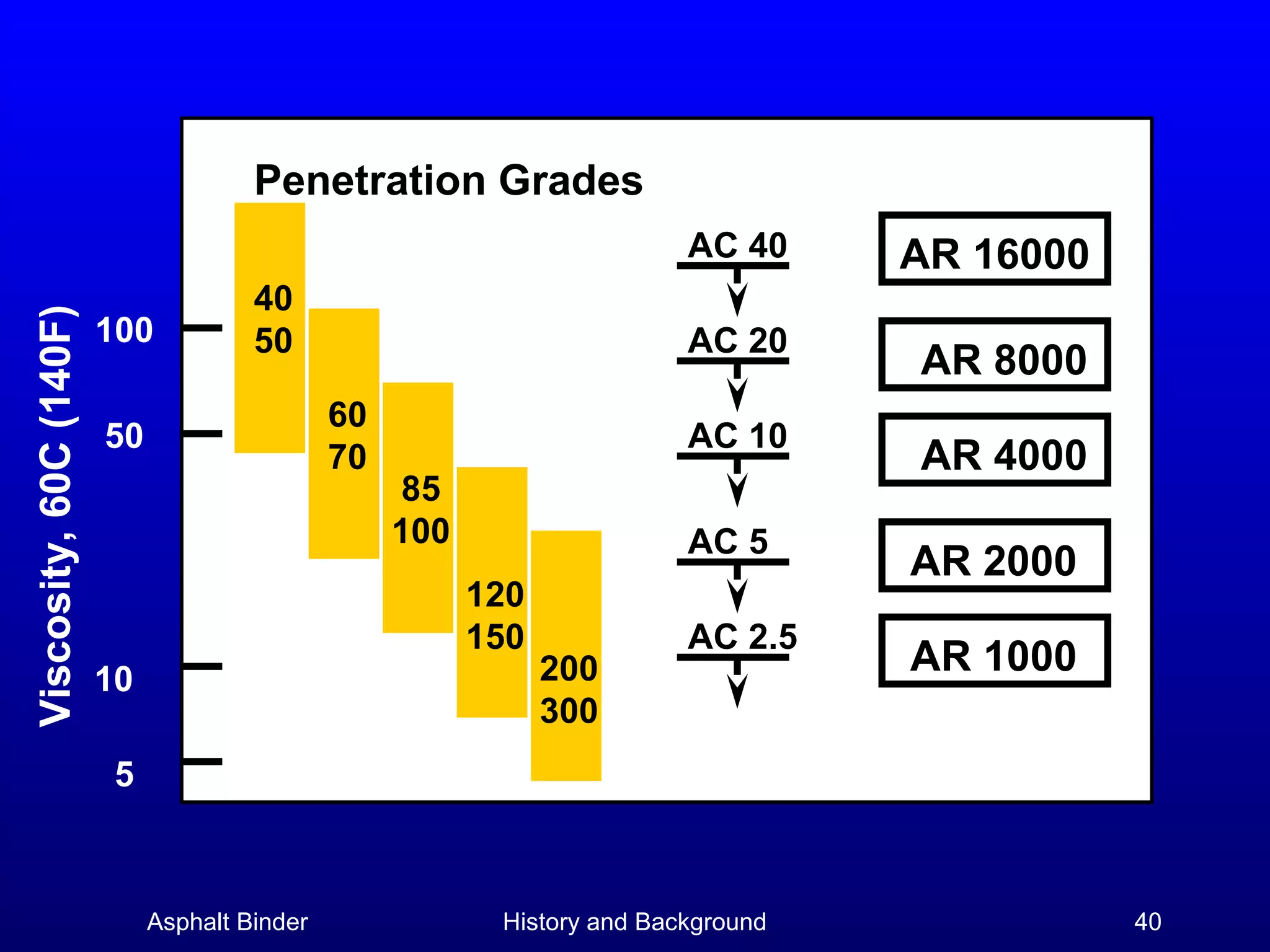

- 40. Penetration Grades Viscosity, 60C(140F) AC 40 100 AC 20 60 70 50 120 150 10 200 300 AR 4000 AC 5 85 100 AR 8000 AC 10 40 50 AR 16000 AR 2000 AC 2.5 AR 1000 5 Asphalt Binder History and Background 40
- 41. QUESTIONS? Asphalt Binder History andBackground 41
