1. BizTalk Deployment
Managing Migration of Your BizTalk Apps
Daniel Toomey
presenter

2. Scope
 Not about BizTalk Server product/platform
installation
 BizTalk Application/Solution deployment
 BizTalk Server 2006+ only
 Key concepts & principles
 Out-of-the-Box tools only

3. BizTalk Deployment Artefacts
 Assemblies:
 BizTalk Assemblies (maps, schemas, orchestrations, pipelines)
 .NET Helper Assemblies
 Physical Bindings (send/receive ports)
 Runtime Components:
 Hosts / Host Instances
 Handlers
 Database Scripts
 Rules & Policies
 Configuration Files
 COM Components
 BAM definitions
 BAS Artefacts (partner profiles, templates, etc)
 Security Certificates
 Virtual Directories
 Custom / Third-Party Adapters

4. BizTalk Applications
 Introduced in BizTalk Server 2006
 Logical container for a collection of related
solution artefacts
 Facilitates application level:
 Deployment (export MSI)
 Start / Stop
 Resource management
 Dependencies
 DEFAULT: BizTalk Application 1

5. BizTalk Applications

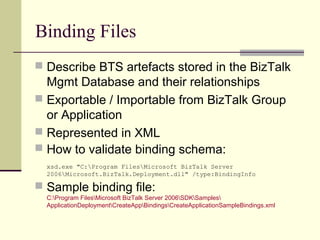

6. Binding Files
 Describe BTS artefacts stored in the BizTalk
Mgmt Database and their relationships
 Exportable / Importable from BizTalk Group
or Application
 Represented in XML
 How to validate binding schema:
xsd.exe "C:Program FilesMicrosoft BizTalk Server
2006Microsoft.BizTalk.Deployment.dll" /type:BindingInfo
 Sample binding file:
C:Program FilesMicrosoft BizTalk Server 2006SDKSamples
ApplicationDeploymentCreateAppBindingsCreateApplicationSampleBindings.xml

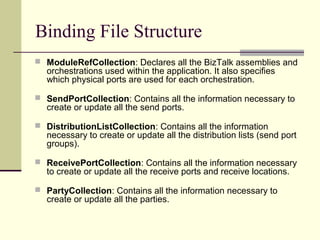

7. Binding File Structure
 ModuleRefCollection: Declares all the BizTalk assemblies and
orchestrations used within the application. It also specifies
which physical ports are used for each orchestration.
 SendPortCollection: Contains all the information necessary to
create or update all the send ports.
 DistributionListCollection: Contains all the information
necessary to create or update all the distribution lists (send port
groups).
 ReceivePortCollection: Contains all the information necessary
to create or update all the receive ports and receive locations.
 PartyCollection: Contains all the information necessary to
create or update all the parties.

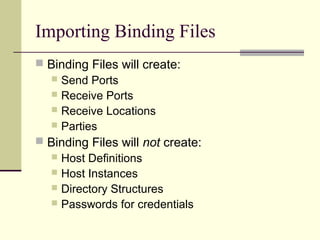

8. Importing Binding Files
 Binding Files will create:
 Send Ports
 Receive Ports
 Receive Locations
 Parties
 Binding Files will not create:
 Host Definitions
 Host Instances
 Directory Structures
 Passwords for credentials

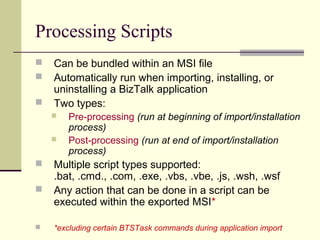

9. Processing Scripts
 Can be bundled within an MSI file
 Automatically run when importing, installing, or
uninstalling a BizTalk application
 Two types:
 Pre-processing (run at beginning of import/installation
process)
 Post-processing (run at end of import/installation
process)
 Multiple script types supported:
.bat, .cmd., .com, .exe, .vbs, .vbe, .js, .wsh, .wsf
 Any action that can be done in a script can be
executed within the exported MSI*
 *excluding certain BTSTask commands during application import

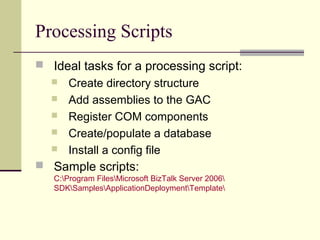

10. Processing Scripts
 Ideal tasks for a processing script:
 Create directory structure
 Add assemblies to the GAC
 Register COM components
 Create/populate a database
 Install a config file
 Sample scripts:
C:Program FilesMicrosoft BizTalk Server 2006
SDKSamplesApplicationDeploymentTemplate

11. Processing Scripts
 Use environment variables to control execution:
 %BTAD_InstallMode%
 Create
 Update
Delete
 %BTAD_ChangeRequestAction%
 Import
 Install
 Uninstall
 Example:
REM ### Create directories prior to BizTalk assembly deployment
if "%BTAD_InstallMode%"=="Install" AND "%BTAD_ChangeRequestAction%"=="Update“
(
REM ### Create the folders which will drop messages
mkdir %BTAD_InstallDir%TestDocumentsIn
mkdir %BTAD_InstallDir%TestDocumentsOut
)

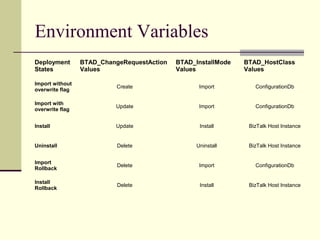

12. Environment Variables
Deployment BTAD_ChangeRequestAction BTAD_InstallMode BTAD_HostClass
States Values Values Values
Import without
Create Import ConfigurationDb
overwrite flag
Import with
Update Import ConfigurationDb
overwrite flag
Install Update Install BizTalk Host Instance
Uninstall Delete Uninstall BizTalk Host Instance
Import
Delete Import ConfigurationDb
Rollback
Install
Delete Install BizTalk Host Instance
Rollback

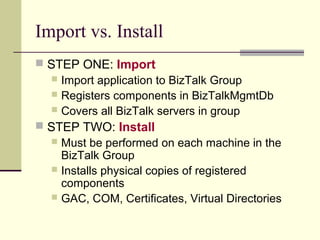

13. Import vs. Install
 STEP ONE: Import
 Import application to BizTalk Group
 Registers components in BizTalkMgmtDb
 Covers all BizTalk servers in group
 STEP TWO: Install
 Must be performed on each machine in the
BizTalk Group
 Installs physical copies of registered
components
 GAC, COM, Certificates, Virtual Directories

14. Typical Manual Install Steps
 Create an application
 Add references (optional)
 Add assemblies
 Create Receive Ports
 Create Receive Locations
 Create Send Ports
 Configure application
 Start application

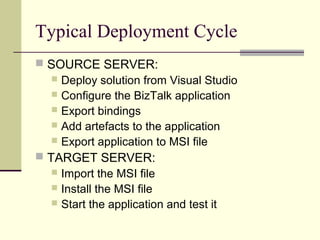

15. Typical Deployment Cycle
 SOURCE SERVER:
 Deploy solution from Visual Studio
 Configure the BizTalk application
 Export bindings
 Add artefacts to the application
 Export application to MSI file
 TARGET SERVER:
 Import the MSI file
 Install the MSI file
 Start the application and test it

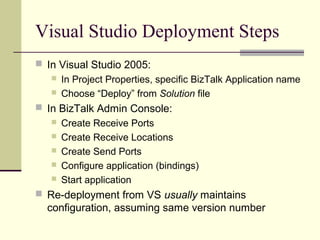

16. Visual Studio Deployment Steps
 In Visual Studio 2005:
 In Project Properties, specific BizTalk Application name
 Choose “Deploy” from Solution file
 In BizTalk Admin Console:
 Create Receive Ports
 Create Receive Locations
 Create Send Ports
 Configure application (bindings)
 Start application
 Re-deployment from VS usually maintains
configuration, assuming same version number

17. Exporting a BizTalk Application
 Export the Bindings
 From BizTalk Admin Console
 Right-click app choose “Export  Bindings…”
 Save multiple copies
 Edit each copy in an XML editor (environment
specific settings)
 Binding files can be added to application as
resources (next slide)
 Copies can be given a target environment
label (e.g. “TEST”, “PROD”)

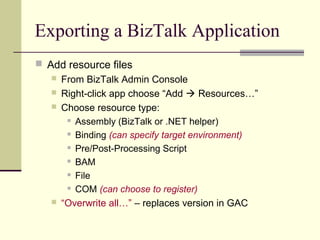

18. Exporting a BizTalk Application
 Add resource files
 From BizTalk Admin Console
 Right-click app choose “Add  Resources…”
 Choose resource type:
 Assembly (BizTalk or .NET helper)
 Binding (can specify target environment)
 Pre/Post-Processing Script
 BAM
 File
 COM (can choose to register)
 “Overwrite all…” – replaces version in GAC

19. Exporting a BizTalk Application
 Export the MSI
 From BizTalk Admin Console
 Right-click app choose “Export  MSI file…”
 Step through the wizard
 Choose/Specify:
 Resources (assemblies, bindings)
 IIS Hosts
 Dependencies (specified for you)
 Destination

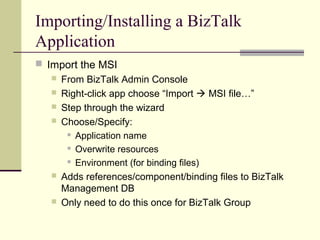

20. Importing/Installing a BizTalk
Application
 Import the MSI
 From BizTalk Admin Console
 Right-click app choose “Import  MSI file…”
 Step through the wizard
 Choose/Specify:
 Application name
 Overwrite resources
 Environment (for binding files)
 Adds references/component/binding files to BizTalk
Management DB
 Only need to do this once for BizTalk Group

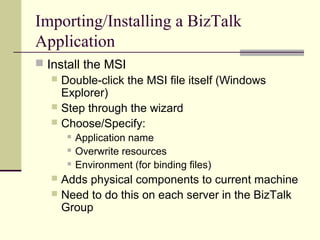

21. Importing/Installing a BizTalk
Application
 Install the MSI
 Double-click the MSI file itself (Windows
Explorer)
 Step through the wizard
 Choose/Specify:
 Application name
 Overwrite resources
 Environment (for binding files)
 Adds physical components to current machine
 Need to do this on each server in the BizTalk
Group

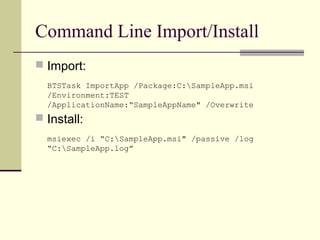

22. Command Line Import/Install
 Import:
BTSTask ImportApp /Package:C:SampleApp.msi
/Environment:TEST
/ApplicationName:“SampleAppName" /Overwrite
 Install:
msiexec /i “C:SampleApp.msi" /passive /log
“C:SampleApp.log”

23. What’s Missing??
 Creating hosts / host instances
 Modifying host / host instance properties
 Starting / Stopping host instances
 Creating send/receive handlers
 Adding Message Boxes
 Modifying Message Box properties
 The Answer??
 ExplorerOM
 WMI
 BTSTask

24. ExplorerOM
 BizTalk Explorer Object Model
 Set of .NET classes/interfaces providing API
to the BizTalk Management Database
 Add reference:
[BizTalk Installation directory]Developer ToolsMicrosoft.Biztalk.ExplorerOM.dll
 Three container classes:
 BtsCalalogExplorer
 BtsApplication
 Assembly

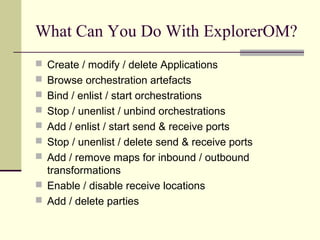

25. What Can You Do With ExplorerOM?
 Create / modify / delete Applications
 Browse orchestration artefacts
 Bind / enlist / start orchestrations
 Stop / unenlist / unbind orchestrations
 Add / enlist / start send & receive ports
 Stop / unenlist / delete send & receive ports
 Add / remove maps for inbound / outbound
transformations
 Enable / disable receive locations
 Add / delete parties

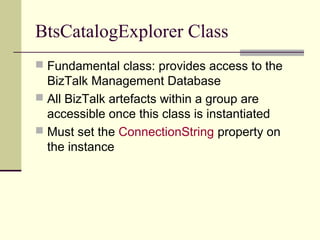

26. BtsCatalogExplorer Class
 Fundamental class: provides access to the
BizTalk Management Database
 All BizTalk artefacts within a group are
accessible once this class is instantiated
 Must set the ConnectionString property on
the instance

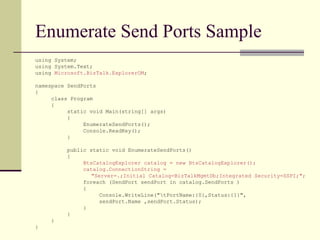

27. Enumerate Send Ports Sample
using System;
using System.Text;
using Microsoft.BizTalk.ExplorerOM;
namespace SendPorts
{
class Program
{
static void Main(string[] args)
{
EnumerateSendPorts();
Console.ReadKey();
}
public static void EnumerateSendPorts()
{
BtsCatalogExplorer catalog = new BtsCatalogExplorer();
catalog.ConnectionString =
"Server=.;Initial Catalog=BizTalkMgmtDb;Integrated Security=SSPI;";
foreach (SendPort sendPort in catalog.SendPorts )
{
Console.WriteLine("tPortName:{0},Status:{1}",
sendPort.Name ,sendPort.Status);
}
}
}
}

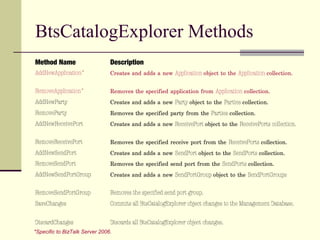

28. BtsCatalogExplorer Methods
Method Name Description
AddNewApplication* Creates and adds a new Application object to the Application collection.
RemoveApplication* Removes the specified application from Application collection.
AddNewParty Creates and adds a new Party object to the Parties collection.
RemoveParty Removes the specified party from the Parties collection.
AddNewReceivePort Creates and adds a new ReceivePort object to the ReceivePorts collection.
RemoveReceivePort Removes the specified receive port from the ReceivePorts collection.
AddNewSendPort Creates and adds a new SendPort object to the SendPorts collection.
RemoveSendPort Removes the specified send port from the SendPorts collection.
AddNewSendPortGroup Creates and adds a new SendPortGroup object to the SendPortGroups
RemoveSendPortGroup Removes the specified send port group.
SaveChanges Commits all BtsCatalogExplorer object changes to the Management Database.
DiscardChanges Discards all BtsCatalogExplorer object changes.
*Specific to BizTalk Server 2006.

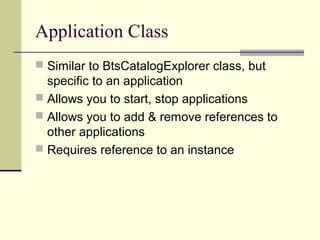

29. Application Class
 Similar to BtsCatalogExplorer class, but
specific to an application
 Allows you to start, stop applications
 Allows you to add & remove references to
other applications
 Requires reference to an instance

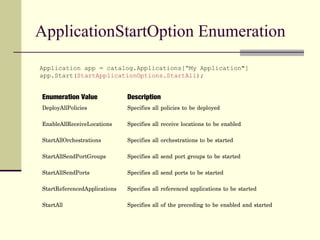

30. ApplicationStartOption Enumeration
Application app = catalog.Applications[“My Application"]
app.Start(StartApplicationOptions.StartAll);
Enumeration Value Description
DeployAllPolicies Specifies all policies to be deployed
EnableAllReceiveLocations Specifies all receive locations to be enabled
StartAllOrchestrations Specifies all orchestrations to be started
StartAllSendPortGroups Specifies all send port groups to be started
StartAllSendPorts Specifies all send ports to be started
StartReferencedApplications Specifies all referenced applications to be started
StartAll Specifies all of the preceding to be enabled and started

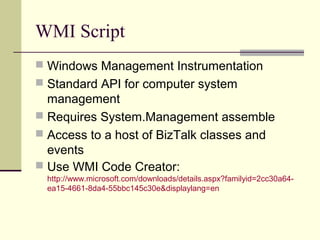

31. WMI Script
 Windows Management Instrumentation
 Standard API for computer system
management
 Requires System.Management assemble
 Access to a host of BizTalk classes and
events
 Use WMI Code Creator:
http://www.microsoft.com/downloads/details.aspx?familyid=2cc30a64-
ea15-4661-8da4-55bbc145c30e&displaylang=en

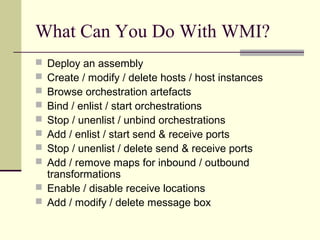

32. What Can You Do With WMI?
 Deploy an assembly
 Create / modify / delete hosts / host instances
 Browse orchestration artefacts
 Bind / enlist / start orchestrations
 Stop / unenlist / unbind orchestrations
 Add / enlist / start send & receive ports
 Stop / unenlist / delete send & receive ports
 Add / remove maps for inbound / outbound
transformations
 Enable / disable receive locations
 Add / modify / delete message box

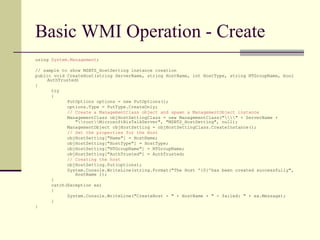

33. Basic WMI Operation - Create
using System.Management;
// sample to show MSBTS_HostSetting instance creation
public void CreateHost(string ServerName, string HostName, int HostType, string NTGroupName, bool
AuthTrusted)
{
try
{
PutOptions options = new PutOptions();
options.Type = PutType.CreateOnly;
// Create a ManagementClass object and spawn a ManagementObject instance
ManagementClass objHostSettingClass = new ManagementClass("" + ServerName +
"rootMicrosoftBizTalkServer", "MSBTS_HostSetting", null);
ManagementObject objHostSetting = objHostSettingClass.CreateInstance();
// Set the properties for the Host
objHostSetting["Name"] = HostName;
objHostSetting["HostType"] = HostType;
objHostSetting["NTGroupName"] = NTGroupName;
objHostSetting["AuthTrusted"] = AuthTrusted;
// Creating the host
objHostSetting.Put(options);
System.Console.WriteLine(string.Format("The Host '{0}'has been created successfully",
HostName ));
}
catch(Exception ex)
{
System.Console.WriteLine("CreateHost - " + HostName + " - failed: " + ex.Message);
}
}

34. BTSTask
 Replaces deprecated BTSDeploy command
 No wizard included (use BizTalk Admin Console)
 Allows you to:
 Add, enumerate, remove, and uninstall BizTalk
applications.
 Add, list, and remove artefacts from a BizTalk
application.
 Export and import BizTalk applications from an MSI
file.
 Export and import binding information from BizTalk
binding files.
 Command Line Reference:
http://msdn.microsoft.com/en-us/library/aa559686.aspx

35. What Can You Do With BTSTask?
 Create / modify / delete applications
 Deploy assemblies
 Browse orchestration artefacts
 Bind / enlist / start orchestrations*
 Stop / unenlist / unbind orchestrations*
 Add / enlist / start send & receive** ports
 Stop / unenlist / delete send & receive** ports
 Add / remove maps for inbound / outbound
transformations**
 Enable / disable receive locations**
* via processing scripts only
**via binding files only

36. Putting It All Together…
 Export your bindings / MSI files
 Create .NET assembly as an API using
ExplorerOM classes (start with sample in
SDK)
 Create a master batch script that manages
the full deployment using:
 BTSTask
 ExplorerOM assembly
 MSIExe
 One-click deployment/migration!!

37. Deployments Made Easy…(?)
 Scott Colestock’s Deployment Framework
for BizTalk
http://www.codeplex.com/biztalkdeployment
 “…goes far beyond BizTalk’s out-of-the-box
deployment functionality”
 Includes additional tools to help developers
 Integration with Visual Studio, NUnit, Log4Net

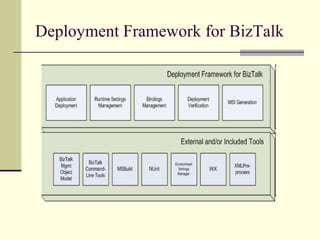

38. Deployment Framework for BizTalk

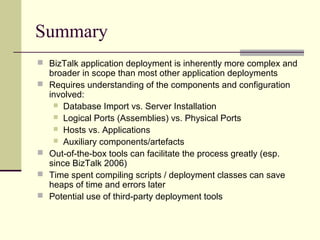

39. Summary
 BizTalk application deployment is inherently more complex and
broader in scope than most other application deployments
 Requires understanding of the components and configuration
involved:
 Database Import vs. Server Installation
 Logical Ports (Assemblies) vs. Physical Ports
 Hosts vs. Applications
 Auxiliary components/artefacts
 Out-of-the-box tools can facilitate the process greatly (esp.
since BizTalk 2006)
 Time spent compiling scripts / deployment classes can save
heaps of time and errors later
 Potential use of third-party deployment tools

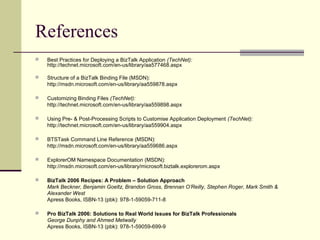

40. References
 Best Practices for Deploying a BizTalk Application (TechNet):
http://technet.microsoft.com/en-us/library/aa577468.aspx
 Structure of a BizTalk Binding File (MSDN):
http://msdn.microsoft.com/en-us/library/aa559878.aspx
 Customizing Binding Files (TechNet):
http://technet.microsoft.com/en-us/library/aa559898.aspx
 Using Pre- & Post-Processing Scripts to Customise Application Deployment (TechNet):
http://technet.microsoft.com/en-us/library/aa559904.aspx
 BTSTask Command Line Reference (MSDN):
http://msdn.microsoft.com/en-us/library/aa559686.aspx
 ExplorerOM Namespace Documentation (MSDN):
http://msdn.microsoft.com/en-us/library/microsoft.biztalk.explorerom.aspx
 BizTalk 2006 Recipes: A Problem – Solution Approach
Mark Beckner, Benjamin Goeltz, Brandon Gross, Brennan O’Reilly, Stephen Roger, Mark Smith &
Alexander West
Apress Books, ISBN-13 (pbk): 978-1-59059-711-8
 Pro BizTalk 2006: Solutions to Real World Issues for BizTalk Professionals
George Dunphy and Ahmed Metwally
Apress Books, ISBN-13 (pbk): 978-1-59059-699-9

41. Questions?
