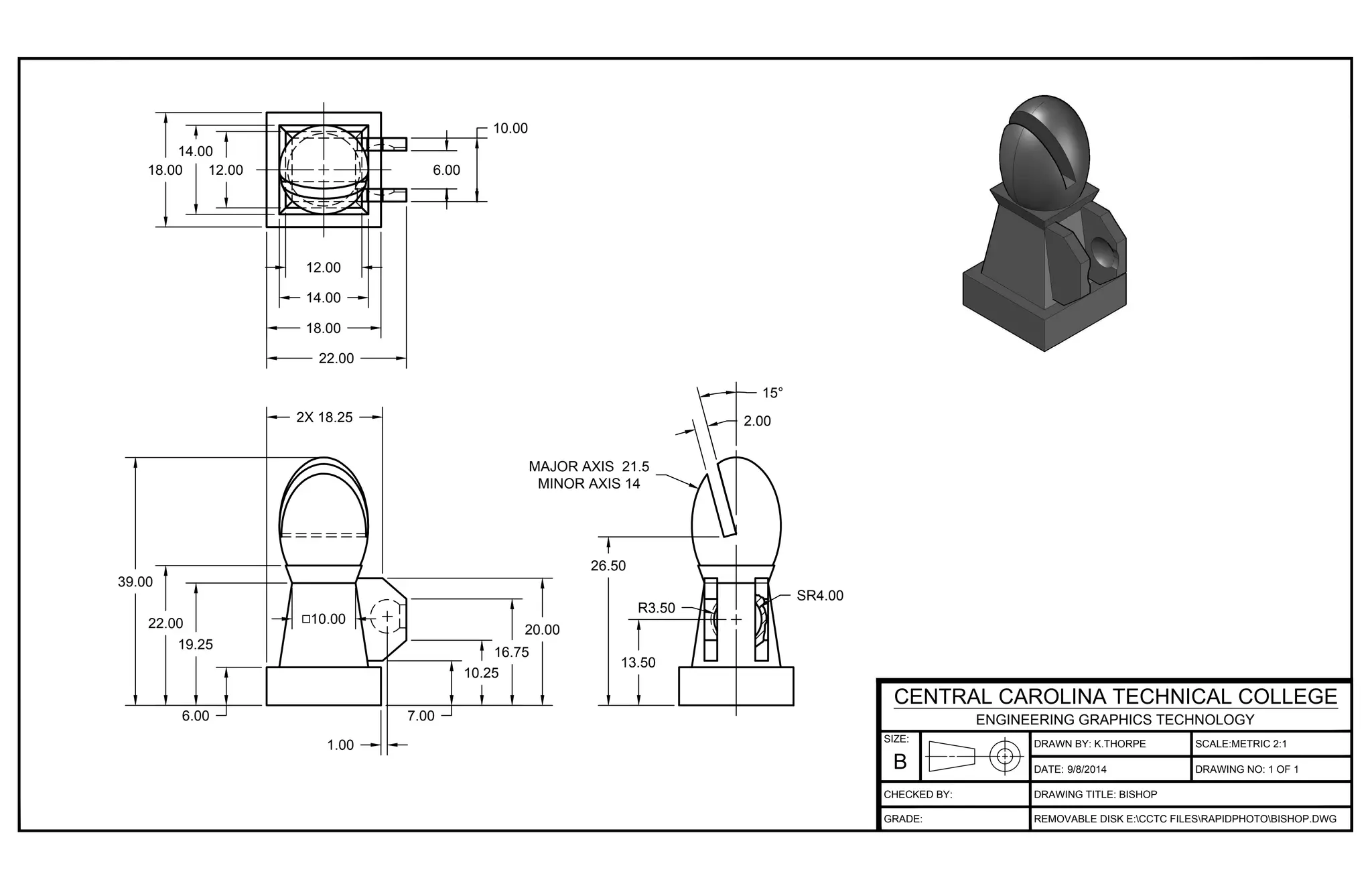

This document contains measurements and technical drawings of a bishop piece including dimensions for its major and minor axes, various radii and angles, and notes indicating it was drawn by K. Thorpe on a particular date and saved file location. The drawing number, title, and school are also included.

1. 13.50
26.50
o10.00
2.00
15°
6.00
19.25
22.00
39.00
7.00
10.25
16.75
20.00
12.00
14.00
18.00
22.00
12.00
14.00
18.00 6.00
10.00
SR4.00
MAJOR AXIS 21.5
MINOR AXIS 14
2X 18.25
R3.50
1.00 DRAWN BY: K.THORPE
DATE:
SCALE:METRIC 2:1
DRAWING TITLE: BISHOP
REMOVABLE DISK E:CCTC FILESRAPIDPHOTOBISHOP.DWG
9/8/2014 DRAWING NO: 1 OF 1
SIZE:
B
CENTRAL CAROLINA TECHNICAL COLLEGE
ENGINEERING GRAPHICS TECHNOLOGY
CHECKED BY:
GRADE:
