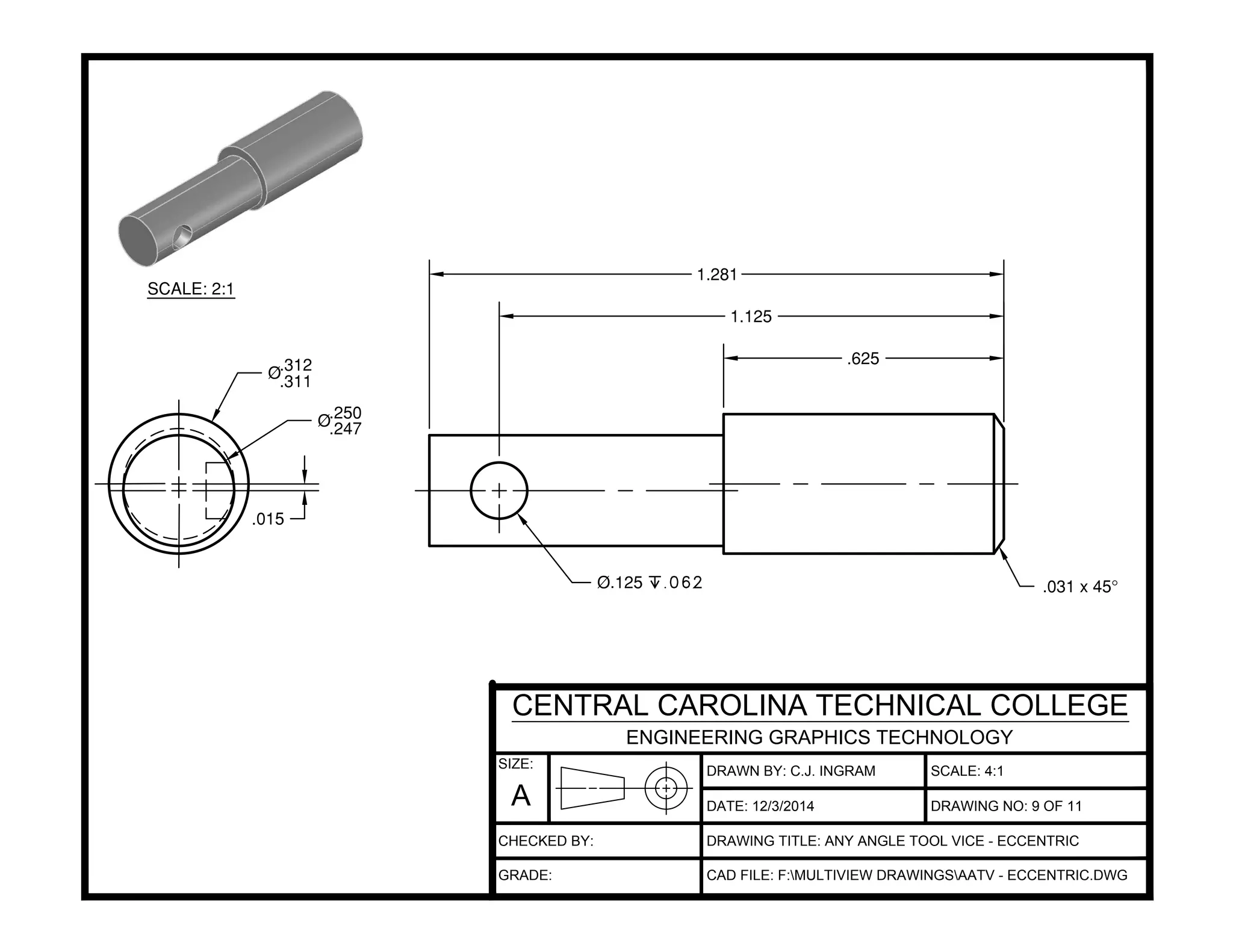

This technical drawing shows dimensions for an eccentric any angle tool vice. Key dimensions include the diameter and thickness of various cylindrical and circular features ranging from .125 to 1.281 units. The drawing also lists the drafter, date, scale, title, CAD file information, and school where it was created.

1. .625
1.125
1.281
.031 x 45°Ø.125 x.062
Ø.312
.311
Ø.250
.247
.015
DRAWN BY: C.J. INGRAM
DATE:
SCALE: 4:1
DRAWING TITLE: ANY ANGLE TOOL VICE - ECCENTRIC
CAD FILE: F:MULTIVIEW DRAWINGSAATV - ECCENTRIC.DWG
12/3/2014 DRAWING NO: 9 OF 11
SIZE:
A
CENTRAL CAROLINA TECHNICAL COLLEGE
ENGINEERING GRAPHICS TECHNOLOGY
CHECKED BY:
GRADE:
SCALE: 2:1
