Uploaded byRupak Chakraborty
Biped locomotion
The document discusses modeling human gait and push recovery for bipedal robots using machine learning and formal methods. It proposes using a combination of timed hybrid probabilistic automata within the BIP framework. Key aspects include fitting motion data with polynomials, generating stochastic phases that account for errors, and refining the machine learning algorithm. Push recovery is modeled in BIP with left and right leg composites interacting through the COM, COP and CMP interfaces. Future work proposed includes using Petri nets and formal verification, cellular automata models from computer vision data, and optimization techniques for regression analysis.
Biped locomotion
- 1.

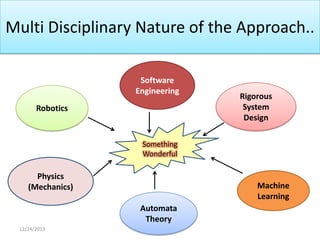

- 2. Multi Disciplinary Natureof the Approach.. Software Engineering Robotics Rigorous System Design Something Wonderful Physics (Mechanics) Machine Learning Automata Theory 12/24/2013
- 3. Motivation... I won’t fallif you push me , but you will fall if I Push you Grrrr.. ..... Angry Robot Arrogant Man 12/24/2013

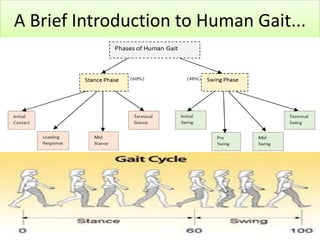

- 4. A Brief Introductionto Human Gait... 12/24/2013

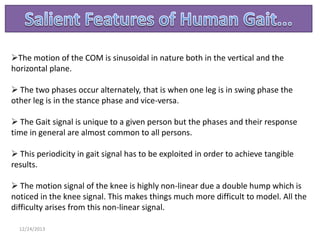

- 5. The motion ofthe COM is sinusoidal in nature both in the vertical and the horizontal plane. The two phases occur alternately, that is when one leg is in swing phase the other leg is in the stance phase and vice-versa. The Gait signal is unique to a given person but the phases and their response time in general are almost common to all persons. This periodicity in gait signal has to be exploited in order to achieve tangible results. The motion signal of the knee is highly non-linear due a double hump which is noticed in the knee signal. This makes things much more difficult to model. All the difficulty arises from this non-linear signal. 12/24/2013
- 6. Classical Approaches toPush Recovery Capture Points Decision Boundaries Foot Placement Estimators Reaction Null Space Transform 12/24/2013

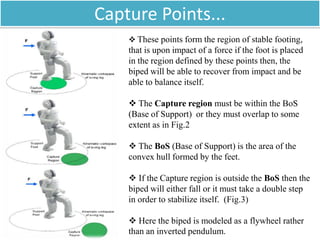

- 7. Capture Points... Thesepoints form the region of stable footing, that is upon impact of a force if the foot is placed in the region defined by these points then, the biped will be able to recover from impact and be able to balance itself. The Capture region must be within the BoS (Base of Support) or they must overlap to some extent as in Fig.2 The BoS (Base of Support) is the area of the convex hull formed by the feet. If the Capture region is outside the BoS then the biped will either fall or it must take a double step in order to stabilize itself. (Fig.3) 12/24/2013 Here the biped is modeled as a flywheel rather than an inverted pendulum.
- 8. 1. Ankle Strategy( COP Balancing) 2. Hip Strategy (CMP Balancing) 3. Stepping ( Change of Support Strategy) 12/24/2013

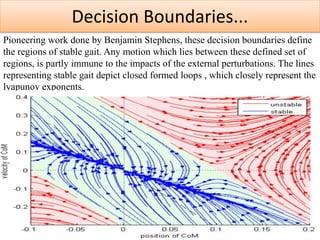

- 9. Decision Boundaries... Pioneering workdone by Benjamin Stephens, these decision boundaries define the regions of stable gait. Any motion which lies between these defined set of regions, is partly immune to the impacts of the external perturbations. The lines representing stable gait depict closed formed loops , which closely represent the lyapunov exponents. 12/24/2013

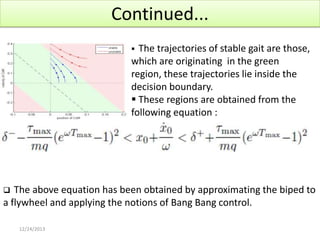

- 10. Continued... The trajectories ofstable gait are those, which are originating in the green region, these trajectories lie inside the decision boundary. These regions are obtained from the following equation : The above equation has been obtained by approximating the biped to a flywheel and applying the notions of Bang Bang control. 12/24/2013

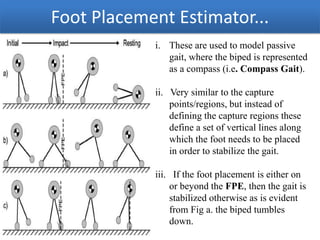

- 11. Foot Placement Estimator... i.These are used to model passive gait, where the biped is represented as a compass (i.e. Compass Gait). ii. Very similar to the capture points/regions, but instead of defining the capture regions these define a set of vertical lines along which the foot needs to be placed in order to stabilize the gait. iii. If the foot placement is either on or beyond the FPE, then the gait is stabilized otherwise as is evident from Fig a. the biped tumbles down. 12/24/2013

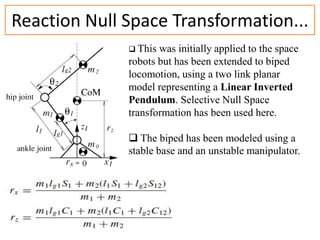

- 12. Reaction Null SpaceTransformation... This was initially applied to the space robots but has been extended to biped locomotion, using a two link planar model representing a Linear Inverted Pendulum. Selective Null Space transformation has been used here. The biped has been modeled using a stable base and an unstable manipulator. 12/24/2013
- 13.

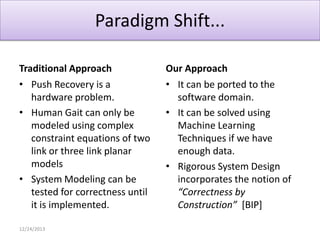

- 14. Paradigm Shift... Traditional Approach •Push Recovery is a hardware problem. • Human Gait can only be modeled using complex constraint equations of two link or three link planar models • System Modeling can be tested for correctness until it is implemented. 12/24/2013 Our Approach • It can be ported to the software domain. • It can be solved using Machine Learning Techniques if we have enough data. • Rigorous System Design incorporates the notion of “Correctness by Construction” [BIP]

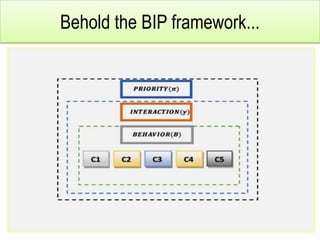

- 15. Behold the BIPframework... 12/24/2013
- 16. BIP- An Overview... The framework consists of three independent layers these are : 1. Behavior 2. Interaction 3. Priority Originally developed for modeling embedded and software systems, but we have ported it to our domain. 12/24/2013

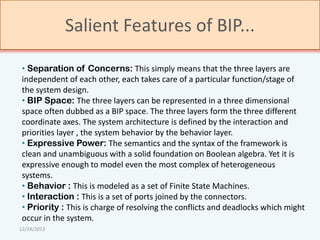

- 17. Salient Features ofBIP... • Separation of Concerns: This simply means that the three layers are independent of each other, each takes care of a particular function/stage of the system design. • BIP Space: The three layers can be represented in a three dimensional space often dubbed as a BIP space. The three layers form the three different coordinate axes. The system architecture is defined by the interaction and priorities layer , the system behavior by the behavior layer. • Expressive Power: The semantics and the syntax of the framework is clean and unambiguous with a solid foundation on Boolean algebra. Yet it is expressive enough to model even the most complex of heterogeneous systems. • Behavior : This is modeled as a set of Finite State Machines. • Interaction : This is a set of ports joined by the connectors. • Priority : This is charge of resolving the conflicts and deadlocks which might occur in the system. 12/24/2013

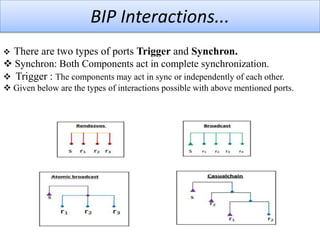

- 18. BIP Interactions... There aretwo types of ports Trigger and Synchron. Synchron: Both Components act in complete synchronization. Trigger : The components may act in sync or independently of each other. Given below are the types of interactions possible with above mentioned ports. 12/24/2013
- 19. Next Few SlidesDepict the Theoretical Tools used in Modeling... 12/24/2013
- 20. Timed Systems... 1. Almostall real-time systems are examples of timed systems, this require a 2. 3. 4. 5. very high degree of synchronization with a set of clocks. Timed as the named suggests is of prime importance in all real – world critical applications. E.g. Flight Control Systems. These systems are modeled with the help of a timed automata which is an extension of the finite state automata. Its just a fancy name for an automaton with a set of local/global clocks, where each state implicitly remembers the time of each event or rather its timestamp. Human Gait is a highly timed and synchronized system hence, approximating it by a timed automata will not be wrong on the contrary it will improve the correctness of the model. 12/24/2013
- 21. Hybrid Automata... A hybridautomaton is used to model any system which has both discrete and continuous states. These hybrid systems form the core components of most embedded systems today hence; ways to model these in an efficient and effective manner is the real challenge. This automaton fits our purpose because human gait inherently consists of both discrete (stance) phase and continuous(swing) phase. These phases are further subdivided into several atomic phases which will form the basis for our system design. 12/24/2013

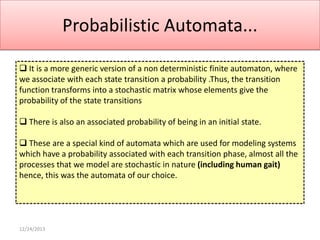

- 22. Probabilistic Automata... Itis a more generic version of a non deterministic finite automaton, where we associate with each state transition a probability .Thus, the transition function transforms into a stochastic matrix whose elements give the probability of the state transitions There is also an associated probability of being in an initial state. These are a special kind of automata which are used for modeling systems which have a probability associated with each transition phase, almost all the processes that we model are stochastic in nature (including human gait) hence, this was the automata of our choice. 12/24/2013
- 23. Man I am overwhelmedby all these classes of automata. Which one do I choose......?? 12/24/2013

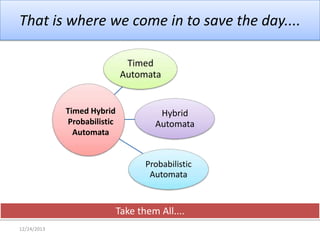

- 24. That is wherewe come in to save the day.... Timed Automata Timed Hybrid Probabilistic Automata Hybrid Automata Probabilistic Automata Take them All.... 12/24/2013

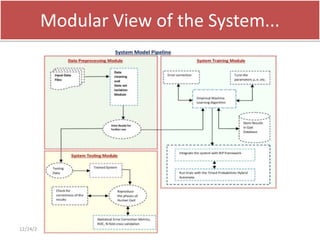

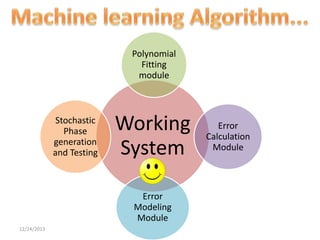

- 25. Modular View ofthe System... 12/24/2013
- 26.

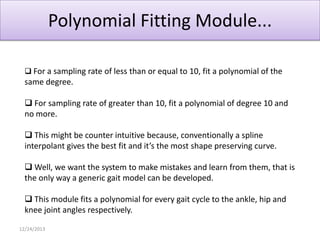

- 27. Polynomial Fitting Module... For a sampling rate of less than or equal to 10, fit a polynomial of the same degree. For sampling rate of greater than 10, fit a polynomial of degree 10 and no more. This might be counter intuitive because, conventionally a spline interpolant gives the best fit and it’s the most shape preserving curve. Well, we want the system to make mistakes and learn from them, that is the only way a generic gait model can be developed. This module fits a polynomial for every gait cycle to the ankle, hip and knee joint angles respectively. 12/24/2013

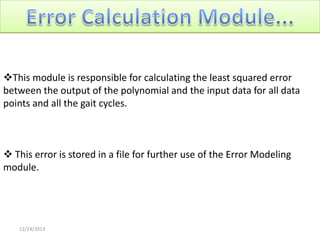

- 28. This module isresponsible for calculating the least squared error between the output of the polynomial and the input data for all data points and all the gait cycles. This error is stored in a file for further use of the Error Modeling module. 12/24/2013

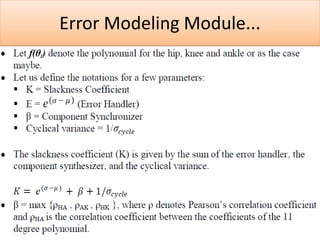

- 29.

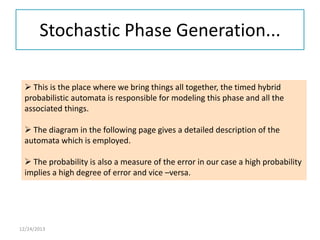

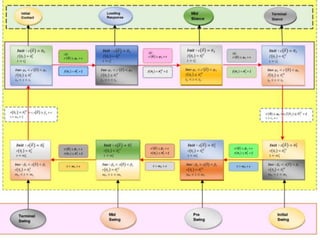

- 30. Stochastic Phase Generation... This is the place where we bring things all together, the timed hybrid probabilistic automata is responsible for modeling this phase and all the associated things. The diagram in the following page gives a detailed description of the automata which is employed. The probability is also a measure of the error in our case a high probability implies a high degree of error and vice –versa. 12/24/2013
- 31.
- 32.
- 33.

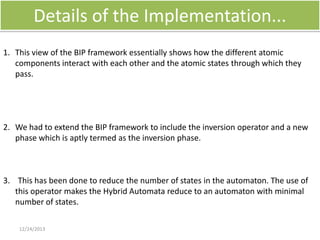

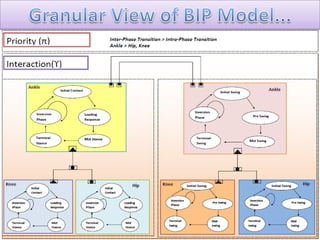

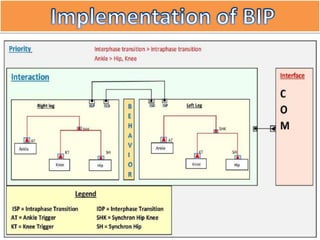

- 34. Details of theImplementation... 1. This view of the BIP framework essentially shows how the different atomic components interact with each other and the atomic states through which they pass. 2. We had to extend the BIP framework to include the inversion operator and a new phase which is aptly termed as the inversion phase. 3. This has been done to reduce the number of states in the automaton. The use of this operator makes the Hybrid Automata reduce to an automaton with minimal number of states. 12/24/2013

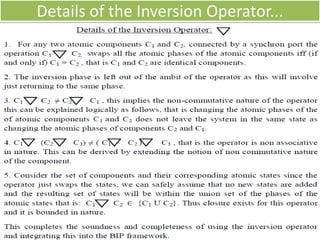

- 35. Details of theInversion Operator... 12/24/2013

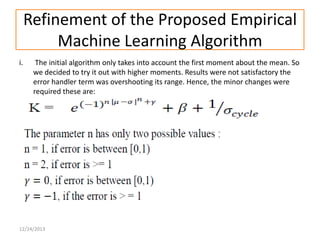

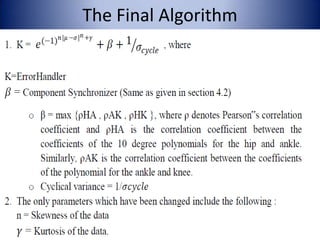

- 36. Refinement of theProposed Empirical Machine Learning Algorithm i. The initial algorithm only takes into account the first moment about the mean. So we decided to try it out with higher moments. Results were not satisfactory the error handler term was overshooting its range. Hence, the minor changes were required these are: 12/24/2013

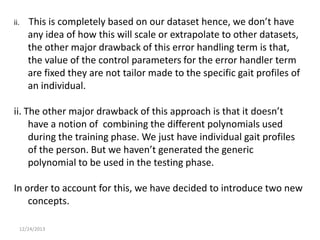

- 37. ii. This is completelybased on our dataset hence, we don’t have any idea of how this will scale or extrapolate to other datasets, the other major drawback of this error handling term is that, the value of the control parameters for the error handler term are fixed they are not tailor made to the specific gait profiles of an individual. ii. The other major drawback of this approach is that it doesn’t have a notion of combining the different polynomials used during the training phase. We just have individual gait profiles of the person. But we haven’t generated the generic polynomial to be used in the testing phase. In order to account for this, we have decided to introduce two new concepts. 12/24/2013

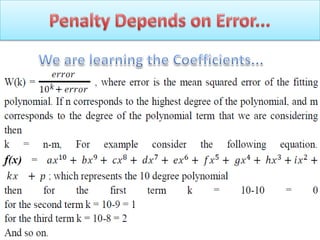

- 38.

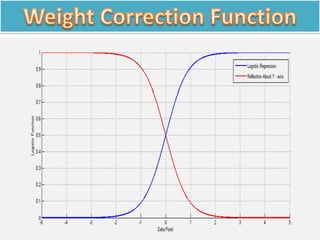

- 39.
- 40.

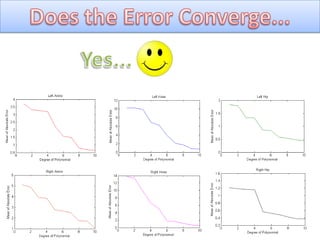

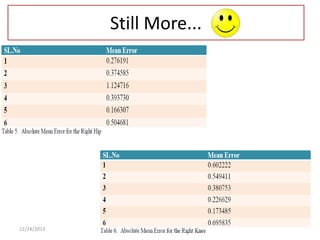

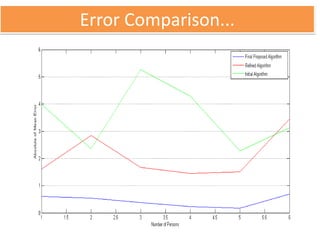

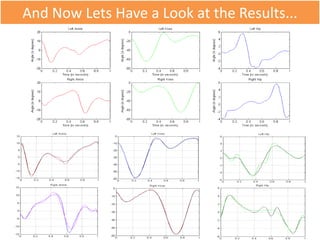

- 41. And Now LetsHave a Look at the Results... 12/24/2013
- 42.

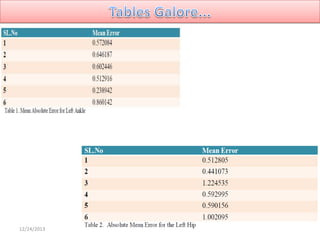

- 43.
- 44.
- 45.
- 46.

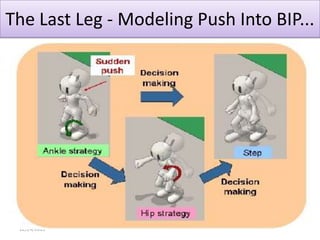

- 47. The Last Leg- Modeling Push Into BIP... 12/24/2013
- 48. Abstract View ofthe BIP Model... 12/24/2013

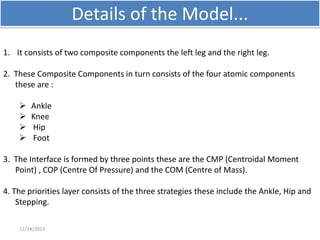

- 49. Details of theModel... 1. It consists of two composite components the left leg and the right leg. 2. These Composite Components in turn consists of the four atomic components these are : Ankle Knee Hip Foot 3. The Interface is formed by three points these are the CMP (Centroidal Moment Point) , COP (Centre Of Pressure) and the COM (Centre of Mass). 4. The priorities layer consists of the three strategies these include the Ankle, Hip and Stepping. 12/24/2013

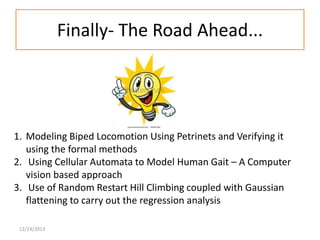

- 50. Finally- The RoadAhead... 1. Modeling Biped Locomotion Using Petrinets and Verifying it using the formal methods 2. Using Cellular Automata to Model Human Gait – A Computer vision based approach 3. Use of Random Restart Hill Climbing coupled with Gaussian flattening to carry out the regression analysis 12/24/2013
- 51. So that’s AllFolks... 12/24/2013
- 52.
Editor's Notes
- #4 The picture demonstrates the whole idea behind push recovery, if you push a human being it can recover from that push, but if you push a robot it cannot recover from the push. Effectively modeling this is indeed a big issue.
- #22 The example given is that of a thermostat it can be in two states on and off which are discrete in nature, but the fall in temperature is continuous in nature which is given by the differential equation. This is the flow condition. The condition x >= 16 is the invariant condition. And x <= 18 is the guard condition.
