- 1. Biomedical engineering department Preetha nc 1st Sem MHA
- 2. INTRODUNCTION Biomedical engineering(BME) isthe application of engineering principles and design concepts to medicine and biology for healthcare purpose(e.g. Diagnostic or therapeutic). It is one of the latest and most dynamic programs in hospitals. The aim of a clinical engineering programme is to provide technical expertise and management support to hospital administration, engineering department and medical staff. This field seeks to close the gap between engineering and medicine.

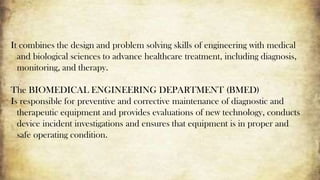

- 3. It combines thedesign and problem solving skills of engineering with medical and biological sciences to advance healthcare treatment, including diagnosis, monitoring, and therapy. The BIOMEDICAL ENGINEERING DEPARTMENT (BMED) Is responsible for preventive and corrective maintenance of diagnostic and therapeutic equipment and provides evaluations of new technology, conducts device incident investigations and ensures that equipment is in proper and safe operating condition.

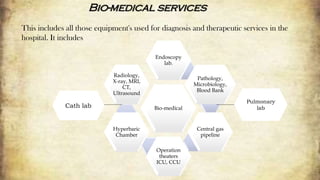

- 4. Bio-medical services This includesall those equipment's used for diagnosis and therapeutic services in the hospital. It includes Bio-medical Endoscopy lab. Pathology, Microbiology, Blood Bank Central gas pipeline Operation theaters ICU, CCU Hyperbaric Chamber Radiology, X-ray, MRI, CT, Ultrasound Cath lab Pulmonary lab

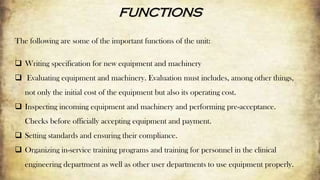

- 5. FUNCTIONS The following aresome of the important functions of the unit: Writing specification for new equipment and machinery Evaluating equipment and machinery. Evaluation must includes, among other things, not only the initial cost of the equipment but also its operating cost. Inspecting incoming equipment and machinery and performing pre-acceptance. Checks before officially accepting equipment and payment. Setting standards and ensuring their compliance. Organizing in-service training programs and training for personnel in the clinical engineering department as well as other user departments to use equipment properly.

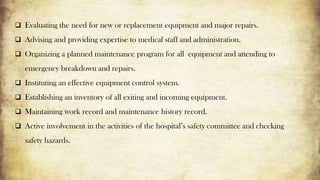

- 6. Evaluating theneed for new or replacement equipment and major repairs. Advising and providing expertise to medical staff and administration. Organizing a planned maintenance program for all equipment and attending to emergency breakdown and repairs. Instituting an effective equipment control system. Establishing an inventory of all exiting and incoming equipment. Maintaining work record and maintenance history record. Active involvement in the activities of the hospital’s safety committee and checking safety hazards.

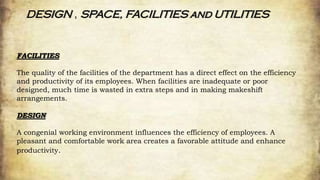

- 7. DESIGN , SPACE,FACILITIES and UTILITIES FACILITIES The quality of the facilities of the department has a direct effect on the efficiency and productivity of its employees. When facilities are inadequate or poor designed, much time is wasted in extra steps and in making makeshift arrangements. DESIGN A congenial working environment influences the efficiency of employees. A pleasant and comfortable work area creates a favorable attitude and enhance productivity.
- 8. SPACES It is difficultto established a standard space layout for a clinical engineering laboratory for all the hospitals. It depends on a number of factors like the size of the hospital, the sophistication of equipment, the size and training of personnel and the extent of contract services. Each Hospital should tailor its structure and design to meet its individual function needs. Generally, in small hospital One biomedical technician, one room of 13.95 sq meters(150 sq ft) = 4.57 meters * 3.71 meters (15 ft * 10 ft) is adequate to perform the basic functions. In large layout one side of the room, there is a desk with wall-mounted cabinets or bookcase. Beside it, there is a file cabinets for manual and records. Next to the cabinet are a lockable cabinet, shelves and drawers for test instruments, spare parts and smaller instruments awaiting repairs. Large instruments that have come for repair are stored at the end of the room on one side.

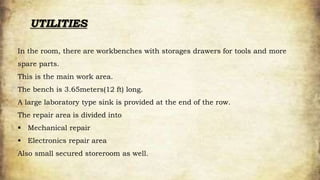

- 9. UTILITIES In the room,there are workbenches with storages drawers for tools and more spare parts. This is the main work area. The bench is 3.65meters(12 ft) long. A large laboratory type sink is provided at the end of the row. The repair area is divided into Mechanical repair Electronics repair area Also small secured storeroom as well.

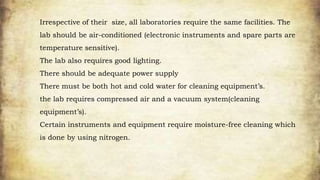

- 10. Irrespective of theirsize, all laboratories require the same facilities. The lab should be air-conditioned (electronic instruments and spare parts are temperature sensitive). The lab also requires good lighting. There should be adequate power supply There must be both hot and cold water for cleaning equipment’s. the lab requires compressed air and a vacuum system(cleaning equipment’s). Certain instruments and equipment require moisture-free cleaning which is done by using nitrogen.

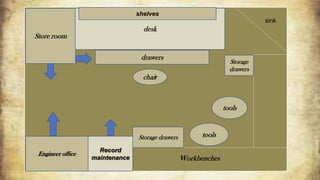

- 11. Store room desk shelves drawers Storage drawers tools tools Engineer office Record maintenance Storagedrawers chair sink Workbenches
- 12. Role of BiomedicalEngineering Department Provide Education Electrical Safety Maintenance Training Research and development ROLES Technology Acquisition Towards hospital designs

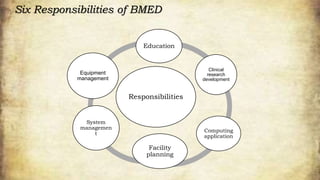

- 13. Six Responsibilities ofBMED Responsibilities Education Clinical research development Computing application Facility planning System managemen t Equipment management

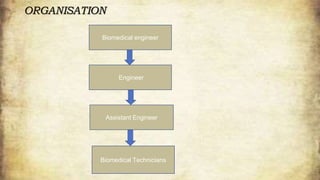

- 14.

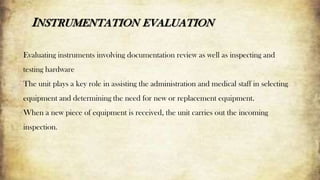

- 15. INSTRUMENTATION EVALUATION Evaluating instrumentsinvolving documentation review as well as inspecting and testing hardware The unit plays a key role in assisting the administration and medical staff in selecting equipment and determining the need for new or replacement equipment. When a new piece of equipment is received, the unit carries out the incoming inspection.

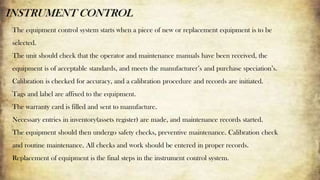

- 16. INSTRUMENT CONTROL The equipmentcontrol system starts when a piece of new or replacement equipment is to be selected. The unit should check that the operator and maintenance manuals have been received, the equipment is of acceptable standards, and meets the manufacturer’s and purchase speciation’s. Calibration is checked for accuracy, and a calibration procedure and records are initiated. Tags and label are affixed to the equipment. The warranty card is filled and sent to manufacture. Necessary entries in inventory(assets register) are made, and maintenance records started. The equipment should then undergo safety checks, preventive maintenance. Calibration check and routine maintenance. All checks and work should be entered in proper records. Replacement of equipment is the final steps in the instrument control system.

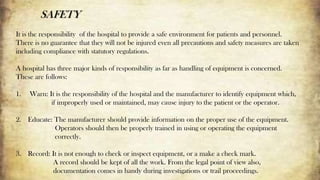

- 17. SAFETY It is theresponsibility of the hospital to provide a safe environment for patients and personnel. There is no guarantee that they will not be injured even all precautions and safety measures are taken including compliance with statutory regulations. A hospital has three major kinds of responsibility as far as handling of equipment is concerned. These are follows: 1. Warn: It is the responsibility of the hospital and the manufacturer to identify equipment which, if improperly used or maintained, may cause injury to the patient or the operator. 2. Educate: The manufacturer should provide information on the proper use of the equipment. Operators should then be properly trained in using or operating the equipment correctly. 3. Record: It is not enough to check or inspect equipment, or a make a check mark. A record should be kept of all the work. From the legal point of view also, documentation comes in handy during investigations or trail proceedings.
- 18. Clinical engineer Nurses Vendors Doctors Hospital administration Third party payers Leasing Agencies Regulation Agencies Clinical Research Alliedhealth professionals Patient Hospital Environment BIOMEDICAL ENGINEERING RELATED TO
- 19.

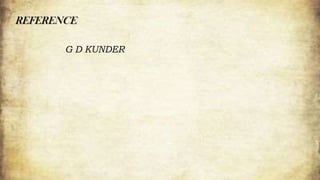

- 20.
