BIOL 478 Final Paper

Genetic Diversity and Gene Flow among Populations of Ophryotrocha
(Annelida: Polychaeta) on Vertebrate Bones at Different Depths
Elizabeth Tenney
Species of Ophryotrocha within the Family Dorvilleidae are well-studied polychaetes
found on whale-falls in all oceans at various shallow and deep water depths. The
opportunistic polychaete has also been discovered inhabiting experimentally deployed pig
and cow bones. However, while several studies have proposed phylogenies for Ophryotrocha
species, little is known about the genetic diversity and gene flow among Ophryotrocha
populations across different bone types, substrates, and depths. In the current study, we used
~ 600bp of the COI barcode to examine the genetic diversity and gene flow in populations of
Ophryotrocha discovered on whale, cow, and pig bones in the Mediterranean Sea. We found
that samples in our study formed two isolated branches. One branch contained all samples
collected from shallow depths (10 – 20 m), and one branch contained all samples collected
from 57 m. Pairwise distances ranged from 7.33% to 8.19% between the branches, neither of
which falls within previously recorded Ophryotrocha species lineages on the tree. Based on
this, we propose two cryptic species of Ophryotrocha. 21 haplotypes were present across the
38 samples found at shallow depths. These results provide evidence of gene flow among
shallow water populations of Ophryotrocha likely because of larval recruitment from large
intermixing populations. Future research could verify the presence of new species by
generating nuclear coding sequences. Substrate surrounding vertebrate bones should also be
sampled to examine the recruitment mechanisms of Ophryotrocha species in sampled
geographic locations.
Key Words: COI barcode, whale fall, Ophryotrocha, genetic diversity, gene flow,
phylogeny, haplotype, Mediterranean Sea
Introduction
Scientists have long speculated over the effect whale carcasses might have on their
ecological environment after death, believing that in time the carcass could host microbial
communities. Before the late 20th
century, scientists had only gathered information
suggesting faunal communities inhabited them (Smith and Baco, 2003). In 1989, however, a
chance discovery of a whale carcass in the eastern Pacific Ocean spurred on several studies
with the purpose of investigating the invertebrate species that potentially thrive on naturally
or experimentally deployed whale carcasses (Smith et al., 1989). Since the initial discovery,
whale falls are now widely recognized as hosts of invertebrate faunal communities (Smith
and Baco, 2003).
Now, 21 whale-fall specific macrofaunal species have been discovered across the
world, with over 400 species recorded on whale fall in total (Smith and Baco, 2003). These
species inhabit the carcasses at different times during the four stages of biological and
chemical succession associated with whale falls, with different fauna at each stage: the initial
mobile-scavenger stage, the enrichment-opportunistic stage, the sulphophilic stage, and the
reef stage (Smith and Baco, 2003; Bennet et al., 1994). In the first stage, necrophages like
hagfish and sleeper sharks remove the soft tissue of the carcass; in the second, polychaetes,

crustaceans, and other opportunistic invertebrates begin to colonize the bones and
surrounding sediment. In the sulphophilic stage, the presence of chemoautotrophic sulphur-
based bacterial mats increases, and lastly, the reef stage represents the loss of organic matter
in the bones; here, suspension feeders colonize and deposit feeders feed on the substrate
(Smith and Baco, 2003).
After the scavenger species have removed the soft tissue from the whales or other
vertebrates, the invertebrate communities that begin to colonize are present for years;
therefore, these communities are an ideal stage to study. Polychaetes in particular are well
researched in whale fall literature (e.g., Dahlgren et al., 2004; Glover et al., 2005; Goffredi et
al., 2004; Fujiwara, 2006). There are also studies on other types of vertebrate bones, as
scientists have found that specific species of polychaetes colonize on different types of
experimentally deployed bones (Anderson, 2010; Jones et al., 2008; Taboada et al., 2014).
Cow and pigs bones are found to act as invertebrate community hosts, too, with species of
polychaetes largely found on these deployed mammal bones (Anderson, 2010; Jones et al.,
2008).
Ophryotrocha (Claparède & Mecznikow, 1869) is a model annelid typically found on
whale bones that is easy to keep in the laboratory, and therefore its evolution and speciation
have been widely studied (Heggoy et al., 2007). Discovered in 1869 and found to be within
the family Dorvelleidae, Ophryotrocha is a small marine worm with a relatively short life
span of under a year (Schleicherova et al., 2010). Ophryotrocha species can reproduce in a
variety of ways, including simultaneous hermaphrodism and gonochorism, and they breed
semi-continuously. After reproduction, a brood is produced and protected in a tube, waiting
to emerge (Shain, 2009). Once the larvae emerge, the adult species of Ophryotrocha die and
their offspring disperse through the water for weeks before settling as juveniles on various
substrates (Mercier et al., 2014).
Species in this genus are considered to be opportunistic (Fauchald, 1977). They are
commonly found in warm water habitats or polluted areas, though they are also present in
temperate and deep-sea locations. They are usually found at the sediment level, too, where
they act as grazers attempting to glean bacteria or detritus from the surface of the substrate
they are inhabiting – either sand, rock, or as has been discovered over the past decade,
submerged whale bones (Shain, 2009).
Species of Ophryotrocha are found worldwide, and the diversity of the genus has
increased significantly with the recent discovery of many new species from whale falls in
locations such as the Atlantic Ocean, the Mediterranean Sea, and even the Southern Ocean,
with species of Ophryotrocha present on the whale fall in these locations. While some
species have been described from single whale falls, others are known to have wide
distributions. For example, Ophryotrocha eutrophila has been found in the Mediterranean as
well as the Atlantic (Taboada et al., 2014; Wiklund et al., 2009). Scientists are frequently
discovering new species of Ophryotrocha in order to further understand the species and its
behaviour and habitat preferences (Wiklund et al., 2009; Taboada et al., 2014; Martin et al.,
1991; Cossu et al., 2014; Taboada et al., 2013; Amon et al., 2013).
Despite advances in documenting the diversity of Ophryotrocha species,
Ophryotrocha and its species diversity in varying geographic locations, substrates, and bone
types over time remain poorly known. Ophryotrocha species have primarily been studied on

deep sea whale fall, for example. However, it has been suggested that shallow water whale
falls are similar to other shallow water organically enriched substrates (Danise et al., 2014).
Deep water whale falls, on the other hand, have been found to be more similar to other deep
water habitats, like hydrothermal vents, indicating potential differences between species of
Ophryotrocha found on deep sea and shallow sea whale falls (Bennett et al., 1994).
Ophryotrocha may not be limited to specific mammal bones, either, and its presence on other
mammal or vertebrate bones could open up new research opportunities if studied more
thoroughly. Therefore, various water depth communities and different bone types may reveal
more about the nature of Ophryotrocha and its diversity.
To better understand the diversity of invertebrate populations inhabiting vertebrate
bones and to further differentiate between shallow water and deeper water communities, we
examined the diversity of Ophryotrocha on bones in the Mediterranean Sea. Dr. Sergi
Taboada (University of Barcelona) deployed cow, whale, and seagull bones on either sand or
rock substrates at depths of 10m, 20m, or 57m off of the Spanish Mediterranean coast.
Vertebrate bones were chosen based on bait fishing preferences in the area (Taboada et al.,
2014) Dr. Taboada sent his samples to us, where we then examined the gene flow and genetic
diversity of the species of Ophryotrocha found on those bones.
Given the dispersal mechanisms and larval stage in the Ophryotrocha life cycle, we
expected that there would be high genetic diversity and gene flow among Ophryotrocha
populations across bone types, substrates, geographic locations, and depths, due to the mixing
of Ophryotrocha species on similar substrates and consequent sexual reproduction (Taboada
et al., 2014). We also expected species of Ophryotrocha to vary in deep and shallow depths
because of the differing environments (Danise et al., 2014; Bennett et al., 1994). To test our
hypothesis, we used the COI barcode (Hebert et al., 2003) to identify the species of
Ophryotrocha found on the bones, and then we constructed a phylogenetic tree and haplotype
network to observe genetic diversity within and differences between species.
Methods
Sample Collection
Cow, pig, and whale bones were placed on rock substrate at a depth of 20m. Whale
bones and seagull bones were also deployed at 57m and 10m respectively off the shore of
Blanes Bay and Tossa de Mar (Figure 1). The bones were collected after 15 months (T2).
Ophryotrocha puerilis, O. eutrophila, and O. alborana as identified by morphology were
collected from the deployed vertebrate bones in Blanes Bay in the Spanish Mediterranean
coast. The three species of Ophryotrocha were extracted from the bones and 1mm tail snips
were removed and stored in ethanol.
DNA Amplification and Analysis
DNA was extracted using a QIAmp DNA Micro Kit #56304 (QIAGEN). A ~700bp
segment of the cytochrome oxidase I gene (COI) was then amplified using H and L universal
primers (Folmer et al., 1994) or Mega F (5’- TAYTCWACWAAYCAYAAAGAYATTGG -
3’) and Mega R (5’- TAKACTTCTGGRTGMCCAAARAAT -3’) primers. Primer were
provided by Kelly Pittenger and Samuel Davalos (Table 1). PCR was performed using the
following profile: 1µl DNA extract, 10x buffer, 50µM MgCl2, 25µM dNTP, 25µM forward
and reverse primers, and 0.5u Taq polymerase (Invitrogen). 25µl reactions were run at 95˚C

(5 min), 35 cycles of 95˚C (30 seconds), 45˚C or 48˚C (30 seconds), 72˚C (1 min), and a final
extending temperature of 72˚C (7 min).
Gel electrophoresis was performed using 1% agarose gel to verify COI amplification
and visualized through the fluorescence of ethidium bromide. Once COI amplification was
confirmed, the PCR amplifications were cleaned using ExoSAP-IT PCR Product Cleanup
protocol (Affymetrix/USB). DNA cycle sequencing was performed using 5µl or 10µl
reactions which contained ~50-300 ng of DNA, 5X Sequencing Buffer, Terminator-ready
reaction mix (TRR v.3 Life Technologies), and 1µM of either forward or reverse primers.
The reactions were run on the GeneAmp PCR thermocycler for 30 cycles of 96˚C (10
seconds), 50˚C or 49˚C (10 seconds), 60˚C (4 min), and held at 4˚C.
Sequences were analyzed using the ABI PRISM 3130A Genetic Analyzer (Life
Technologies). For all of the specimens, 610-658 bp of the COI gene were edited and aligned
using Sequencher 5.2.4 (GeneCodes). Species identity was examined from the edited
sequences using BLAST on the ‘somewhat similar’ setting.
Analysis
Sequencher alignments were exported as Fasta files, and all sequences were merged
with GenBank sequences using Mesquite 2.75. Sequence Matrix was used to format the
sequences for MEGA v.5.03. A neighbor-joining tree was generated using MEGA. Results
were visualized in FigTree v1.4.0 and a phylogram was generated. Population statistics and a
haplotype network were created using Arlequin 3.5.1.3. The haplotype network was
visualized in HapStar 0.7.
Results
We inferred the phylogenetic relationships of 43 specimens of Ophryotrocha from the
mitochondrial COI gene (Table 2). There were three main branches illustrated in our
neighbor-joining tree, with the species of Ophryotrocha we studied forming two separate
branches (Figure 2). Branch A consisted of all worms that were collected from the three bone
types in sand or rock substrate shallower than 20m (Opu_WRT2.1-2.11; 2.13-2.24;
Opu_CRT2.1-2.10; Opu_2013_BL1-5). Branch B consisted only of worms collected from
whale bones in sand at a 57m depth (Opu_2014_WTS1-5). The pairwise distances between A
and B ranges from 7.33% to 8.19%.
Branch B had greater nucleotide diversity than A, due to the greater phylogenetic
distance denoted by the longer branch length. Branch B had low haplotype diversity, with
two haplotypes displayed (Figure 3). Branch A had low nucleotide diversity, but high
haplotype diversity with 21 haplotypes across 38 specimens (Table 3; Figure 3). Species of
Opu_WRT had 12 haplotypes, species of Opu_CRT had 6 haplotypes, and species of
Opu_2013_BL had 5 haplotypes (Table 3). The specific values for haplotype and nucleotide
diversity for each locality of Branch A are illustrated in Table 3.
Discussion
This study presents the possible discovery of two cryptic species of Ophryotrocha.
Although the pairwise distance was lower than the average distance used for delineation of
Ophryotrocha species as presented by Dahlgren et al. (2001), there is no clear evidence of
gene flow between the two branches, A and B, in our analysis (Figure 2). Each branch forms
its own monophyletic group, and the delineation of the four most closely related species of
Ophryotrocha into their own branch offers evidence supporting discovery of new cryptic
species. These results represent an expansion of species diversity of Ophryotrocha found on

whale falls recently, as seen in recent research on new Ophryotrocha species by Wiklund et.
al. (2009), Taboada et al. (2013), Wiklund et al. (2012).
Within Branch A there are 21 haplotypes from a total of 38 specimens, with
haplotypes shared among each locality (Table 3). The haplotype diversity levels are
comparable to a study done by Schulze (2006) on the genetic diversity of Palolo worms in the
North Pacific and Caribbean Oceans (Schulze, 2006). Similarly, haplotype diversity was also
comparable across species of the ribbon worm Parborlasia corrugatus in the Southern
Ocean, indicating a similar trend among marine worms (Thornhill et al., 2008). Average
haplotype diversities in the specific studies for Palolo worms, Ribbon worms, and our
Ophryotrocha study are 0.864, 0.845, and 0.918 respectively (Schulze, 2006; Thornhill et al.,
2008). According to Wiens and Penkrot (2002), haplotypes that do not cluster and appeared
to be mixed among localities indicate evidence of gene flow. Therefore, Branch A seems to
represent a large population of the Mediterranean Sea with high levels of intermixing and
consequently gene flow among populations of Ophryotrocha. The gene flow may occur as a
result of worm recruitment from a large, mixed pool of larvae from the shallow depths of the
Mediterranean coast.
These results are not surprising, as Ophryotrocha is known for larval dispersal. The
adult species breed semi-continuously, and species may pseudocopulate for hours until a
brood is produced. The larvae emerge from the brood after 30-45 days (Shain, 2009). After
emerging, the larval species of Ophryotrocha disperse through the ocean for weeks before
settling to a suitable benthic substrate to inhabit (Mercier et al., 2014). The dispersal behavior
of Ophryotrocha is therefore evidence for potential gene flow, as intermixing among
populations can occur in a limited geographic range.
Our results also indicate differences in Ophryotrocha species dependent on deployed
bone depth, and there is no indication that bone type is linked to particular Ophryotrocha
species. Branch B was a monophyletic group found only on whale fall deployed at a depth of
57m, whereas Branch A consisted solely of worms collected from three different bone types
all in shallow water habitats (10m, 20m). These results indicate that variation in depth can
influence species diversity, illustrating differences in deeper water whale fall environments as
compared to shallow water whale fall environments. Similarly, Danise and Dominici (2014)
discovered variation in successional stages in deep and shallow water whale fall, suggesting
that different communities and species may inhabit whale fall at different depths (Danise and
Dominici, 2014).
Studies have also found that deep water whale falls are similar to other deep water
habitats like hydrothermal vents, and shallow water whale fall habitats mirror other shallow
water habitats (Danise et al., 2014; Bennet et al., 1994). This is likely a consequence of the
different environmental factors that are present at various depths. Therefore, the depth-
specific species diversity in our study may be specific to the general geographic location of
the whale fall and not the bone itself. Thus, species of Ophryotrocha may occur in benthic
habitats near whale fall and other vertebrate bones. Few studies focus on the presence of
Ophryotrocha on the substrate surrounding whale falls, but Smith and Baco (2003) noted that
polychaetes colonize the surrounding substrate before the bones (Smith and Baco, 2003).
This could indicate that Ophryotrocha are not dependent on bone habitat, as the dispersive
larvae colonize the general area first, and recruitment occurs on the substrate before the
populations of Ophryotrocha move to the bones; species of Ophryotrocha reproductively mix
and gene flow then occurs.
Future Directions

To further understand our results and assess whether we have discovered two new
species of Ophryotrocha, nuclear coding sequences should be generated for nuclear DNA
using either ITS1 or ITS2, as performed in other studies using polychaetes (Iannotta et al.,
2007; Boggemann, 2009). As the COI gene is a mitochondrial marker, and mitochondria are
passed on maternally, a nuclear marker will reveal whether our results reflect a maternal
lineage phenomenon or the general population dynamics at the genetic level.
To understand the dispersal mechanisms and the water depth variation of
Ophryotrocha species, the substrate surrounding the bones in deep and shallow water habitats
should be sampled for analysis and species classification. Many marine worms are commonly
found on various substrates in the Mediterranean, and Ophyrotrocha species may be similar.
For example, polychaetes have been associated with the sea grass Posidonia as well as the
rocky submerged coasts in the Mediterranean Sea (Iannotta et al., 2007; Giangrande et al.,
2003). If similar species of Ophryotrocha are found on the surrounding substrate of
vertebrate bones, this could indicate that the dispersal mechanisms of the larvae are not
reliant on bone habitat. Instead, they may disperse and settle in organically enriched
environments within a specific geographic area not limited to whale fall, denoting the
occurrence of larval recruitment across Ophryotrocha species.
Acknowledgements
We would like to thank Dr. Sergi Taboada (University of Barcelona) for all sample
collection contributions and guidance, as well as Dr. Damhnait McHugh and Dr. Nancy
Schult for their assistance and mentorship. We would also like to thank Colgate University
for the opportunity it provided for academic research. The work was funded by NSF-DEB
award number 1036537 to Dr. Damhnait McHugh.
Literature Cited
Amon, D.J., A.G. Glover, H. Wiklund, L. Marsh, K. Linse, A.D. Rogers, and J.T. Copley.
2013. The Discovery of a Natural Whale Fall in the Antarctic Deep Sea. Deep-Sea
Biodiv. And Life Hist. Processes. 92: 87-96.
Anderson, G.S. 2010. Decomposition and invertebrate colonization of cadavers in coastal
marine environments. Current Concepts in Forensic Entomology. Springer
Netherlands, 223-272
Bennet, B.A., Smith, C.R., Glaser, B., Maybaum, H.L. 1994. Faunal Community Structure of
a Chemoautotrophic Assemblage on Whale Bones in the Deep Northeast Pacific
Ocean. Marine Ecology Progress Series. 108: 205-223.
Boggemann, M. 2009. Polychaetes (Annelida) of the abyssal SE Atlantic. Organisms
Diversity and Evolution 9:251-428.
Claparède, E., and E. Mecznikow. 1869. Beitraege zur Kenntnis der Entwicklungsgeschichte
der Chaetopoden. Zeitschrift für wissenschaftliche Zoologie 19: 163-205.
Cossu, P., F. Maltagliati, F.G. Pannacciulli, R. Simonini, G. Massamba-N’Siala, M. Casu, C.
Lardicci, D. Prevedelli, and A. Castelli. 2014. Phytogeography of Ophryotrocha
labronica (Polychaeta, Dorvilleidae) along the Italian Coasts. Marine Ecol. p.1-10.
Dahlgren, T.G., B. Akesson, C. Schander, K.M. Halanych, and P. Sundberg. 2001. Molecular
Phylogeny of the Model Annelid Ophryotrocha. Biol Bull. 201: 193-203.

Dahlgren, T.G., Glover, A.G., Baco, A. and C.R. Smith. 2004. Fauna of Whale Fall:
Systematics and Ecology of a New Polychaete (Annelida: Chrysopetalidae) from the
Deep Pacific Ocean. Deep Sea Research Pt. 1: Oceanographic Research Papers
51(12): 2004.
Danise, S., Dominici, S., Glover, A.G., and T.G. Dahlgren. 2014. Molluscs from a Shallow-
Water Whale-Fall and their Affinities with Adjacent Benthic Communities on the
Swedish West Coast. Marine Biology Research. 10: 3-16.
Danise, S., and S. Dominici.A Record of Fossil Shallow-Water Whale Falls from Italy.
Lethaia. 47(2): 229-243.
Fauchald, K. 1977. The Polychaete Worms: Definitions and Keys to the Orders, Families,
and Genera. California: Natural History Museum of Los Angeles County.
Fujiwara, Y., Kawato, M., Yamamoto, T., Yamanaka, T., Sato-Okoshi, W., Noda, C.,
Tsuchida, S., Komai, T., Cubelio, S.S., Sasaki, T., Jacobsen, K., Kubokawa, K.,
Fujikura, K., Maruyama, T., Furushima, Y., Okoshi, K., Miyake, H., Miyazaki, M.,
Nogi, Y., Yatabe, A., Okutani, T. 2007. Three-year investigations into sperm whale-
fall ecosystems in Japan. Marine Ecology, 28, 219–232.
Giangrade, A., Delos, A.L., Fraschetti, S., Musco, L., Licciano, M. Terlizzi, A. 2003.
Polychaeta assemblages along a rocky shore on the South Adriatic Coast
(Mediterranean Sea): patterns of spatial distribution. Marine Biology143:1109-1116.
Glover, A.G., B. Kallstrom, C.R. Smith, T.G. Dahlgren. 2005. World-wide Whale Worms? A
New Species of Osedax from the Shallow North Atlantic. Proc. Biol. Sci. 272(1581):
2587-2592.
Goffredi, S.K., Paull, C.K., Fulton-Bennett, K., Hurtado, L.A., and R.C. Vrijenhoek. 2004.
Unusual Benthic Fauna Associated with a Whale Faull in Monterey Canyon,
California. Deep-Sea Resesarch. 51: 1295-1306.
Hebert, P.D.N., Cywinska, A., Ball, S.L., and J.R. deWaard. 2003. Biological Identifications
through DNA Barcodes. Proc. Biol. Sci. 270(1512): 313-321.
Heggoy, K.K., Schander, C., and B. Akesson. 2007. The Phylogeny of the Annelid Genus
Ophryotrocha (Dorvilleidae). Marine Biology Research. 3(6): 412-420.
Iannotta, M.A., Patti, F.P., Ambrosino, M. and Procaccini, G. 2007. Phylogeography of two
species of Lysidice (Polychaeta, Eunicidae) associated to the seagrass Posidonia
oceanica in the Mediterranean Sea. Marine Biology150:1115-1126.
Jones, W.J., S.B. Johnson, S.B.,. Rouse, G.W., and R.C. Vrijenhoek. 2008. Marine Worms
(genus Osedax) Colonize Cow Bones. Proc. R. Soc. B. 275: 387-391.
Martin, D., P. Abello, and J. Cartes. 1991. A new species of Ophryotrocha (Polychaeta:
Dorvilleidae) commensal of Geryon longipes (Crustacea: Brachyura) from the
Western Mediterranean Sea. J. of Nat. Hist. 25(2): 279-292.
Mercier, A., S. Baillon, and J.F. Hamel. 2014. Life History and Seasonal Breeding of the
Deep-Sea Annelid Ophryotrocha sp. (Polychaeta: Dorvelleidae). Deep Sea Research
Pt. 1 91: 27-35.

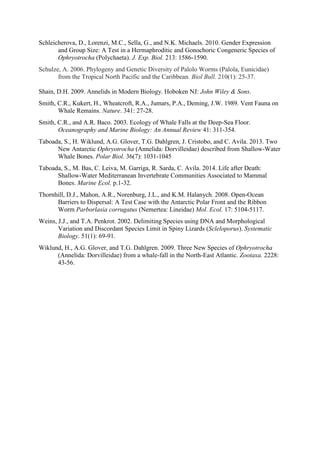

Schleicherova, D., Lorenzi, M.C., Sella, G., and N.K. Michaels. 2010. Gender Expression
and Group Size: A Test in a Hermaphroditic and Gonochoric Congeneric Species of
Ophryotrocha (Polychaeta). J. Exp. Biol. 213: 1586-1590.
Schulze, A. 2006. Phylogeny and Genetic Diversity of Palolo Worms (Palola, Eunicidae)
from the Tropical North Pacific and the Caribbean. Biol Bull. 210(1): 25-37.
Shain, D.H. 2009. Annelids in Modern Biology. Hoboken NJ: John Wiley & Sons.
Smith, C.R., Kukert, H., Wheatcroft, R.A., Jumars, P.A., Deming, J.W. 1989. Vent Fauna on
Whale Remains. Nature. 341: 27-28.
Smith, C.R., and A.R. Baco. 2003. Ecology of Whale Falls at the Deep-Sea Floor.
Oceanography and Marine Biology: An Annual Review 41: 311-354.
Taboada, S., H. Wiklund, A.G. Glover, T.G. Dahlgren, J. Cristobo, and C. Avila. 2013. Two
New Antarctic Ophryotrocha (Annelida: Dorvilleidae) described from Shallow-Water
Whale Bones. Polar Biol. 36(7): 1031-1045
Taboada, S., M. Bas, C. Leiva, M. Garriga, R. Sarda, C. Avila. 2014. Life after Death:
Shallow-Water Mediterranean Invertebrate Communities Associated to Mammal
Bones. Marine Ecol. p.1-32.
Thornhill, D.J., Mahon, A.R., Norenburg, J.L., and K.M. Halanych. 2008. Open-Ocean
Barriers to Dispersal: A Test Case with the Antarctic Polar Front and the Ribbon
Worm Parborlasia corrugatus (Nemertea: Lineidae) Mol. Ecol. 17: 5104-5117.
Weins, J.J., and T.A. Penkrot. 2002. Delimiting Species using DNA and Morphological
Variation and Discordant Species Limit in Spiny Lizards (Scleloporus). Systematic
Biology. 51(1): 69-91.
Wiklund, H., A.G. Glover, and T.G. Dahlgren. 2009. Three New Species of Ophryotrocha
(Annelida: Dorvilleidae) from a whale-fall in the North-East Atlantic. Zootaxa. 2228:
43-56.

Figures
Figure 1. Geographic approximation of sample sites. Red denotes cow and whale bones on a rock
substrate at 20 m; orange denotes whale bones on a sand substrate at 57 m and yellow denotes seagull
bones at 10 m.
Mega Forward Primer 5’-TAYTCWACWAAYCAYAAAGAYATTGG -3’
Mega Reverse Primer 5’-TAKACTTCTGGRTGMCCAAARAATC -3’
Table 1. CO1 degenerate primers used to amplify the CO1 sequences in the samples.
Name Bone Type Substrate Depth (m)
Opu_WRT Whale Rock 20
Opu_CRT Cow Rock 20
Opu_2014_WTS Whale Sand 57
Opu_2013_BL Seagull Sand 10
Table 2. Abbreviation key delineating the terminology used in our phylogeny and results.

Figure 2. Neighbour-joining tree for Ophryotrocha specimens. ‘A’ represents one branch, and
‘B’ represents the second. Blue represents individuals found on whale bone and rock substrate at
20m; green represents cow and rock substrate at 20m; red represents seagull and sand substrate at
10m; pink represents whale bones on sand substrate at 57m.
A
B

Figure 3. CO1 haplotype network from branch A with 21 haplotypes total. Blue represents individuals
found on whale bone and rock substrate at 20m; green represents cow and rock substrate at 20m; red
represents seagull and sand substrate at 10mTwo or more colors represent shared haplotypes. Circles
containing numbered haplotypes are scaled to size according to the number of individuals possessing a
particular haplotype.
Locality N # of
Haplotypes
Nucleotide
Diversity (π)
Haplotype
Diversity (H)
Mean # of
pairwise
distances
Opu_WRT 23 12 0.008659 +/-
0.004905
0.9091 +/-
0.0360
4.719368 +/-
2.397
Opu_CRT 10 6 0.009655 +/-
0.005726
0.8444 +/-
0.1209
5.600 +/-
2.936
Opu_2013_BL 5 5 0.010238 +/-
0.006913
1.0000 +/-
0.1265
5.600 +/-
3.235
Table 3. Measures of intra-population variability for species of Ophryotrocha in the Mediterranean Sea
based on the CO1 gene. N is number of individuals per locality. Average nucleotide diversity: 0.00985;
average haplotype diversity: 0.918.
H18
H19
H8
H9
H20
H21
H10
H3
H12
H1
H6
H15
H4
H5
H2
H14
H16
H13
H11
H17
H7

BIOL 478 Final Paper

More Related Content

What's hot

Viewers also liked

Similar to BIOL 478 Final Paper

BIOL 478 Final Paper
