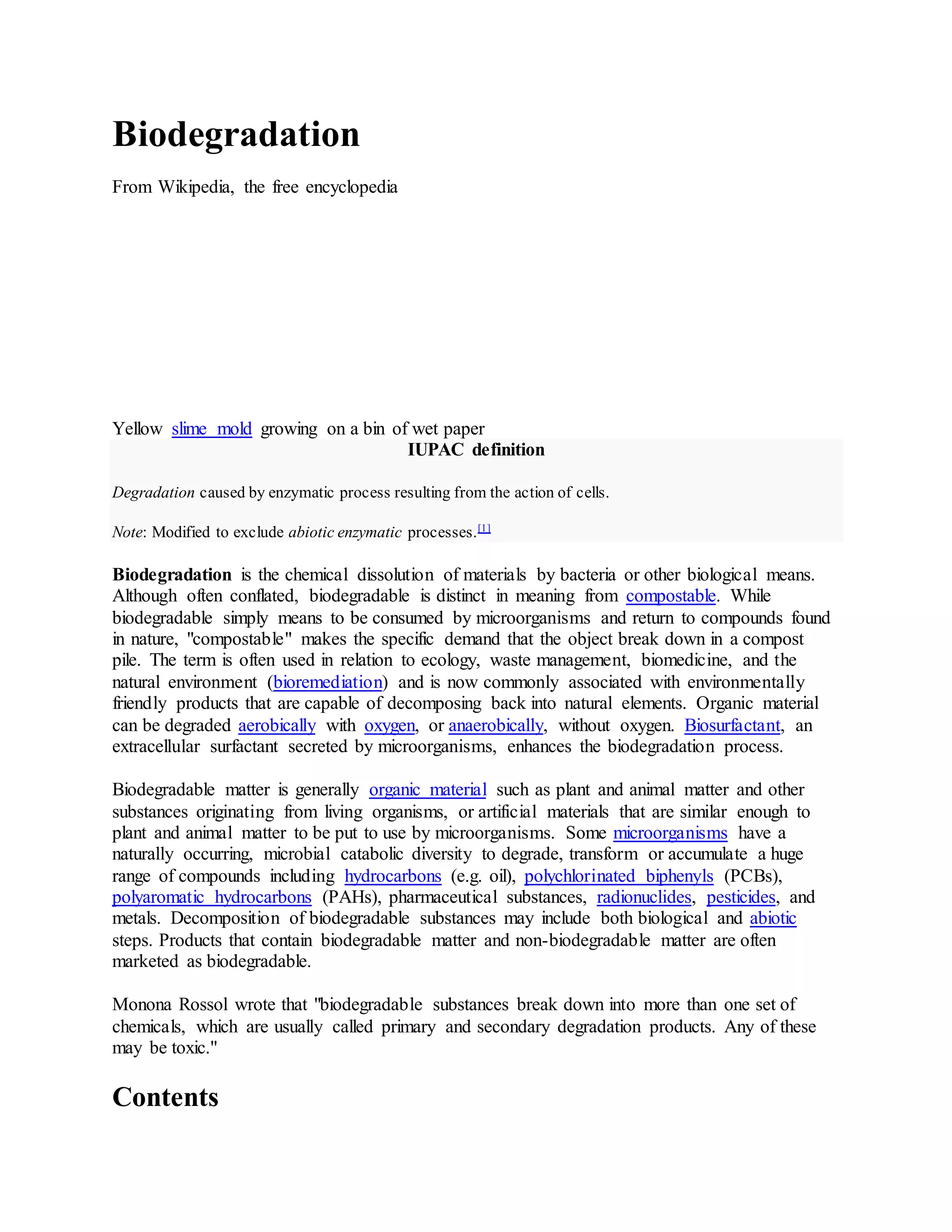

Biodegradation
1. Biodegradation
From Wikipedia, the free encyclopedia
Yellow slime mold growing on a bin of wet paper
IUPAC definition
Degradation caused by enzymatic process resulting from the action of cells.
Note: Modified to exclude abiotic enzymatic processes.[1]
Biodegradation is the chemical dissolution of materials by bacteria or other biological means.
Although often conflated, biodegradable is distinct in meaning from compostable. While
biodegradable simply means to be consumed by microorganisms and return to compounds found
in nature, "compostable" makes the specific demand that the object break down in a compost
pile. The term is often used in relation to ecology, waste management, biomedicine, and the
natural environment (bioremediation) and is now commonly associated with environmentally
friendly products that are capable of decomposing back into natural elements. Organic material
can be degraded aerobically with oxygen, or anaerobically, without oxygen. Biosurfactant, an
extracellular surfactant secreted by microorganisms, enhances the biodegradation process.
Biodegradable matter is generally organic material such as plant and animal matter and other
substances originating from living organisms, or artificial materials that are similar enough to
plant and animal matter to be put to use by microorganisms. Some microorganisms have a
naturally occurring, microbial catabolic diversity to degrade, transform or accumulate a huge
range of compounds including hydrocarbons (e.g. oil), polychlorinated biphenyls (PCBs),
polyaromatic hydrocarbons (PAHs), pharmaceutical substances, radionuclides, pesticides, and
metals. Decomposition of biodegradable substances may include both biological and abiotic
steps. Products that contain biodegradable matter and non-biodegradable matter are often
marketed as biodegradable.
Monona Rossol wrote that "biodegradable substances break down into more than one set of
chemicals, which are usually called primary and secondary degradation products. Any of these
may be toxic."
Contents
2. 1 Meteorology
2 Plastics
3 Biodegradable technology
4 Etymology of "biodegradable"
5 See also
6 References
7 External links

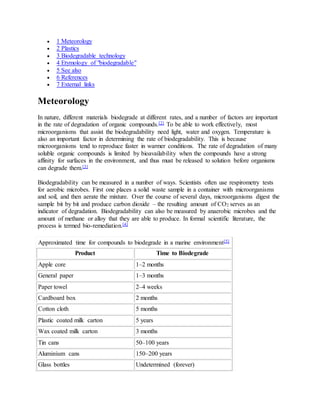

Meteorology
In nature, different materials biodegrade at different rates, and a number of factors are important
in the rate of degradation of organic compounds.[2] To be able to work effectively, most
microorganisms that assist the biodegradability need light, water and oxygen. Temperature is
also an important factor in determining the rate of biodegradability. This is because
microorganisms tend to reproduce faster in warmer conditions. The rate of degradation of many
soluble organic compounds is limited by bioavailability when the compounds have a strong
affinity for surfaces in the environment, and thus must be released to solution before organisms
can degrade them.[3]
Biodegradability can be measured in a number of ways. Scientists often use respirometry tests
for aerobic microbes. First one places a solid waste sample in a container with microorganisms
and soil, and then aerate the mixture. Over the course of several days, microorganisms digest the
sample bit by bit and produce carbon dioxide – the resulting amount of CO2 serves as an
indicator of degradation. Biodegradability can also be measured by anaerobic microbes and the
amount of methane or alloy that they are able to produce. In formal scientific literature, the
process is termed bio-remediation.[4]
Approximated time for compounds to biodegrade in a marine environment[5]
Product Time to Biodegrade
Apple core 1–2 months
General paper 1–3 months
Paper towel 2–4 weeks
Cardboard box 2 months
Cotton cloth 5 months
Plastic coated milk carton 5 years
Wax coated milk carton 3 months
Tin cans 50–100 years
Aluminium cans 150–200 years
Glass bottles Undetermined (forever)

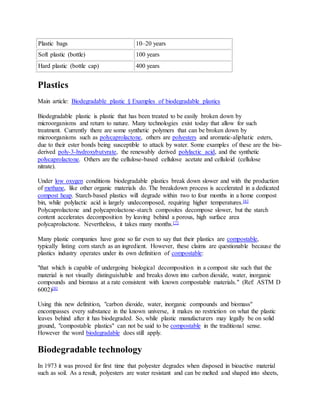

3. Plastic bags 10–20 years
Soft plastic (bottle) 100 years
Hard plastic (bottle cap) 400 years
Plastics
Main article: Biodegradable plastic § Examples of biodegradable plastics
Biodegradable plastic is plastic that has been treated to be easily broken down by
microorganisms and return to nature. Many technologies exist today that allow for such
treatment. Currently there are some synthetic polymers that can be broken down by
microorganisms such as polycaprolactone, others are polyesters and aromatic-aliphatic esters,
due to their ester bonds being susceptible to attack by water. Some examples of these are the bio-
derived poly-3-hydroxybutyrate, the renewably derived polylactic acid, and the synthetic
polycaprolactone. Others are the cellulose-based cellulose acetate and celluloid (cellulose
nitrate).
Under low oxygen conditions biodegradable plastics break down slower and with the production
of methane, like other organic materials do. The breakdown process is accelerated in a dedicated
compost heap. Starch-based plastics will degrade within two to four months in a home compost
bin, while polylactic acid is largely undecomposed, requiring higher temperatures.[6]
Polycaprolactone and polycaprolactone-starch composites decompose slower, but the starch
content accelerates decomposition by leaving behind a porous, high surface area
polycaprolactone. Nevertheless, it takes many months.[7]
Many plastic companies have gone so far even to say that their plastics are compostable,
typically listing corn starch as an ingredient. However, these claims are questionable because the
plastics industry operates under its own definition of compostable:
"that which is capable of undergoing biological decomposition in a compost site such that the
material is not visually distinguishable and breaks down into carbon dioxide, water, inorganic
compounds and biomass at a rate consistent with known compostable materials." (Ref: ASTM D
6002)[8]
Using this new definition, "carbon dioxide, water, inorganic compounds and biomass"
encompasses every substance in the known universe, it makes no restriction on what the plastic
leaves behind after it has biodegraded. So, while plastic manufacturers may legally be on solid
ground, "compostable plastics" can not be said to be compostable in the traditional sense.
However the word biodegradable does still apply.
Biodegradable technology
In 1973 it was proved for first time that polyester degrades when disposed in bioactive material
such as soil. As a result, polyesters are water resistant and can be melted and shaped into sheets,
4. bottles, and other products, making certain plastics now available as a biodegradable product.
Following, Polyhydroxylalkanoates (PHAs) were produced directly from renewable resources by
microbes. They are approximately 95% cellular bacteria and can be manipulated by genetic
strategies. The composition and biodegradability of PHAs can be regulated by blending it with
other natural polymers. In the 1980s the company ICI Zenecca commercialized PHAs under the
name Biopol. It was used for the production of shampoo bottles and other cosmetic products.
Consumer response was unusual. Consumers were willing to pay more for this product because it
was natural and biodegradable, which had not occurred before.[9]
Now biodegradable technology is a highly developed market with applications in product
packaging, production and medicine. Biodegradable technology is concerned with the
manufacturing science of biodegradable materials. It imposes science based mechanisms of plant
genetics into the processes of today. Scientists and manufacturing corporations can help impact
climate change by developing a use of plant genetics that would mimic some technologies. By
looking to plants, such as biodegradable material harvested through photosynthesis, waste and
toxins can be minimized.[10]
Oxo-biodegradable technology, which has further developed biodegradable plastics, has also
emerged. Oxo-biodegradation is defined by CEN (the European Standards Organisation) as
"degradation resulting from oxidative and cell-mediated phenomena, either simultaneously or
successively." Whilst sometimes described as "oxo-fragmentable," and "oxo-degradable" this
describes only the first or oxidative phase. These descriptions should not be used for material
which degrades by the process of oxo-biodegradation defined by CEN, and the correct
description is "oxo-biodegradable."
By combining plastic products with very large polymer molecules, which contain only carbon
and hydrogen, with oxygen in the air, the product is rendered capable of decomposing in
anywhere from a week to one to two years. This reaction occurs even without prodegradant
additives but at a very slow rate. That is why conventional plastics, when discarded, persist for a
long time in the environment. Oxo-biodegradable formulations catalyze and accelerate the
biodegradation process but it takes considerable skill and experience to balance the ingredients
within the formulations so as to provide the product with a useful life for a set period, followed
by degradation and biodegradation.[11]
Biodegradable technology is especially utilized by the bio-medical community. Biodegradable
polymers are classified into three groups: medical, ecological, and dual application, while in
terms of origin they are divided into two groups: natural and synthetic.[12] The Clean Technology
Group is exploiting the use of supercritical carbon dioxide, which under high pressure at room
temperature is a solvent that can use biodegradable plastics to make polymer drug coatings. The
polymer (meaning a material composed of molecules with repeating structural units that form a
long chain) is used to encapsulate a drug prior to injection in the body and is based on lactic acid,
a compound normally produced in the body, and is thus able to be excreted naturally. The
coating is designed for controlled release over a period of time, reducing the number of
injections required and maximizing the therapeutic benefit. Professor Steve Howdle states that
biodegradable polymers are particularly attractive for use in drug delivery, as once introduced
into the body they require no retrieval or further manipulation and are degraded into soluble,

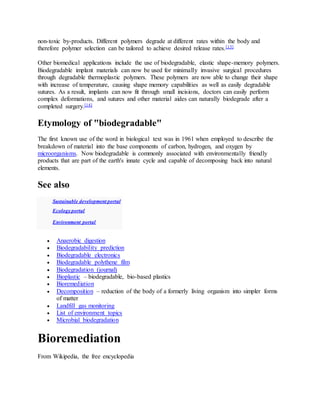

5. non-toxic by-products. Different polymers degrade at different rates within the body and
therefore polymer selection can be tailored to achieve desired release rates.[13]
Other biomedical applications include the use of biodegradable, elastic shape-memory polymers.
Biodegradable implant materials can now be used for minimally invasive surgical procedures
through degradable thermoplastic polymers. These polymers are now able to change their shape
with increase of temperature, causing shape memory capabilities as well as easily degradable
sutures. As a result, implants can now fit through small incisions, doctors can easily perform
complex deformations, and sutures and other material aides can naturally biodegrade after a
completed surgery.[14]
Etymology of "biodegradable"
The first known use of the word in biological text was in 1961 when employed to describe the
breakdown of material into the base components of carbon, hydrogen, and oxygen by
microorganisms. Now biodegradable is commonly associated with environmentally friendly
products that are part of the earth's innate cycle and capable of decomposing back into natural
elements.
See also
Sustainable development portal
Ecology portal
Environment portal
Anaerobic digestion
Biodegradability prediction
Biodegradable electronics
Biodegradable polythene film
Biodegradation (journal)
Bioplastic – biodegradable, bio-based plastics
Bioremediation
Decomposition – reduction of the body of a formerly living organism into simpler forms
of matter
Landfill gas monitoring
List of environment topics
Microbial biodegradation
Bioremediation
From Wikipedia, the free encyclopedia
6. Bioremediation is a waste management technique that involves the use of organisms to remove
or neutralize pollutants from a contaminated site.[1] According to the EPA, bioremediation is a
“treatment that uses naturally occurring organisms to break down hazardous substances into less
toxic or non toxic substances”. Technologies can be generally classified as in situ or ex situ. In
situ bioremediation involves treating the contaminated material at the site, while ex situ involves
the removal of the contaminated material to be treated elsewhere. Some examples of
bioremediation related technologies are phytoremediation, bioventing, bioleaching, landfarming,
bioreactor, composting, bioaugmentation, rhizofiltration, and biostimulation.
Bioremediation may occur on its own (natural attenuation or intrinsic bioremediation) or may
only effectively occur through the addition of fertilizers, oxygen, etc., that help encourage the
growth of the pollution-eating microbes within the medium (biostimulation). For example, the
US Army Corps of Engineers demonstrated that windrowing and aeration of petroleum-
contaminated soils enhanced bioremediation using the technique of landfarming.[2] Depleted soil
nitrogen status may encourage biodegradation of some nitrogenous organic chemicals,[3] and soil
materials with a high capacity to adsorb pollutants may slow down biodegradation owing to
limited bioavailability of the chemicals to microbes.[4] Recent advancements have also proven
successful via the addition of matched microbe strains to the medium to enhance the resident
microbe population's ability to break down contaminants. Microorganisms used to perform the
function of bioremediation are known as bioremediators.
However, not all contaminants are easily treated by bioremediation using microorganisms. For
example, heavy metals such as cadmium and lead are not readily absorbed or captured by
microorganisms. A recent experiment, however, suggests that fish bones have some success
absorbing lead from contaminated soil.[5][6] Bone char has been shown to bioremediate small
amounts of cadmium, copper, and zinc.[7] The assimilation of metals such as mercury into the
food chain may worsen matters. Phytoremediation is useful in these circumstances because
natural plants or transgenic plants are able to bioaccumulate these toxins in their above-ground
parts, which are then harvested for removal.[8] The heavy metals in the harvested biomass may be
further concentrated by incineration or even recycled for industrial use. Some damaged artifacts
at museums contain microbes which could be specified as bio remediating agents.[9] In contrast
to this situation, other contaminants, such as aromatic hydrocarbons as are common in
petroleum, are relatively simple targets for microbial degradation, and some soils may even have
some capacity to autoremediate, as it were, owing to the presence of autochthonous microbial
communities capable of degrading these compounds.[10]
The elimination of a wide range of pollutants and wastes from the environment requires
increasing our understanding of the relative importance of different pathways and regulatory
networks to carbon flux in particular environments and for particular compounds, and they will
certainly accelerate the development of bioremediation technologies and biotransformation
processes.[11]
Contents
1 Genetic engineering approaches
2 Mycoremediation
7. 3 Advantages
4 Monitoring bioremediation
5 See also
6 References
7 External links
Genetic engineering approaches
The use of genetic engineering to create organisms specifically designed for bioremediation has
great potential.[12] The bacterium Deinococcus radiodurans (the most radioresistant organism
known) has been modified to consume and digest toluene and ionic mercury from highly
radioactive nuclear waste.[13] Releasing genetically augmented organisms into the environment
may be problematic as tracking them can be difficult; bioluminescence genes from other species
may be inserted to make this easier. [14] :135
Mycoremediation
Mycoremediation is a form of bioremediation in which fungi are used to decontaminate the
area. The term mycoremediation refers specifically to the use of fungal mycelia in
bioremediation.
One of the primary roles of fungi in the ecosystem is decomposition, which is performed by the
mycelium. The mycelium secretes extracellular enzymes and acids that break down lignin and
cellulose, the two main building blocks of plant fiber. These are organic compounds composed
of long chains of carbon and hydrogen, structurally similar to many organic pollutants. The key
to mycoremediation is determining the right fungal species to target a specific pollutant. Certain
strains have been reported to successfully degrade the nerve gases VX and sarin.
In one conducted experiment, a plot of soil contaminated with diesel oil was inoculated with
mycelia of oyster mushrooms; traditional bioremediation techniques (bacteria) were used on
control plots. After four weeks, more than 95% of many of the PAH (polycyclic aromatic
hydrocarbons) had been reduced to non-toxic components in the mycelial-inoculated plots. It
appears that the natural microbial community participates with the fungi to break down
contaminants, eventually into carbon dioxide and water. Wood-degrading fungi are particularly
effective in breaking down aromatic pollutants (toxic components of petroleum), as well as
chlorinated compounds (certain persistent pesticides; Battelle, 2000).
Two species of the Ecuadorian fungus Pestalotiopsis are capable of consuming Polyurethane in
aerobic and anaerobic conditions such as found at the bottom of landfills.[15]
Mycofiltration is a similar process, using fungal mycelia to filter toxic waste and
microorganisms from water in soil.
Advantages

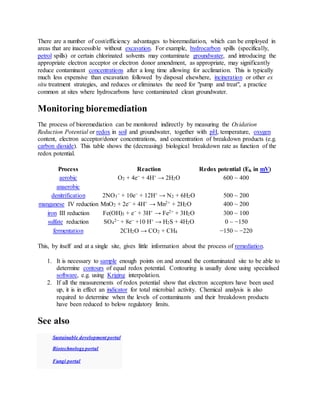

8. There are a number of cost/efficiency advantages to bioremediation, which can be employed in
areas that are inaccessible without excavation. For example, hydrocarbon spills (specifically,
petrol spills) or certain chlorinated solvents may contaminate groundwater, and introducing the
appropriate electron acceptor or electron donor amendment, as appropriate, may significantly
reduce contaminant concentrations after a long time allowing for acclimation. This is typically
much less expensive than excavation followed by disposal elsewhere, incineration or other ex
situ treatment strategies, and reduces or eliminates the need for "pump and treat", a practice
common at sites where hydrocarbons have contaminated clean groundwater.
Monitoring bioremediation
The process of bioremediation can be monitored indirectly by measuring the Oxidation
Reduction Potential or redox in soil and groundwater, together with pH, temperature, oxygen
content, electron acceptor/donor concentrations, and concentration of breakdown products (e.g.
carbon dioxide). This table shows the (decreasing) biological breakdown rate as function of the
redox potential.
Process Reaction Redox potential (Eh in mV)
aerobic O2 + 4e− + 4H+ → 2H2O 600 ~ 400
anaerobic
denitrification 2NO3
− + 10e− + 12H+ → N2 + 6H2O 500 ~ 200
manganese IV reduction MnO2 + 2e− + 4H+ → Mn2+ + 2H2O 400 ~ 200
iron III reduction Fe(OH)3 + e− + 3H+ → Fe2+ + 3H2O 300 ~ 100
sulfate reduction SO4
2− + 8e− +10 H+ → H2S + 4H2O 0 ~ −150
fermentation 2CH2O → CO2 + CH4 −150 ~ −220
This, by itself and at a single site, gives little information about the process of remediation.
1. It is necessary to sample enough points on and around the contaminated site to be able to
determine contours of equal redox potential. Contouring is usually done using specialised
software, e.g. using Kriging interpolation.
2. If all the measurements of redox potential show that electron acceptors have been used
up, it is in effect an indicator for total microbial activity. Chemical analysis is also
required to determine when the levels of contaminants and their breakdown products
have been reduced to below regulatory limits.
See also
Sustainable development portal
Biotechnology portal
Fungi portal
9. Biodegradation
Bioleaching
Biosurfactant
Dutch standards
Folkewall
List of environment topics
Living machines
Living wall
Microbial biodegradation
Mycoremediation
Phytoremediation
Pseudomonas putida (used for degrading oil)
US Microbics
Xenocatabolism
References
1. http://ei.cornell.edu/biodeg/bioremed/
2. Mann, D. K., T. M. Hurt, E. Malkos, J. Sims, S. Twait and G. Wachter. 1996. Onsite
treatment of petroleum, oil, and lubricant (POL)-contaminated soils at Illinois Corps of
Engineers lake sites. US Army Corps of Engineers Technical Report No. A862603
(71pages).
3. Sims, G.K. 2006. Nitrogen Starvation Promotes Biodegradation of N-Heterocyclic
Compounds in Soil. Soil Biology & Biochemistry 38:2478-2480.
4. O'Loughlin, E. J, S. J. Traina, and G. K. Sims. 2000. Effects of sorption on the
biodegradation of 2-methylpyridine in aqueous suspensions of reference clay minerals.
Environ. Toxicol. and Chem. 19:2168-2174.
5. Kris S. Freeman (January 2012). "Remediating Soil Lead with Fishbones".
Environmental Health Perspectives.
6. http://coastguard.dodlive.mil/2012/07/battling-lead-contamination-one-fish-bone-at-a-
time/
7. Huan Jing Ke Xue (February 2007). "Chemical fixation of metals in soil using bone char
and assessment of the soil genotoxicity".
8. Meagher, RB (2000). "Phytoremediation of toxic elemental and organic pollutants".
Current Opinion in Plant Biology 3 (2): 153–162. doi:10.1016/S1369-5266(99)00054-0.
PMID 10712958.
9. Francesca Cappitelli; Claudia Sorlini (2008). "Microorganisms Attack Synthetic
Polymers in Items Representing Our Cultural Heritage". Applied Environmental
Microbiology 74.
10. Olapade, OA; Ronk, AJ (2014). "Isolation, Characterization and Community Diversity of
Indigenous Putative Toluene-Degrading Bacterial Populations with Catechol-2,3-
Dioxygenase Genes in Contaminated Soils". Microbial Ecology. Epub ahead of print.
PMID 25052383.
11. Diaz E (editor). (2008). Microbial Biodegradation: Genomics and Molecular Biology
(1st ed.). Caister Academic Press. ISBN 1-904455-17-4.
http://www.horizonpress.com/biod.

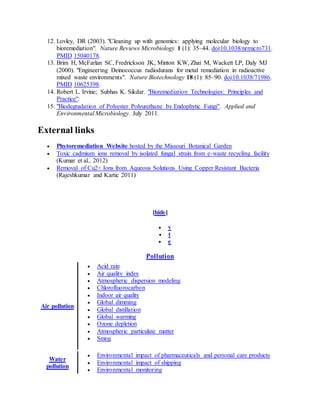

10. 12. Lovley, DR (2003). "Cleaning up with genomics: applying molecular biology to
bioremediation". Nature Reviews Microbiology 1 (1): 35–44. doi:10.1038/nrmicro731.
PMID 15040178.
13. Brim H, McFarlan SC, Fredrickson JK, Minton KW, Zhai M, Wackett LP, Daly MJ
(2000). "Engineering Deinococcus radiodurans for metal remediation in radioactive
mixed waste environments". Nature Biotechnology 18 (1): 85–90. doi:10.1038/71986.
PMID 10625398.
14. Robert L. Irvine; Subhas K. Sikdar. "Bioremediation Technologies: Principles and
Practice".
15. "Biodegradation of Polyester Polyurethane by Endophytic Fungi". Applied and
Environmental Microbiology. July 2011.
External links
Phytoremediation Website hosted by the Missouri Botanical Garden
Toxic cadmium ions removal by isolated fungal strain from e-waste recycling facility
(Kumar et al., 2012)
Removal of Cu2+ Ions from Aqueous Solutions Using Copper Resistant Bacteria
(Rajeshkumar and Kartic 2011)
[hide]
v
t
e
Pollution
Air pollution
Acid rain
Air quality index
Atmospheric dispersion modeling
Chlorofluorocarbon
Indoor air quality
Global dimming
Global distillation
Global warming
Ozone depletion
Atmospheric particulate matter
Smog
Water
pollution
Environmental impact of pharmaceuticals and personal care products
Environmental impact of shipping
Environmental monitoring
11. Eutrophication
Freshwater environmental quality parameters
Hypoxia
Marine debris
Marine pollution
Ocean acidification
Oil spill
Surface runoff
Thermal pollution
Turbidity
Urban runoff
Waste water
Water quality
Water stagnation
Waterborne diseases
Soil
contamination
Bioremediation
Phytoremediation
Electrical resistance heating
Herbicide
Pesticide
Soil Guideline Values (SGVs)
Radioactive
contamination
Actinides in the environment
Environmental radioactivity
Fission product
Nuclear fallout
Plutonium in the environment
Radiation poisoning
Radium in the environment
Uranium in the environment
Other types of
pollution
Urban heat island
Land degradation
Light pollution
Nanopollution
Noise pollution
Radio spectrum pollution
Visual pollution
Inter-
government
treaties
Basel Convention
CLRTAP
Kyoto Protocol
MARPOL Convention
Montreal Protocol
12. OSPAR
Stockholm Convention
Major
organizations
Basel Action Network
DEFRA
Environment Agency (England and Wales)
Scottish Environment Protection Agency (Scotland)
U.S. EPA
EEA
Greenpeace
Categories:
Bioremediation
Biotechnology
Environmental soil science
Environmental engineering
Environmental terminology
Conservation projects
Ecological restoration
Soil contamination
Navigation menu
Create account
Log in
Article
Talk
Read
Edit
View history
Main page
Contents
Featured content
Current events
Random article
Donate to Wikipedia
Wikimedia Shop
Interaction
Help
13. About Wikipedia
Community portal
Recent changes
Contact page
Tools
What links here
Related changes
Upload file
Special pages
Permanent link
Page information
Wikidata item
Cite this page
Print/export
Create a book
Download as PDF
Printable version
Languages
ية عرب ال
Català
Čeština
Deutsch
Eesti
Español
سی ار ف
Français
한국어
हिन्दी
Bahasa Indonesia
Íslenska
Italiano
Kreyòl ayisyen
Bahasa Melayu
Nederlands
日本語
Polski
Português
Română
Русский
14. Suomi
ไทย
Українська
Edit links
This page was last modified on 5 November 2014 at 04:23.

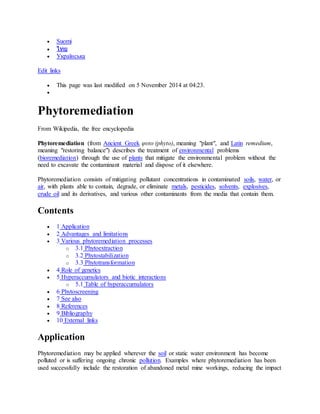

Phytoremediation
From Wikipedia, the free encyclopedia
Phytoremediation (from Ancient Greek φυτο (phyto), meaning "plant", and Latin remedium,
meaning "restoring balance") describes the treatment of environmental problems
(bioremediation) through the use of plants that mitigate the environmental problem without the
need to excavate the contaminant material and dispose of it elsewhere.
Phytoremediation consists of mitigating pollutant concentrations in contaminated soils, water, or
air, with plants able to contain, degrade, or eliminate metals, pesticides, solvents, explosives,
crude oil and its derivatives, and various other contaminants from the media that contain them.
Contents
1 Application
2 Advantages and limitations
3 Various phytoremediation processes
o 3.1 Phytoextraction
o 3.2 Phytostabilization
o 3.3 Phytotransformation
4 Role of genetics
5 Hyperaccumulators and biotic interactions
o 5.1 Table of hyperaccumulators
6 Phytoscreening
7 See also
8 References
9 Bibliography
10 External links
Application
Phytoremediation may be applied wherever the soil or static water environment has become
polluted or is suffering ongoing chronic pollution. Examples where phytoremediation has been
used successfully include the restoration of abandoned metal mine workings, reducing the impact

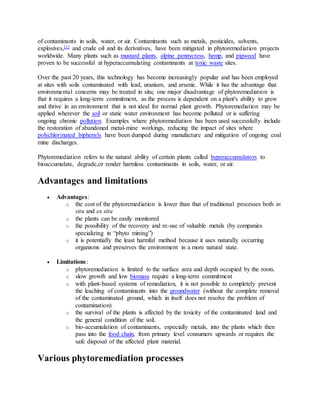

15. of contaminants in soils, water, or air. Contaminants such as metals, pesticides, solvents,
explosives,[1] and crude oil and its derivatives, have been mitigated in phytoremediation projects
worldwide. Many plants such as mustard plants, alpine pennycress, hemp, and pigweed have
proven to be successful at hyperaccumulating contaminants at toxic waste sites.
Over the past 20 years, this technology has become increasingly popular and has been employed
at sites with soils contaminated with lead, uranium, and arsenic. While it has the advantage that
environmental concerns may be treated in situ; one major disadvantage of phytoremediation is
that it requires a long-term commitment, as the process is dependent on a plant's ability to grow
and thrive in an environment that is not ideal for normal plant growth. Phytoremediation may be
applied wherever the soil or static water environment has become polluted or is suffering
ongoing chronic pollution. Examples where phytoremediation has been used successfully include
the restoration of abandoned metal-mine workings, reducing the impact of sites where
polychlorinated biphenyls have been dumped during manufacture and mitigation of ongoing coal
mine discharges.
Phytoremediation refers to the natural ability of certain plants called hyperaccumulators to
bioaccumulate, degrade,or render harmless contaminants in soils, water, or air.
Advantages and limitations
Advantages:
o the cost of the phytoremediation is lower than that of traditional processes both in
situ and ex situ
o the plants can be easily monitored
o the possibility of the recovery and re-use of valuable metals (by companies
specializing in “phyto mining”)
o it is potentially the least harmful method because it uses naturally occurring
organisms and preserves the environment in a more natural state.
Limitations:
o phytoremediation is limited to the surface area and depth occupied by the roots.
o slow growth and low biomass require a long-term commitment
o with plant-based systems of remediation, it is not possible to completely prevent
the leaching of contaminants into the groundwater (without the complete removal
of the contaminated ground, which in itself does not resolve the problem of
contamination)
o the survival of the plants is affected by the toxicity of the contaminated land and
the general condition of the soil.
o bio-accumulation of contaminants, especially metals, into the plants which then
pass into the food chain, from primary level consumers upwards or requires the
safe disposal of the affected plant material.
Various phytoremediation processes

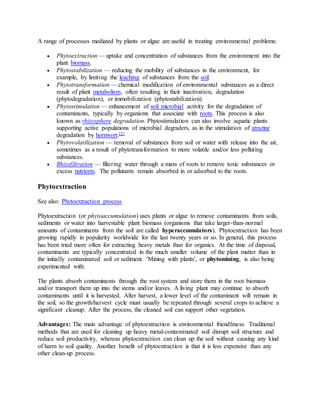

16. A range of processes mediated by plants or algae are useful in treating environmental problems:
Phytoextraction — uptake and concentration of substances from the environment into the
plant biomass.
Phytostabilization — reducing the mobility of substances in the environment, for
example, by limiting the leaching of substances from the soil.
Phytotransformation — chemical modification of environmental substances as a direct
result of plant metabolism, often resulting in their inactivation, degradation
(phytodegradation), or immobilization (phytostabilization).
Phytostimulation — enhancement of soil microbial activity for the degradation of
contaminants, typically by organisms that associate with roots. This process is also
known as rhizosphere degradation. Phytostimulation can also involve aquatic plants
supporting active populations of microbial degraders, as in the stimulation of atrazine
degradation by hornwort.[2]
Phytovolatilization — removal of substances from soil or water with release into the air,
sometimes as a result of phytotransformation to more volatile and/or less polluting
substances.
Rhizofiltration — filtering water through a mass of roots to remove toxic substances or
excess nutrients. The pollutants remain absorbed in or adsorbed to the roots.
Phytoextraction
See also: Phytoextraction process
Phytoextraction (or phytoaccumulation) uses plants or algae to remove contaminants from soils,
sediments or water into harvestable plant biomass (organisms that take larger-than-normal
amounts of contaminants from the soil are called hyperaccumulators). Phytoextraction has been
growing rapidly in popularity worldwide for the last twenty years or so. In general, this process
has been tried more often for extracting heavy metals than for organics. At the time of disposal,
contaminants are typically concentrated in the much smaller volume of the plant matter than in
the initially contaminated soil or sediment. 'Mining with plants', or phytomining, is also being
experimented with:
The plants absorb contaminants through the root system and store them in the root biomass
and/or transport them up into the stems and/or leaves. A living plant may continue to absorb
contaminants until it is harvested. After harvest, a lower level of the contaminant will remain in
the soil, so the growth/harvest cycle must usually be repeated through several crops to achieve a
significant cleanup. After the process, the cleaned soil can support other vegetation.
Advantages: The main advantage of phytoextraction is environmental friendliness. Traditional
methods that are used for cleaning up heavy metal-contaminated soil disrupt soil structure and
reduce soil productivity, whereas phytoextraction can clean up the soil without causing any kind
of harm to soil quality. Another benefit of phytoextraction is that it is less expensive than any
other clean-up process.

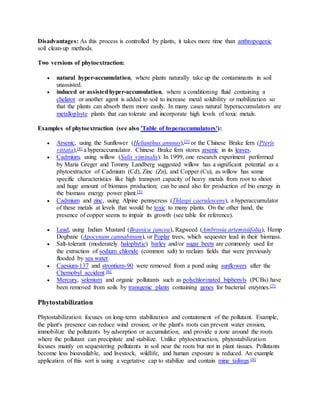

17. Disadvantages: As this process is controlled by plants, it takes more time than anthropogenic
soil clean-up methods.
Two versions of phytoextraction:
natural hyper-accumulation, where plants naturally take up the contaminants in soil
unassisted.
induced or assistedhyper-accumulation, where a conditioning fluid containing a
chelator or another agent is added to soil to increase metal solubility or mobilization so
that the plants can absorb them more easily. In many cases natural hyperaccumulators are
metallophyte plants that can tolerate and incorporate high levels of toxic metals.
Examples of phytoextraction (see also 'Table of hyperaccumulators'):
Arsenic, using the Sunflower (Helianthus annuus),[3] or the Chinese Brake fern (Pteris
vittata),[4] a hyperaccumulator. Chinese Brake fern stores arsenic in its leaves.
Cadmium, using willow (Salix viminalis): In 1999, one research experiment performed
by Maria Greger and Tommy Landberg suggested willow has a significant potential as a
phytoextractor of Cadmium (Cd), Zinc (Zn), and Copper (Cu), as willow has some
specific characteristics like high transport capacity of heavy metals from root to shoot
and huge amount of biomass production; can be used also for production of bio energy in
the biomass energy power plant.[5]
Cadmium and zinc, using Alpine pennycress (Thlaspi caerulescens), a hyperaccumulator
of these metals at levels that would be toxic to many plants. On the other hand, the
presence of copper seems to impair its growth (see table for reference).
Lead, using Indian Mustard (Brassica juncea), Ragweed (Ambrosia artemisiifolia), Hemp
Dogbane (Apocynum cannabinum), or Poplar trees, which sequester lead in their biomass.
Salt-tolerant (moderately halophytic) barley and/or sugar beets are commonly used for
the extraction of sodium chloride (common salt) to reclaim fields that were previously
flooded by sea water.
Caesium-137 and strontium-90 were removed from a pond using sunflowers after the
Chernobyl accident.[6]
Mercury, selenium and organic pollutants such as polychlorinated biphenyls (PCBs) have
been removed from soils by transgenic plants containing genes for bacterial enzymes.[7]
Phytostabilization
Phytostabilization focuses on long-term stabilization and containment of the pollutant. Example,
the plant's presence can reduce wind erosion; or the plant's roots can prevent water erosion,
immobilize the pollutants by adsorption or accumulation, and provide a zone around the roots
where the pollutant can precipitate and stabilize. Unlike phytoextraction, phytostabilization
focuses mainly on sequestering pollutants in soil near the roots but not in plant tissues. Pollutants
become less bioavailable, and livestock, wildlife, and human exposure is reduced. An example
application of this sort is using a vegetative cap to stabilize and contain mine tailings.[8]

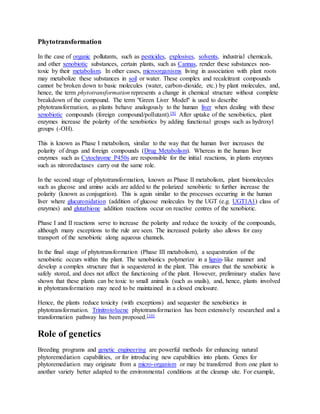

18. Phytotransformation
In the case of organic pollutants, such as pesticides, explosives, solvents, industrial chemicals,
and other xenobiotic substances, certain plants, such as Cannas, render these substances non-
toxic by their metabolism. In other cases, microorganisms living in association with plant roots
may metabolize these substances in soil or water. These complex and recalcitrant compounds
cannot be broken down to basic molecules (water, carbon-dioxide, etc.) by plant molecules, and,
hence, the term phytotransformation represents a change in chemical structure without complete
breakdown of the compound. The term "Green Liver Model" is used to describe
phytotransformation, as plants behave analogously to the human liver when dealing with these
xenobiotic compounds (foreign compound/pollutant).[9] After uptake of the xenobiotics, plant
enzymes increase the polarity of the xenobiotics by adding functional groups such as hydroxyl
groups (-OH).
This is known as Phase I metabolism, similar to the way that the human liver increases the
polarity of drugs and foreign compounds (Drug Metabolism). Whereas in the human liver
enzymes such as Cytochrome P450s are responsible for the initial reactions, in plants enzymes
such as nitroreductases carry out the same role.
In the second stage of phytotransformation, known as Phase II metabolism, plant biomolecules
such as glucose and amino acids are added to the polarized xenobiotic to further increase the
polarity (known as conjugation). This is again similar to the processes occurring in the human
liver where glucuronidation (addition of glucose molecules by the UGT (e.g. UGT1A1) class of
enzymes) and glutathione addition reactions occur on reactive centres of the xenobiotic.
Phase I and II reactions serve to increase the polarity and reduce the toxicity of the compounds,
although many exceptions to the rule are seen. The increased polarity also allows for easy
transport of the xenobiotic along aqueous channels.
In the final stage of phytotransformation (Phase III metabolism), a sequestration of the
xenobiotic occurs within the plant. The xenobiotics polymerize in a lignin-like manner and
develop a complex structure that is sequestered in the plant. This ensures that the xenobiotic is
safely stored, and does not affect the functioning of the plant. However, preliminary studies have
shown that these plants can be toxic to small animals (such as snails), and, hence, plants involved
in phytotransformation may need to be maintained in a closed enclosure.
Hence, the plants reduce toxicity (with exceptions) and sequester the xenobiotics in
phytotransformation. Trinitrotoluene phytotransformation has been extensively researched and a
transformation pathway has been proposed.[10]
Role of genetics
Breeding programs and genetic engineering are powerful methods for enhancing natural
phytoremediation capabilities, or for introducing new capabilities into plants. Genes for
phytoremediation may originate from a micro-organism or may be transferred from one plant to
another variety better adapted to the environmental conditions at the cleanup site. For example,

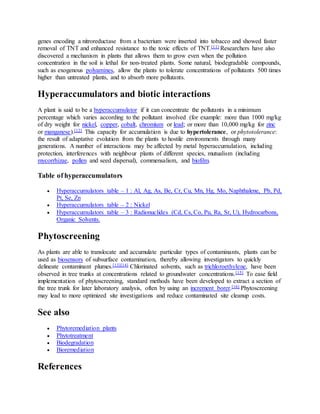

19. genes encoding a nitroreductase from a bacterium were inserted into tobacco and showed faster
removal of TNT and enhanced resistance to the toxic effects of TNT.[11] Researchers have also
discovered a mechanism in plants that allows them to grow even when the pollution
concentration in the soil is lethal for non-treated plants. Some natural, biodegradable compounds,
such as exogenous polyamines, allow the plants to tolerate concentrations of pollutants 500 times
higher than untreated plants, and to absorb more pollutants.
Hyperaccumulators and biotic interactions
A plant is said to be a hyperaccumulator if it can concentrate the pollutants in a minimum
percentage which varies according to the pollutant involved (for example: more than 1000 mg/kg
of dry weight for nickel, copper, cobalt, chromium or lead; or more than 10,000 mg/kg for zinc
or manganese).[12] This capacity for accumulation is due to hypertolerance, or phytotolerance:
the result of adaptative evolution from the plants to hostile environments through many
generations. A number of interactions may be affected by metal hyperaccumulation, including
protection, interferences with neighbour plants of different species, mutualism (including
mycorrhizae, pollen and seed dispersal), commensalism, and biofilm.
Table of hyperaccumulators
Hyperaccumulators table – 1 : Al, Ag, As, Be, Cr, Cu, Mn, Hg, Mo, Naphthalene, Pb, Pd,
Pt, Se, Zn
Hyperaccumulators table – 2 : Nickel
Hyperaccumulators table – 3 : Radionuclides (Cd, Cs, Co, Pu, Ra, Sr, U), Hydrocarbons,
Organic Solvents.
Phytoscreening
As plants are able to translocate and accumulate particular types of contaminants, plants can be
used as biosensors of subsurface contamination, thereby allowing investigators to quickly
delineate contaminant plumes.[13][14] Chlorinated solvents, such as trichloroethylene, have been
observed in tree trunks at concentrations related to groundwater concentrations.[15] To ease field
implementation of phytoscreening, standard methods have been developed to extract a section of
the tree trunk for later laboratory analysis, often by using an increment borer.[16] Phytoscreening
may lead to more optimized site investigations and reduce contaminated site cleanup costs.
See also
Phytoremediation plants
Phytotreatment
Biodegradation
Bioremediation
References
20. 1. Phytoremediation of soils using Ralstonia eutropha, Pseudomas tolaasi, Burkholderia
fungorum reported by Sofie Thijs
2. Rupassara, S. I.; Larson, R. A.; Sims, G. K. & Marley, K. A. (2002), Degradation of
Atrazine by Hornwort in Aquatic Systems, Bioremediation Journal 6 (3): 217–224,
doi:10.1080/10889860290777576.
3. Marchiol, L.; Fellet, G.; Perosa, D.; Zerbi, G. (2007), Removal of trace metals by
Sorghum bicolor and Helianthus annuus in a site polluted by industrial wastes: A field
experience, Plant Physiology and Biochemistry 45 (5): 379–87,
doi:10.1016/j.plaphy.2007.03.018, PMID 17507235
4. Wang, J.; Zhao, FJ; Meharg, AA; Raab, A; Feldmann, J; McGrath, SP (2002),
Mechanisms of Arsenic Hyperaccumulation in Pteris vittata. Uptake Kinetics,
Interactions with Phosphate, and Arsenic Speciation, Plant Physiology 130 (3): 1552–61,
doi:10.1104/pp.008185, PMC 166674, PMID 12428020
5. Greger, M. & Landberg, T. (1999), Using of Willow in Phytoextraction, International
Journal of Phytoremediation 1 (2): 115–123, doi:10.1080/15226519908500010.
6. Adler, Tina (July 20, 1996). "Botanical cleanup crews: using plants to tackle polluted
water and soil". Science News. Retrieved 2010-09-03.
7. Meagher, RB (2000), Phytoremediation of toxic elemental and organic pollutants,
Current Opinion in Plant Biology 3 (2): 153–162, doi:10.1016/S1369-5266(99)00054-0,
PMID 10712958.
8. Mendez MO, Maier RM (2008), Phytostabilization of Mine Tailings in Arid and Semiarid
Environments—An Emerging Remediation Technology, Environ Health Perspect 116 (3):
278–83, doi:10.1289/ehp.10608, PMC 2265025, PMID 18335091.
9. Burken, J.G. (2004), "2. Uptake and Metabolism of Organic Compounds: Green-Liver
Model", in McCutcheon, S.C.; Schnoor, J.L., Phytoremediation: Transformation and
Control of Contaminants, A Wiley-Interscience Series of Texts and Monographs,
Hoboken, NJ: John Wiley, p. 59, doi:10.1002/047127304X.ch2, ISBN 0-471-39435-1
10. Subramanian, Murali; Oliver, David J. & Shanks, Jacqueline V. (2006), TNT
Phytotransformation Pathway Characteristics in Arabidopsis: Role of Aromatic
Hydroxylamines, Biotechnol. Prog. 22 (1): 208–216, doi:10.1021/bp050241g,
PMID 16454512.
11. Hannink, N.; Rosser, S. J.; French, C. E.; Basran, A.; Murray, J. A.; Nicklin, S.; Bruce,
N. C. (2001), Phytodetoxification of TNT by transgenic plants expressing a bacterial
nitroreductase, Nature Biotechnology 19 (12): 1168–72, doi:10.1038/nbt1201-1168,
PMID 11731787.
12. Baker, A. J. M.; Brooks, R. R. (1989), Terrestrial higher plants which hyperaccumulate
metallic elements – A review of their distribution, ecology and phytochemistry,
Biorecovery 1 (2): 81–126.
13. Burken, J.; Vroblesky, D.; Balouet, J.C. (2011), Phytoforensics, Dendrochemistry, and
Phytoscreening: New Green Tools for Delineating Contaminants from Past and Present,
Environmental Science & Technology 45 (15): 6218–6226, doi:10.1021/es2005286.
14. Sorek, A.; Atzmon, N.; Dahan, O.; Gerstl, Z.; Kushisin, L.; Laor, Y.; Mingelgrin, U.;
Nasser, A.; Ronen, D.; Tsechansky, L.; Weisbrod, N.; Graber, E.R. (2008),
"Phytoscreening": The Use of Trees for Discovering Subsurface Contamination by
VOCs, Environmental Science & Technology 42 (2): 536–542, doi:10.1021/es072014b.
21. 15. Vroblesky, D.; Nietch, C.; Morris, J. (1998), Chlorinated Ethenes from Groundwater in
Tree Trunks, Environmental Science & Technology 33 (3): 510–515,
doi:10.1021/es980848b.
16. Vroblesky, D. (2008). "User’s Guide to the Collection and Analysis of Tree Cores to
Assess the Distribution of Subsurface Volatile Organic Compounds".
Bibliography
“Phytoremediation Website” — Includes reviews, conference announcements, lists of
companies doing phytoremediation, and bibliographies.
“An Overview of Phytoremediation of Lead and Mercury” June 6 2000. The Hazardous
Waste Clean-Up Information Web Site.
“Enhanced phytoextraction of arsenic from contaminated soil using sunflower”
September 22 2004. U.S. Environmental Protection Agency.
“Phytoextraction”, February 2000. Brookhaven National Laboratory 2000.
“Phytoextraction of Metals from Contaminated Soil” April 18, 2001. M.M. Lasat
July 2002. Donald Bren School of Environment Science & Management.
“Phytoremediation” October 1997. Department of Civil Environmental Engineering.
“Phytoremediation” June 2001, Todd Zynda.
“Phytoremediation of Lead in Residential Soils in Dorchester, MA” May, 2002. Amy
Donovan Palmer, Boston Public Health Commission.
“Technology Profile: Phytoextraction” 1997. Environmental Business Association.
Vassil AD, Kapulnik Y, Raskin I, Salt DE (June 1998), The Role of EDTA in Lead
Transport and Accumulation by Indian Mustard, Plant Physiol. 117 (2): 447–53,
doi:10.1104/pp.117.2.447, PMC 34964, PMID 9625697.
Salt, D. E.; Smith, R. D.; Raskin, I. (1998). "Phytoremediation". Annual Review of Plant
Physiology and Plant Molecular Biology 49: 643–668.
doi:10.1146/annurev.arplant.49.1.643. PMID 15012249. edit
External links
Look up phytoremediation in Wiktionary, the free dictionary.
Missouri Botanical Garden (host): Phytoremediation website — Review Articles,
Conferences, Phytoremediation Links, Research Sponsors, Books and Journals, and
Recent Research.
International Journal of Phytoremediation — devoted to the publication of current
laboratory and field research describing the use of plant systems to remediate
contaminated environments.
Using Plants To Clean Up Soils — from Agricultural Research magazine
New Alchemy Institute — co-founded by John Todd (biologist)
Categories:
22. Bioremediation
Phytoremediation plants
Environmental soil science
Environmental engineering
Environmental terminology
Pollution control technologies
Conservation projects
Ecological restoration
Soil contamination
Biotechnology
Sustainable technologies
Navigation menu
Create account
Log in
Article
Talk
Read
Edit
View history
Main page
Contents
Featured content
Current events
Random article
Donate to Wikipedia
Wikimedia Shop
Interaction
Help
About Wikipedia
Community portal
Recent changes
Contact page
Tools
What links here
Related changes
Upload file
Special pages
23. Permanent link
Page information
Wikidata item
Cite this page
Print/export
Create a book
Download as PDF
Printable version
Languages
Català
Čeština
Dansk
Deutsch
Español
سی ار ف
Français
Bahasa Indonesia
Italiano
Magyar
Bahasa Melayu
日本語
Polski
Português
Русский
Simple English
Slovenčina
Svenska
ไทย
Edit links
This page was last modified on 23 October 2014 at 14:39.
Text is available under the Creative Commons Attribution-ShareAlike License;
additional terms may apply. By using this site, you agree to the Terms of Use and Privacy
Policy. Wikipedia® is a registered trademark of the Wikimedia Foundation, Inc., a non-
profit organization.
