This document discusses using building information modeling (BIM) to optimize the cost of seismic resilience for existing buildings. It outlines four main steps: 1) developing the architectural and structural BIM models of the existing building, 2) performing structural analysis using the BIM model, 3) estimating damage costs based on component quantities and potential physical damages, and 4) assessing environmental impacts through a life cycle assessment using the BIM model.

1. BIM-based cost-optimization of
seismic resilience for existing buildings
Authors

2. Content
1 BIM Model Development
2 BIM Based Structural Analysis
3 Damage Cost Estimation
4 Environmental Impact Assessment

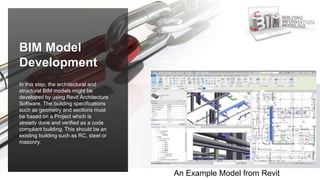

3. In this step, the architectural and
structural BIM models might be
developed by using Revit Architecture
Software. The building specifications
such as geometry and sections must
be based on a Project which is
already done and verified as a code
compliant building. This should be an
existing building such as RC, steel or
masonry.
BIM Model
Development
An Example Model from Revit

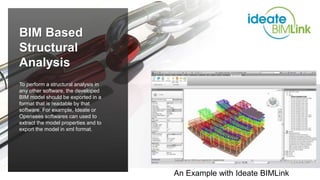

4. To perform a structural analysis in
any other software, the developed
BIM model should be exported in a
format that is readable by that
software. For example, Ideate or
Opensees softwares can used to
extract the model properties and to
export the model in xml format.
BIM Based
Structural
Analysis
An Example with Ideate BIMLink

5. Before damage cost estimation,
obtaining the quantity of different
components in the building is
necessary. The quantity of the
components can be determined in a
database. This step can provide a
description about the type of physical
damages that could happen in each
damage state in order to make it
more tangible for readers to
understand.
Damage Cost
Estimation

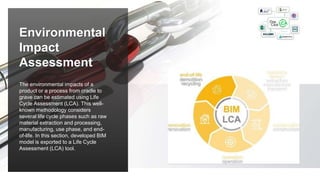

6. The environmental impacts of a
product or a process from cradle to
grave can be estimated using Life
Cycle Assessment (LCA). This well-
known methodology considers
several life cycle phases such as raw
material extraction and processing,
manufacturing, use phase, and end-
of-life. In this section, developed BIM
model is exported to a Life Cycle
Assessment (LCA) tool.
Environmental
Impact
Assessment

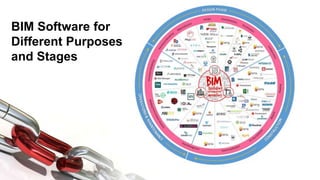

7. BIM Software for
Different Purposes
and Stages
