1. RAVI SANKAR ARJUNAN
BIM PORTFOLIO

2. [TYPE HERE]

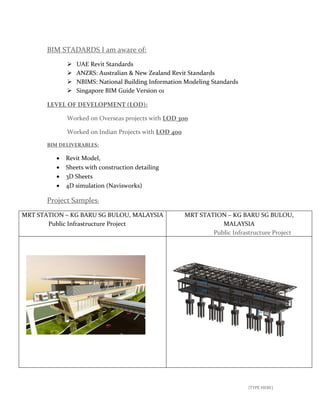

BIM STADARDS I am aware of:
 UAE Revit Standards
 ANZRS: Australian & New Zealand Revit Standards
 NBIMS: National Building Information Modeling Standards
 Singapore BIM Guide Version 01
LEVEL OF DEVELOPMENT (LOD):
Worked on Overseas projects with LOD 300
Worked on Indian Projects with LOD 400
BIM DELIVERABLES:
 Revit Model,
 Sheets with construction detailing
 3D Sheets
 4D simulation (Navisworks)
Project Samples:
MRT STATION – KG BARU SG BULOU, MALAYSIA
Public Infrastructure Project
MRT STATION – KG BARU SG BULOU,
MALAYSIA
Public Infrastructure Project

3. [TYPE HERE]
SCOPE OF THE PROJECT WORK:
 Modeling with quantity takeoff
 Construction Simulation
 Clash Detection between all disciplines
 As – built
STORAGE G+M WAREHOUSE,
DUBAI
CLIENT
DUBAI POLICE GERERAL H.Q
STEEL ROOF FRAMING LAYOUT
SCOPE OF THE PROJECT WORK:
 Modeling
 Sheets as per DM approval
 Detailing for shop drawings.
 As – built

4. [TYPE HERE]
RESIDENTIAL &COMMERCIAL BUILDING
G+4P+17TYP+ROOF,
DUBAI
CLIENT
B&M FZCO.
ELEVATION
G+2 LABOR ACCOMMODATION,
DUBAI
CLIENT
DUBAI LIMITED INVESTMENT - L.L.C
FLOOR FRAMING LAYOUT

5. [TYPE HERE]

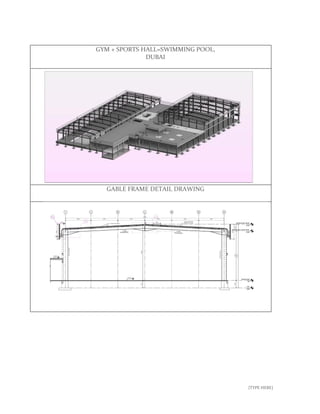

GYM + SPORTS HALL=SWIMMING POOL,
DUBAI
GABLE FRAME DETAIL DRAWING
