Oracle Big Data Appliance and Solutions
Jean-Pierre Dijcks
Hadoop World – Nov 8th, 2012

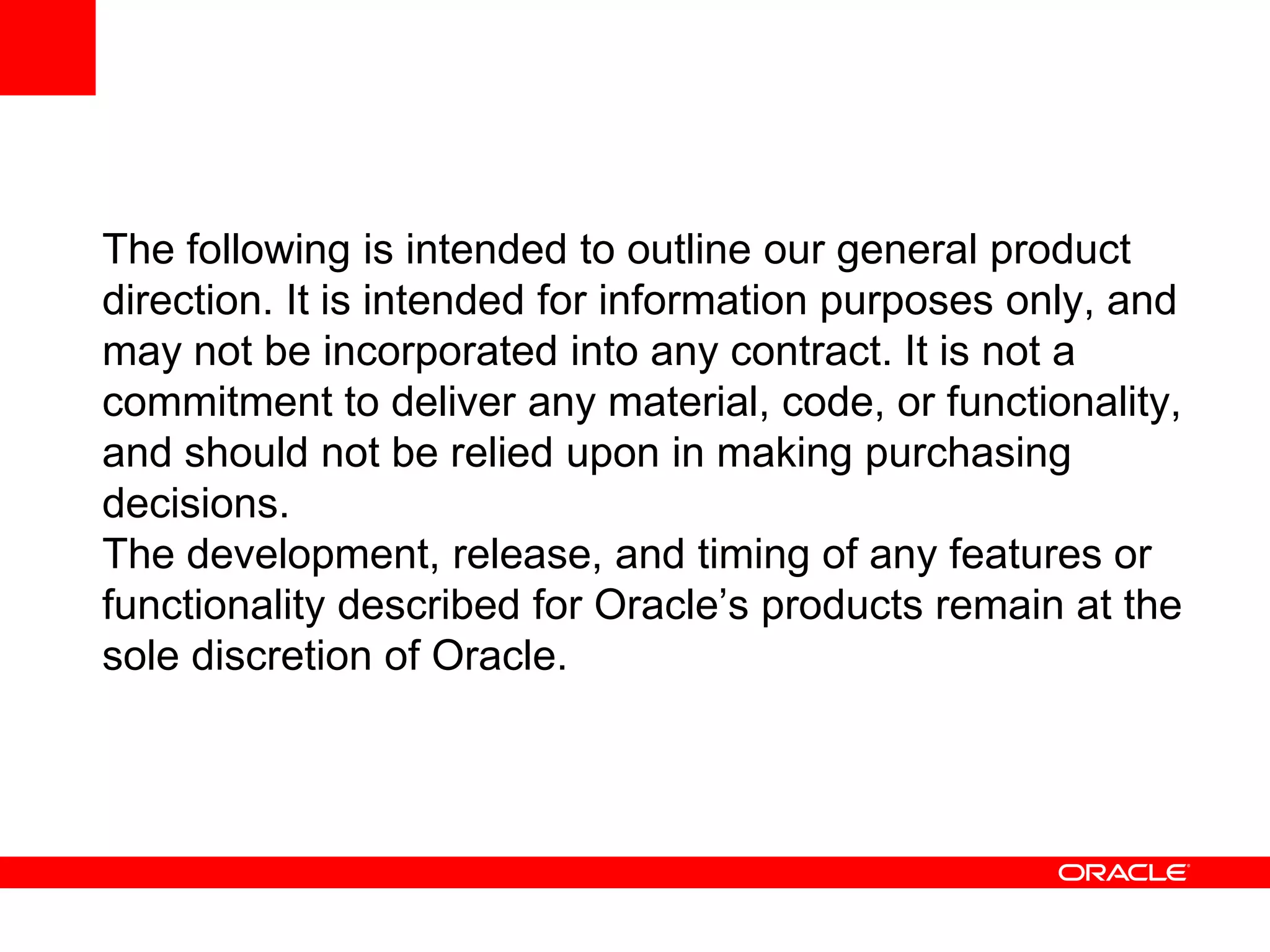

2. The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions.
The development, release, and timing of any features or
functionality described for Oracle’s products remain at the
sole discretion of Oracle.

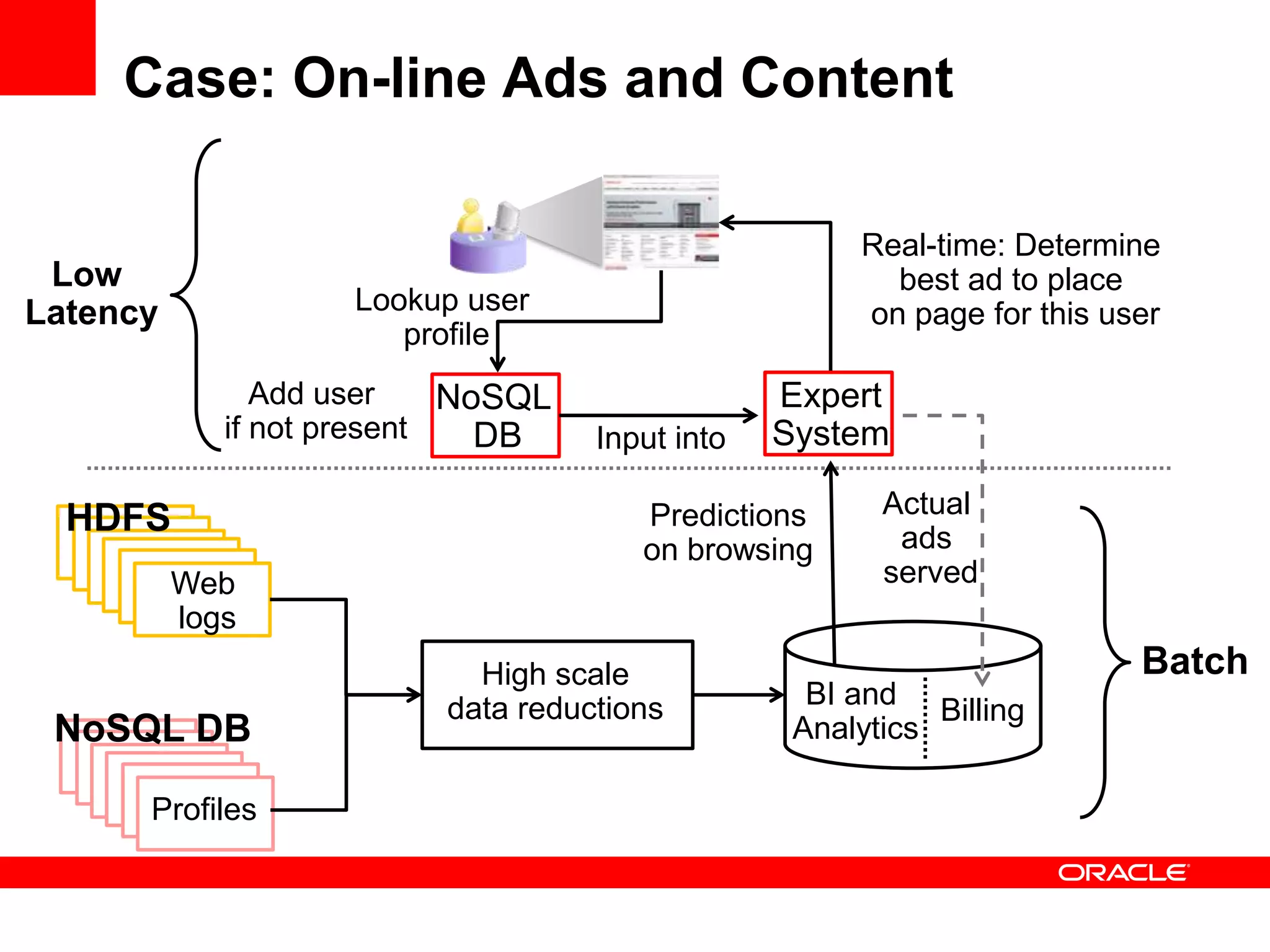

3. Case: On-line Ads and Content
Real-time: Determine
Low best ad to place
Latency Lookup user on page for this user
profile
Add user NoSQL Expert
if not present DB Input into System
Actual
HDFS Predictions
ads
on browsing
Web served
logs
High scale Batch
data reductions BI and
Billing
NoSQL DB Analytics
Profiles

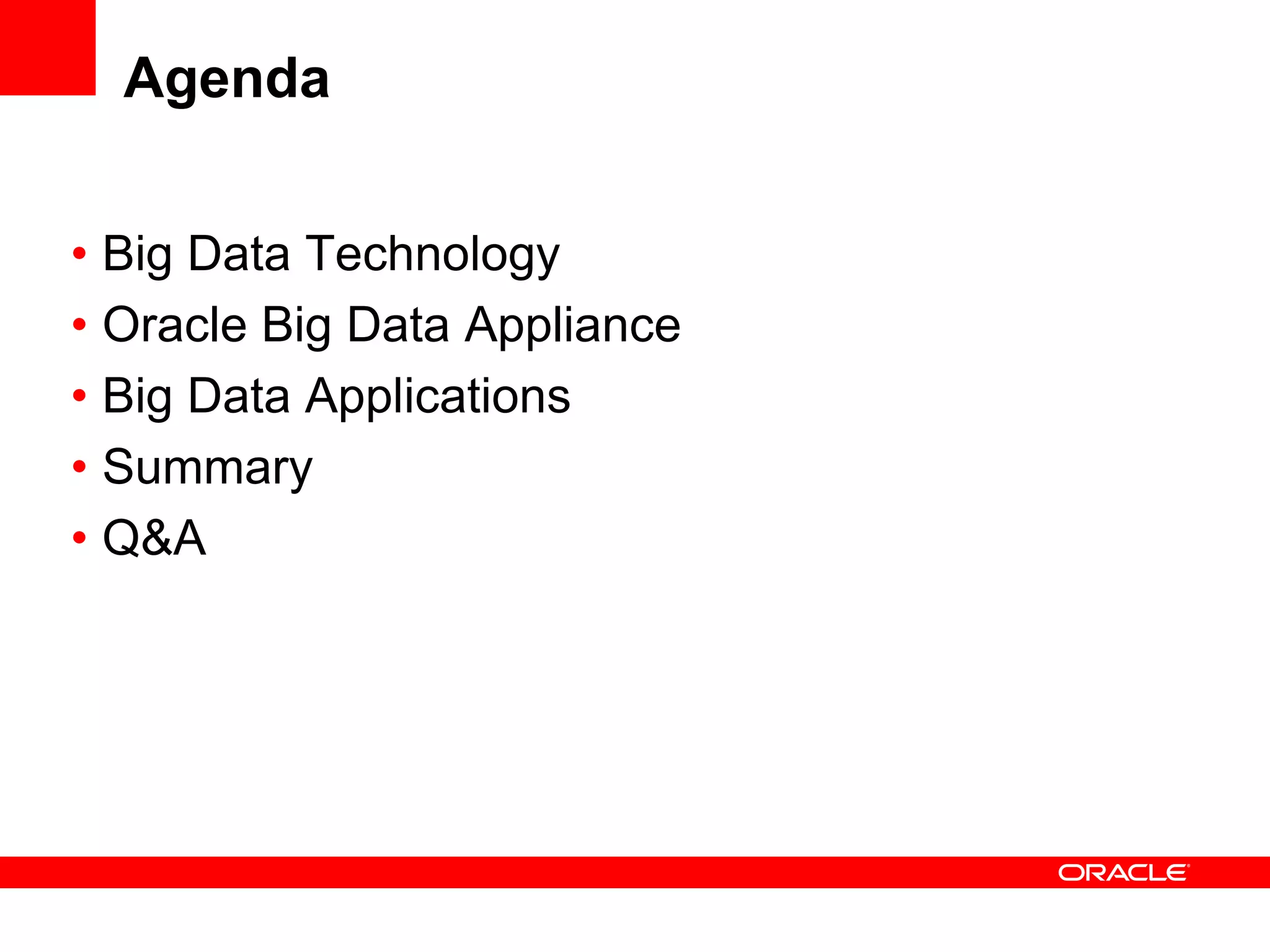

4. Agenda
• Big Data Technology
• Oracle Big Data Appliance
• Big Data Applications
• Summary
• Q&A

5. <Insert Picture Here>
Big Data Technology

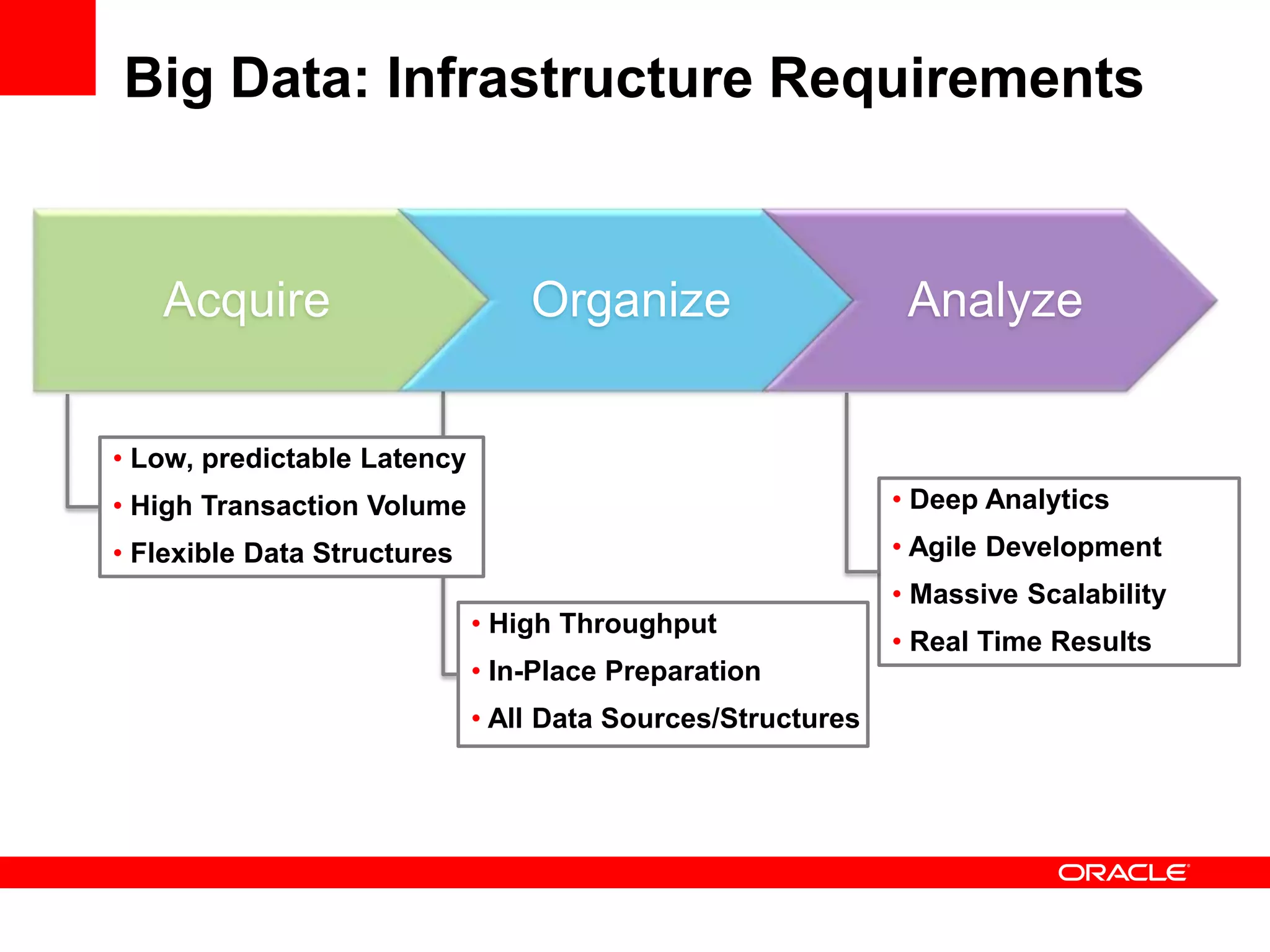

6. Big Data: Infrastructure Requirements
Acquire Organize Analyze
• Low, predictable Latency
• High Transaction Volume • Deep Analytics
• Flexible Data Structures • Agile Development
• Massive Scalability
• High Throughput
• Real Time Results
• In-Place Preparation
• All Data Sources/Structures

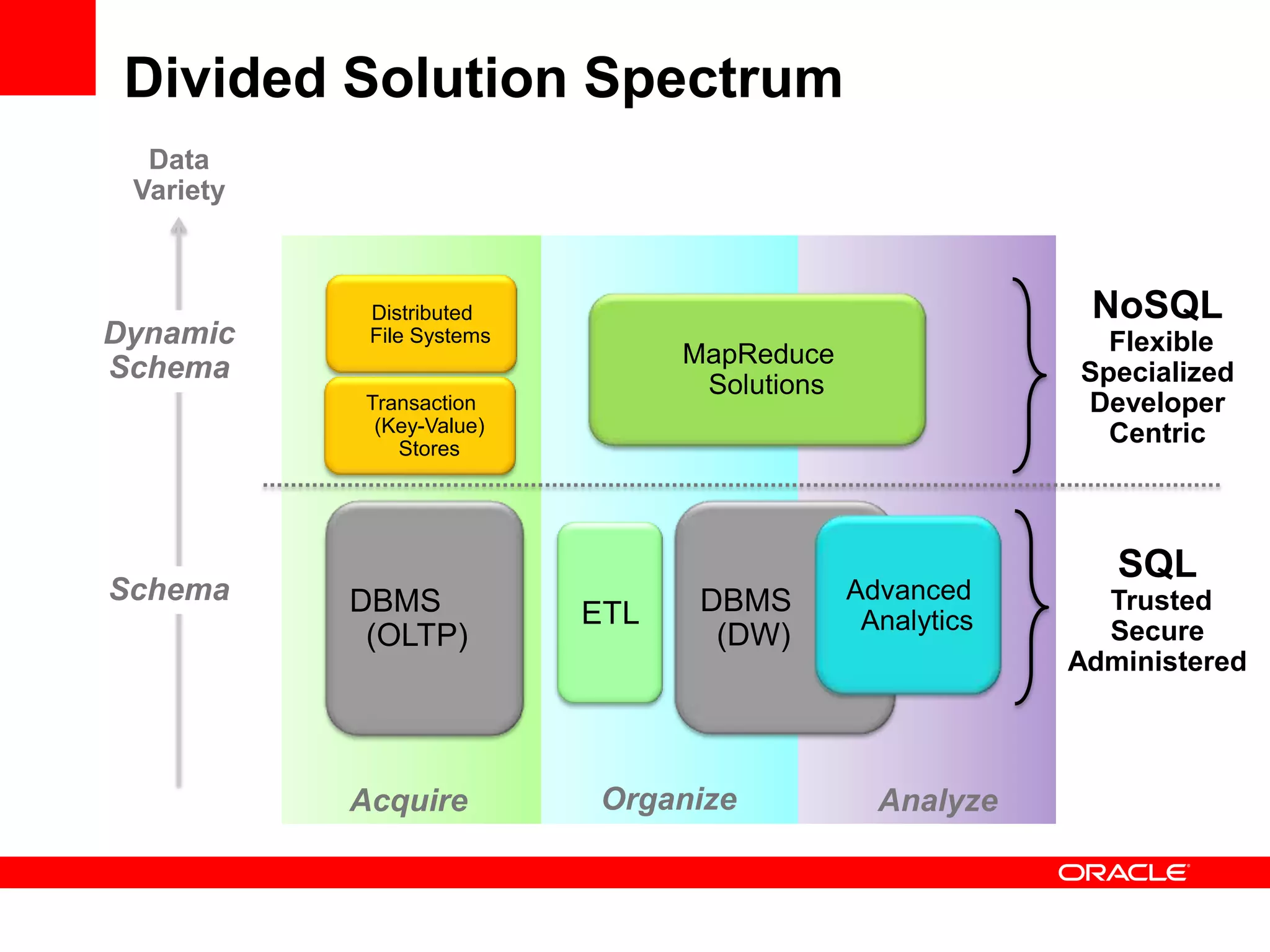

7. Divided Solution Spectrum
Data
Variety
Distributed NoSQL
Dynamic File Systems Flexible
MapReduce
Schema Specialized
Solutions
Transaction Developer
(Key-Value) Centric
Stores
SQL
Schema DBMS DBMS Advanced Trusted
ETL Analytics
(OLTP) (DW) Secure
Administered
Acquire Organize Analyze

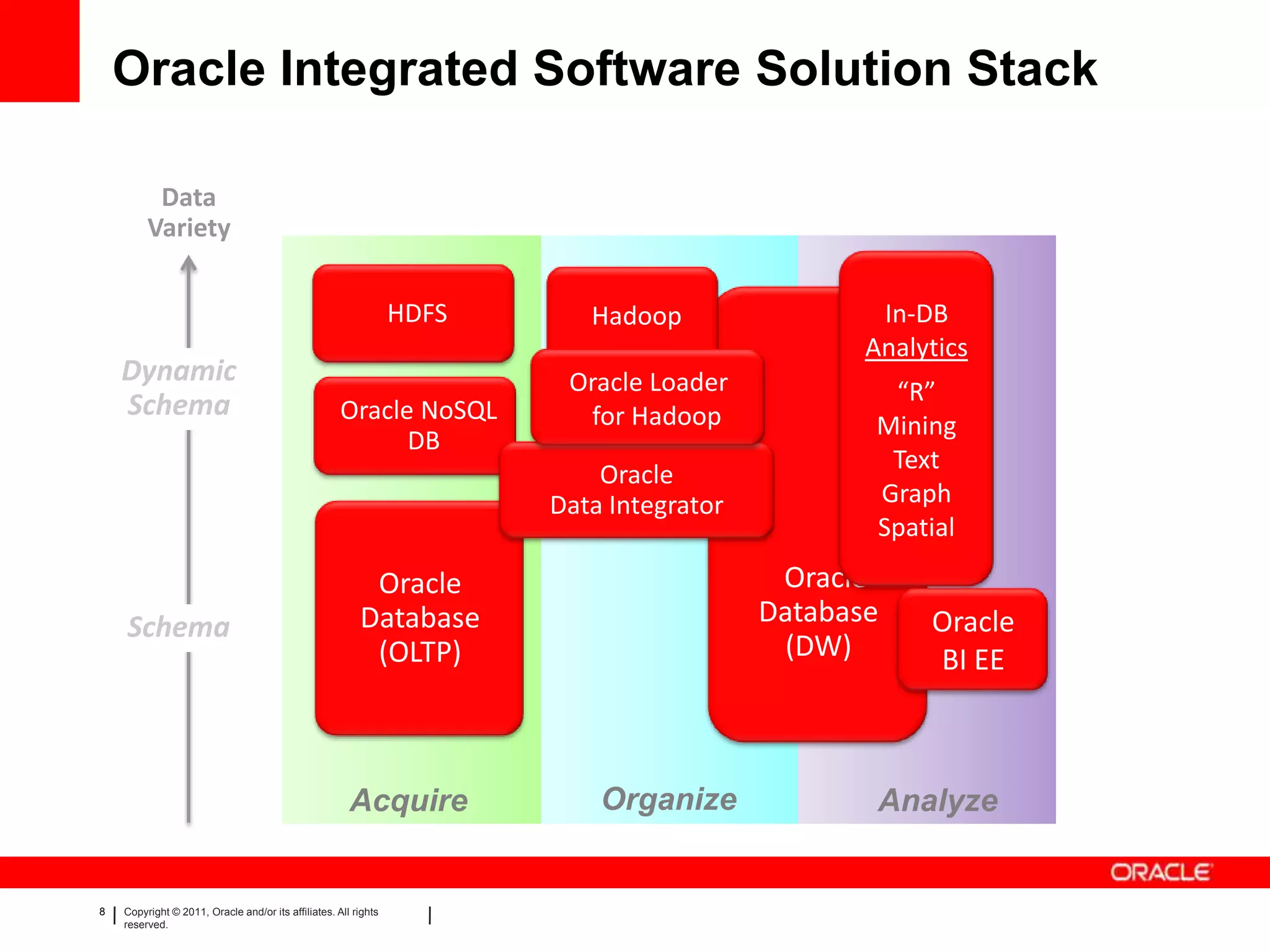

8. Oracle Integrated Software Solution Stack
Data
Variety
HDFS Hadoop In-DB
Analytics
Dynamic Oracle Loader
Schema “R”
Oracle NoSQL for Hadoop Mining
DB
Text
Oracle
Data Integrator Graph
Spatial
Oracle Oracle
Schema Database Database Oracle
(OLTP) (DW) BI EE
Acquire Organize Analyze
8 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

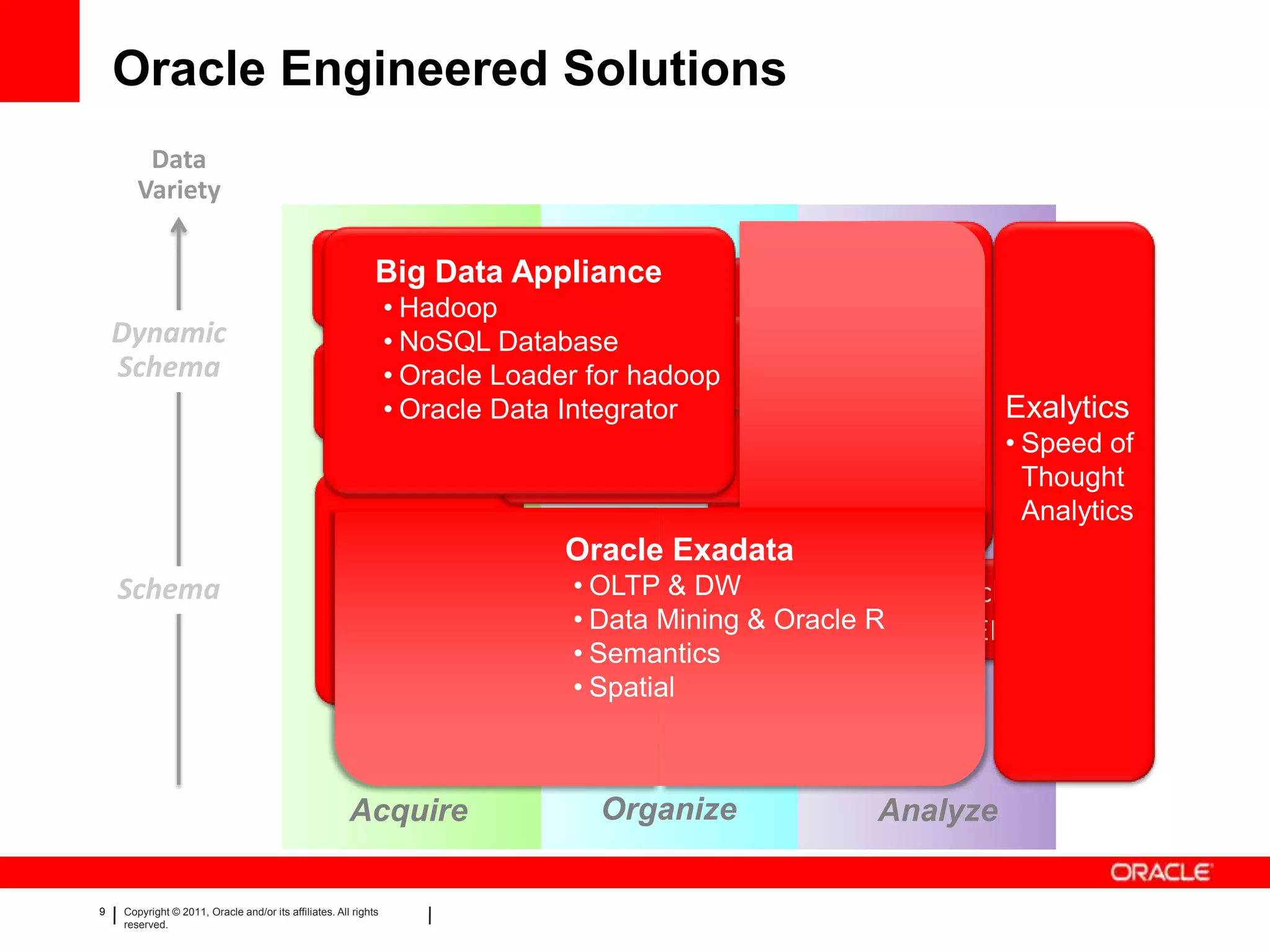

9. Oracle Engineered Solutions
Data
Variety
Big Data Appliance
HDFS Hadoop In-DB
• Hadoop Analytics
Dynamic • NoSQL Database Loader
Oracle
Schema • Oracle Loader for hadoop
Oracle NoSQL “R”
for Hadoop
• Oracle Data Integrator
DB Mining Exalytics
Oracle Text • Speed of
Data Integrator Graph Thought
Spatial Analytics
Oracle Oracle Exadata Oracle
Schema Database • OLTP & DW Database Oracle
(OLTP) (DW)
• Data Mining & Oracle R BI EE
• Semantics
• Spatial
Acquire Organize Analyze
9 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

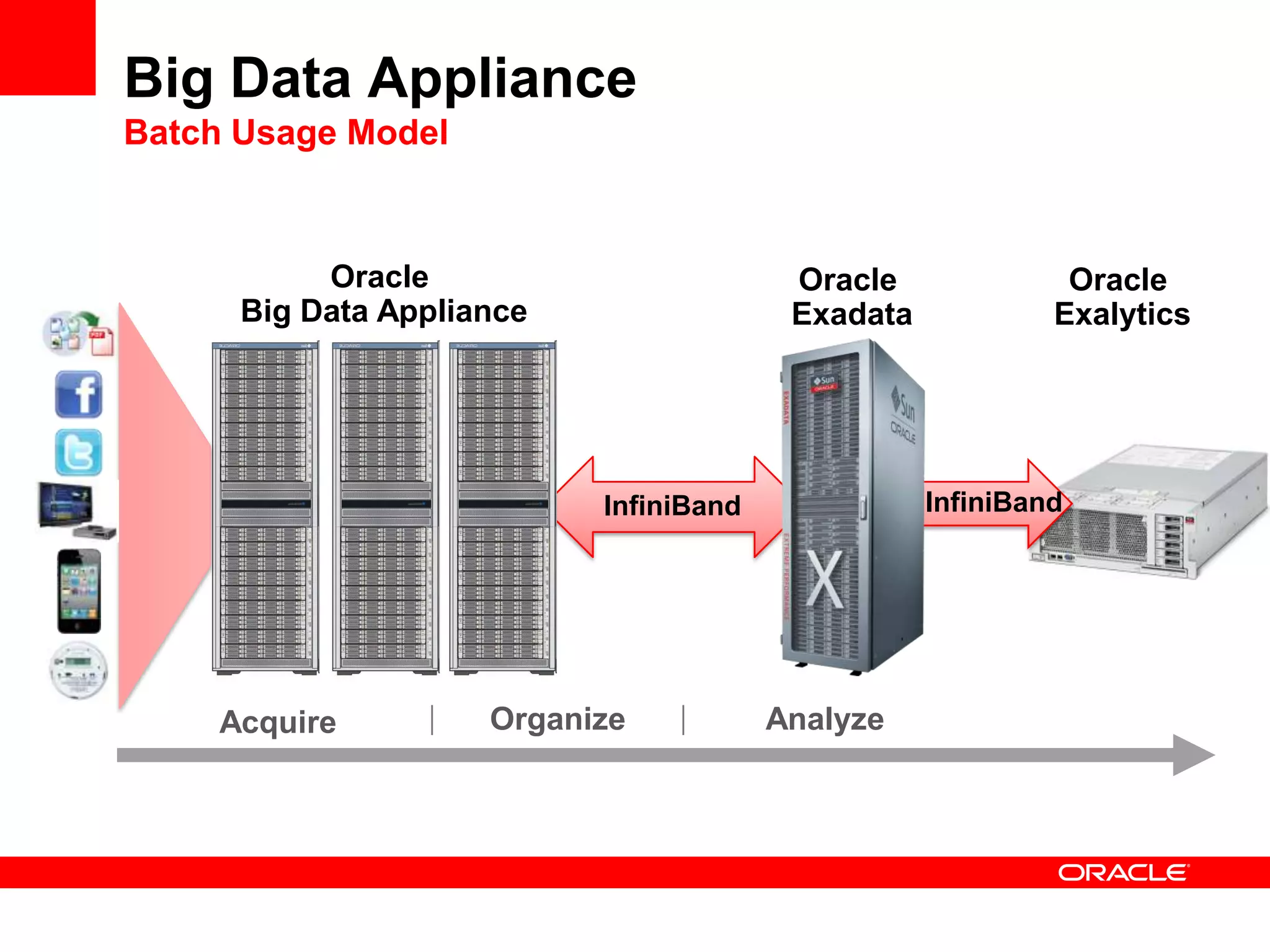

10. Big Data Appliance
Batch Usage Model
Oracle Oracle Oracle
Big Data Appliance Exadata Exalytics
InfiniBand InfiniBand
Acquire Organize Analyze

11. Why build a Hadoop Appliance?
• Time to Build?
• Required Expertise?
• Cost and Difficulty Maintaining?
11 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

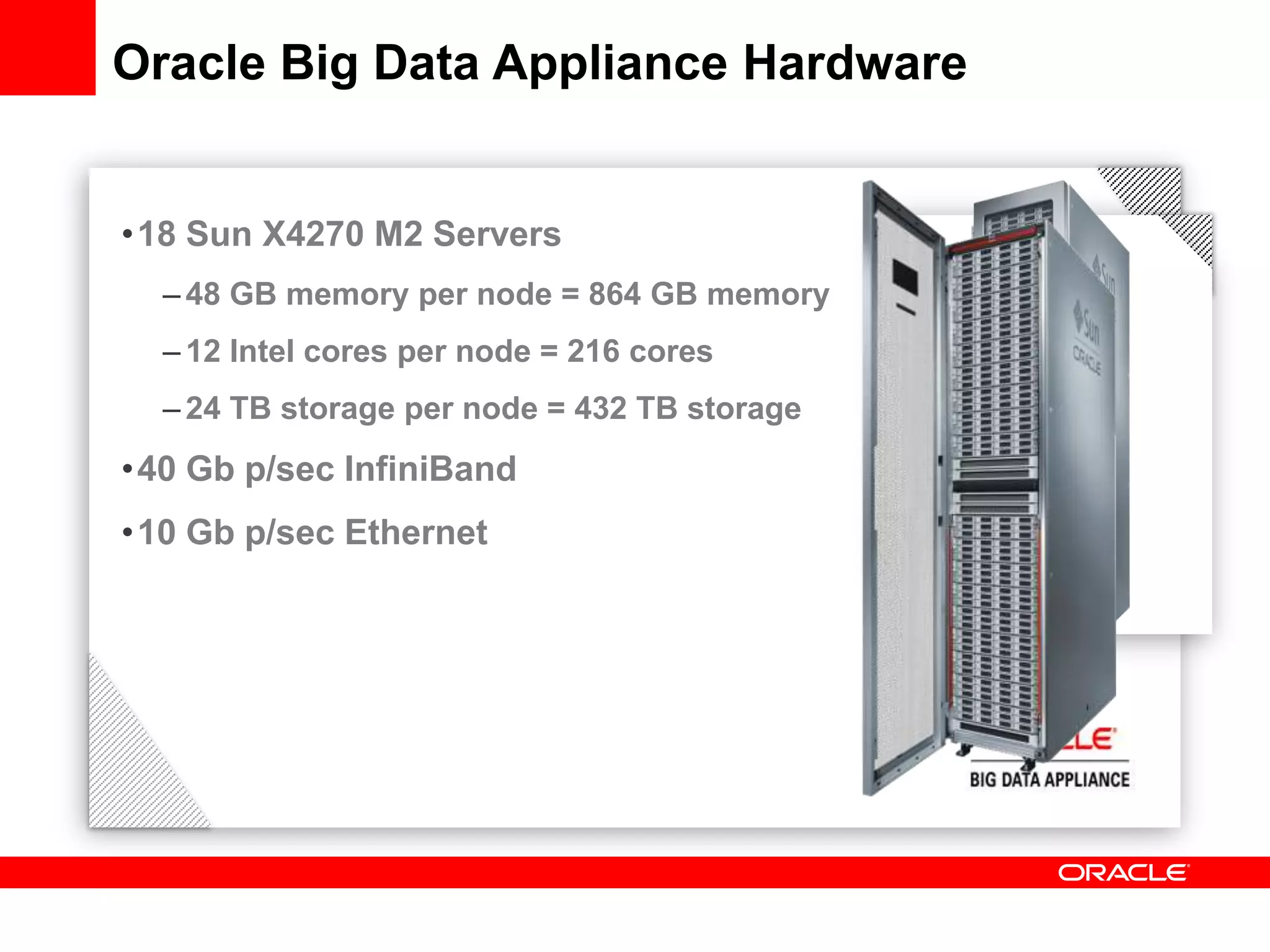

12. Oracle Big Data Appliance Hardware
•18 Sun X4270 M2 Servers
– 48 GB memory per node = 864 GB memory
– 12 Intel cores per node = 216 cores
– 24 TB storage per node = 432 TB storage
•40 Gb p/sec InfiniBand
•10 Gb p/sec Ethernet

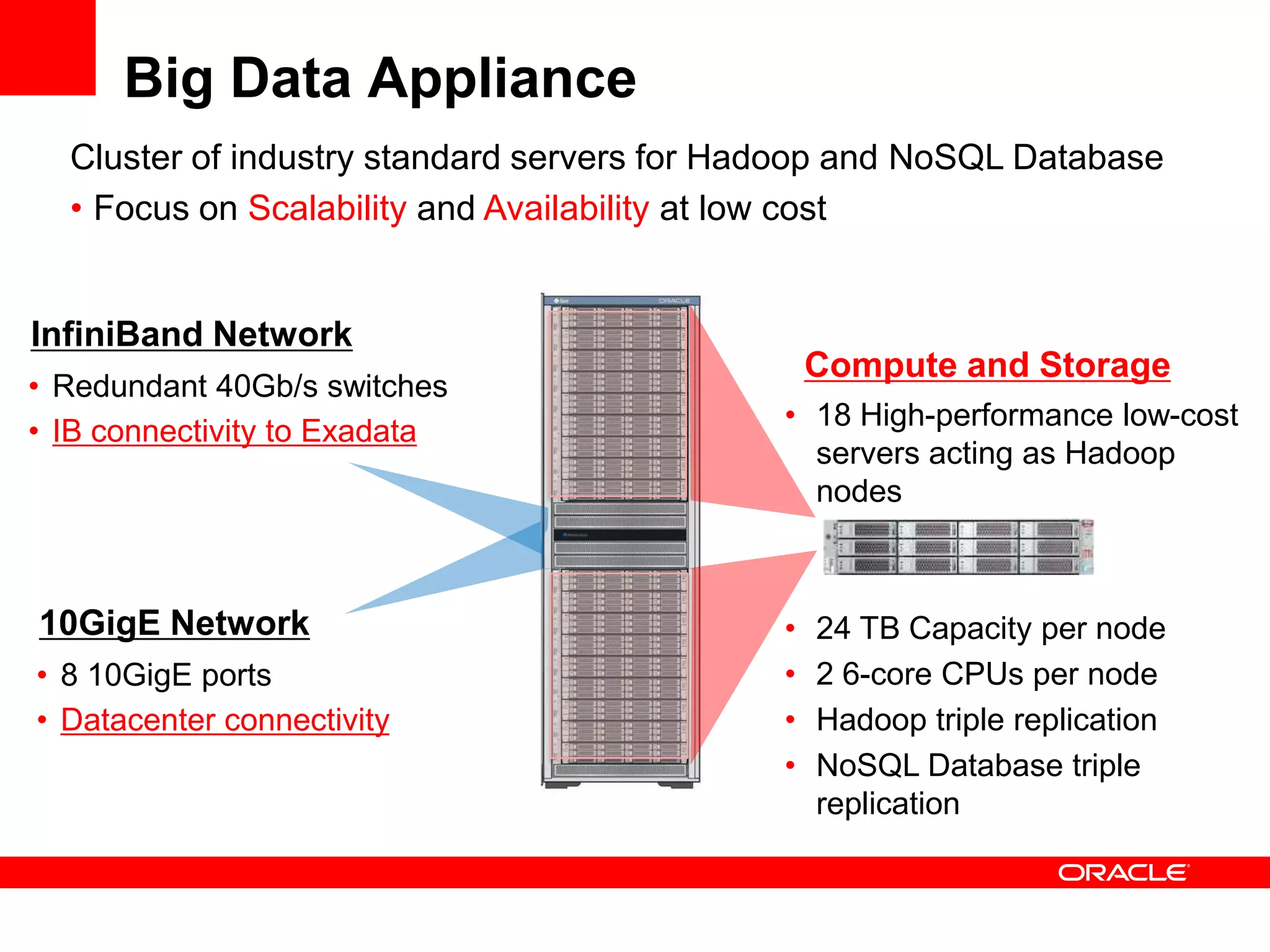

13. Big Data Appliance
Cluster of industry standard servers for Hadoop and NoSQL Database
• Focus on Scalability and Availability at low cost
InfiniBand Network
Compute and Storage
• Redundant 40Gb/s switches
• 18 High-performance low-cost
• IB connectivity to Exadata
servers acting as Hadoop
nodes
10GigE Network • 24 TB Capacity per node
• 8 10GigE ports • 2 6-core CPUs per node
• Datacenter connectivity • Hadoop triple replication
• NoSQL Database triple
replication

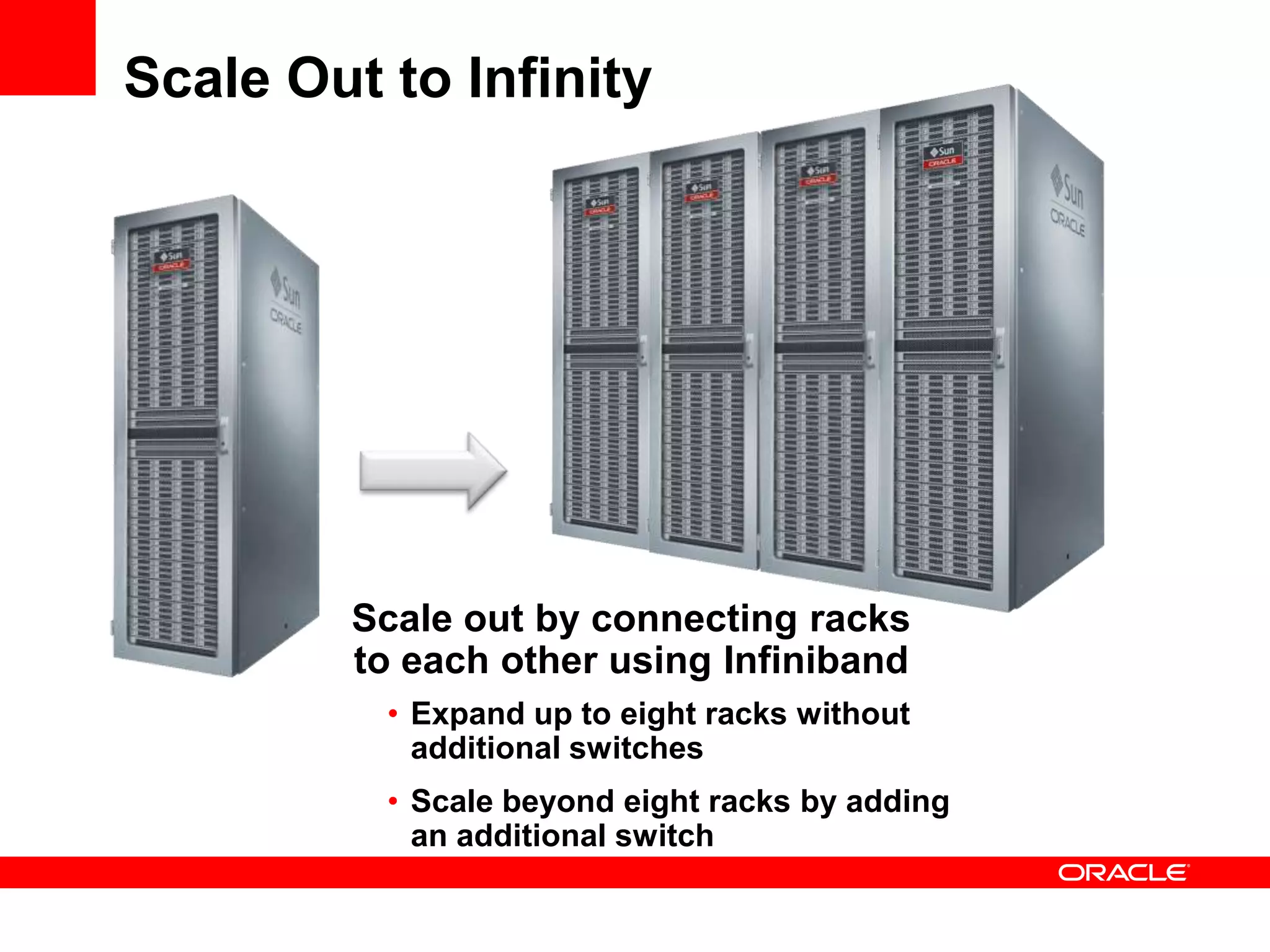

14. Scale Out to Infinity
Scale out by connecting racks
to each other using Infiniband
• Expand up to eight racks without
additional switches
• Scale beyond eight racks by adding
an additional switch

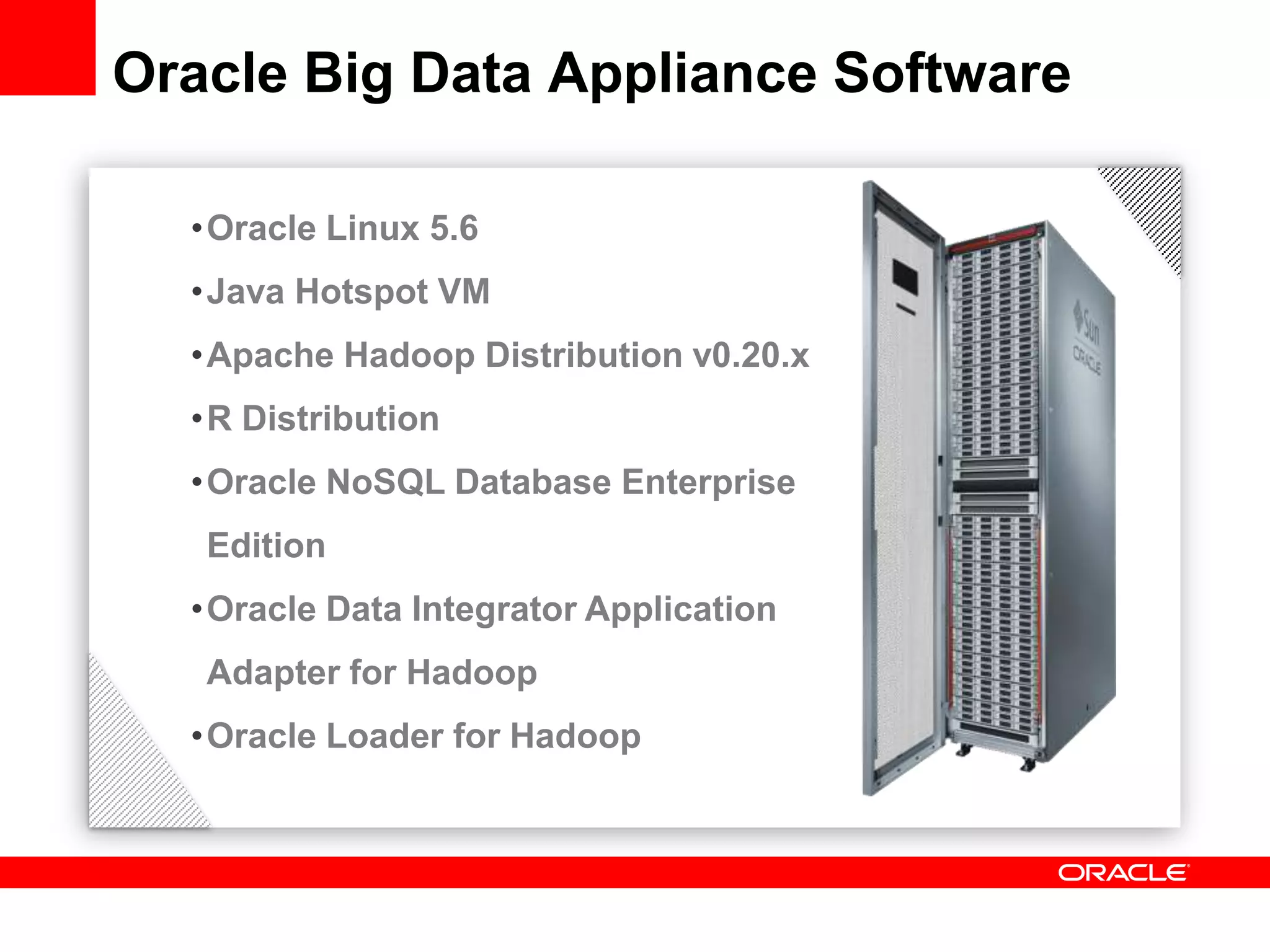

15. Oracle Big Data Appliance Software
•Oracle Linux 5.6
•Java Hotspot VM
•Apache Hadoop Distribution v0.20.x
•R Distribution
•Oracle NoSQL Database Enterprise
Edition
•Oracle Data Integrator Application
Adapter for Hadoop
•Oracle Loader for Hadoop

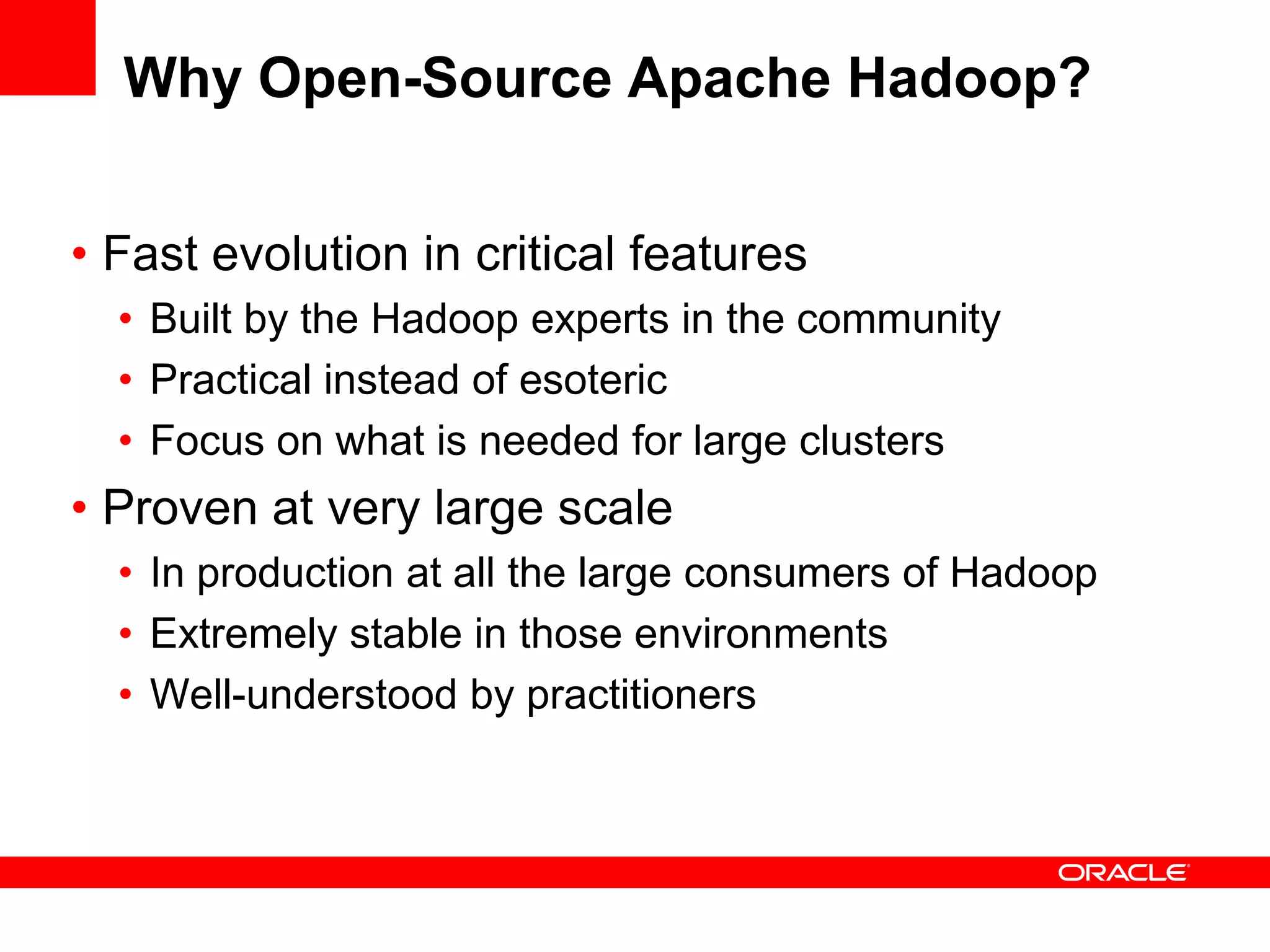

16. Why Open-Source Apache Hadoop?
• Fast evolution in critical features
• Built by the Hadoop experts in the community
• Practical instead of esoteric
• Focus on what is needed for large clusters
• Proven at very large scale
• In production at all the large consumers of Hadoop
• Extremely stable in those environments
• Well-understood by practitioners

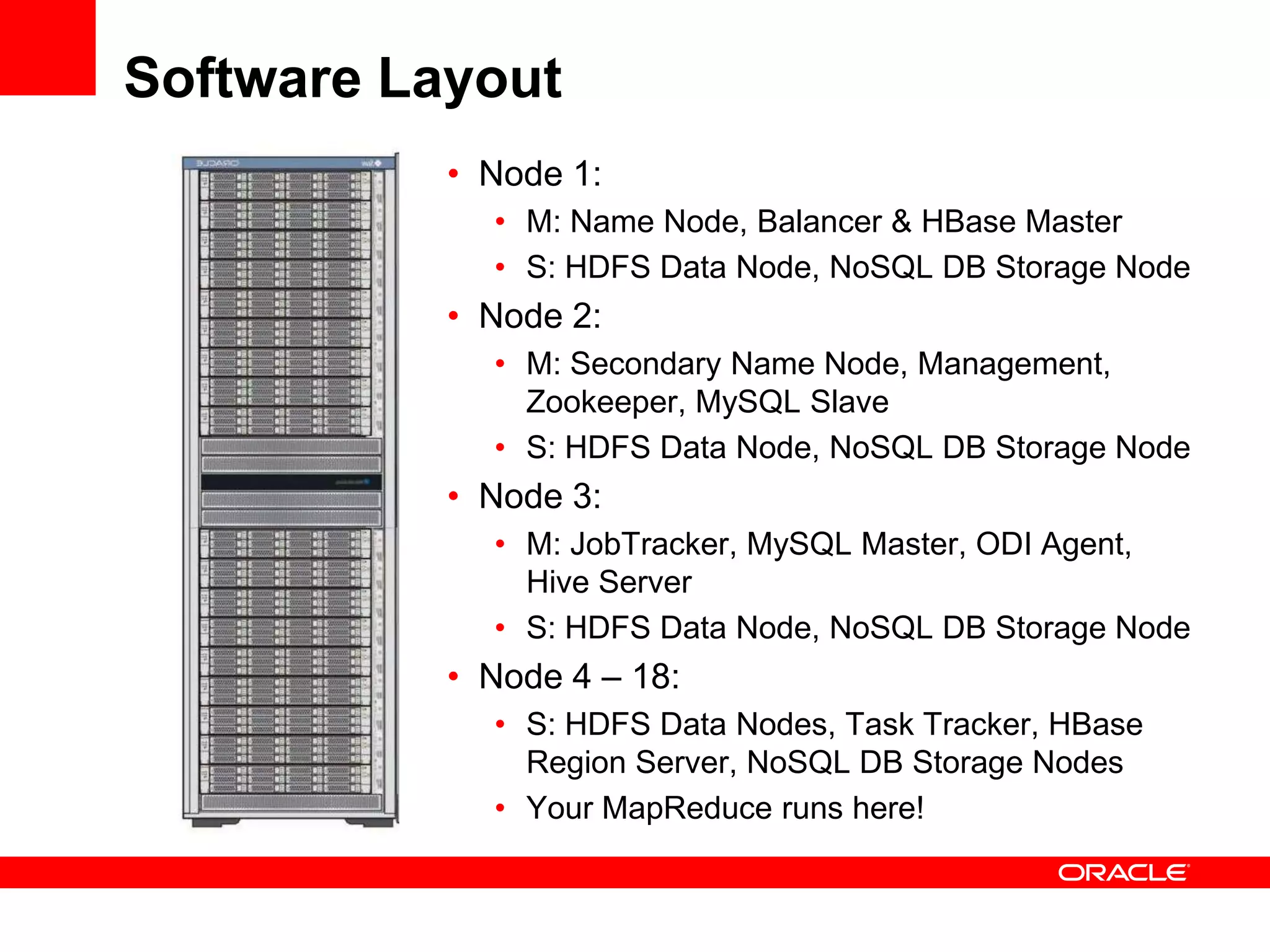

17. Software Layout
• Node 1:
• M: Name Node, Balancer & HBase Master
• S: HDFS Data Node, NoSQL DB Storage Node
• Node 2:
• M: Secondary Name Node, Management,
Zookeeper, MySQL Slave
• S: HDFS Data Node, NoSQL DB Storage Node
• Node 3:
• M: JobTracker, MySQL Master, ODI Agent,
Hive Server
• S: HDFS Data Node, NoSQL DB Storage Node
• Node 4 – 18:
• S: HDFS Data Nodes, Task Tracker, HBase
Region Server, NoSQL DB Storage Nodes
• Your MapReduce runs here!

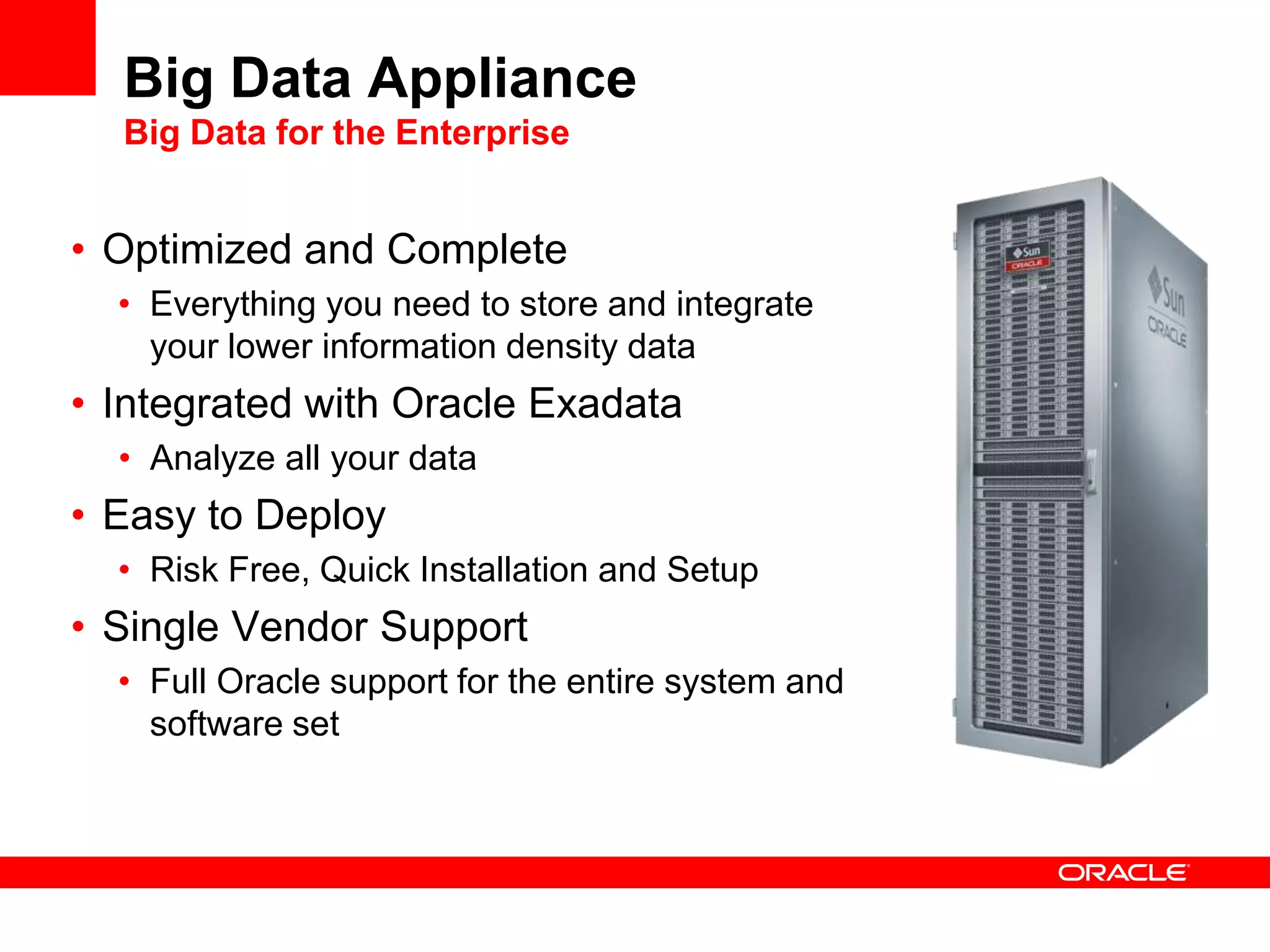

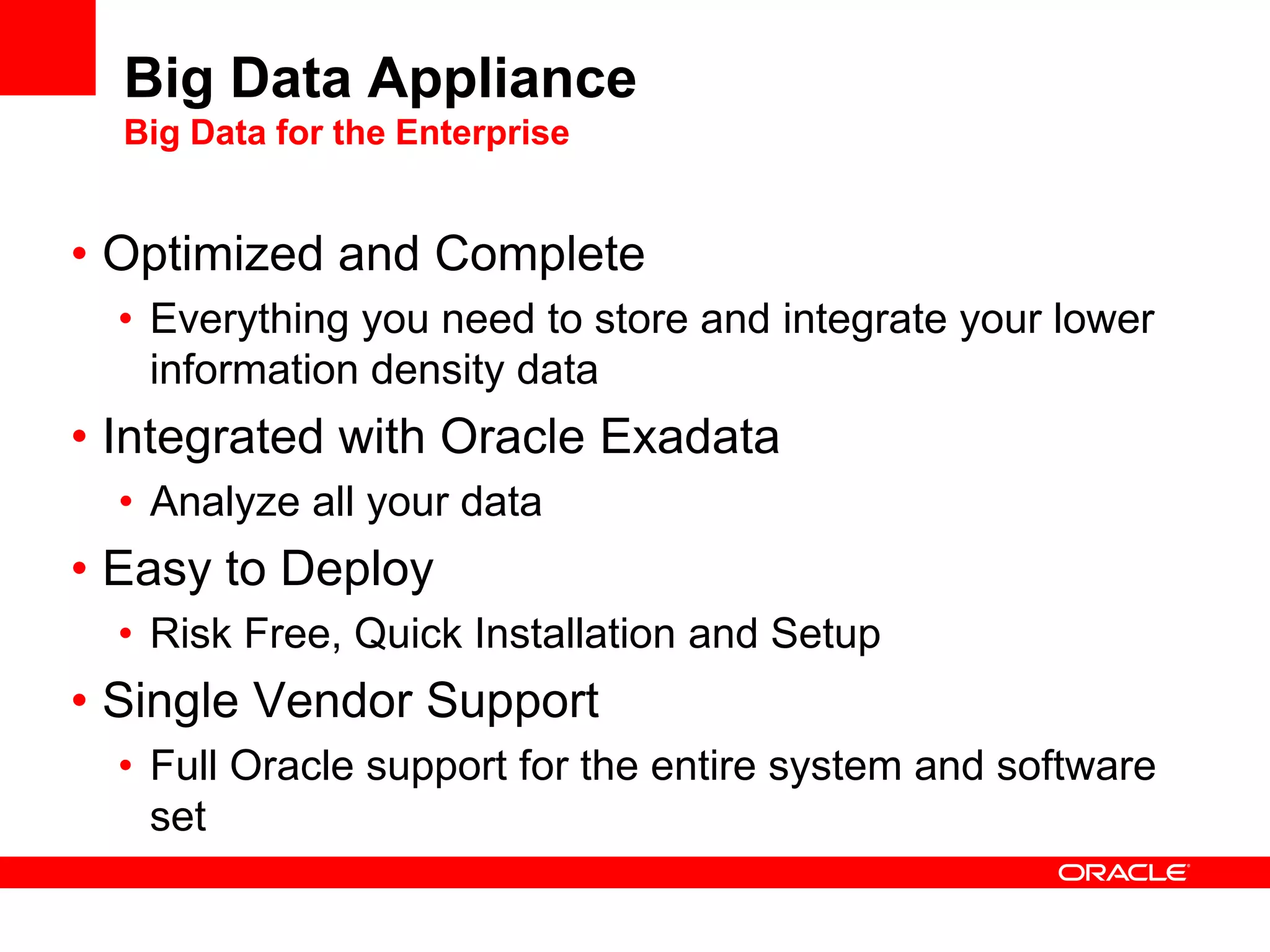

18. Big Data Appliance
Big Data for the Enterprise
• Optimized and Complete
• Everything you need to store and integrate
your lower information density data
• Integrated with Oracle Exadata
• Analyze all your data
• Easy to Deploy
• Risk Free, Quick Installation and Setup
• Single Vendor Support
• Full Oracle support for the entire system and
software set

19. <Insert Picture Here>
Oracle NoSQL Database

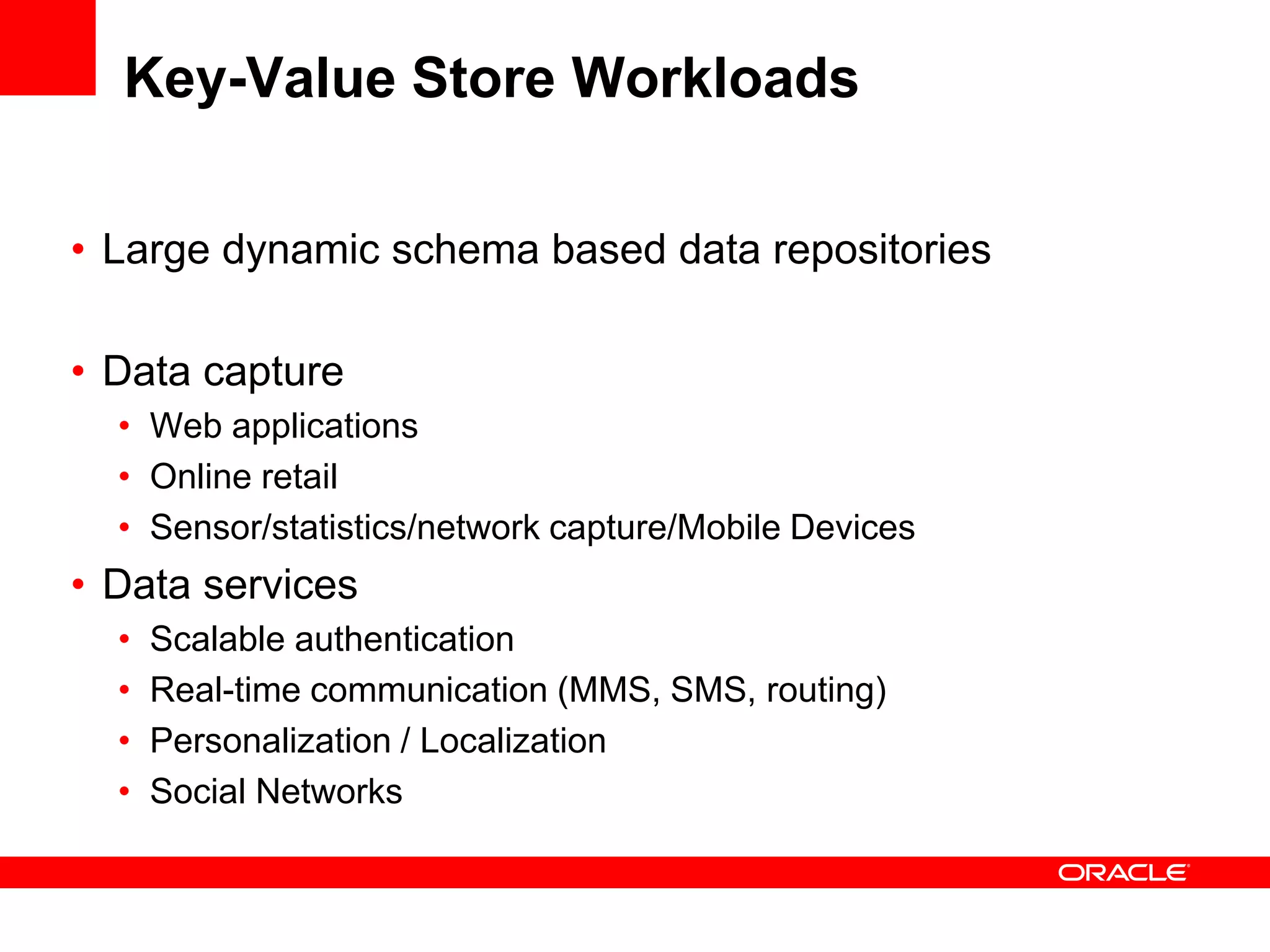

20. Key-Value Store Workloads
• Large dynamic schema based data repositories
• Data capture
• Web applications
• Online retail
• Sensor/statistics/network capture/Mobile Devices
• Data services
• Scalable authentication
• Real-time communication (MMS, SMS, routing)
• Personalization / Localization
• Social Networks

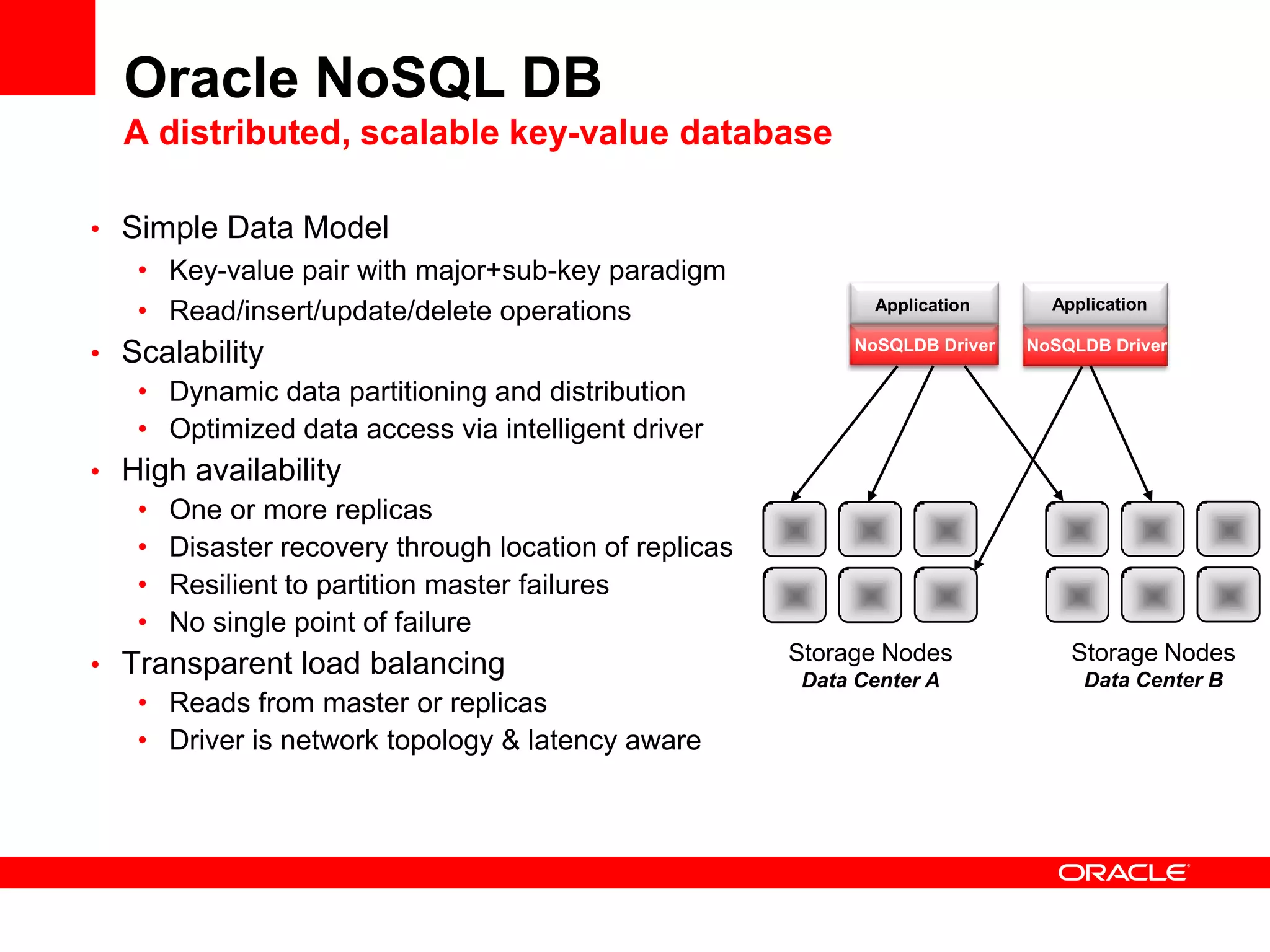

21. Oracle NoSQL DB
A distributed, scalable key-value database
• Simple Data Model
• Key-value pair with major+sub-key paradigm
• Read/insert/update/delete operations Application Application
• Scalability NoSQLDB Driver NoSQLDB Driver
• Dynamic data partitioning and distribution
• Optimized data access via intelligent driver
• High availability
• One or more replicas
• Disaster recovery through location of replicas
• Resilient to partition master failures
• No single point of failure
Storage Nodes Storage Nodes
• Transparent load balancing Data Center B
Data Center A
• Reads from master or replicas
• Driver is network topology & latency aware

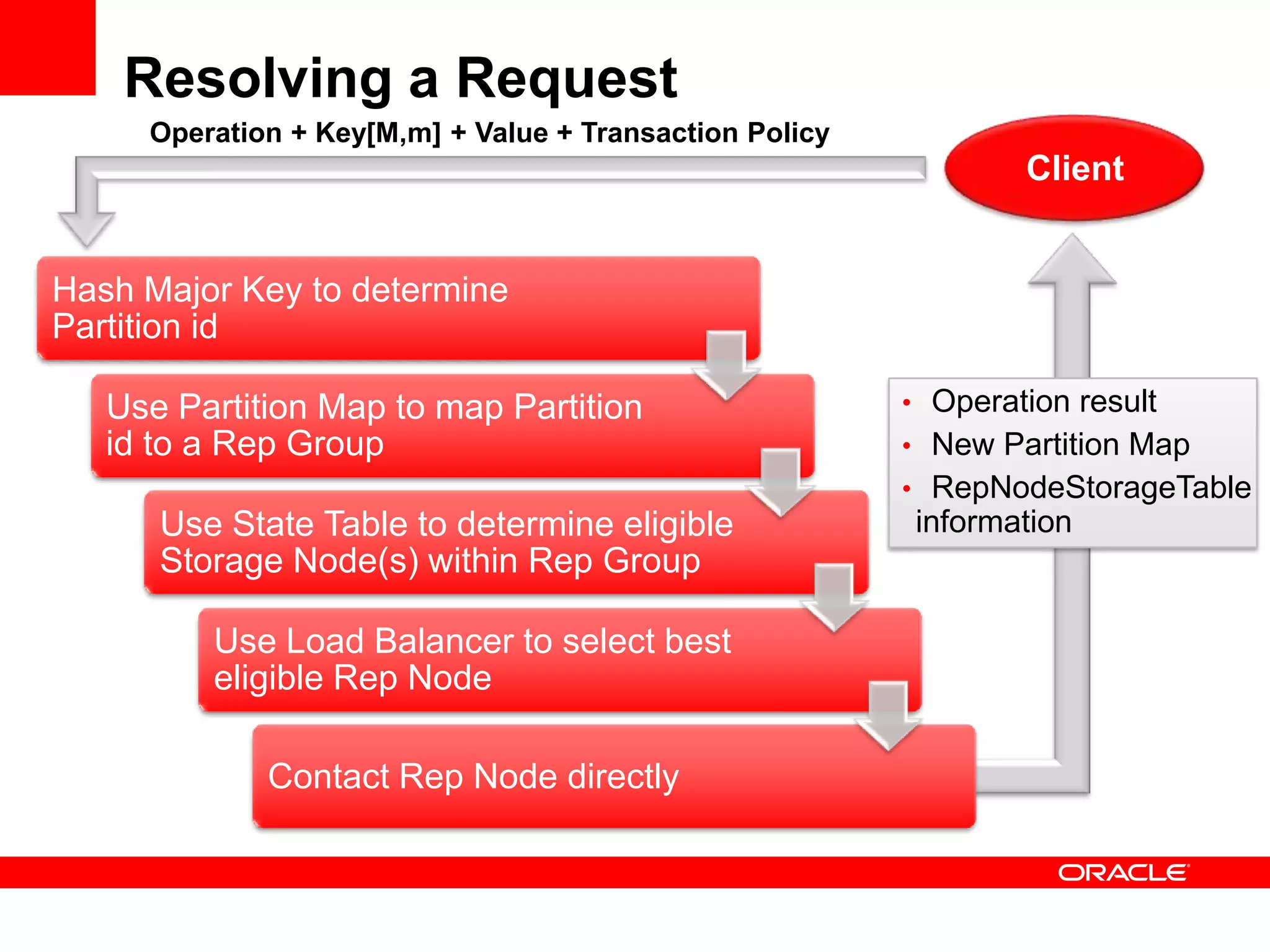

22. Resolving a Request
Operation + Key[M,m] + Value + Transaction Policy
Client
Hash Major Key to determine
Partition id
Use Partition Map to map Partition • Operation result
id to a Rep Group • New Partition Map
• RepNodeStorageTable
Use State Table to determine eligible information
Storage Node(s) within Rep Group
Use Load Balancer to select best
eligible Rep Node
Contact Rep Node directly

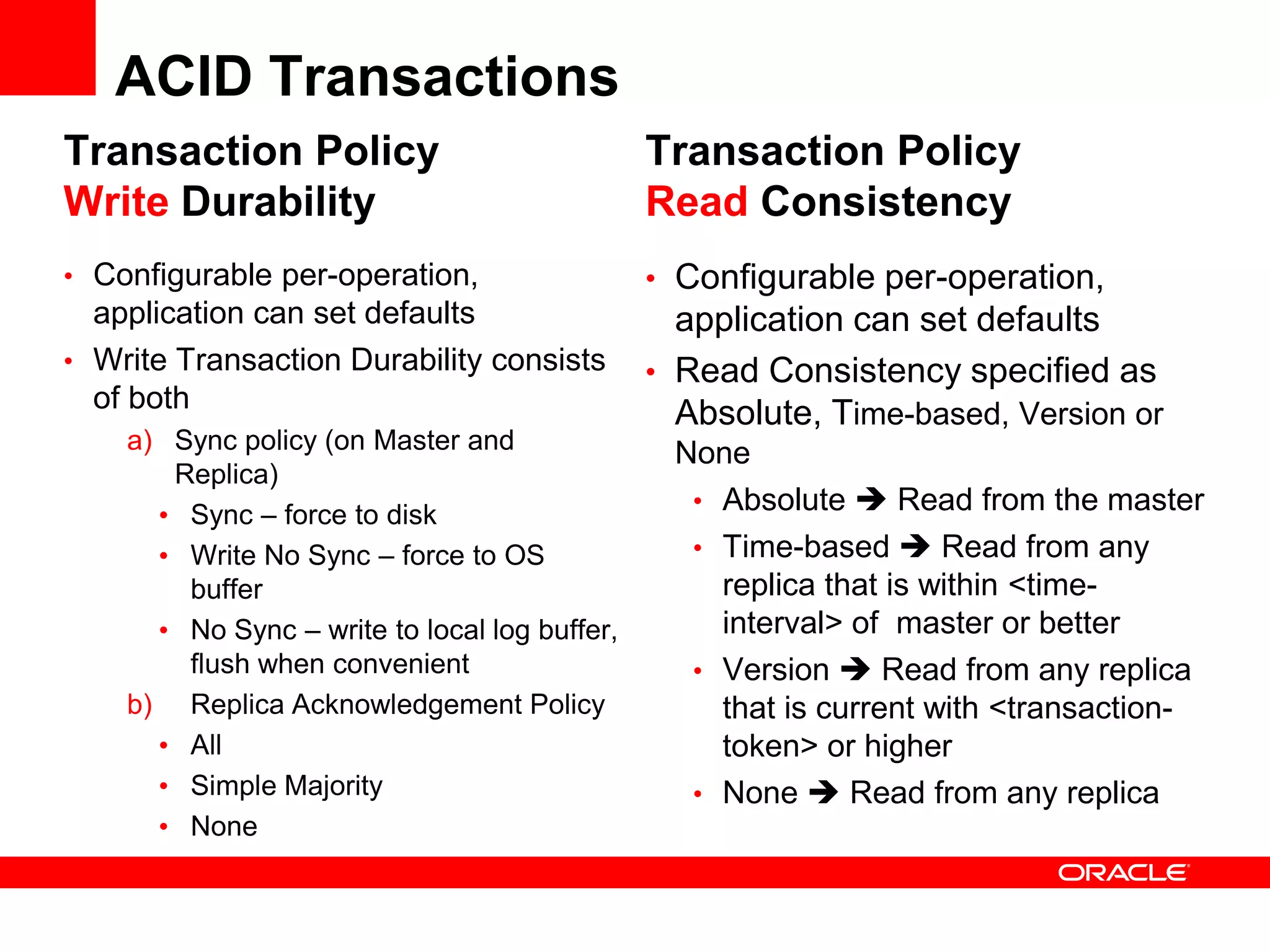

23. ACID Transactions
Transaction Policy Transaction Policy
Write Durability Read Consistency
• Configurable per-operation, • Configurable per-operation,
application can set defaults application can set defaults
• Write Transaction Durability consists • Read Consistency specified as
of both
Absolute, Time-based, Version or
a) Sync policy (on Master and None
Replica)
• Absolute  Read from the master
• Sync – force to disk
• Write No Sync – force to OS • Time-based  Read from any
buffer replica that is within <time-
• No Sync – write to local log buffer, interval> of master or better
flush when convenient • Version  Read from any replica
b) Replica Acknowledgement Policy that is current with <transaction-
• All token> or higher
• Simple Majority • None  Read from any replica
• None

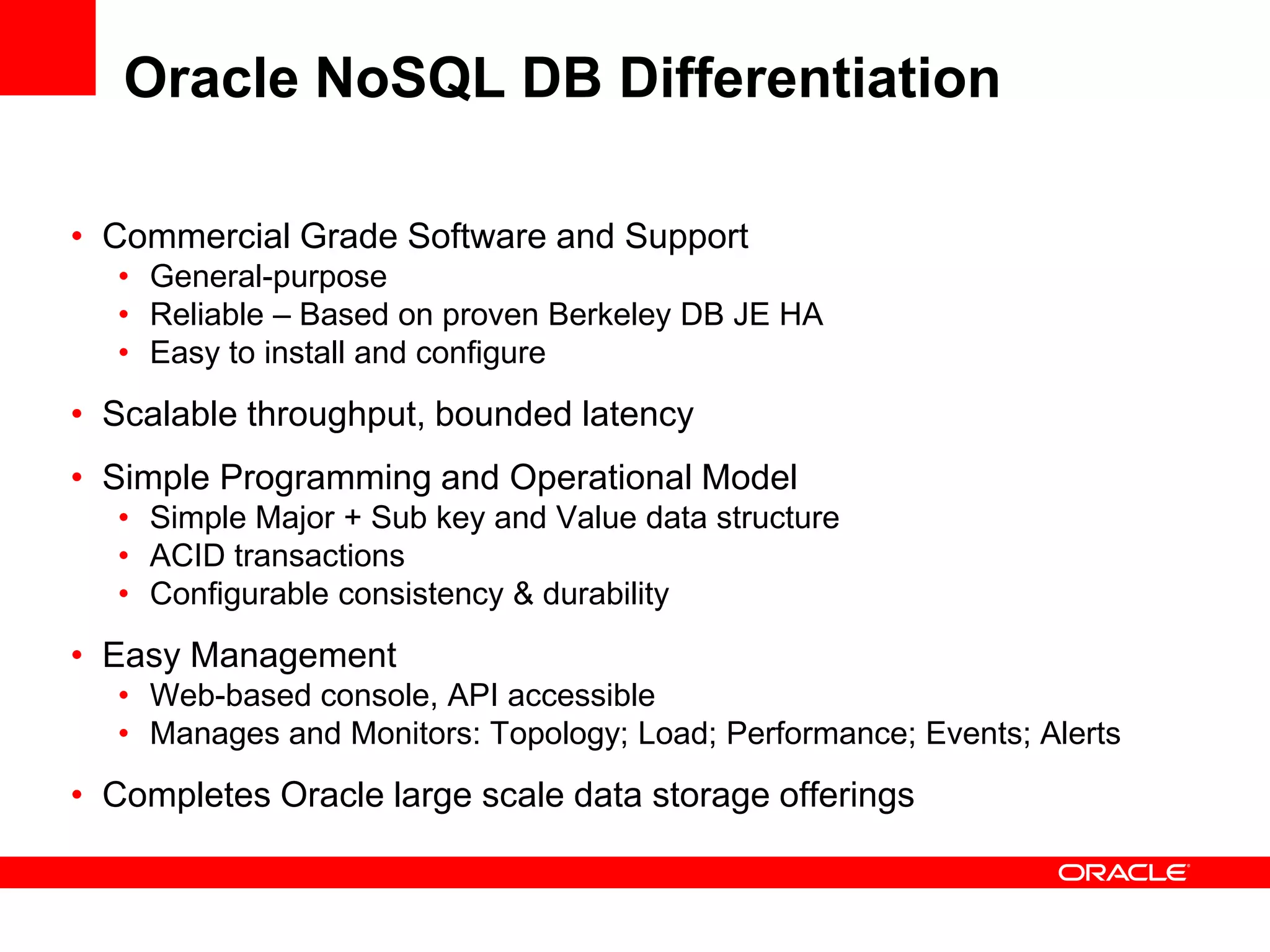

24. Oracle NoSQL DB Differentiation
• Commercial Grade Software and Support
• General-purpose
• Reliable – Based on proven Berkeley DB JE HA
• Easy to install and configure
• Scalable throughput, bounded latency
• Simple Programming and Operational Model
• Simple Major + Sub key and Value data structure
• ACID transactions
• Configurable consistency & durability
• Easy Management
• Web-based console, API accessible
• Manages and Monitors: Topology; Load; Performance; Events; Alerts
• Completes Oracle large scale data storage offerings

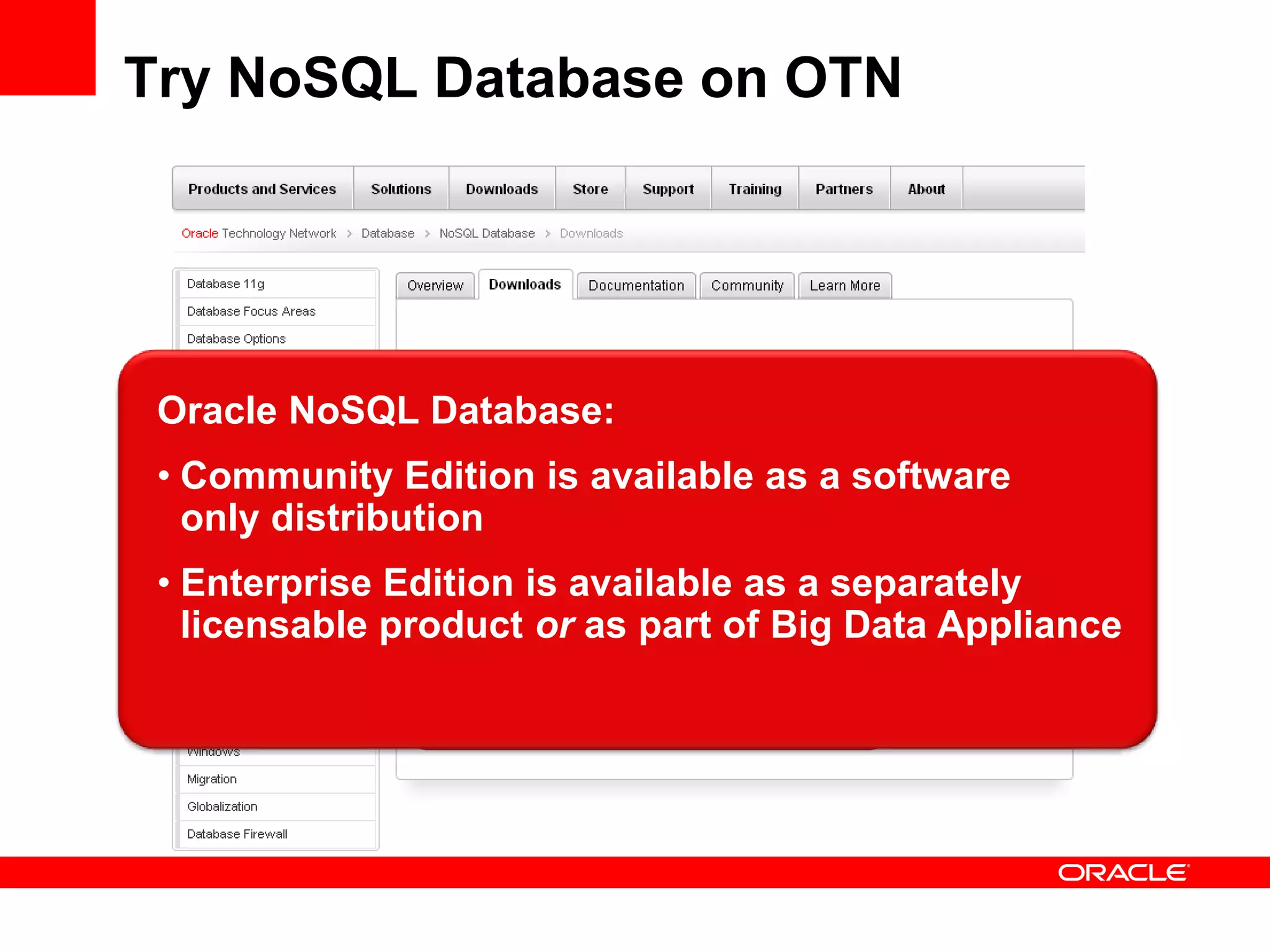

25. Try NoSQL Database on OTN
Oracle NoSQL Database:
• Community Edition is available as a software
only distribution
• Enterprise Edition is available as a separately
licensable product or as part of Big Data Appliance

26. <Insert Picture Here>
Oracle Loader for Hadoop

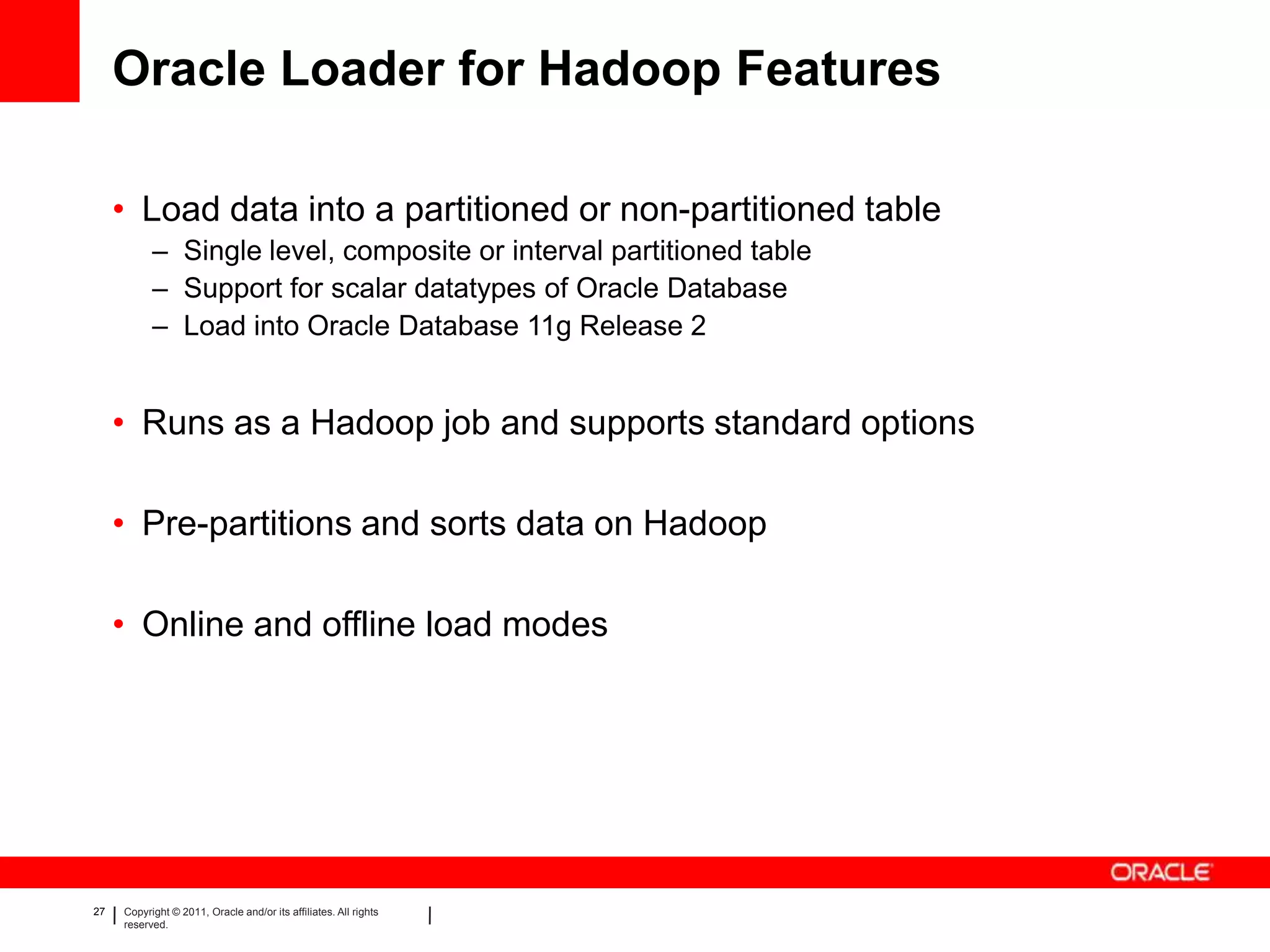

27. Oracle Loader for Hadoop Features
• Load data into a partitioned or non-partitioned table
– Single level, composite or interval partitioned table
– Support for scalar datatypes of Oracle Database
– Load into Oracle Database 11g Release 2
• Runs as a Hadoop job and supports standard options
• Pre-partitions and sorts data on Hadoop
• Online and offline load modes
27 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

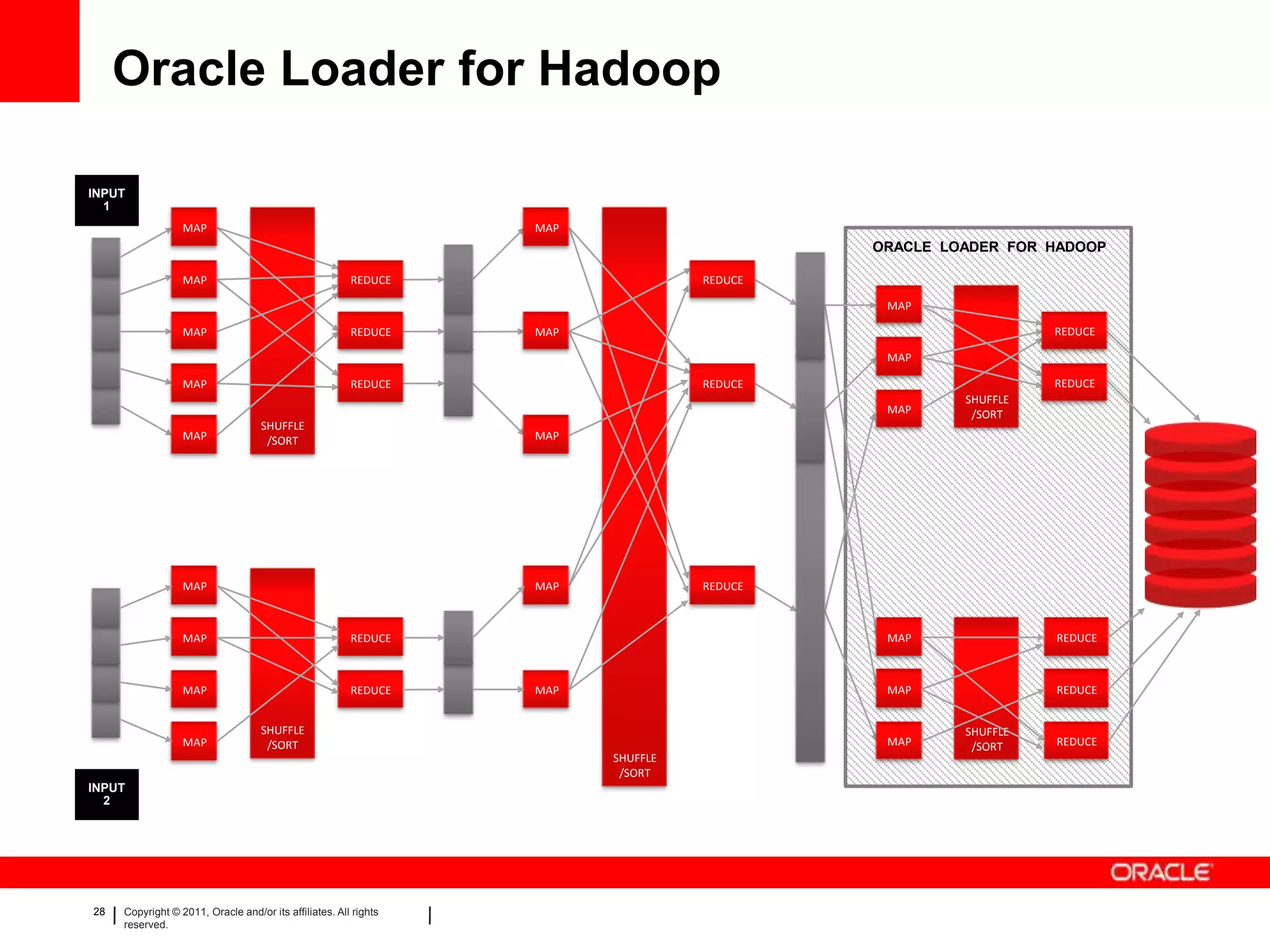

28. Oracle Loader for Hadoop
INPUT
1
MAP MAP
ORACLE LOADER FOR HADOOP
MAP REDUCE REDUCE
MAP
MAP REDUCE MAP REDUCE
MAP
MAP REDUCE REDUCE REDUCE
SHUFFLE
MAP /SORT
SHUFFLE
MAP /SORT MAP
MAP MAP REDUCE
MAP REDUCE MAP REDUCE
MAP REDUCE MAP MAP REDUCE
SHUFFLE SHUFFLE
MAP /SORT MAP /SORT REDUCE
SHUFFLE
/SORT
INPUT
2
28 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

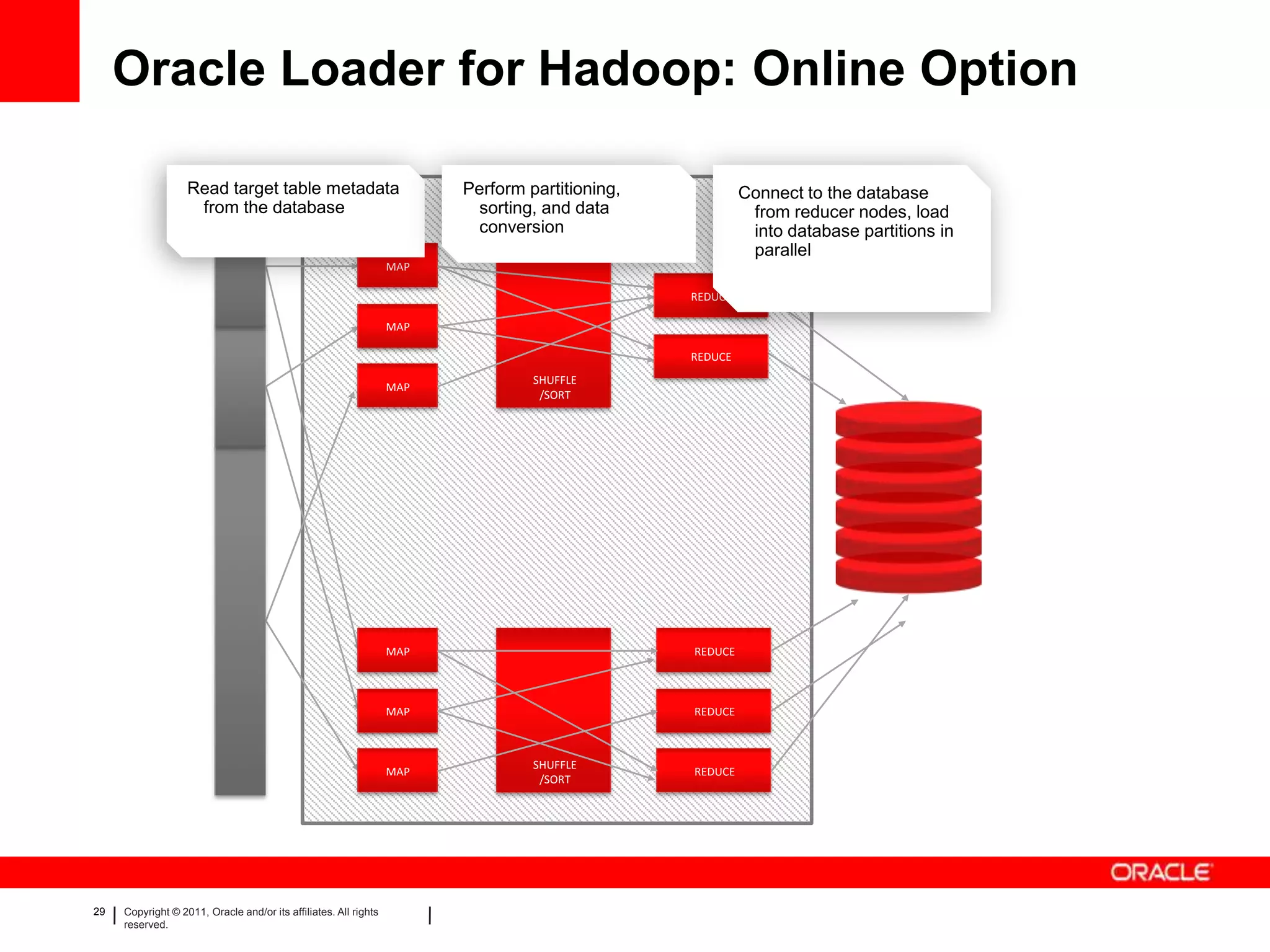

29. Oracle Loader for Hadoop: Online Option
Read target table metadata Perform partitioning,
ORACLE LOADER FOR HADOOP Connect to the database
from the database sorting, and data from reducer nodes, load
conversion into database partitions in
parallel
MAP
REDUCE
MAP
REDUCE
SHUFFLE
MAP
/SORT
MAP REDUCE
MAP REDUCE
SHUFFLE
MAP REDUCE
/SORT
29 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

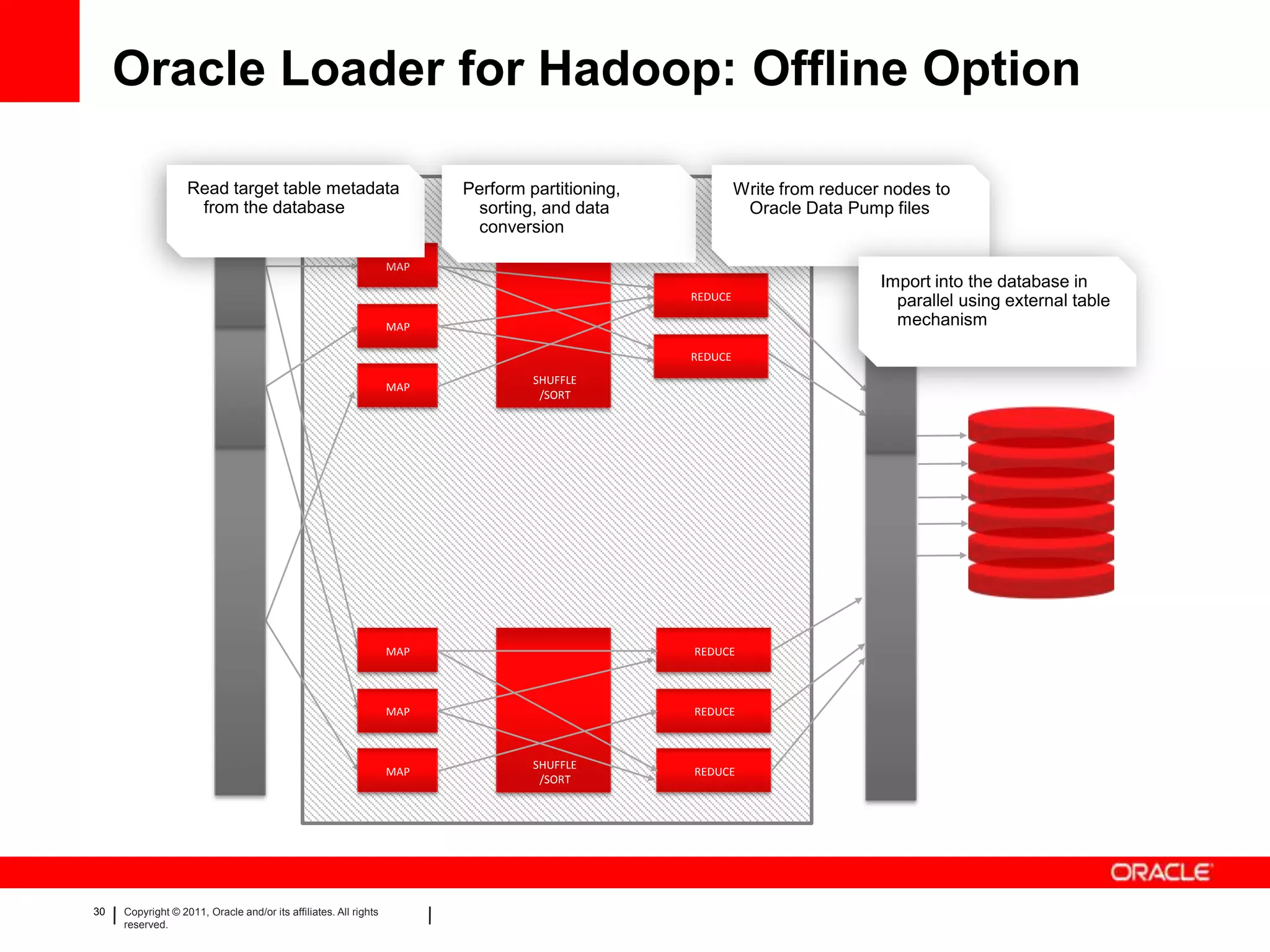

30. Oracle Loader for Hadoop: Offline Option
Read target table metadata Perform partitioning,
ORACLE LOADER FOR HADOOP
Write from reducer nodes to
from the database sorting, and data Oracle Data Pump files
conversion
MAP
Import into the database in
REDUCE parallel using external table
MAP mechanism
REDUCE
SHUFFLE
MAP
/SORT
MAP REDUCE
MAP REDUCE
SHUFFLE
MAP REDUCE
/SORT
30 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

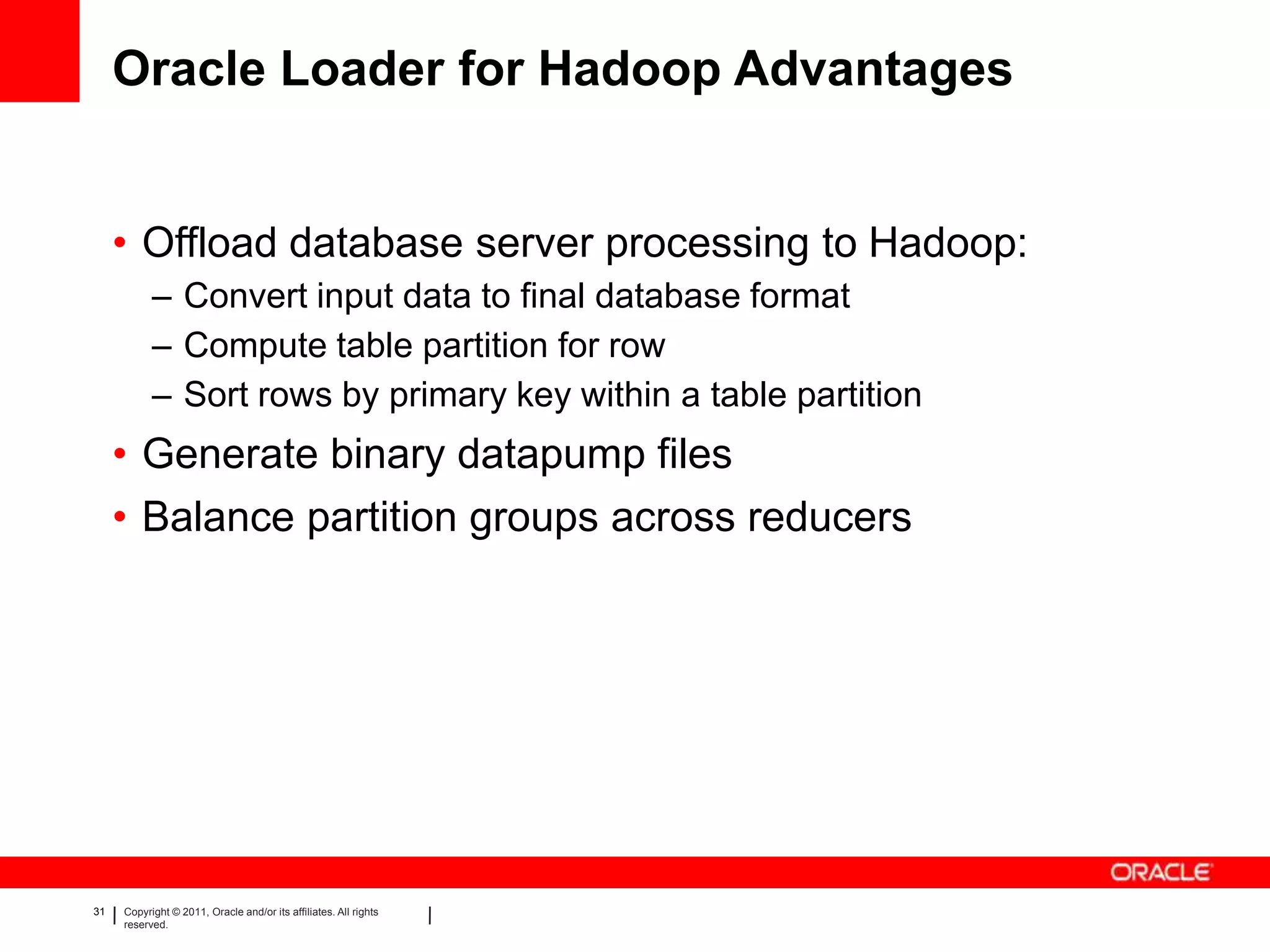

31. Oracle Loader for Hadoop Advantages
• Offload database server processing to Hadoop:
– Convert input data to final database format
– Compute table partition for row
– Sort rows by primary key within a table partition
• Generate binary datapump files
• Balance partition groups across reducers
31 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

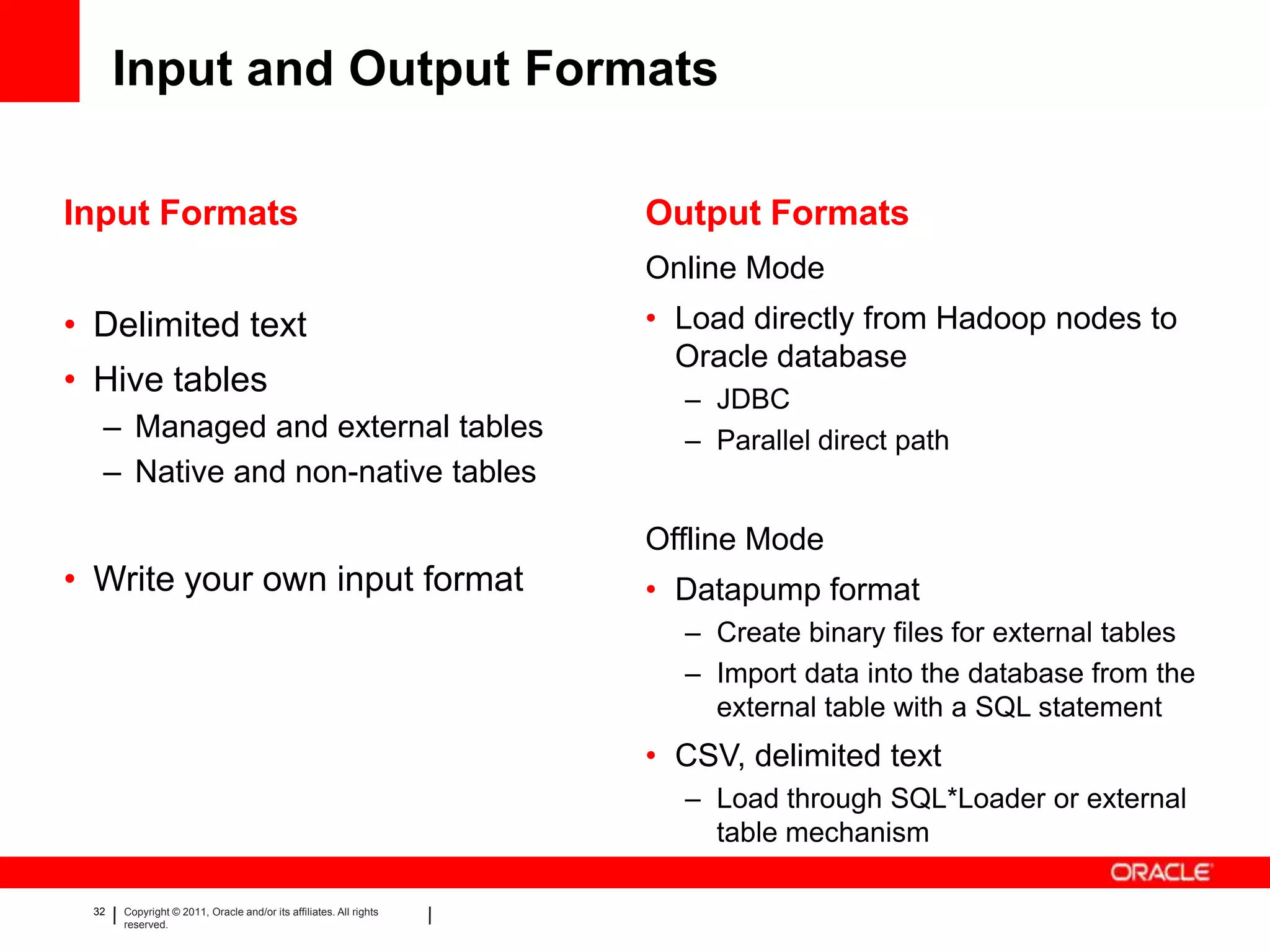

32. Input and Output Formats
Input Formats Output Formats
Online Mode
• Delimited text • Load directly from Hadoop nodes to
Oracle database
• Hive tables – JDBC
– Managed and external tables – Parallel direct path
– Native and non-native tables
Offline Mode
• Write your own input format • Datapump format
– Create binary files for external tables
– Import data into the database from the
external table with a SQL statement
• CSV, delimited text
– Load through SQL*Loader or external
table mechanism
32 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

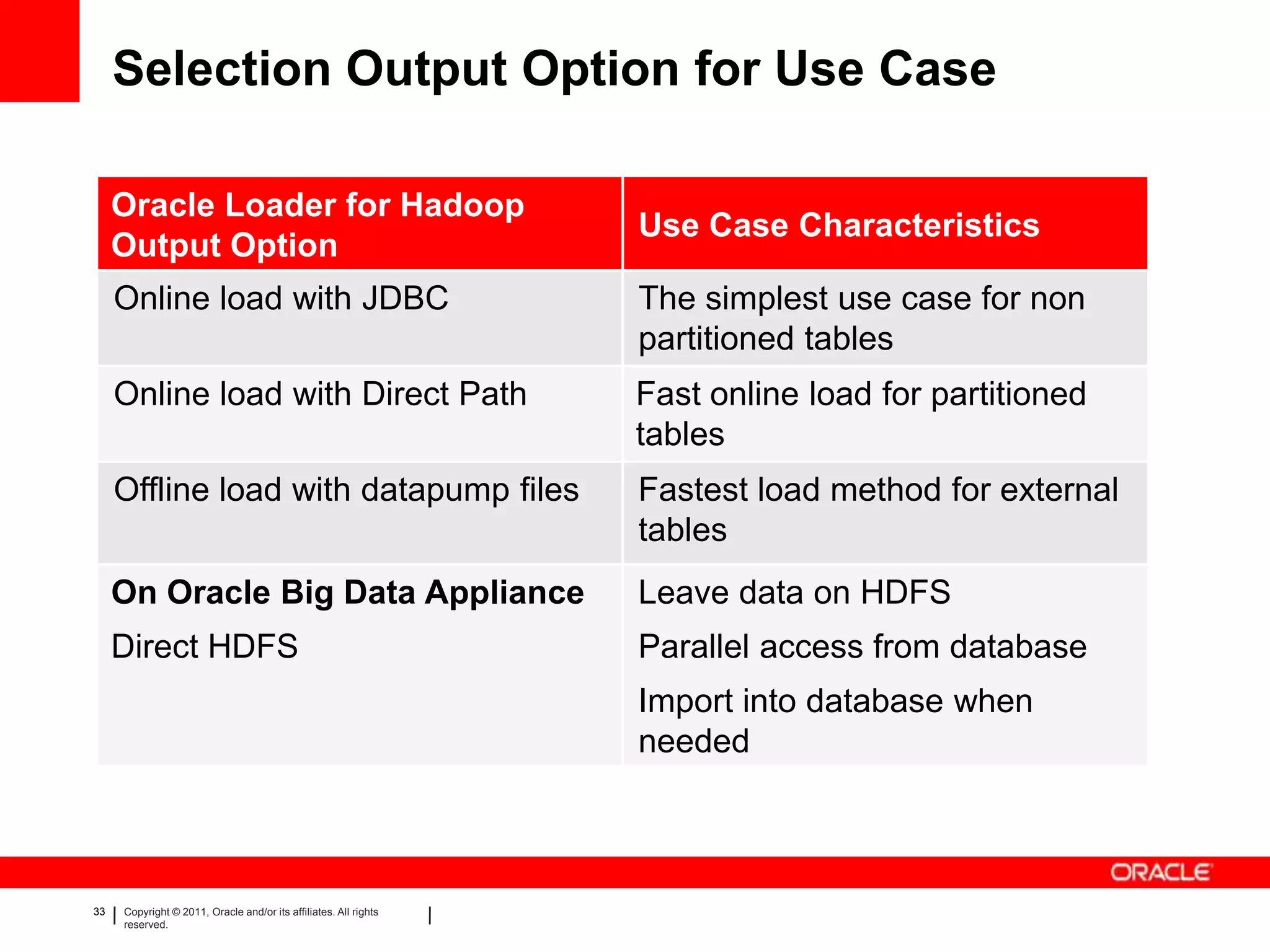

33. Selection Output Option for Use Case
Oracle Loader for Hadoop
Use Case Characteristics
Output Option
Online load with JDBC The simplest use case for non
partitioned tables
Online load with Direct Path Fast online load for partitioned
tables
Offline load with datapump files Fastest load method for external
tables
On Oracle Big Data Appliance Leave data on HDFS
Direct HDFS Parallel access from database
Import into database when
needed
33 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

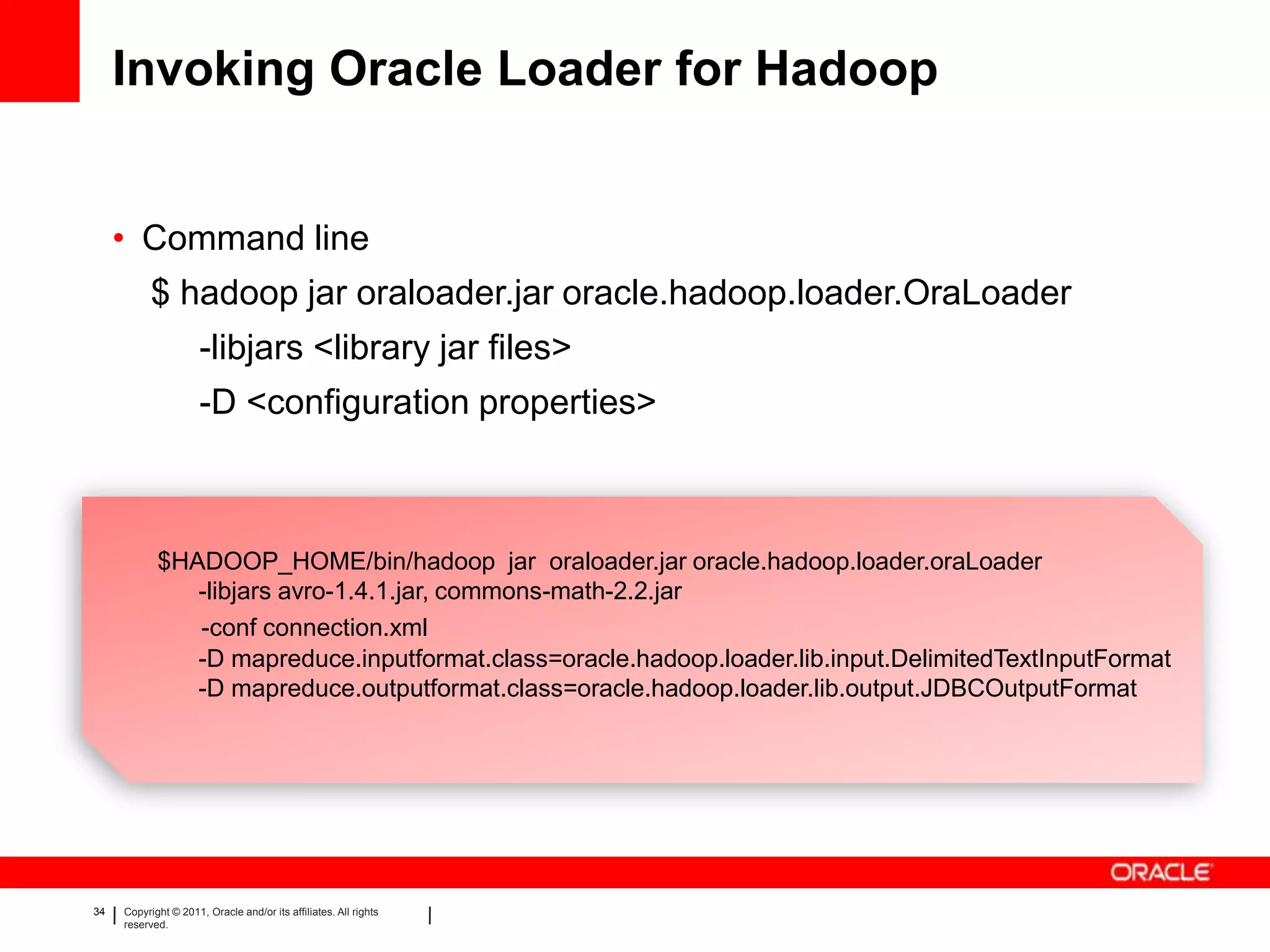

34. Invoking Oracle Loader for Hadoop
• Command line
$ hadoop jar oraloader.jar oracle.hadoop.loader.OraLoader
-libjars <library jar files>
-D <configuration properties>
$HADOOP_HOME/bin/hadoop jar oraloader.jar oracle.hadoop.loader.oraLoader
-libjars avro-1.4.1.jar, commons-math-2.2.jar
-conf connection.xml
-D mapreduce.inputformat.class=oracle.hadoop.loader.lib.input.DelimitedTextInputFormat
-D mapreduce.outputformat.class=oracle.hadoop.loader.lib.output.JDBCOutputFormat
34 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

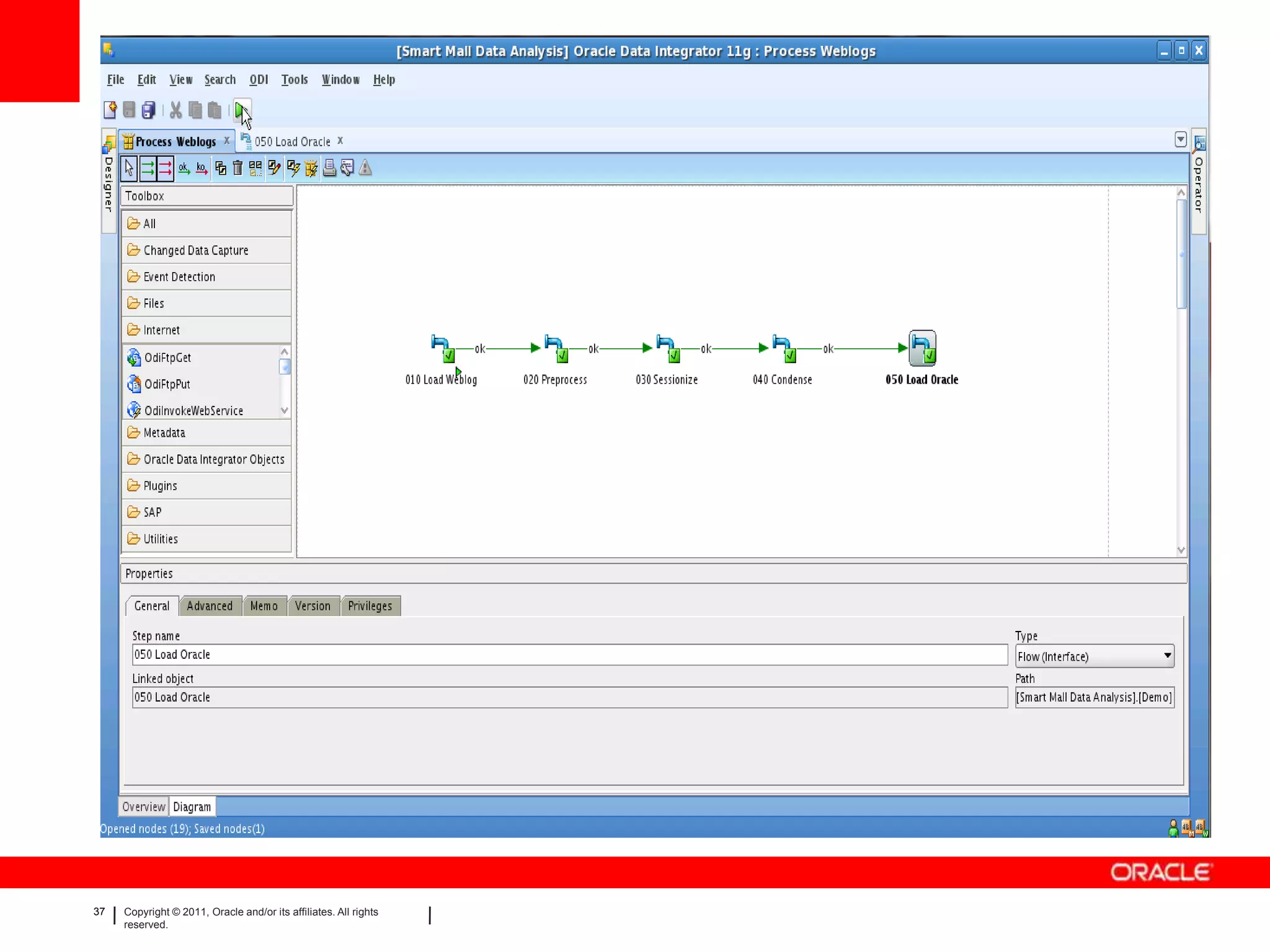

35. Automate Usage of Oracle Loader for Hadoop
Oracle Data Integrator (ODI)
• ODI has knowledge modules to
– Generate data transformation code to run on Hive/Hadoop
– Invoke Oracle Loader for Hadoop
• Use the drag-and-drop interface in ODI to
– Include invocation of Oracle Loader for Hadoop in any ODI
packaged flow
36 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

36. 37 Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.

37. <Insert Picture Here>
Summary

38. Big Data Appliance
Big Data for the Enterprise
• Optimized and Complete
• Everything you need to store and integrate your lower
information density data
• Integrated with Oracle Exadata
• Analyze all your data
• Easy to Deploy
• Risk Free, Quick Installation and Setup
• Single Vendor Support
• Full Oracle support for the entire system and software
set

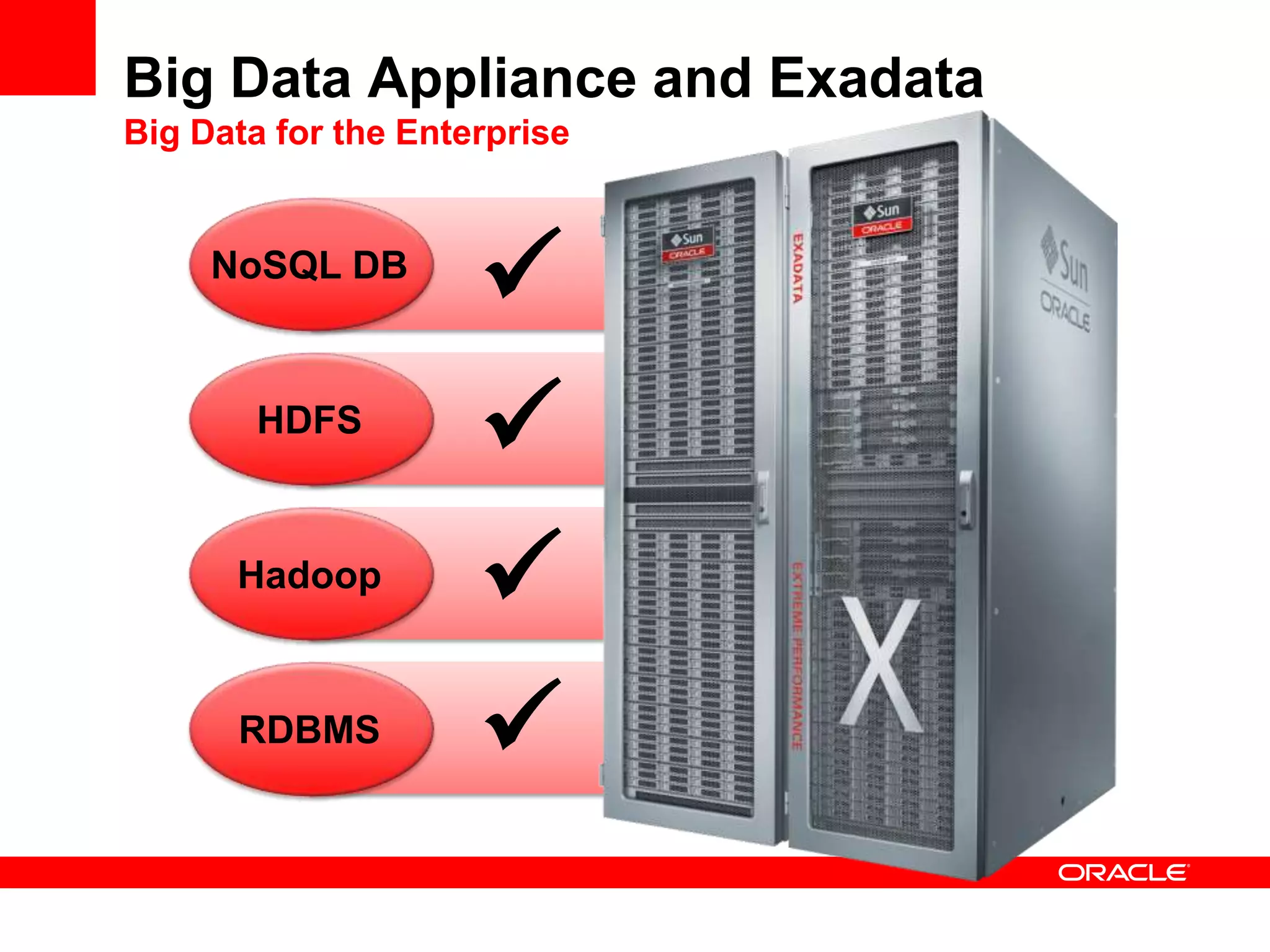

39. Big Data Appliance and Exadata
Big Data for the Enterprise
NoSQL DB

HDFS

Hadoop

RDBMS 

40. Questions
