1. Beyond EBR (Draft)
Quantum Columns, Spooky Joins and Virtual Integrity for ZDT Data Versioning
Jeff Jacobs, Consulting Data Architect
Jeffrey Jacobs & Associates

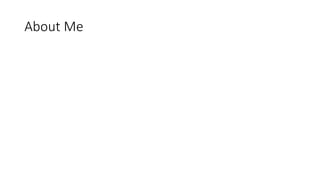

2. About Me

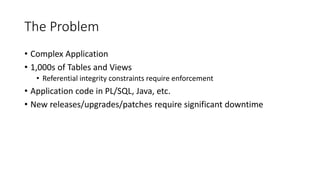

3. The Problem
• Complex Application
• 1,000s of Tables and Views
• Referential integrity constraints require enforcement
• Application code in PL/SQL, Java, etc.
• New releases/upgrades/patches require significant downtime

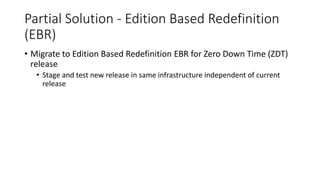

4. Partial Solution - Edition Based Redefinition
(EBR)
• Migrate to Edition Based Redefinition EBR for Zero Down Time (ZDT)
release
• Stage and test new release in same infrastructure independent of current
release

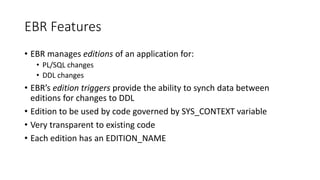

5. EBR Features
• EBR manages editions of an application for:
• PL/SQL changes
• DDL changes
• EBR’s edition triggers provide the ability to synch data between
editions for changes to DDL
• Edition to be used by code governed by SYS_CONTEXT variable
• Very transparent to existing code
• Each edition has an EDITION_NAME

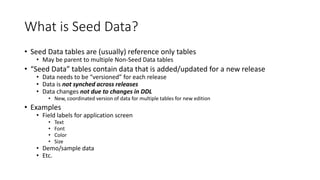

6. What is Seed Data?
• Seed Data tables are (usually) reference only tables
• May be parent to multiple Non-Seed Data tables
• “Seed Data” tables contain data that is added/updated for a new release
• Data needs to be “versioned” for each release
• Data is not synched across releases
• Data changes not due to changes in DDL
• New, coordinated version of data for multiple tables for new edition
• Examples
• Field labels for application screen
• Text
• Font
• Color
• Size
• Demo/sample data
• Etc.

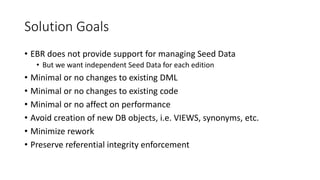

7. Solution Goals
• EBR does not provide support for managing Seed Data
• But we want independent Seed Data for each edition
• Minimal or no changes to existing DML
• Minimal or no changes to existing code
• Minimal or no affect on performance
• Avoid creation of new DB objects, i.e. VIEWS, synonyms, etc.
• Minimize rework
• Preserve referential integrity enforcement

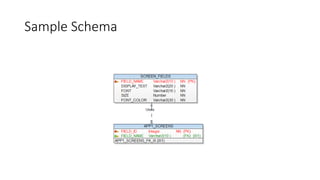

8. Sample Schema

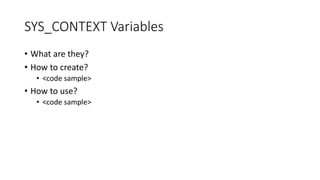

9. SYS_CONTEXT Variables
• What are they?
• How to create?
• <code sample>
• How to use?
• <code sample>

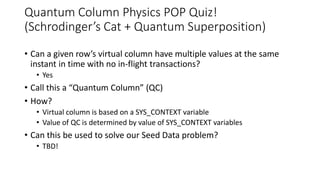

10. Quantum Column Physics POP Quiz!
(Schrodinger’s Cat + Quantum Superposition)
• Can a given row’s virtual column have multiple values at the same
instant in time with no in-flight transactions?
• Yes
• Call this a “Quantum Column” (QC)
• How?
• Virtual column is based on a SYS_CONTEXT variable
• Value of QC is determined by value of SYS_CONTEXT variables
• Can this be used to solve our Seed Data problem?
• TBD!

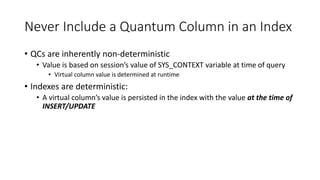

11. Never Include a Quantum Column in an Index
• QCs are inherently non-deterministic
• Value is based on session’s value of SYS_CONTEXT variable at time of query
• Virtual column value is determined at runtime
• Indexes are deterministic:
• A virtual column’s value is persisted in the index with the value at the time of
INSERT/UPDATE

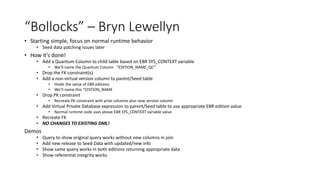

12. “Bollocks” – Bryn Lewellyn
• Starting simple, focus on normal runtime behavior
• Seed data patching issues later
• How it’s done!
• Add a Quantum Column to child table based on EBR SYS_CONTEXT variable
• We’ll name the Quantum Column “EDITION_NAME_QC”
• Drop the FK constraint(s)
• Add a non-virtual version column to parent/Seed table
• Holds the value of EBR editions
• We’ll name this “EDITION_NAME
• Drop PK constraint
• Recreate PK constraint with prior columns plus new version column
• Add Virtual Private Database expression to parent/Seed table to use appropriate EBR edition value
• Normal runtime code uses above EBR SYS_CONTEXT variable value
• Recreate FK
• NO CHANGES TO EXISTING DML!
Demos
• Query to show original query works without new columns in join
• Add new release to Seed Data with updated/new info
• Show same query works in both editions returning appropriate data
• Show referential integrity works

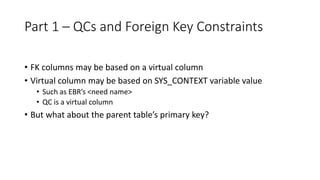

13. Part 1 – QCs and Foreign Key Constraints
• FK columns may be based on a virtual column
• Virtual column may be based on SYS_CONTEXT variable value
• Such as EBR’s <need name>
• QC is a virtual column
• But what about the parent table’s primary key?

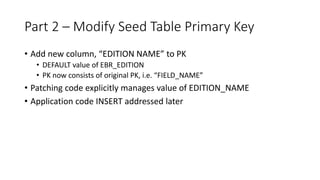

14. Part 2 – Modify Seed Table Primary Key
• Add new column, “EDITION NAME” to PK
• DEFAULT value of EBR_EDITION
• PK now consists of original PK, i.e. “FIELD_NAME”
• Patching code explicitly manages value of EDITION_NAME
• Application code INSERT addressed later

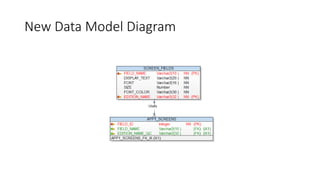

15. New Data Model Diagram

16. VPD Example (Spooky Join)
• VPD provides the additional join column between the Seed Data table
and the child table
• “Spooky” join

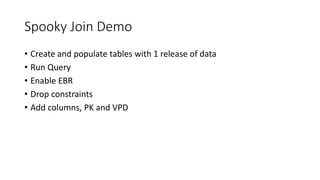

17. Spooky Join Demo
• Create and populate tables with 1 release of data
• Run Query
• Enable EBR
• Drop constraints
• Add columns, PK and VPD

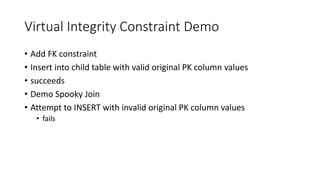

18. Virtual Integrity Constraint Demo
• Add FK constraint
• Insert into child table with valid original PK column values
• succeeds
• Demo Spooky Join
• Attempt to INSERT with invalid original PK column values
• fails

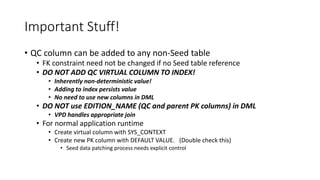

19. Important Stuff!
• QC column can be added to any non-Seed table
• FK constraint need not be changed if no Seed table reference
• DO NOT ADD QC VIRTUAL COLUMN TO INDEX!
• Inherently non-deterministic value!
• Adding to index persists value
• No need to use new columns in DML
• DO NOT use EDITION_NAME (QC and parent PK columns) in DML
• VPD handles appropriate join
• For normal application runtime
• Create virtual column with SYS_CONTEXT
• Create new PK column with DEFAULT VALUE. (Double check this)
• Seed data patching process needs explicit control

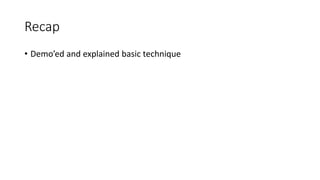

20. Recap
• Demo’ed and explained basic technique

21. Life Is Never That Simple
• Distinguish between:
• Normal application code
• Code to manage Seed Data – requires explicit control of values
• Distinguish between:
• Release/upgrade – a new version of the application
• Typically requires new Seed Data
• Patch/fix
• No, or very few, changes to Seed Data
• EBR may have many editions of either type
• Need indirection for SYS_CONTEXT variables and EBR Edition values
• What if end user can update/add to Seed Data table?

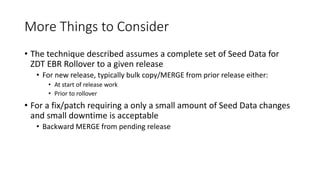

22. More Things to Consider
• The technique described assumes a complete set of Seed Data for
ZDT EBR Rollover to a given release
• For new release, typically bulk copy/MERGE from prior release either:
• At start of release work
• Prior to rollover
• For a fix/patch requiring a only a small amount of Seed Data changes
and small downtime is acceptable
• Backward MERGE from pending release

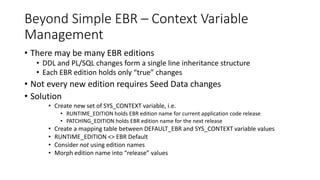

23. Beyond Simple EBR – Context Variable
Management
• There may be many EBR editions
• DDL and PL/SQL changes form a single line inheritance structure
• Each EBR edition holds only “true” changes
• Not every new edition requires Seed Data changes
• Solution
• Create new set of SYS_CONTEXT variable, i.e.
• RUNTIME_EDITION holds EBR edition name for current application code release
• PATCHING_EDITION holds EBR edition name for the next release
• Create a mapping table between DEFAULT_EBR and SYS_CONTEXT variable values
• RUNTIME_EDITION <> EBR Default
• Consider not using edition names
• Morph edition name into “release” values

24. Sample Mapping Table

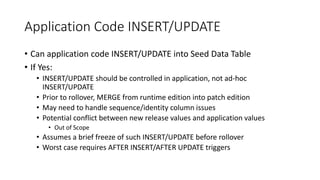

25. Application Code INSERT/UPDATE
• Can application code INSERT/UPDATE into Seed Data Table
• If Yes:
• INSERT/UPDATE should be controlled in application, not ad-hoc
INSERT/UPDATE
• Prior to rollover, MERGE from runtime edition into patch edition
• May need to handle sequence/identity column issues
• Potential conflict between new release values and application values
• Out of Scope
• Assumes a brief freeze of such INSERT/UPDATE before rollover
• Worst case requires AFTER INSERT/AFTER UPDATE triggers

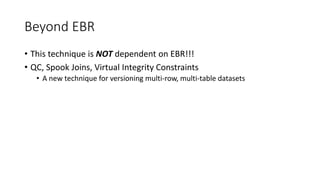

26. Beyond EBR
• This technique is NOT dependent on EBR!!!
• QC, Spook Joins, Virtual Integrity Constraints
• A new technique for versioning multi-row, multi-table datasets
