Benign Bone tumors classification radiology

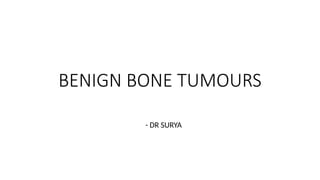

1. BENIGN BONE TUMOURS
- DR SURYA

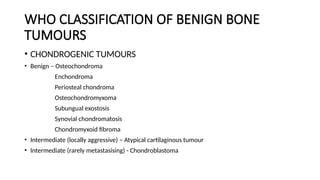

2. WHO CLASSIFICATION OF BENIGN BONE
TUMOURS
• CHONDROGENIC TUMOURS
• Benign – Osteochondroma
Enchondroma
Periosteal chondroma
Osteochondromyxoma
Subungual exostosis
Synovial chondromatosis
Chondromyxoid fibroma
• Intermediate (locally aggressive) – Atypical cartilaginous tumour
• Intermediate (rarely metastasising) - Chondroblastoma

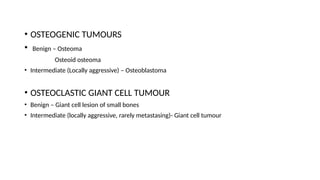

3. • OSTEOGENIC TUMOURS
• Benign – Osteoma
Osteoid osteoma
• Intermediate (Locally aggressive) – Osteoblastoma
• OSTEOCLASTIC GIANT CELL TUMOUR
• Benign – Giant cell lesion of small bones
• Intermediate (locally aggressive, rarely metastasing)- Giant cell tumour

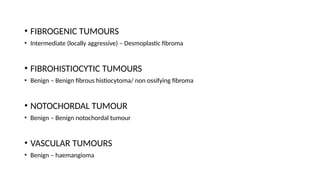

4. • FIBROGENIC TUMOURS
• Intermediate (locally aggressive) – Desmoplastic fibroma
• FIBROHISTIOCYTIC TUMOURS
• Benign – Benign fibrous histiocytoma/ non ossifying fibroma
• NOTOCHORDAL TUMOUR
• Benign – Benign notochordal tumour
• VASCULAR TUMOURS
• Benign – haemangioma

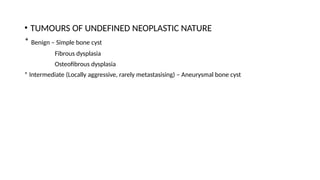

5. • TUMOURS OF UNDEFINED NEOPLASTIC NATURE
* Benign – Simple bone cyst
Fibrous dysplasia
Osteofibrous dysplasia
* Intermediate (Locally aggressive, rarely metastasising) – Aneurysmal bone cyst

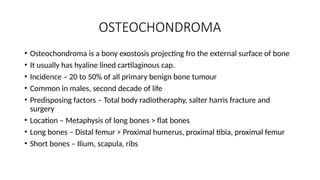

6. OSTEOCHONDROMA
• Osteochondroma is a bony exostosis projecting fro the external surface of bone
• It usually has hyaline lined cartilaginous cap.
• Incidence – 20 to 50% of all primary benign bone tumour
• Common in males, second decade of life
• Predisposing factors – Total body radiotheraphy, salter harris fracture and
surgery
• Location – Metaphysis of long bones > flat bones
• Long bones – Distal femur > Proximal humerus, proximal tibia, proximal femur
• Short bones – Ilium, scapula, ribs

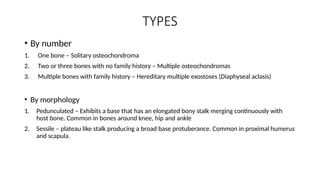

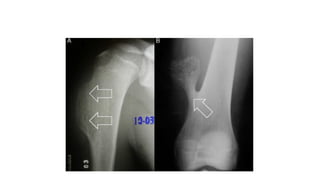

7. TYPES
• By number
1. One bone – Solitary osteochondroma
2. Two or three bones with no family history – Multiple osteochondromas
3. Multiple bones with family history – Hereditary multiple exostoses (Diaphyseal aclasis)
• By morphology
1. Pedunculated – Exhibits a base that has an elongated bony stalk merging continuously with
host bone. Common in bones around knee, hip and ankle
2. Sessile – plateau like stalk producing a broad base protuberance. Common in proximal humerus
and scapula.

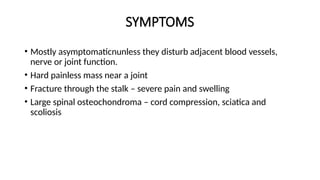

9. SYMPTOMS
• Mostly asymptomaticnunless they disturb adjacent blood vessels,
nerve or joint function.
• Hard painless mass near a joint
• Fracture through the stalk – severe pain and swelling
• Large spinal osteochondroma – cord compression, sciatica and
scoliosis

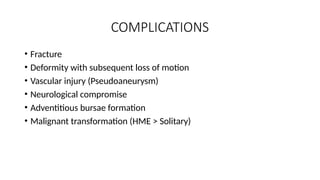

10. COMPLICATIONS
• Fracture
• Deformity with subsequent loss of motion
• Vascular injury (Pseudoaneurysm)
• Neurological compromise
• Adventitious bursae formation
• Malignant transformation (HME > Solitary)

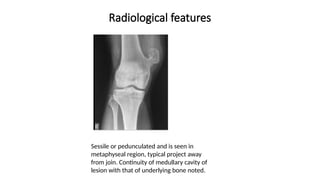

11. Radiological features
Sessile or pedunculated and is seen in
metaphyseal region, typical project away
from join. Continuity of medullary cavity of
lesion with that of underlying bone noted.

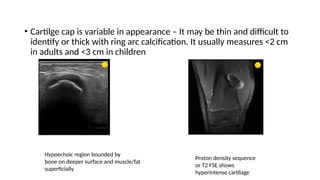

12. • Cartilge cap is variable in appearance – It may be thin and difficult to
identify or thick with ring arc calcification. It usually measures <2 cm
in adults and <3 cm in children
Hypoechoic region bounded by
bone on deeper surface and muscle/fat
superficially
Proton density sequence
or T2 FSE shows
hyperintense cartilage

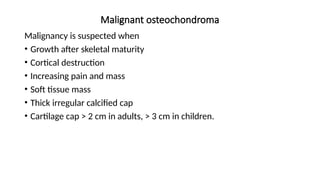

13. Malignant osteochondroma
Malignancy is suspected when
• Growth after skeletal maturity
• Cortical destruction
• Increasing pain and mass
• Soft tissue mass
• Thick irregular calcified cap
• Cartilage cap > 2 cm in adults, > 3 cm in children.

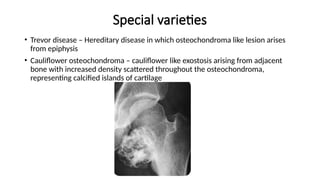

14. Special varieties
• Trevor disease – Hereditary disease in which osteochondroma like lesion arises
from epiphysis
• Cauliflower osteochondroma – cauliflower like exostosis arising from adjacent
bone with increased density scattered throughout the osteochondroma,
representing calcified islands of cartilage

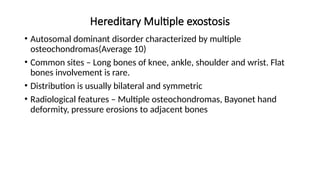

15. Hereditary Multiple exostosis
• Autosomal dominant disorder characterized by multiple
osteochondromas(Average 10)
• Common sites – Long bones of knee, ankle, shoulder and wrist. Flat
bones involvement is rare.
• Distribution is usually bilateral and symmetric
• Radiological features – Multiple osteochondromas, Bayonet hand
deformity, pressure erosions to adjacent bones

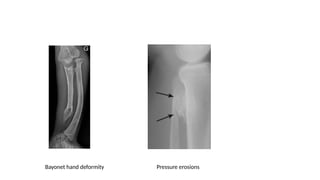

16. Bayonet hand deformity Pressure erosions

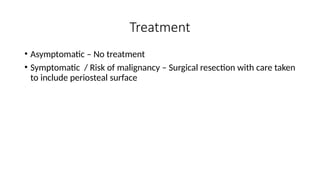

17. Treatment
• Asymptomatic – No treatment
• Symptomatic / Risk of malignancy – Surgical resection with care taken
to include periosteal surface

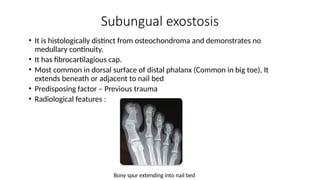

18. Subungual exostosis
• It is histologically distinct from osteochondroma and demonstrates no
medullary continuity.
• It has fibrocartilagious cap.
• Most common in dorsal surface of distal phalanx (Common in big toe), It
extends beneath or adjacent to nail bed
• Predisposing factor – Previous trauma
• Radiological features :
Bony spur extending into nail bed

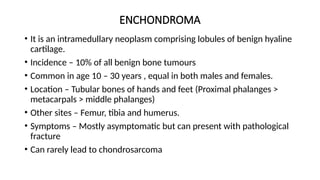

19. ENCHONDROMA
• It is an intramedullary neoplasm comprising lobules of benign hyaline
cartilage.
• Incidence – 10% of all benign bone tumours
• Common in age 10 – 30 years , equal in both males and females.
• Location – Tubular bones of hands and feet (Proximal phalanges >
metacarpals > middle phalanges)
• Other sites – Femur, tibia and humerus.
• Symptoms – Mostly asymptomatic but can present with pathological
fracture
• Can rarely lead to chondrosarcoma

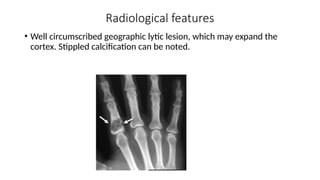

20. Radiological features
• Well circumscribed geographic lytic lesion, which may expand the
cortex. Stippled calcification can be noted.

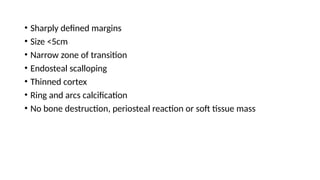

21. • Sharply defined margins
• Size <5cm
• Narrow zone of transition
• Endosteal scalloping
• Thinned cortex
• Ring and arcs calcification
• No bone destruction, periosteal reaction or soft tissue mass

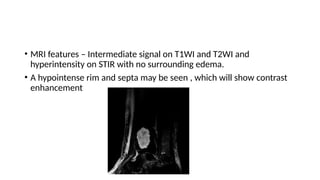

22. • MRI features – Intermediate signal on T1WI and T2WI and
hyperintensity on STIR with no surrounding edema.
• A hypointense rim and septa may be seen , which will show contrast
enhancement

23. ENCHONDROMA PROTUBERANCE
• Eccentrically placed enchondroma with extra osseous component,
covered by thin shell of intact cortical bone

24. TREATMENT
• Asymptomatic – No treatment
• Symptomatic – Curettage followed by cryosurgery and bone chips

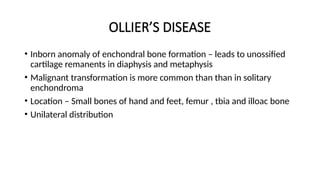

25. OLLIER’S DISEASE
• Inborn anomaly of enchondral bone formation – leads to unossified
cartilage remanents in diaphysis and metaphysis
• Malignant transformation is more common than than in solitary
enchondroma
• Location – Small bones of hand and feet, femur , tbia and illoac bone
• Unilateral distribution

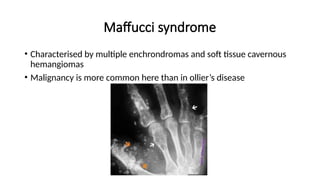

26. Maffucci syndrome
• Characterised by multiple enchrondromas and soft tissue cavernous
hemangiomas
• Malignancy is more common here than in ollier’s disease

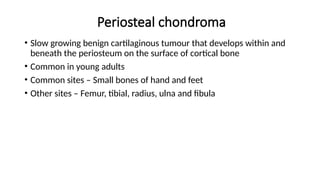

27. Periosteal chondroma
• Slow growing benign cartilaginous tumour that develops within and
beneath the periosteum on the surface of cortical bone
• Common in young adults
• Common sites – Small bones of hand and feet
• Other sites – Femur, tibial, radius, ulna and fibula

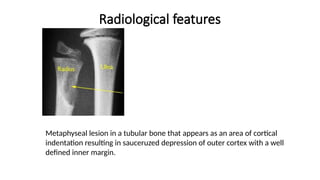

28. Radiological features
Metaphyseal lesion in a tubular bone that appears as an area of cortical
indentation resulting in sauceruzed depression of outer cortex with a well
defined inner margin.

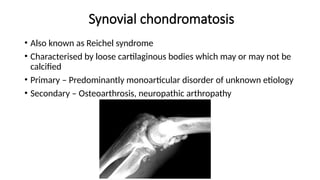

29. Synovial chondromatosis
• Also known as Reichel syndrome
• Characterised by loose cartilaginous bodies which may or may not be
calcified
• Primary – Predominantly monoarticular disorder of unknown etiology
• Secondary – Osteoarthrosis, neuropathic arthropathy

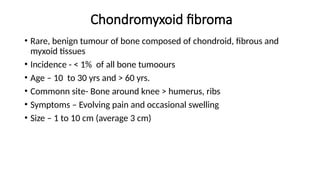

30. Chondromyxoid fibroma
• Rare, benign tumour of bone composed of chondroid, fibrous and
myxoid tissues
• Incidence - < 1% of all bone tumoours
• Age – 10 to 30 yrs and > 60 yrs.
• Commonn site- Bone around knee > humerus, ribs
• Symptoms – Evolving pain and occasional swelling
• Size – 1 to 10 cm (average 3 cm)

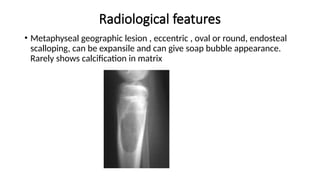

31. Radiological features
• Metaphyseal geographic lesion , eccentric , oval or round, endosteal
scalloping, can be expansile and can give soap bubble appearance.
Rarely shows calcification in matrix

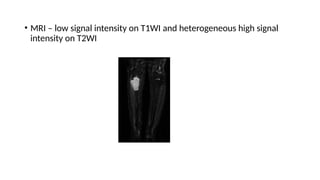

32. • MRI – low signal intensity on T1WI and heterogeneous high signal
intensity on T2WI

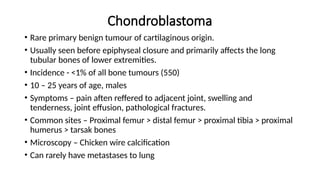

33. Chondroblastoma
• Rare primary benign tumour of cartilaginous origin.
• Usually seen before epiphyseal closure and primarily affects the long
tubular bones of lower extremities.
• Incidence - <1% of all bone tumours (550)
• 10 – 25 years of age, males
• Symptoms – pain aften reffered to adjacent joint, swelling and
tenderness, joint effusion, pathological fractures.
• Common sites – Proximal femur > distal femur > proximal tibia > proximal
humerus > tarsak bones
• Microscopy – Chicken wire calcification
• Can rarely have metastases to lung

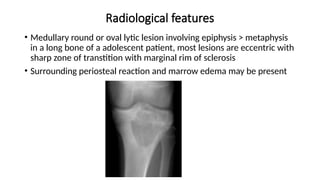

34. Radiological features
• Medullary round or oval lytic lesion involving epiphysis > metaphysis
in a long bone of a adolescent patient, most lesions are eccentric with
sharp zone of transtition with marginal rim of sclerosis
• Surrounding periosteal reaction and marrow edema may be present

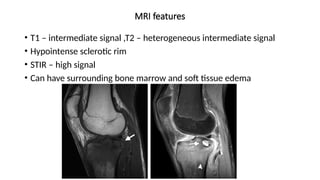

35. MRI features
• T1 – intermediate signal ,T2 – heterogeneous intermediate signal
• Hypointense sclerotic rim
• STIR – high signal
• Can have surrounding bone marrow and soft tissue edema

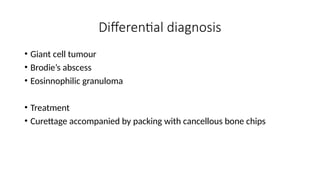

36. Differential diagnosis
• Giant cell tumour
• Brodie’s abscess
• Eosinnophilic granuloma
• Treatment
• Curettage accompanied by packing with cancellous bone chips

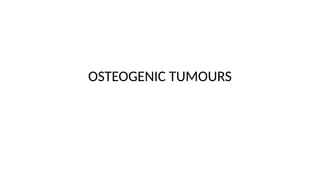

37. OSTEOGENIC TUMOURS

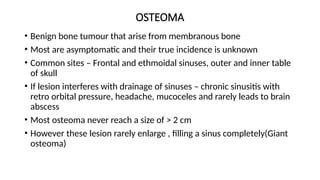

38. OSTEOMA
• Benign bone tumour that arise from membranous bone
• Most are asymptomatic and their true incidence is unknown
• Common sites – Frontal and ethmoidal sinuses, outer and inner table
of skull
• If lesion interferes with drainage of sinuses – chronic sinusitis with
retro orbital pressure, headache, mucoceles and rarely leads to brain
abscess
• Most osteoma never reach a size of > 2 cm
• However these lesion rarely enlarge , filling a sinus completely(Giant
osteoma)

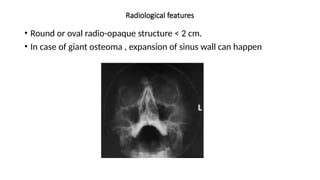

39. Radiological features
• Round or oval radio-opaque structure < 2 cm.
• In case of giant osteoma , expansion of sinus wall can happen

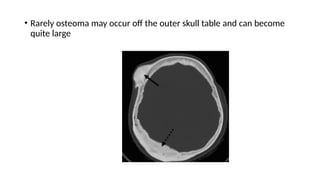

40. • Rarely osteoma may occur off the outer skull table and can become
quite large

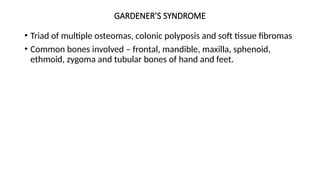

41. GARDENER’S SYNDROME
• Triad of multiple osteomas, colonic polyposis and soft tissue fibromas
• Common bones involved – frontal, mandible, maxilla, sphenoid,
ethmoid, zygoma and tubular bones of hand and feet.

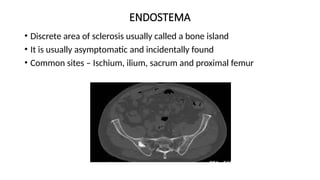

42. ENDOSTEMA
• Discrete area of sclerosis usually called a bone island
• It is usually asymptomatic and incidentally found
• Common sites – Ischium, ilium, sacrum and proximal femur

43. Osteoid osteoma
• It is a small benign vascular osteoblastic ttumour is associated with
clinical picture of night pain relieved by NSAIDS
• Second or third decade, males
• Sites – Diaphysis of metaphysis of appendicular skeleton, more
common in femur or tibia
• Some of these lesions are intra articular causing synovitis and mono
arthropathy

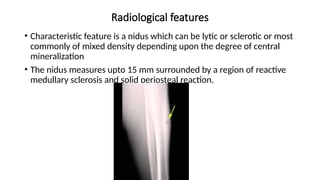

44. Radiological features
• Characteristic feature is a nidus which can be lytic or sclerotic or most
commonly of mixed density depending upon the degree of central
mineralization
• The nidus measures upto 15 mm surrounded by a region of reactive
medullary sclerosis and solid periosteal reaction.

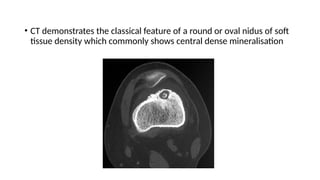

45. • CT demonstrates the classical feature of a round or oval nidus of soft
tissue density which commonly shows central dense mineralisation

46. • Vascular groove sign manifests as thin channel in the thickened bone
surrounding the nidus

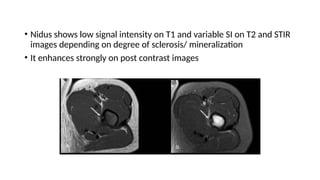

47. • Nidus shows low signal intensity on T1 and variable SI on T2 and STIR
images depending on degree of sclerosis/ mineralization
• It enhances strongly on post contrast images

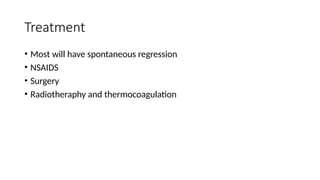

48. Treatment
• Most will have spontaneous regression
• NSAIDS
• Surgery
• Radiotheraphy and thermocoagulation

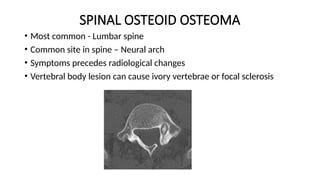

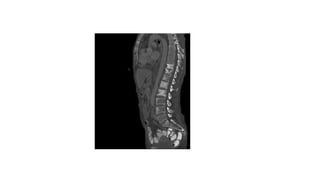

49. SPINAL OSTEOID OSTEOMA
• Most common - Lumbar spine
• Common site in spine – Neural arch
• Symptoms precedes radiological changes
• Vertebral body lesion can cause ivory vertebrae or focal sclerosis

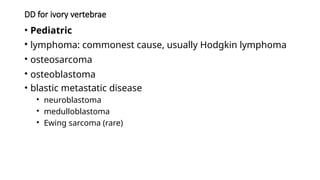

51. DD for ivory vertebrae
• Pediatric
• lymphoma: commonest cause, usually Hodgkin lymphoma
• osteosarcoma
• osteoblastoma
• blastic metastatic disease
• neuroblastoma
• medulloblastoma
• Ewing sarcoma (rare)

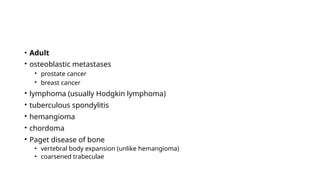

52. • Adult
• osteoblastic metastases
• prostate cancer
• breast cancer
• lymphoma (usually Hodgkin lymphoma)
• tuberculous spondylitis
• hemangioma
• chordoma
• Paget disease of bone
• vertebral body expansion (unlike hemangioma)
• coarsened trabeculae

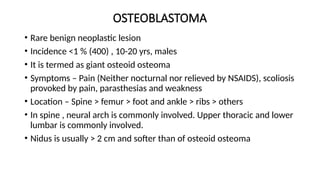

53. OSTEOBLASTOMA
• Rare benign neoplastic lesion
• Incidence <1 % (400) , 10-20 yrs, males
• It is termed as giant osteoid osteoma
• Symptoms – Pain (Neither nocturnal nor relieved by NSAIDS), scoliosis
provoked by pain, parasthesias and weakness
• Location – Spine > femur > foot and ankle > ribs > others
• In spine , neural arch is commonly involved. Upper thoracic and lower
lumbar is commonly involved.
• Nidus is usually > 2 cm and softer than of osteoid osteoma

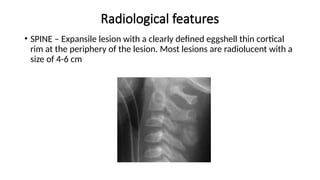

54. Radiological features
• SPINE – Expansile lesion with a clearly defined eggshell thin cortical
rim at the periphery of the lesion. Most lesions are radiolucent with a
size of 4-6 cm

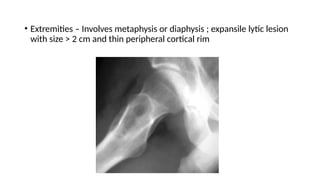

55. • Extremities – Involves metaphysis or diaphysis ; expansile lytic lesion
with size > 2 cm and thin peripheral cortical rim

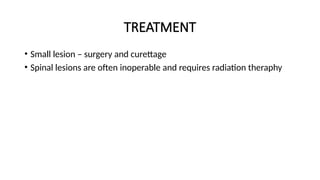

56. TREATMENT
• Small lesion – surgery and curettage
• Spinal lesions are often inoperable and requires radiation theraphy

57. OTHERS

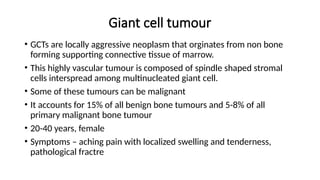

58. Giant cell tumour
• GCTs are locally aggressive neoplasm that orginates from non bone
forming supporting connective tissue of marrow.
• This highly vascular tumour is composed of spindle shaped stromal
cells interspread among multinucleated giant cell.
• Some of these tumours can be malignant
• It accounts for 15% of all benign bone tumours and 5-8% of all
primary malignant bone tumour
• 20-40 years, female
• Symptoms – aching pain with localized swelling and tenderness,
pathological fractre

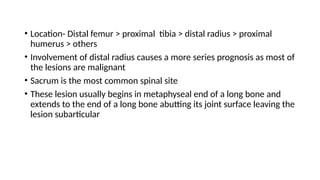

59. • Location- Distal femur > proximal tibia > distal radius > proximal
humerus > others
• Involvement of distal radius causes a more series prognosis as most of
the lesions are malignant
• Sacrum is the most common spinal site
• These lesion usually begins in metaphyseal end of a long bone and
extends to the end of a long bone abutting its joint surface leaving the
lesion subarticular

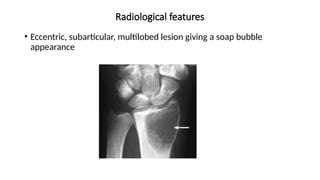

60. Radiological features
• Eccentric, subarticular, multilobed lesion giving a soap bubble
appearance

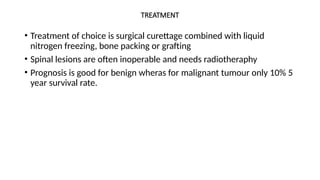

61. TREATMENT
• Treatment of choice is surgical curettage combined with liquid
nitrogen freezing, bone packing or grafting
• Spinal lesions are often inoperable and needs radiotheraphy
• Prognosis is good for benign wheras for malignant tumour only 10% 5
year survival rate.

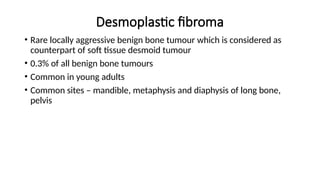

62. Desmoplastic fibroma
• Rare locally aggressive benign bone tumour which is considered as
counterpart of soft tissue desmoid tumour
• 0.3% of all benign bone tumours
• Common in young adults
• Common sites – mandible, metaphysis and diaphysis of long bone,
pelvis

63. Radiological features
• Well defined lobulated, expasile lesion with narrow transtition zone
• Sometimes can show cortical bone destriction and extension into
surrounding tissues
• Internal pseudotrabaculations can be seen

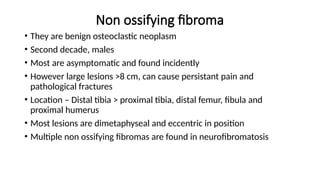

64. Non ossifying fibroma
• They are benign osteoclastic neoplasm
• Second decade, males
• Most are asymptomatic and found incidently
• However large lesions >8 cm, can cause persistant pain and
pathological fractures
• Location – Distal tibia > proximal tibia, distal femur, fibula and
proximal humerus
• Most lesions are dimetaphyseal and eccentric in position
• Multiple non ossifying fibromas are found in neurofibromatosis

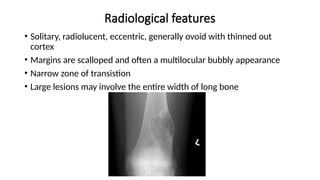

65. Radiological features
• Solitary, radiolucent, eccentric, generally ovoid with thinned out
cortex
• Margins are scalloped and often a multilocular bubbly appearance
• Narrow zone of transistion
• Large lesions may involve the entire width of long bone

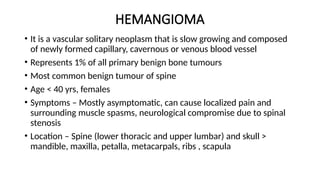

66. HEMANGIOMA
• It is a vascular solitary neoplasm that is slow growing and composed
of newly formed capillary, cavernous or venous blood vessel
• Represents 1% of all primary benign bone tumours
• Most common benign tumour of spine
• Age < 40 yrs, females
• Symptoms – Mostly asymptomatic, can cause localized pain and
surrounding muscle spasms, neurological compromise due to spinal
stenosis
• Location – Spine (lower thoracic and upper lumbar) and skull >
mandible, maxilla, petalla, metacarpals, ribs , scapula

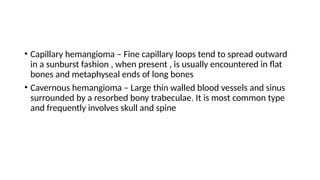

67. • Capillary hemangioma – Fine capillary loops tend to spread outward
in a sunburst fashion , when present , is usually encountered in flat
bones and metaphyseal ends of long bones
• Cavernous hemangioma – Large thin walled blood vessels and sinus
surrounded by a resorbed bony trabeculae. It is most common type
and frequently involves skull and spine

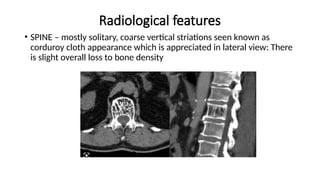

68. Radiological features
• SPINE – mostly solitary, coarse vertical striations seen known as
corduroy cloth appearance which is appreciated in lateral view: There
is slight overall loss to bone density

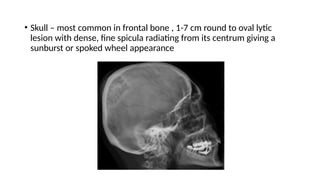

69. • Skull – most common in frontal bone , 1-7 cm round to oval lytic
lesion with dense, fine spicula radiating from its centrum giving a
sunburst or spoked wheel appearance

70. TREATMENT
• Most lesion nned no treatment
• In lesions causing spinal stenosis, cord decompression should be done
• Radiation treatment can be given in inoperable vertebral
hemangioma

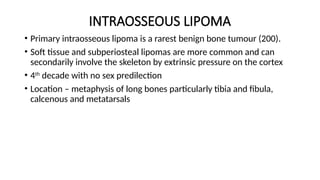

71. INTRAOSSEOUS LIPOMA
• Primary intraosseous lipoma is a rarest benign bone tumour (200).
• Soft tissue and subperiosteal lipomas are more common and can
secondarily involve the skeleton by extrinsic pressure on the cortex
• 4th
decade with no sex predilection
• Location – metaphysis of long bones particularly tibia and fibula,
calcenous and metatarsals

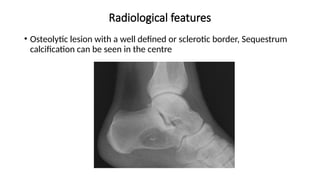

72. Radiological features
• Osteolytic lesion with a well defined or sclerotic border, Sequestrum
calcification can be seen in the centre

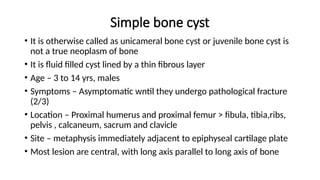

73. Simple bone cyst
• It is otherwise called as unicameral bone cyst or juvenile bone cyst is
not a true neoplasm of bone
• It is fluid filled cyst lined by a thin fibrous layer
• Age – 3 to 14 yrs, males
• Symptoms – Asymptomatic wntil they undergo pathological fracture
(2/3)
• Location – Proximal humerus and proximal femur > fibula, tibia,ribs,
pelvis , calcaneum, sacrum and clavicle
• Site – metaphysis immediately adjacent to epiphyseal cartilage plate
• Most lesion are central, with long axis parallel to long axis of bone

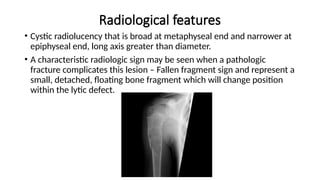

74. Radiological features
• Cystic radiolucency that is broad at metaphyseal end and narrower at
epiphyseal end, long axis greater than diameter.
• A characteristic radiologic sign may be seen when a pathologic
fracture complicates this lesion – Fallen fragment sign and represent a
small, detached, floating bone fragment which will change position
within the lytic defect.

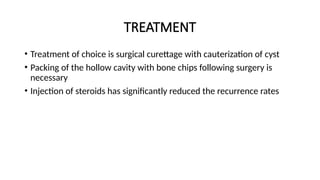

75. TREATMENT
• Treatment of choice is surgical curettage with cauterization of cyst
• Packing of the hollow cavity with bone chips following surgery is
necessary
• Injection of steroids has significantly reduced the recurrence rates

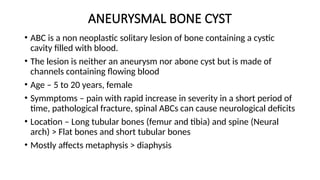

76. ANEURYSMAL BONE CYST
• ABC is a non neoplastic solitary lesion of bone containing a cystic
cavity filled with blood.
• The lesion is neither an aneurysm nor abone cyst but is made of
channels containing flowing blood
• Age – 5 to 20 years, female
• Symmptoms – pain with rapid increase in severity in a short period of
time, pathological fracture, spinal ABCs can cause neurological deficits
• Location – Long tubular bones (femur and tibia) and spine (Neural
arch) > Flat bones and short tubular bones
• Mostly affects metaphysis > diaphysis

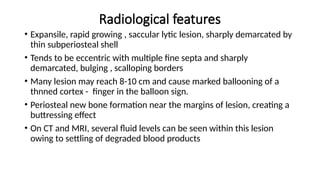

77. Radiological features
• Expansile, rapid growing , saccular lytic lesion, sharply demarcated by
thin subperiosteal shell
• Tends to be eccentric with multiple fine septa and sharply
demarcated, bulging , scalloping borders
• Many lesion may reach 8-10 cm and cause marked ballooning of a
thnned cortex - finger in the balloon sign.
• Periosteal new bone formation near the margins of lesion, creating a
buttressing effect
• On CT and MRI, several fluid levels can be seen within this lesion
owing to settling of degraded blood products

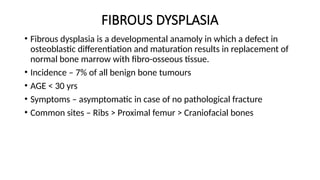

79. FIBROUS DYSPLASIA
• Fibrous dysplasia is a developmental anamoly in which a defect in
osteoblastic differentiation and maturation results in replacement of
normal bone marrow with fibro-osseous tissue.
• Incidence – 7% of all benign bone tumours
• AGE < 30 yrs
• Symptoms – asymptomatic in case of no pathological fracture
• Common sites – Ribs > Proximal femur > Craniofacial bones

80. • McCune albert syndrome (females)– Fibrous dyplasia, café au lait
spots, precocious puberty
• Mazabraud syndrome – Fibrous dysplasia , soft tissue myxomata
• Polyostoic fibrous dysplasia- femur, skull, tibia, humerus, ribs, fibula,
radius and ulna

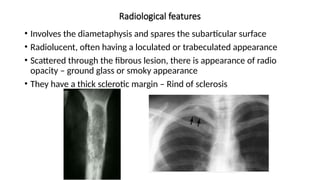

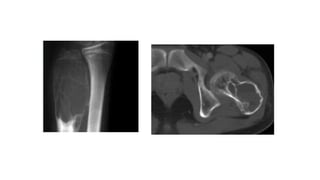

81. Radiological features
• Involves the diametaphysis and spares the subarticular surface
• Radiolucent, often having a loculated or trabeculated appearance
• Scattered through the fibrous lesion, there is appearance of radio
opacity – ground glass or smoky appearance
• They have a thick sclerotic margin – Rind of sclerosis

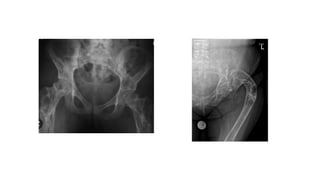

84. • MRI
• T1 isointense , hyprintense in case of hemorrhage
• T2 - variable depending on whether the tumour containing fibrous
tissue or has undergone cystic change
• Uniform or septal enhancement

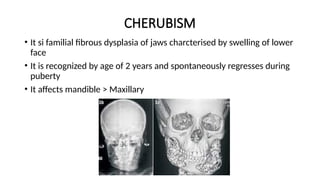

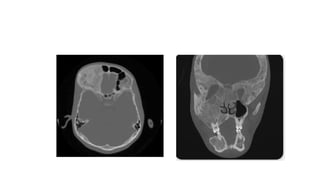

85. CHERUBISM
• It si familial fibrous dysplasia of jaws charcterised by swelling of lower
face
• It is recognized by age of 2 years and spontaneously regresses during
puberty
• It affects mandible > Maxillary

86. THANK YOU
