The document presents concept and schematic designs for renovating and upgrading two BDO bank branches located in the North and South towers of a building. For the South tower retail branch, it proposes a new layout with redesigned spaces for teller stations, waiting areas, and customer service. Color schemes, materials, lighting, and furniture selections are also presented. For the North tower corporate branch, it considers options for reconfiguring the ground floor and mezzanine areas with conference rooms, lounges, and workstations, along with finishes and furnishings. Perspective views and plans are included to illustrate features of the proposed designs.

2. BDO – North & South Tower Branches
Concept & Schematic Design Presentation
November 12th 2008

3. Research & Inspiration

4. RESEARCH

5. RESEARCH

6. RESEARCH

7. Colors & Materials, Lighting and Furniture

8. BDO - North & South Tower
COLORS & MATERIALS

9. BDO - North & South Tower
COLORS & MATERIALS

10. BDO - North & South Tower
LIGHTING

11. BDO - North & South Tower
FURNITURE

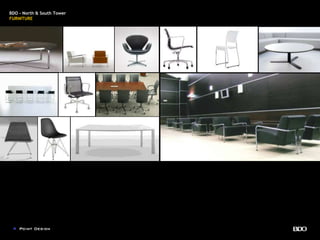

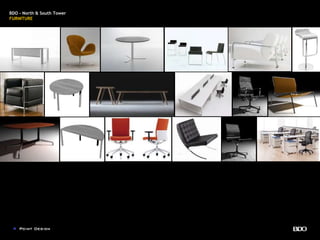

12. BDO - North & South Tower
FURNITURE

13. BDO - North & South Tower
MULTIMEDIA FACADE

14. BDO - North & South Tower
IDENTITY, GRAPHICS & BANKING EQUIPMENT BY INTERBRAND

15. BDO – South Tower
Retail Branch

16. BDO – South Tower

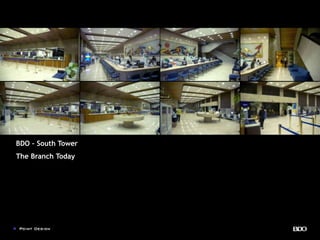

The Branch Today

17. Proposed Layout & Block Plan

18. BDO - South Tower Retail Branch

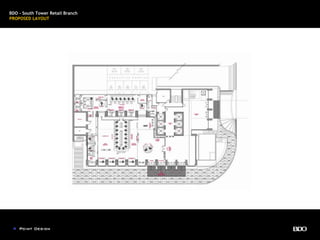

PROPOSED LAYOUT

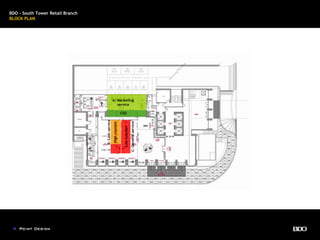

19. BDO - South Tower Retail Branch
BLOCK PLAN
B:Cashservice
Highcounter
Lowcounter
C:Generalservice
A: Marketing
service
CSO

20. CSO
Branch
head

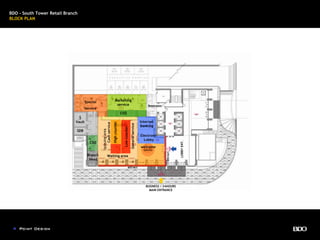

BDO - South Tower Retail Branch
BLOCK PLAN
BUSINESS / 24HOURS
MAIN ENTRANCE
LOBBYENT.
welcome
Greeter
Restroom
SDB
$
Vault
Special
Service
Waiting area
queuingarea
TELLERS
Electronic
Lobby
Internet
Banking
attract attract
Cashservice
Highcounter
Lowcounter
Generalservice
Marketing
service
CSO

21. Colors & Materials Plan

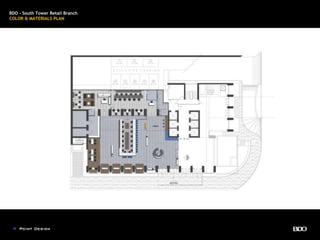

22. BDO - South Tower Retail Branch
COLOR & MATERIALS PLAN

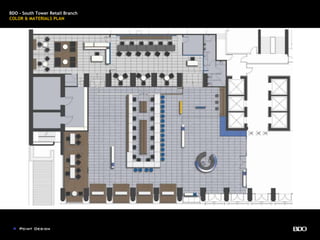

23. BDO - South Tower Retail Branch
COLOR & MATERIALS PLAN

24. Reflected Ceiling Plan

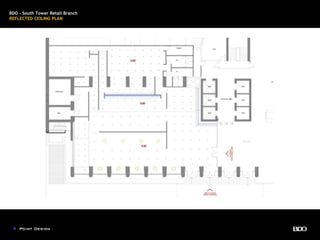

25. BDO - South Tower Retail Branch
REFLECTED CEILING PLAN

26. Interior elevations

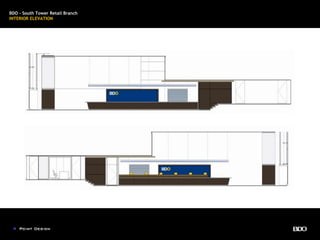

27. BDO - South Tower Retail Branch
INTERIOR ELEVATION

28. BDO - South Tower Retail Branch
INTERIOR ELEVATION

29. Perspectives

30. BDO - South Tower Retail Branch
ENTRANCE & ELECTRONIC LOBBY

31. BDO - South Tower Retail Branch
ENTRANCE & ELECTRONIC LOBBY

32. BDO - South Tower Retail Branch
GENERAL SERVICE TELLERS & QUEUING AREA

33. BDO - South Tower Retail Branch
GENERAL SERVICE TELLERS & QUEUING AREA

34. BDO - South Tower Retail Branch
GENERAL SERVICE TELLERS & QUEUING AREA

35. BDO - South Tower Retail Branch
GENERAL SERVICE TELLERS & QUEUING AREA

36. BDO - South Tower Retail Branch
CASH SERVICE TELLERS & QUEUING AREA

37. BDO - South Tower Retail Branch
CASH SERVICE TELLERS & QUEUING AREA

38. BDO - South Tower Retail Branch
CASH SERVICE TELLERS & QUEUING AREA

39. BDO - South Tower Retail Branch
CASH SERVICE TELLERS & QUEUING AREA

40. BDO - South Tower Retail Branch
WAITING & QUEUING AREA

41. BDO - South Tower Retail Branch
WAITING & QUEUING AREA

42. BDO - South Tower Retail Branch
CASH SERVICE TELLERS & WAITING AREA

43. BDO - South Tower Retail Branch
CASH SERVICE TELLERS & WAITING AREA

44. BDO – North Tower
Corporate Branch

45. BDO – North Tower

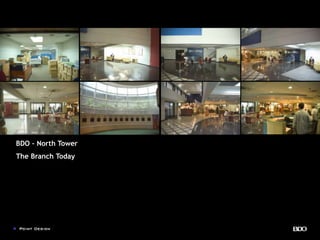

The Branch Today

46. Proposed Layout & Block Plan – Ground Floor

47. Lobby/Lounge
Electronic
Lobby
Entrance
welcome
(Greeter)
Internet
CSO
Conf.
Room
New
Elev.
BDO - North Tower Corporate Branch – GROUND FLOOR
BLOCK PLAN - option 1
Back
Office
vault
Rest
room
Staff Entrace
office
office Conf.
room
security
Back Office

48. Lobby/Lounge
Electronic
Lobby
Entrance
welcome
(Greeter)
New
Elev.

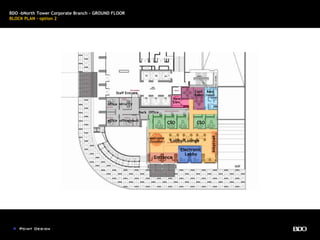

BDO -bNorth Tower Corporate Branch – GROUND FLOOR
BLOCK PLAN – option 2
Rest
room
Staff Entrace
office
office office/vault
security
Back Office
CSO CSO
Conf.
Room
Internet

49. Colors & Materials Plan – Ground Floor

50. BDO - North Tower Corporate Branch – GROUND FLOOR

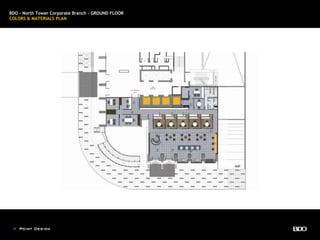

COLORS & MATERIALS PLAN

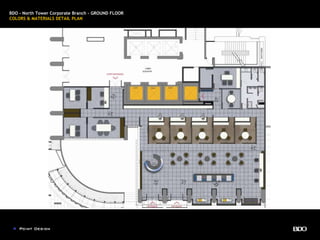

51. BDO - North Tower Corporate Branch – GROUND FLOOR
COLORS & MATERIALS DETAIL PLAN

52. Proposed Layout & Block Plan – Mezzanine

53. BDO - North Tower Corporate Branch – MEZZANINE
BLOCK PLAN – option 1
New
Elev.
Entrance
lounge
corridor
Rest
room
Conf.
Room
Conf. Room
Conf. Room
1 2
3 4
5 6 87
Existing
opening

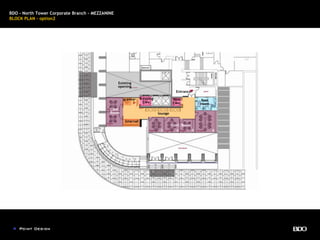

54. BDO - North Tower Corporate Branch – MEZZANINE
BLOCK PLAN – option2
New
Elev.
Entrance
Rest
room
lounge
Internet
greeter Existing
Elev.
Existing
opening
2
1
Conf. Room
Conf.
Room
3 4 5 6

55. BDO - North Tower Corporate Branch – MEZZANINE

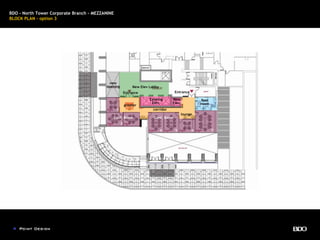

BLOCK PLAN – option 3
Rest
room
Entrance
lounge
corridor
greeter
Existing
Elev.
New
Elev.
New Elev Lobby
Entrance
3
Conf. Room Conf. Room
1
2
4 5 6 7
new
opening

56. Colors & Materials Plan - Mezzanine

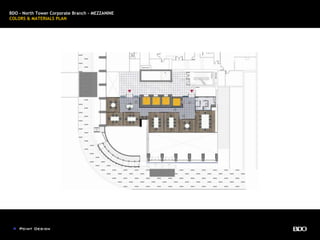

57. BDO - North Tower Corporate Branch – MEZZANINE
COLORS & MATERIALS PLAN

58. BDO - North Tower Corporate Branch – MEZZANINE

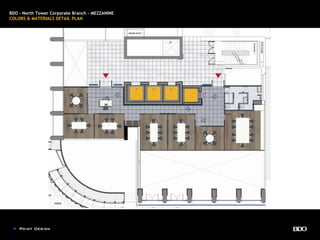

COLORS & MATERIALS DETAIL PLAN

59. Perspectives

60. BDO - North Tower Corporate Branch
ENTRANCE LOBBY & LOUNGE AREA

61. BDO - North Tower Corporate Branch
ENTRANCE LOBBY & LOUNGE AREA

62. BDO - North Tower Corporate Branch
LOUNGE & INTERACTIVE AREA

63. BDO - North Tower Corporate Branch
LOUNGE & INTERACTIVE AREA

64. BDO - North Tower Corporate Branch
LOUNGE & INTERACTIVE AREA

65. BDO - North Tower Corporate Branch
LOUNGE & INTERACTIVE AREA

66. BDO - North Tower Corporate Branch
ENTRANCE LOBBY

67. BDO - North Tower Corporate Branch
ENTRANCE LOBBY

68. BDO - North Tower Corporate Branch
ELECTRONIC LOBBY & LOUNGE AREA

69. BDO - North Tower Corporate Branch
ELECTRONIC LOBBY & LOUNGE AREA

70. BDO - North Tower Corporate Branch
LOUNGE AREA

71. BDO - North Tower Corporate Branch
LOUNGE AREA

72. BDO - North Tower Corporate Branch
LOUNGE AREA

73. BDO - North Tower Corporate Branch
LOUNGE AREA

74. Thank you

75. Thank you
