Dr. Chris Bannister from the University of Bath discusses current trends in vehicle emissions evaluation, emphasizing the importance of real-world driving conditions and advanced testing facilities. The presentation covers European diesel emissions limits, new testing cycles, and ongoing projects aimed at improving vehicle performance and sustainability. The Centre for Low Emissions Vehicle Research (CLEVER) will provide unique testing capabilities in the UK, enhancing collaboration between academia and industry.

1. Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

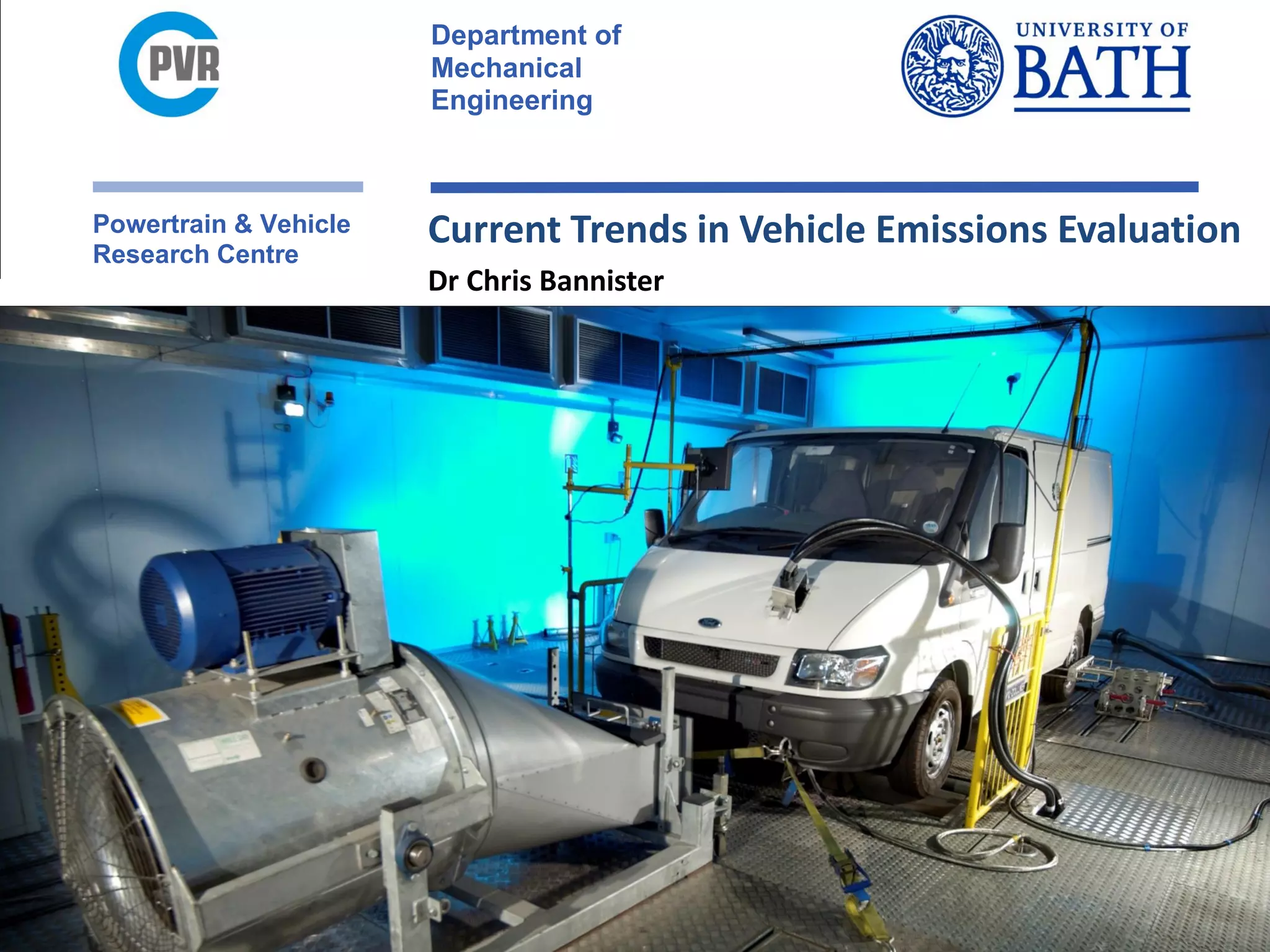

Current Trends in Vehicle Emissions Evaluation
Dr Chris Bannister

2. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

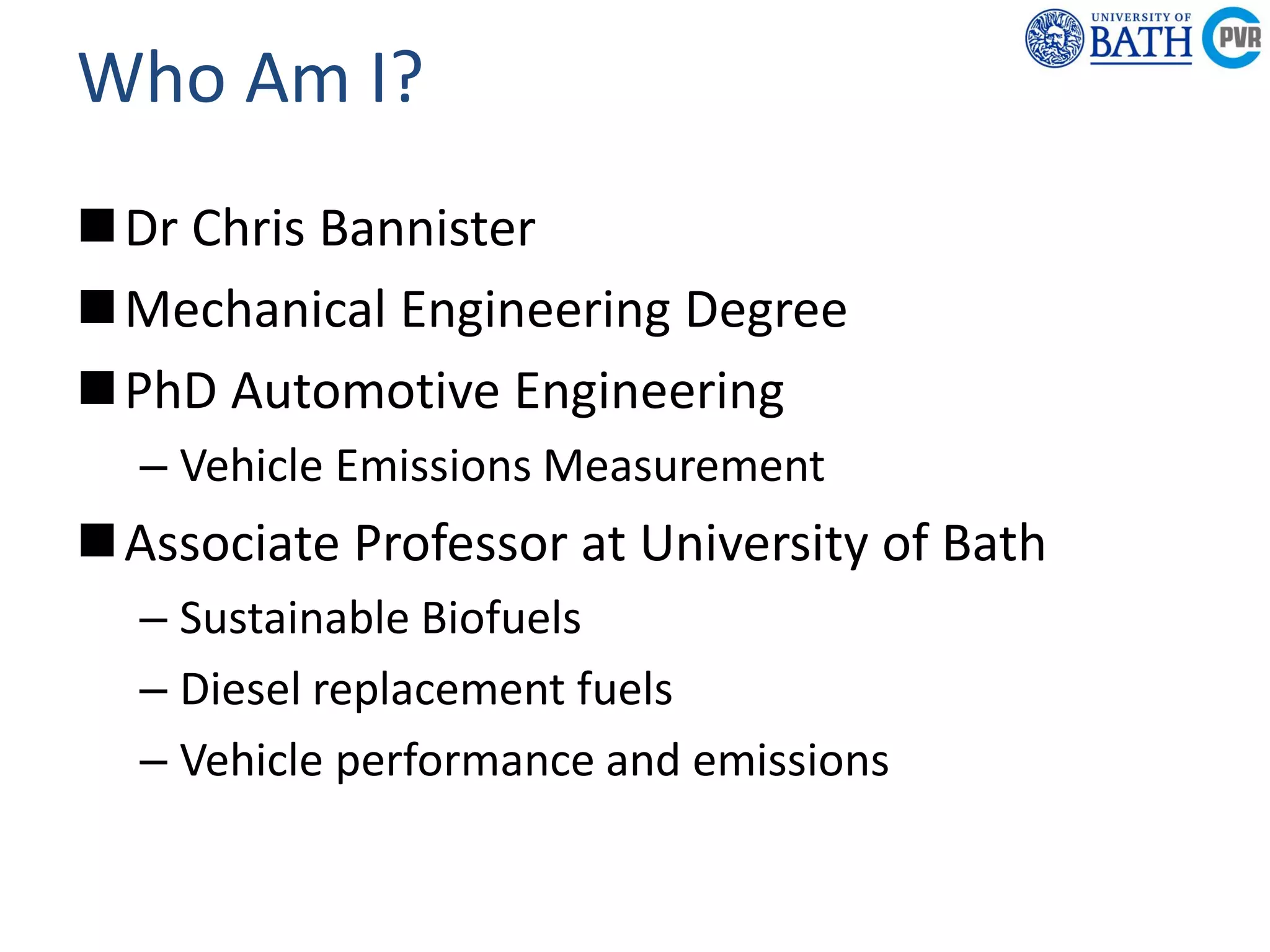

Who Am I?
Dr Chris Bannister
Mechanical Engineering Degree
PhD Automotive Engineering
– Vehicle Emissions Measurement
Associate Professor at University of Bath
– Sustainable Biofuels
– Diesel replacement fuels
– Vehicle performance and emissions

3. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

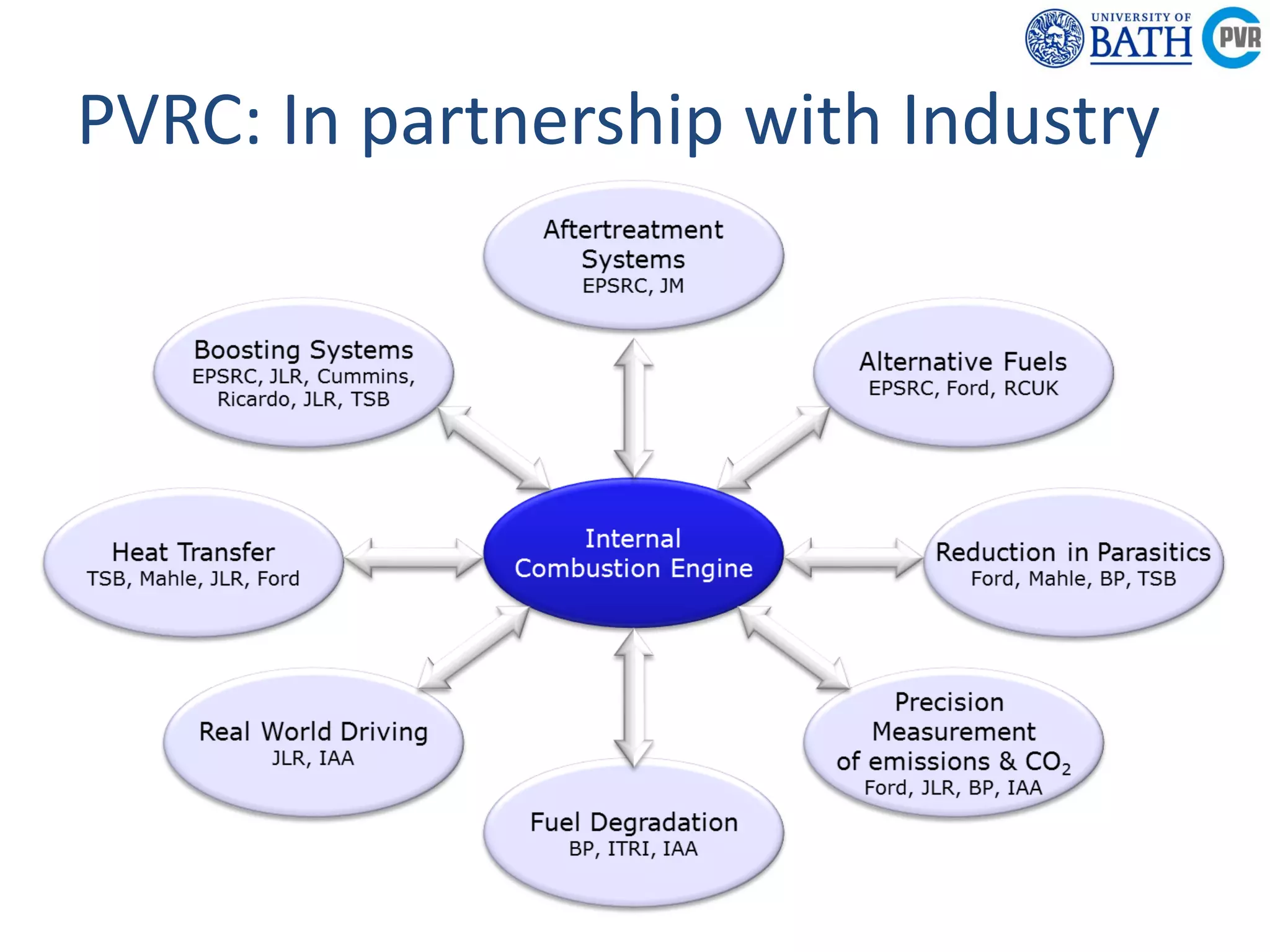

PVRC: In partnership with Industry

4. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

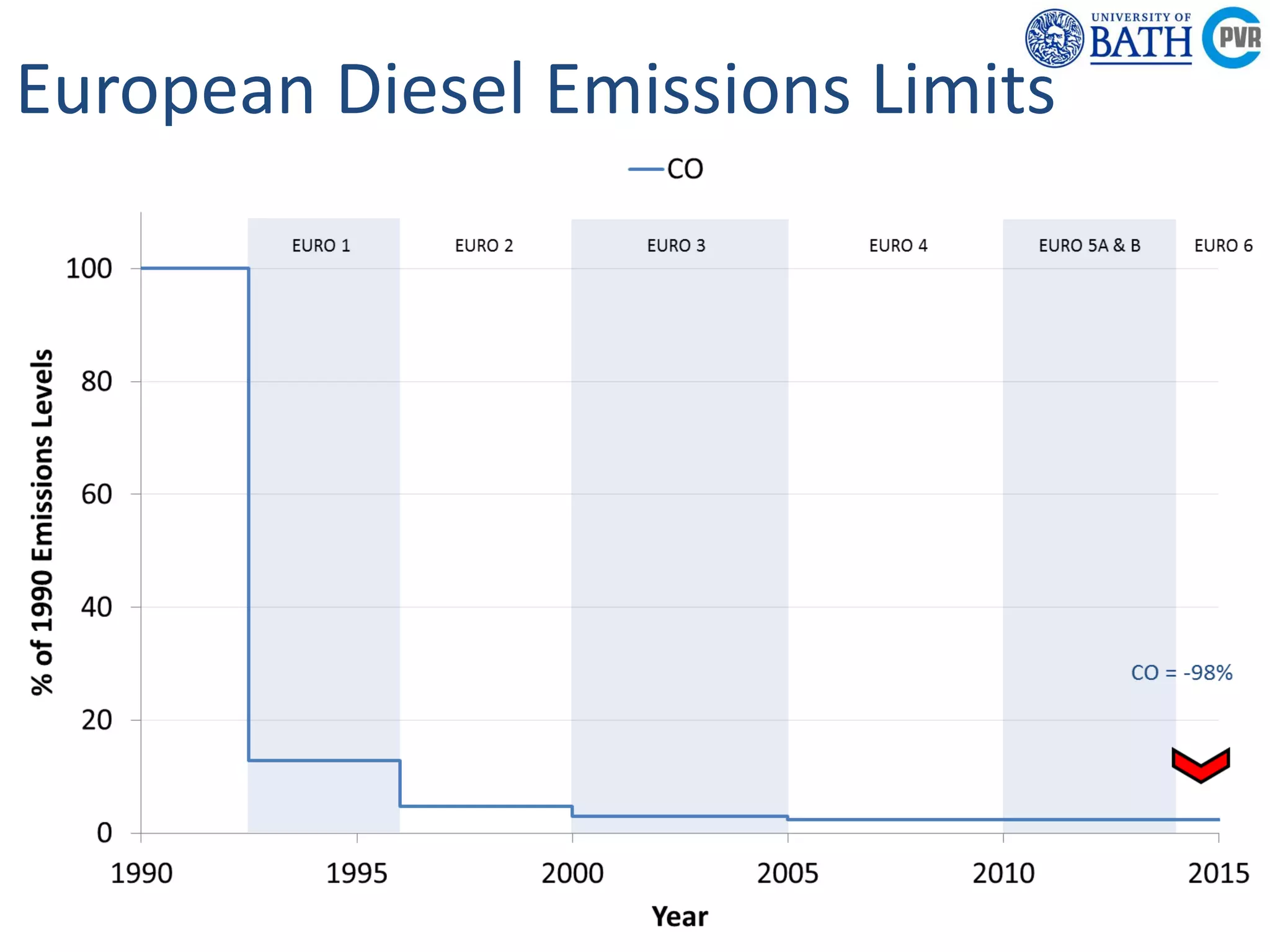

European Diesel Emissions Limits

5. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

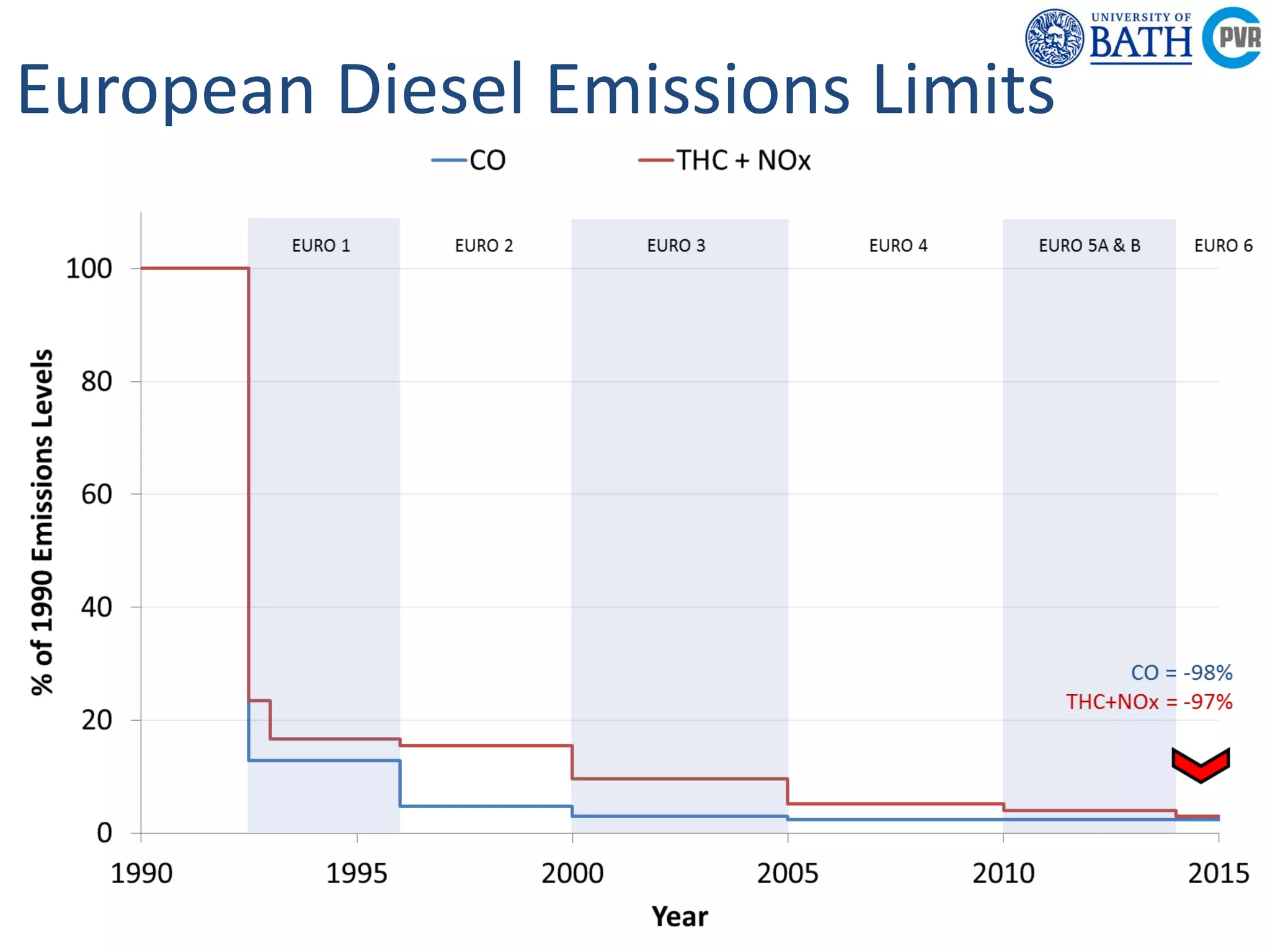

European Diesel Emissions Limits

6. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

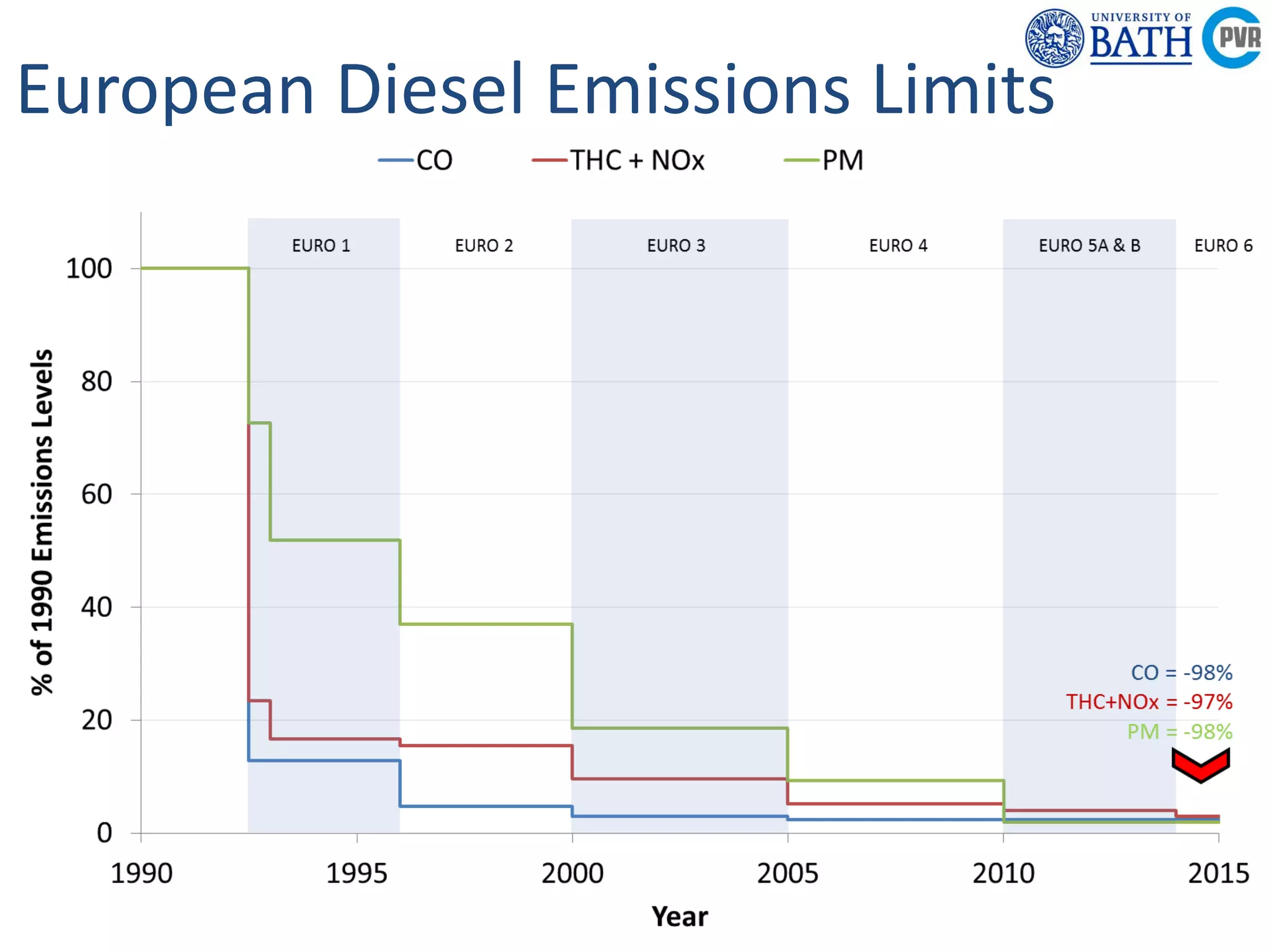

European Diesel Emissions Limits

7. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

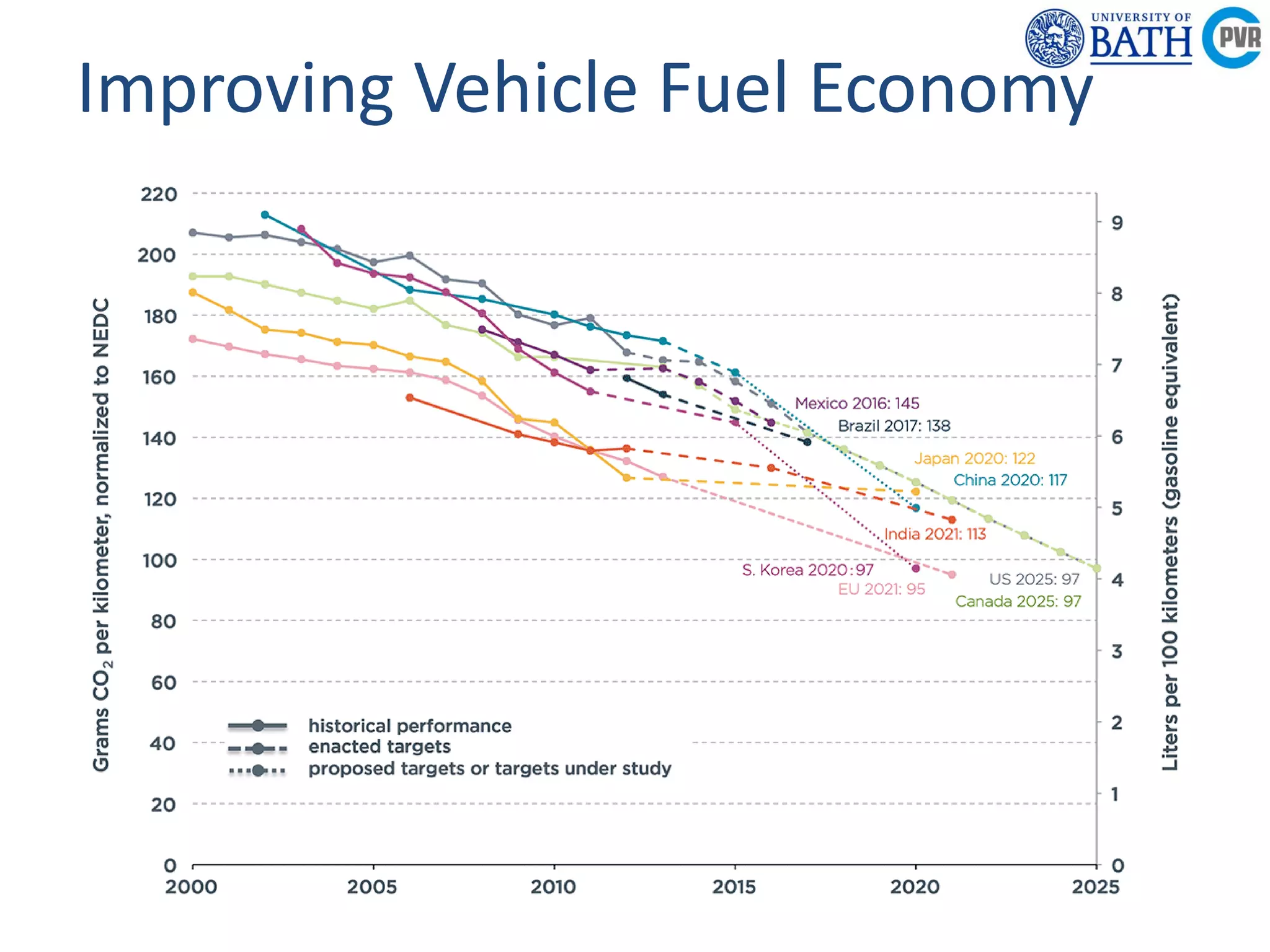

Improving Vehicle Fuel Economy

8. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre
Bad Press for Auto Industry

9. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

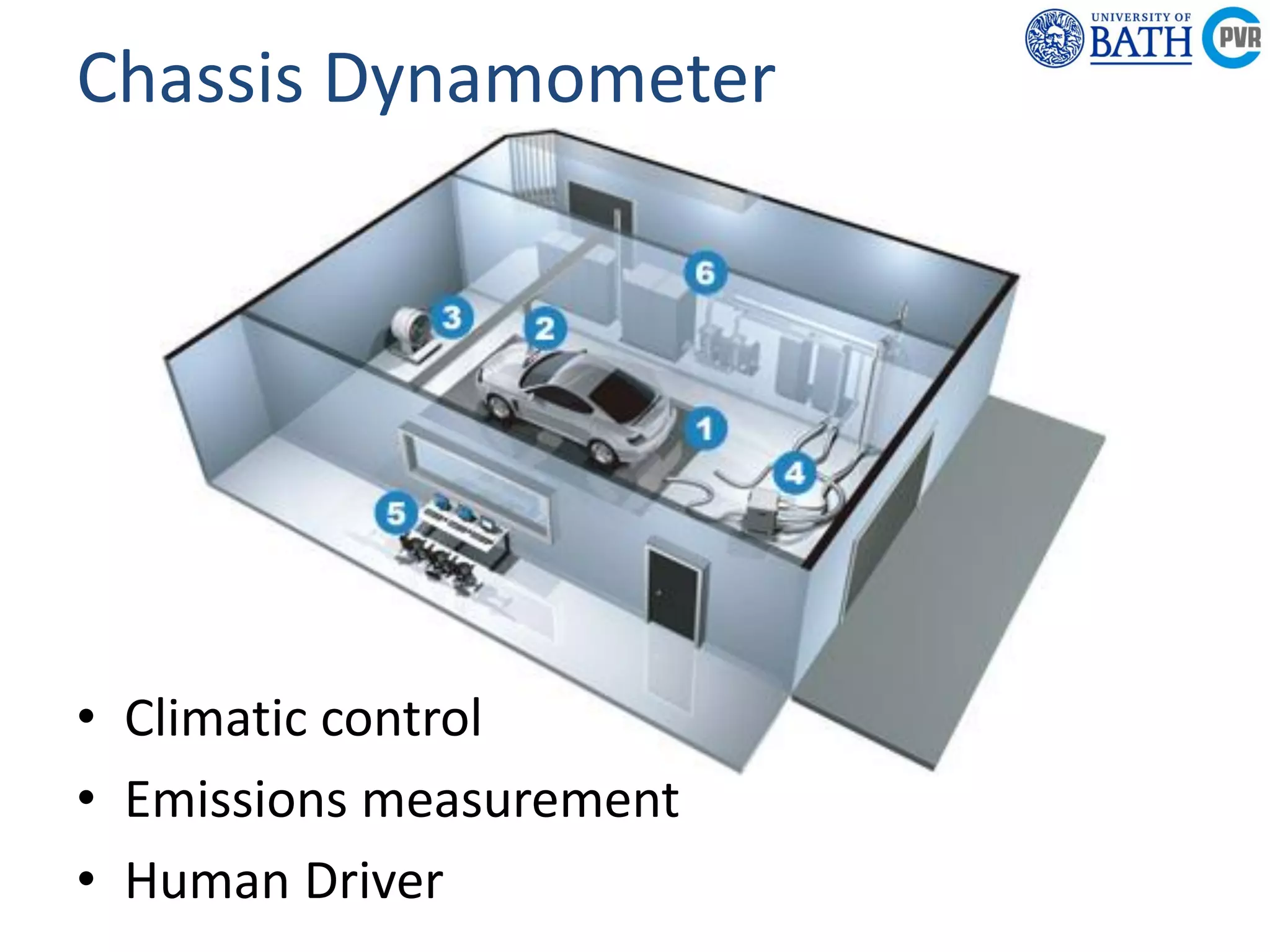

Chassis Dynamometer
• Climatic control
• Emissions measurement
• Human Driver

10. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

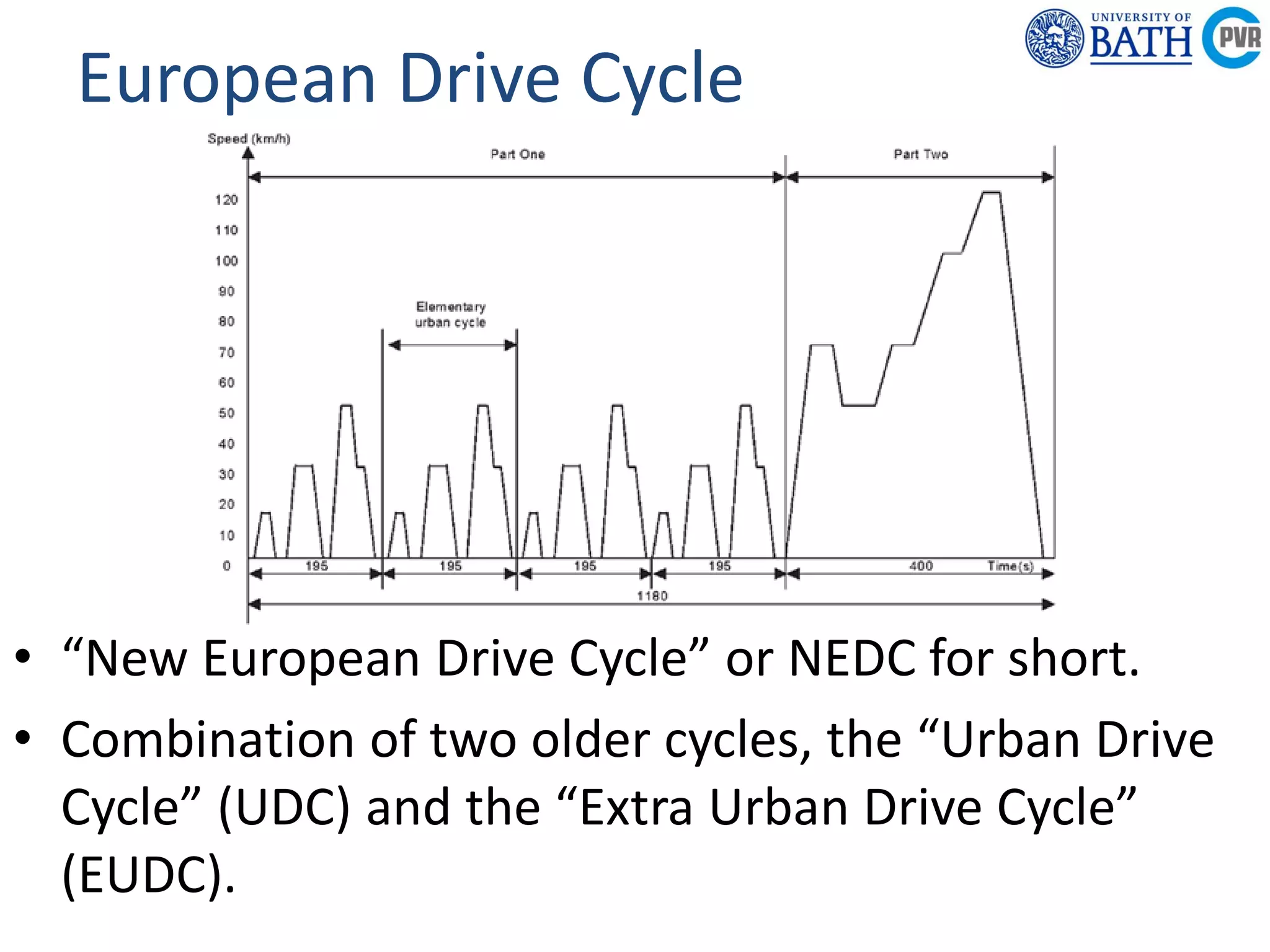

European Drive Cycle
• “New European Drive Cycle” or NEDC for short.
• Combination of two older cycles, the “Urban Drive
Cycle” (UDC) and the “Extra Urban Drive Cycle”
(EUDC).

11. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

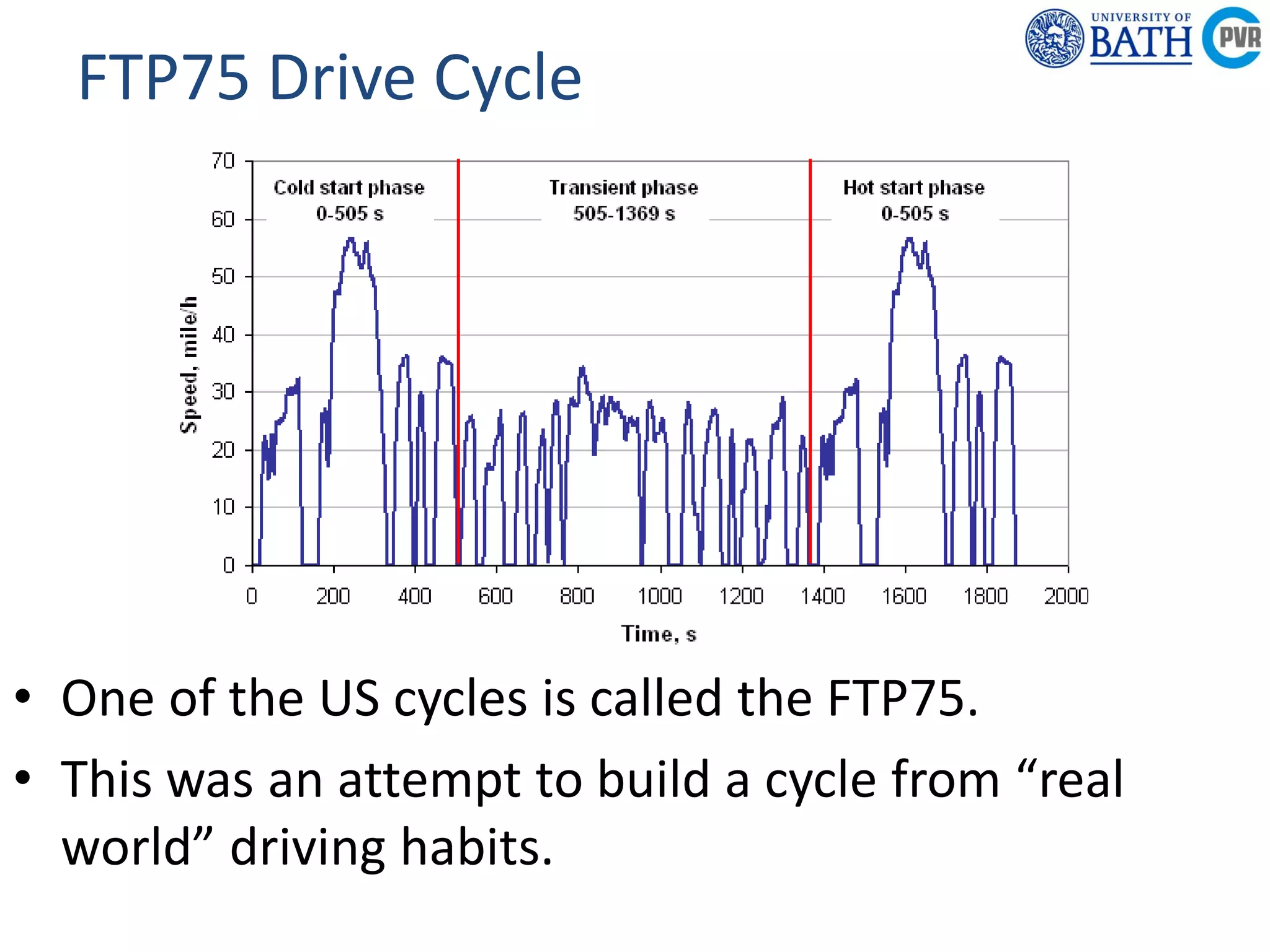

FTP75 Drive Cycle
• One of the US cycles is called the FTP75.
• This was an attempt to build a cycle from “real
world” driving habits.

12. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

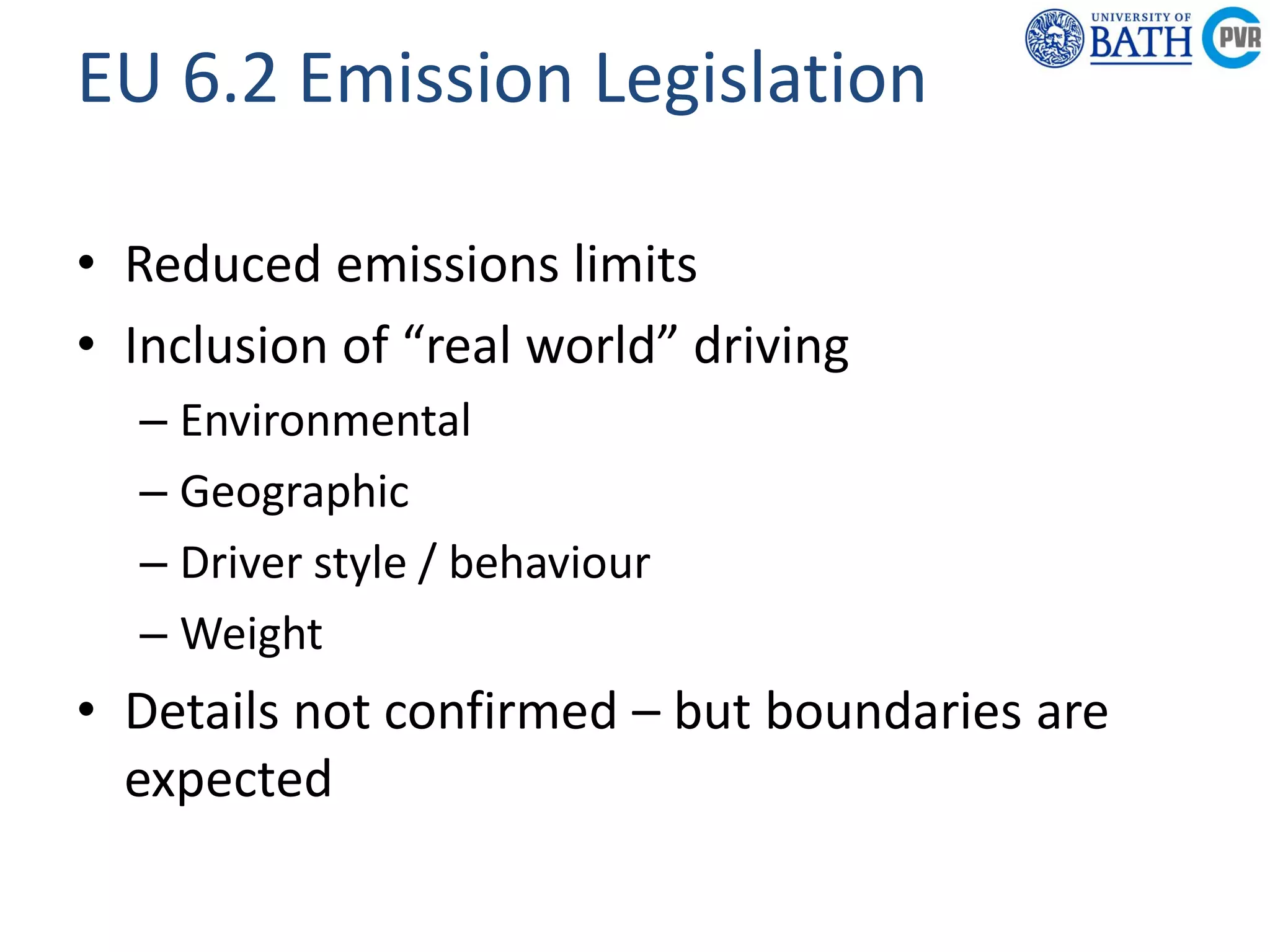

EU 6.2 Emission Legislation
• Reduced emissions limits
• Inclusion of “real world” driving
– Environmental
– Geographic
– Driver style / behaviour
– Weight
• Details not confirmed – but boundaries are
expected

13. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

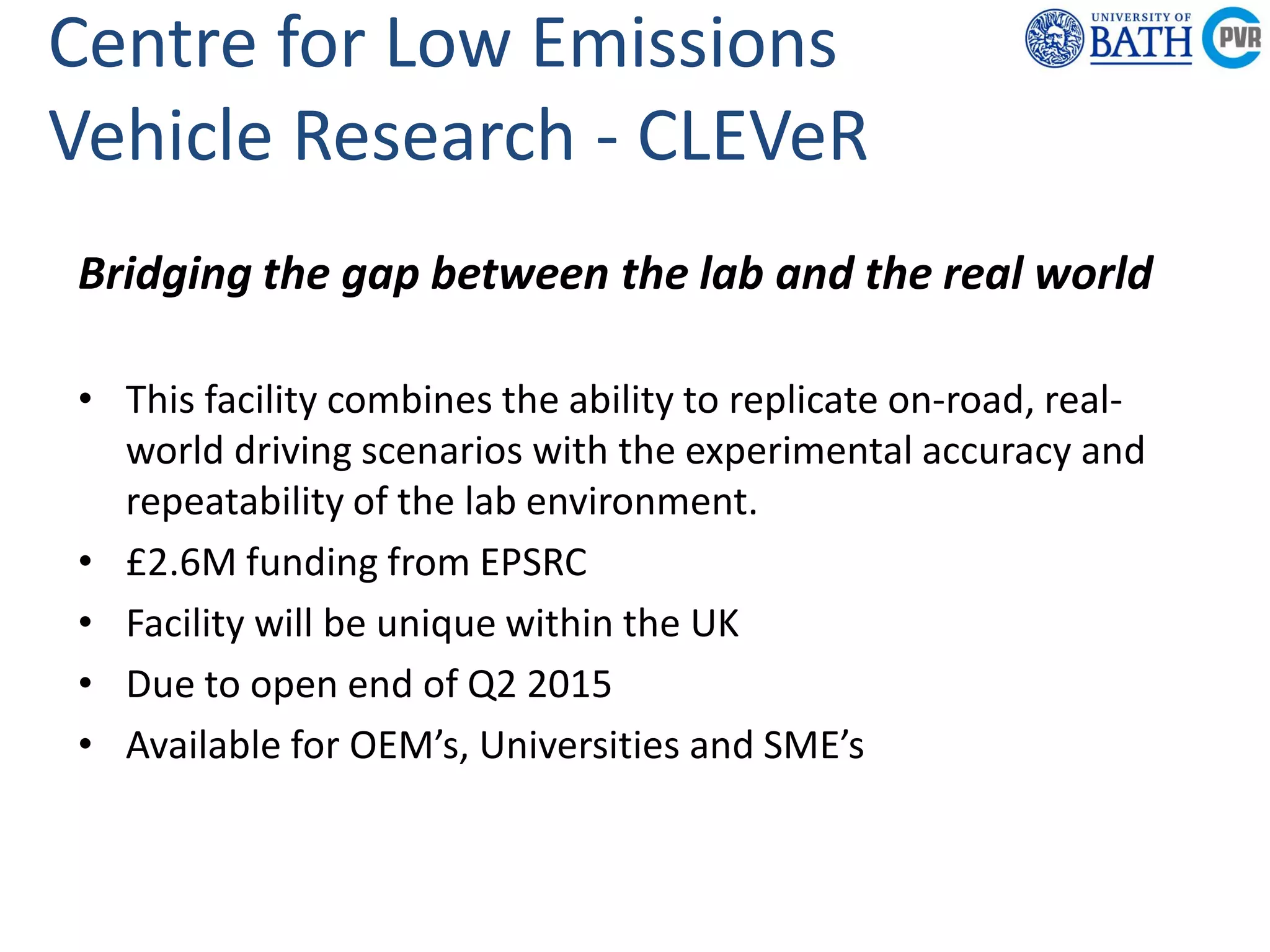

Centre for Low Emissions
Vehicle Research - CLEVeR
Bridging the gap between the lab and the real world
• This facility combines the ability to replicate on-road, real-
world driving scenarios with the experimental accuracy and
repeatability of the lab environment.
• £2.6M funding from EPSRC
• Facility will be unique within the UK
• Due to open end of Q2 2015
• Available for OEM’s, Universities and SME’s

14. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

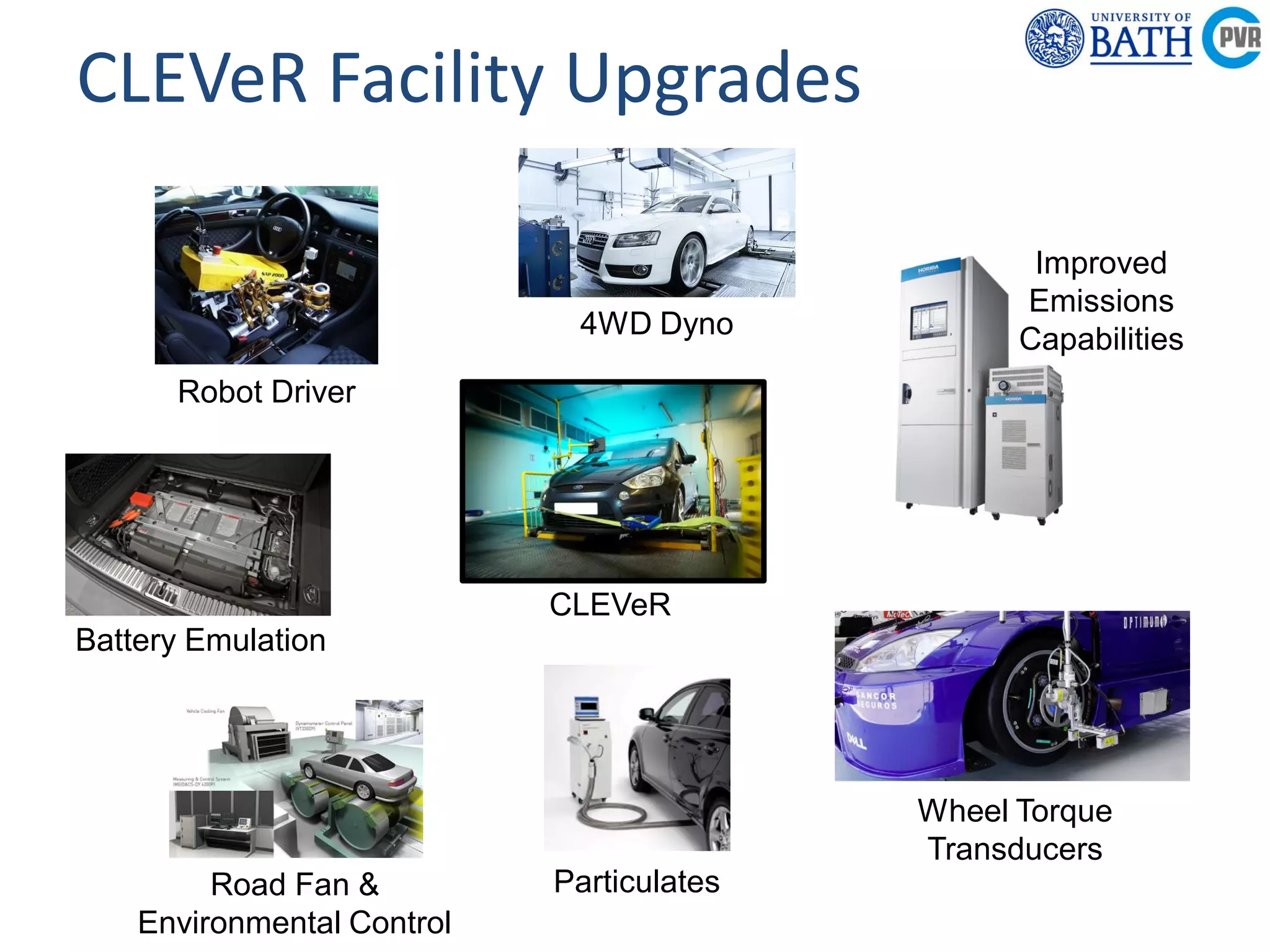

CLEVeR Facility Upgrades
4WD Dyno
Improved
Emissions
Capabilities
Wheel Torque
Transducers
ParticulatesRoad Fan &
Environmental Control
Battery Emulation
Robot Driver
CLEVeR

15. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

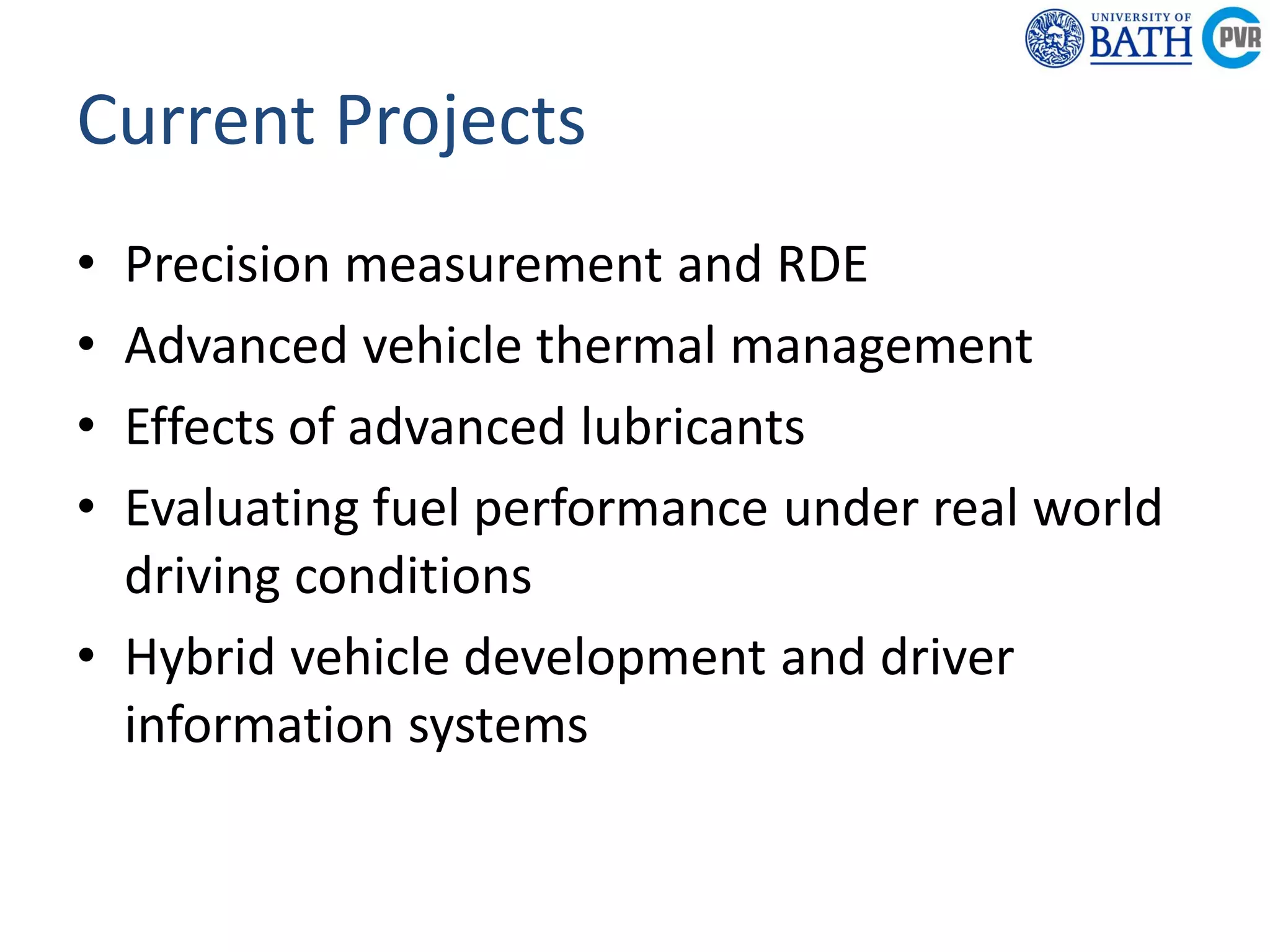

Current Projects
• Precision measurement and RDE
• Advanced vehicle thermal management
• Effects of advanced lubricants
• Evaluating fuel performance under real world
driving conditions
• Hybrid vehicle development and driver
information systems

16. Powertrain &
Research C
Department of
Mechanical
Engineering
Powertrain & Vehicle
Research Centre

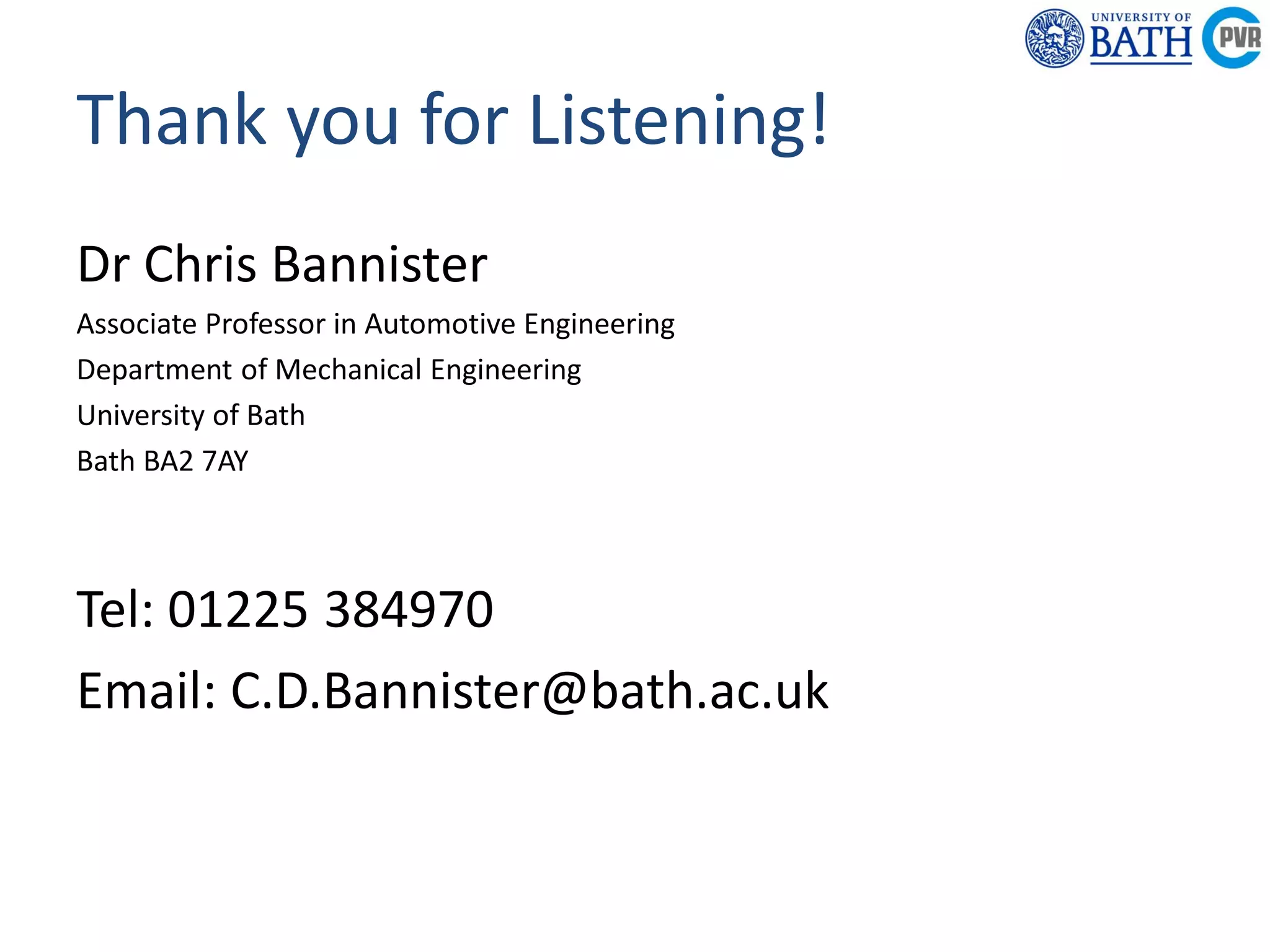

Thank you for Listening!
Dr Chris Bannister
Associate Professor in Automotive Engineering
Department of Mechanical Engineering
University of Bath
Bath BA2 7AY
Tel: 01225 384970
Email: C.D.Bannister@bath.ac.uk
