This document discusses vapor retarders and provides specifications for sheet vapor retarders and penetration accessories. It lists several acceptable product options for the sheet vapor retarder that meet the standard of having a perm rating of 0.3 or less. It also provides specifications for acceptable granular sodium bentonite products to use for penetration accessories.

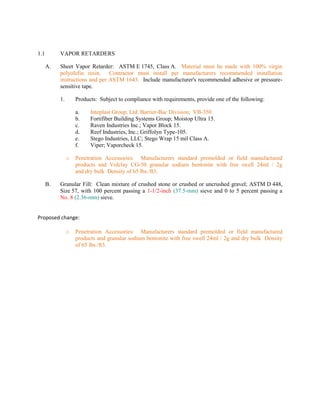

1. VAPOR RETARDERS<br />Retain one sheet vapor retarder from first four paragraphs below if a non-bituminous water vapor retarder is required.<br />Retain option and insert perm rating in first paragraph below if requiring a stricter perm rating than the 0.3 perms permitted by ASTM E 1745. See Evaluations.<br />Sheet Vapor Retarder: ASTM E 1745, Class A. Material must be made with 100% virgin polyolefin resin. Contractor must install per manufacturers recommended installation instructions and per ASTM 1643. Include manufacturer's recommended adhesive or pressure-sensitive tape.<br />See Editing Instruction No. 1 in the Evaluations for cautions about naming manufacturers and products. See Division 01 Section \"
Product Requirements.\"
<br />Products: Subject to compliance with requirements, provide one of the following:<br />Inteplast Group, Ltd. Barrier-Bac Division; VB-350<br />Fortifiber Building Systems Group; Moistop Ultra 15.<br />Raven Industries Inc.; Vapor Block 15.<br />Reef Industries, Inc.; Griffolyn Type-105.<br />Stego Industries, LLC; Stego Wrap 15 mil Class A.<br />Viper; Vaporcheck 15.<br />Penetration Accessories: Manufacturers standard premolded or field manufactured products and Volclay CG-50 granular sodium bentonite with free swell 24ml / 2g and dry bulk Density of 65 lbs./ft3.<br />Retain option and insert perm rating in first paragraph below if requiring a stricter perm rating than the 0.3 perms permitted by ASTM E 1745. See Evaluations.<br />Retain option and insert perm rating in first paragraph below if requiring a stricter perm rating than the 0.3 perms permitted by ASTM E 1745. See Evaluations.<br />Retain first paragraph below if generic polyethylene, not complying with ASTM E 1745, is permitted.<br />Retain first paragraph below if bituminous vapor retarder is required.<br />Retain two paragraphs below if using a granular course over vapor retarder. Products are based on ACI 302.1R descriptions of granular materials.<br />Retain first paragraph below for a \"
crusher-run\"
course at least 4 inches (100 mm) thick.<br />Granular Fill: Clean mixture of crushed stone or crushed or uncrushed gravel; ASTM D 448, Size 57, with 100 percent passing a 1-1/2-inch (37.5-mm) sieve and 0 to 5 percent passing a No. 8 (2.36-mm) sieve.<br />Proposed change:<br />Penetration Accessories: Manufacturers standard premolded or field manufactured products and granular sodium bentonite with free swell 24ml / 2g and dry bulk Density of 65 lbs./ft3.<br />
