This document provides an overview of training materials for an embedded starter kit focused on bare metal programming of LEDs and buttons. The goals are to create firmware to control LEDs and read button presses, learn about the hardware operation of LEDs and buttons, and learn GPIO input/output and interrupt basics. It introduces GPIO configuration as digital I/O with pull-up/down resistors or analog, covers GPIO pin functionality, and discusses using interrupts to address the delay issues of polling button states in a main loop. The practice section has the learner set up a project to control an LED based on a button press via polling initially, then refactors to use interrupts to eliminate delays.

1. GlobalLogic
Embedded Starter
Kit
LEDs and Buttons
Training 02
Bare Metal
Trainings

2. Contents
▪ Assignments and Goals
▪ Theory
▪ Practice
▪ Individual task
28.09.2020 17:07 Bare Metal – Training 02 2

3. Assignments and Goals
• Create firmware that works with LEDs and
buttons
• Learn LED and button HW background
(how it’s working)
• Learn GPIO I/O basics
• Learn GPIO_EXTI interrupts
28.09.2020 17:07 Bare Metal – Training 02 3

4. LEDs schematics
28.09.2020 17:07 Bare Metal – Training 02 4

5. Buttons schematics
28.09.2020 17:07 Bare Metal – Training 02 5

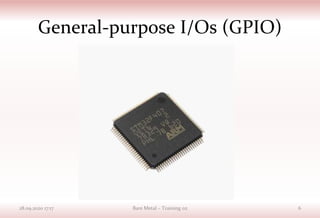

6. General-purpose I/Os (GPIO)
28.09.2020 17:17 Bare Metal – Training 02 6

7. General-purpose I/Os (GPIO)

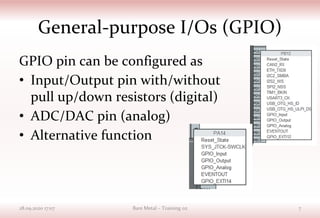

GPIO pin can be configured as
• Input/Output pin with/without
pull up/down resistors (digital)
• ADC/DAC pin (analog)
• Alternative function
28.09.2020 17:07 Bare Metal – Training 02 7

8. General-purpose I/Os (GPIO)
28.09.2020 17:07 Bare Metal – Training 02 8

9. General-purpose I/Os (GPIO)
28.09.2020 17:07 Bare Metal – Training 02 9

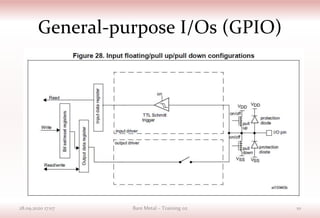

10. General-purpose I/Os (GPIO)
28.09.2020 17:07 Bare Metal – Training 02 10

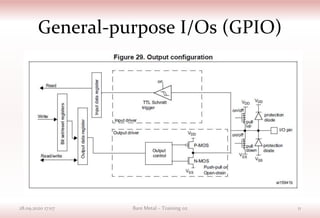

11. General-purpose I/Os (GPIO)
28.09.2020 17:07 Bare Metal – Training 02 11

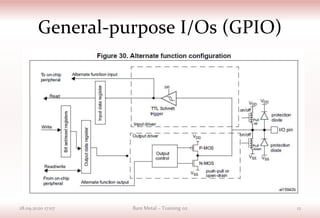

12. General-purpose I/Os (GPIO)
28.09.2020 17:07 Bare Metal – Training 02 12

13. General-purpose I/Os (GPIO)
28.09.2020 17:07 Bare Metal – Training 02 13

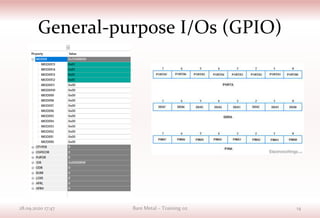

14. General-purpose I/Os (GPIO)
28.09.2020 17:47 Bare Metal – Training 02 14

15. Practice
• Create new Keil Project
(see Pract_01 for details)
• Set HW settings (with CubeMX)
– PA15 – GPIO_Input (SW2)
– PD15 – GPIO_Output (LED6 Blue)
• Complete main while loop with code
provided
28.09.2020 17:07 Bare Metal – Training 02 15

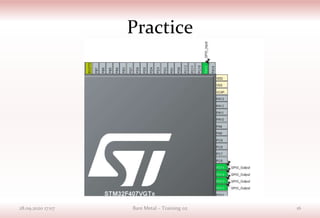

16. Practice
28.09.2020 17:07 Bare Metal – Training 02 16

17. Practice
28.09.2020 17:07 Bare Metal – Training 02 17

18. Add source code
• Modify source code with
snippets from following file
• Compile
• Flash
• Press “SWT2” button to test
FW
• What main disadvantage of
this solution?
28.09.2020 17:22 Bare Metal – Training 02 18

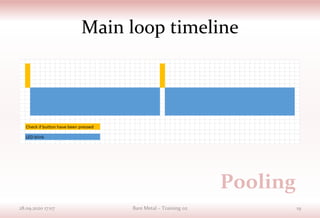

19. Main loop timeline
28.09.2020 17:07 Bare Metal – Training 02 19
Pooling

20. Add interrupts
28.09.2020 17:07 Bare Metal – Training 02 20

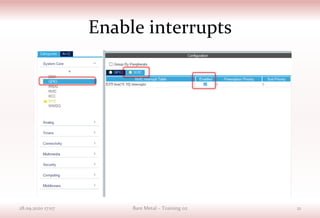

21. Enable interrupts
28.09.2020 17:07 Bare Metal – Training 02 21

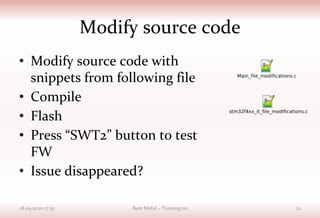

22. Modify source code
• Modify source code with
snippets from following file
• Compile
• Flash
• Press “SWT2” button to test
FW
• Issue disappeared?
28.09.2020 17:32 Bare Metal – Training 02 22

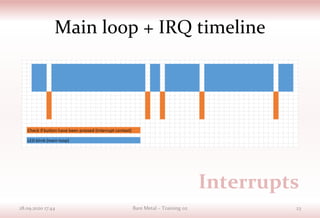

23. Main loop + IRQ timeline
28.09.2020 17:44 Bare Metal – Training 02 23
Interrupts

24. Individual task
• LED blink frequency change using switches
• Blinking LED number change using switches
28.09.2020 17:44 Bare Metal – Training 02 24
