Neck column:
The part of the column which is present in sub structure is called neck
column. (Column in substructure)
Well, the reason for this dividing column into two parts is to make ease in
understanding the Bar Bending schedule clearly.
QUANTITY OF REINFORCEMENT (STEEL)REQUIRED FOR NECK
COLUMNOR Bar Bending Schedule for Neck Column :-
In this post, I am finding out the Estimation of Steel reinforcement in Neck
Column/ Bar Bending Schedule for Neck column. For this, I considered a
plan as shown below.

2. Steps to be followedwhile finding out the total wt. of steelrequired for
constructing Neck columns:–
Neck column reinforcement calculation is divided into two parts Main bars
and stirrups.
Part-I:- Main Bars
1. Check the Length of Main bars
2. Add the overlap length and bend length to the neck column.
3. Adopt Dia of Main Bars
4. Calculate the total length of main bar.
5. Find the total wt of Main bars.
Part-II:- Stirrups
1. Deduce the concrete coverfrom all sides of tie/stirrups and find out the
length of stirrup.
2. Adopt Dia of Stirrup.
3. Calculate the length of stirrup including hook.
4. Then Find out the total no. of stirrups.
5. Find the total length of stirrups

3. 6. Lastly, Calculate the total wt. of stirrups.
Length, Dia and No. of Bars are adopted and designed by the structural
engineer by executing the load analysis.
To make it clear I included almost all types of columns. WellC1, C3, C4,
C6, C9 (Square Columns) are similar and C2, C8 (T-Column) C5 is
Circular Column, C7 is L Type column.
You can also refer different types of columns.
Assume for calculation:-
Dia of Main Bars = 16mm, Dia of Stirrups= 8mm, Spacing between stirrups
= 0.1m.
Length of Main bar excluding extra bars is 2.25m , Diameter of Circular
column C5 = 0.6
No. of Main Bars = 4 in Square column, No. of Main Bars = 8 in Circular & L
Type Column
No. of Main Bars = 10 in T Type Column

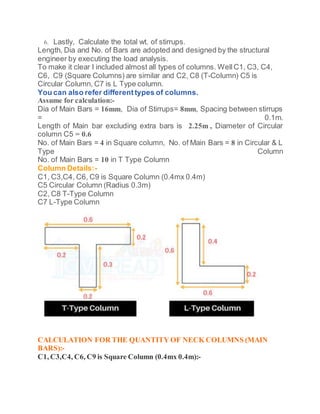

Column Details:-
C1, C3,C4, C6, C9 is Square Column (0.4mx 0.4m)
C5 Circular Column (Radius 0.3m)
C2, C8 T-Type Column
C7 L-Type Column
CALCULATION FOR THE QUANTITY OF NECK COLUMNS (MAIN
BARS):-
C1, C3,C4, C6, C9 is Square Column (0.4mx 0.4m):-

4. C5 Circular Column:-

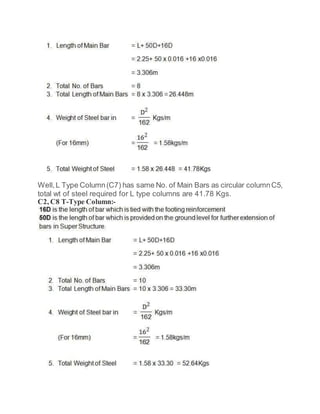

5. Well,L Type Column(C7) has same No. of Main Bars as circular columnC5,
total wt of steel required for L type columns are 41.78 Kgs.
C2, C8 T-Type Column:-

6. CALCULATION FOR THE QUANTITY OF NECK COLUMNS
(STIRRUPS):-
C1, C3,C4, C6, C9 is Square Column (0.4mx 0.4m)
First of all deduct the concrete cover from all the sides of column for finding
out the length of stirrup.
As per the condition deduct the concrete cover of 0.05 from all sides of
stirrups in square column.

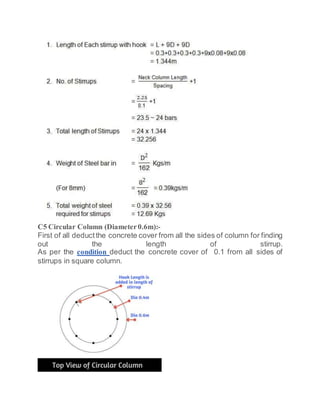

7. C5 Circular Column (Diameter0.6m):-
First of all deduct the concrete cover from all the sides of column for finding
out the length of stirrup.
As per the condition deduct the concrete cover of 0.1 from all sides of
stirrups in square column.

8. C2,C8 T-Type Column :-

9. C7 L-Typecolumn:–

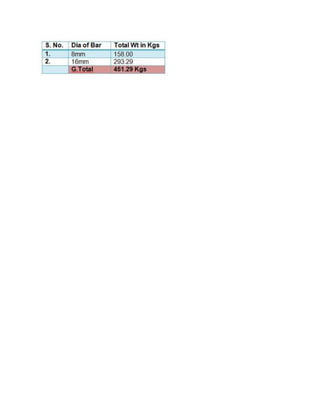

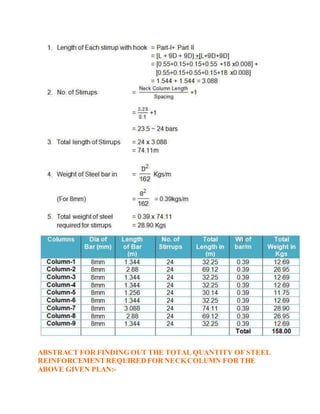

10. ABSTRACT FOR FINDING OUT THE TOTAL QUANTITY OF STEEL
REINFORCEMENTREQUIREDFOR NECKCOLUMN FOR THE
ABOVE GIVEN PLAN:-
