Azure Network Security Groups (NSG)
The document covers an overview of Azure security, specifically focusing on Azure Network Security Groups (NSGs) and their configuration for managing inbound and outbound traffic in virtual networks. It details the importance of cloud security, customer expectations from cloud providers, and provides examples and PowerShell commands to create and manage NSGs effectively. Key points include the construction of NSGs, default rules, and best practices for applying NSGs to subnets, virtual machines, and network interfaces.
More Related Content
Similar to Azure Network Security Groups (NSG)
![Microsoft Azure Training - [13] Azure Virtual Networks-Part 7-VNet-to-VNet Co...](https://cdn.slidesharecdn.com/ss_thumbnails/session13-azurevirtualnetworks-part7-150728062010-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
![Microsoft Azure Training - [11]Azure Virtual Networks -Part 5 -Cross-premises...](https://cdn.slidesharecdn.com/ss_thumbnails/session11-azurevirtualnetworks-part5-150728061551-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
![Microsoft Azure Training - [3] Azure Accounts, Subscriptions and Admin Roles ...](https://cdn.slidesharecdn.com/ss_thumbnails/azureaccountssubscriptionsandadminroles-150728055139-lva1-app6891-thumbnail.jpg?width=640&height=640&fit=bounds)
![Microsoft Azure Training - [2] Introduction to the Cloud (Exam 70-533)](https://cdn.slidesharecdn.com/ss_thumbnails/infrastructurearchitecture-historicalperspective-150728054834-lva1-app6892-thumbnail.jpg?width=640&height=640&fit=bounds)
Azure Network Security Groups (NSG)
- 2. SHAWN ISMAIL My twitter is@shawnismail, my blog is at http://cloudranger.net and I work at ARCHITECT | CONSULTANT | GENEROUS
- 3. WHAT WE WILLTALK ABOUT TODAY… 1.Overview of Azure security 2.Azure Network Security Groups (NSG) 3.Demo of NSGs in action

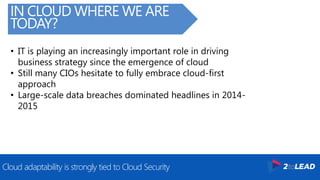

- 4. Cloud adaptability isstrongly tied to Cloud Security IN CLOUD WHERE WE ARE TODAY? • IT is playing an increasingly important role in driving business strategy since the emergence of cloud • Still many CIOs hesitate to fully embrace cloud-first approach • Large-scale data breaches dominated headlines in 2014- 2015

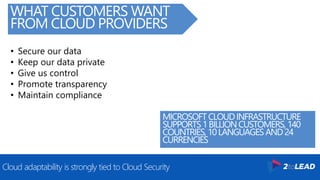

- 5. Cloud adaptability isstrongly tied to Cloud Security WHAT CUSTOMERS WANT FROM CLOUD PROVIDERS • Secure our data • Keep our data private • Give us control • Promote transparency • Maintain compliance MICROSOFTCLOUDINFRASTRUCTURE SUPPORTS1BILLIONCUSTOMERS, 140 COUNTRIES, 10LANGUAGESAND24 CURRENCIES

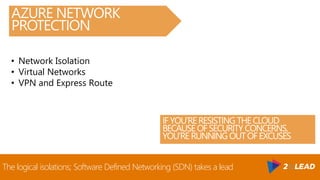

- 6. The logical isolations;Software Defined Networking (SDN) takes a lead AZURE NETWORK PROTECTION • Network Isolation • Virtual Networks • VPN and Express Route IFYOU’RERESISTING THECLOUD BECAUSEOFSECURITY CONCERNS, YOU’RERUNNING OUTOFEXCUSES
- 7. A representation ofyour own network in the cloud AZURE VIRTUAL NETWORKS (VNET) Virtual Network (MyVNET1) WFE1 DC1 SQL1 SUBSCRIPTION VNET SUBNET SUBNET VNET VNET

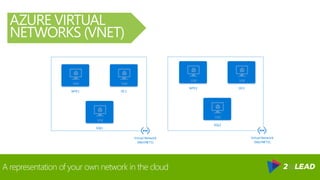

- 8. A representation ofyour own network in the cloud AZURE VIRTUAL NETWORKS (VNET) Virtual Network (MyVNET1) WFE1 DC1 SQL1 Virtual Network (MyVNET2) WFE2 DC2 SQL2
- 9. A representation ofyour own network in the cloud AZURE VIRTUAL NETWORKS (VNET) Virtual Network (MyVNET1) WFE1 DC1 SQL1 Address Space: 10.1.0.0/16 MySubnet1: 10.1.0.0/24 (10.1.0.0 - 10.1.0.255) 10.1.0.5 10.1.0.6 10.1.0.7

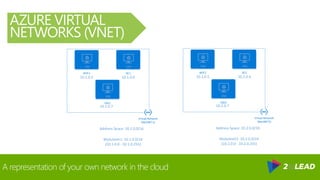

- 10. A representation ofyour own network in the cloud AZURE VIRTUAL NETWORKS (VNET) Virtual Network (MyVNET1) WFE1 DC1 SQL1 Address Space: 10.1.0.0/16 MySubnet1: 10.1.0.0/24 (10.1.0.0 - 10.1.0.255) 10.1.0.5 10.1.0.6 10.1.0.7 Virtual Network (MyVNET2) WFE2 DC2 SQL2 Address Space: 10.2.0.0/16 MySubnet2: 10.2.0.0/24 (10.2.0.0 - 10.2.0.255) 10.2.0.5 10.2.0.6 10.2.0.7

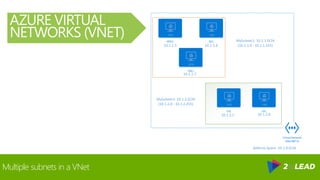

- 11. Multiple subnets ina VNet AZURE VIRTUAL NETWORKS (VNET) Virtual Network (MyVNET1) WFE1 DC1 SQL1 Address Space: 10.1.0.0/16 MySubnet1: 10.1.1.0/24 (10.1.1.0 - 10.1.1.255)10.1.1.5 10.1.1.6 10.1.1.7 FS1 EX1 MySubnet2: 10.1.2.0/24 (10.1.2.0 - 10.1.2.255) 10.1.2.5 10.1.2.6
- 12. Azure Network SecurityGroups WHAT ARE AZURE NSGS? NSGs are used to control inbound and outbound access to Subnets, VMs and network interfaces (NICs). NSGs are not Endpoint ACLs! Each NSG contains one or more rules Each rule determines if a traffic is Approved or Denied Approval and Denial in each rule is based on source IP address, source port, destination IP address, and destination port Rules have priorities There are some Default rules in each NSG when they are created

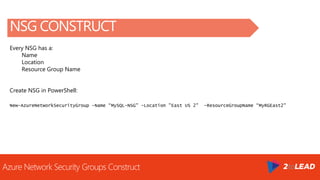

- 13. Azure Network SecurityGroups Construct NSG CONSTRUCT Every NSG has a: Name Location Resource Group Name Create NSG in PowerShell: New-AzureNetworkSecurityGroup -Name “MySQL-NSG" -Location "East US 2" -ResourceGroupName “MyRGEast2"
- 14. Azure Network SecurityGroups Rule Construct NSG RULE CONSTRUCT A rule specifies the following: Name: A unique identifier for the rule Direction: Inbound/Outbound Priority: Access: Allow/Deny Source IP Address: CIDR of source IP or IP range Source Port Range: Destination IP Range: CIDR of the destination IP or IP Range Destination Port Range: Protocol: TCP/UPP/Both Description: PowerShell: Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "TO-MySQL1-P“ -Direction Inbound -Priority 1001 -Access Allow -SourceAddressPrefix "10.1.2.0/24" -SourcePortRange "*" -DestinationAddressPrefix "10.1.1.6" - DestinationPortRange “1433" -Protocol "*" -Description “TO MySQL1 server from FE Servers"
- 15. Azure Network SecurityGroups Default Rules NSG DEFAULT RULES NSGs have default rules Default rules cannot be deleted Default rules have the lowest priority Can be easily overwritten by higher priority rules
- 16. Azure Network SecurityGroups Default Rules NSG DEFAULT RULES Notice the Default Tags
- 17. Where to applyan NSG is based on individual requirements WHERE CAN AN NSG BE APPLIED? Apply/Associate NSG to a Subnet Apply/Associate NSG to an individual VM Apply/Associate NSG to a NIC Your organization may create a best practice that works for you

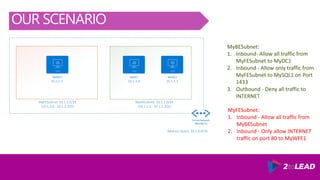

- 18. OUR SCENARIO MyBESubnet: 1. Inbound-Allow all traffic from MyFESubnet to MyDC1 2. Inbound - Allow only traffic from MyFESubnet to MySQL1 on Port 1433 3. Outbound - Deny all traffic to INTERNET Virtual Network (MyVNET1) MyWFE1 MyDC1 MySQL1 Address Space: 10.1.0.0/16 MyFESubnet: 10.1.2.0/24 (10.1.2.0 - 10.1.2.255) 10.1.1.4 MyBESubnet: 10.1.1.0/24 (10.1.1.0 - 10.1.1.255) 10.1.2.4 10.1.1.5 MyFESubnet: 1. Inbound - Allow all traffic from MyBESubnet 2. Inbound - Only allow INTERNET traffic on port 80 to MyWFE1
- 19. Thank You! Organizers, SponsorsandYouformakingthispossible. MoreSlidesAtSlideshare.Net/shawnismail MoreFreeAzureVideosAt CloudRanger.net MoreProfessionalHelpAt 2toLead.com Message Me On LinkedIn or Email shawn@2toLead.com ARCHITECT | CONSULTANT | GENEROUS My twitter is @shawnismail, my blog is at http://cloudranger.net, and I work at

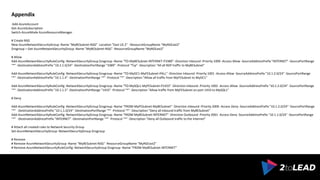

- 20. ARCHITECT | CONSULTANT| GENEROUS Appendix Add-AzureAccount Get-AzureSubscription Switch-AzureMode AzureResourceManager # Create NSG New-AzureNetworkSecurityGroup -Name "MyBESubnet-NSG" -Location "East US 2" -ResourceGroupName "MyRGEast2" $nsgroup = Get-AzureNetworkSecurityGroup -Name "MyBESubnet-NSG" -ResourceGroupName "MyRGEast2" # Allow Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "TO-MyBESubnet-INTERNET-P3389" -Direction Inbound -Priority 1000 -Access Allow -SourceAddressPrefix "INTERNET" -SourcePortRange "*" -DestinationAddressPrefix "10.1.1.0/24" -DestinationPortRange "3389" -Protocol "Tcp" -Description "All all RDP traffic to MyBESubnet" Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "TO-MyDC1-MyFESubnet-PALL" -Direction Inbound -Priority 1001 -Access Allow -SourceAddressPrefix "10.1.2.0/24" -SourcePortRange "*" -DestinationAddressPrefix "10.1.1.4" -DestinationPortRange "*" -Protocol "*" -Description "Allow all traffic from MyFESubnet to MyDC1" Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "TO-MySQL1-MyFESubnet-P1433" -Direction Inbound -Priority 1002 -Access Allow -SourceAddressPrefix "10.1.2.0/24" -SourcePortRange "*" -DestinationAddressPrefix "10.1.1.5" -DestinationPortRange "1433" -Protocol "*" -Description "Allow traffic from MyFESubnet on port 1433 to MySQL1" # Deny Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "FROM-MyFESubnet-MyBESubnet" -Direction Inbound -Priority 2000 -Access Deny -SourceAddressPrefix "10.1.2.0/24" -SourcePortRange "*" -DestinationAddressPrefix "10.1.1.0/24" -DestinationPortRange "*" -Protocol "*" -Description "Deny all inbound traffic from MyBESubnet" Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "FROM-MyBESubnet-INTERNET" -Direction Outbound -Priority 2001 -Access Deny -SourceAddressPrefix "10.1.1.0/24" -SourcePortRange "*" -DestinationAddressPrefix "INTERNET" -DestinationPortRange "*" -Protocol "*" -Description "Deny all Outbound traffic to the Internet" # Attach all created rules to Network Security Group Set-AzureNetworkSecurityGroup -NetworkSecurityGroup $nsgroup # Remove # Remove-AzureNetworkSecurityGroup -Name "MyBESubnet-NSG" -ResourceGroupName "MyRGEast2" # Remove-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "FROM-MyBESubnet-INTERNET"

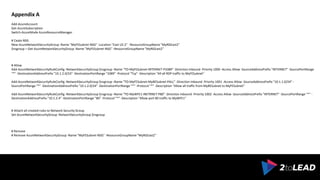

- 21. ARCHITECT | CONSULTANT| GENEROUS Appendix A Add-AzureAccount Get-AzureSubscription Switch-AzureMode AzureResourceManager # Ceate NSG New-AzureNetworkSecurityGroup -Name "MyFESubnet-NSG" -Location "East US 2" -ResourceGroupName "MyRGEast2" $nsgroup = Get-AzureNetworkSecurityGroup -Name "MyFESubnet-NSG" -ResourceGroupName "MyRGEast2" # Allow Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "TO-MyFESubnet-INTERNET-P3389" -Direction Inbound -Priority 1000 -Access Allow -SourceAddressPrefix "INTERNET" -SourcePortRange "*" -DestinationAddressPrefix "10.1.2.0/24" -DestinationPortRange "3389" -Protocol "Tcp" -Description "All all RDP traffic to MyFESubnet" Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "TO-MyFESubnet-MyBESubnet-PALL" -Direction Inbound -Priority 1001 -Access Allow -SourceAddressPrefix "10.1.1.0/24" - SourcePortRange "*" -DestinationAddressPrefix "10.1.2.0/24" -DestinationPortRange "*" -Protocol "*" -Description "Allow all traffic from MyBESubnet to MyFESubnet" Add-AzureNetworkSecurityRuleConfig -NetworkSecurityGroup $nsgroup -Name "TO-MyWFE1-INETRNET-P80" -Direction Inbound -Priority 1002 -Access Allow -SourceAddressPrefix "INTERNET" -SourcePortRange "*" - DestinationAddressPrefix "10.1.2.4" -DestinationPortRange "80" -Protocol "*" -Description "Allow port 80 traffic to MyWFE1" # Attach all created rules to Network Security Group Set-AzureNetworkSecurityGroup -NetworkSecurityGroup $nsgroup # Remove # Remove-AzureNetworkSecurityGroup -Name "MyFESubnet-NSG" -ResourceGroupName "MyRGEast2"

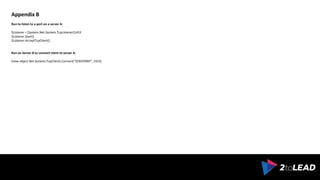

- 22. ARCHITECT | CONSULTANT| GENEROUS Appendix B Run to listen to a port on a server A: $Listener = [System.Net.Sockets.TcpListener]1433 $Listener.Start() $Listener.AcceptTcpClient() Run on Server B to connect client to server A: (new-object Net.Sockets.TcpClient).Connect(“SERVERBIP", 1433)
