Session 3
AZ-104: Microsoft Azure
Administrator
1

AzureTalk Core Team
2

Today’s Session Speaker
Niraj Kumar
AzureTalk Founder
Enterprise Architect, MCT
3
Ram Murti Kumar,
AzureTalk Core Team
Member, Architect, MCT
Vipin Jha
AzureTalk Core Team
Member, Consultant, MCT

AZ-104: Skills Measured
• Manage Azure identities and governance (15-20%)
• Deploy and manage Azure compute resources (25-30%)
• Implement and manage storage (10-15%)
• Configure and manage virtual networking (30-35%)
• Monitor and back up Azure resources (10-15%)
4

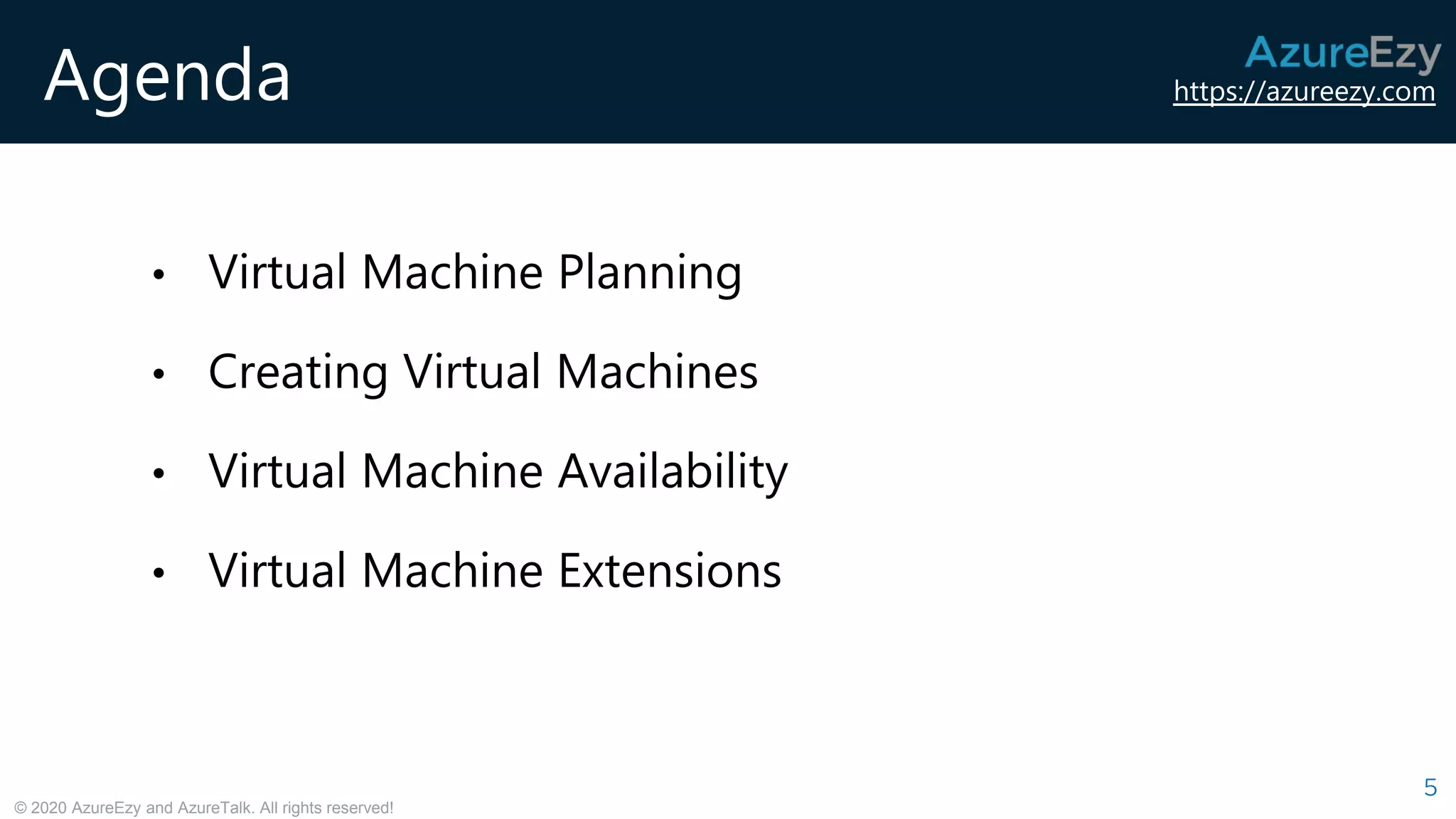

Agenda
5
• Virtual Machine Planning
• Creating Virtual Machines
• Virtual Machine Availability
• Virtual Machine Extensions

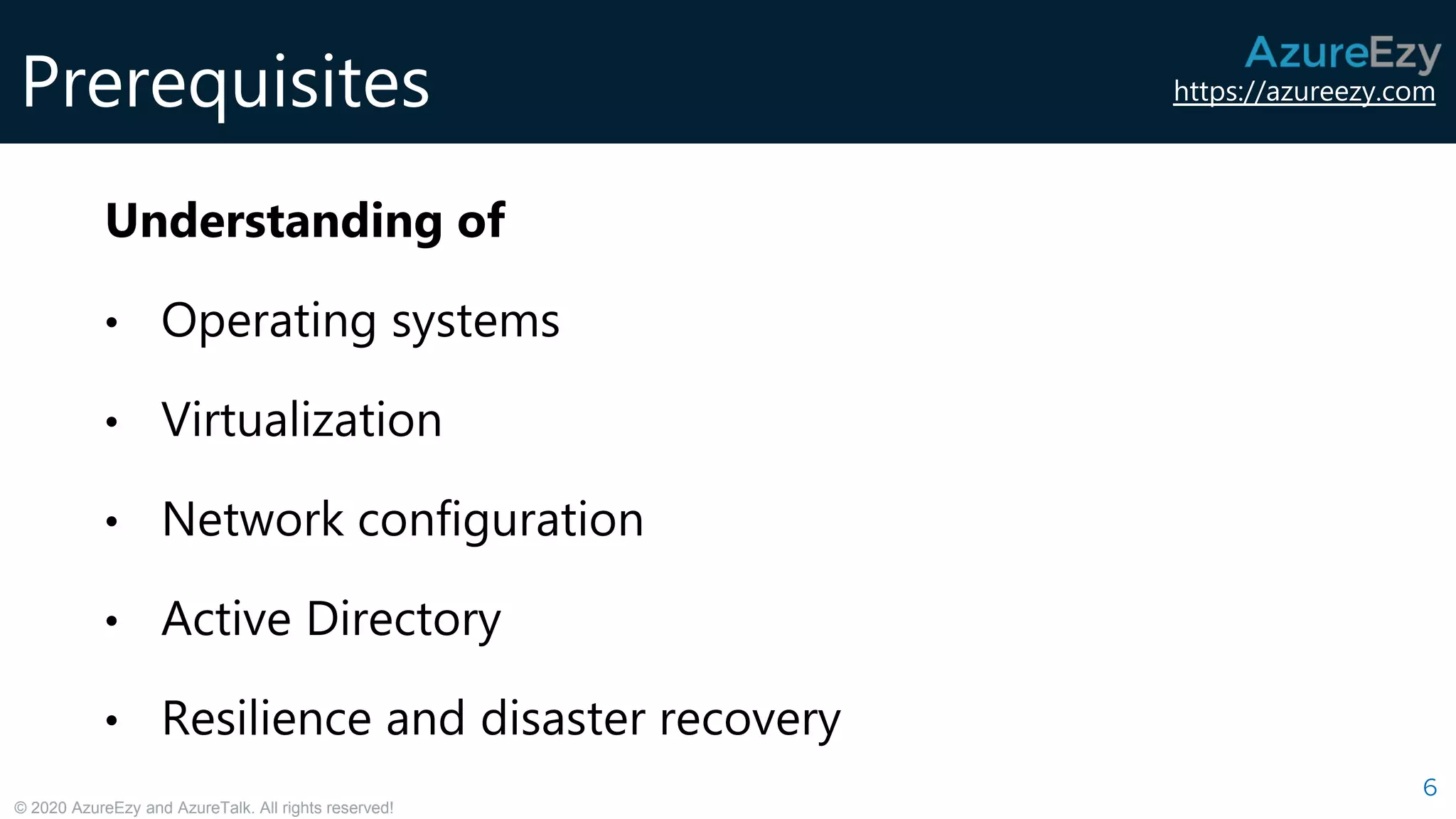

Prerequisites
6
Understanding of
• Operating systems
• Virtualization
• Network configuration
• Active Directory
• Resilience and disaster recovery

Virtual Machine Planning
7

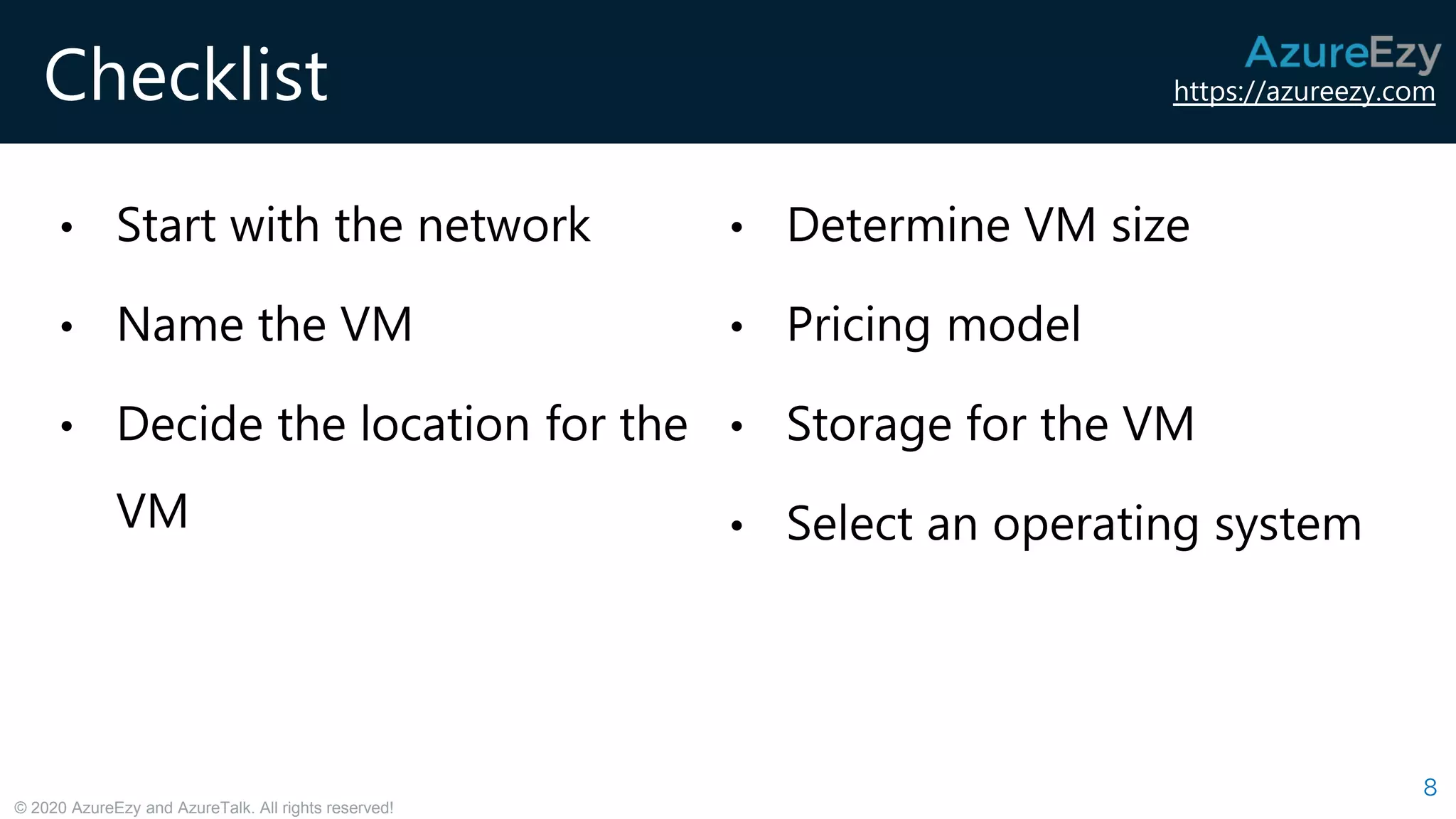

Checklist
8
• Start with the network
• Name the VM
• Decide the location for the
VM
• Determine VM size
• Pricing model
• Storage for the VM
• Select an operating system

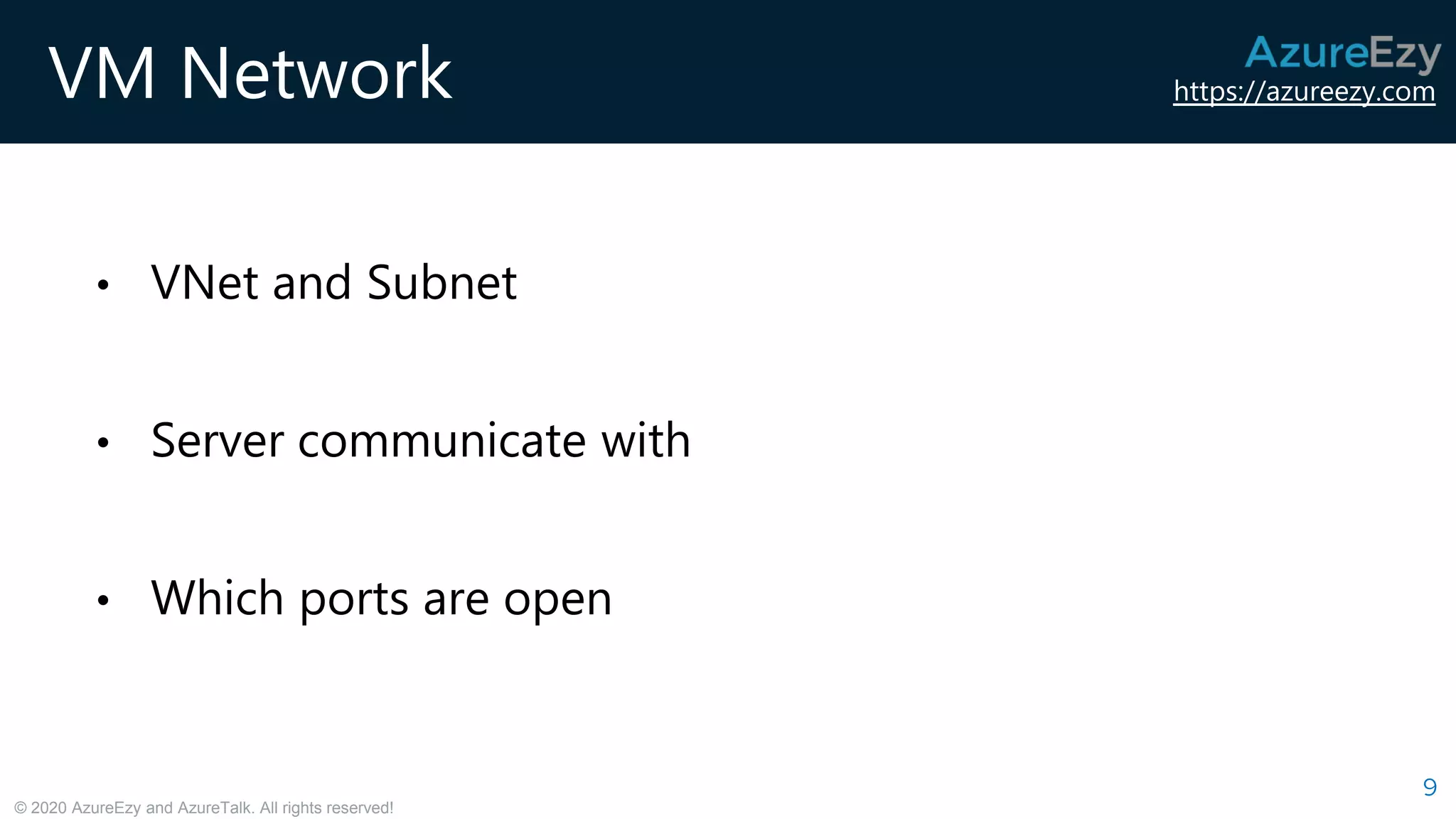

VM Network
9
• VNet and Subnet
• Server communicate with
• Which ports are open

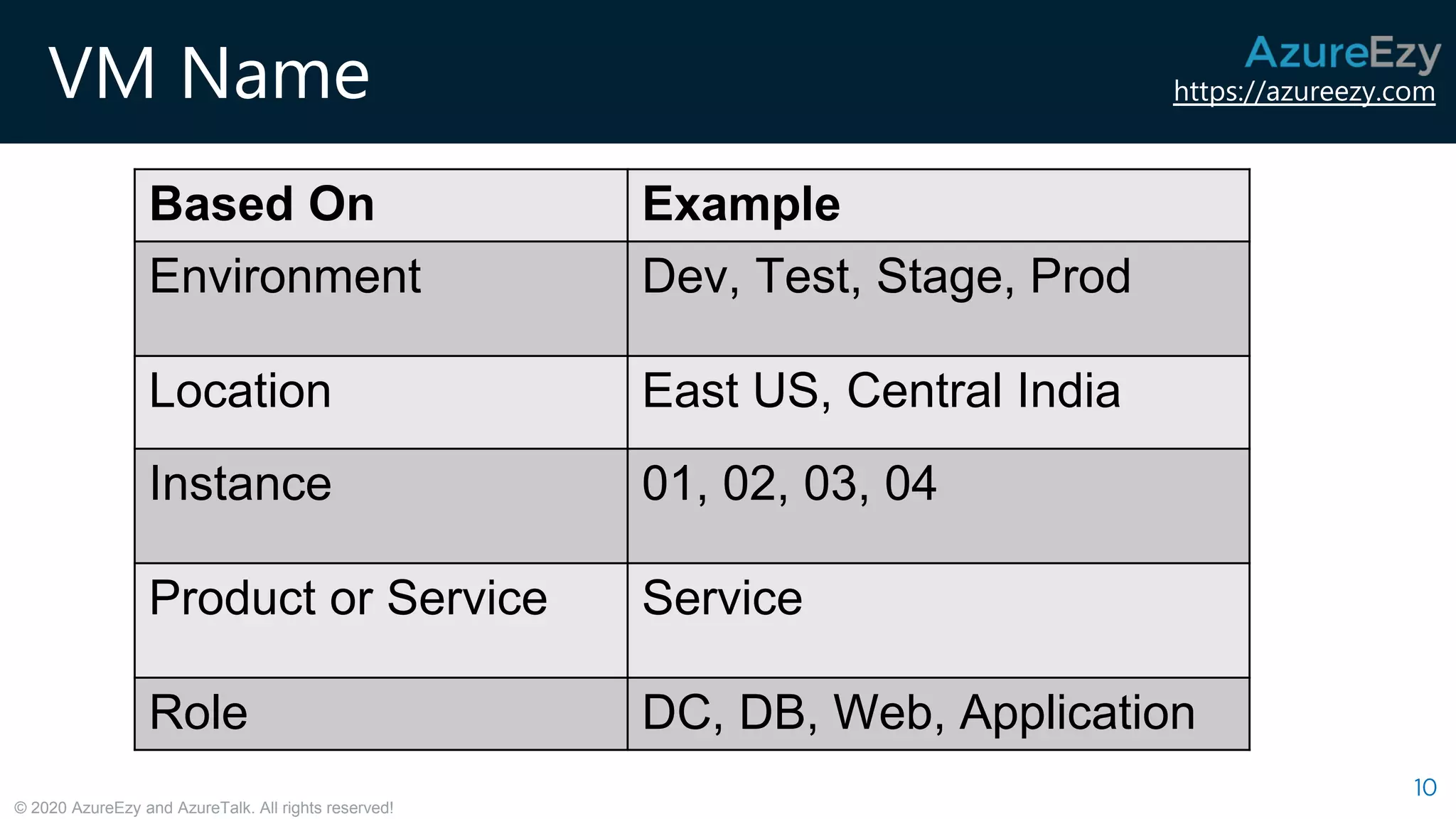

VM Name
10
Based On Example
Environment Dev, Test, Stage, Prod
Location East US, Central India
Instance 01, 02, 03, 04
Product or Service Service
Role DC, DB, Web, Application

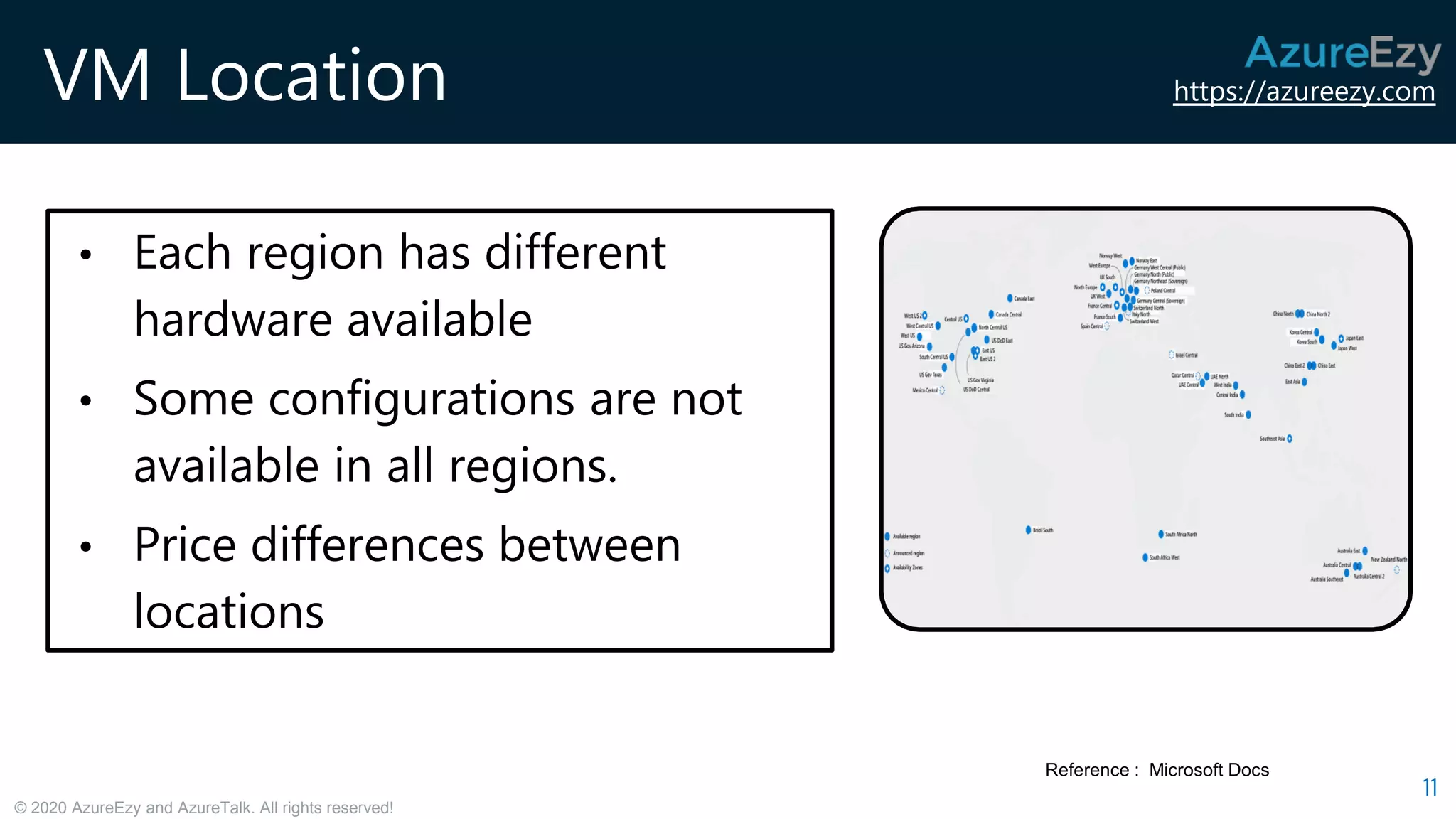

VM Location
11
Reference : Microsoft Docs
• Each region has different
hardware available
• Some configurations are not
available in all regions.
• Price differences between
locations

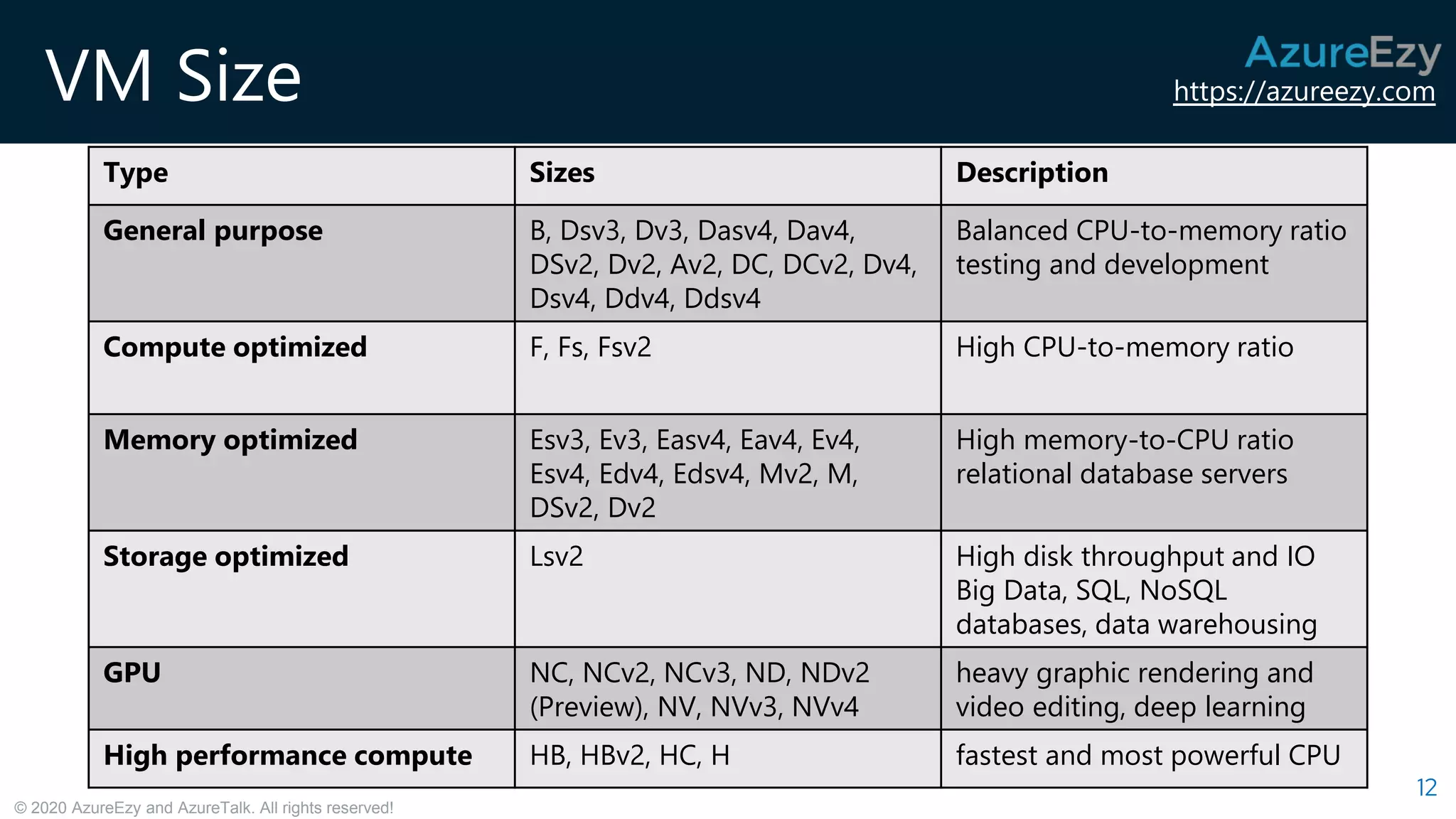

VM Size
12
Type Sizes Description
General purpose B, Dsv3, Dv3, Dasv4, Dav4,
DSv2, Dv2, Av2, DC, DCv2, Dv4,
Dsv4, Ddv4, Ddsv4
Balanced CPU-to-memory ratio
testing and development
Compute optimized F, Fs, Fsv2 High CPU-to-memory ratio
Memory optimized Esv3, Ev3, Easv4, Eav4, Ev4,
Esv4, Edv4, Edsv4, Mv2, M,
DSv2, Dv2
High memory-to-CPU ratio
relational database servers
Storage optimized Lsv2 High disk throughput and IO
Big Data, SQL, NoSQL
databases, data warehousing
GPU NC, NCv2, NCv3, ND, NDv2
(Preview), NV, NVv3, NVv4
heavy graphic rendering and
video editing, deep learning
High performance compute HB, HBv2, HC, H fastest and most powerful CPU

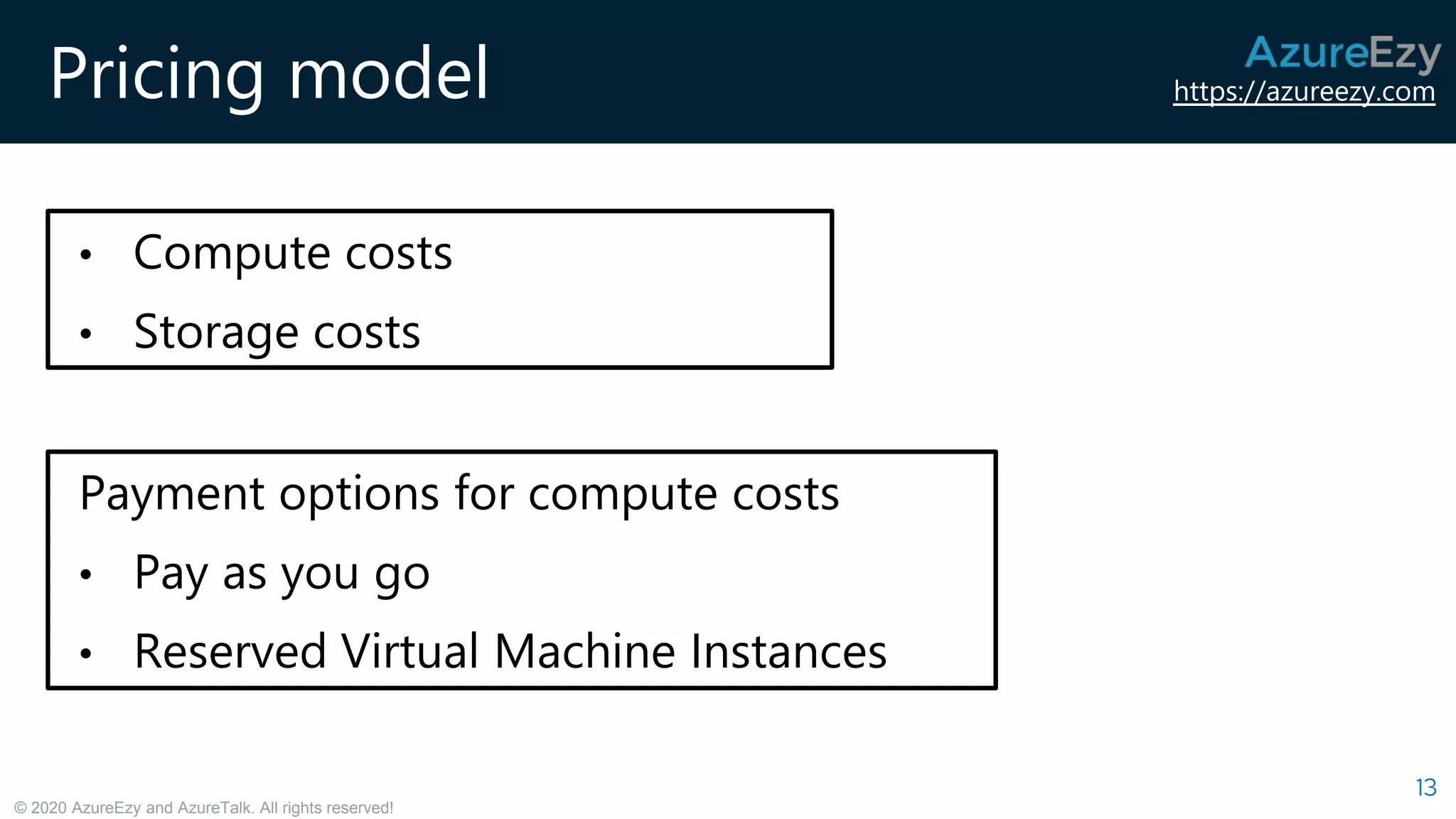

Pricing model
13
• Compute costs
• Storage costs
Payment options for compute costs
• Pay as you go
• Reserved Virtual Machine Instances

Azure VM Storage
14
• Standard
• Premium
Manage relationship between the
storage account and each VHD
• Unmanaged disks
• Managed disks

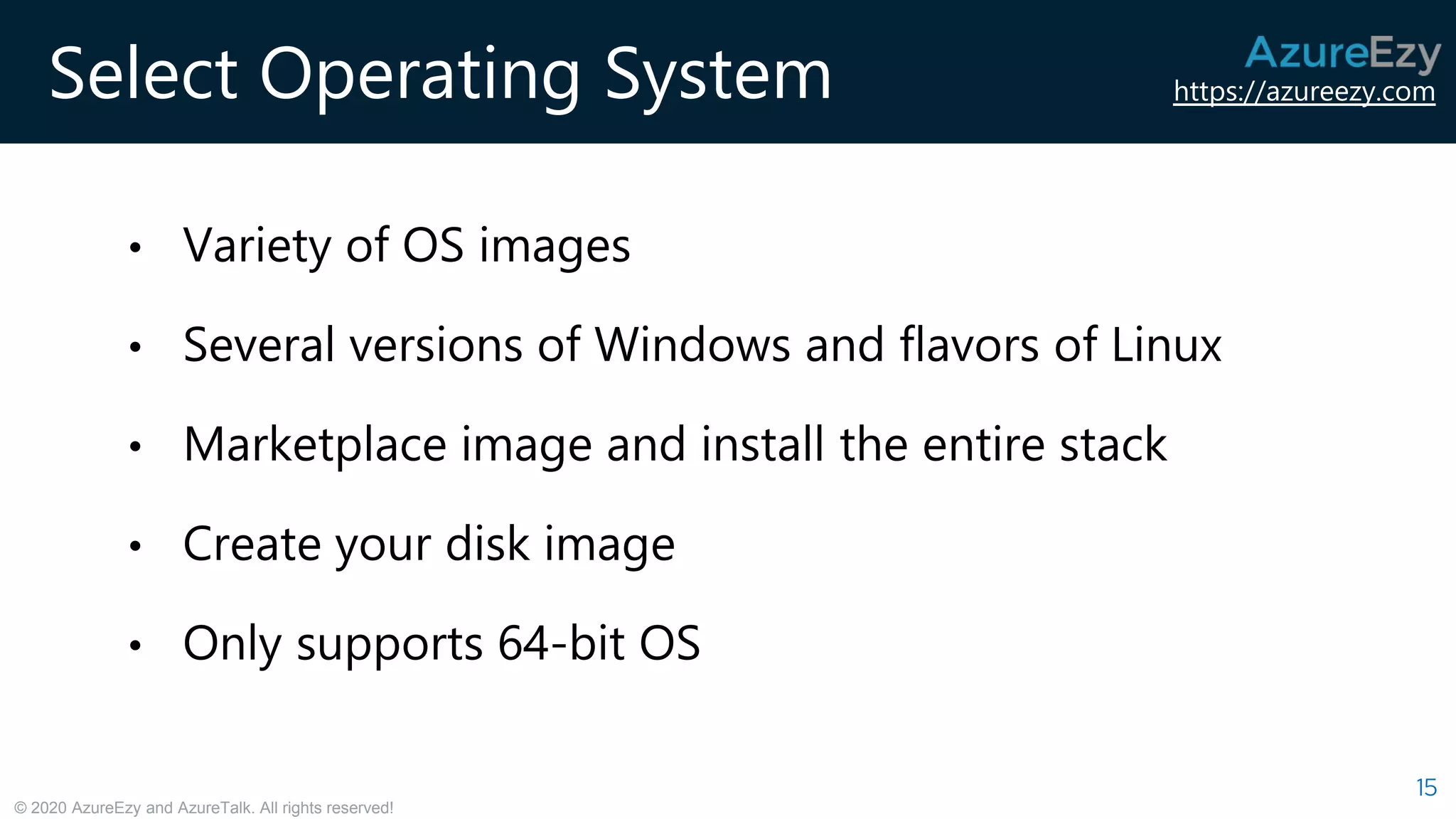

Select Operating System
15
• Variety of OS images
• Several versions of Windows and flavors of Linux
• Marketplace image and install the entire stack
• Create your disk image
• Only supports 64-bit OS

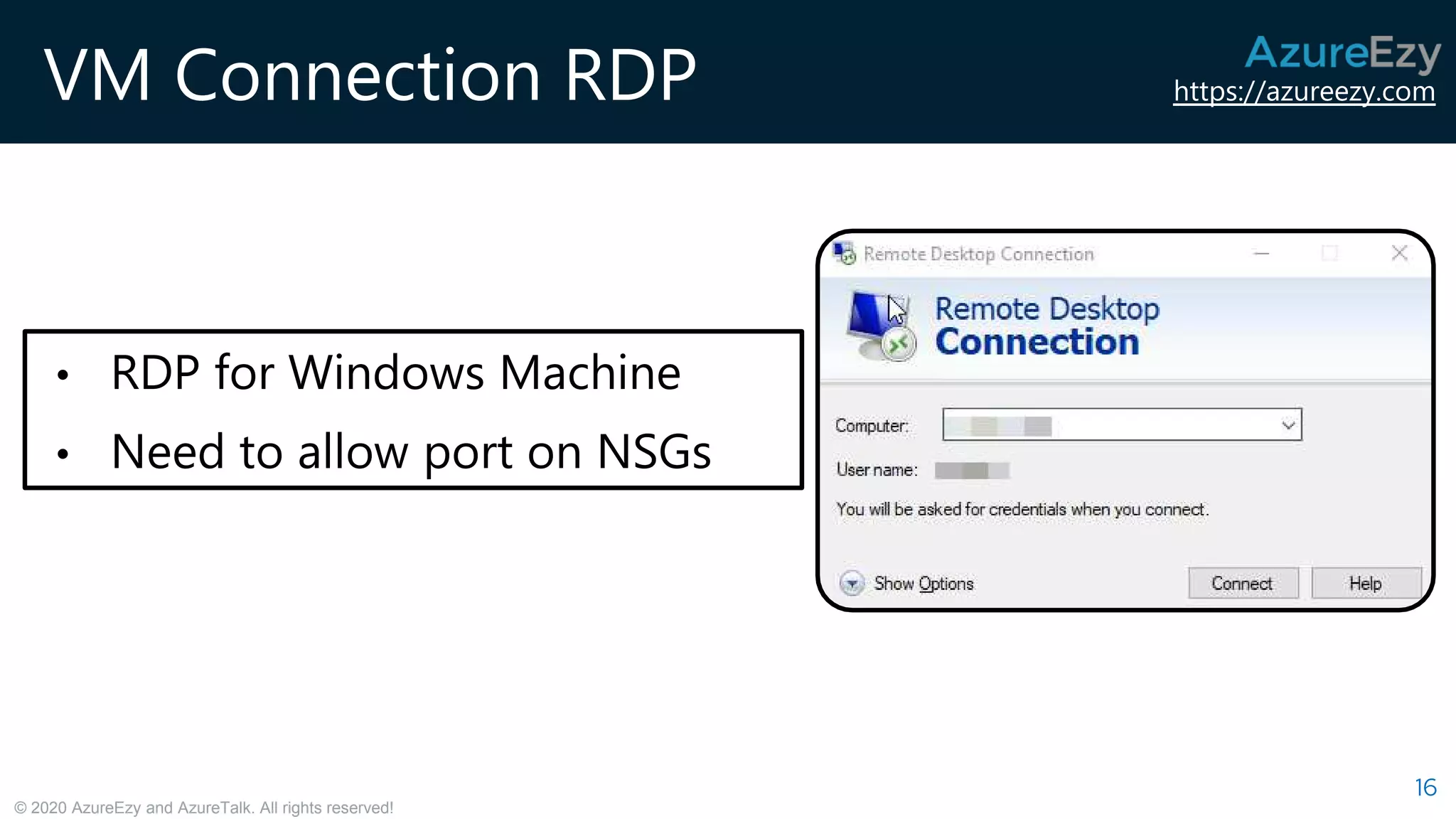

VM Connection RDP
16
• RDP for Windows Machine
• Need to allow port on NSGs

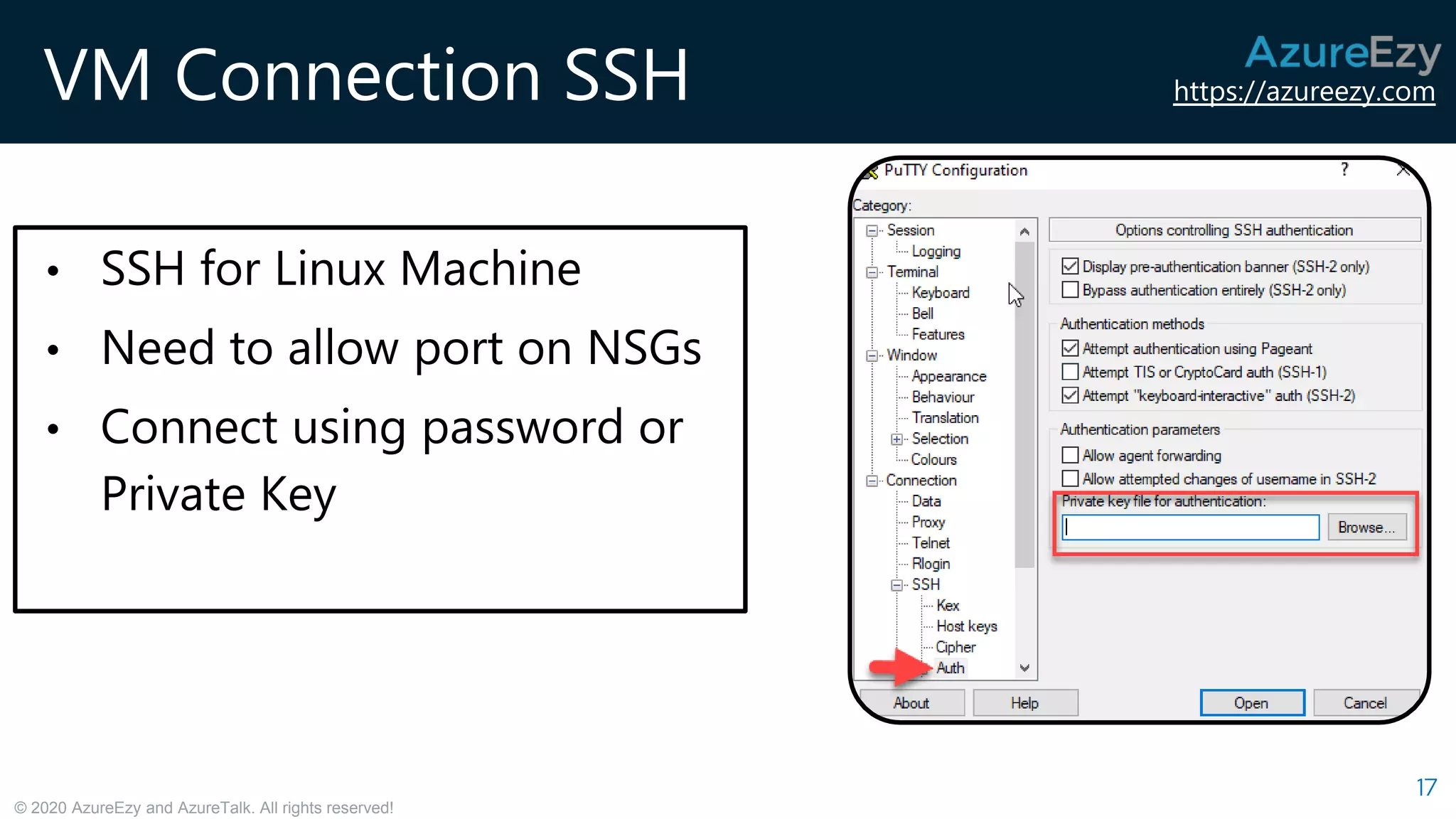

VM Connection SSH
17
• SSH for Linux Machine
• Need to allow port on NSGs
• Connect using password or
Private Key

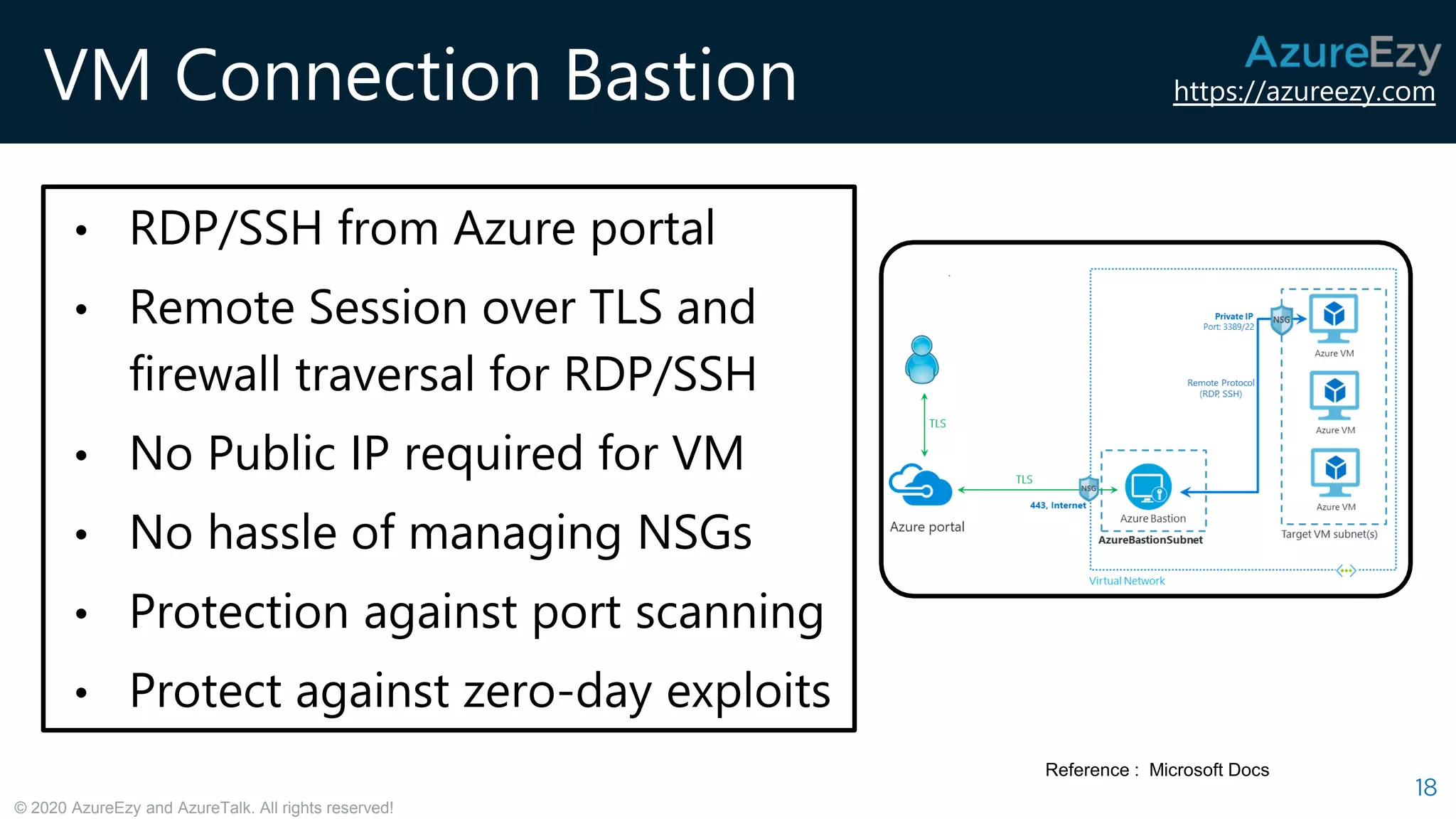

VM Connection Bastion
18
• RDP/SSH from Azure portal
• Remote Session over TLS and
firewall traversal for RDP/SSH
• No Public IP required for VM
• No hassle of managing NSGs
• Protection against port scanning
• Protect against zero-day exploits

Creating Virtual Machines

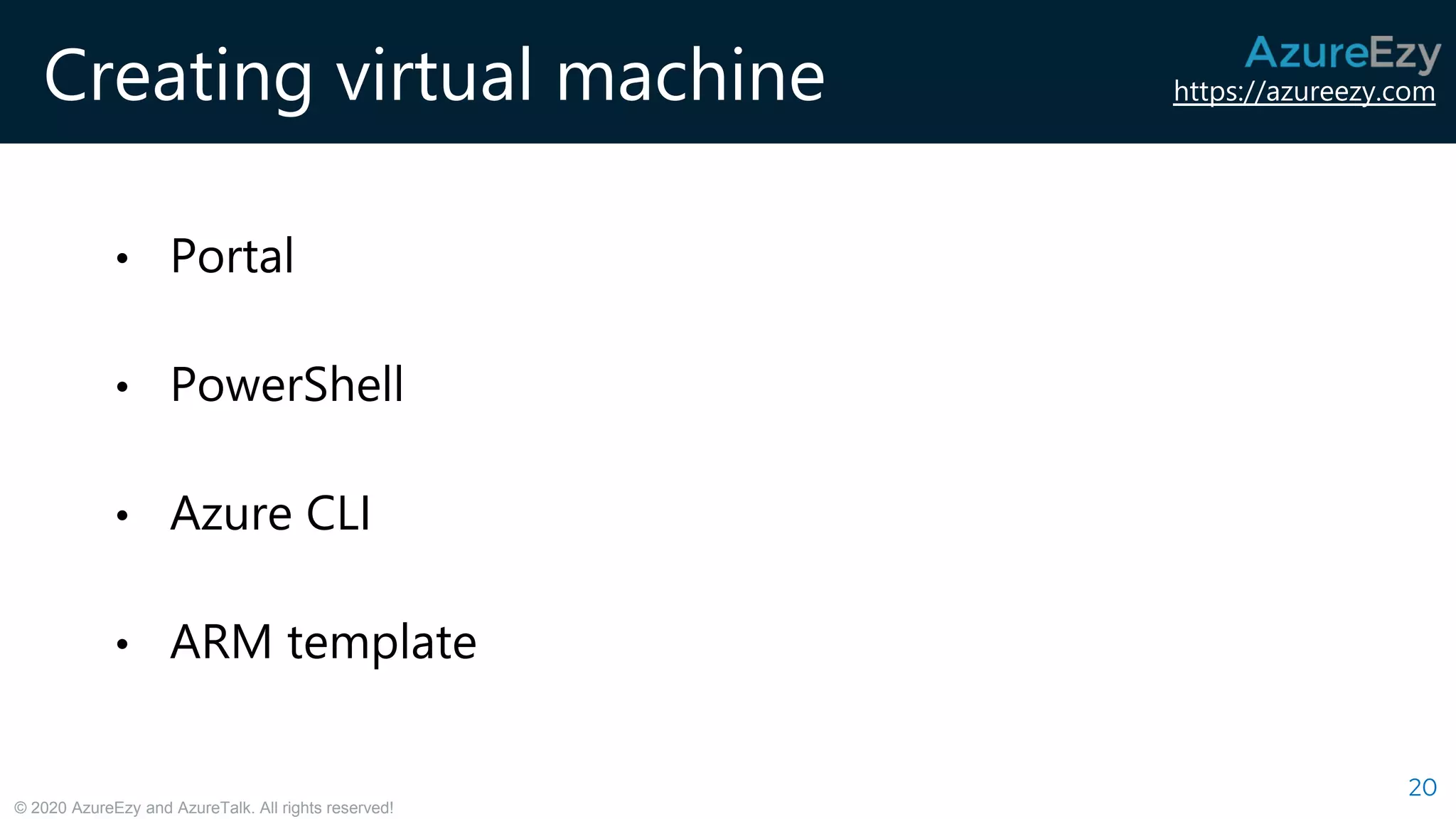

Creating virtual machine
20
• Portal
• PowerShell
• Azure CLI
• ARM template

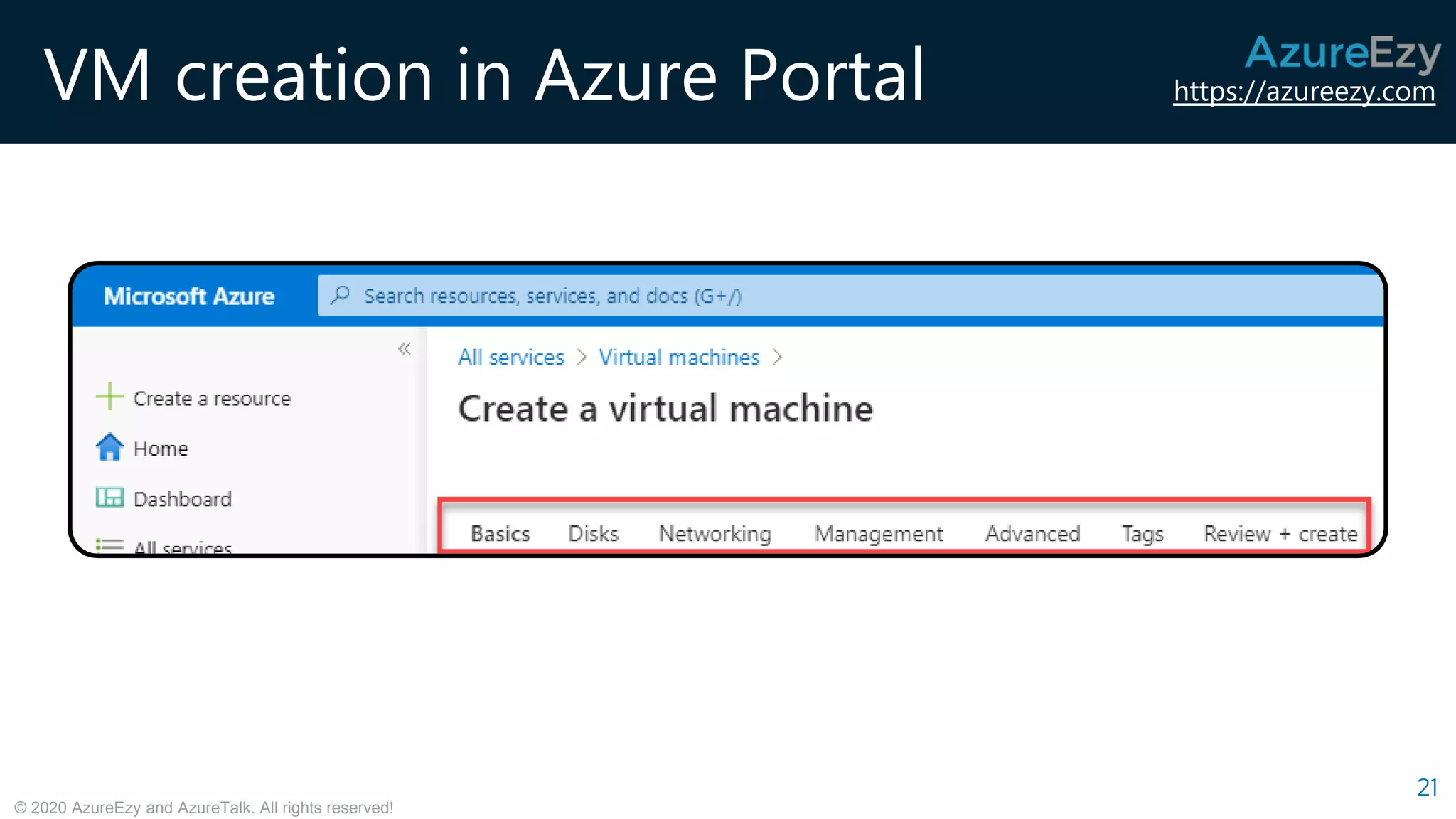

VM creation in Azure Portal
21

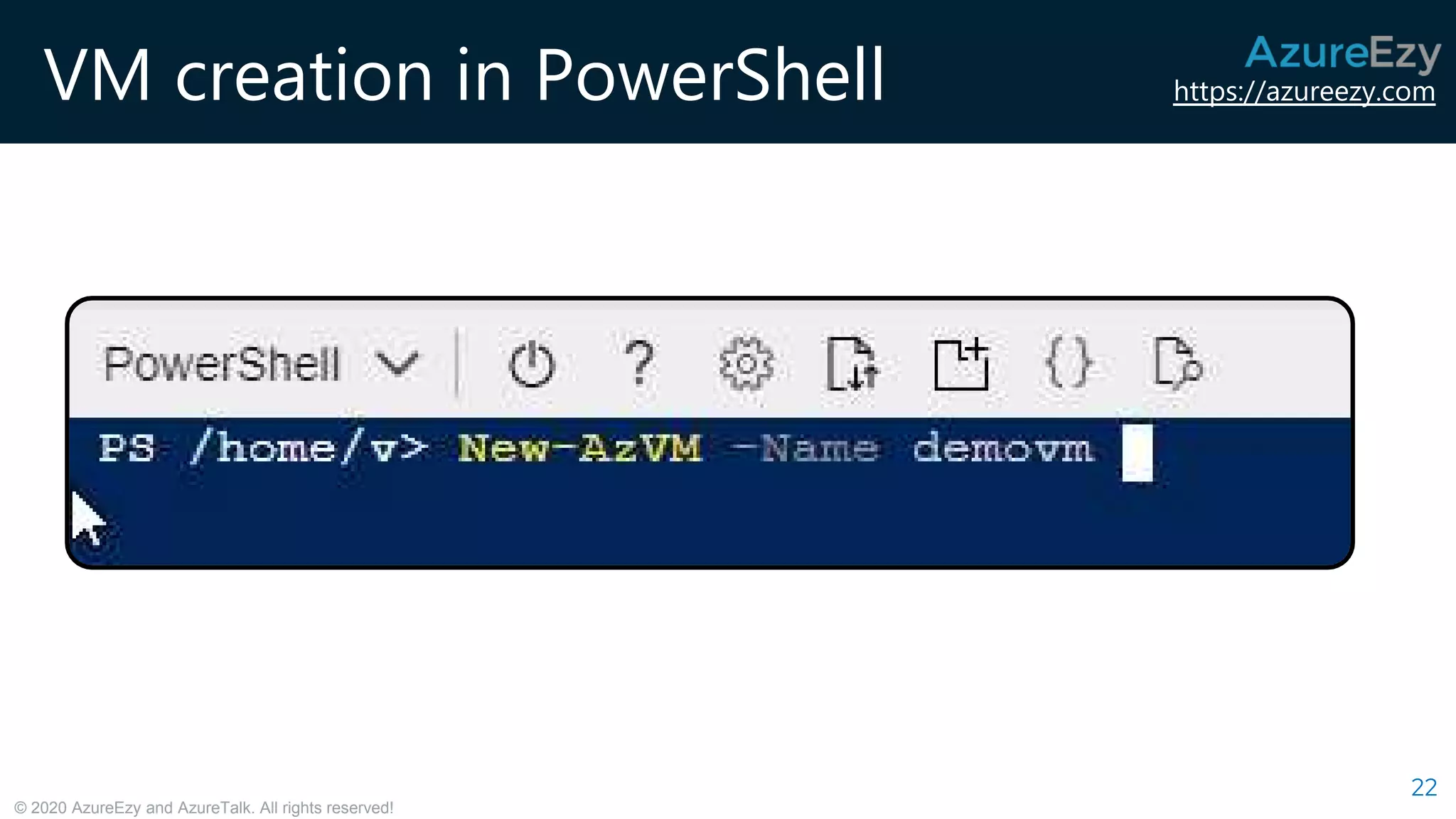

VM creation in PowerShell
22

VM creation in AzureCLI
23

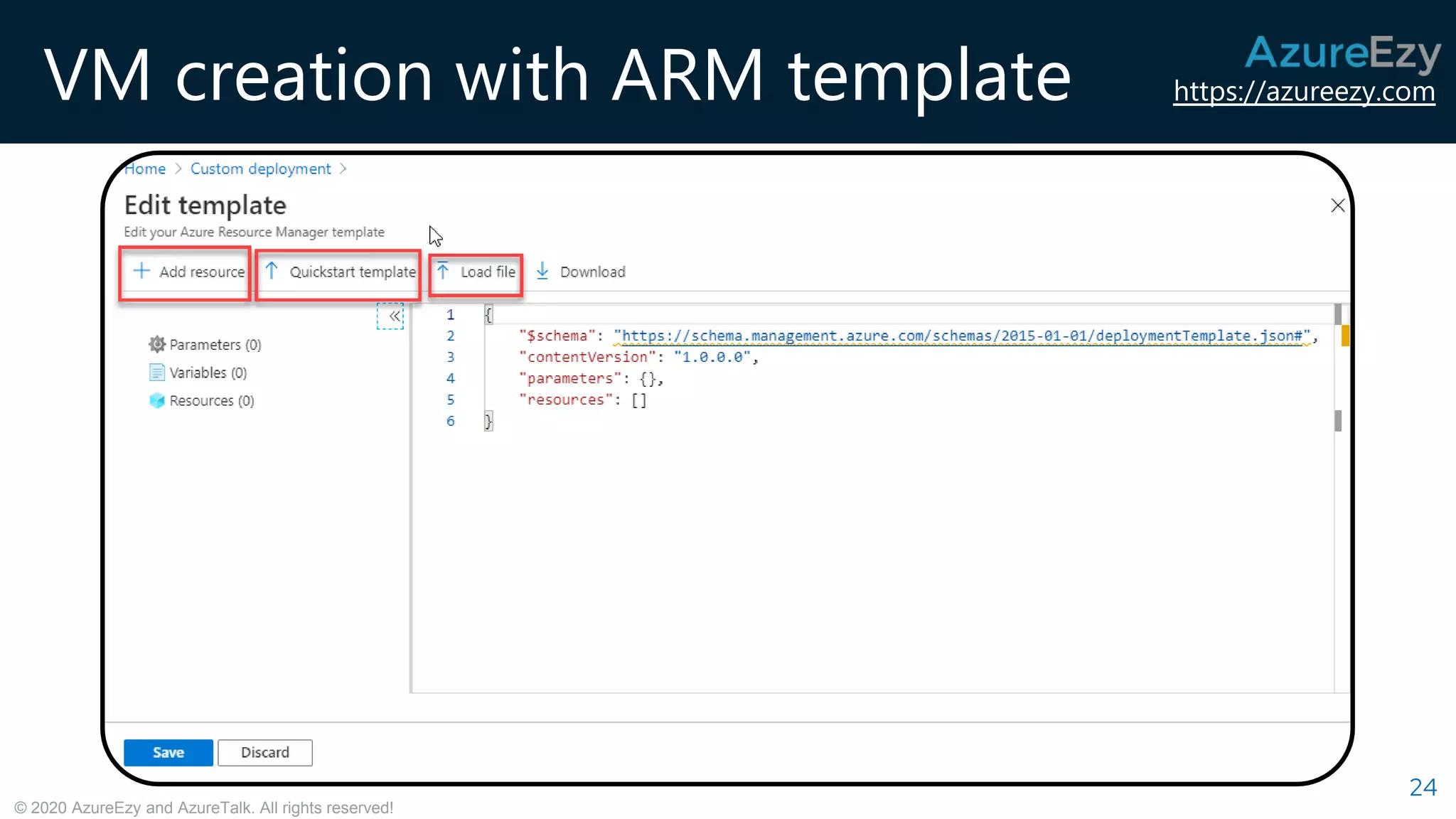

VM creation with ARM template
24

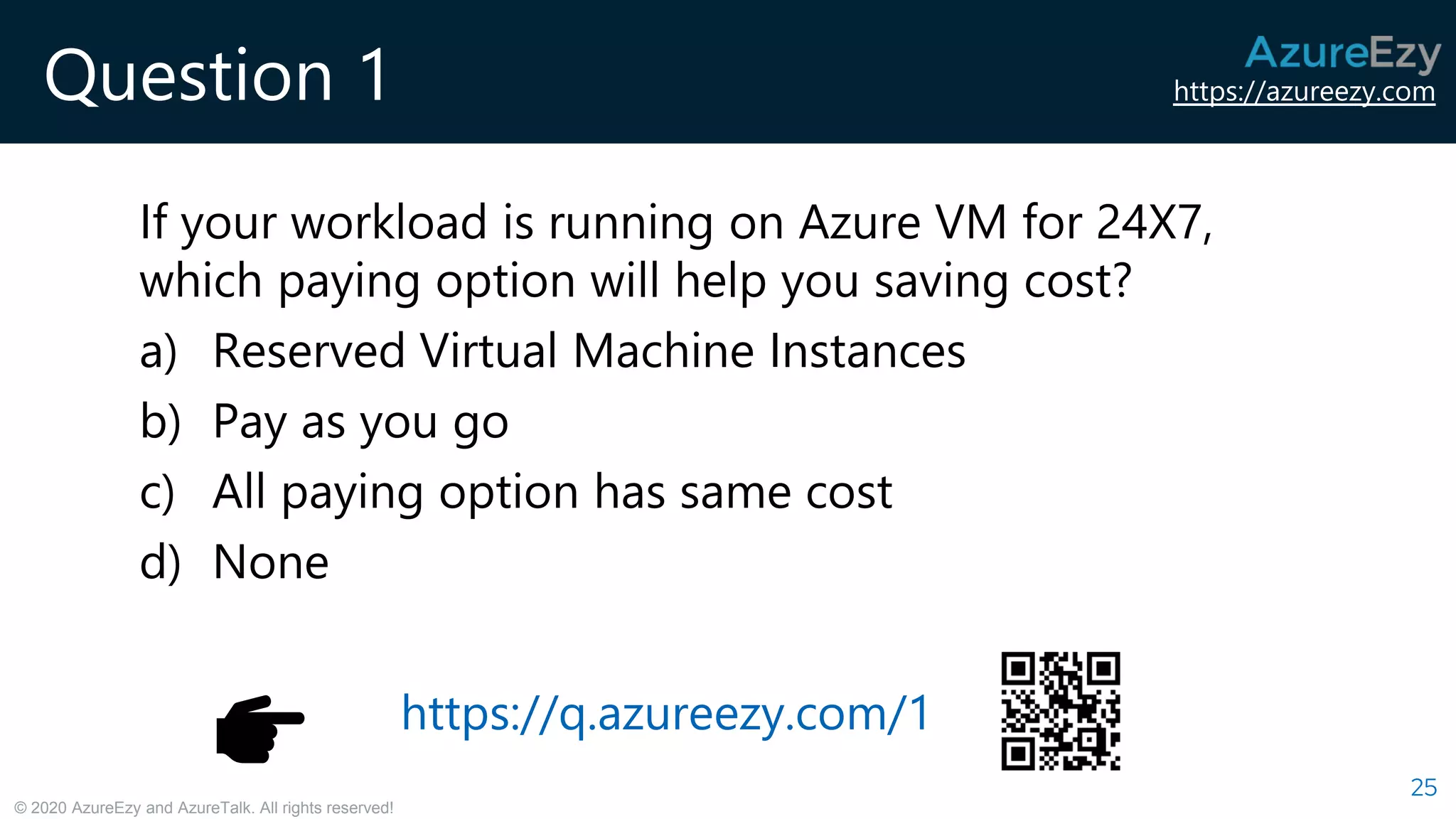

Question 1
If your workload is running on Azure VM for 24X7,
which paying option will help you saving cost?
a) Reserved Virtual Machine Instances
b) Pay as you go
c) All paying option has same cost
d) None
25
https://q.azureezy.com/1

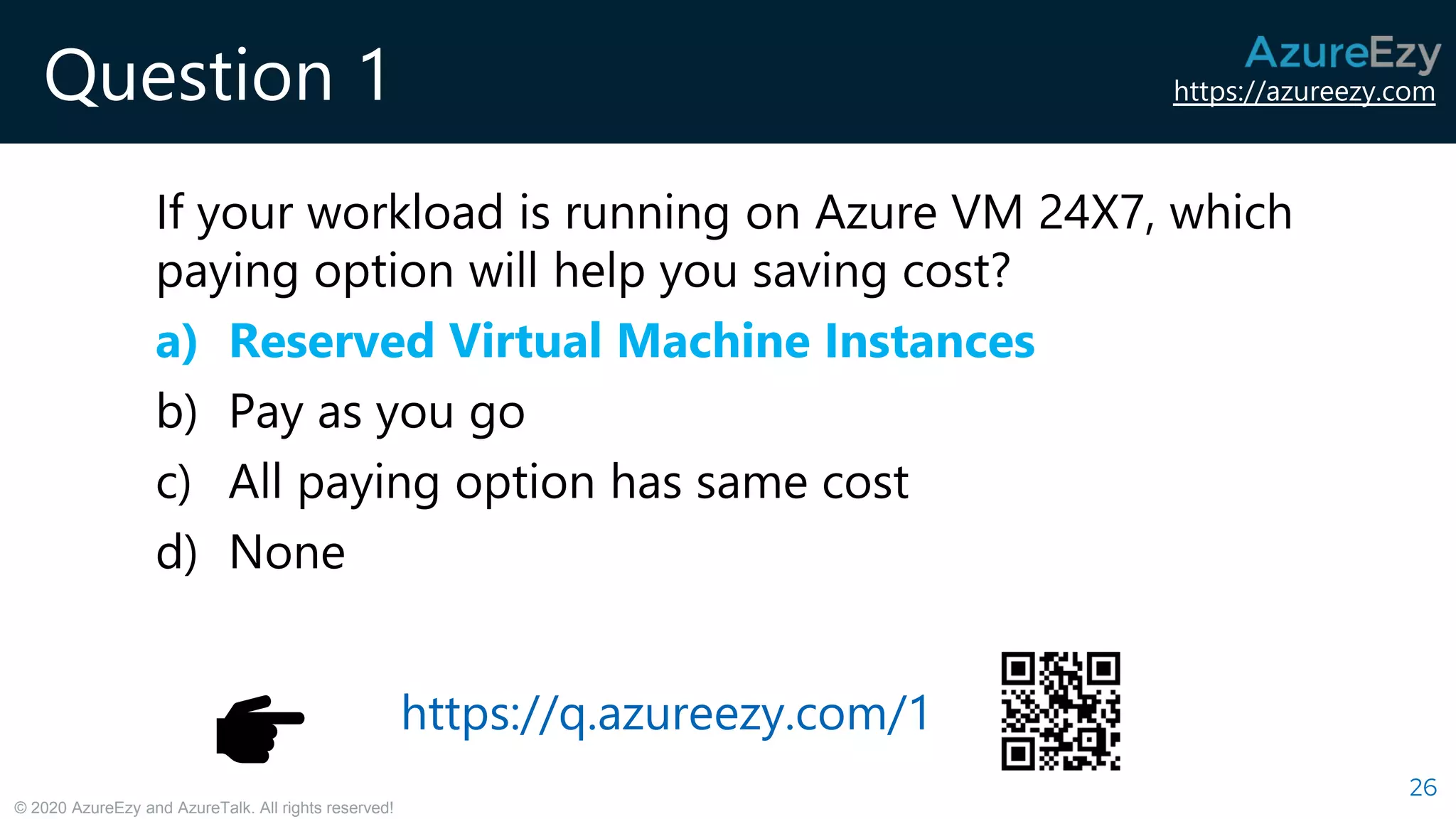

Question 1
If your workload is running on Azure VM 24X7, which
paying option will help you saving cost?
a) Reserved Virtual Machine Instances
b) Pay as you go
c) All paying option has same cost
d) None
26

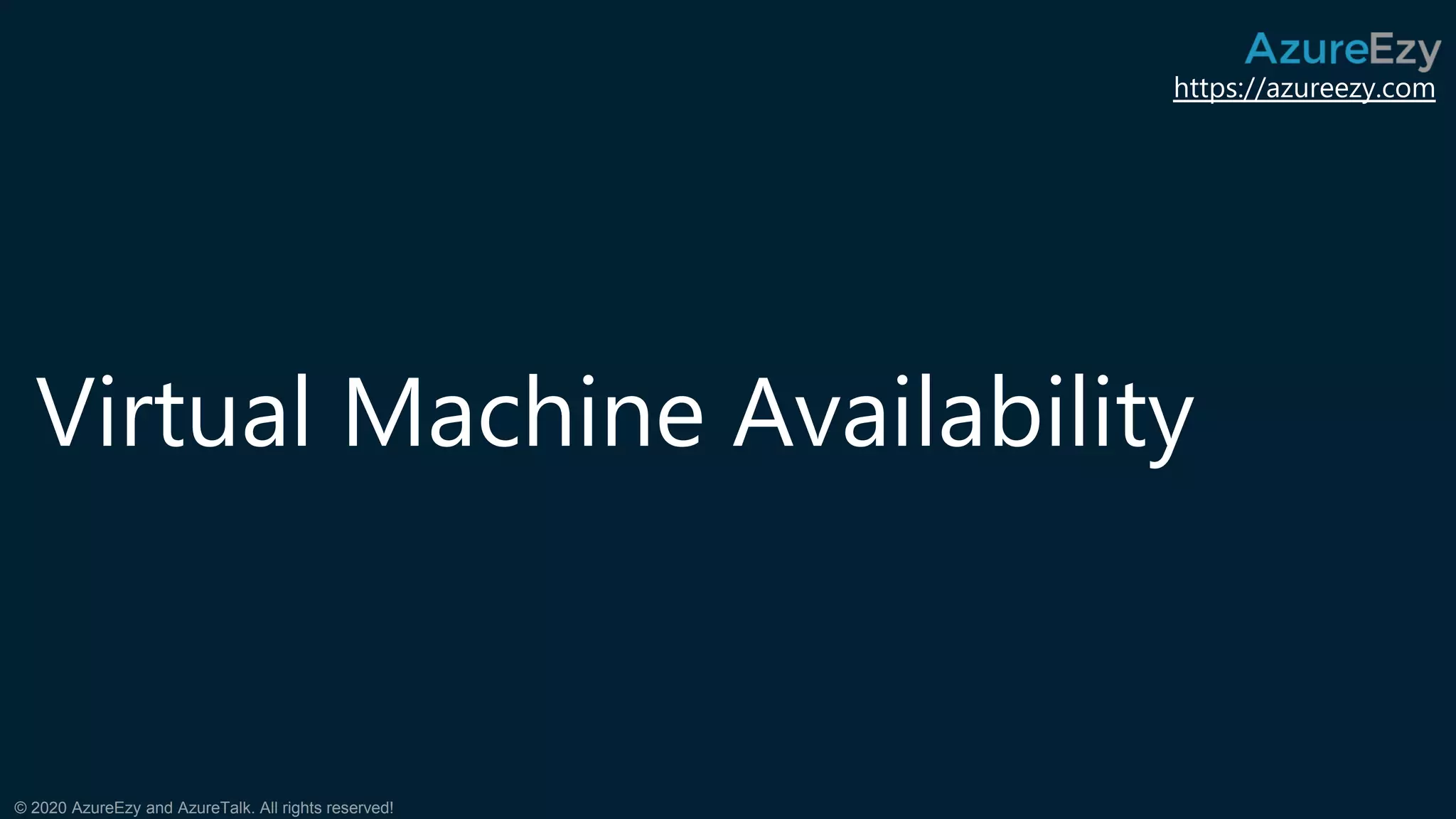

Virtual Machine Availability

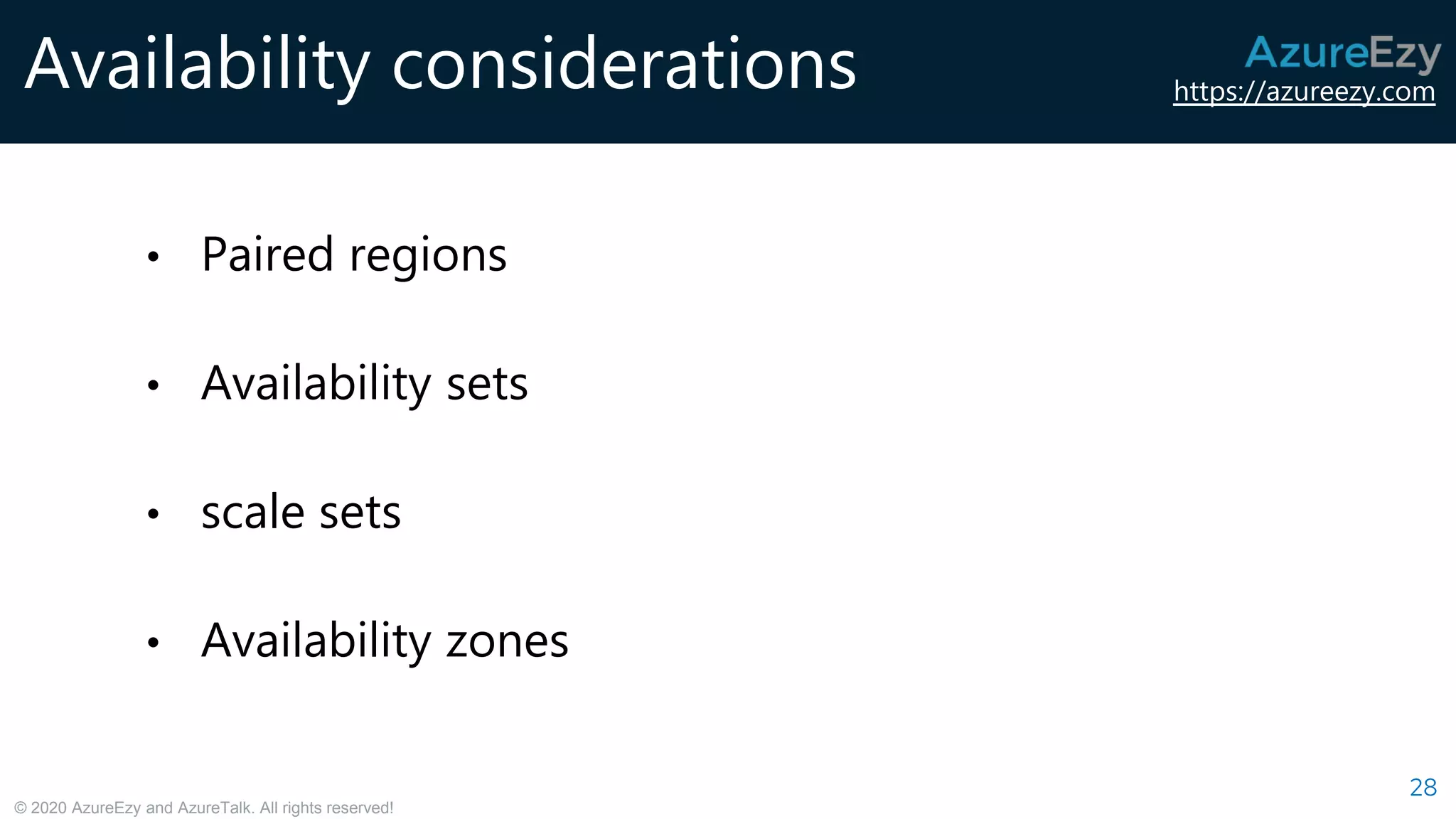

Availability considerations
28
• Paired regions
• Availability sets
• scale sets
• Availability zones

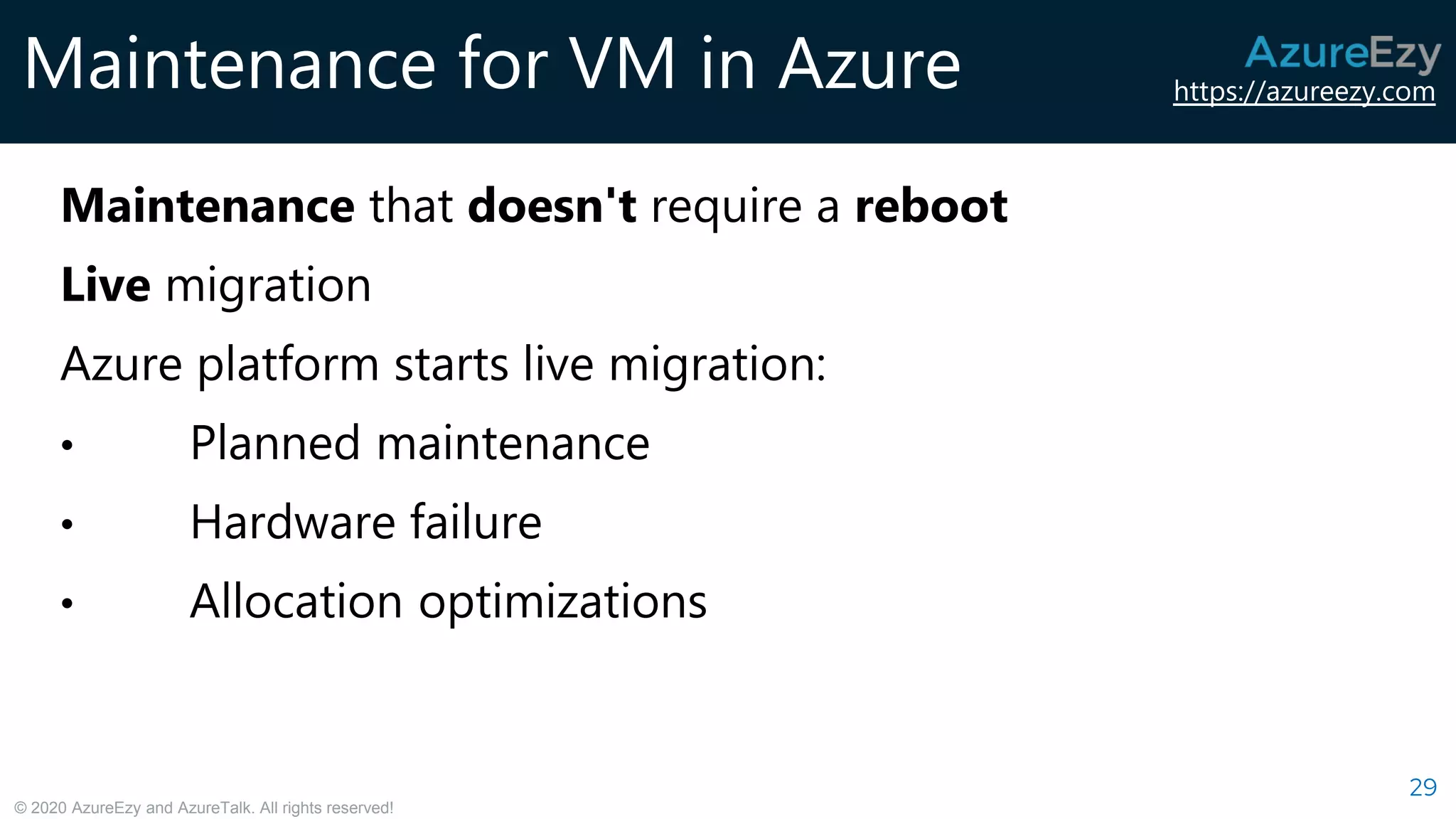

Maintenance for VM in Azure
29
Maintenance that doesn't require a reboot
Live migration
Azure platform starts live migration:
• Planned maintenance
• Hardware failure
• Allocation optimizations

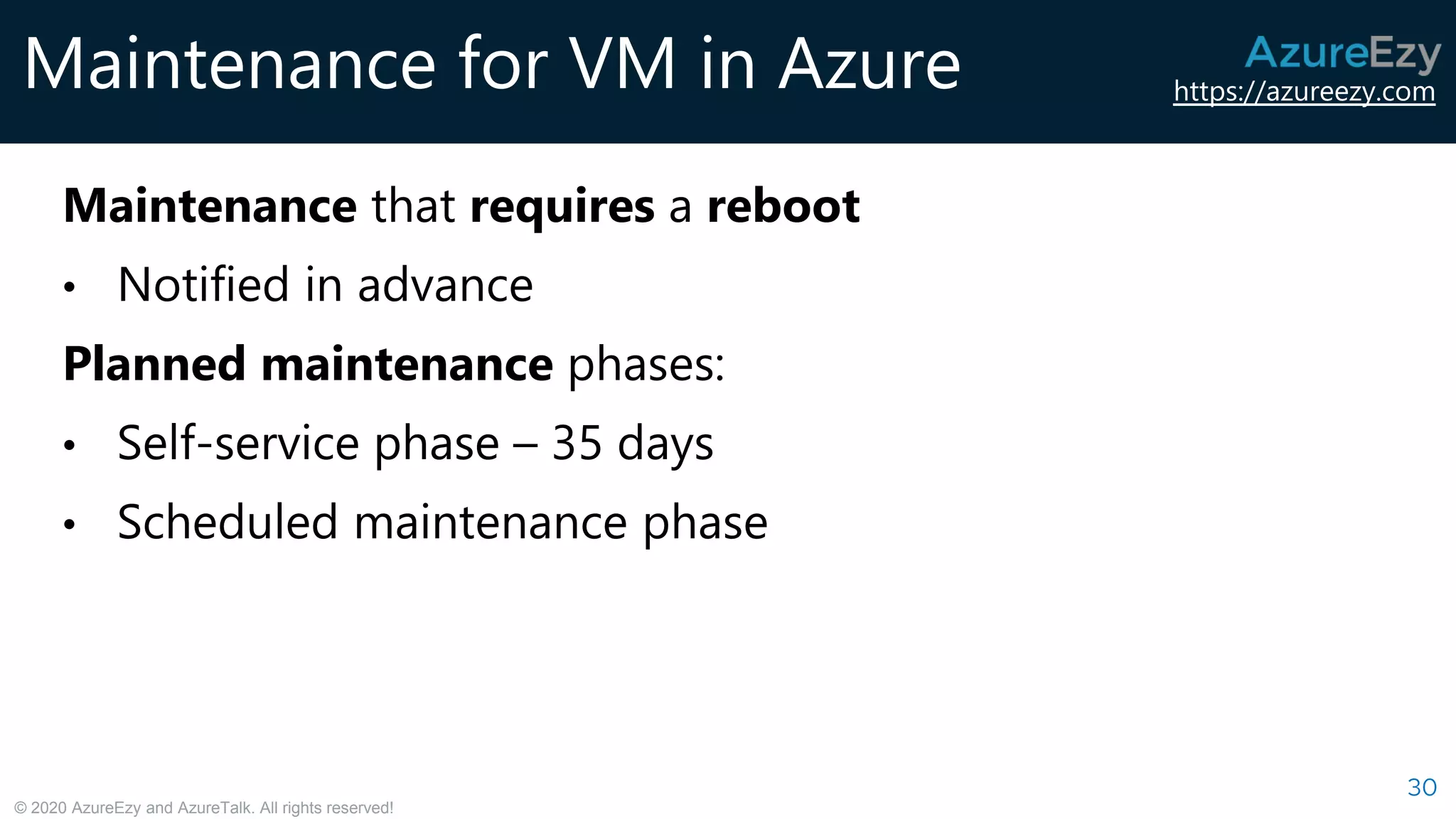

Maintenance for VM in Azure
30
Maintenance that requires a reboot
• Notified in advance
Planned maintenance phases:
• Self-service phase – 35 days
• Scheduled maintenance phase

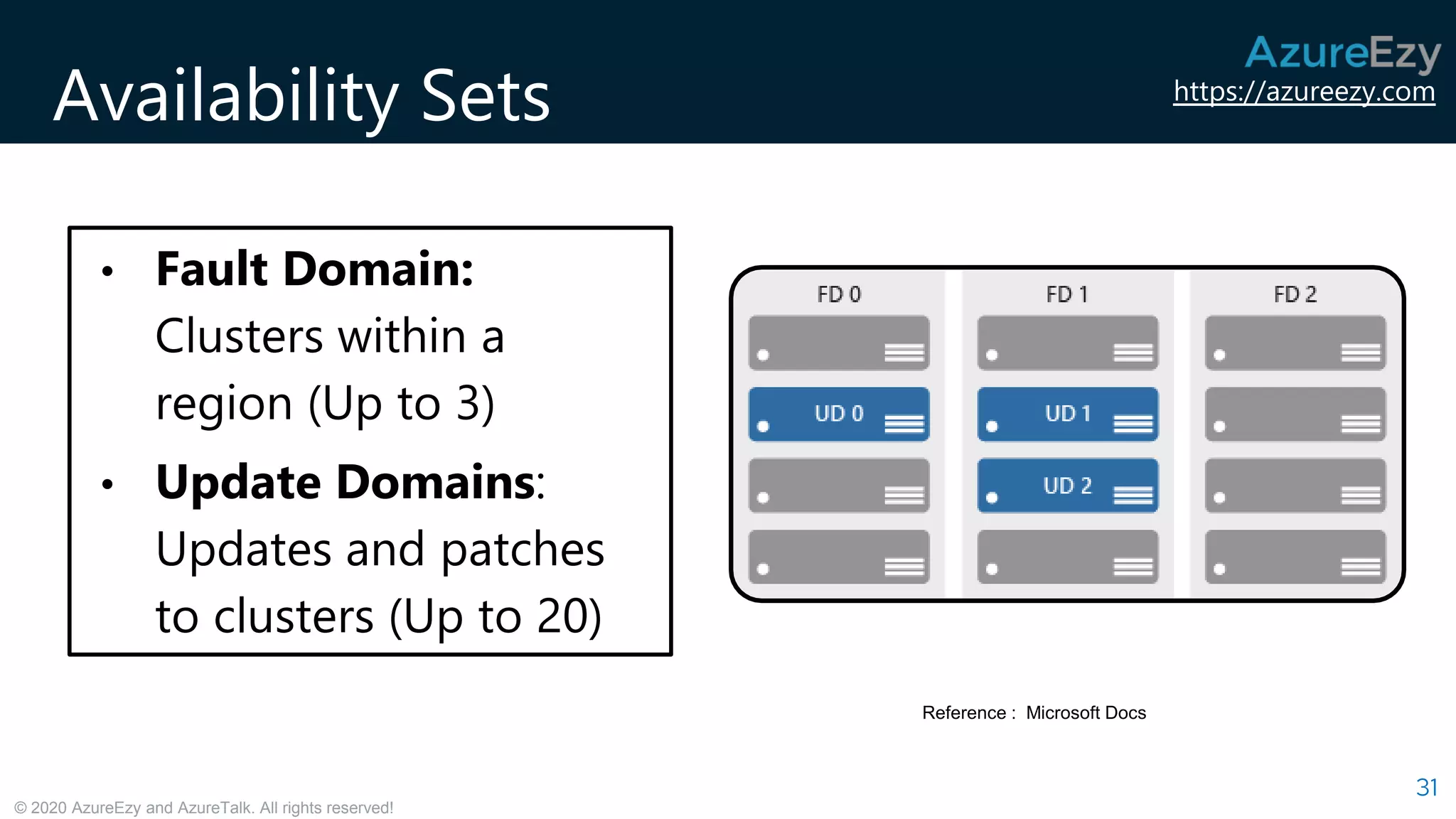

Availability Sets
31
• Fault Domain:
Clusters within a
region (Up to 3)
• Update Domains:
Updates and patches
to clusters (Up to 20)

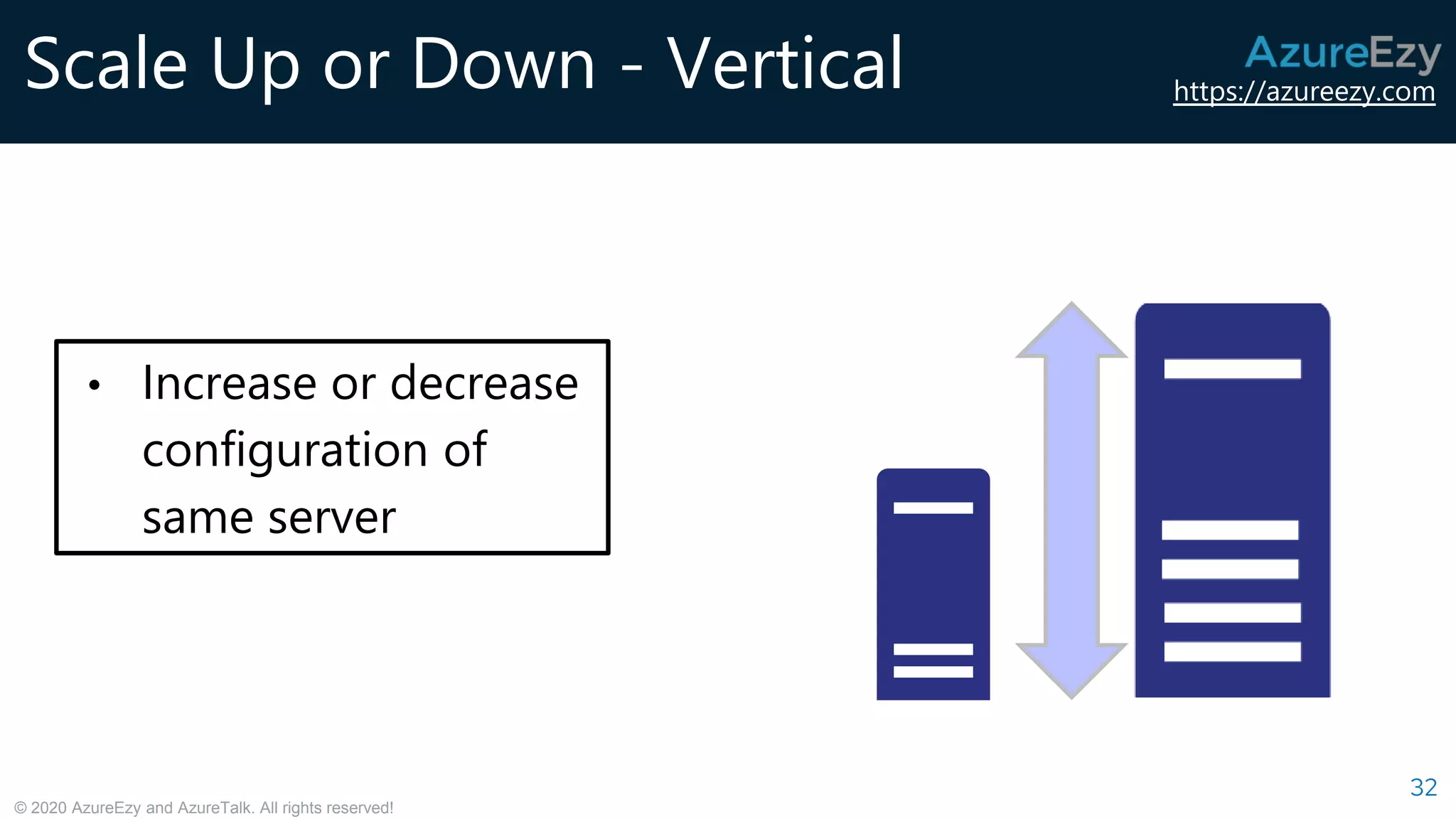

Scale Up or Down - Vertical
32
• Increase or decrease
configuration of
same server

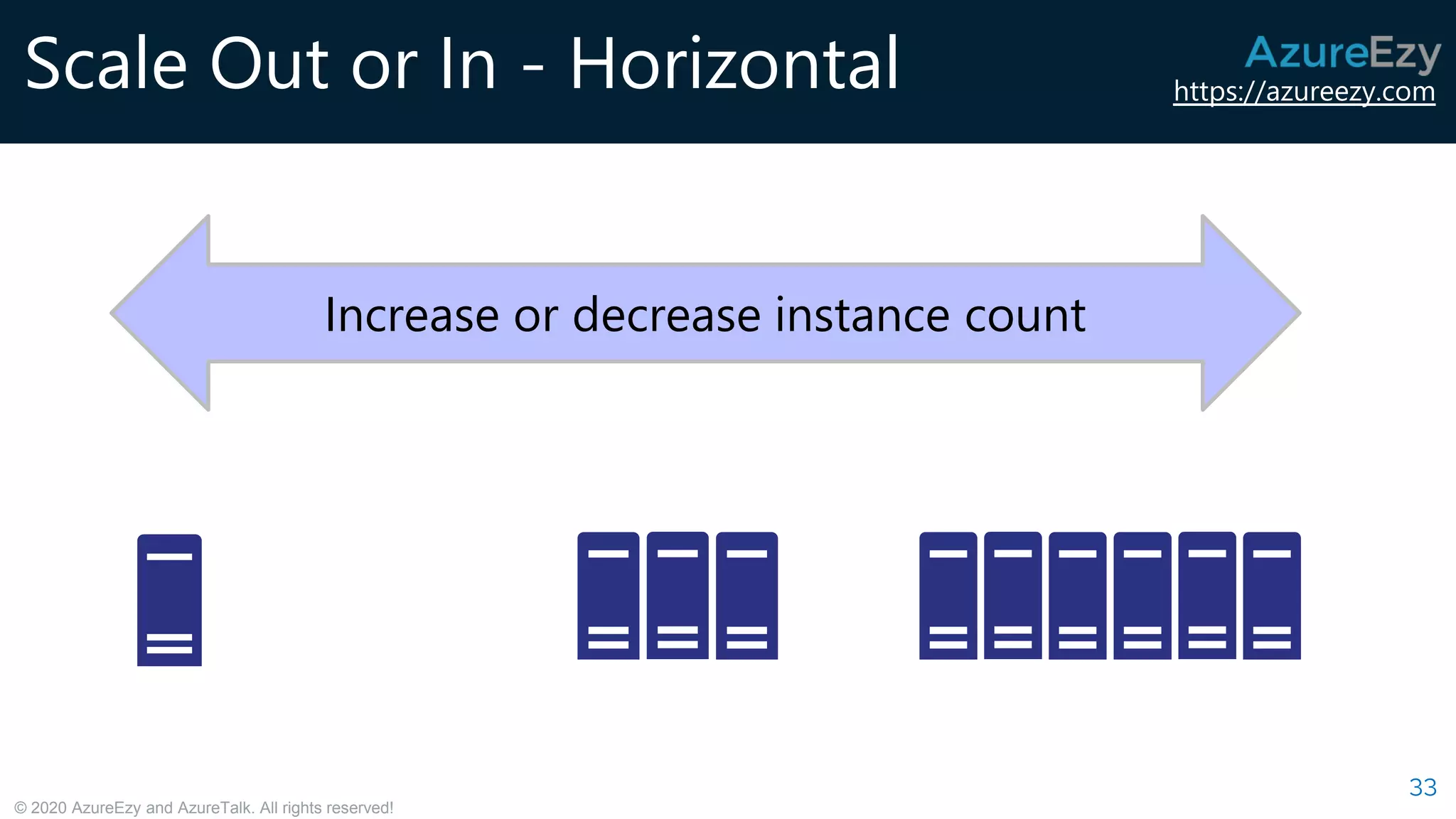

Scale Out or In - Horizontal
33
Increase or decrease instance count

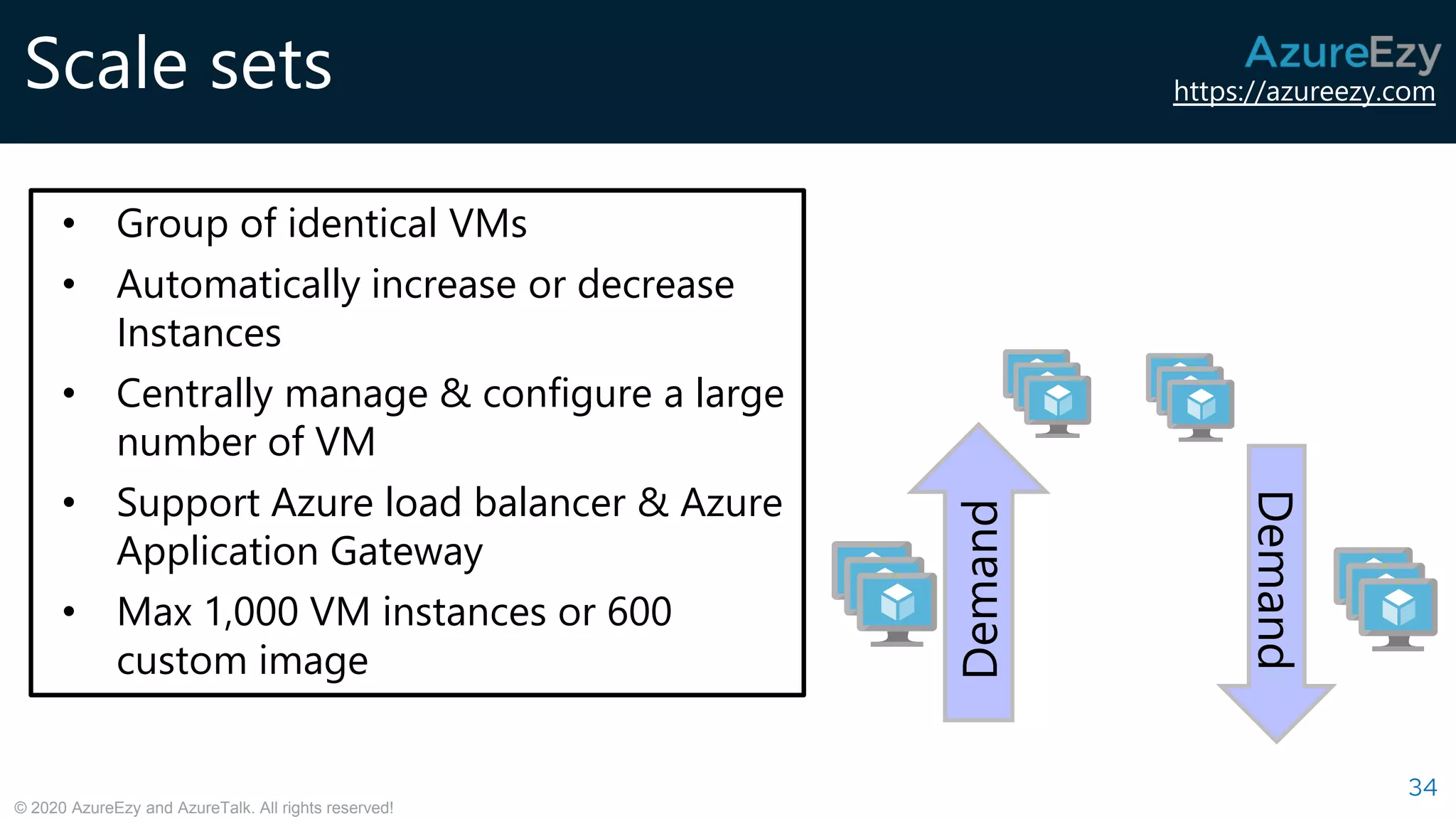

Scale sets
34
• Group of identical VMs
• Automatically increase or decrease
Instances
• Centrally manage & configure a large
number of VM
• Support Azure load balancer & Azure
Application Gateway
• Max 1,000 VM instances or 600
custom image
Demand
Demand

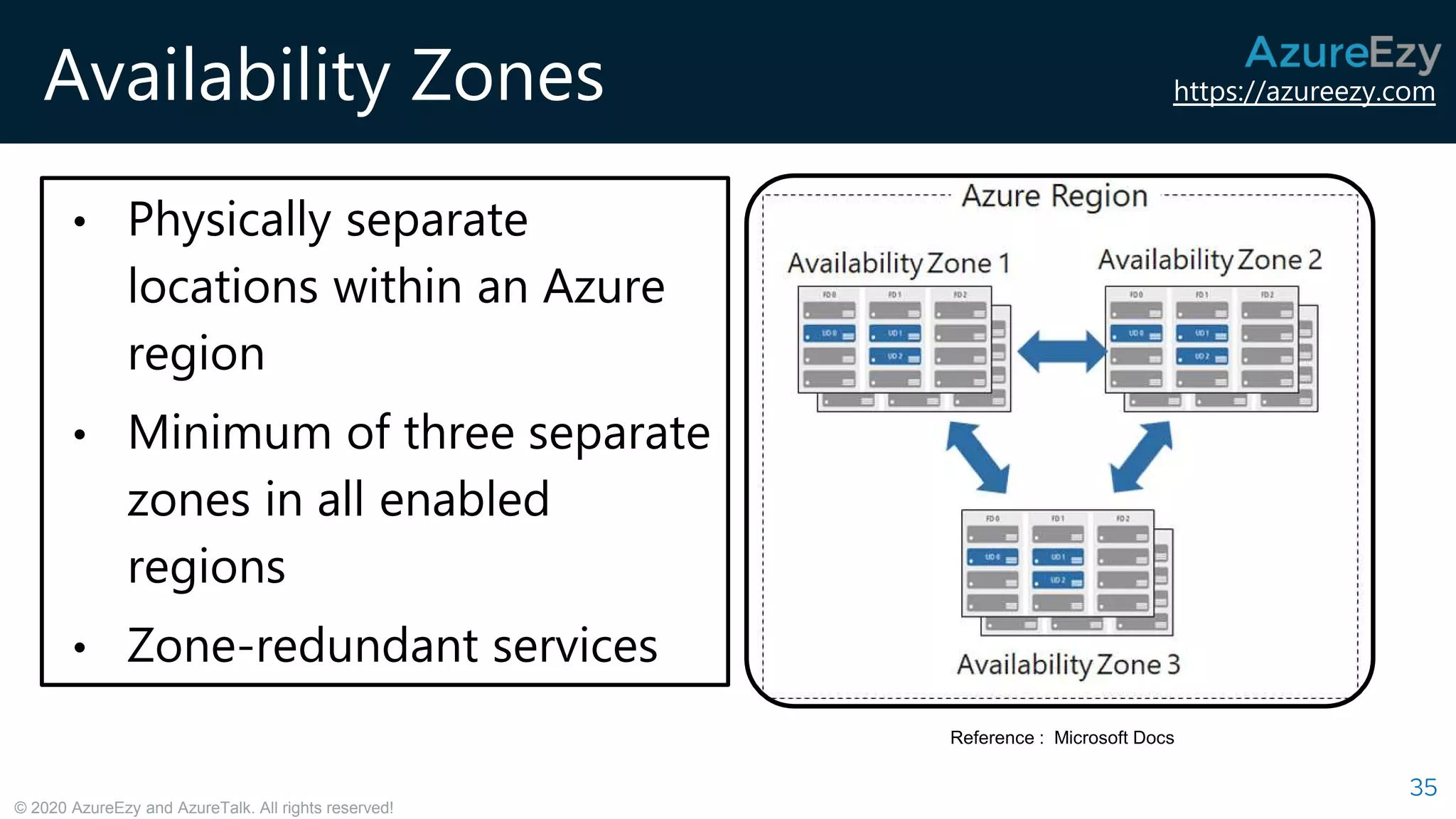

Availability Zones
35
• Physically separate
locations within an Azure
region
• Minimum of three separate
zones in all enabled
regions
• Zone-redundant services

Question 2
For Virtual machine Scale Set, Scale Out and Scale Up
are same things.
a) True
b) False
36

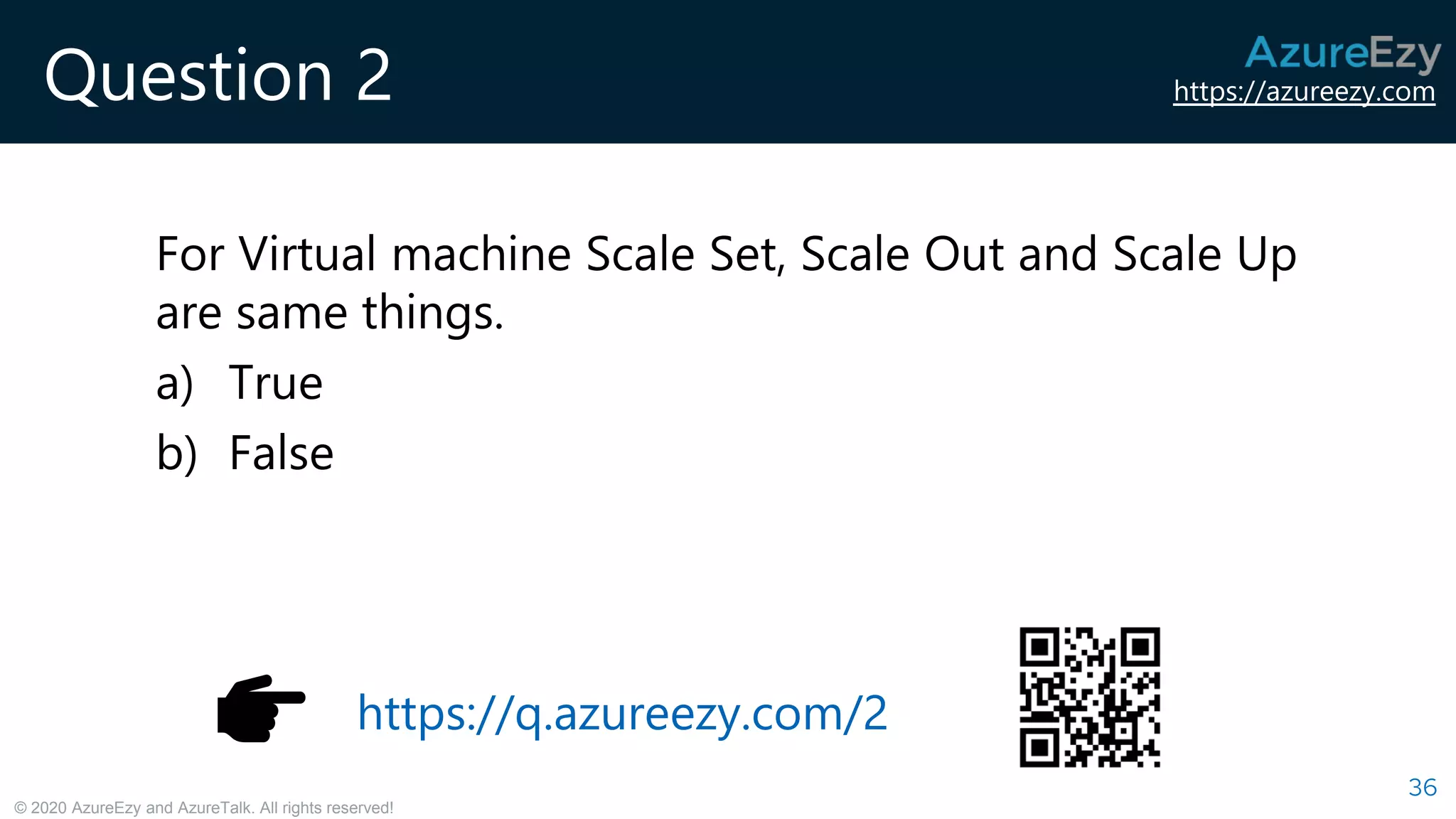

Question 2
For Virtual machine Scale Set, Scale Out and Scale Up
are same things.
a) True
b) False
37

Question 3
Deploying VM in Availability zone will provide
redundancy in case of datacenter failure ?
a) True
b) False
38

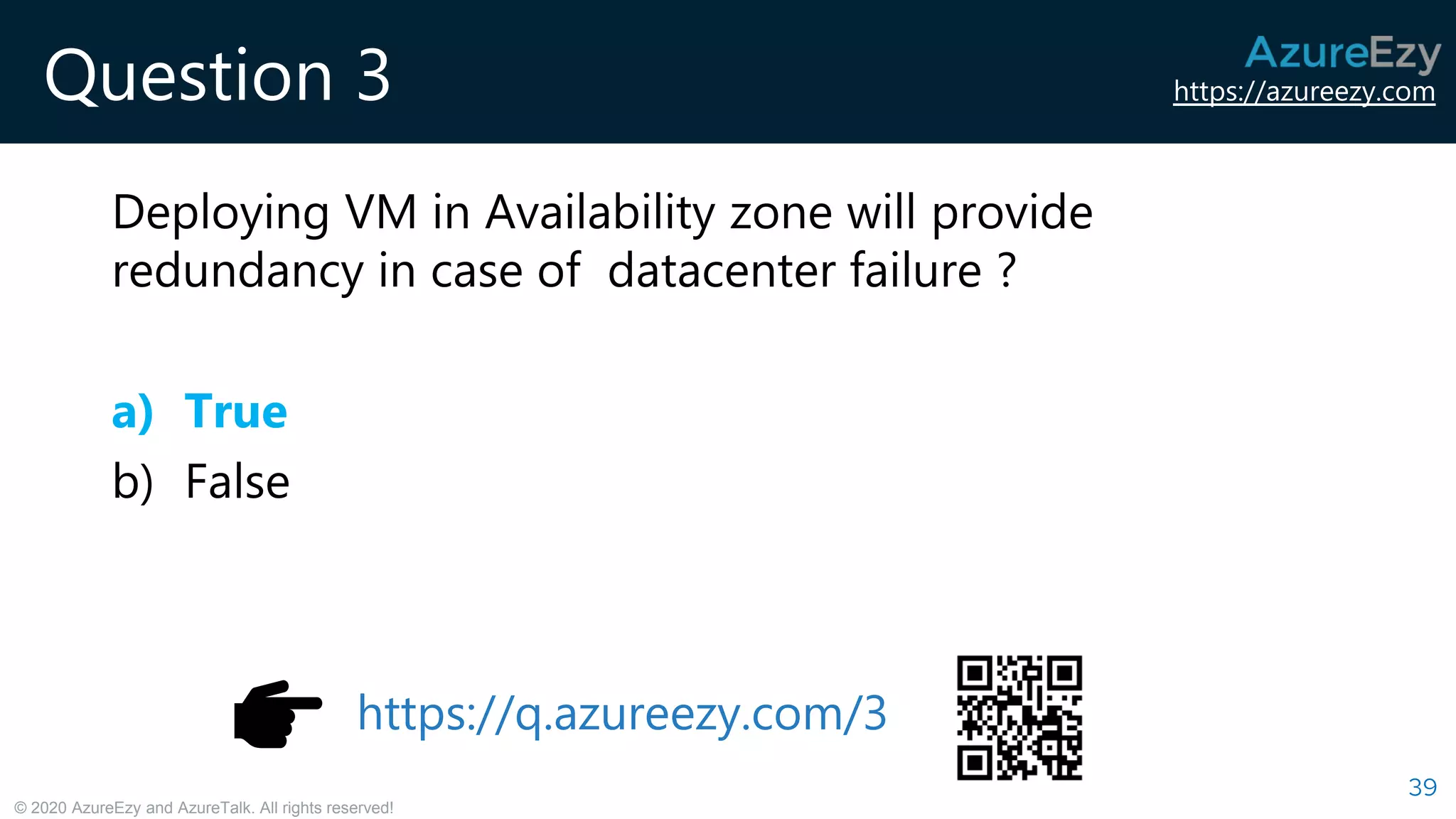

Question 3
Deploying VM in Availability zone will provide
redundancy in case of datacenter failure ?
a) True
b) False
39

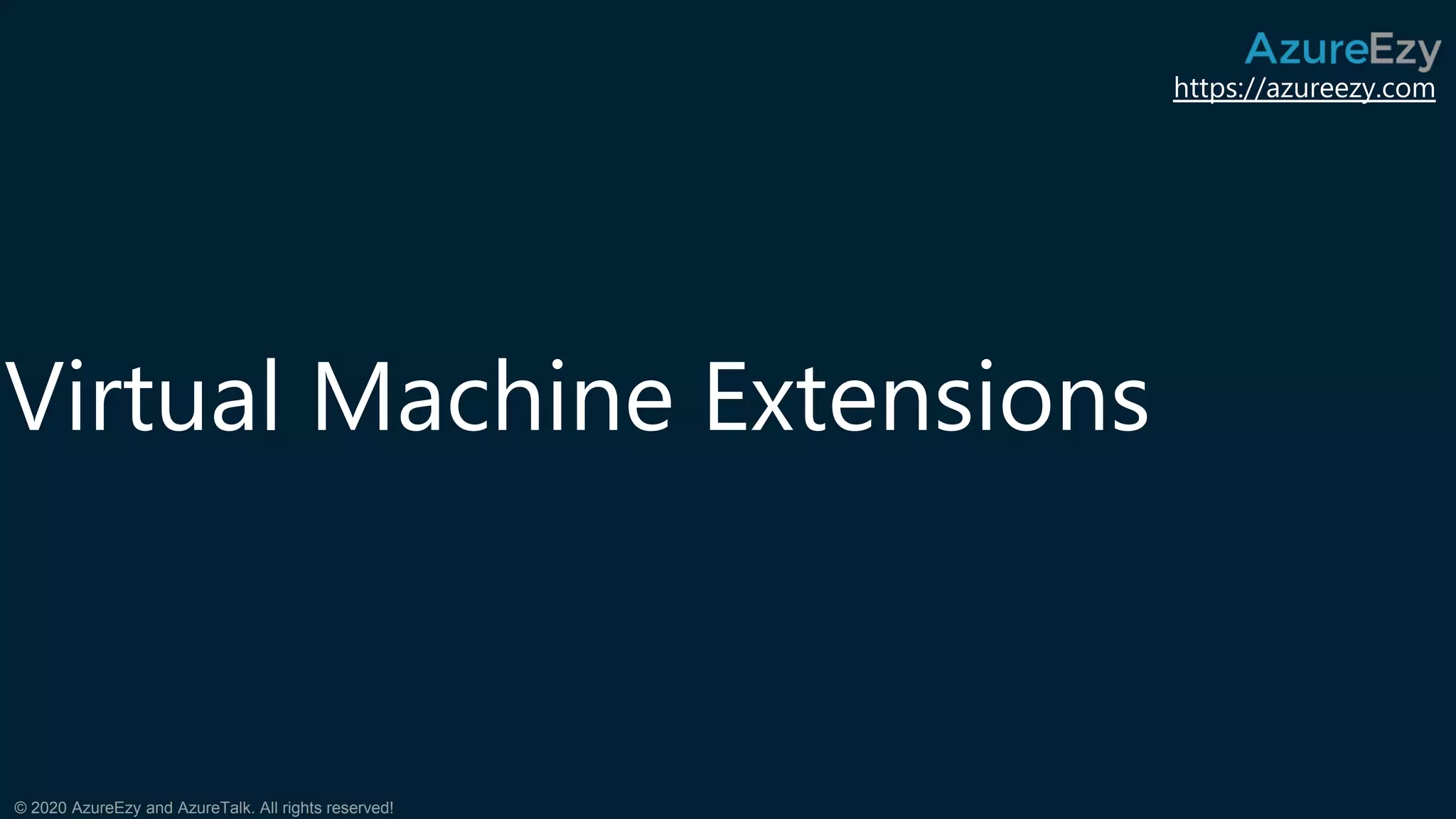

Virtual Machine Extensions

Azure VM Extension
41
• Provide post-deployment
configuration and automation
tasks
• choice of first and third party
extensions
• Custom Script extension
• PowerShell Desired State
Configuration (DSC)

Break
42

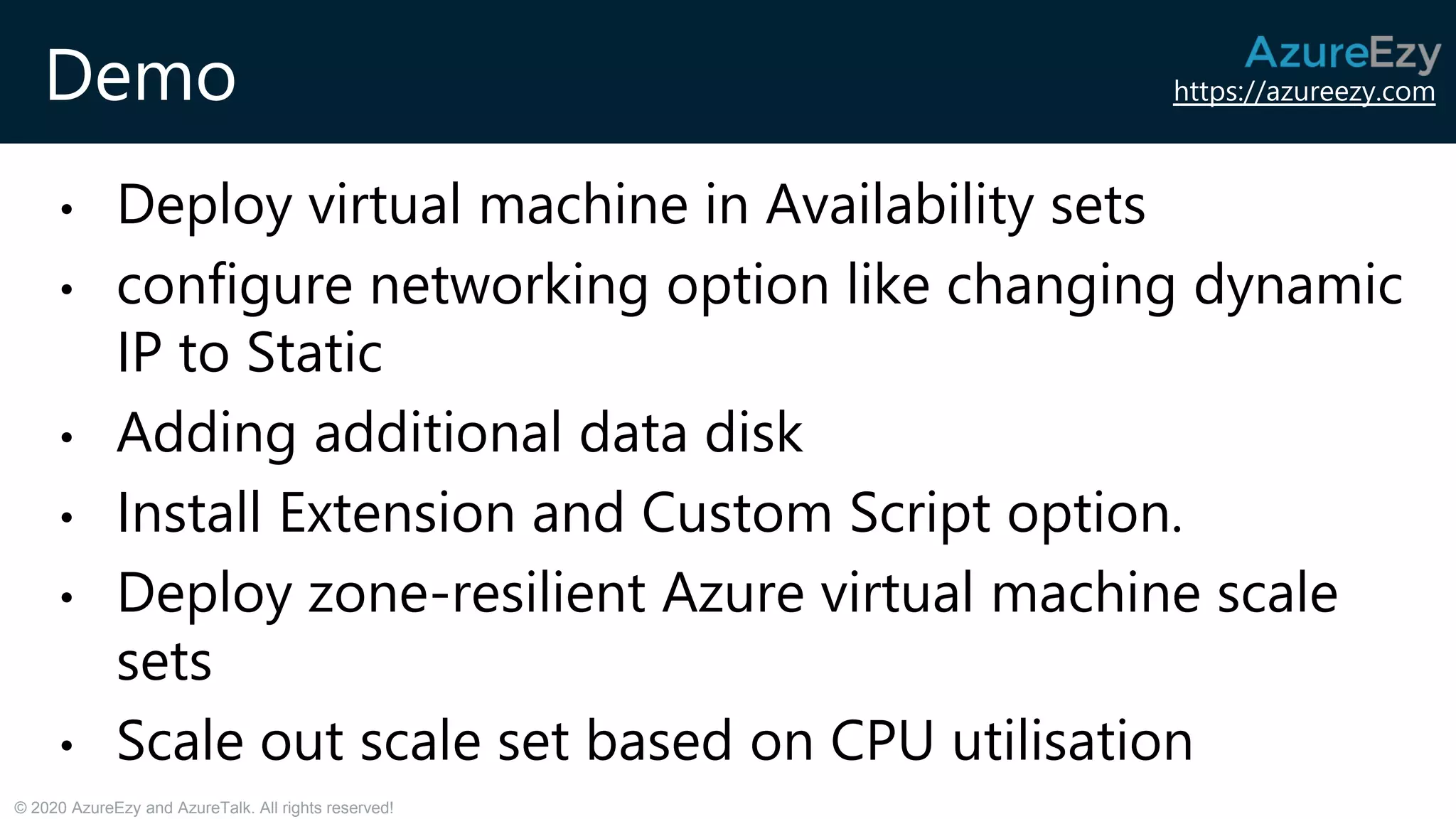

Demo
• Deploy virtual machine in Availability sets
• configure networking option like changing dynamic
IP to Static
• Adding additional data disk
• Install Extension and Custom Script option.
• Deploy zone-resilient Azure virtual machine scale
sets
• Scale out scale set based on CPU utilisation

Q & A
