SlideShare a Scribd company logo
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com

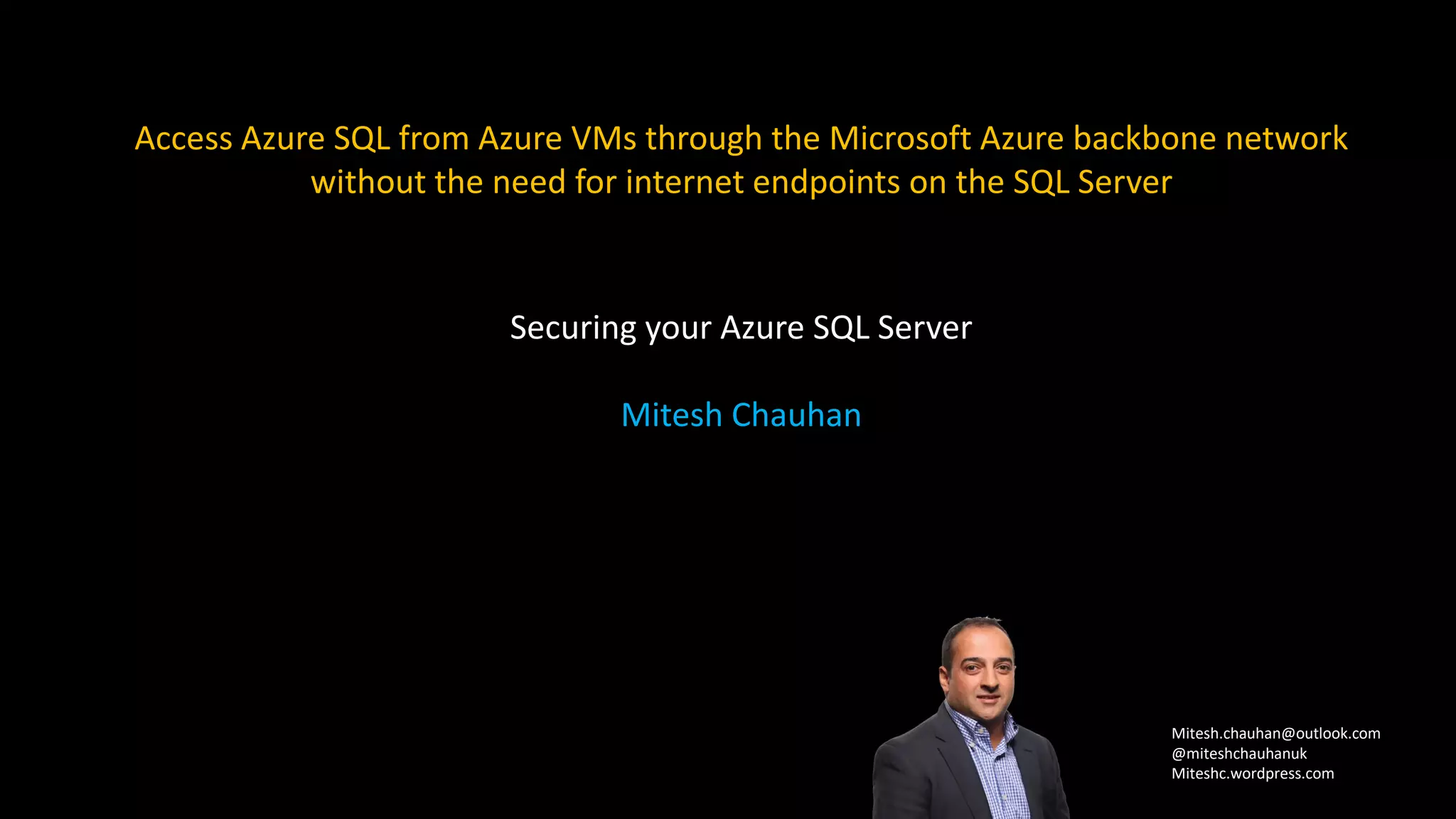

Access Azure SQL from Azure VMs through the Microsoft Azure backbone network
without the need for internet endpoints on the SQL Server
Securing your Azure SQL Server
Mitesh Chauhan

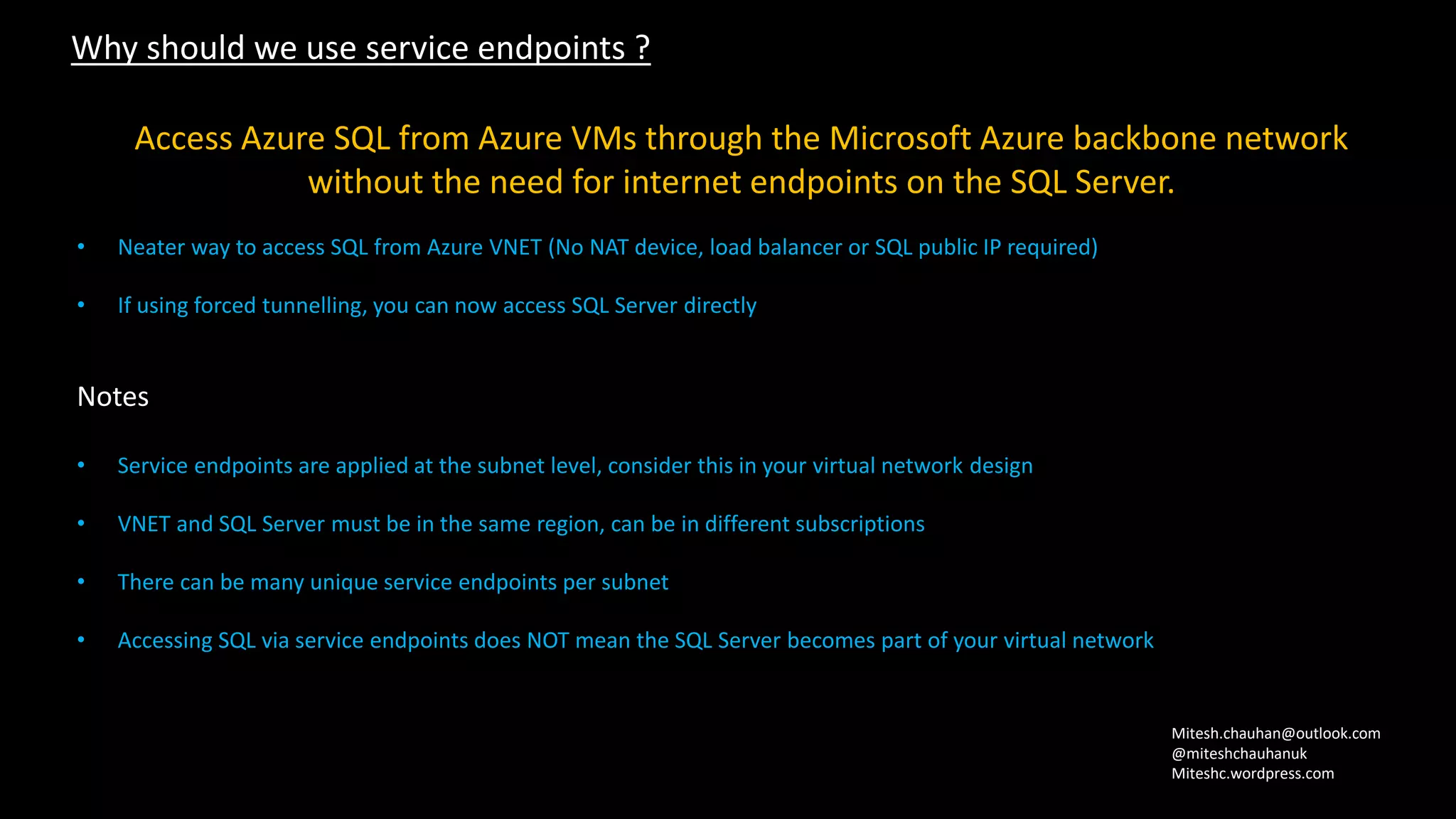

Why should we use service endpoints ?
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
Access Azure SQL from Azure VMs through the Microsoft Azure backbone network
without the need for internet endpoints on the SQL Server.
• Neater way to access SQL from Azure VNET (No NAT device, load balancer or SQL public IP required)
• If using forced tunnelling, you can now access SQL Server directly
Notes
• Service endpoints are applied at the subnet level, consider this in your virtual network design
• VNET and SQL Server must be in the same region, can be in different subscriptions
• There can be many unique service endpoints per subnet
• Accessing SQL via service endpoints does NOT mean the SQL Server becomes part of your virtual network
SQL Database Server with Internet Endpoints
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
SQL Database Server with Service Endpoints
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
Steps required for connecting SQL Server to Subnet
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
VNET
Create a service endpoint on your subnet
• Specify which service (SQL) in which region can access the Subnet
Azure SQL Server
Create SQL Server Firewall Rule to connect to service endpoint for the subnet.
• Specify which Service Endpoint in which vnet/ subnet to allow connections from.
Network Security Group (NSG = Layer 4 Firewall Rules)
Allow SQL traffic from desired region.
• Attach NSG to required subnet
Tips To Secure Your SQL Server Further
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
1. Use NSGs to lock down access to only the SQL service and region required
We can select SQL or Storage for the service endpoint. We can then specify the service and the region in an NSG
Security Features available for your production databases / servers
2. Enable Auditing and Threat Detection
3. Databases are encrypted by default. Microsoft Manage the encryption and keys.
• Option to Bring Your Own Keys is also available.
Tips To Secure Your SQL Server Further
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
Use Dynamic Data Masking to protect personal data – Create Rules
Enable dynamic data masking on your columns in your tables that have personally identifiable information.
Tips To Secure Your SQL Server Further
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
Use Dynamic Data Masking to protect personal data - Results
Any non admin accounts (that have not been excluded) will only see masked data.
Example
Masking rule on customertable,
EmailAddress Column
RESULT > > >
Additional Reference
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
Subnet View
• One service endpoint created
• Service endpoint allows access FROM selected Azure SQL
Services
Additional Reference
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
NSG Inbound Firewall Rules View
• Rules are applied to all VMs in the subnet the NSG is attached to
• Rule 110 = Known IP address has RDP access
• Rule 200 = Allow access FROM the SQL Service running in the Azure East US Region
• No Outbound rules configured (default is to allow all outbound traffic).
Additional Reference
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
Azure SQL Server Firewall Rules View
• Access to all Azure Services switched Off
• No Internet endpoint rules configured
• (client IP address shown for info only)
• Subnet with the service endpoint Selected
Additional Reference
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
SQL Server Security Settings View
• Auditing and Threat Detection Enabled
• Notification Email Set
• Database Encryption Enabled (by default) with Microsoft Managed Keys.
Microsoft Source Reference
Mitesh.chauhan@outlook.com
@miteshchauhanuk
Miteshc.wordpress.com
• Use Virtual Network service endpoints and rules for Azure SQL Database
• https://docs.microsoft.com/en-us/azure/sql-database/sql-database-vnet-service-endpoint-rule-overview
• Virtual Network Service Endpoints
• https://docs.microsoft.com/en-us/azure/virtual-network/virtual-network-service-endpoints-overview#key-benefits
