Slidedeck of the presentation done as part of Learning AKS Hands on series. The session covered provisioning of AKS cluster using Azure CLI and Azure portal. The multi container tech talks applications was deployed to the ASK cluster. The persistent state management was handled using Kubernetes Persistence Volumes and Persistent Volume Claims backed by Azure disks.

1. Azure Kubernetes Service (AKS) - Part 4
Azure Kubernetes Service
(AKS)
Nilesh Gule

2. $whoami
{
“name” :“Nilesh Gule”,
“title” :“Architect | Microsoft Azure MVP”,
“website” :“https://www.HandsOnArchitect.com",
“github” :“https://github.com/NileshGule"
“twitter” :“@nileshgule”,
“linkedin” :“https://www.linkedin.com/in/nileshgule”,
“email” :“nileshgule@gmail.com",
“likes” :“Technical Evangelism, Cricket”
}

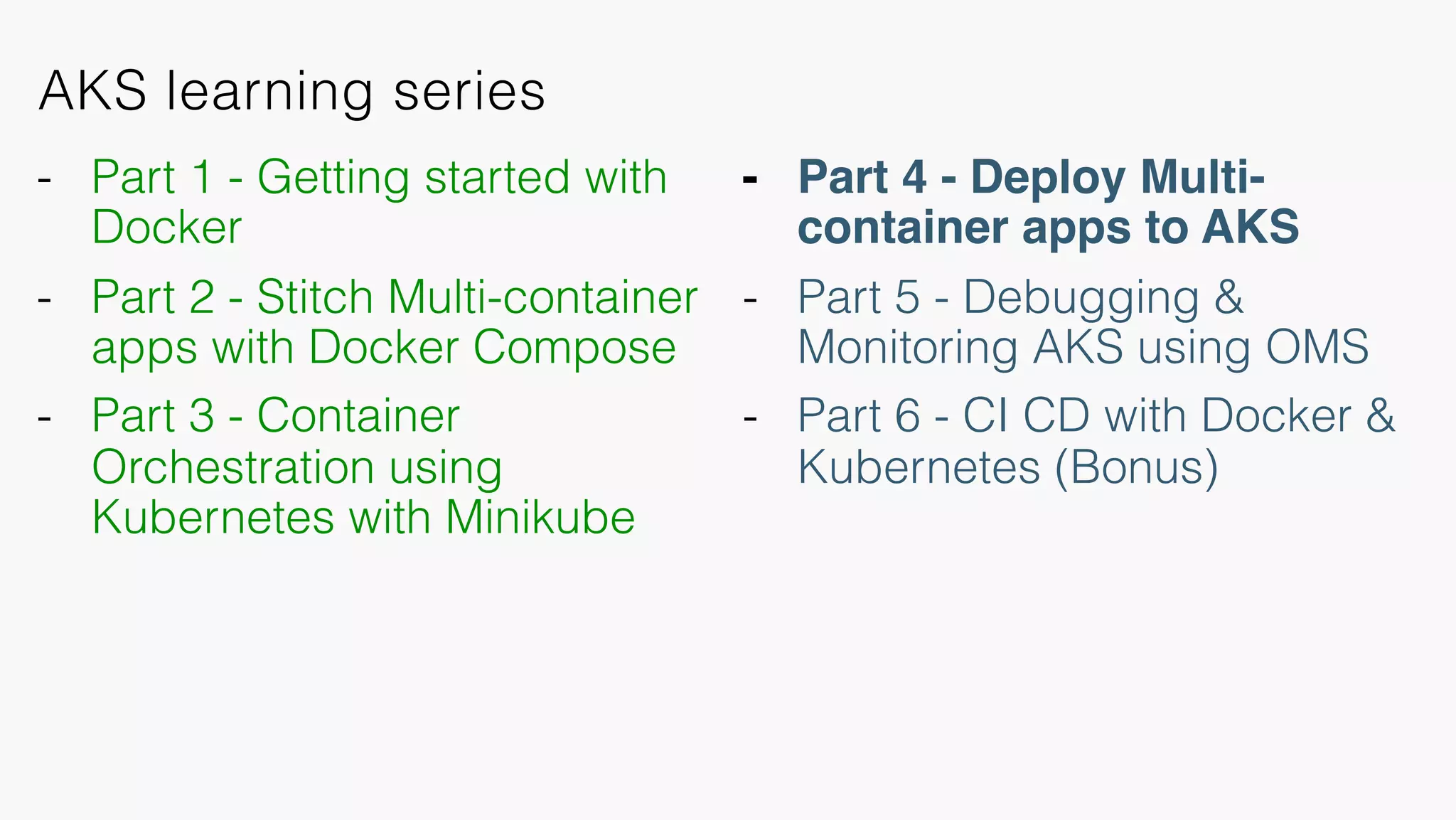

3. AKS learning series
- Part 4 - Deploy Multi-
container apps to AKS
- Part 5 - Debugging &
Monitoring AKS using OMS
- Part 6 - CI CD with Docker &
Kubernetes (Bonus)
- Part 1 - Getting started with
Docker
- Part 2 - Stitch Multi-container
apps with Docker Compose
- Part 3 - Container
Orchestration using
Kubernetes with Minikube

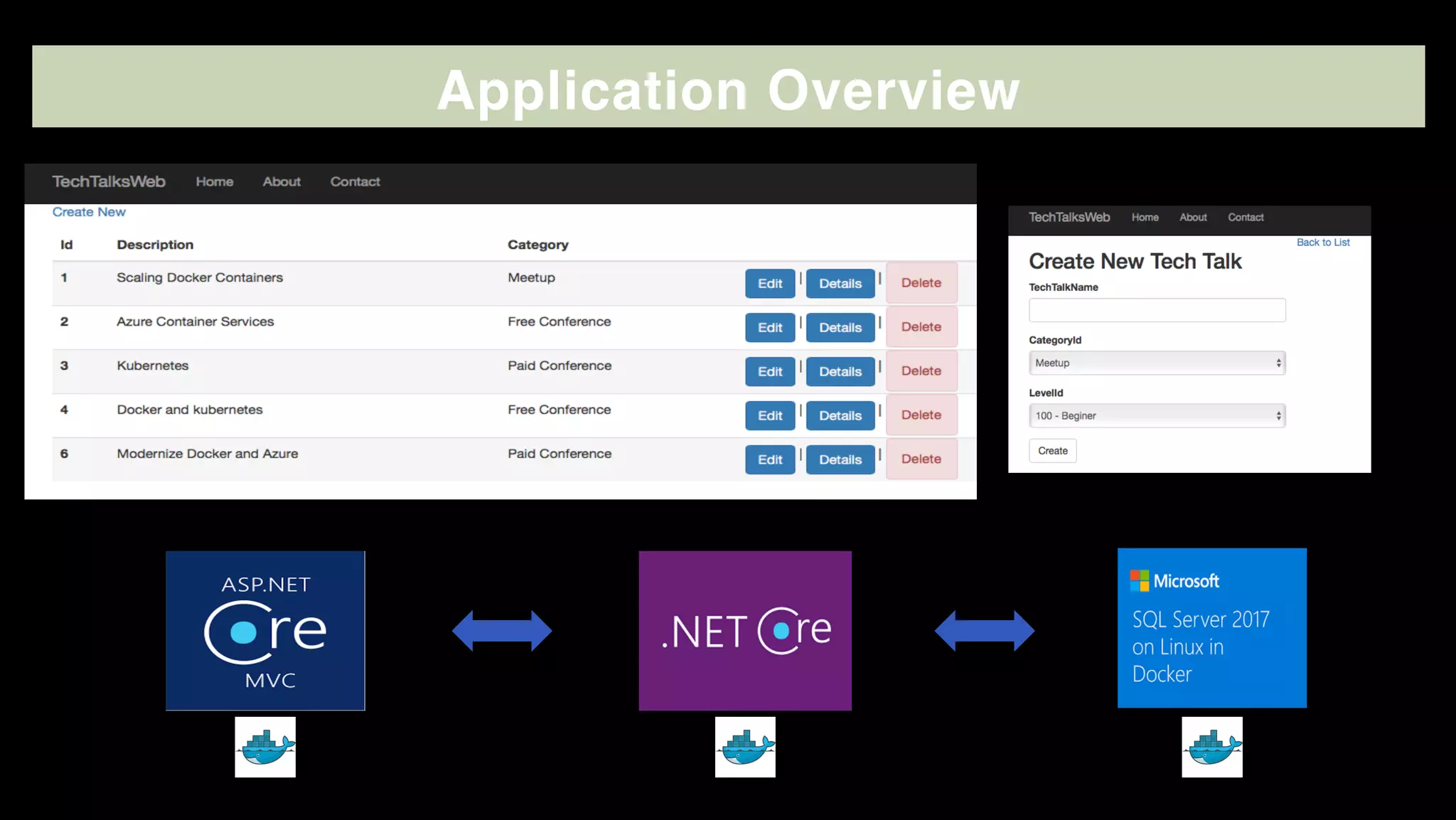

4. Application Overview

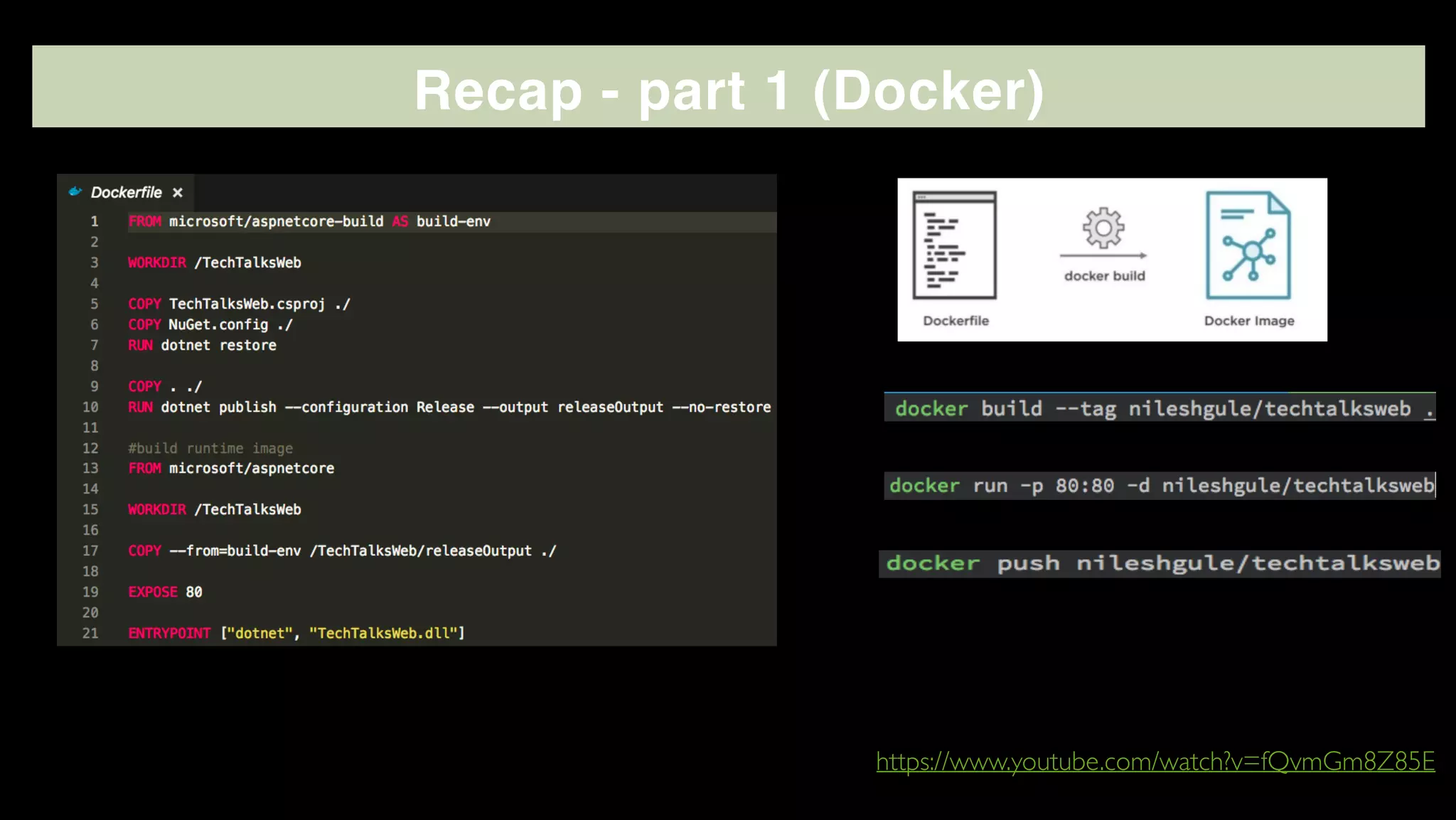

5. Recap - part 1 (Docker)
- https://www.youtube.com/watch?v=fQvmGm8Z85E

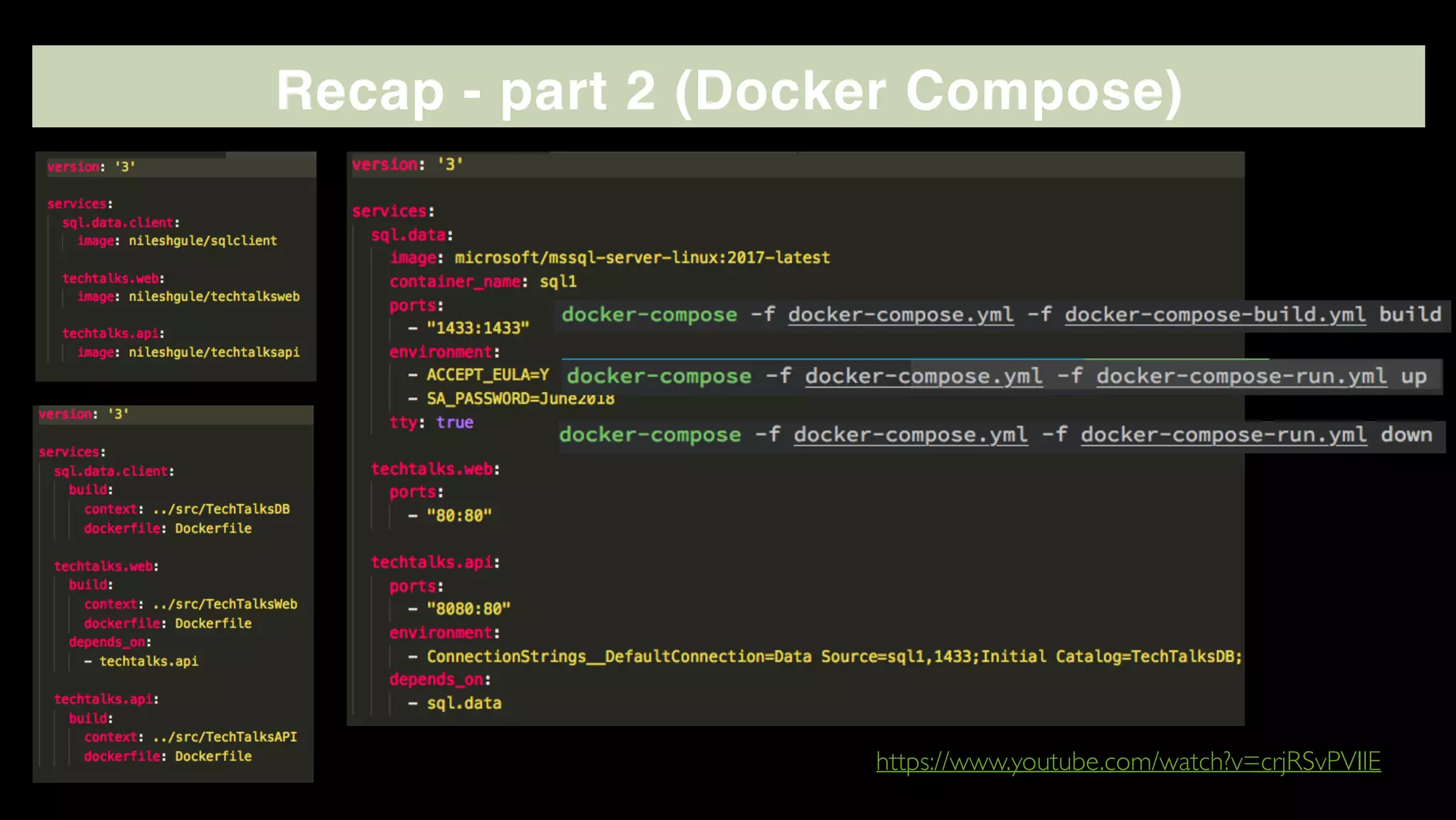

6. Recap - part 2 (Docker Compose)
- https://www.youtube.com/watch?v=crjRSvPVIlE

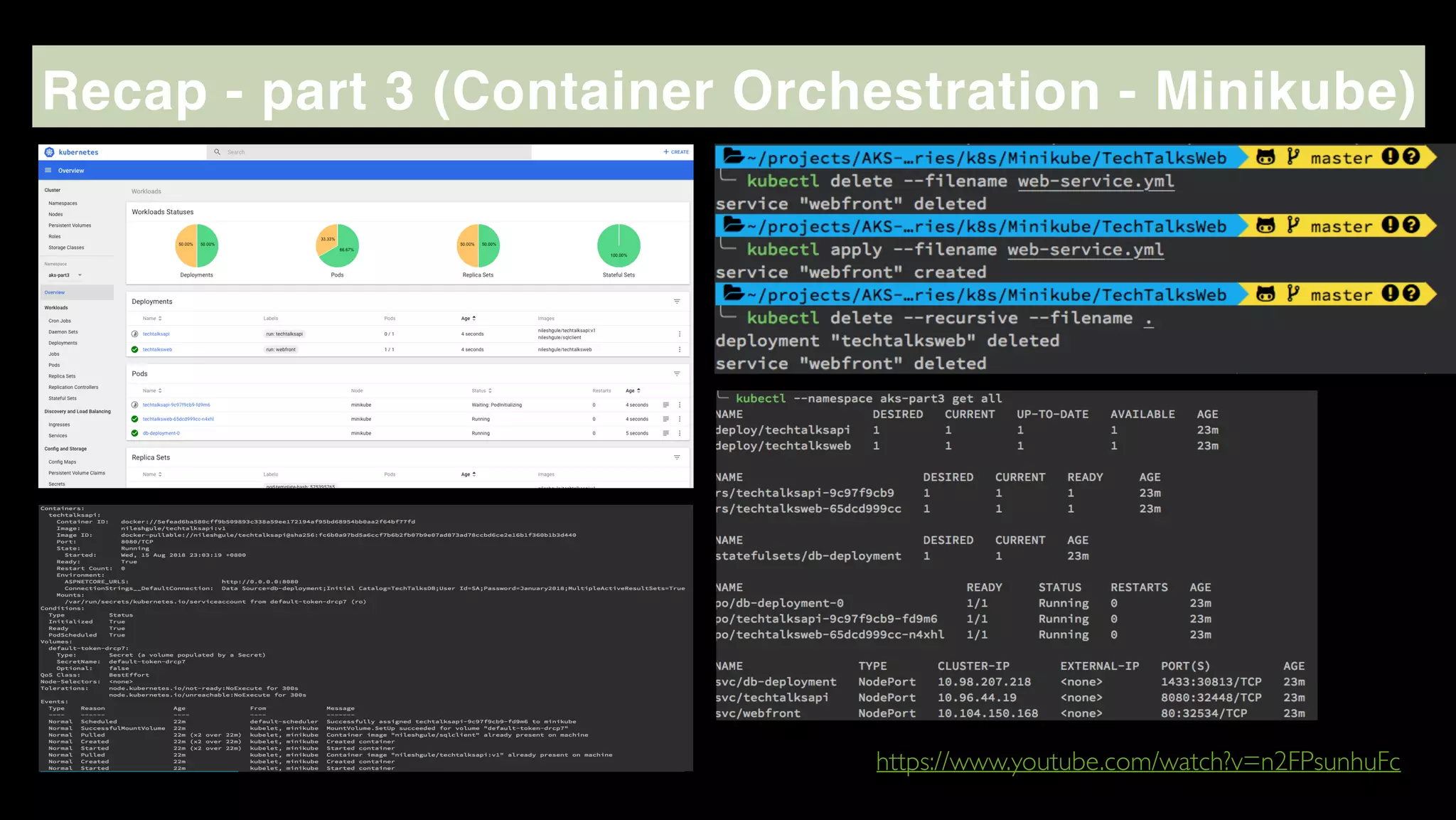

7. Recap - part 3 (Container Orchestration - Minikube)
- https://www.youtube.com/watch?v=n2FPsunhuFc

8. Azure Kubernetes
Service (AKS)

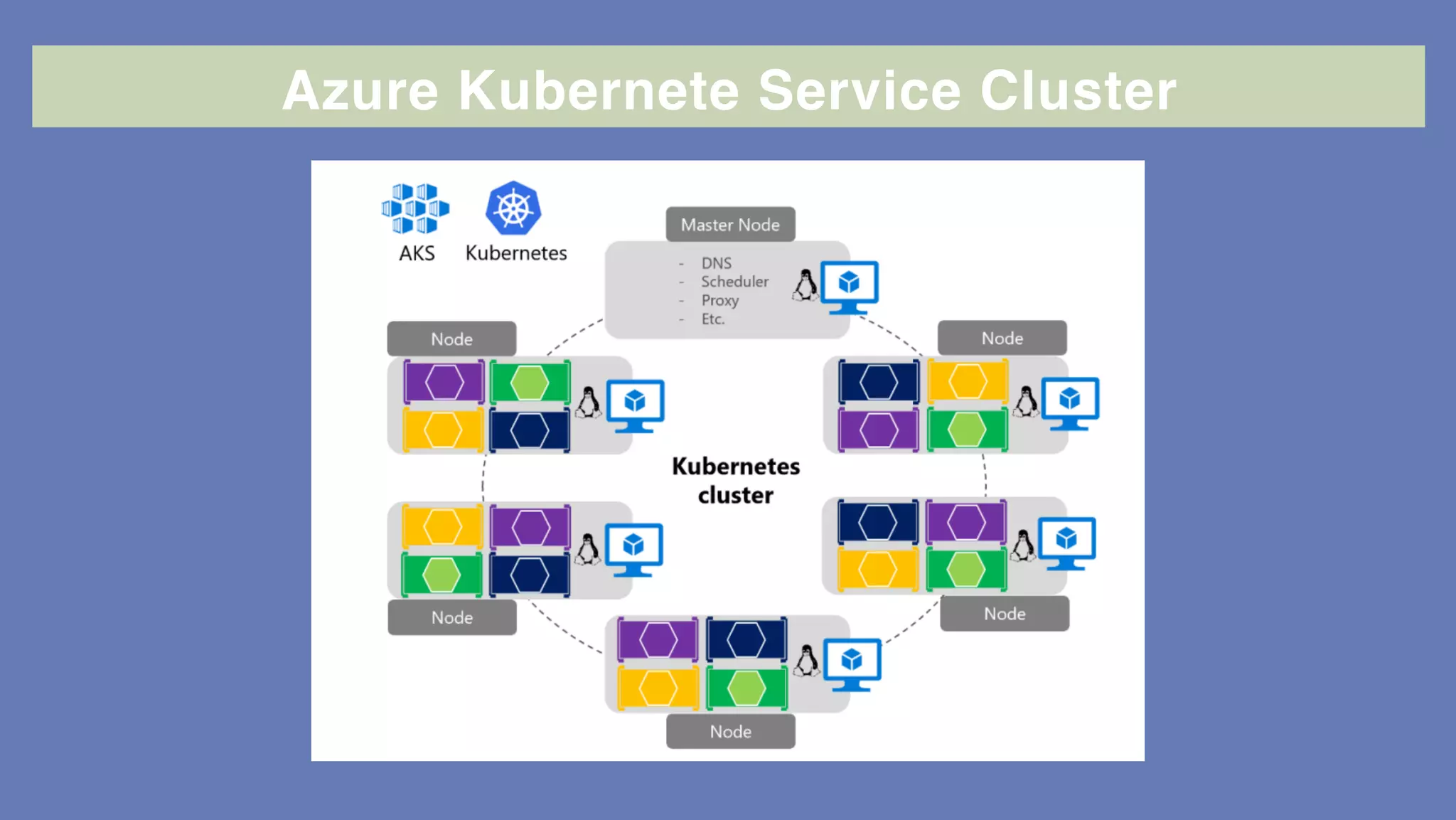

9. Azure Kubernete Service Cluster

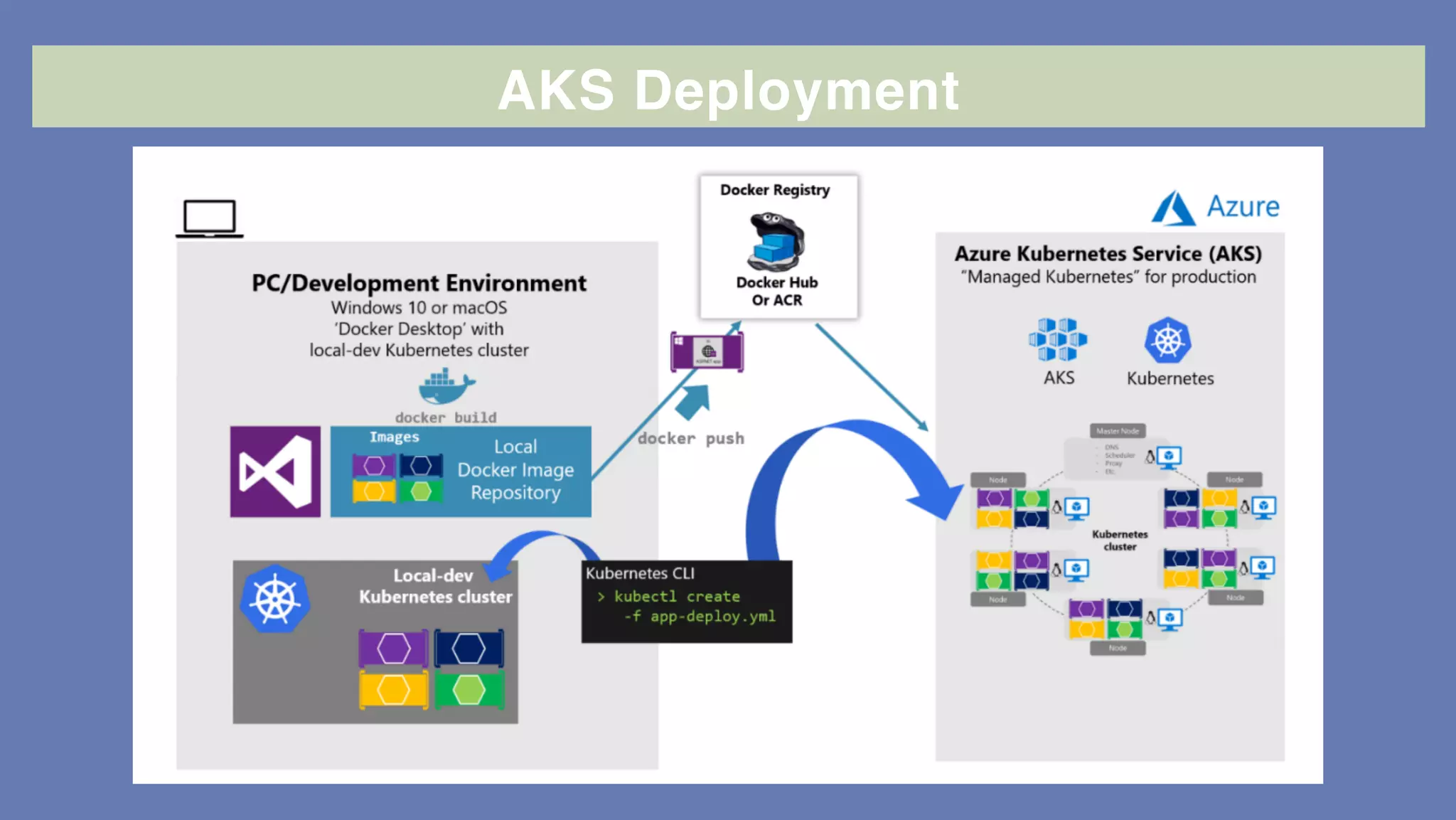

10. AKS Deployment

11. DEMO
Provision AKS
Cluster
!11

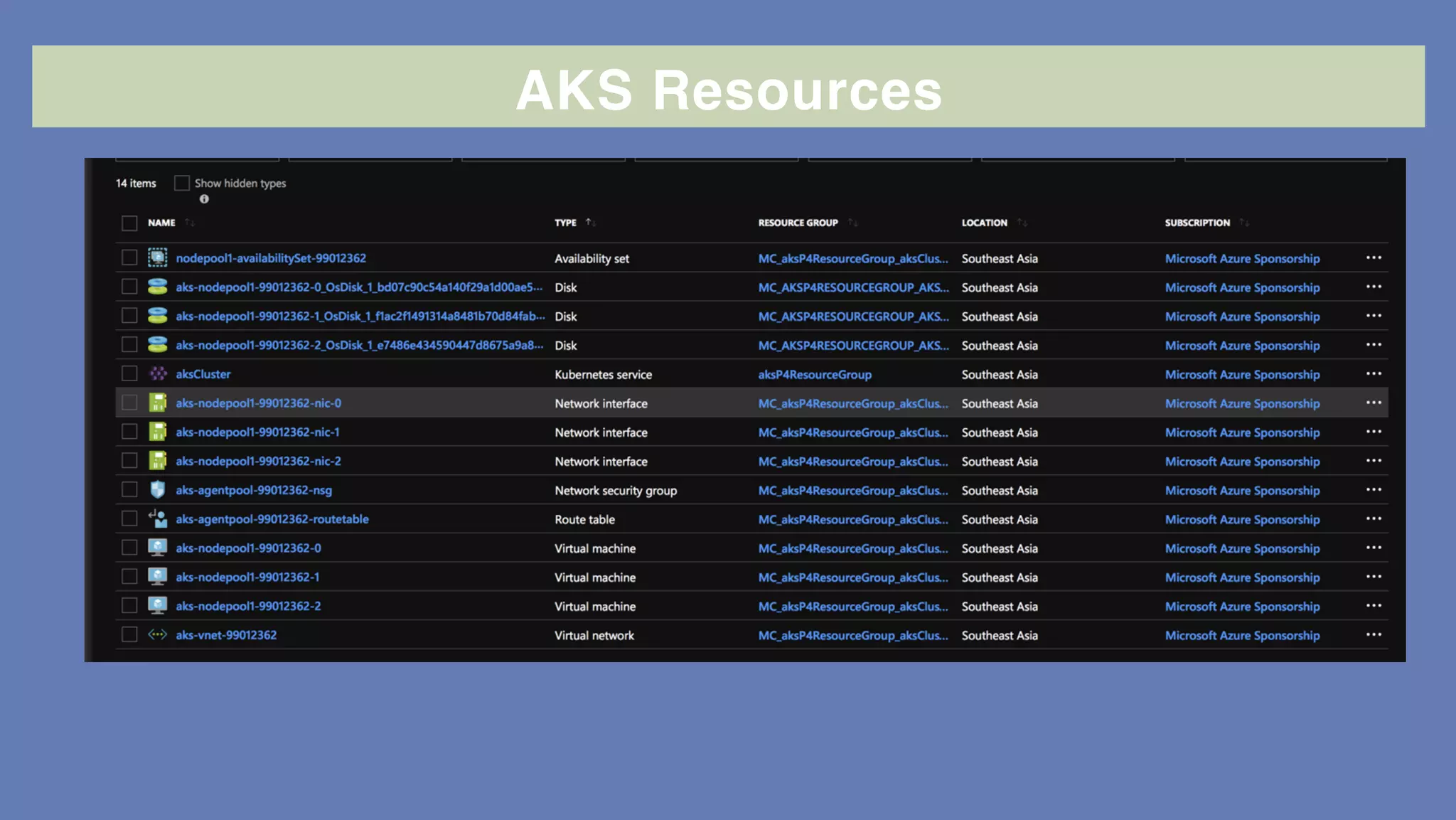

12. AKS Resources

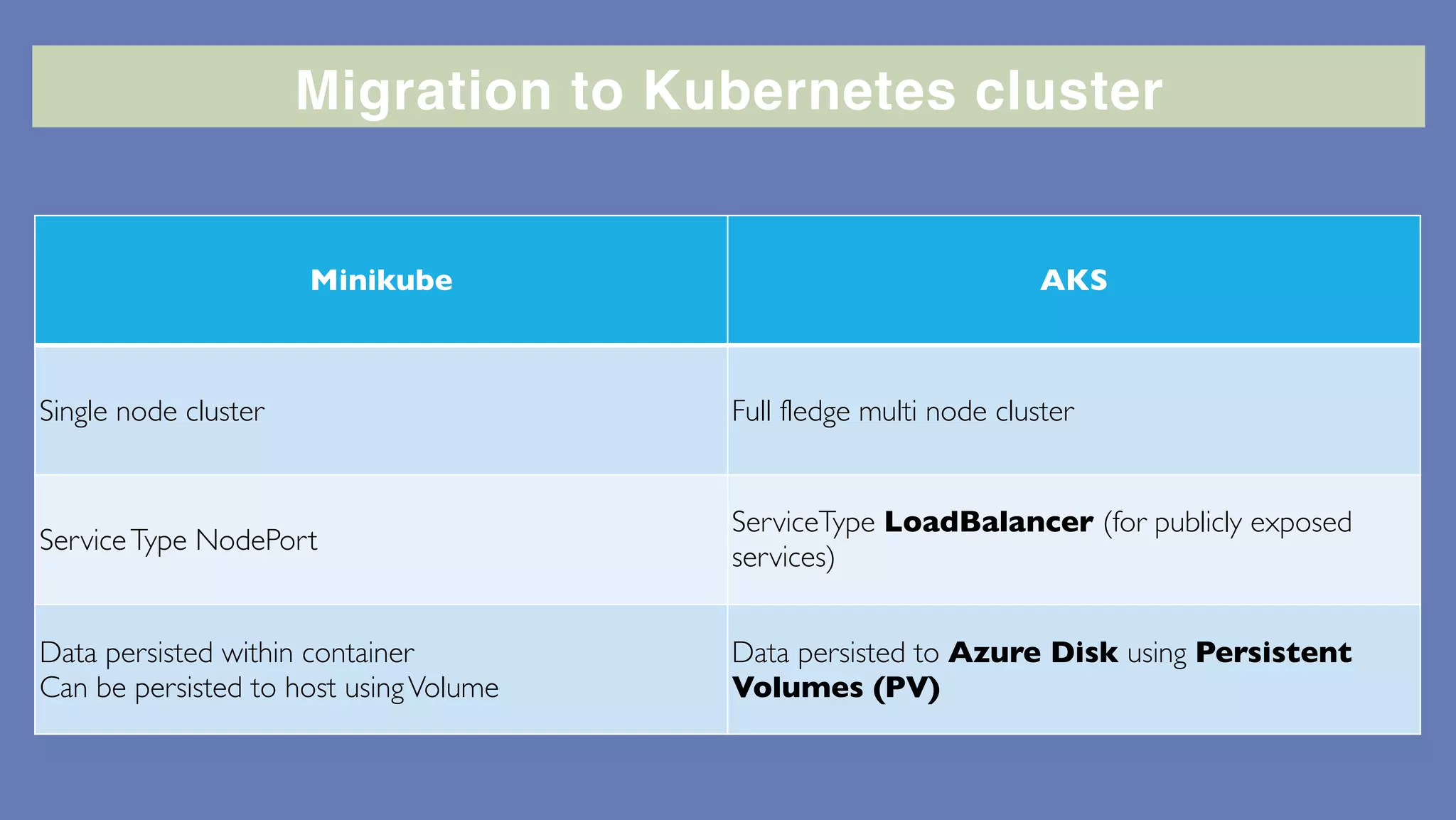

13. Migration to Kubernetes cluster
Minikube AKS
Single node cluster Full fledge multi node cluster
ServiceType NodePort
ServiceType LoadBalancer (for publicly exposed
services)
Data persisted within container
Can be persisted to host usingVolume
Data persisted to Azure Disk using Persistent
Volumes (PV)

14. State Management with
Persistent Volume

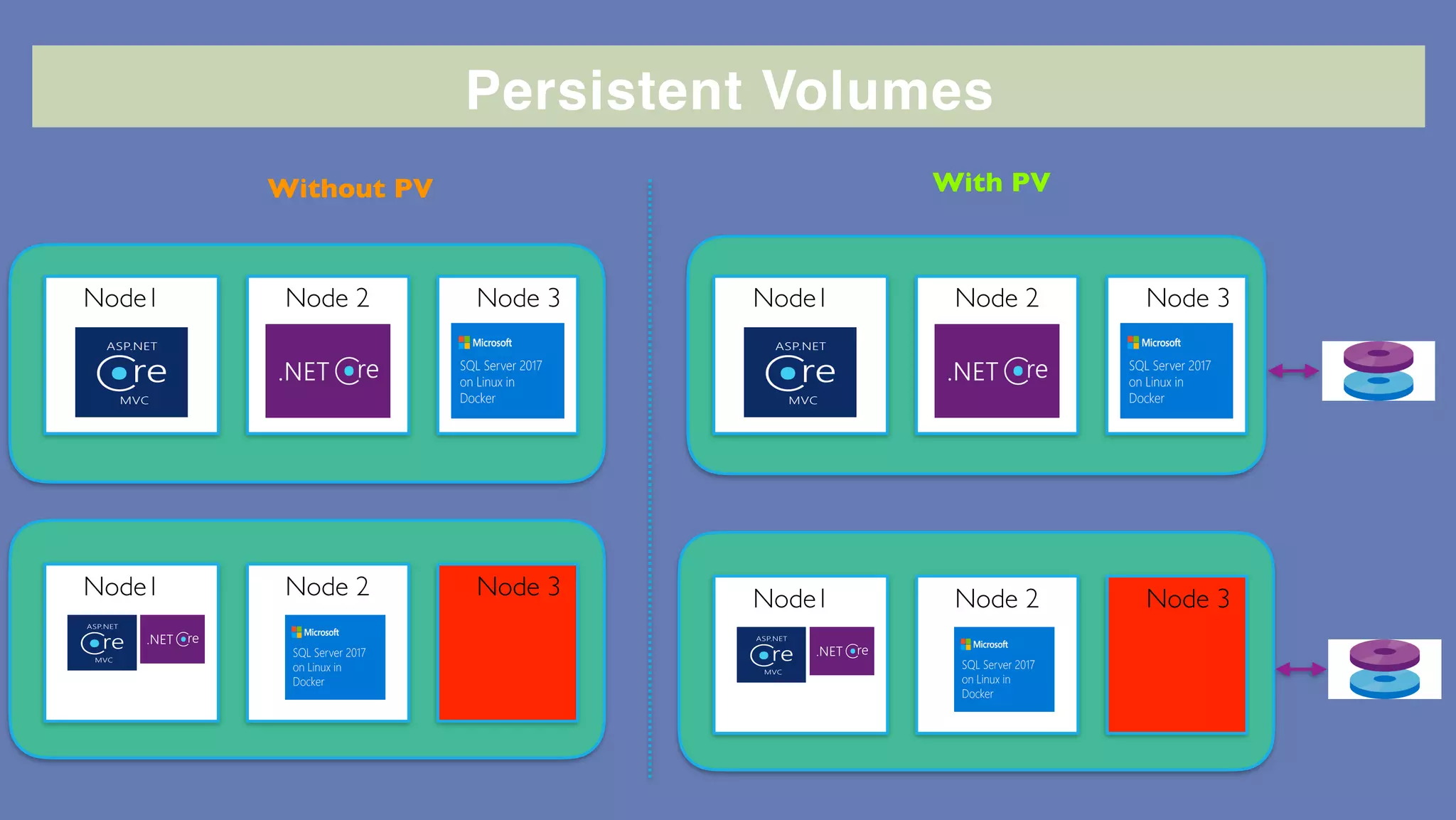

15. Persistent Volumes
Node1 Node 2 Node 3
Node1 Node 2 Node 3
Node1 Node 2 Node 3
Node1 Node 2 Node 3
Without PV With PV

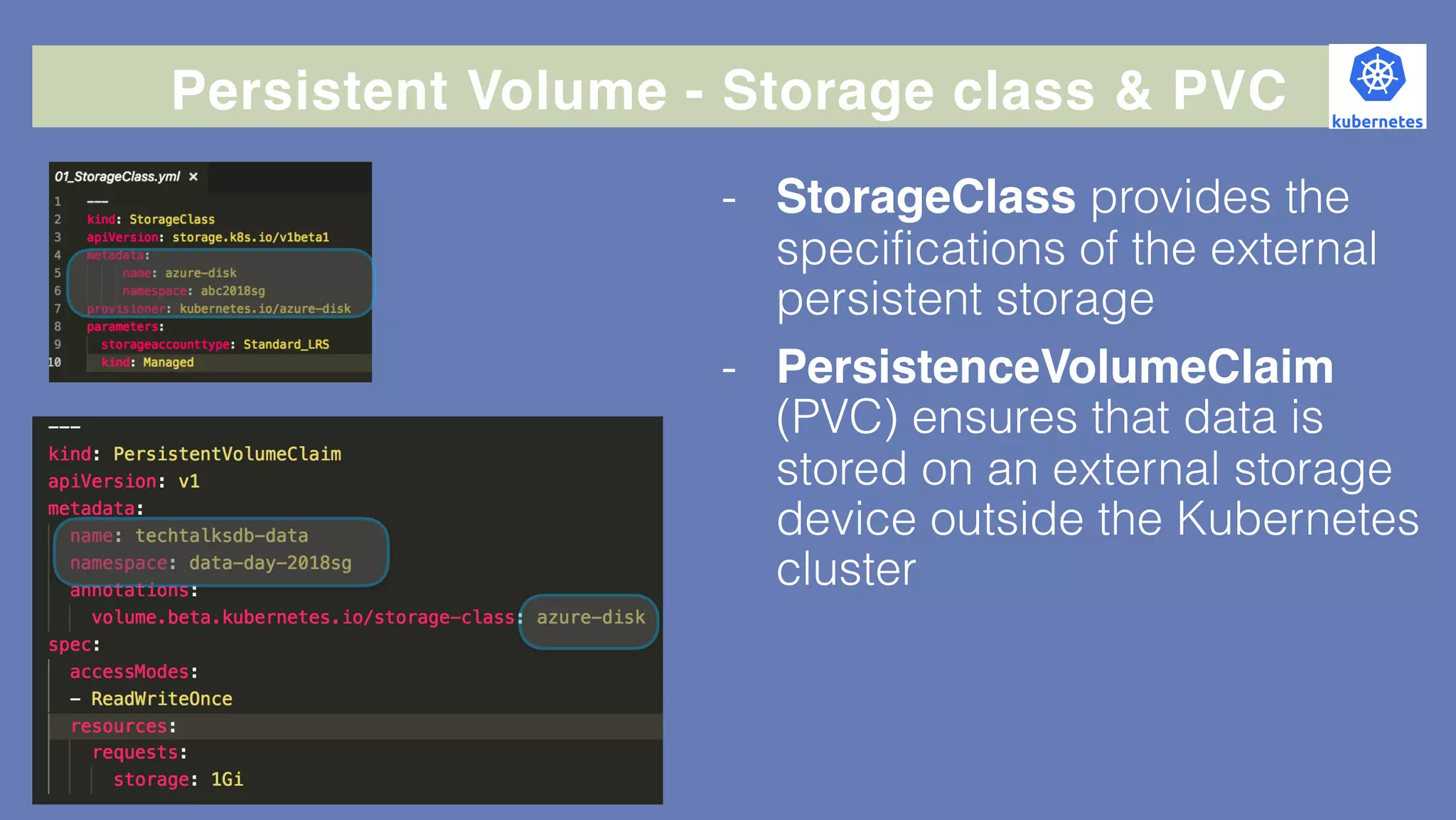

16. Persistent Volume - Storage class & PVC
- StorageClass provides the
specifications of the external
persistent storage
- PersistenceVolumeClaim
(PVC) ensures that data is
stored on an external storage
device outside the Kubernetes
cluster

17. DEMO
PV & PVC
!17

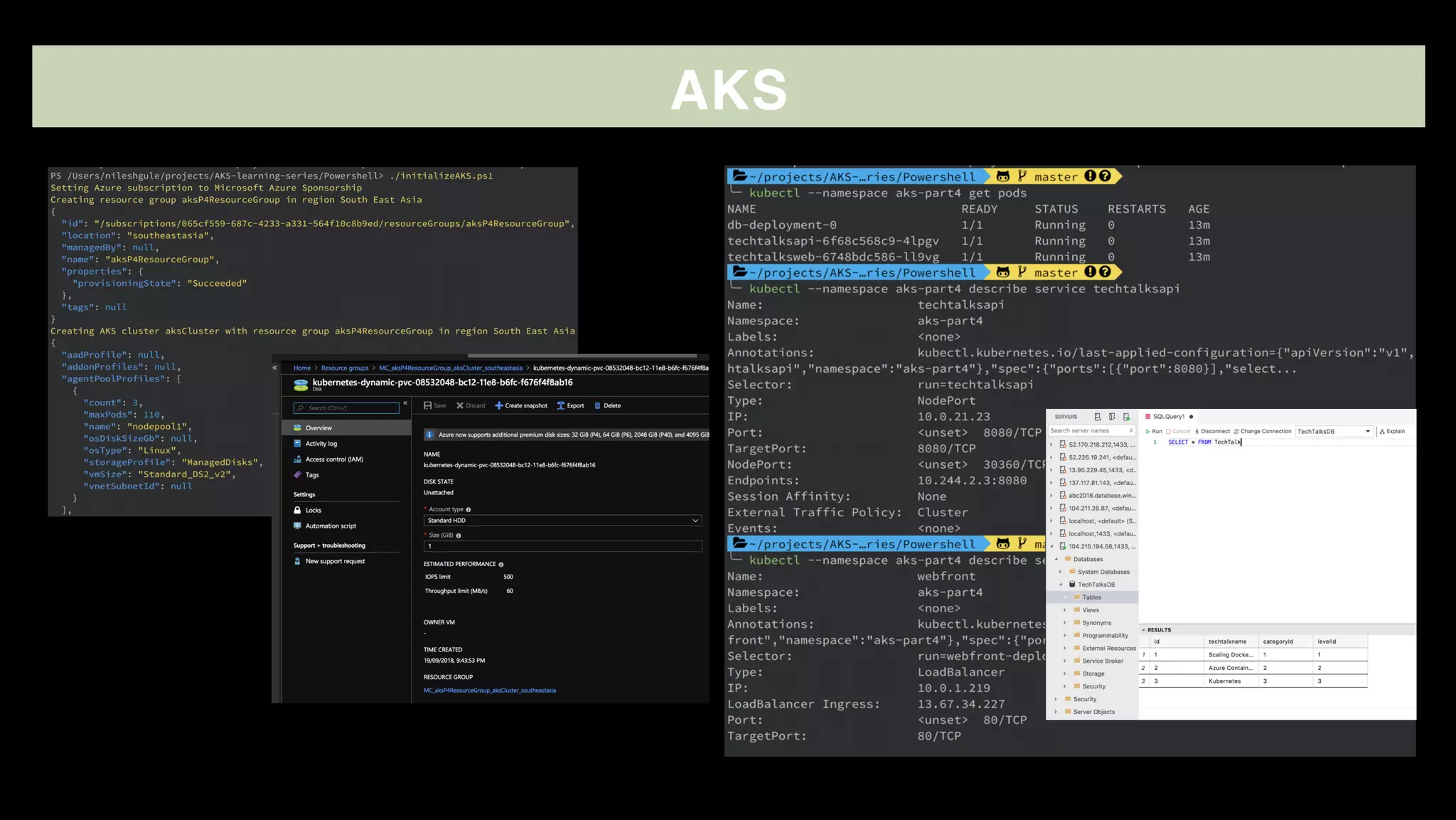

18. AKS

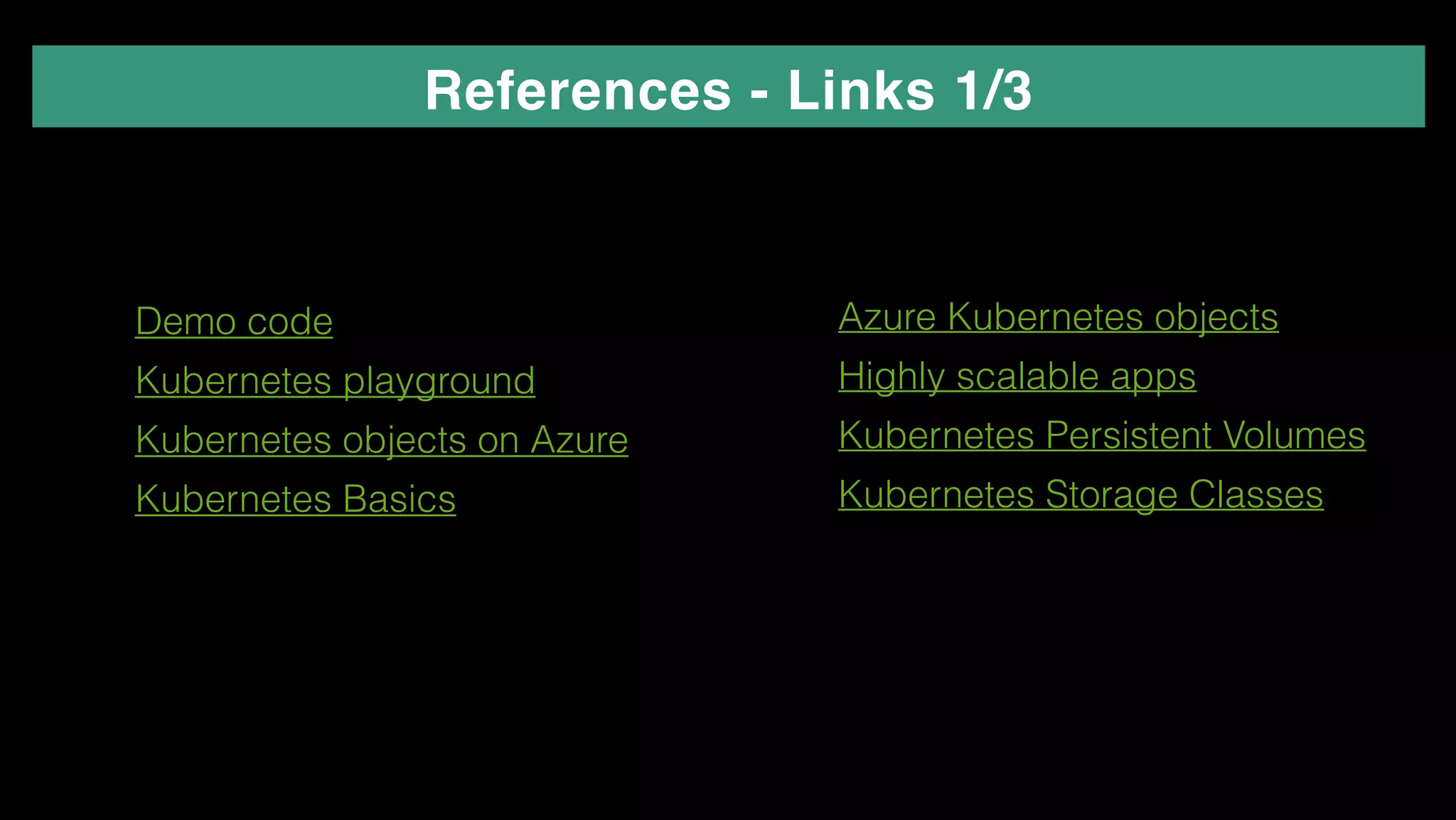

19. References - Links 1/3
✴Demo code
✴Kubernetes playground
✴Kubernetes objects on Azure
✴Kubernetes Basics
✴Azure Kubernetes objects
✴Highly scalable apps
✴Kubernetes Persistent Volumes
✴Kubernetes Storage Classes

20. References - Slides 2/3
✴Slide deck - Speakerdeck - https://speakerdeck.com/nileshgule/
✴Slide deck - Slideshare - https://www.slideshare.net/nileshgule/
✴

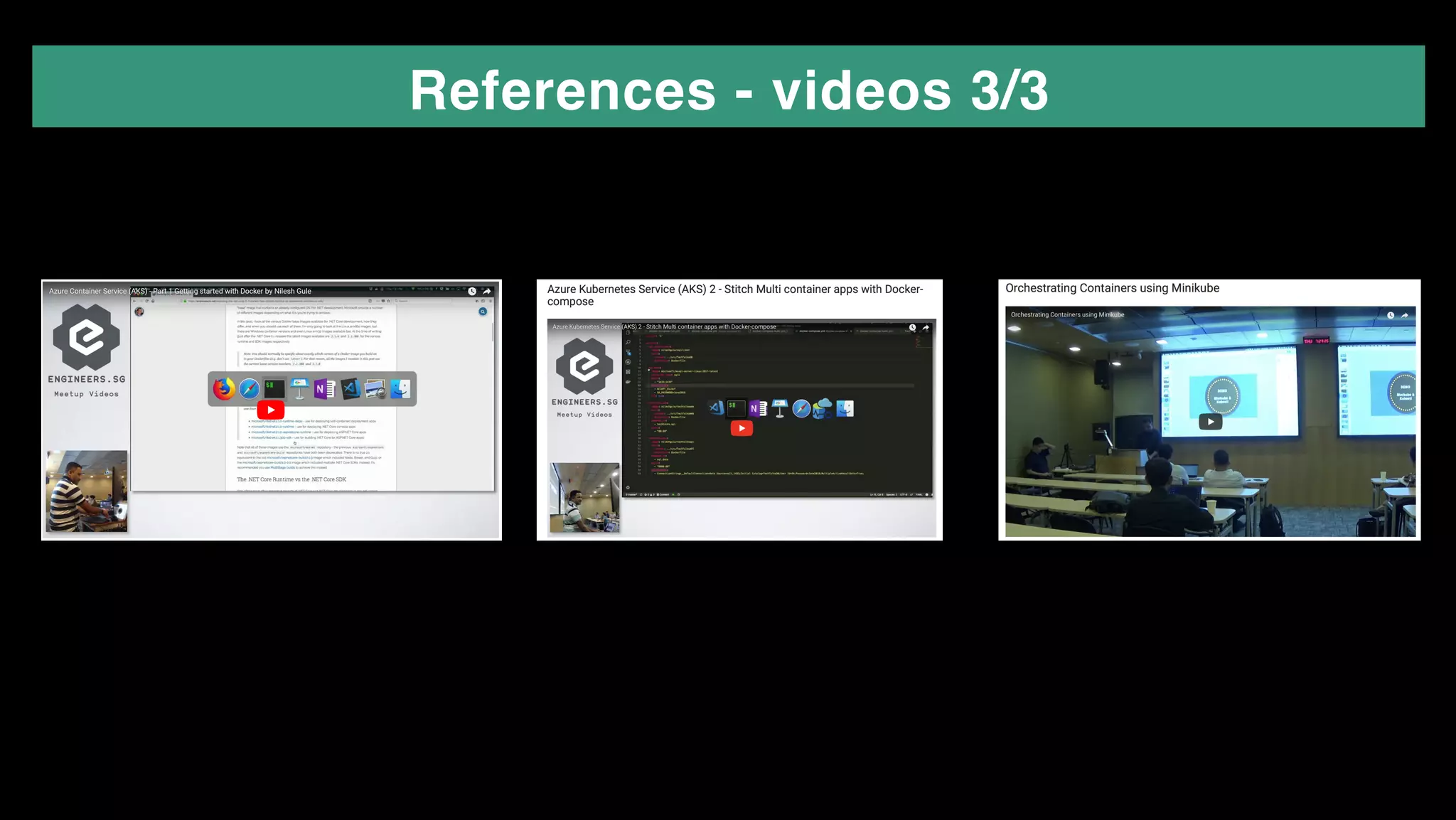

21. References - videos 3/3

22. Thank you very much
https://github.com/NileshGule/AKS-learning-series
Code with Passion and Strive for Excellence

23. Q&A

24. Feedback
http://bit.ly/AKSPart4Feedback
