This document provides an overview of orchestration using Kubernetes, focusing on Azure Kubernetes Service (AKS) and the use of Minikube. It covers key Kubernetes concepts such as namespaces, pods, services, deployments, and statefulsets, emphasizing their roles in managing containerized applications. Additionally, it includes links to resources, demos, and videos for further learning and understanding of Kubernetes and AKS.

1. Azure Kubernetes Service (AKS) - Part 3
Orchestration using Kubernetes
- Minikube
Nilesh Gule

2. $whoami
{
“name” :“Nilesh Gule”,
“title” :“Architect | Microsoft Azure MVP”,
“website” :“https://www.HandsOnArchitect.com",
“github” :“https://github.com/NileshGule"
“twitter” :“@nileshgule”,
“linkedin” :“https://www.linkedin.com/in/nileshgule”,
“email” :“nileshgule@gmail.com",
“likes” :“Technical Evangelism, Cricket”
}

3. AKS learning series
- Part 4 - Deploy Multi-
container apps to managed
Kubernetes with Azure
kubernetes Service (AKS)
- Part 5 - Debugging &
Monitoring AKS using OMS
- Part 6 - CI CD with Docker &
Kubernetes (Bonus)
- Part 1 - Getting started with
Docker
- Part 2 - Stitch Multi-container
apps with Docker Compose
- Part 3 - Container
Orchestration using
Kubernetes with Minikube

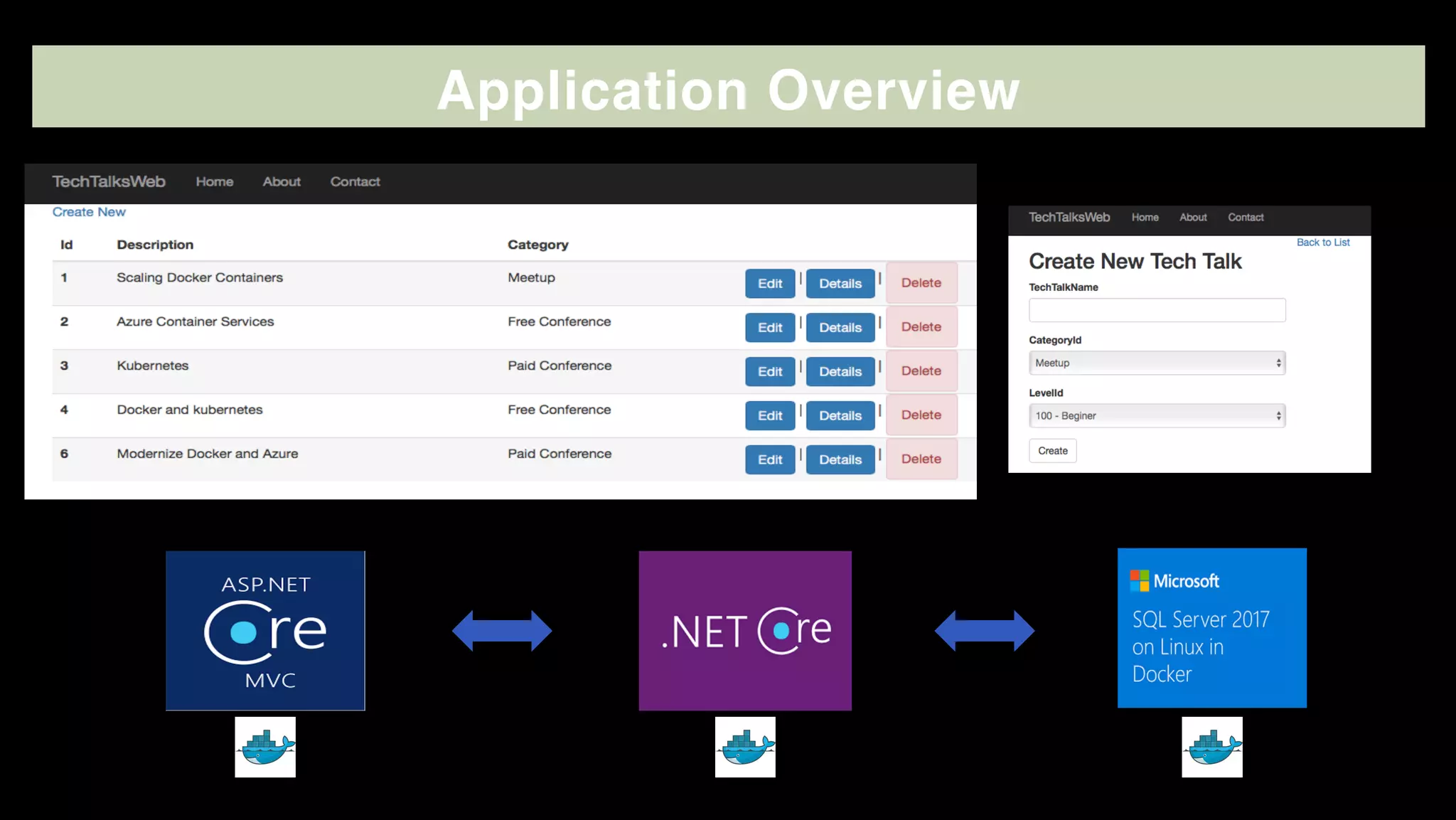

4. Application Overview

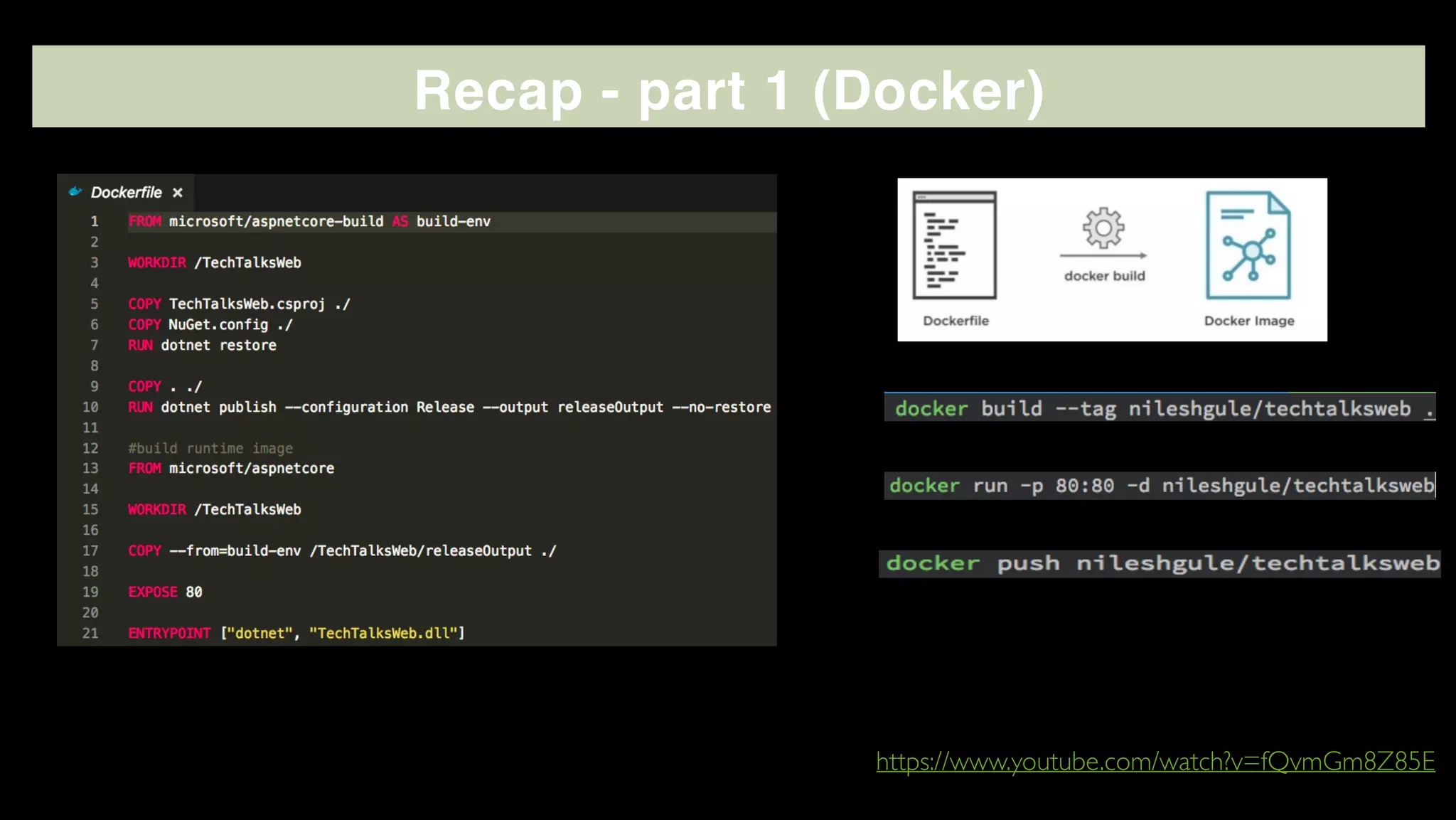

5. Recap - part 1 (Docker)
- https://www.youtube.com/watch?v=fQvmGm8Z85E

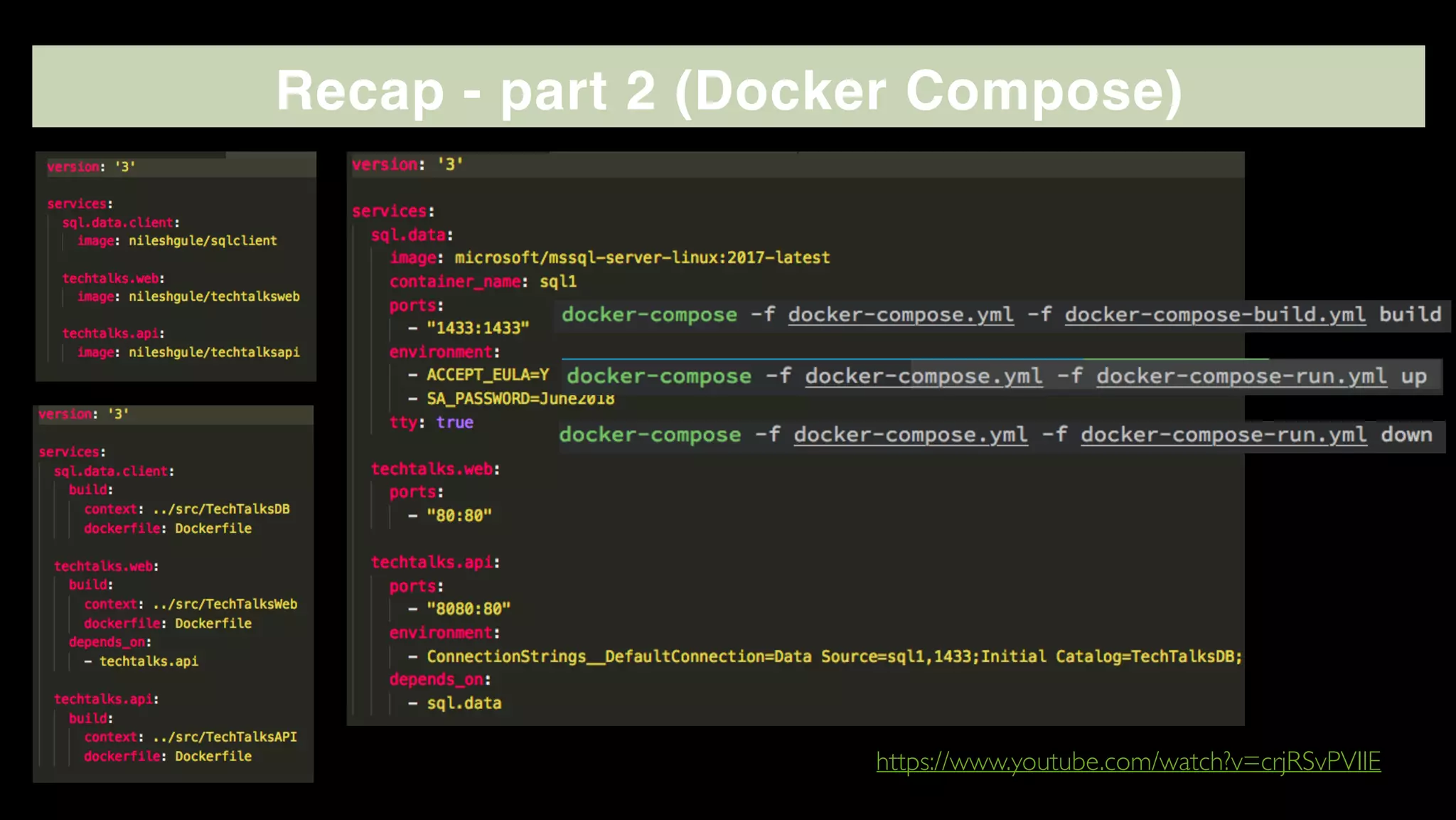

6. Recap - part 2 (Docker Compose)
- https://www.youtube.com/watch?v=crjRSvPVIlE

7. Container
Orchestration

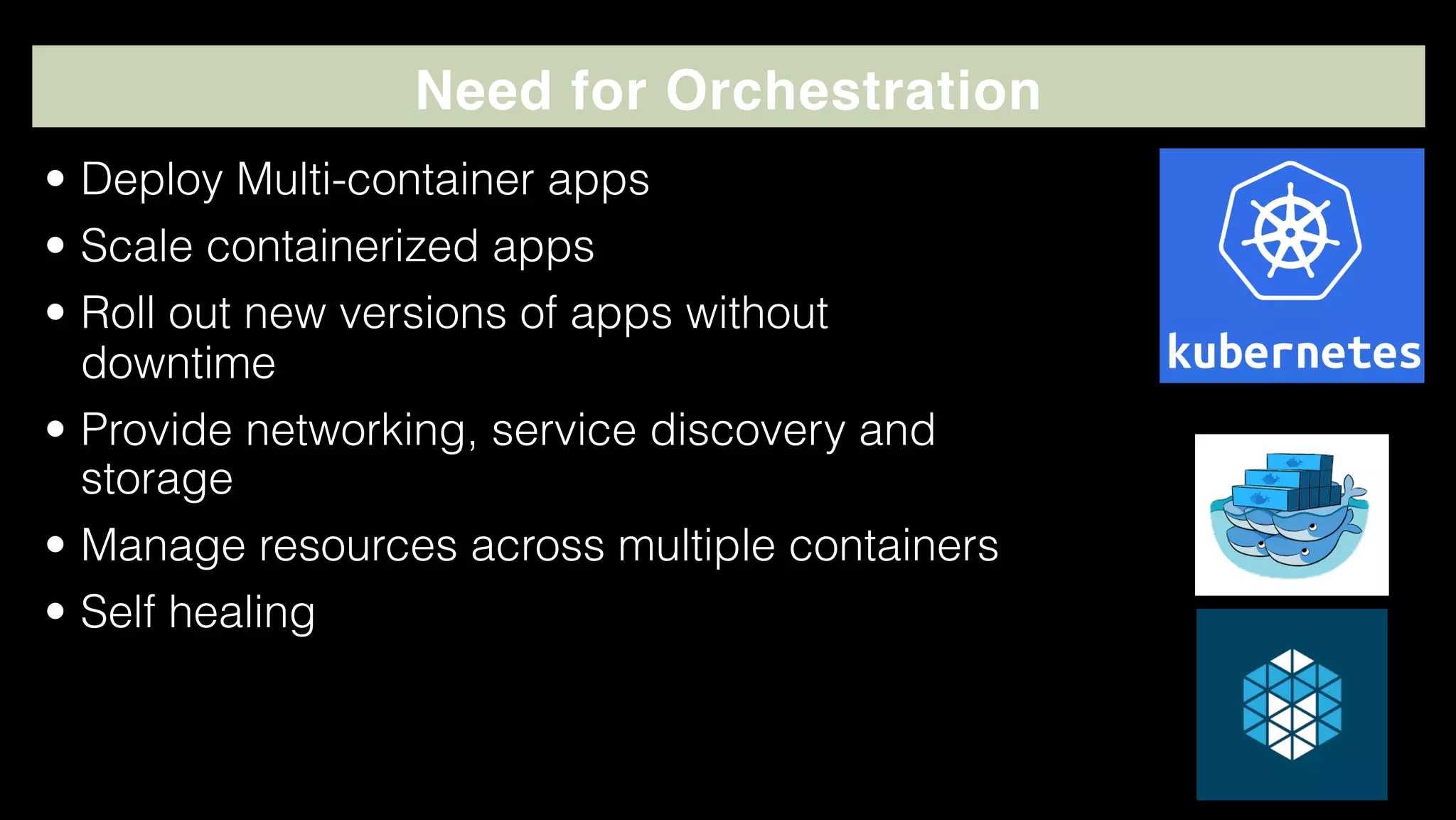

8. Need for Orchestration
• Deploy Multi-container apps
• Scale containerized apps
• Roll out new versions of apps without
downtime
• Provide networking, service discovery and
storage
• Manage resources across multiple containers
• Self healing

9. DEMO
Minikube &
Kubectl
!9

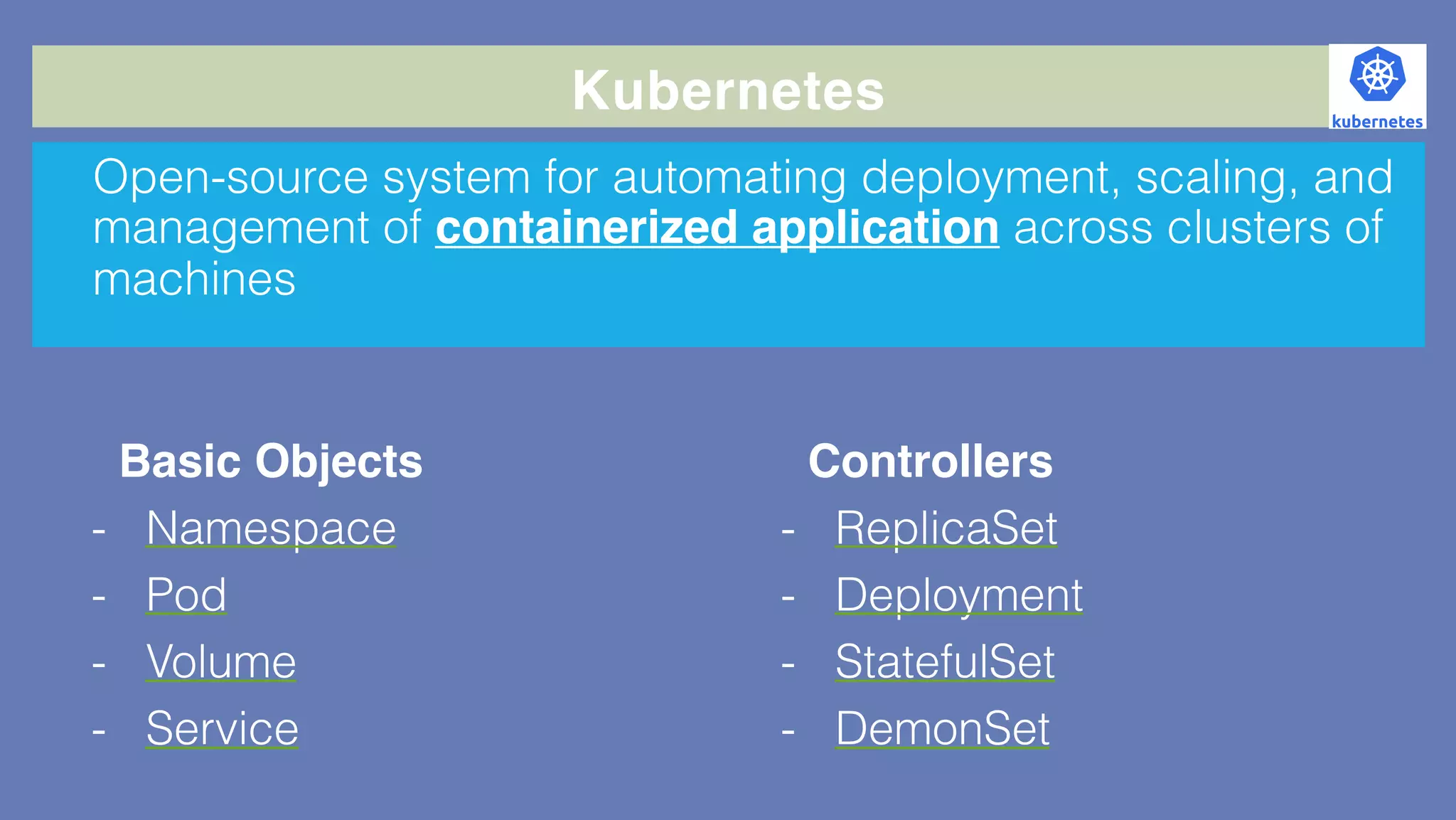

10. Kubernetes
Open-source system for automating deployment, scaling, and
management of containerized application across clusters of
machines
Basic Objects
- Namespace
- Pod
- Volume
- Service
Controllers
- ReplicaSet
- Deployment
- StatefulSet
- DemonSet

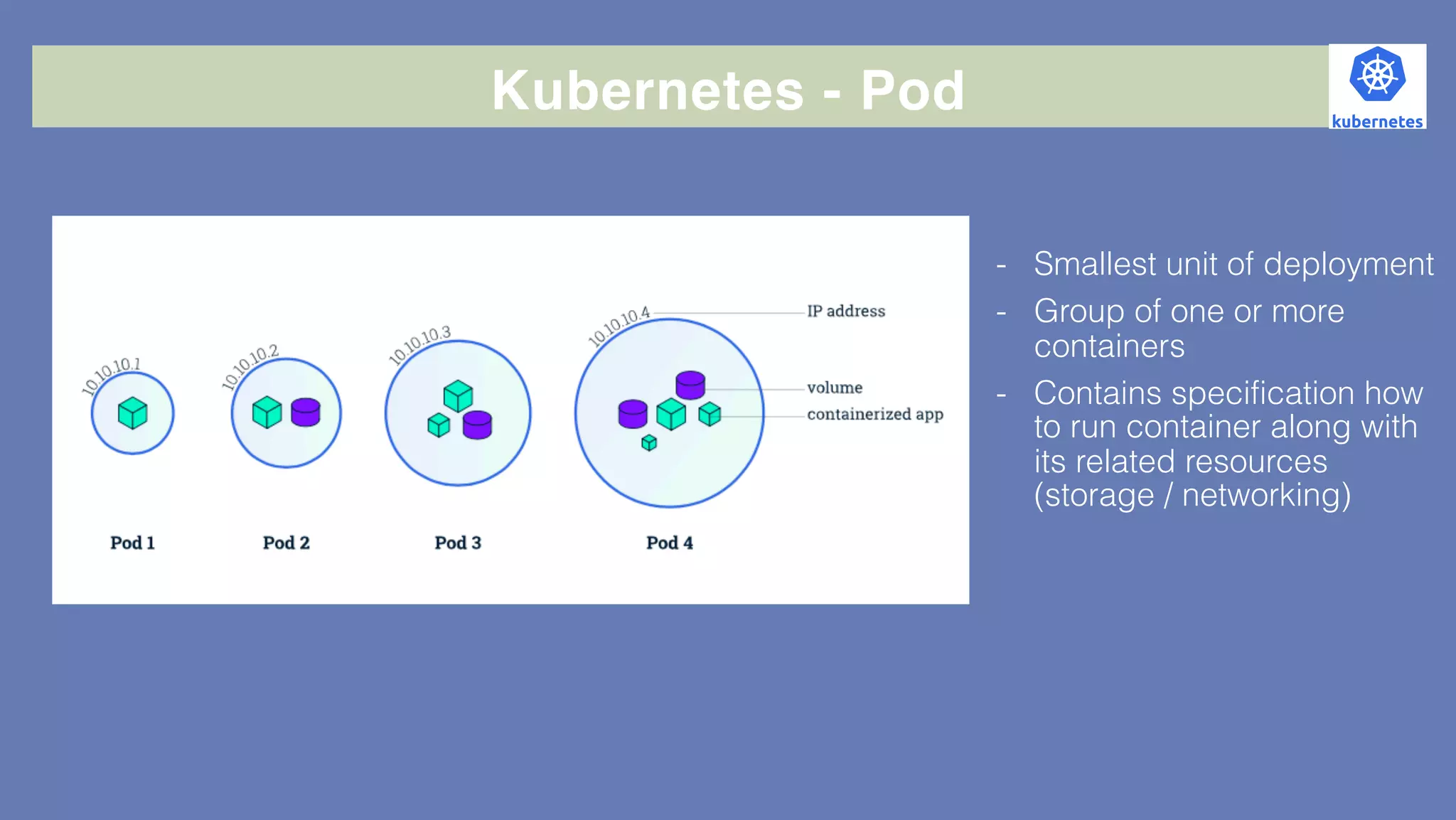

11. Kubernetes - Pod
- Smallest unit of deployment
- Group of one or more
containers
- Contains specification how
to run container along with
its related resources
(storage / networking)

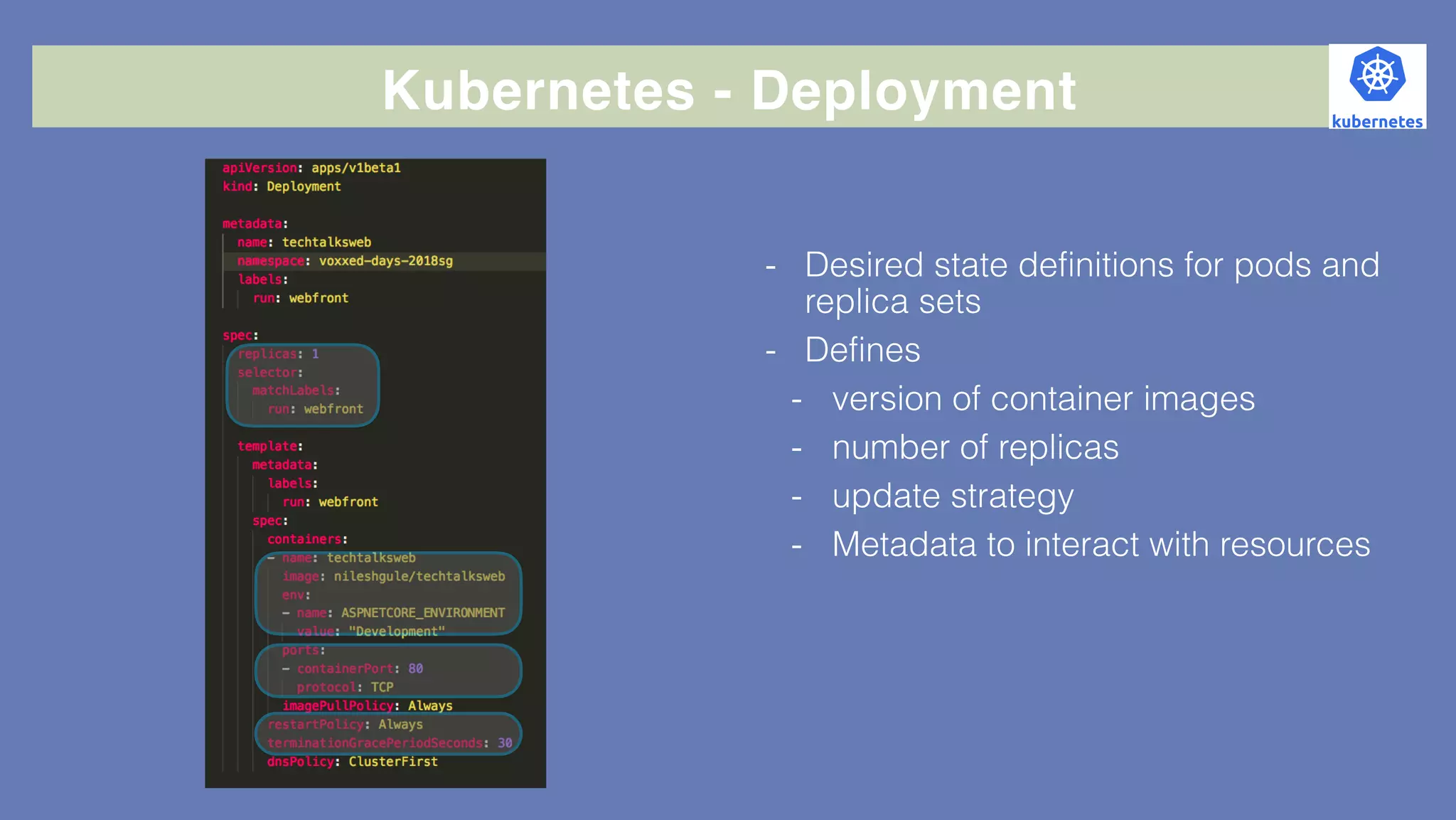

12. Kubernetes - Deployment
- Desired state definitions for pods and
replica sets
- Defines
- version of container images
- number of replicas
- update strategy
- Metadata to interact with resources

13. DEMO
Namespace,
Deployment
!13

14. Node 2
Kubernetes - Service
- Acts as Load Balancers for
pods
- Provides stable IP for
consumers
Node 1
TechTalksWeb
Pod1
TechTalksAPI
Pod2Pod1

15. Kubernetes - StatefulSet
- Use StatefulSets when data loss is unacceptable
- Useful when replicas are needed for availability
or scalability, and the replicas need stable
volume mounts across restarts
- Often used when deploying database workloads
that store their state on external storage providers
- With StatefulSets a crash of pod or cluster
does not result in data loss

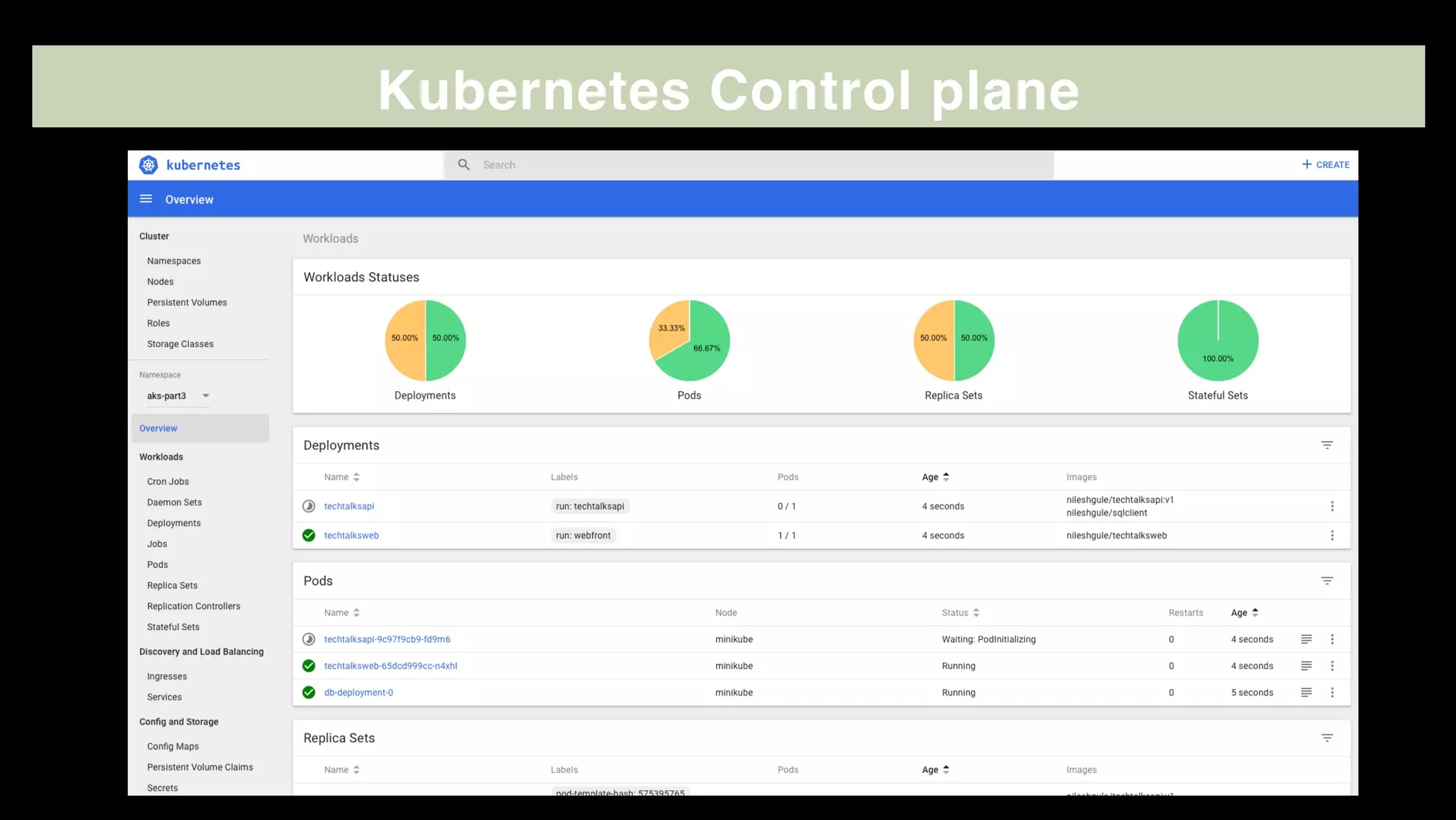

16. Kubernetes Control plane

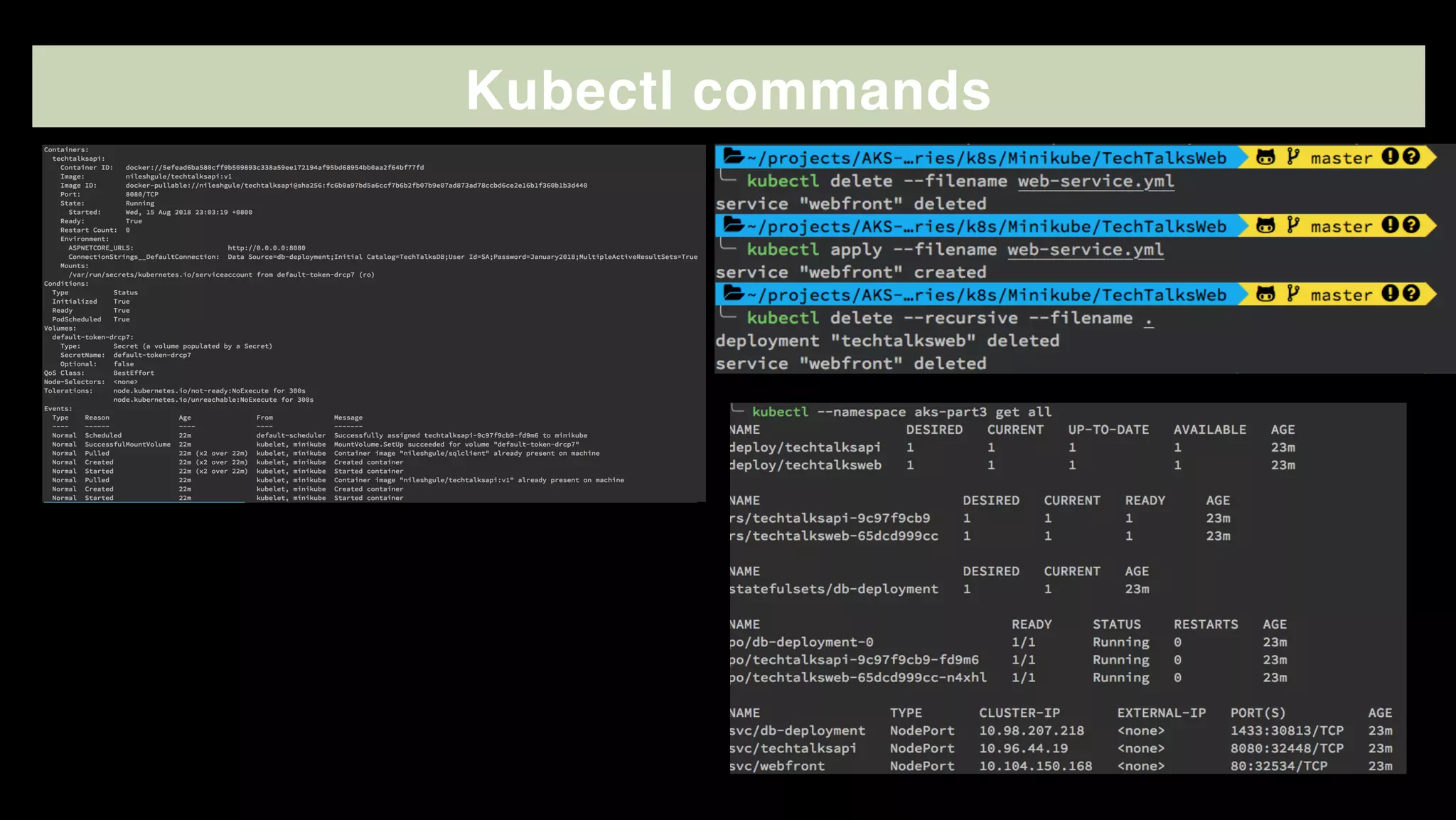

17. Kubectl commands

18. References 1/2
✴ Demo code - https://github.com/NileshGule/AKS-learning-series
✴ Kubernetes playground - https://labs.play-with-k8s.com
✴ Kubernetes objects on Azure - https://azure.microsoft.com/mediahandler/files/resourcefiles/243b3587-a5cd-4937-
b52a-dc5bdc8a78e7/Kubernetes-objects-on-Azure.pdf
✴ Kubernetes Theme park analogy - https://danlebrero.com/2018/07/09/kubernetes-explained-in-pictures-the-theme-
park-analogy/
✴ The Illustrated children’s guide to Kubernetes - https://cdn.chrisshort.net/The-Illustrated-Childrens-Guide-to-
Kubernetes.pdf
✴ Orchestrators - https://www.exoscale.com/syslog/container-orchestration/
✴ Twelve Factor App - https://12factor.net
✴ Kubernetes Basics - https://kubernetes.io/docs/tutorials/kubernetes-basics/
✴ Azure Kubernetes objects - https://msft.social/TIRUaN
✴ Kubernetes secrets - https://kubernetes.io/docs/concepts/configuration/secret/
✴ Highly scalable apps - https://www.handsonarchitect.com/2018/03/highly-scalable-multi-container-apps.html
✴

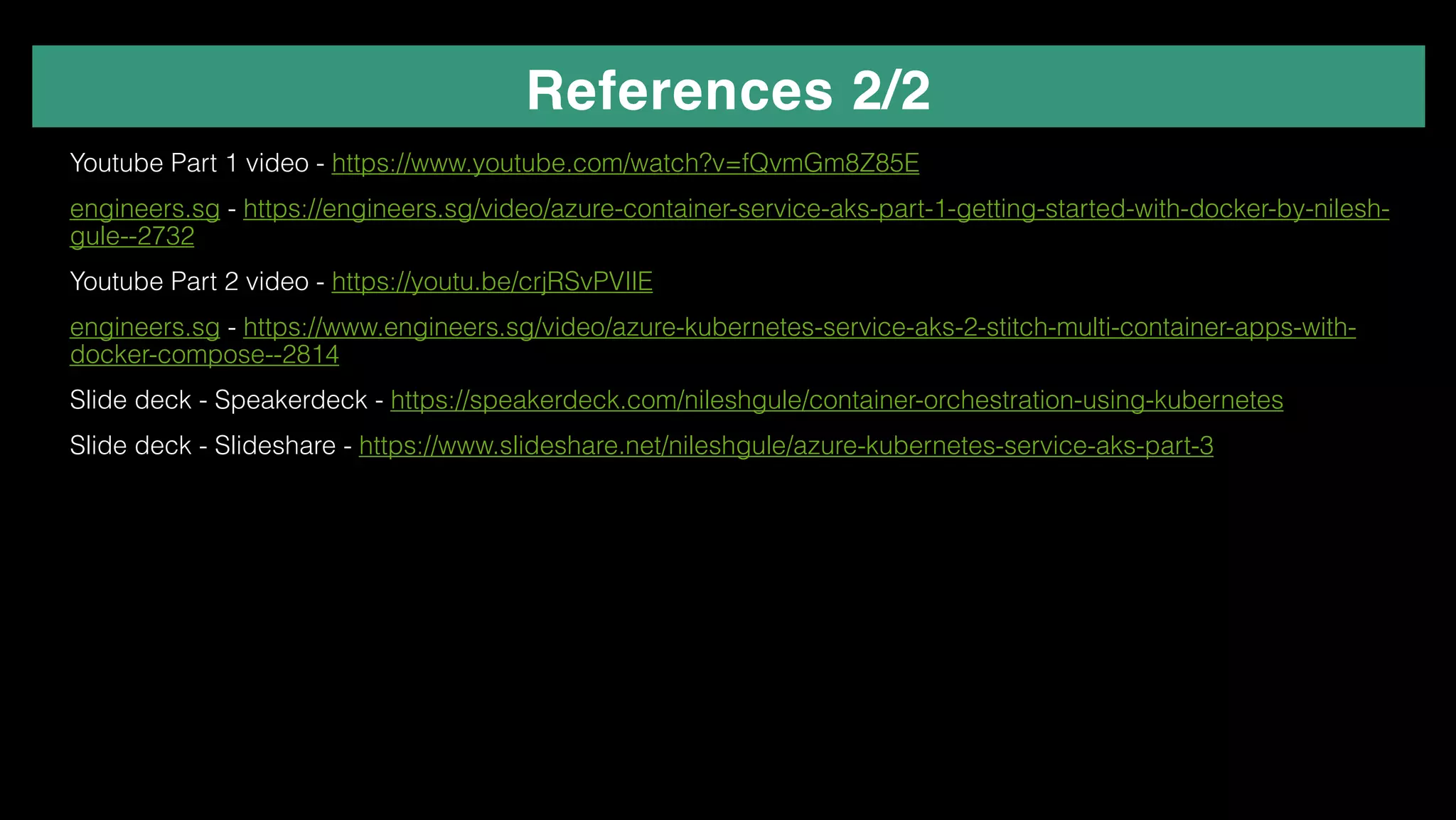

19. References 2/2
✴ Youtube Part 1 video - https://www.youtube.com/watch?v=fQvmGm8Z85E
✴ engineers.sg - https://engineers.sg/video/azure-container-service-aks-part-1-getting-started-with-docker-by-nilesh-
gule--2732
✴ Youtube Part 2 video - https://youtu.be/crjRSvPVIlE
✴ engineers.sg - https://www.engineers.sg/video/azure-kubernetes-service-aks-2-stitch-multi-container-apps-with-
docker-compose--2814
✴ Slide deck - Speakerdeck - https://speakerdeck.com/nileshgule/container-orchestration-using-kubernetes
✴ Slide deck - Slideshare - https://www.slideshare.net/nileshgule/azure-kubernetes-service-aks-part-3
✴

20. Thank you
very much
https://github.com/NileshGule/AKS-learning-series
Code with Passion and Strive for Excellence

21. Q&A

22. Feedback
http://bit.ly/AKSPart3
