1. AWSome Day 2018
Serverless API with
Amazon Web Services
AWSome Day - Torino 2018

2. Gabriele Mittica
Co-founder Corley
Co-Ideator CloudConf
@gabrielemittica
gabriele.mittica@corley.it
corley.it

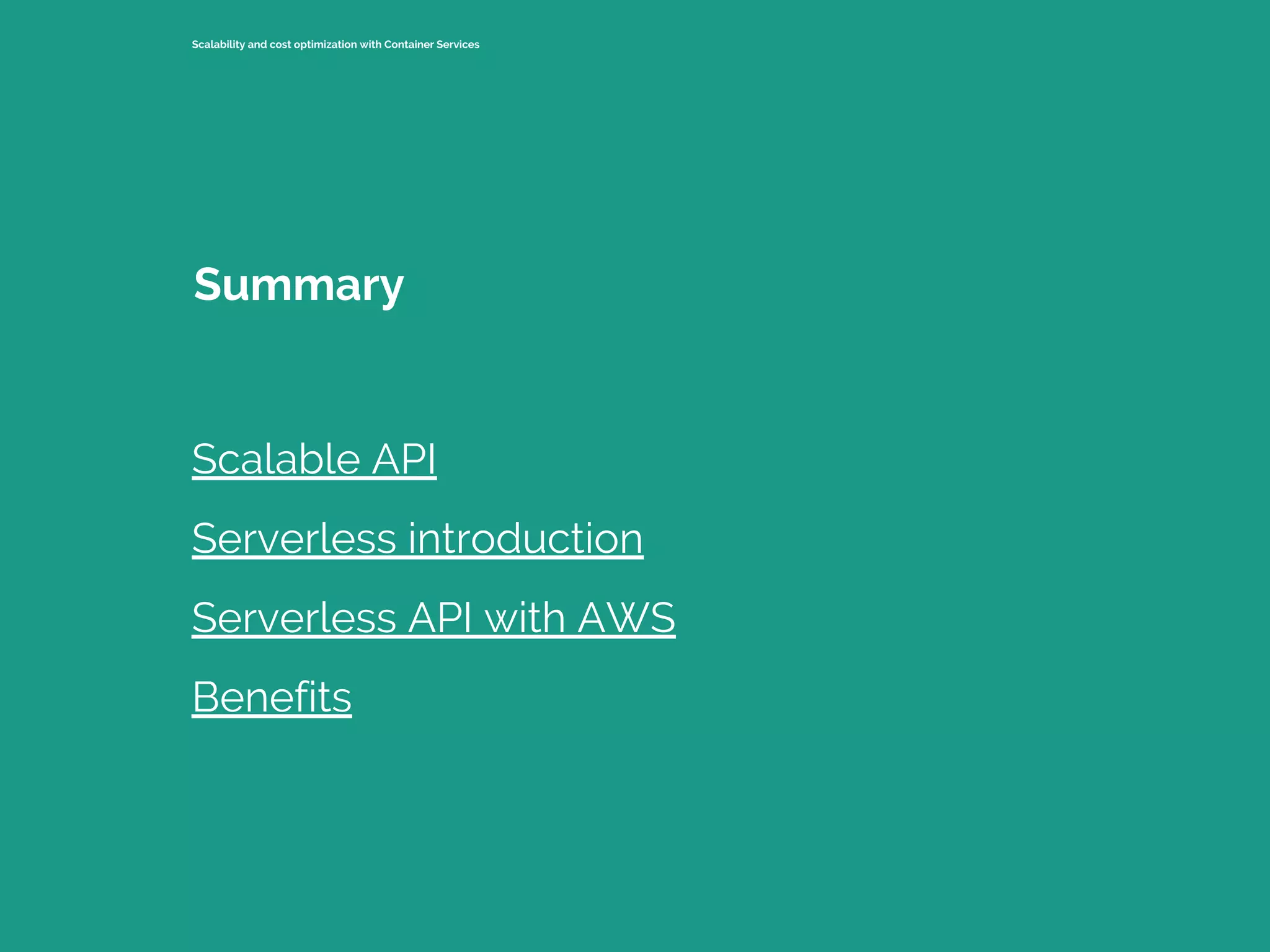

3. Scalability and cost optimization with Container Services
Scalable API
Serverless introduction
Serverless API with AWS
Benefits
Summary

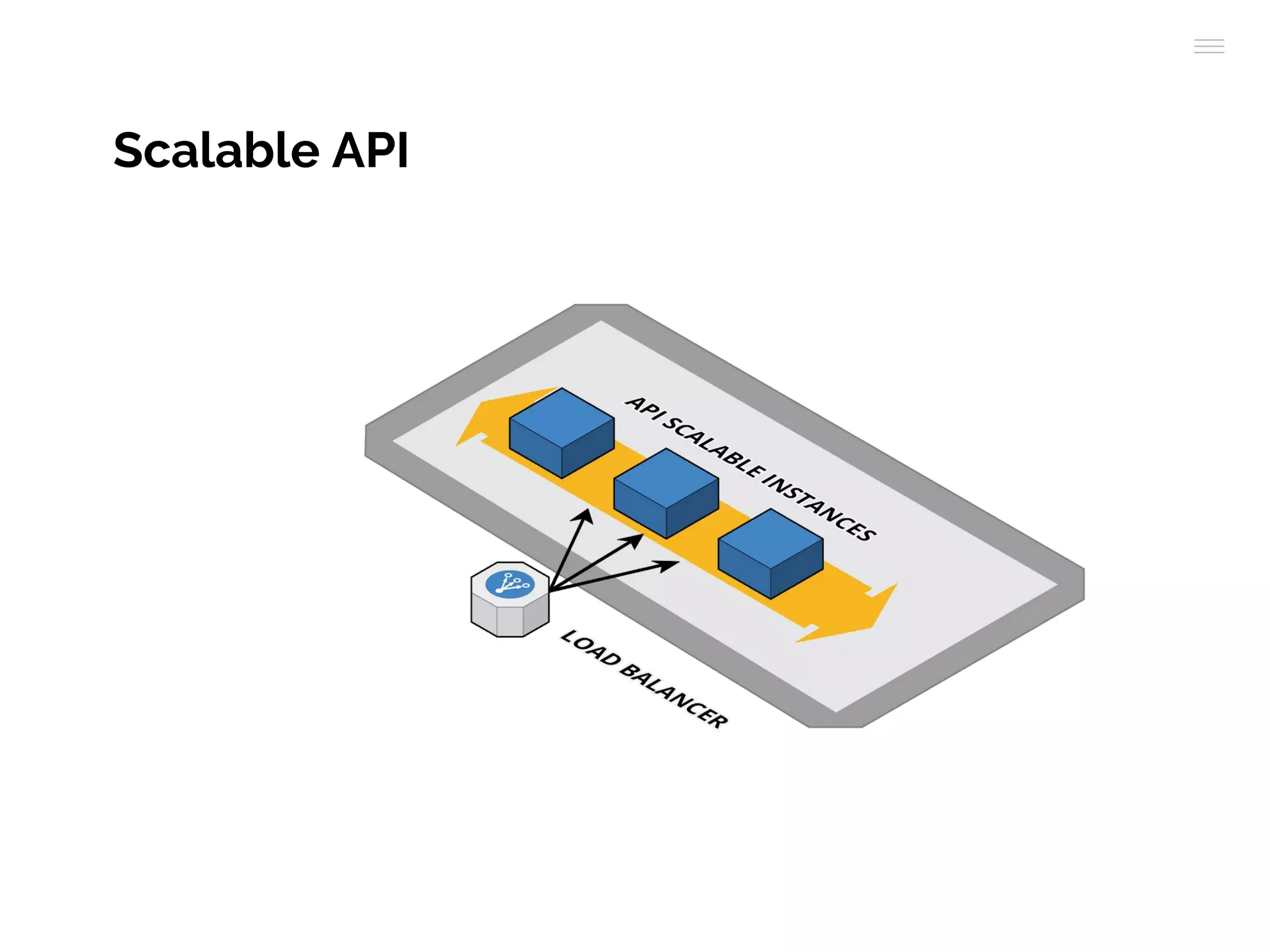

5. Scalable API

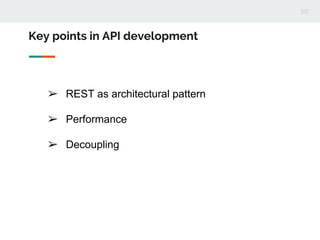

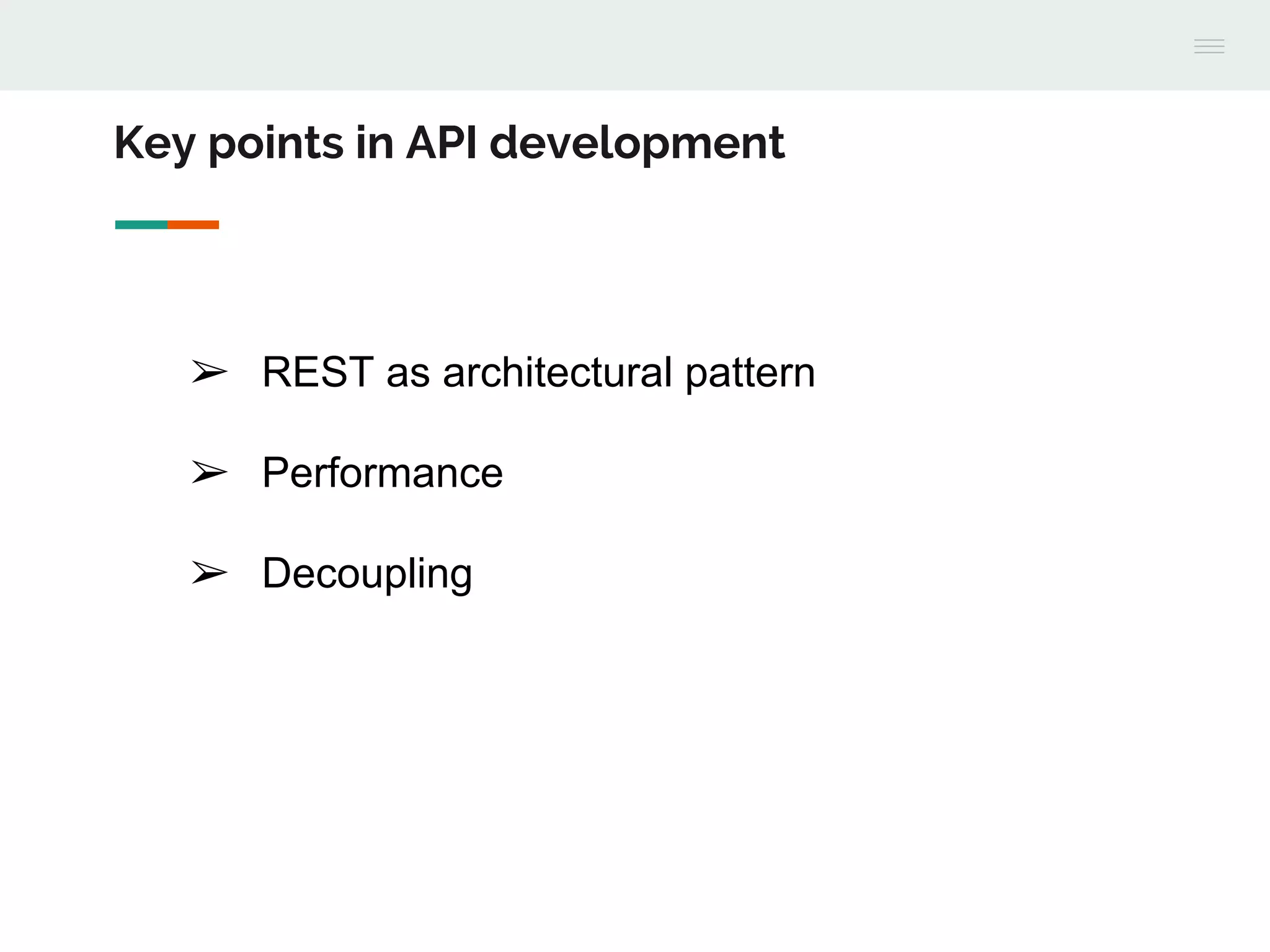

6. ➢ REST as architectural pattern
➢ Performance
➢ Decoupling
Key points in API development

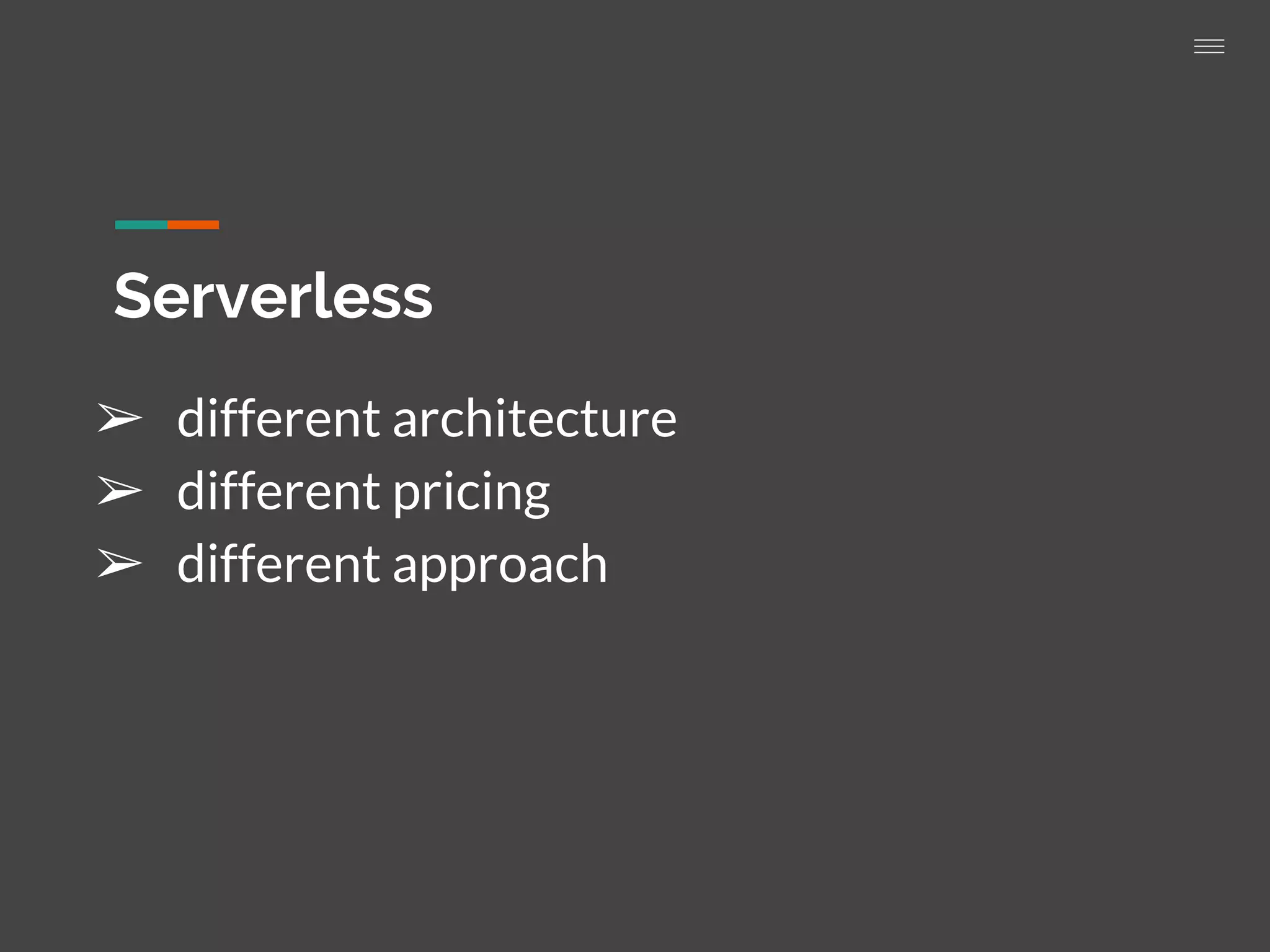

7. Serverless
➢ different architecture
➢ different pricing
➢ different approach

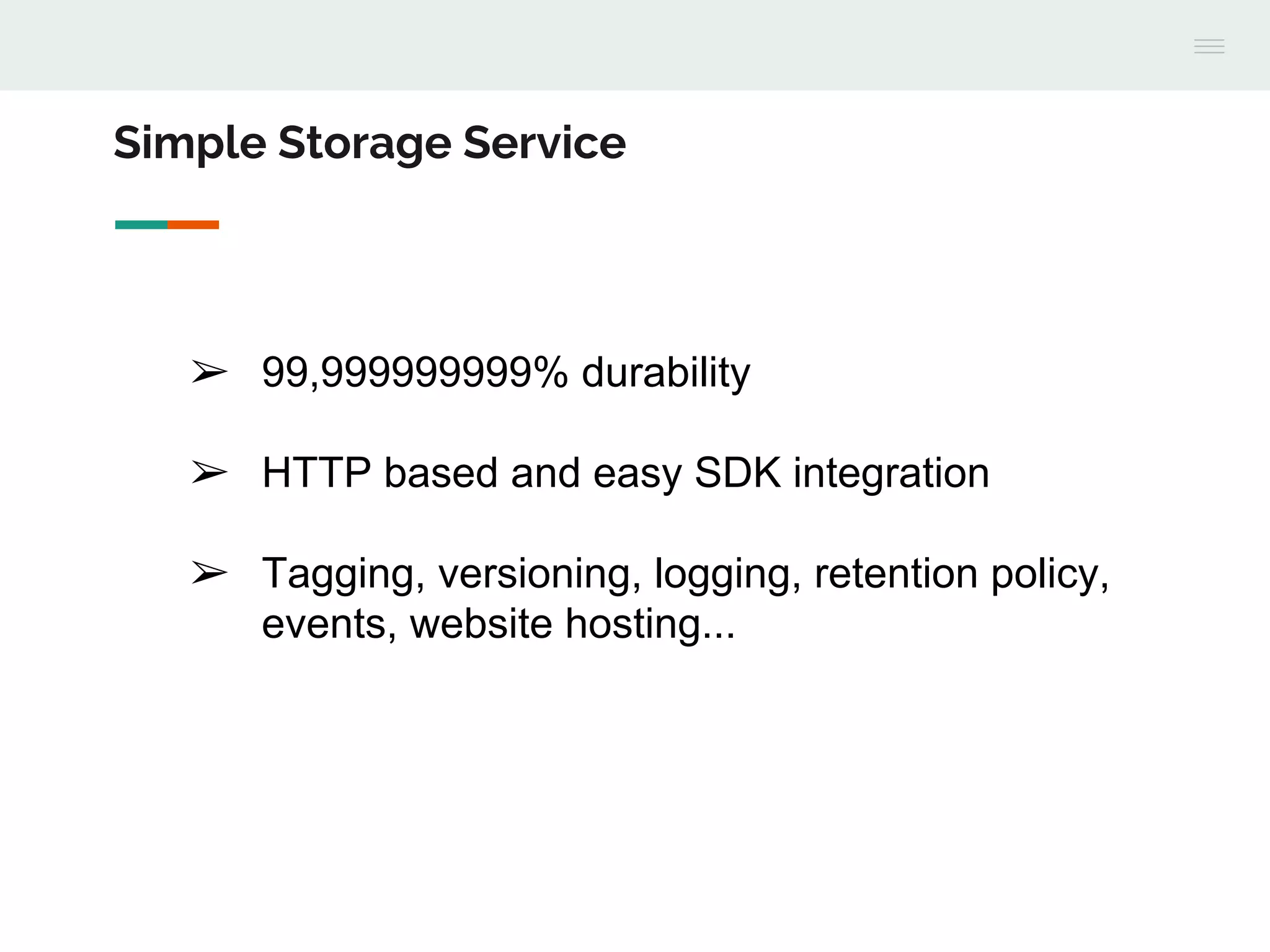

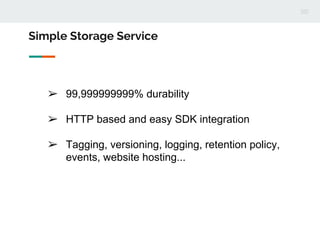

8. ➢ 99,999999999% durability
➢ HTTP based and easy SDK integration
➢ Tagging, versioning, logging, retention policy,
events, website hosting...
Simple Storage Service

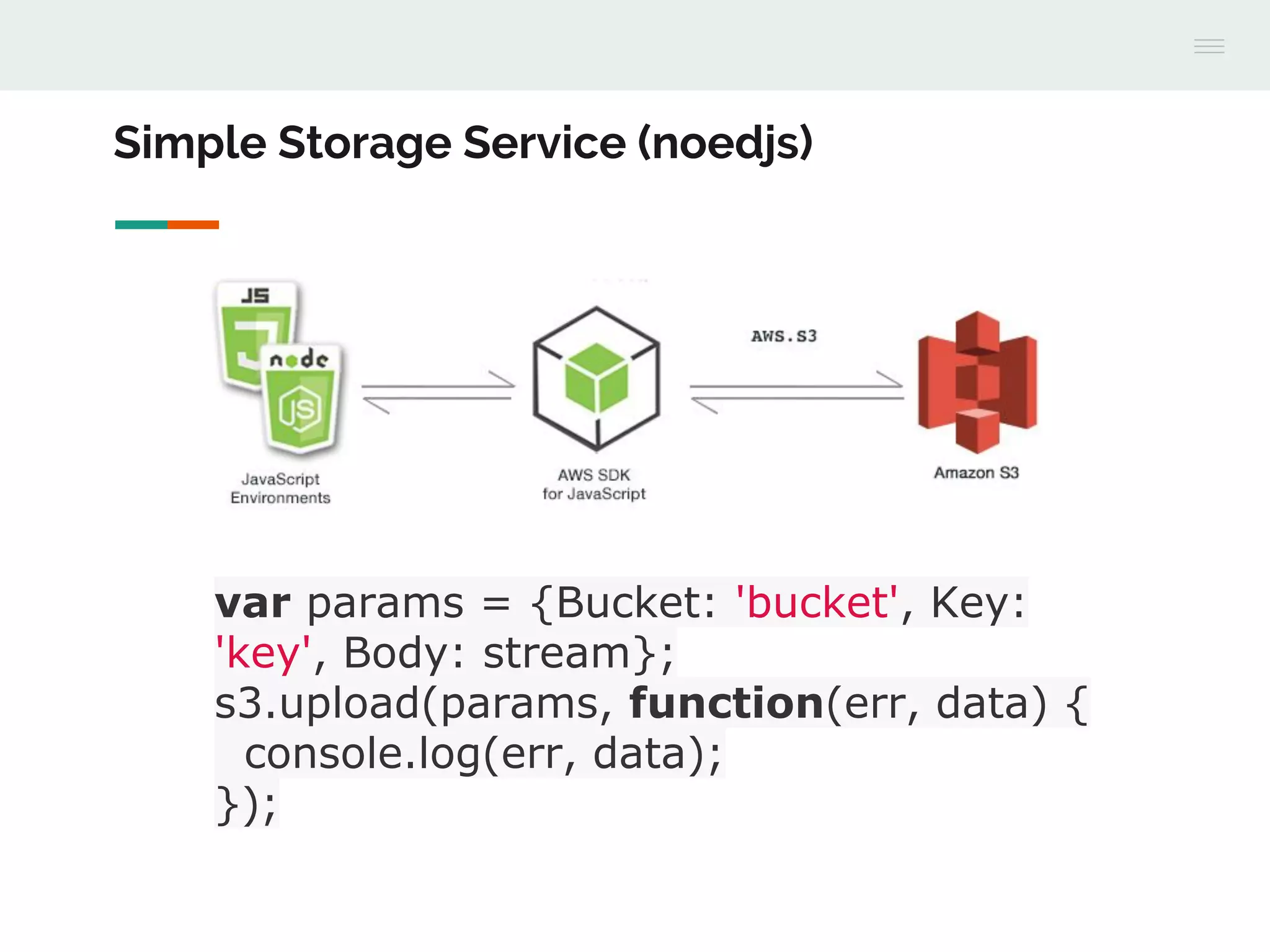

9. var params = {Bucket: 'bucket', Key:
'key', Body: stream};
s3.upload(params, function(err, data) {
console.log(err, data);
});
Simple Storage Service (noedjs)

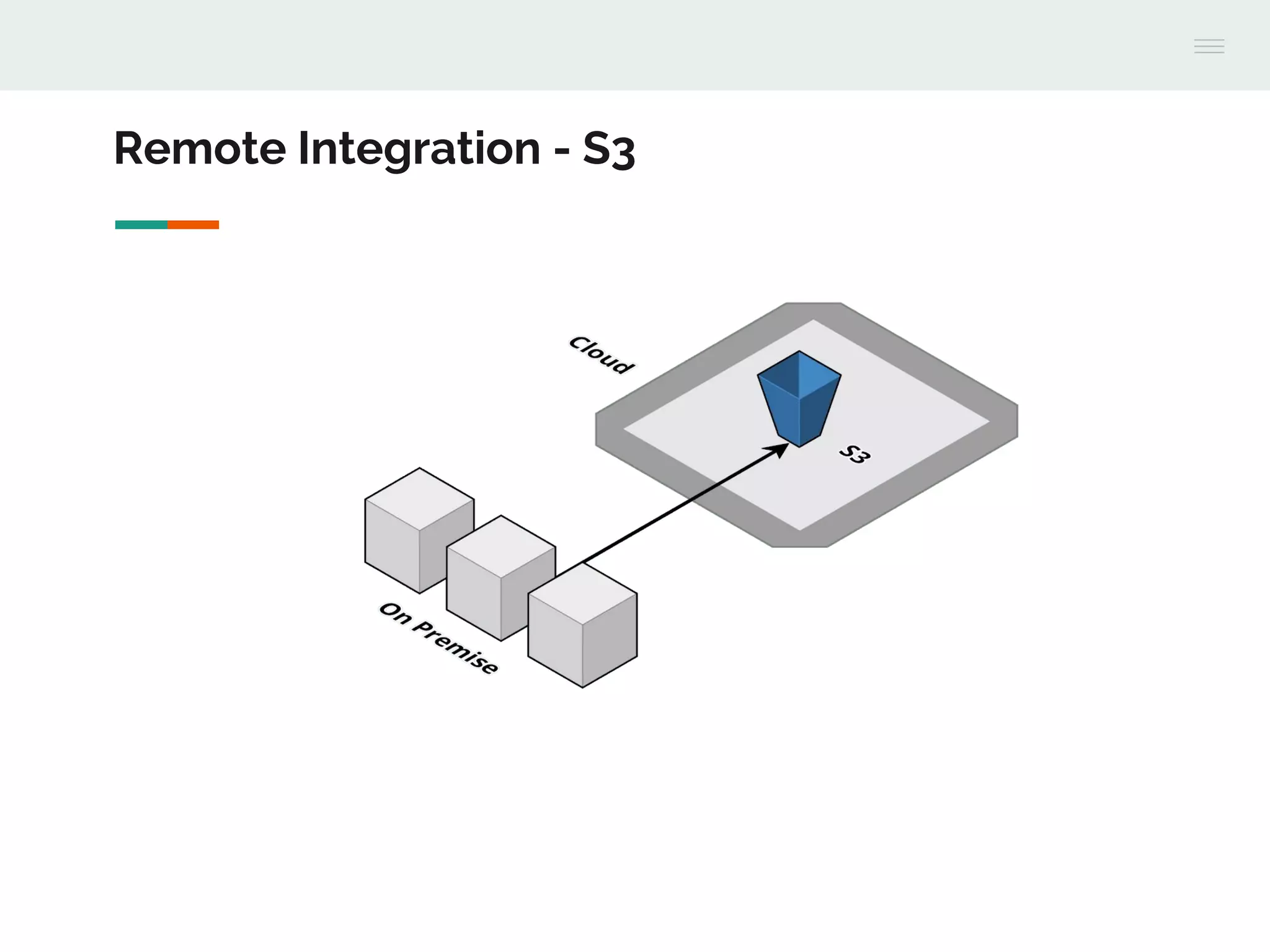

10. Remote Integration - S3

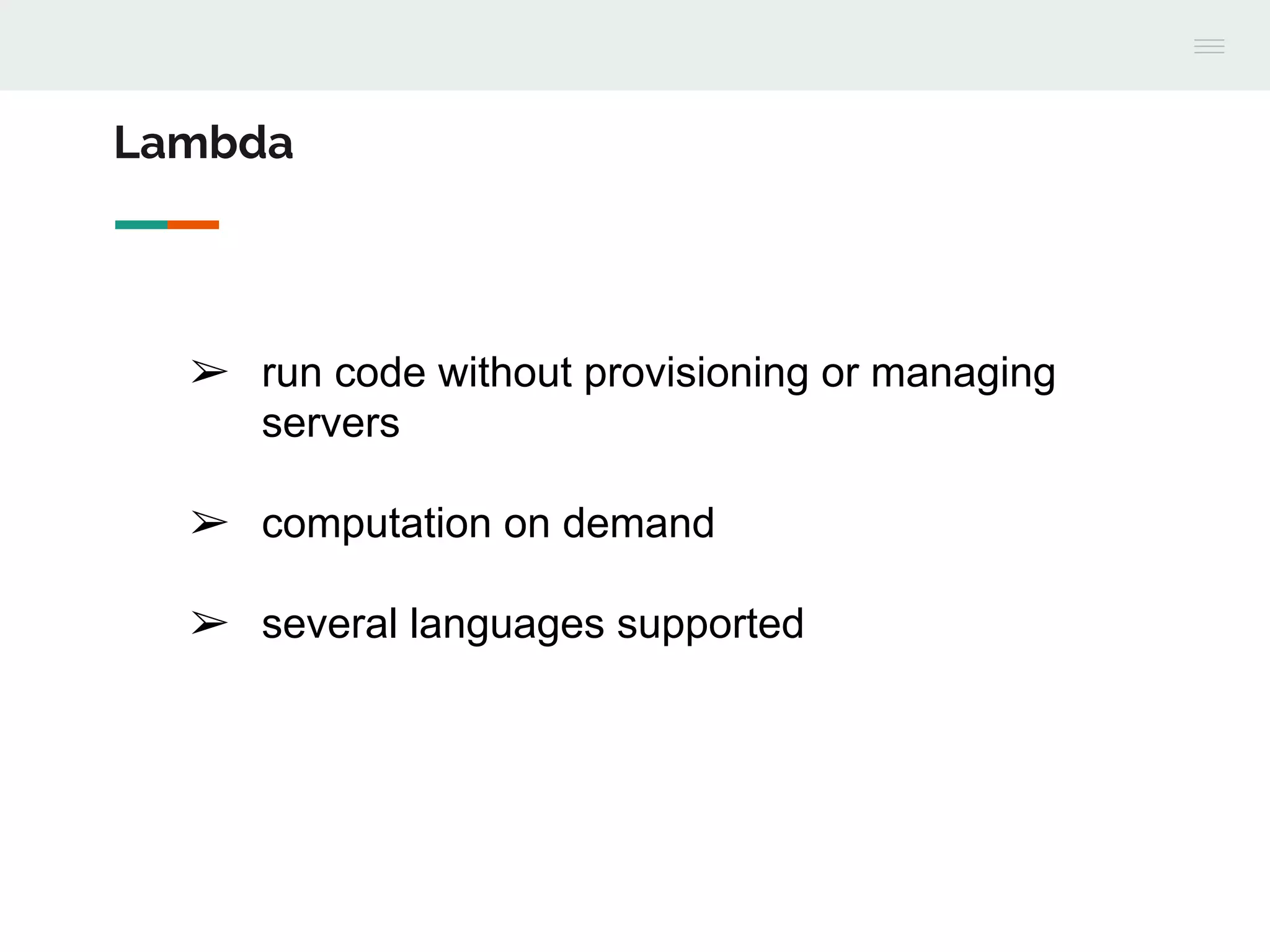

11. ➢ run code without provisioning or managing
servers
➢ computation on demand
➢ several languages supported
Lambda

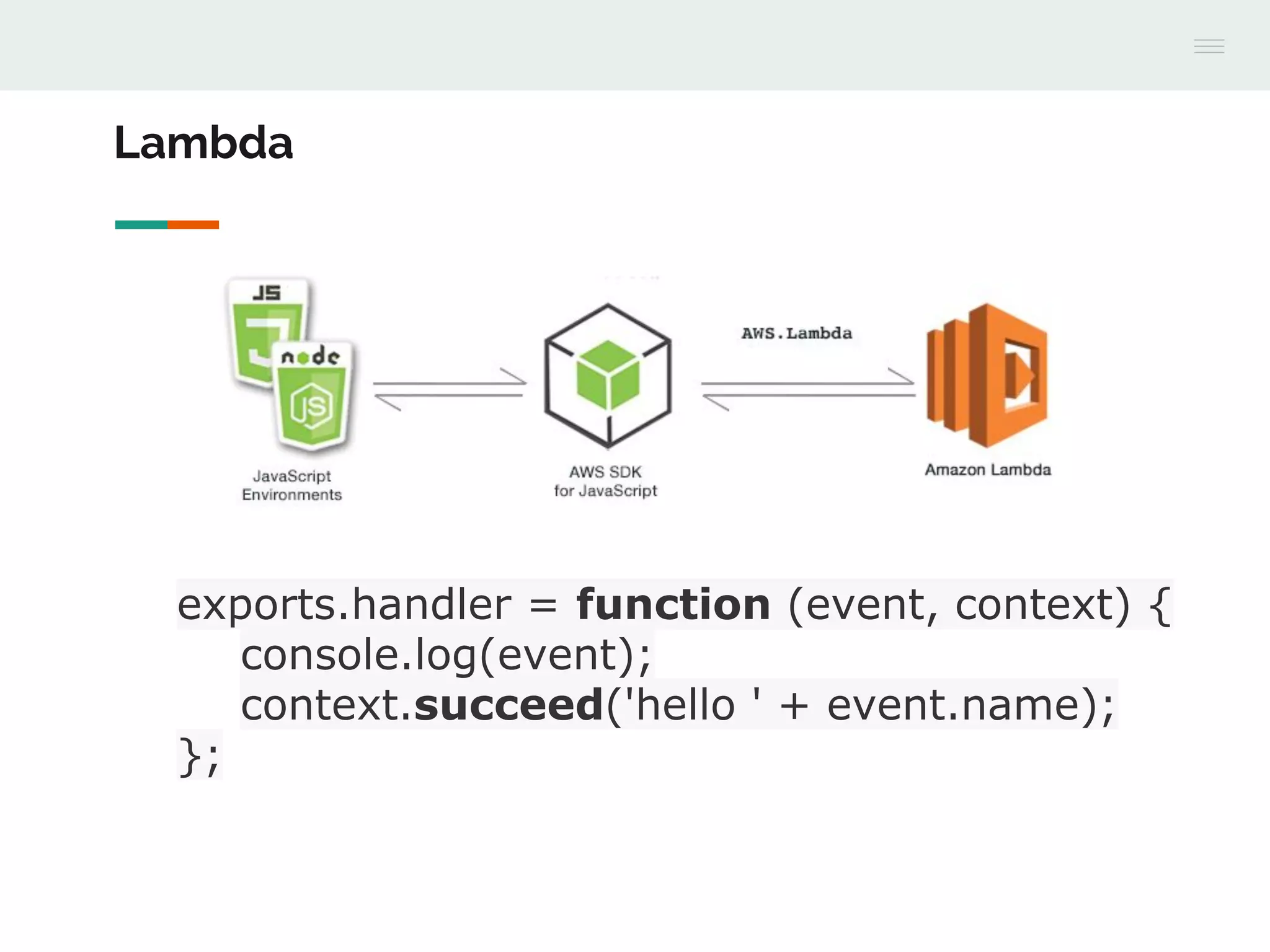

12. exports.handler = function (event, context) {
console.log(event);
context.succeed('hello ' + event.name);
};
Lambda

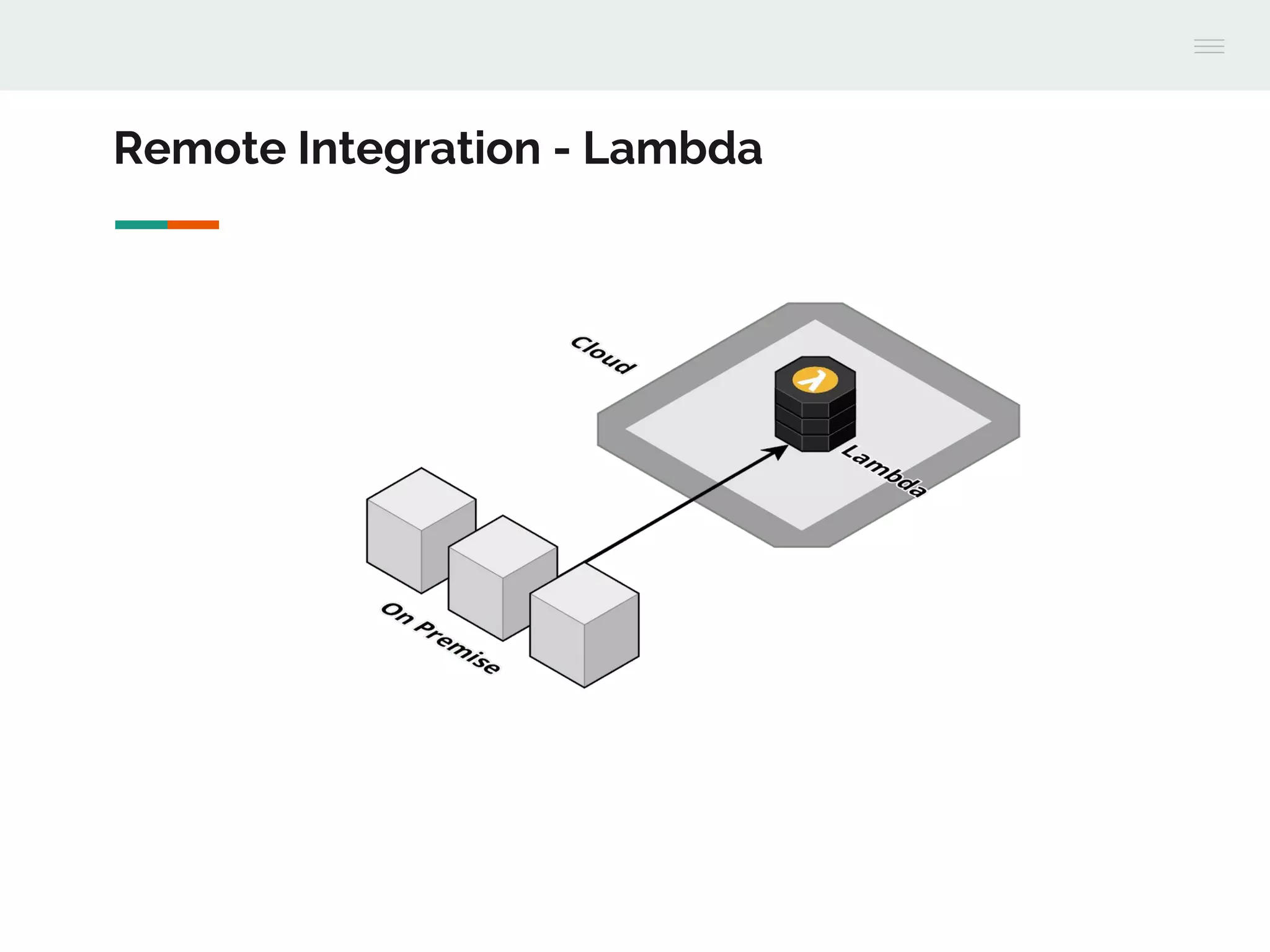

13. Remote Integration - Lambda

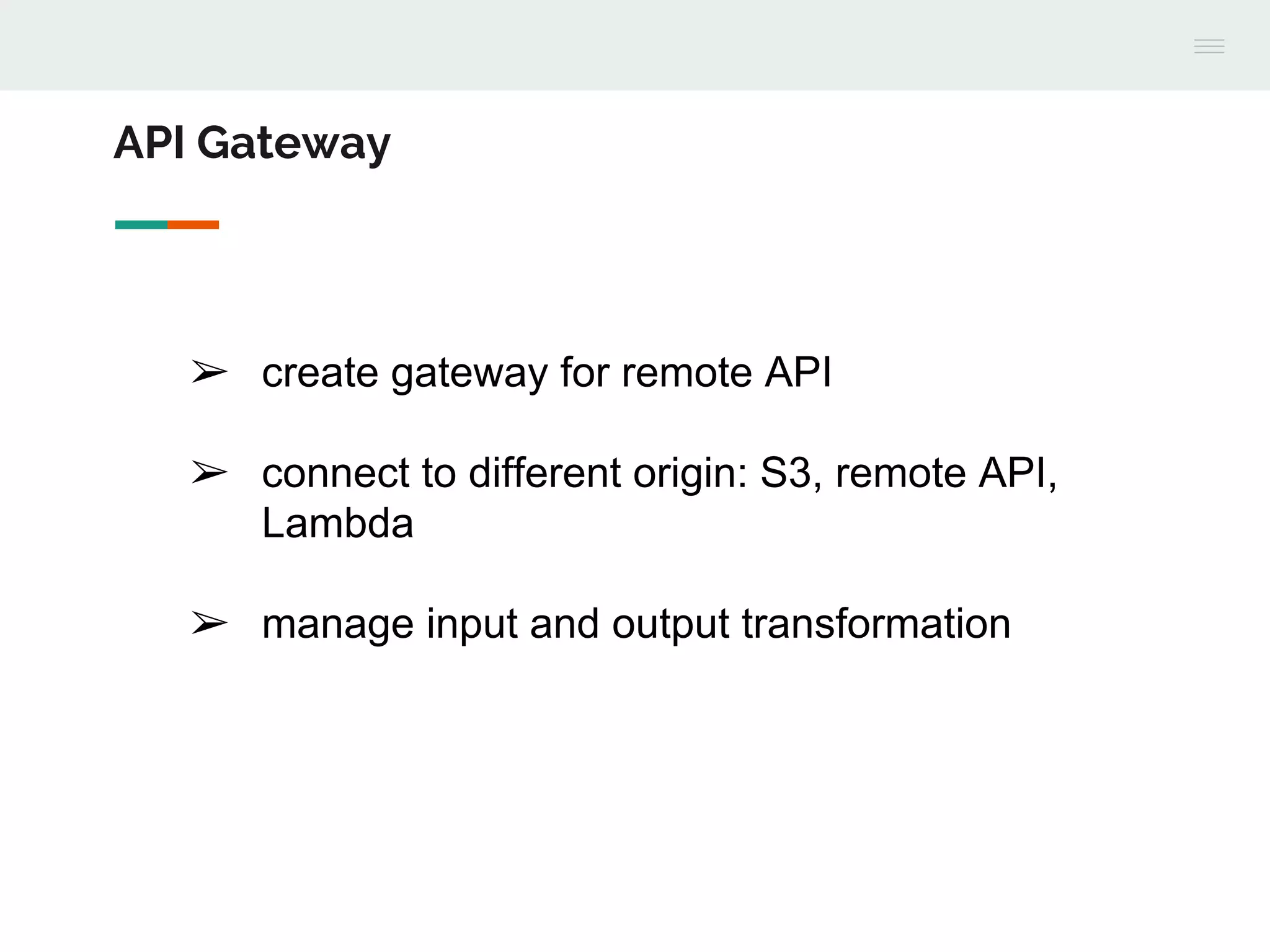

14. ➢ create gateway for remote API
➢ connect to different origin: S3, remote API,
Lambda
➢ manage input and output transformation
API Gateway

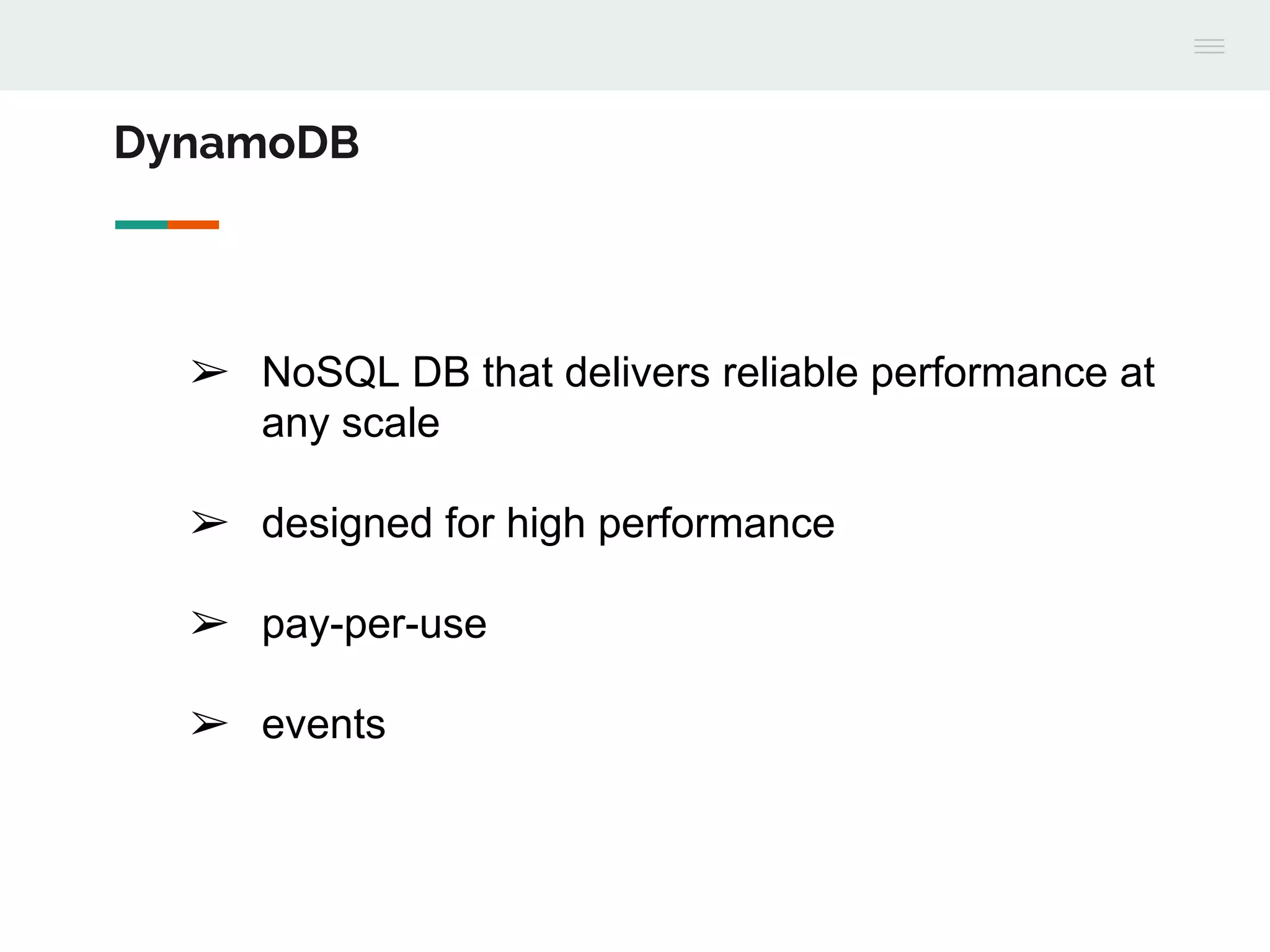

15. ➢ NoSQL DB that delivers reliable performance at
any scale
➢ designed for high performance
➢ pay-per-use
➢ events
DynamoDB

17. How to create
Serverless API

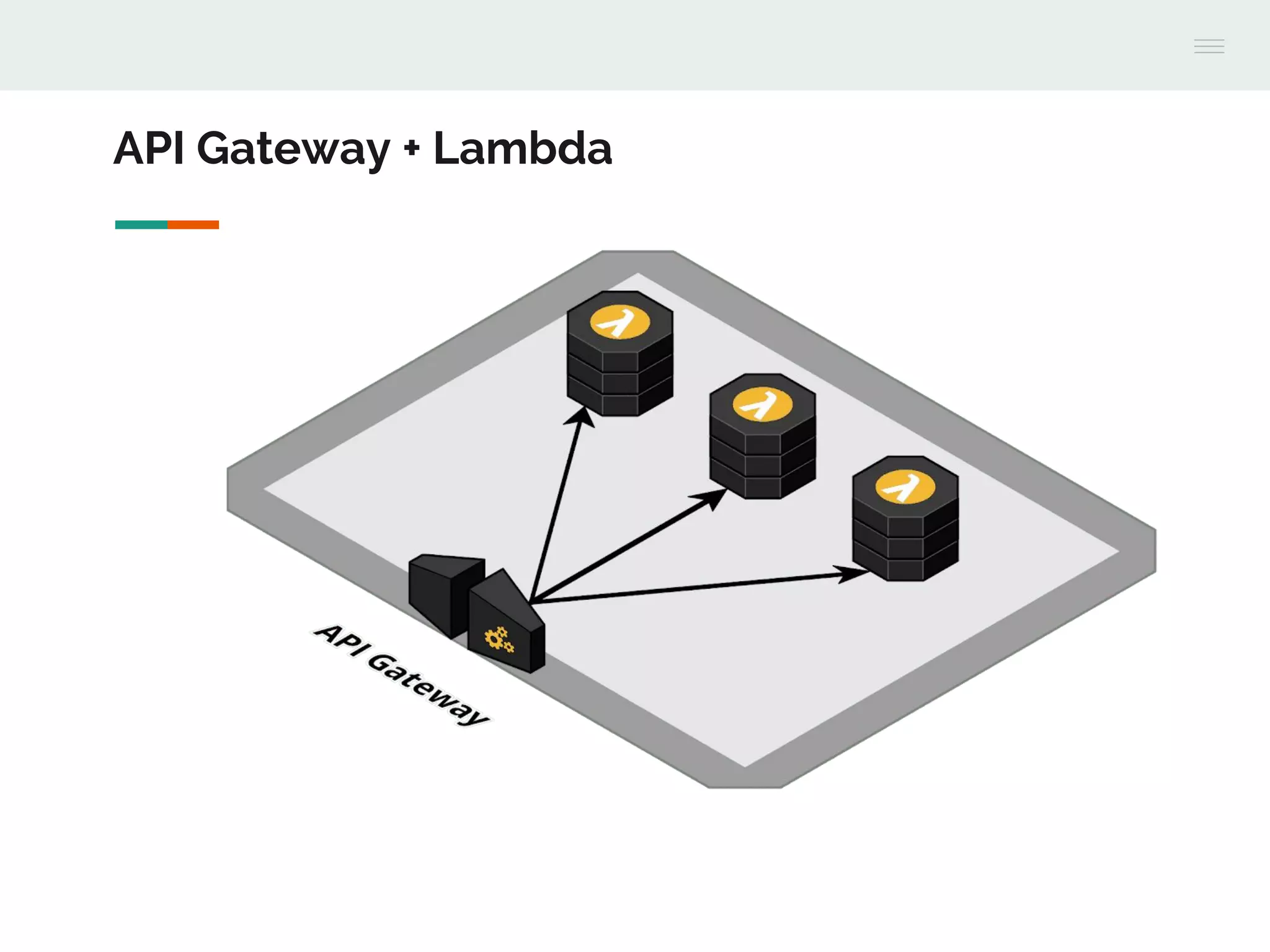

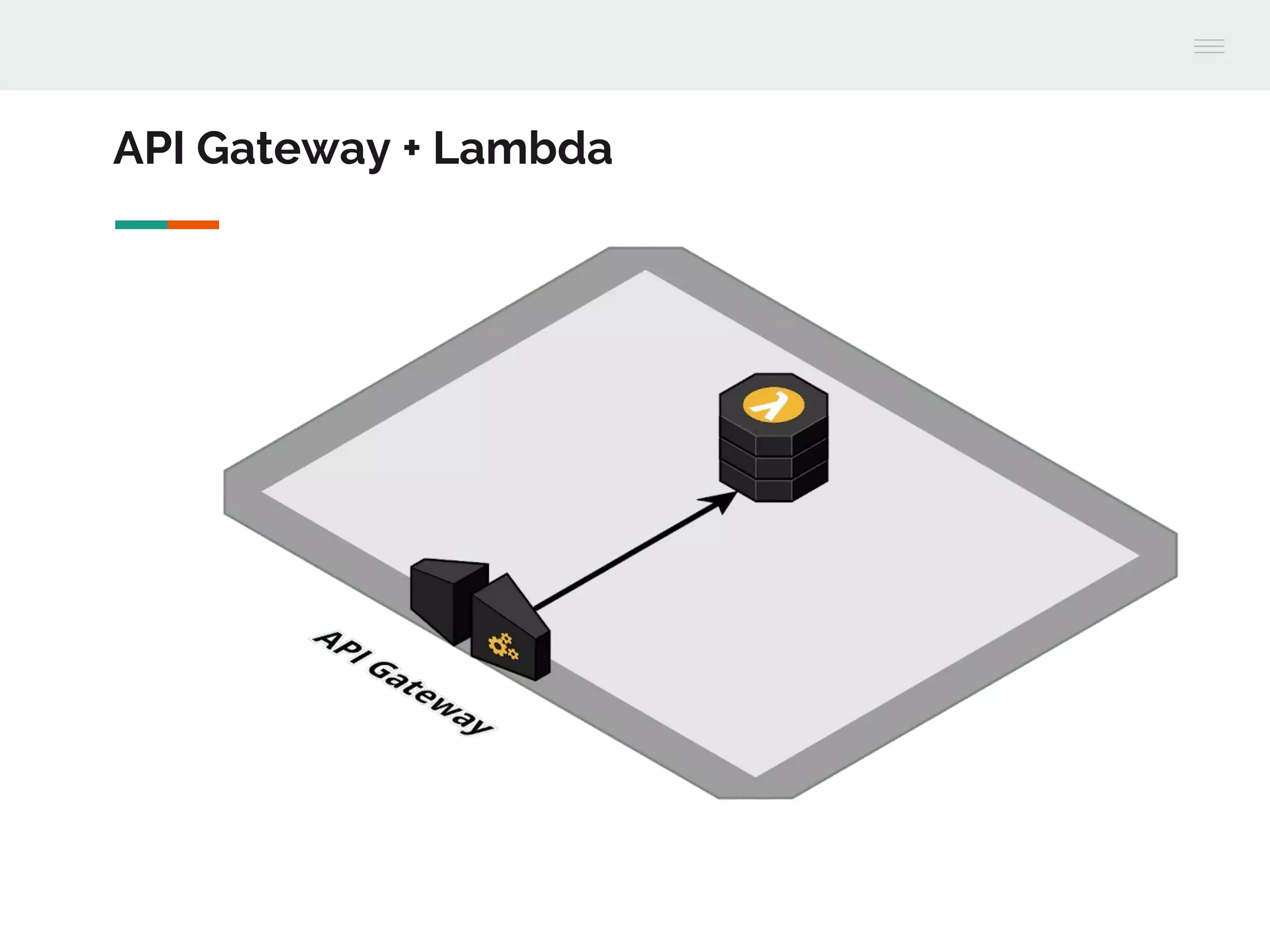

18. API Gateway + Lambda

19. API Gateway + Lambda

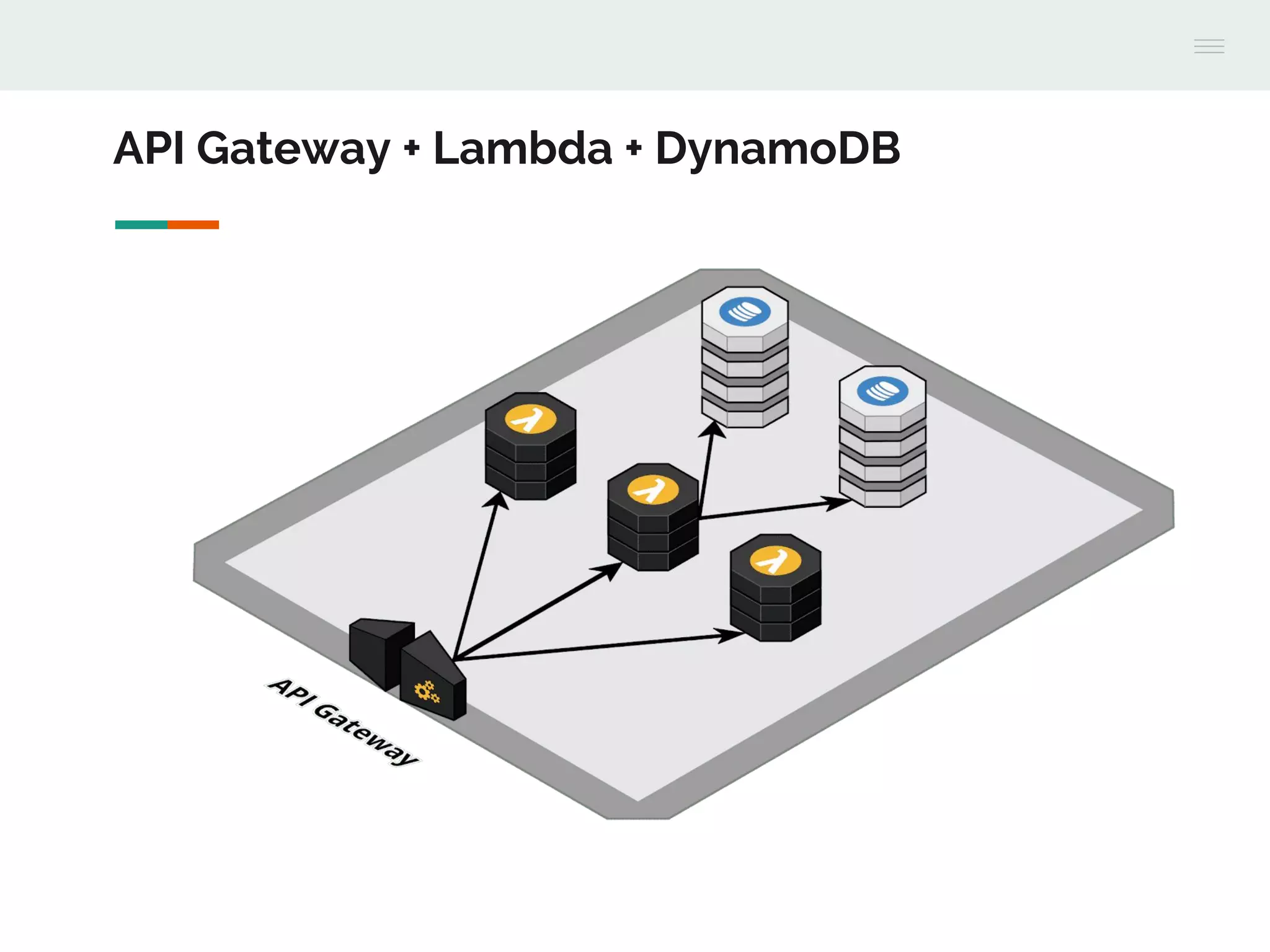

20. API Gateway + Lambda + DynamoDB

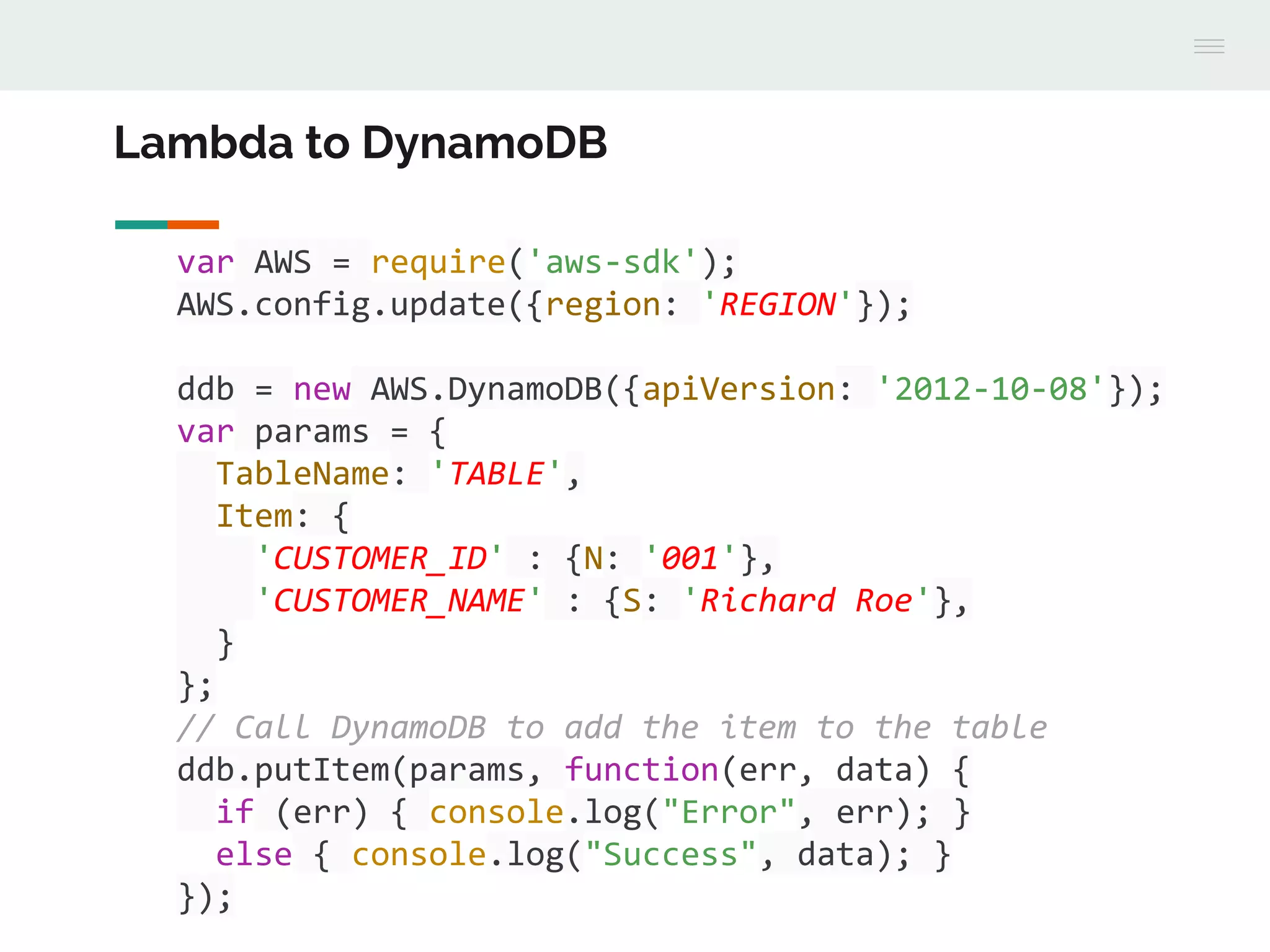

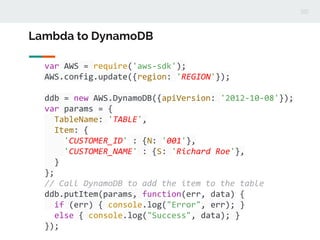

21. var AWS = require('aws-sdk');
AWS.config.update({region: 'REGION'});
ddb = new AWS.DynamoDB({apiVersion: '2012-10-08'});
var params = {
TableName: 'TABLE',
Item: {
'CUSTOMER_ID' : {N: '001'},
'CUSTOMER_NAME' : {S: 'Richard Roe'},
}
};
// Call DynamoDB to add the item to the table
ddb.putItem(params, function(err, data) {
if (err) { console.log("Error", err); }
else { console.log("Success", data); }
});
Lambda to DynamoDB

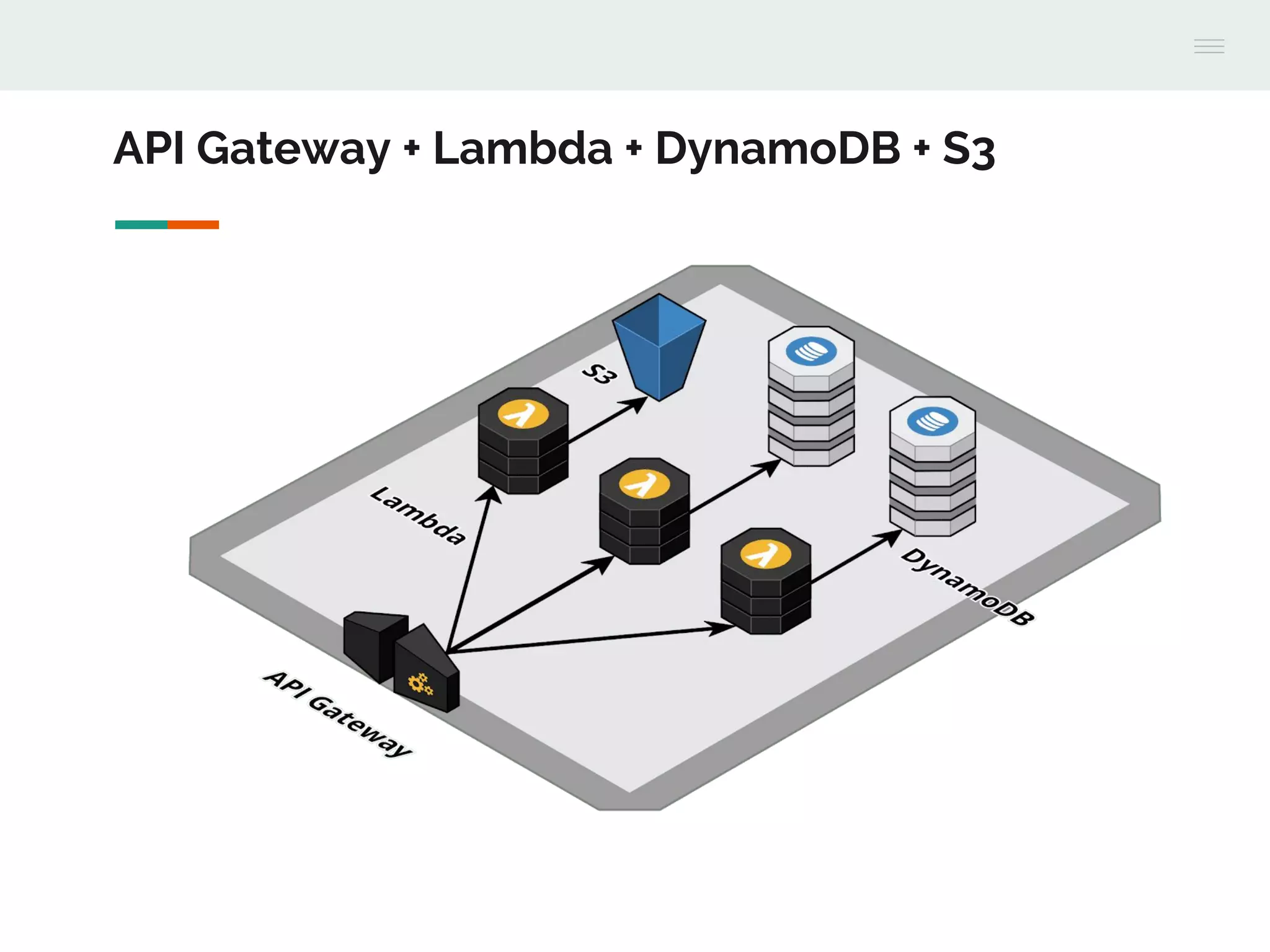

22. API Gateway + Lambda + DynamoDB + S3

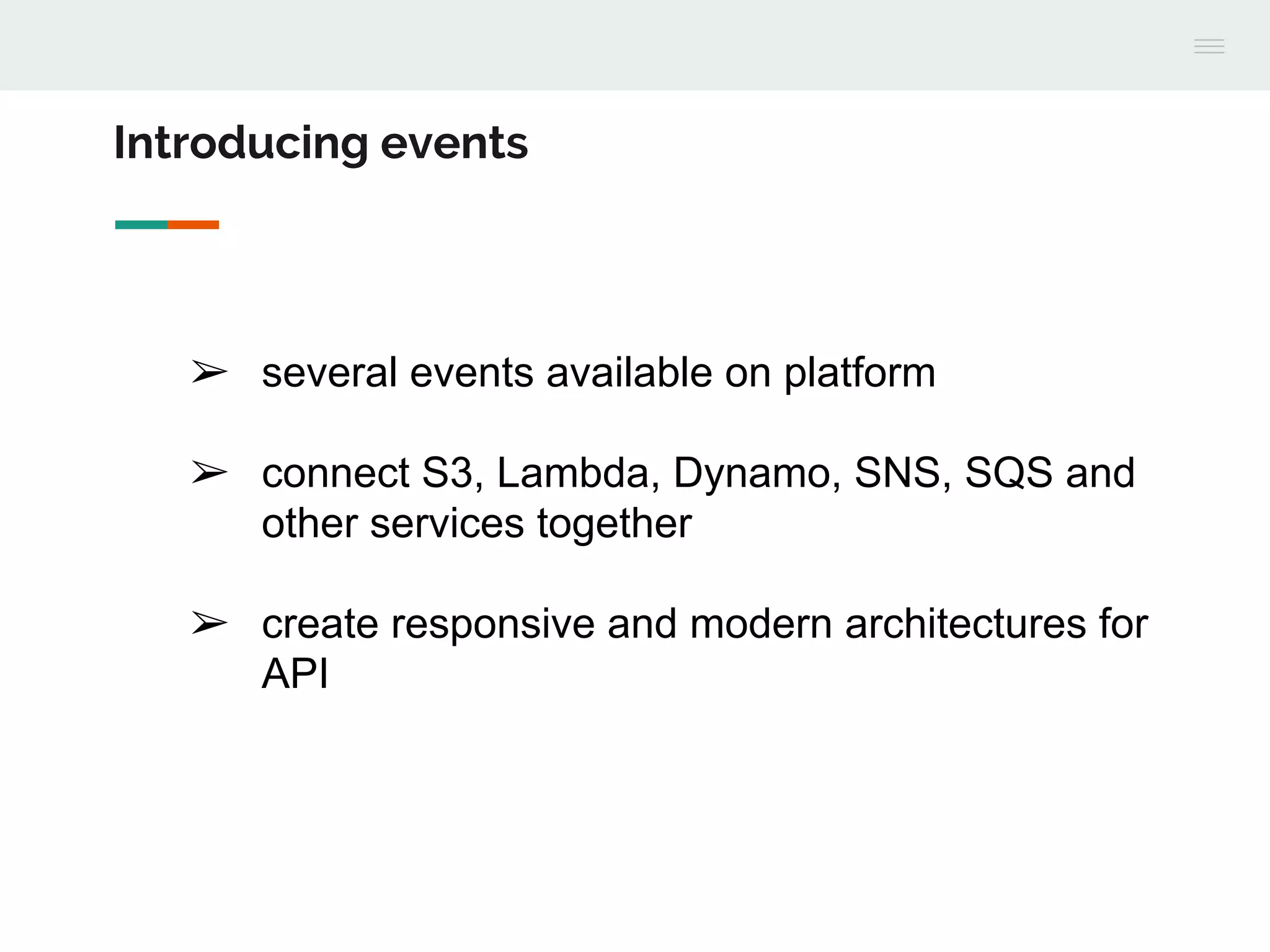

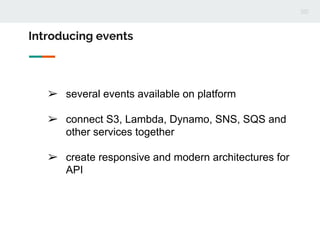

23. ➢ several events available on platform
➢ connect S3, Lambda, Dynamo, SNS, SQS and
other services together
➢ create responsive and modern architectures for
API
Introducing events

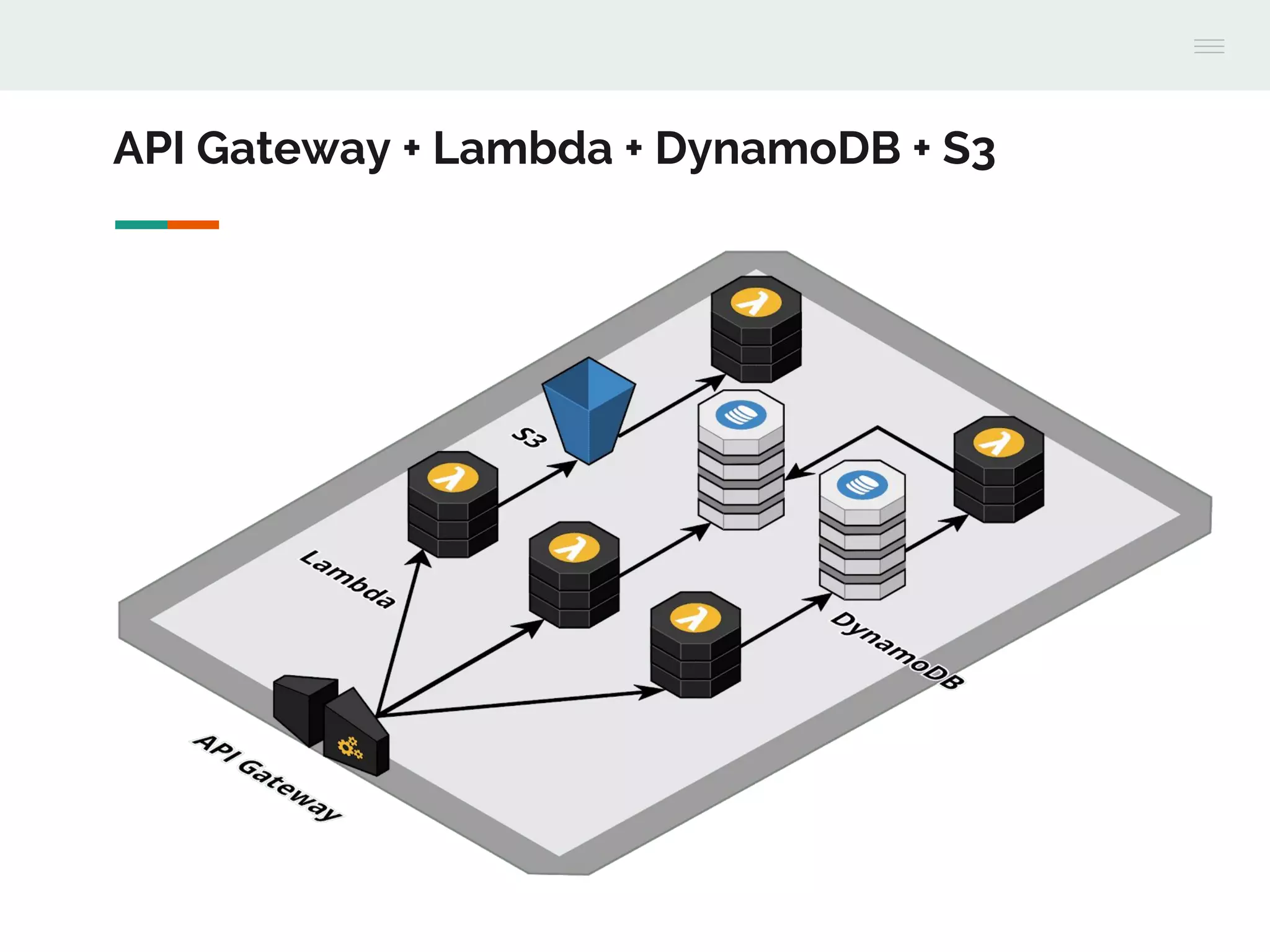

24. API Gateway + Lambda + DynamoDB + S3

25. API Gateway + Lambda + DynamoDB + S3 + Cognito

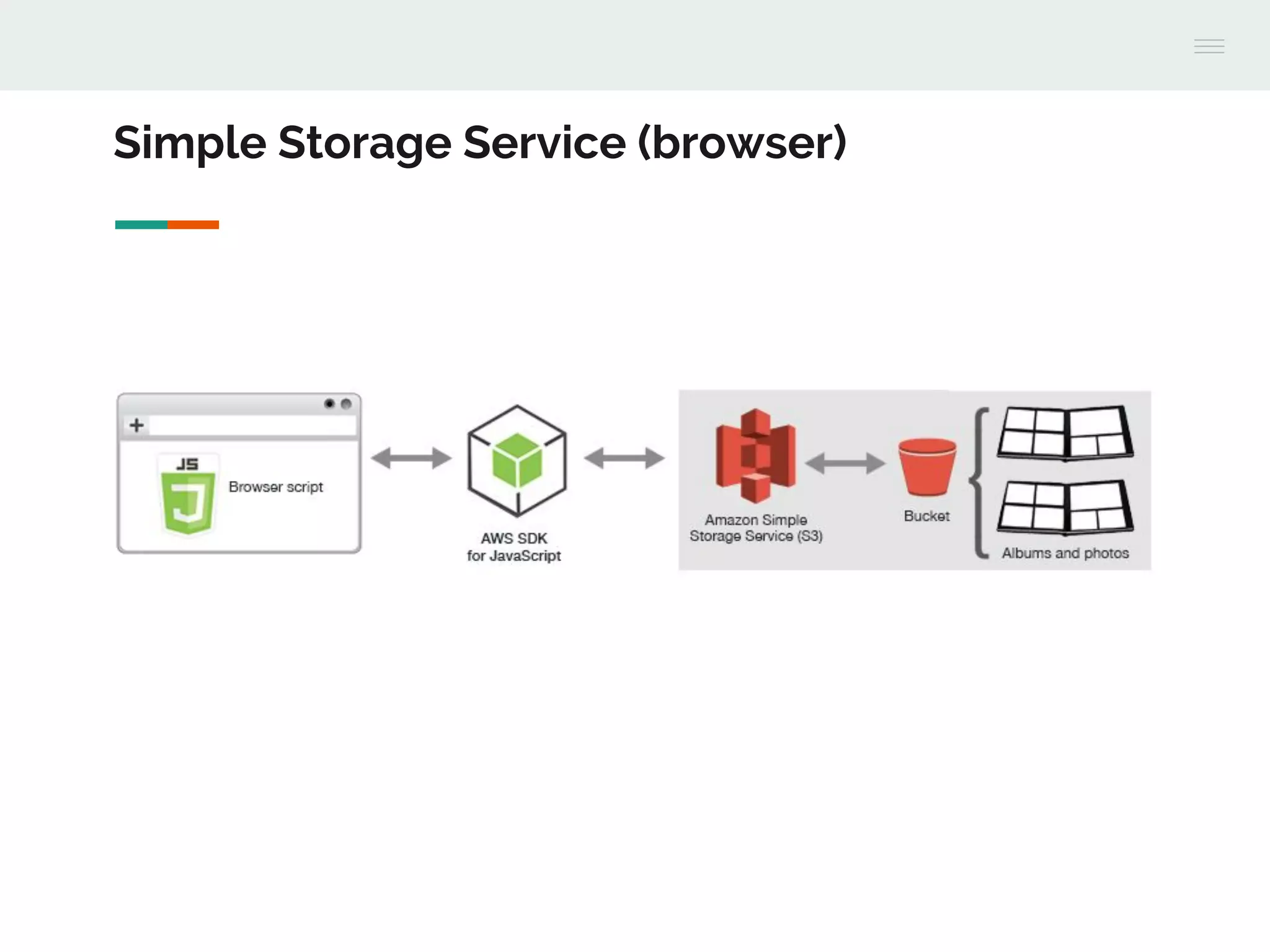

26. Simple Storage Service (browser)

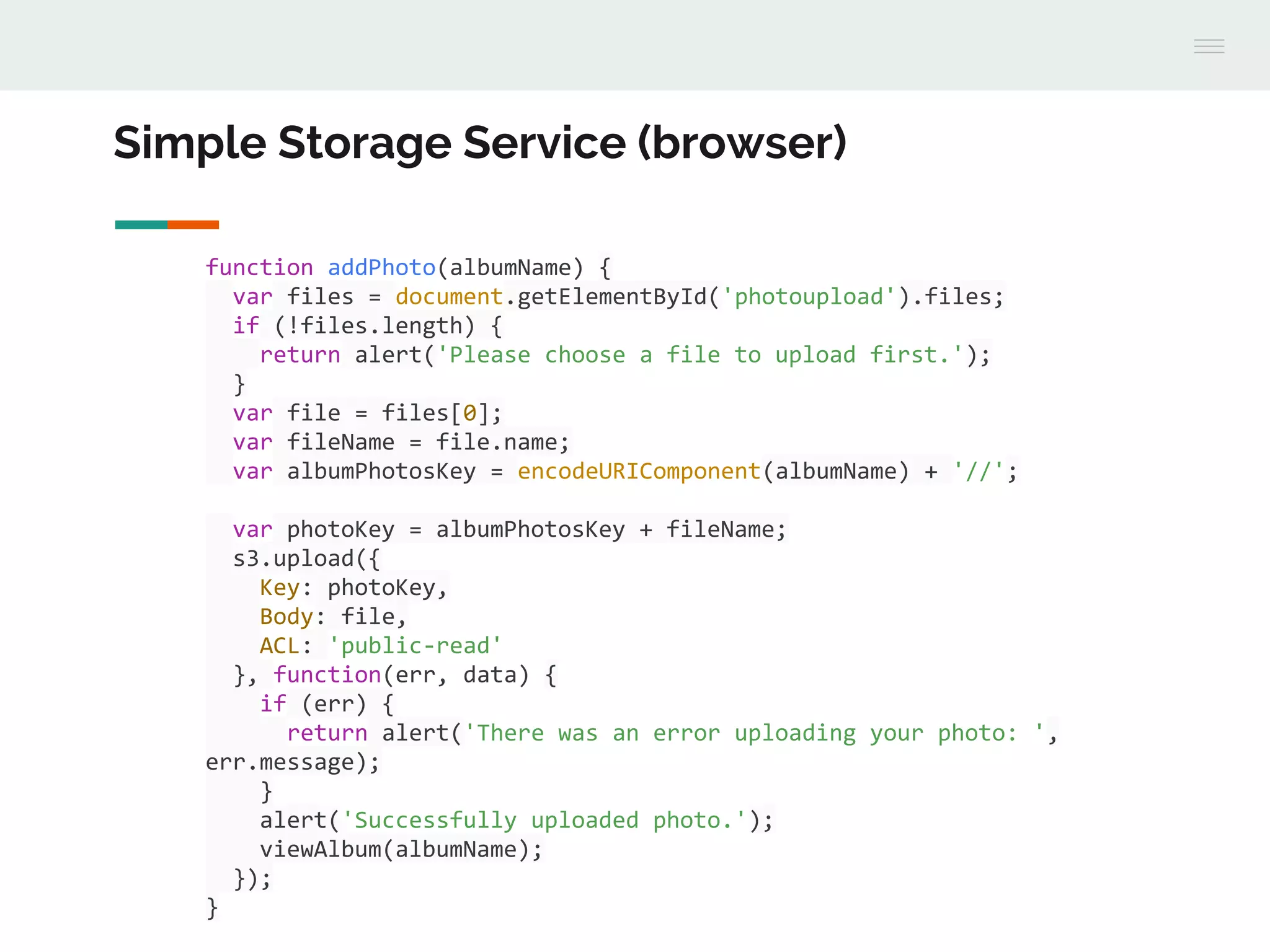

27. Simple Storage Service (browser)
function addPhoto(albumName) {
var files = document.getElementById('photoupload').files;
if (!files.length) {
return alert('Please choose a file to upload first.');
}
var file = files[0];
var fileName = file.name;
var albumPhotosKey = encodeURIComponent(albumName) + '//';
var photoKey = albumPhotosKey + fileName;
s3.upload({
Key: photoKey,
Body: file,
ACL: 'public-read'
}, function(err, data) {
if (err) {
return alert('There was an error uploading your photo: ',
err.message);
}
alert('Successfully uploaded photo.');
viewAlbum(albumName);
});
}

28. API Gateway + Lambda + DynamoDB + S3 + Cognito

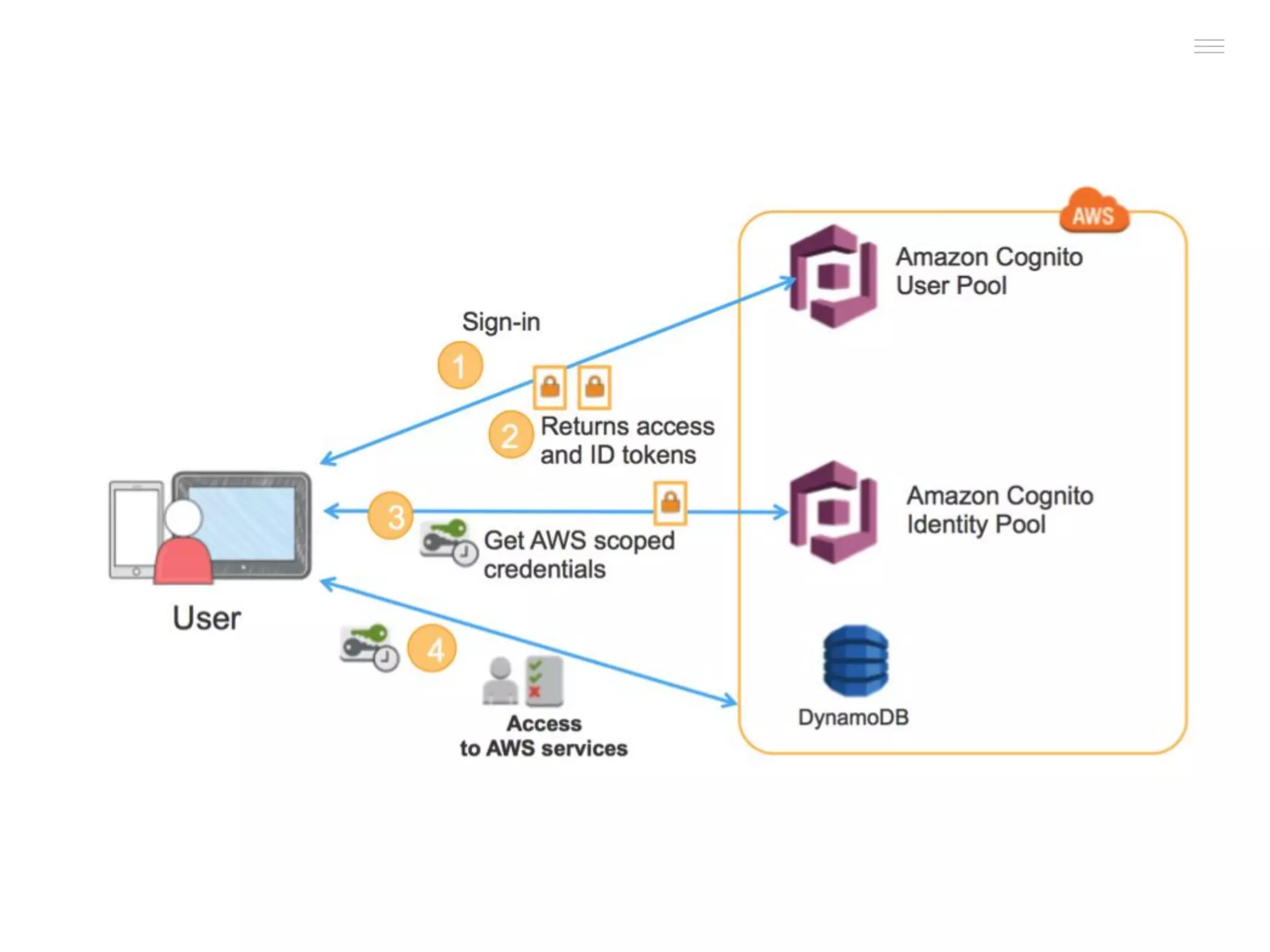

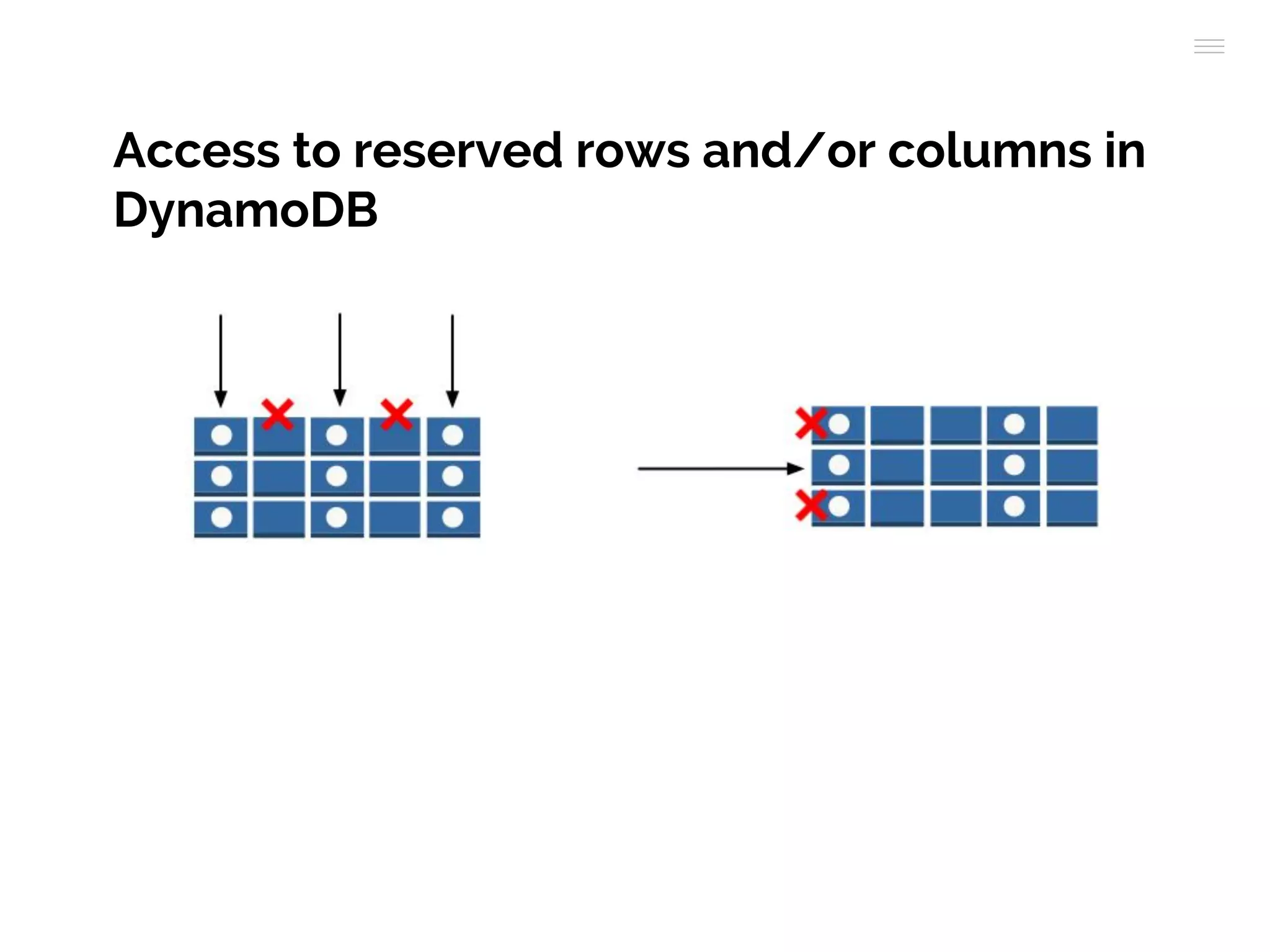

30. Access to reserved rows and/or columns in
DynamoDB

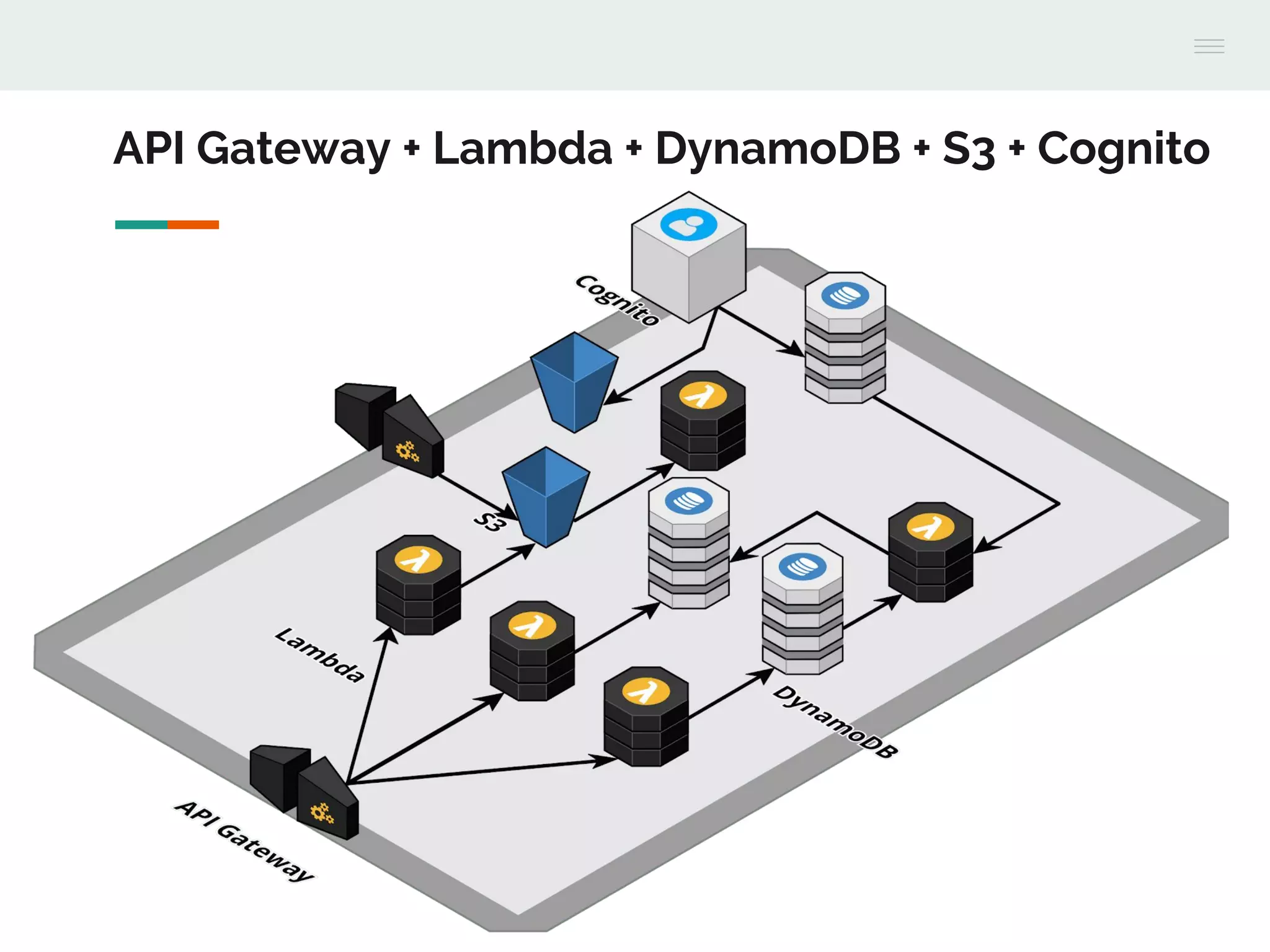

31. API Gateway + Lambda + DynamoDB + S3 + Cognito

32. When is useful?

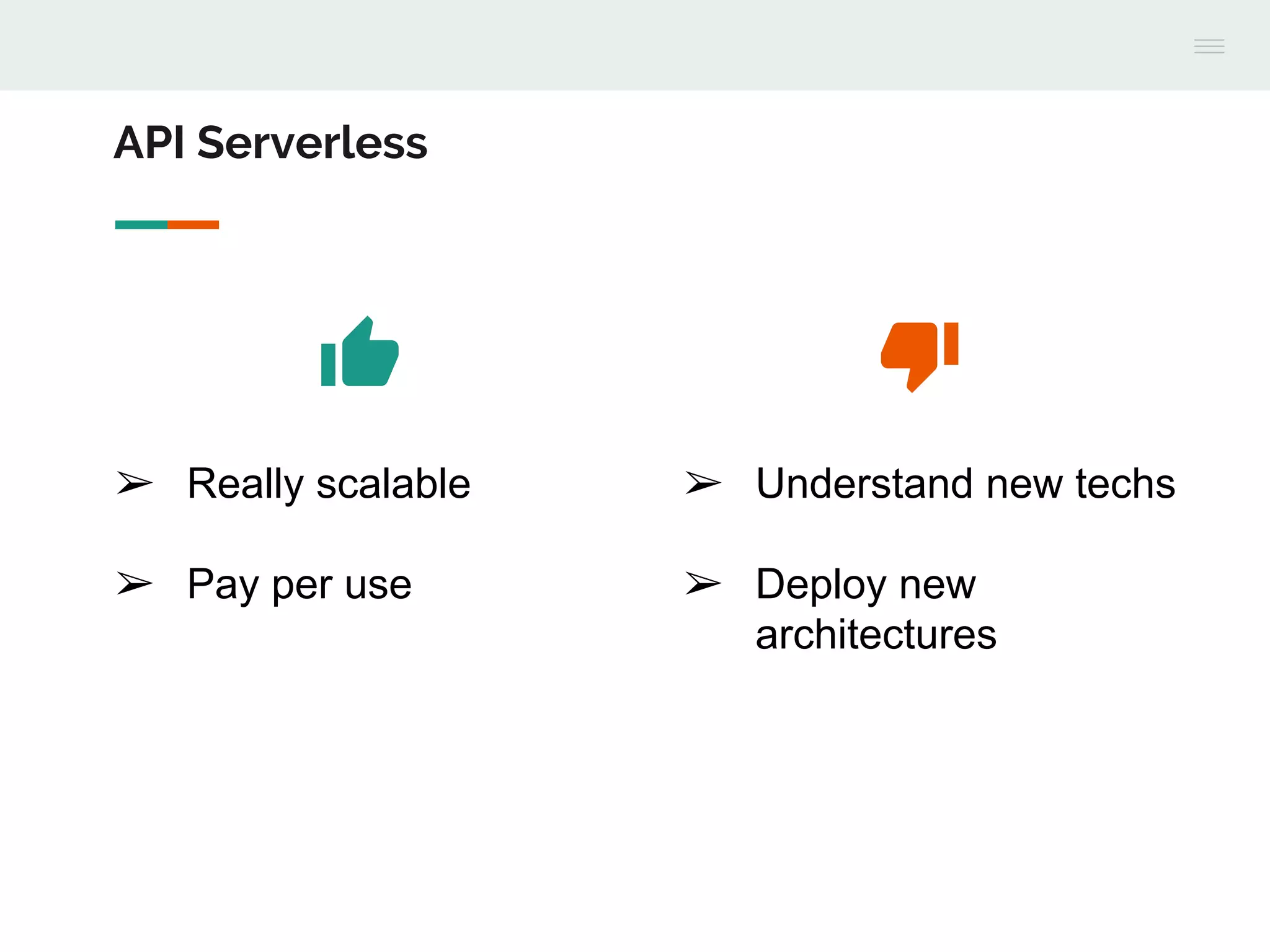

35. ➢ Really scalable
➢ Pay per use
➢ Understand new techs
➢ Deploy new
architectures
API Serverless

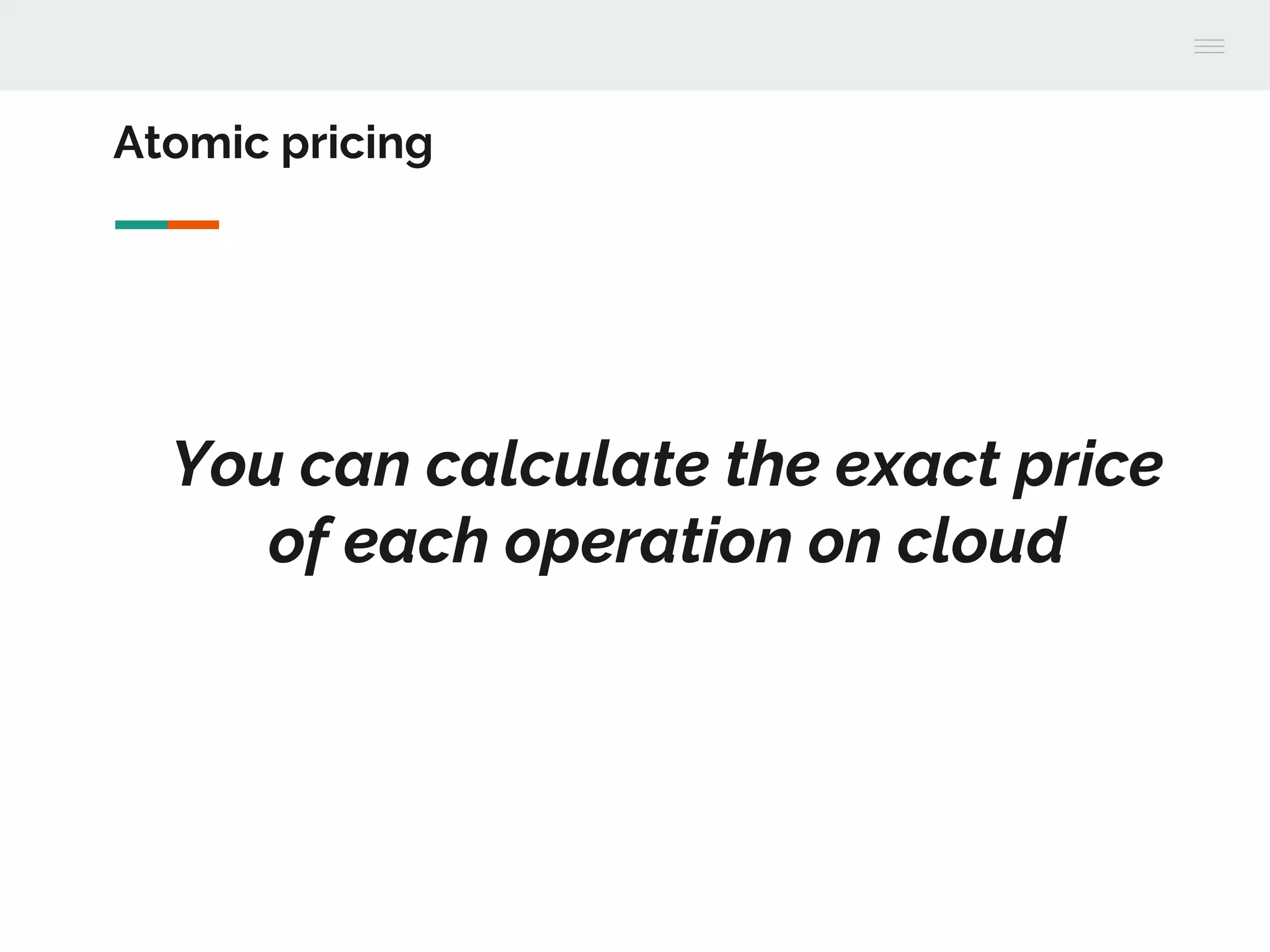

36. Atomic pricing
You can calculate the exact price
of each operation on cloud

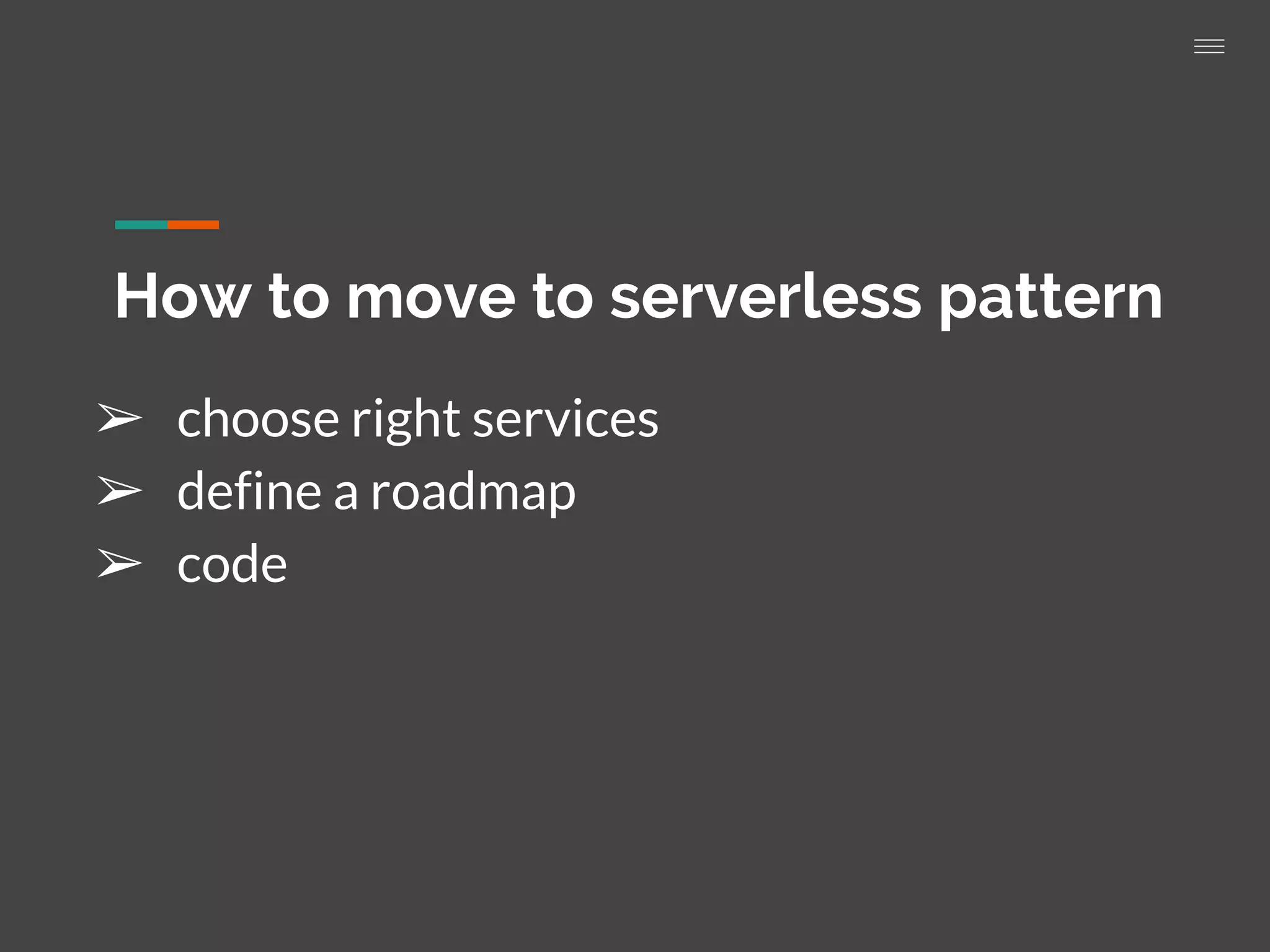

37. How to move to serverless pattern
➢ choose right services
➢ define a roadmap
➢ code

38. Thanks for listening.
AWSome Day - Torino 2018 - gabriele.mittica@corley.it
