Ironsource is processing 200 billion data events monthly using a robust infrastructure of Node.js and Docker on AWS, leveraging tools for data enrichment and real-time analytics. The architecture emphasizes microservices for scalability, with continuous integration and efficient data storage solutions. Key features include multi-region support for low latency, real-time data insertion capabilities, and a focus on automated deployments.

1. Shimon Tolts
General Manager, Data Solutions
Atom
Data Pipeline Processing 200B events with
Node.js And Docker On AWS

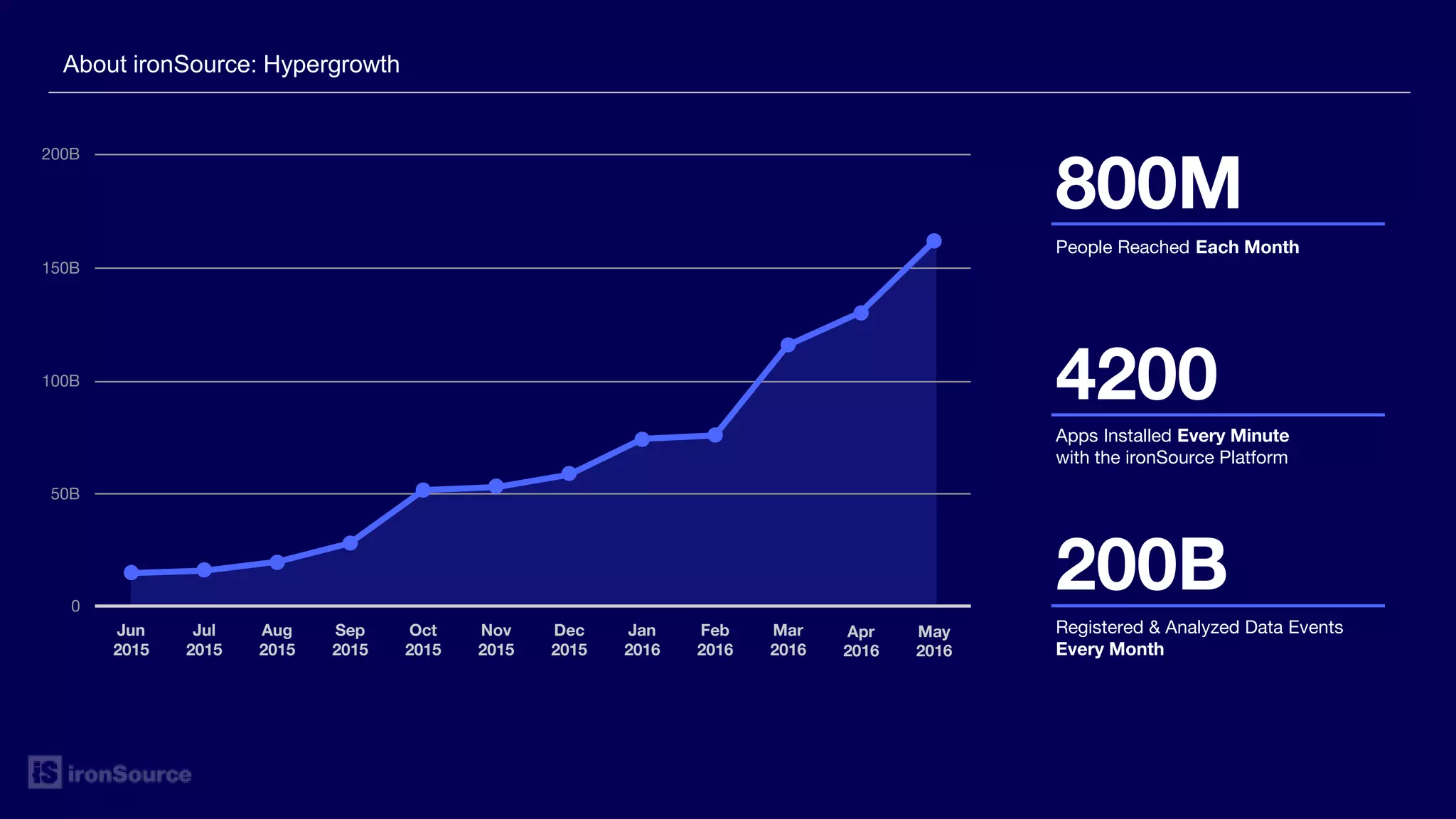

2. About ironSource: Hypergrowth
People Reached Each Month
4200
Apps Installed Every Minute
with the ironSource Platform
Registered & Analyzed Data Events
Every Month
200B
800M
50B
0
100B
150B
200B
Jun
2015
Jul
2015
Aug
2015
Sep
2015
Oct
2015
Nov
2015
Dec
2015
Jan
2016
Feb
2016
Mar
2016
Apr
2016
May
2016

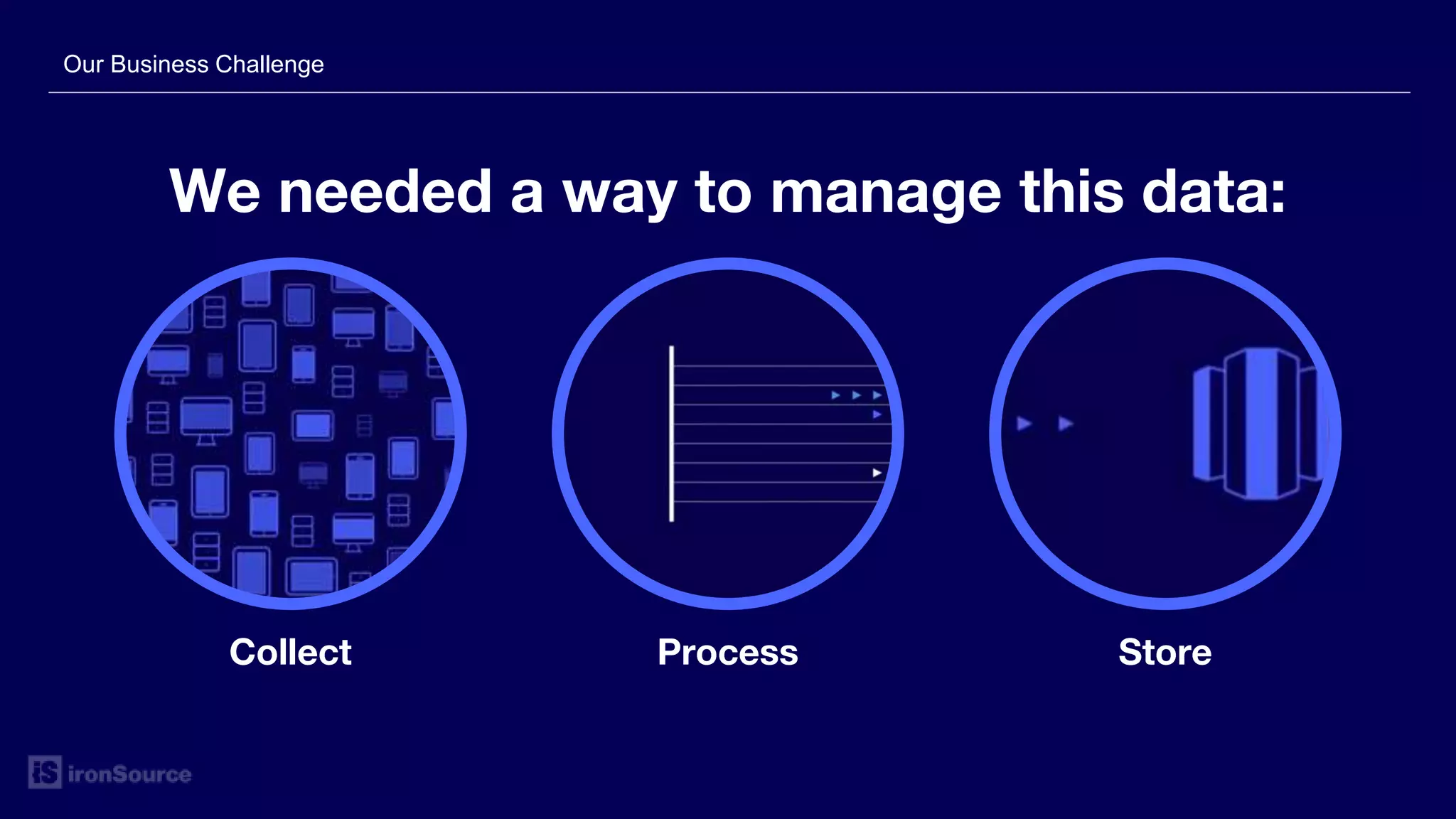

3. We needed a way to manage this data:
Our Business Challenge
ProcessCollect Store

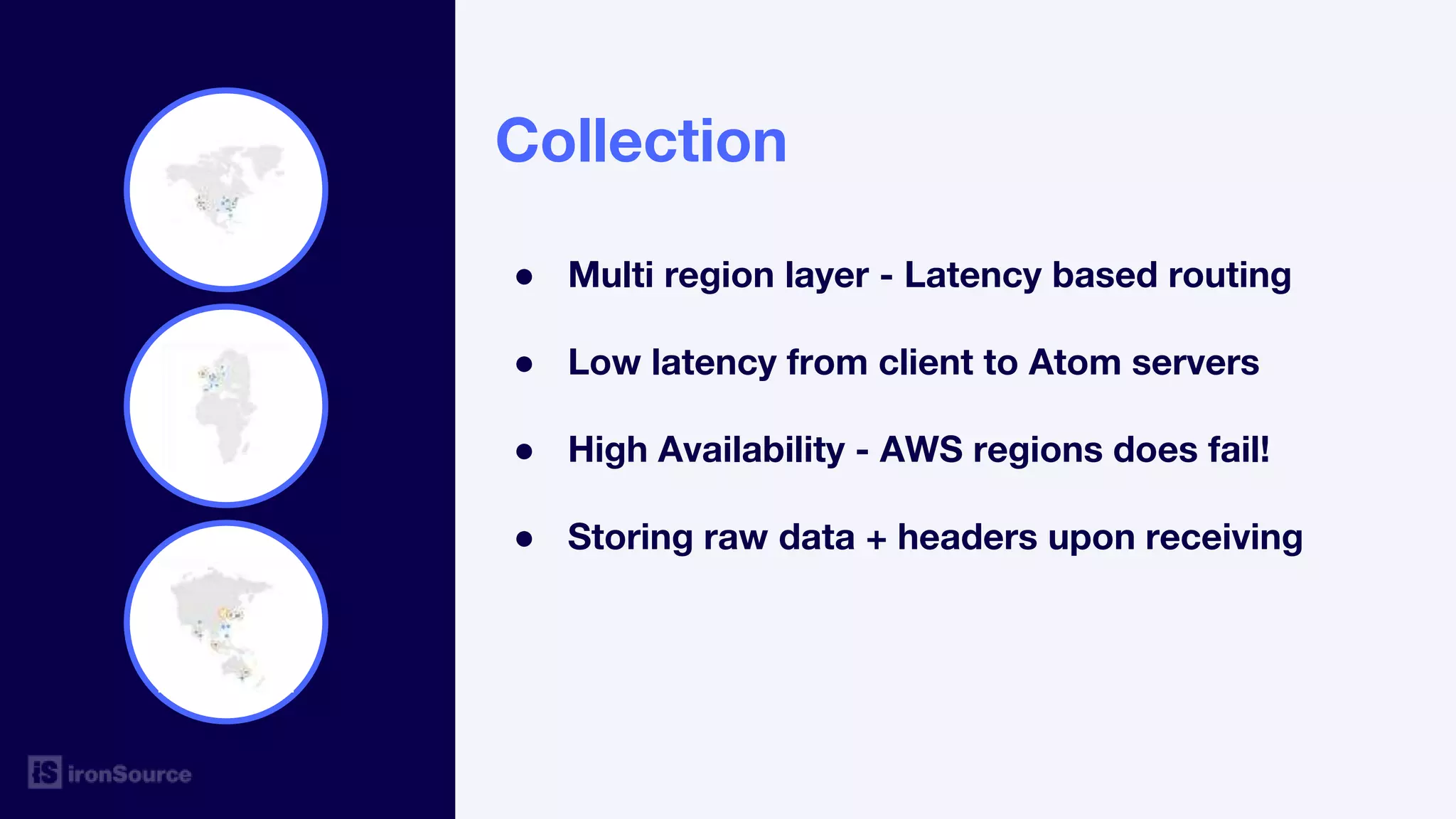

5. Collection
● Multi region layer - Latency based routing
● Low latency from client to Atom servers
● High Availability - AWS regions does fail!
● Storing raw data + headers upon receiving

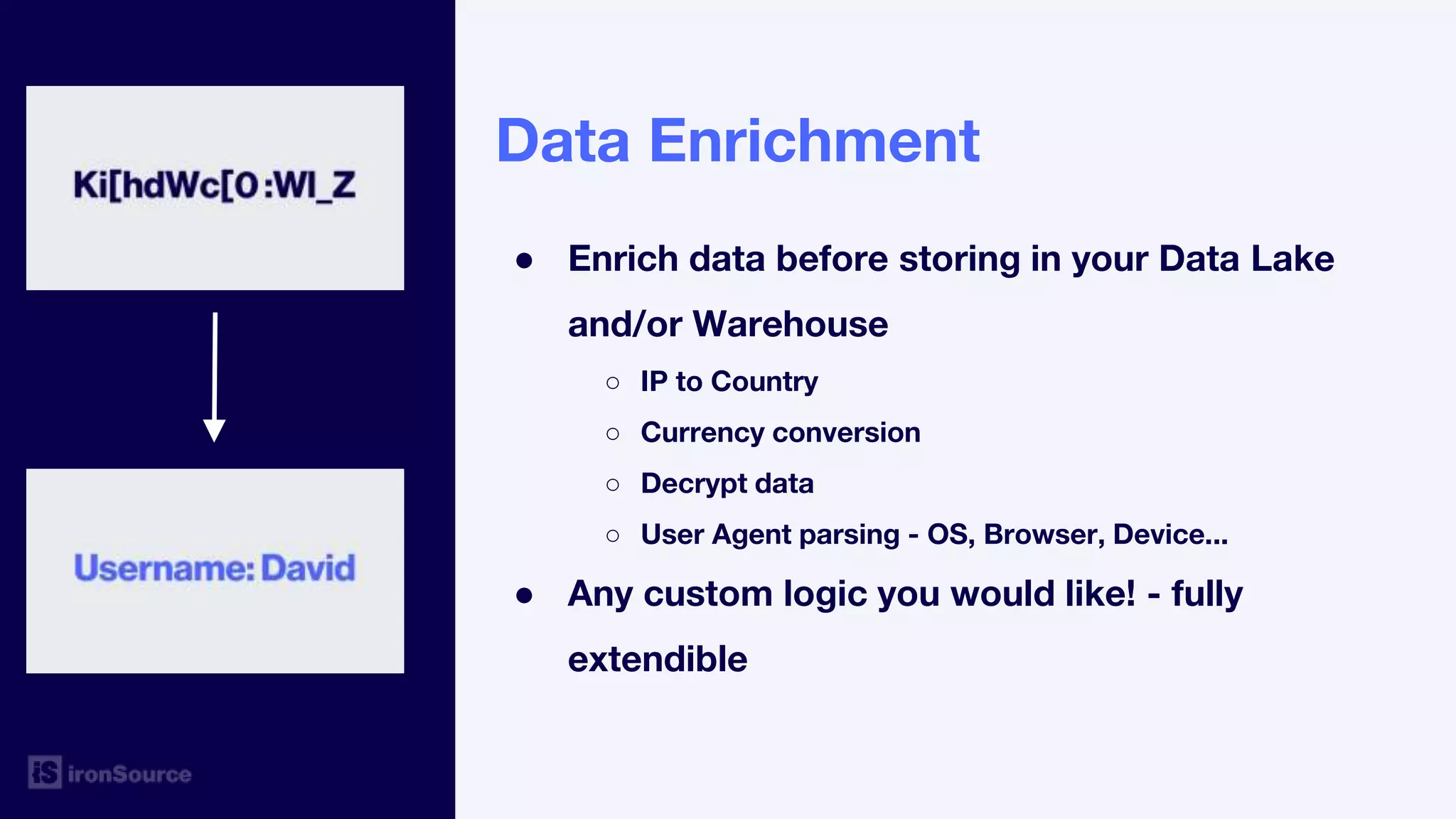

6. Data Enrichment
● Enrich data before storing in your Data Lake
and/or Warehouse
○ IP to Country
○ Currency conversion
○ Decrypt data
○ User Agent parsing - OS, Browser, Device...
● Any custom logic you would like! - fully
extendible

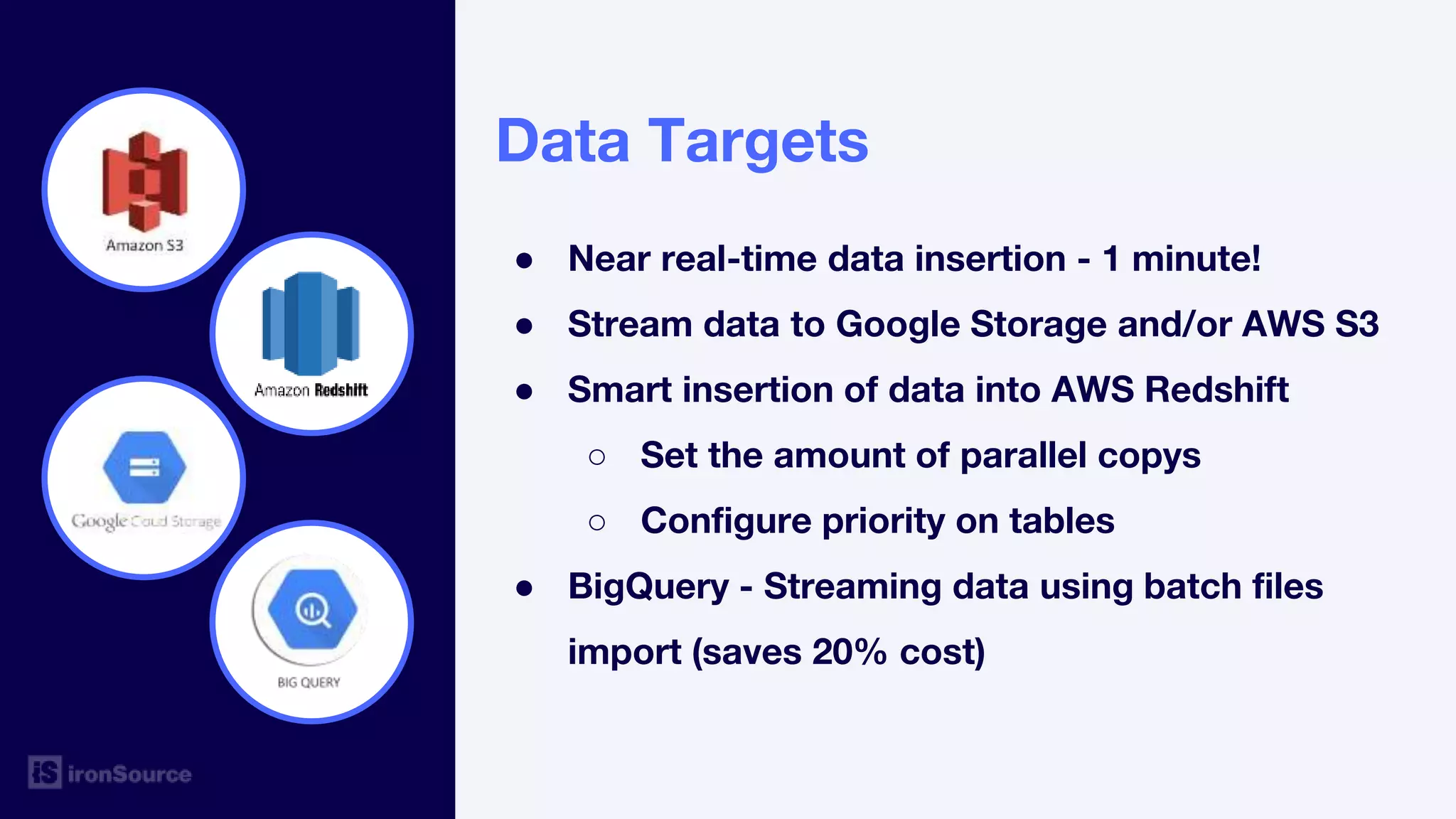

7. Data Targets
● Near real-time data insertion - 1 minute!
● Stream data to Google Storage and/or AWS S3
● Smart insertion of data into AWS Redshift
○ Set the amount of parallel copys
○ Configure priority on tables
● BigQuery - Streaming data using batch files
import (saves 20% cost)

9. Micro-Services Architecture
● Everything is a service
● Decoupling
● Distributed systems
Separate lifecycle
● Communication using RESTful /
Queue / Streams

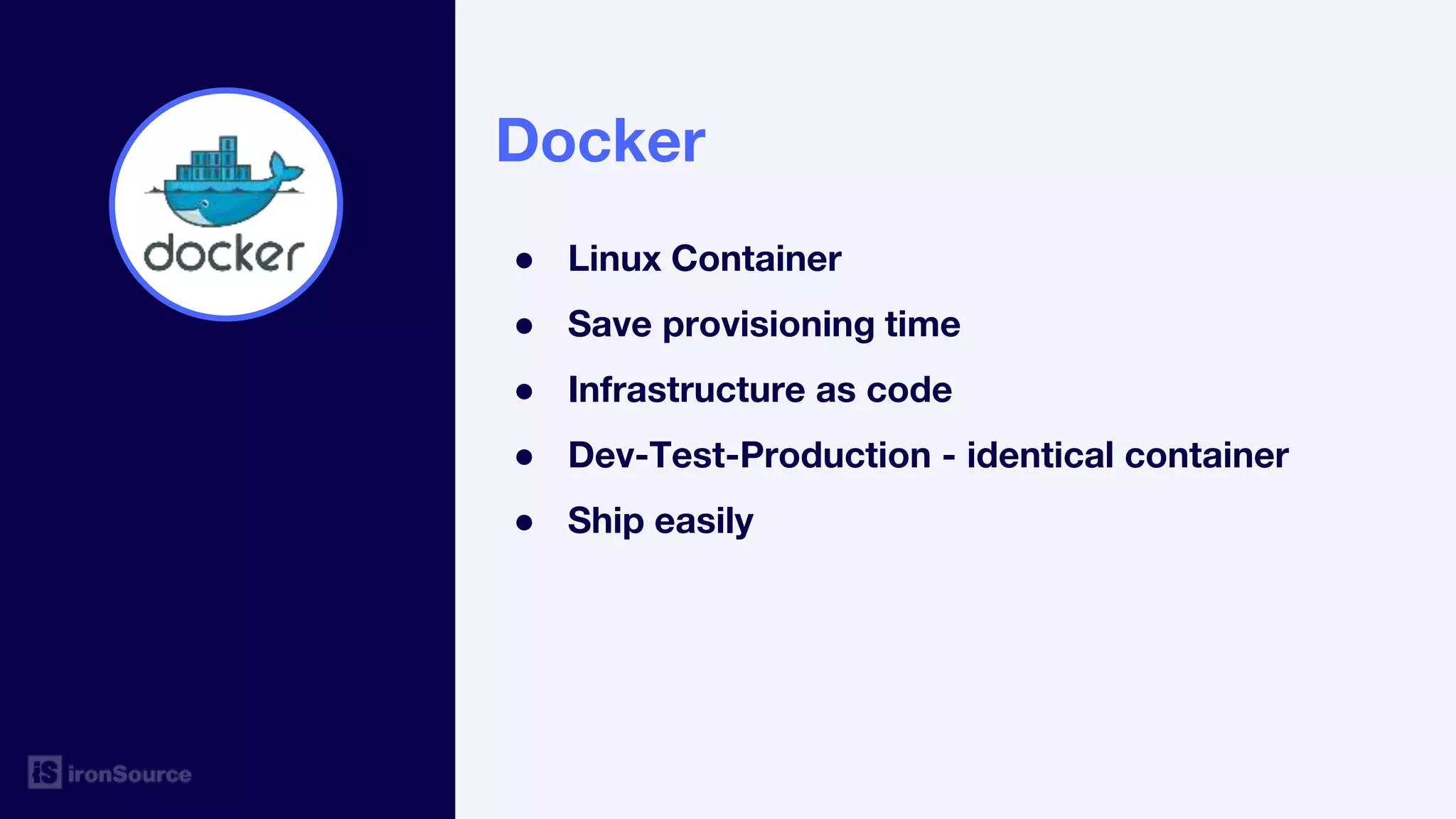

10. Docker
● Linux Container
● Save provisioning time
● Infrastructure as code
● Dev-Test-Production - identical container
● Ship easily

11. Cloud infrastructure
● Pay as you go - (grow)
● SaaS services
● Auto-scaling-groups
● DynamoDB
● RDS *SQL
● Redshift data warehouse

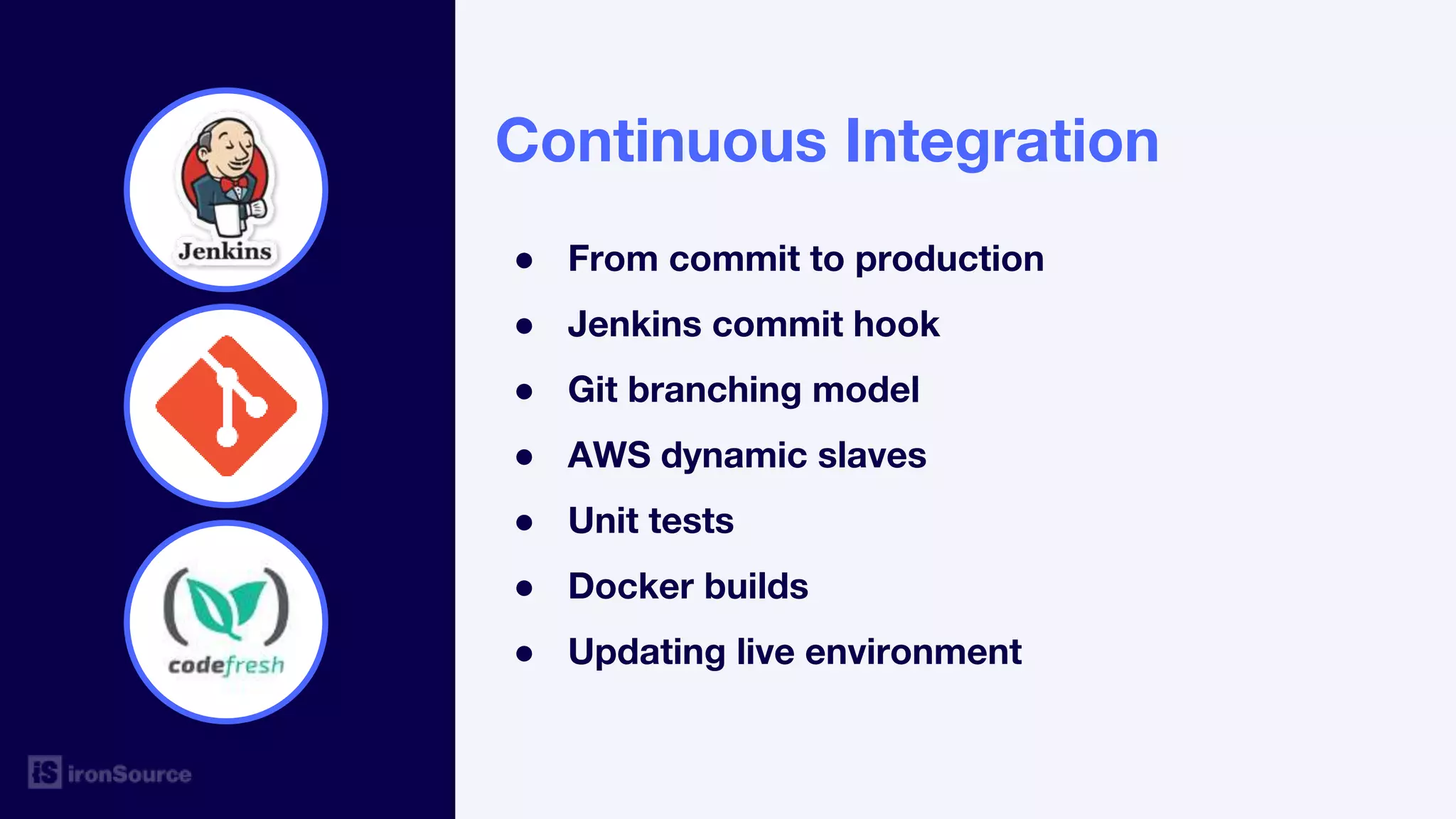

12. Continuous Integration
● From commit to production
● Jenkins commit hook
● Git branching model
● AWS dynamic slaves
● Unit tests
● Docker builds
● Updating live environment

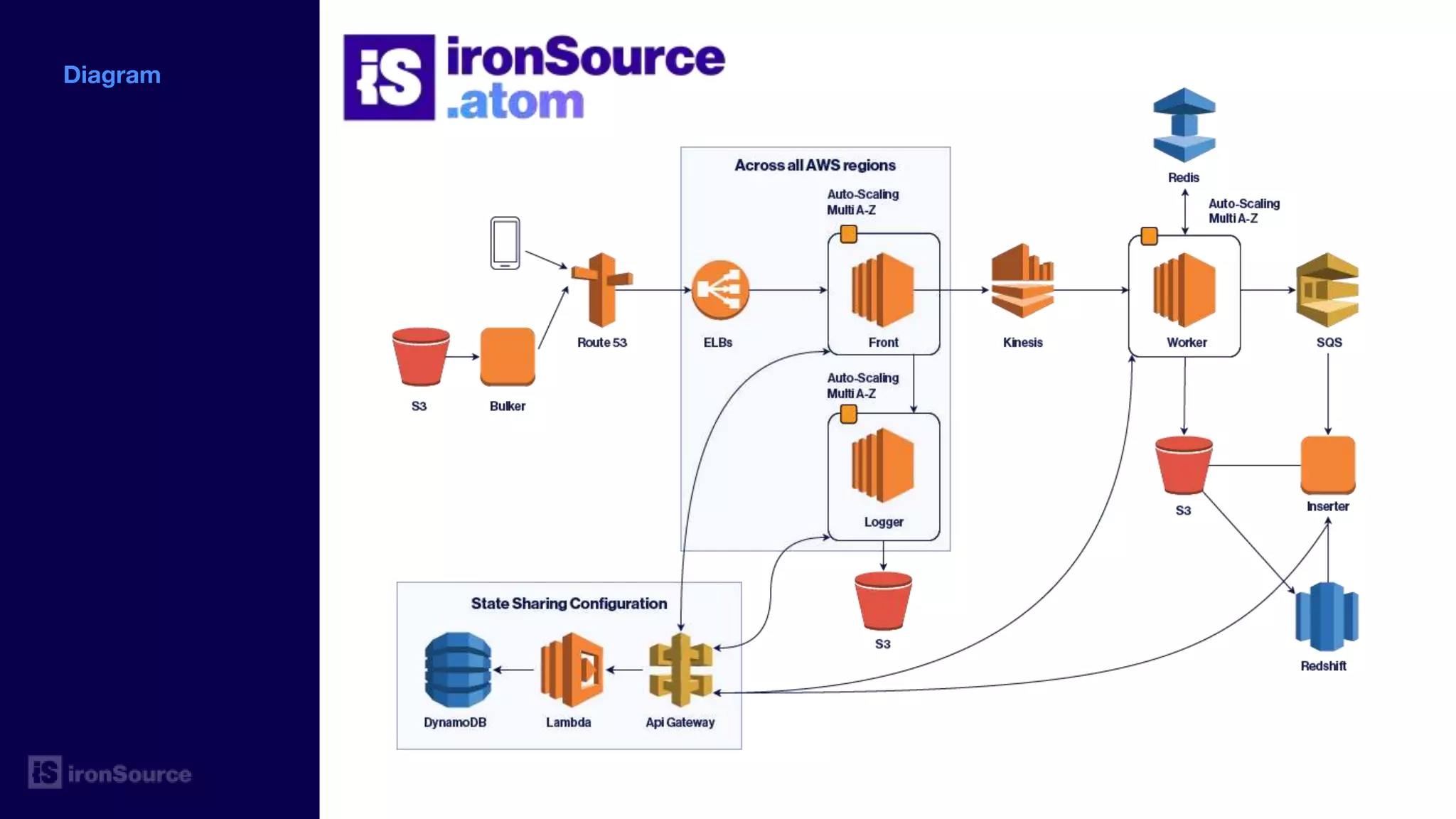

13. Diagram

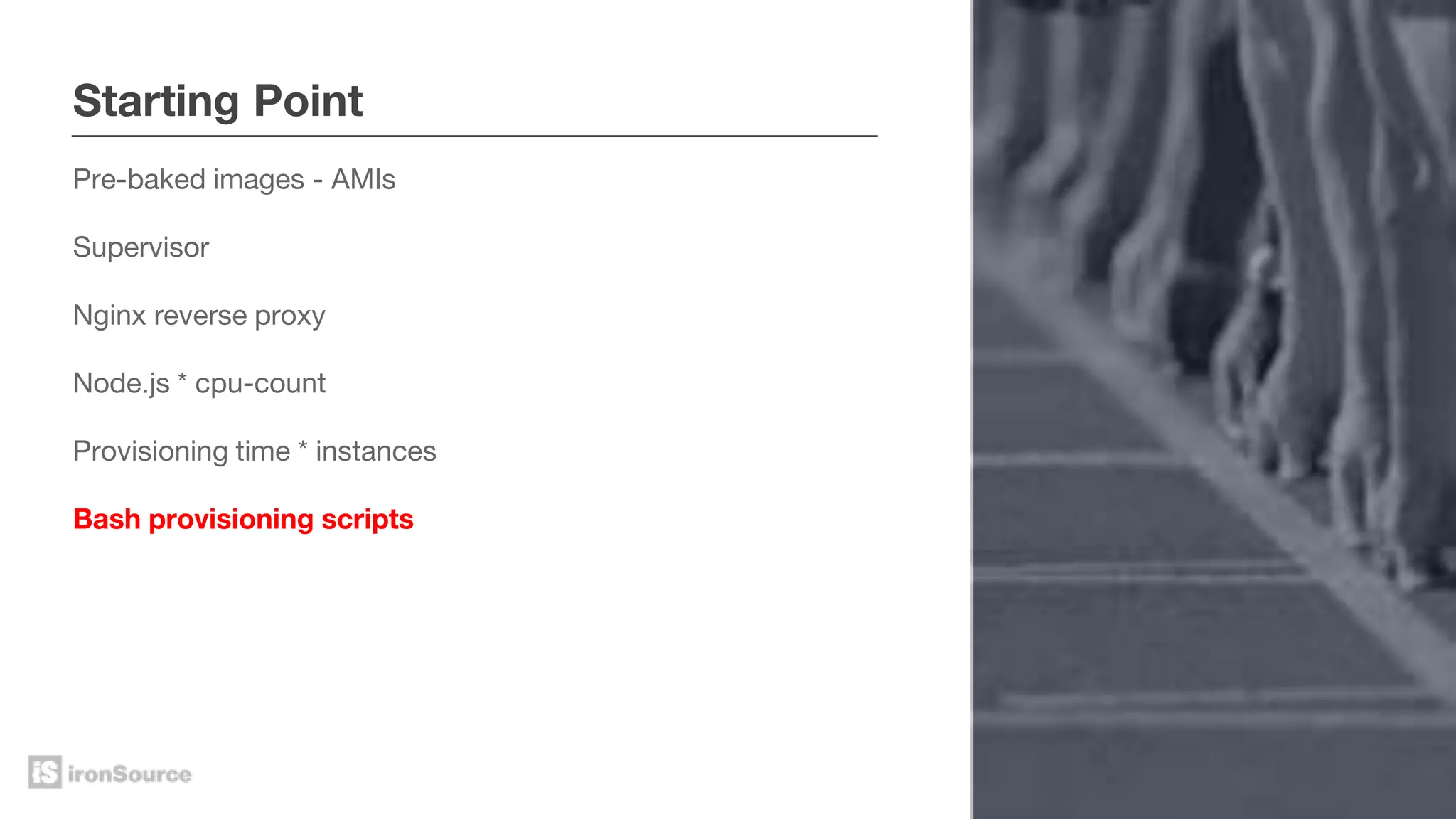

15. Starting Point
Pre-baked images - AMIs
Supervisor
Nginx reverse proxy
Node.js * cpu-count
Provisioning time * instances
Bash provisioning scripts

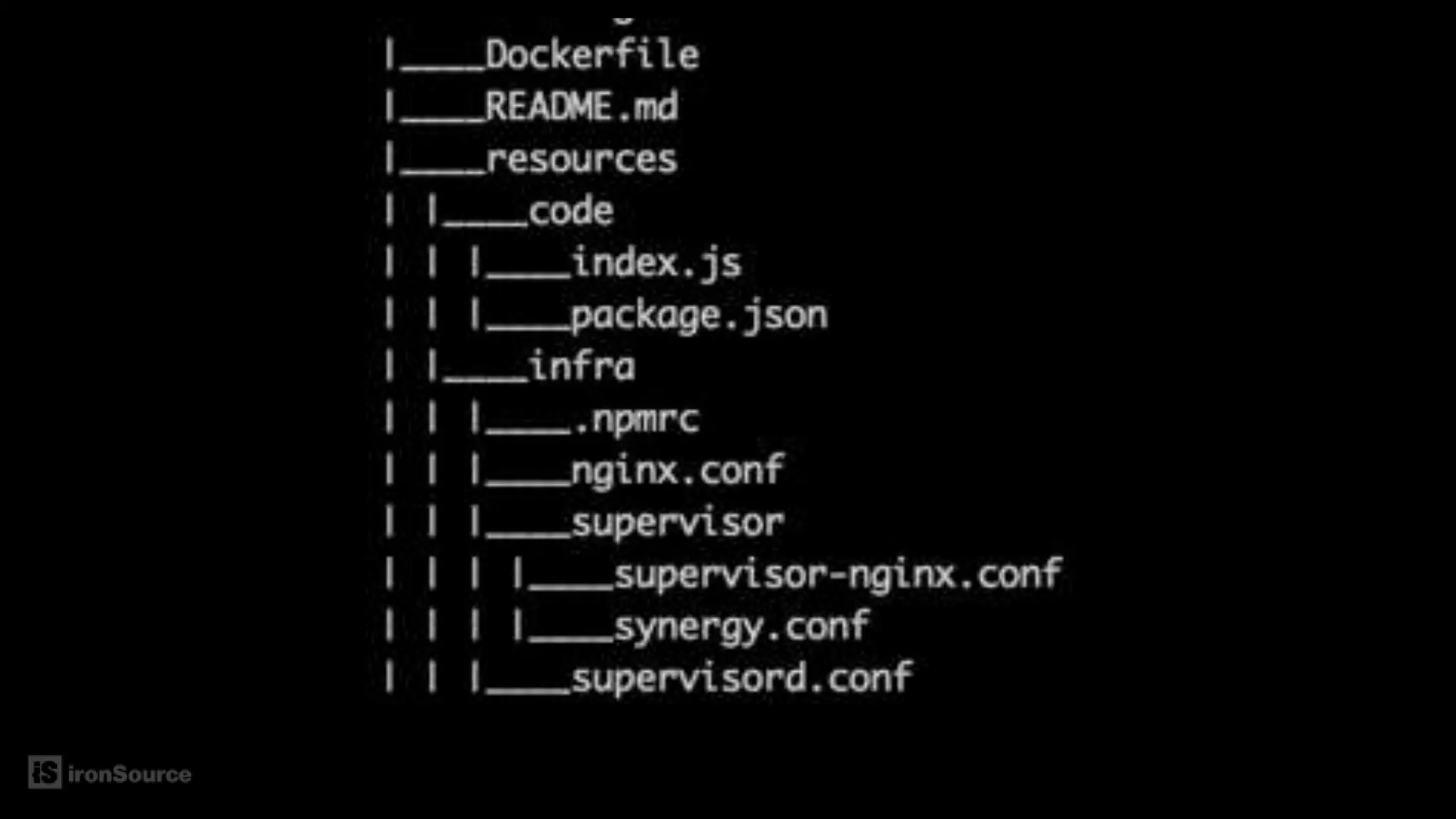

18. Minimum Viable Product
Infrastructure as code
Nginx
Node.js * cpu-count
Supervisor
Docker Hub
No Bash scripts!
No provisioning time * instances

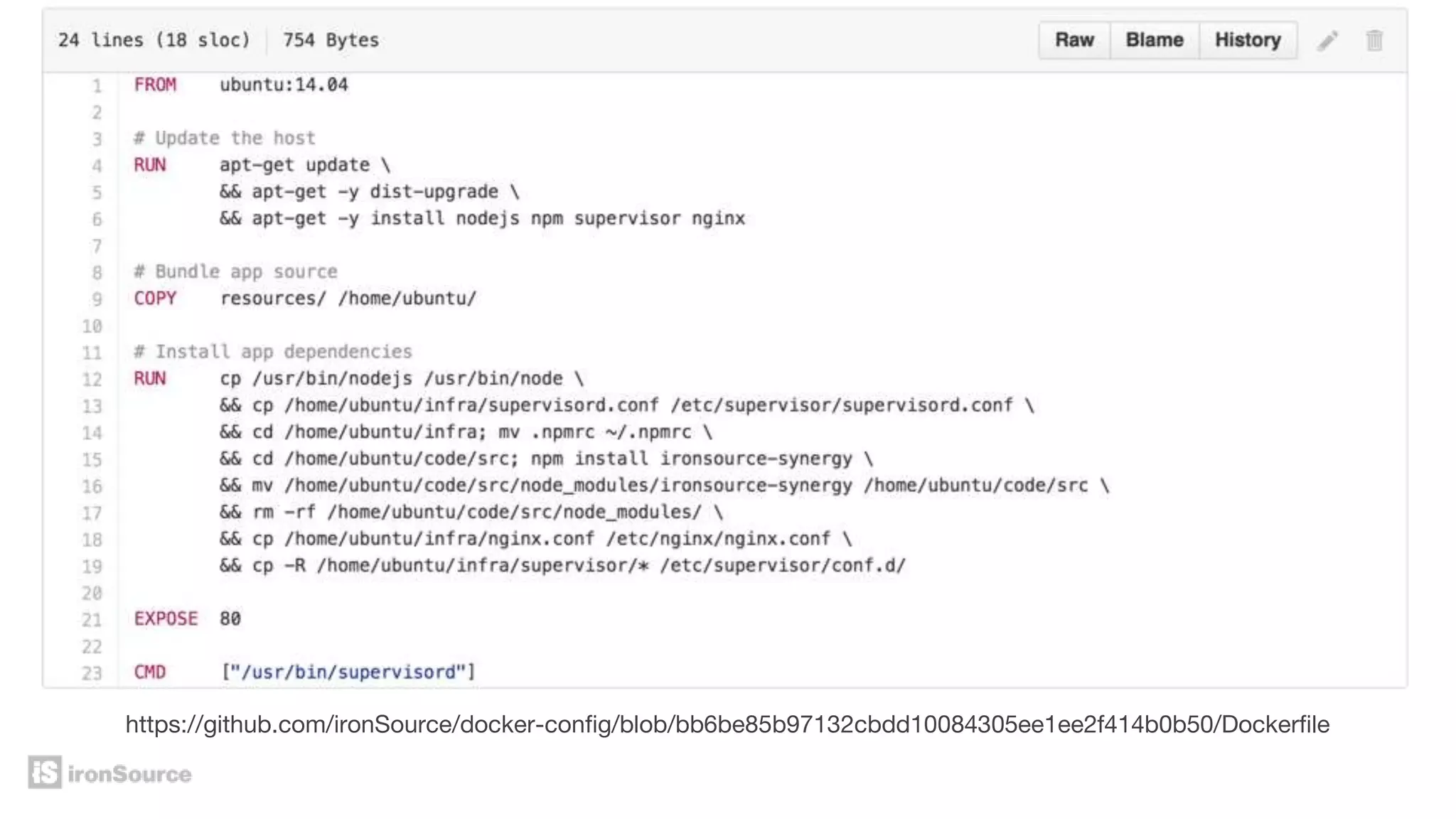

19. https://github.com/ironSource/docker-config/blob/bb6be85b97132cbdd10084305ee1ee2f414b0b50/Dockerfile

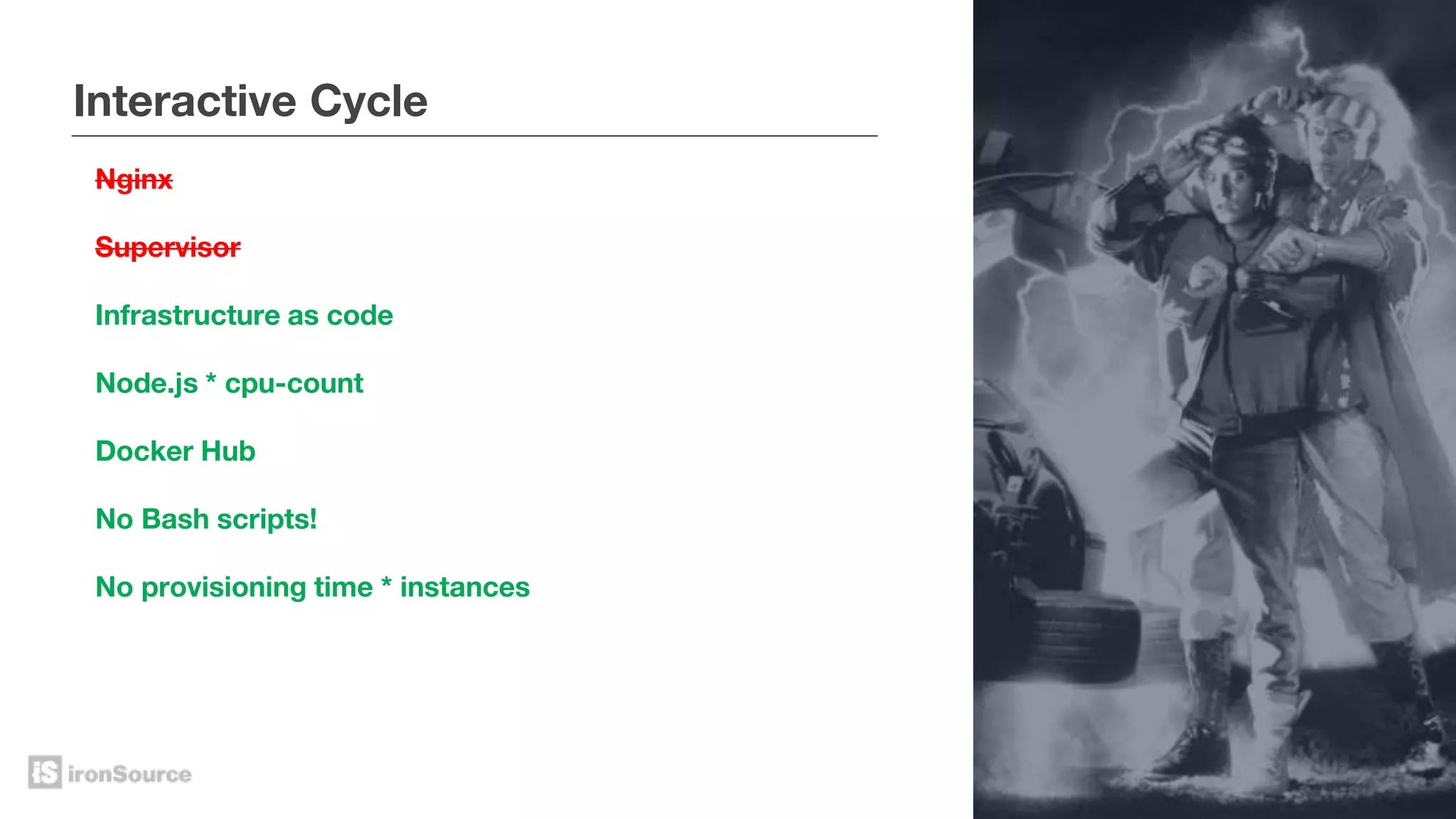

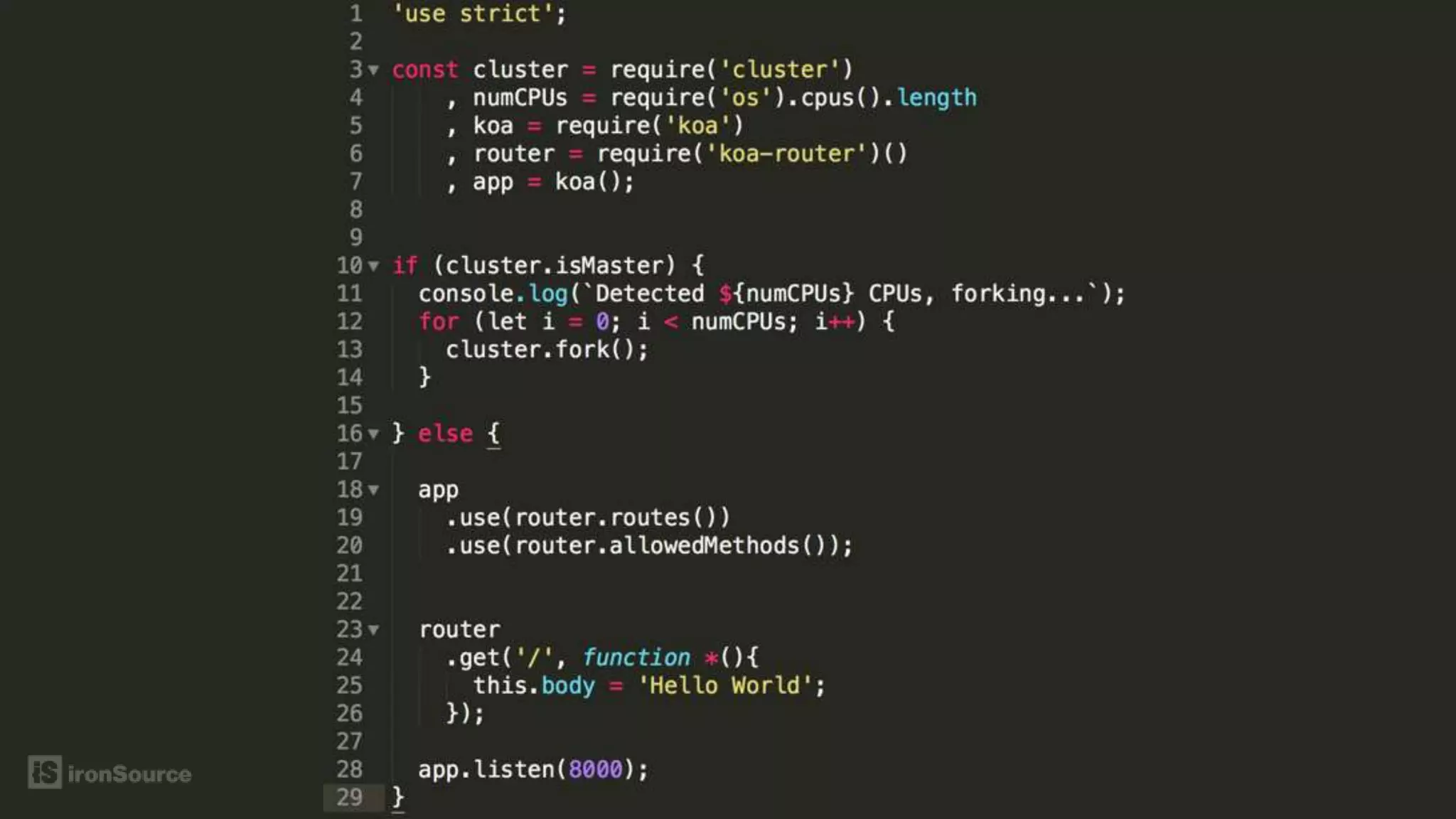

22. Interactive Cycle
Nginx
Supervisor
Infrastructure as code
Node.js * cpu-count
Docker Hub
No Bash scripts!
No provisioning time * instances

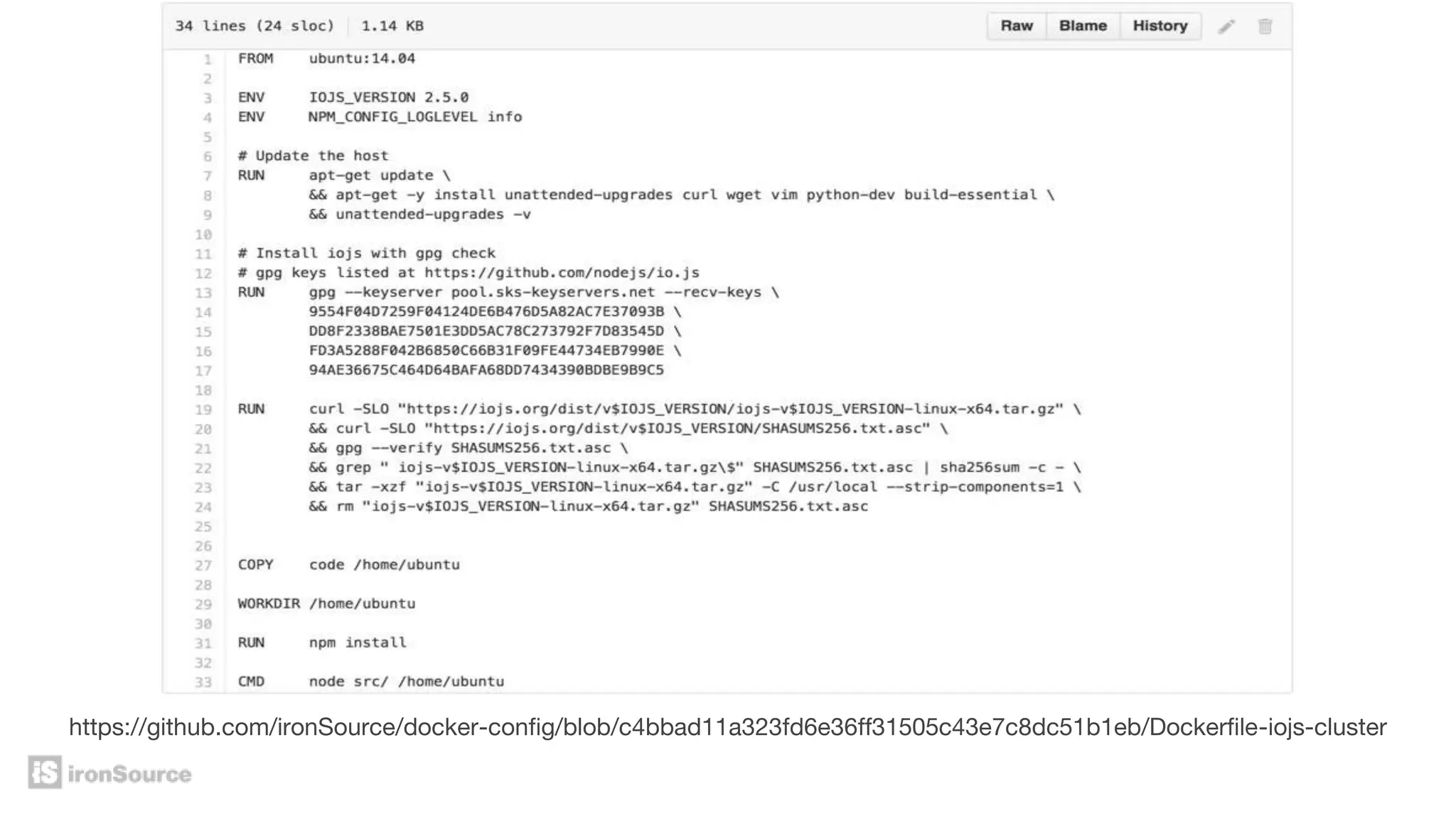

24. https://github.com/ironSource/docker-config/blob/c4bbad11a323fd6e36ff31505c43e7c8dc51b1eb/Dockerfile-iojs-cluster

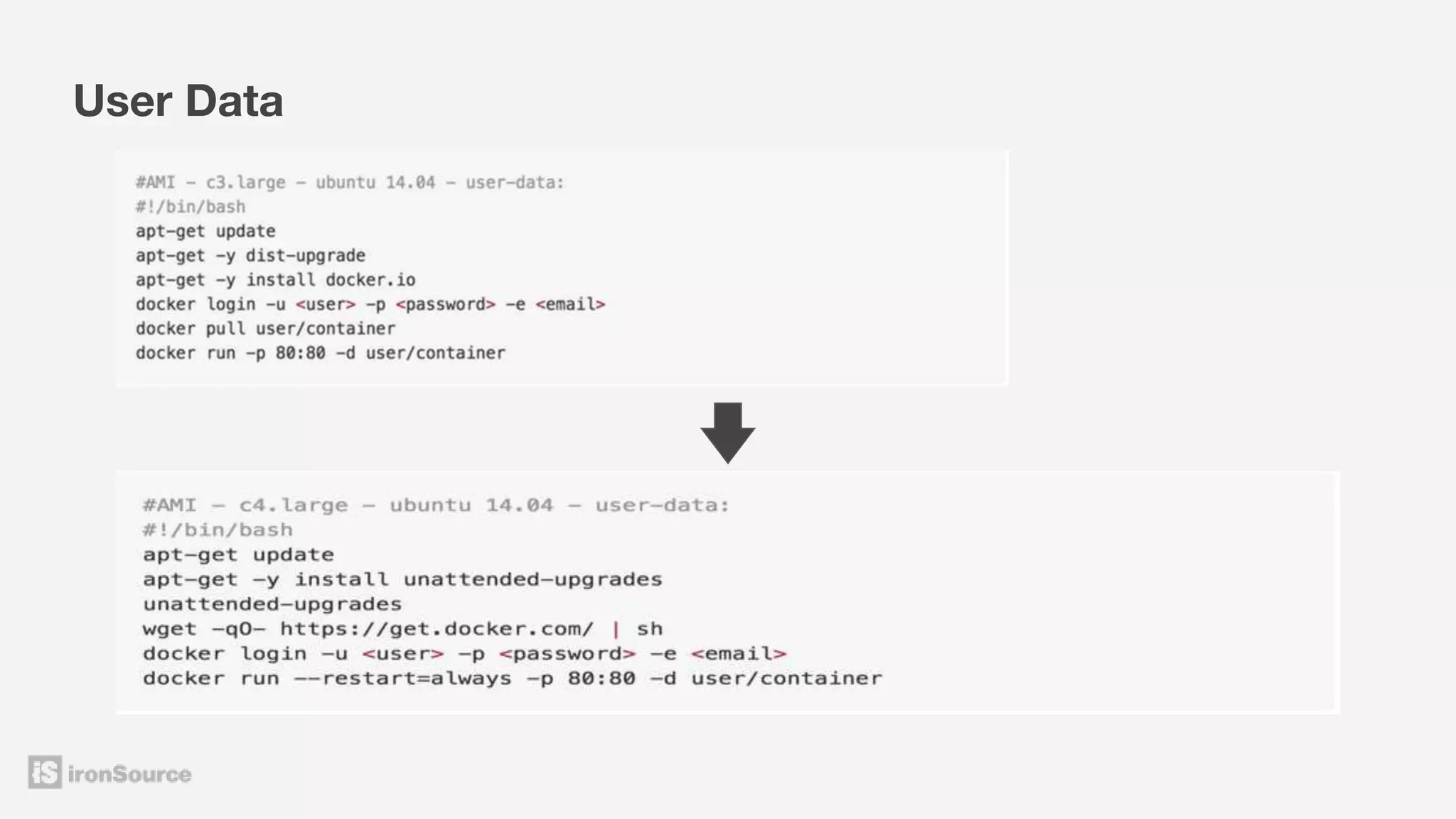

26. User Data

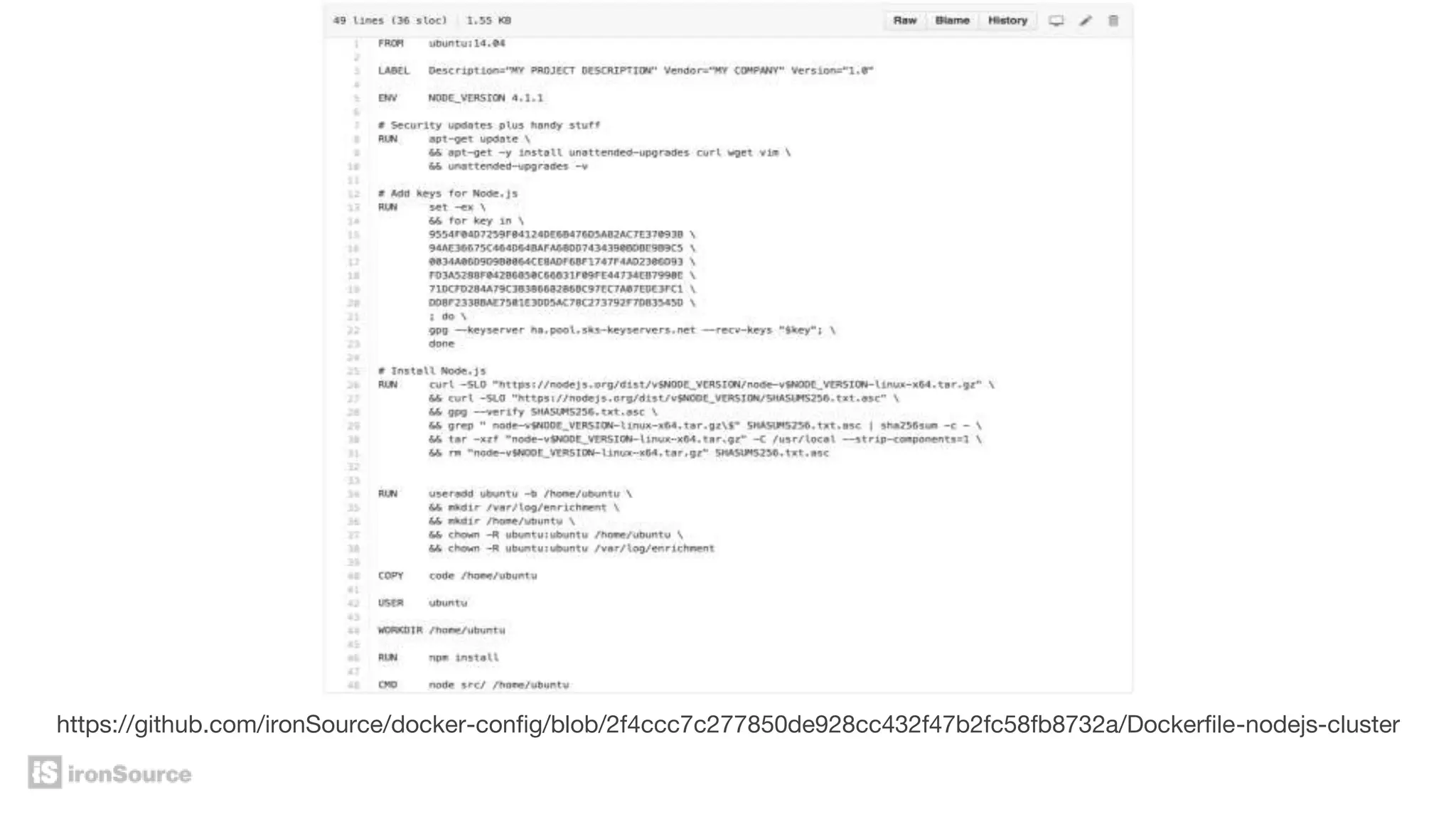

27. https://github.com/ironSource/docker-config/blob/2f4ccc7c277850de928cc432f47b2fc58fb8732a/Dockerfile-nodejs-cluster

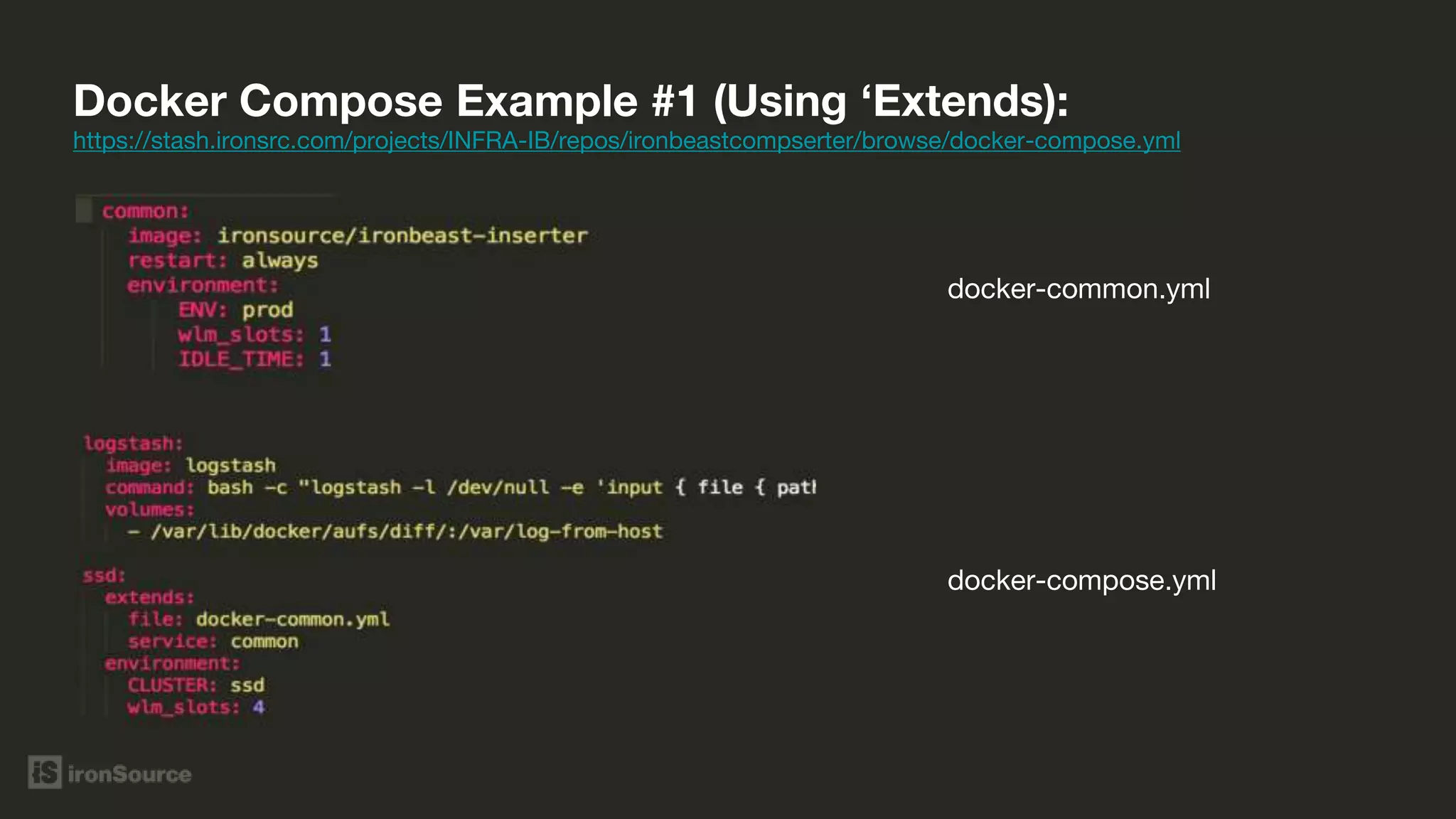

28. docker-common.yml
docker-compose.yml
https://stash.ironsrc.com/projects/INFRA-IB/repos/ironbeastcompserter/browse/docker-compose.yml
Docker Compose Example #1 (Using ‘Extends):

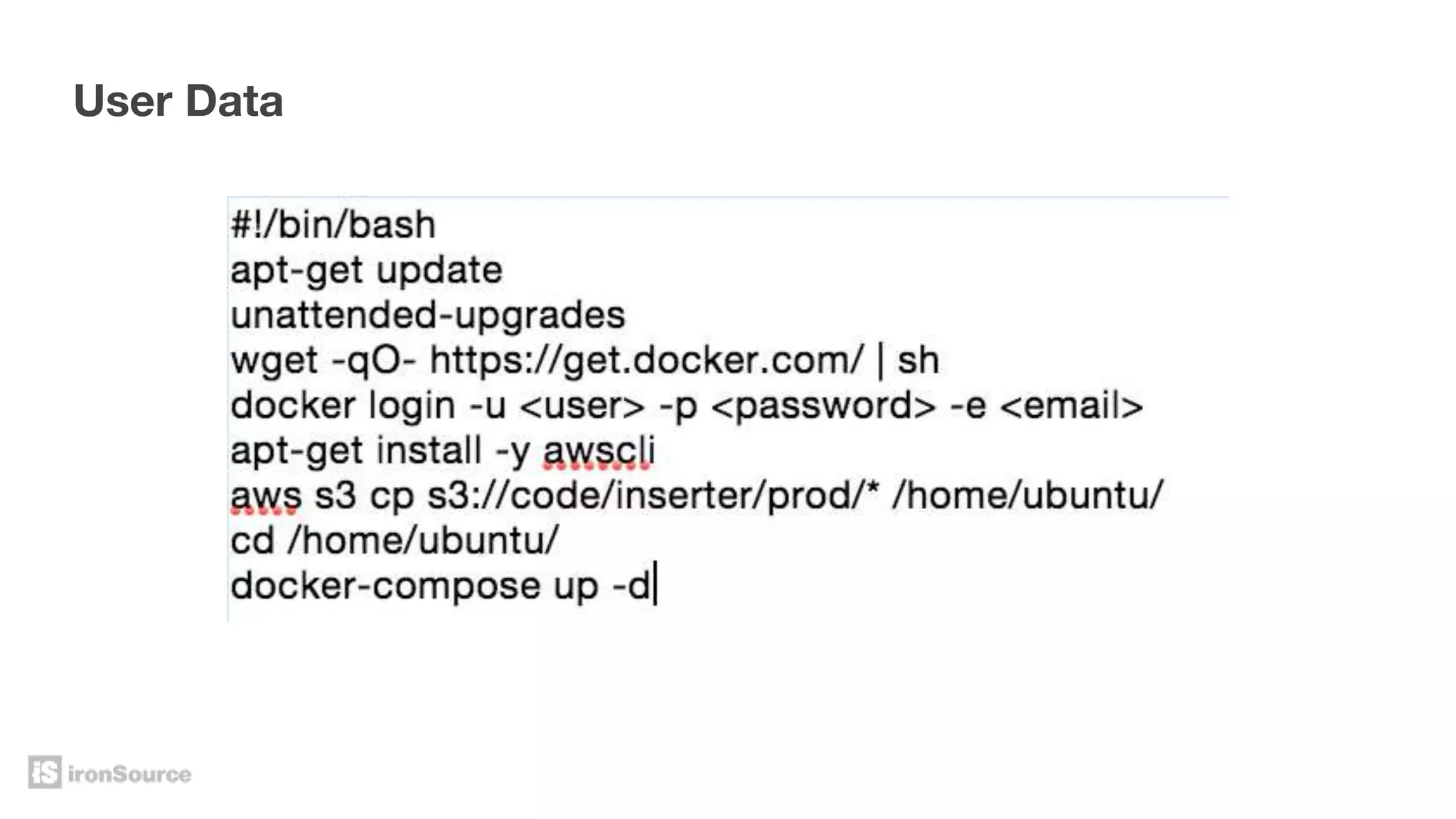

29. User Data

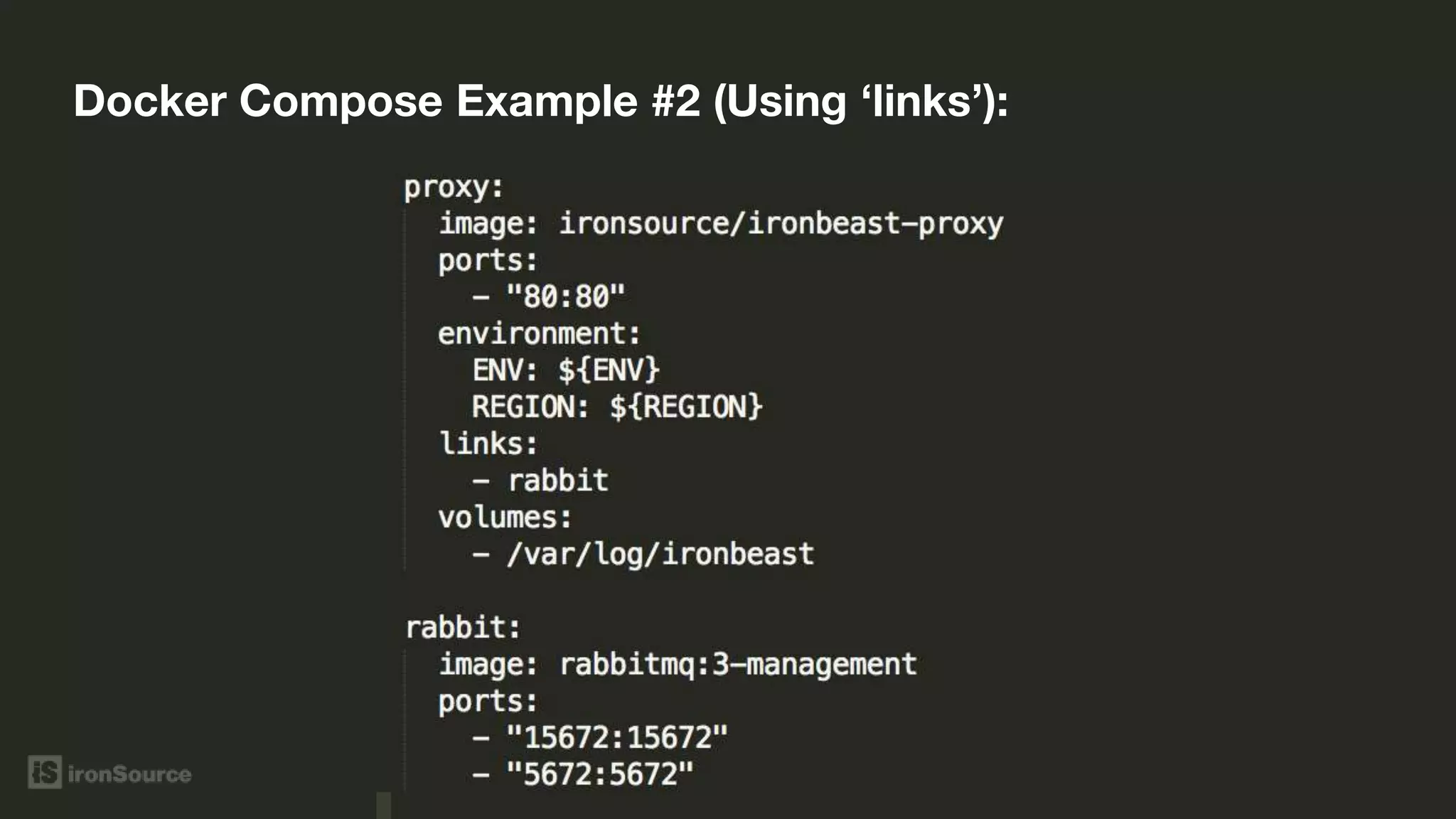

30. Docker Compose Example #2 (Using ‘links’):

33. 10 Million
Free Monthly Events
Thank you!
ironsrc.com/atom
shimont@ironsrc.com @shimontolts
