1. AWS Community Day Chicago
Uploading Millions of Images using a
Serverless Environment
Brett Sutter, Steve Miers, Kirtesh Garg
Minnesota User Group
June 2018

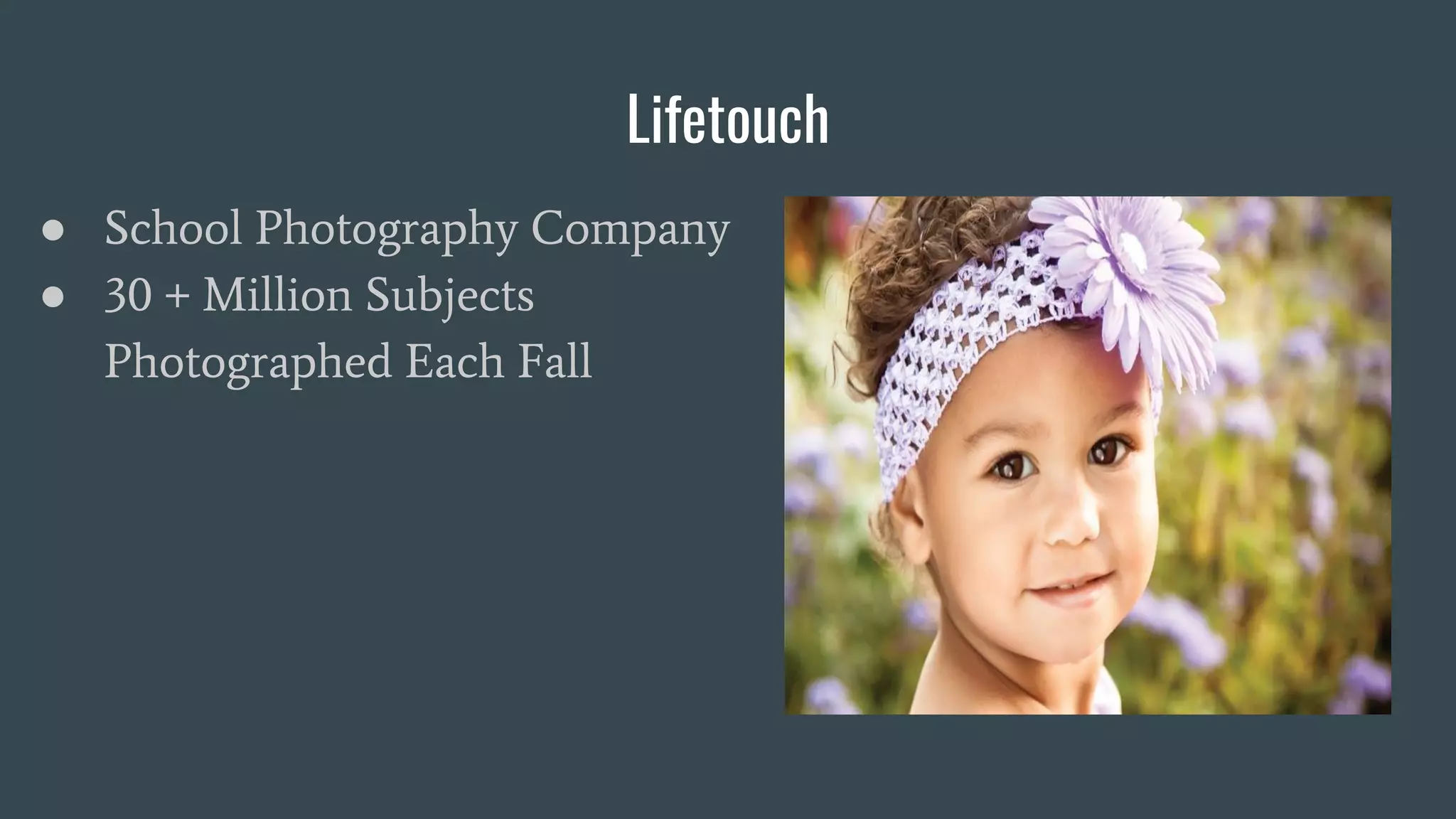

2. Lifetouch
● School Photography Company
● 30 + Million Subjects
Photographed Each Fall

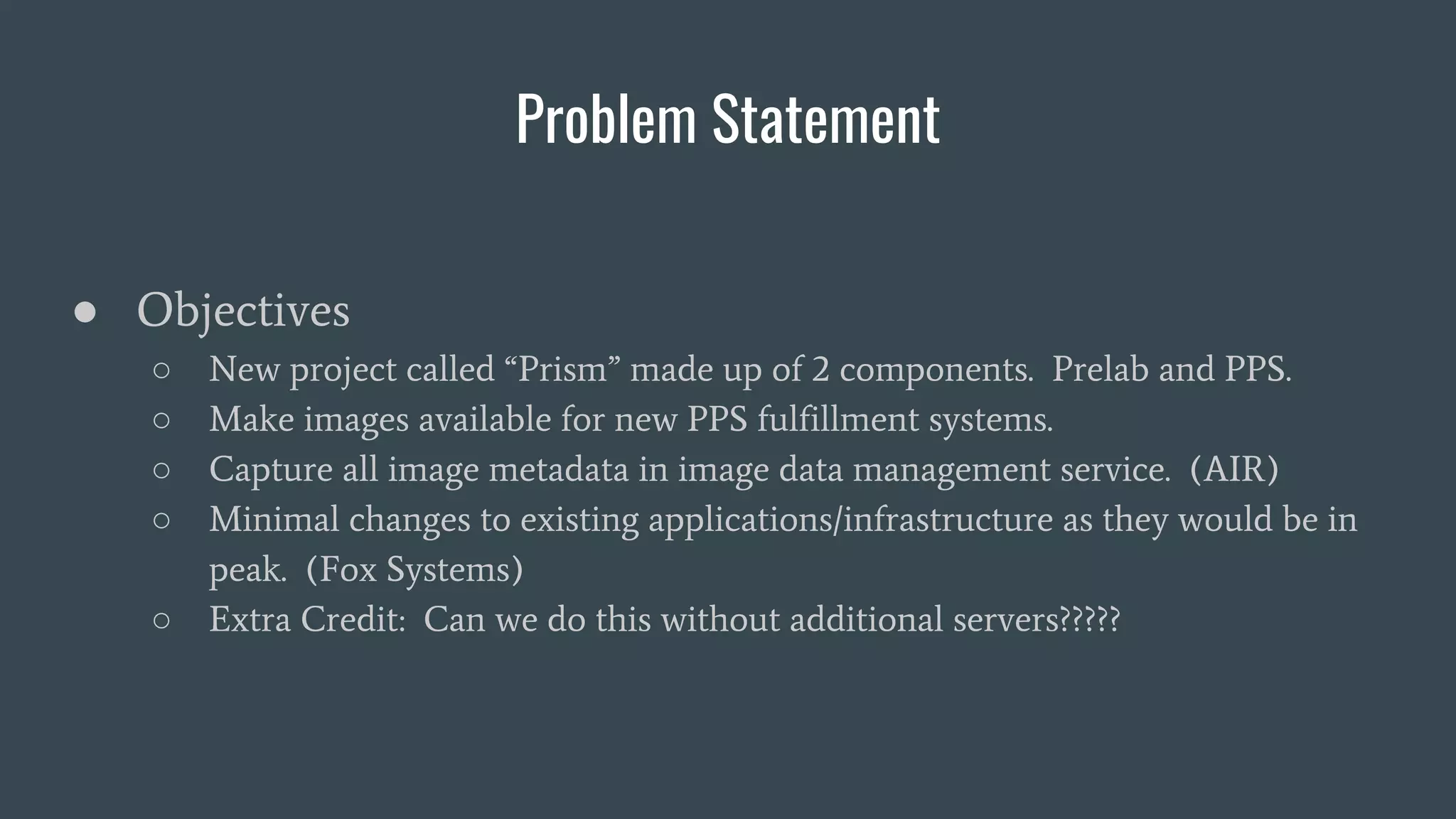

3. Problem Statement
● Objectives
○ New project called “Prism” made up of 2 components. Prelab and PPS.
○ Make images available for new PPS fulfillment systems.
○ Capture all image metadata in image data management service. (AIR)
○ Minimal changes to existing applications/infrastructure as they would be in
peak. (Fox Systems)
○ Extra Credit: Can we do this without additional servers?????

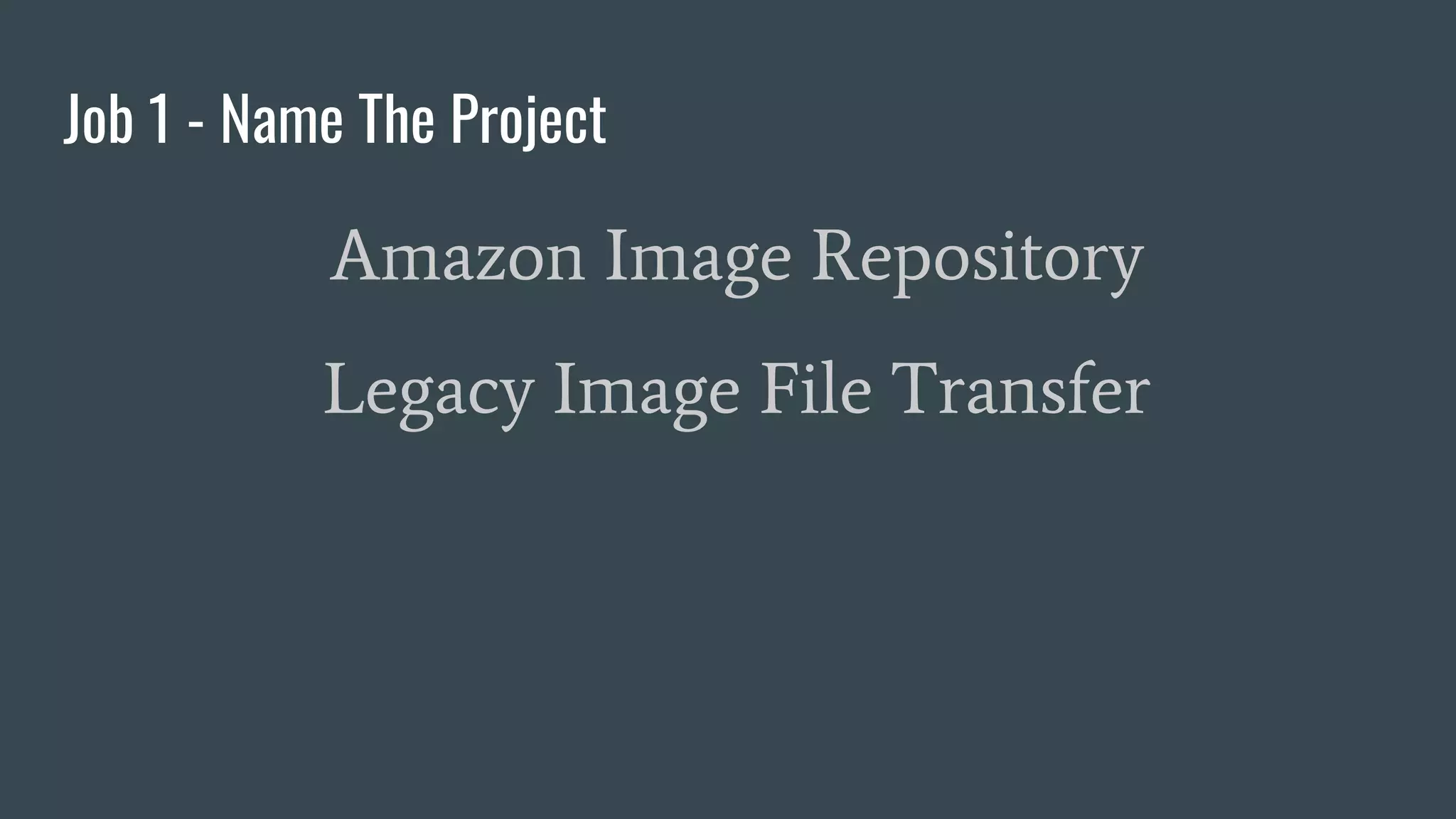

4. Job 1 - Name The Project
Amazon Image Repository
Legacy Image File Transfer

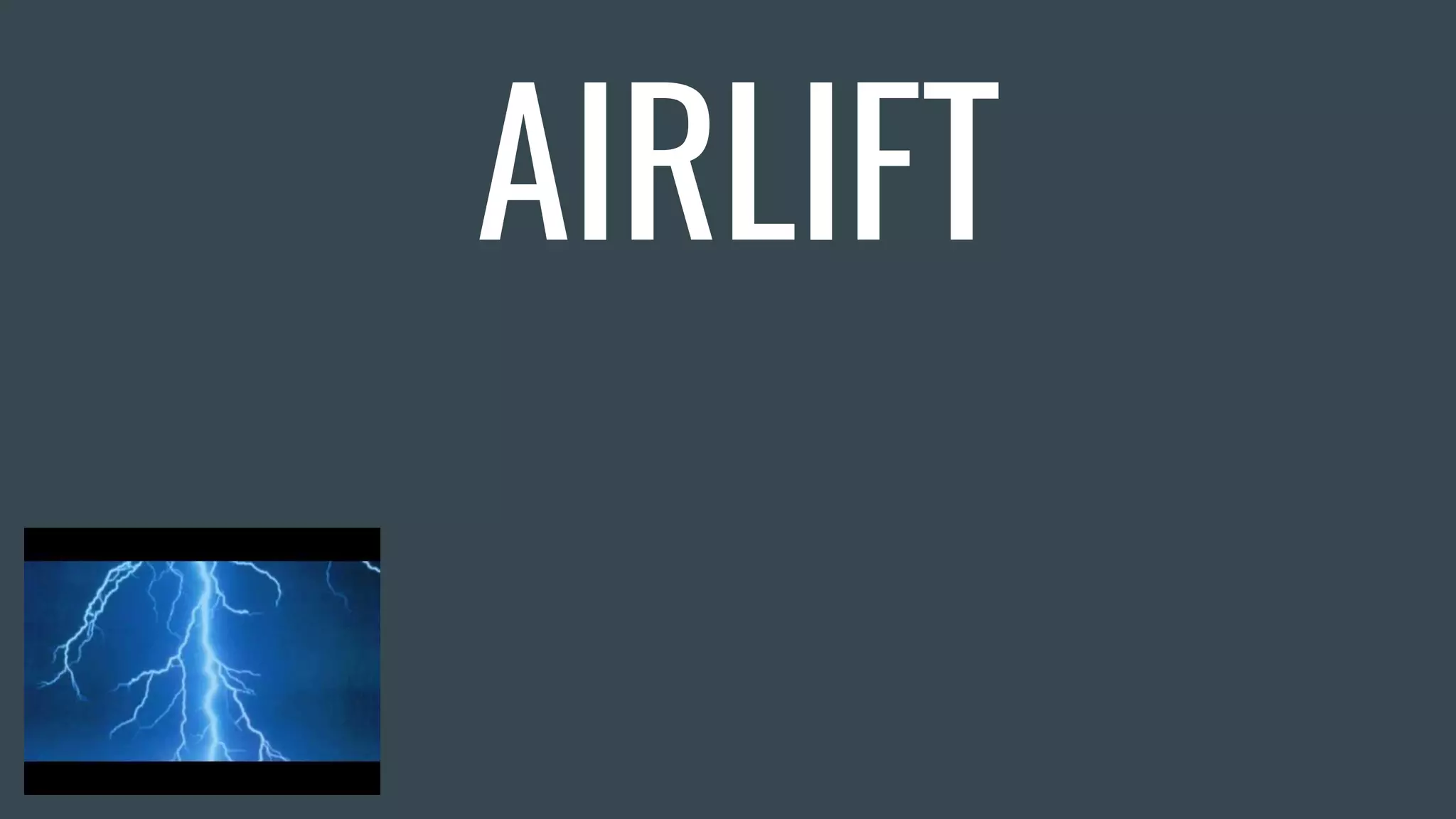

5. AIRLIFT

6. AirLift Usecase

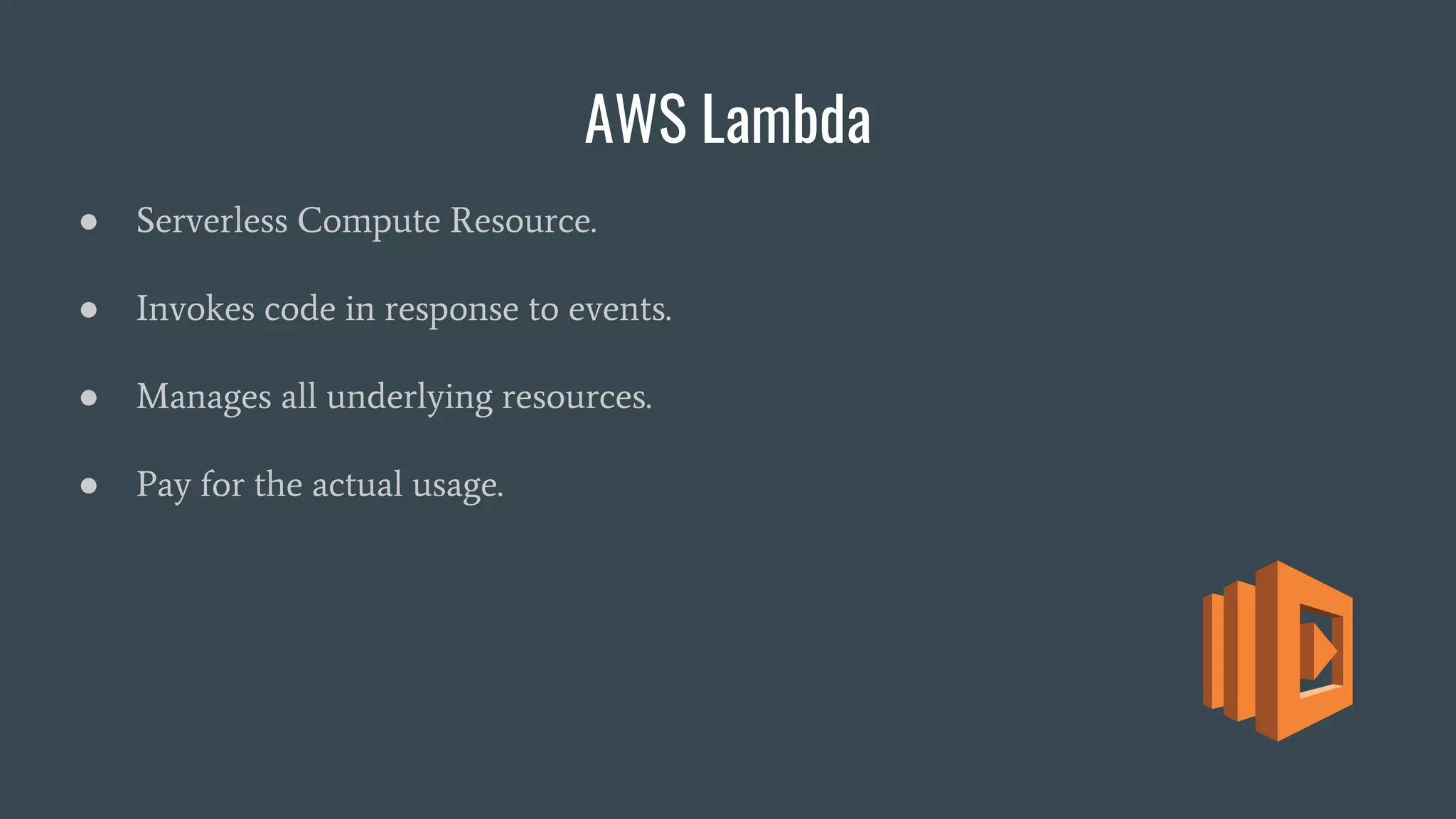

7. AWS Lambda
● Serverless Compute Resource.
● Invokes code in response to events.
● Manages all underlying resources.
● Pay for the actual usage.

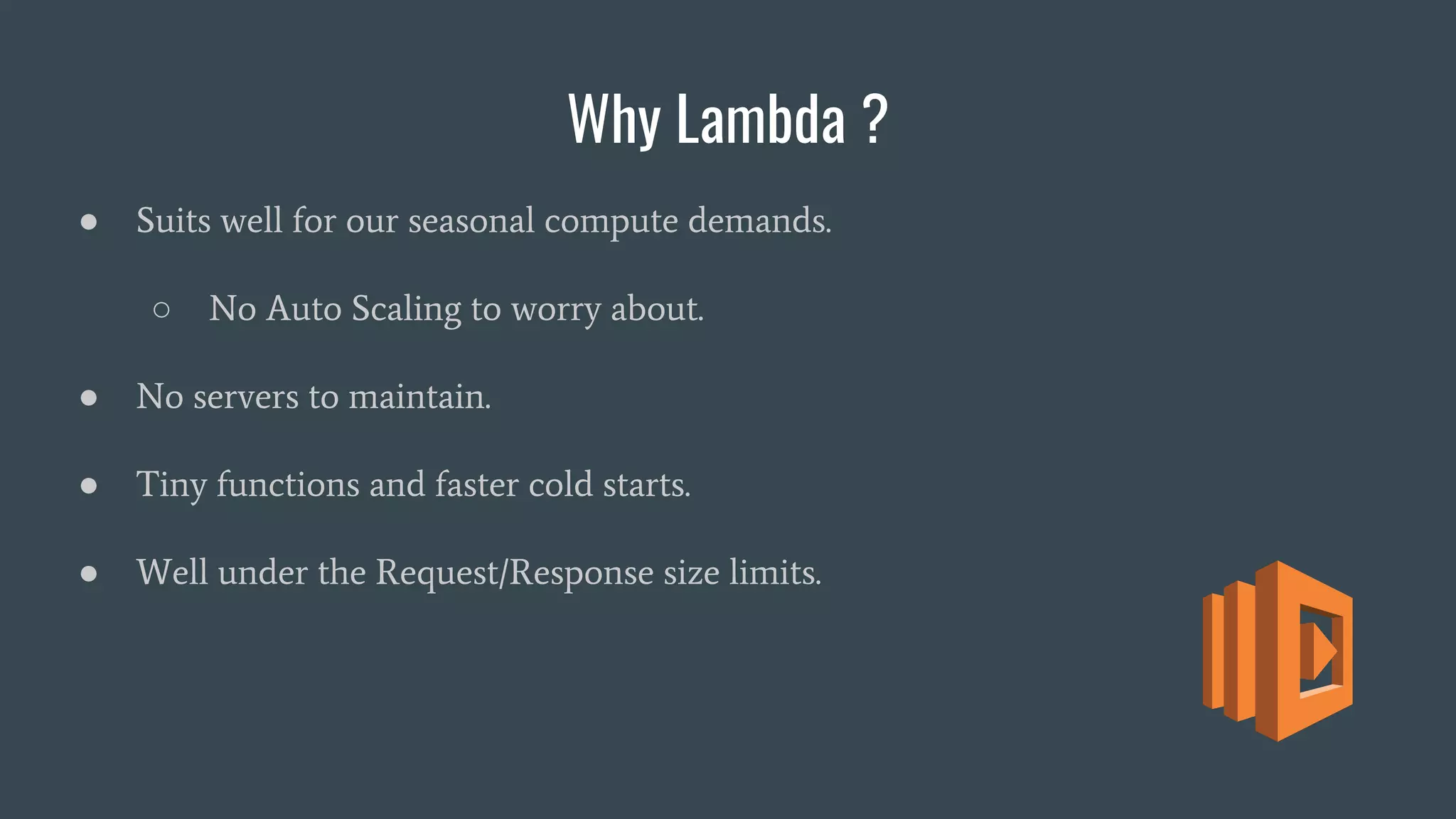

8. Why Lambda ?
● Suits well for our seasonal compute demands.
○ No Auto Scaling to worry about.
● No servers to maintain.
● Tiny functions and faster cold starts.
● Well under the Request/Response size limits.

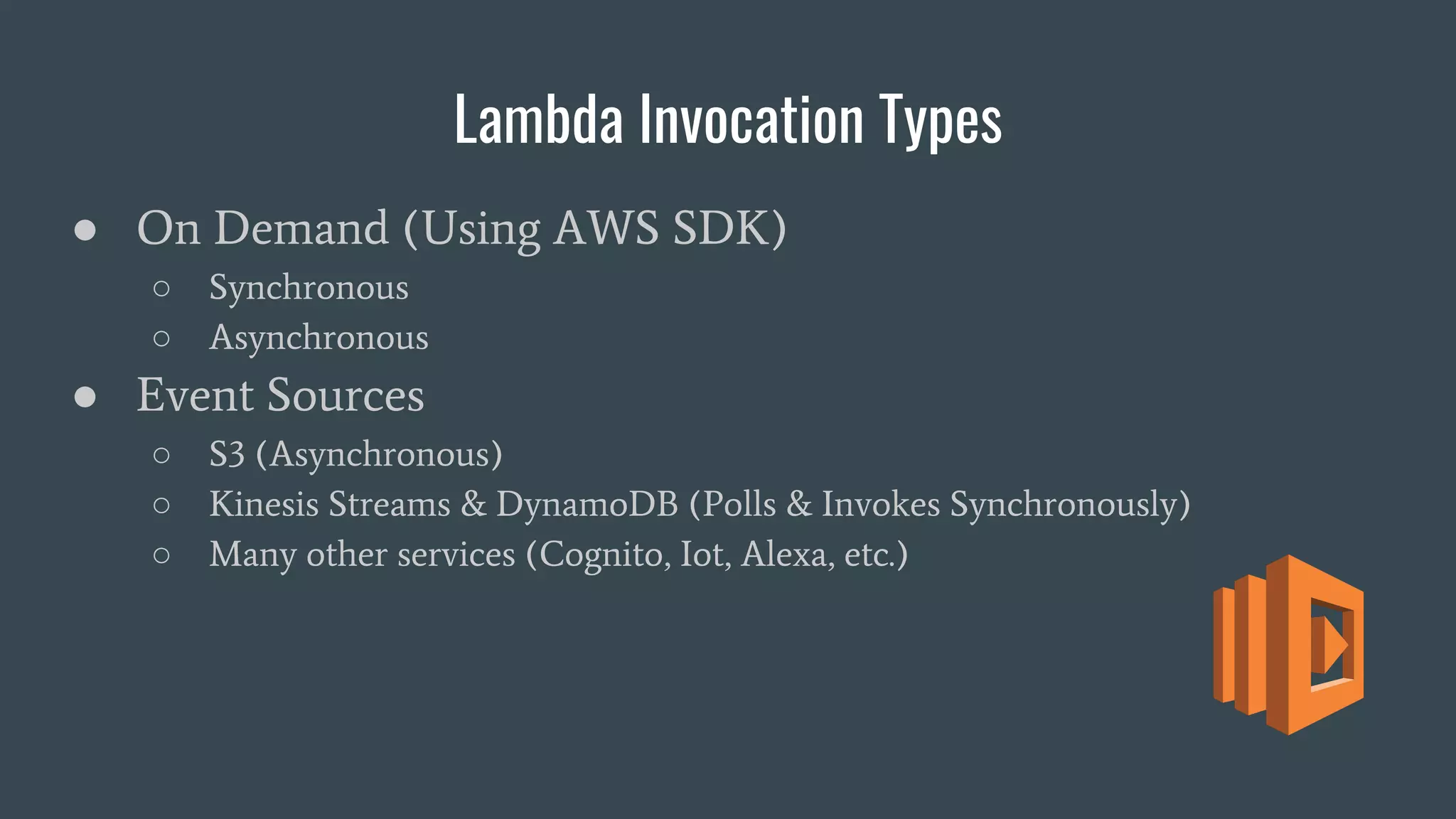

9. Lambda Invocation Types
● On Demand (Using AWS SDK)
○ Synchronous
○ Asynchronous
● Event Sources
○ S3 (Asynchronous)
○ Kinesis Streams & DynamoDB (Polls & Invokes Synchronously)
○ Many other services (Cognito, Iot, Alexa, etc.)

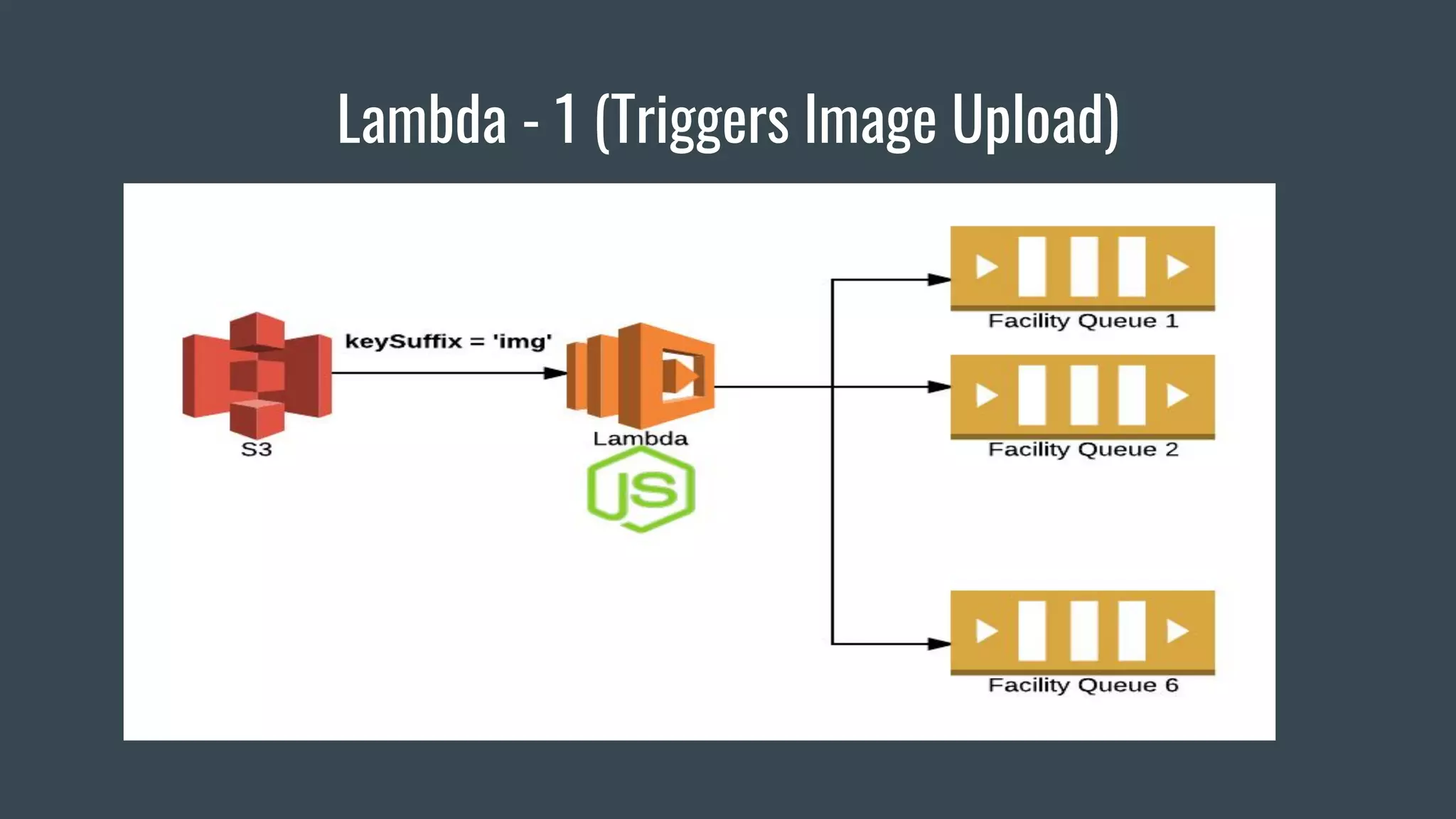

10. Lambda - 1 (Triggers Image Upload)

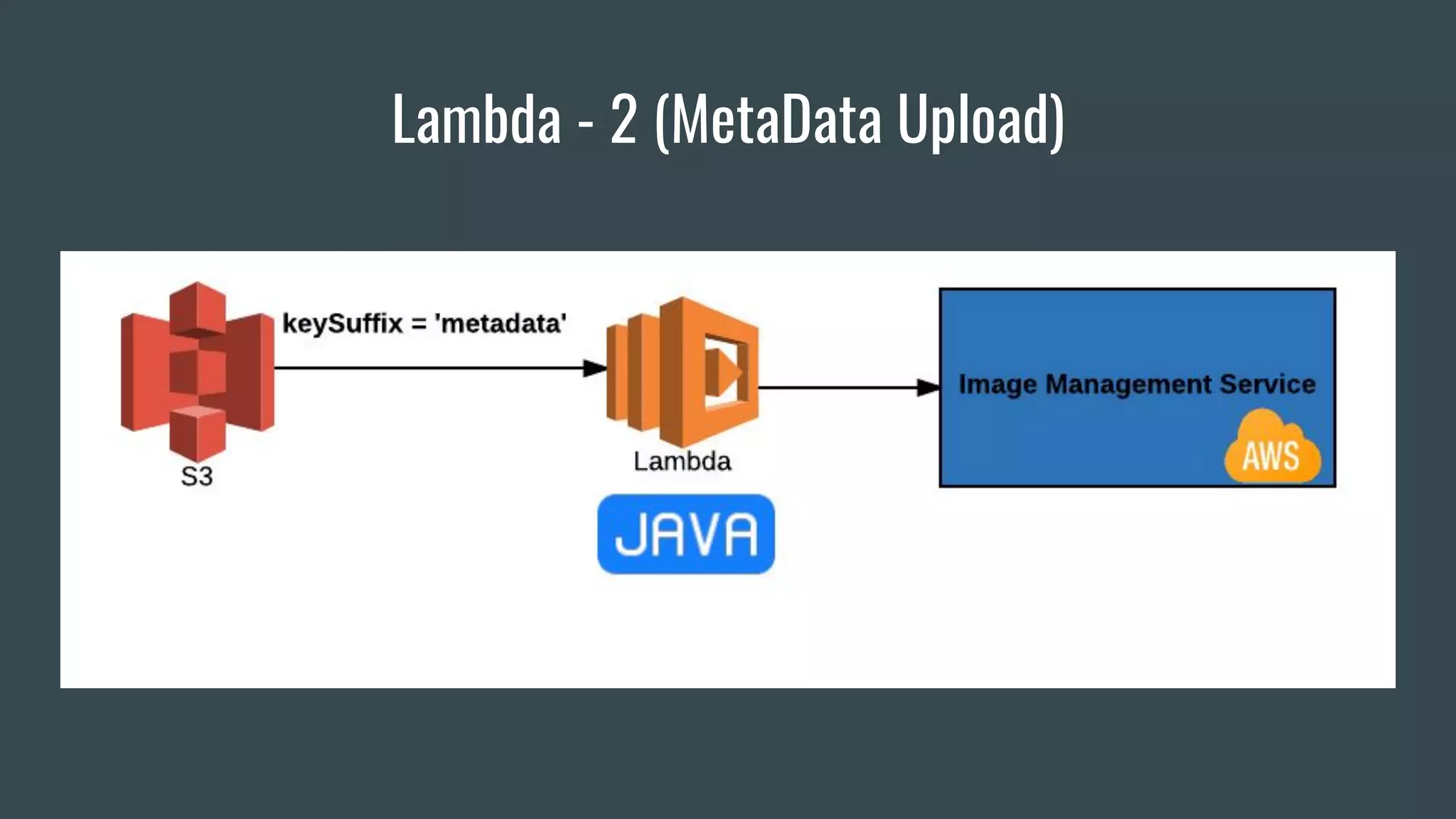

11. Lambda - 2 (MetaData Upload)

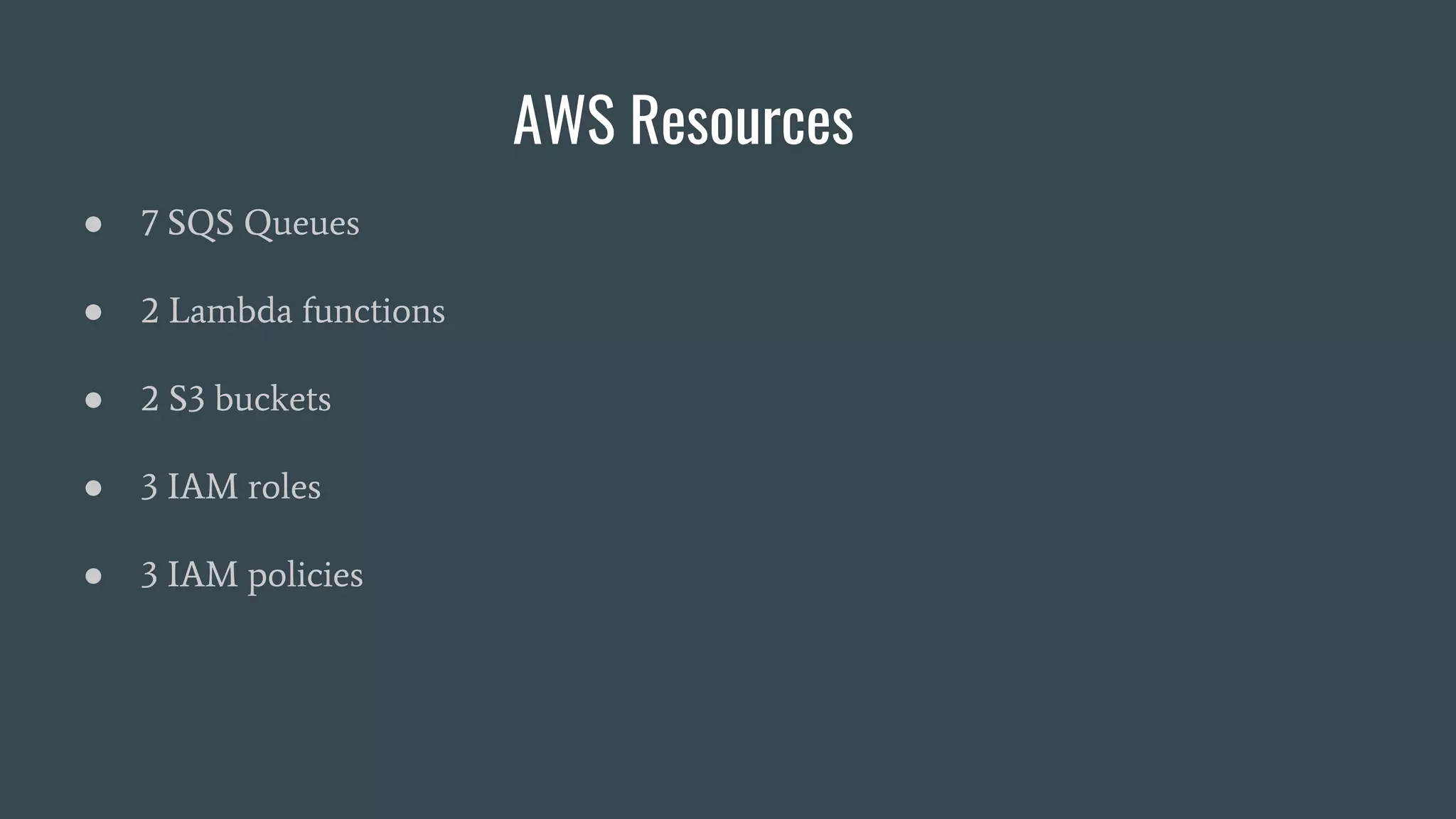

12. AWS Resources
● 7 SQS Queues
● 2 Lambda functions
● 2 S3 buckets
● 3 IAM roles
● 3 IAM policies

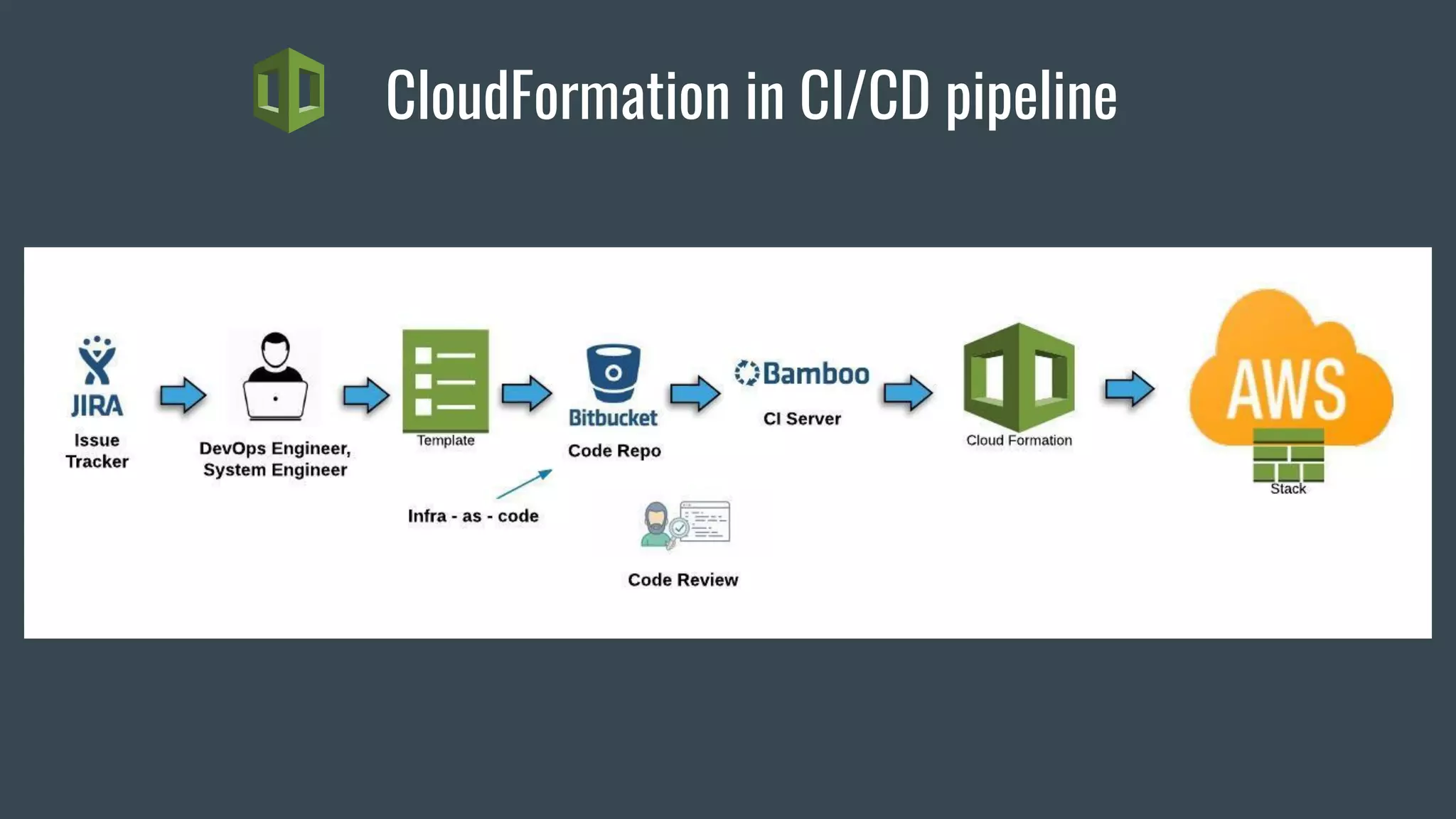

13. CloudFormation in CI/CD pipeline

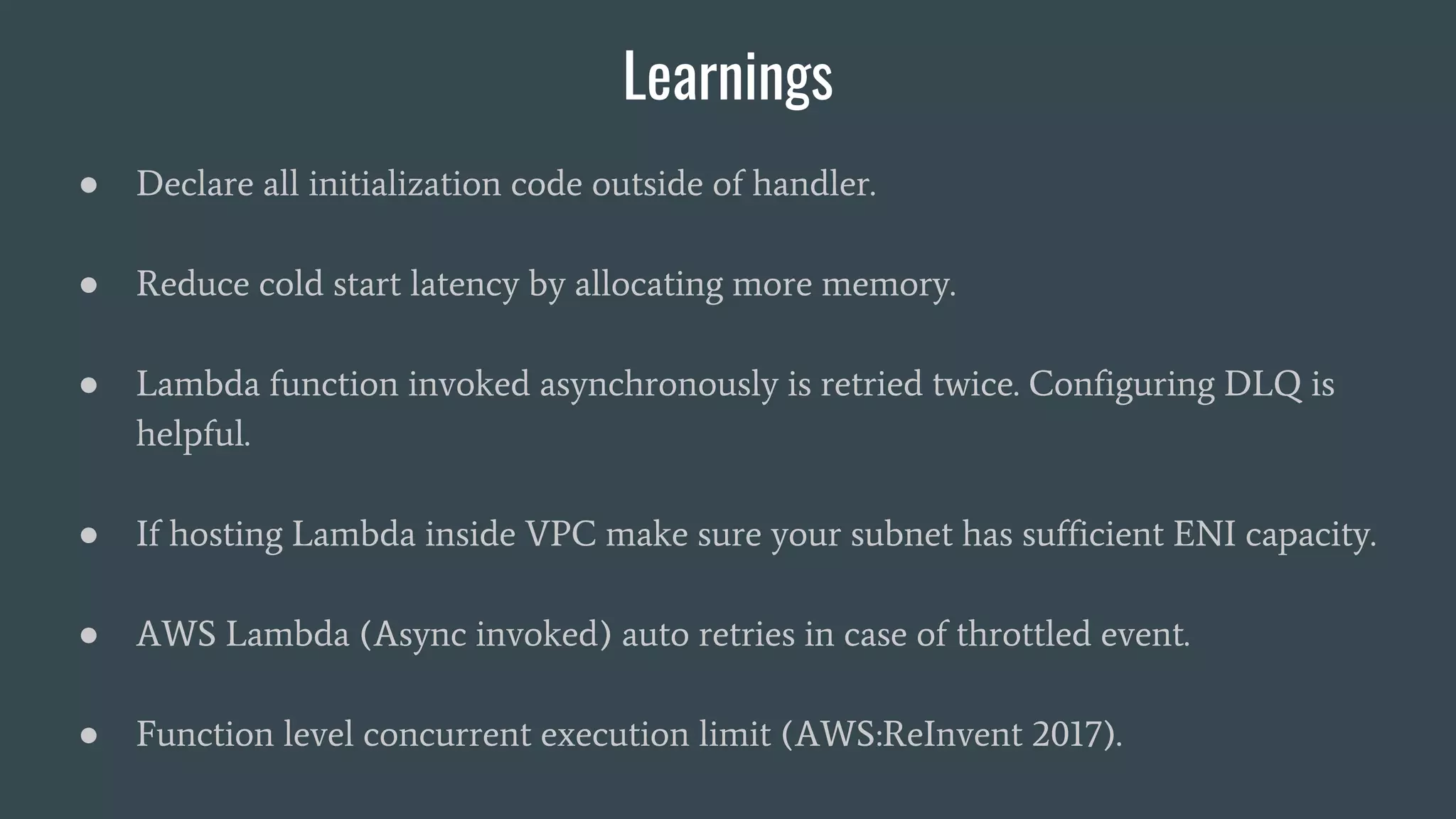

14. Learnings
● Declare all initialization code outside of handler.
● Reduce cold start latency by allocating more memory.
● Lambda function invoked asynchronously is retried twice. Configuring DLQ is
helpful.
● If hosting Lambda inside VPC make sure your subnet has sufficient ENI capacity.
● AWS Lambda (Async invoked) auto retries in case of throttled event.
● Function level concurrent execution limit (AWS:ReInvent 2017).

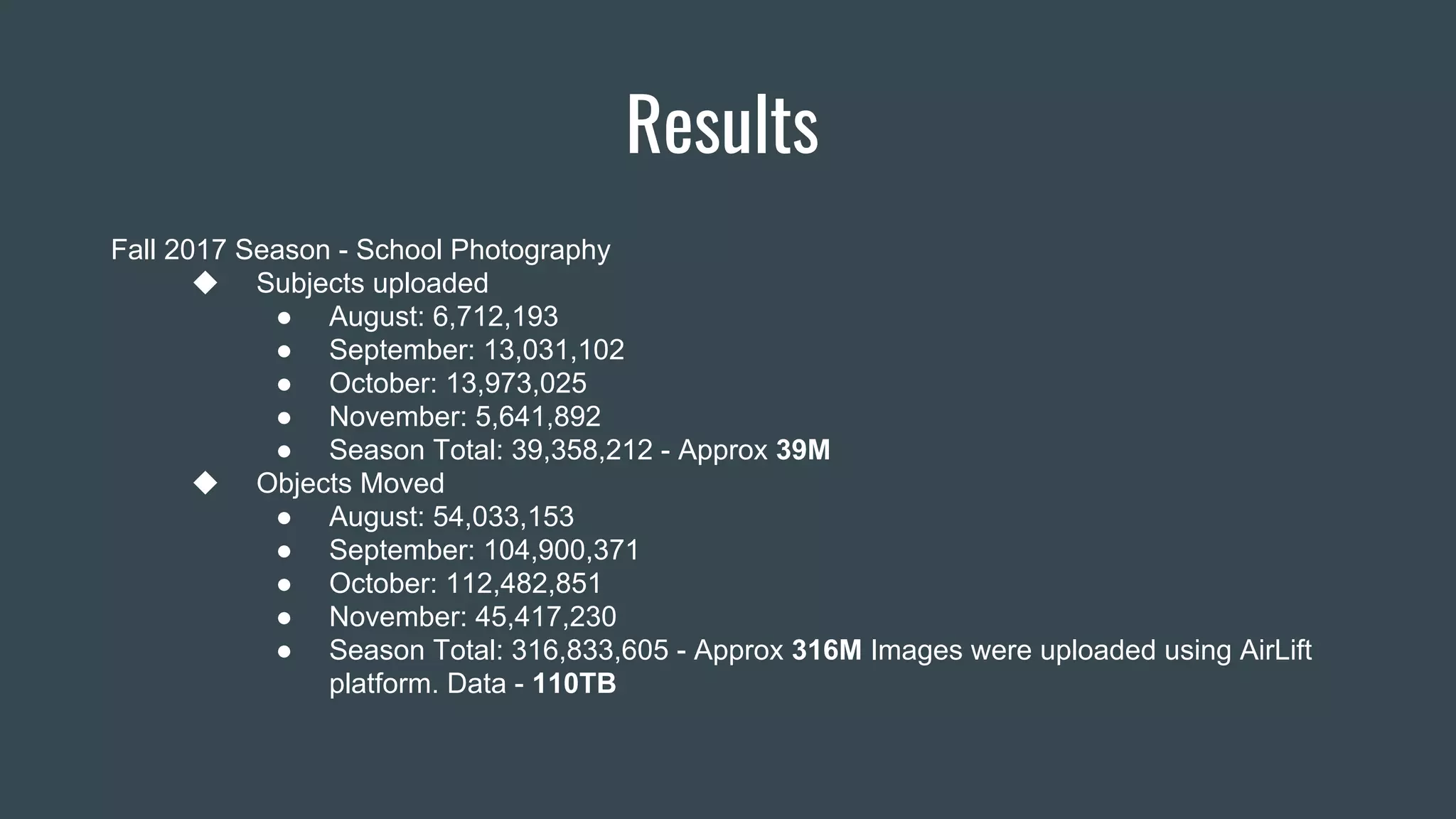

15. Results
Fall 2017 Season - School Photography
◆ Subjects uploaded
● August: 6,712,193
● September: 13,031,102
● October: 13,973,025
● November: 5,641,892
● Season Total: 39,358,212 - Approx 39M
◆ Objects Moved
● August: 54,033,153
● September: 104,900,371
● October: 112,482,851
● November: 45,417,230
● Season Total: 316,833,605 - Approx 316M Images were uploaded using AirLift
platform. Data - 110TB

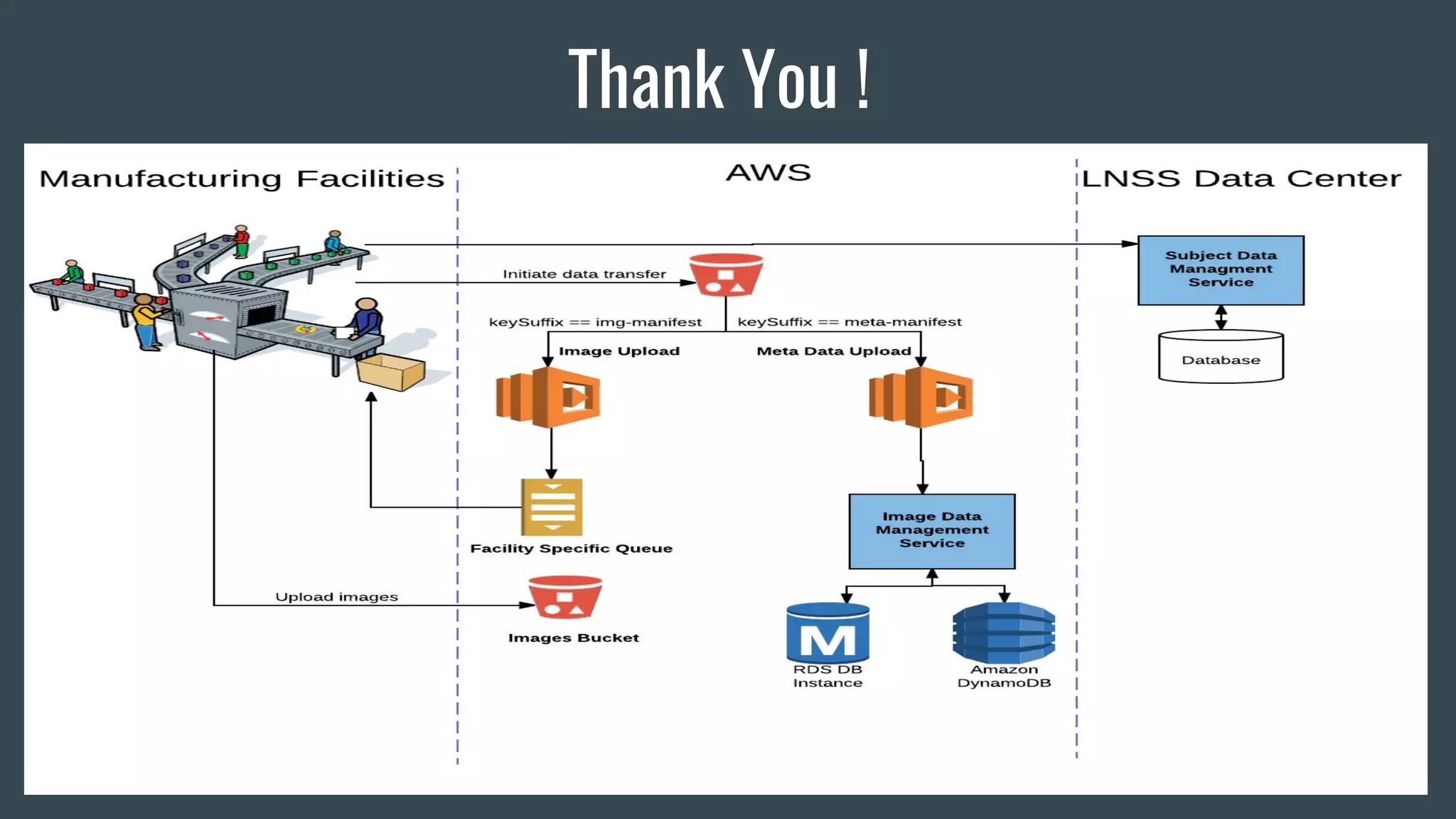

16. Thank You !
