AWS Container services
- 1. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Container services on AWS Vasily Pantyukhin, AWS Solutions Architect
- 2. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 2
- 3. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 3
- 4. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 4
- 5. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 5 63% https://www.cncf.io/blog/2018/08/29/cncf-survey-use-of-cloud-native-technologies-in-production-has-grown-over-200-percent/
- 6. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 6 Amazon ECS (2014) AWS Fargate (2017) Amazon EKS (2018) Amazon ECR (2015)
- 7. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 7
- 8. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.

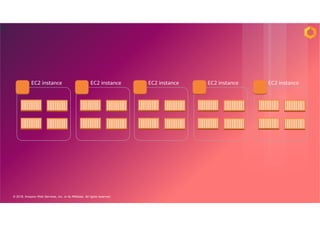

- 9. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 9 EC2 instance EC2 instance EC2 instance EC2 instance EC2 instance

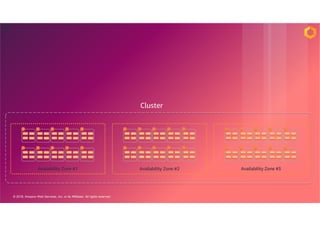

- 10. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 10 Availability Zone #1 Availability Zone #2 Availability Zone #3 Cluster

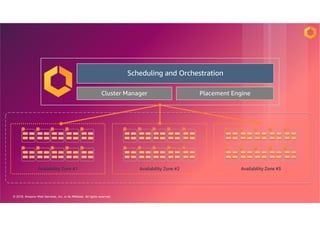

- 11. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 11 Availability Zone #1 Availability Zone #2 Availability Zone #3 Scheduling and Orchestration Cluster Manager Placement Engine

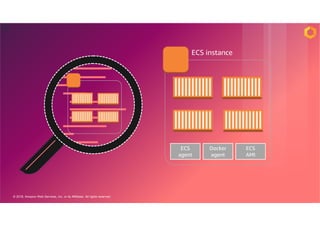

- 12. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 12 ECS instance ECS AMI Docker agent ECS agent

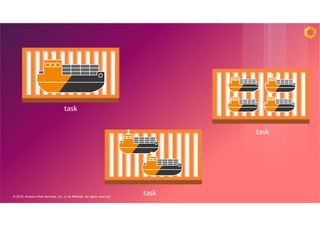

- 13. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. task task task

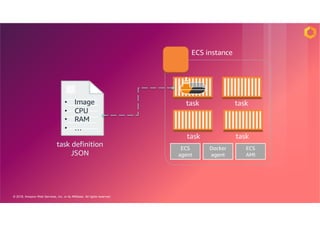

- 14. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ECS instance ECS AMI Docker agent ECS agent task task task task task definition JSON • Image • CPU • RAM • …

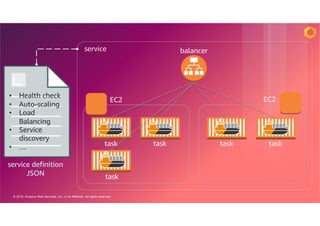

- 15. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. EC2 task task task EC2 task task balancerservice • Health check • Auto-scaling • Load Balancing • Service discovery • … service definition JSON

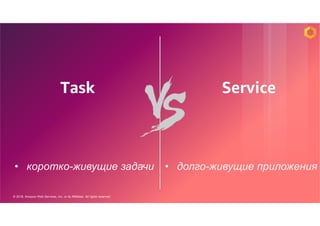

- 16. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Task • коротко-живущие задачи Service • долго-живущие приложения
- 17. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 17 Масштабирование

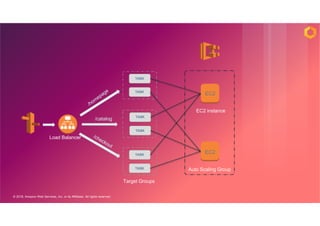

- 18. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. TASK TASK TASK TASK TASK TASK Target Groups /checkout /catalog /homepage EC2 EC2 Load Balancer EC2 instance Auto Scaling Group

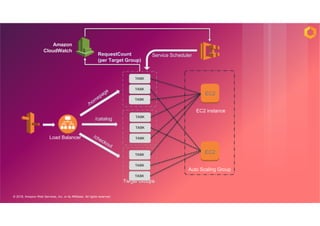

- 19. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Target Groups /checkout /catalog /homepage EC2 EC2 Load Balancer EC2 instance Auto Scaling Group Amazon CloudWatch RequestCount (per Target Group) Service Scheduler TASK TASK TASK TASK TASK TASK TASK TASK TASK
- 20. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Target Groups /checkout /catalog /homepage EC2 EC2 Load Balancer EC2 instance Auto Scaling Group TASK TASK TASK TASK TASK TASK TASK TASK TASK MemoryUtilization (per ECS Cluster) Amazon CloudWatch

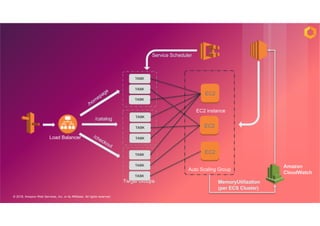

- 21. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Target Groups /checkout /catalog /homepage EC2 EC2 Load Balancer EC2 instance Auto Scaling Group TASK TASK TASK TASK TASK TASK TASK TASK TASK MemoryUtilization (per ECS Cluster) Amazon CloudWatch Service Scheduler EC2

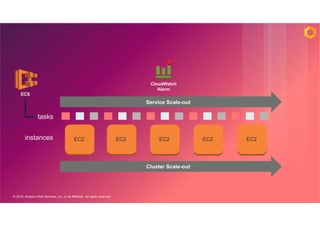

- 22. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Service Scale-out EC2 EC2 ECS EC2 EC2 EC2 Cluster Scale-out CloudWatch Alarm tasks instances
- 23. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 23 Ресурсы
- 24. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. CPU / RAM в task definition CPU soft от 128 CPU units (.125 vCPU) до 10240 (10 vCPU) RAM hard и soft от 4 MB до максимума
- 25. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 25 Сеть

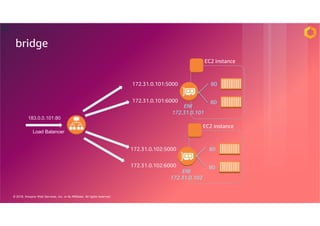

- 26. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 26 bridge EC2 instance 80 80172.31.0.101:6000 172.31.0.101:5000 ENI 172.31.0.101 EC2 instance 80 80172.31.0.102:6000 172.31.0.102:5000 ENI 172.31.0.102 Load Balancer 183.0.0.101:80
- 27. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 27 awsvpc EC2 instance 80 80172.31.0.111:80 172.31.0.101:80 ENI 172.31.0.101 Load Balancer 183.0.0.101:80 ENI 172.31.0.111 EC2 instance 80 80172.31.0.112:80 172.31.0.102:80 ENI 172.31.0.102 ENI 172.31.0.112 loopback loopback
- 28. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 28

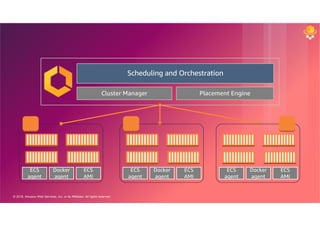

- 29. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ECS AMI Docker agent ECS agent Scheduling and Orchestration Cluster Manager Placement Engine ECS AMI Docker agent ECS agent ECS AMI Docker agent ECS agent

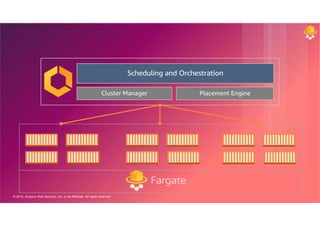

- 30. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Scheduling and Orchestration Cluster Manager Placement Engine

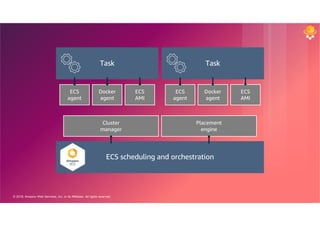

- 31. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Task ECS scheduling and orchestration ECS AMI Docker agent ECS agent Cluster manager Placement engine Task ECS AMI Docker agent ECS agent

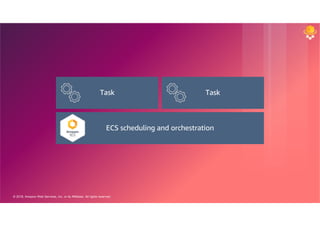

- 32. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ECS AMI Docker agent ECS agent Cluster manager Placement engine ECS AMI Docker agent ECS agent Task Task ECS scheduling and orchestration

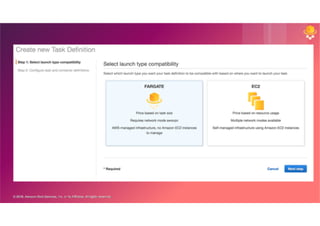

- 33. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
- 34. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 34 Масштабирование

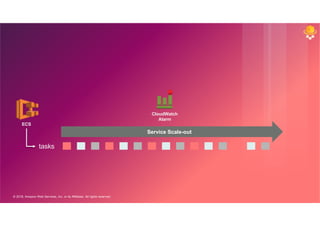

- 35. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Service Scale-out ECS CloudWatch Alarm tasks
- 36. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 36 Ресурсы

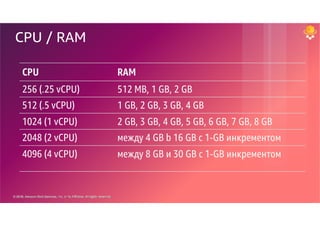

- 37. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. CPU / RAM CPU RAM 256 (.25 vCPU) 512 MB, 1 GB, 2 GB 512 (.5 vCPU) 1 GB, 2 GB, 3 GB, 4 GB 1024 (1 vCPU) 2 GB, 3 GB, 4 GB, 5 GB, 6 GB, 7 GB, 8 GB 2048 (2 vCPU) между 4 GB b 16 GB c 1-GB инкрементом 4096 (4 vCPU) между 8 GB и 30 GB с 1-GB инкрементом
- 38. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 38 Сеть

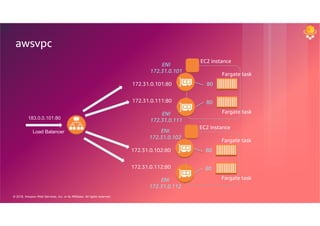

- 39. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 39 awsvpc EC2 instance 80 80172.31.0.111:80 172.31.0.101:80 ENI 172.31.0.101 Load Balancer 183.0.0.101:80 ENI 172.31.0.111 EC2 instance 80 80172.31.0.112:80 172.31.0.102:80 ENI 172.31.0.102 ENI 172.31.0.112 Fargate task Fargate task Fargate task Fargate task
- 40. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 40

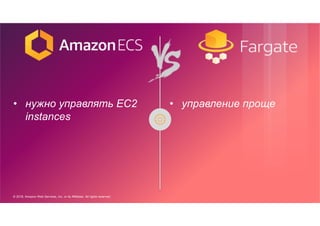

- 41. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • нужно управлять EC2 instances • управление проще
- 42. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • минимально 512MB RAM • гибкие конфигурации ресурсов tasks • фиксированные конфигурации CPU/RAM
- 43. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • только за ресурсы EC2, остальное бесплатно • по количеству vCPU и RAM, использованных с начала docker pull до прекращения выполнения task

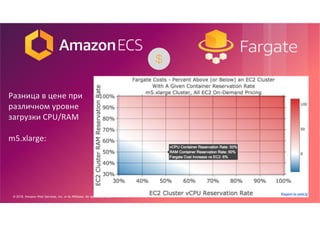

- 44. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Разница в цене при различном уровне загрузки CPU/RAM m5.xlarge:

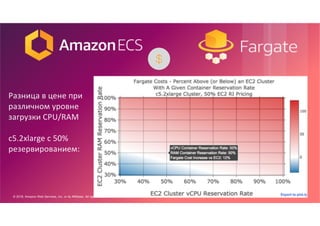

- 45. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Разница в цене при различном уровне загрузки CPU/RAM c5.2xlarge c 50% резервированием:
- 46. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • выгодно при высокой средней утилизации ресурсов • выгодно при разовых запусках
- 47. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • есть лимиты на количество task на instance • не нужно следить за лимитами • гибкие варианты настройки сети • только режим awsvpc • не работает с CLB, ALB Target Type = IP
- 48. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. üвысоко- утилизированные системы контейнеров üпакетные задачи по расписанию или одноразово üWindows или persistent storage üнагрузка с резкими пиками CPU/RAM üмикро-микро-сервисы с RAM < 512MB üв регионах, где еще нет Fargate üминимизация усилий по развертыванию и сопровождению
- 49. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 49
- 50. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 50 51% https://www.cncf.io/blog/2018/08/29/cncf-survey-use-of-cloud-native-technologies-in-production-has-grown-over-200-percent/
- 51. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. “Дайте мне Kubernetes” • что бы не переучиваться • те же версии • полностью совместимый“

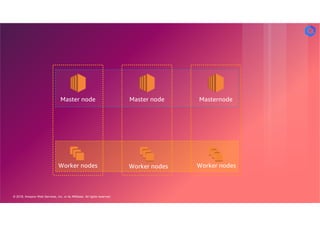

- 52. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Master node MasternodeMaster node Worker nodes Worker nodes Worker nodes
- 53. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Worker nodes Worker nodes Worker nodes Etcd Controller Etcd Controller Etcd Controller

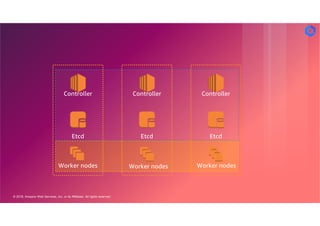

- 54. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Worker nodes Worker nodes Worker nodes Etcd Controller Etcd Controller Etcd Controller Workers управляется вами Master управляется AWS Availability Zone #1 Availability Zone #2 Availability Zone #3 Masters в HA https://github.com/awslabs/amazon-eks-ami

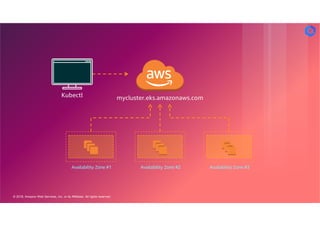

- 55. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. mycluster.eks.amazonaws.comKubectl Availability Zone #1 Availability Zone #2 Availability Zone #3
- 56. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 56 EC2 CNI plugin Dockerkubelet
- 57. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ECS instances worker nodes≈

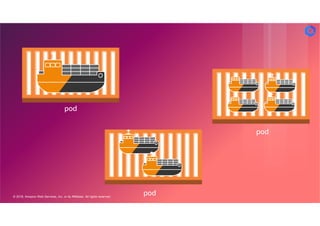

- 58. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. pod pod pod
- 59. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. EC2 pod pod pod pod pod template YAML • Image • CPU • RAM • … CNI plugin Dockerkubelet

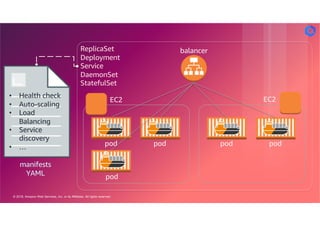

- 60. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. EC2 pod pod pod EC2 pod pod balancerReplicaSet Deployment Service DaemonSet StatefulSet • Health check • Auto-scaling • Load Balancing • Service discovery • … manifests YAML

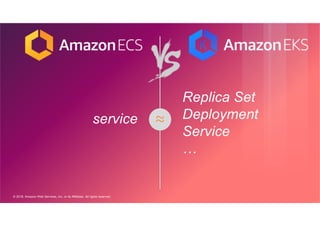

- 61. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ≈service Replica Set Deployment Service …
- 62. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 62 Масштабирование

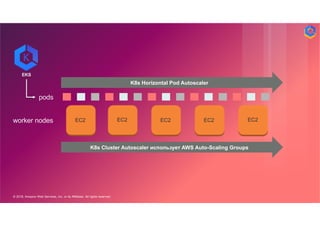

- 63. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. K8s Horizontal Pod Autoscaler EC2 EC2 EKS EC2 EC2 EC2 K8s Cluster Autoscaler использует AWS Auto-Scaling Groups pods worker nodes
- 64. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 64 Сеть

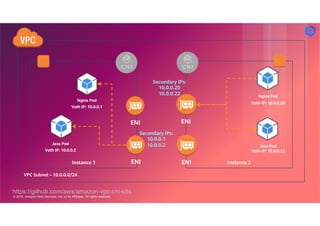

- 65. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Nginx Pod Java Pod ENI Secondary IPs: 10.0.0.1 10.0.0.2 Veth IP: 10.0.0.1 Veth IP: 10.0.0.2 Nginx Pod Java Pod ENI Veth IP: 10.0.0.20 Veth IP: 10.0.0.22 Secondary IPs: 10.0.0.20 10.0.0.22 VPC Subnet – 10.0.0.0/24 Instance 1 Instance 2 https://github.com/aws/amazon-vpc-cni-k8s ENI ENI
- 66. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 66 Безопасность
- 67. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. https://github.com/projectcalico Kubernetes Network Policies контролирует правила сетевой безопасности Calico API сетевых политик Open source >100 контрибуторов Коммерческая поддержка от Tigera

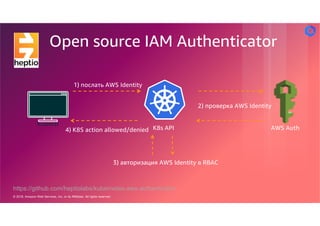

- 68. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Open source IAM Authenticator 3) авторизация AWS Identity в RBAC K8s API 1) послать AWS Identity 2) проверка AWS Identity 4) K8S action allowed/denied AWS Auth Kubectl https://github.com/heptiolabs/kubernetes-aws-authenticator
- 69. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 69
- 70. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • очень простой • более гибкий • быстро начать и легко поддерживать • развитая экосистема

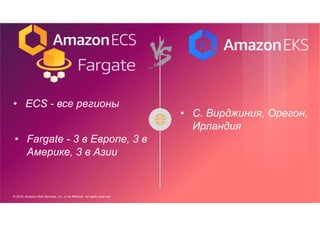

- 71. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • ECS - все регионы • С. Вирджиния, Орегон, Ирландия • Fargate - 3 в Европе, 3 в Америке, 3 в Азии
- 72. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • CLB, ALB и NLB • CLB и NLB через Service type LoadBalancer • ALB Ingress в beta https://github.com/kubernetes-sigs/aws-alb-ingress-controller • менее эффективная балансировка через proxy, потребляющая сетевые ресурсы • балансировка напрямую
- 73. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • режим awsvpc позволяет выделять отдельные ENI для каждого task • ENI разделяется между pods • гибкое управление доступом через отдельные Security Groups • управление доступом через внешние плагины
- 74. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • интеграция с AWS IAM ”из коробки” • IAM только для аутентификации
- 75. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. • 0,20$ в час = 144$ в месяц + стоимость EC2 • ECS только за ресурсы EC2, остальное бесплатно • Fargate по количеству vCPU и RAM
- 76. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. üбыстро начать или минимизировать затраты на поддержку üK8S уже используется üнужна гибкость и есть кому ее реализовать üмаксимальная интеграция с сервисами AWS üмаксимальный open source üработа в регионах. где EKS еще не поддерживается üнужны последние версии K8S
- 77. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. 77 Спасибо !
