Uploaded byVladimir Simek
Running Docker Containers on AWS
The document provides an overview of running Docker containers on AWS using ECS. It discusses: - Why containers are useful for building scalable microservices applications. - How ECS handles cluster management, scheduling containers across a cluster, and integrates with other AWS services. - Common workflows for using ECS, such as pushing images to ECR, defining tasks, running tasks/services, updating services, and monitoring with CloudWatch. - Security considerations like IAM roles for containers and tasks. - Examples of task placement strategies and a customer case study on using ECS at scale. The document concludes by noting other AWS services that complement ECS and taking questions.
![[Games on AWS 2019] AWS 입문자를 위한 초단기 레벨업 트랙 | AWS 레벨업 하기! : 컨테이너 - 김세호 AWS 솔루션...](https://cdn.slidesharecdn.com/ss_thumbnails/gamesonawsawslevelup-container-191014060644-thumbnail.jpg?width=640&height=640&fit=bounds)
Running Docker Containers on AWS
- 1. Running Docker Containerson AWS (with ECS) Vladimir Simek, Solutions Architect @ AWS 20 September 2017
- 2. Agenda Why Containers? Cluster Management RunningServices Placement Options Security and Monitoring Demo
- 3.
- 4. What are Containers? OSvirtualization Process isolation Images AutomationServer Guest OS Bins/Libs Bins/Libs App2App1
- 5.
- 6. Services evolve tomicroservices Monolithic Application Order UI User UI Shipping UI Order Service User Service Shipping Service Data Access Host 1 Service A Service B Host 2 Service B Service D Host 3 Service A Service C Host 4 Service B Service C
- 7. Containers are naturalfor microservices Simple to model Any app, any language Image is the version Test & deploy same artifact Stateless servers decrease change risk
- 8.
- 9. Server Guest OS Bins/Libs Bins/Libs App2App1 Schedulingone resource is straightforward
- 10. Scheduling a clusteris hard Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS Server Guest OS
- 11. What is AmazonECS? Amazon EC2 Container Service (ECS) is a highly scalable, high performance container management service. You can use Amazon ECS to schedule the placement of containers across your cluster. You can also integrate your own scheduler or third-party scheduler to meet business or application specific requirements.
- 12.
- 13. Cluster Management: ResourceManagement Docker Task EC2 Instance Container Docker Task EC2 Instance Container Task Container Docker EC2 Instance Task Container AZ 1 AZ 2
- 14. Cluster Management: Scheduling Docker Task EC2Instance Container Docker Task EC2 Instance Container Task Container Docker EC2 Instance Task Container AZ 1 AZ 2
- 15. Amazon ECS: ResourceManagement Docker Task Container Instance Container Task Container Docker Task Container Instance Container Task Container Docker Task Container Instance Container Task Container AZ 1 AZ 2 Cluster Management Engine
- 16. Amazon ECS: AgentCommunication Docker Task Container Instance Container ECS Agent Task Container Docker Task Container Instance Container ECS Agent Task Container Docker Task Container Instance Container ECS Agent Task Container AZ 1 AZ 2 Cluster Management Engine Agent Communication Service
- 17. Amazon ECS: Key/ValueStore Docker Task Container Instance Container ECS Agent ELB Internet ELB Task Container Docker Task Container Instance Container ECS Agent Task Container Docker Task Container Instance Container ECS Agent Task Container AZ 1 AZ 2 Key/Value Store Cluster Management Engine Agent Communication Service
- 18. Amazon ECS: APIs Docker Task ContainerInstance Container ECS Agent ELB Internet ELB User / Scheduler API Cluster Management Engine Task Container Docker Task Container Instance Container ECS Agent Task Container Docker Task Container Instance Container ECS Agent Task Container AZ 1 AZ 2 Key/Value Store Agent Communication Service
- 19. Amazon ECS: Scheduling Docker Task ContainerInstance Container ECS Agent ELB Internet ELB User / Scheduler API Cluster Management Engine Task Container Docker Task Container Instance Container ECS Agent Task Container Docker Task Container Instance Container ECS Agent Task Container AZ 1 AZ 2 Key/Value Store Agent Communication Service
- 20.
- 21. Easily Manage Clustersfor Any Scale Nothing to run Complete state Control and monitoring Scale
- 22.
- 23. Flexible Container Placement Applications Batchjobs Multiple schedulers
- 24. Designed for usewith other AWS services Elastic Load Balancing Amazon Elastic Block Store Amazon Virtual Private Cloud Amazon CloudWatch AWS Identity and Access Management AWS CloudTrail
- 25. Extensible Comprehensive APIs Custom schedulers Opensource agent and CLI
- 26. Amazon ECS Docker Task Container Instance Amazon ECS Container ECSAgent ELB Internet ELB User / Scheduler API Cluster Management Engine Task Container Docker Task Container Instance Container ECS Agent Task Container Docker Task Container Instance Container ECS Agent Task Container AZ 1 AZ 2 Key/Value Store Agent Communication Service
- 27.
- 28. Typical User Workflow Ihave a Docker image, and I want to run the image on a cluster
- 29. Typical User Workflow PushImage(s) Amazon ECR
- 30. Push Image toECR $ docker push my-account.dkr.ecr.us-east- 1.amazonaws.com/myImage
- 31. Typical User Workflow CreateTask Definition Amazon ECS Declare resource requirements
- 32. Register task definition $aws ecs register-task-definition --cli- input-json file://task-defintion.json
- 33. Task definition { "taskDefinition": { "status":"INACTIVE", "family": "curler", "volumes": [], "taskDefinitionArn": "arn:aws:ecs:us-west-2:123456778901:task-definition/curler:1", "containerDefinitions": [ { "environment": [], "name": "curler", "mountPoints": [], "image": "curl:latest", "cpu": 100, "portMappings": [], "entryPoint": [], "memory": 256, "command": [ "curl -v http://example.com/" ], "essential": true, "volumesFrom": [] } ], "revision": 1 } }
- 34. Typical User Workflow RunInstances EC2 Use custom AMI with Docker support and ECS Agent. Instances will register with default cluster.
- 35. Create cluster $ awsecs create-cluster --cluster-name "my_cluster"
- 36. Typical User Workflow RunTask or Create Service Amazon ECS Using the task definition created above
- 37. Create service $ awsecs create-service --service-name ecs-simple-service --task-definition ecs-demo --desired-count 10
- 38. Create Service Load Balancetraffic across containers Automatically recover unhealthy containers Discover services Elastic Load Balancing Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers
- 39. Scale Service Scale out Scalein Elastic Load Balancing Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers
- 40.
- 41. Update Service Deploy newversion Drain connections new new new Elastic Load Balancing Shared Data Volume Containers old old old Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers
- 42. Update Service (cont.) Deploynew version Drain connections new new new Elastic Load Balancing Shared Data Volume Containers old old old Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers
- 43. Update Service (cont.) Deploynew version Drain connections Elastic Load Balancing Shared Data Volume Containers Shared Data Volume Containers Shared Data Volume Containers new new new
- 44. Update Service (cont.) Specifya deployment configuration for your service: • minimumHealthyPercent: lower limit (as a percentage of the service's desiredCount) of the number of running tasks that must remain running in a service during a deployment. • maximumPercent: upper limit (as a percentage of the service's desiredCount) of the number of running tasks that can be running in a service during a deployment.

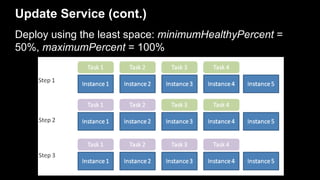

- 45. Update Service (cont.) Deployusing the least space: minimumHealthyPercent = 50%, maximumPercent = 100%
- 46. Update Service (cont.) Deployquickly without reducing service capacity: minimumHealthyPercent = 100%, maximumPercent = 200%
- 47.
- 48. Supported Placement Strategies BinpackingSpread Affinity Distinct Instance
- 49. g2.2xlarge t2.small g2.2xlargeg2.2xlarge Placement: Targeting Instance Type
- 50. g2.2xlarge t2.small t2.microt2.medium t2.medium t2.small g2.2xlarge t2.small t2.small t2.medium us-east-1aus-east-1d Placement: Targeting Instance Type & Zone
- 51. g2.2xlarge t2.small t2.microt2.medium t2.medium t2.small g2.2xlarge t2.small us-east-1aus-east-1d g2.2xlarge t2.medium t2.micro t2.small us-east-1c Placement: Availability Zone Spread
- 52.
- 53. IAM Roles IAM rolesfor container instances: • Bound to the ECS container instance • Applies to all containers running on the host • Pulling images from ECR • CloudWatch Logs IAM roles for tasks: • Bound to specific ECS tasks • Task-specific access to AWS services Tip Use principle of least privilege – prefer IAM roles for tasks where applicable
- 54. IAM Roles ForTasks ECS Cluster EC2 Instance EC2 Instance TASK A TASK B TASK B Amazon DynamoDB Amazon S3
- 55.
- 56.
- 57. Centralized Logging withCloudWatch Logs { "image": ”nginx:latest", ... "logConfiguration": { "logDriver": "awslogs", "options": { "awslogs-group": ”nginx", "awslogs-region": "us-east-1" } } } • Defined within the task definition • Available log drivers • awslogs • fluentd • gelf • journald • json-file • splunk • Syslog • Submit a pull request on ECS agent GitHub repo if you would like others
- 58. Centralized Logging withCloudWatch Logs
- 59.
- 60. AWS Customers usingECS in production
- 62. • 50 Microservices- 10 containers/service • Costs down 40% by using Spot Instances • Faster Deployment Times “ In November 2015 we moved our Docker container architecture to Amazon ECS, and for the first time ever in December we were able to celebrate a new year in which our system could handle the huge number of requests without any crashes or interruptions—an accomplishment that we were extremely proud of. We had faced the biggest night on the calendar without any downtime.”
- 63. Docker on AWS– just ECS?
