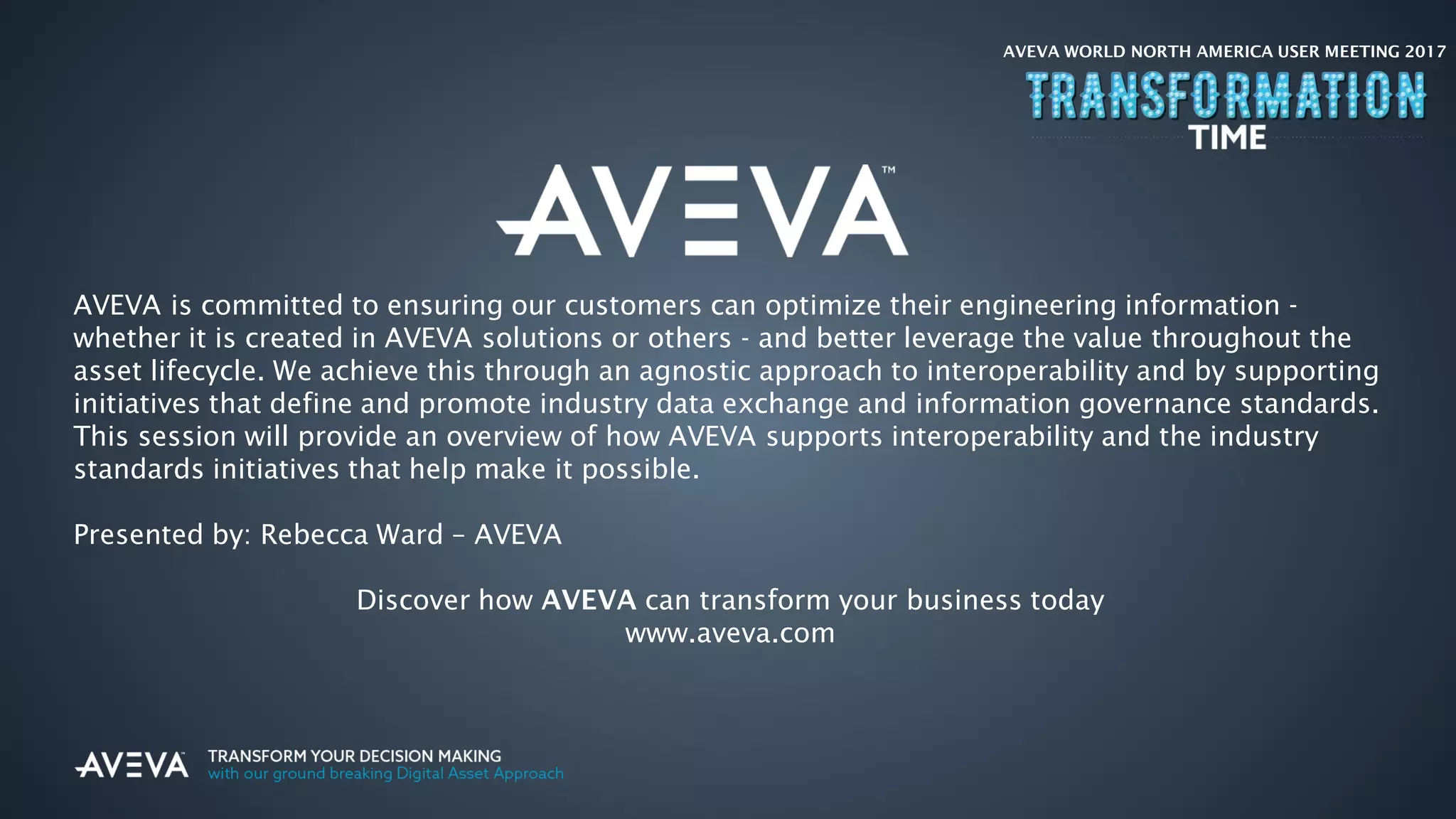

AVEVA is committed to ensuring our customers can optimize their engineering information -
whether it is created in AVEVA solutions or others - and better leverage the value throughout the
asset lifecycle. We achieve this through an agnostic approach to interoperability and by supporting
initiatives that define and promote industry data exchange and information governance standards.
This session will provide an overview of how AVEVA supports interoperability and the industry
standards initiatives that help make it possible.
Presented by: Rebecca Ward – AVEVA
Discover how AVEVA can transform your business today
www.aveva.com

2. NORTH AMERICA USER MEETING 2017
TIME
Optimizing Your Information through
Interoperability
An overview of AVEVA’s commitment to interoperability

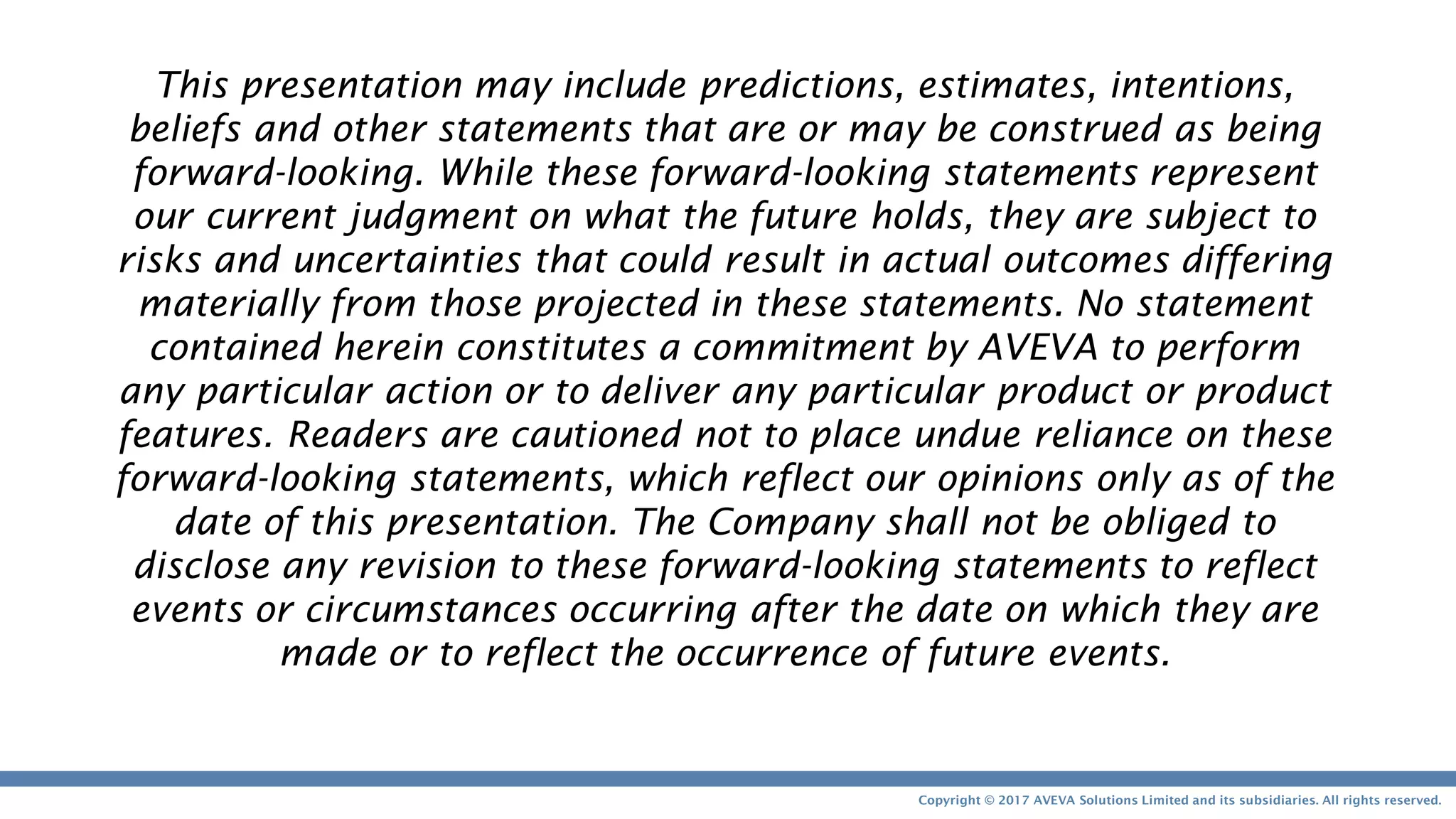

3. Copyright © 2017 AVEVA Solutions Limited and its subsidiaries. All rights reserved.
This presentation may include predictions, estimates, intentions,
beliefs and other statements that are or may be construed as being
forward-looking. While these forward-looking statements represent
our current judgment on what the future holds, they are subject to
risks and uncertainties that could result in actual outcomes differing
materially from those projected in these statements. No statement
contained herein constitutes a commitment by AVEVA to perform
any particular action or to deliver any particular product or product
features. Readers are cautioned not to place undue reliance on these
forward-looking statements, which reflect our opinions only as of the
date of this presentation. The Company shall not be obliged to
disclose any revision to these forward-looking statements to reflect
events or circumstances occurring after the date on which they are
made or to reflect the occurrence of future events.

4. Copyright © 2017 AVEVA Solutions Limited and its subsidiaries. All rights reserved.

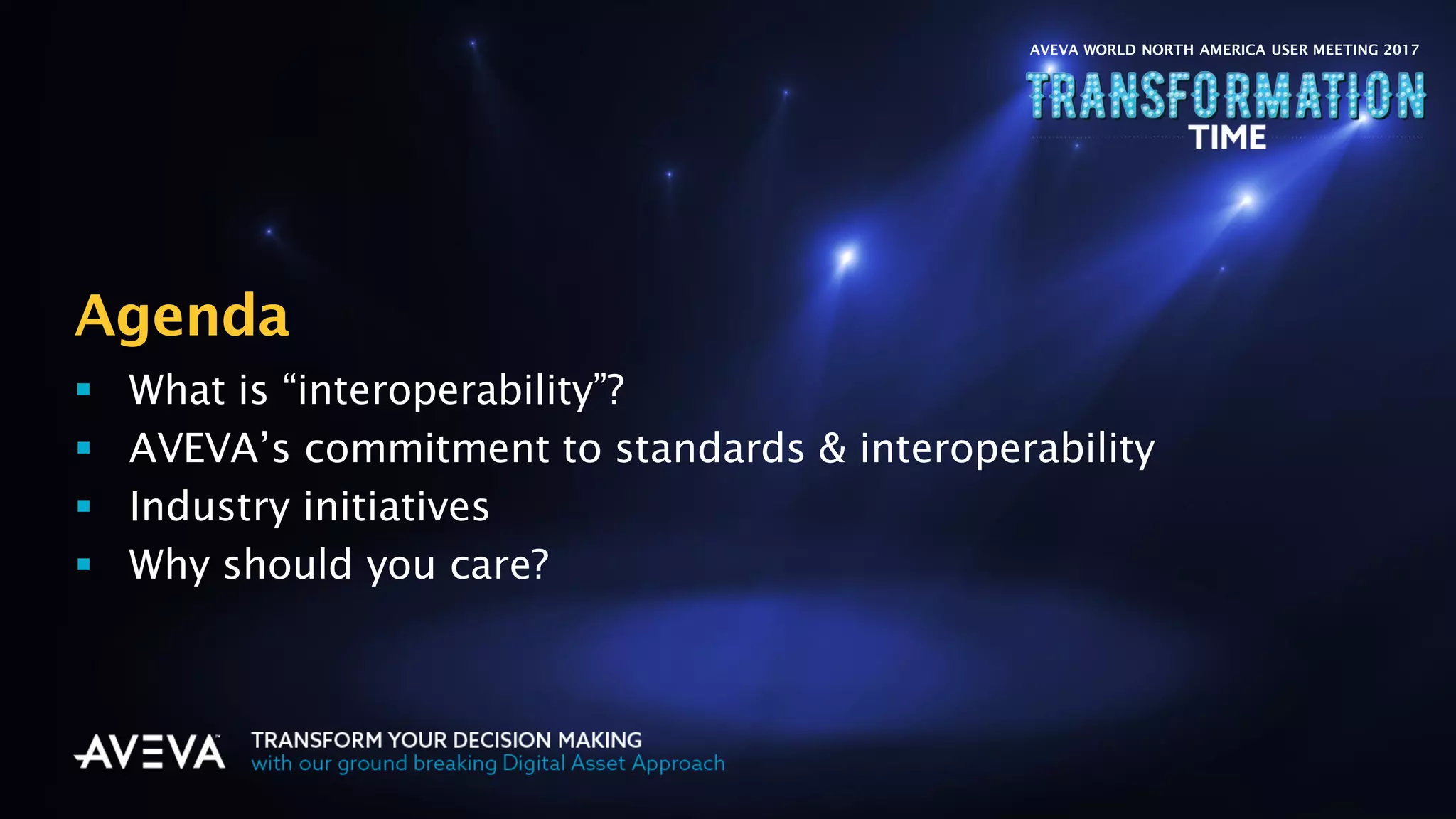

Agenda
 What is “interoperability”?
 AVEVA’s commitment to standards & interoperability
 Industry initiatives
 Why should you care?
AVEVA WORLD NORTH AMERICA USER MEETING 2017

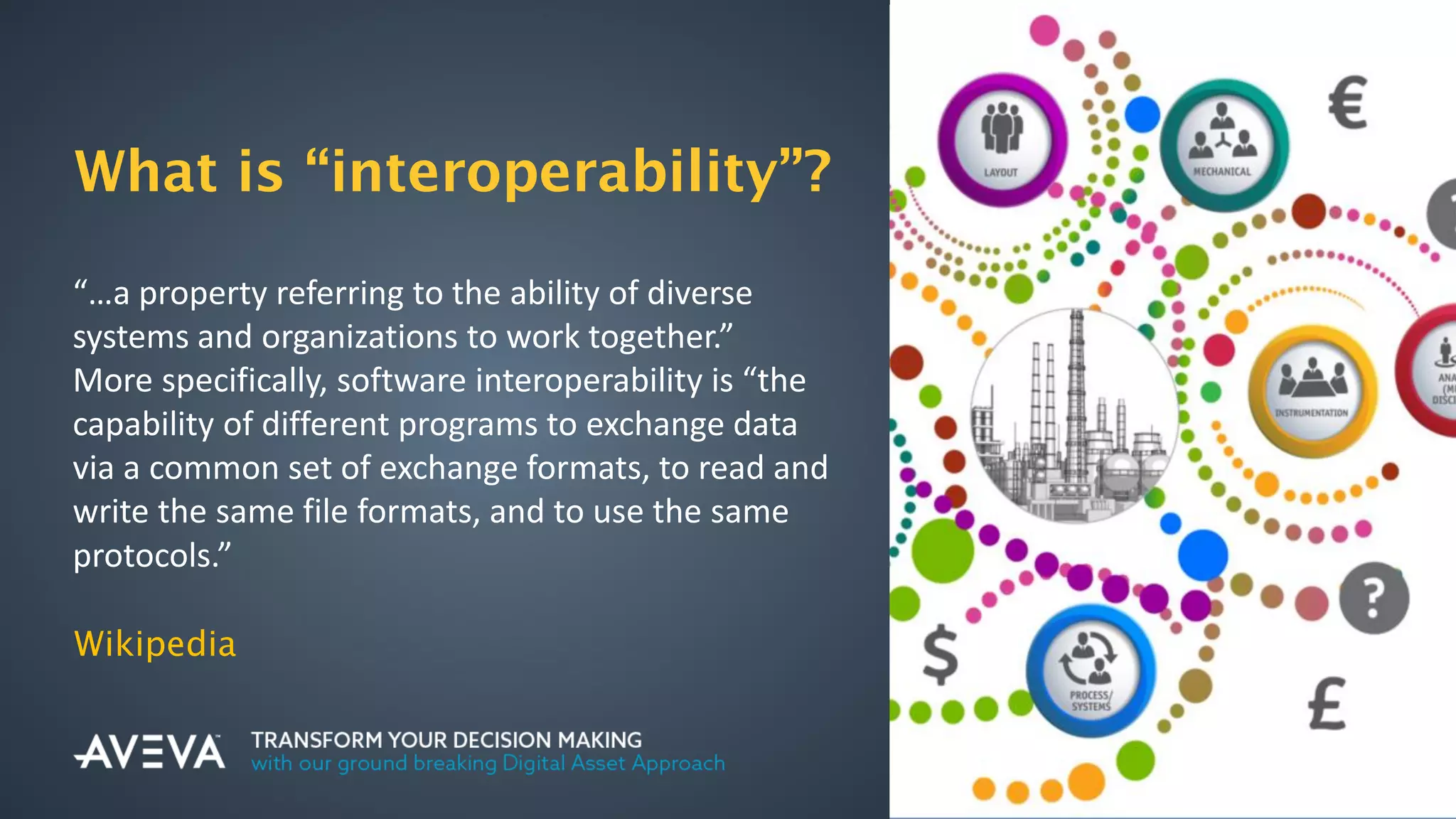

5. Copyright © 2017 AVEVA Solutions Limited and its subsidiaries. All rights reserved.
What is “interoperability”?
“…a property referring to the ability of diverse
systems and organizations to work together.”
More specifically, software interoperability is “the
capability of different programs to exchange data
via a common set of exchange formats, to read and
write the same file formats, and to use the same
protocols.”
Wikipedia

6. Copyright © 2017 AVEVA Solutions Limited and its subsidiaries. All rights reserved.

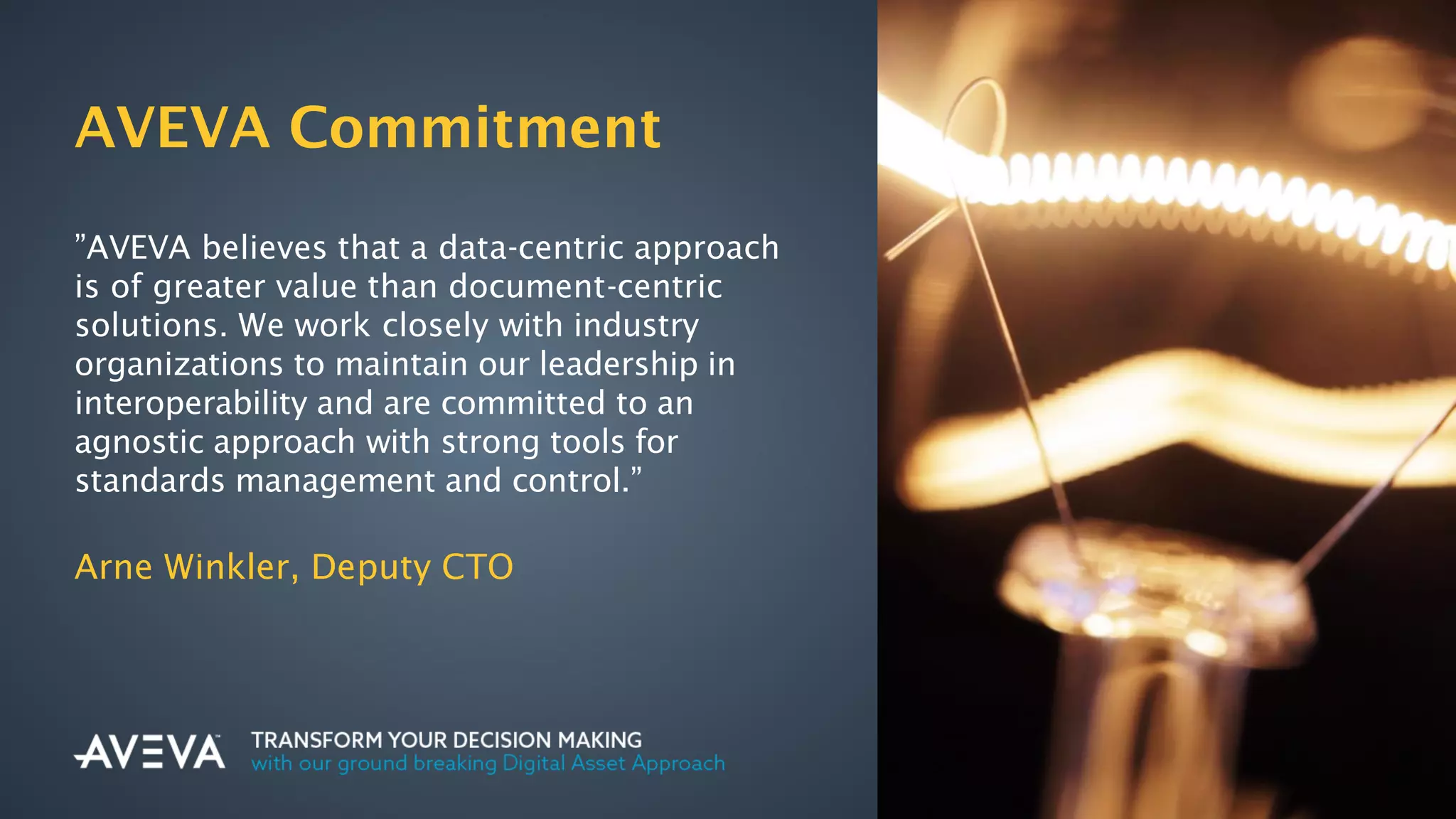

AVEVA Commitment
”AVEVA believes that a data-centric approach
is of greater value than document-centric
solutions. We work closely with industry
organizations to maintain our leadership in
interoperability and are committed to an
agnostic approach with strong tools for
standards management and control.”
Arne Winkler, Deputy CTO

7. Copyright © 2017 AVEVA Solutions Limited and its subsidiaries. All rights reserved.

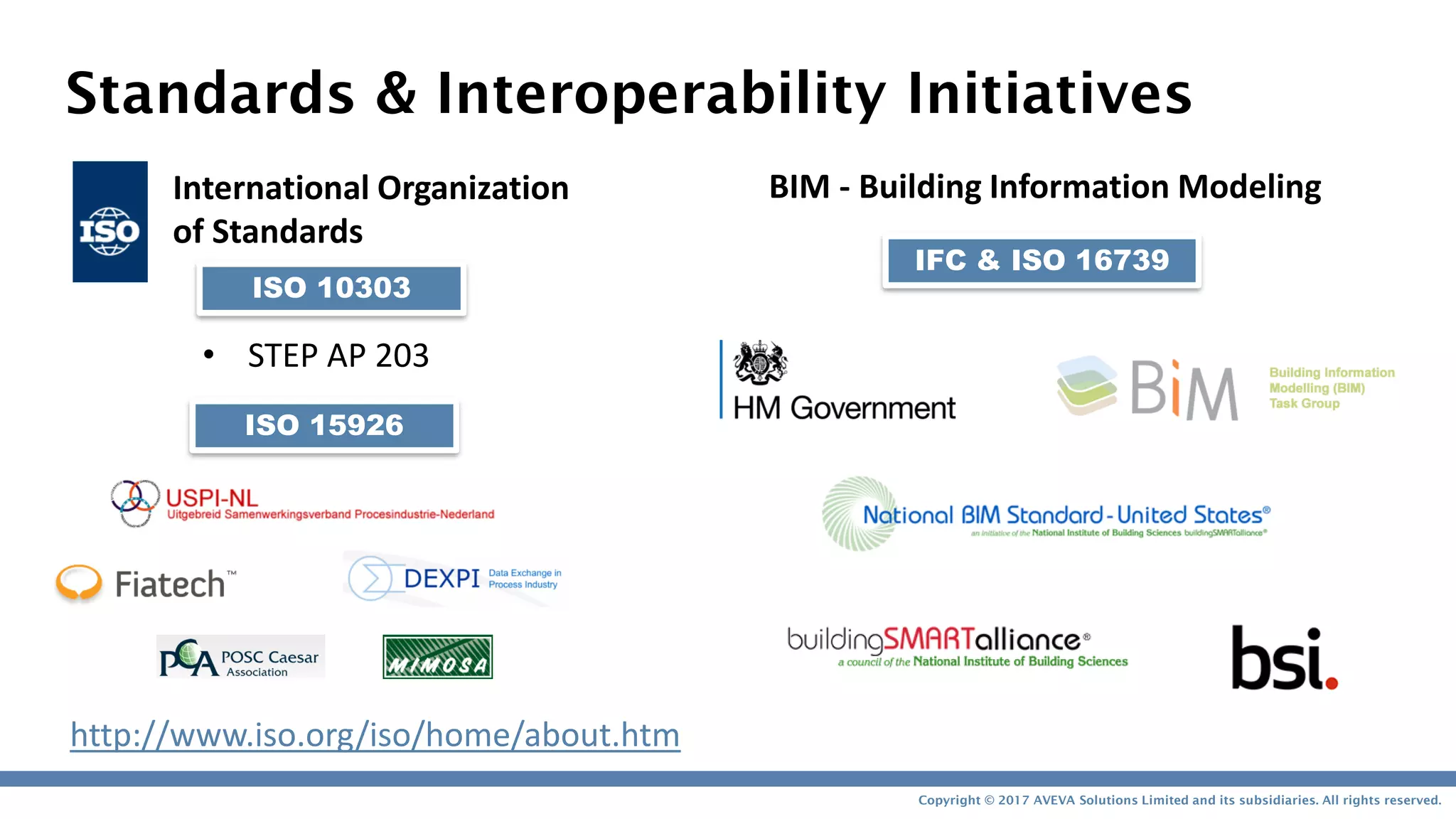

Standards & Interoperability Initiatives
ISO 10303
ISO 15926
• STEP AP 203
http://www.iso.org/iso/home/about.htm
IFC & ISO 16739
International Organization
of Standards
BIM - Building Information Modeling

8. AVEVA WORLD NORTH AMERICA USER MEETING 2017

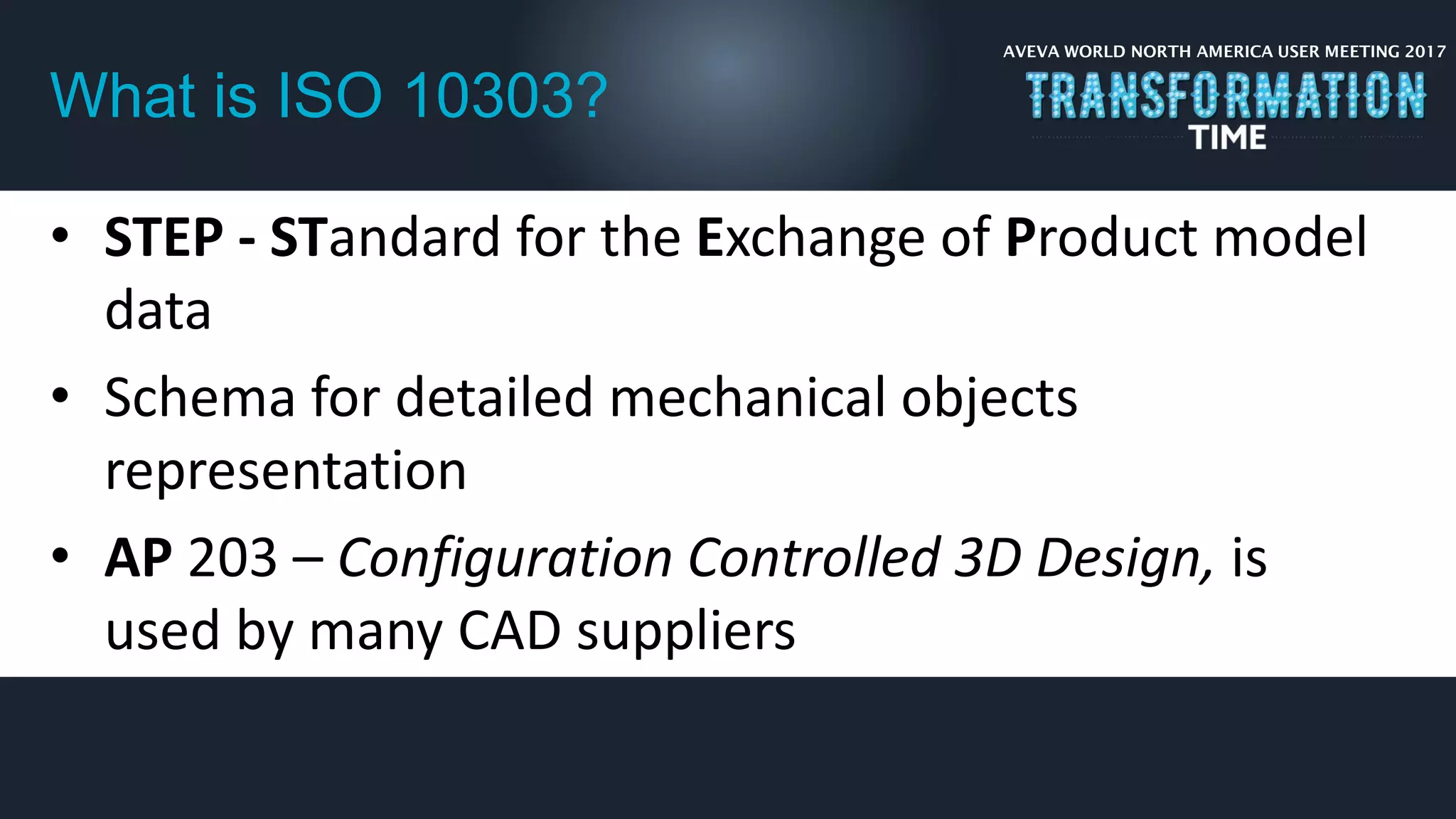

What is ISO 10303?
• STEP - STandard for the Exchange of Product model
data
• Schema for detailed mechanical objects
representation
• AP 203 – Configuration Controlled 3D Design, is
used by many CAD suppliers

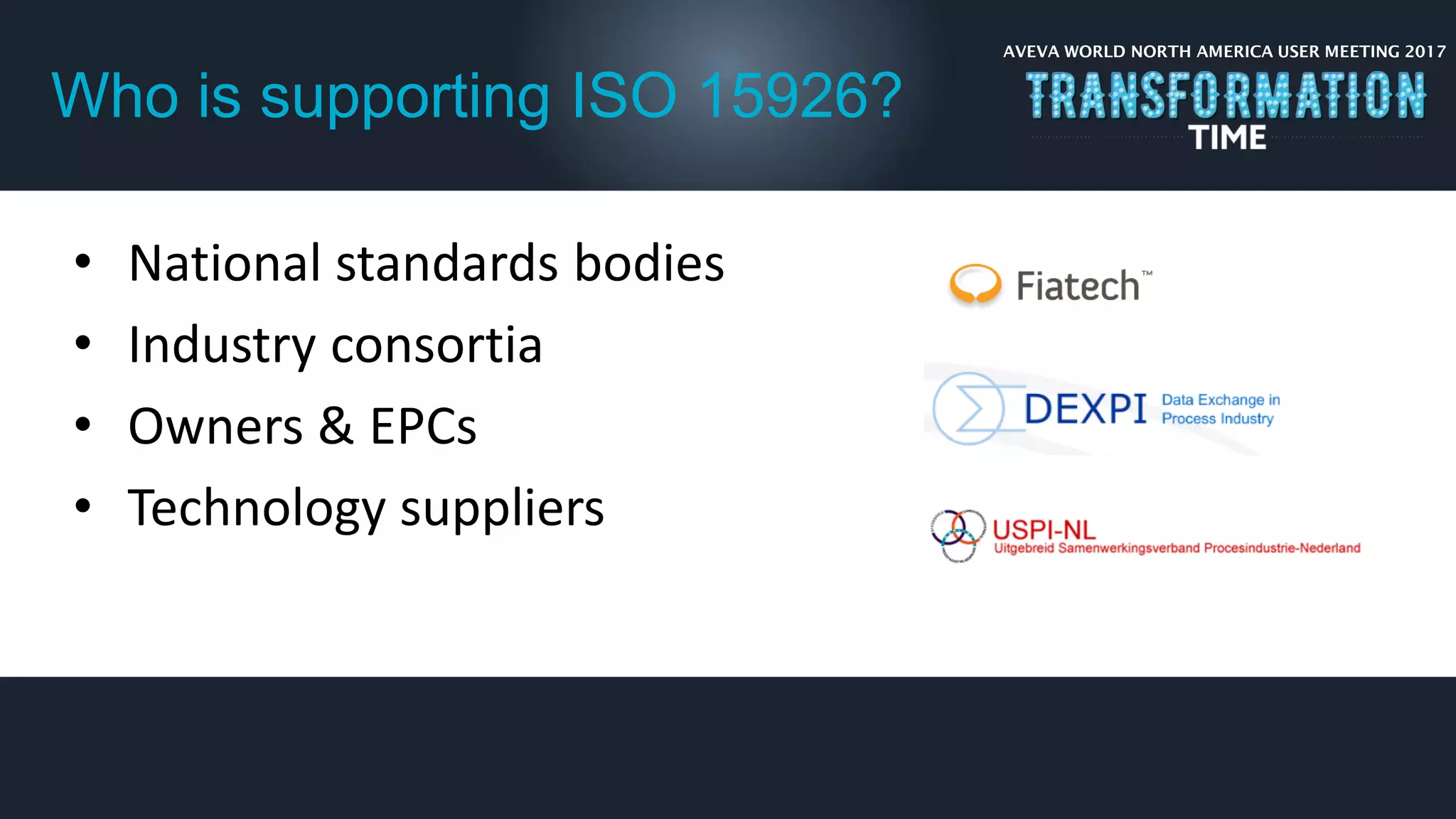

9. AVEVA WORLD NORTH AMERICA USER MEETING 2017
Who is supporting ISO 15926?
• National standards bodies
• Industry consortia
• Owners & EPCs
• Technology suppliers

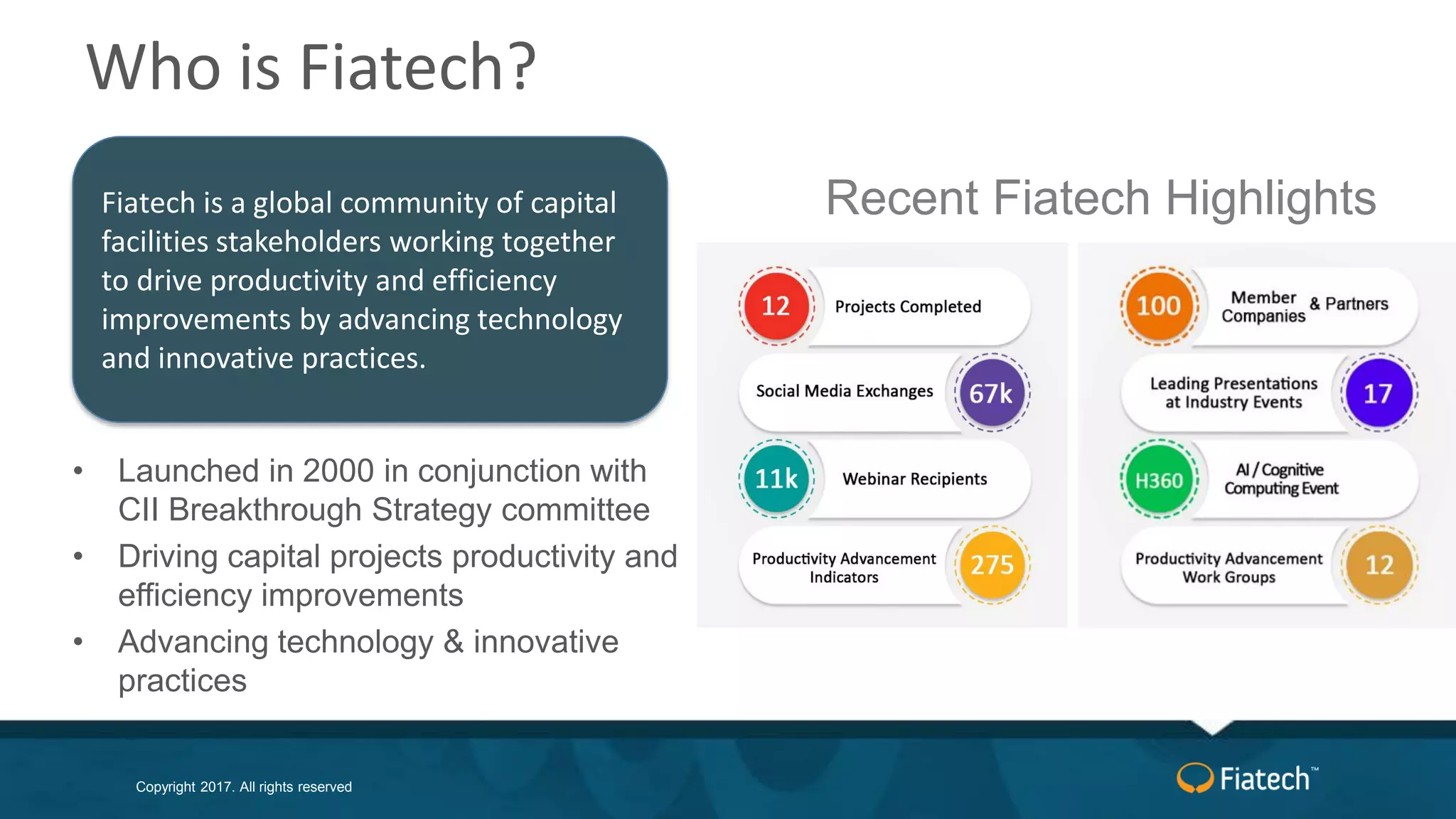

10. Copyright 2017. All rights reserved
Who is Fiatech?
• Launched in 2000 in conjunction with
CII Breakthrough Strategy committee
• Driving capital projects productivity and
efficiency improvements
• Advancing technology & innovative
practices
Recent Fiatech HighlightsFiatech is a global community of capital
facilities stakeholders working together
to drive productivity and efficiency
improvements by advancing technology
and innovative practices.

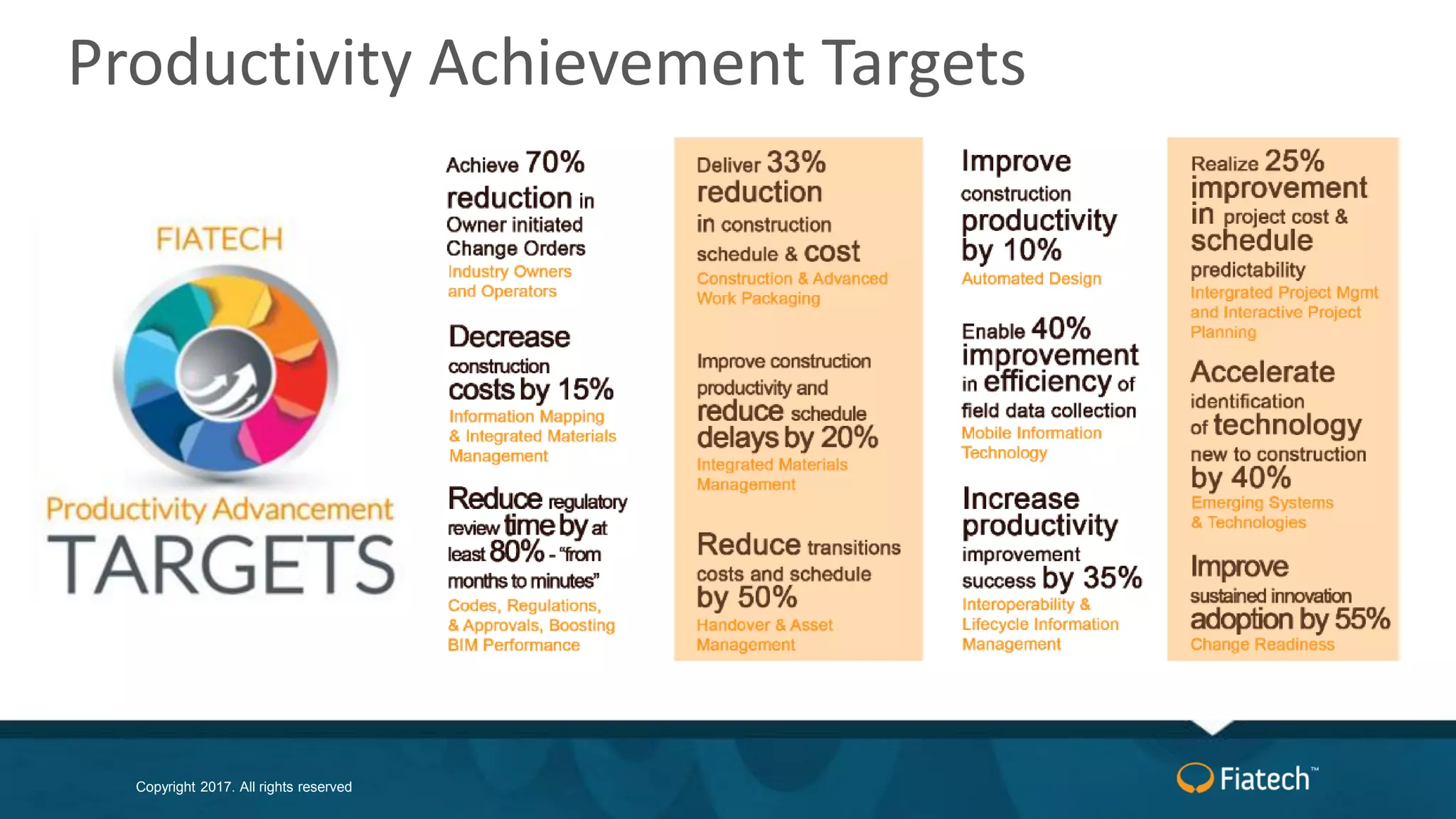

11. Copyright 2017. All rights reserved
Productivity Achievement Targets

12. Copyright 2017. All rights reserved
• Visit www.Fiatech.org
• Review the information on
the PATs
• Identify your Success
Enabler touchpoints
• Join Fiatech and work
with your peers
• Contact a Fiatech Staff
member to learn more
Learn more about
Productivity
Advancement Targets
Attend the Fiatech
2017 Technology
Conference

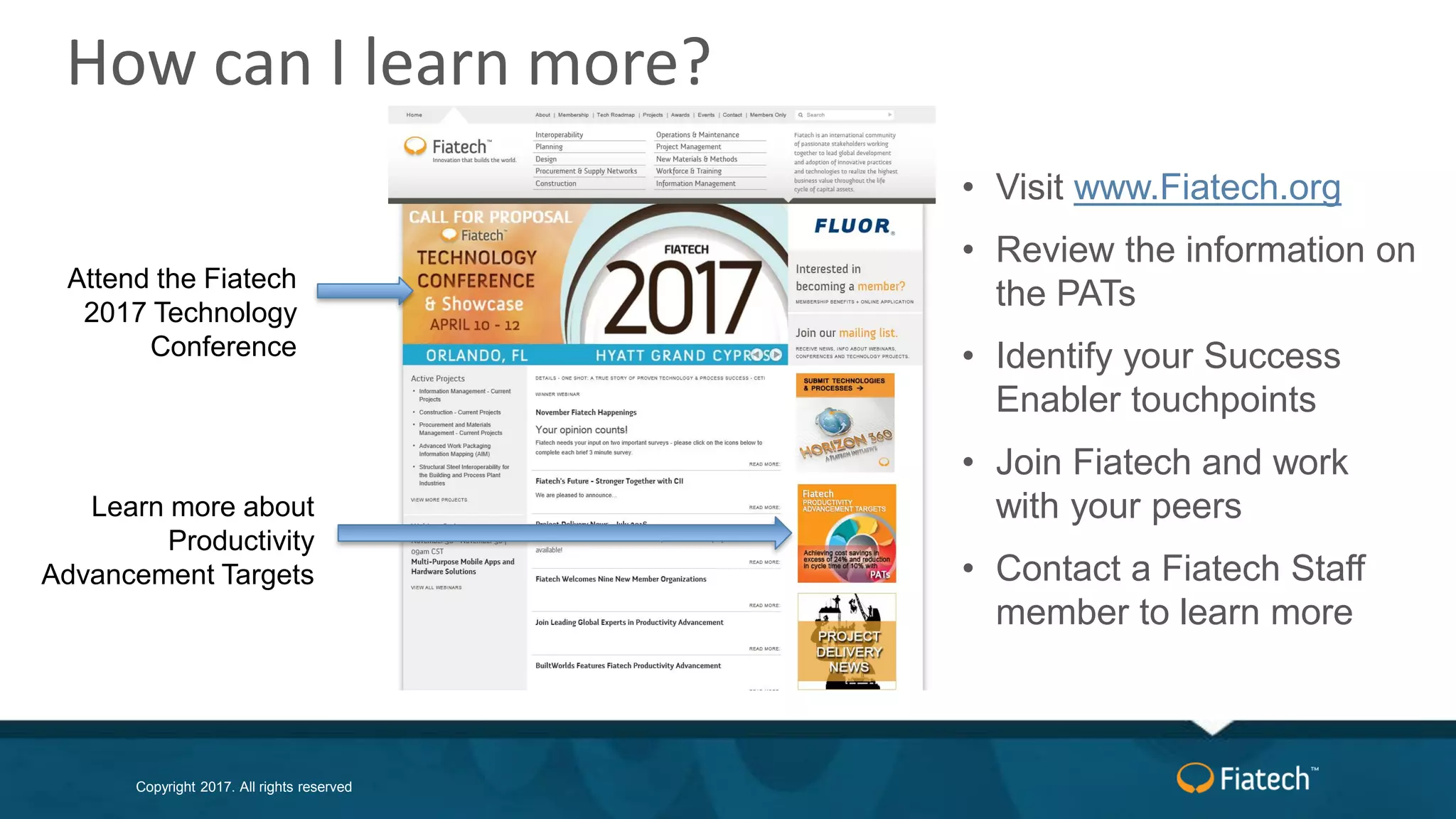

How can I learn more?

13. AVEVA WORLD NORTH AMERICA USER MEETING 2017

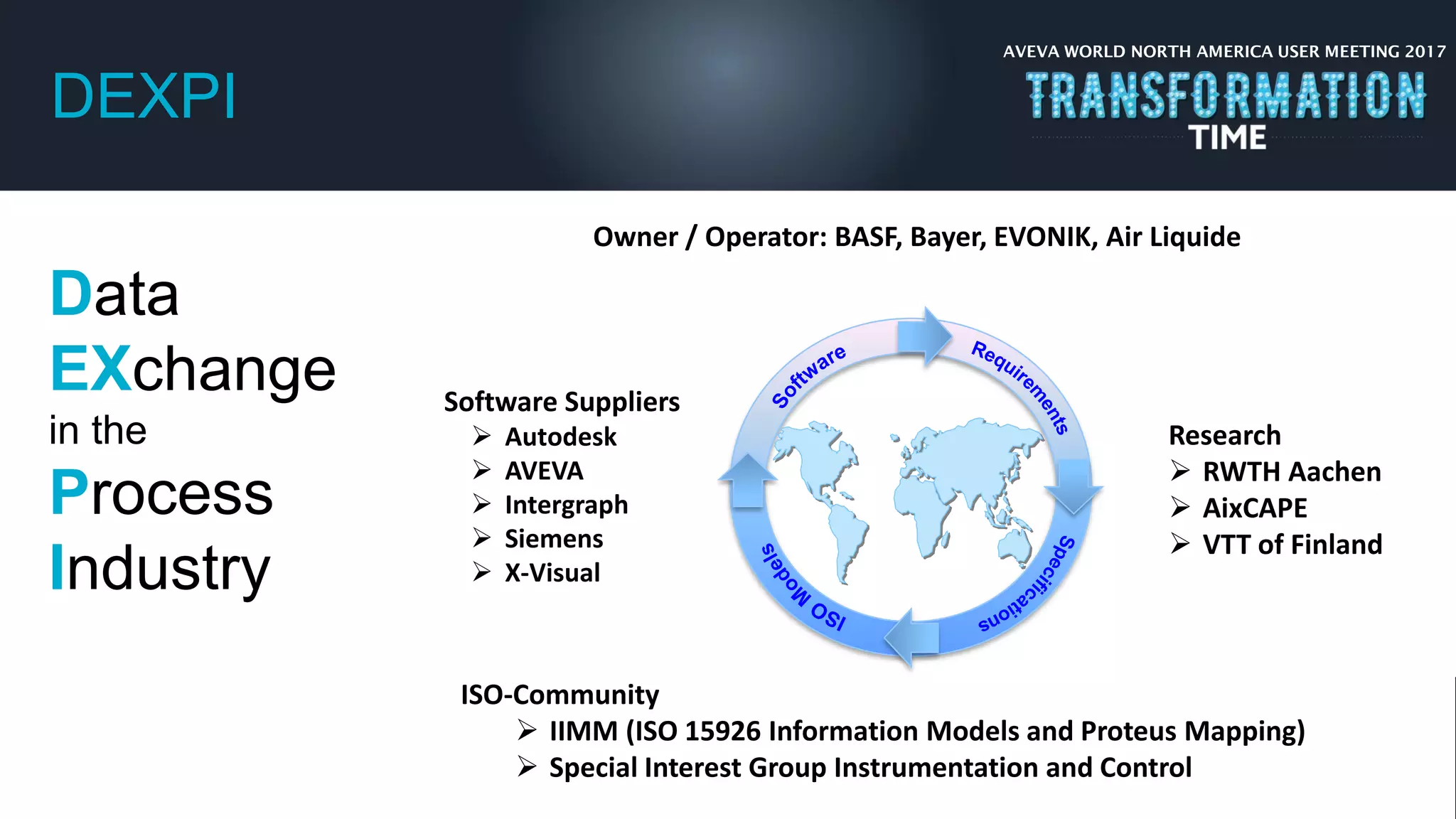

Owner / Operator: BASF, Bayer, EVONIK, Air Liquide
Research
 RWTH Aachen
 AixCAPE
 VTT of Finland
Software Suppliers
 Autodesk
 AVEVA
 Intergraph
 Siemens
 X-Visual
ISO-Community
 IIMM (ISO 15926 Information Models and Proteus Mapping)
 Special Interest Group Instrumentation and Control
DEXPI
Data
EXchange
in the
Process
Industry

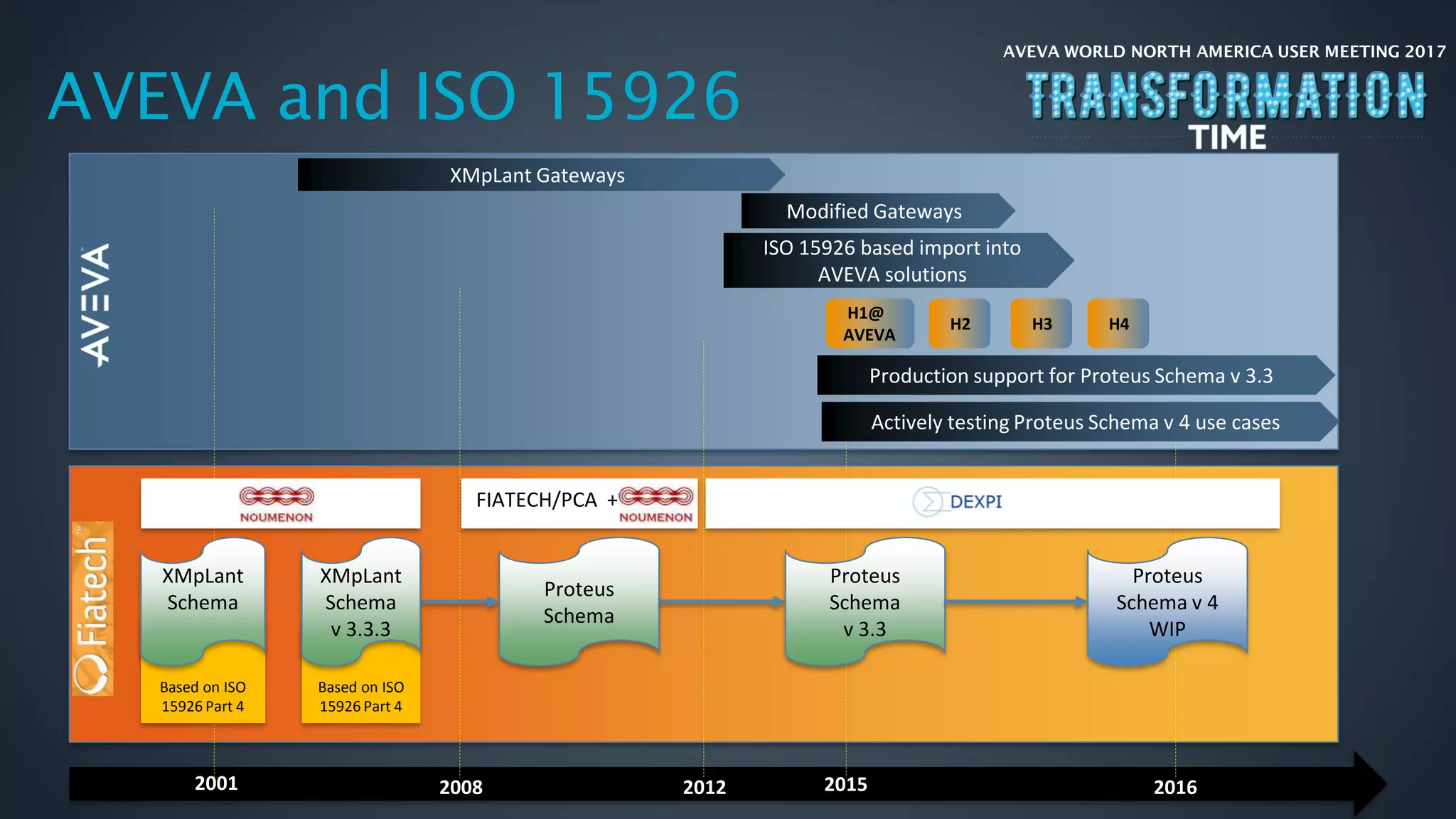

14. AVEVA WORLD NORTH AMERICA USER MEETING 2017
2008
Proteus
Schema
Based on ISO
15926 Part 4
XMpLant
Schema
v 3.3.3
2001
Based on ISO
15926 Part 4
XMpLant
Schema
FIATECH/PCA +
XMpLant Gateways
2015 2016
Modified Gateways
ISO 15926 based import into
AVEVA solutions
2012
Proteus
Schema v 4
WIP
Proteus
Schema
v 3.3
H1@
AVEVA
H2 H3 H4
Production support for Proteus Schema v 3.3
Actively testing Proteus Schema v 4 use cases
AVEVA and ISO 15926

15. Copyright © 2017 AVEVA Solutions Limited and its subsidiaries. All rights reserved.

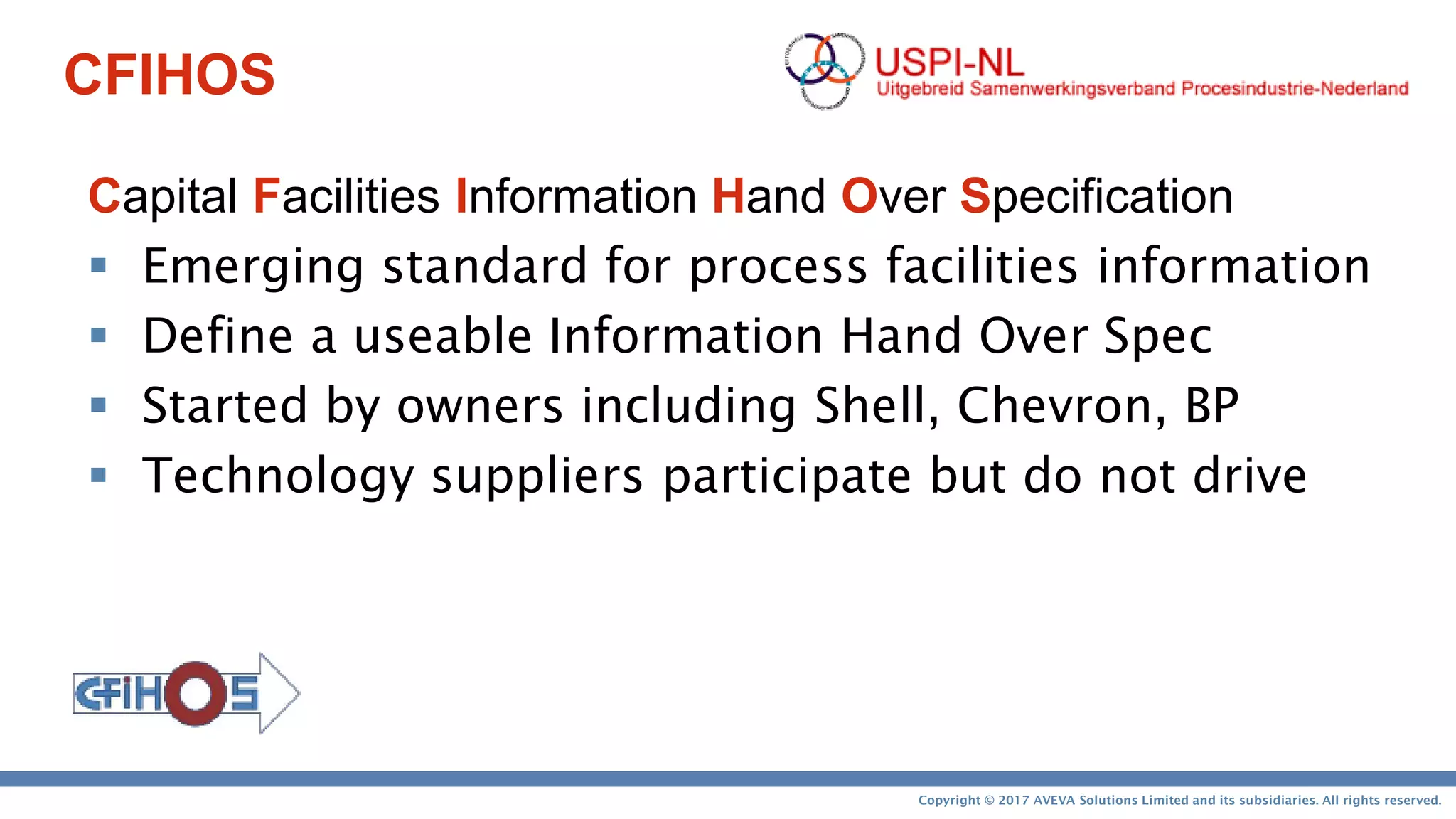

CFIHOS
Capital Facilities Information Hand Over Specification
 Emerging standard for process facilities information
 Define a useable Information Hand Over Spec
 Started by owners including Shell, Chevron, BP
 Technology suppliers participate but do not drive

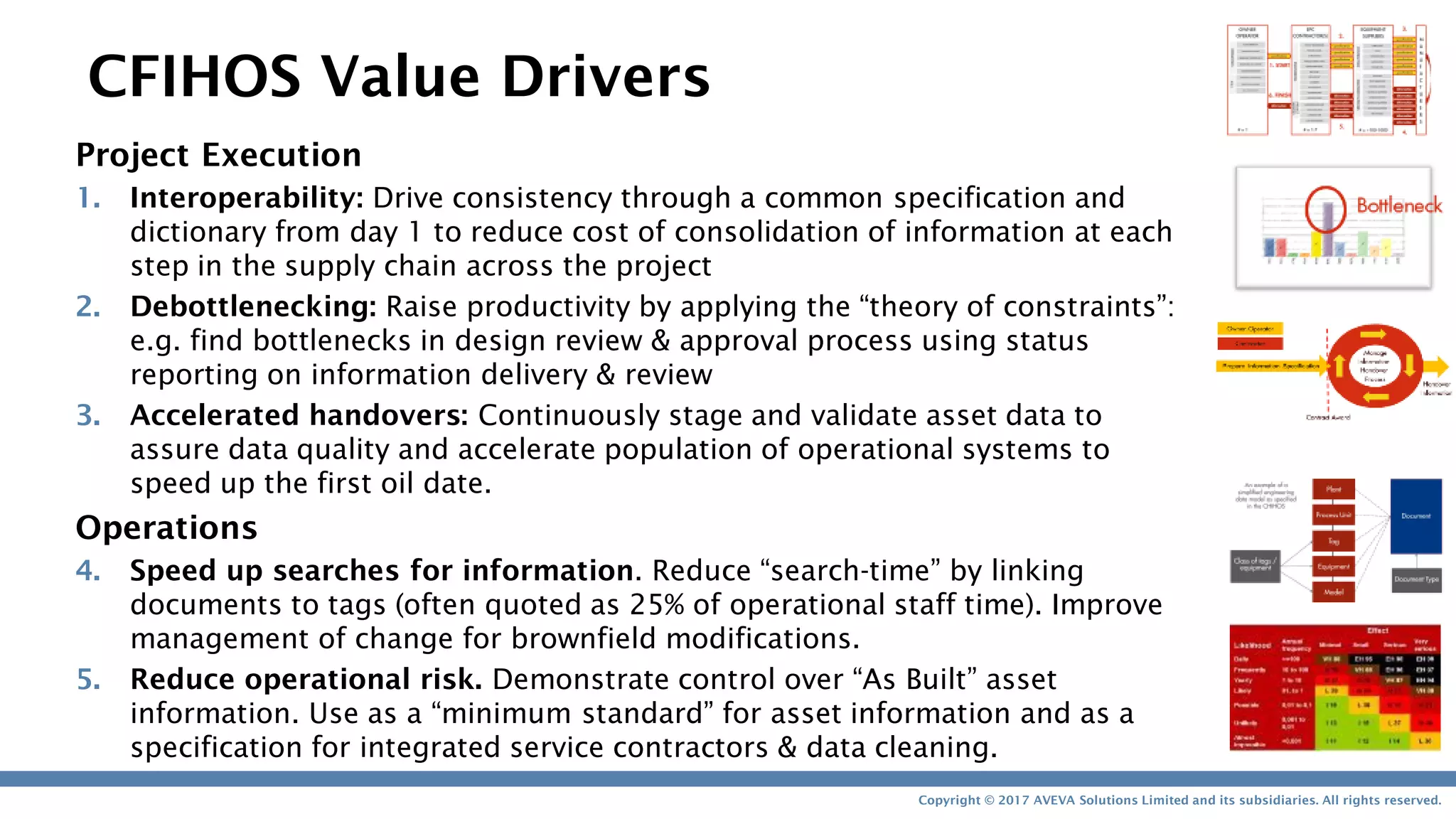

16. Copyright © 2017 AVEVA Solutions Limited and its subsidiaries. All rights reserved.
Project Execution
1. Interoperability: Drive consistency through a common specification and
dictionary from day 1 to reduce cost of consolidation of information at each
step in the supply chain across the project
2. Debottlenecking: Raise productivity by applying the “theory of constraints”:
e.g. find bottlenecks in design review & approval process using status
reporting on information delivery & review
3. Accelerated handovers: Continuously stage and validate asset data to
assure data quality and accelerate population of operational systems to
speed up the first oil date.
Operations
4. Speed up searches for information. Reduce “search-time” by linking
documents to tags (often quoted as 25% of operational staff time). Improve
management of change for brownfield modifications.
5. Reduce operational risk. Demonstrate control over “As Built” asset
information. Use as a “minimum standard” for asset information and as a
specification for integrated service contractors & data cleaning.
CFIHOS Value Drivers

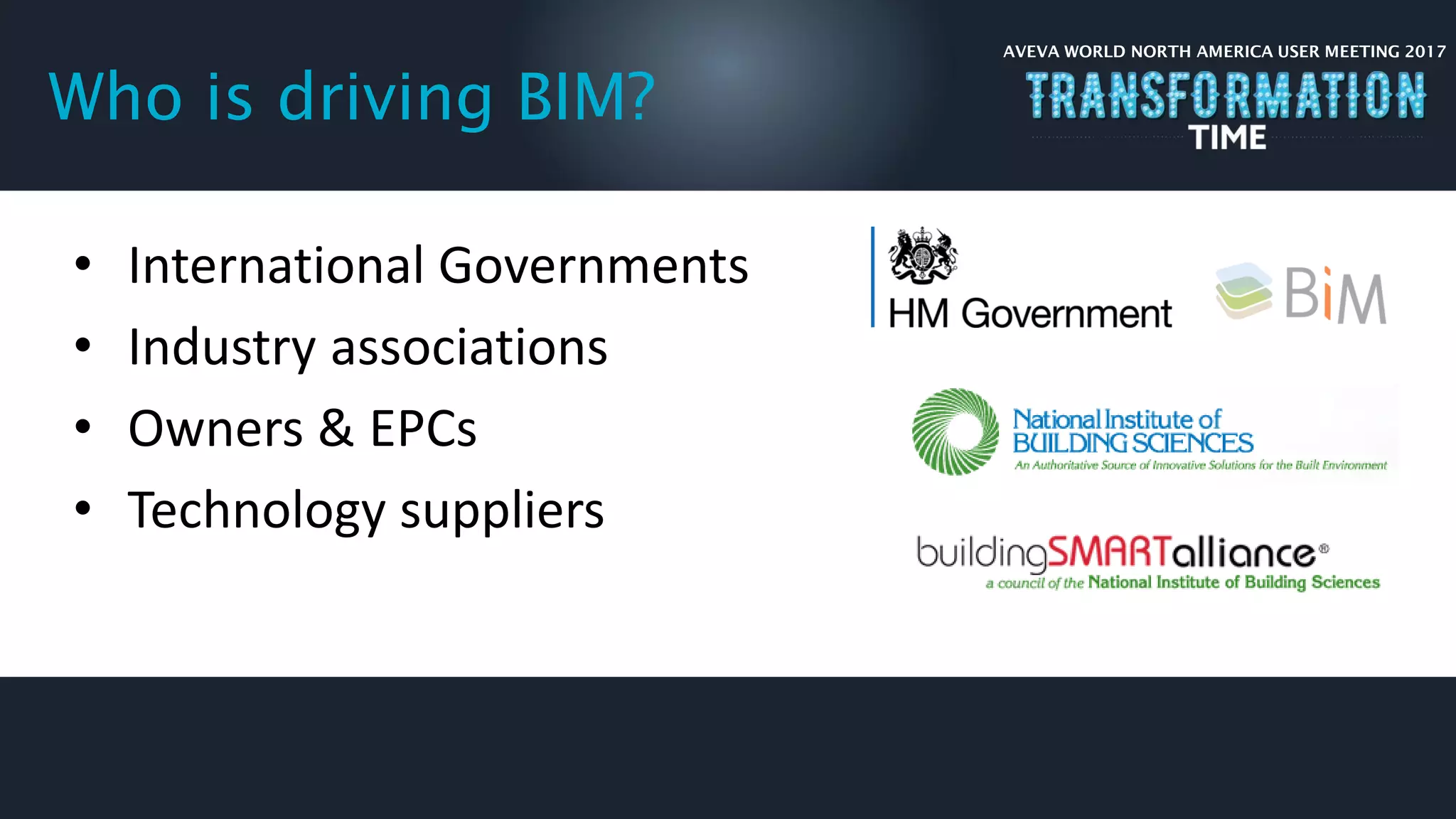

17. AVEVA WORLD NORTH AMERICA USER MEETING 2017
Who is driving BIM?
• International Governments
• Industry associations
• Owners & EPCs
• Technology suppliers

18. AVEVA WORLD NORTH AMERICA USER MEETING 2017

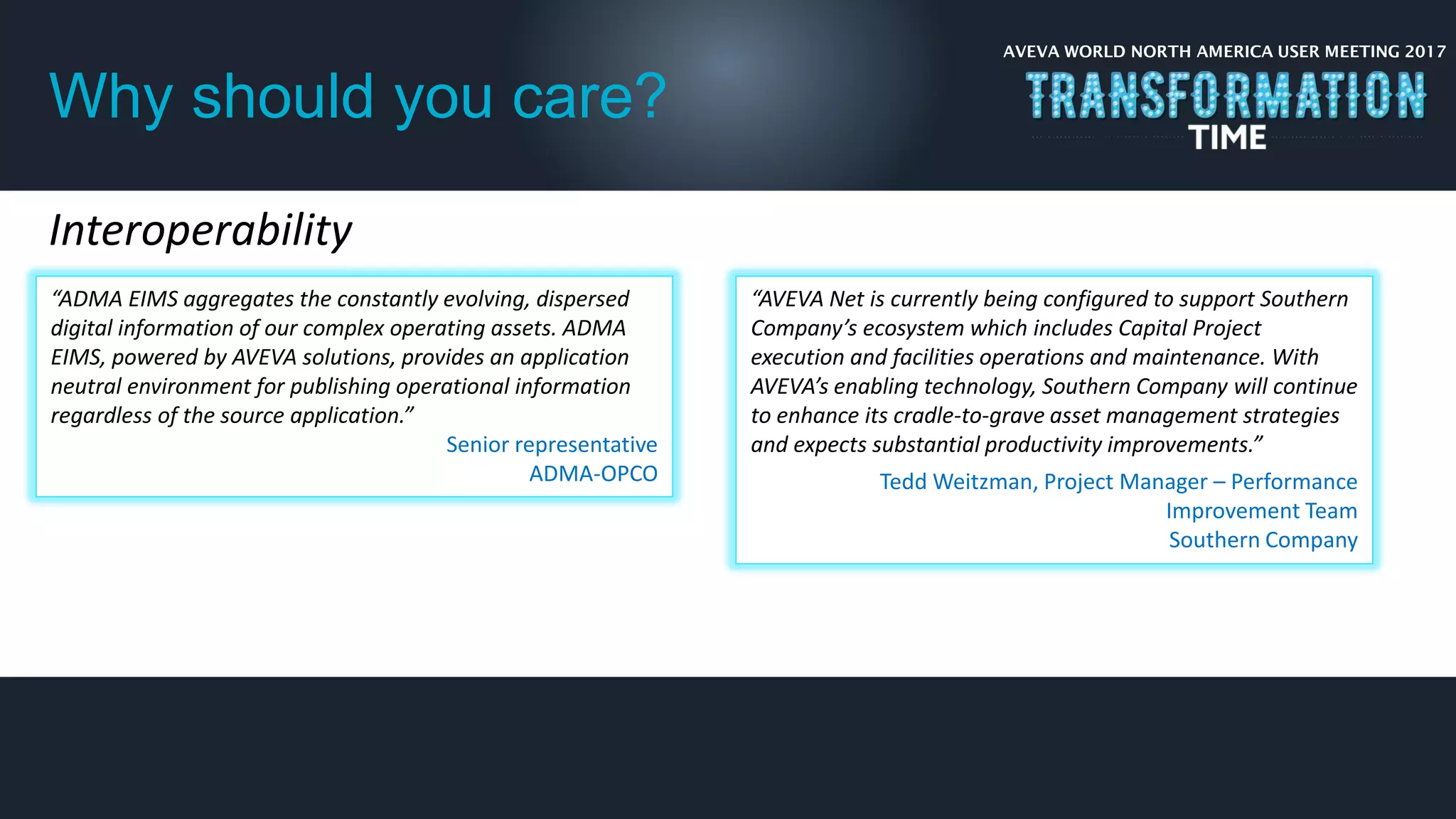

Why should you care?
Interoperability
“ADMA EIMS aggregates the constantly evolving, dispersed
digital information of our complex operating assets. ADMA
EIMS, powered by AVEVA solutions, provides an application
neutral environment for publishing operational information
regardless of the source application.”
Senior representative
ADMA-OPCO
“AVEVA Net is currently being configured to support Southern
Company’s ecosystem which includes Capital Project
execution and facilities operations and maintenance. With
AVEVA’s enabling technology, Southern Company will continue
to enhance its cradle-to-grave asset management strategies
and expects substantial productivity improvements.”
Tedd Weitzman, Project Manager – Performance
Improvement Team
Southern Company

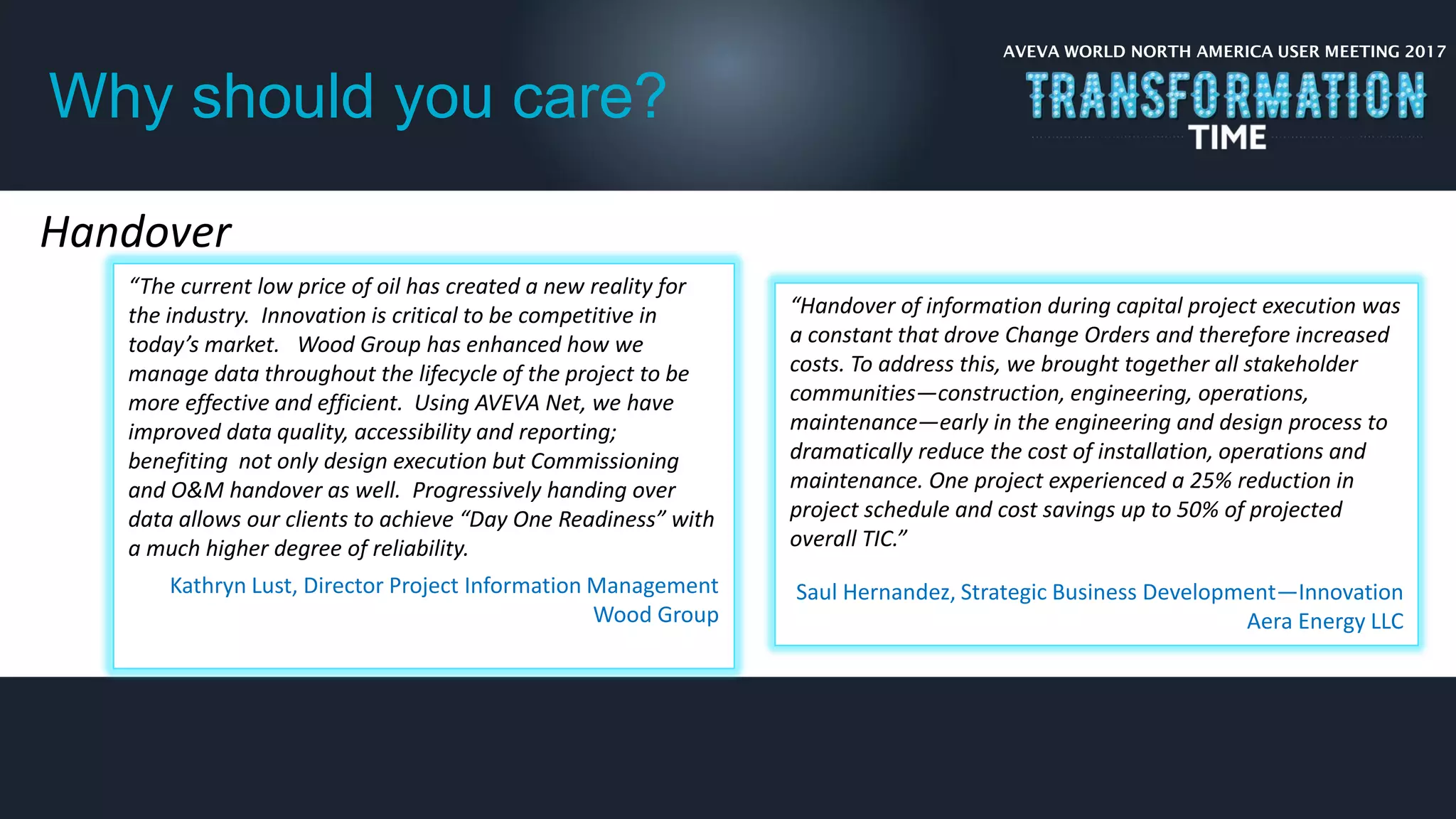

19. AVEVA WORLD NORTH AMERICA USER MEETING 2017
Why should you care?
Handover
“The current low price of oil has created a new reality for
the industry. Innovation is critical to be competitive in
today’s market. Wood Group has enhanced how we
manage data throughout the lifecycle of the project to be
more effective and efficient. Using AVEVA Net, we have
improved data quality, accessibility and reporting;
benefiting not only design execution but Commissioning
and O&M handover as well. Progressively handing over
data allows our clients to achieve “Day One Readiness” with
a much higher degree of reliability.
Kathryn Lust, Director Project Information Management
Wood Group
“Handover of information during capital project execution was
a constant that drove Change Orders and therefore increased
costs. To address this, we brought together all stakeholder
communities—construction, engineering, operations,
maintenance—early in the engineering and design process to
dramatically reduce the cost of installation, operations and
maintenance. One project experienced a 25% reduction in
project schedule and cost savings up to 50% of projected
overall TIC.”
Saul Hernandez, Strategic Business Development—Innovation
Aera Energy LLC

20. AVEVA WORLD NORTH AMERICA USER MEETING 2017

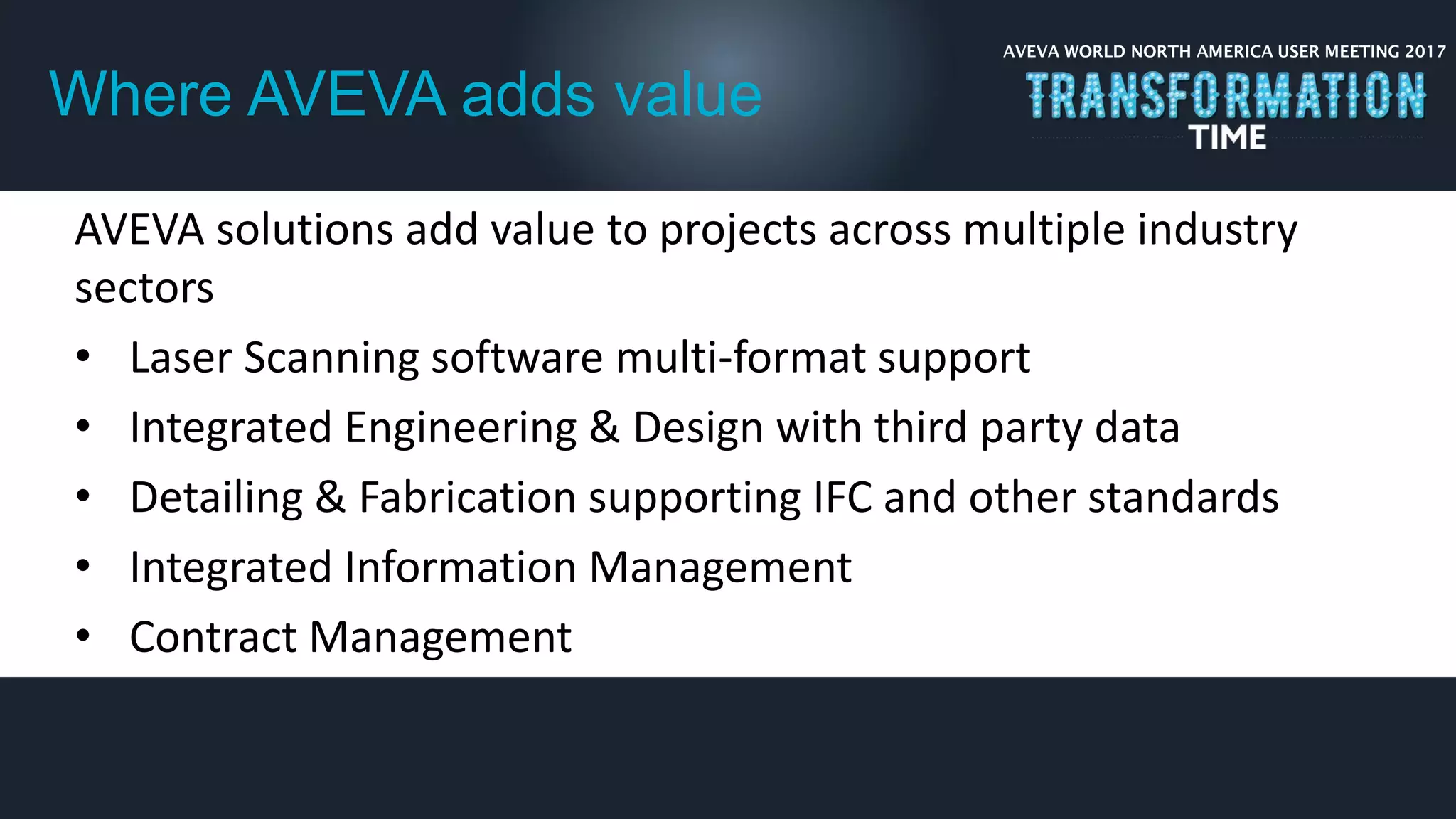

Where AVEVA adds value
AVEVA solutions add value to projects across multiple industry
sectors
• Laser Scanning software multi-format support
• Integrated Engineering & Design with third party data
• Detailing & Fabrication supporting IFC and other standards
• Integrated Information Management
• Contract Management

21. AVEVA WORLD NORTH AMERICA USER MEETING 2017

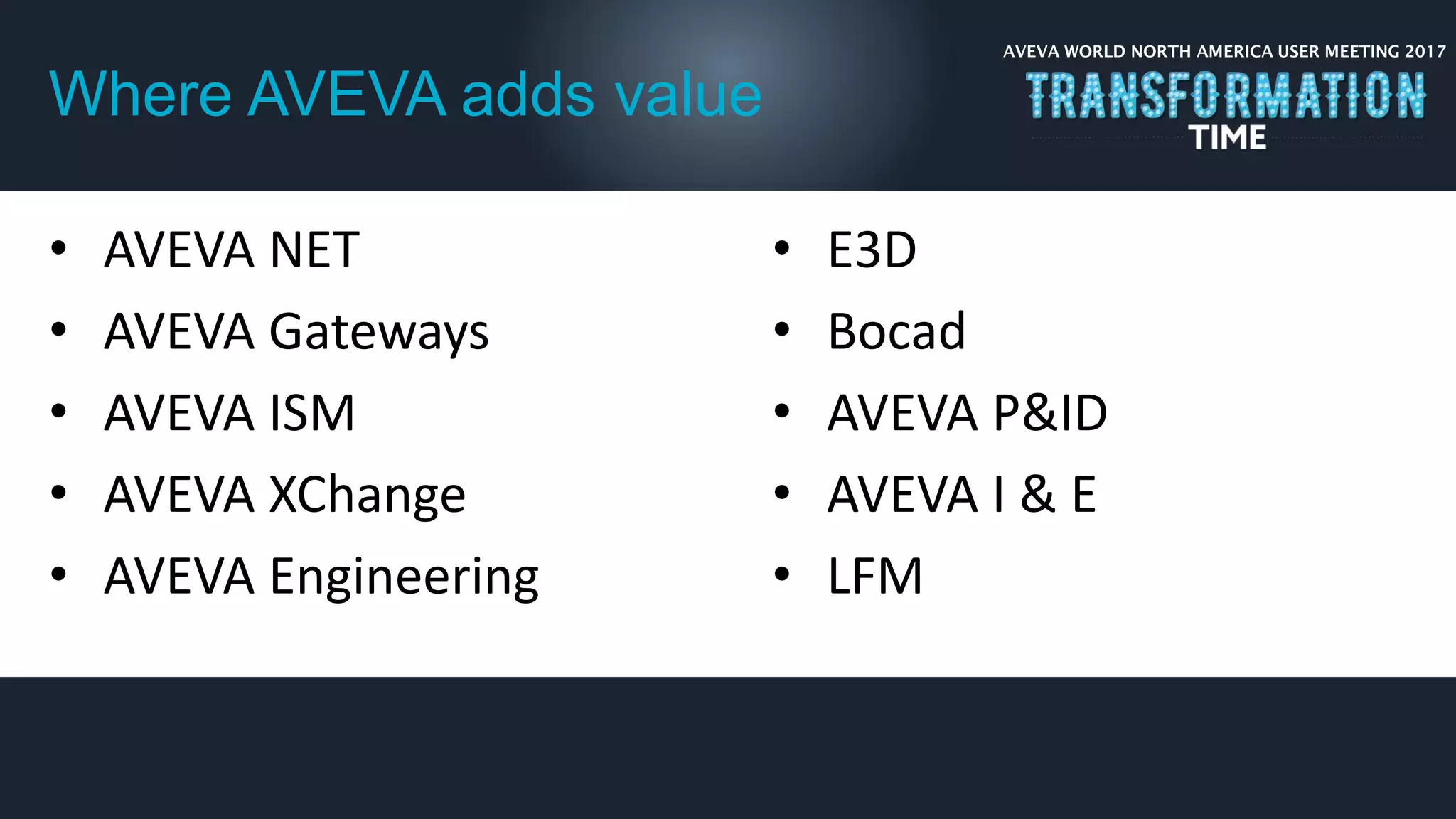

Where AVEVA adds value
• AVEVA NET
• AVEVA Gateways
• AVEVA ISM
• AVEVA XChange
• AVEVA Engineering
• E3D
• Bocad
• AVEVA P&ID
• AVEVA I & E
• LFM

22. Our purpose is to power
Digital Assets that help
shape our world.
AVEVA Purpose

23. TIME
Thank you
NORTH AMERICA USER MEETING 2017

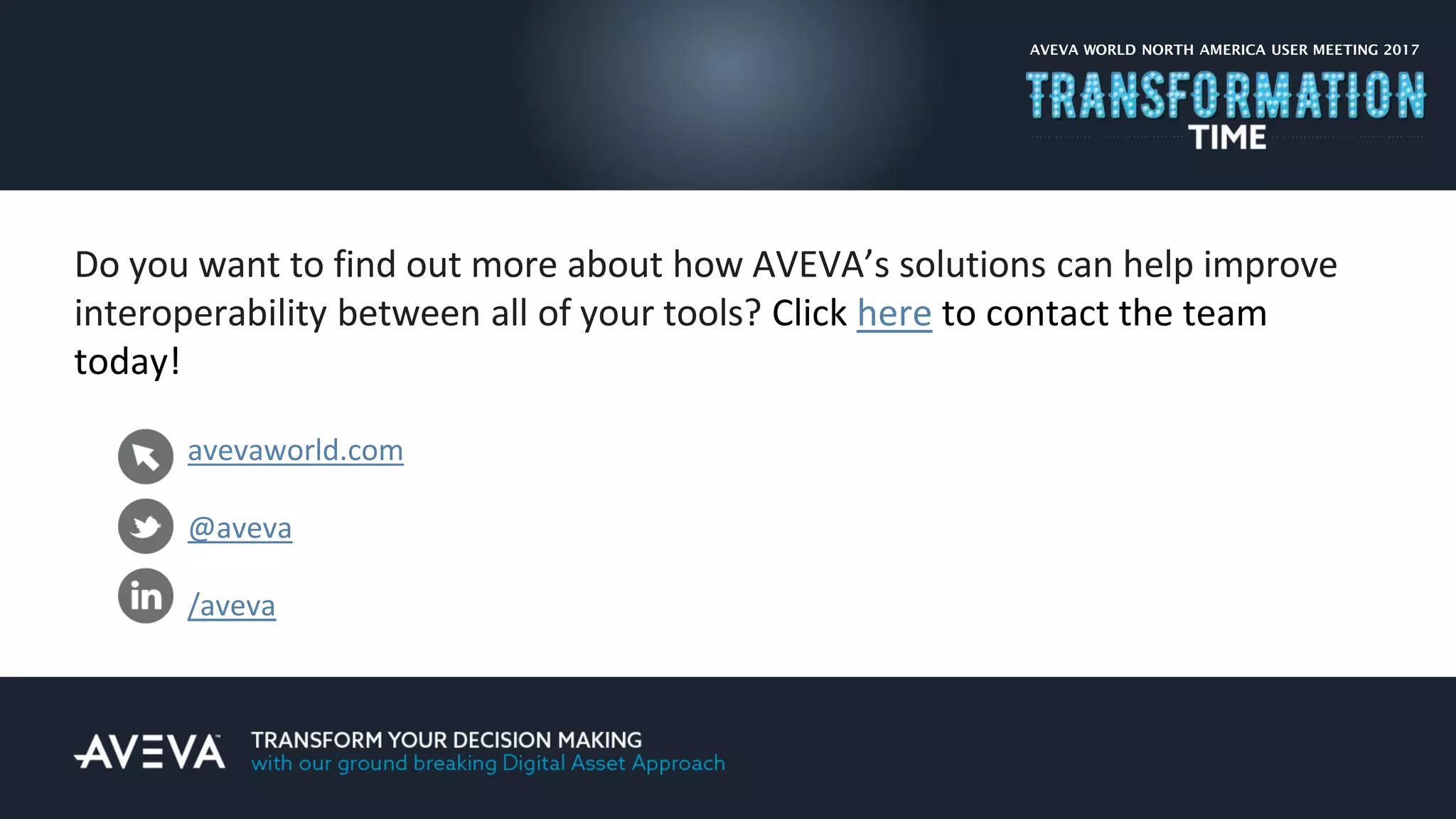

24. Do you want to find out more about how AVEVA’s solutions can help improve
