Automated Generation, Evolution and Maintenance: a perspective for mobile GUI testing
- 1. Automated Generation, Evolution andMaintenance: a perspective for mobile GUI testing Riccardo Coppola, PhD Software Engineering Research Group Politecnico di Torino, Italy riccardo.coppola@polito.it
- 2. Android GUI Testing:State of The Art

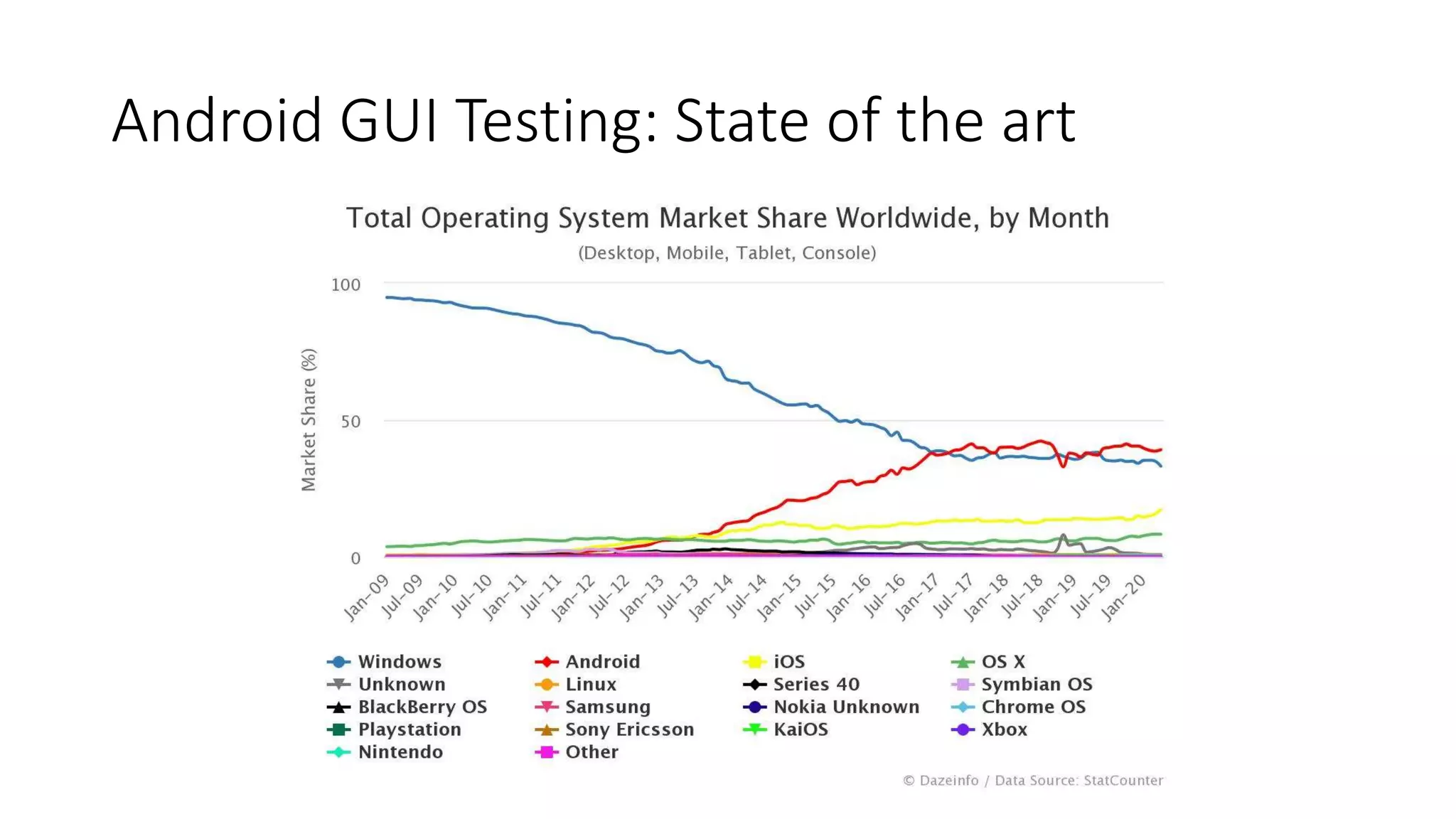

- 3. Android GUI Testing:State of the art
- 4. Android GUI Testing:State of the art The very rich UX of Android apps should encourage a thorough verification & validation

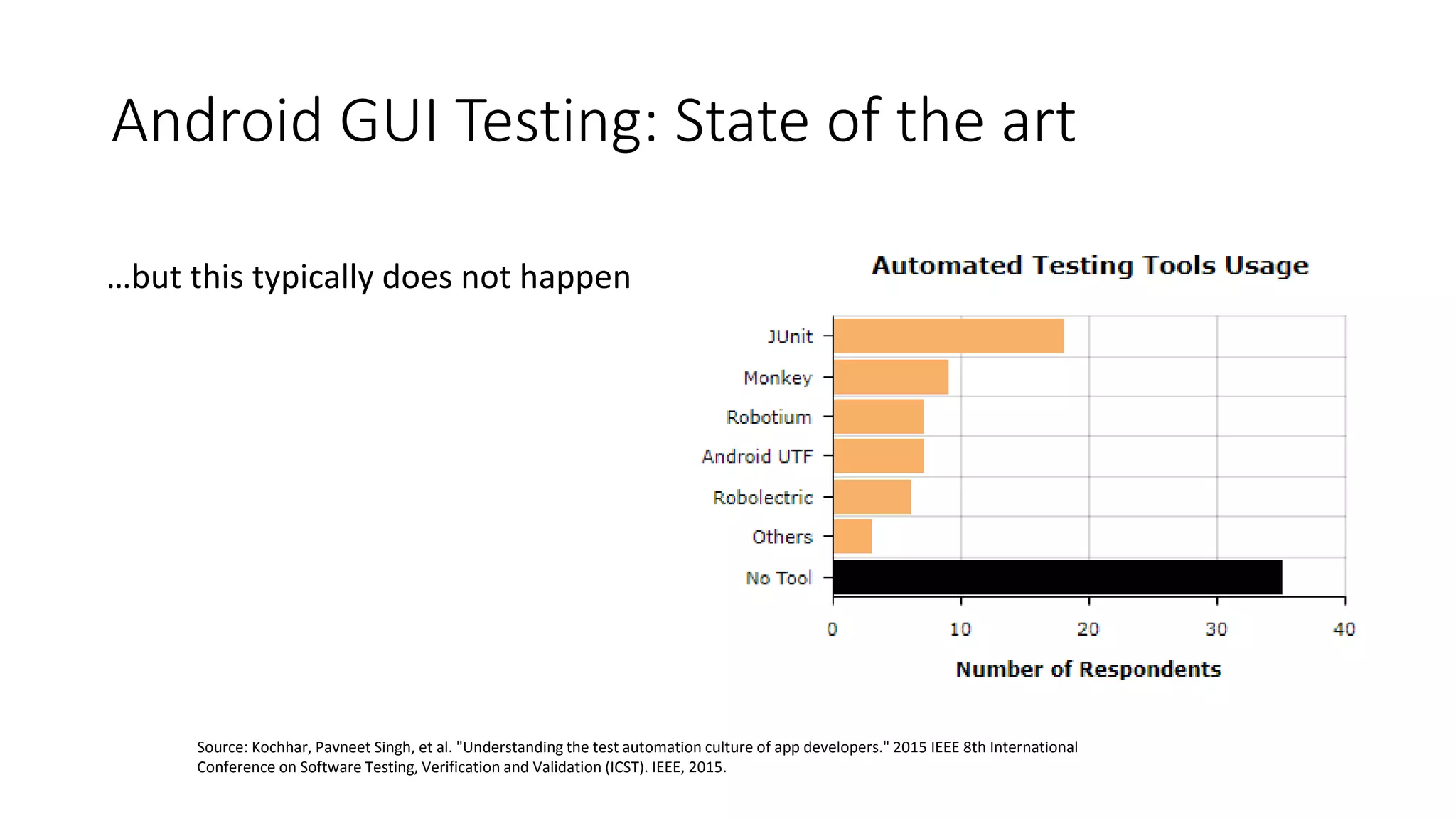

- 5. Android GUI Testing:State of the art …but this typically does not happen Source: Kochhar, Pavneet Singh, et al. "Understanding the test automation culture of app developers." 2015 IEEE 8th International Conference on Software Testing, Verification and Validation (ICST). IEEE, 2015.
- 6. Classification of GUItesting techniques According to how the elements on the GUI are located and verified: Coordinate-Based (1° generation) Layout-based (2° generation) Visual / Image recognition (3° generation)
- 7. Layout-based GUI Testing Elementsare identified through layout properties (e.g., Ids, text, content description, widget type).
- 8.

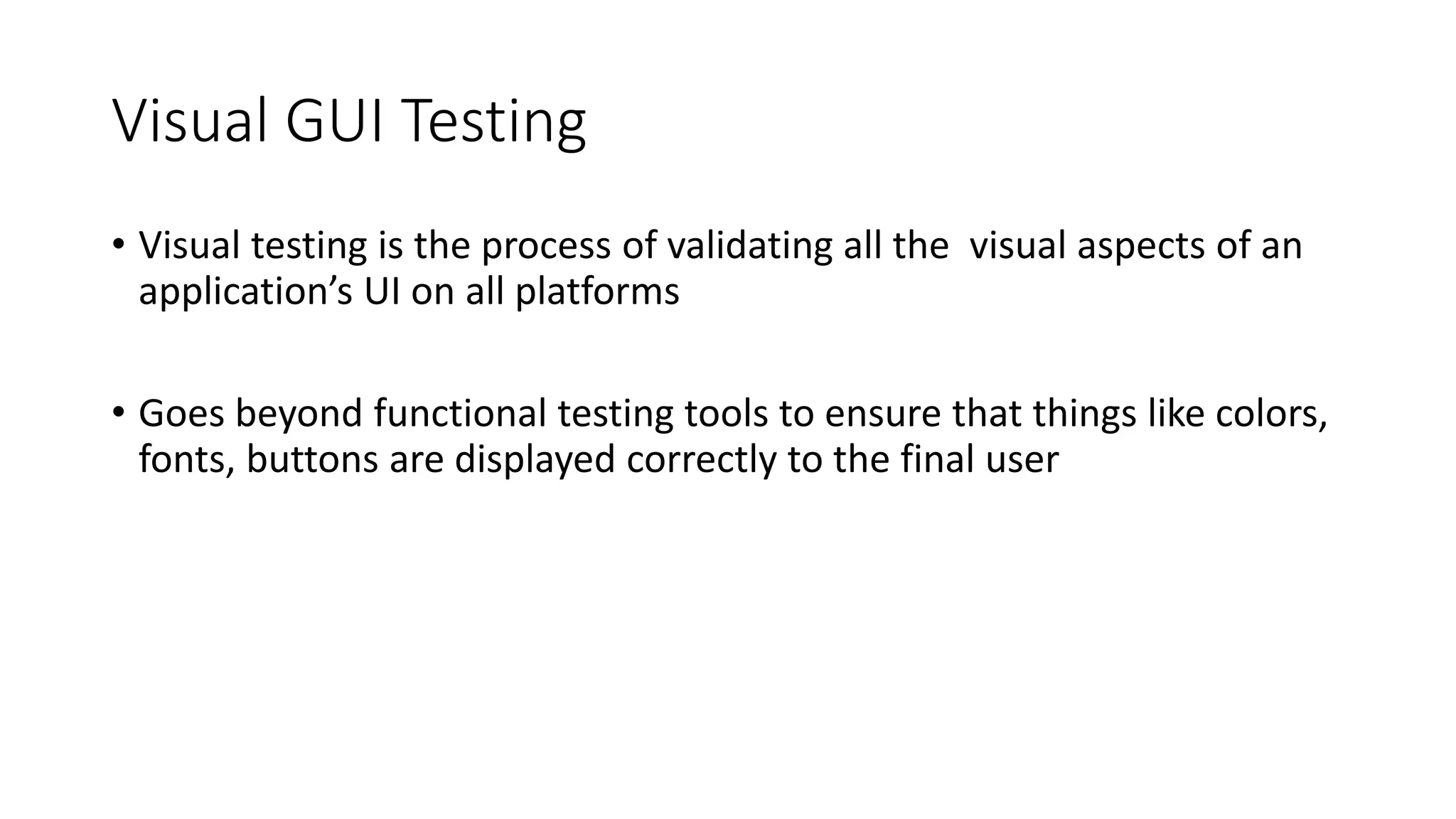

- 9. Visual GUI Testing •Visual testing is the process of validating all the visual aspects of an application’s UI on all platforms • Goes beyond functional testing tools to ensure that things like colors, fonts, buttons are displayed correctly to the final user
- 10. Visual GUI Testing •Visual testing is based on image recognition techniques • E.g., click on a button with this appearance • Screen captures are used both as: • Locators, to identify where to perform the interactions with the GUI • Oracles, to identify what has to be checked in assertions
- 11. Visual GUI Testing Examples: Sikuli,EyeAutomate

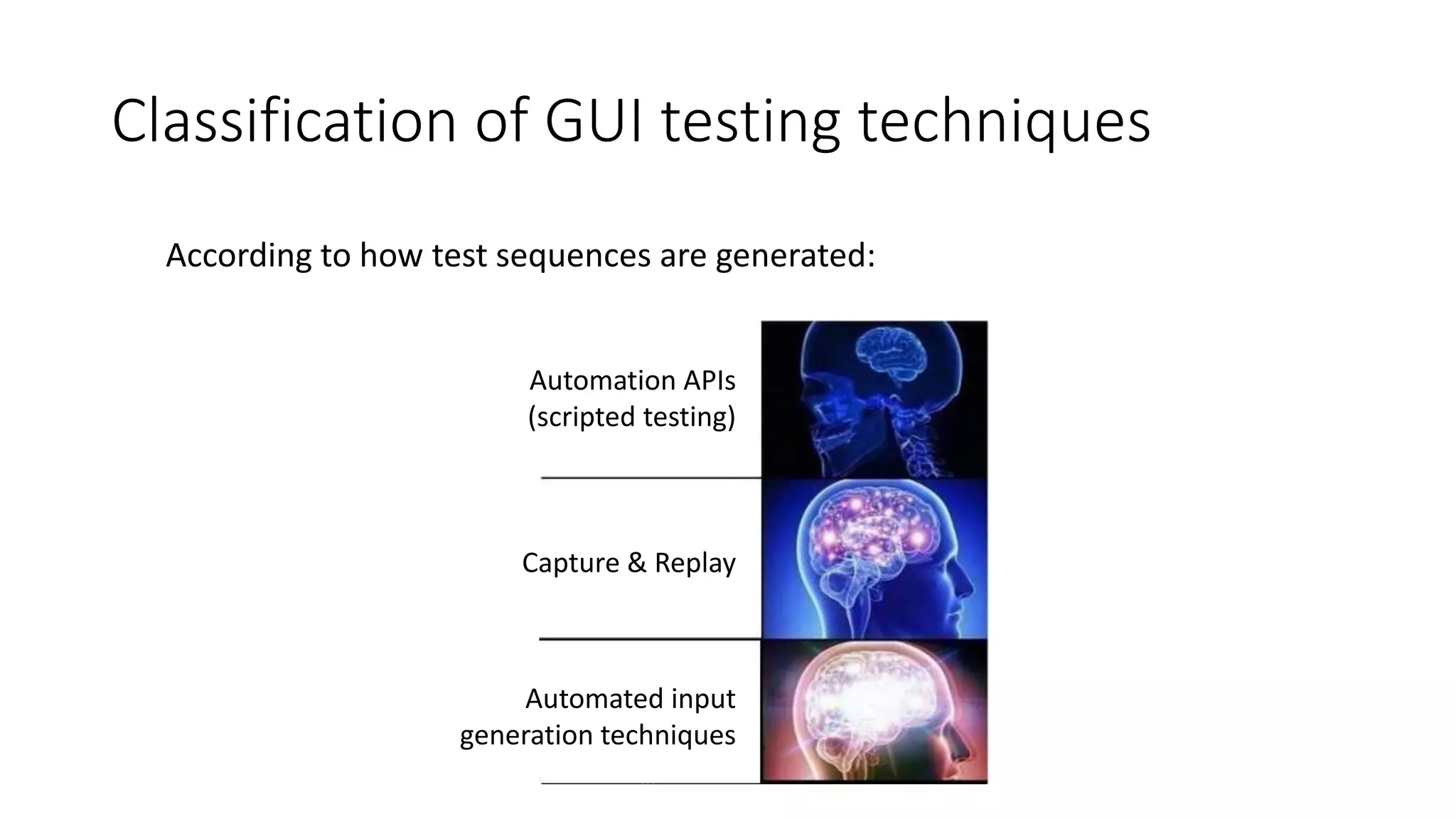

- 12. Classification of GUItesting techniques According to how test sequences are generated: Automation APIs (scripted testing) Capture & Replay Automated input generation techniques

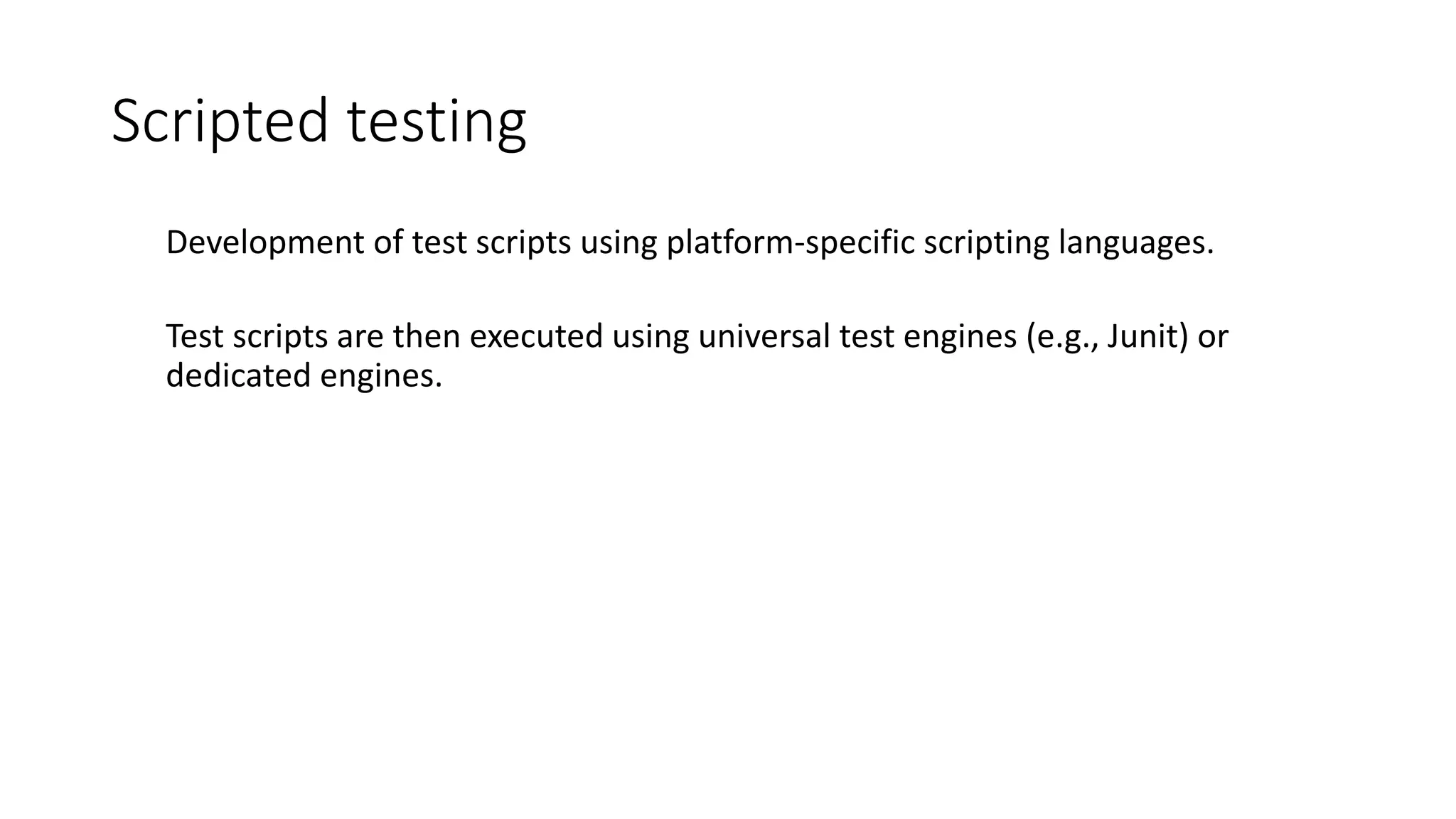

- 13. Scripted testing Development oftest scripts using platform-specific scripting languages. Test scripts are then executed using universal test engines (e.g., Junit) or dedicated engines.

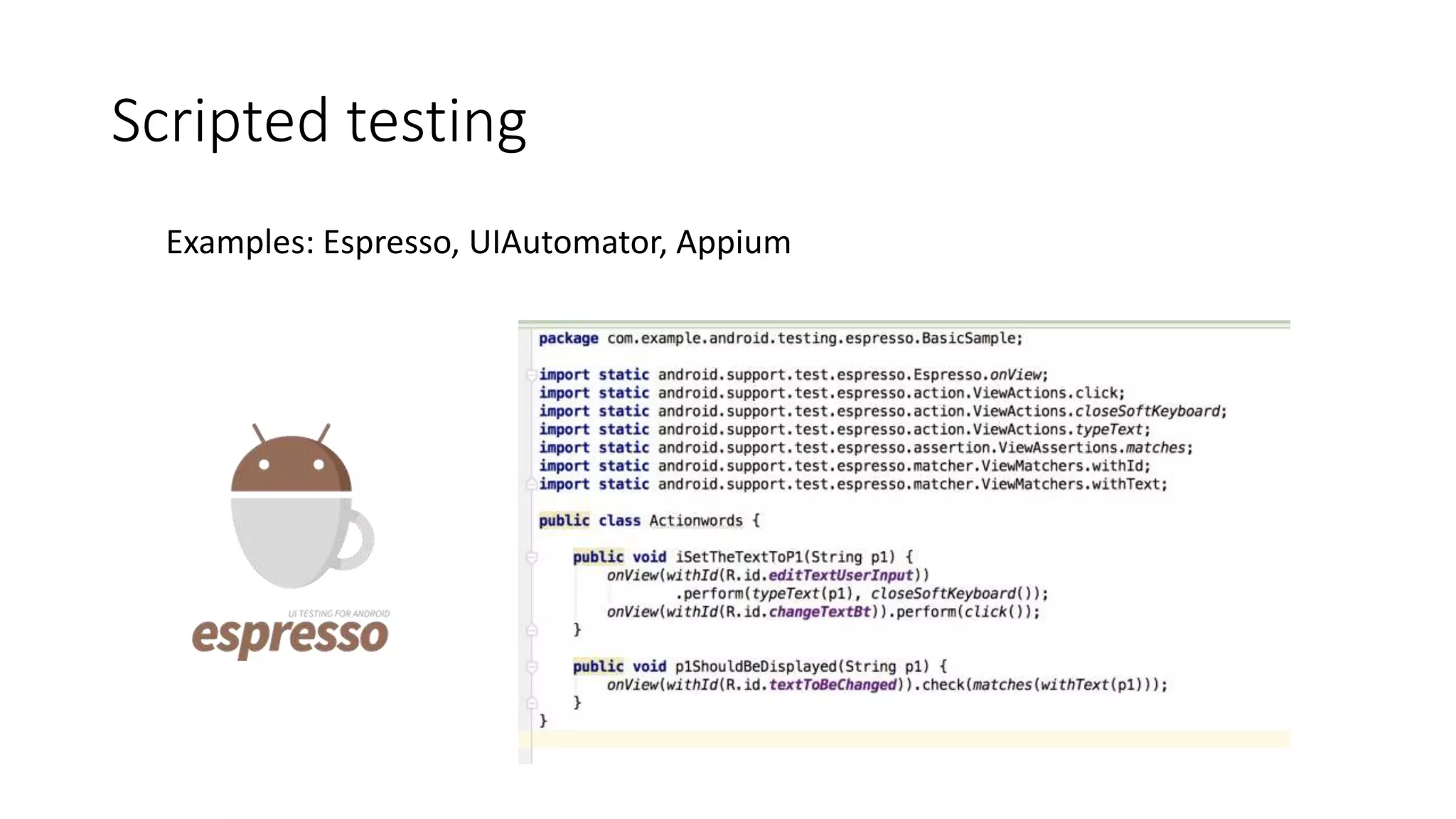

- 14. Scripted testing Examples: Espresso,UIAutomator, Appium

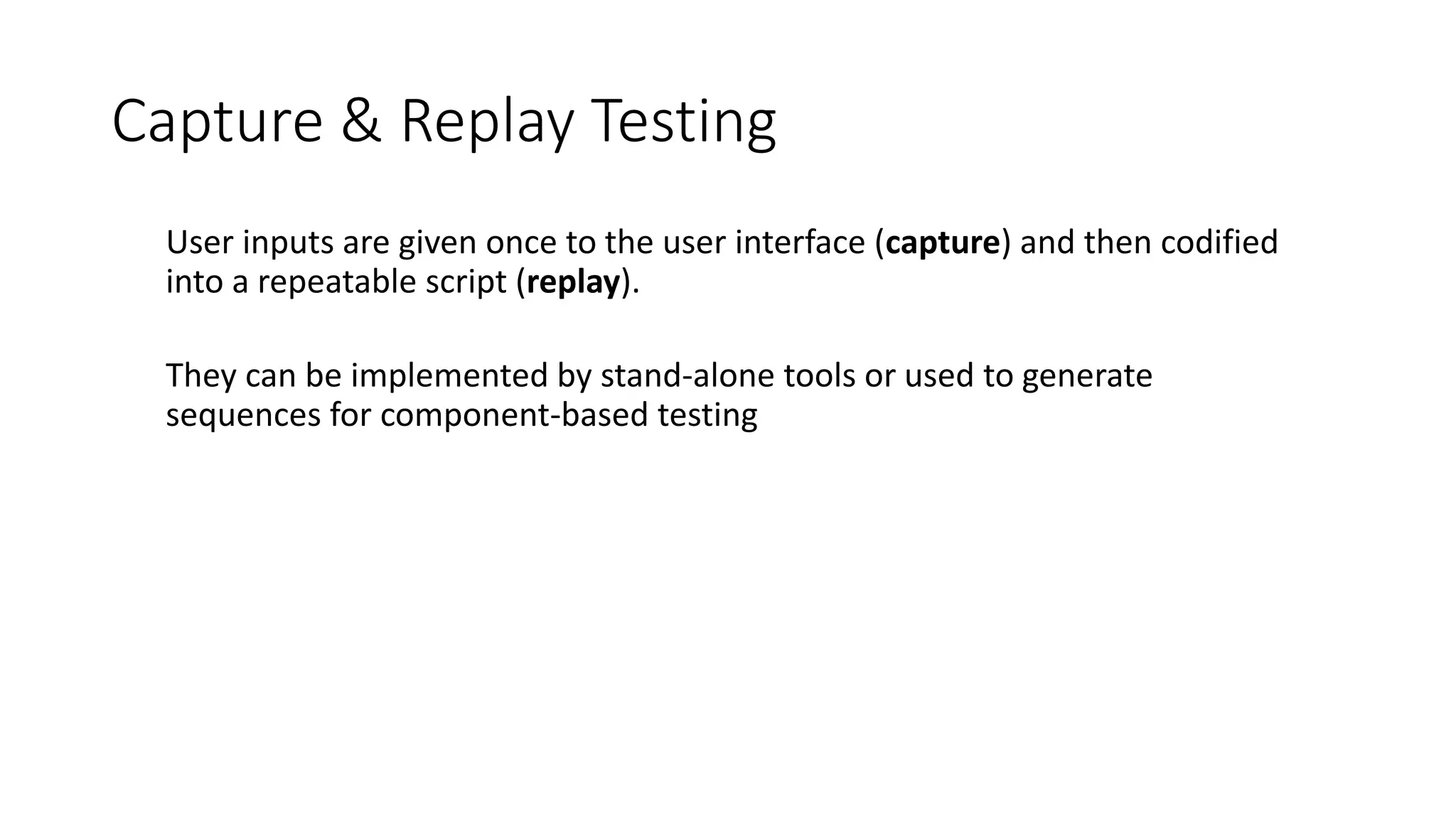

- 15. Capture & ReplayTesting User inputs are given once to the user interface (capture) and then codified into a repeatable script (replay). They can be implemented by stand-alone tools or used to generate sequences for component-based testing

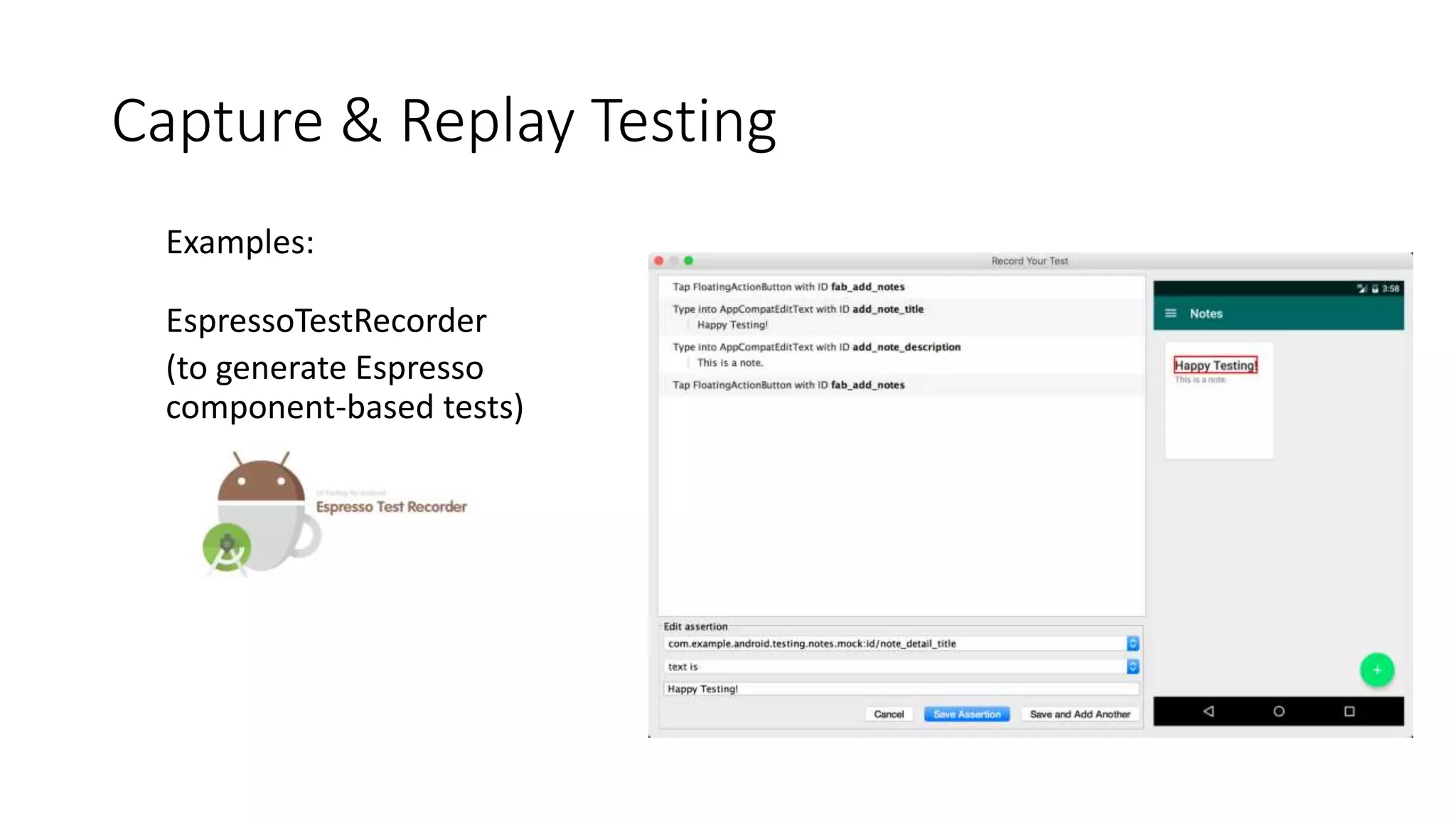

- 16. Capture & ReplayTesting Examples: EspressoTestRecorder (to generate Espresso component-based tests)

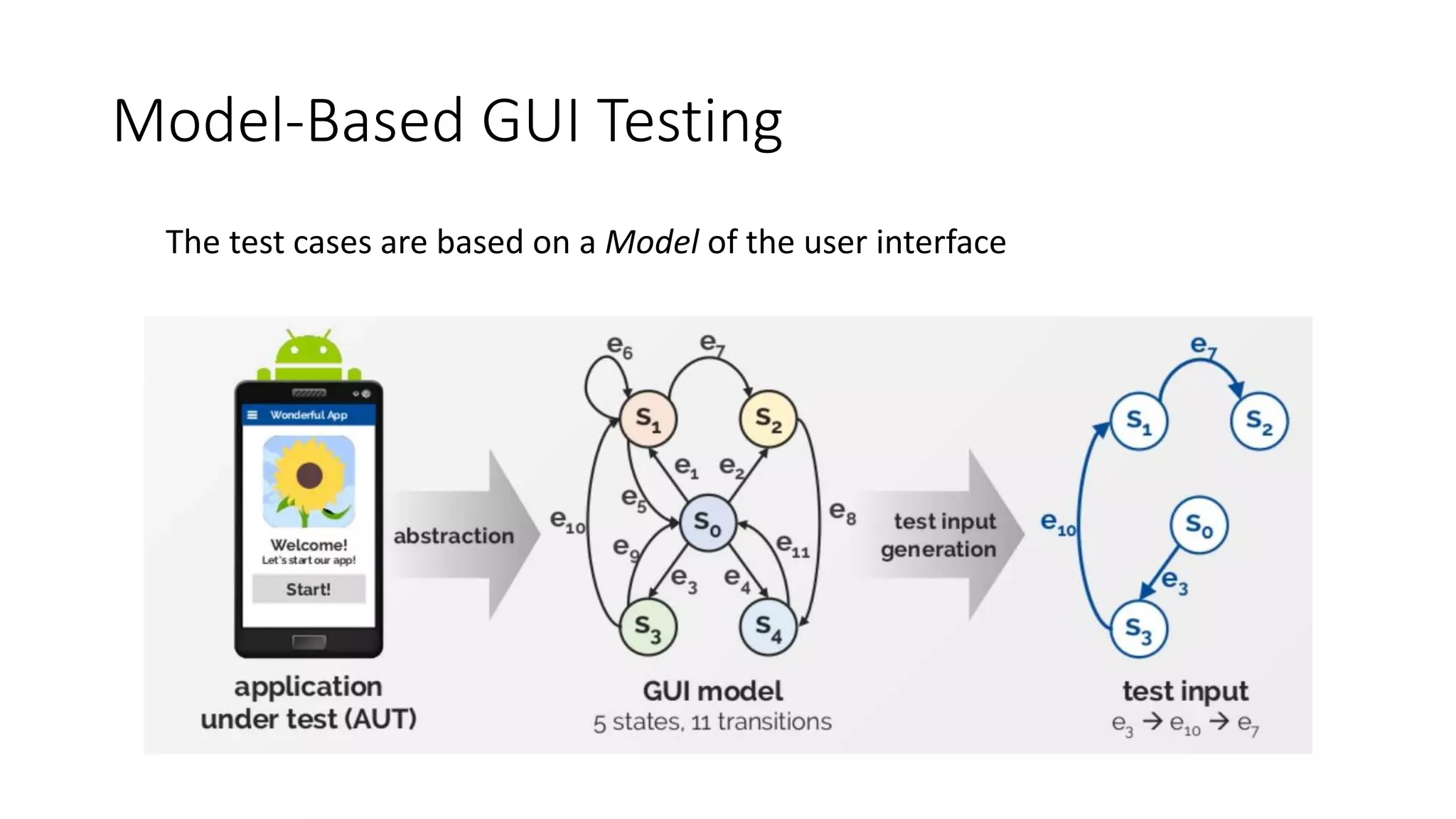

- 17. Model-Based GUI Testing Thetest cases are based on a Model of the user interface
- 18. Android GUI Testing:Open Issues

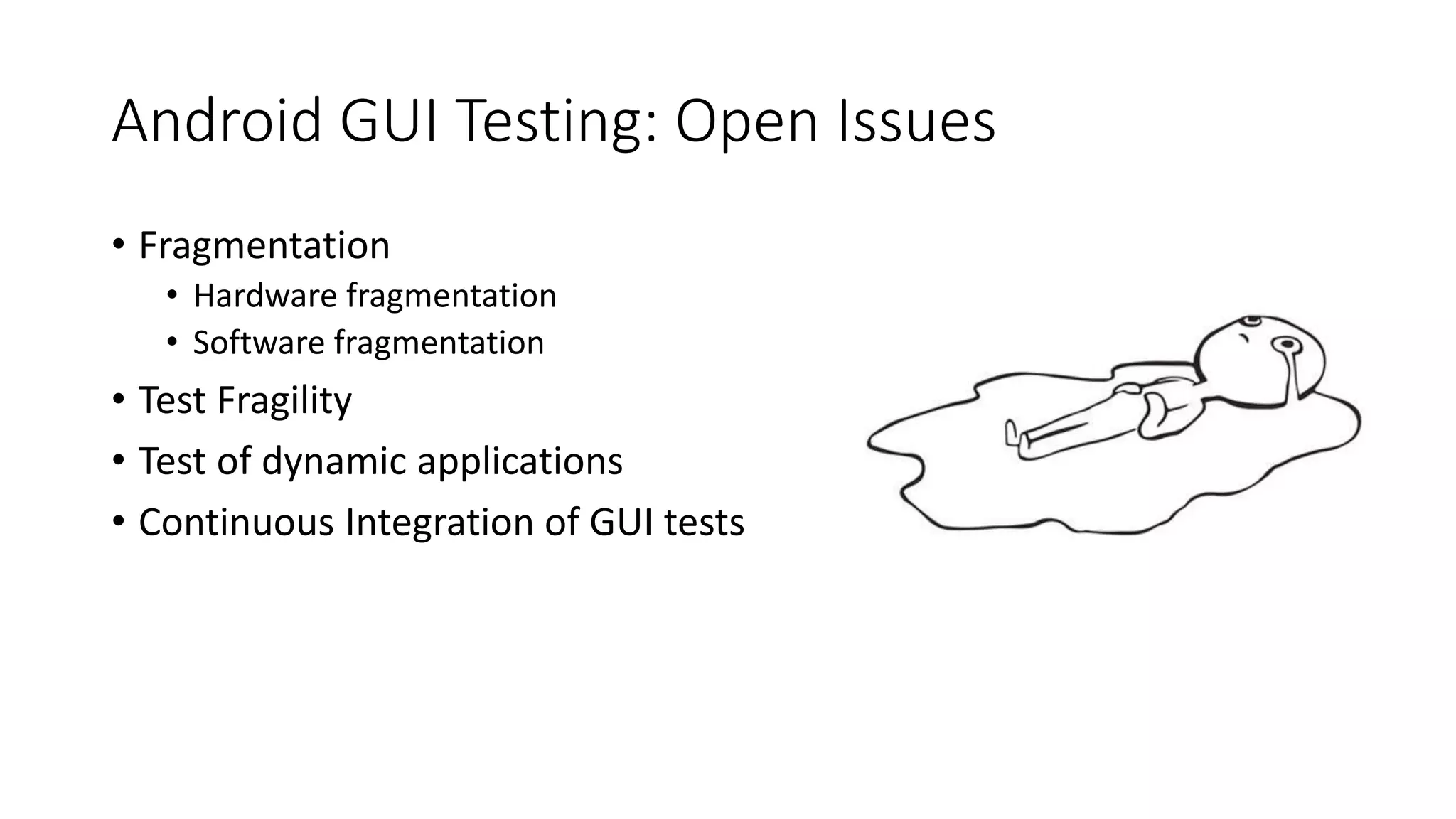

- 19. Android GUI Testing:Open Issues • Fragmentation • Hardware fragmentation • Software fragmentation • Test Fragility • Test of dynamic applications • Continuous Integration of GUI tests

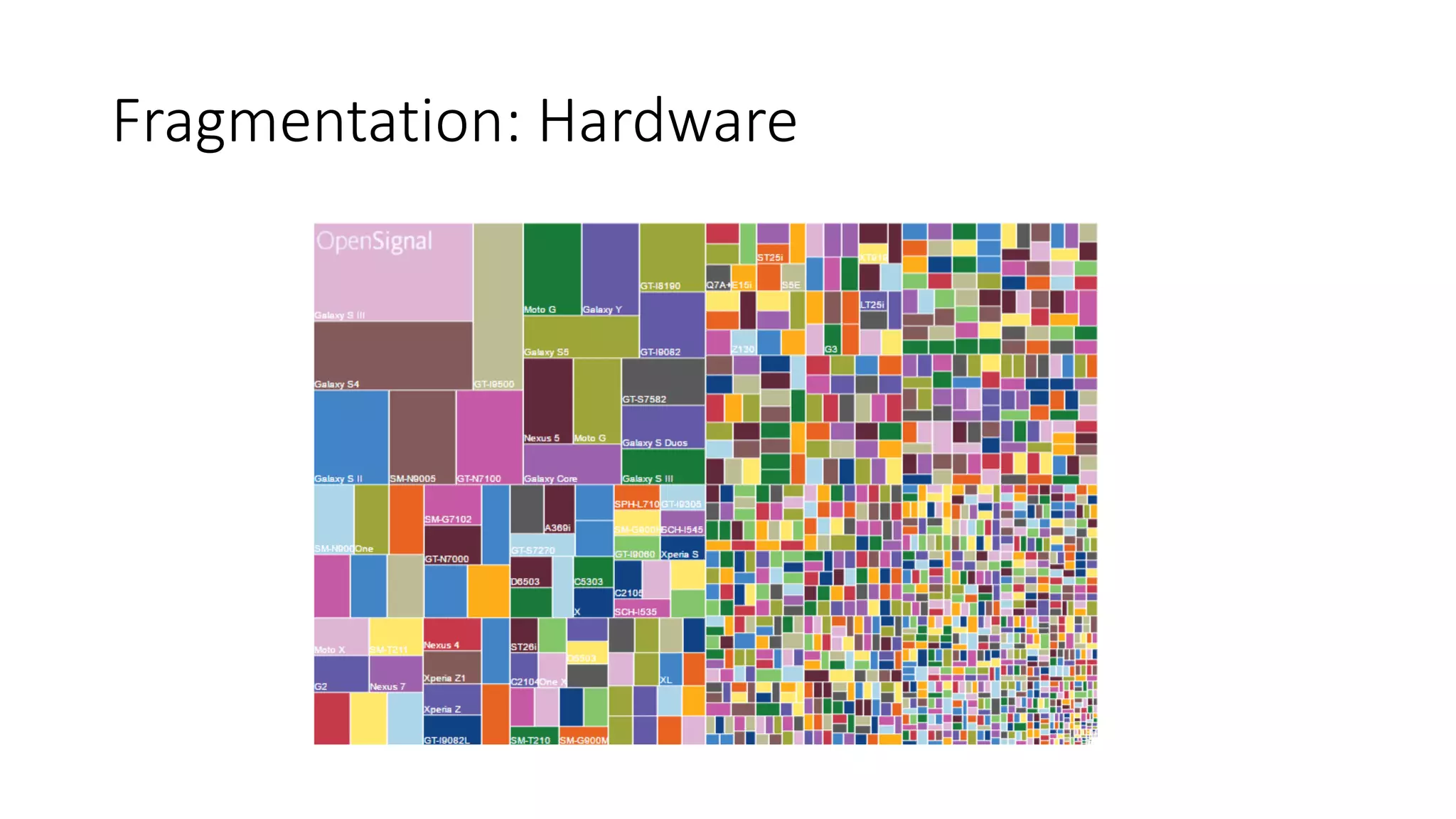

- 20.

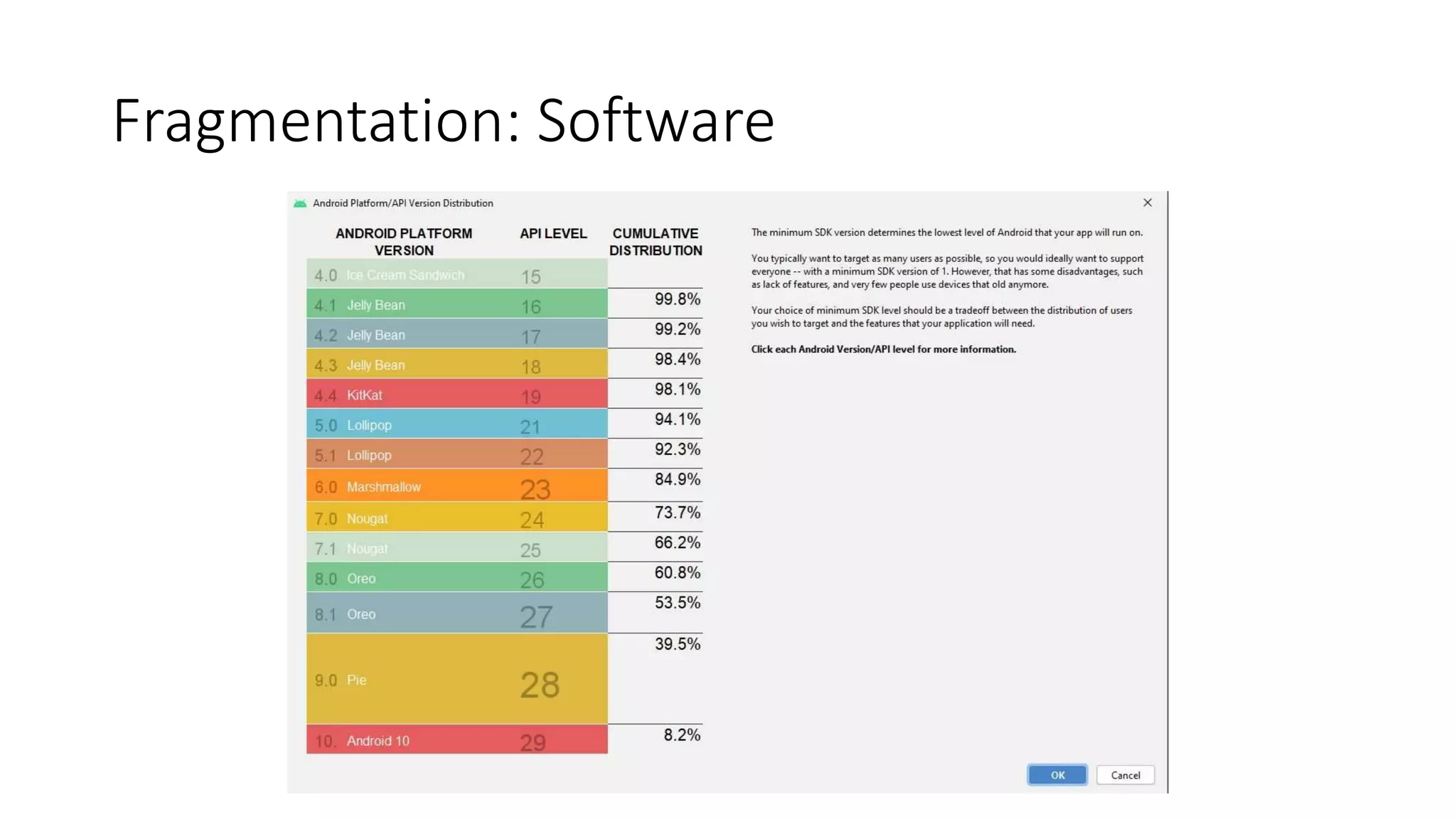

- 21.

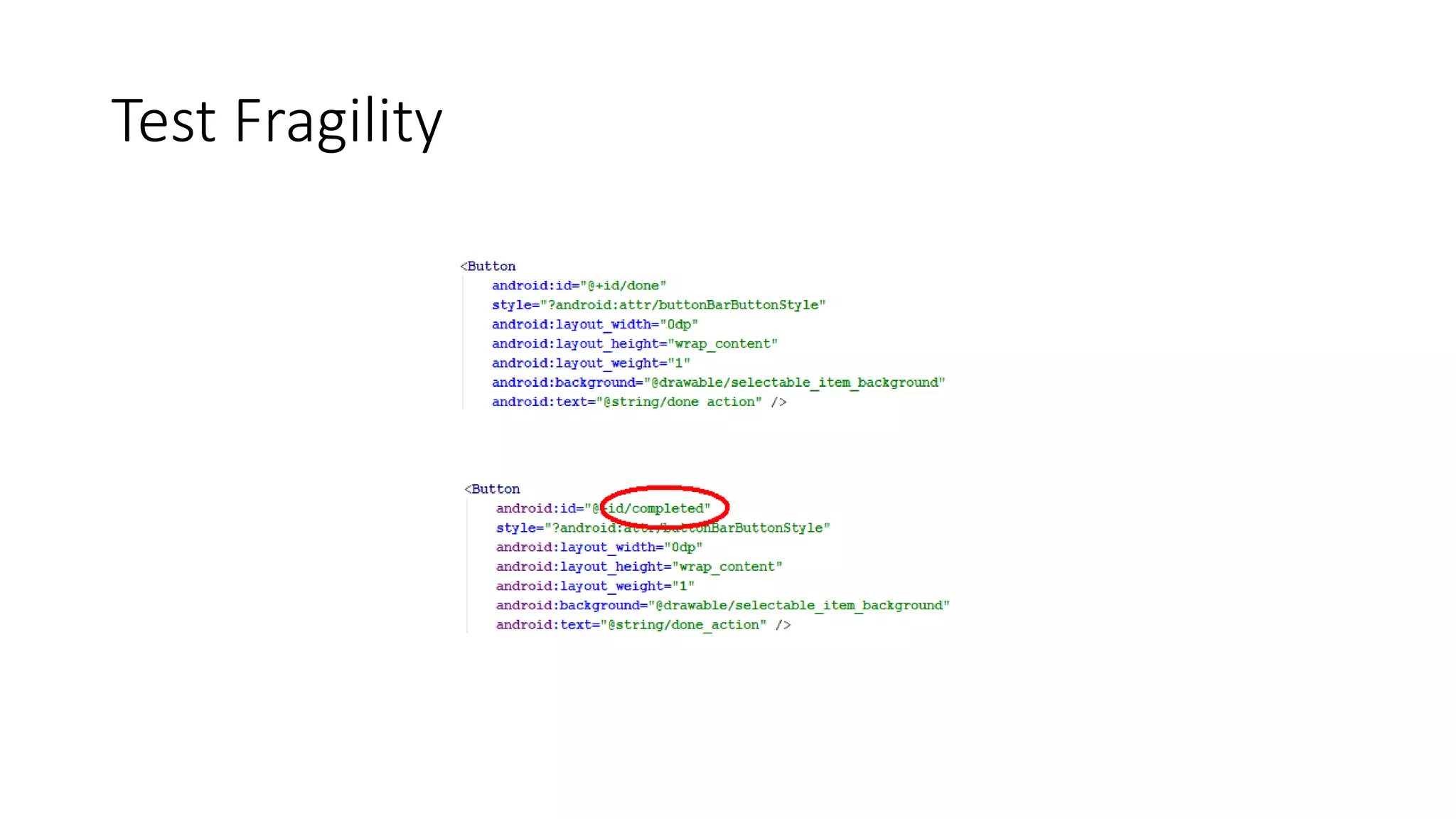

- 22. Test Fragility The veryhigh variability of User Interfaces and its definition can lead to GUI Testing Fragility. A GUI automated test is said to be fragile when: • It fails when the application evolves; • The failure is not due to the modification of the functionalities under test, but to changes in the interface arrangement and definition.
- 23.
- 24.

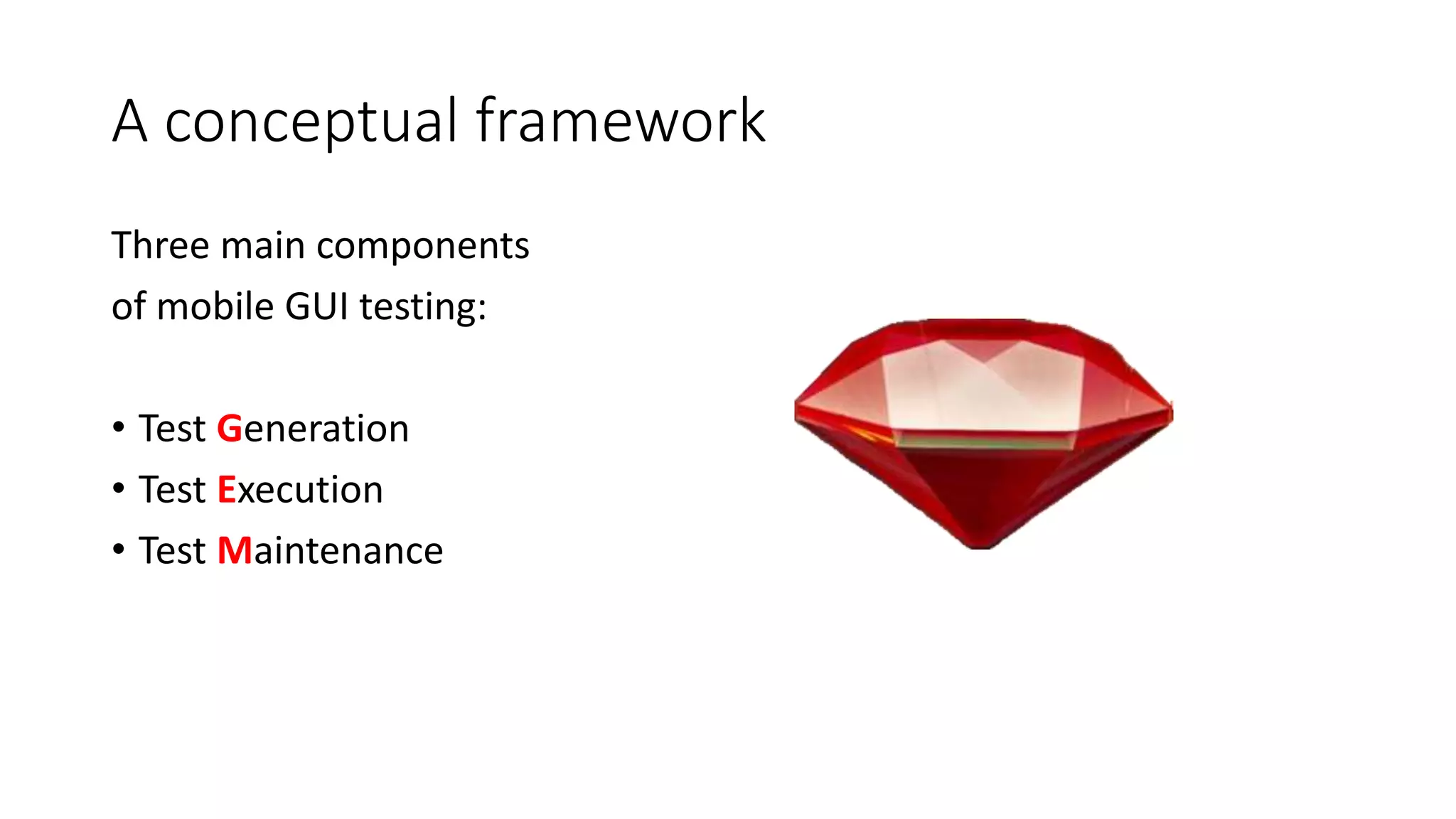

- 25. A conceptual framework Threemain components of mobile GUI testing: • Test Generation • Test Execution • Test Maintenance
- 26.
- 27.

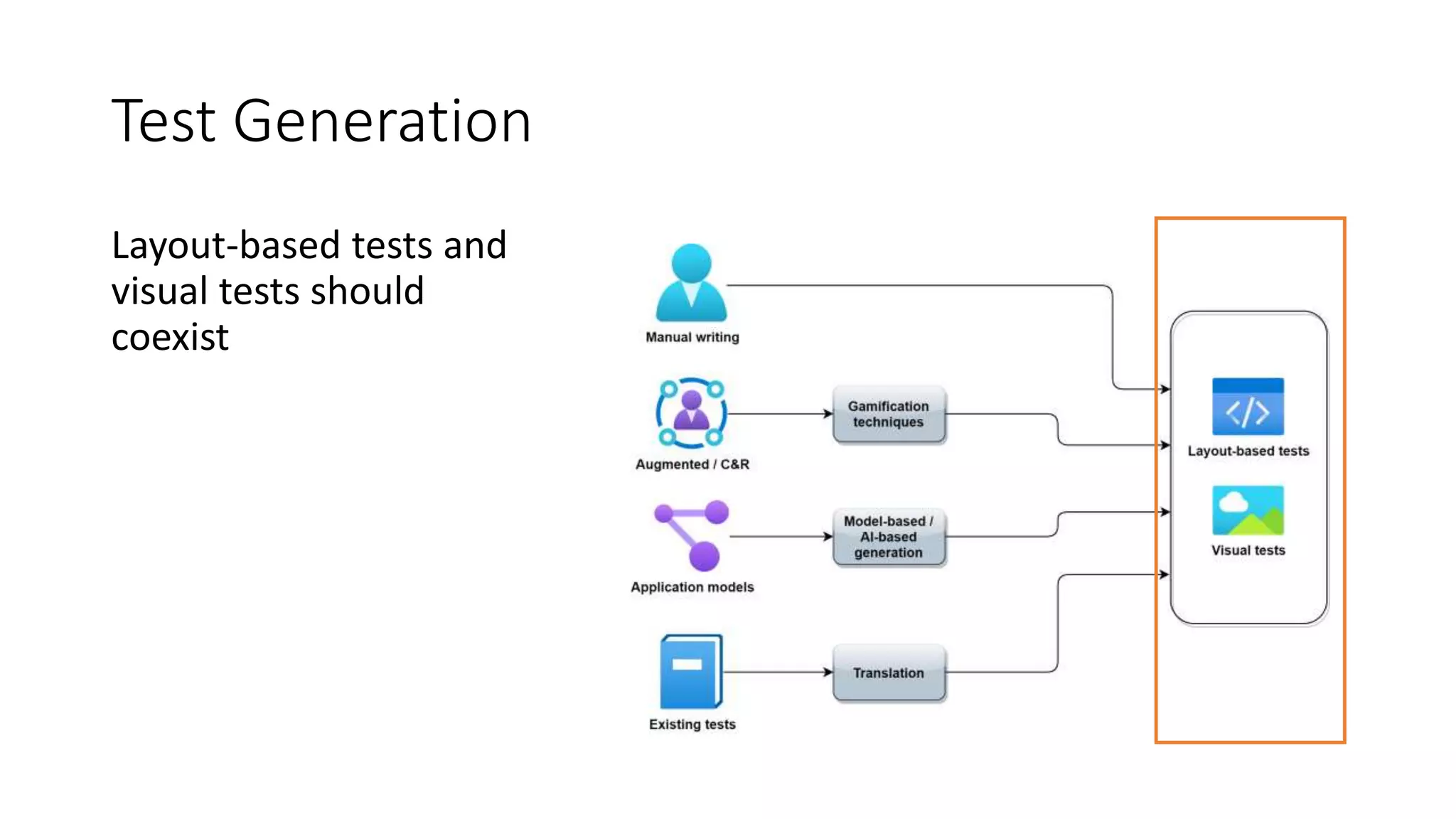

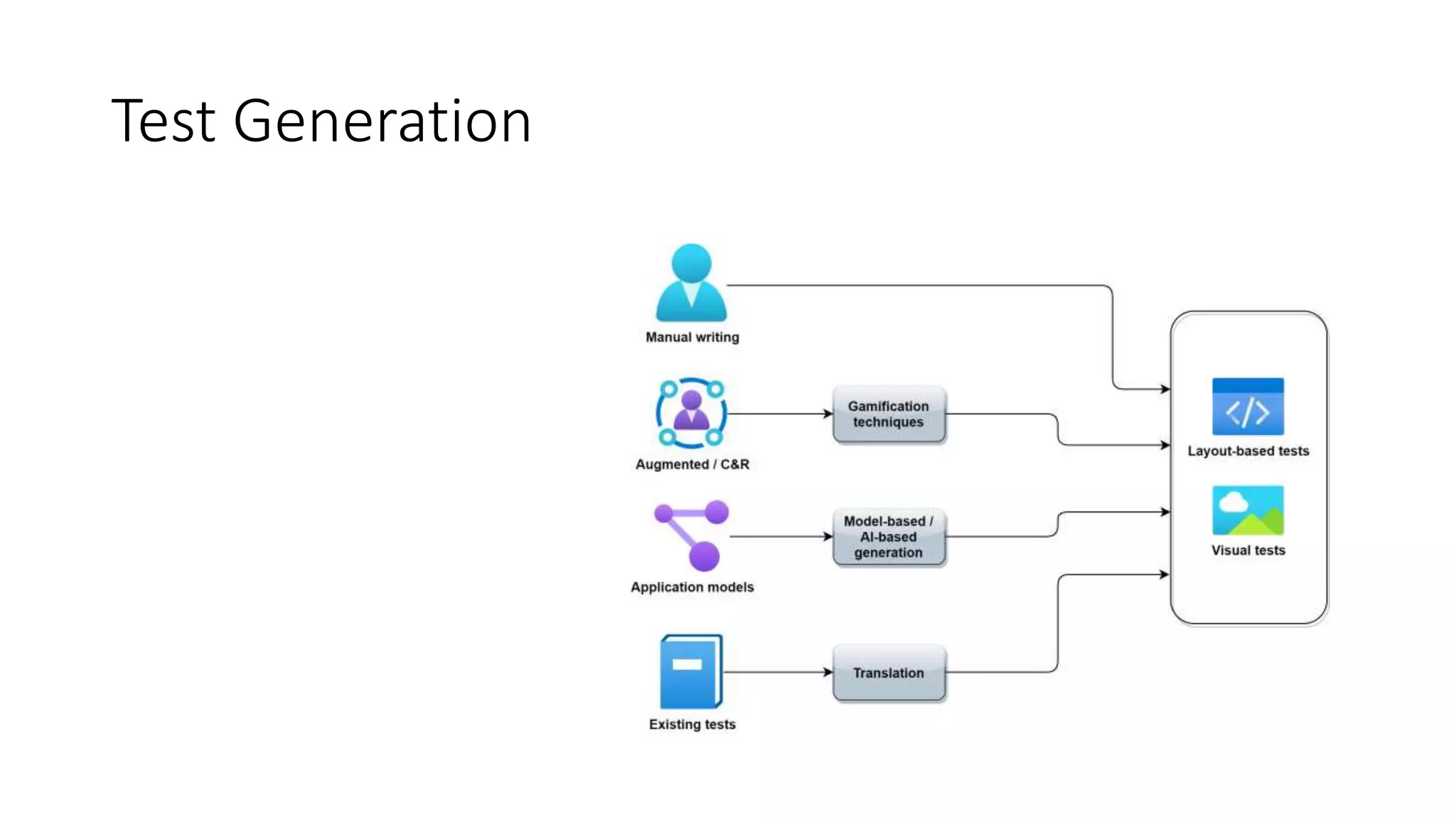

- 28. Test Generation Layout-based testsand visual tests should coexist

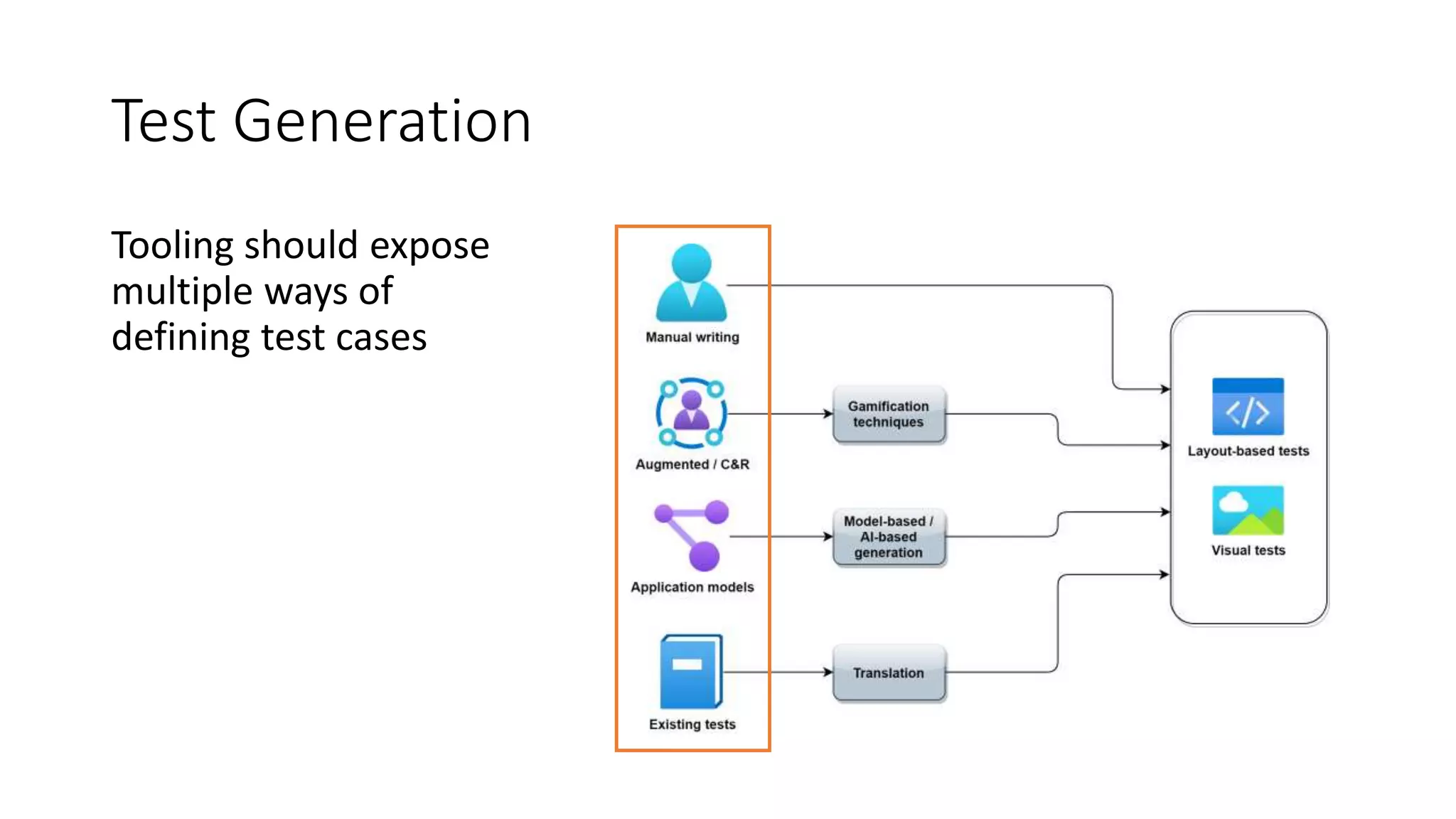

- 29. Test Generation Tooling shouldexpose multiple ways of defining test cases

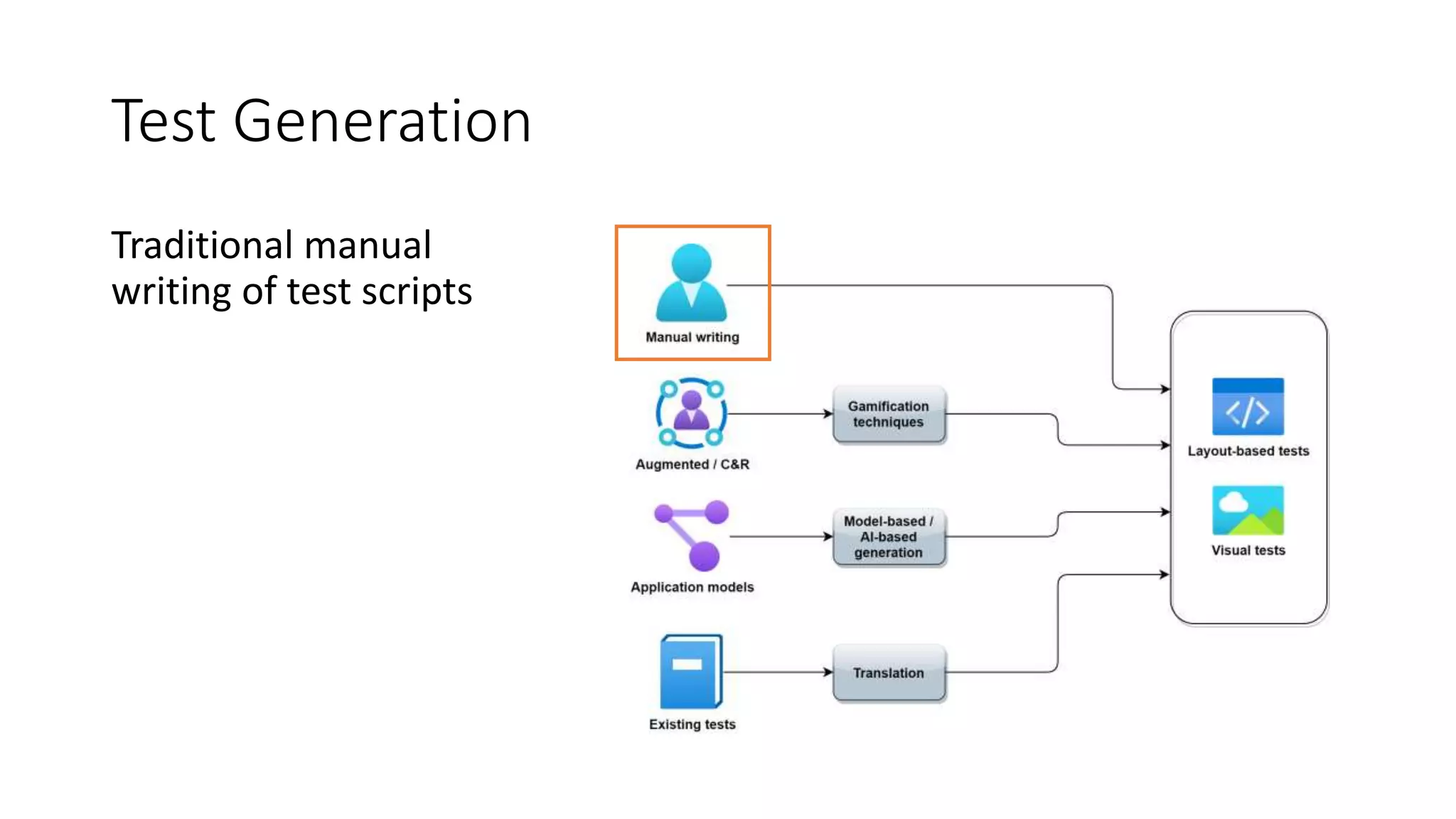

- 30. Test Generation Traditional manual writingof test scripts

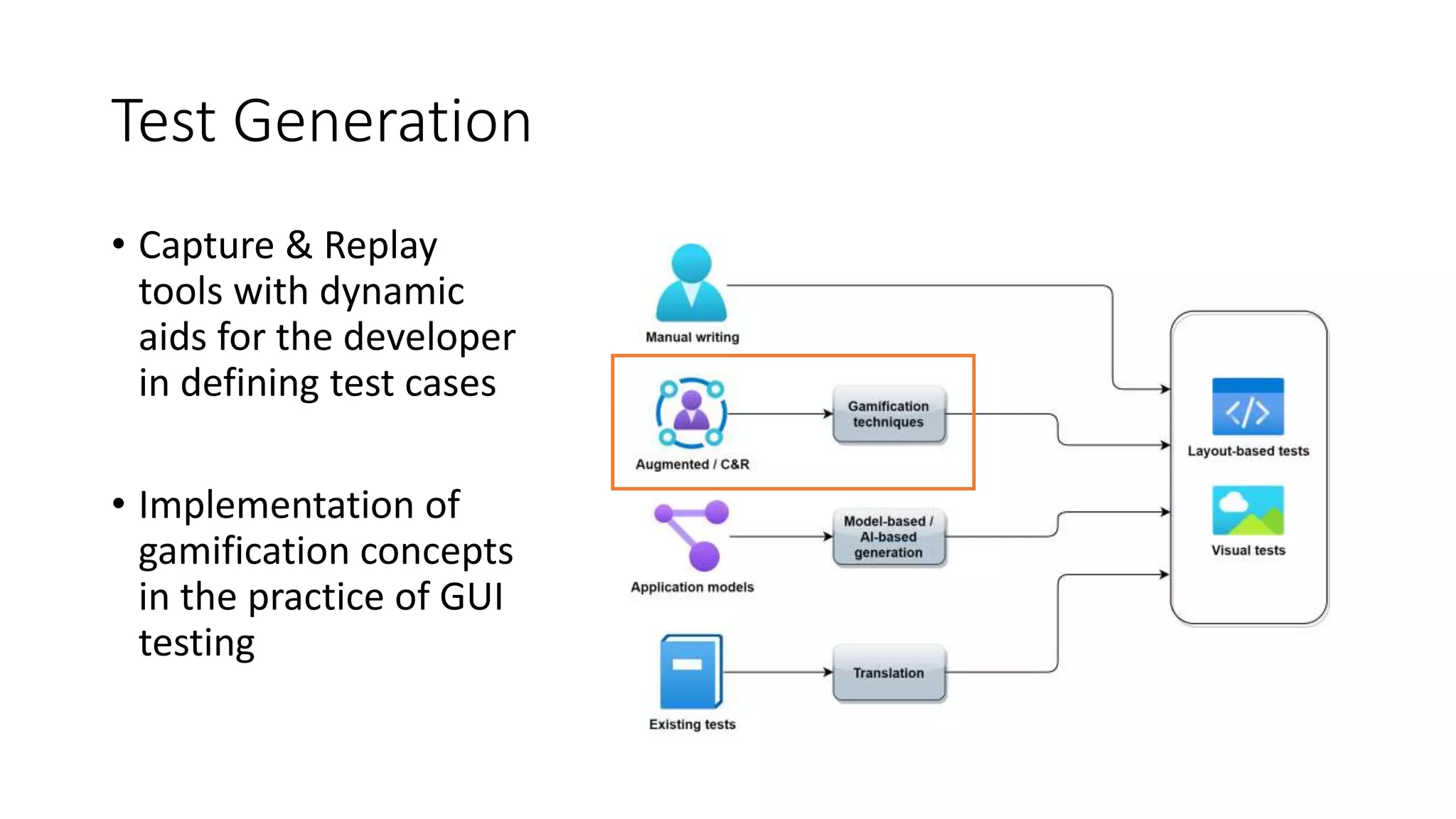

- 31. Test Generation • Capture& Replay tools with dynamic aids for the developer in defining test cases • Implementation of gamification concepts in the practice of GUI testing

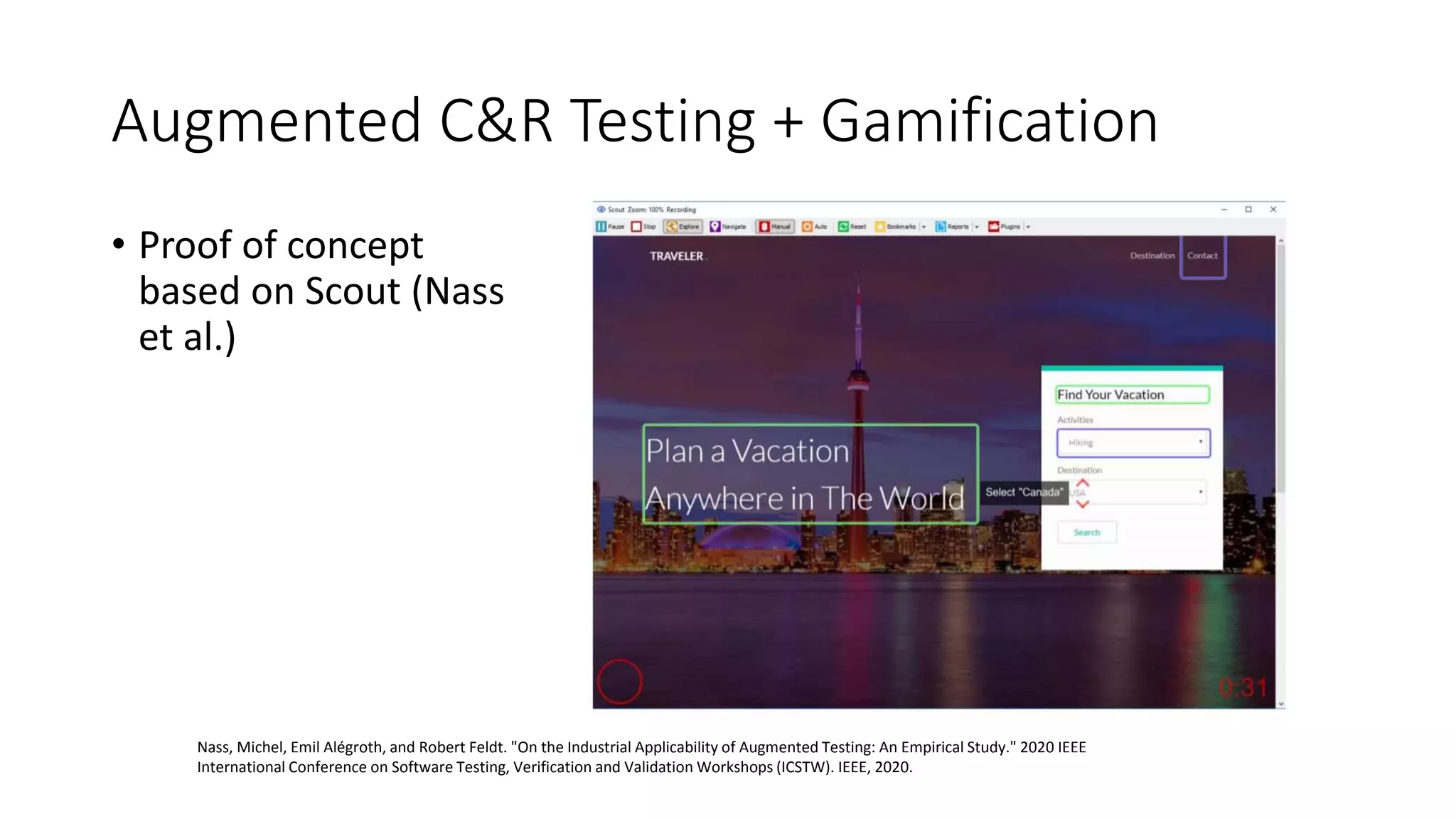

- 32. Augmented C&R Testing+ Gamification • Proof of concept based on Scout (Nass et al.) Nass, Michel, Emil Alégroth, and Robert Feldt. "On the Industrial Applicability of Augmented Testing: An Empirical Study." 2020 IEEE International Conference on Software Testing, Verification and Validation Workshops (ICSTW). IEEE, 2020.
- 33. Gamification concept • Applicationof game design concepts to other practices • To ensure… • Better performance • Better engagement

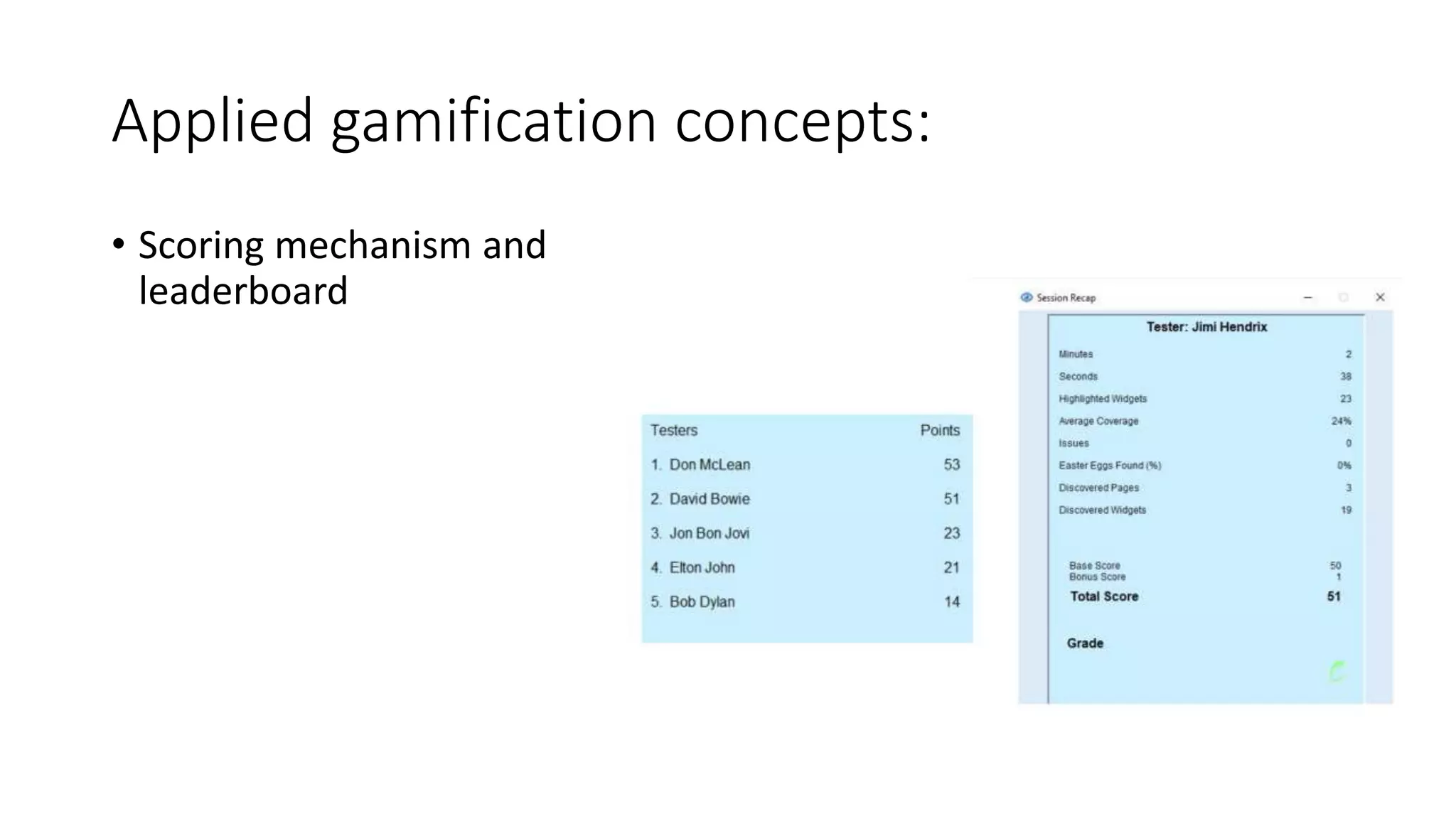

- 34. Applied gamification concepts: •Scoring mechanism and leaderboard

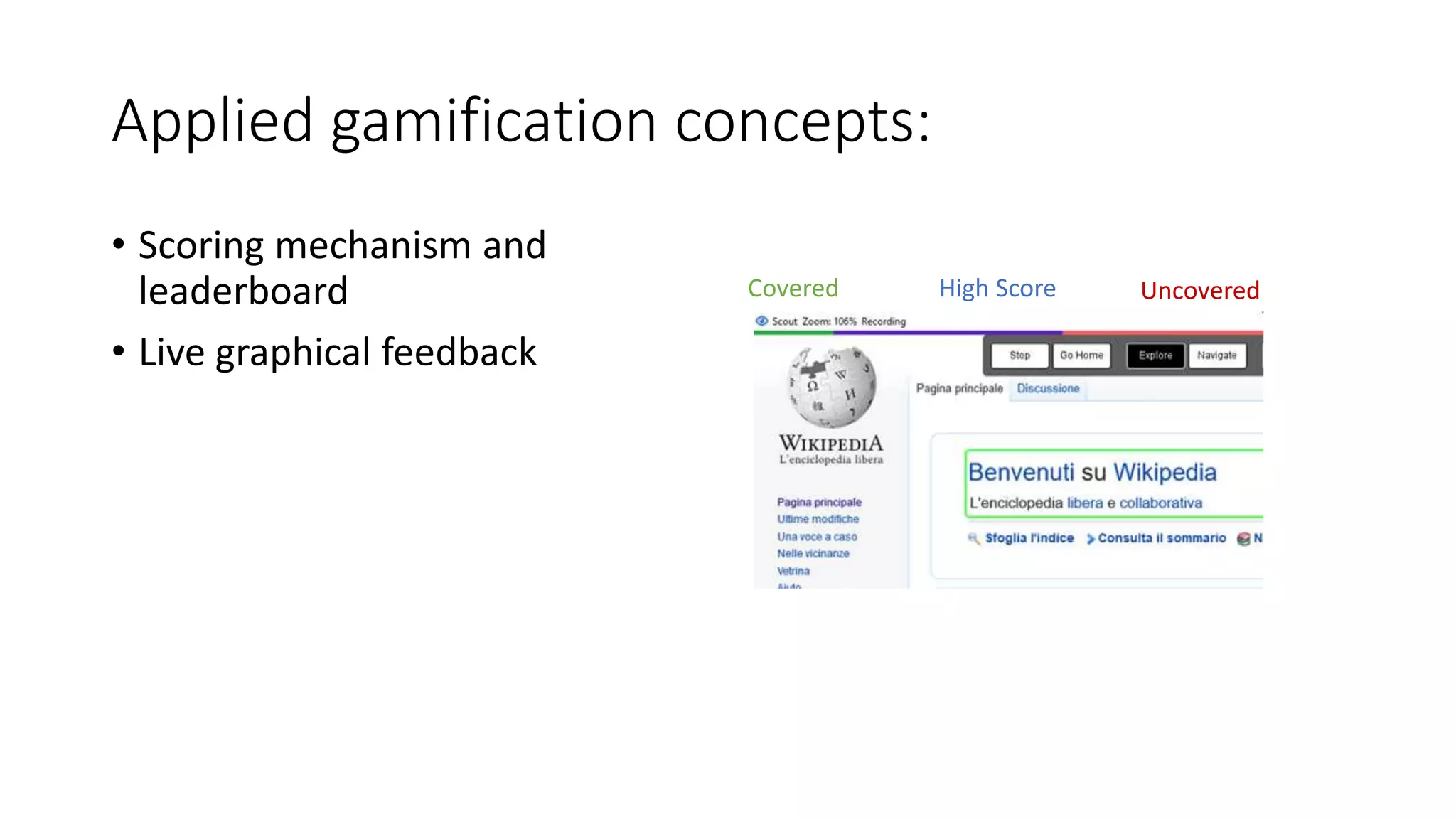

- 35. Applied gamification concepts: •Scoring mechanism and leaderboard • Live graphical feedback Covered Uncovered High Score

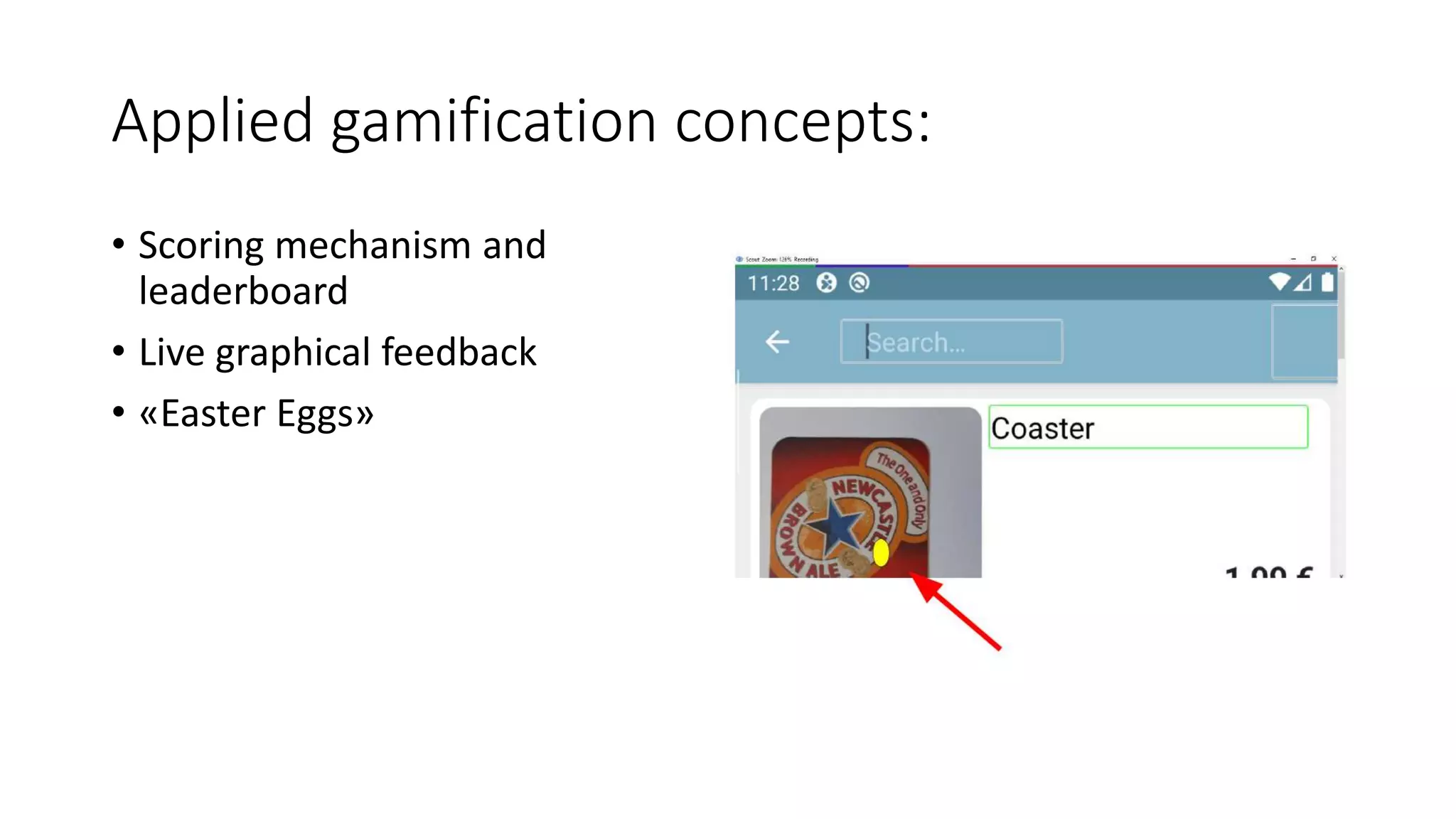

- 36. Applied gamification concepts: •Scoring mechanism and leaderboard • Live graphical feedback • «Easter Eggs»

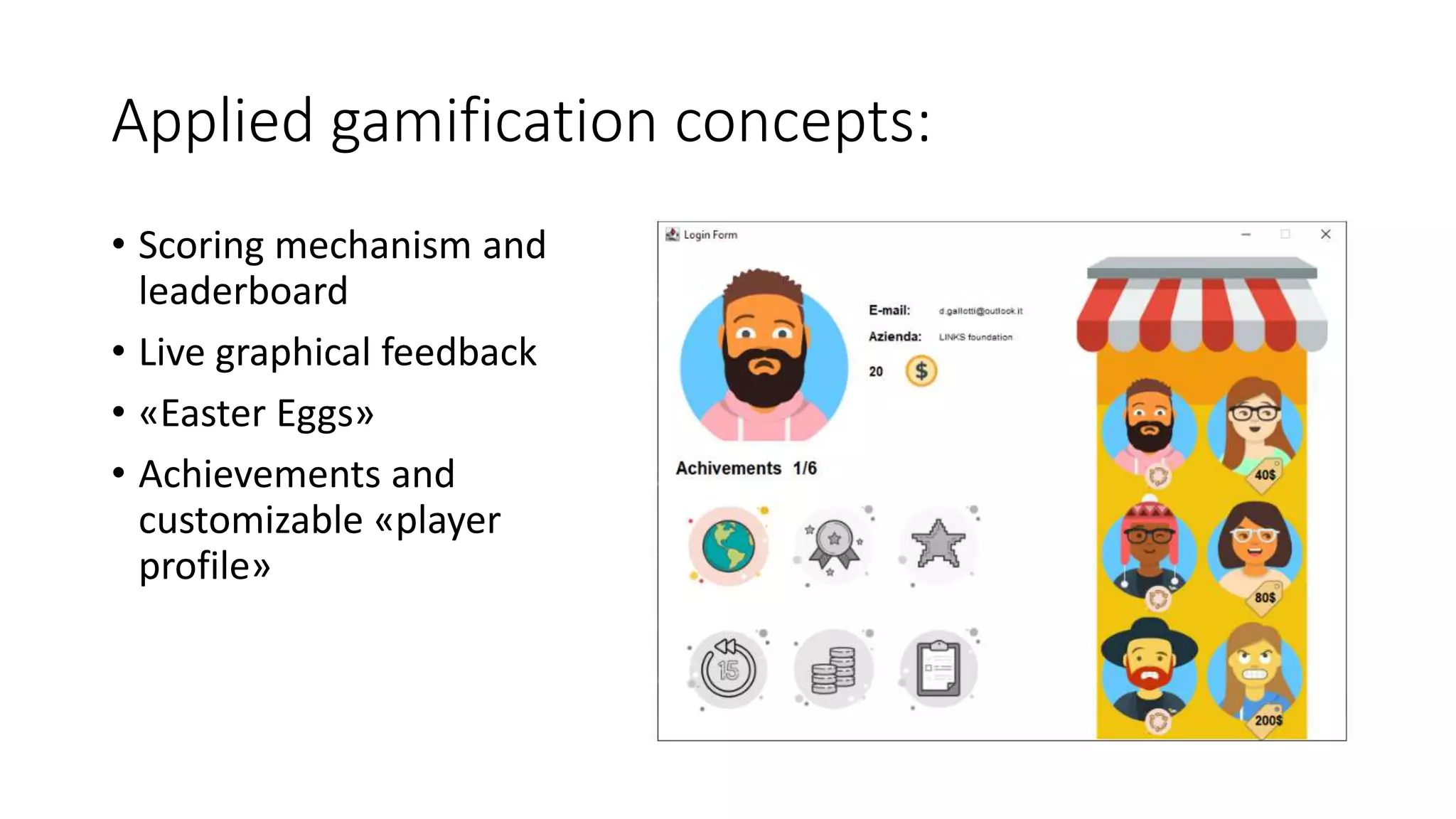

- 37. Applied gamification concepts: •Scoring mechanism and leaderboard • Live graphical feedback • «Easter Eggs» • Achievements and customizable «player profile»

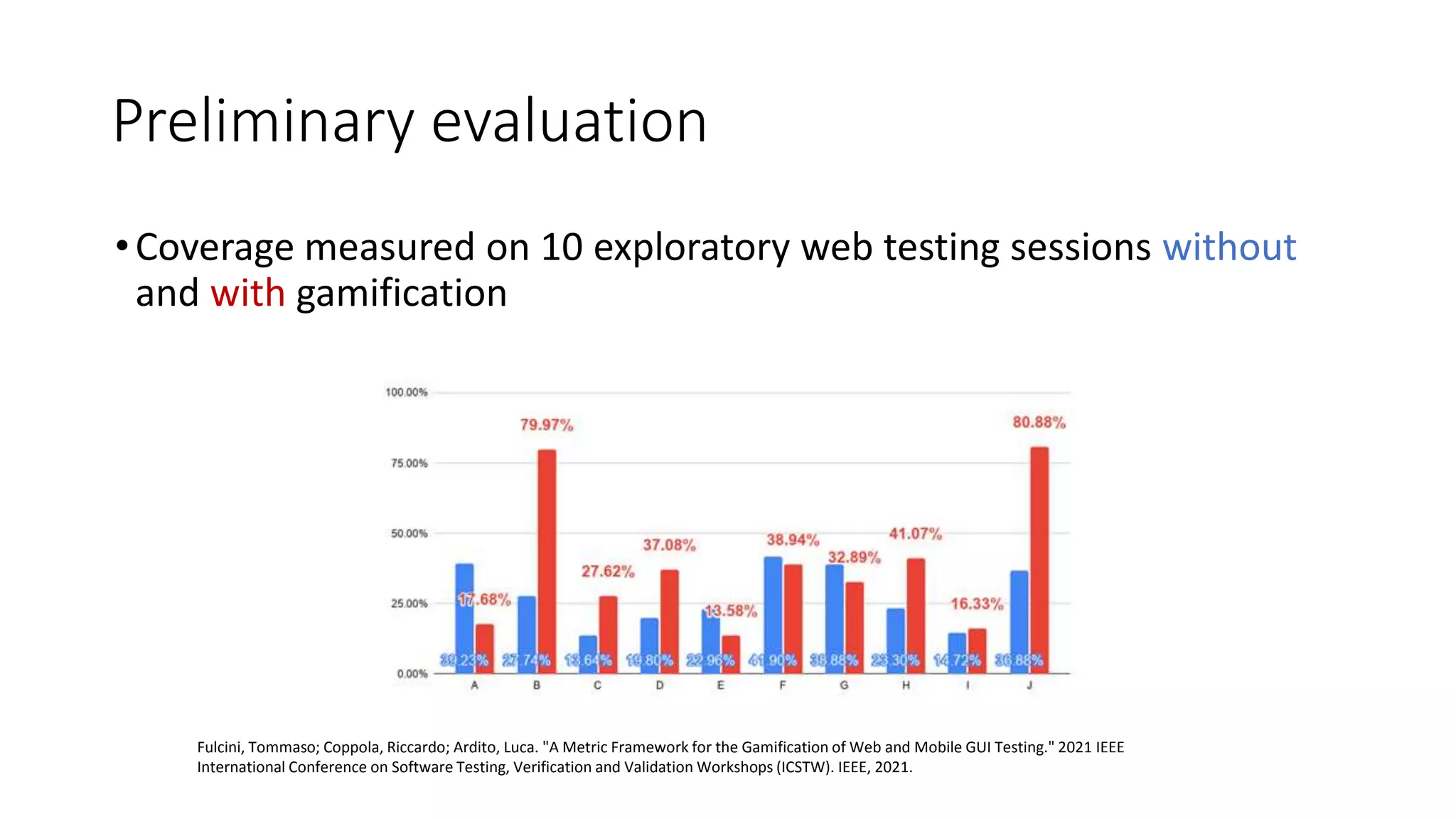

- 38. Preliminary evaluation •Coverage measuredon 10 exploratory web testing sessions without and with gamification Fulcini, Tommaso; Coppola, Riccardo; Ardito, Luca. "A Metric Framework for the Gamification of Web and Mobile GUI Testing." 2021 IEEE International Conference on Software Testing, Verification and Validation Workshops (ICSTW). IEEE, 2021.

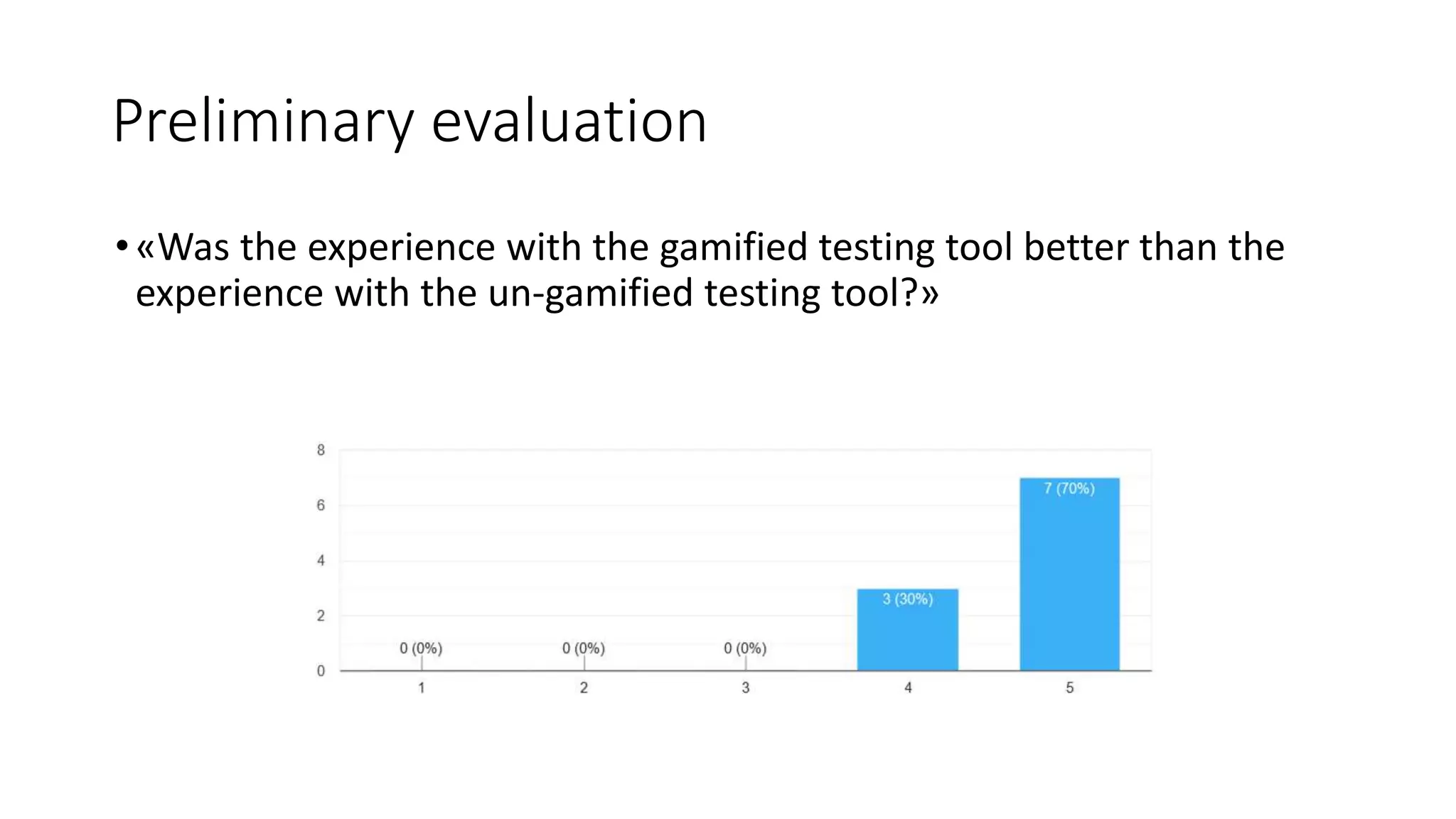

- 39. Preliminary evaluation •«Was theexperience with the gamified testing tool better than the experience with the un-gamified testing tool?»

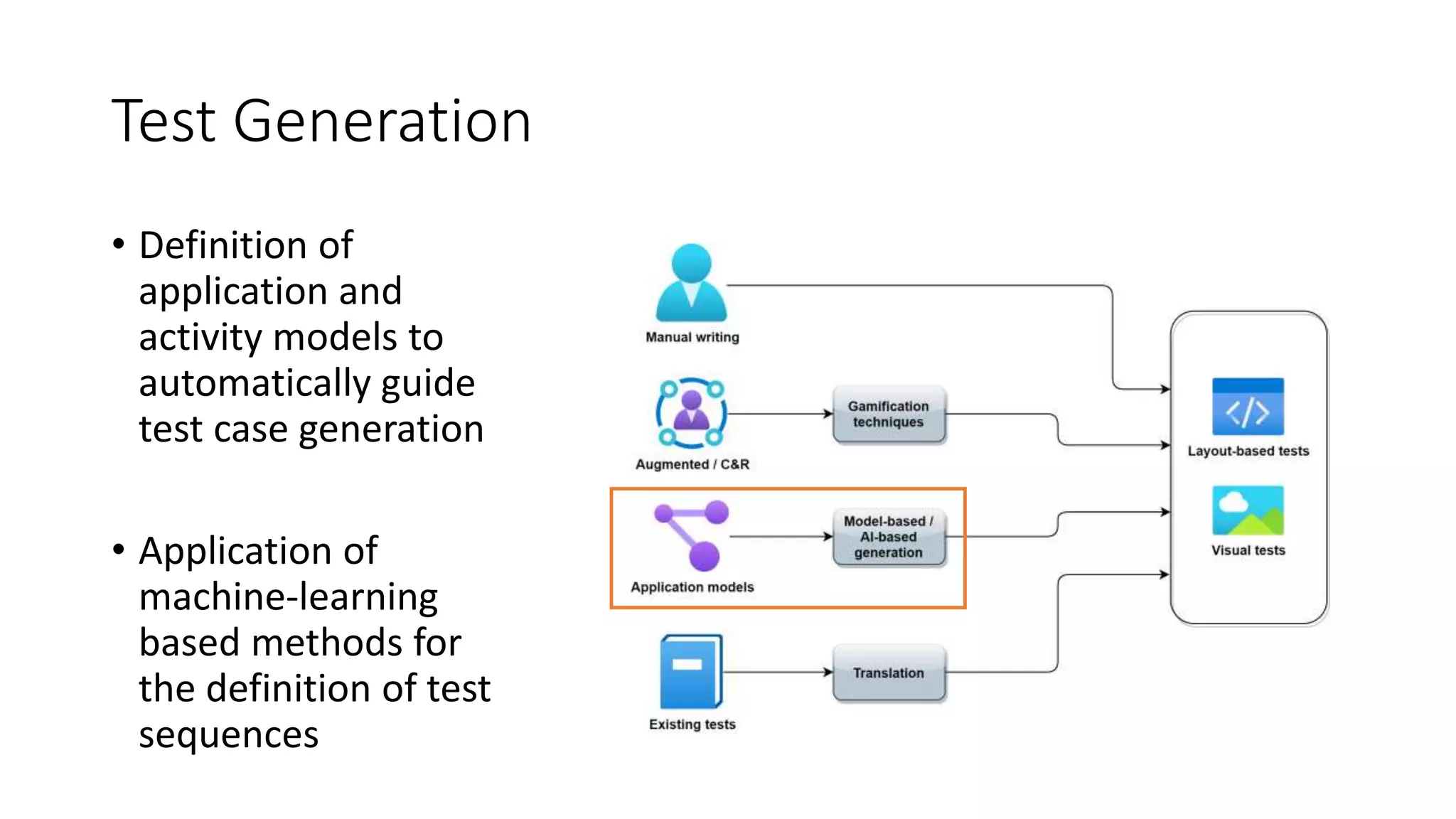

- 40. Test Generation • Definitionof application and activity models to automatically guide test case generation • Application of machine-learning based methods for the definition of test sequences

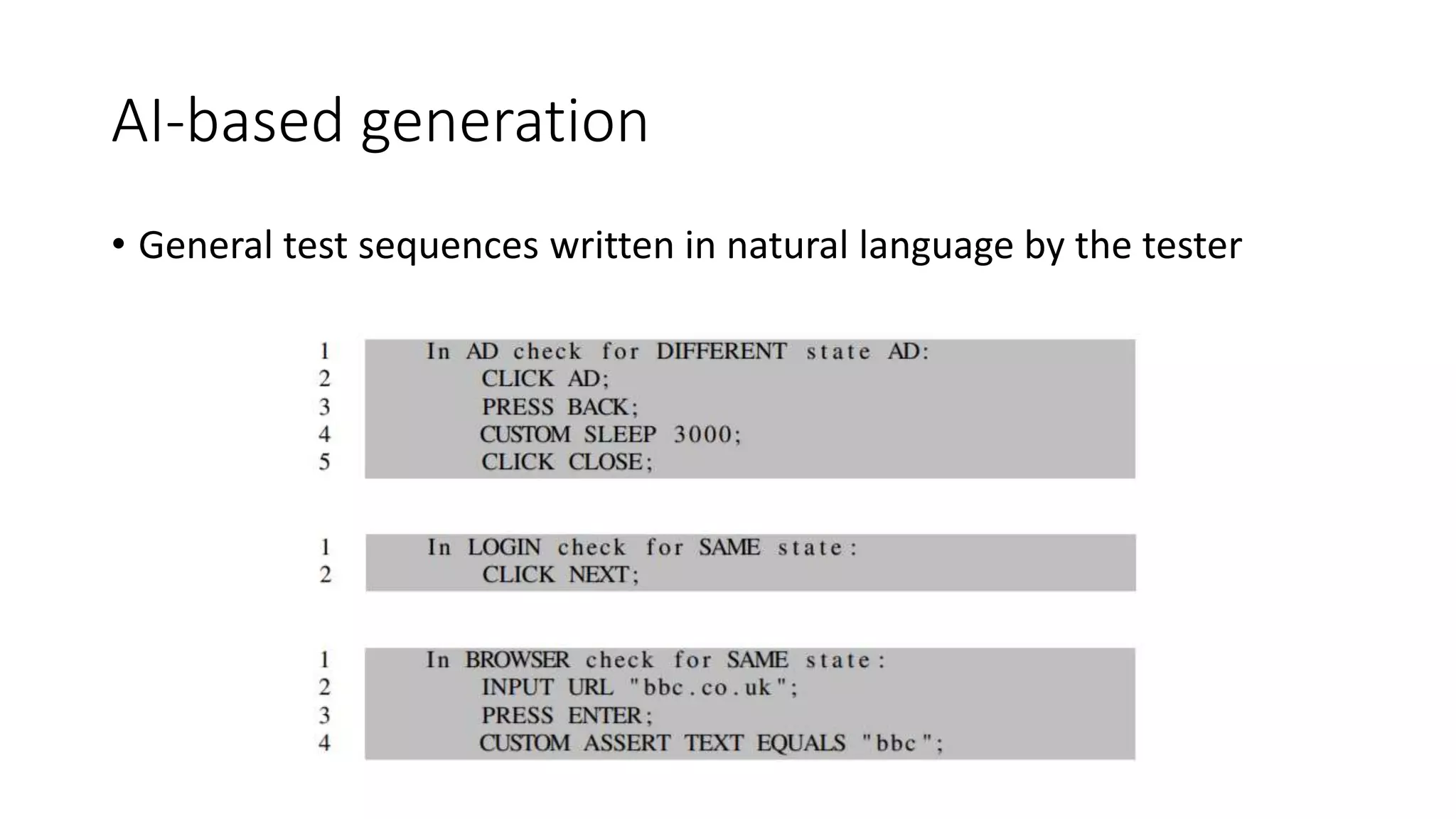

- 41. AI-based generation • Generaltest sequences written in natural language by the tester
- 42. AI-based generation • Generaltest sequences written in natural language by the tester • Automated adaptation (to Appium test cases) and launch of test sequences to the specific app based on: • APK classification (i.e., type of app) • Activity classification (i.e., type of screen shown to the user)

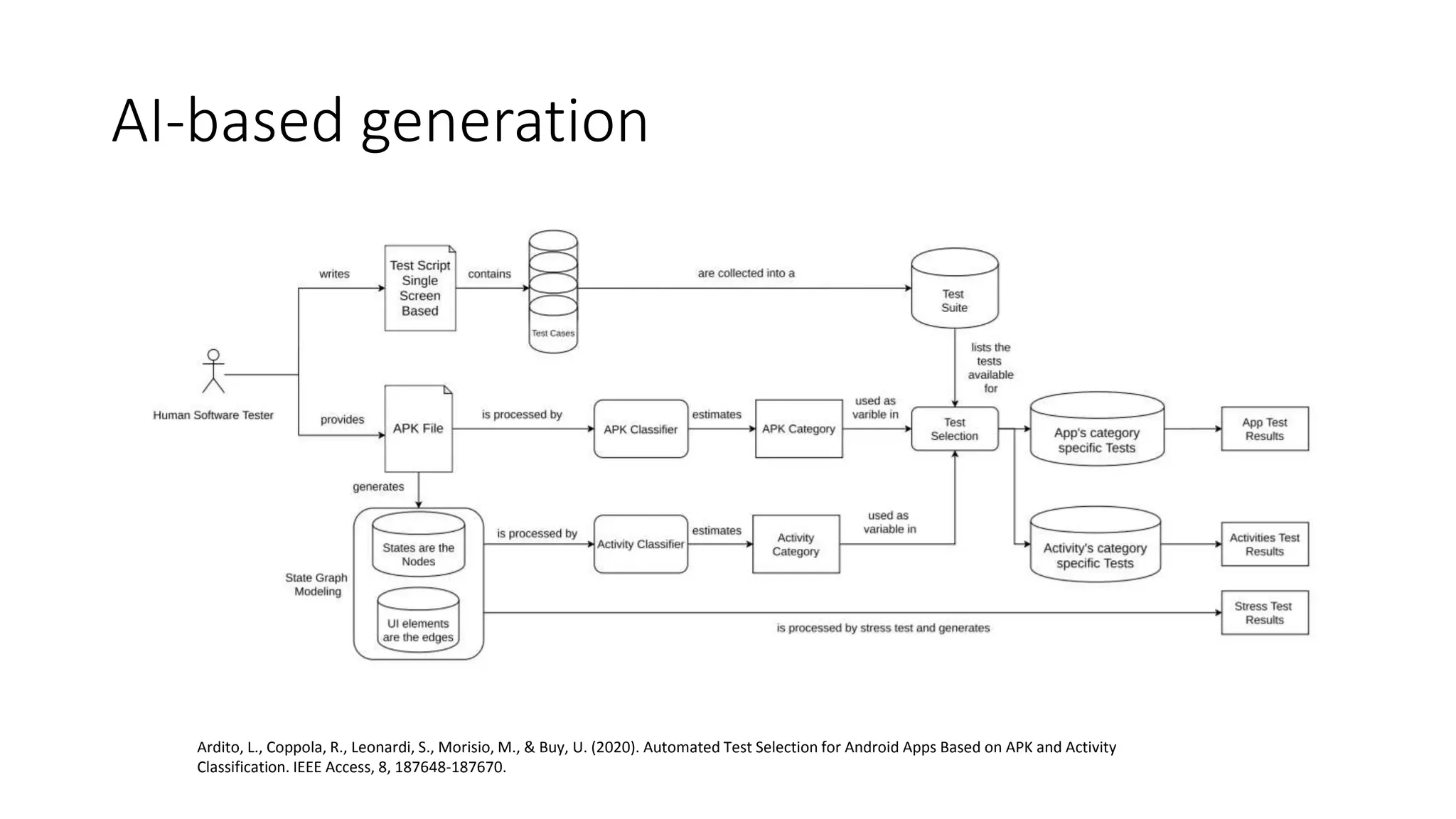

- 43. AI-based generation Ardito, L.,Coppola, R., Leonardi, S., Morisio, M., & Buy, U. (2020). Automated Test Selection for Android Apps Based on APK and Activity Classification. IEEE Access, 8, 187648-187670.

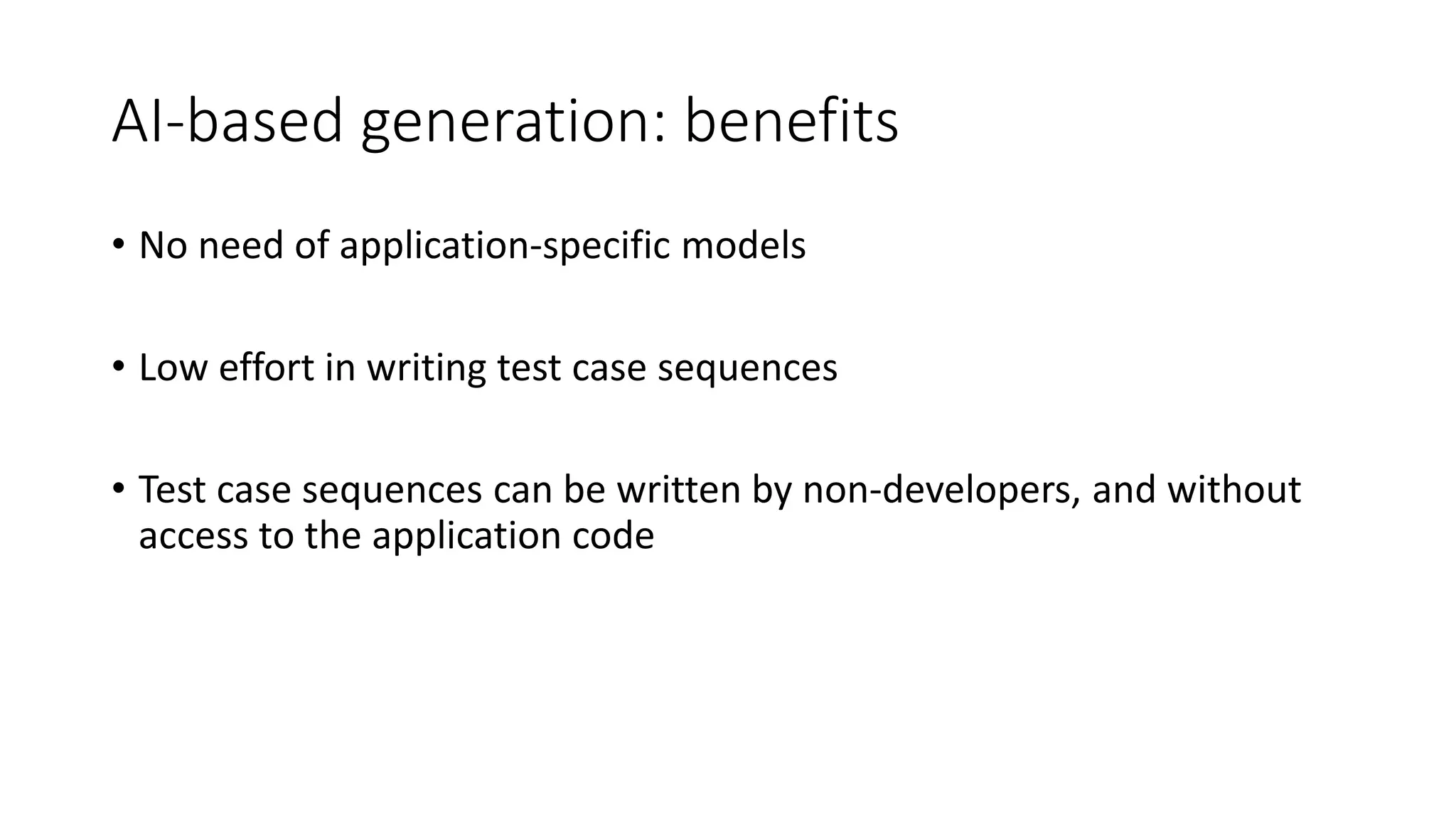

- 44. AI-based generation: benefits •No need of application-specific models • Low effort in writing test case sequences • Test case sequences can be written by non-developers, and without access to the application code

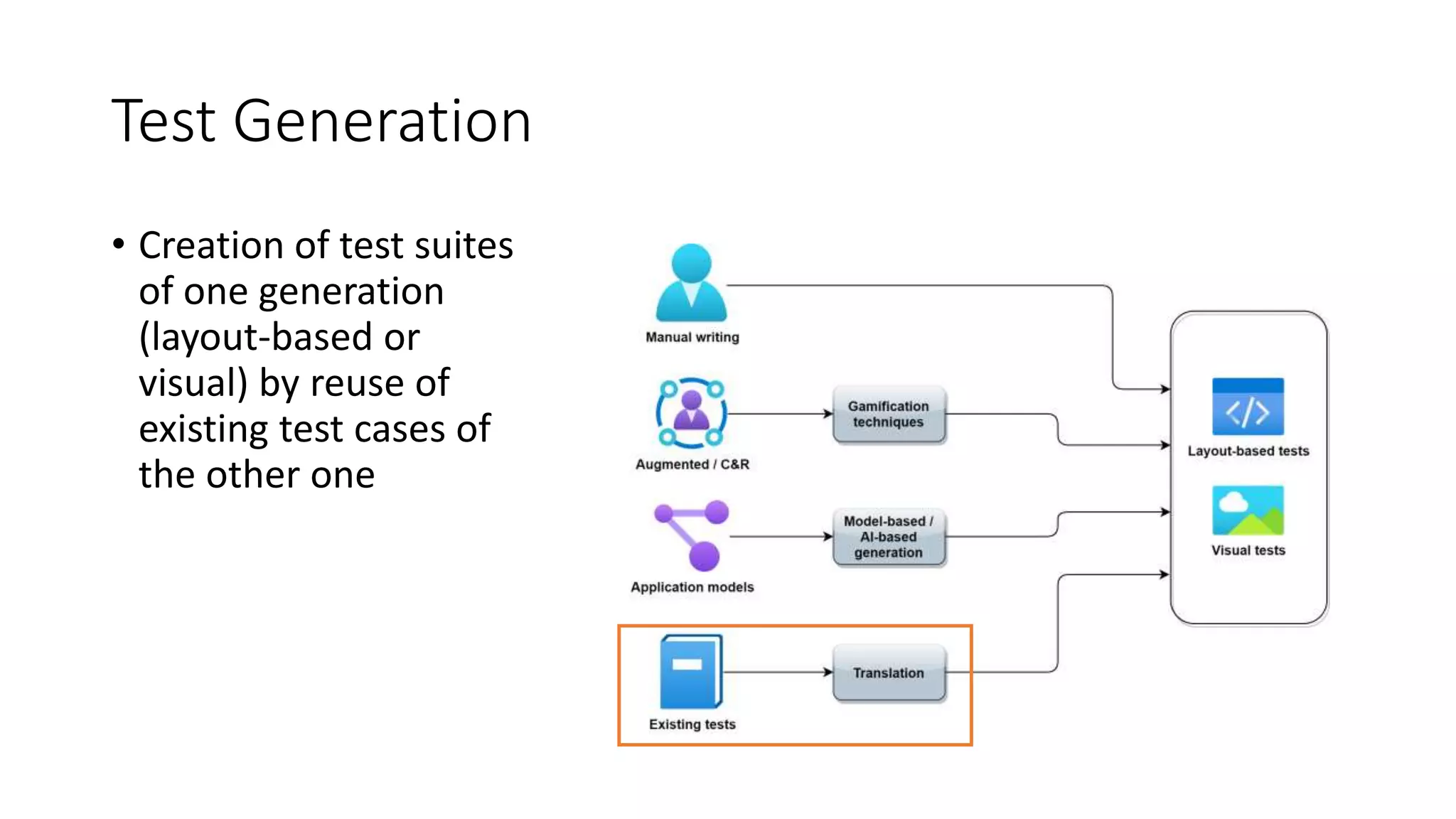

- 45. Test Generation • Creationof test suites of one generation (layout-based or visual) by reuse of existing test cases of the other one

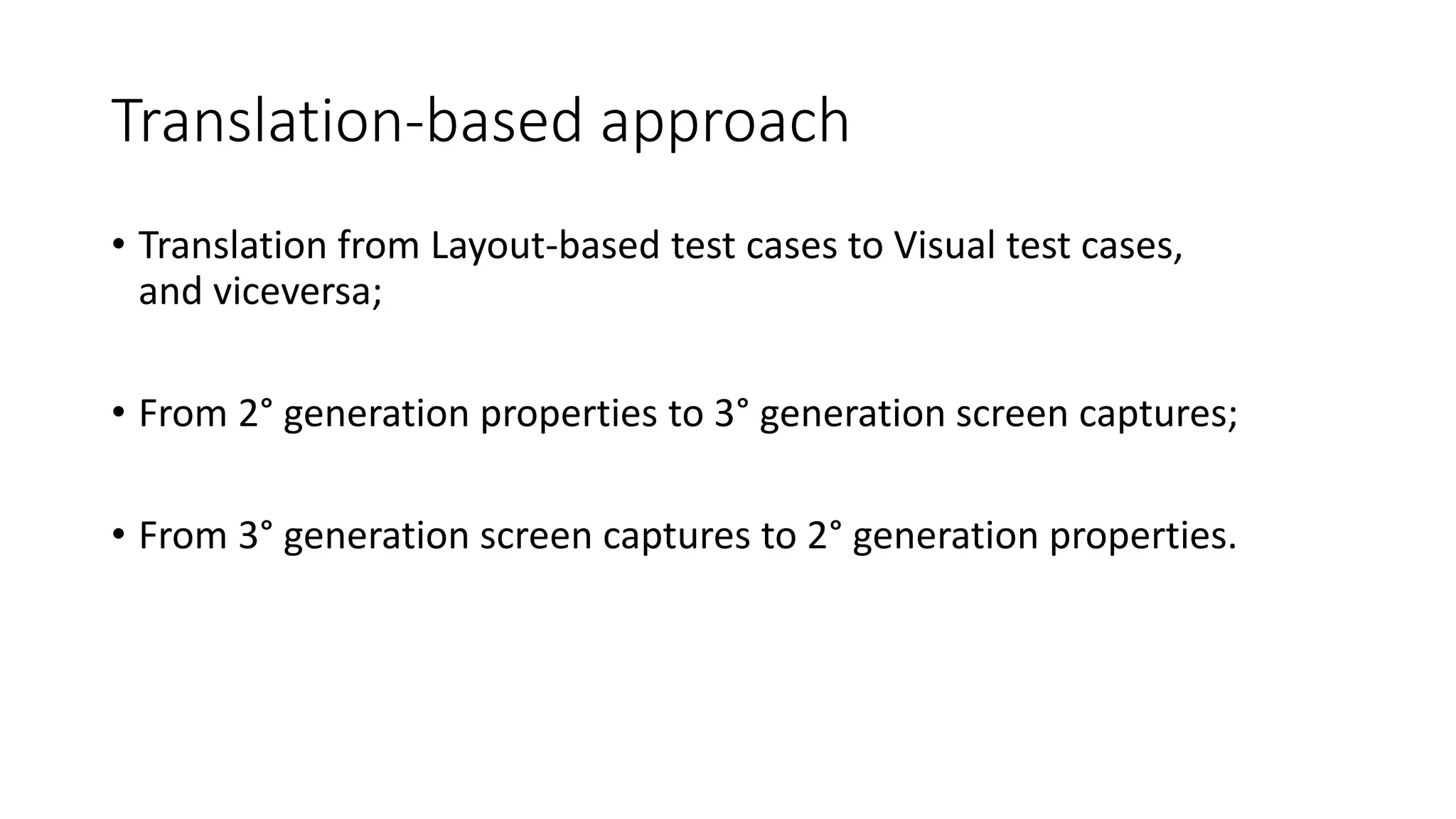

- 46. Translation-based approach • Translationfrom Layout-based test cases to Visual test cases, and viceversa; • From 2° generation properties to 3° generation screen captures; • From 3° generation screen captures to 2° generation properties.

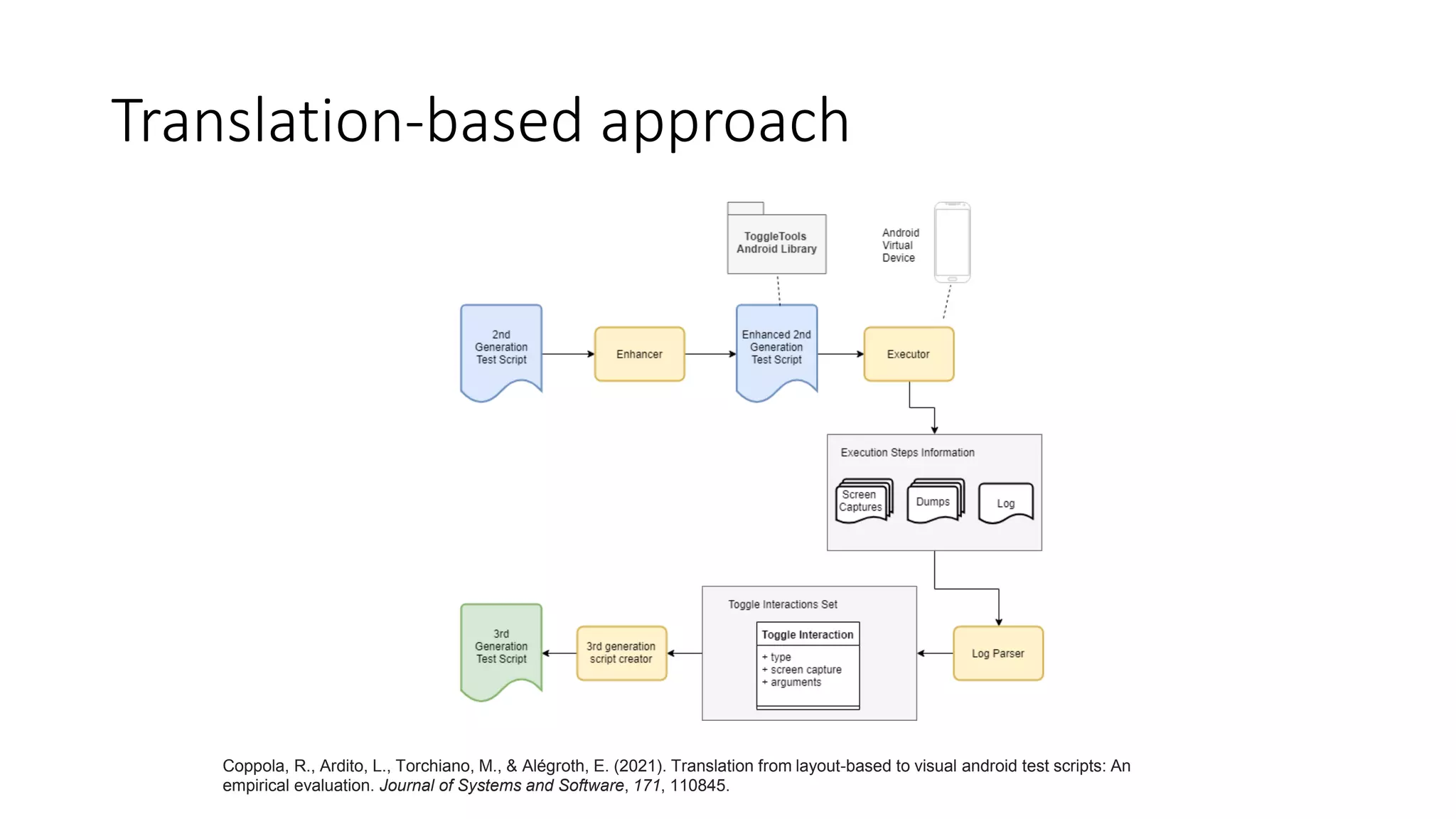

- 47. Translation-based approach Coppola, R.,Ardito, L., Torchiano, M., & Alégroth, E. (2021). Translation from layout-based to visual android test scripts: An empirical evaluation. Journal of Systems and Software, 171, 110845.

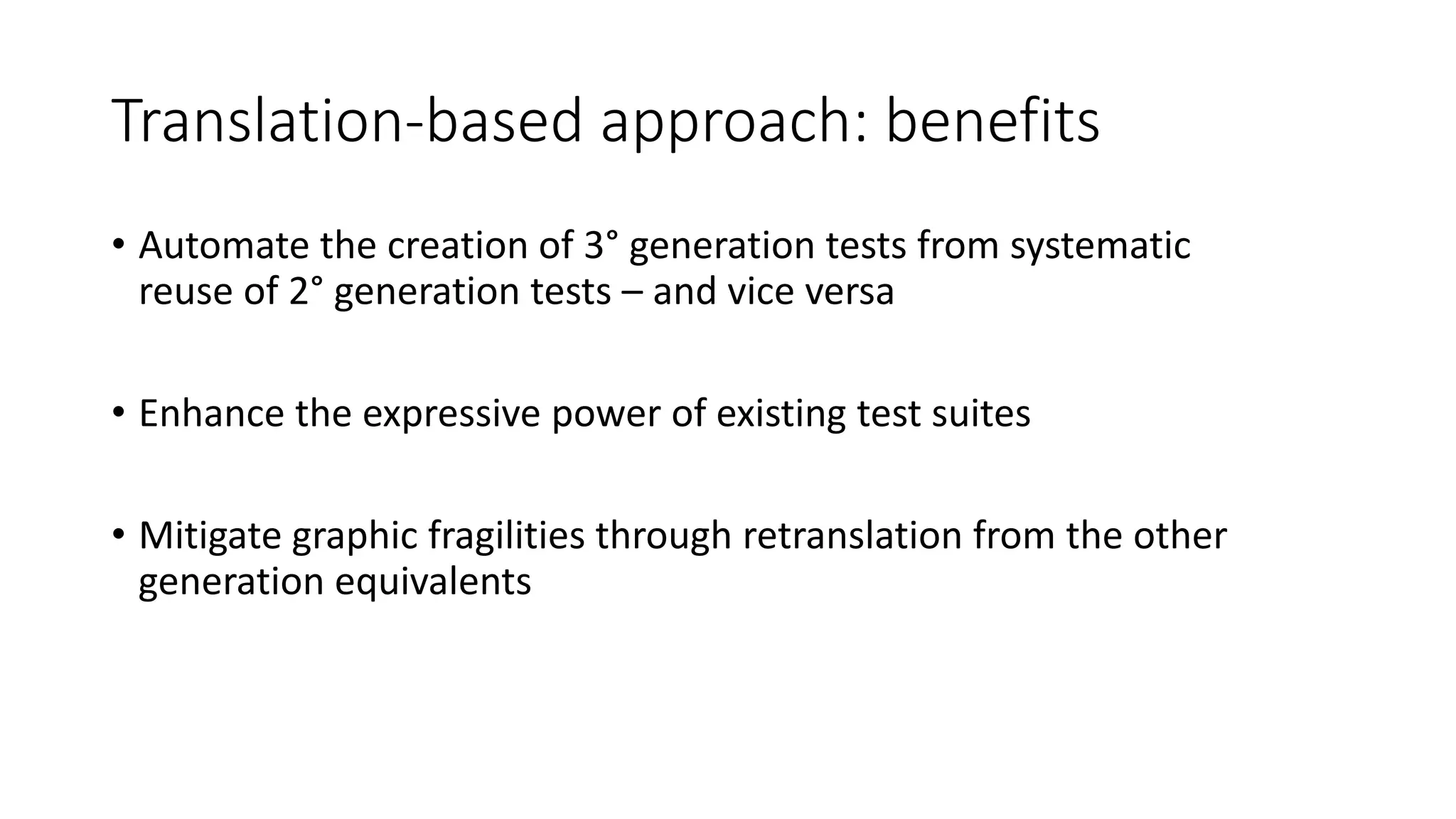

- 48. Translation-based approach: benefits •Automate the creation of 3° generation tests from systematic reuse of 2° generation tests – and vice versa • Enhance the expressive power of existing test suites • Mitigate graphic fragilities through retranslation from the other generation equivalents
- 49.
- 50.

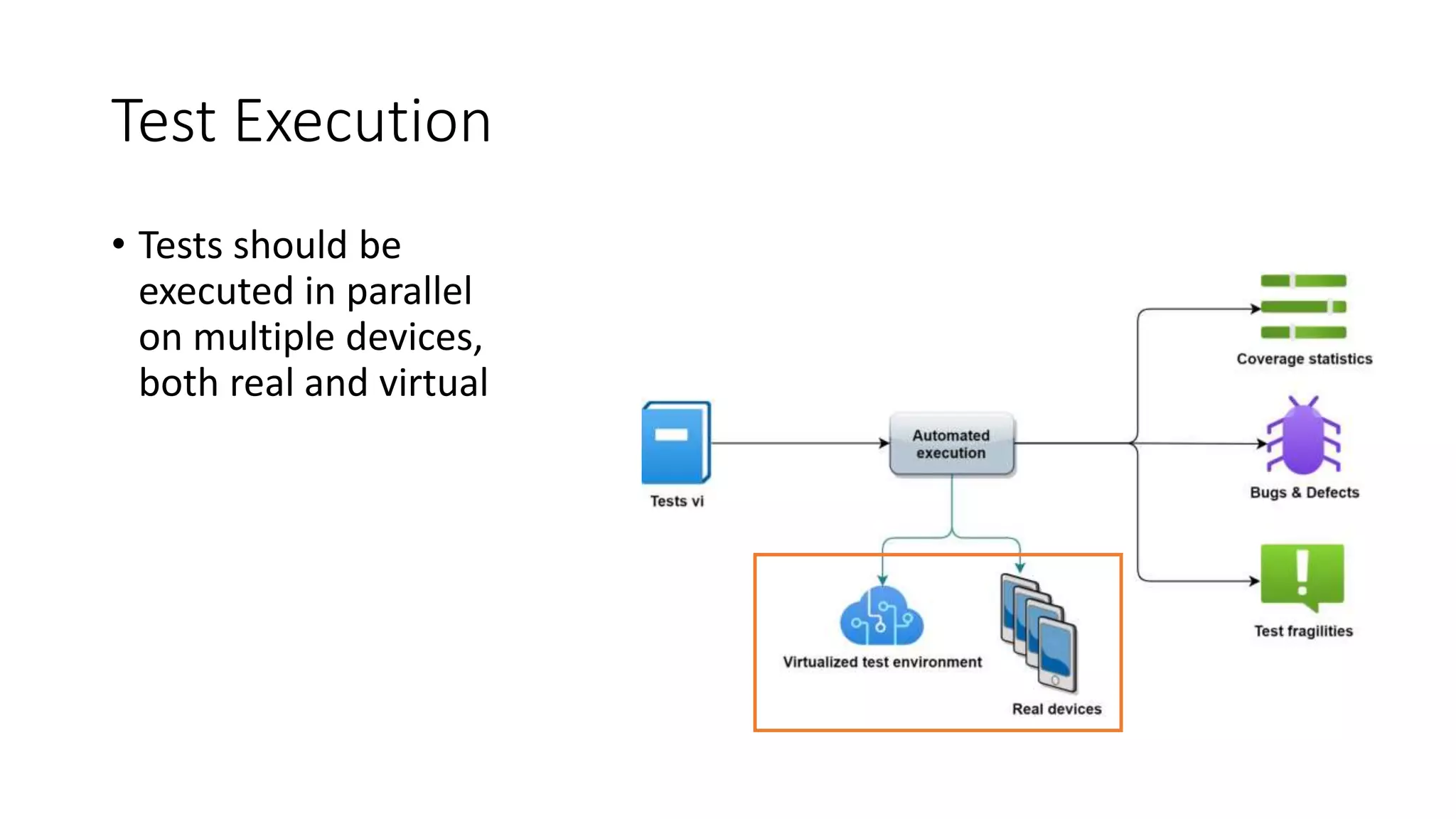

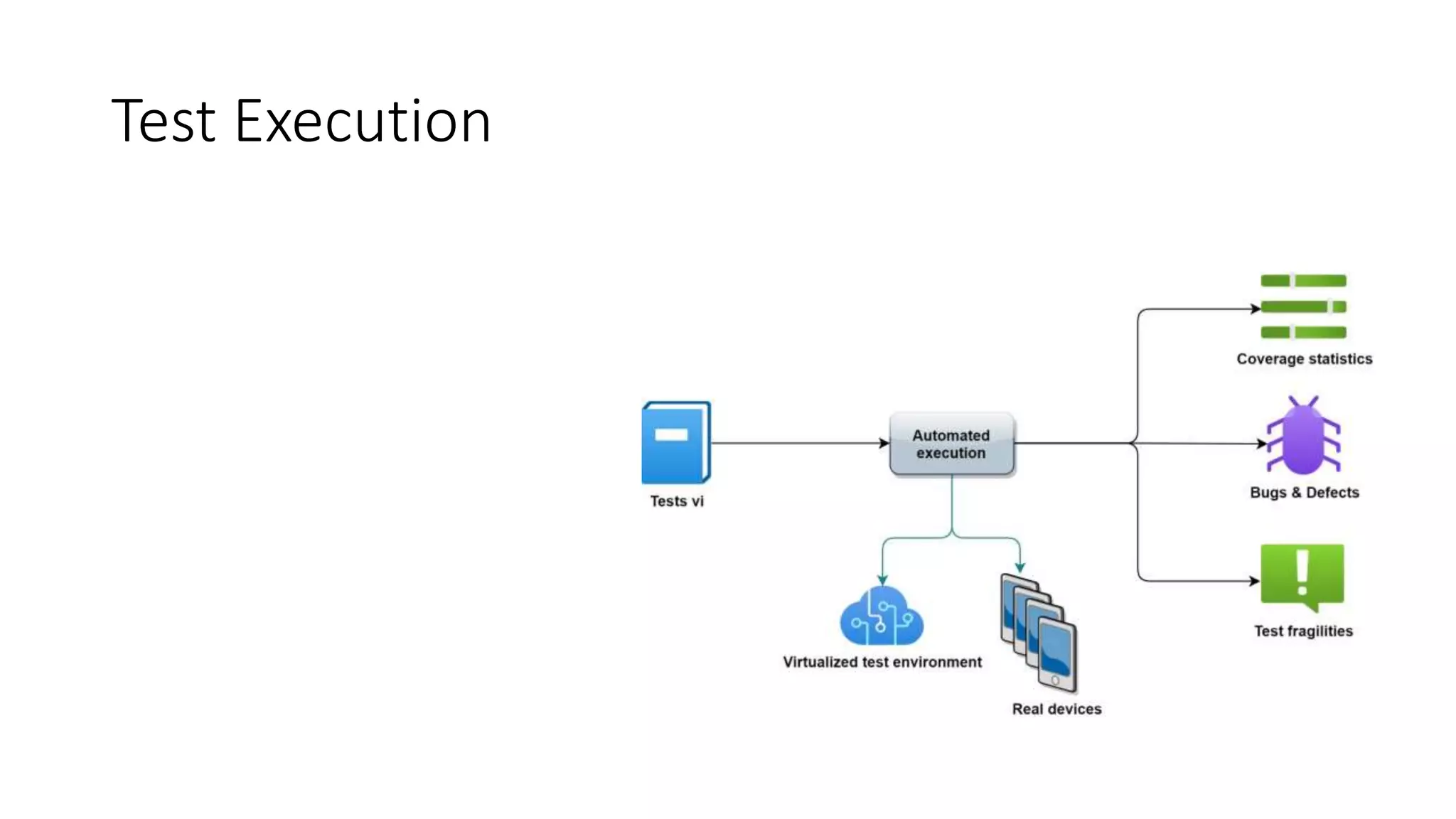

- 51. Test Execution • Testsshould be executed in parallel on multiple devices, both real and virtual

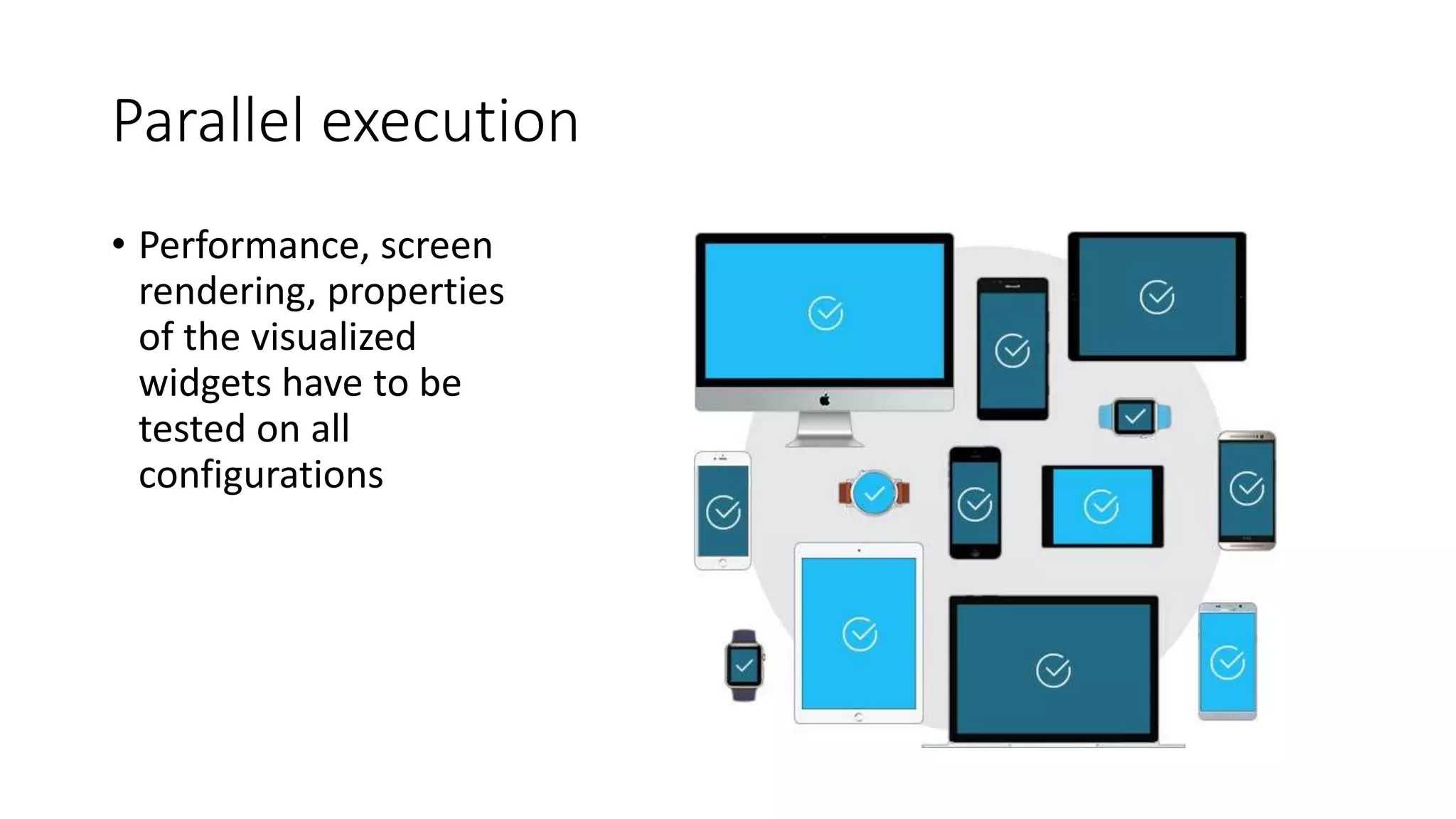

- 52. Parallel execution • Performance,screen rendering, properties of the visualized widgets have to be tested on all configurations

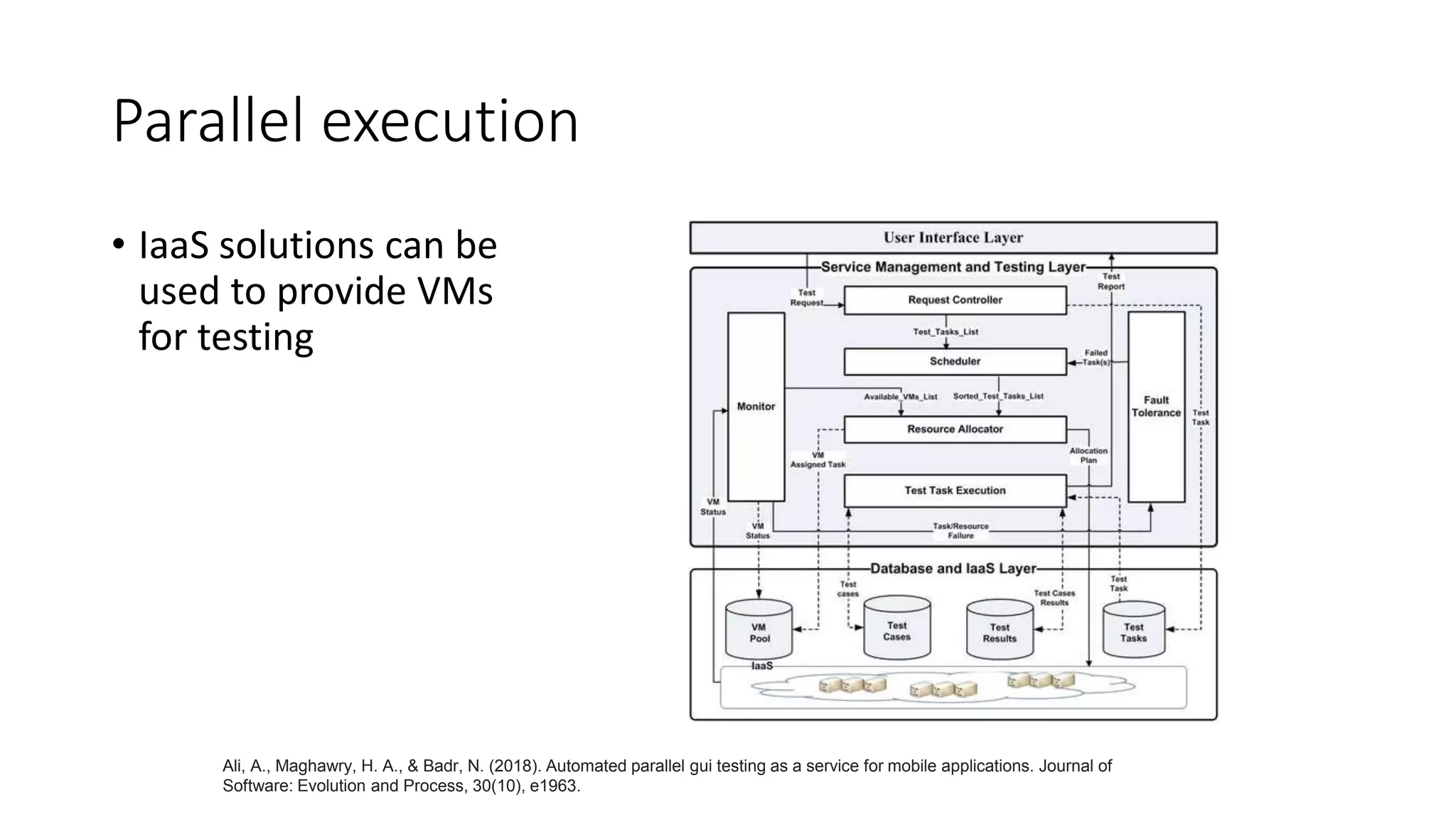

- 53. Parallel execution • IaaSsolutions can be used to provide VMs for testing Ali, A., Maghawry, H. A., & Badr, N. (2018). Automated parallel gui testing as a service for mobile applications. Journal of Software: Evolution and Process, 30(10), e1963.

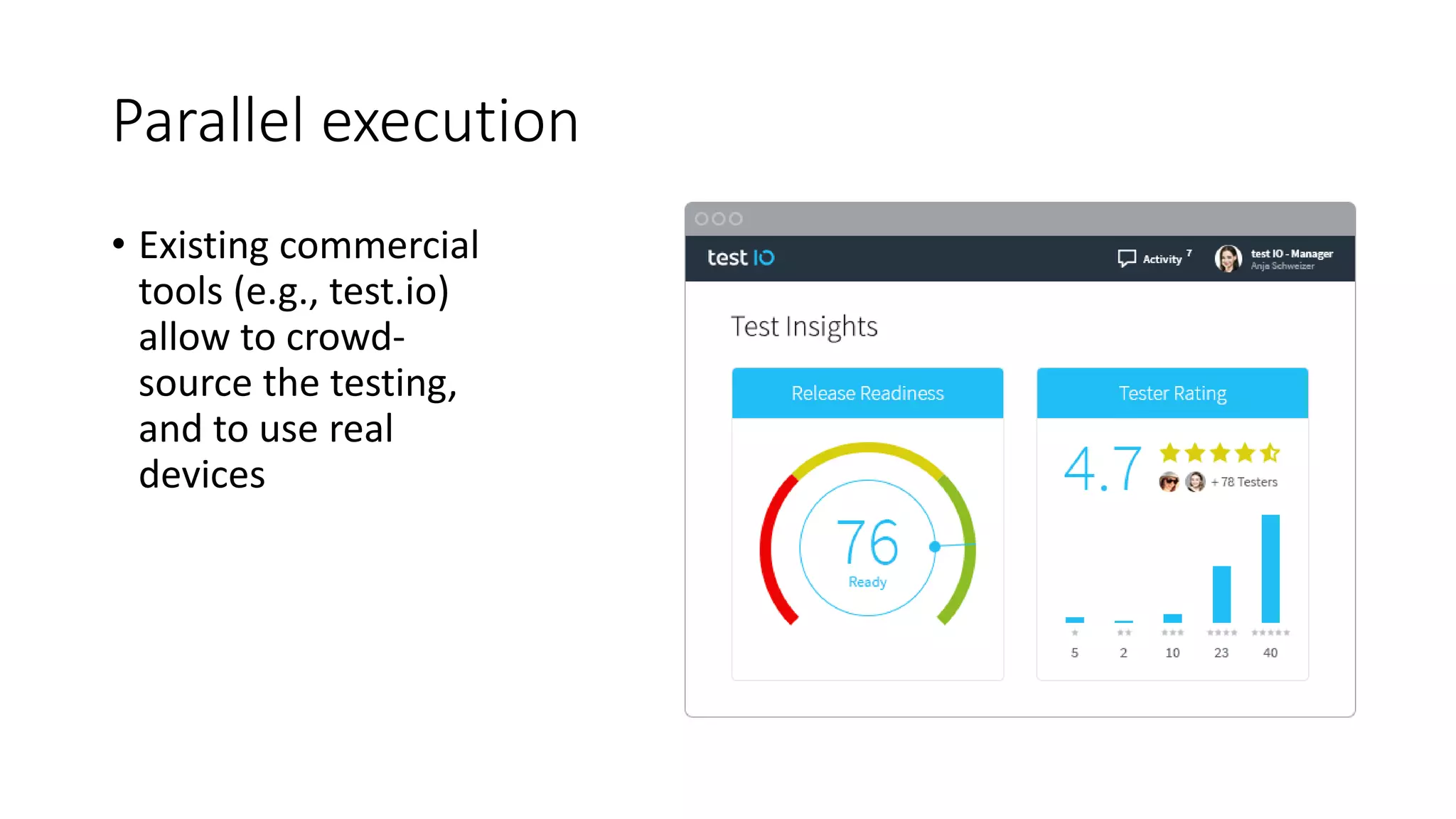

- 54. Parallel execution • Existingcommercial tools (e.g., test.io) allow to crowd- source the testing, and to use real devices

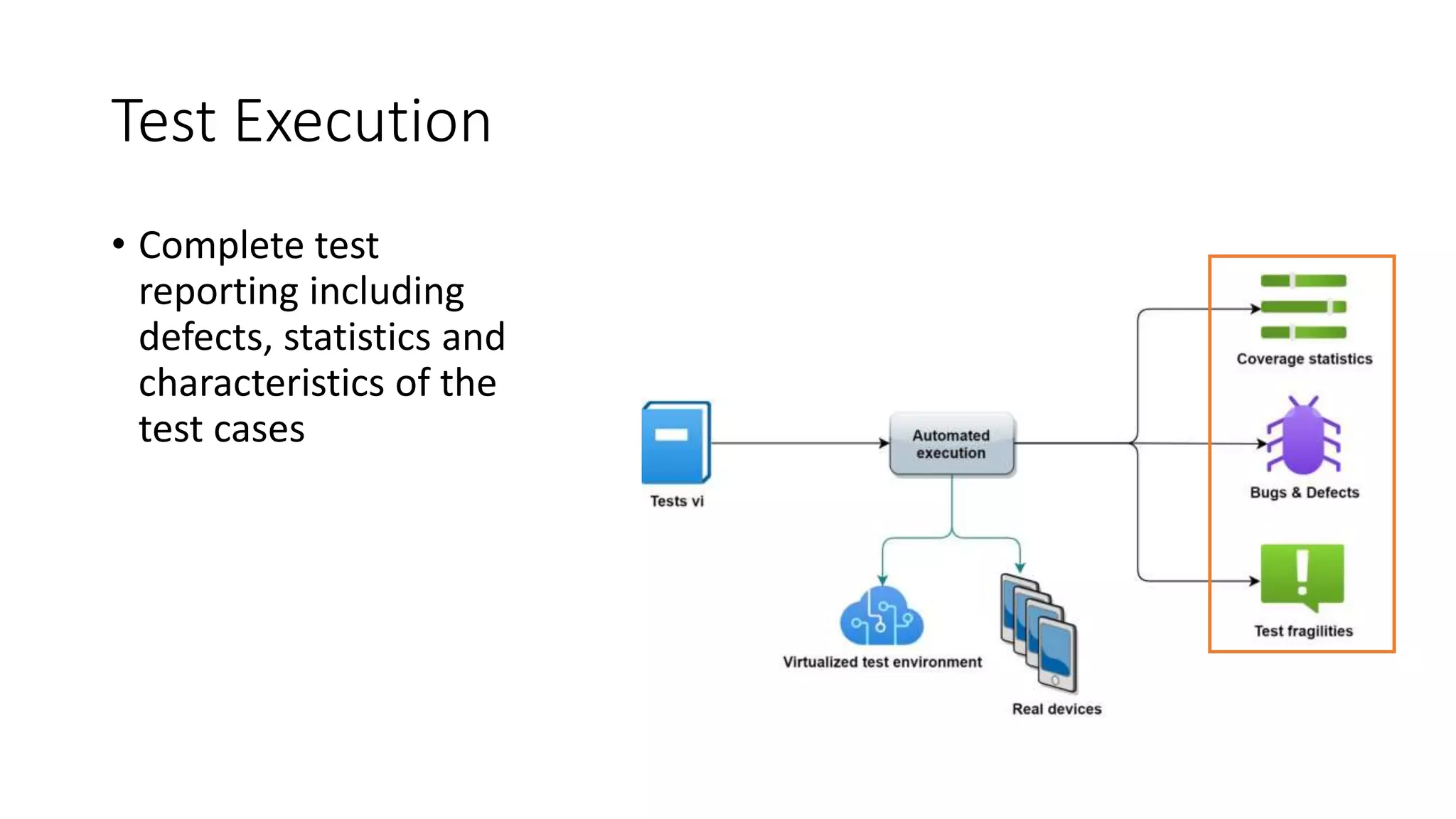

- 55. Test Execution • Completetest reporting including defects, statistics and characteristics of the test cases

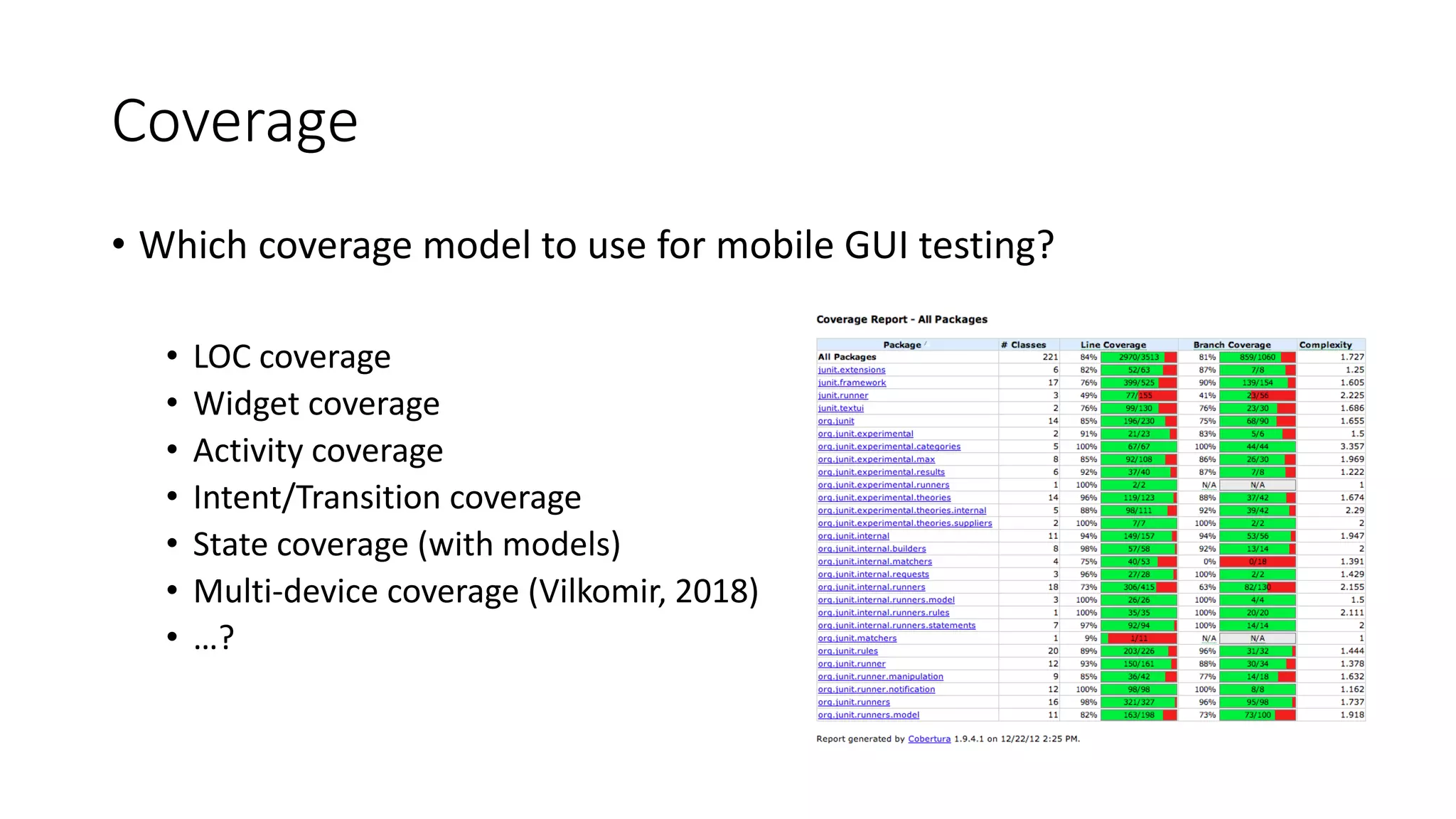

- 56. Coverage • Which coveragemodel to use for mobile GUI testing? • LOC coverage • Widget coverage • Activity coverage • Intent/Transition coverage • State coverage (with models) • Multi-device coverage (Vilkomir, 2018) • …?
- 57. Fragility metrics • Empiricalstudy: modification history of Junit (unit) and Espresso (GUI) tests for a popular open-source Android SUT Coppola, R., Morisio, M., Torchiano, M., & Ardito, L. (2019). Scripted GUI testing of Android open-source apps: evolution of test code and fragility causes. Empirical Software Engineering, 24(5), 3205-3248.

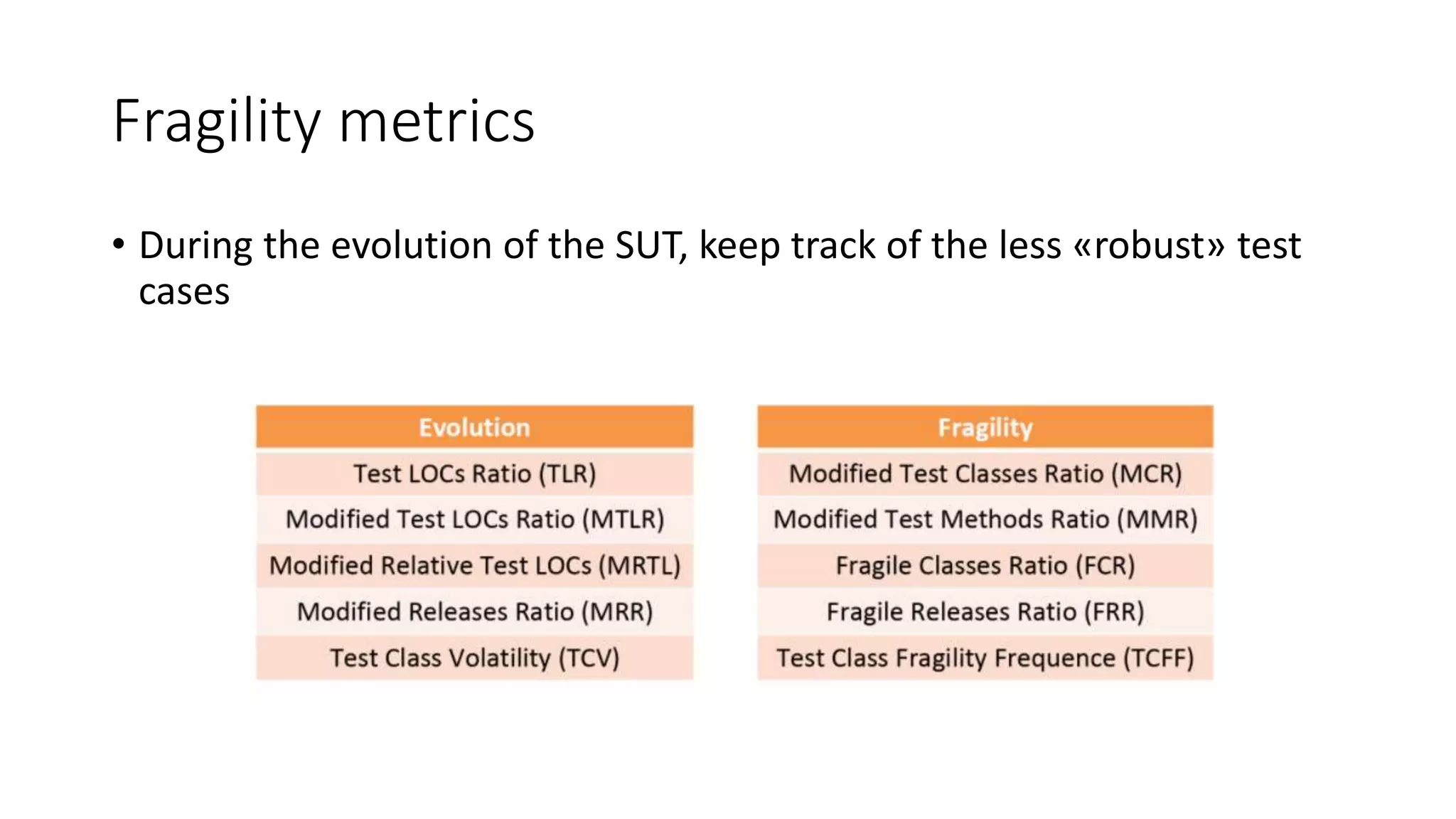

- 58. Fragility metrics • Duringthe evolution of the SUT, keep track of the less «robust» test cases

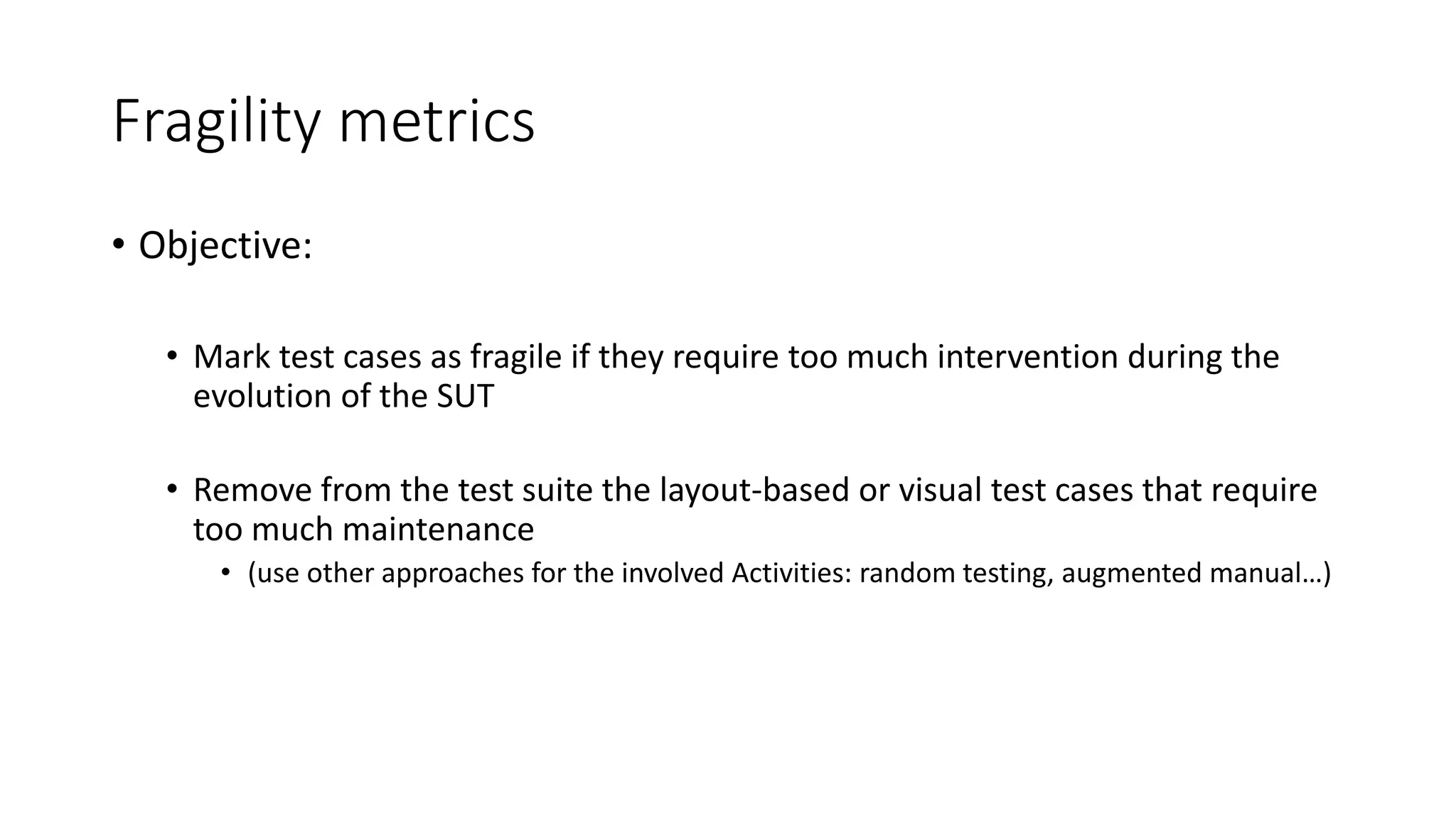

- 59. Fragility metrics • Objective: •Mark test cases as fragile if they require too much intervention during the evolution of the SUT • Remove from the test suite the layout-based or visual test cases that require too much maintenance • (use other approaches for the involved Activities: random testing, augmented manual…)
- 60.

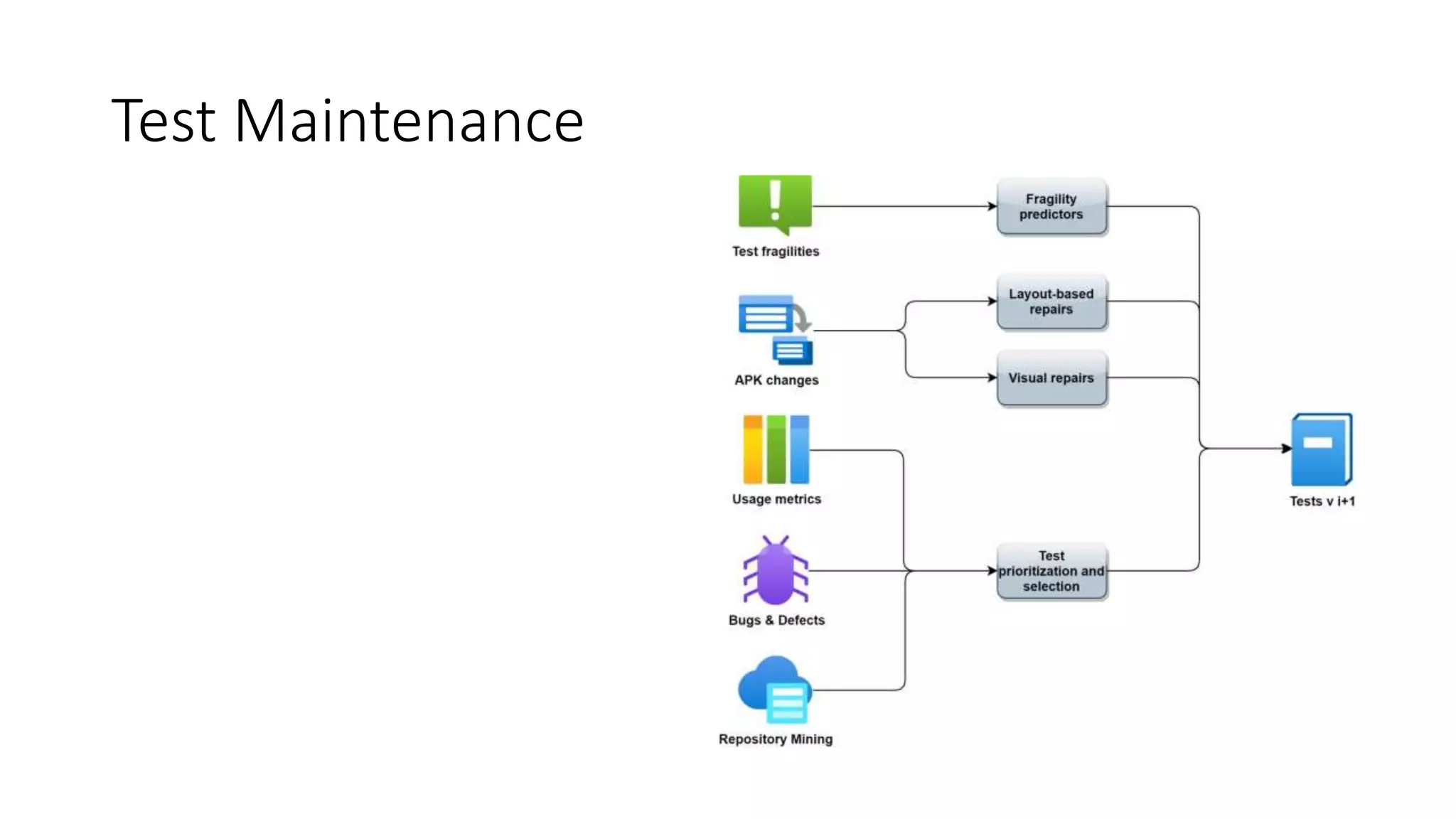

- 61.

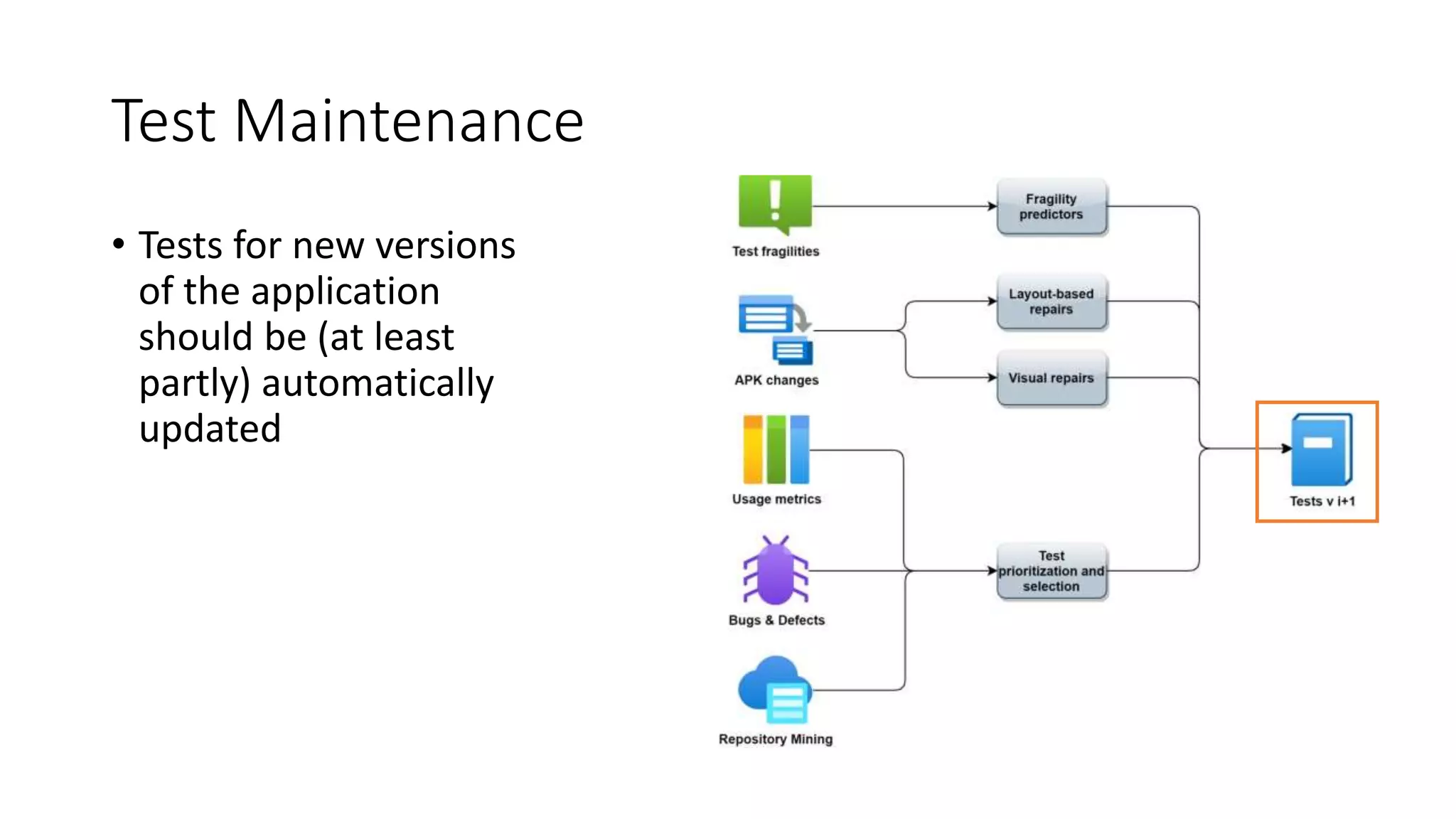

- 62. Test Maintenance • Testsfor new versions of the application should be (at least partly) automatically updated

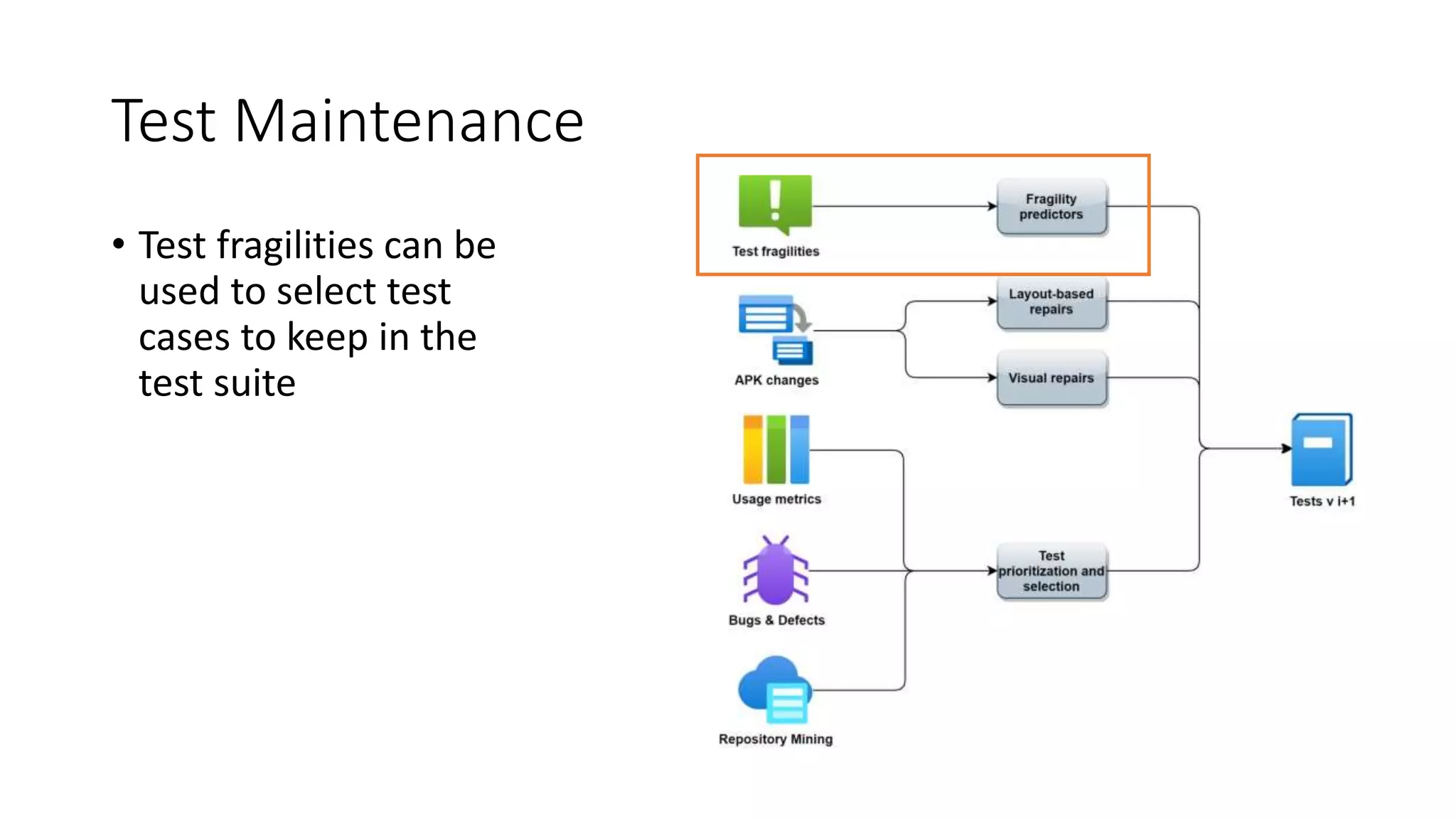

- 63. Test Maintenance • Testfragilities can be used to select test cases to keep in the test suite

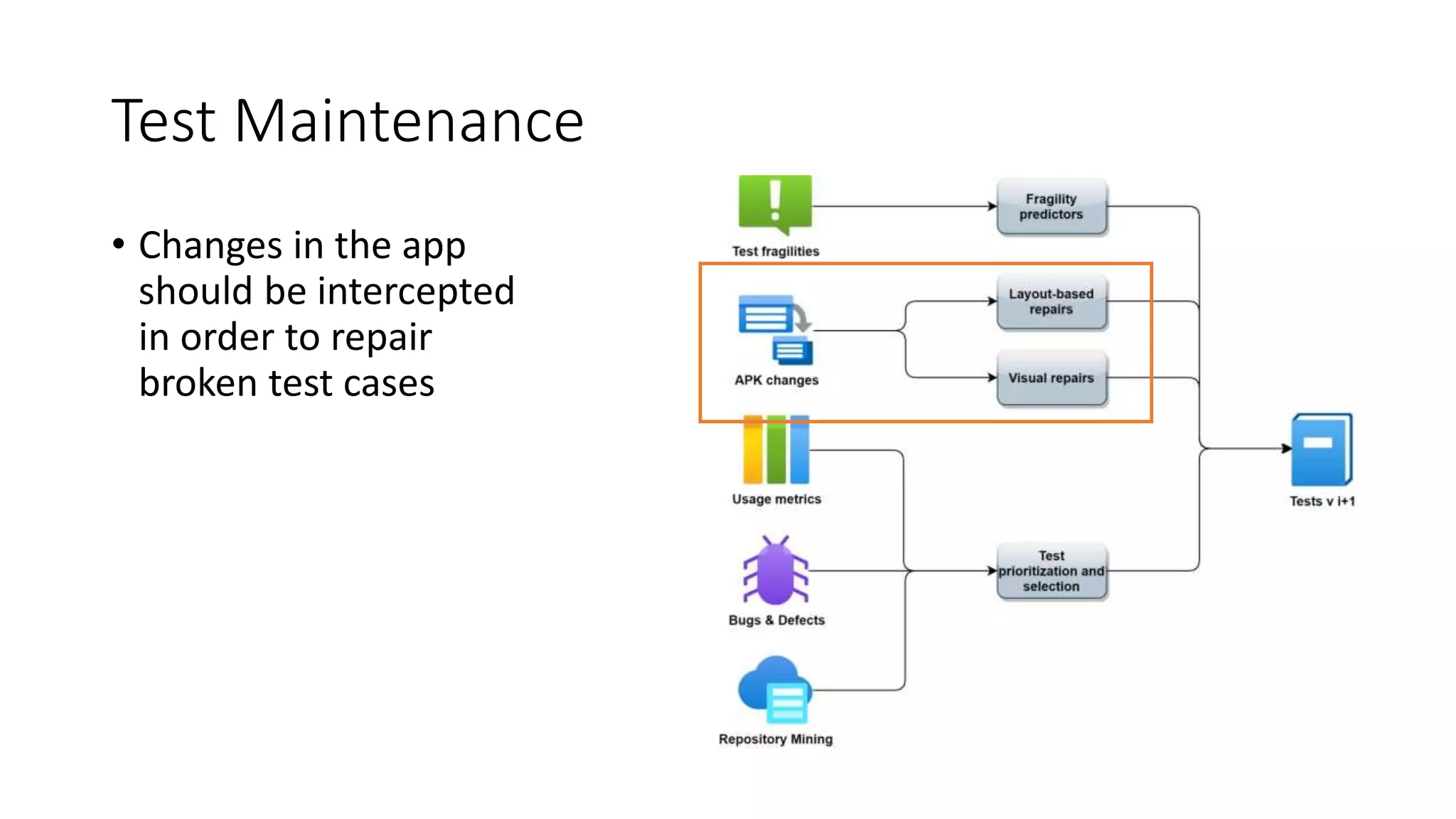

- 64. Test Maintenance • Changesin the app should be intercepted in order to repair broken test cases

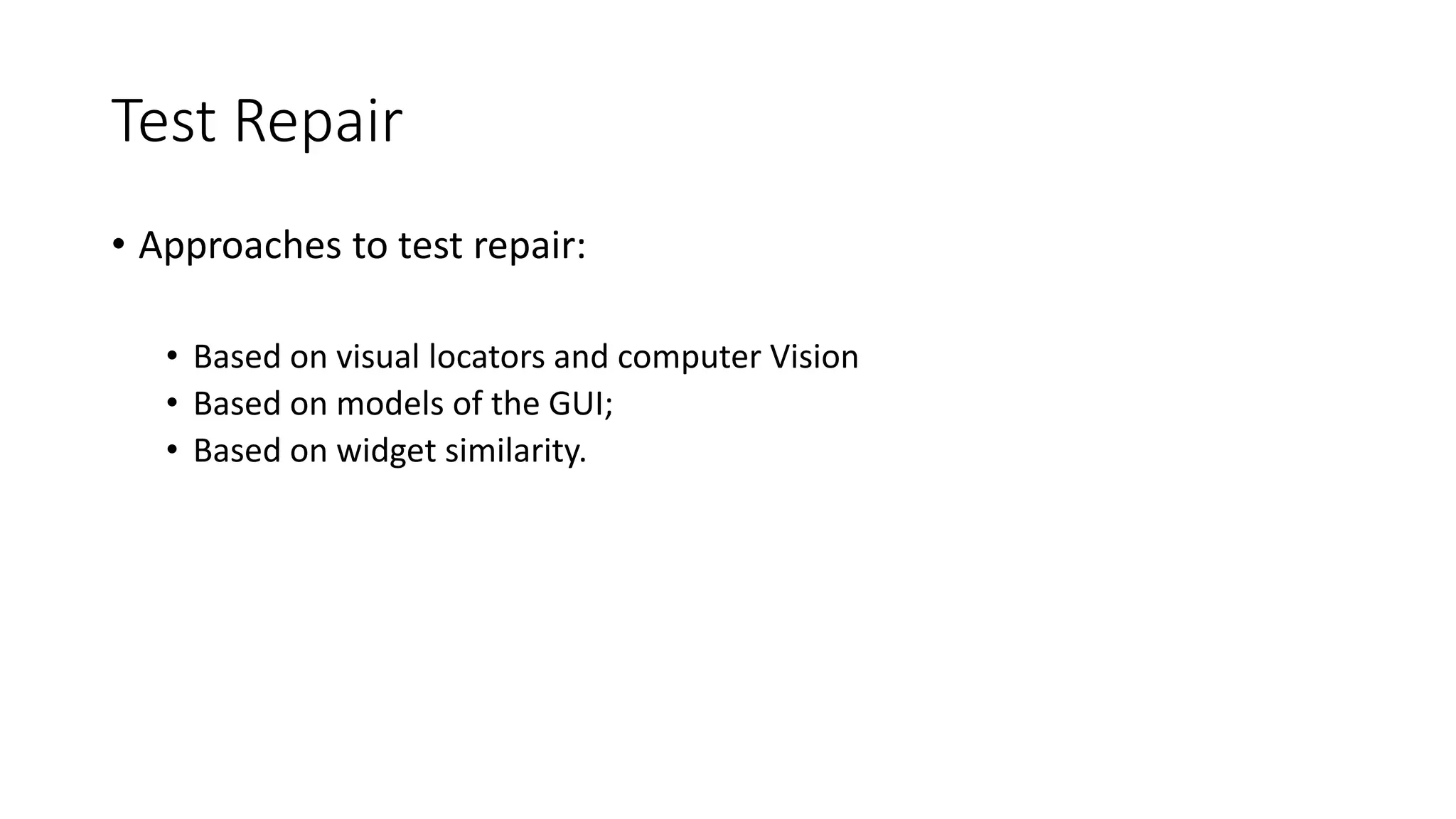

- 65. Test Repair • Approachesto test repair: • Based on visual locators and computer Vision • Based on models of the GUI; • Based on widget similarity.

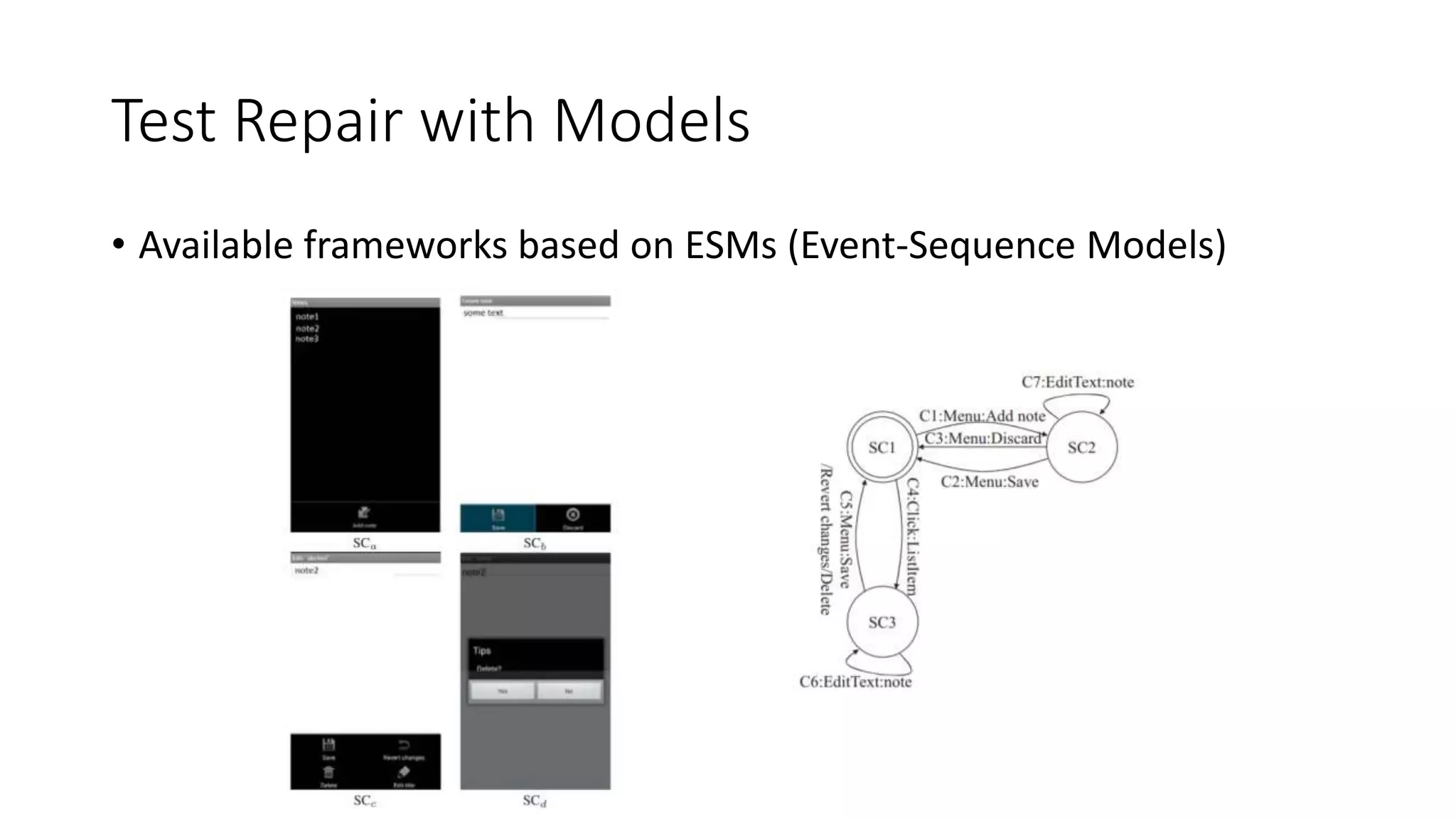

- 66. Test Repair withModels • Available frameworks based on ESMs (Event-Sequence Models)

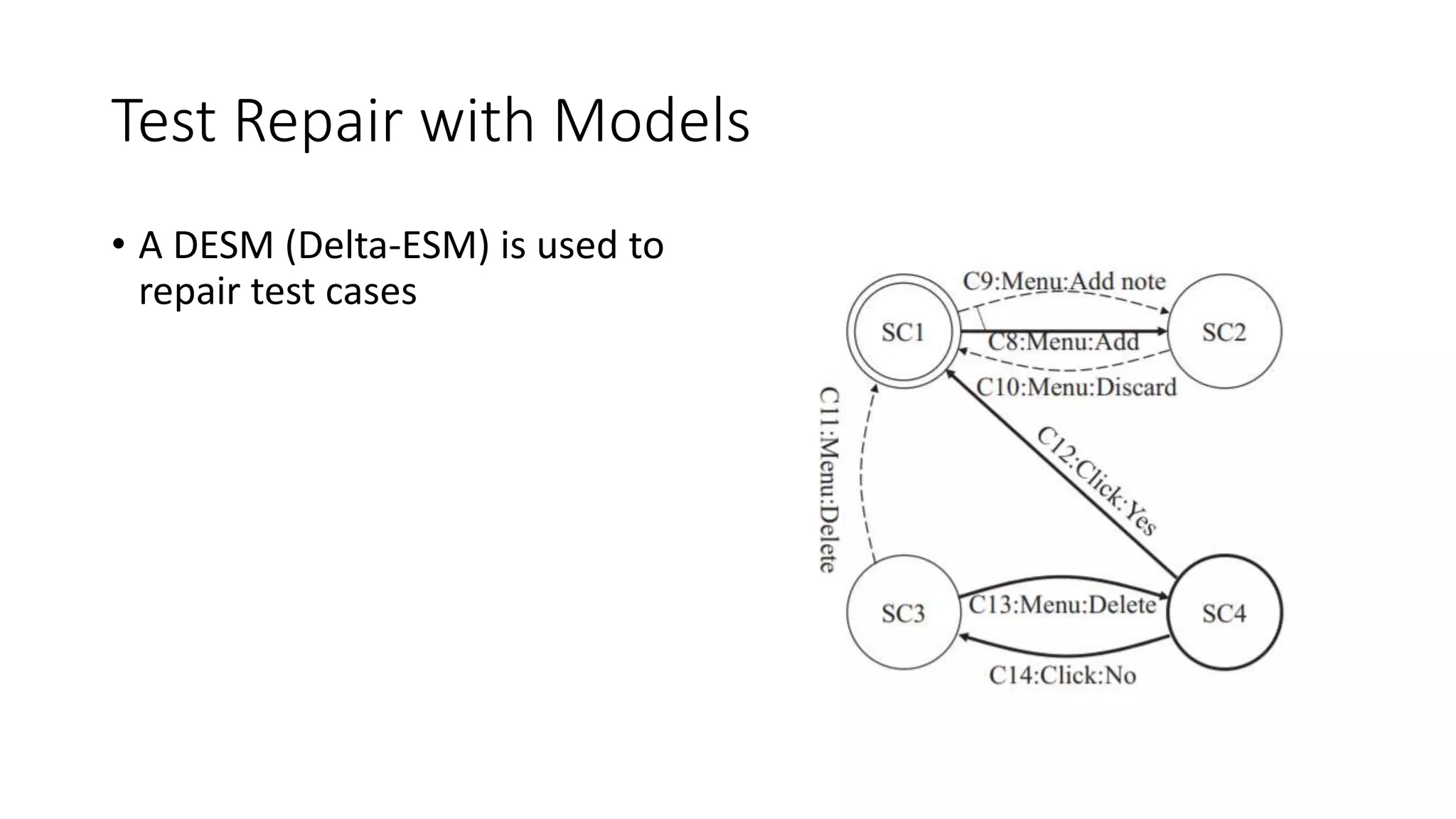

- 67. Test Repair withModels • A DESM (Delta-ESM) is used to repair test cases

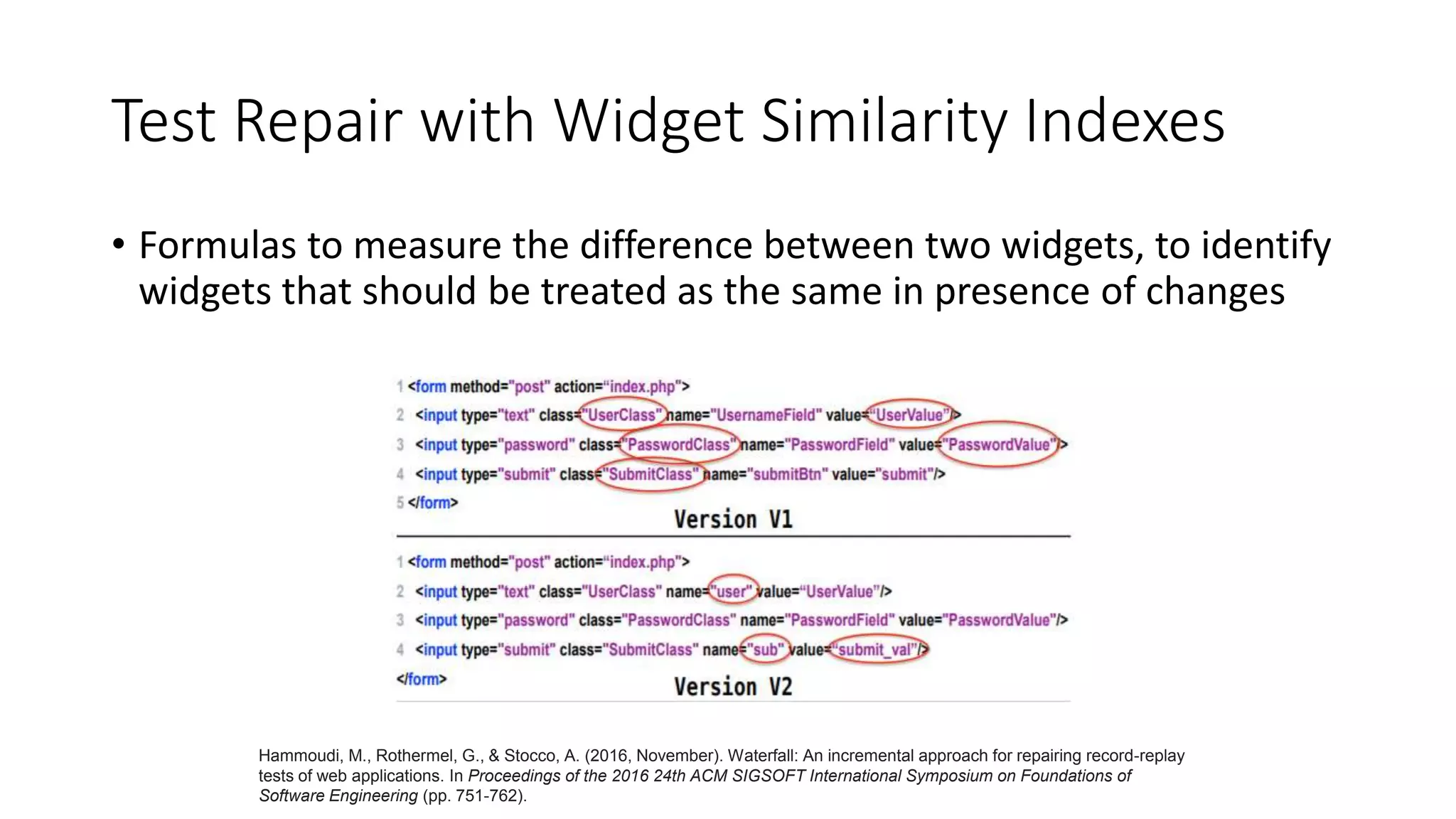

- 68. Test Repair withWidget Similarity Indexes • Formulas to measure the difference between two widgets, to identify widgets that should be treated as the same in presence of changes Hammoudi, M., Rothermel, G., & Stocco, A. (2016, November). Waterfall: An incremental approach for repairing record-replay tests of web applications. In Proceedings of the 2016 24th ACM SIGSOFT International Symposium on Foundations of Software Engineering (pp. 751-762).

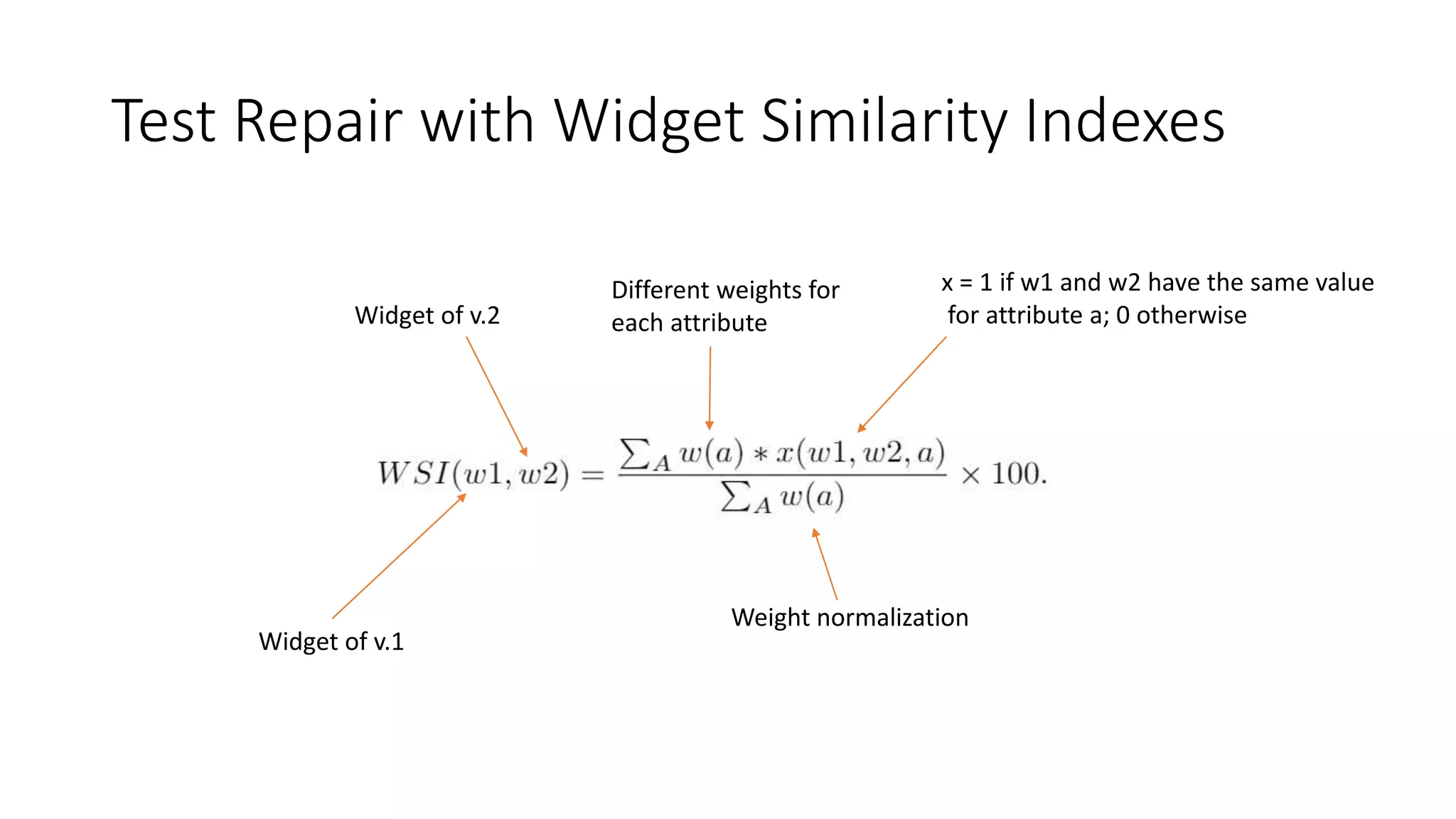

- 69. Test Repair withWidget Similarity Indexes Widget of v.1 Widget of v.2 x = 1 if w1 and w2 have the same value for attribute a; 0 otherwise Different weights for each attribute Weight normalization

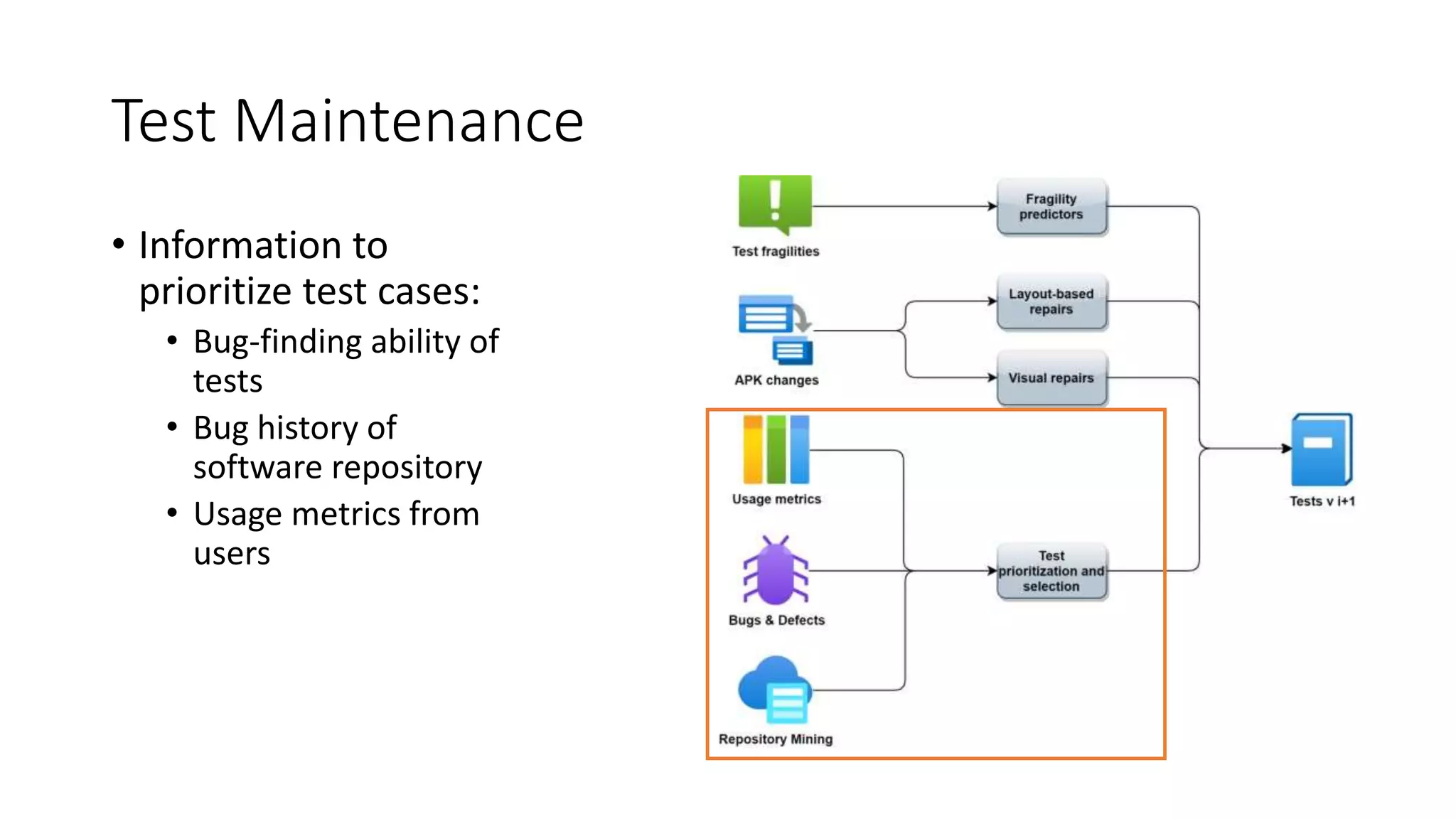

- 70. Test Maintenance • Informationto prioritize test cases: • Bug-finding ability of tests • Bug history of software repository • Usage metrics from users

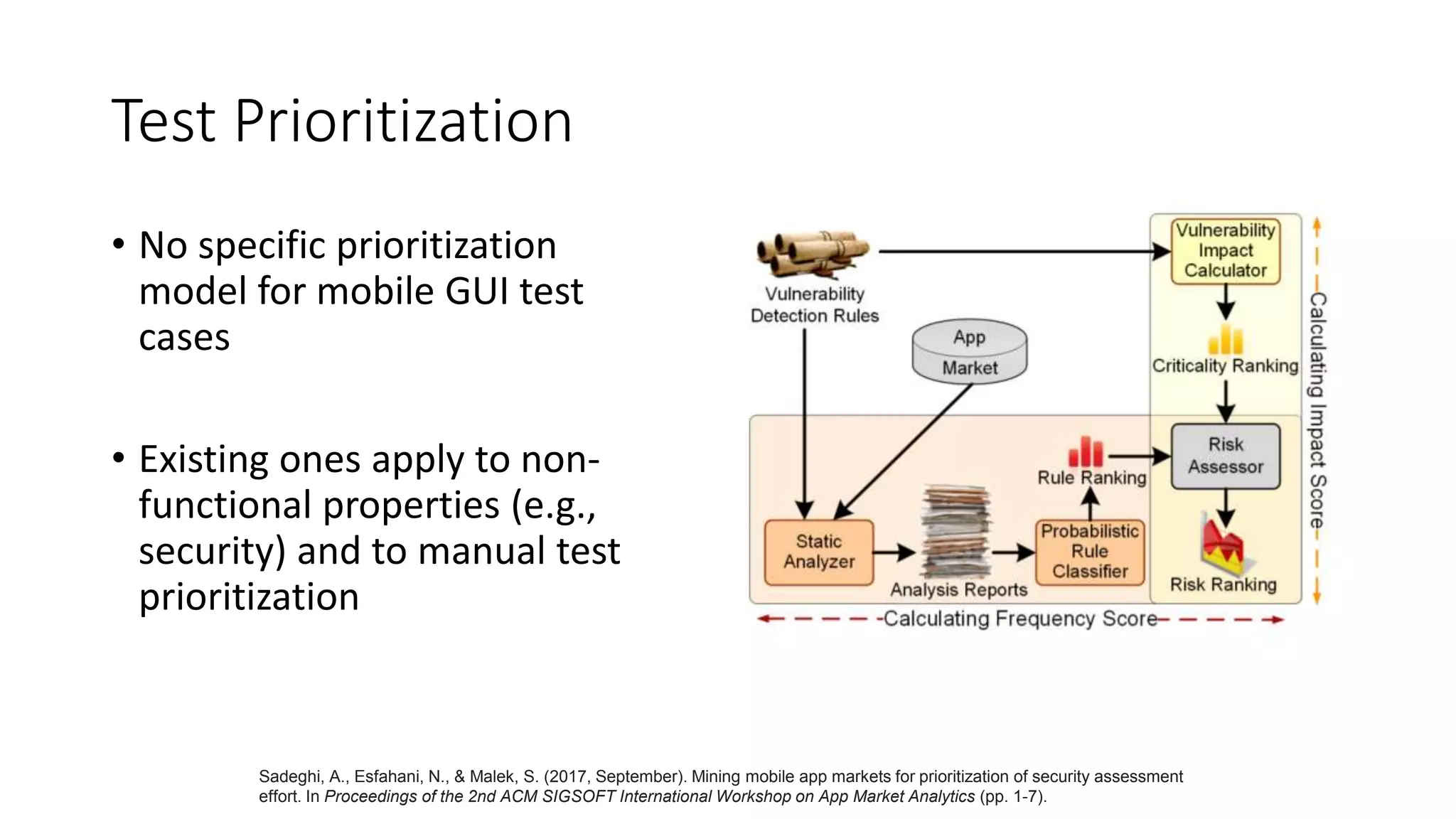

- 71. Test Prioritization • Nospecific prioritization model for mobile GUI test cases • Existing ones apply to non- functional properties (e.g., security) and to manual test prioritization Sadeghi, A., Esfahani, N., & Malek, S. (2017, September). Mining mobile app markets for prioritization of security assessment effort. In Proceedings of the 2nd ACM SIGSOFT International Workshop on App Market Analytics (pp. 1-7).
- 72.

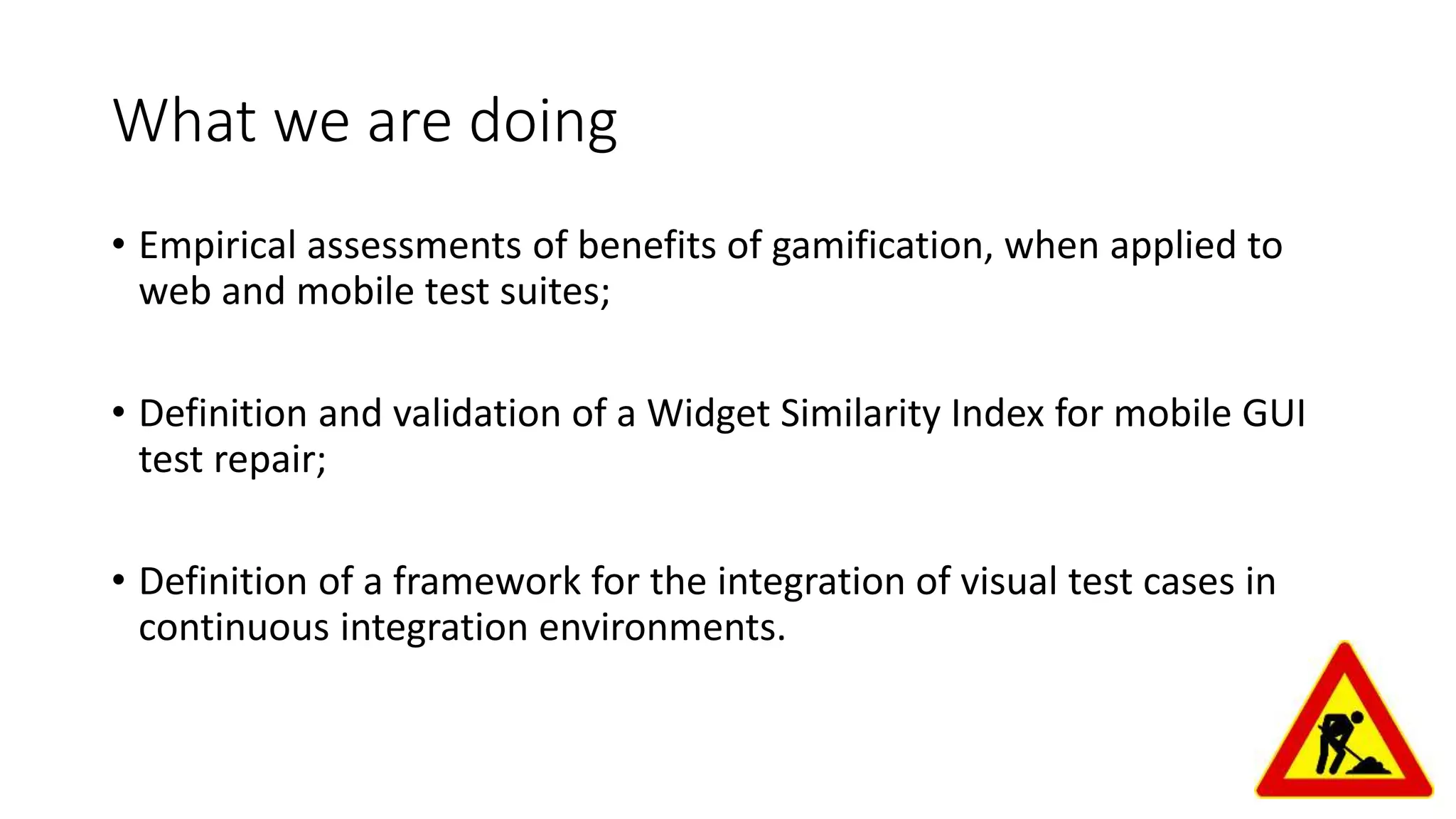

- 73. What we aredoing • Empirical assessments of benefits of gamification, when applied to web and mobile test suites; • Definition and validation of a Widget Similarity Index for mobile GUI test repair; • Definition of a framework for the integration of visual test cases in continuous integration environments.

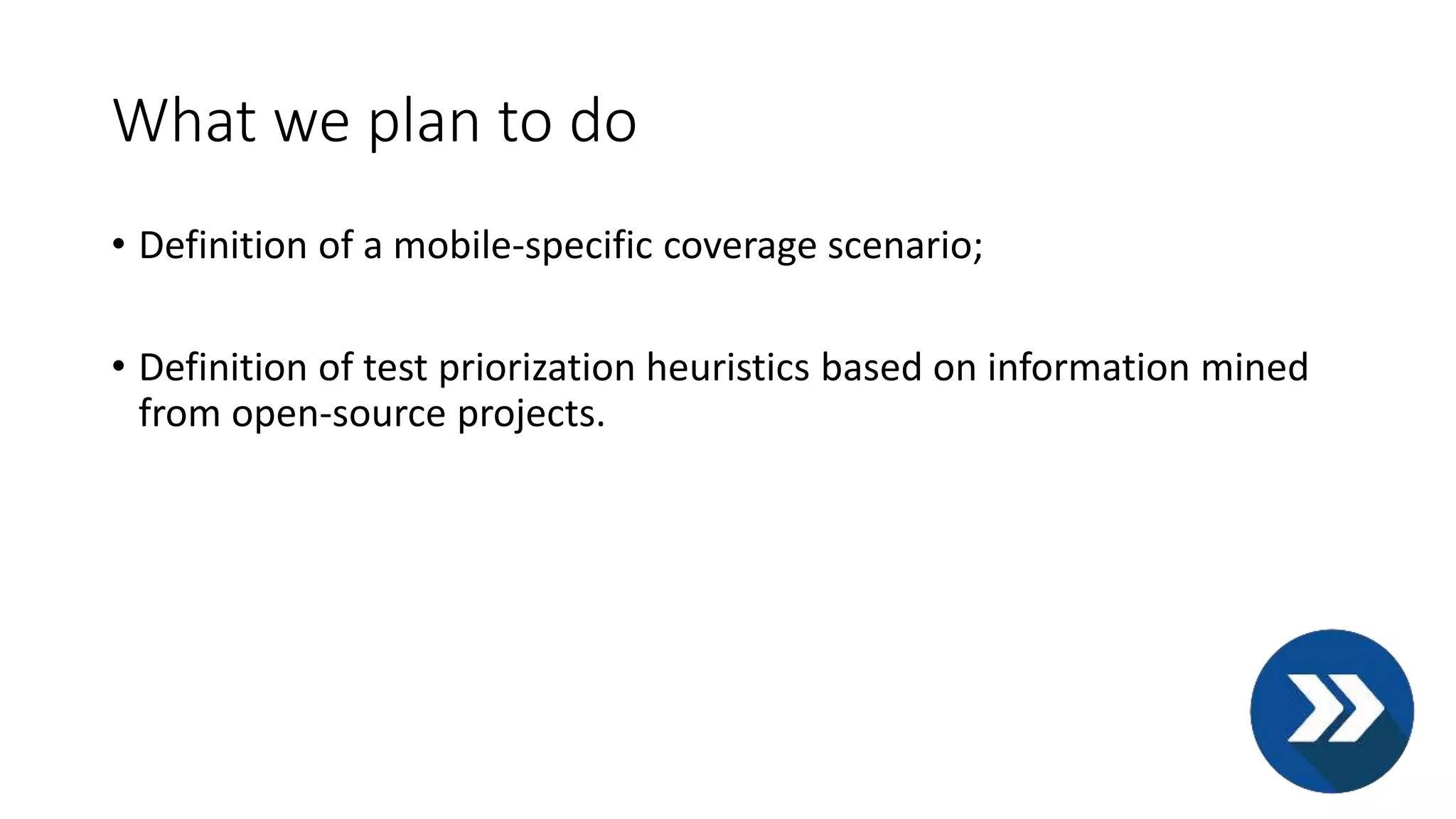

- 74. What we planto do • Definition of a mobile-specific coverage scenario; • Definition of test priorization heuristics based on information mined from open-source projects.
- 75. Thank you Contact: riccardo.coppola@polito.it @CardoCoppola http://softeng.polito.itlinkedin.com/in/riccardo-coppola/
