Auto Encoders
1
In the name of God
Mehrnaz Faraz
Faculty of Electrical Engineering
K. N. Toosi University of Technology
Milad Abbasi
Faculty of Electrical Engineering
Sharif University of Technology

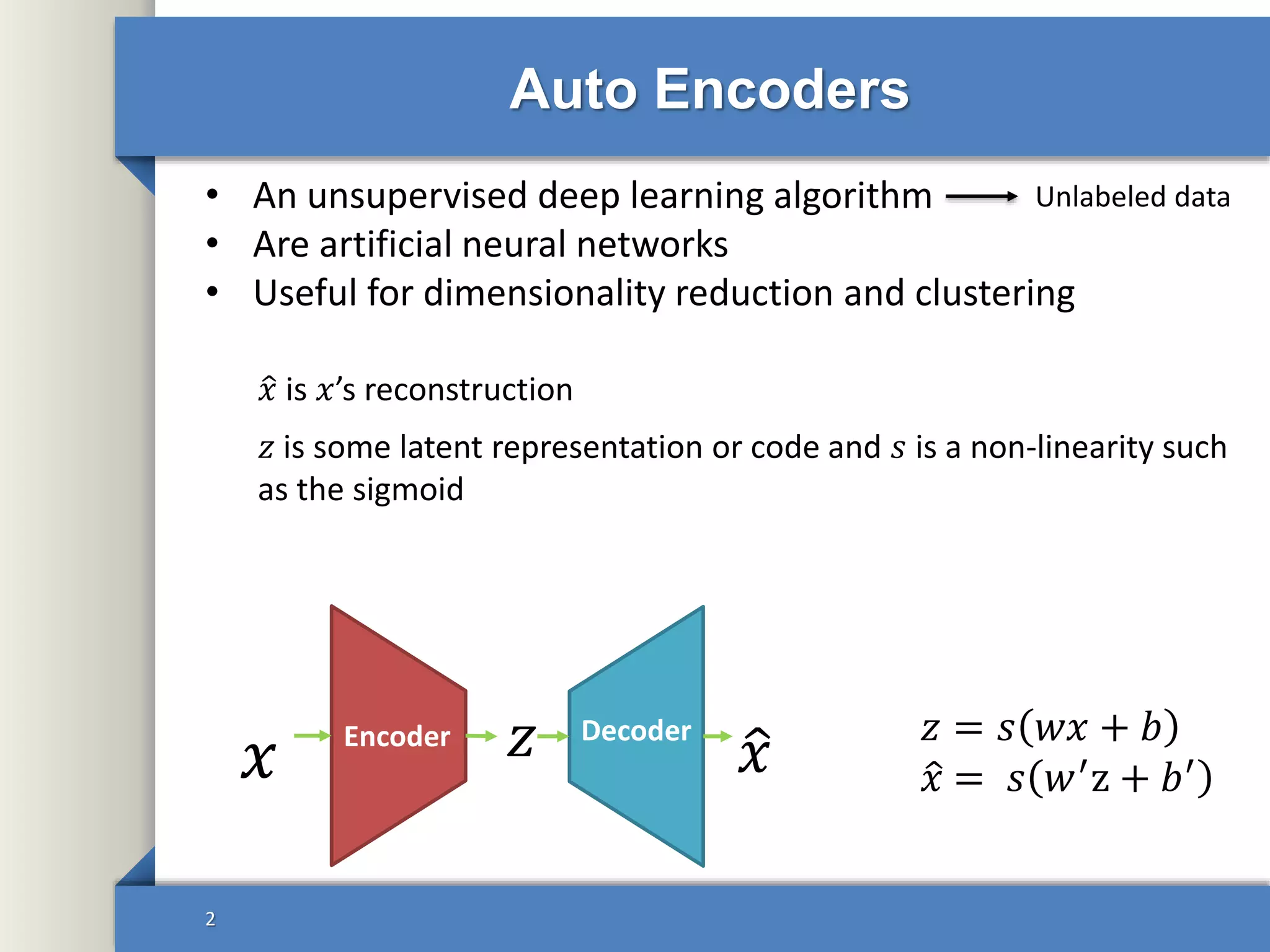

Auto Encoders
2
• An unsupervised deep learning algorithm
• Are artificial neural networks
• Useful for dimensionality reduction and clustering
Unlabeled data
𝑧 = 𝑠 𝑤𝑥 + 𝑏
𝑥 = 𝑠 𝑤′
z + 𝑏′
𝑥 is 𝑥’s reconstruction
𝑧 is some latent representation or code and 𝑠 is a non-linearity such
as the sigmoid
𝑧 𝑥
𝑥 Encoder Decoder

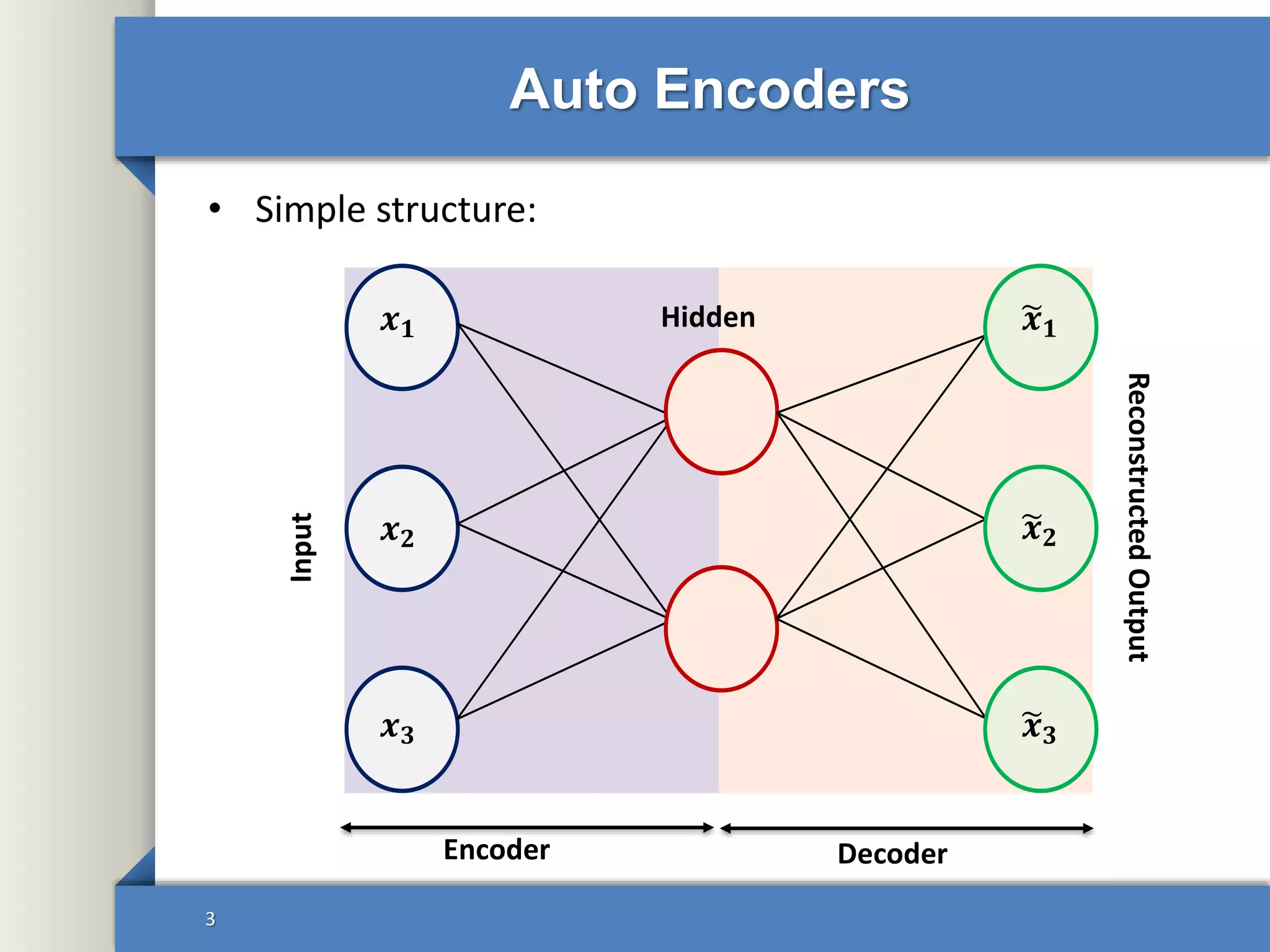

Auto Encoders
• Simple structure:
3
𝒙𝟏
𝒙𝟑
𝒙𝟐
𝒙𝟏
𝒙𝟑
𝒙𝟐
Input
Reconstructed
Output
Hidden
Encoder Decoder

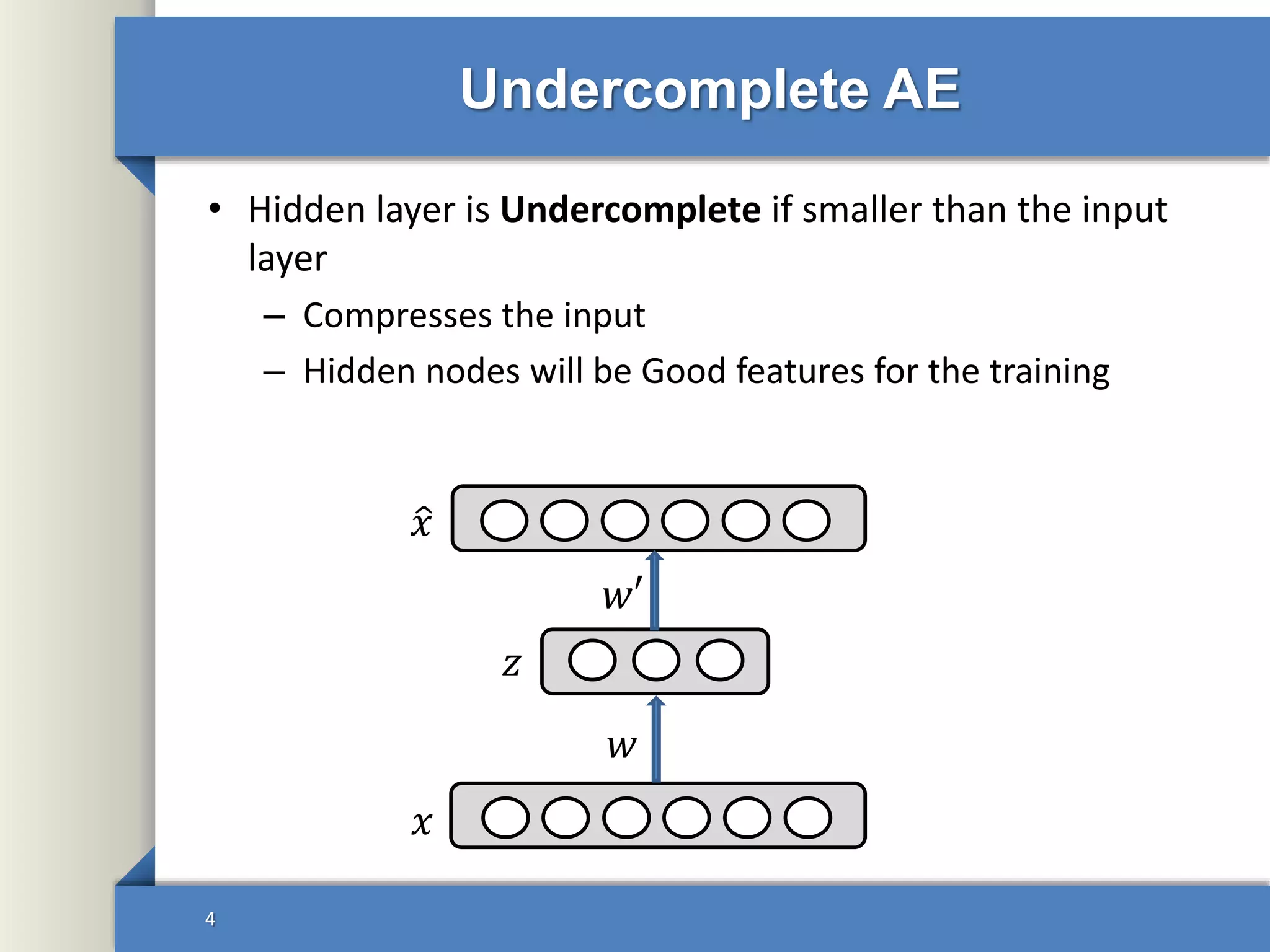

Undercomplete AE
• Hidden layer is Undercomplete if smaller than the input
layer
– Compresses the input
– Hidden nodes will be Good features for the training
4
𝑥
𝑥
𝑤
𝑤′
𝑧

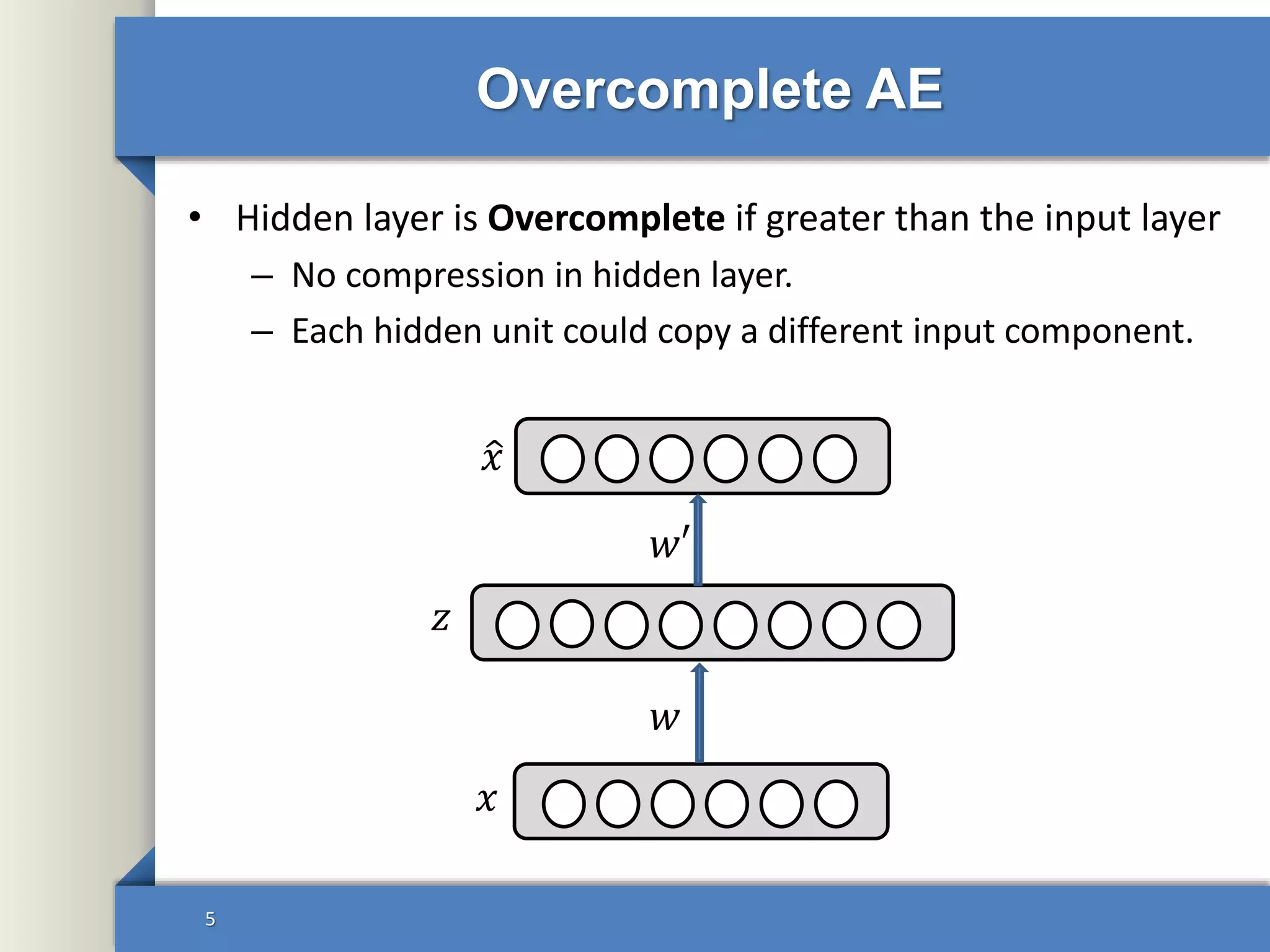

Overcomplete AE
• Hidden layer is Overcomplete if greater than the input layer
– No compression in hidden layer.
– Each hidden unit could copy a different input component.
5
𝑥
𝑥
𝑤
𝑤′
𝑧

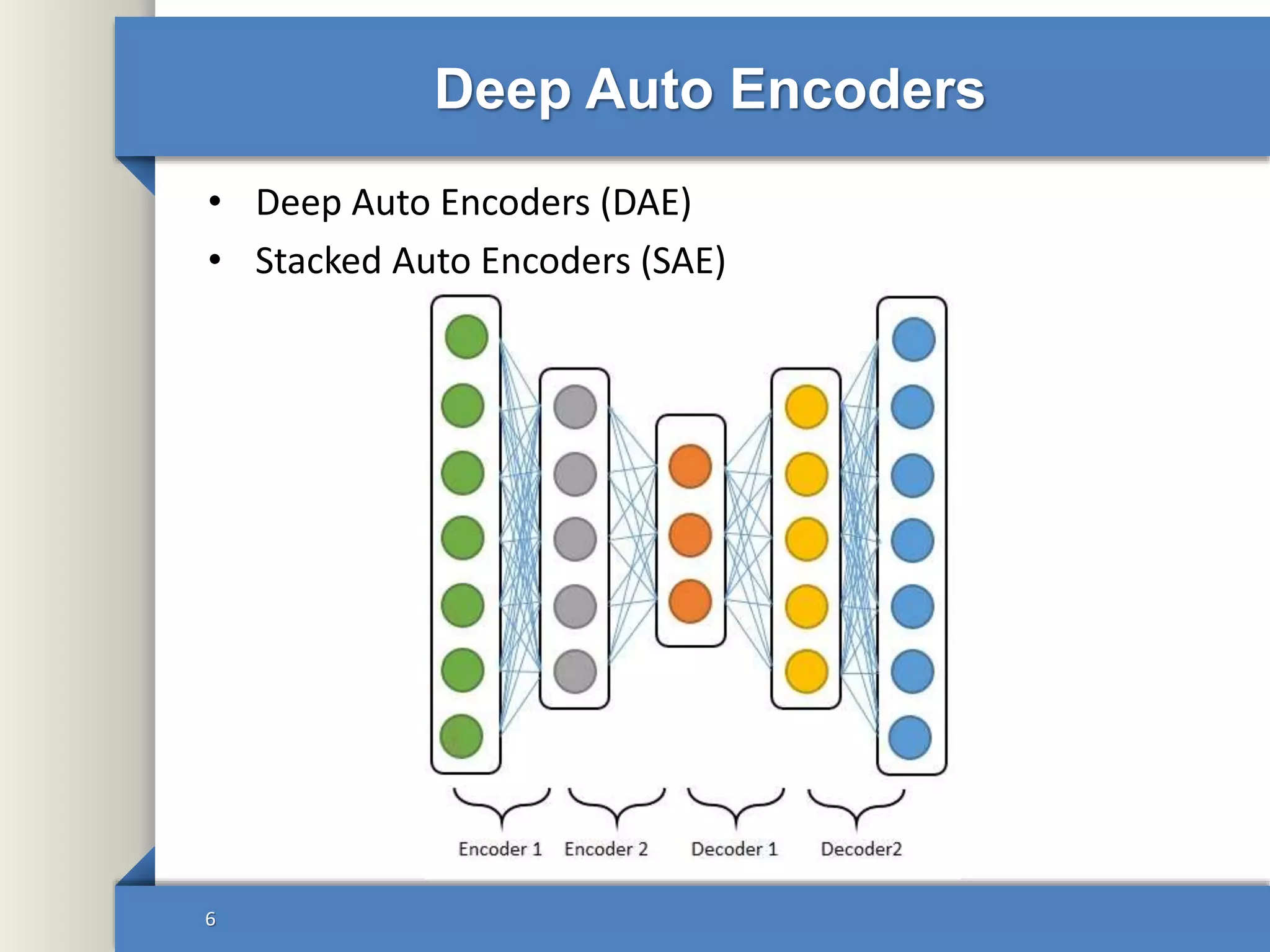

Deep Auto Encoders
• Deep Auto Encoders (DAE)
• Stacked Auto Encoders (SAE)
6

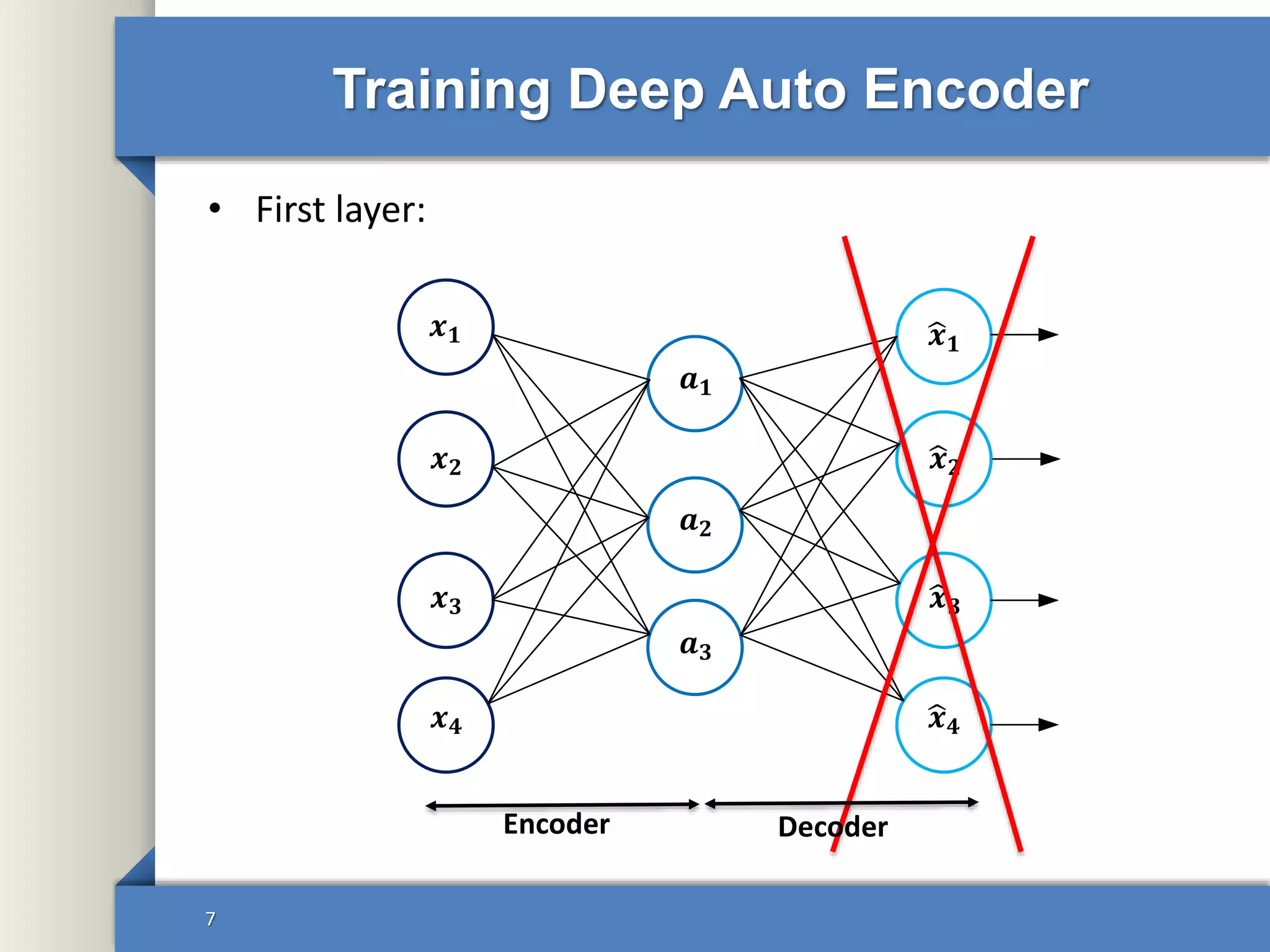

Training Deep Auto Encoder
• First layer:
7
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒂𝟑
𝒂𝟐
𝒂𝟏
Encoder Decoder

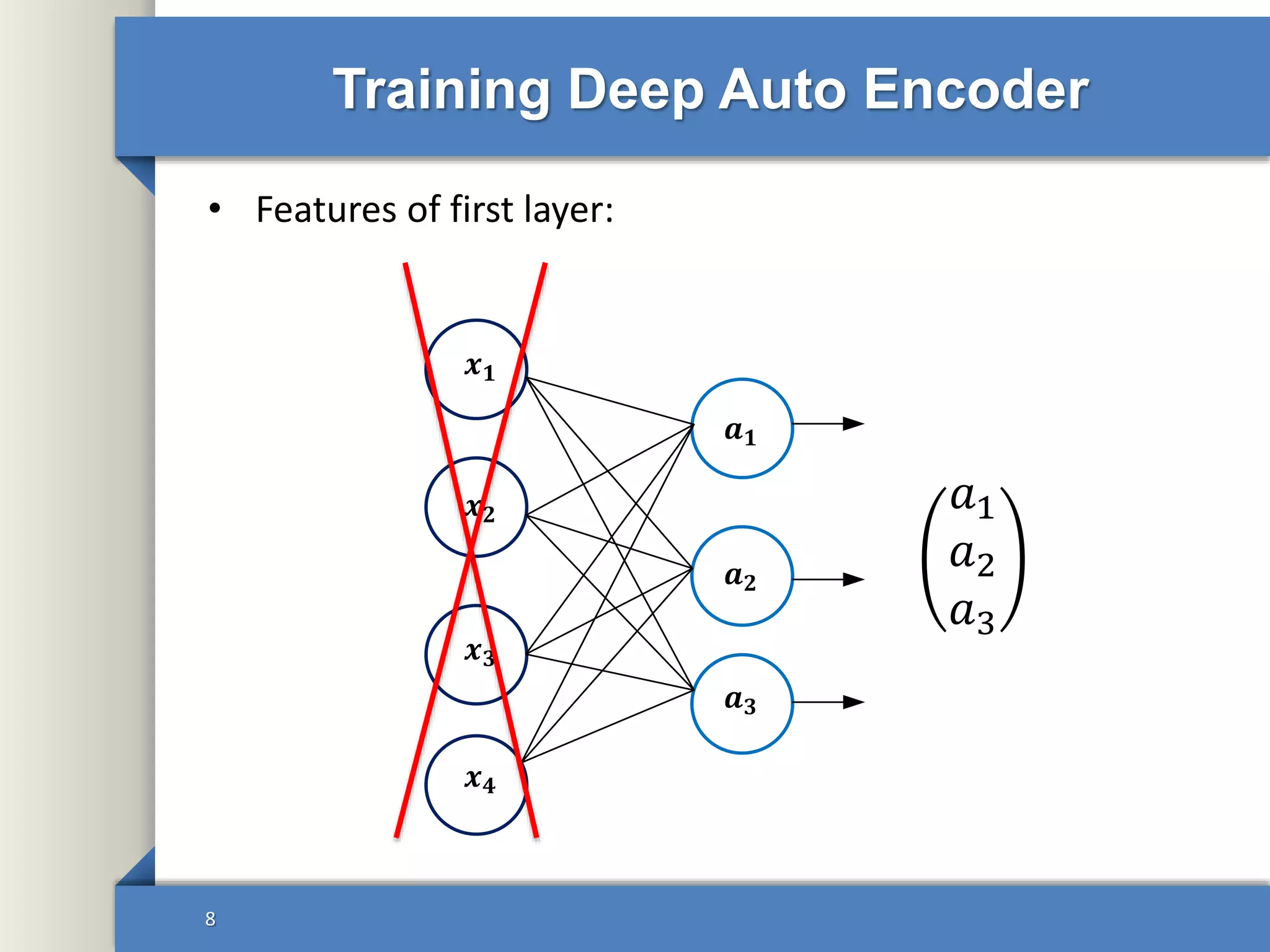

Training Deep Auto Encoder
• Features of first layer:
8
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒂𝟑
𝒂𝟐
𝒂𝟏
𝑎1
𝑎2
𝑎3

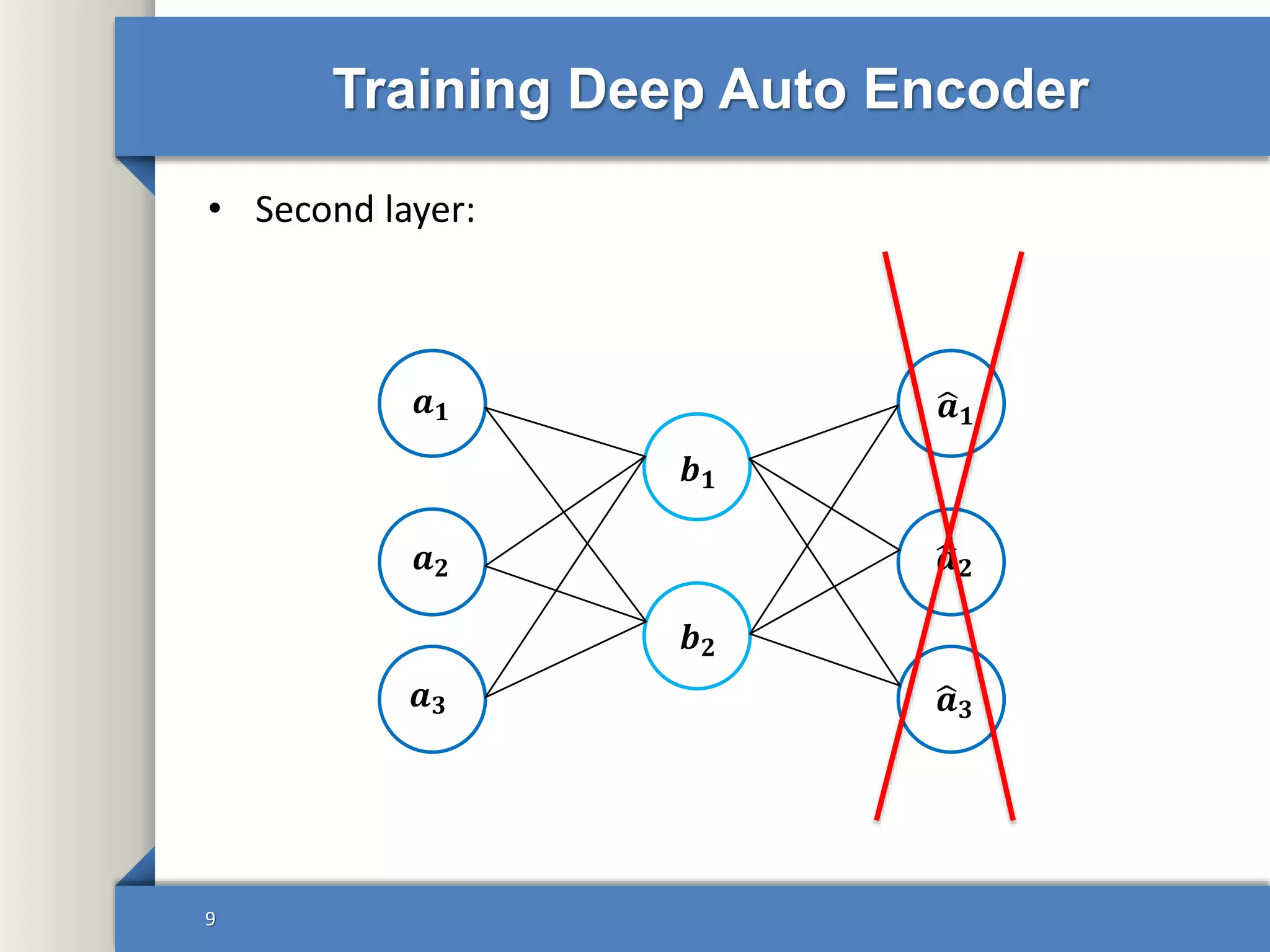

Training Deep Auto Encoder
• Second layer:
9
𝒂𝟑
𝒂𝟐
𝒂𝟏 𝒂𝟏
𝒂𝟑
𝒂𝟐
𝒃𝟐
𝒃𝟏

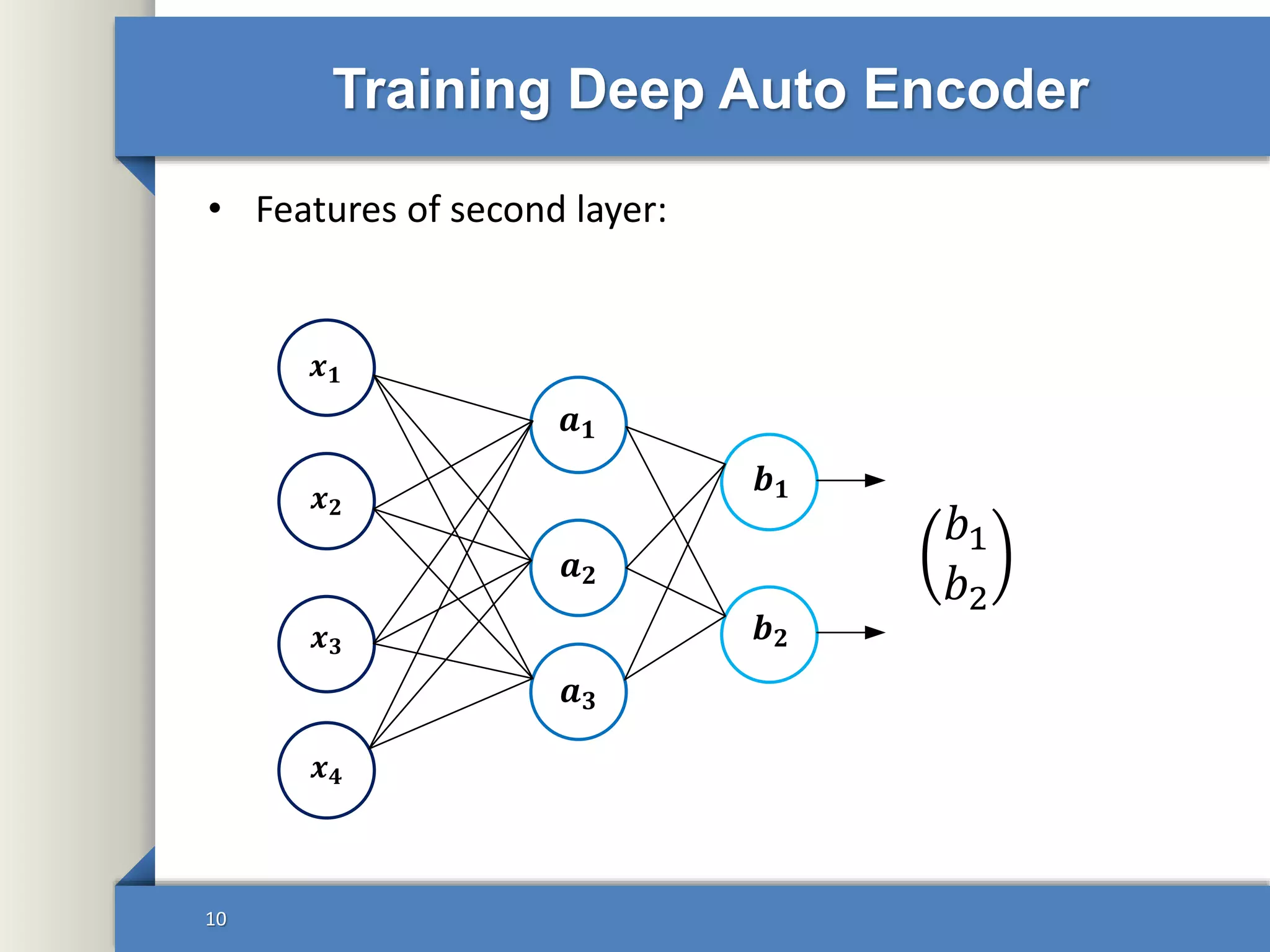

Training Deep Auto Encoder
• Features of second layer:
10
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒂𝟑
𝒂𝟐
𝒂𝟏
𝒃𝟐
𝒃𝟏
𝑏1
𝑏2

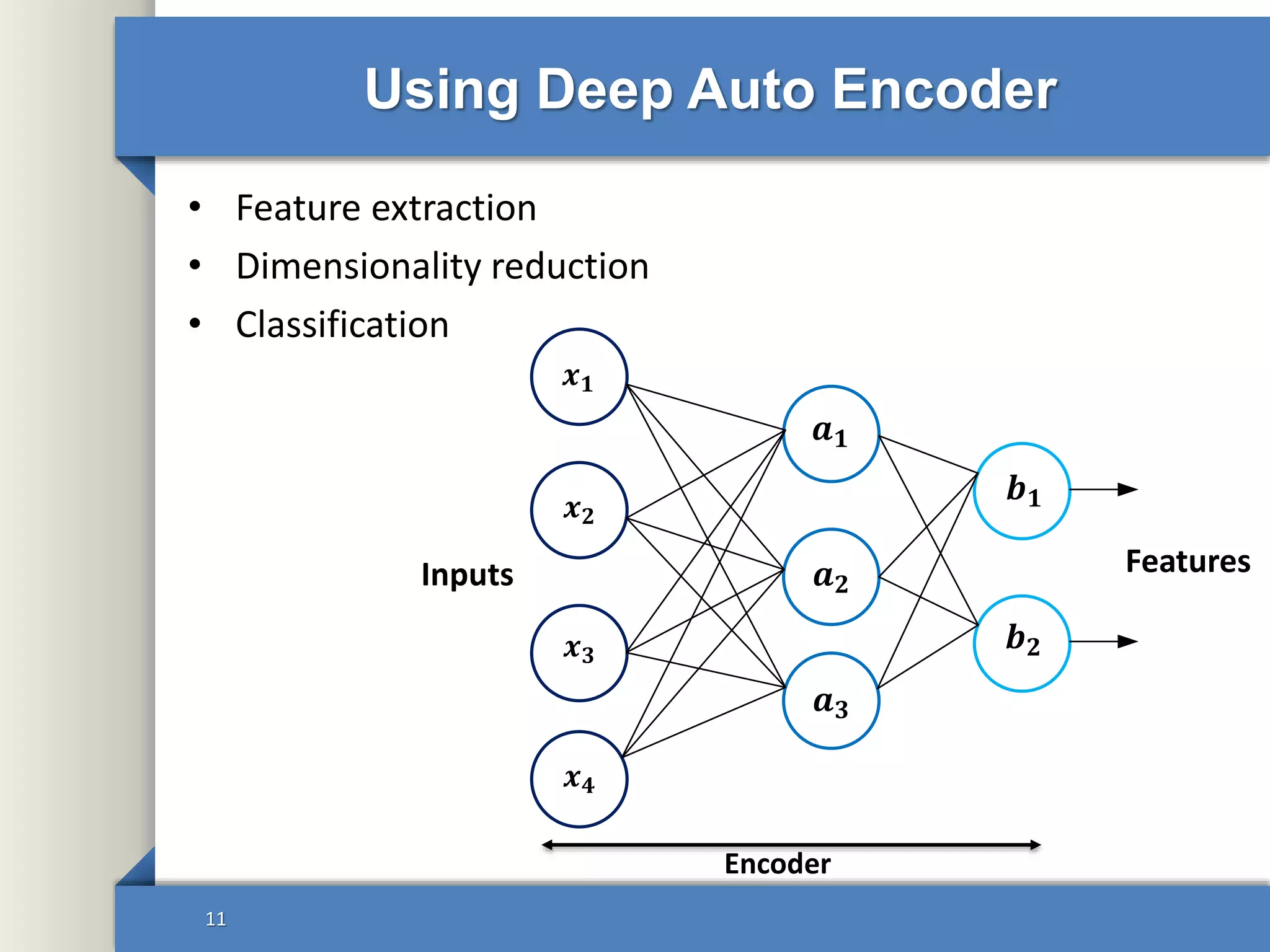

Using Deep Auto Encoder
• Feature extraction
• Dimensionality reduction
• Classification
11
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒂𝟑
𝒂𝟐
𝒂𝟏
𝒃𝟐
𝒃𝟏
Inputs Features
Encoder
Using Deep Auto Encoder
• Reconstruction
12
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒂𝟑
𝒂𝟐
𝒂𝟏
𝒃𝟐
𝒃𝟏
𝒂𝟏
𝒂𝟑
𝒂𝟐
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒙𝟏
Encoder Decoder

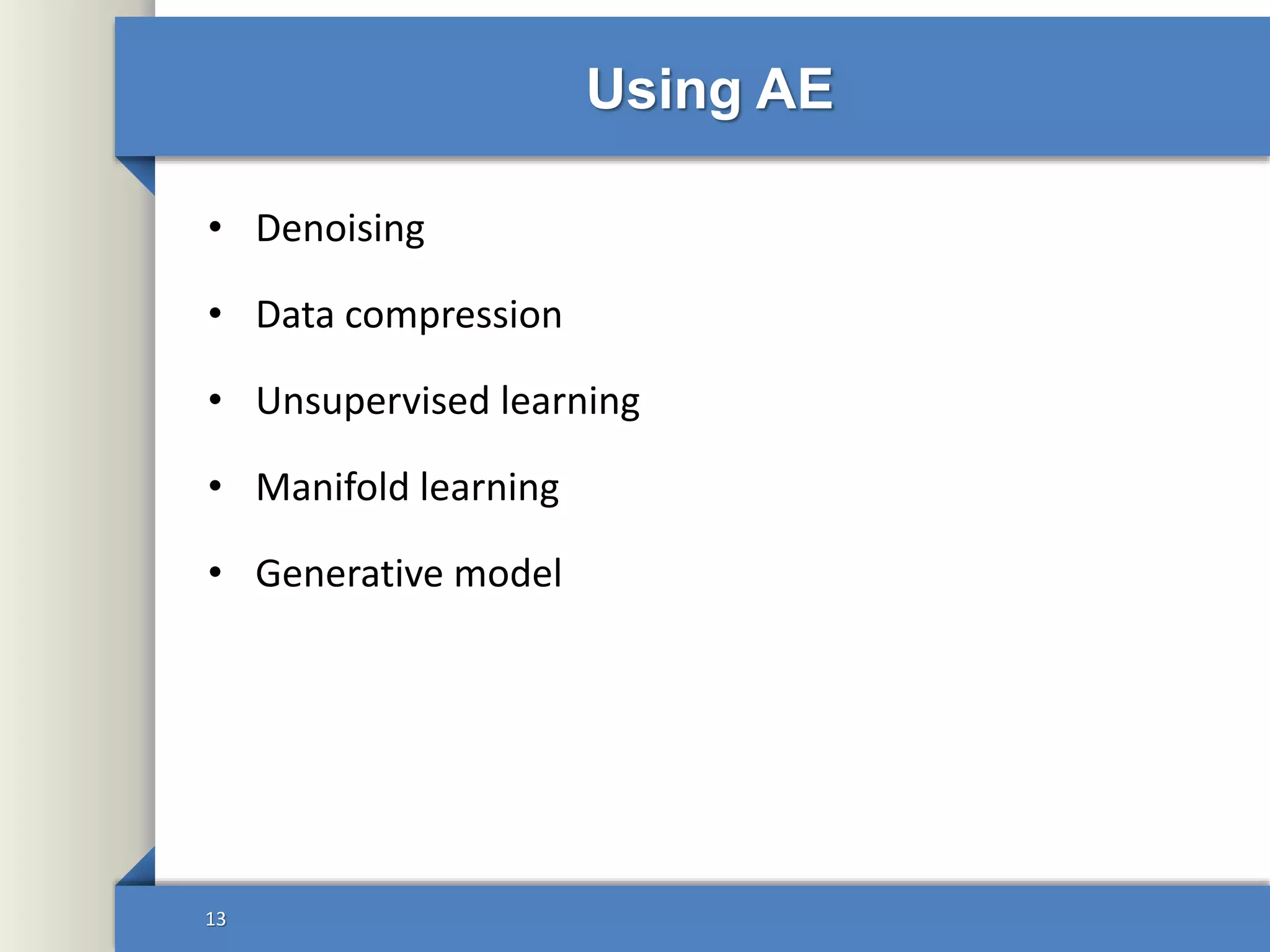

Using AE
• Denoising
• Data compression
• Unsupervised learning
• Manifold learning
• Generative model
13

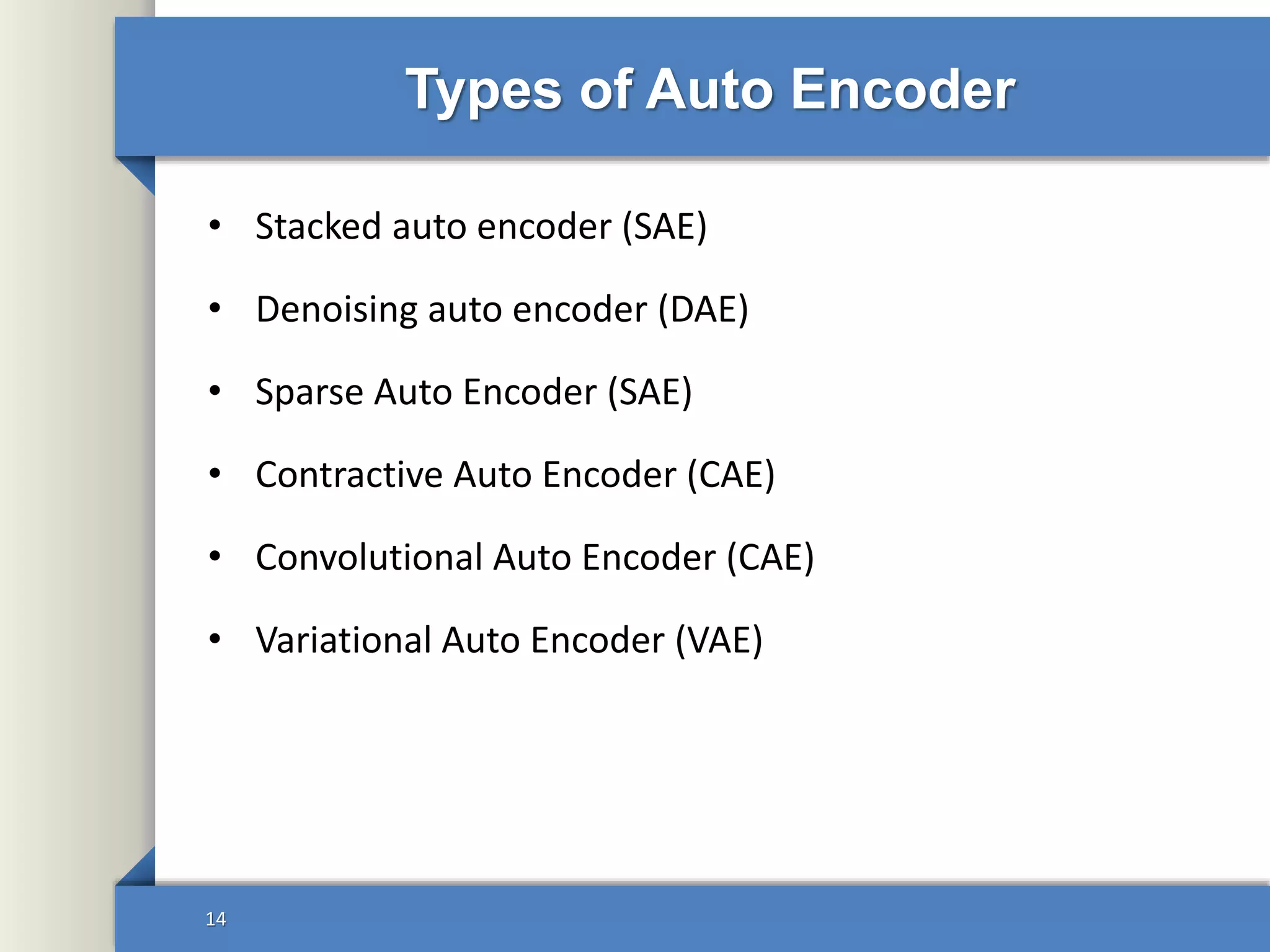

Types of Auto Encoder
• Stacked auto encoder (SAE)
• Denoising auto encoder (DAE)
• Sparse Auto Encoder (SAE)
• Contractive Auto Encoder (CAE)
• Convolutional Auto Encoder (CAE)
• Variational Auto Encoder (VAE)
14

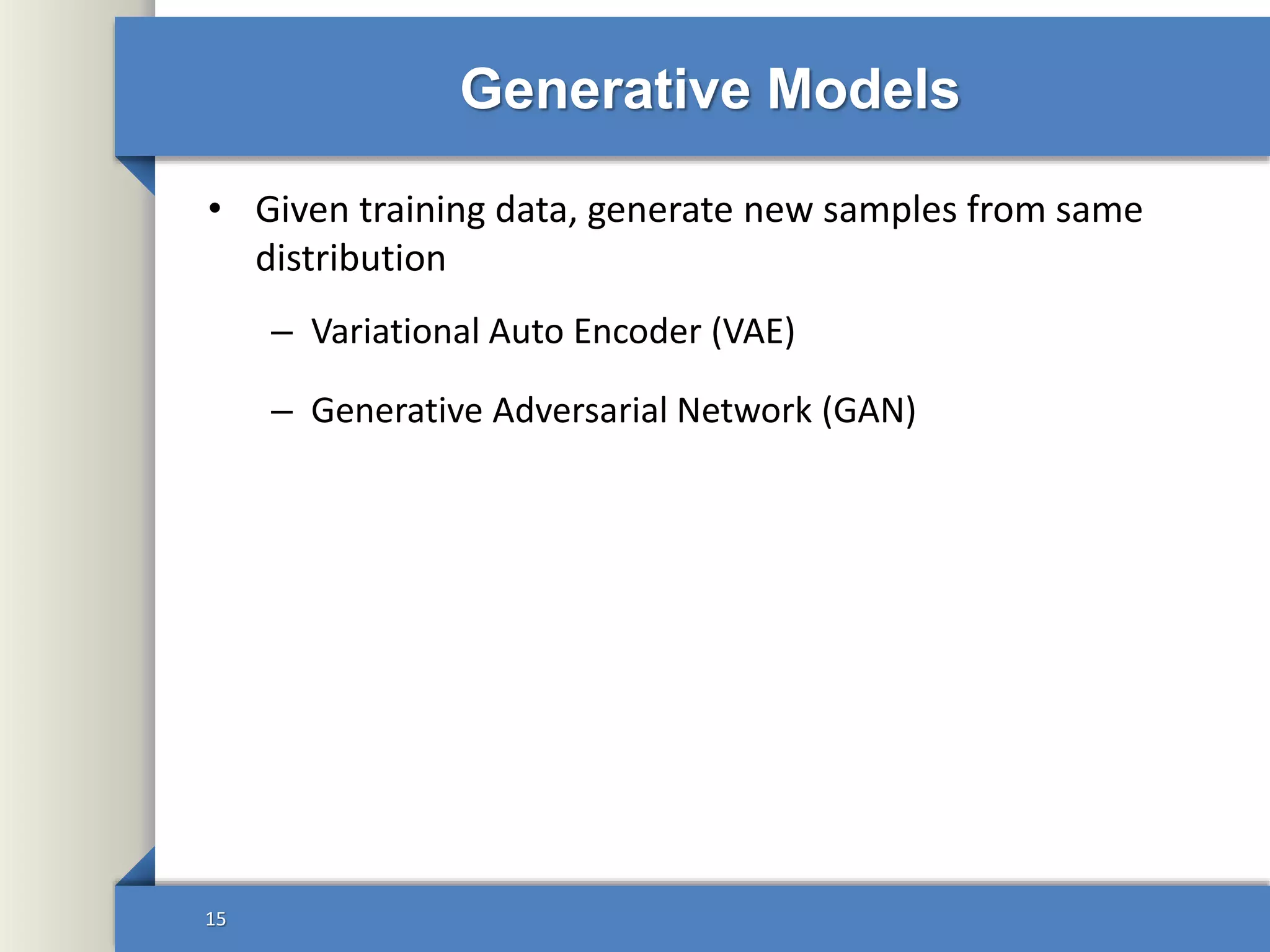

Generative Models
• Given training data, generate new samples from same
distribution
– Variational Auto Encoder (VAE)
– Generative Adversarial Network (GAN)
15

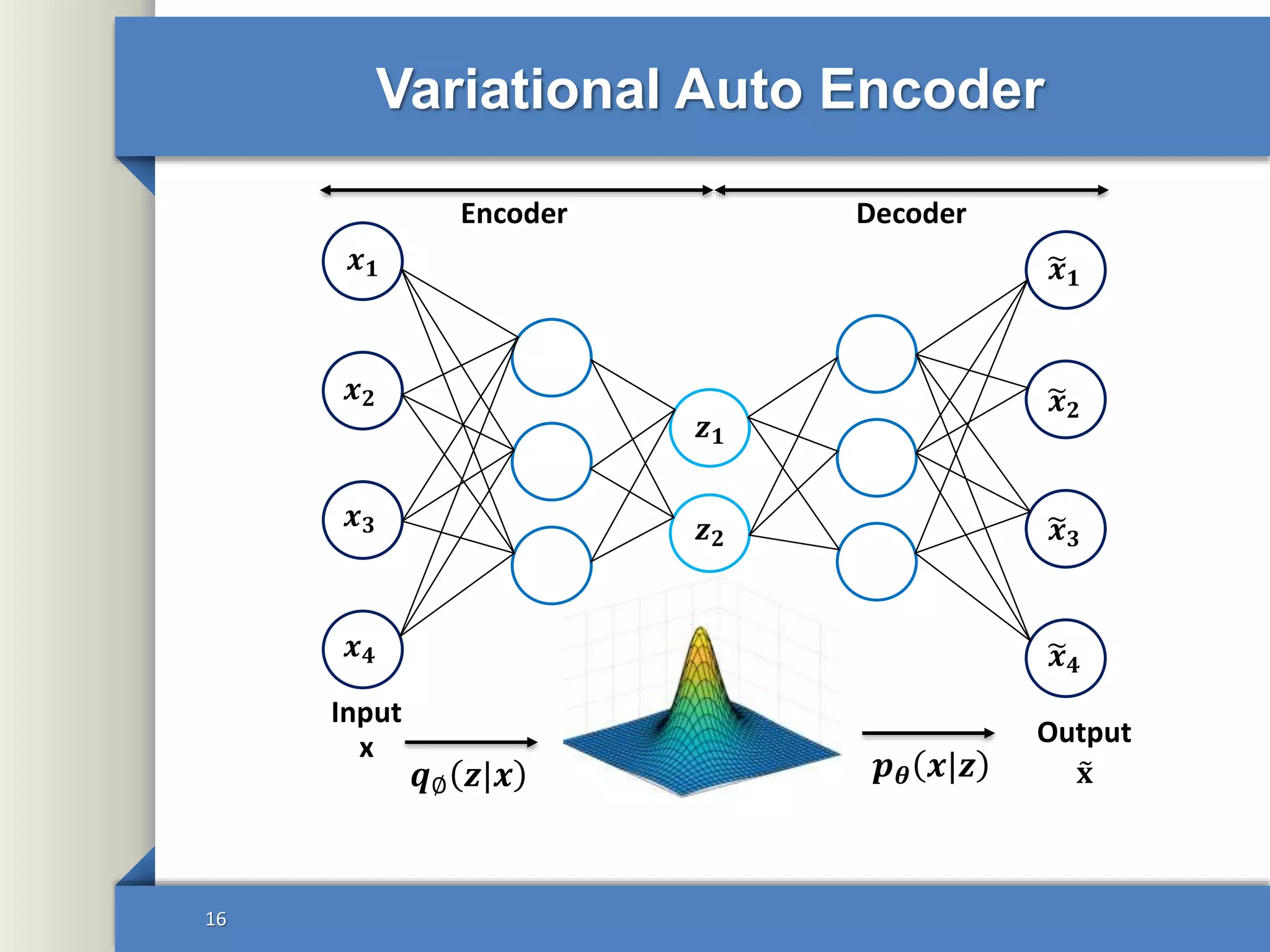

Variational Auto Encoder
16
Encoder Decoder
Input
x Output
𝐱
𝒒∅ 𝒛|𝒙 𝒑𝜽 𝒙|𝒛
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒛𝟏
𝒛𝟐

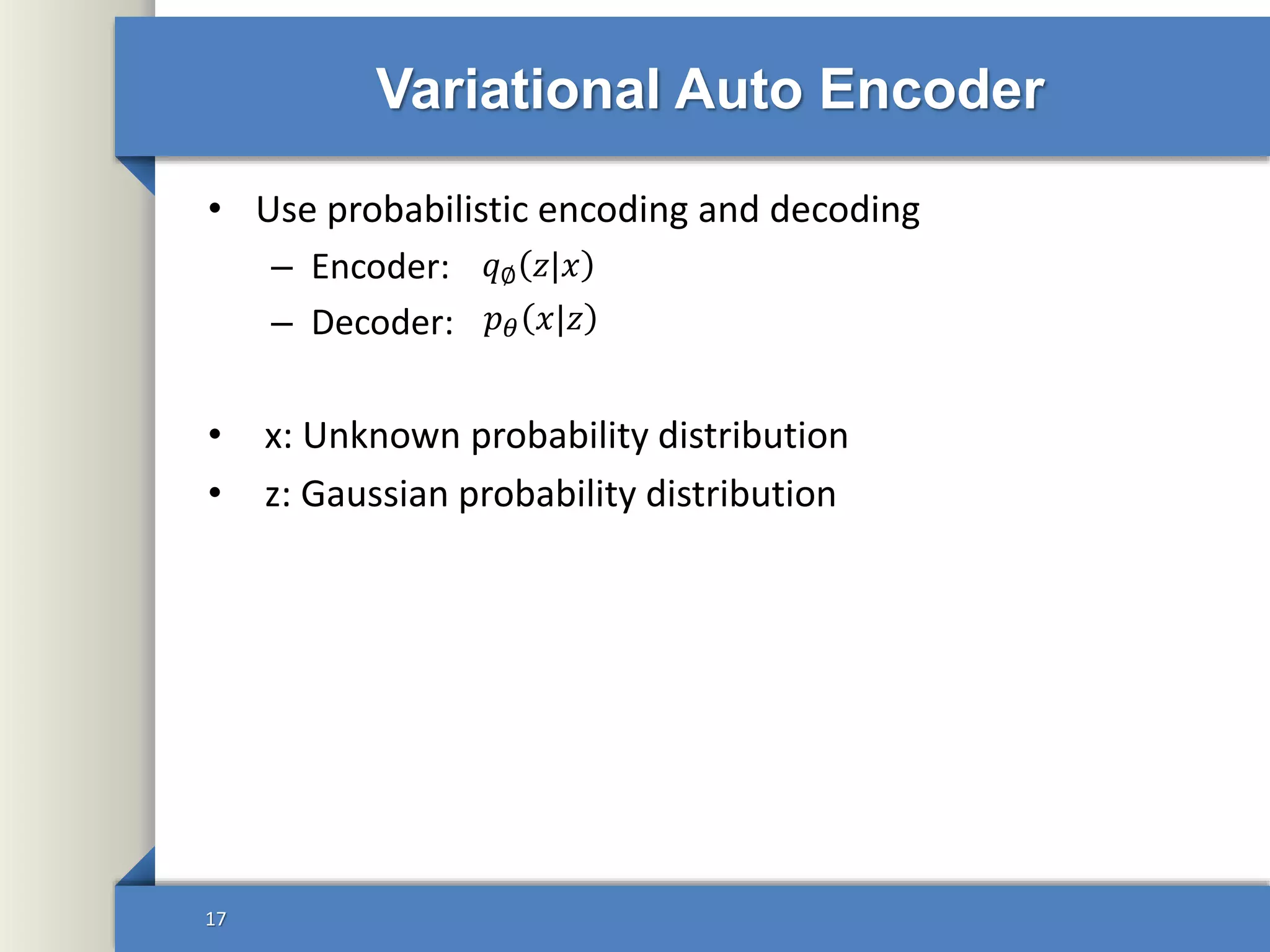

Variational Auto Encoder
• Use probabilistic encoding and decoding
– Encoder:
– Decoder:
• x: Unknown probability distribution
• z: Gaussian probability distribution
17
𝑞∅ 𝑧|𝑥
𝑝𝜃 𝑥|𝑧

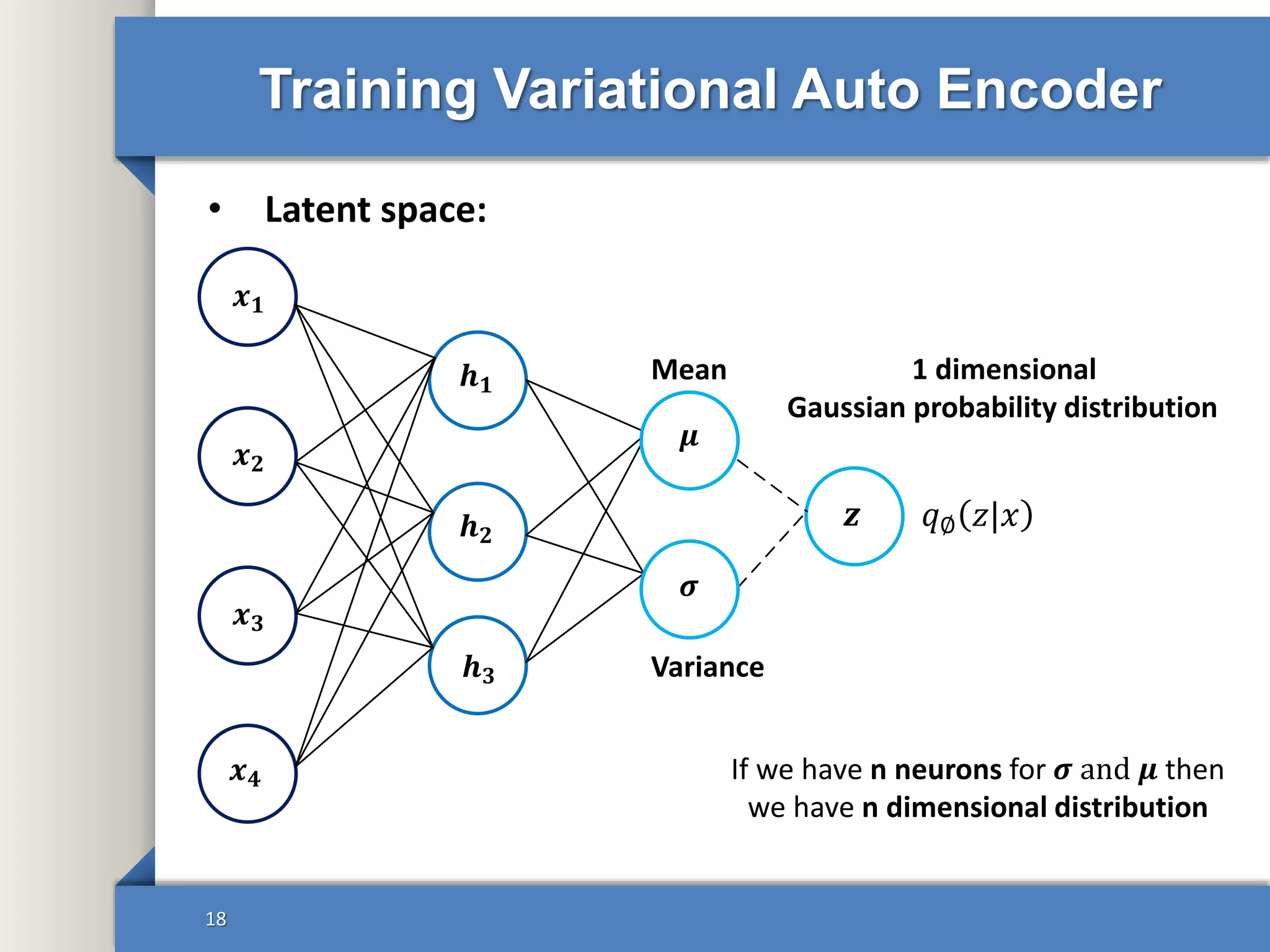

Training Variational Auto Encoder
• Latent space:
18
𝒙𝟏
𝒙𝟒
𝒙𝟑
𝒙𝟐
𝒉𝟏
𝒉𝟐
𝒉𝟑
𝝈
𝝁
𝒛 𝑞∅ 𝑧|𝑥
Mean
Variance
1 dimensional
Gaussian probability distribution
If we have n neurons for 𝝈 and 𝝁 then
we have n dimensional distribution

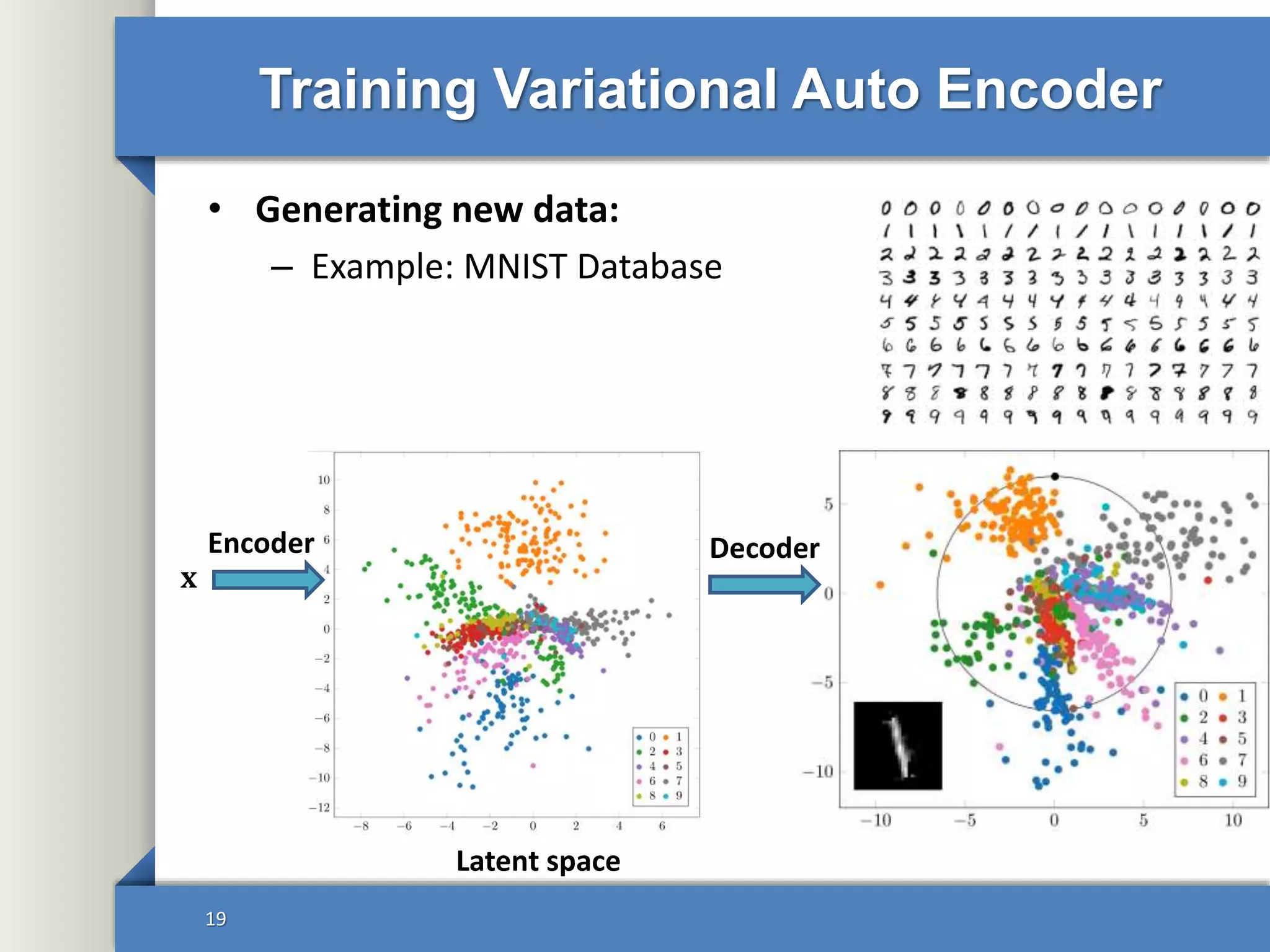

Training Variational Auto Encoder
• Generating new data:
– Example: MNIST Database
19
𝐱
Encoder
Latent space
Decoder
Generative Adversarial Network
• VAE:
• GAN:
– Can generate samples
– Trained by competing each other
– Use neural network
– Z is some random noise (Gaussian/Uniform).
– Z can be thought as the latent representation of the
image.
20
x Decoder 𝐱
z
Encoder
z Generator 𝐱
x
Discriminator
Fake or real?
Loss

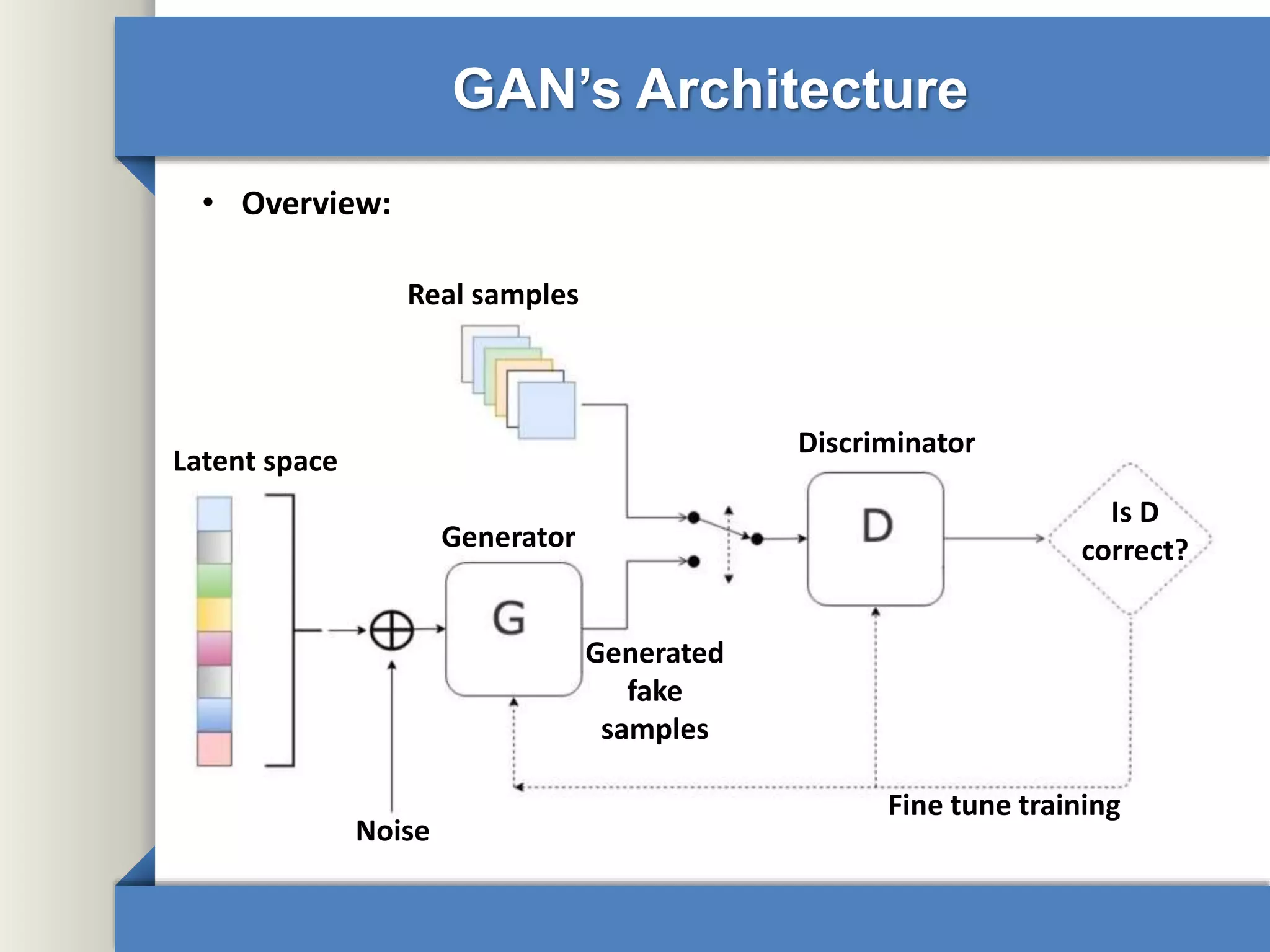

GAN’s Architecture
Real samples
Discriminator
Generated
fake
samples
Fine tune training
Latent space
Noise
Is D
correct?
Generator
• Overview:

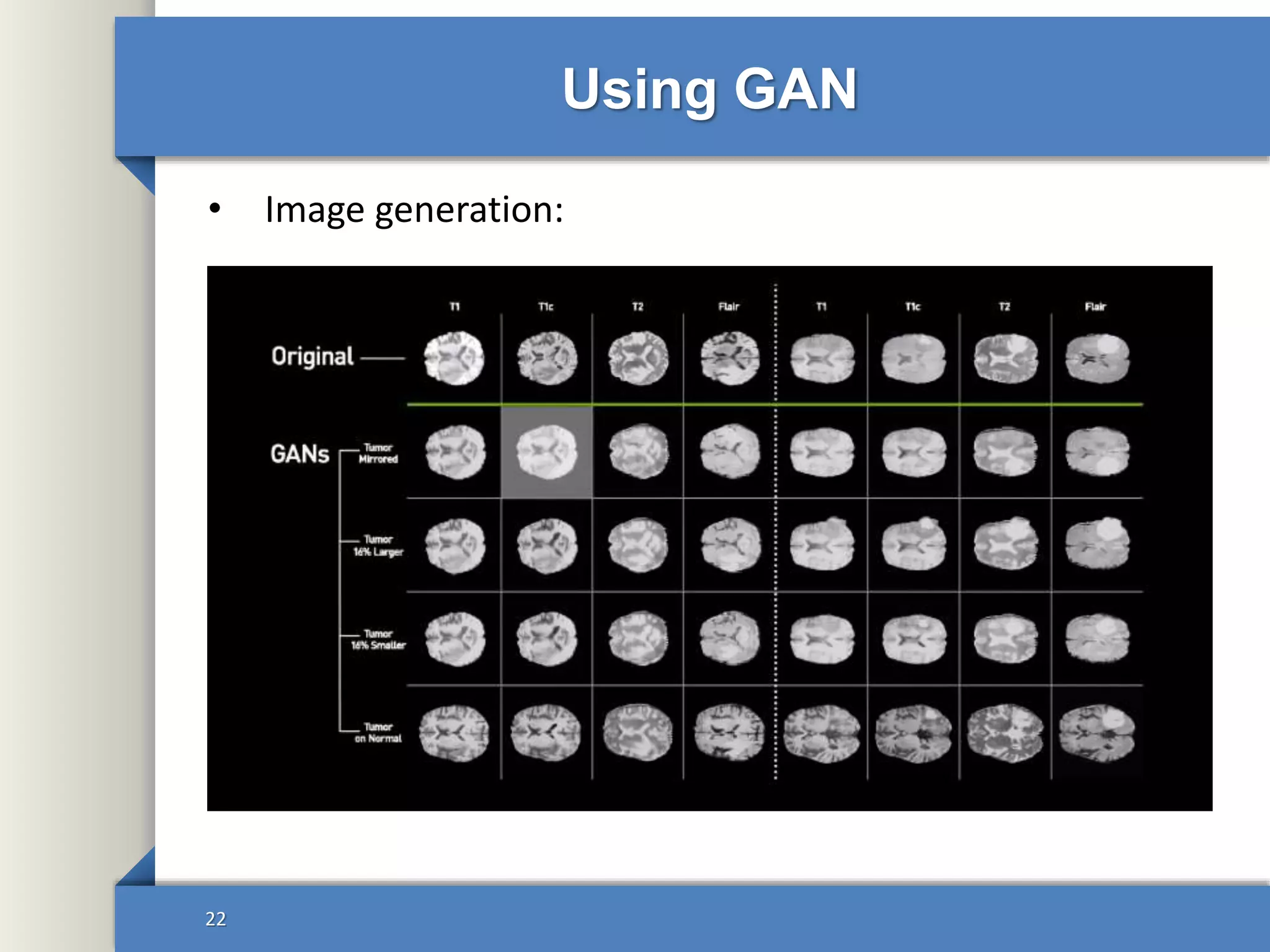

Using GAN
• Image generation:
22
Using GAN
• Data manipulation:
23

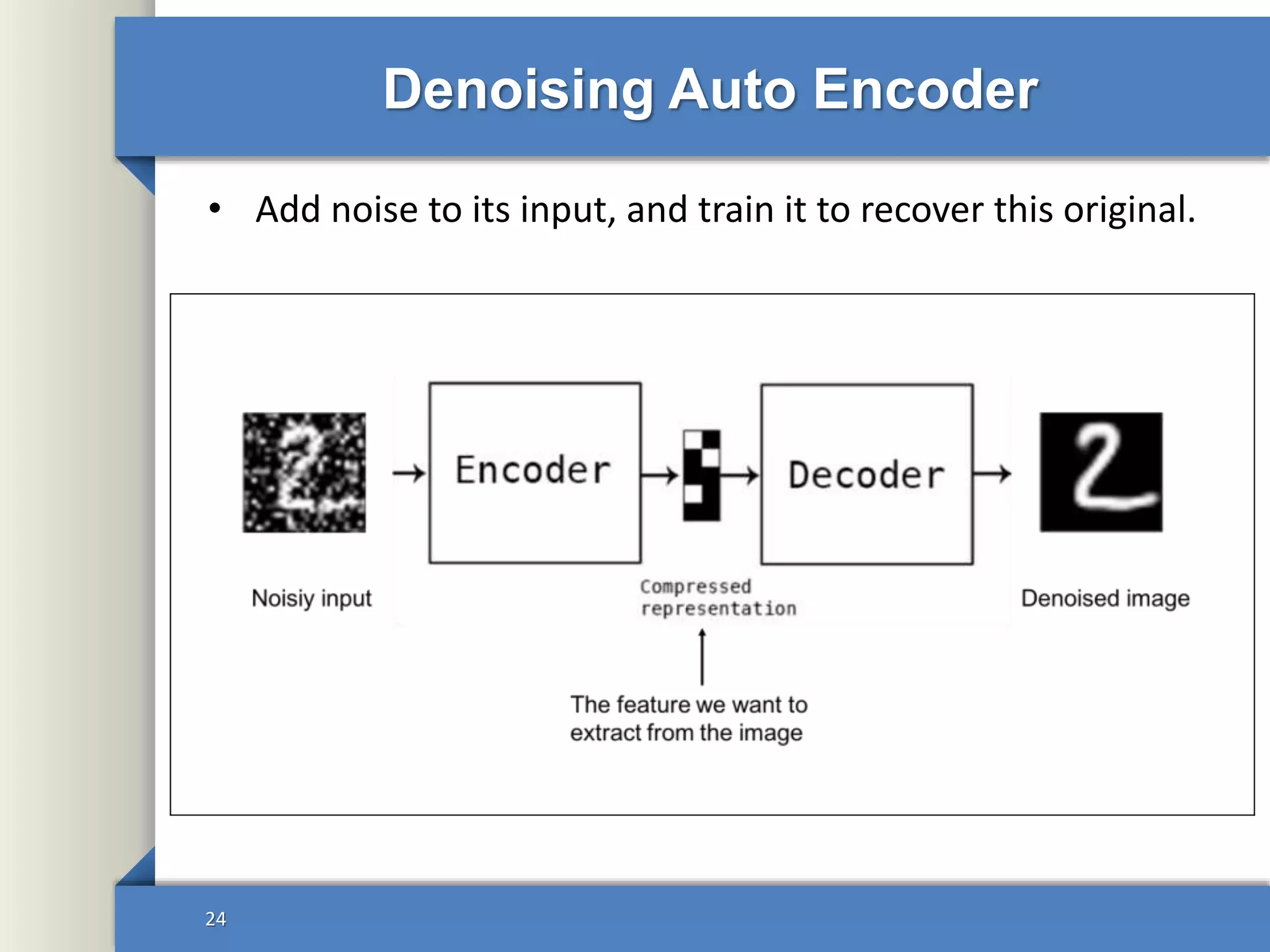

Denoising Auto Encoder
• Add noise to its input, and train it to recover this original.
24

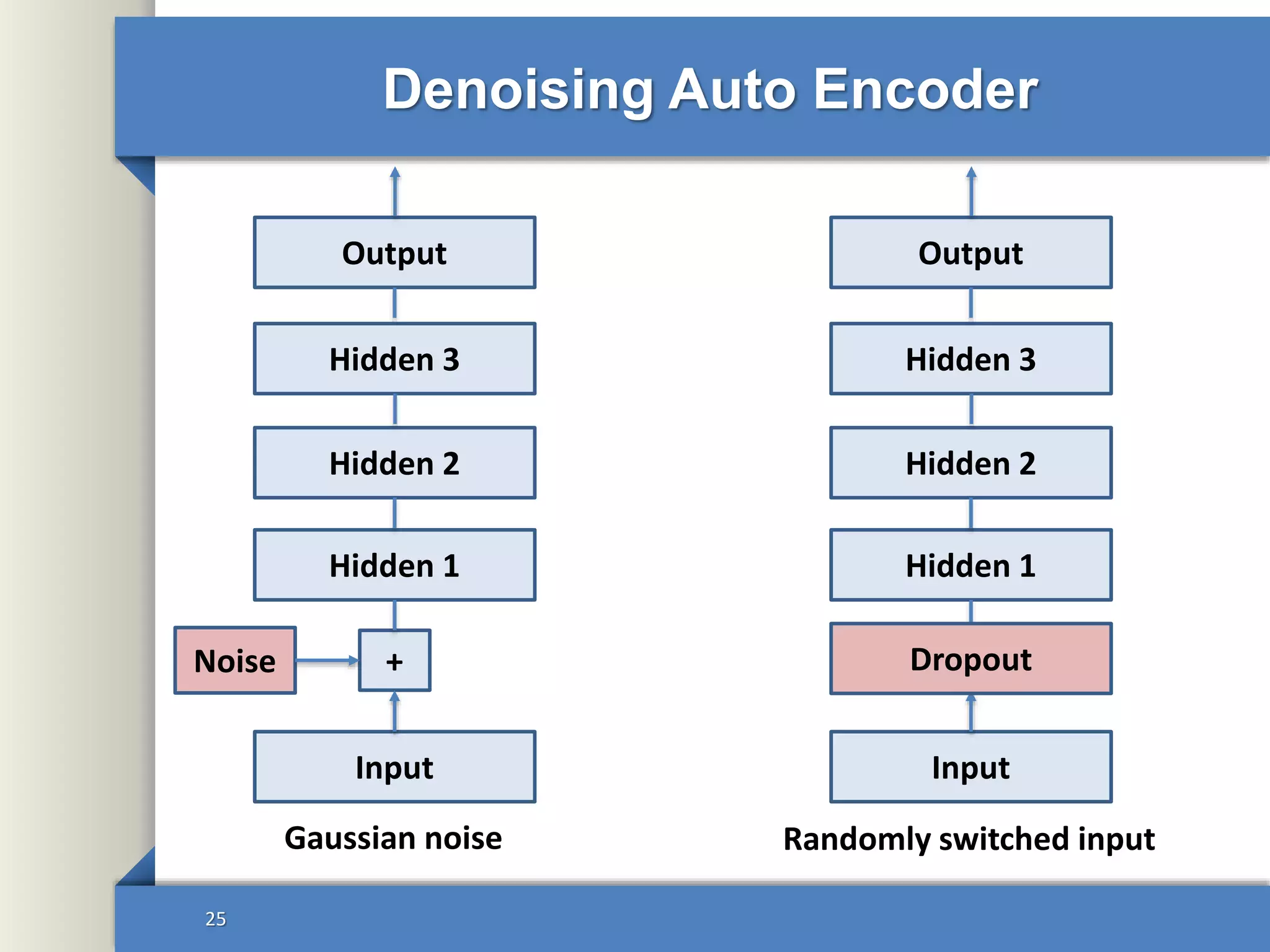

Denoising Auto Encoder
25
Input
Output
Hidden 3
Hidden 2
Hidden 1
+
Noise
Input
Output
Hidden 3
Hidden 2
Hidden 1
Dropout
Randomly switched input
Gaussian noise

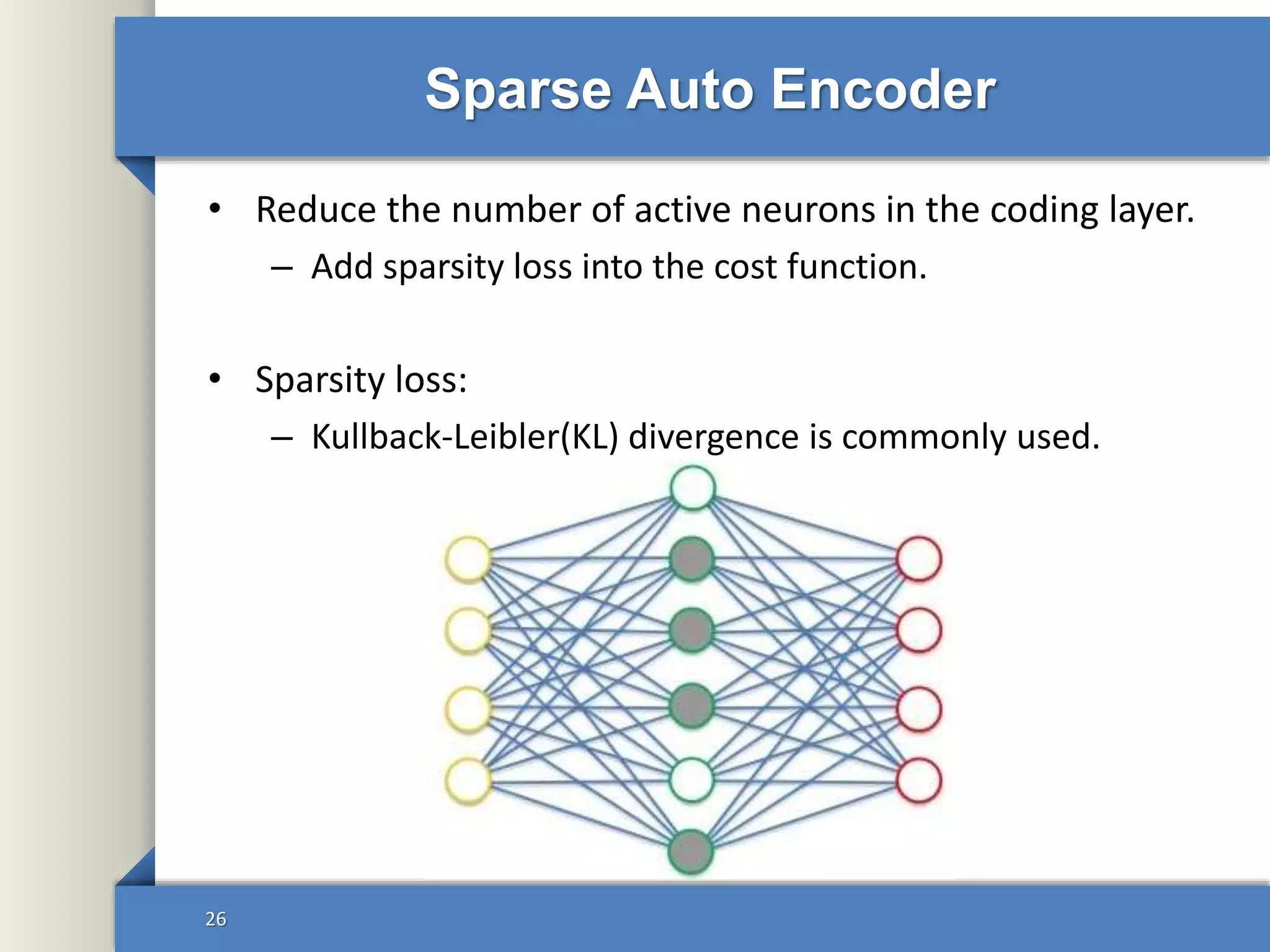

Sparse Auto Encoder
• Reduce the number of active neurons in the coding layer.
– Add sparsity loss into the cost function.
• Sparsity loss:
– Kullback-Leibler(KL) divergence is commonly used.
26
Sparse Auto Encoder
27
   
1
ˆ log 1 log
ˆ ˆ
1
j
j j
KL
 
   
 

  

     
1
ˆ
, ,
sparse j
j
J w b J w b KL
  

  
