The rotation control module AUE 400 detects speed using a shaft encoder, wheel encoder, or proximity sensor. It has three available speed ranges from 1-10 RPM, 1-100 RPM, and 1-1000 RPM that are selected via connection to the bornier. Under normal operation the output contact is powered, but it will fall if the speed drops below the specified threshold. A 10 second start-up delay is also available. Options include various encoders and sensors for different environments.

1. Product Information
BRAIME AUE 400
ROTATION CONTROL MODULE
• The rotation control module AUE 400 is designed to be used with a shaft
encoder, a wheel encoder or a proximity sensor to detect a speed.
• Three speed ranges are available on the module: 1- 10 RPM, 1- 100 RPM &
1- 1000 RPM. The selection is done with a connection to the bornier (?) . Other
speed ranges are available from 0,01 to 20 000 RPM.
• Under normal working conditions the output contact is powered; if the speed
reduces below the one specified, the contact falls.
• A 10 second start-up delay is available if needed.
• A copy of the entry signal is available for connection to another module or
another speed monitoring system.
OPTIONS
Rotech Encoder for difficult environments
Encoding Wheel Rotech
Whirligig WG2A-BR for explosive environments & Mag-Con
Whirligig Heavy duty in stainless steel
Tacho
Detailed specification, wiring diagrams and installation/operating
instructions available immediately upon request.
Please refer to instruction manual for correct installation.
Information subject to change or correction. July 2007.
4B BRAIME ELEVATOR COMPONENTS LTD Hunslet Road, Leeds, LS10 1JZ, UK
Tel:+44 (0) 113 246 1800 Fax: :+44 (0) 113 243 5021 4b-uk@go4b.com www.go4b.com

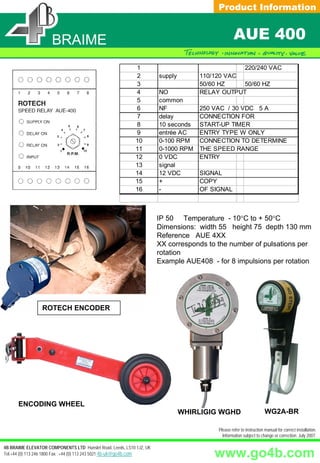

2. Product Information
BRAIME AUE 400
1 220/240 VAC
2 supply 110/120 VAC
3 50/60 HZ 50/60 HZ
4 NO RELAY OUTPUT
5 common
6 NF 250 VAC / 30 VDC 5 A
7 delay CONNECTION FOR
8 10 seconds START-UP TIMER
9 entrée AC ENTRY TYPE W ONLY
10 0-100 RPM CONNECTION TO DETERMINE
11 0-1000 RPM THE SPEED RANGE
12 0 VDC ENTRY
13 signal
14 12 VDC SIGNAL
15 + COPY
16 - OF SIGNAL
IP 50 Temperature - 10°C to + 50°C
Dimensions: width 55 height 75 depth 130 mm
Reference AUE 4XX
XX corresponds to the number of pulsations per
rotation
Example AUE408 - for 8 impulsions per rotation
ROTECH ENCODER
ENCODING WHEEL
WHIRLIGIG WGHD WG2A-BR
Please refer to instruction manual for correct installation.
Information subject to change or correction. July 2007.
