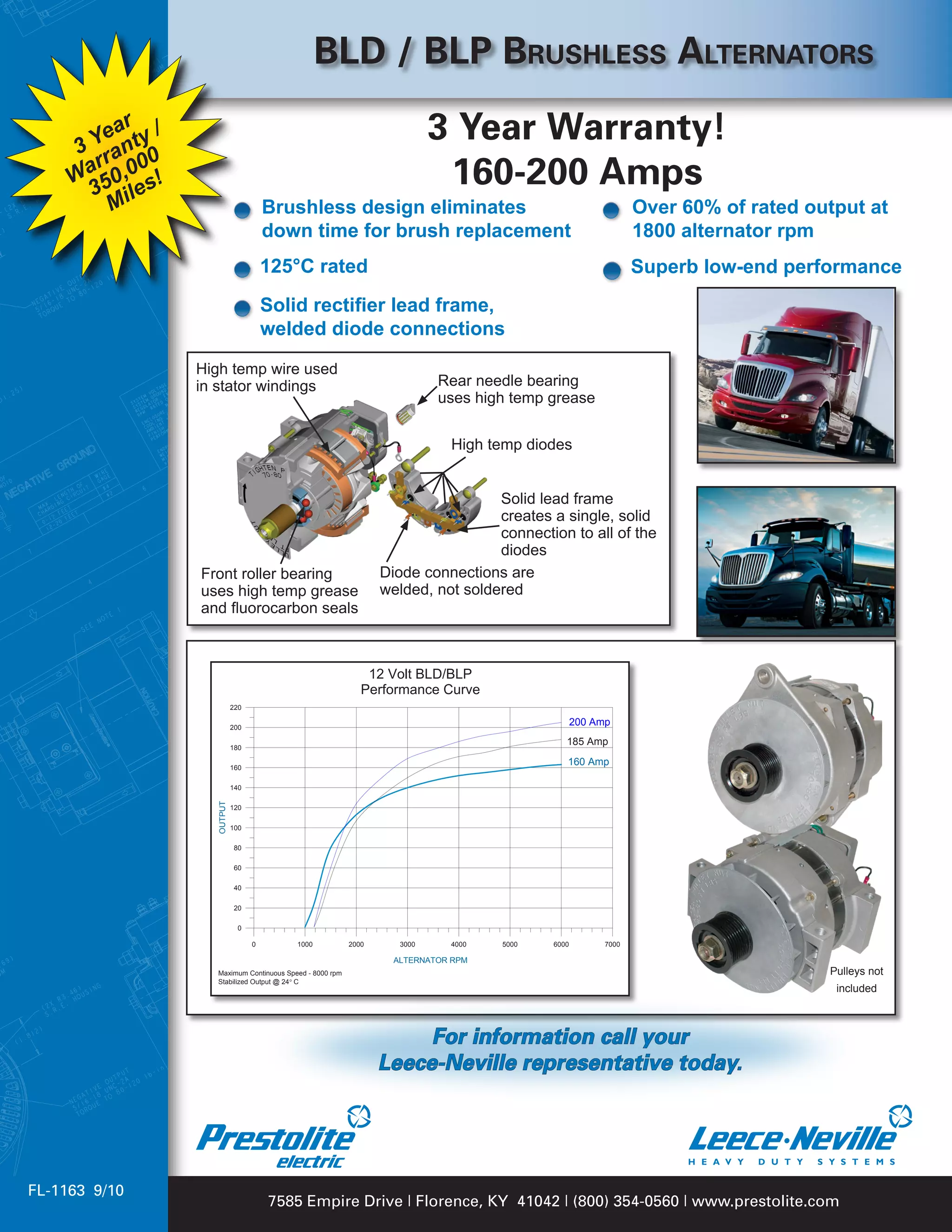

1. BLD / BLP Brushless Alternators
ar
Ye nty /
3 ra 0
3 Year Warranty!
r 0
Wa 50,0 s!
3 ile
160-200 Amps
M Brushless design eliminates Over 60% of rated output at
down time for brush replacement 1800 alternator rpm
125°C rated Superb low-end performance
Solid rectifier lead frame,
welded diode connections
High temp wire used
in stator windings Rear needle bearing
uses high temp grease
High temp diodes
Solid lead frame
creates a single, solid
connection to all of the
diodes
Front roller bearing Diode connections are
uses high temp grease welded, not soldered
and fluorocarbon seals
12 Volt BLD/BLP
Performance Curve
220
200
200 Amp
180
185 Amp
160
160 Amp
140
OUTPUT
120
100
80
60
40
20
0
0 1000 2000 3000 4000 5000 6000 7000
ALTERNATOR RPM
Maximum Continuous Speed - 8000 rpm Pulleys not
Stabilized Output @ 24° C
included
For information call your
Leece-Neville representative today.
FL-1163 9/10
7585 Empire Drive | Florence, KY 41042 | (800) 354-0560 | www.prestolite.com
