1. Asynchronous Single Page Applications
without a Line of HTML or Javascript.
Or why D is just awesome
Robert ”burner” Schadek
May 5, 2016
DConf

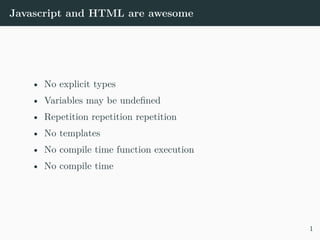

2. Javascript and HTML are awesome
• No explicit types
• Variables may be undefined
• Repetition repetition repetition
• No templates
• No compile time function execution
• No compile time
1

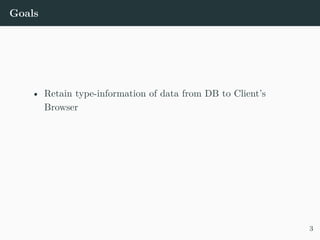

4. Goals
• Retain type-information of data from DB to Client’s
Browser
3

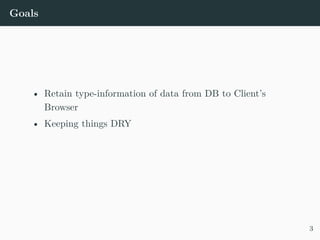

5. Goals
• Retain type-information of data from DB to Client’s
Browser
• Keeping things DRY
3

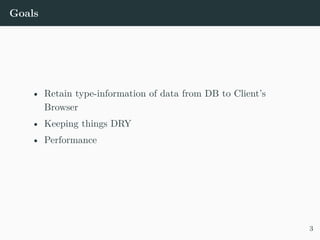

6. Goals
• Retain type-information of data from DB to Client’s
Browser
• Keeping things DRY
• Performance
3

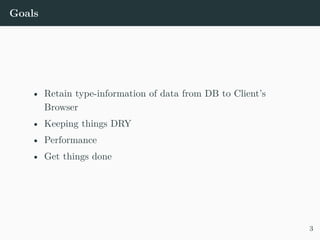

7. Goals
• Retain type-information of data from DB to Client’s
Browser
• Keeping things DRY
• Performance
• Get things done
3

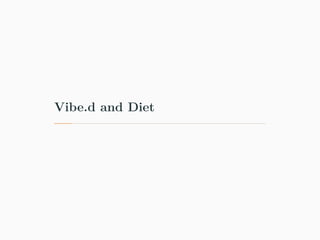

8. Vibe.d and Diet

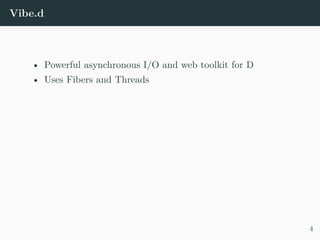

9. Vibe.d
• Powerful asynchronous I/O and web toolkit for D
• Uses Fibers and Threads
4

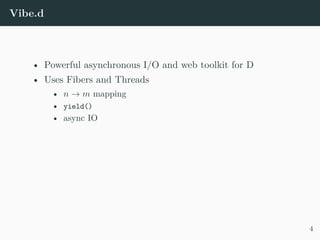

10. Vibe.d
• Powerful asynchronous I/O and web toolkit for D
• Uses Fibers and Threads
• n → m mapping
• yield()
• async IO
4

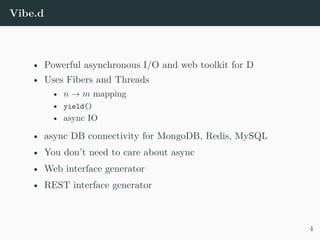

11. Vibe.d
• Powerful asynchronous I/O and web toolkit for D
• Uses Fibers and Threads
• n → m mapping
• yield()
• async IO
• async DB connectivity for MongoDB, Redis, MySQL
• You don’t need to care about async
• Web interface generator
• REST interface generator
4

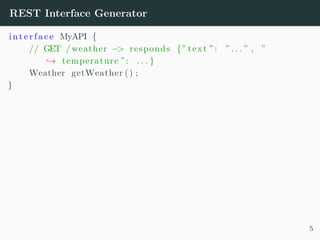

12. REST Interface Generator
i n t e r f a c e MyAPI {
// GET /weather −> responds {” text ”: ” . . . ” , ”
→ temperature ”: . . . }
Weather getWeather () ;
}
5

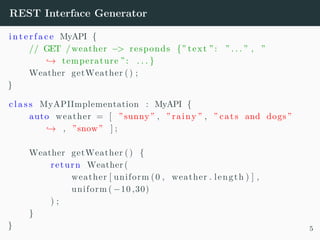

13. REST Interface Generator
i n t e r f a c e MyAPI {
// GET /weather −> responds {” text ”: ” . . . ” , ”
→ temperature ”: . . . }
Weather getWeather () ;
}
c l a s s MyAPIImplementation : MyAPI {
auto weather = [ ”sunny” , ” rainy ” , ” cats and dogs ”
→ , ”snow” ] ;
Weather getWeather () {
return Weather (
weather [ uniform (0 , weather . length ) ] ,
uniform ( −10 ,30)
) ;
}
} 5

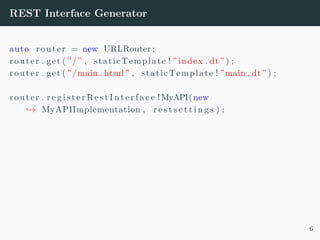

14. REST Interface Generator
auto router = new URLRouter ;
router . get ( ”/” , staticTemplate ! ” index . dt” ) ;
router . get ( ”/main . html” , staticTemplate ! ”main . dt” ) ;
router . r e g i s t e r R e s t I n t e r f a c e !MyAPI(new
→ MyAPIImplementation , r e s t s e t t i n g s ) ;
6

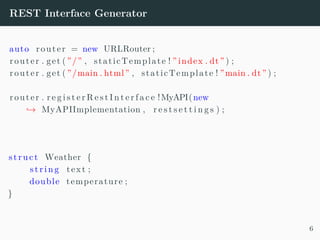

15. REST Interface Generator
auto router = new URLRouter ;
router . get ( ”/” , staticTemplate ! ” index . dt” ) ;
router . get ( ”/main . html” , staticTemplate ! ”main . dt” ) ;
router . r e g i s t e r R e s t I n t e r f a c e !MyAPI(new
→ MyAPIImplementation , r e s t s e t t i n g s ) ;
struct Weather {
s t r i n g text ;
double temperature ;
}
6

16. AngularJS Typescript
i n t e r f a c e Weather {
text : string ,
temperature : number
}
7

17. AngularJS Typescript
i n t e r f a c e Weather {
text : string ,
temperature : number
}
i n t e r f a c e MainScope extends ng . IScope {
weather : Weather
}
7

18. AngularJS Typescript
i n t e r f a c e Weather {
text : string ,
temperature : number
}
i n t e r f a c e MainScope extends ng . IScope {
weather : Weather
}
c l a s s MainCtrl {
public s t a t i c $ i n j e c t = [ ’ $scope ’ , ’ $http ’ ] ;
constructor ( private $scope : MainScope ,
private $http : ng . IHttpService )
{
t h i s . weather () ;
}
7

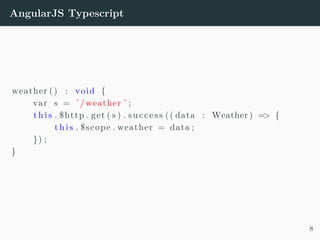

19. AngularJS Typescript
weather () : void {
var s = ’ /weather ’ ;
t h i s . $http . get ( s ) . success (( data : Weather ) => {
t h i s . $scope . weather = data ;
}) ;
}
8

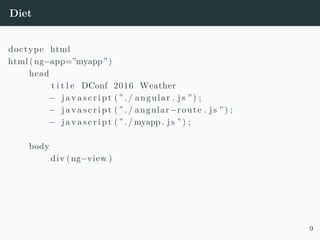

20. Diet
doctype html
html (ng−app=”myapp”)
head
t i t l e DConf 2016 Weather
− j a v a s c r i p t ( ” . / angular . j s ”) ;
− j a v a s c r i p t ( ” . / angular−route . j s ”) ;
− j a v a s c r i p t ( ” . / myapp . j s ”) ;
body
div (ng−view )
9

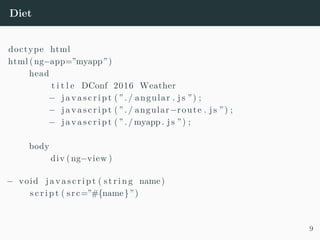

21. Diet
doctype html
html (ng−app=”myapp”)
head
t i t l e DConf 2016 Weather
− j a v a s c r i p t ( ” . / angular . j s ”) ;
− j a v a s c r i p t ( ” . / angular−route . j s ”) ;
− j a v a s c r i p t ( ” . / myapp . j s ”) ;
body
div (ng−view )
− void j a v a s c r i p t ( s t r i n g name)
s c r i p t ( src=”#{name}”)
9

22. Diet
. container
p {{ weather . text }}
p {{ weather . temperature }}
button ( type=”submit ” ,ng−c l i c k =” c t r l . weather () ; ” )
→ Get Weather
10

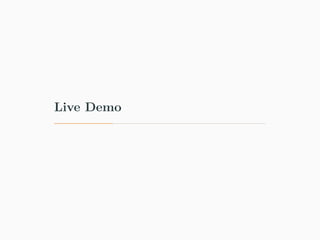

23. Live Demo

24. Dataflow from the Server to the
Frontend and back again

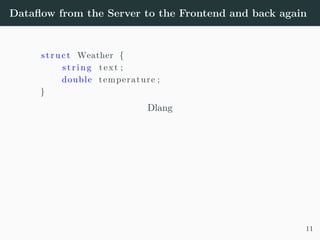

25. Dataflow from the Server to the Frontend and back again
struct Weather {
s t r i n g text ;
double temperature ;
}
Dlang
11

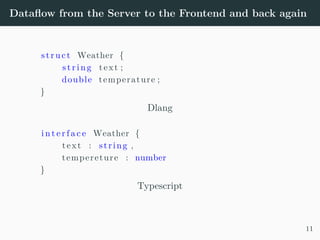

26. Dataflow from the Server to the Frontend and back again
struct Weather {
s t r i n g text ;
double temperature ;
}
Dlang
i n t e r f a c e Weather {
text : string ,
tempereture : number
}
Typescript
11

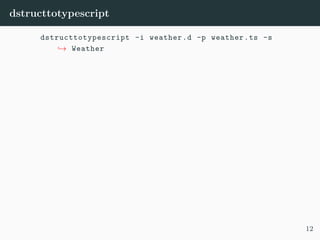

27. dstructtotypescript
dstructtotypescript -i weather.d -p weather.ts -s
→ Weather
12

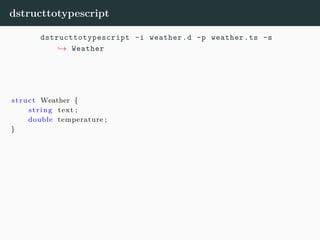

28. dstructtotypescript
dstructtotypescript -i weather.d -p weather.ts -s
→ Weather
struct Weather {
string text ;
double temperature ;
}

29. dstructtotypescript
dstructtotypescript -i weather.d -p weather.ts -s
→ Weather
struct Weather {
string text ;
double temperature ;
}
import std . format ;
foreach ( i t ; __traits (allMembers , Weather) )

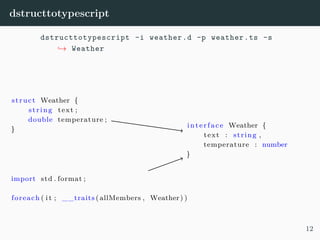

30. dstructtotypescript
dstructtotypescript -i weather.d -p weather.ts -s
→ Weather
struct Weather {
string text ;
double temperature ;
}
import std . format ;
foreach ( i t ; __traits (allMembers , Weather) )
interface Weather {
text : string ,
temperature : number
}
12

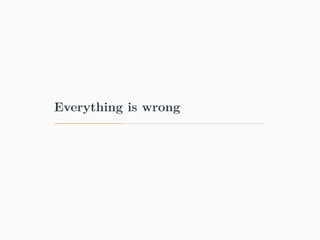

31. Everything is wrong

32. 13

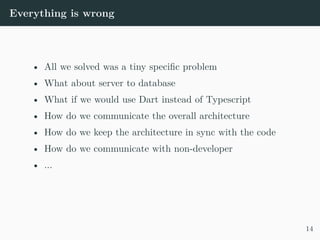

33. Everything is wrong
• All we solved was a tiny specific problem
• What about server to database
• What if we would use Dart instead of Typescript
• How do we communicate the overall architecture
• How do we keep the architecture in sync with the code
• How do we communicate with non-developer
• ...
14

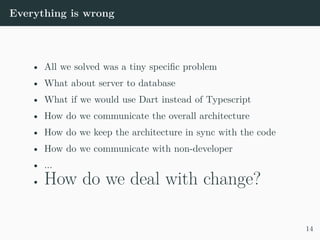

34. Everything is wrong
• All we solved was a tiny specific problem
• What about server to database
• What if we would use Dart instead of Typescript
• How do we communicate the overall architecture
• How do we keep the architecture in sync with the code
• How do we communicate with non-developer
• ...
• How do we deal with change?
14

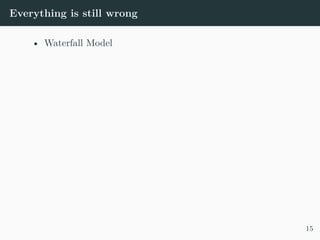

35. Everything is still wrong
• Waterfall Model
15

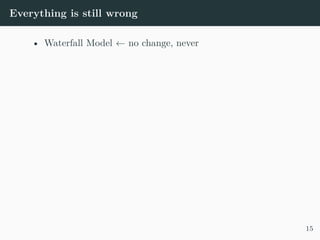

36. Everything is still wrong
• Waterfall Model ← no change, never
15

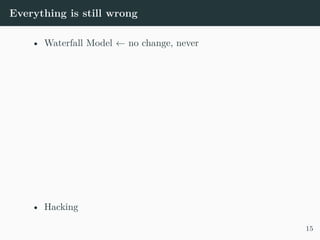

37. Everything is still wrong
• Waterfall Model ← no change, never
• Hacking
15

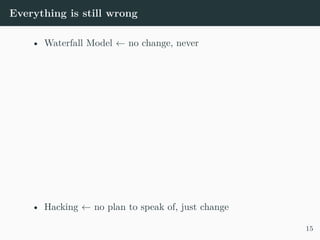

38. Everything is still wrong
• Waterfall Model ← no change, never
• Hacking ← no plan to speak of, just change
15

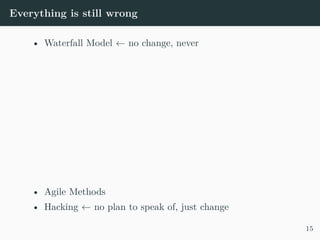

39. Everything is still wrong
• Waterfall Model ← no change, never
• Agile Methods
• Hacking ← no plan to speak of, just change
15

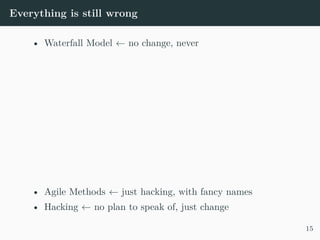

40. Everything is still wrong
• Waterfall Model ← no change, never
• Agile Methods ← just hacking, with fancy names
• Hacking ← no plan to speak of, just change
15

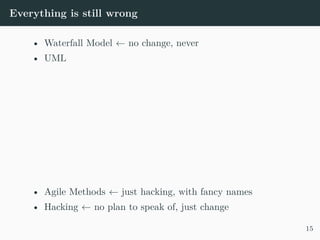

41. Everything is still wrong
• Waterfall Model ← no change, never
• UML
• Agile Methods ← just hacking, with fancy names
• Hacking ← no plan to speak of, just change
15

42. Everything is still wrong
• Waterfall Model ← no change, never
• UML ← just kill me already
• Agile Methods ← just hacking, with fancy names
• Hacking ← no plan to speak of, just change
15

43. Everything is still wrong
• Waterfall Model ← no change, never
• UML ← just kill me already
• Agile Methods ← just hacking, with fancy names
• Hacking ← no plan to speak of, just change
15

44. Everything is still wrong
• Waterfall Model ← no change, never
• UML ← just kill me already
• Agile Methods ← just hacking, with fancy names
• Hacking ← no plan to speak of, just change
15

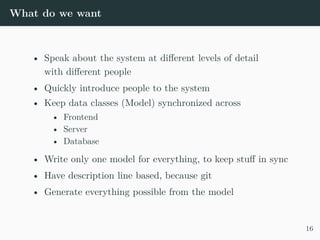

45. What do we want
• Speak about the system at different levels of detail
with different people
• Quickly introduce people to the system
• Keep data classes (Model) synchronized across
• Frontend
• Server
• Database
• Write only one model for everything, to keep stuff in sync
• Have description line based, because git
• Generate everything possible from the model
16

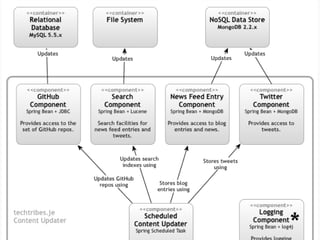

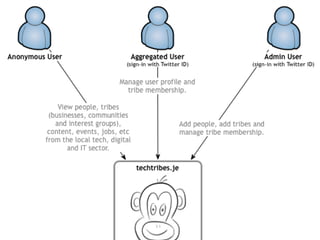

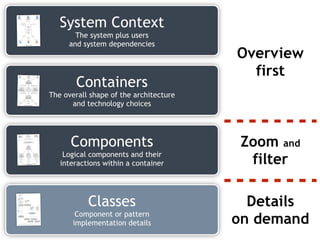

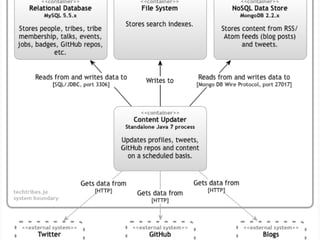

46. Introducing the C4 Architecture

51. Structurizr
• Implements C4 Architecture Model
• Java library to build the model
21

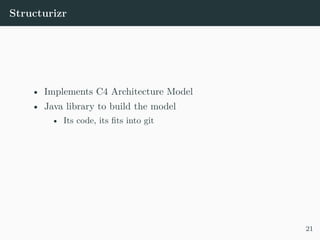

52. Structurizr
• Implements C4 Architecture Model
• Java library to build the model
• Its code, its fits into git
21

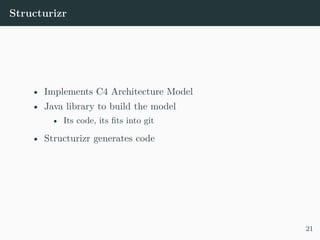

53. Structurizr
• Implements C4 Architecture Model
• Java library to build the model
• Its code, its fits into git
• Structurizr generates code
21

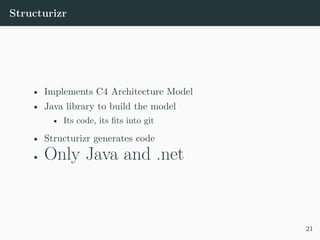

54. Structurizr
• Implements C4 Architecture Model
• Java library to build the model
• Its code, its fits into git
• Structurizr generates code
• Only Java and .net
21

56. How hard can it be

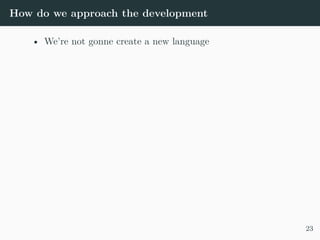

57. How do we approach the development
• We’re not gonne create a new language
23

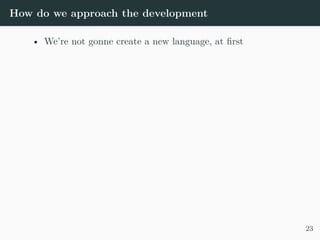

58. How do we approach the development
• We’re not gonne create a new language, at first
23

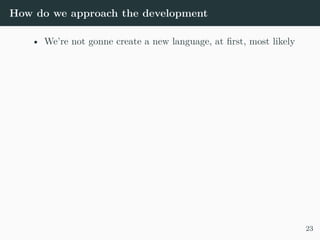

59. How do we approach the development
• We’re not gonne create a new language, at first, most likely
23

60. How do we approach the development
• We’re not gonne create a new language, at first, most likely
• The model (ast) is pretty simple
23

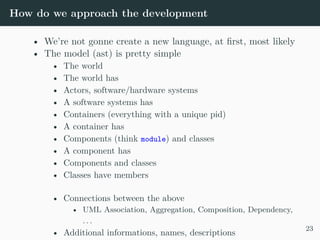

61. How do we approach the development
• We’re not gonne create a new language, at first, most likely
• The model (ast) is pretty simple
• The world
• The world has
• Actors, software/hardware systems
• A software systems has
• Containers (everything with a unique pid)
• A container has
• Components (think module) and classes
• A component has
• Components and classes
• Classes have members
• Connections between the above
• UML Association, Aggregation, Composition, Dependency,
. . .
• Additional informations, names, descriptions
23

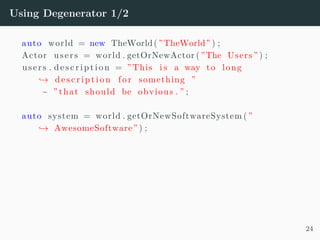

62. Using Degenerator 1/2
auto world = new TheWorld( ”TheWorld” ) ;
Actor users = world . getOrNewActor ( ”The Users ” ) ;
users . d e s c r i p t i o n = ” This i s a way to long
→ de s c r i p t i o n fo r something ”
~ ” that should be obvious . ” ;
auto system = world . getOrNewSoftwareSystem ( ”
→ AwesomeSoftware” ) ;
24

63. Using Degenerator 1/2
auto world = new TheWorld( ”TheWorld” ) ;
Actor users = world . getOrNewActor ( ”The Users ” ) ;
users . d e s c r i p t i o n = ” This i s a way to long
→ de s c r i p t i o n fo r something ”
~ ” that should be obvious . ” ;
auto system = world . getOrNewSoftwareSystem ( ”
→ AwesomeSoftware” ) ;
Container frontend = system . getOrNewContainer ( ”
→ Frontend” ) ;
frontend . technology = ”Angular” ;
auto frontendUserCtrl = frontend . getOrNewComponent(
→ ” frontUserCtrl ” ) ;
24

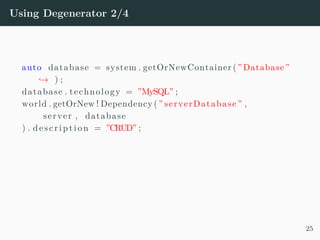

64. Using Degenerator 2/4
auto database = system . getOrNewContainer ( ”Database”
→ ) ;
database . technology = ”MySQL” ;
world . getOrNew ! Dependency ( ” serverDatabase ” ,
server , database
) . d e s c r i p t i o n = ”CRUD” ;
25

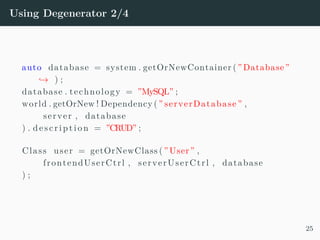

65. Using Degenerator 2/4
auto database = system . getOrNewContainer ( ”Database”
→ ) ;
database . technology = ”MySQL” ;
world . getOrNew ! Dependency ( ” serverDatabase ” ,
server , database
) . d e s c r i p t i o n = ”CRUD” ;
Class user = getOrNewClass ( ”User” ,
frontendUserCtrl , serverUserCtrl , database
) ;
25

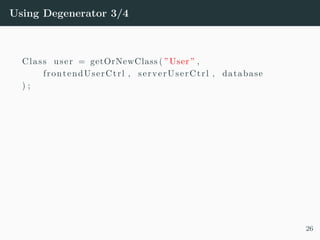

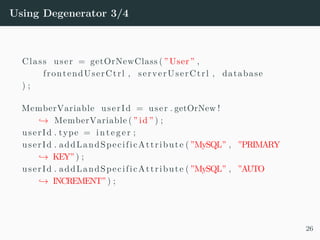

66. Using Degenerator 3/4
Class user = getOrNewClass ( ”User” ,
frontendUserCtrl , serverUserCtrl , database
) ;
26

67. Using Degenerator 3/4
Class user = getOrNewClass ( ”User” ,
frontendUserCtrl , serverUserCtrl , database
) ;
MemberVariable userId = user . getOrNew !
→ MemberVariable ( ” id ” ) ;
userId . type = in teger ;
userId . addLandSpecificAttribute ( ”MySQL” , ”PRIMARY
→ KEY” ) ;
userId . addLandSpecificAttribute ( ”MySQL” , ”AUTO
→ INCREMENT” ) ;
26

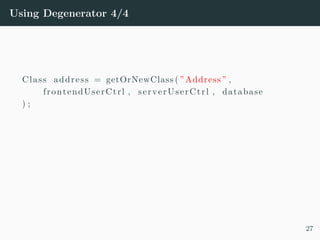

68. Using Degenerator 4/4
Class address = getOrNewClass ( ” Address ” ,
frontendUserCtrl , serverUserCtrl , database
) ;
27

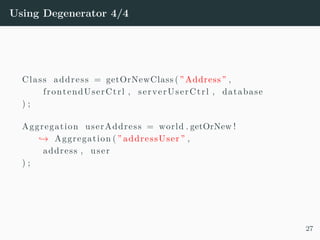

69. Using Degenerator 4/4
Class address = getOrNewClass ( ” Address ” ,
frontendUserCtrl , serverUserCtrl , database
) ;
Aggregation userAddress = world . getOrNew !
→ Aggregation ( ” addressUser ” ,
address , user
) ;
27

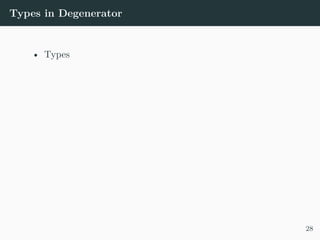

70. Types in Degenerator
• Types
28

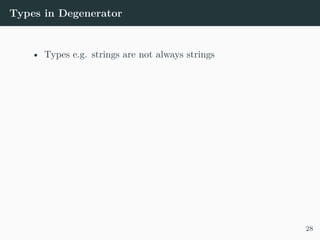

71. Types in Degenerator
• Types e.g. strings are not always strings
28

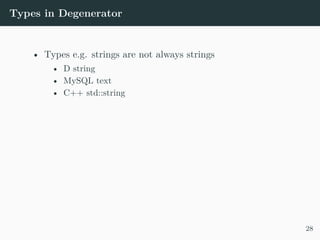

72. Types in Degenerator
• Types e.g. strings are not always strings
• D string
• MySQL text
• C++ std::string
28

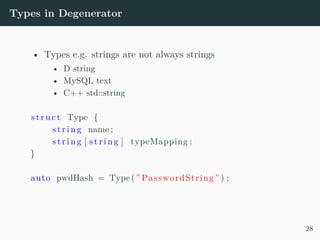

73. Types in Degenerator
• Types e.g. strings are not always strings
• D string
• MySQL text
• C++ std::string
struct Type {
s t r i n g name ;
s t r i n g [ s t r i n g ] typeMapping ;
}
auto pwdHash = Type( ” PasswordString ” ) ;
28

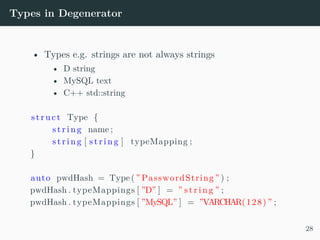

74. Types in Degenerator
• Types e.g. strings are not always strings
• D string
• MySQL text
• C++ std::string
struct Type {
s t r i n g name ;
s t r i n g [ s t r i n g ] typeMapping ;
}
auto pwdHash = Type( ” PasswordString ” ) ;
pwdHash . typeMappings [ ”D” ] = ” s t r i n g ” ;
pwdHash . typeMappings [ ”MySQL” ] = ”VARCHAR(128) ” ;
28

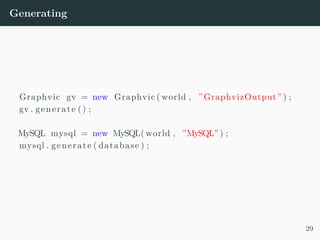

75. Generating
Graphvic gv = new Graphvic ( world , ”GraphvizOutput” ) ;
gv . generate () ;
MySQL mysql = new MySQL( world , ”MySQL” ) ;
mysql . generate ( database ) ;
29

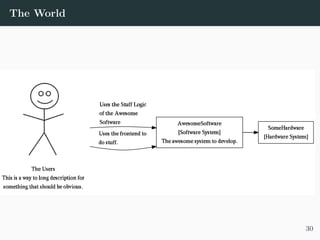

76. The World
30

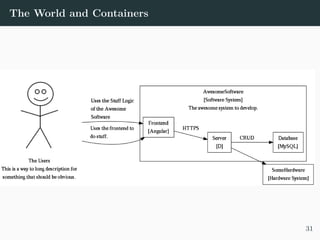

77. The World and Containers
31

78. Awesome Software System
32

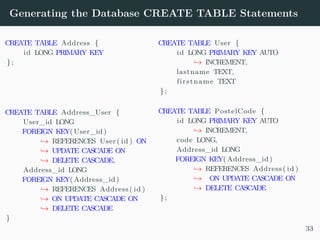

79. Generating the Database CREATE TABLE Statements
CREATE TABLE Address {
id LONG PRIMARY KEY
};
CREATE TABLE Address_User {
User_id LONG
FOREIGN KEY(User_id)
→ REFERENCES User ( id ) ON
→ UPDATE CASCADE ON
→ DELETE CASCADE,
Address_id LONG
FOREIGN KEY(Address_id)
→ REFERENCES Address ( id )
→ ON UPDATE CASCADE ON
→ DELETE CASCADE
}
CREATE TABLE User {
id LONG PRIMARY KEY AUTO
→ INCREMENT,
lastname TEXT,
firstname TEXT
};
CREATE TABLE PostelCode {
id LONG PRIMARY KEY AUTO
→ INCREMENT,
code LONG,
Address_id LONG
FOREIGN KEY(Address_id )
→ REFERENCES Address ( id )
→ ON UPDATE CASCADE ON
→ DELETE CASCADE
};
33

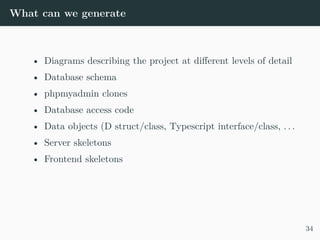

80. What can we generate
• Diagrams describing the project at different levels of detail
• Database schema
• phpmyadmin clones
• Database access code
• Data objects (D struct/class, Typescript interface/class, . . .
• Server skeletons
• Frontend skeletons
34

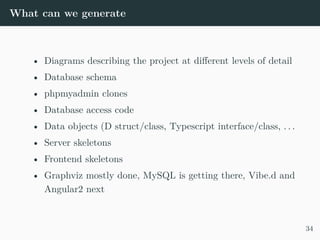

81. What can we generate
• Diagrams describing the project at different levels of detail
• Database schema
• phpmyadmin clones
• Database access code
• Data objects (D struct/class, Typescript interface/class, . . .
• Server skeletons
• Frontend skeletons
• Graphviz mostly done, MySQL is getting there, Vibe.d and
Angular2 next
34

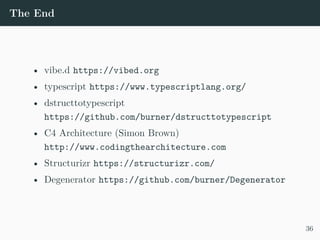

83. The End
• vibe.d https://vibed.org
• typescript https://www.typescriptlang.org/
• dstructtotypescript
https://github.com/burner/dstructtotypescript
• C4 Architecture (Simon Brown)
http://www.codingthearchitecture.com
• Structurizr https://structurizr.com/
• Degenerator https://github.com/burner/Degenerator
36
