Новое поколение серверов Сisco UCS. Гиперконвергентное решении Cisco HyperFlex AllFlash. Гибридное облако Azure Stack
Документ описывает новое поколение серверов Cisco UCS и их архитектурные преимущества, включая гиперконвергенцию и унификацию управления. Cisco UCS имеет значительное присутствие на рынке, включая более 60,000 клиентов и вести по производительности. Технологические достижения, такие как интеграция NVMe и масштабируемые решения, делают этот сервер ключевым элементом в современных дата-центрах.
More Related Content
Similar to Новое поколение серверов Сisco UCS. Гиперконвергентное решении Cisco HyperFlex AllFlash. Гибридное облако Azure Stack
Новое поколение серверов Сisco UCS. Гиперконвергентное решении Cisco HyperFlex AllFlash. Гибридное облако Azure Stack
- 1. © 2013 Ciscoand/or its affiliates. All rights reserved. 22 Новое поколение серверов Сisco UCS Гиперконвергенция Решения Cisco Сергей Дударь Менеджер по развитию направления в CIS Cisco Datacenter and Virtualization +38 096 0000 109 sdudar@cisco.com CISCO UKRAINE

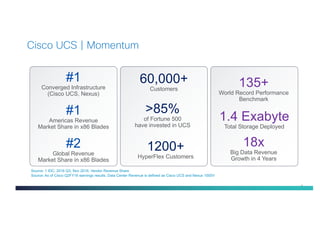

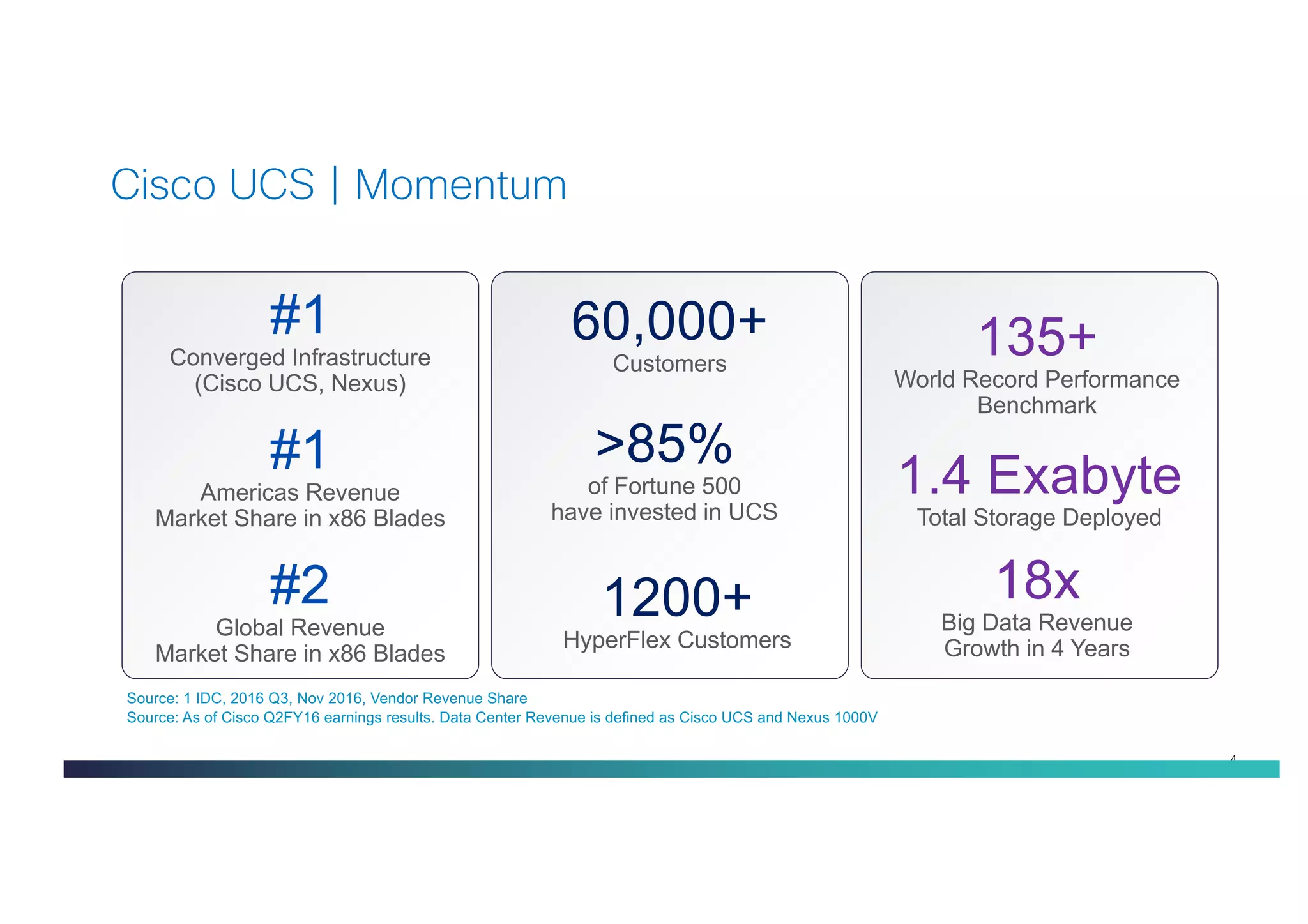

- 2. 4 Cisco UCS |Momentum Source: 1 IDC, 2016 Q3, Nov 2016, Vendor Revenue Share Source: As of Cisco Q2FY16 earnings results. Data Center Revenue is defined as Cisco UCS and Nexus 1000V 60,000+ Customers 1.4 Exabyte Total Storage Deployed >85% of Fortune 500 have invested in UCS 135+ World Record Performance Benchmark 1200+ HyperFlex Customers 18x Big Data Revenue Growth in 4 Years #1 Converged Infrastructure (Cisco UCS, Nexus) #2 Global Revenue Market Share in x86 Blades #1 Americas Revenue Market Share in x86 Blades

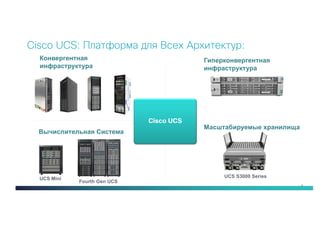

- 3. 9 Cisco UCS: Платформадля Всех Архитектур: Конвергентная инфраструктура Cisco UCS UCS Mini Вычислительная Система Fourth Gen UCS UCS S3000 Series Масштабируемые хранилища Гиперконвергентная инфраструктура

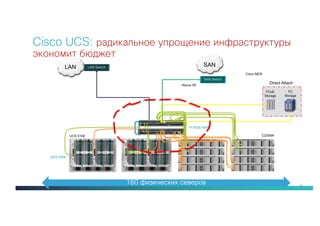

- 4. 10 Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10KSAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! Cisco UCS: радикальное упрощение инфраструктуры экономит бюджет LAN Switch SAN Switch LAN SAN Direct Attach FCoE Storage FC Storage UCS 5108 FI 6332-16UP UCS 2304 Nexus 5K Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! Console! 7 5 3 1 8 6 4 2 Intel Inside XEON UCS C240 M4 A03-D300GA2 10K SAS 300GB ! 15 13 11 9 16 14 12 10 A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! A03-D300GA2 10K SAS 300GB ! C220M4 Cisco MDS 160 физических северов

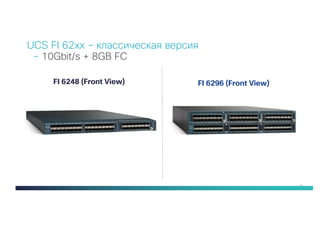

- 5. 12 FI 6248 (FrontView) FI 6296 (Front View) UCS FI 62хх – классическая версия - 10Gbit/s + 8GB FC

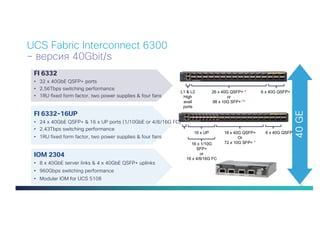

- 6. 13 FI 6332 • 32x 40GbE QSFP+ ports • 2.56Tbps switching performance • 1RU fixed form factor, two power supplies & four fans FI 6332-16UP • 24 x 40GbE QSFP+ & 16 x UP ports (1/10GbE or 4/8/16G FC) • 2.43Tbps switching performance • 1RU fixed form factor, two power supplies & four fans IOM 2304 • 8 x 40GbE server links & 4 x 40GbE QSFP+ uplinks • 960Gbps switching performance • Modular IOM for UCS 5108 UCS Fabric Interconnect 6300 – версия 40Gbit/s 26 x 40G QSFP+ * or 98 x 10G SFP+ ** 6 x 40G QSFP+L1 & L2 High avail ports 18 x 40G QSFP+ Or 72 x 10G SFP+ * 6 x 40G QSFP+16 x UP 16 x 1/10G SFP+ or 16 x 4/8/16G FC 40GE

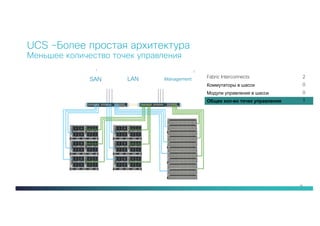

- 7. 14 UCS -Более простаяархитектура Меньшее количество точек управления LANSAN Management Fabric Interconnects 2 Коммутаторы в шасси 0 Модули управления в шасси 0 Общее кол-во точек управления 1

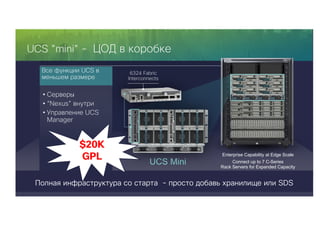

- 8. 15 UCS ”mini” -ЦОД в коробке UCS Mini Все функции UCS в меньшем размере • Серверы • “Nexus” внутри • Управление UCS Manager Enterprise Capability at Edge Scale Connect up to 7 C-Series Rack Servers for Expanded Capacity Полная инфраструктура со старта - просто добавь хранилище или SDS 6324 Fabric Interconnects $20K GPL

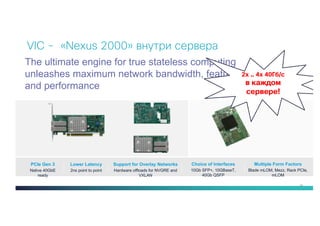

- 9. 16 VIC - «Nexus2000» внутри сервера The ultimate engine for true stateless computing unleashes maximum network bandwidth, features and performance Lower Latency 2ns point to point Multiple Form Factors Blade mLOM, Mezz, Rack PCIe, mLOM Support for Overlay Networks Hardware offloads for NVGRE and VXLAN PCIe Gen 3 Native 40GbE ready Choice of Interfaces 10Gb SFP+, 10GBaseT, 40Gb QSFP 2x .. 4x 40Гб/с в каждом сервере!
- 10. 18 Управление - UCSManager Единая панель управления для ВСЕХ серверов и сети датацентра • UCS Manager для одного домена(160 физический серверов блейд- или рек- + локальная сеть и сеть хранения) $0 160 серверов
- 11. 19 UCS Director -Cloud … за 2 часа Развертывание по правилам vFiler СХД Вирт. машиныСеть Вычислит. платформа Безопасные контейнеры для приложений Self-Service Infrastructure Единая точка управления Сквозная автоматизация и управление жизненным циклом СХД Сеть Вычисления Tenant B Tenant C Tenant A A B C Виртуализация Storage Manager B CA Virtualization Manager Network Manager Compute Manager Storage Manager UCS Director $35K GPL
- 12. 22 Новое поколение UCSM5 Доступно с июля 2017
- 13. 24 UCS Продуктовая линейкаM4 Cisco UCS: Множество форм-факторов – Единая Система RU-сервера 2S E5v4-26XX 2S E7v4-28XX 4S E7v4-48XX UCS 220 S/LFF M4 UCS 240 S/L M4 UCS C460 M4 UCS 6248UP UCS 6296UP UCS 5100 Chassis AC/DC UCS 6324UP 4S E5v4-46XX B200 M4 B420 M4 B260 M4 B460 M4 Blade-сервера UCS-FI-6332-16U UCS S3000 Series

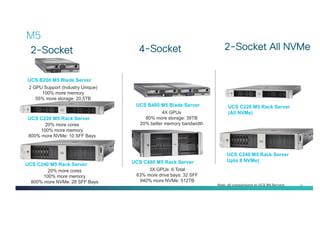

- 14. 26 UCS C220 M5Rack Server 20% more cores 100% more memory 800% more NVMe: 10 SFF Bays UCS C240 M5 Rack Server 20% more cores 100% more memory 800% more NVMe: 28 SFF Bays 3X GPUs: 6 Total 63% more drive bays: 32 SFF 940% more NVMe: 512TB UCS C480 M5 Rack Server 4X GPUs 80% more storage: 39TB 20% better memory bandwidth UCS B480 M5 Blade Server 2 GPU Support (Industry Unique) 100% more memory 55% more storage: 20.5TB UCS B200 M5 Blade Server Note: all comparisons to UCS M4 Servers M5 4-Socket2-Socket 2-Socket All NVMe UCS C220 M5 Rack Server (All NVMe) UCS C240 M5 Rack Server Upto 8 NVMe)

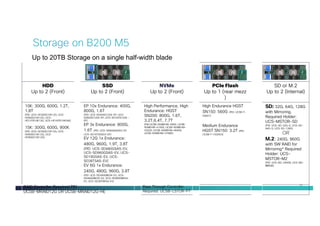

- 15. 27 Storage on B200M5 HDD Up to 2 (Front) SSD Up to 2 (Front) NVMe Up to 2 (Front) PCIe Flash Up to 1 (rear mezz ) SD or M.2 Up to 2 (Internal) 10K: 300G, 600G, 1.2T, 1.8T (PID: UCS-HD300G10K12G, UCS- HD600G10K12G, UCS- HD12TB10K12G, UCS-HD18TB10KS4K) 15K: 300G, 600G, 900K (PID: UCS-HD300G15K12G, UCS- HD600G15K12G, UCS- HD900G15K12G) EP 10x Endurance: 400G, 800G, 1.6T (PID: UCS-SD400G12S4-EP, UCS- SD800G12S4-EP, UCS-SD16TB12S4 – EP) EP 3x Endurance: 800G, 1.6T (PID: UCS-SD800GSAS3-EP, UCS-SD16TSASS3-EP) EV 12G 1x Endurance: 480G, 960G, 1.9T, 3.8T (PID: UCS-SD480GSAS-EV, UCS-SD960GSAS-EV, UCS- SD19GSAS-EV, UCS- SD38TSAS-EV) EV 6G 1x Endurance: 240G, 480G, 960G, 3.8T (PID: UCS-SD240GBKS4-EV, UCS- SD480GBKSS-EV, UCS-SD960GBKS4- EV, UCS-SD38TBKS4-EV) High Performance, High Endurance: HGST SN200: 800G, 1.6T, 3.2T,6.4T, 7.7T (PID:UCSB-NVMEHW-H800, UCSB- NVMEHW-H1600, UCSB-NVMEHW- H3200, UCSB-NVMEHW-H6400, UCSB-NVMEHW-H7680) High Endurance HGST SN150: 560G (PID: UCSB-F- H5607) Medium Endurance HGST SN150: 3.2T (PID: UCSB-F-H32003) SD: 32G, 64G, 128G with Mirroring. Required Holder: UCS-MSTOR-SD (PID: UCS-SD-32G-S, UCS-SD- 64G-S, UCS-SD-128G) OR M.2: 240G, 960G with SW RAID for Mirroring* Required Holder: UCS- MSTOR-M2 (PID: UCS-M2-240GB, UCS-M2- 960GB) RAID Controller Required PID UCSB-MRAID12G OR UCSB-MRAID12G-HE Pass Through Controller Required: UCSB-LSTOR-PT Up to 20TB Storage on a single half-width blade

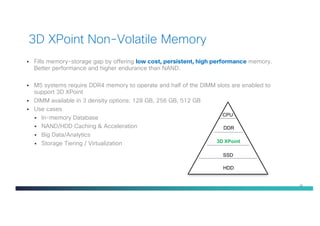

- 16. 28 3D XPoint Non-VolatileMemory § Fills memory-storage gap by offering low cost, persistent, high performance memory. Better performance and higher endurance than NAND. § M5 systems require DDR4 memory to operate and half of the DIMM slots are enabled to support 3D XPoint § DIMM available in 3 density options: 128 GB, 256 GB, 512 GB § Use cases § In-memory Database § NAND/HDD Caching & Acceleration § Big Data/Analytics § Storage Tiering / Virtualization CPU DDR 3D XPoint SSD HDD

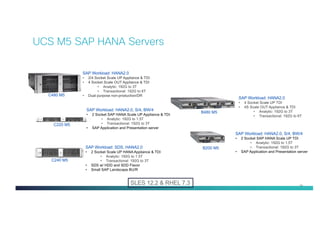

- 17. 29 UCS M5 SAPHANA Servers B480 M5 B200 M5 C480 M5 C240 M5 C220 M5 SAP Workload: HANA2.0, S/4, BW/4 • 2 Socket SAP HANA Scale UP TDI • Analytic: 192G to 1.5T • Transactional: 192G to 3T • SAP Application and Presentation server SAP Workload: HANA2.0 • 4 Socket Scale UP TDI • 4S Scale OUT Appliance & TDI • Analytic: 192G to 3T • Transactional: 192G to 6T SAP Workload: HANA2.0, S/4, BW/4 • 2 Socket SAP HANA Scale UP Appliance & TDI • Analytic: 192G to 1.5T • Transactional: 192G to 3T • SAP Application and Presentation server SAP Workload: SDS, HANA2.0 • 2 Socket Scale UP HANA Appliance & TDI • Analytic: 192G to 1.5T • Transactional: 192G to 3T • SDS w/ HDD and SDD Flavor • Small SAP Landscape BU/R SAP Workload: HANA2.0 • 2/4 Socket Scale UP Appliance & TDI • 4 Socket Scale OUT Appliance & TDI • Analytic: 192G to 3T • Transactional: 192G to 6T • Dual purpose non-production/DR SLES 12.2 & RHEL 7.3

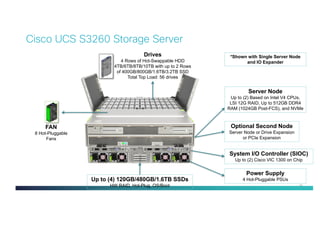

- 18. 31 Cisco UCS S3260Storage Server Drives 4 Rows of Hot-Swappable HDD 4TB/6TB/8TB/10TB with up to 2 Rows of 400GB/800GB/1.6TB/3.2TB SSD Total Top Load: 56 drives FAN 8 Hot-Pluggable Fans Server Node Up to (2) Based on Intel V4 CPUs, LSI 12G RAID, Up to 512GB DDR4 RAM (1024GB Post-FCS), and NVMe Optional Second Node Server Node or Drive Expansion or PCIe Expansion Up to (4) 120GB/480GB/1.6TB SSDs HW RAID, Hot-Plug, OS/Boot System I/O Controller (SIOC) Up to (2) Cisco VIC 1300 on Chip Power Supply 4 Hot-Pluggable PSUs *Shown with Single Server Node and IO Expander

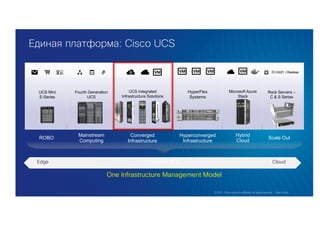

- 19. Mainstream Computing Scale Out Единая платформа:Cisco UCS Hyperconverged Infrastructure Converged Infrastructure ROBO Rack Servers – C & S Series Fourth Generation UCS HyperFlex Systems UCS Mini E-Series Microsoft Azure Stack UCS Integrated Infrastructure Solutions Hybrid Cloud Основной ЦОДEdge Cloud One Infrastructure Management Model
- 20. 37 Интегрированные решения сCisco UCS выбор и гибкость VxBlock VCE Cisco Solutions for VSPEX EMC2 HDS UCP Select Hitachi SmartStack Nimble Storage Cisco UCS for Red Hat OpenStack Red Hat OpenStack FlexPod NetApp IBM VersaStack Big Data and Analytics Cisco UCS Integrated InfrastructureCisco Enterprise Cloud SuiteCisco UCS Cisco Nexus PureStorage FlashStack 50,4% рынка интегрированных инфраструктур SF

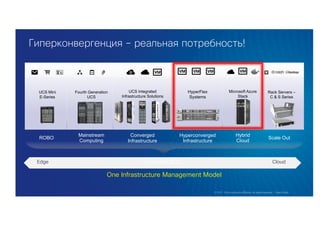

- 21. Mainstream Computing Scale Out Гиперконвергенция –реальная потребность! Hyperconverged Infrastructure Converged Infrastructure ROBO Rack Servers – C & S Series Fourth Generation UCS HyperFlex Systems UCS Mini E-Series Microsoft Azure Stack UCS Integrated Infrastructure Solutions Hybrid Cloud Основной ЦОДEdge Cloud One Infrastructure Management Model

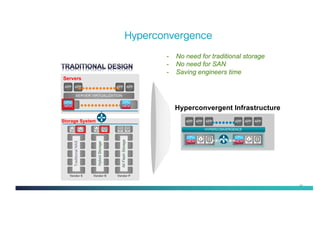

- 22. 40 Hyperconvergence CPU MEM CPU MEM APP APP APPAPP APP •••••••HYPERCONVERGENCE Servers 1-3y Large Footprint Inefficient Complex SERVER VIRTUALIZATION APP APP APP APPOn-Demand Agile Efficient Simple Vendor E Vendor N Vendor P •••••••••••• ••••••••••••••• + + + + – – – – TraditionalNAS CPU MEM HybridStorage AllFlashStorage CPU MEM CPU MEM CPU MEM APPStorage System - No need for traditional storage - No need for SAN - Saving engineers time Hyperconvergent Infrastructure
- 23. Cisco Integrated Systemfor Microsoft Azure Stack UCS платформа для гибридного “облака”

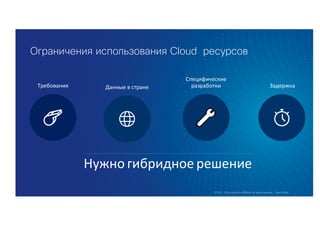

- 24. Ограничения использования Cloudресурсов

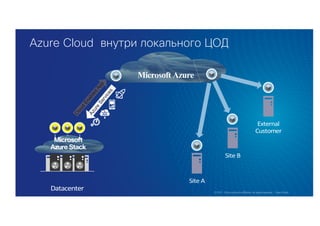

- 25. Azure Cloud внутрилокального ЦОД

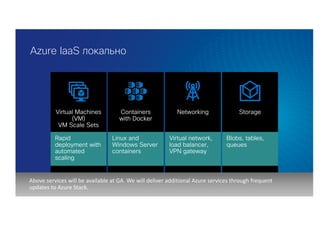

- 26. Azure IaaS локально VirtualMachines (VM) VM Scale Sets Containers with Docker Networking Storage Rapid deployment with automated scaling Linux and Windows Server containers Virtual network, load balancer, VPN gateway Blobs, tables, queues

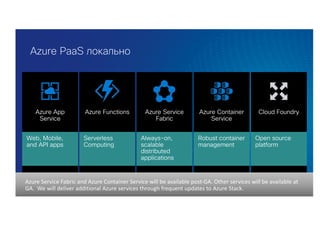

- 27. Azure PaaS локально AzureFunctions Cloud FoundryAzure Service Fabric Azure Container Service Azure App Service Web, Mobile, and API apps Serverless Computing Always-on, scalable distributed applications Robust container management Open source platform Azure Service Fabric and Azure Container Service will be available post-GA. Other services will be available at GA. We will deliver additional Azure services through frequent updates to Azure Stack.

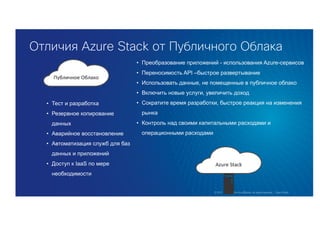

- 28. Отличия Azure Stackот Публичного Облака Публичное Облако Azure Stack • Тест и разработка • Резервное копирование данных • Аварийное восстановление • Автоматизация служб для баз данных и приложений • Доступ к IaaS по мере необходимости • Преобразование приложений - использования Azure-сервисов • Переносимость API –быстрое развертывание • Использовать данные, не помещенные в публичное облако • Включить новые услуги, увеличить доход • Сократите время разработки, быстрое реакция на изменения рынка • Контроль над своими капитальными расходами и операционными расходами

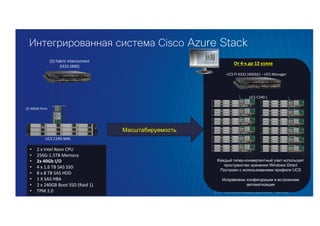

- 29. Интегрированная система CiscoAzure Stack UCS C240 M4L • 2 x Intel Xeon CPU • 256G-1.5TB Memory • 2x 40Gb I/O • 4 x 1.6 TB SAS SSD • 8 x 8 TB SAS HDD • 1 X SAS HBA • 2 x 240GB Boot SSD (Raid 1) • TPM 2.0 (2) Fabric Interconnect 6332 (40G) (2) 40GbE Ports Масштабируемость UCS FI 6332 (40GbE) – UCS Manager От 4-х до 12 узлов Каждый гипер-конвергентный узел использует пространство хранения Windows Direct Построен с использованием профиля UCS Исправлены конфигурации и встроенная автоматизация UCS C240 L
- 30. Интегрированная система CiscoAzure Stack FI 6332 (40G) 93180 vPC 0 vPC 1 UCS 6332 FI 32 x 40 Gbe Ports 1RU UCS C240 M4L 2-Socket 12LFF/SFF Drives 2x40Gbe Ports 2RU 4 to15 Nodes Per Cluster 1 to 2 clusters Nexus 9332PQ 32 x 40 Gbe Ports 1RU EoR Switch vPC 0 vPC 1 4 to15 Nodes Per Cluster 1 to 2 clusters vPC 0 vPC 1 UCS 6332 FI 32 x 40 Gbe Ports 1RU UCS C240 M4L 2-Socket 12LFF/SFF Drives 2x40Gbe Ports 2RU 4 to15 Nodes Per Cluster 1 to 2 clusters Nexus 9332PQ 32 x 40 Gbe Ports 1RU EoR Switch vPC 0 vPC 1 4 to15 Nodes Per Cluster 1 to 2 clusters FI 6332 (40G) 93180 Автоматизация Разворачивания Инсталляция On-site Поддержка Cisco Сервисов • Сервисный профиль Сервера • Полная настройка системы • Сокращает время установки до минут • Использование лучших практик Cisco • Полная инсталляция и настройка системы • Загрузка и настройка Azure Stack • Интеграция в вашу среду, включая Active Directory • Cisco или Microsoft единая точка поддержки FI 6332 (40G) C240L
- 31. 51 AzureStack @ UCSM5 UCS C240 M4 UCS C240 M5 Higher Scale systems delivery will be aligned with Microsoft Plans Сейчас: Скоро: Dec 2018 IaaS, PaaS use case, Subscription model Backup Integration: Veeam, Commvault Container w/ Docker, Many more Azure Apps GTM w/ Enterprise, SP, Channel Partners M4 Based Appliance Min 4 Nodes; Up to 12 Nodes 64TB Storage Config Five CPU options Memory: 256, 512, 768GB Orderability: Sep ’17; GA: Nov ’17 M5 Based Appliance Min 4 Nodes; Up to 12 Nodes 32, 64, 96 TB Storage Configs Five CPU options Memory: 256, 512, 768GB Orderability and GA: Q2 FY18 Nexus 93180 3rd Gen FI 6332 Nexus 93180 3rd Gen FI 6332

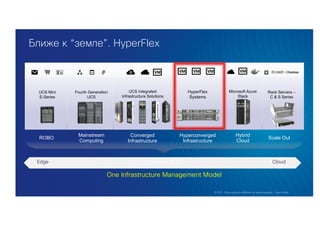

- 32. Mainstream Computing Scale Out Ближе к“земле”. HyperFlex Hyperconverged Infrastructure Converged Infrastructure ROBO Rack Servers – C & S Series Fourth Generation UCS HyperFlex Systems UCS Mini E-Series Microsoft Azure Stack UCS Integrated Infrastructure Solutions Hybrid Cloud Основной ЦОДEdge Cloud One Infrastructure Management Model

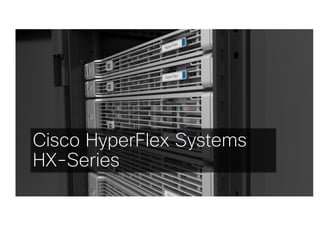

- 33.
- 34. 55 HyperFlex – iphoneстиль инфраструктура в ЦОД

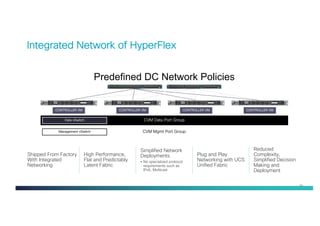

- 35. 56 Integrated Network ofHyperFlex Shipped From Factory With Integrated Networking High Performance, Flat and Predictably Latent Fabric Simplified Network Deployments • No specialized protocol requirements such as IPv6, Multicast Plug and Play Networking with UCS Unified Fabric Reduced Complexity, Simplified Decision Making and Deployment CVM Data Port GroupData vSwitch CVM Mgmt Port GroupManagement vSwitch Predefined DC Network Policies CONTROLLER VM CONTROLLER VM CONTROLLER VM CONTROLLER VM

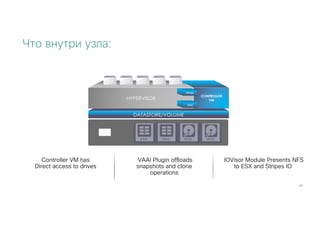

- 36. 57 Что внутри узла: VAAIPlugin offloads snapshots and clone operations Controller VM has Direct access to drives IOVisor Module Presents NFS to ESX and Stripes IO DATASTORE/VOLUME CONTROLLER VMHYPERVISOR VMVMVMVMVM HDD HDD SDD SDD IOVisor VAAI

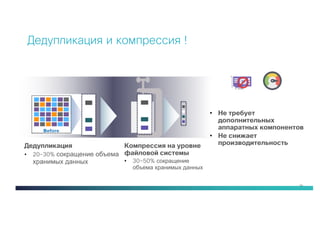

- 37. 58 Дедупликация и компрессия! Дедупликация • 20-30% сокращение объема хранимых данных Компрессия на уровне файловой системы • 30–50% сокращение объема хранимых данных • Не требует дополнительных аппаратных компонентов • Не снижает производительность

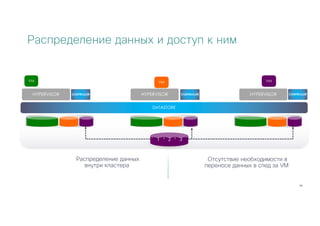

- 38. 59 Распределение данных внутри кластера Отсутствиенеобходимости в переносе данных в след за VM HYPERVISOR Распределение данных и доступ к ним HYPERVISOR HYPERVISOR VM VM 1 2 3 VM DATASTORE CONTROLLER CONTROLLER CONTROLLER
- 39. 61 HX AllFlash илиHybrid HXAF220 Высокая производительность при малой занимаемой площади (Database, VDI, VSI) HXAF240 Высокая ёмкость с производитель-ю (Database, VDI, VSI, Test/Dev) All Flash Кластер HX240c Высокая ёмкость (VDI, VSI, Test/Dev) HX220c Наименьшая занимаемая площадь (VDI, VSI, ROBO) Гибридный Кластер + + 40 Gbps** / 10 Gbps UCS Fabric Networking 90+ Nodes, Single Fabric, Single Management Domain Автоматиз. от начала до конца Управление Политиками сетевая инфра- ра **Post 2.0FCS

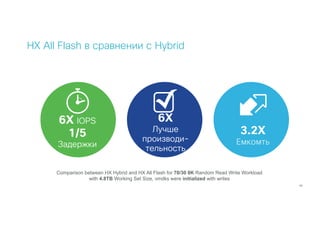

- 40. 62 HX All Flashв сравнении с Hybrid 6X IOPS 1/5 Задержки 6X Лучше производи- тельность 3.2X Емкомть Comparison between HX Hybrid and HX All Flash for 70/30 8K Random Read Write Workload with 4.8TB Working Set Size, vmdks were initialized with writes
- 41. 67 Независимое масштабирование вычислительными игибридными узлами Новый сервер HX Data Platform Новый узелНаращивание емкости внутри узлов HX Data Platform CONTROLLERHYPERVISORCONTROLLERHYPERVISOR CONTROLLERHYPERVISOR CONTROLLERHYPERVISOR IOVisorIOVisor IOVisorIOVisor IOVisorIOVisor IOVisorIOVisor VM VM VM VM Подключение бездисковых хостов через IOVisor VM VMVM VM VMVM VM VMVM VM VMVM

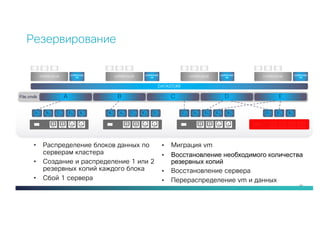

- 42. 68 DATASTORE DATASTORE Резервирование CONTROLLER VMHYPERVISOR VM VMVM CONTROLLER VMHYPERVISOR VM VM VM CONTROLLER VMHYPERVISOR VM VM VM CONTROLLER VMHYPERVISOR VM VM VM • Распределение блоков данных по серверам кластера • Создание и распределение 1 или 2 резервных копий каждого блока • Сбой 1 сервера • Миграция vm • Восстановление необходимого количества резервных копий • Восстановление сервера • Перераспределение vm и данных File.vmdk D1 E1A1 B1 C1B2 A2 A3C2 C3 D2D3 E2E3 D1E1 B3 B3 EDCBA

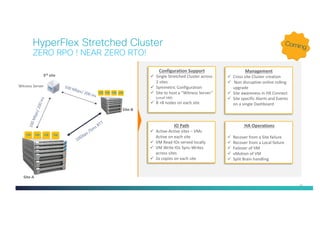

- 43. 72 HyperFlex Stretched Cluster ZERORPO ! NEAR ZERO RTO! Site-B VM VM VM VM VM VM VM VM Site-A 3rd site Configuration Support ü Single Stretched Cluster across 2 sites ü Symmetric Configuration ü Site to host a “Witness Server” (small VM) ü 8 +8 nodes on each site IO Path ü Active-Active sites – VMs Active on each site ü VM Read IOs served locally ü VM Write IOs Sync-Writes across sites ü 2x copies on each site HA Operations ü Recover from a Site failure ü Recover from a Local failure ü Failover of VM ü vMotion of VM ü Split Brain handling Management ü Cross site Cluster creation ü Non disruptive online rolling upgrade ü Site awareness in HX Connect ü Site specific Alarm and Events on a single Dashboard Witness Server

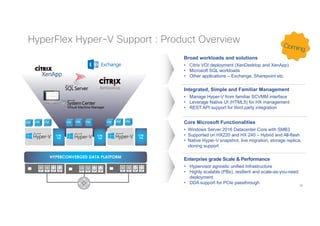

- 44. 73 HyperFlex Hyper-V Support: Product Overview HYPERCONVERGED DATA PLATFORM CTRL VM VM VM VM VM VM VM VMVMVM Enterprise grade Scale & Performance • Hypervisor agnostic unified Infrastructure • Highly scalable (PBs), resilient and scale-as-you-need deployment • DDA support for PCIe passthrough Core Microsoft Functionalities • Windows Server 2016 Datacenter Core with SMB3 • Supported on HX220 and HX 240 – Hybrid and All-flash • Native Hyper-V snapshot, live migration, storage replica, cloning support Integrated, Simple and Familiar Management • Manage Hyper-V from familiar SCVMM interface • Leverage Native UI (HTML5) for HX management • REST API support for third party integration Broad workloads and solutions • Citrix VDI deployment (XenDesktop and XenApp) • Microsoft SQL workloads • Other applications – Exchange, Sharepoint etc. CTRL VM CTRL VM
- 45. 74 Capacity Scalability Optionsin HXDP 3.0 • Support for up to 64 node clusters (32 Hx, 32 compute only) • New limits applicable for Hybrid & All Flash clusters • M4 & M5 node support with mixing of M4 & M5 nodes within a cluster 64 node clusters • Increased resiliency against failures without added manageability overhead / capacity silos • Hx nodes grouped in logical “availability groups” • HXDP never places 2 copies of the data in the same availability group to raise the failure resiliency • Clusters with LAZ can survive > 2 simultaneous failures without data loss Logical Availability Zones (LAZ) HX Data Platform IOVisor IOVisor IOVisor IOVisor Availability Grp 1 Availability Grp 2 Availability Grp 3 HX Data Platform IOVisor IOVisor IOVisor IOVisor .... .... ....
- 46. 75 HX Capacity Scaling •Lower overall $/GB, similar performance • Support for M4 & M5 • Supported in 220 and 240 models • No support for mixing drive capacities within a cluster 1.8TB HDD Option • For High capacity use cases, lower $/GB • M5 240 support only • 6 & 8TB 7.2Krpm LFF HDD support • No mixing drive capacities within a cluster LFF Support

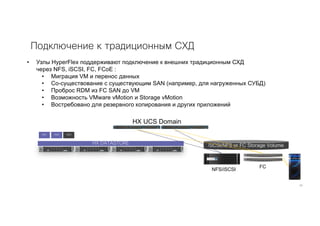

- 47. 77 • Узлы HyperFlexподдерживают подключение к внешних традиционным СХД через NFS, iSCSI, FC, FCoE : • Миграция VM и перенос данных • Со-существование с существующим SAN (например, для нагруженных СУБД) • Проброс RDM из FC SAN до VM • Возможность VMware vMotion и Storage vMotion • Востребовано для резервного копирования и других приложений Подключение к традиционным СХД HX UCS Domain iSCSI/NFS or FC Storage VolumeHX DATASTORE FC VM1 VM2 VM3 NFS/iSCSI

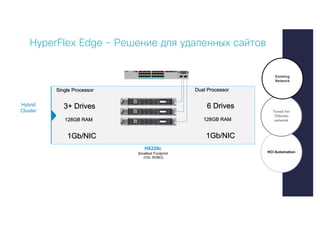

- 48. 78 HyperFlex Edge -Решение для удаленных сайтов HCI Automation Tuned for 1Gb/sec network Existing Network HX220c Smallest Footprint (VSI, ROBO) Hybrid Cluster Single Processor 3+ Drives 128GB RAM 1Gb/NIC Dual Processor 6 Drives 128GB RAM 1Gb/NIC

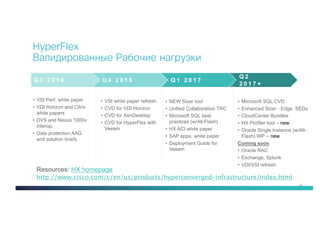

- 49. 82 HyperFlex Валидированные Рабочие нагрузки •VSI Perf. white paper • VDI Horizon and Citrix white papers • DVS and Nexus 1000v interop. • Data protection AAG and solution briefs • VSI white paper refresh • CVD for VDI Horizon • CVD for XenDesktop • CVD for HyperFlex with Veeam • NEW Sizer tool • Unified Collaboration TRC • Microsoft SQL best practices (w/All-Flash) • HX ACI white paper • SAP apps. white paper • Deployment Guide for Veeam • Microsoft SQL CVD • Enhanced Sizer - Edge, SEDs • CloudCenter Bundles • HX Profiler tool – new • Oracle Single Instance (w/All- Flash) WP -- new Coming soon • Oracle RAC • Exchange, Splunk • VDI/VSI refresh Q 3 2 0 1 6 Q 4 2 0 1 6 Q 1 2 0 1 7 Q 2 2 0 1 7 + Resources: HX homepage http://www.cisco.com/c/en/us/products/hyperconverged-infrastructure/index.html

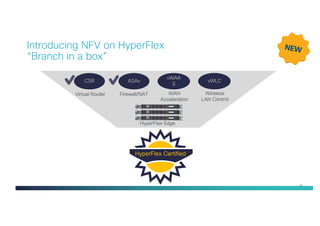

- 50. 83 Introducing NFV onHyperFlex “Branch in a box” CSR ASAv vWAA S Virtual Router Firewall/NAT WAN Acceleration HyperFlex Edge HyperFlex Certified vWLC Wireless LAN Control

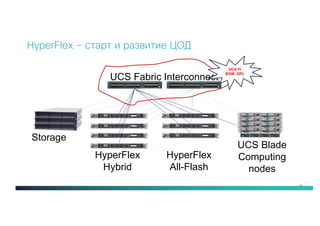

- 51. 84 HyperFlex – старти развитие ЦОД UCS Fabric Interconnect HyperFlex Hybrid Storage UCS Blade Computing nodes HyperFlex All-Flash UCS FI $30K GPL
- 52.
