Riverbed SteelHead integrated with Cisco IWAN

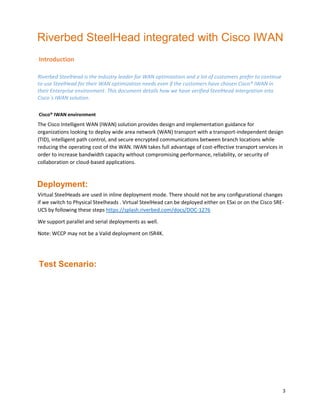

Introduction
Riverbed SteelHead is the industry leader for WAN optimization and a lot of customers prefer to continue
to use SteelHead for their WAN optimization needs even if the customers have chosen Cisco® IWAN in
their Enterprise environment. This document details how we have verified SteelHead intergration into
Cisco`s IWAN solution.
Cisco® IWAN environment
The Cisco Intelligent WAN (IWAN) solution provides design and implementation guidance for
organizations looking to deploy wide area network (WAN) transport with a transport-independent design
(TID), intelligent path control, and secure encrypted communications between branch locations while
reducing the operating cost of the WAN. IWAN takes full advantage of cost-effective transport services in
order to increase bandwidth capacity without compromising performance, reliability, or security of
collaboration or cloud-based applications.
Deployment:
Virtual SteelHeads are used in inline deployment mode. There should not be any configurational changes
if we switch to Physical Steelheads . Virtual SteelHead can be deployed either on ESxi or on the Cisco SRE-
UCS by following these steps https://splash.riverbed.com/docs/DOC-1276
We support parallel and serial deployments as well.
Note: WCCP may not be a Valid deployment on ISR4K.
Test Scenario:

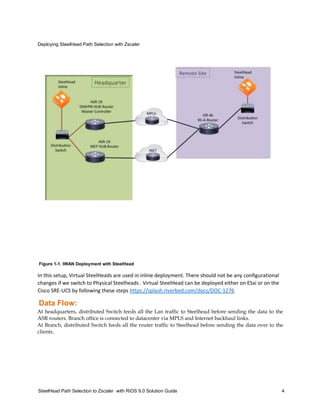

Figure 1-1. IWAN Deployment with SteelHead
In this setup, Virtual SteelHeads are used in inline deployment. There should not be any configurational
changes if we switch to Physical Steelheads . Virtual SteelHead can be deployed either on ESxi or on the
Cisco SRE-UCS by following these steps https://splash.riverbed.com/docs/DOC-1276
Data Flow:
At headquarters, distributed Switch feeds all the Lan traffic to Steelhead before sending the data to the
ASR routers. Branch office is connected to datacenter via MPLS and Internet backhaul links.
At Branch, distributed Switch feeds all the router traffic to Steelhead before sending the data over to the
clients.

5
Protocols Configured in iWAN

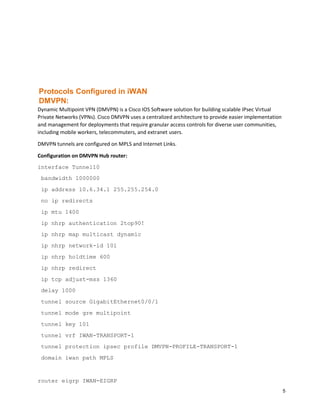

DMVPN:
Dynamic Multipoint VPN (DMVPN) is a Cisco IOS Software solution for building scalable IPsec Virtual
Private Networks (VPNs). Cisco DMVPN uses a centralized architecture to provide easier implementation
and management for deployments that require granular access controls for diverse user communities,
including mobile workers, telecommuters, and extranet users.
DMVPN tunnels are configured on MPLS and Internet Links.
Configuration on DMVPN Hub router:
interface Tunnel10
bandwidth 1000000
ip address 10.6.34.1 255.255.254.0
no ip redirects
ip mtu 1400
ip nhrp authentication 2top90!
ip nhrp map multicast dynamic
ip nhrp network-id 101
ip nhrp holdtime 600
ip nhrp redirect
ip tcp adjust-mss 1360
delay 1000
tunnel source GigabitEthernet0/0/1
tunnel mode gre multipoint
tunnel key 101
tunnel vrf IWAN-TRANSPORT-1
tunnel protection ipsec profile DMVPN-PROFILE-TRANSPORT-1
domain iwan path MPLS

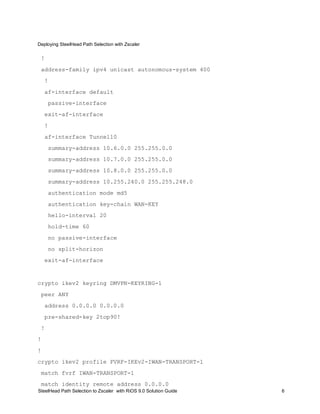

router eigrp IWAN-EIGRP

!
address-family ipv4 unicast autonomous-system 400
!
af-interface default
passive-interface
exit-af-interface
!
af-interface Tunnel10
summary-address 10.6.0.0 255.255.0.0
summary-address 10.7.0.0 255.255.0.0
summary-address 10.8.0.0 255.255.0.0
summary-address 10.255.240.0 255.255.248.0
authentication mode md5
authentication key-chain WAN-KEY
hello-interval 20
hold-time 60
no passive-interface
no split-horizon
exit-af-interface
crypto ikev2 keyring DMVPN-KEYRING-1
peer ANY
address 0.0.0.0 0.0.0.0
pre-shared-key 2top90!
!
!
!
crypto ikev2 profile FVRF-IKEv2-IWAN-TRANSPORT-1
match fvrf IWAN-TRANSPORT-1
match identity remote address 0.0.0.0

7
authentication local pre-share
authentication remote pre-share
keyring local DMVPN-KEYRING-1

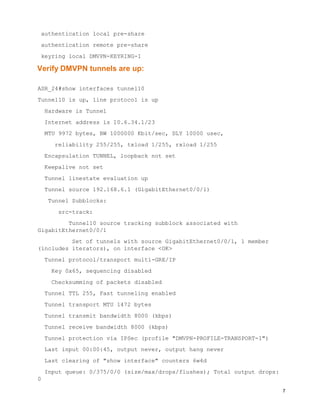

Verify DMVPN tunnels are up:
ASR_24#show interfaces tunnel10
Tunnel10 is up, line protocol is up
Hardware is Tunnel
Internet address is 10.6.34.1/23
MTU 9972 bytes, BW 1000000 Kbit/sec, DLY 10000 usec,
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation TUNNEL, loopback not set
Keepalive not set
Tunnel linestate evaluation up
Tunnel source 192.168.6.1 (GigabitEthernet0/0/1)
Tunnel Subblocks:
src-track:
Tunnel10 source tracking subblock associated with
GigabitEthernet0/0/1
Set of tunnels with source GigabitEthernet0/0/1, 1 member
(includes iterators), on interface <OK>
Tunnel protocol/transport multi-GRE/IP
Key 0x65, sequencing disabled
Checksumming of packets disabled
Tunnel TTL 255, Fast tunneling enabled
Tunnel transport MTU 1472 bytes
Tunnel transmit bandwidth 8000 (kbps)
Tunnel receive bandwidth 8000 (kbps)
Tunnel protection via IPSec (profile "DMVPN-PROFILE-TRANSPORT-1")
Last input 00:00:45, output never, output hang never
Last clearing of "show interface" counters 6w4d
Input queue: 0/375/0/0 (size/max/drops/flushes); Total output drops:
0

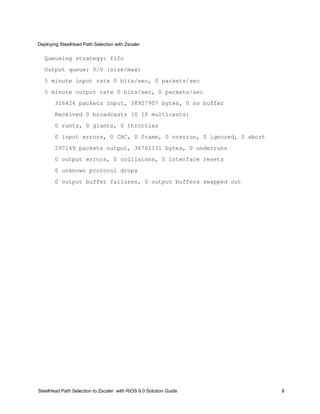

Queueing strategy: fifo
Output queue: 0/0 (size/max)
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
316424 packets input, 38927907 bytes, 0 no buffer
Received 0 broadcasts (0 IP multicasts)
0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
297149 packets output, 36761131 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 unknown protocol drops
0 output buffer failures, 0 output buffers swapped out

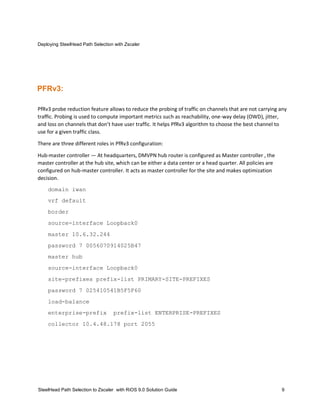

PFRv3:
PfRv3 probe reduction feature allows to reduce the probing of traffic on channels that are not carrying any
traffic. Probing is used to compute important metrics such as reachability, one-way delay (OWD), jitter,
and loss on channels that don’t have user traffic. It helps PfRv3 algorithm to choose the best channel to
use for a given traffic class.
There are three different roles in PfRv3 configuration:
Hub-master controller — At headquarters, DMVPN hub router is configured as Master controller , the
master controller at the hub site, which can be either a data center or a head quarter. All policies are
configured on hub-master controller. It acts as master controller for the site and makes optimization
decision.
domain iwan
vrf default
border
source-interface Loopback0
master 10.6.32.244
password 7 0056070914025B47
master hub
site-prefixes prefix-list PRIMARY-SITE-PREFIXES
password 7 025410541B5F5F60
load-balance
enterprise-prefix prefix-list ENTERPRISE-PREFIXES
collector 10.4.48.178 port 2055

class VOICE sequence 10
match dscp ef policy voice
path-preference MPLS fallback INET
class INTERACTIVE-VIDEO sequence 20
match dscp cs4 policy real-time-video
match dscp af41 policy real-time-video
match dscp af42 policy real-time-video
class CRITICAL-DATA sequence 30
match dscp af21 policy low-latency-data

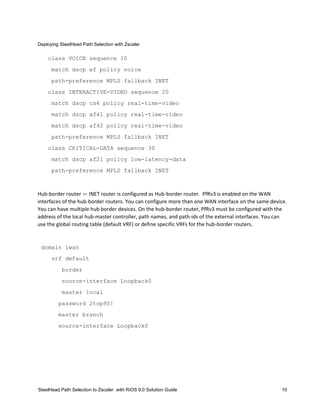

Hub-border router — INET router is configured as Hub-border router. PfRv3 is enabled on the WAN
interfaces of the hub-border routers. You can configure more than one WAN interface on the same device.
You can have multiple hub border devices. On the hub-border router, PfRv3 must be configured with the
address of the local hub-master controller, path names, and path-ids of the external interfaces. You can
use the global routing table (default VRF) or define specific VRFs for the hub-border routers.
domain iwan
vrf default
border
master local
password 2top90!
master branch

hub 10.6.32.244
Branch-master controller — Remote-site Router , the branch-master controller is the master controller at
the branch site. There is no policy configuration on this device. It receives policy from the hub-master
controller. This device acts as master controller for the branch site and makes optimization decision.
domain iwan
vrf default
master branch
password 7 075D35435E504944
hub 10.6.32.244
Configure SteelHead Basic Interfaces
1. WAN Visibility is set to Correct addressing which is SteelHead's defaults setting.
 Connection is optimized over MPLS link which has DMVPN configured with PFRv3

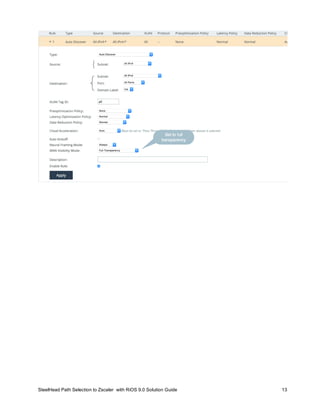

2. WAN Visibility is set to Full transparent addressing using inpath rules.
 Connection is optimized over MPLS link which has DMVPN configured with PFRv3
Note: With PFRv3 we were able to send traffic while the link is
