This document provides guidance for creating panoramic photographs that simulate the human field of view. It recommends using a normal focal length lens and capturing 2-3 frames in landscape orientation or 3-4 frames in portrait orientation to stitch 90-110 degrees of view. When photographing, it is important to ensure overlapping coverage between frames by focusing the lens where the sensor touches and keeping horizons level. Both in-camera stitching and post-processing on a computer are options, with various tradeoffs to consider like control versus convenience.

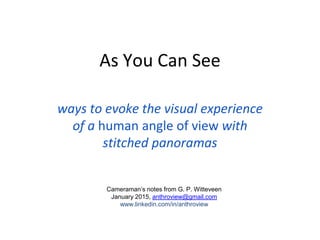

1. As You Can See
ways to evoke the visual experience
of a human angle of view with
stitched panoramas
Cameraman’s notes from G. P. Witteveen
January 2015, anthroview@gmail.com
www.linkedin.com/in/anthroview

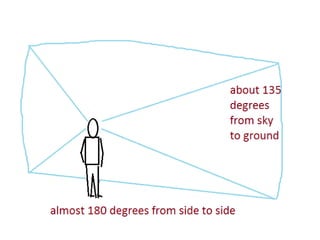

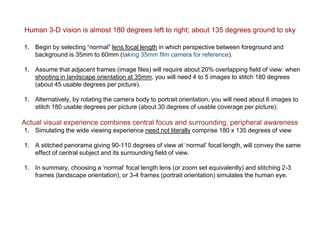

3. Human 3-D vision is almost 180 degrees left to right; about 135 degrees ground to sky
1. Begin by selecting “normal” lens focal length in which perspective between foreground and
background is 35mm to 60mm (taking 35mm film camera for reference).

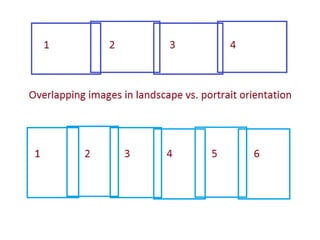

1. Assume that adjacent frames (image files) will require about 20% overlapping field of view: when
shooting in landscape orientation at 35mm, you will need 4 to 5 images to stitch 180 degrees
(about 45 usable degrees per picture).
1. Alternatively, by rotating the camera body to portrait orientation, you will need about 6 images to
stitch 180 usable degrees per picture (about 30 degrees of usable coverage per picture).
Actual visual experience combines central focus and surrounding, peripheral awareness
1. Simulating the wide viewing experience need not literally comprise 180 x 135 degrees of view
1. A stitched panorama giving 90-110 degrees of view at ‘normal’ focal length, will convey the same
effect of central subject and its surrounding field of view.
1. In summary, choosing a ‘normal’ focal length lens (or zoom set equivalently) and stitching 2-3
frames (landscape orientation), or 3-4 frames (portrait orientation) simulates the human eye.

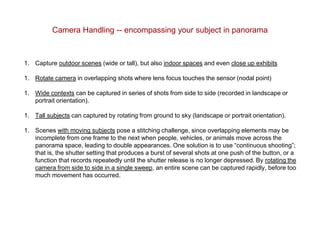

5. Camera Handling -- encompassing your subject in panorama
1. Capture outdoor scenes (wide or tall), but also indoor spaces and even close up exhibits
1. Rotate camera in overlapping shots where lens focus touches the sensor (nodal point)
1. Wide contexts can be captured in series of shots from side to side (recorded in landscape or
portrait orientation).
1. Tall subjects can captured by rotating from ground to sky (landscape or portrait orientation).
1. Scenes with moving subjects pose a stitching challenge, since overlapping elements may be
incomplete from one frame to the next when people, vehicles, or animals move across the

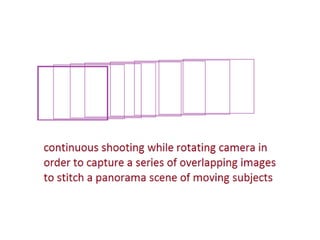

panorama space, leading to double appearances. One solution is to use “continuous shooting”;
that is, the shutter setting that produces a burst of several shots at one push of the button, or a
function that records repeatedly until the shutter release is no longer depressed. By rotating the
camera from side to side in a single sweep, an entire scene can be captured rapidly, before too
much movement has occurred.

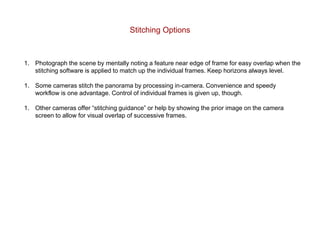

7. Stitching Options
1. Photograph the scene by mentally noting a feature near edge of frame for easy overlap when the
stitching software is applied to match up the individual frames. Keep horizons always level.
1. Some cameras stitch the panorama by processing in-camera. Convenience and speedy
workflow is one advantage. Control of individual frames is given up, though.
1. Other cameras offer “stitching guidance” or help by showing the prior image on the camera
screen to allow for visual overlap of successive frames.

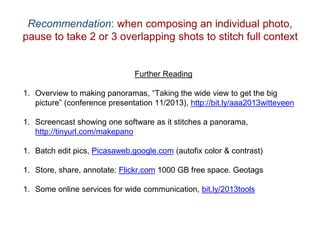

8. Recommendation: when composing an individual photo,
pause to take 2 or 3 overlapping shots to stitch full context
Further Reading
1. Overview to making panoramas, “Taking the wide view to get the big
picture” (conference presentation 11/2013), http://bit.ly/aaa2013witteveen
1. Screencast showing one software as it stitches a panorama,
http://tinyurl.com/makepano
1. Batch edit pics, Picasaweb.google.com (autofix color & contrast)
1. Store, share, annotate: Flickr.com 1000 GB free space. Geotags
1. Some online services for wide communication, bit.ly/2013tools
